MSC ELISABETTA
9954747 | 5LKD5 | ZODIAC MARITIME LTD by ************** Last update: Tue Sep 16 2025

General Info

Ship Name:MSC ELISABETTA
IMO Code:9954747
Call Sign:5LKD5
Line Operator:ZODIAC MARITIME LTD
Class Name for Sister Ships:ELISABETTA
Year Built:2025
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):349.90
LOA (Length Overall):366.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:087
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:70
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,910

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

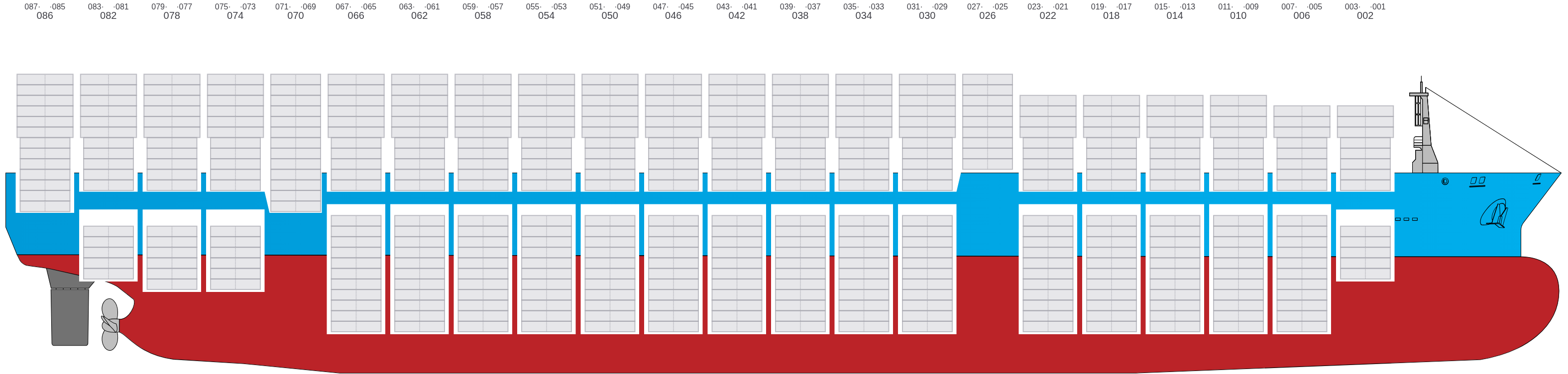

Side View

Side view of MSC ELISABETTA

Hatch-Covers View

Deck view of MSC ELISABETTA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • ✓

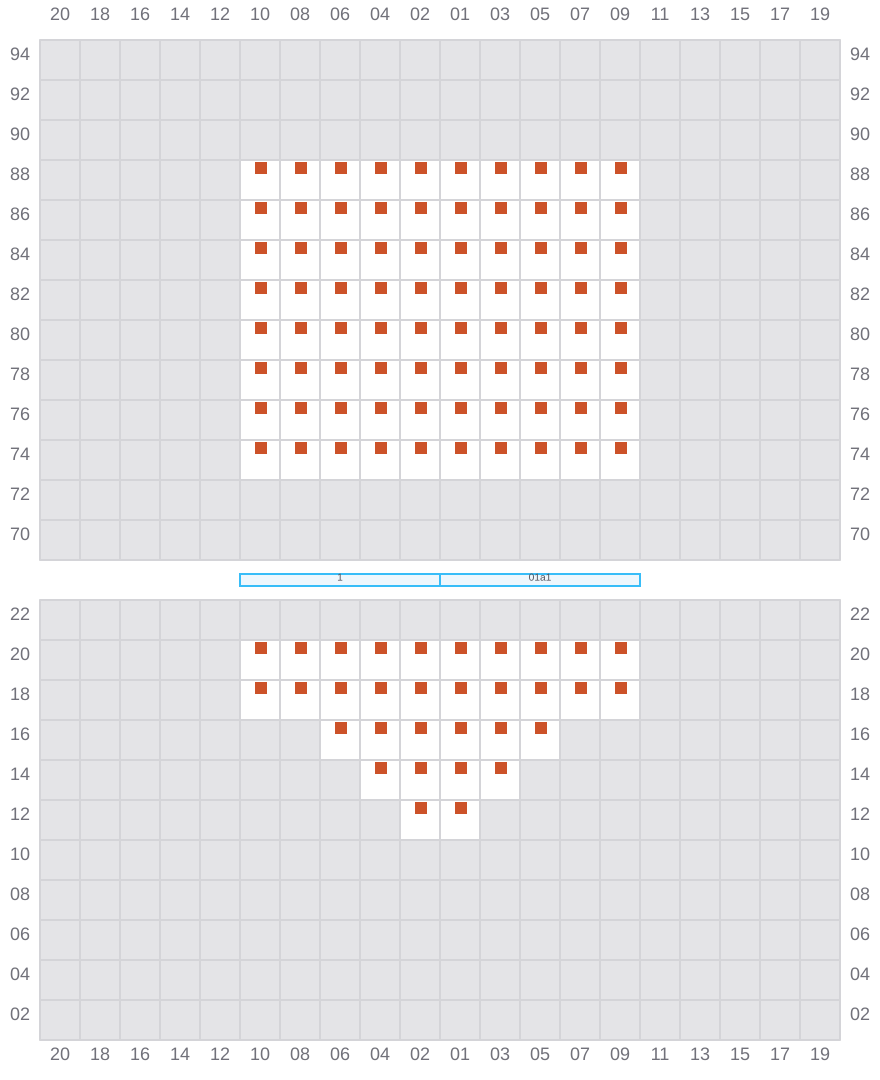

Bay 001 view and slots of MSC ELISABETTA

003 (002)

  • ←
  • ← / ?
  • ✓

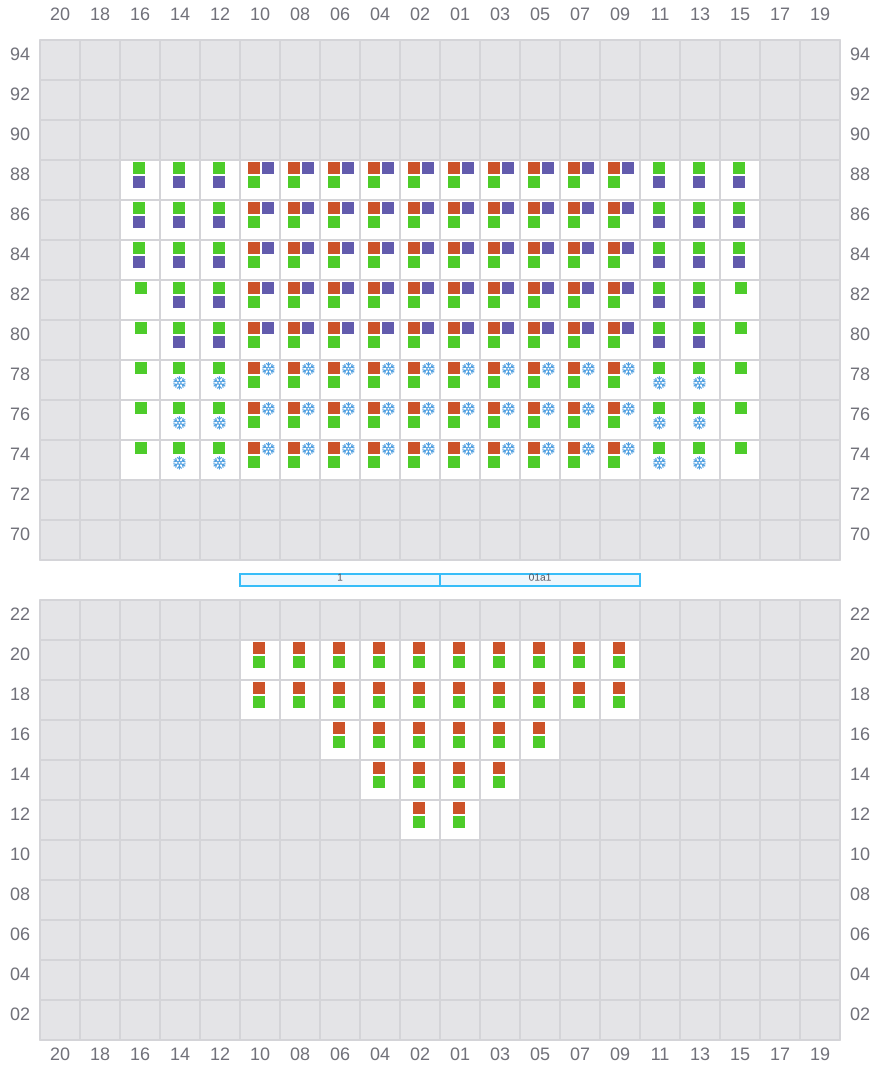

Bay 003 view and slots of MSC ELISABETTA

005

  • →
  • ✓

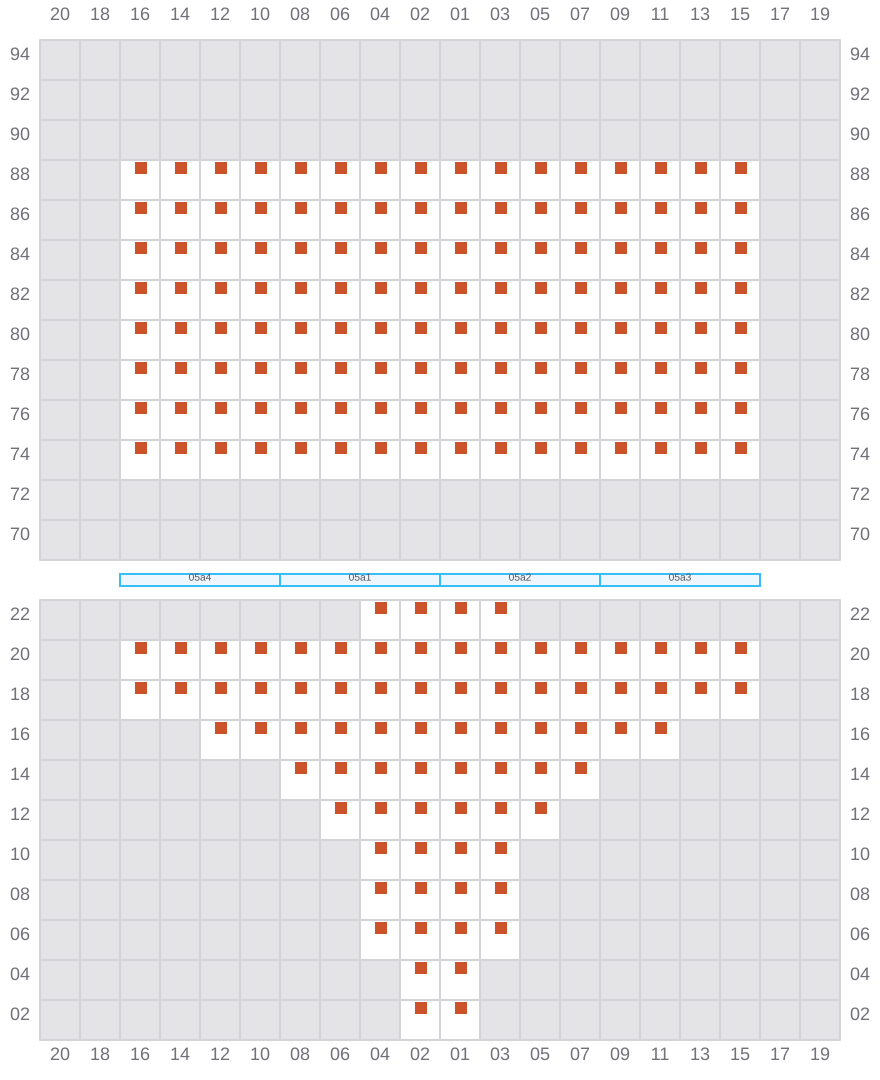

Bay 005 view and slots of MSC ELISABETTA

007 (006)

  • ←
  • → / ?
  • ✓

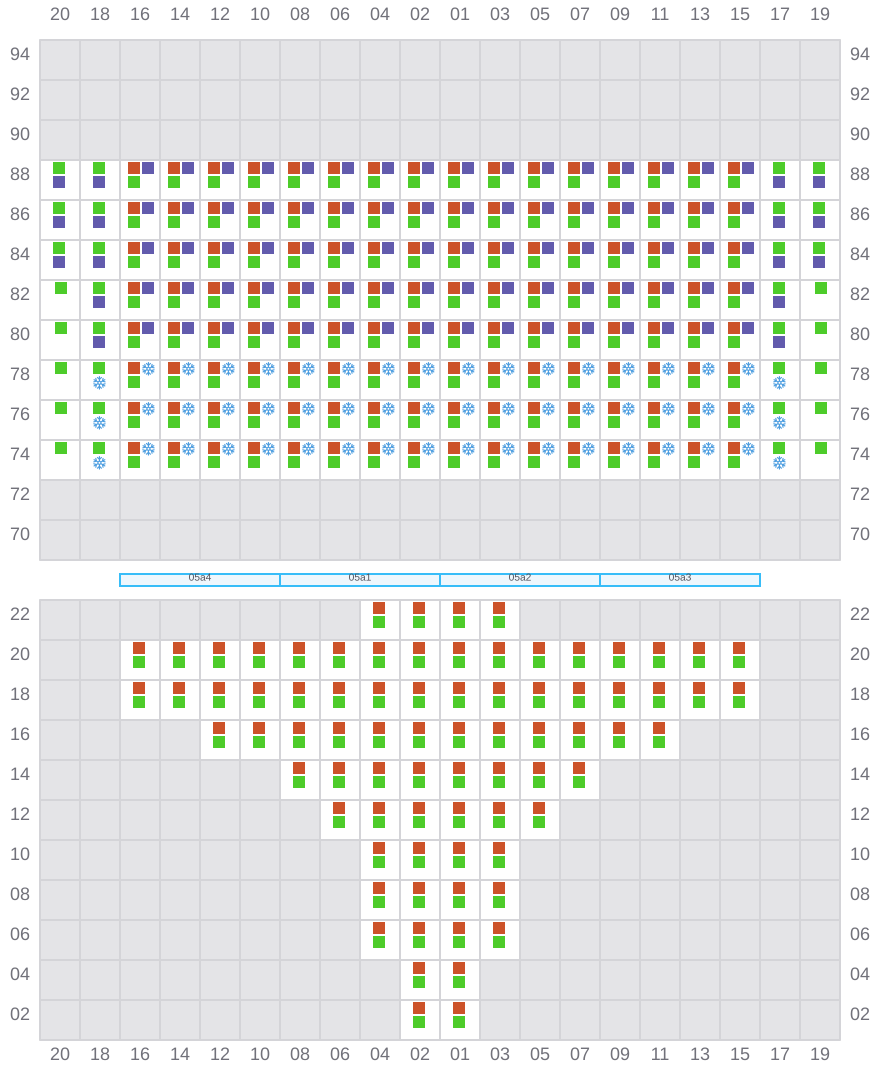

Bay 007 view and slots of MSC ELISABETTA

009

  • →
  • ✓

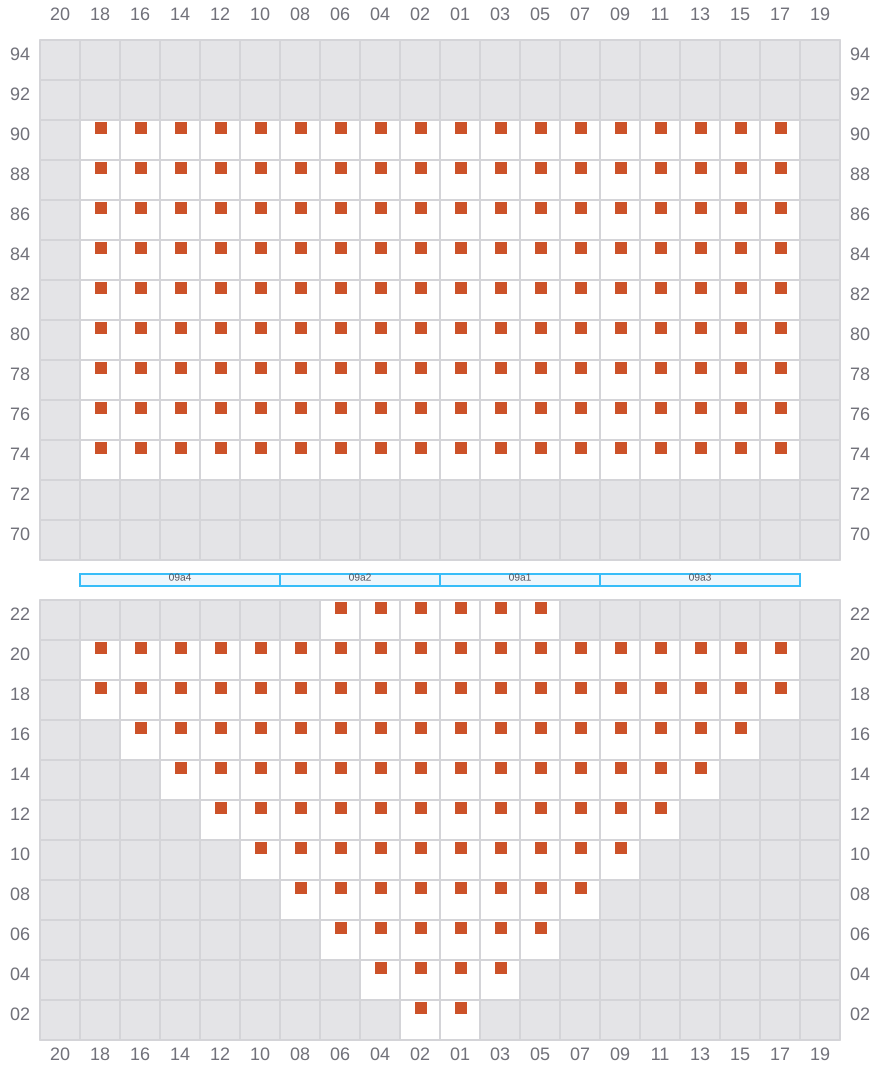

Bay 009 view and slots of MSC ELISABETTA

011 (010)

  • ←
  • → / ?
  • ✓

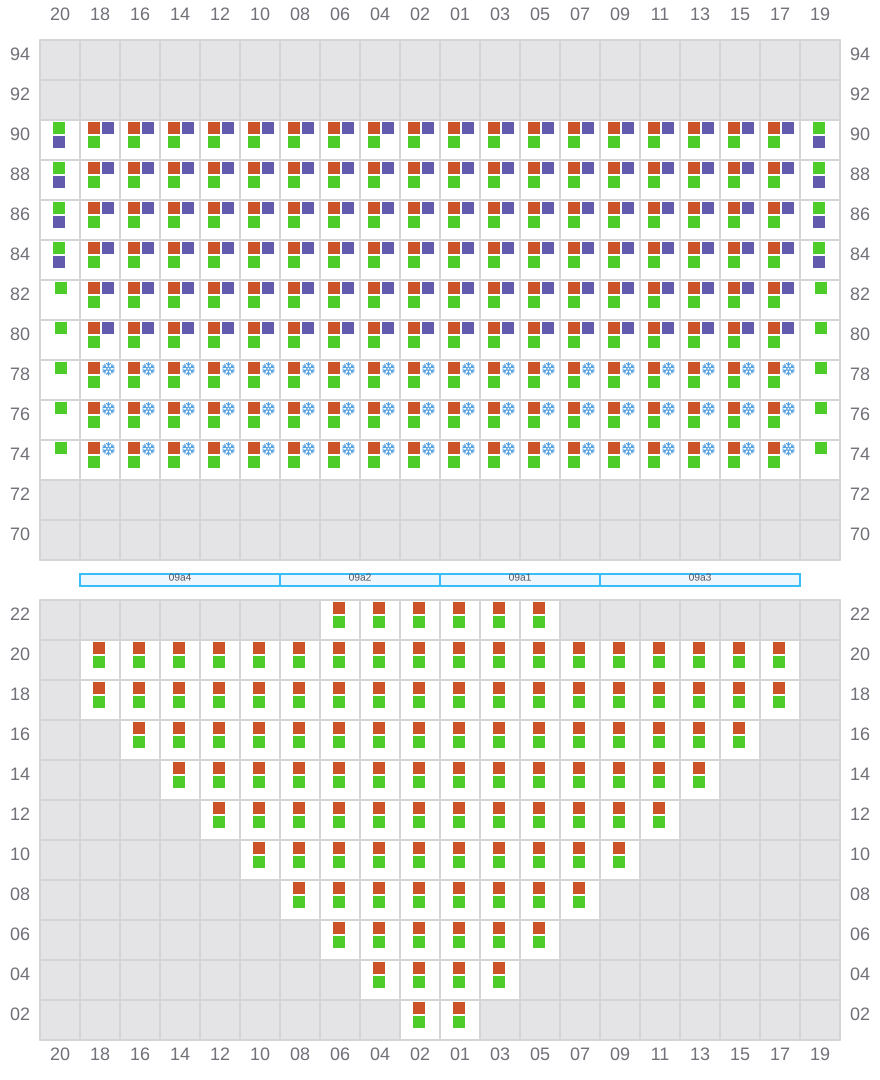

Bay 011 view and slots of MSC ELISABETTA

013

  • →
  • ✓

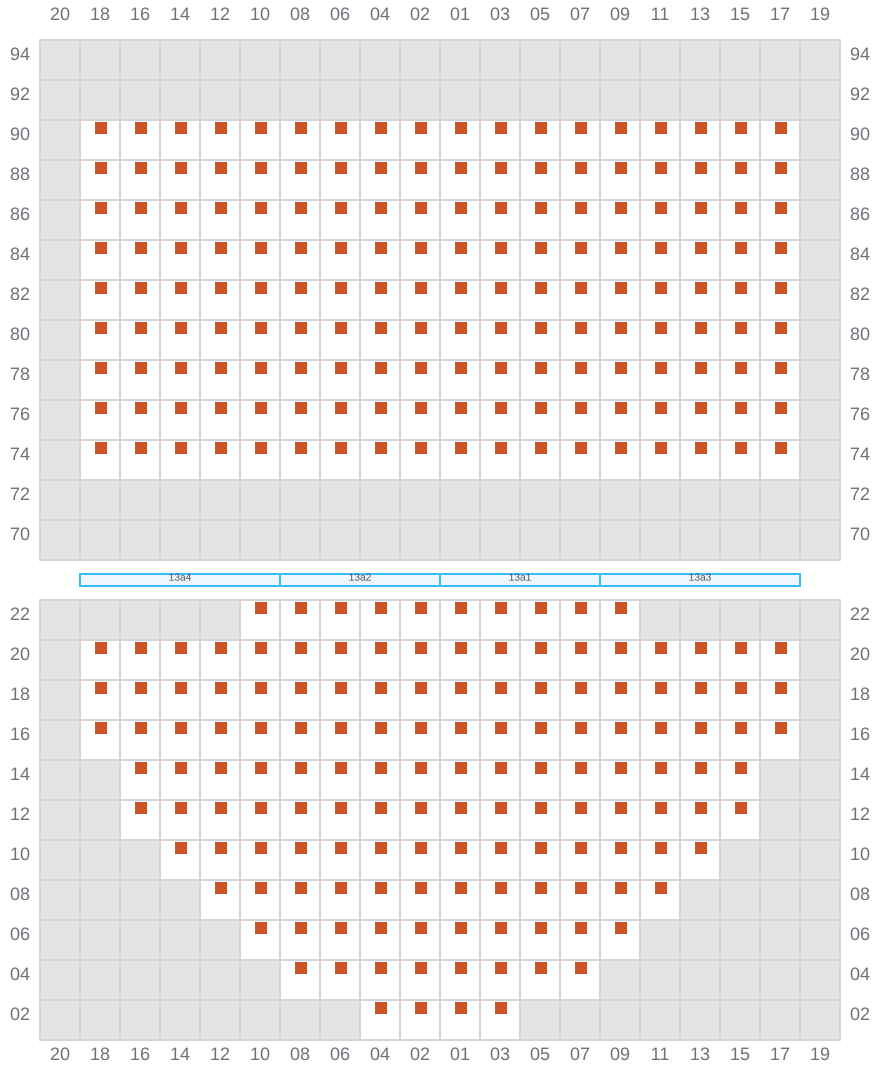

Bay 013 view and slots of MSC ELISABETTA

015 (014)

  • ←
  • → / ?
  • ✓

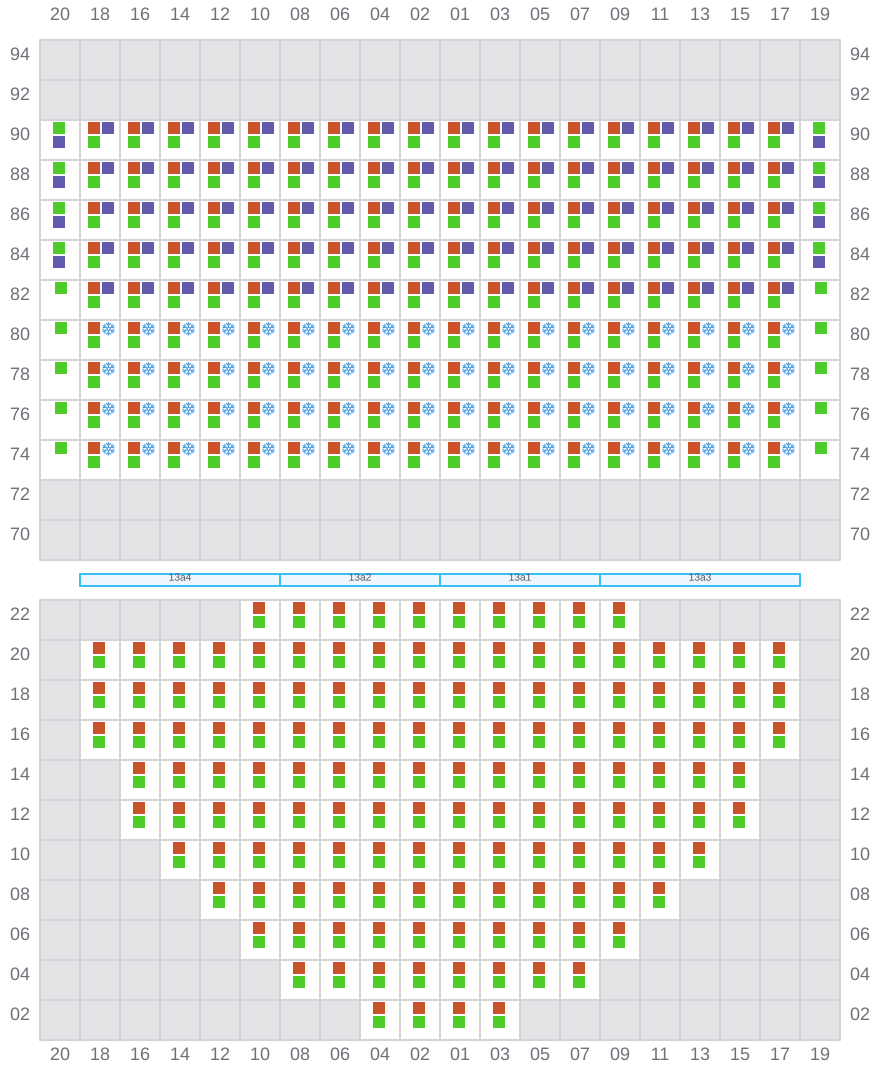

Bay 015 view and slots of MSC ELISABETTA

017

  • →
  • ✓

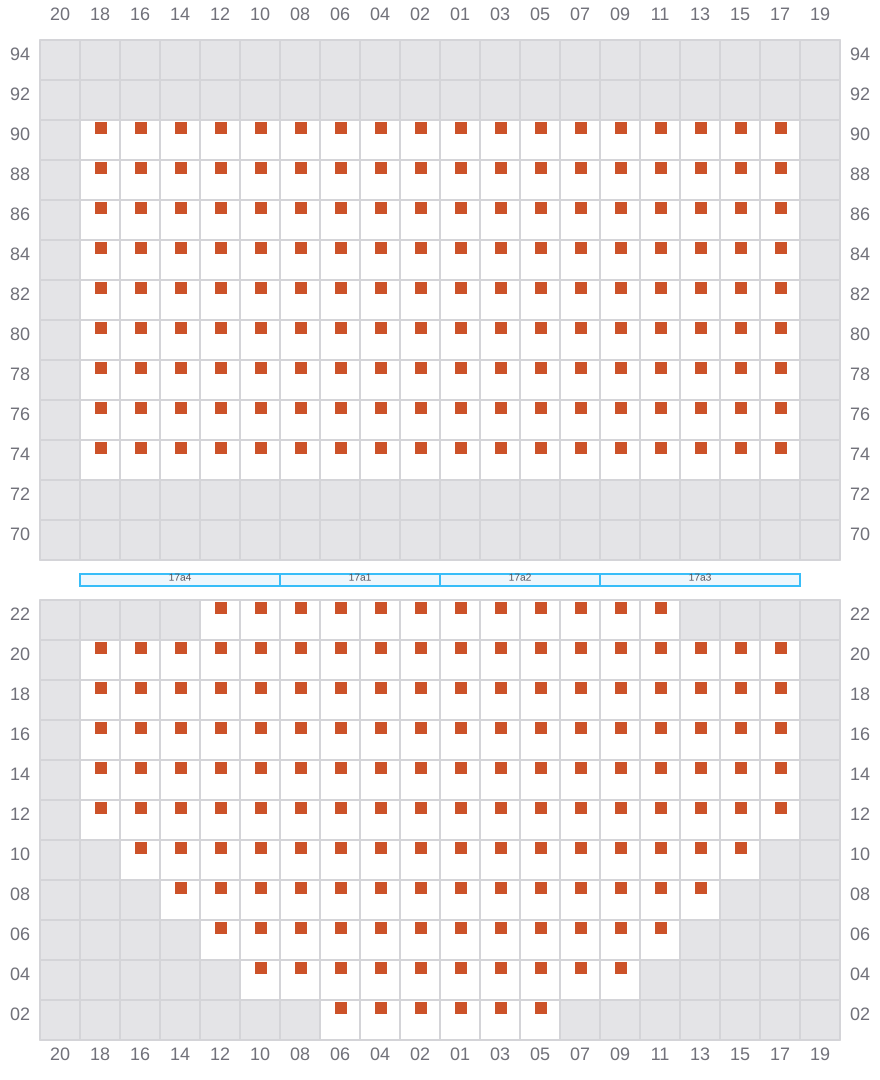

Bay 017 view and slots of MSC ELISABETTA

019 (018)

  • ←
  • → / ?
  • ✓

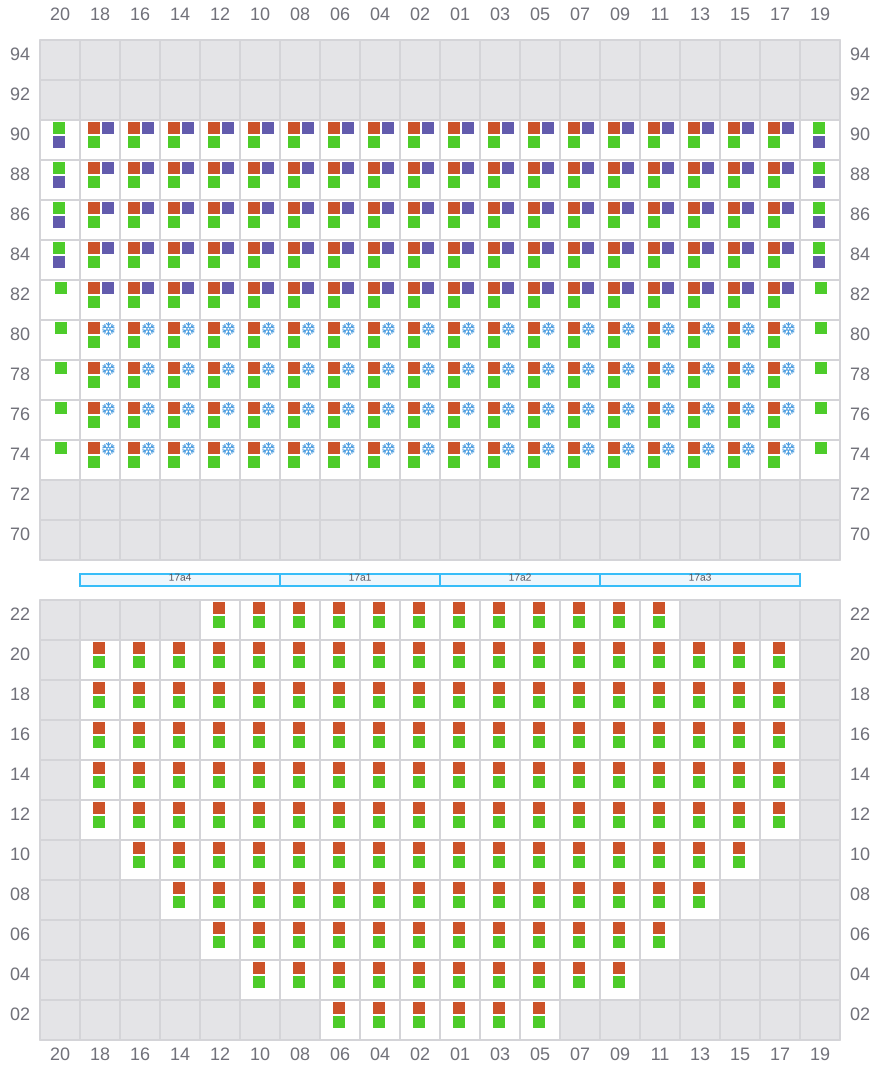

Bay 019 view and slots of MSC ELISABETTA

021

  • →
  • ✓

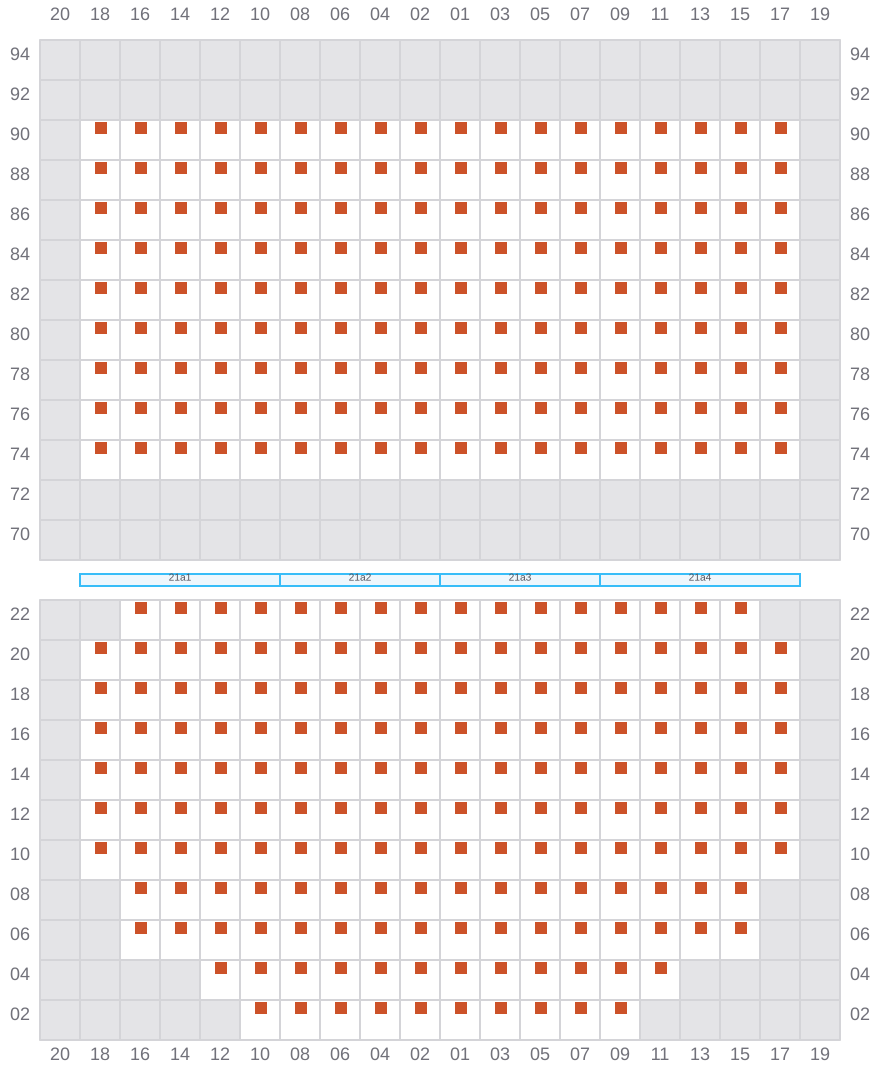

Bay 021 view and slots of MSC ELISABETTA

023 (022)

  • ←
  • → / ?
  • ✓

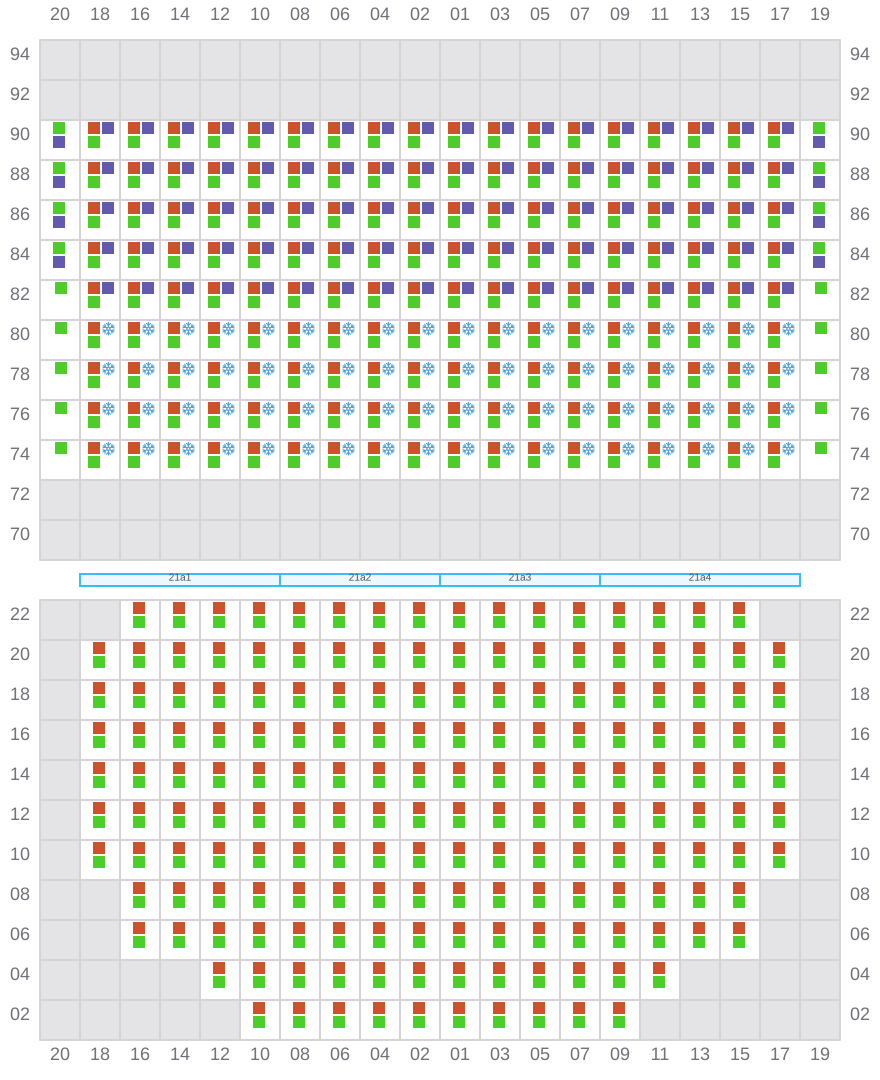

Bay 023 view and slots of MSC ELISABETTA

025

  • →
  • ✓
Bay 025 view and slots of MSC ELISABETTA

027 (026)

  • ←
  • ? / ?
  • ? / ?
  • ✓
Bay 027 view and slots of MSC ELISABETTA

029

  • →
  • ✓
Bay 029 view and slots of MSC ELISABETTA

031 (030)

  • ←
  • →
  • ✓
Bay 031 view and slots of MSC ELISABETTA

033

  • →
  • ✓

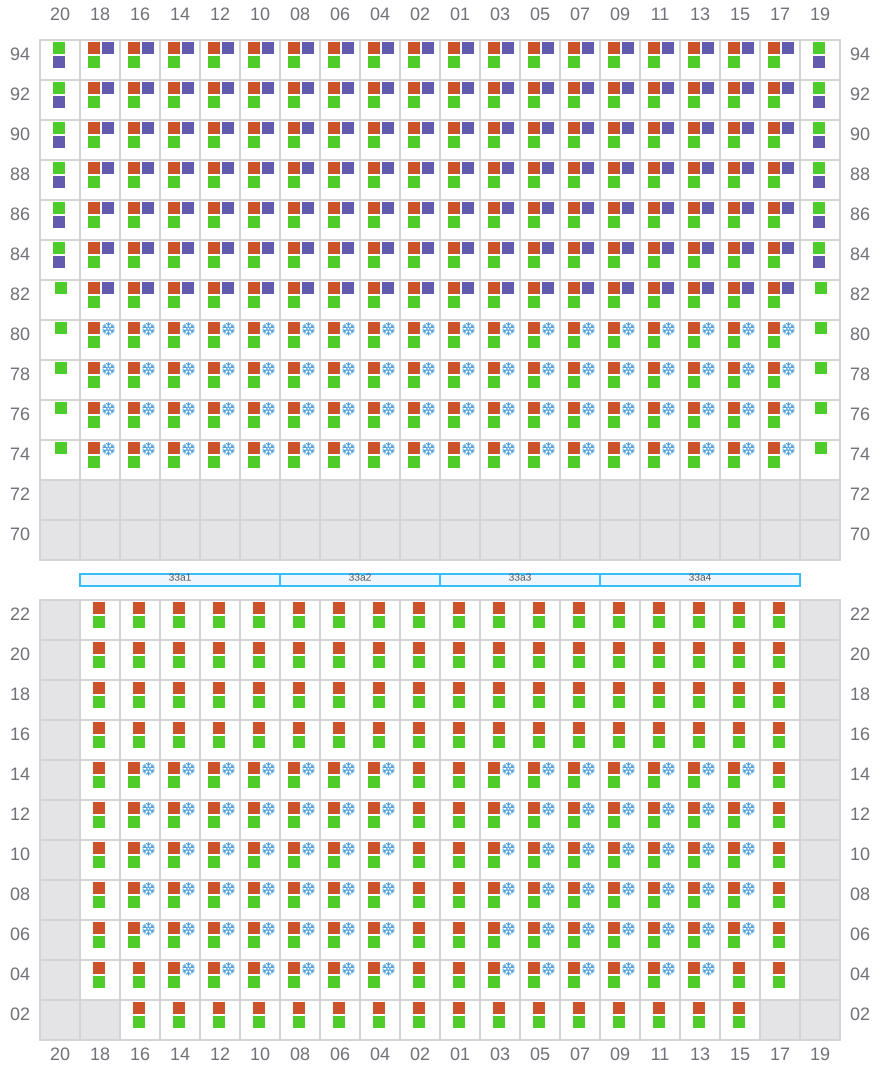

Bay 033 view and slots of MSC ELISABETTA

035 (034)

  • ←
  • → / ?
  • ✓
Bay 035 view and slots of MSC ELISABETTA

037

  • →
  • ✓

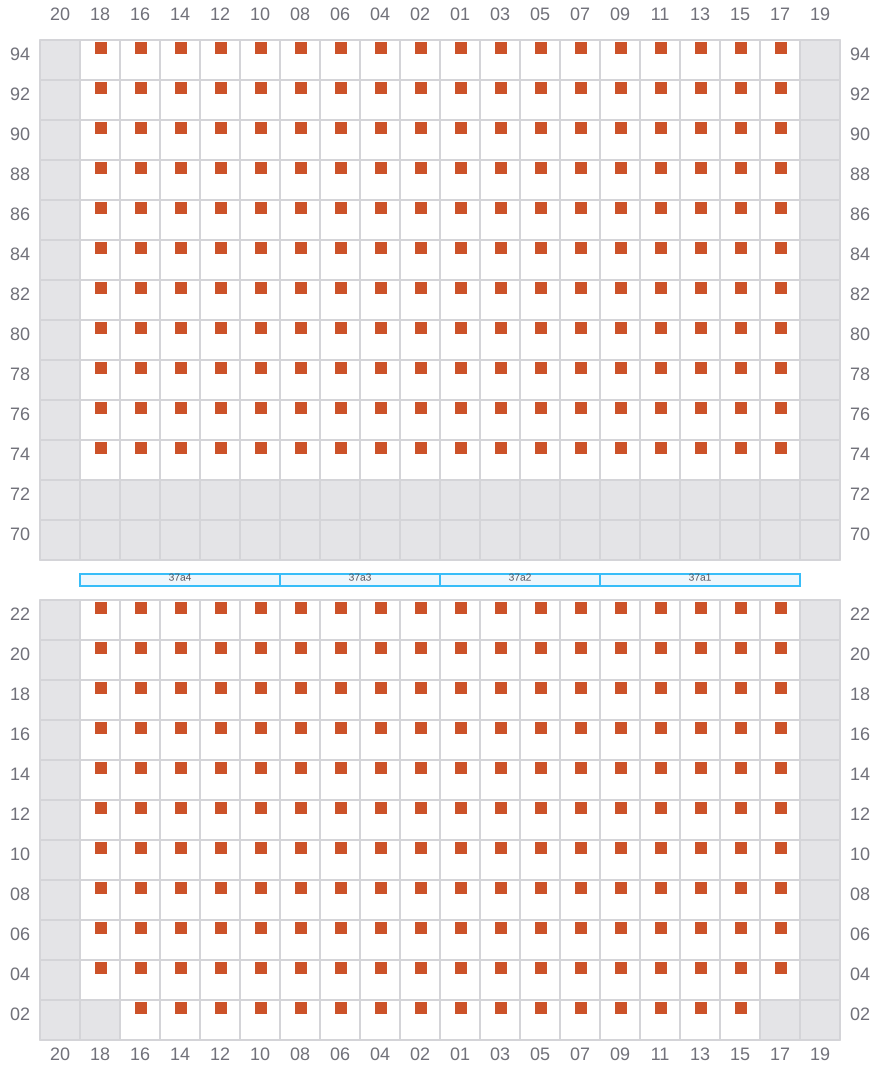

Bay 037 view and slots of MSC ELISABETTA

039 (038)

  • ←
  • →
  • ✓

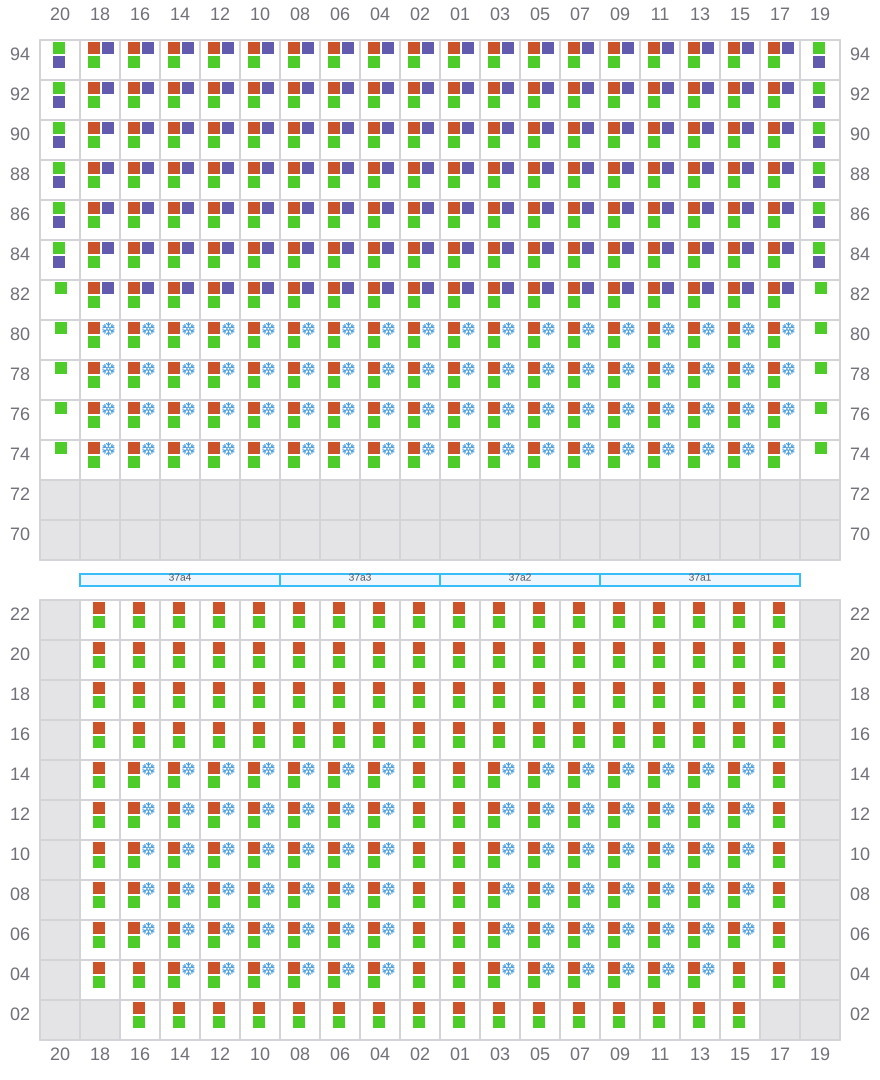

Bay 039 view and slots of MSC ELISABETTA

041

  • →
  • ✓
Bay 041 view and slots of MSC ELISABETTA

043 (042)

  • ←
  • →
  • ✓
Bay 043 view and slots of MSC ELISABETTA

045

  • →
  • ✓
Bay 045 view and slots of MSC ELISABETTA

047 (046)

  • ←
  • →
  • ✓

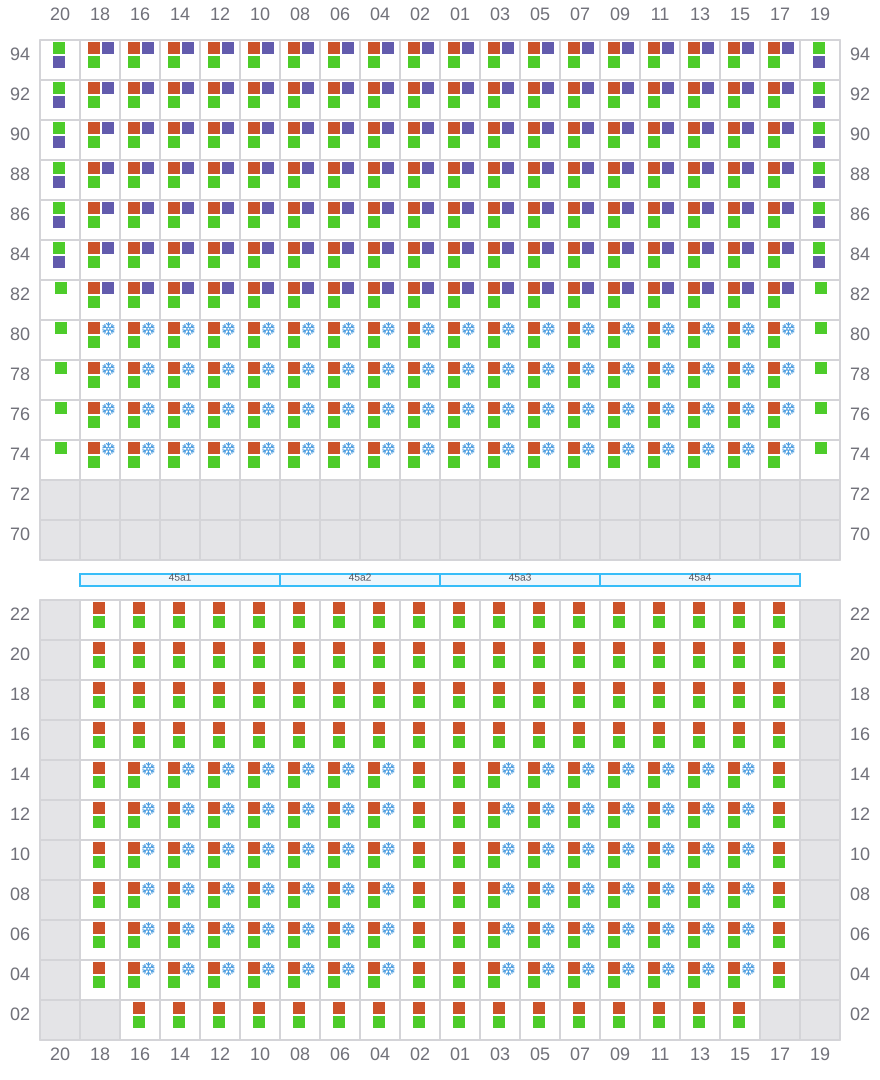

Bay 047 view and slots of MSC ELISABETTA

049

  • →
  • ✓
Bay 049 view and slots of MSC ELISABETTA

051 (050)

  • ←
  • →
  • ✓
Bay 051 view and slots of MSC ELISABETTA

053

  • →
  • ✓

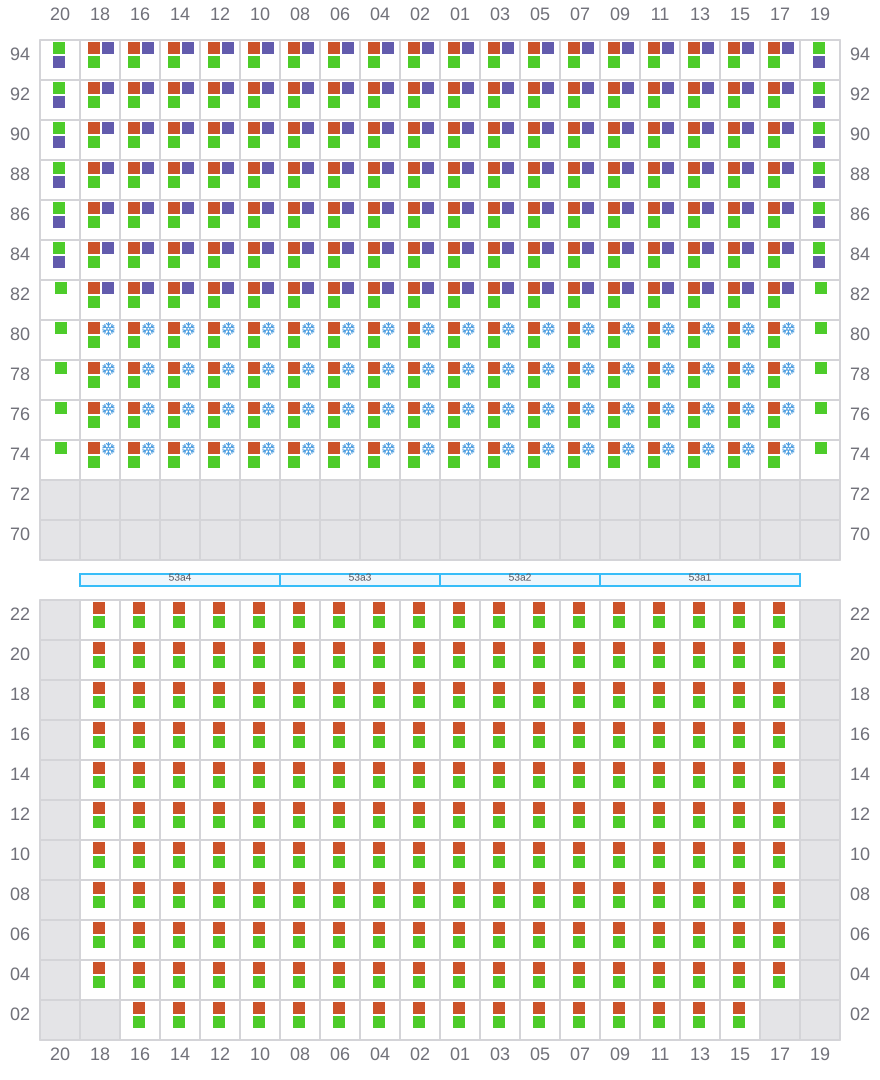

Bay 053 view and slots of MSC ELISABETTA

055 (054)

  • ←
  • → / ?
  • ✓
Bay 055 view and slots of MSC ELISABETTA

057

  • →
  • ✓

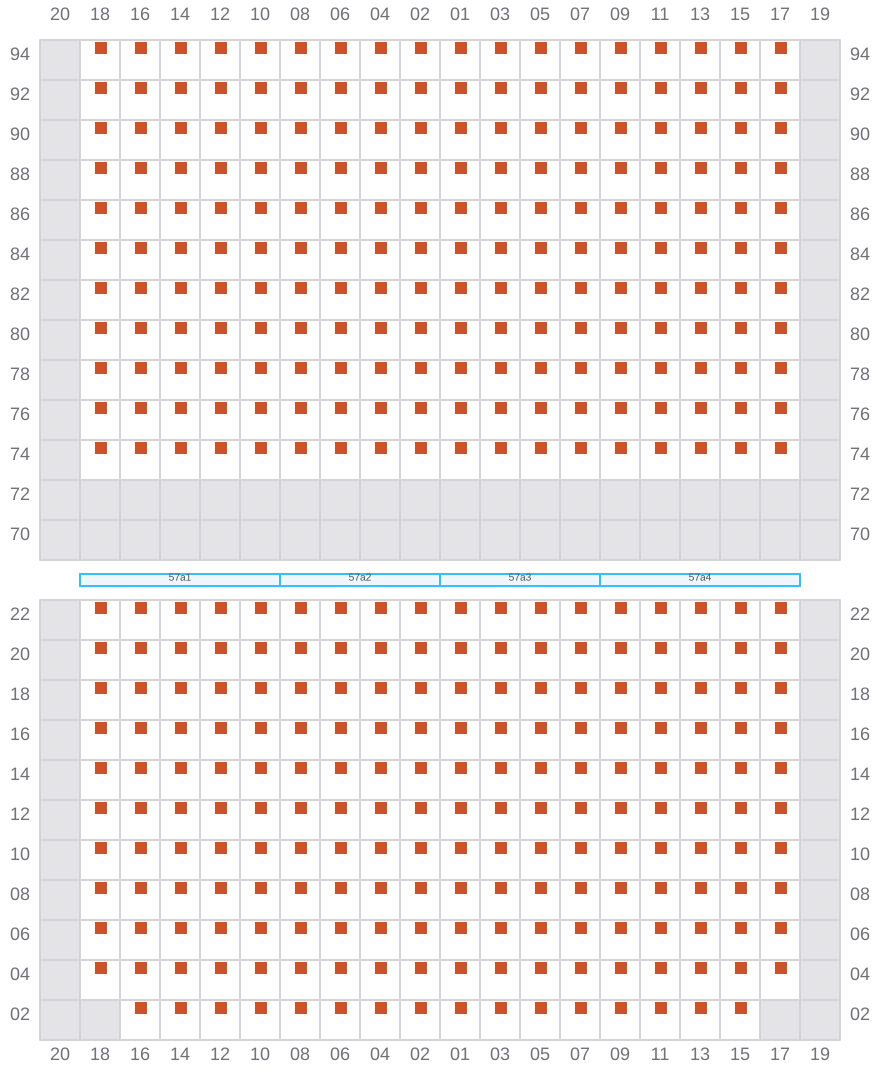

Bay 057 view and slots of MSC ELISABETTA

059 (058)

  • ←
  • → / ?
  • ✓
Bay 059 view and slots of MSC ELISABETTA

061

  • →
  • ✓

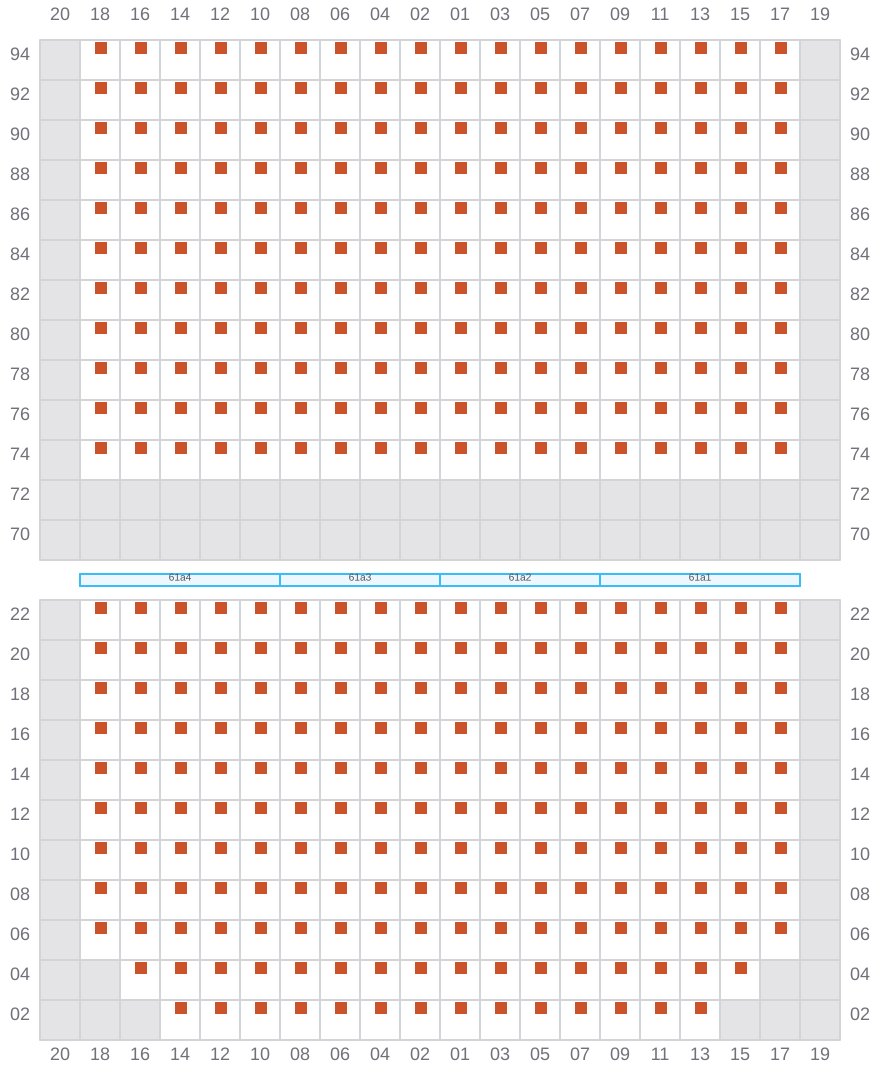

Bay 061 view and slots of MSC ELISABETTA

063 (062)

  • ←
  • → / ?
  • ✓
Bay 063 view and slots of MSC ELISABETTA

065

  • →
  • ✓

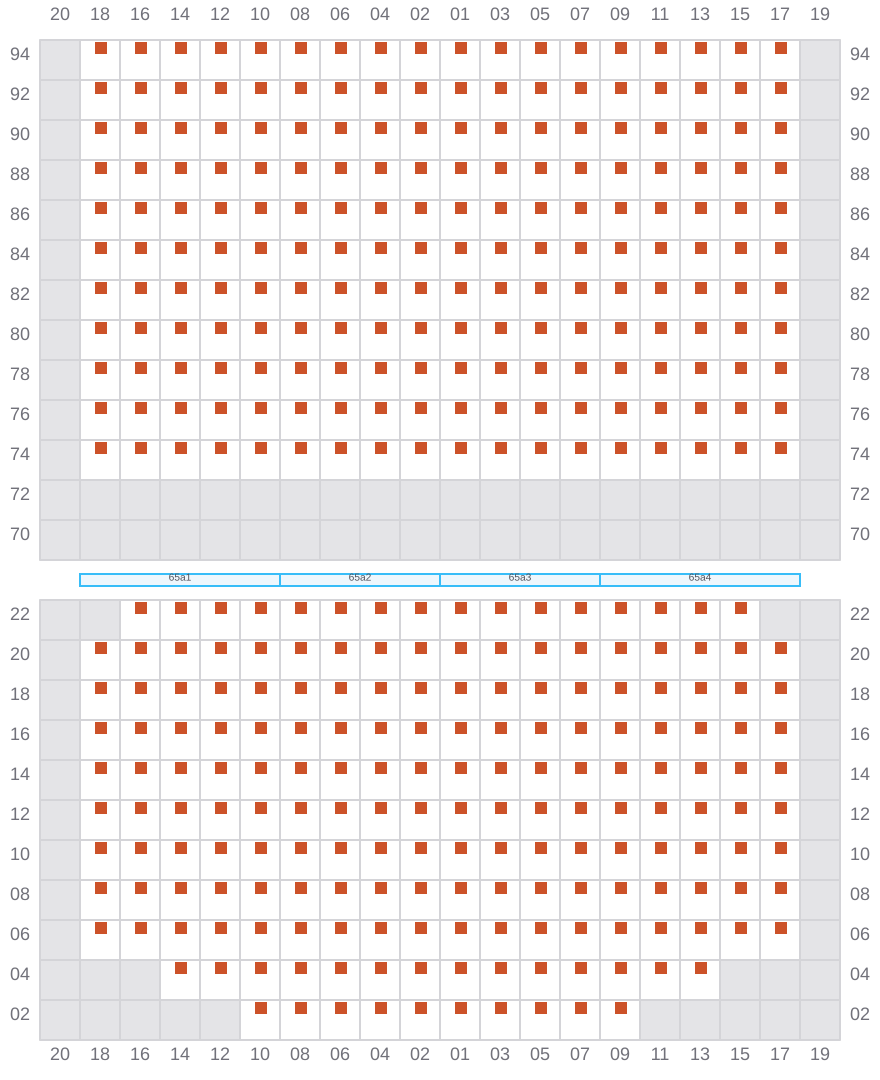

Bay 065 view and slots of MSC ELISABETTA

067 (066)

  • ←
  • → / ?
  • ✓

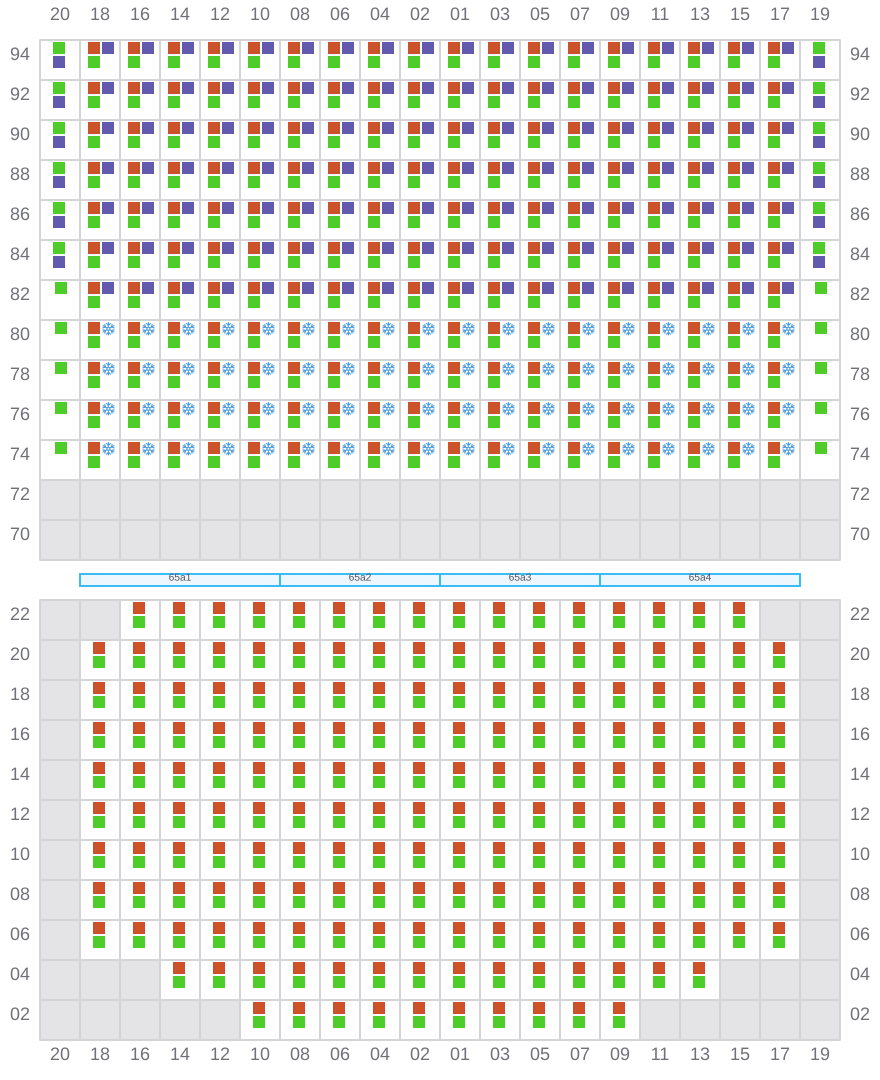

Bay 067 view and slots of MSC ELISABETTA

069

  • →
  • ✓
Bay 069 view and slots of MSC ELISABETTA

071 (070)

  • ←
  • → / ?
  • ? / ?
  • ✓
Bay 071 view and slots of MSC ELISABETTA

073

  • →
  • ← / ?
  • ✓

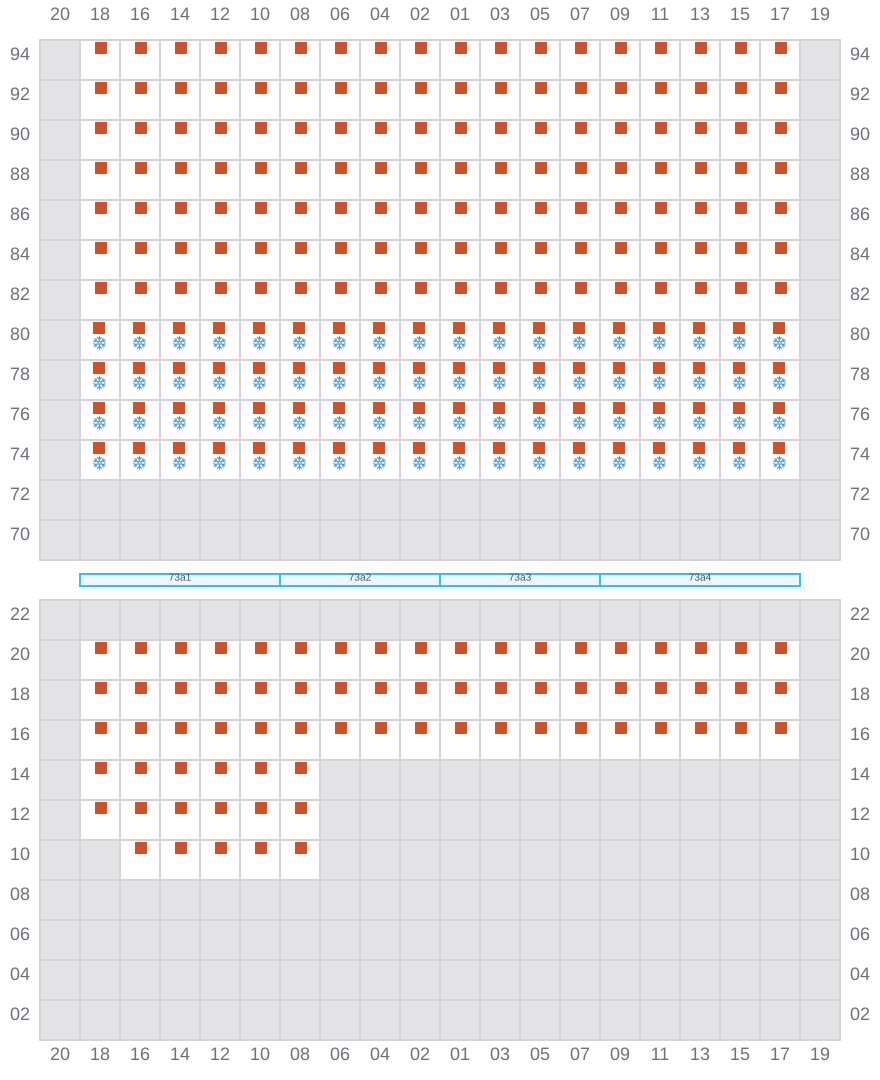

Bay 073 view and slots of MSC ELISABETTA

075 (074)

  • ←
  • ← / ?
  • ✓

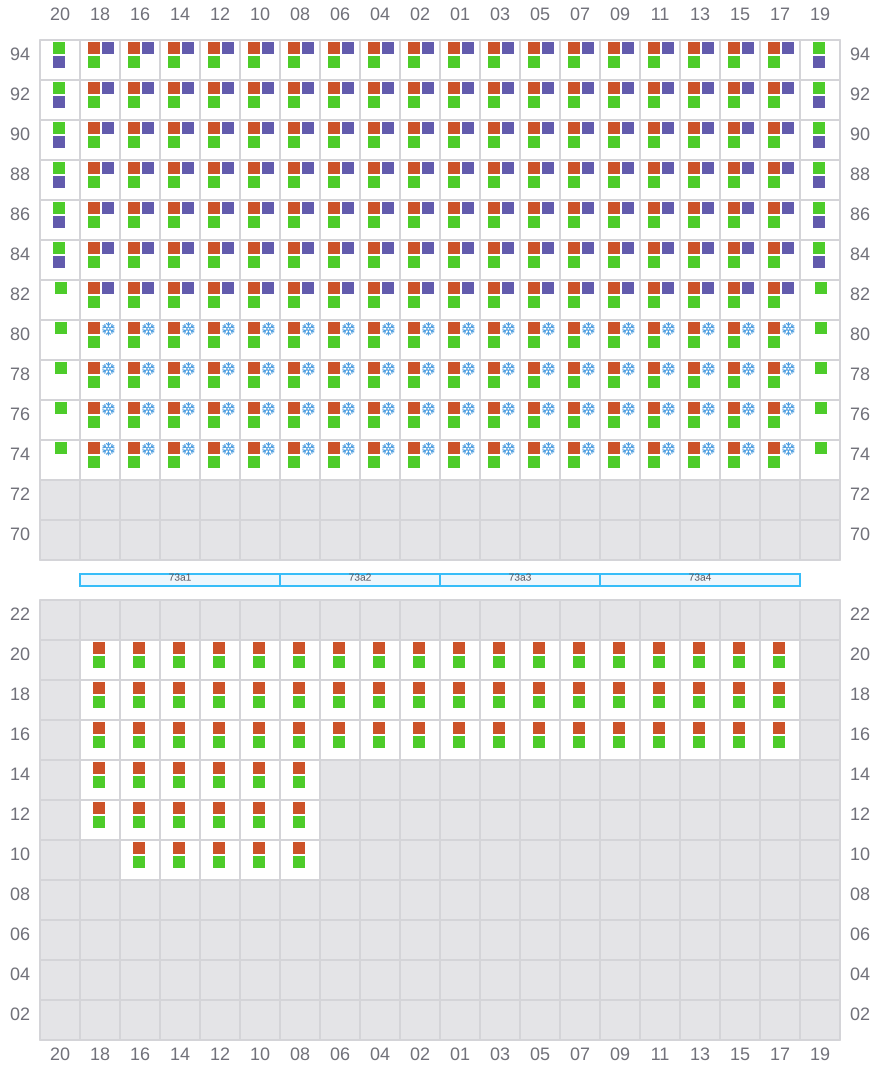

Bay 075 view and slots of MSC ELISABETTA

077

  • →
  • ← / ?
  • ✓
Bay 077 view and slots of MSC ELISABETTA

079 (078)

  • ←
  • ← / ?
  • ✓

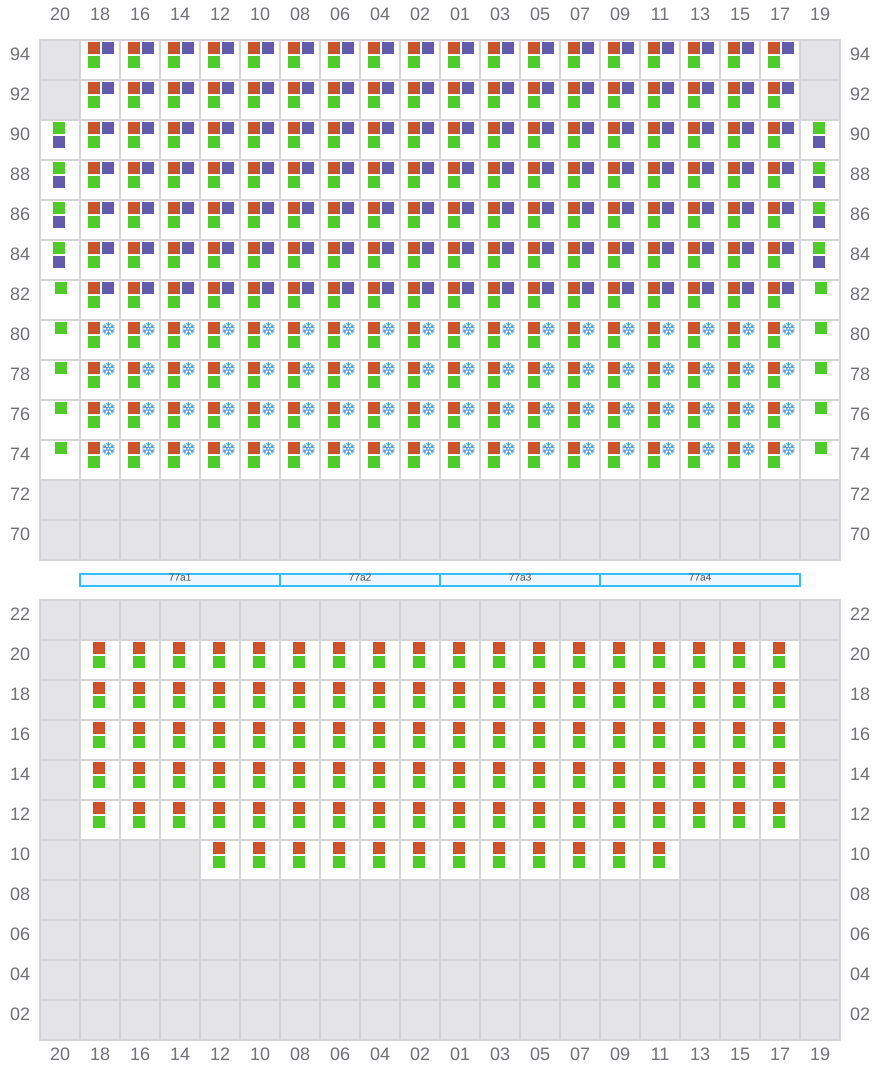

Bay 079 view and slots of MSC ELISABETTA

081

  • →
  • ← / ?
  • ✓

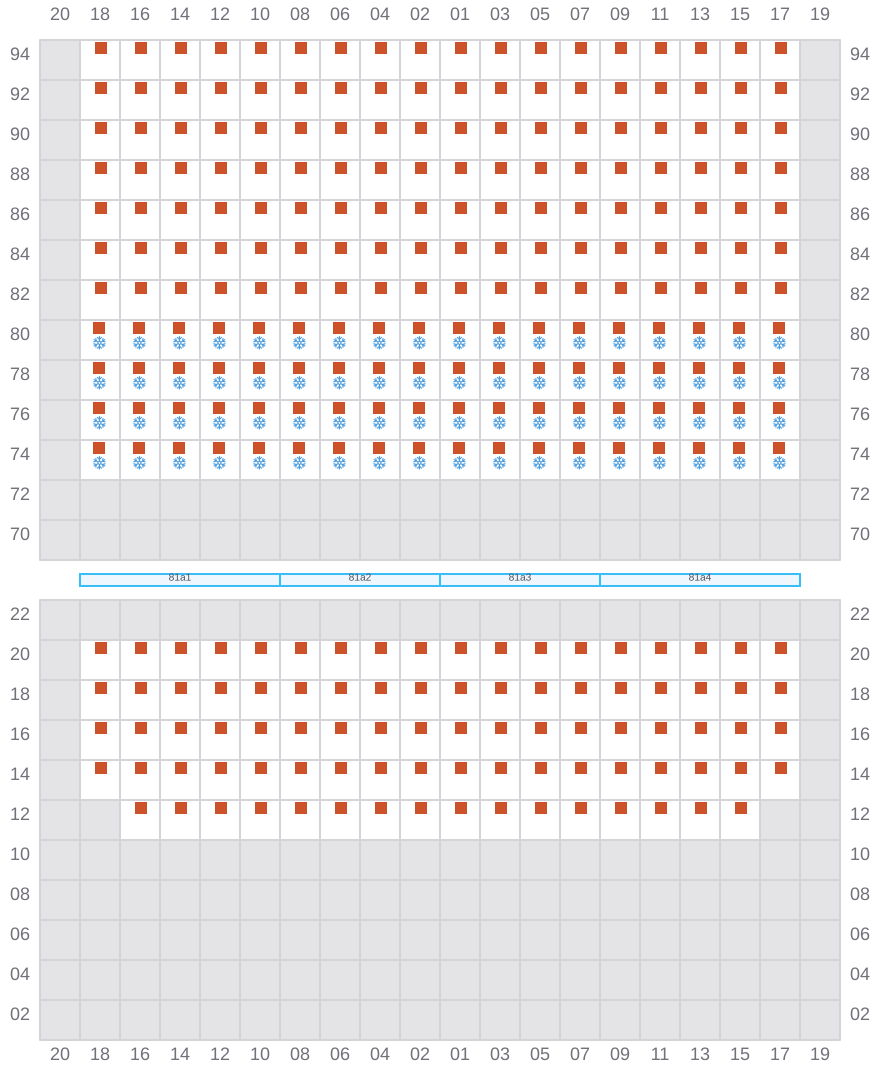

Bay 081 view and slots of MSC ELISABETTA

083 (082)

  • ←
  • ← / ?
  • ✓
Bay 083 view and slots of MSC ELISABETTA

085

  • →
  • ✓
Bay 085 view and slots of MSC ELISABETTA

087 (086)

  • ←
  • ← / ?
  • ? / ?
  • ✓

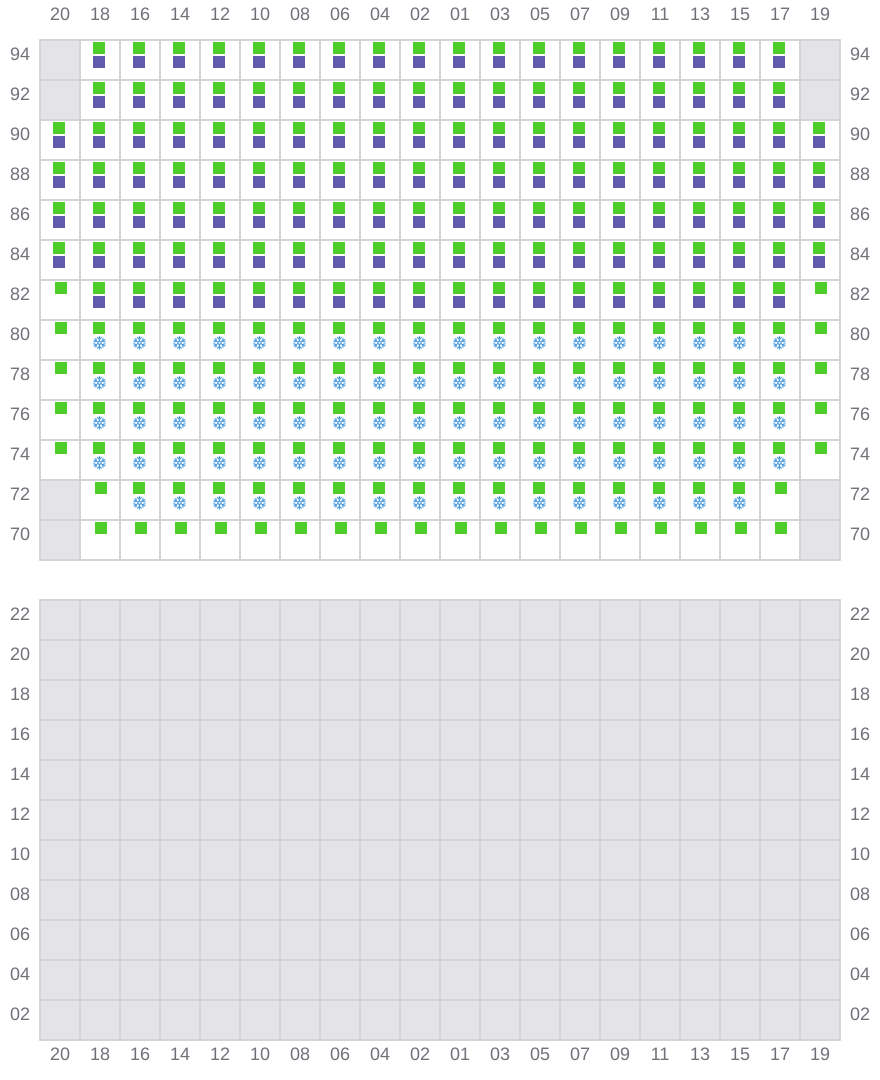

Bay 087 view and slots of MSC ELISABETTA
