MSC ELOANE
9755957 | D5KY2 | 9755957 by ********* Last update: Wed Jun 26 2024

General Info

Ship Name:MSC ELOANE
IMO Code:9755957
Call Sign:D5KY2
Line Operator:9755957
Class Name for Sister Ships:MSC
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:095
Max ISO Row:22
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:19,466

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of MSC ELOANE

Hatch-Covers View

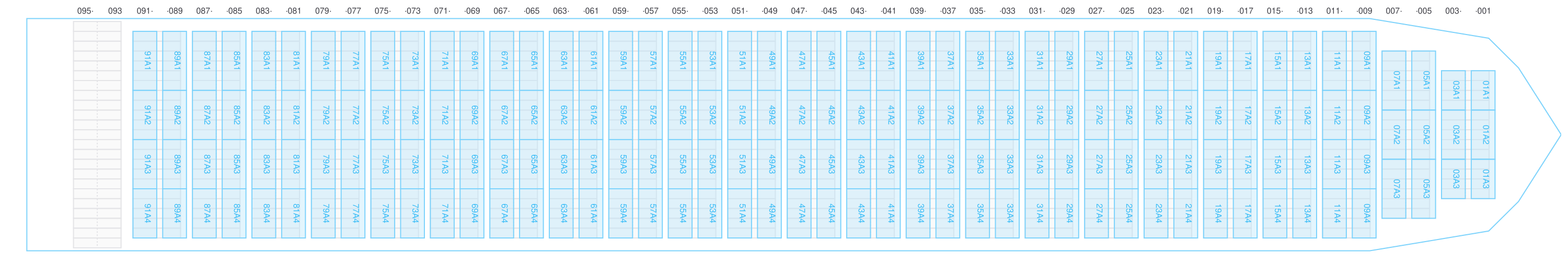

Deck view of MSC ELOANE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

Bay 001 view and slots of MSC ELOANE

003 (002)

Bay 003 view and slots of MSC ELOANE

005

Bay 005 view and slots of MSC ELOANE

007 (006)

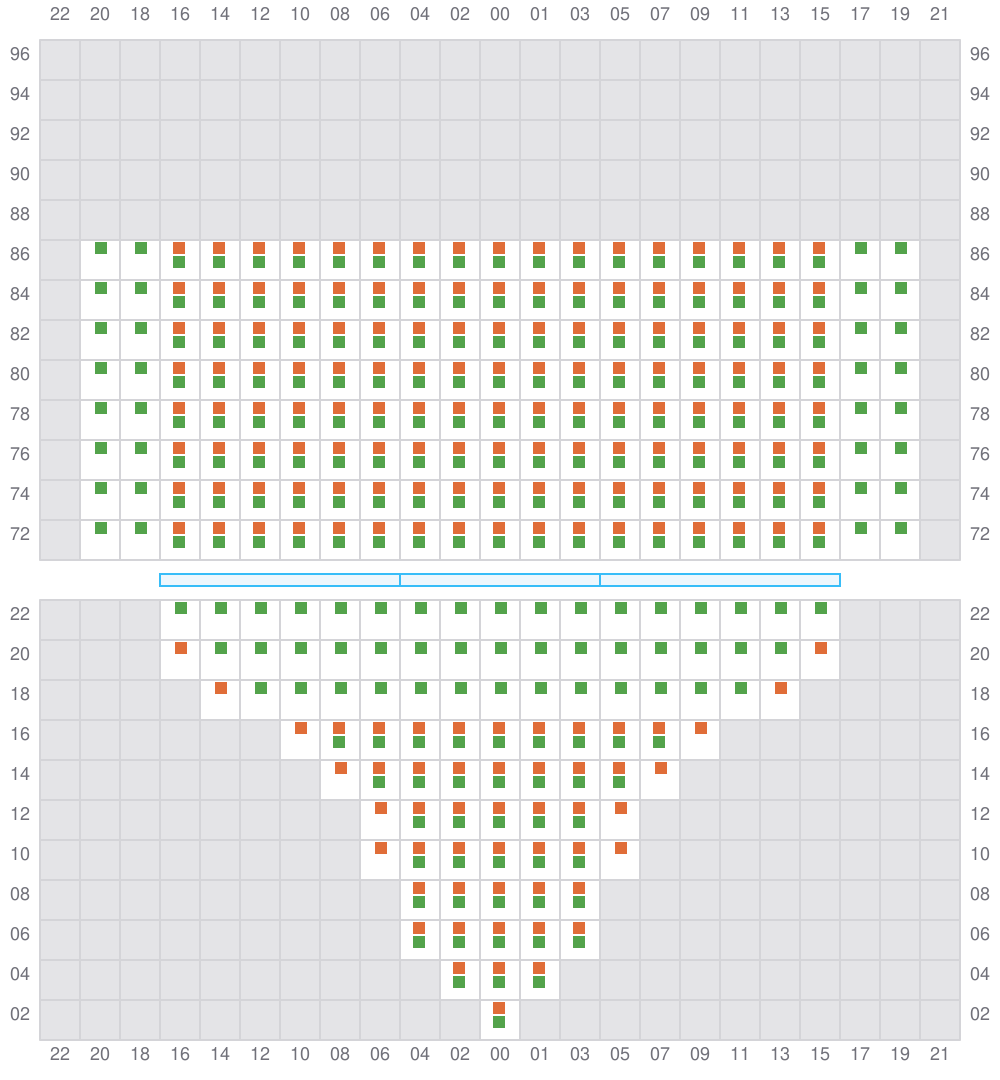

Bay 007 view and slots of MSC ELOANE

009

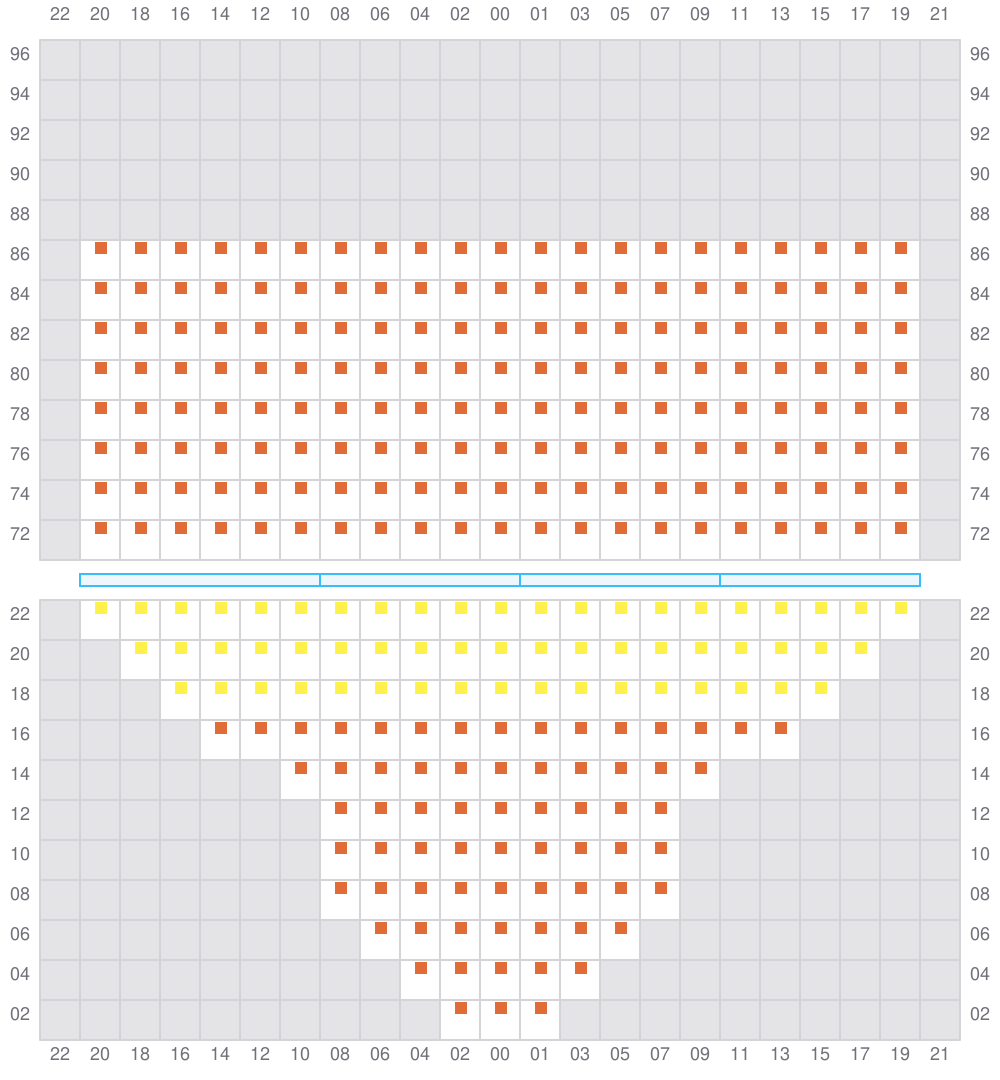

Bay 009 view and slots of MSC ELOANE

011 (010)

Bay 011 view and slots of MSC ELOANE

013

Bay 013 view and slots of MSC ELOANE

015 (014)

Bay 015 view and slots of MSC ELOANE

017

Bay 017 view and slots of MSC ELOANE

019 (018)

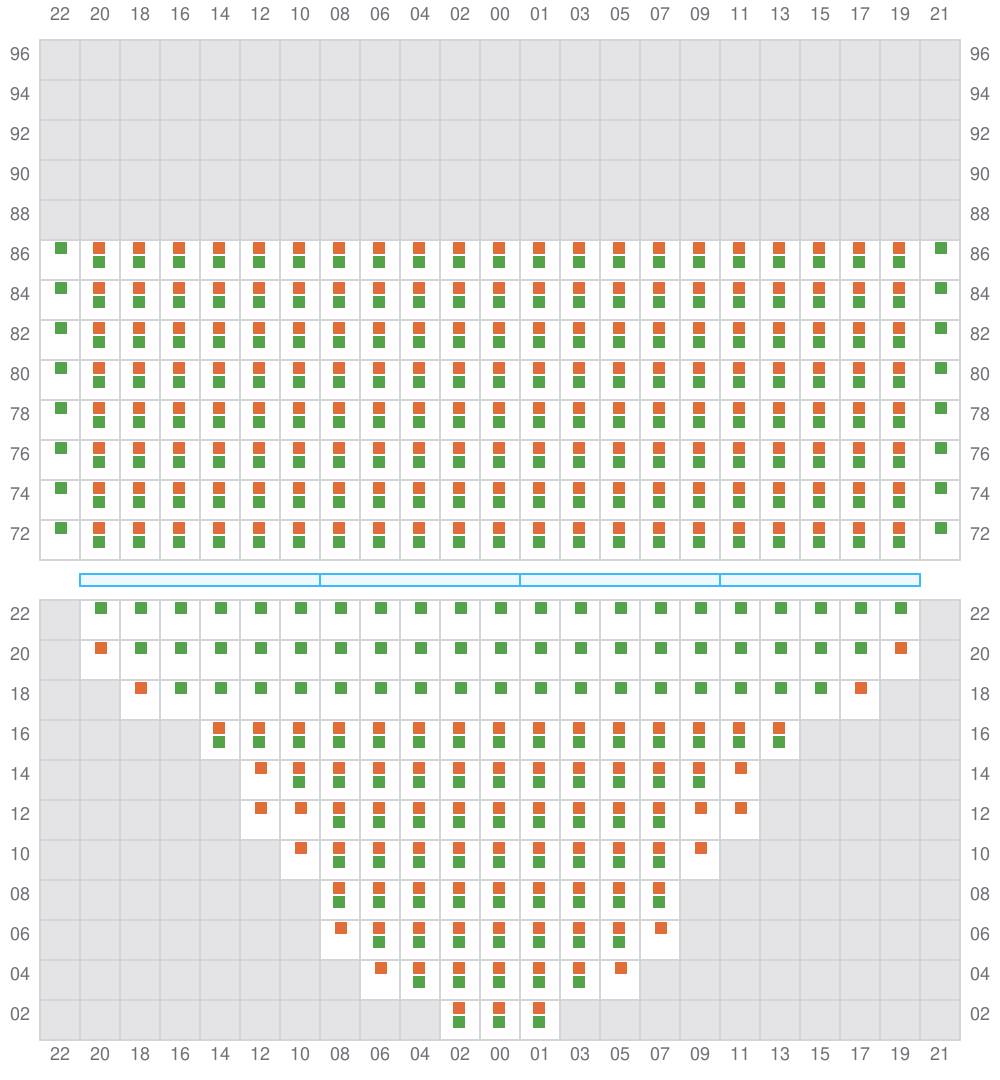

Bay 019 view and slots of MSC ELOANE

021

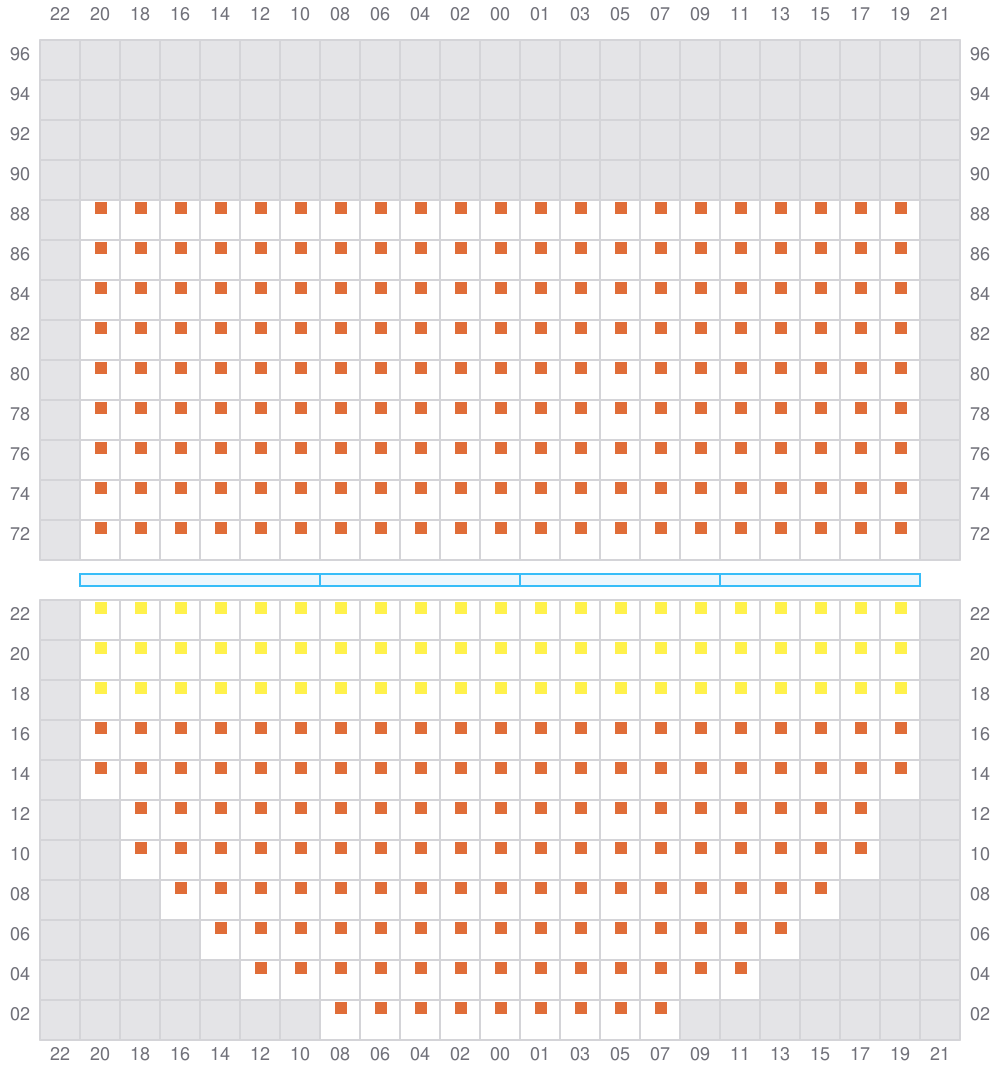

Bay 021 view and slots of MSC ELOANE

023 (022)

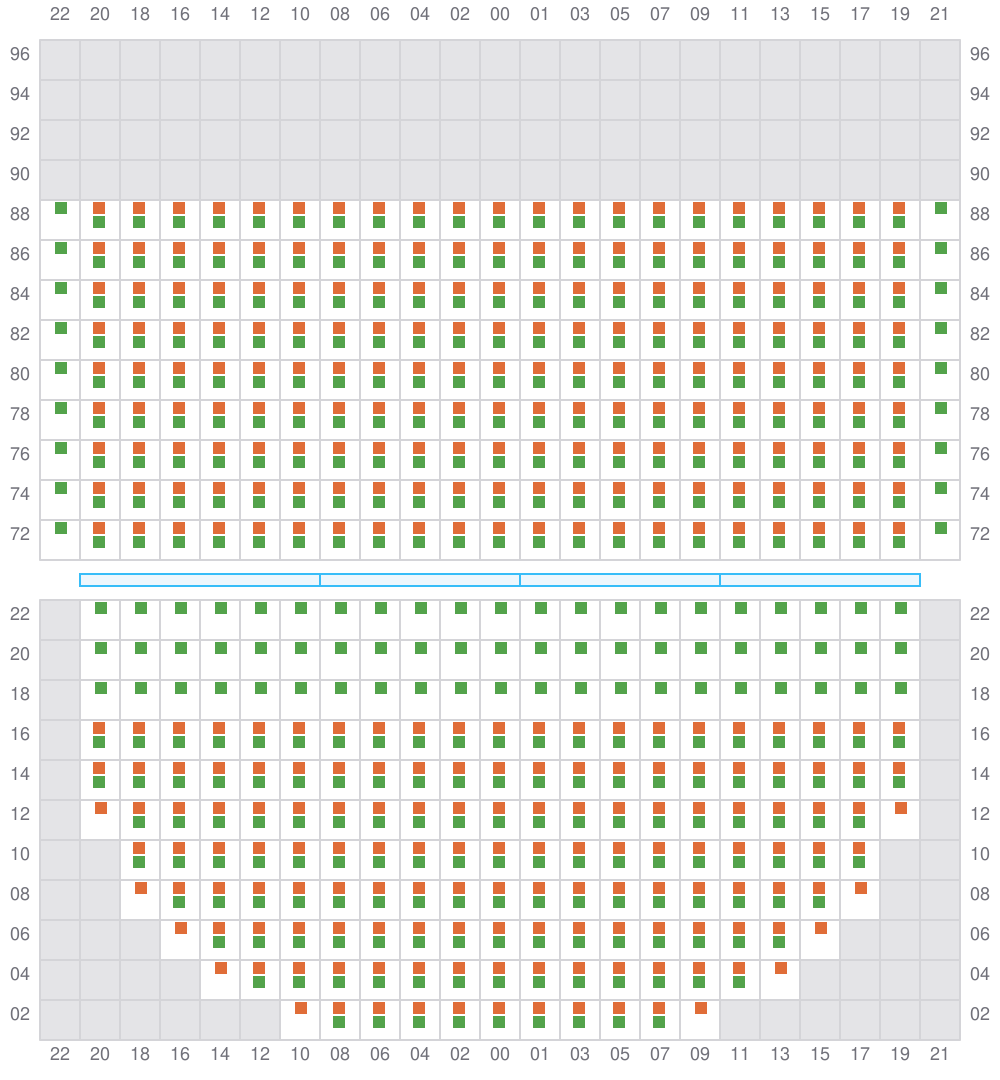

Bay 023 view and slots of MSC ELOANE

025

Bay 025 view and slots of MSC ELOANE

027 (026)

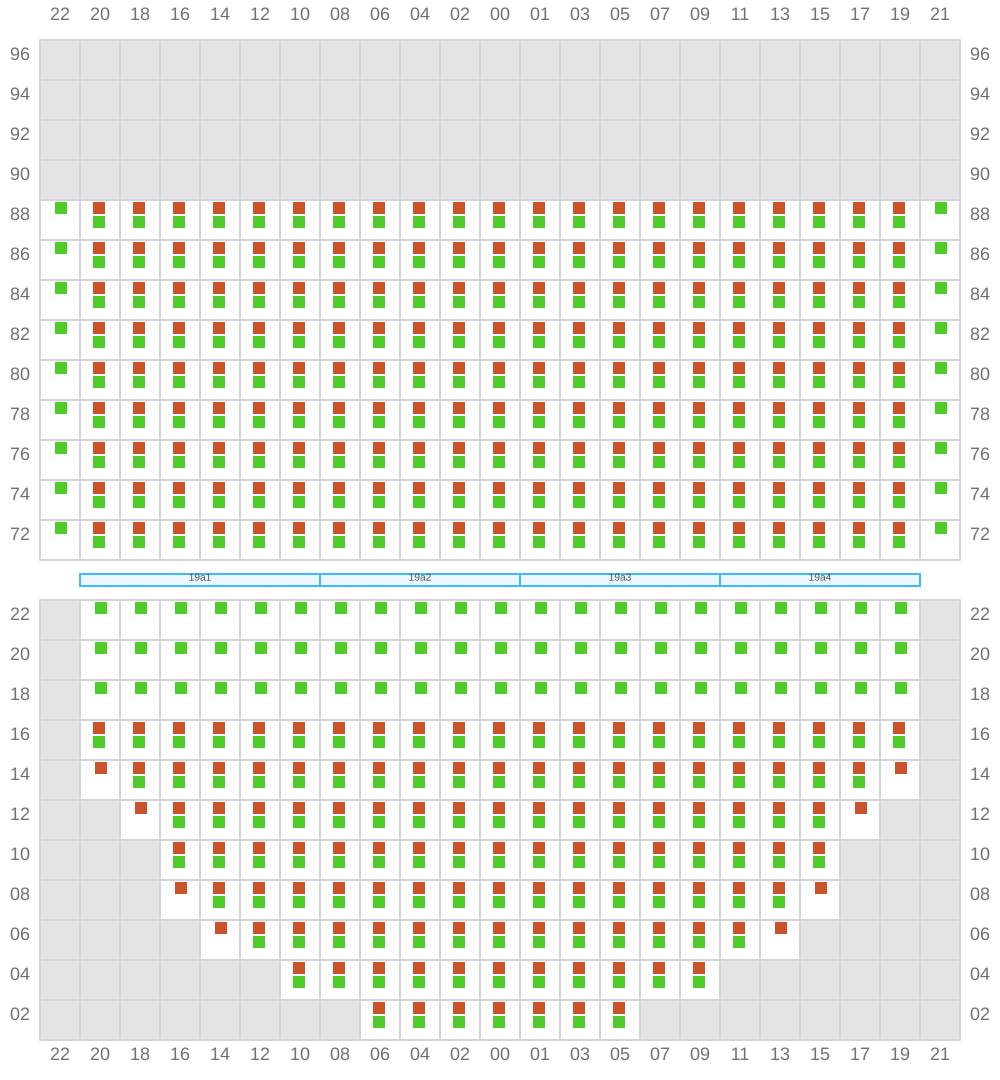

Bay 027 view and slots of MSC ELOANE

029

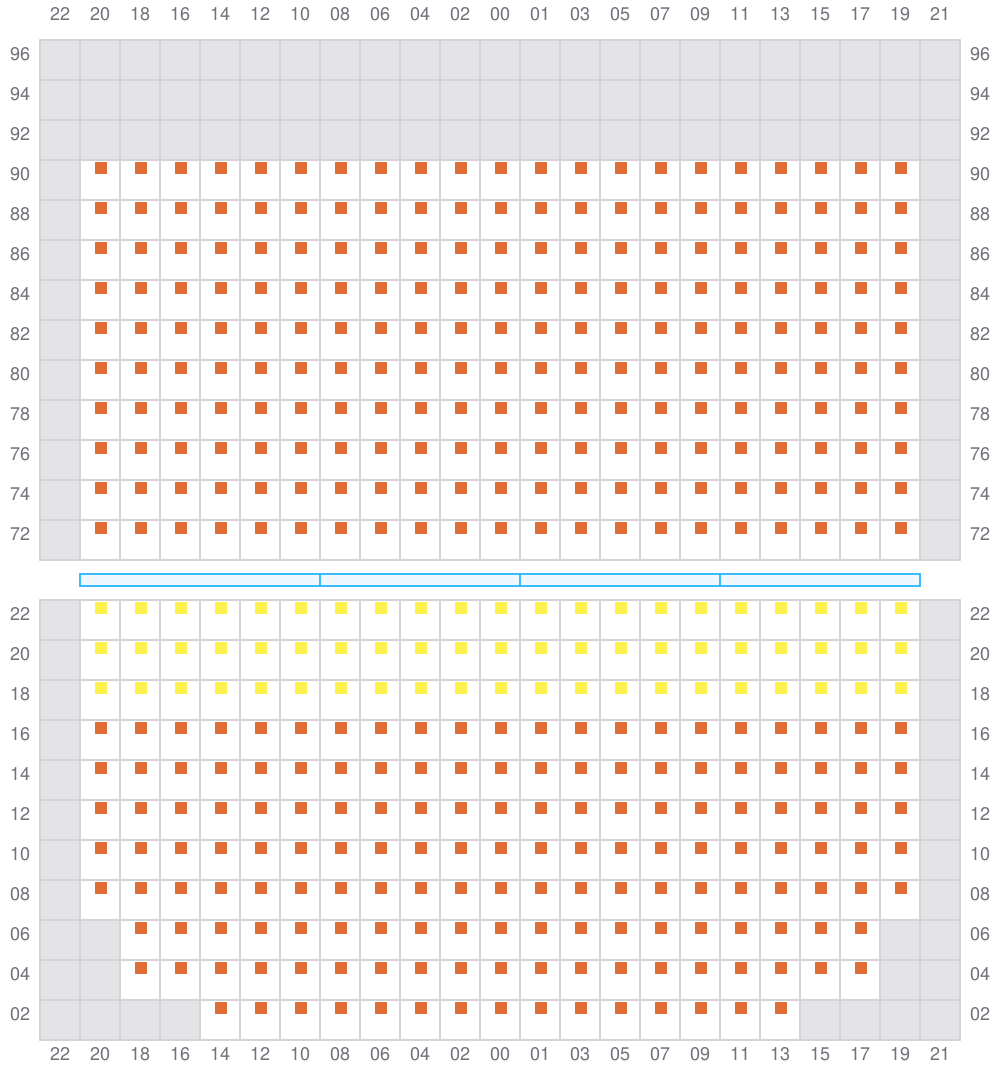

Bay 029 view and slots of MSC ELOANE

031 (030)

Bay 031 view and slots of MSC ELOANE

033

Bay 033 view and slots of MSC ELOANE

035 (034)

Bay 035 view and slots of MSC ELOANE

037

Bay 037 view and slots of MSC ELOANE

039 (038)

Bay 039 view and slots of MSC ELOANE

041

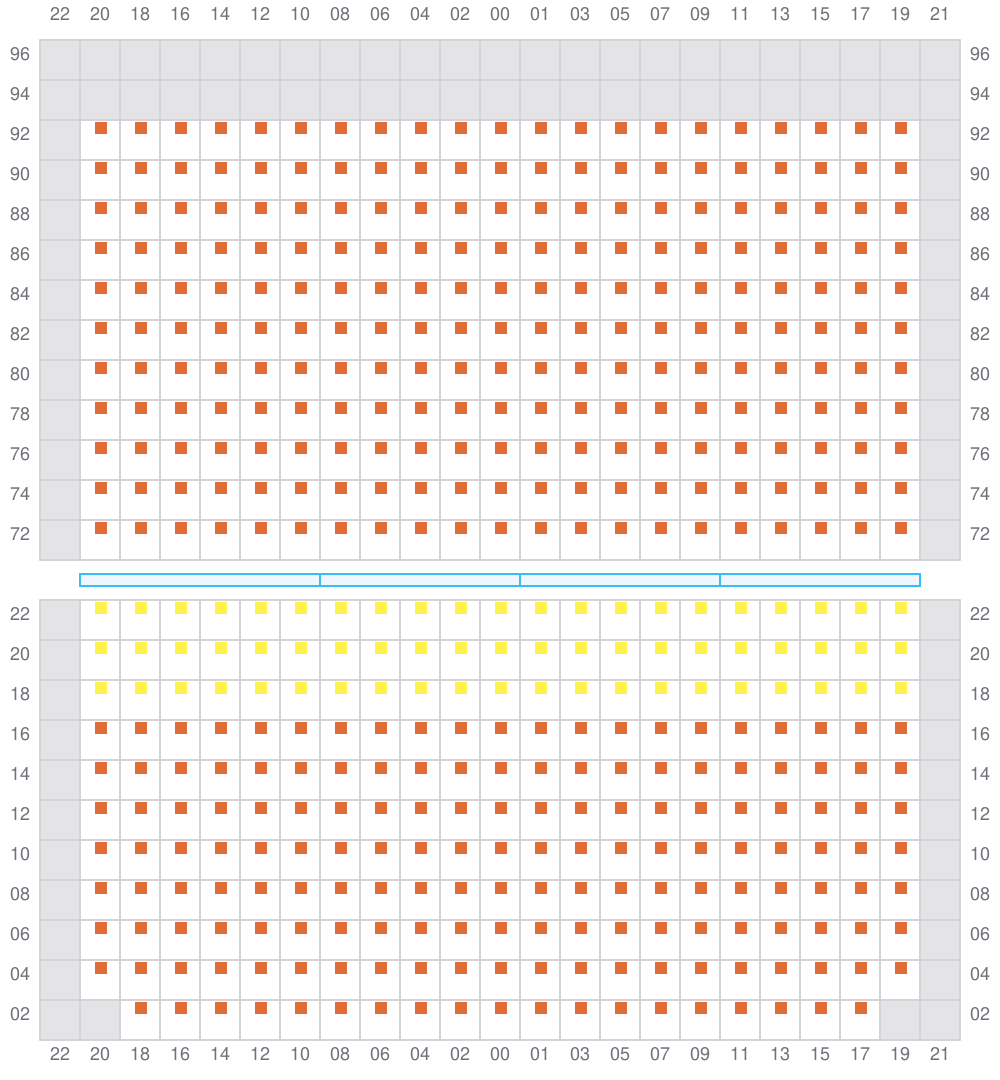

Bay 041 view and slots of MSC ELOANE

043 (042)

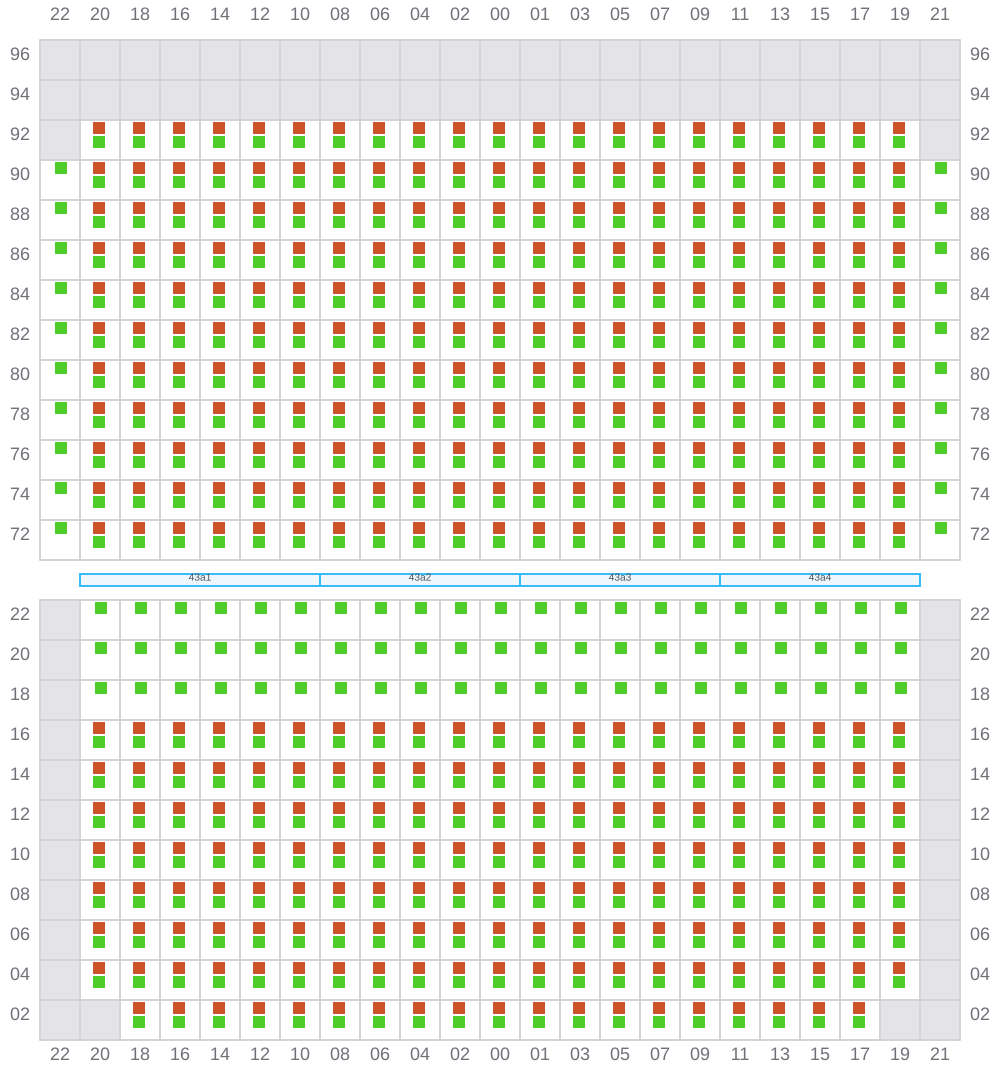

Bay 043 view and slots of MSC ELOANE

045

Bay 045 view and slots of MSC ELOANE

047 (046)

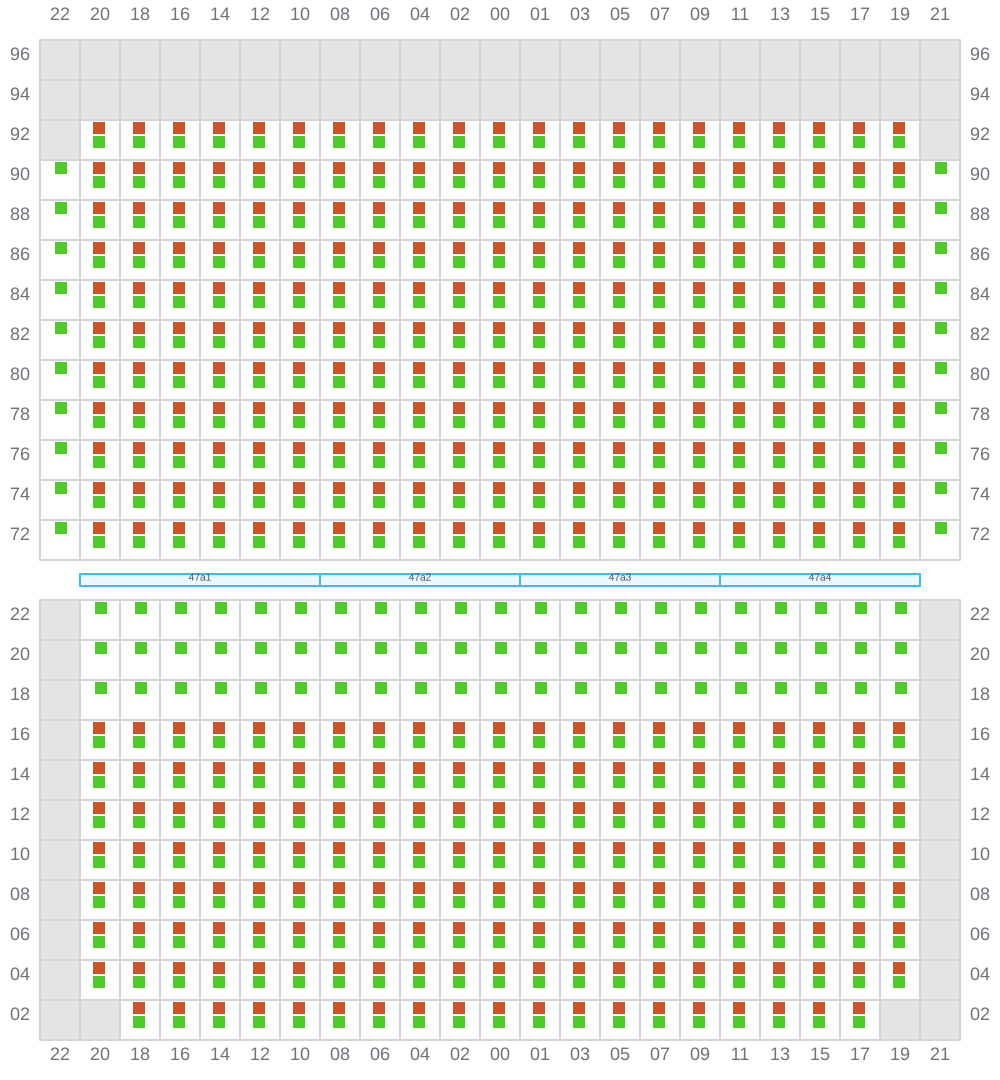

Bay 047 view and slots of MSC ELOANE

049

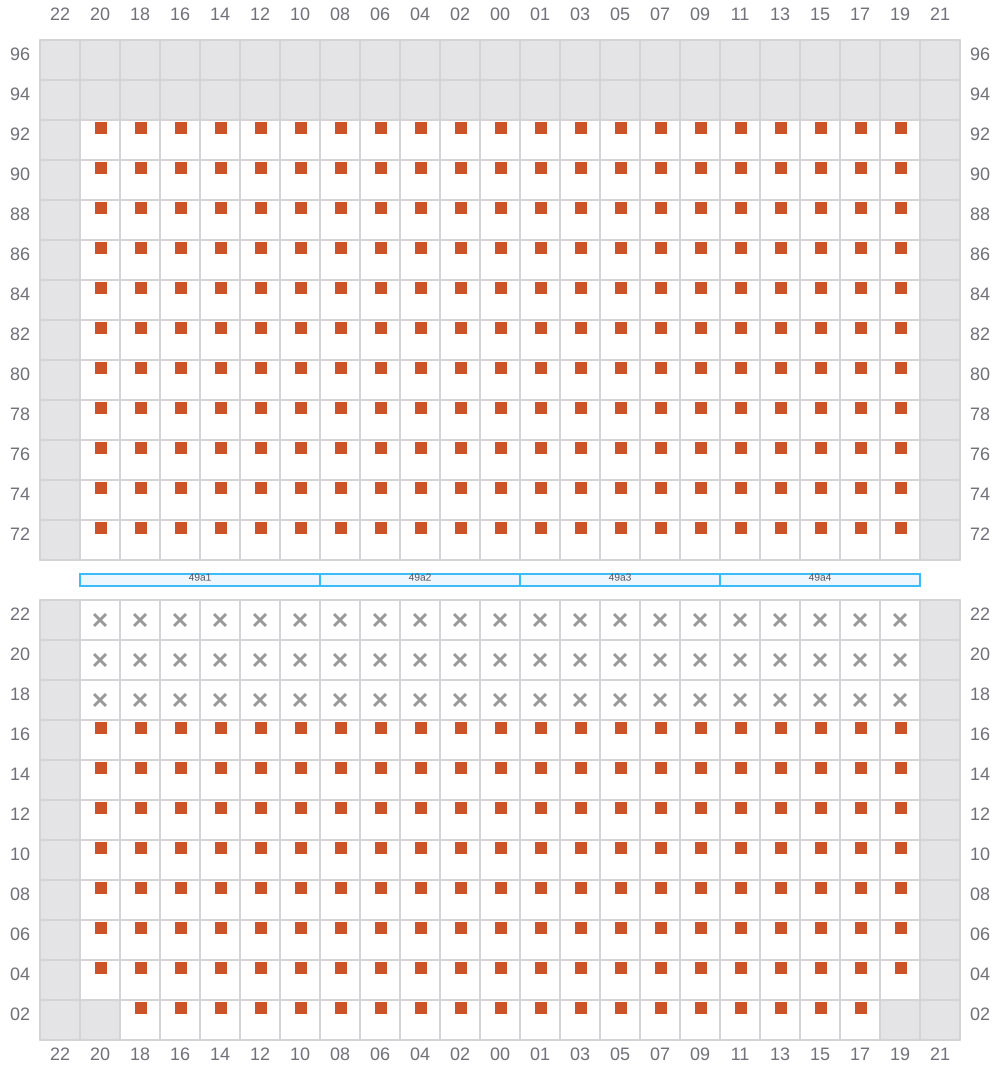

Bay 049 view and slots of MSC ELOANE

051 (050)

Bay 051 view and slots of MSC ELOANE

053

Bay 053 view and slots of MSC ELOANE

055 (054)

Bay 055 view and slots of MSC ELOANE

057

Bay 057 view and slots of MSC ELOANE

059 (058)

Bay 059 view and slots of MSC ELOANE

061

Bay 061 view and slots of MSC ELOANE

063 (062)

Bay 063 view and slots of MSC ELOANE

065

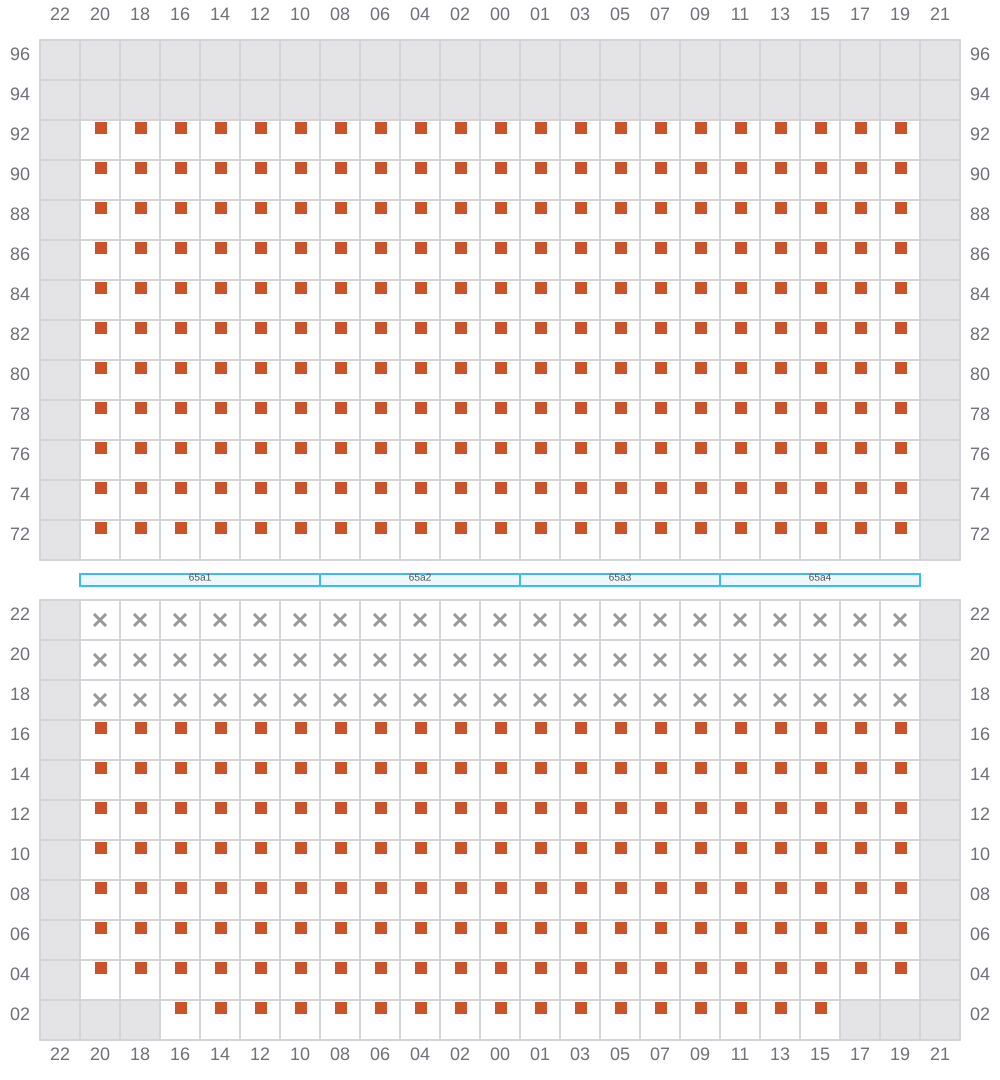

Bay 065 view and slots of MSC ELOANE

067 (066)

Bay 067 view and slots of MSC ELOANE

069

Bay 069 view and slots of MSC ELOANE

071 (070)

Bay 071 view and slots of MSC ELOANE

073

Bay 073 view and slots of MSC ELOANE

075 (074)

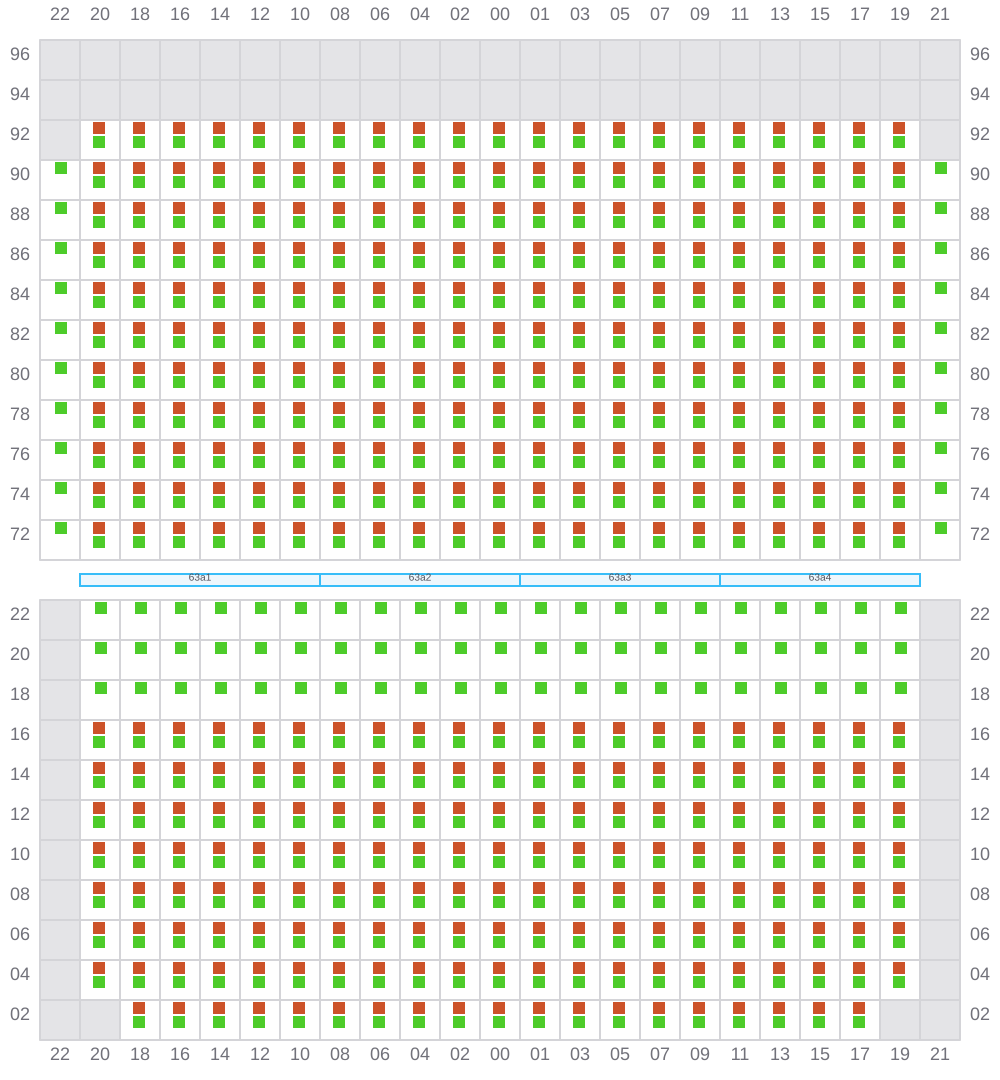

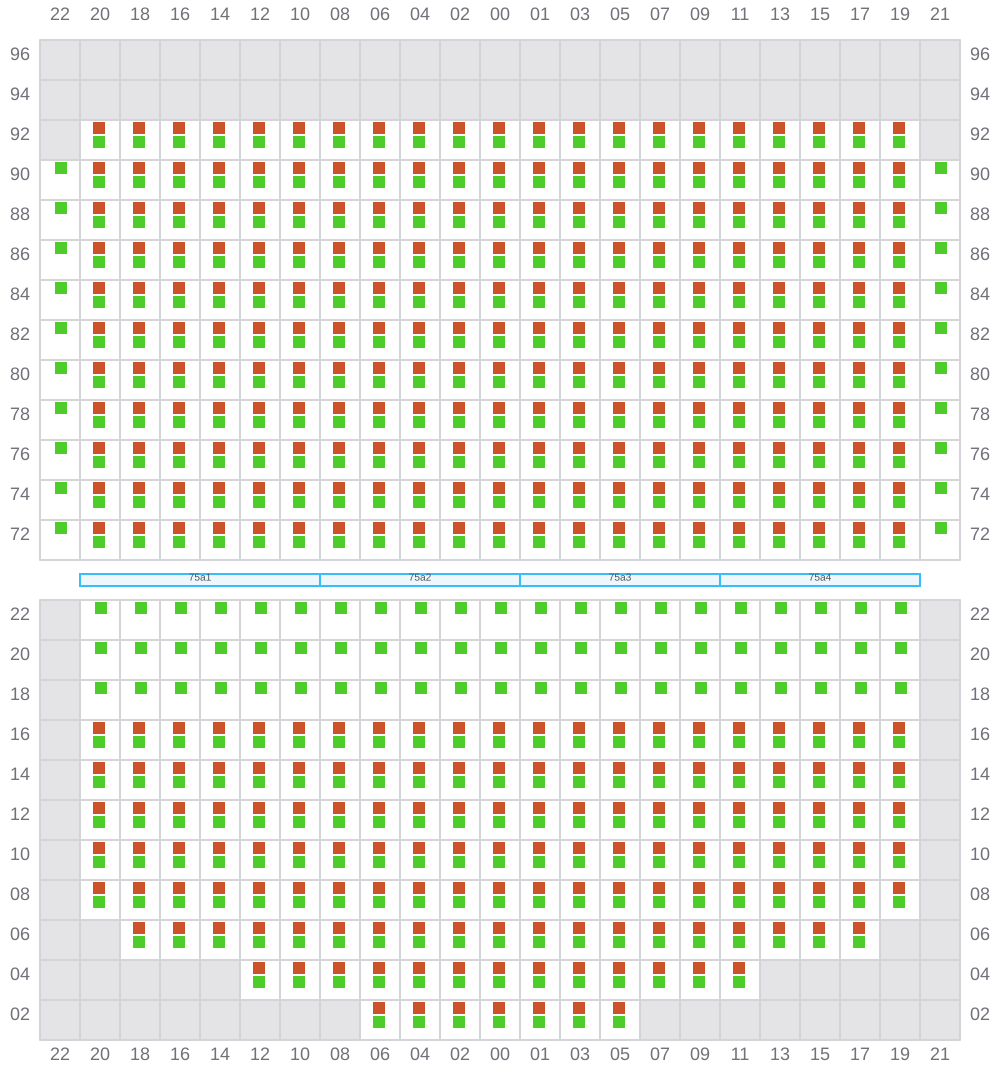

Bay 075 view and slots of MSC ELOANE

077

Bay 077 view and slots of MSC ELOANE

079 (078)

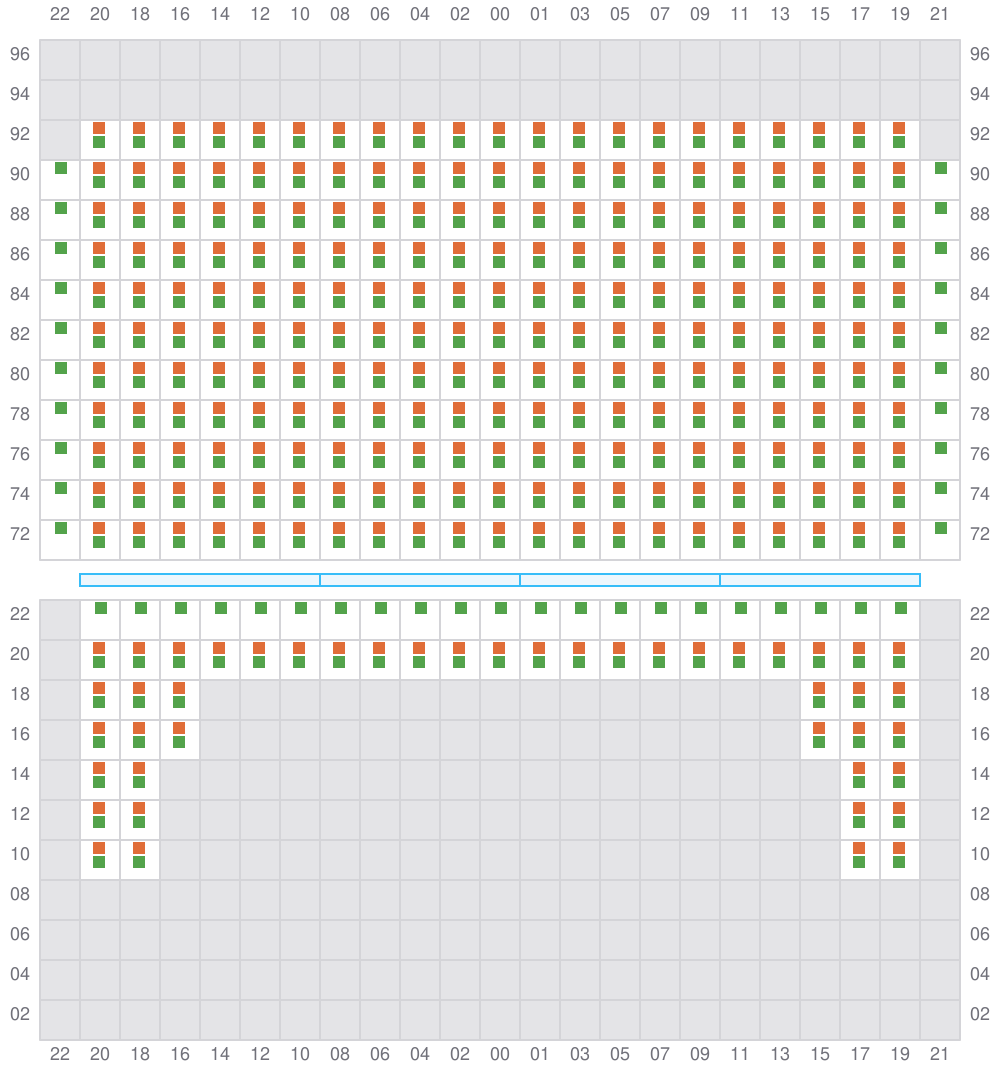

Bay 079 view and slots of MSC ELOANE

081

Bay 081 view and slots of MSC ELOANE

083 (082)

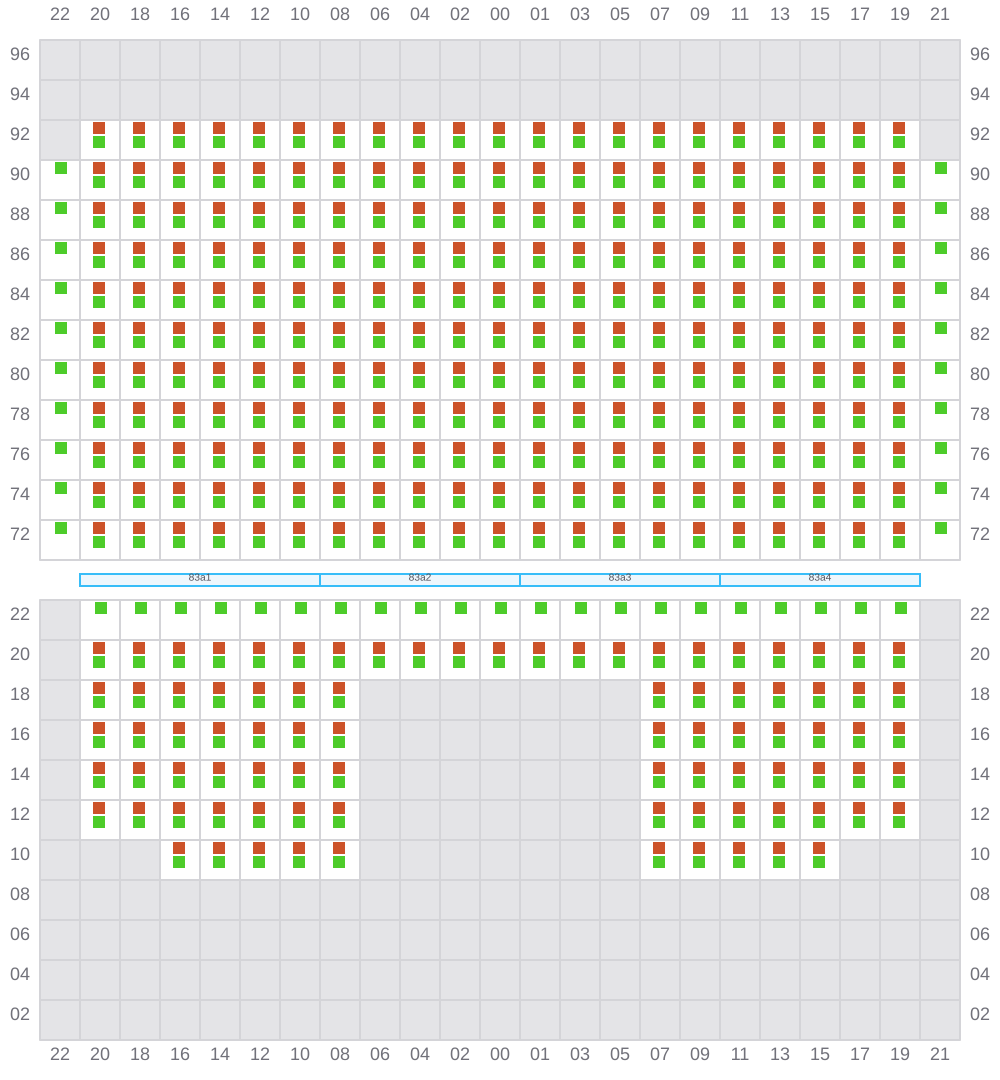

Bay 083 view and slots of MSC ELOANE

085

Bay 085 view and slots of MSC ELOANE

087 (086)

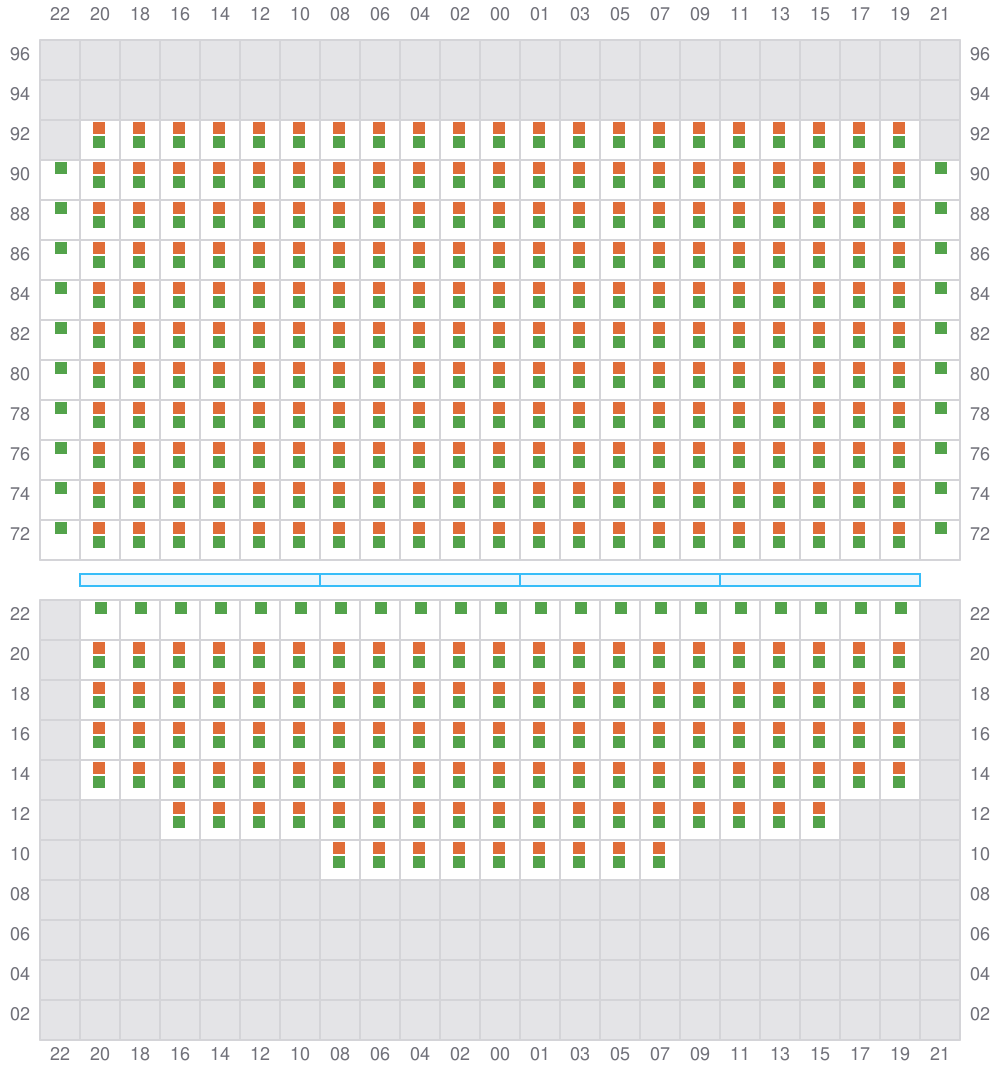

Bay 087 view and slots of MSC ELOANE

089

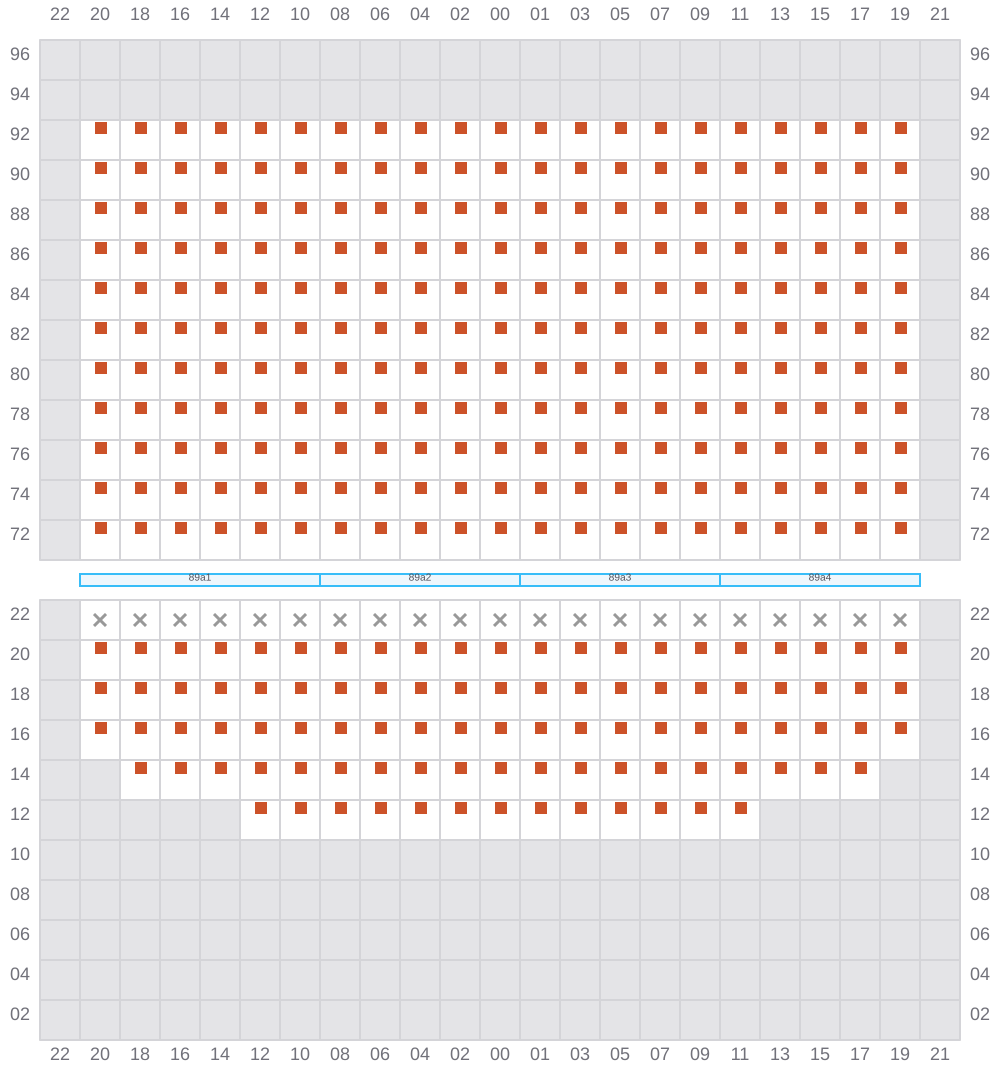

Bay 089 view and slots of MSC ELOANE

091 (090)

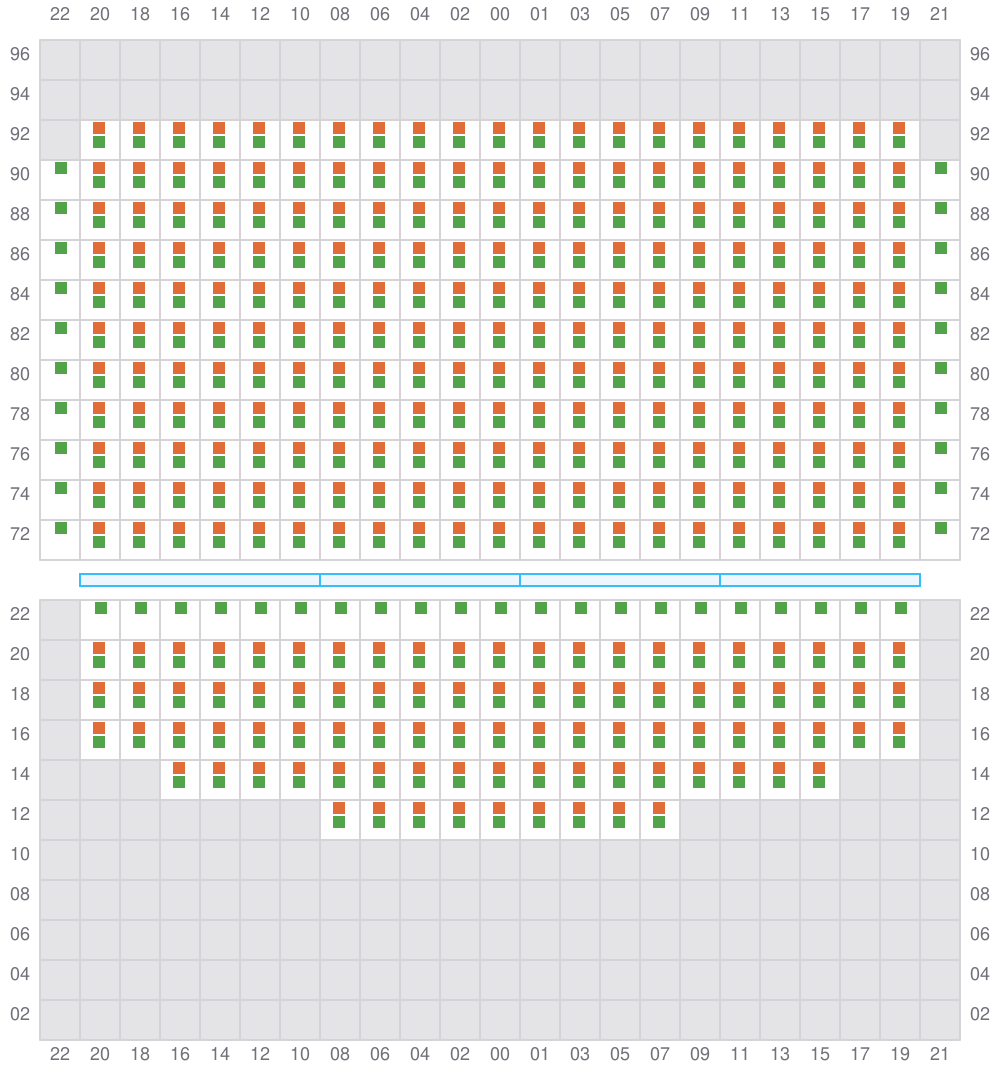

Bay 091 view and slots of MSC ELOANE

093

Bay 093 view and slots of MSC ELOANE

095 (094)

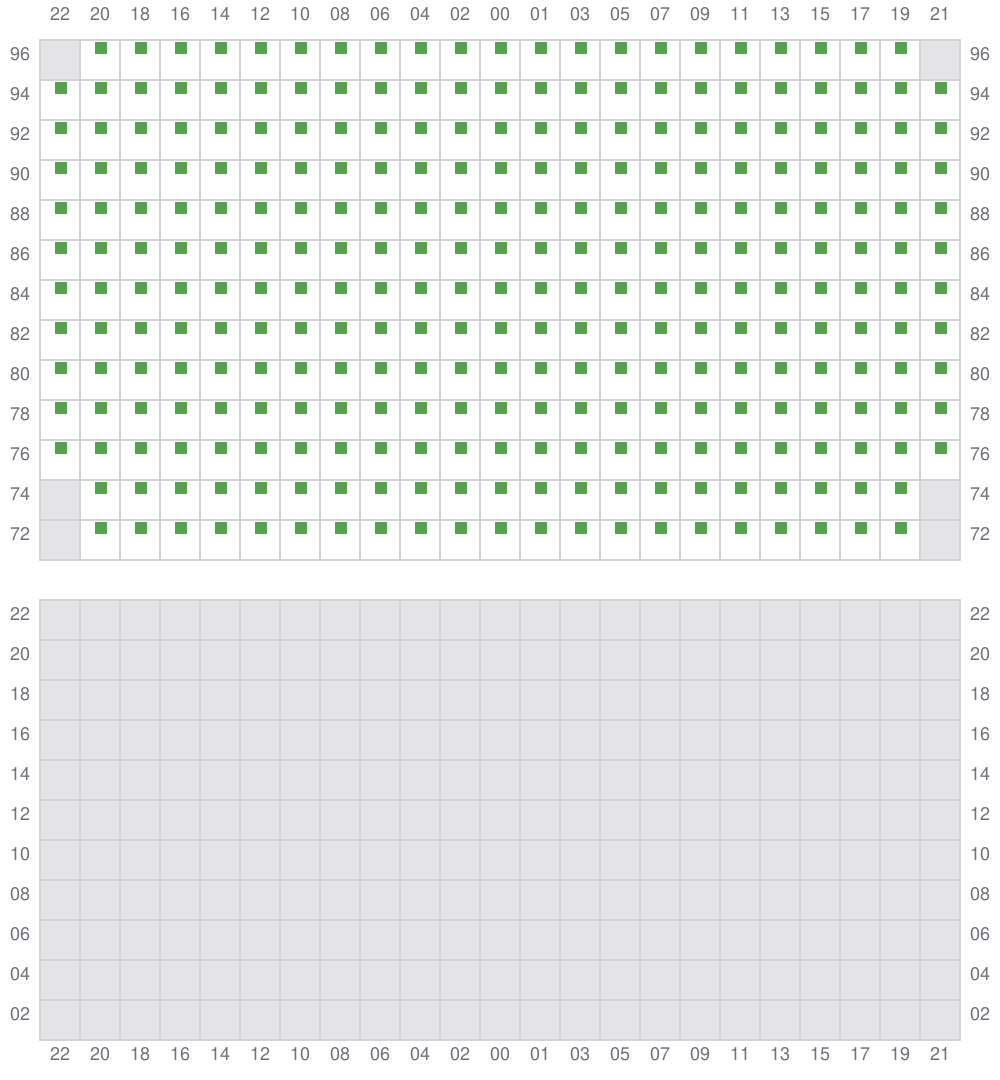

Bay 095 view and slots of MSC ELOANE
