MSC ELOISE
8917778 | 3ENH9 | 8917778 by *********** Last update: Sun Mar 03 2024
General Info
Ship Name:MSC ELOISE
IMO Code:8917778
Call Sign:3ENH9
Line Operator:8917778
Class Name for Sister Ships:5NF
Year Built:1991
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:051
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:3,315
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

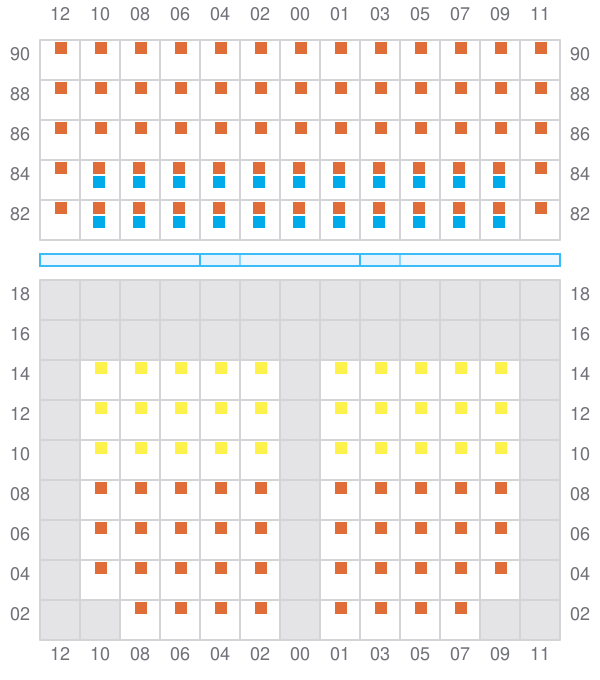

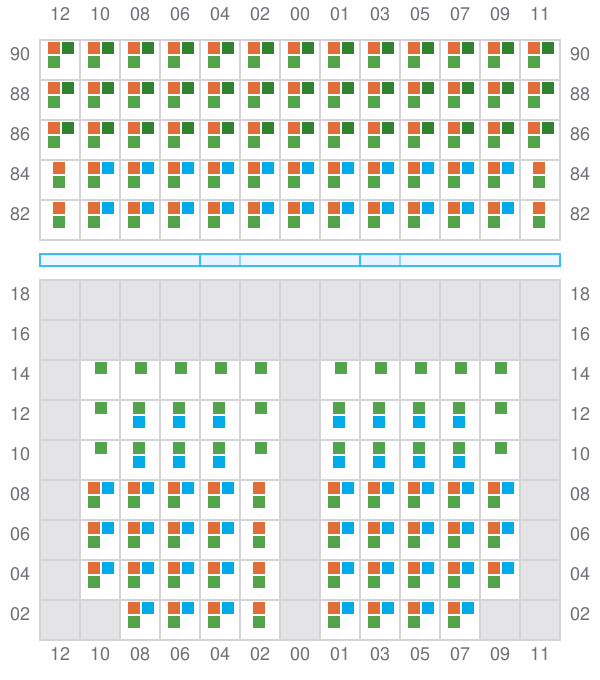

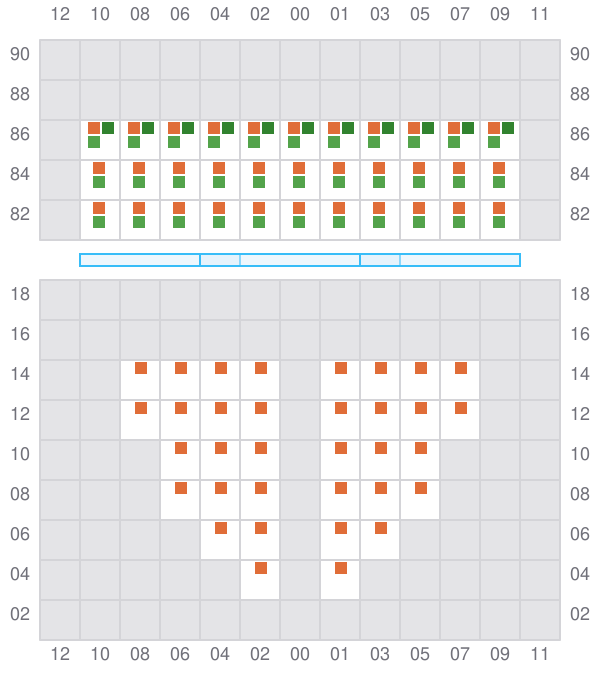

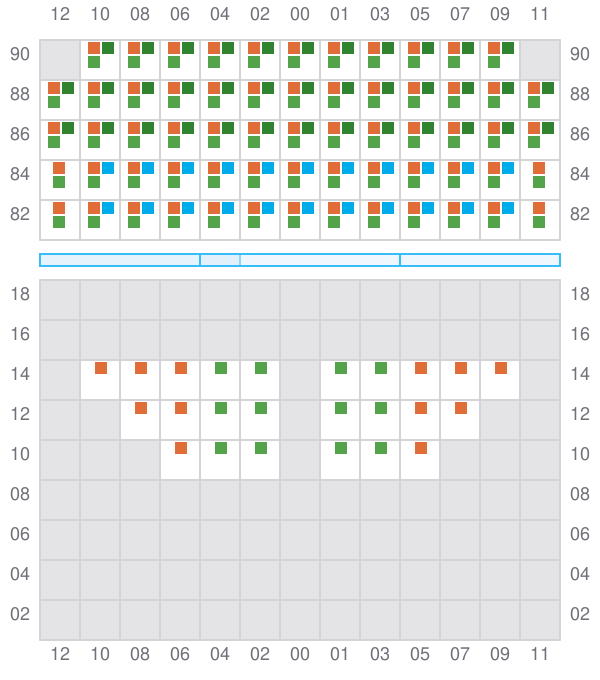

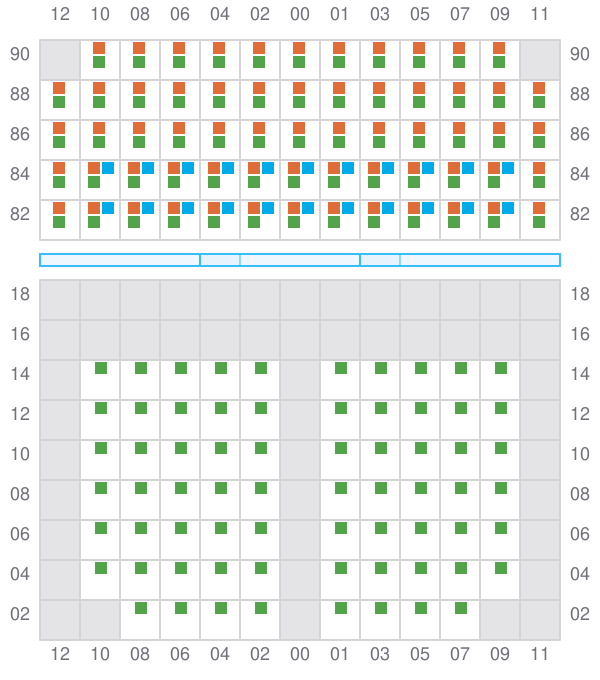

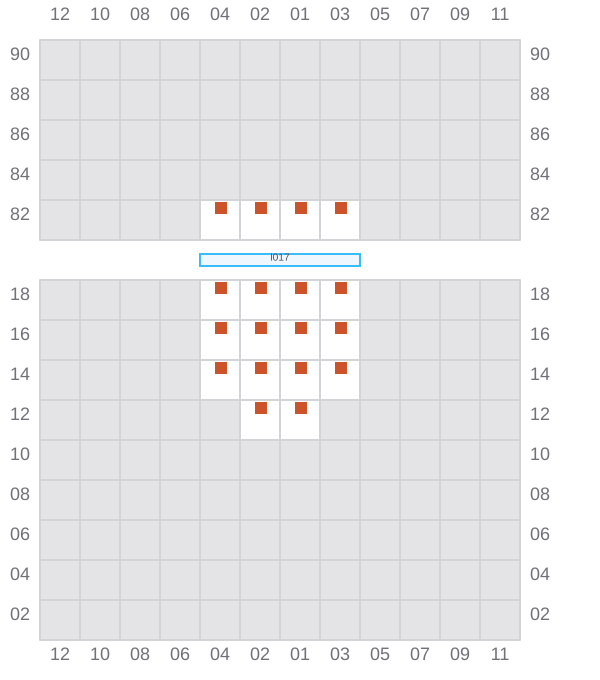

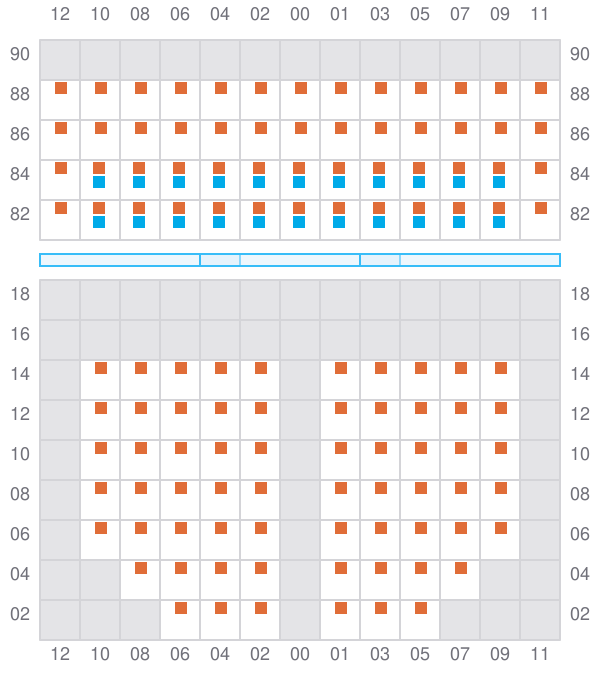

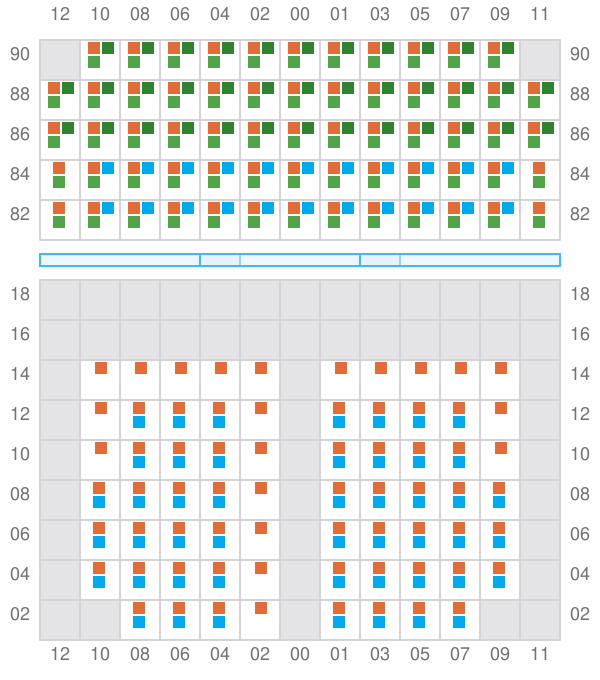

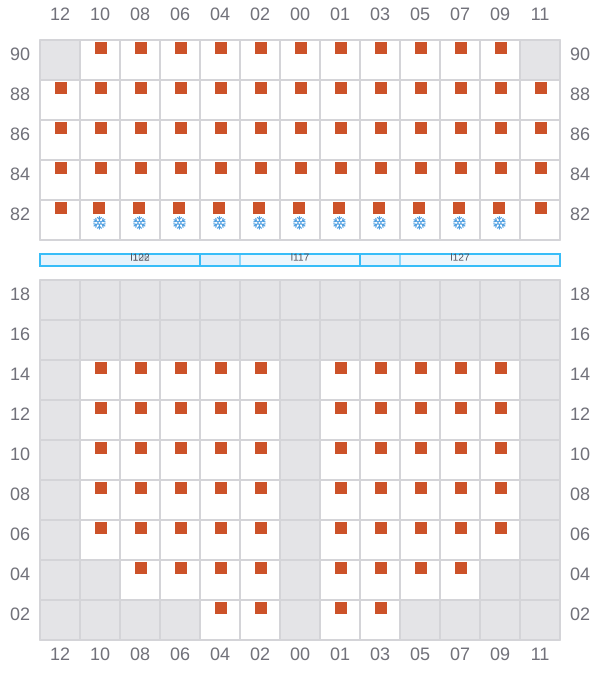

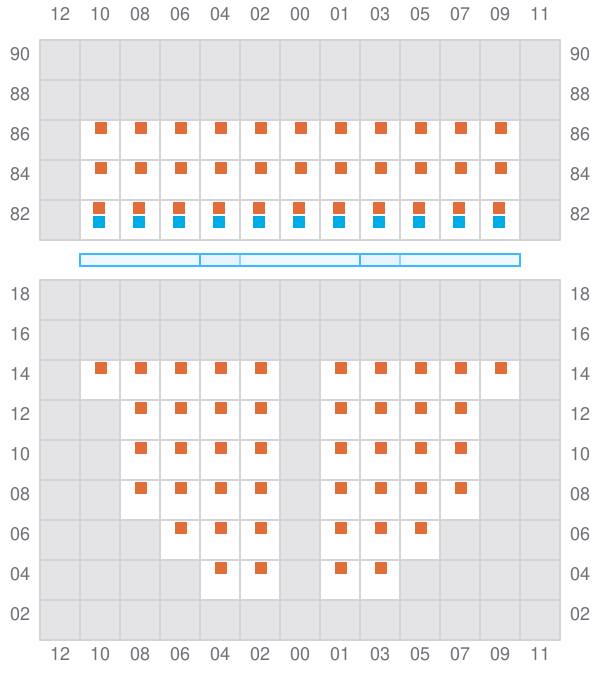

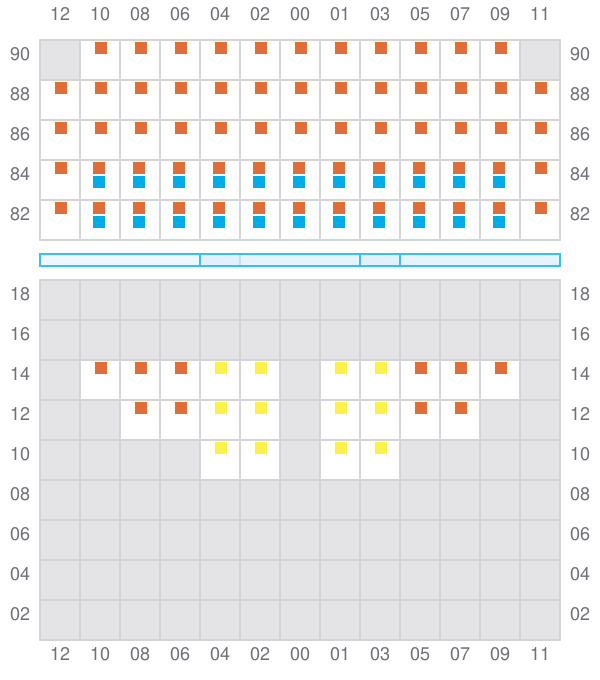

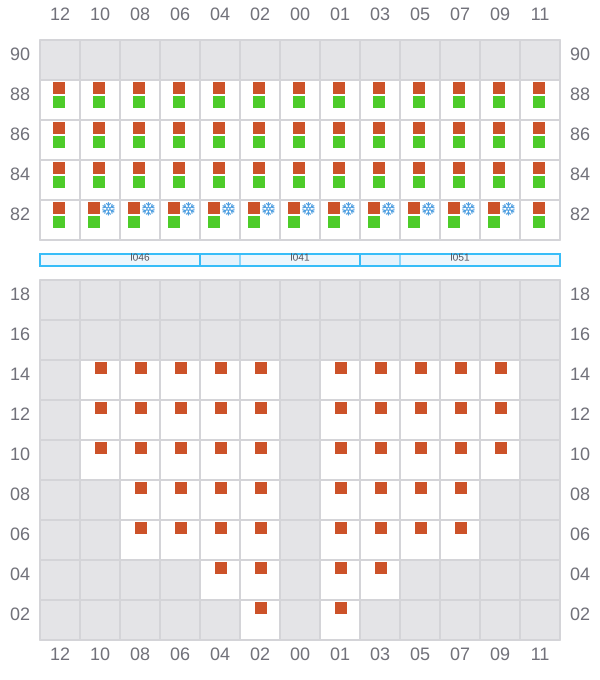

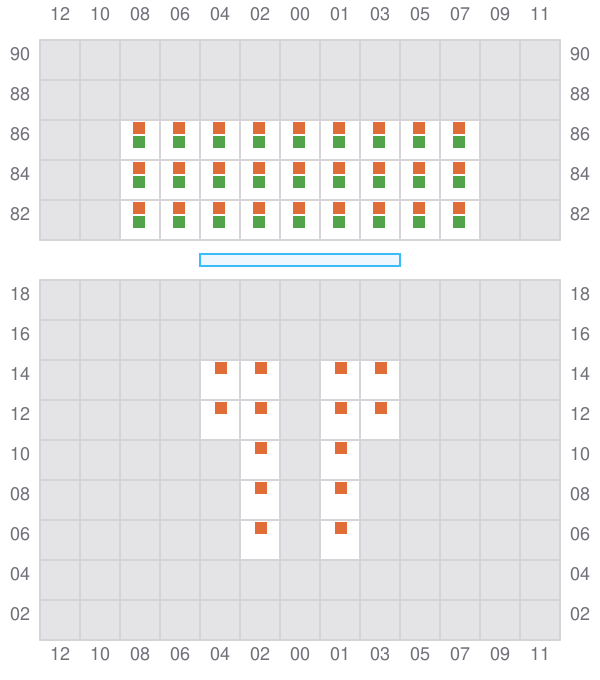

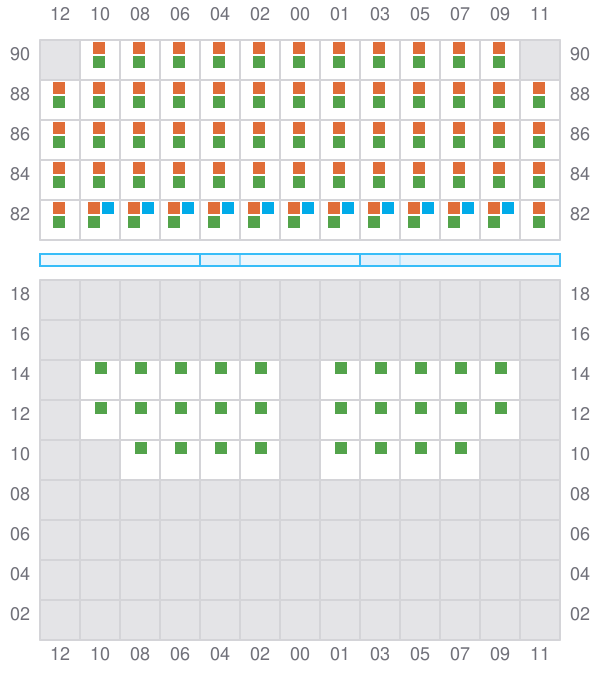

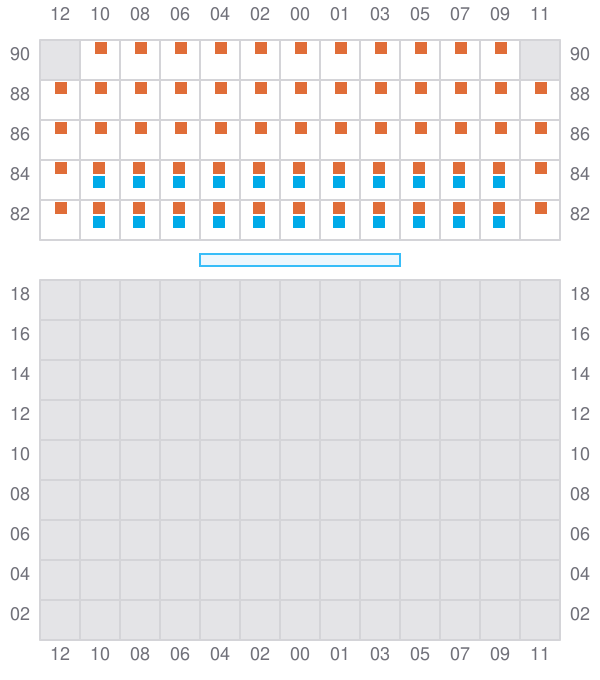

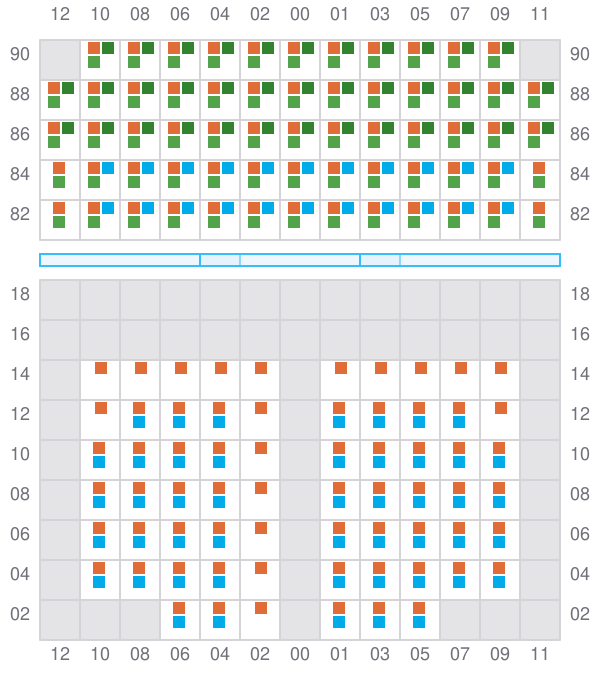

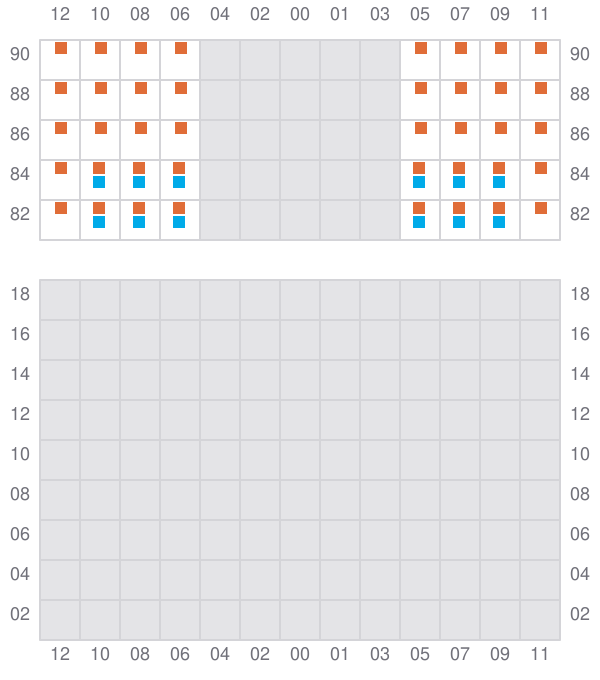

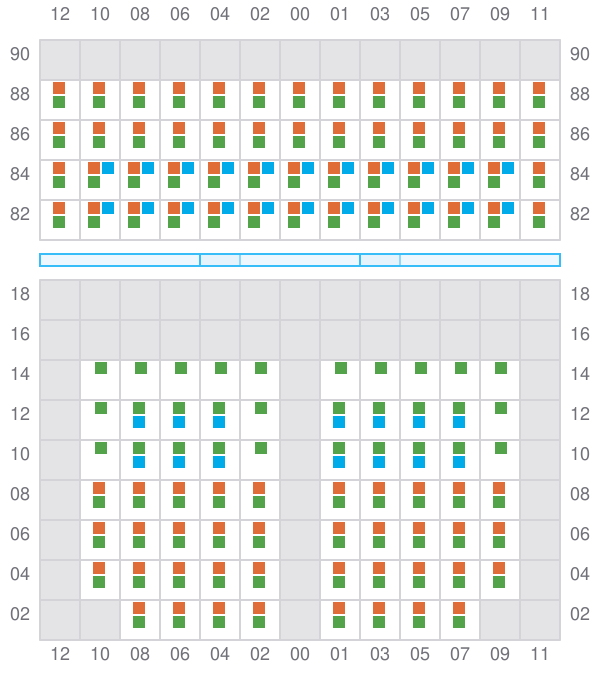

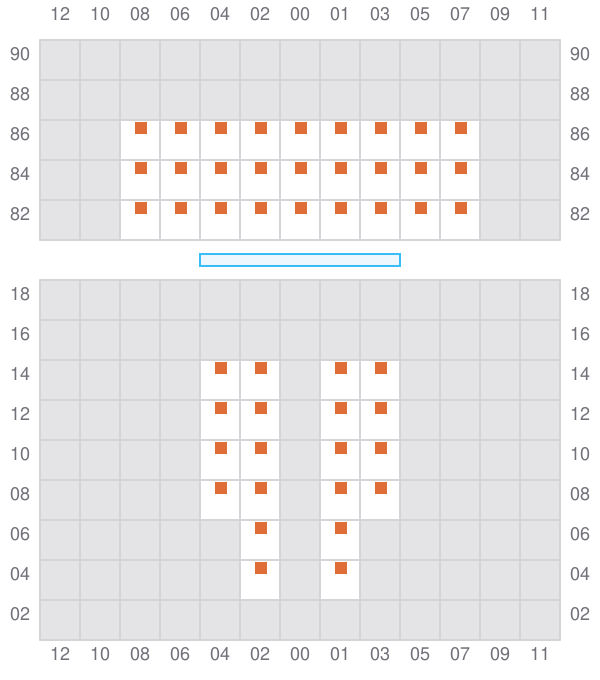

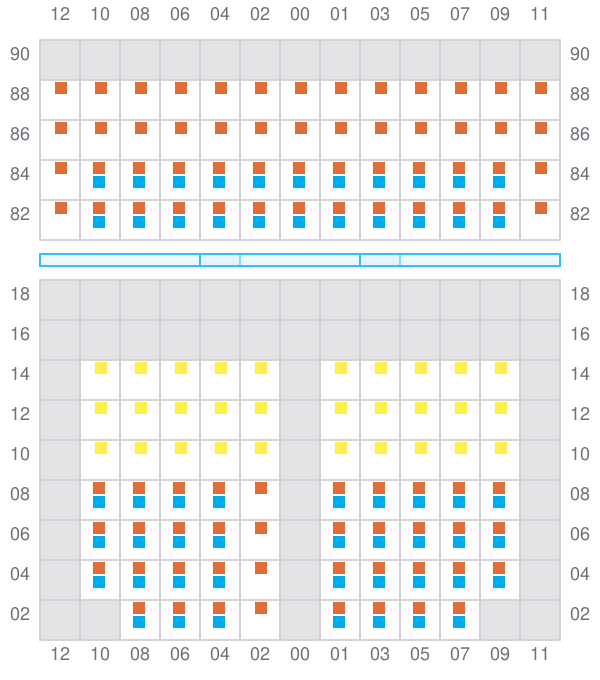

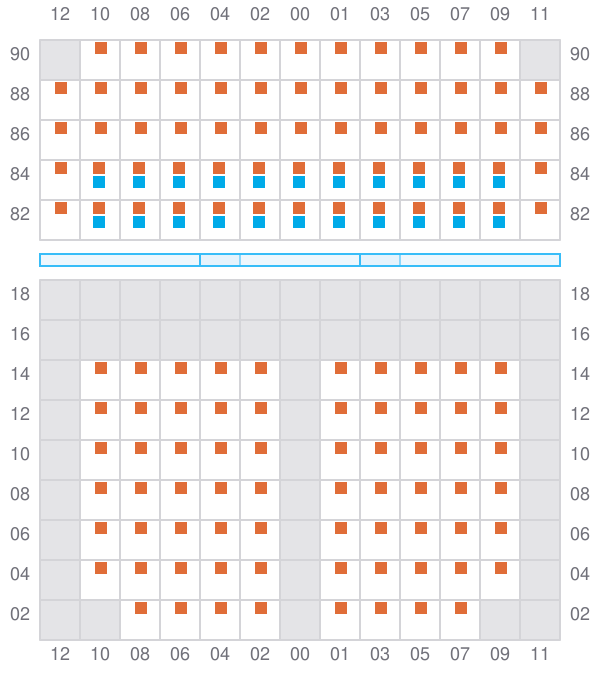

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- → / ?
003 (004)
- → / ?
005
007 (008)
- → / ?
009
011 (012)
- → / ?
013
- ← / ?
015 (016)
- → / ?
017
019 (020)
- →
021
023 (024)
- →
025
027 (028)
- →
- ? / →
029
031 (032)
- →
033
035 (036)
- →
- ? / →
037
039 (040)
- → / ?
041
043 (044)
- →
045
047 (048)
- →
049
051
