MSC ELSA 3
9123221 | A8NR5 | 9123221 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:MSC ELSA 3
IMO Code:9123221
Call Sign:A8NR5
Line Operator:9123221
Class Name for Sister Ships:1TU
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):172.36
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:91
Min Above ISO Tier:79
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,730
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

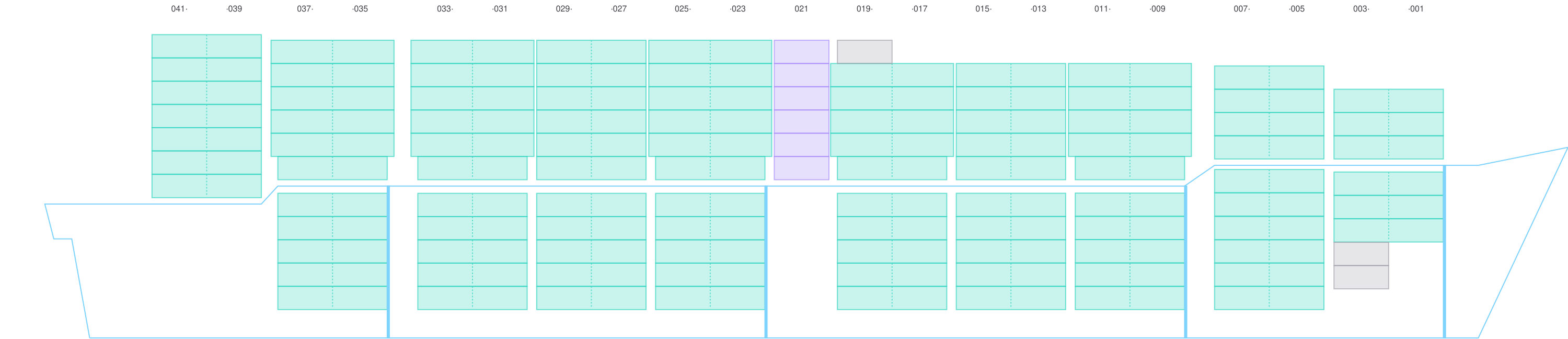

Side View

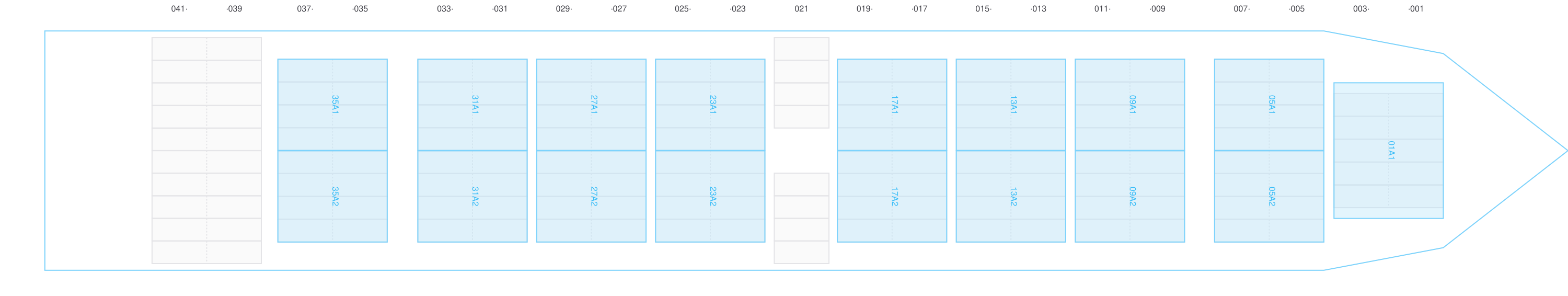

Hatch-Covers View

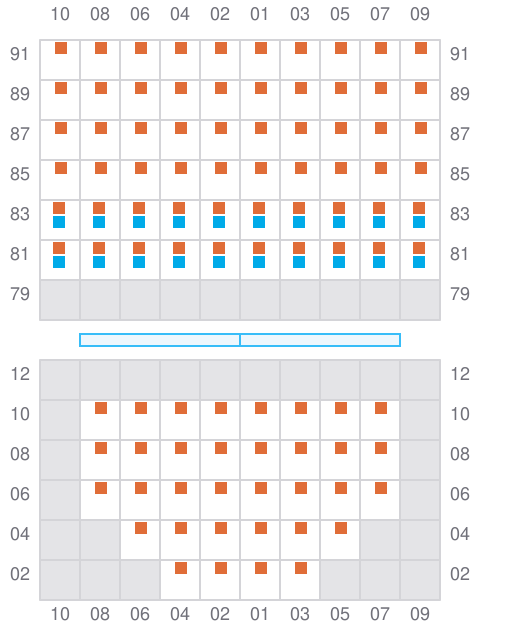

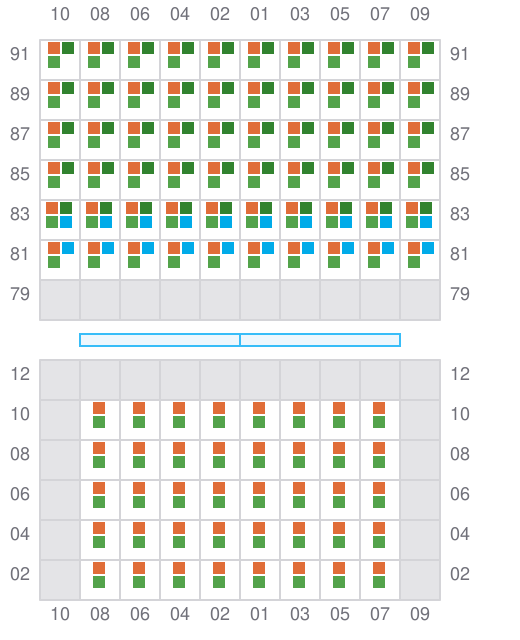

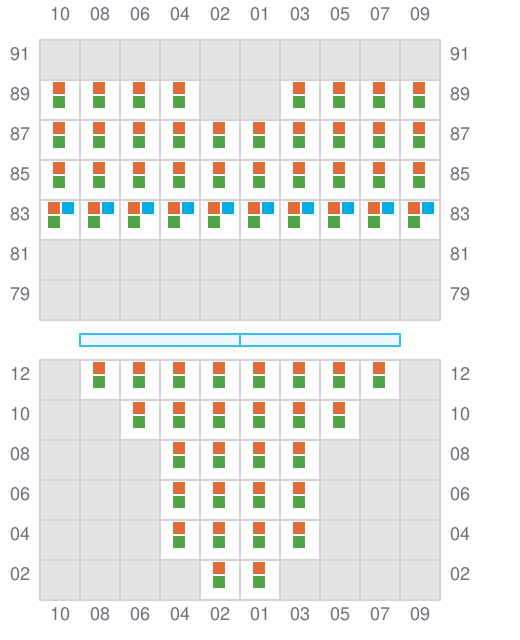

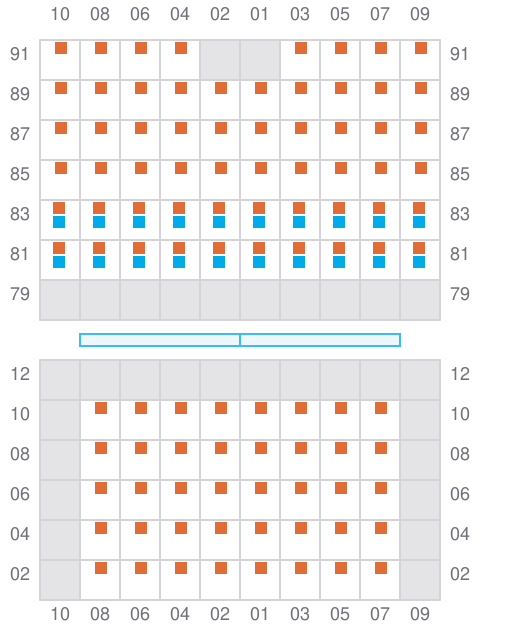

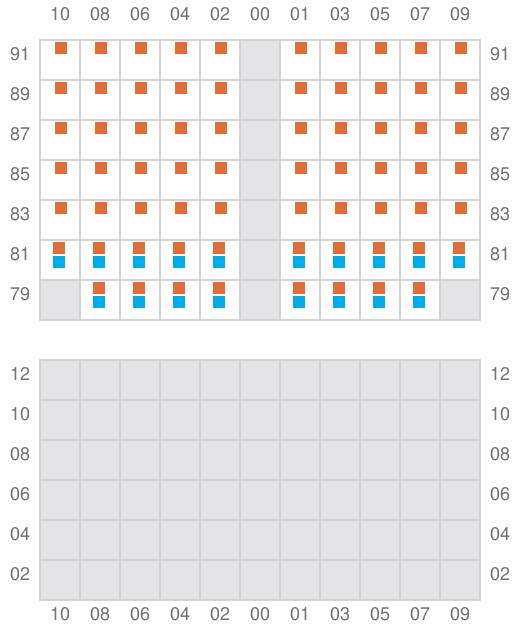

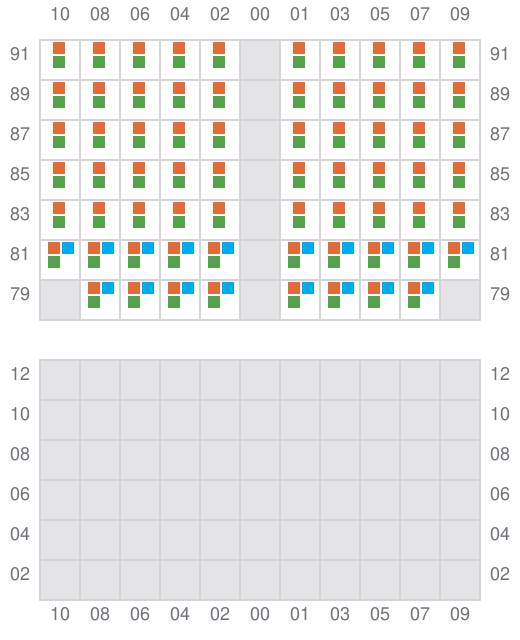

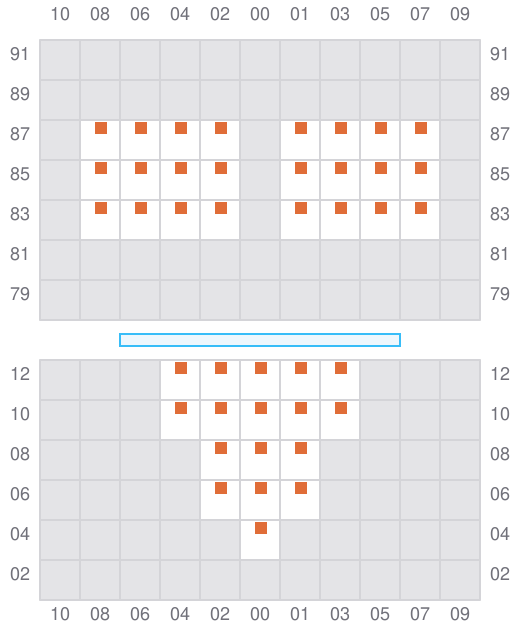

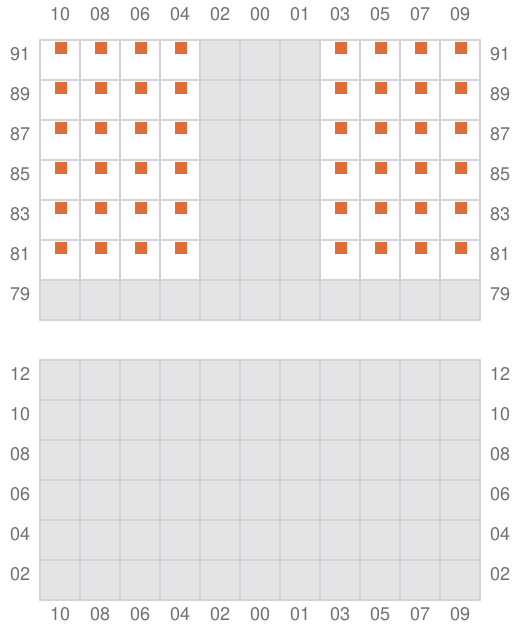

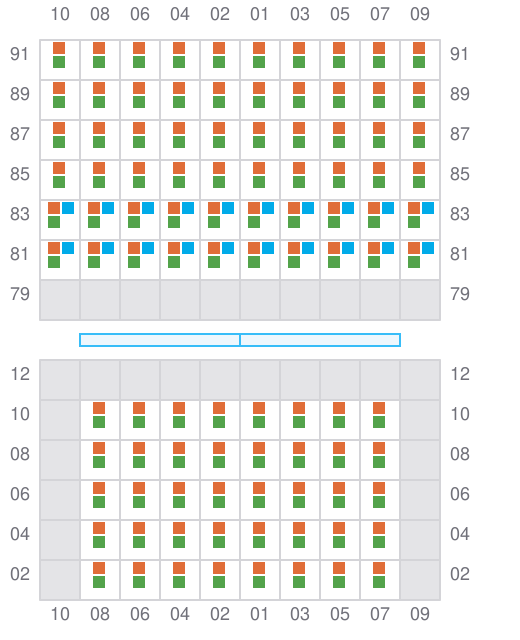

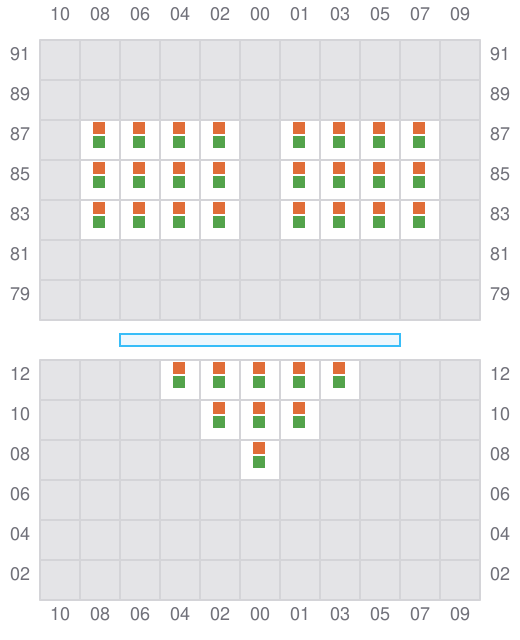

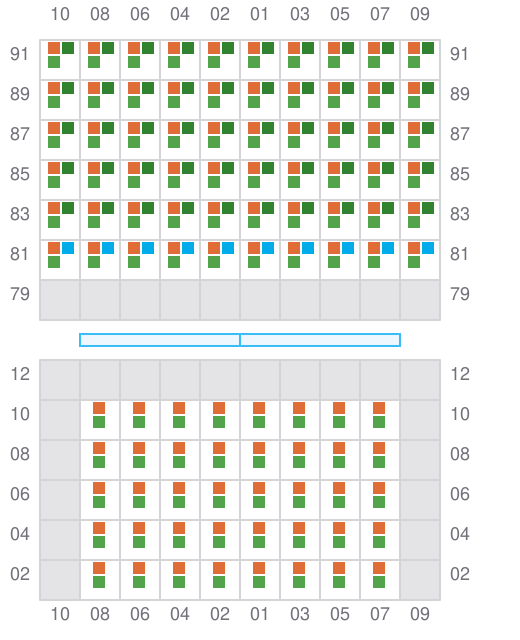

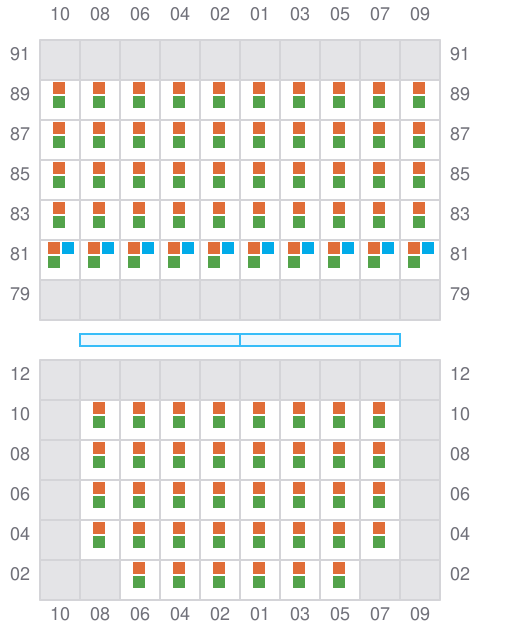

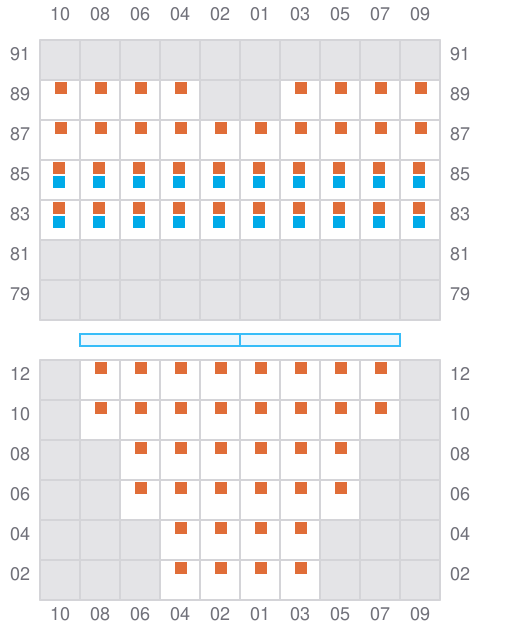

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- →
003
- ←
- →
005 (006)
- →
- ← / ?
- →
007
- ←
- → / ?
- →
009 (010)
- →
- ← / ?
- →
011
- ←
- → / ?
- →
013 (014)
- →
- ← / ?
- →
015
- ←
- → / ?
- →
017 (018)
- →
- ← / ?
- →
019
- ←
- → / ?
- →
021
- → / ?
023 (024)
- →
- ← / ?
- →
025
- ←
- → / ?
- →
027 (028)
- →
- ← / ?
- →
029
- ←
- → / ?
- →
031 (032)
- →
- ← / ?
- →
033
- ←
- → / ?
- →
035 (036)
- →
- ← / ?
- →
037
- ←
- → / ?
- →
039 (040)
- → / ?
- ← / ?
- → / ?
041
- ← / ?
- → / ?
- → / ?
