MSC EMMA
9463047 | D5QH6 | 9463047 by ********* Last update: Fri Apr 12 2024

General Info

Ship Name:MSC EMMA
IMO Code:9463047
Call Sign:D5QH6
Line Operator:9463047
Class Name for Sister Ships:MAERSK ENFIELD
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):350.00
LOA (Length Overall):366.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,102

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

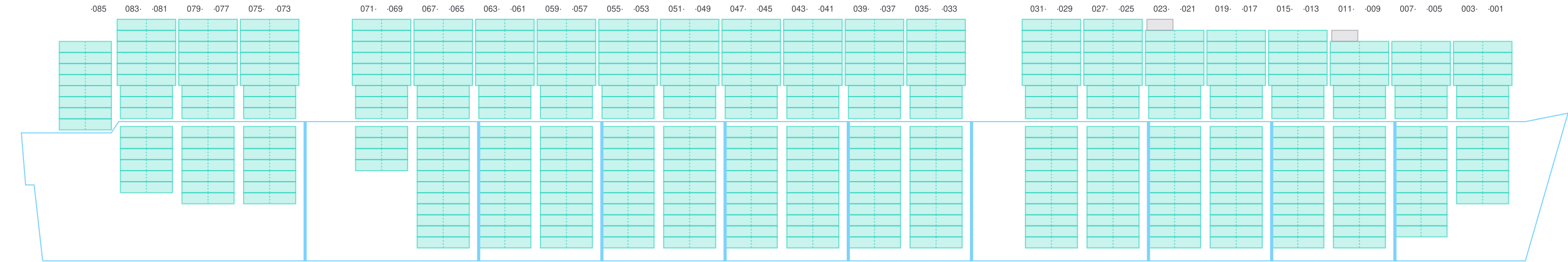

Side View

Side view of MSC EMMA

Hatch-Covers View

Deck view of MSC EMMA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

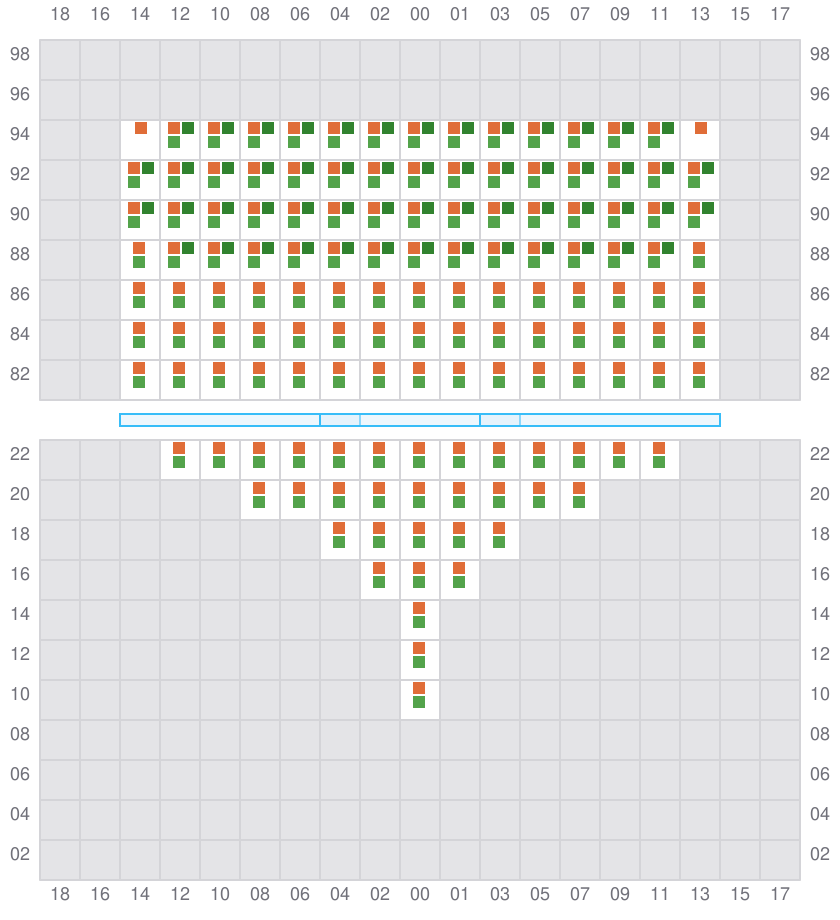

Bay 001 view and slots of MSC EMMA

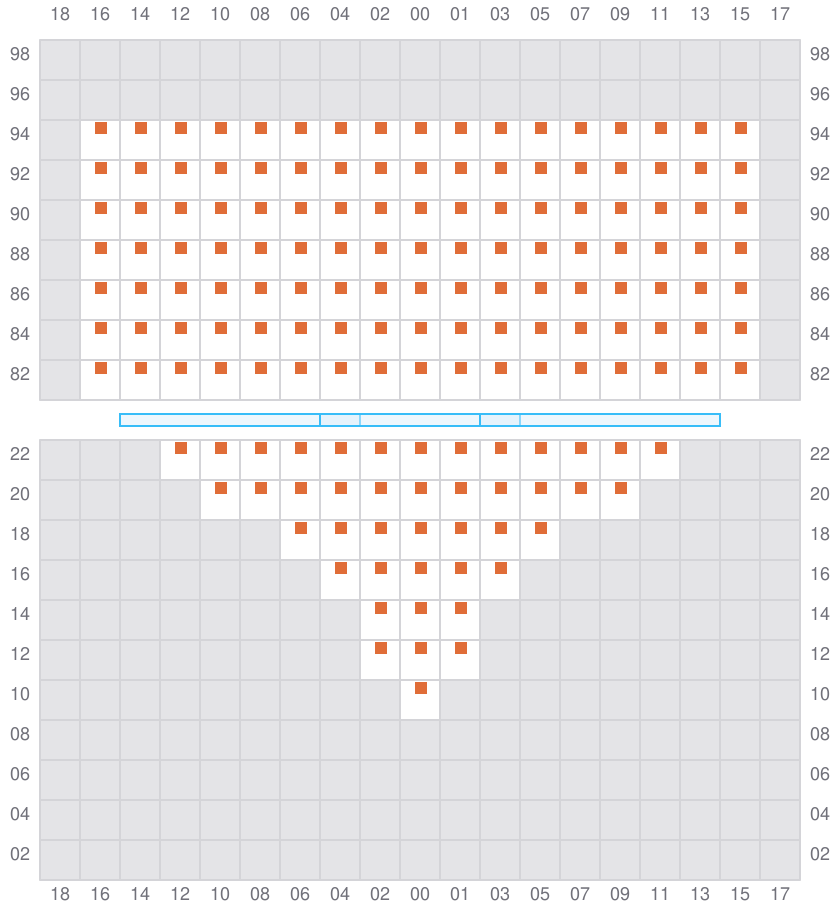

003

  • ←
Bay 003 view and slots of MSC EMMA

005 (006)

  • →

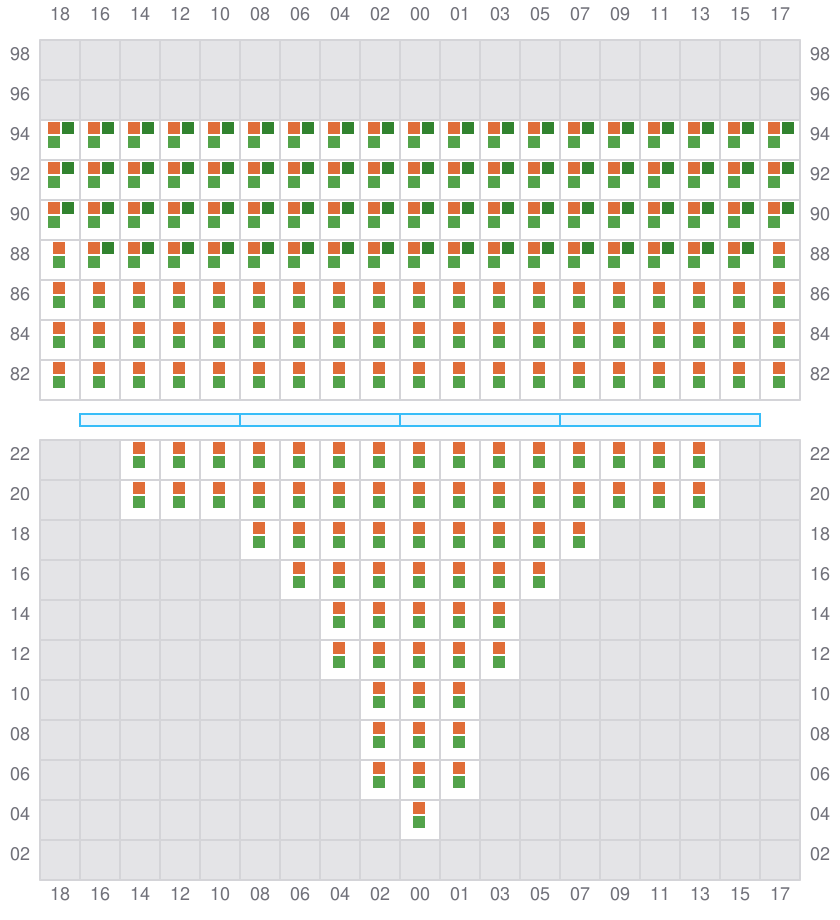

Bay 005 view and slots of MSC EMMA

007

  • ←
  • → / ?
Bay 007 view and slots of MSC EMMA

009 (010)

  • →

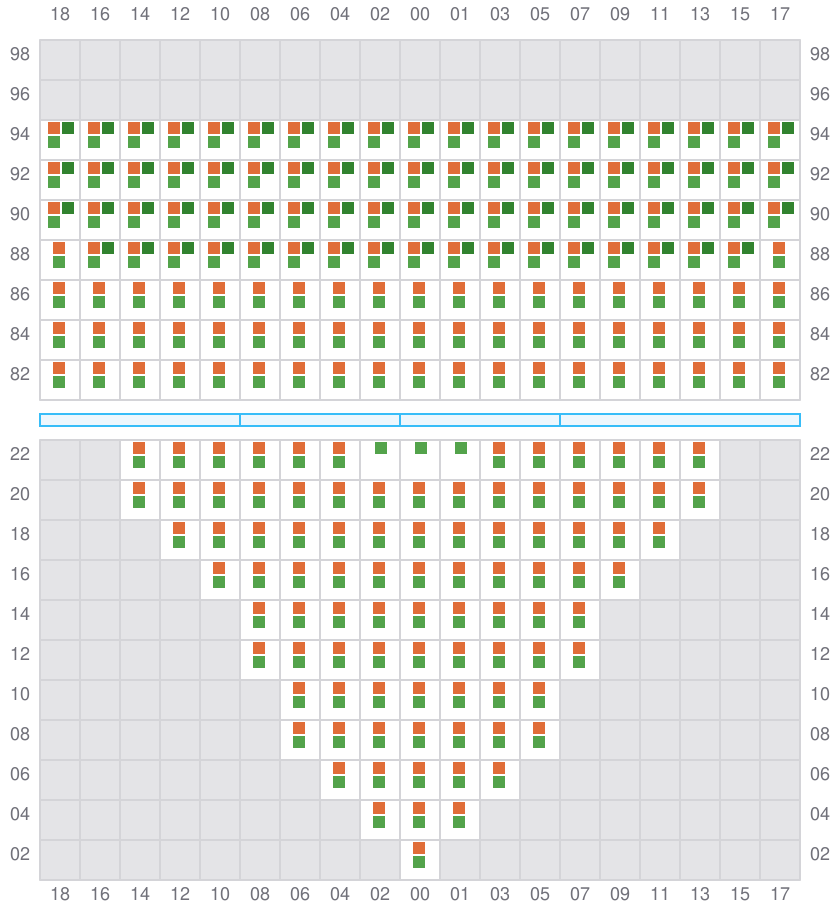

Bay 009 view and slots of MSC EMMA

011

  • ←
  • → / ?

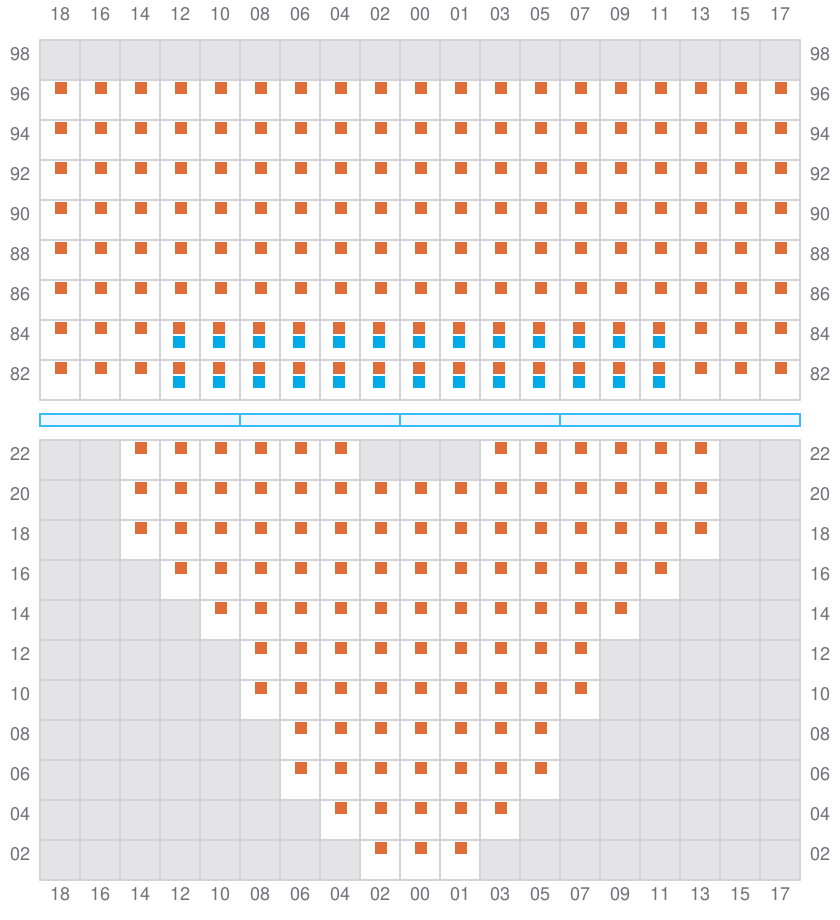

Bay 011 view and slots of MSC EMMA

013 (014)

  • →
Bay 013 view and slots of MSC EMMA

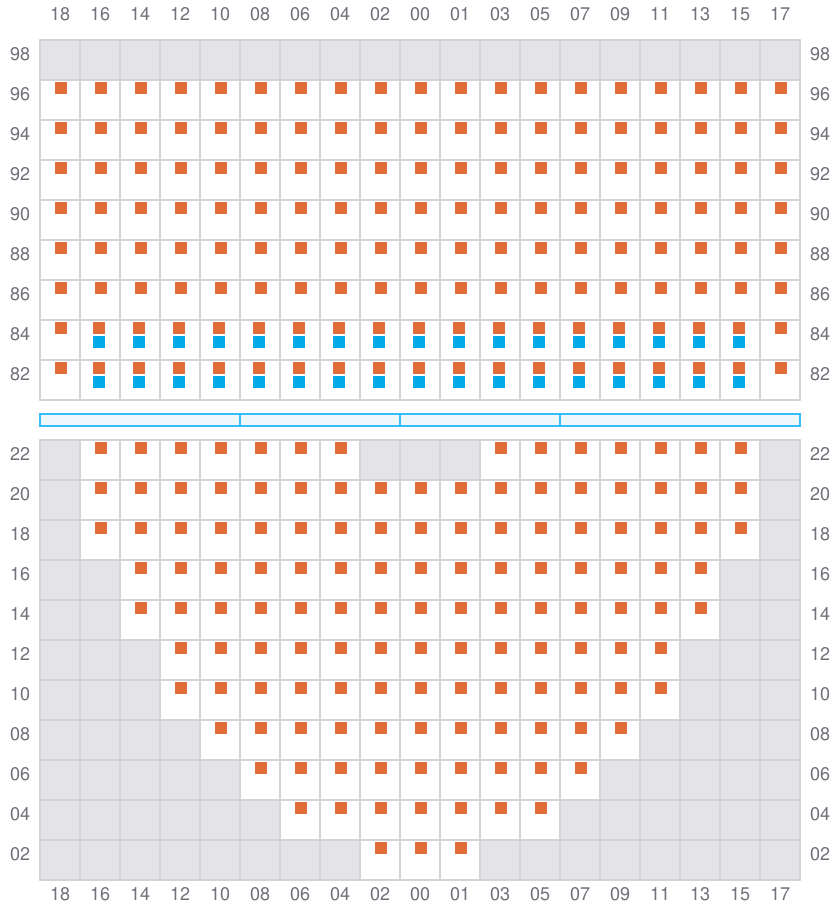

015

  • ←
  • → / ?
Bay 015 view and slots of MSC EMMA

017 (018)

  • →

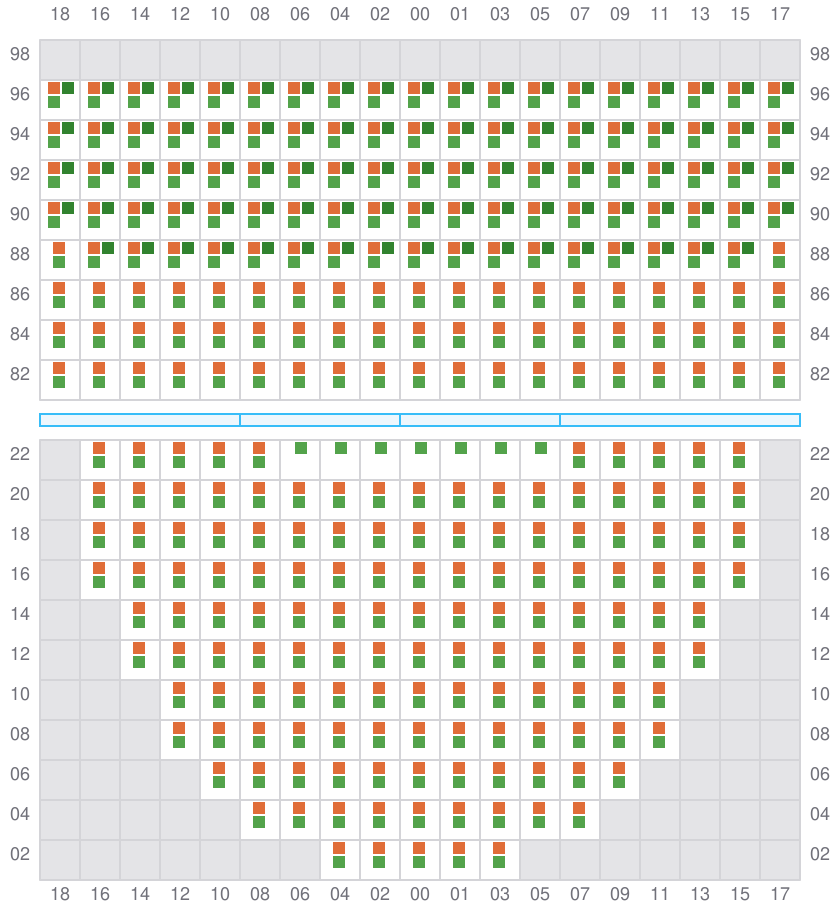

Bay 017 view and slots of MSC EMMA

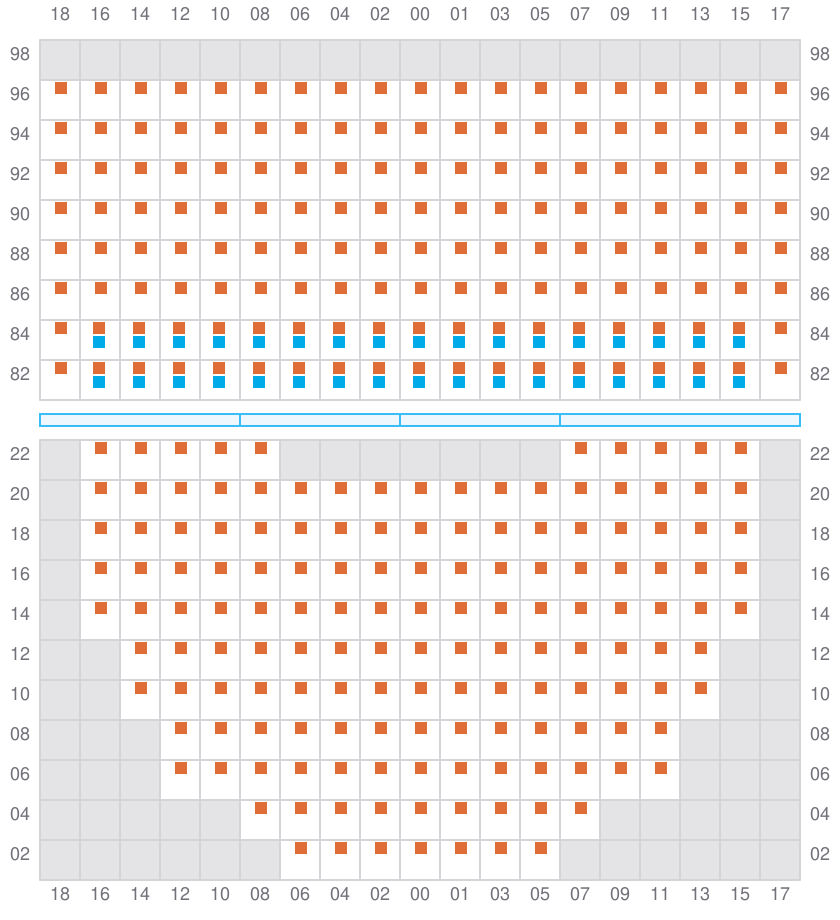

019

  • ←
  • → / ?
Bay 019 view and slots of MSC EMMA

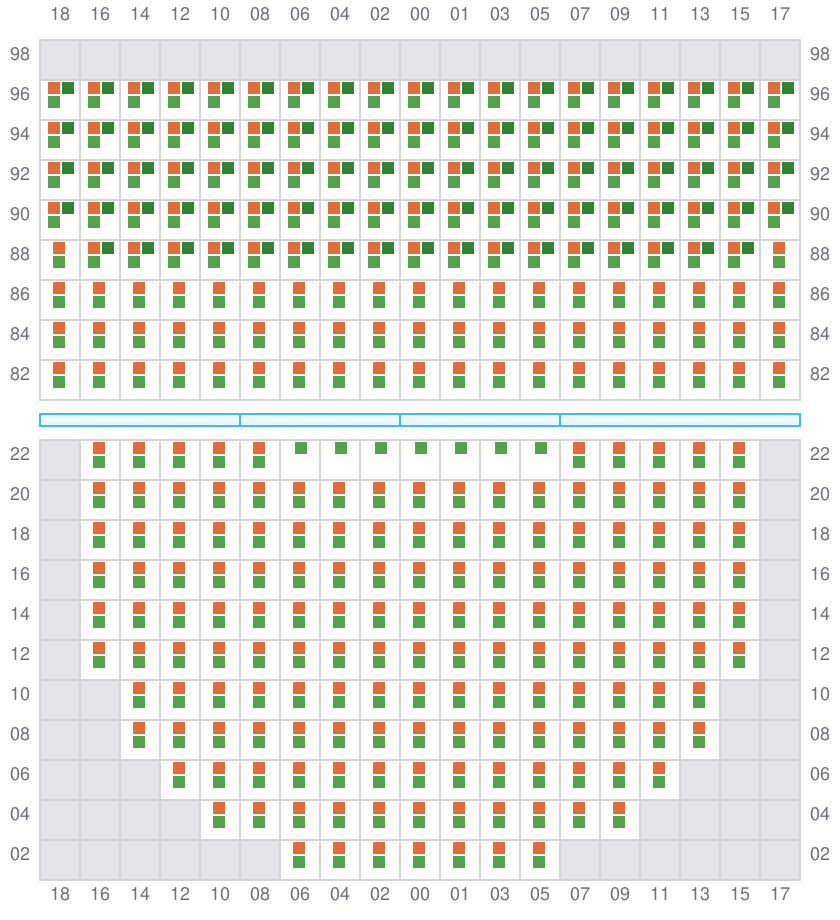

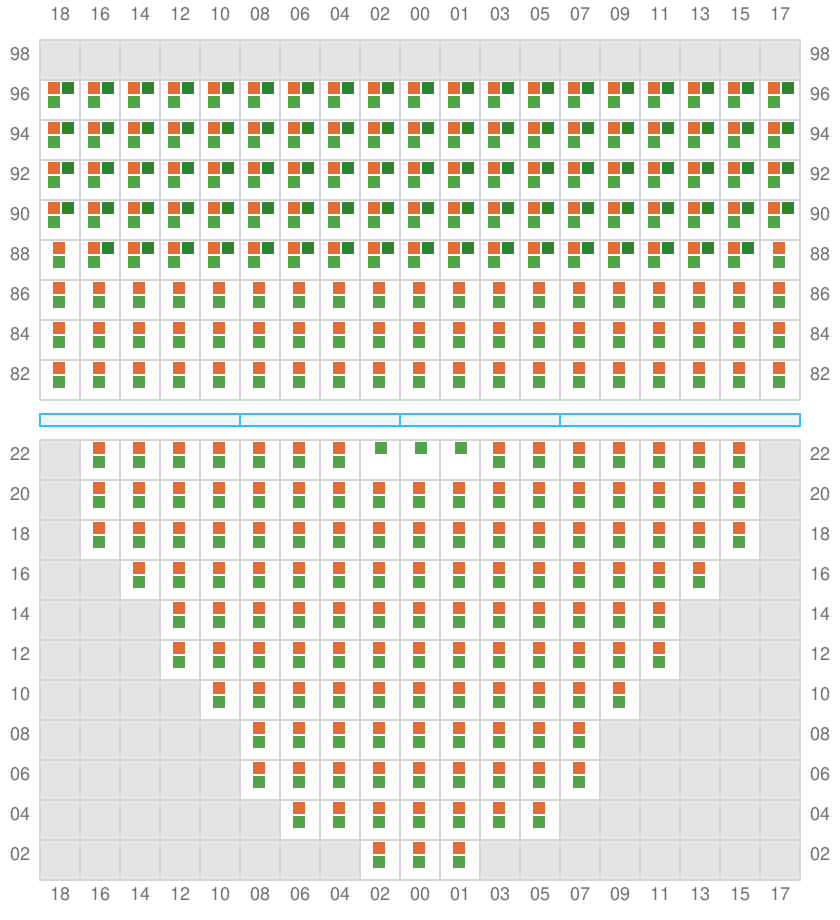

021 (022)

  • →
Bay 021 view and slots of MSC EMMA

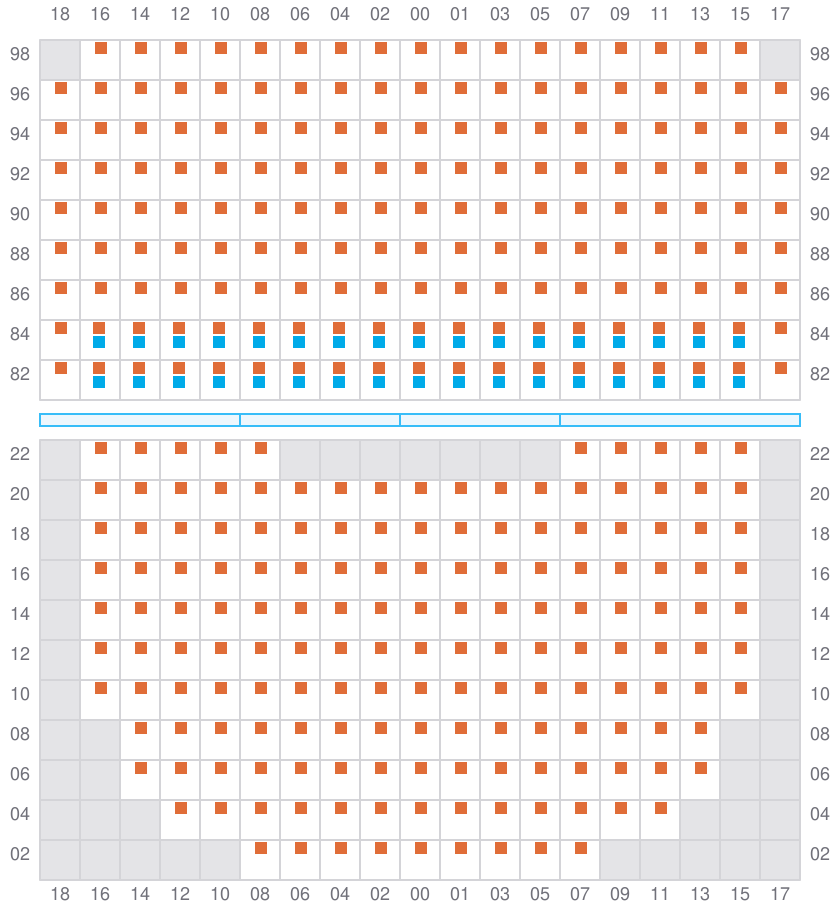

023

  • ←
  • → / ?
Bay 023 view and slots of MSC EMMA

025 (026)

  • →
Bay 025 view and slots of MSC EMMA

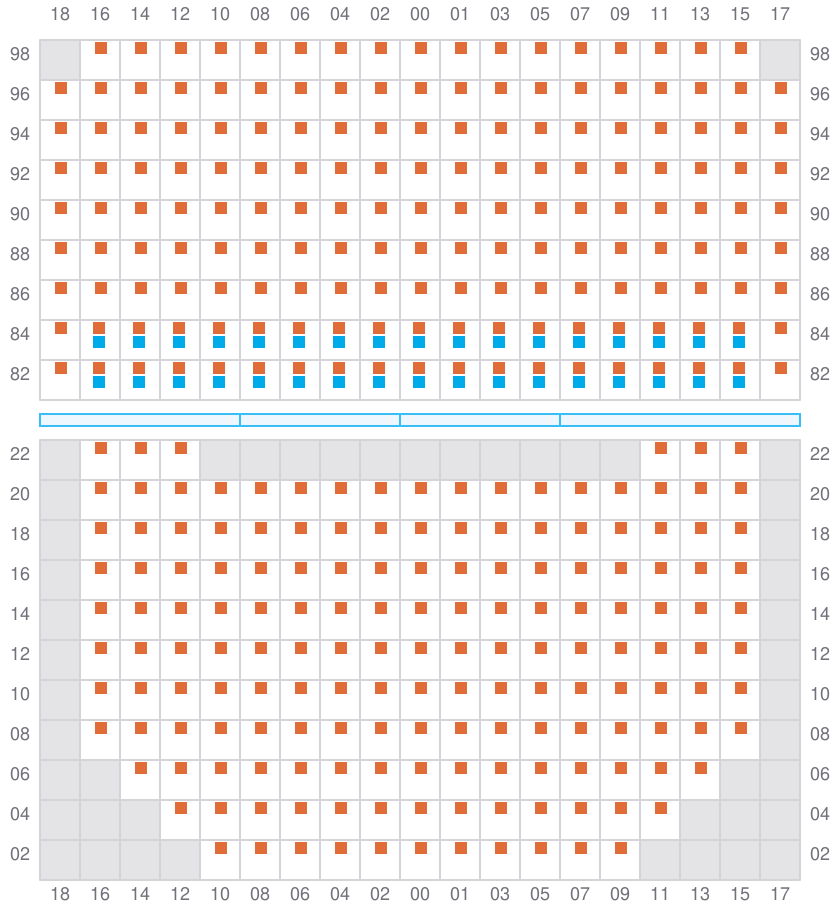

027

  • ←
  • → / ?
Bay 027 view and slots of MSC EMMA

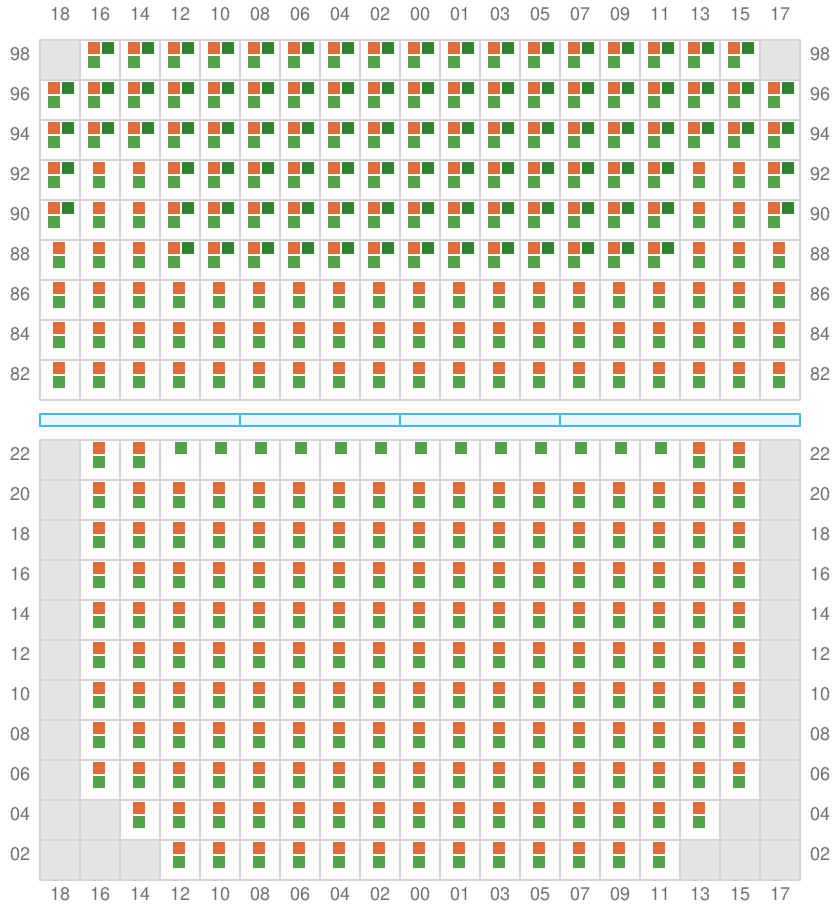

029 (030)

  • →
Bay 029 view and slots of MSC EMMA

031

  • ←
  • → / ?
Bay 031 view and slots of MSC EMMA

033 (034)

  • →

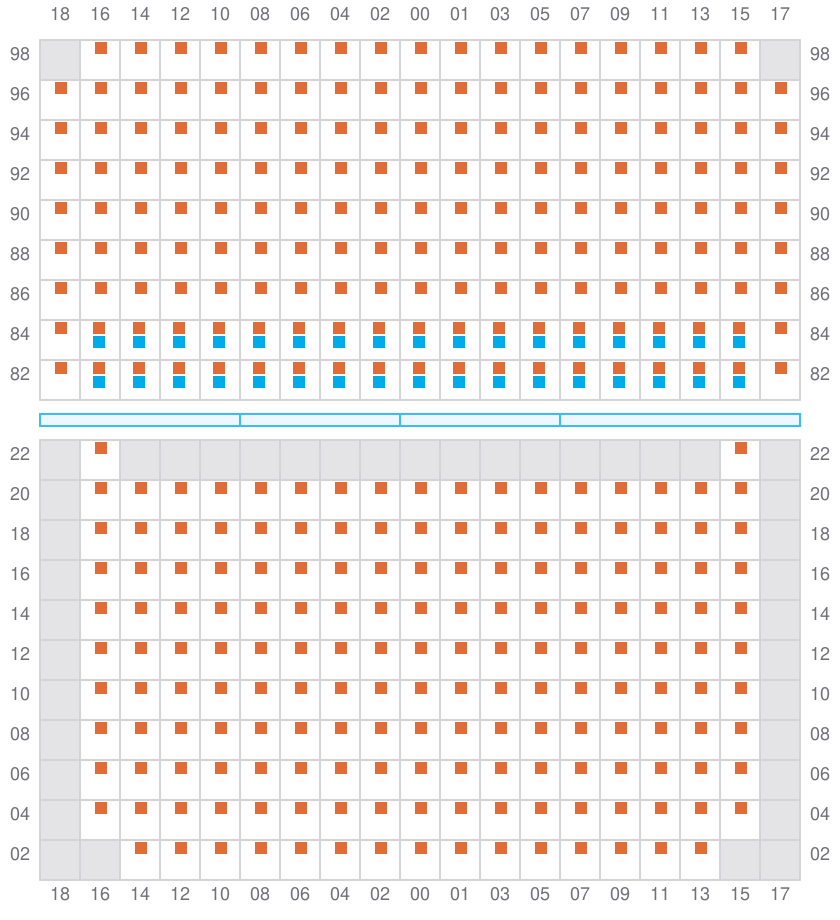

Bay 033 view and slots of MSC EMMA

035

  • ←
  • → / ?
Bay 035 view and slots of MSC EMMA

037 (038)

  • →
Bay 037 view and slots of MSC EMMA

039

  • ←
  • → / ?
Bay 039 view and slots of MSC EMMA

041 (042)

  • →
Bay 041 view and slots of MSC EMMA

043

  • ←
  • → / ?
Bay 043 view and slots of MSC EMMA

045 (046)

  • →
Bay 045 view and slots of MSC EMMA

047

  • ←
  • → / ?
Bay 047 view and slots of MSC EMMA

049 (050)

  • →

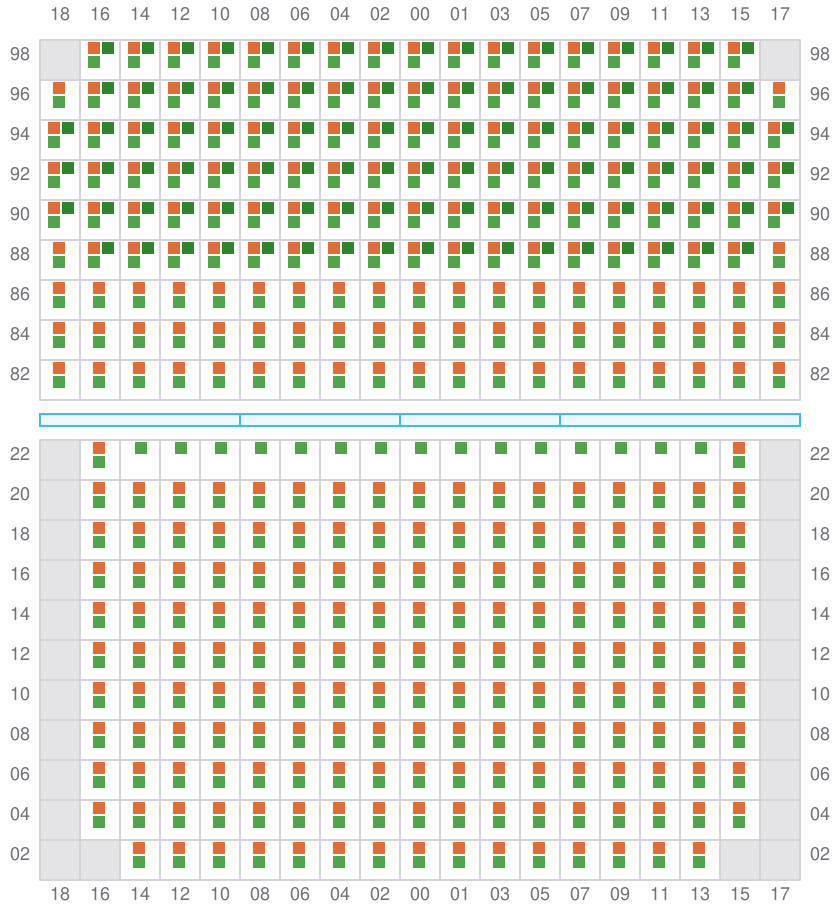

Bay 049 view and slots of MSC EMMA

051

  • ←
  • → / ?
Bay 051 view and slots of MSC EMMA

053 (054)

  • →
Bay 053 view and slots of MSC EMMA

055

  • ←
  • → / ?

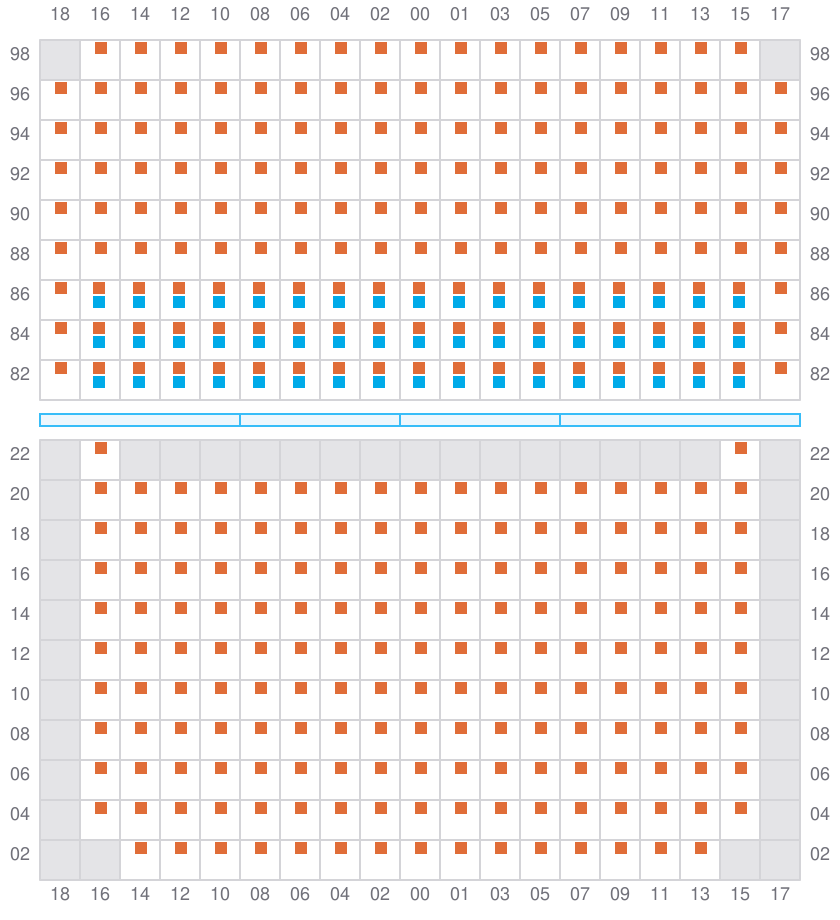

Bay 055 view and slots of MSC EMMA

057 (058)

  • →
Bay 057 view and slots of MSC EMMA

059

  • ←
  • → / ?

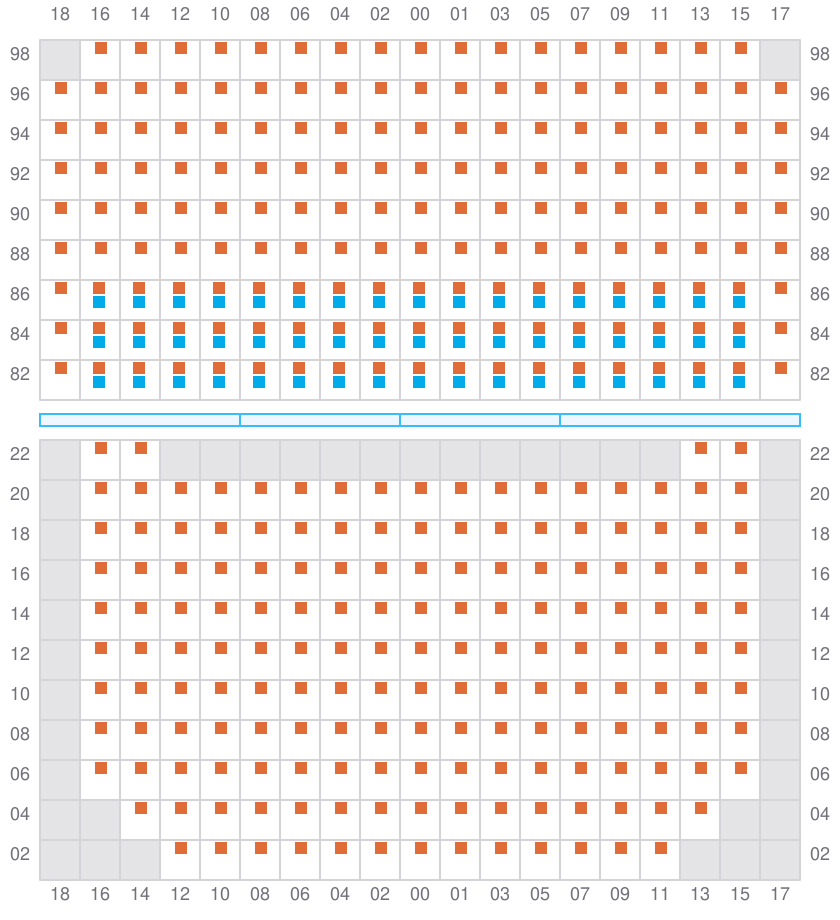

Bay 059 view and slots of MSC EMMA

061 (062)

  • →

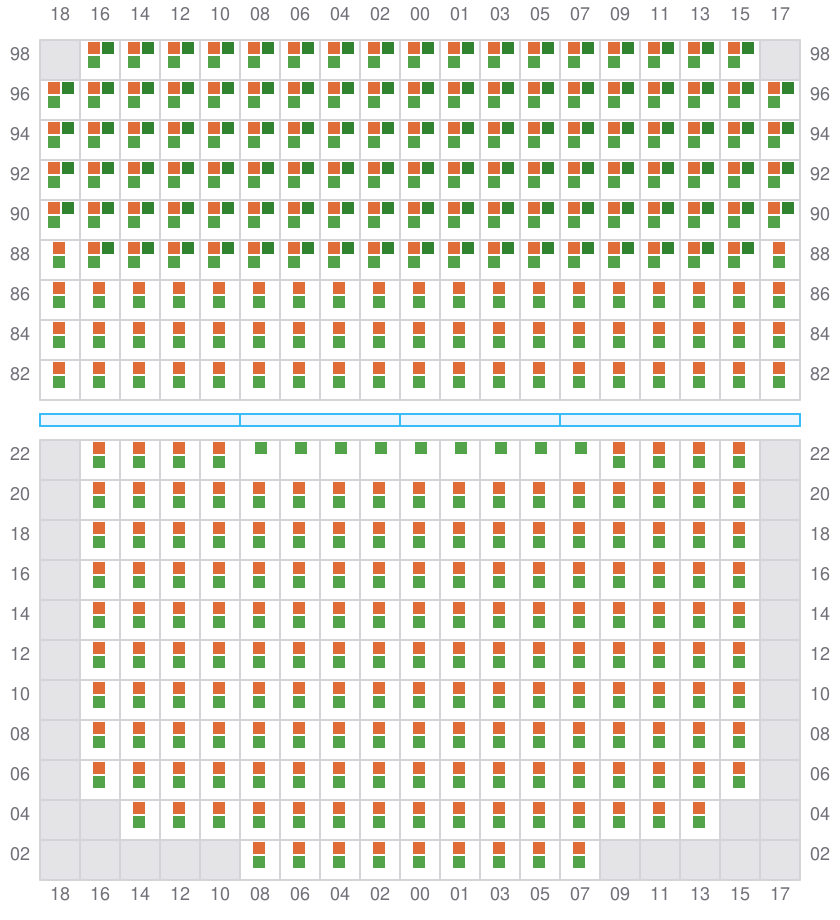

Bay 061 view and slots of MSC EMMA

063

  • ←
  • → / ?

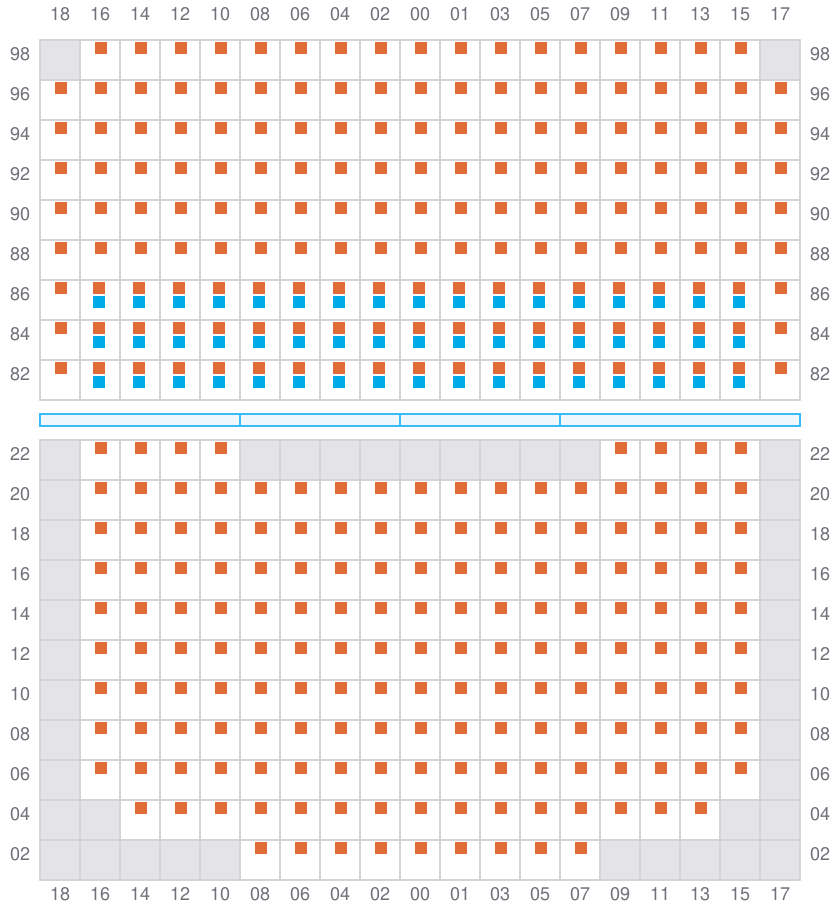

Bay 063 view and slots of MSC EMMA

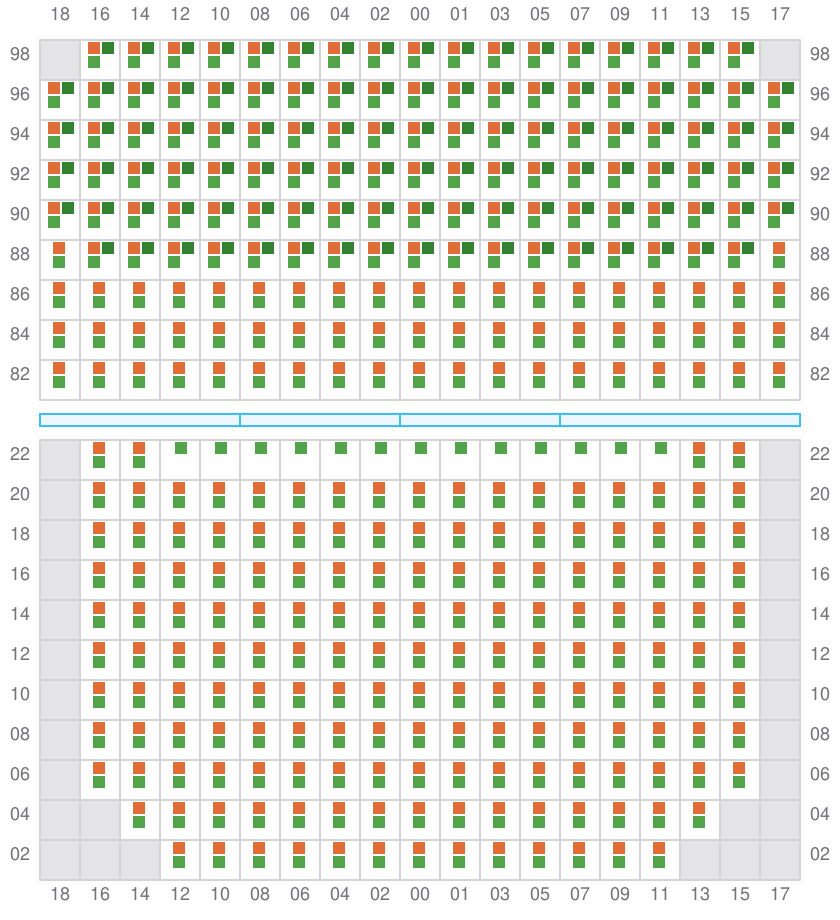

065 (066)

  • →
Bay 065 view and slots of MSC EMMA

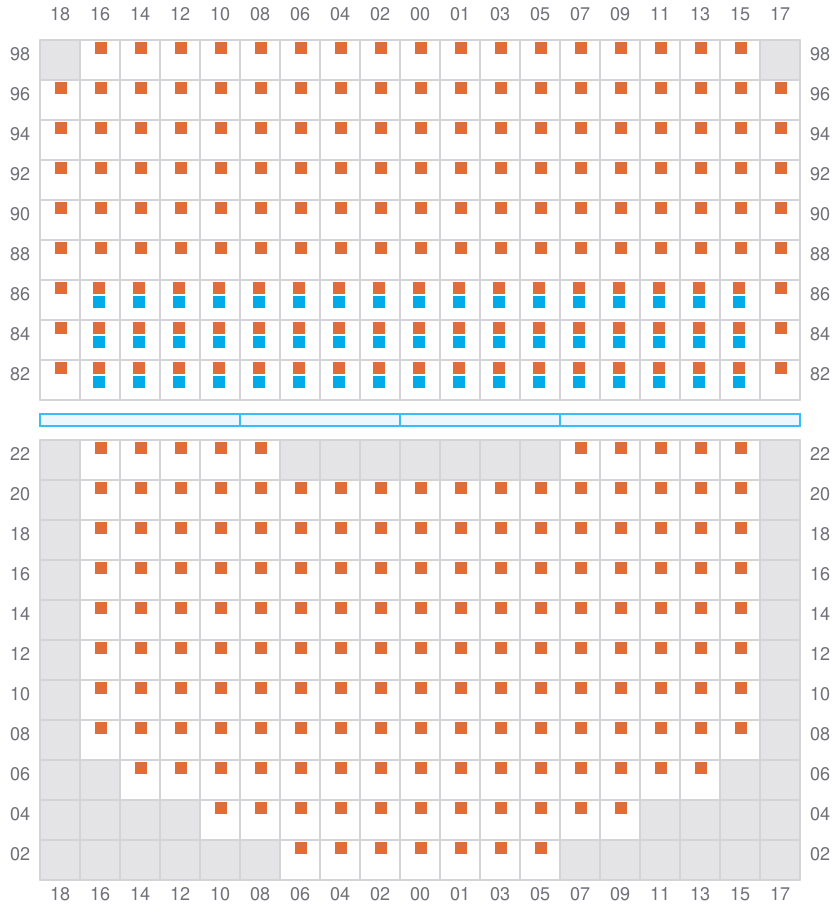

067

  • ←
  • → / ?
Bay 067 view and slots of MSC EMMA

069 (070)

  • →

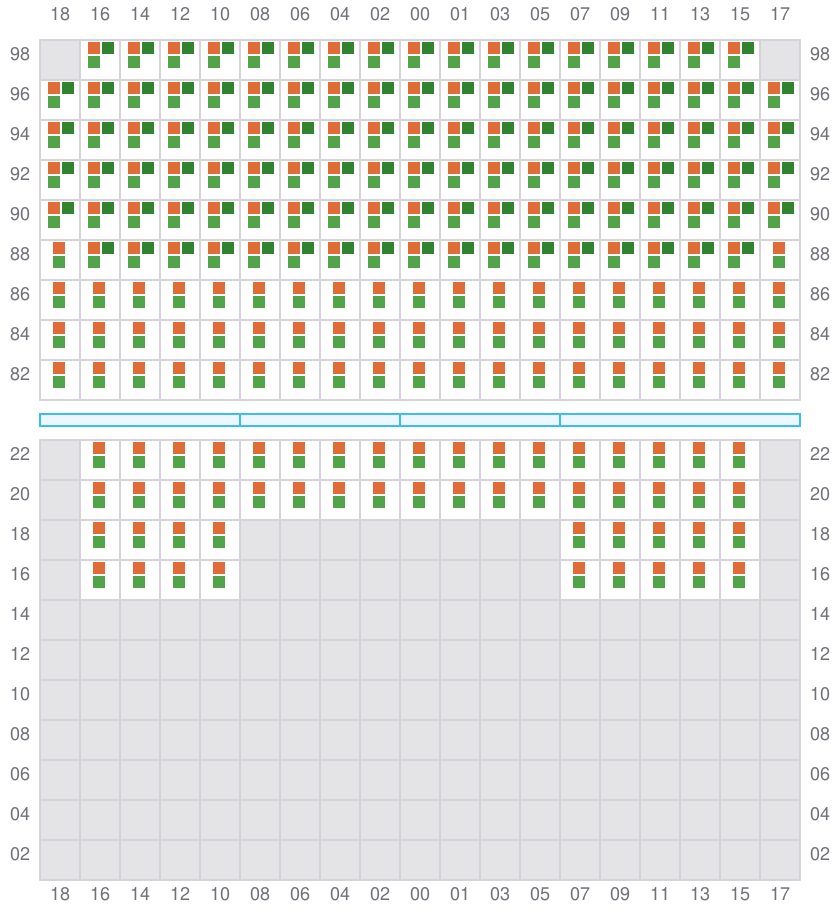

Bay 069 view and slots of MSC EMMA

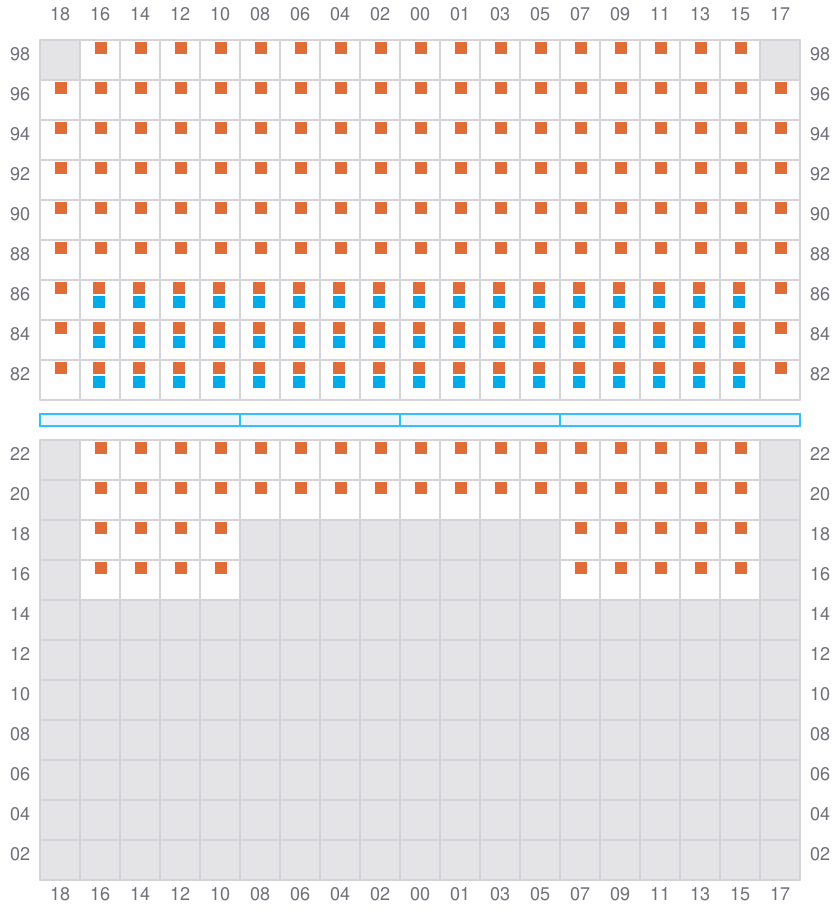

071

  • ←
  • → / ?
Bay 071 view and slots of MSC EMMA

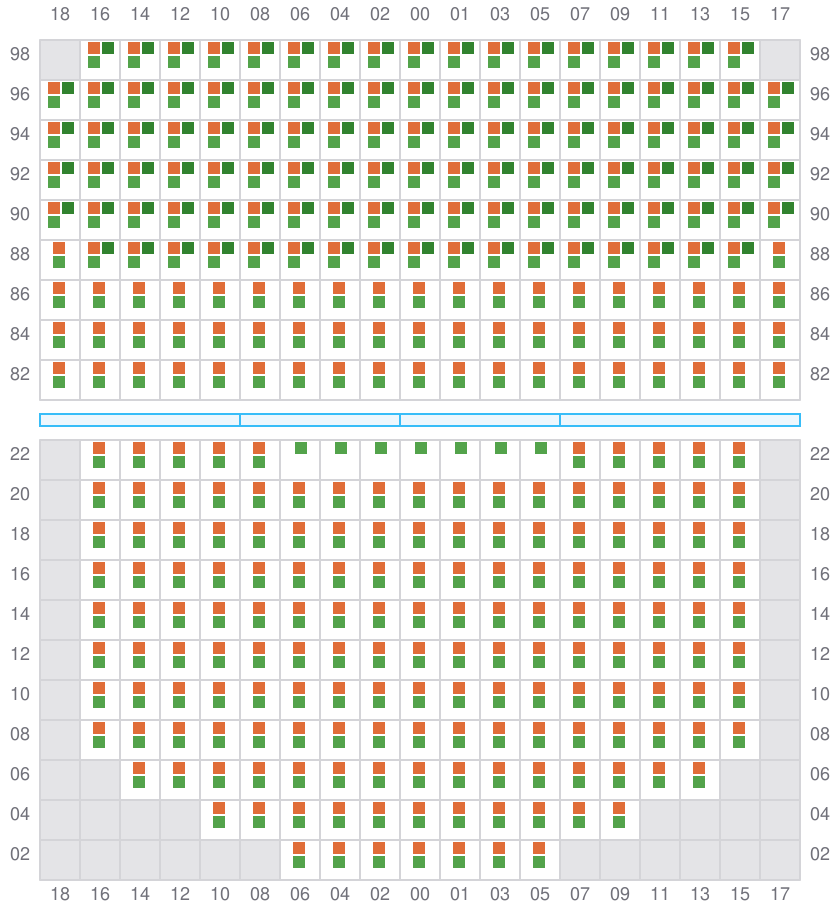

073 (074)

  • →
Bay 073 view and slots of MSC EMMA

075

  • ←
  • → / ?
Bay 075 view and slots of MSC EMMA

077 (078)

  • →

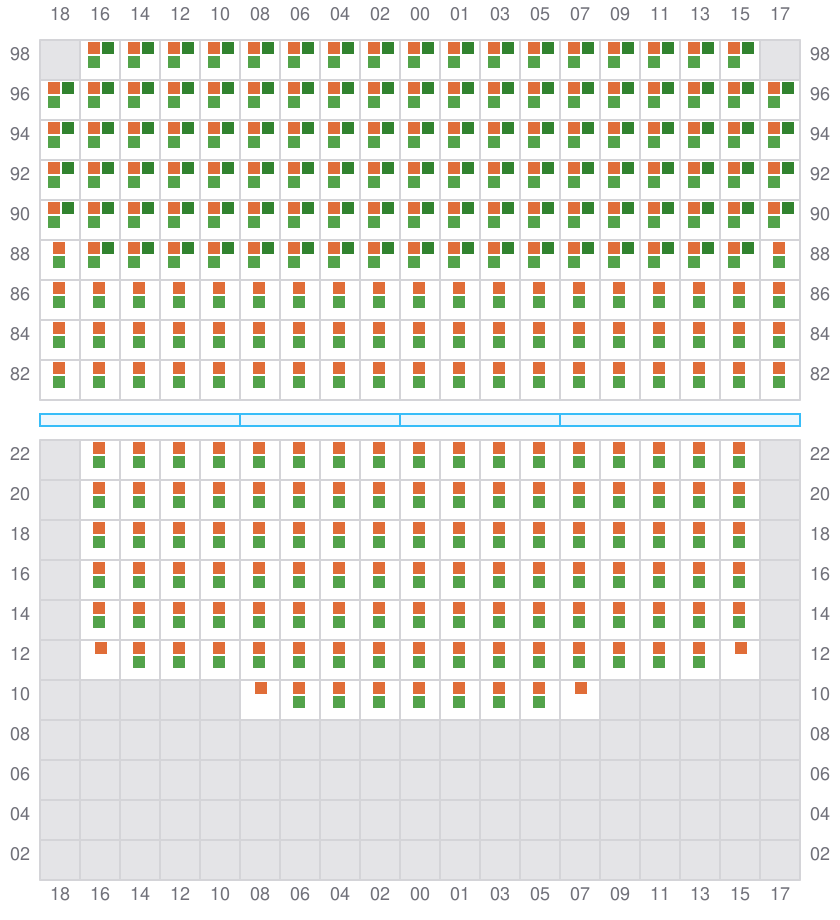

Bay 077 view and slots of MSC EMMA

079

  • ←
  • → / ?
Bay 079 view and slots of MSC EMMA

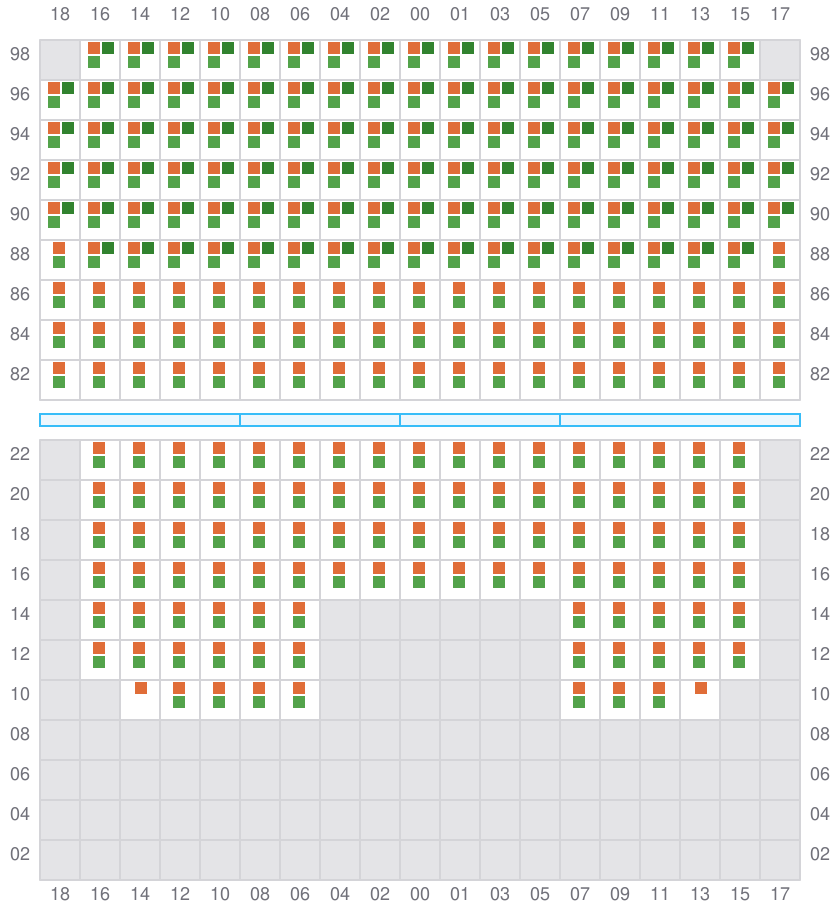

081 (082)

  • →

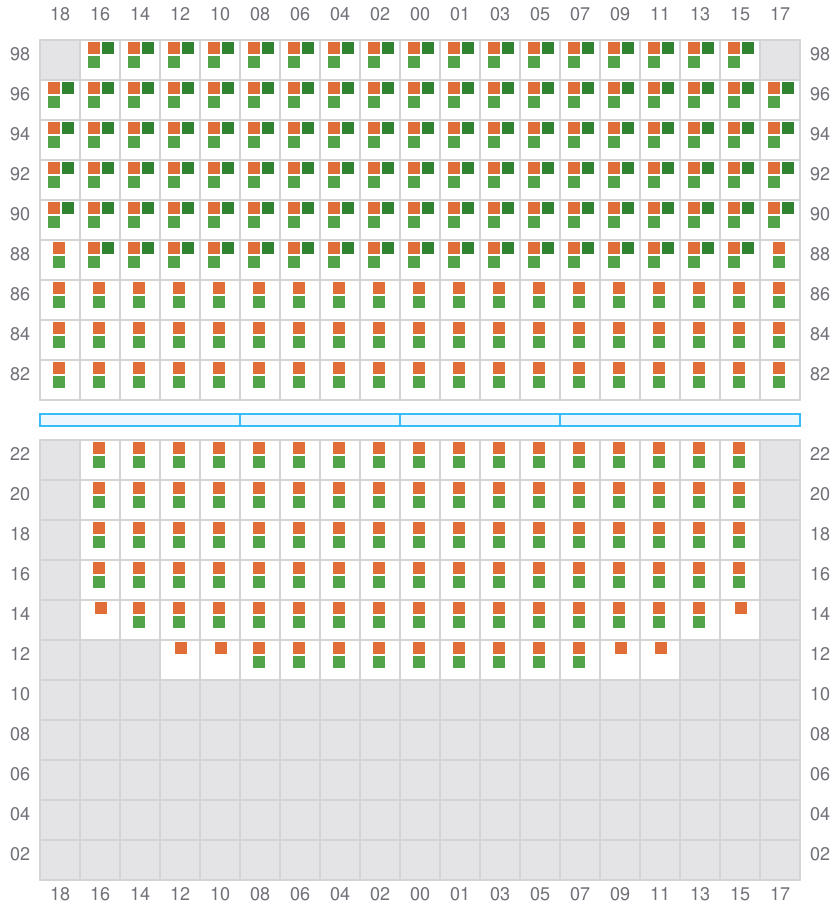

Bay 081 view and slots of MSC EMMA

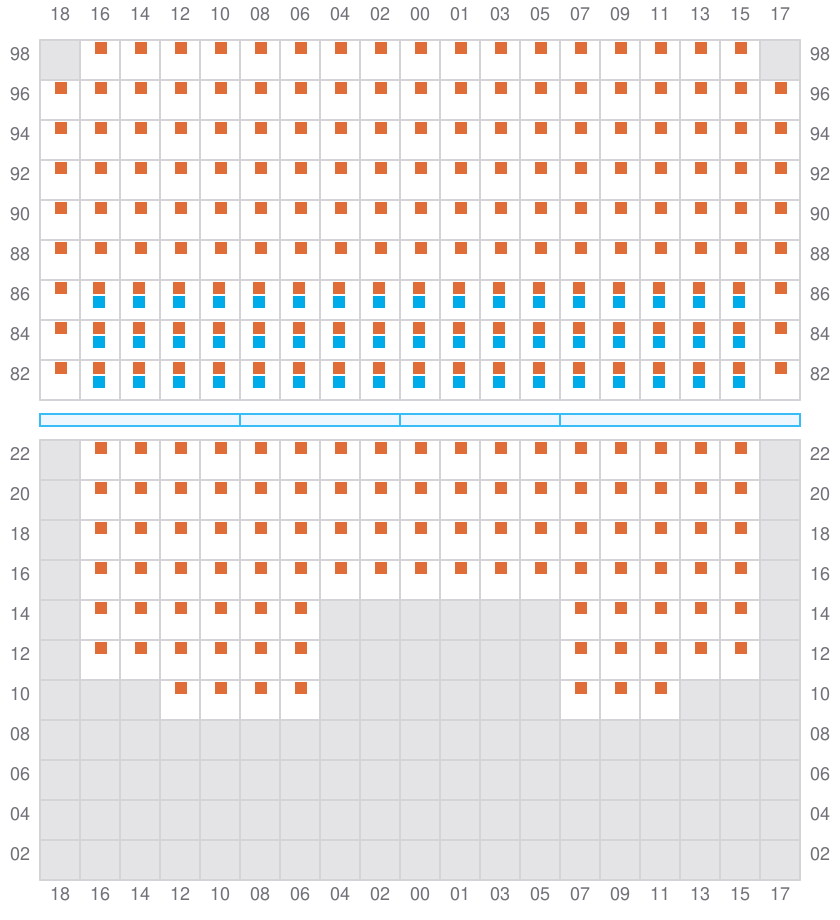

083

  • ←
  • → / ?

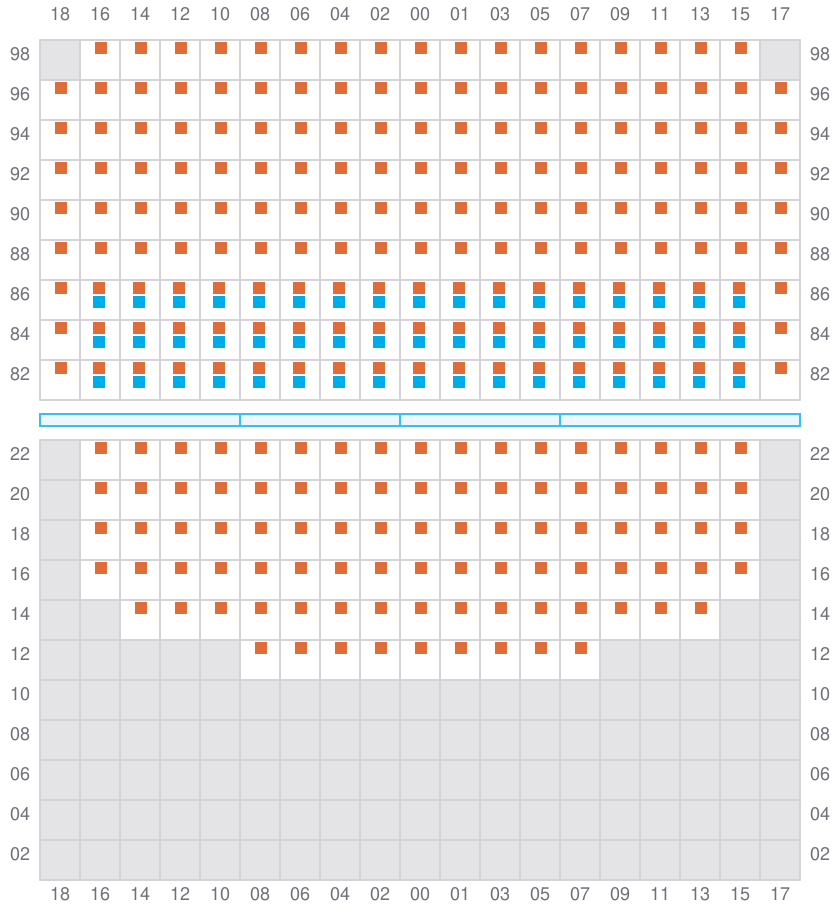

Bay 083 view and slots of MSC EMMA

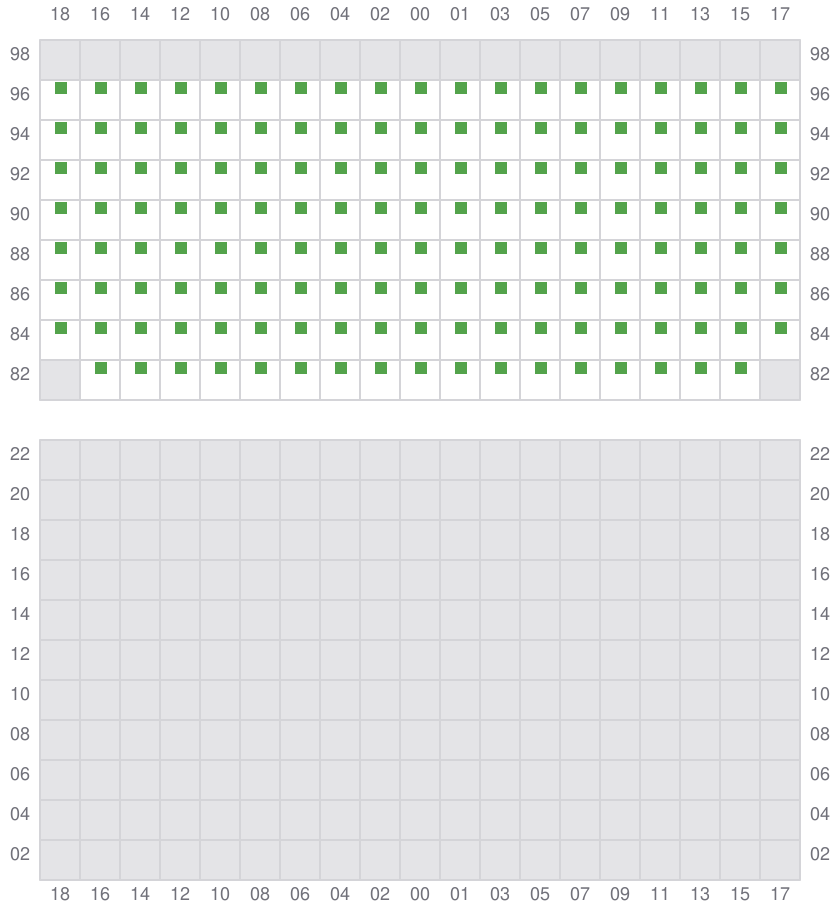

085 (086)

  • → / ?
Bay 085 view and slots of MSC EMMA
