MSC ENGLAND
9232890 | A8VG3 | 9232890 by ********* Last update: Tue Apr 09 2024
General Info
Ship Name:MSC ENGLAND
IMO Code:9232890
Call Sign:A8VG3
Line Operator:9232890
Class Name for Sister Ships:CMA CGM VEGA
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):246.00
LOA (Length Overall):258.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,101
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

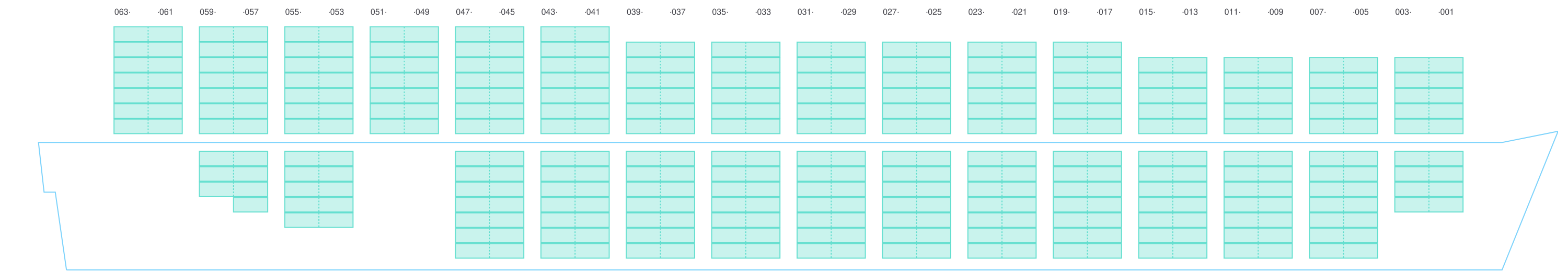

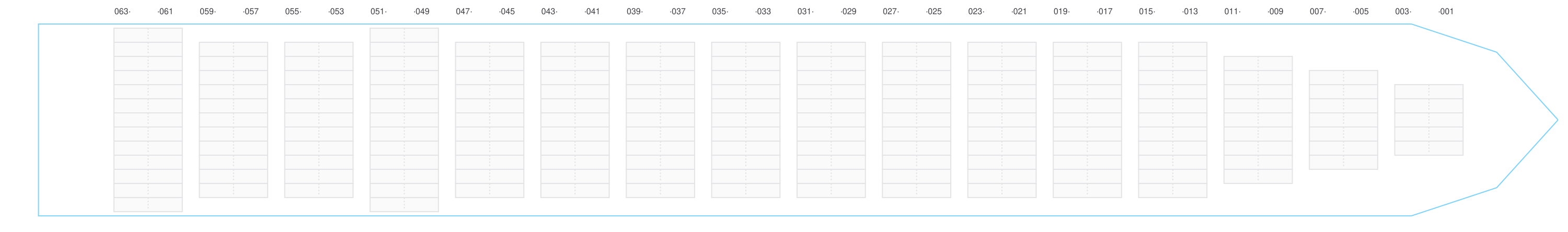

Side View
Hatch-Covers View

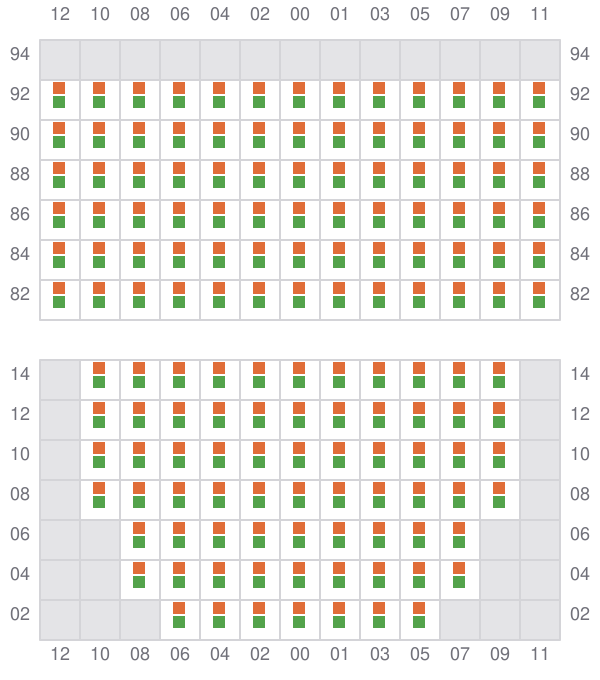

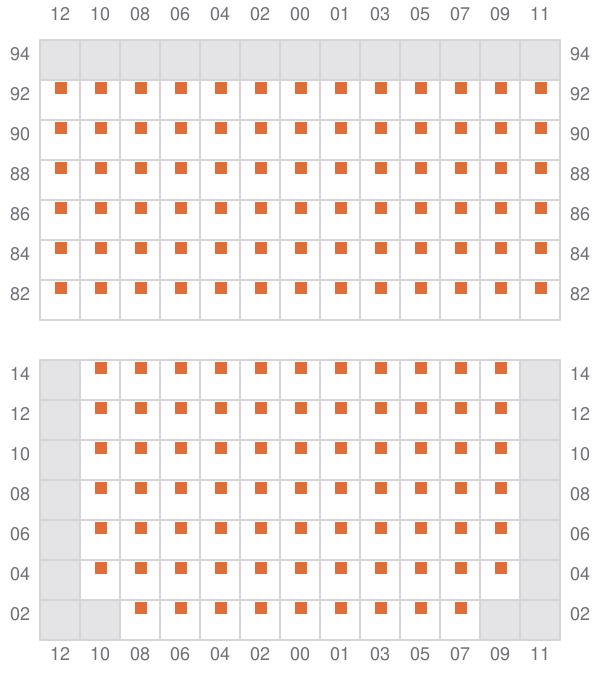

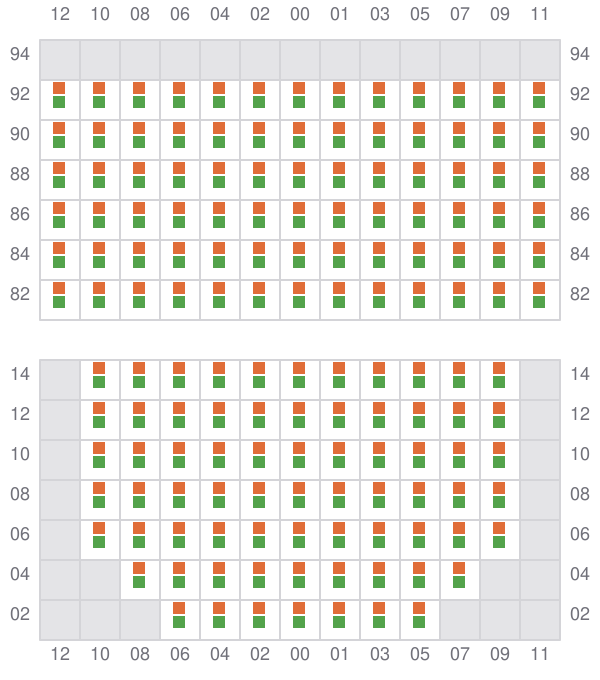

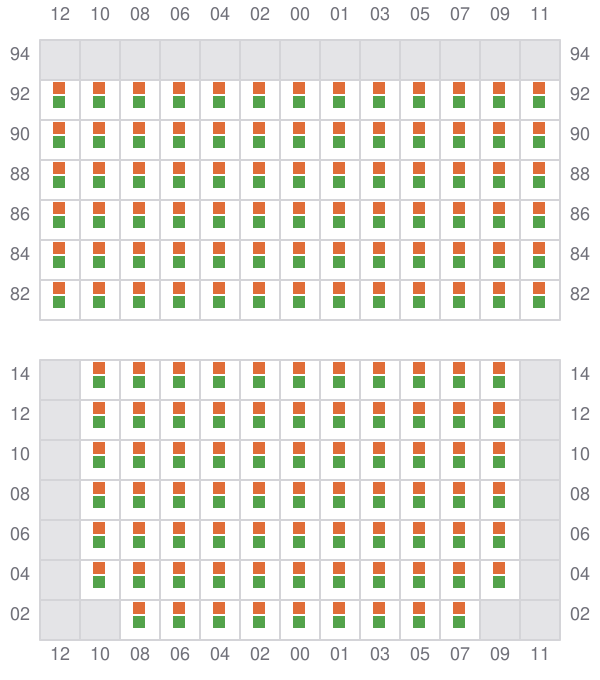

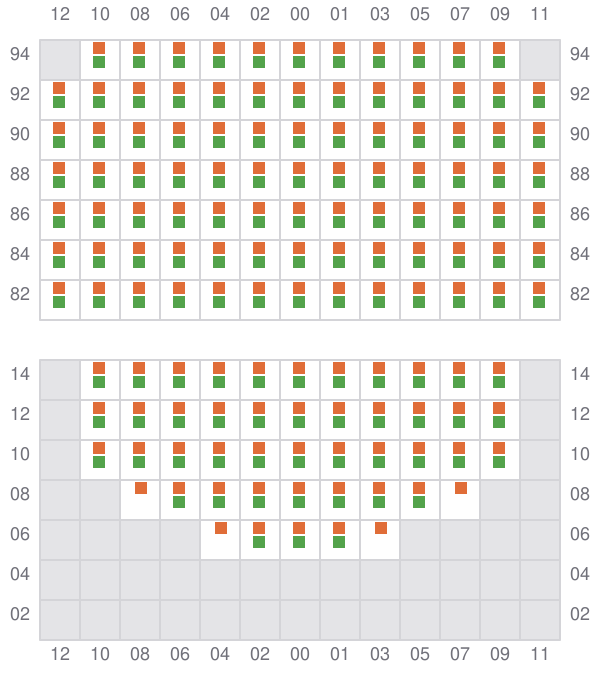

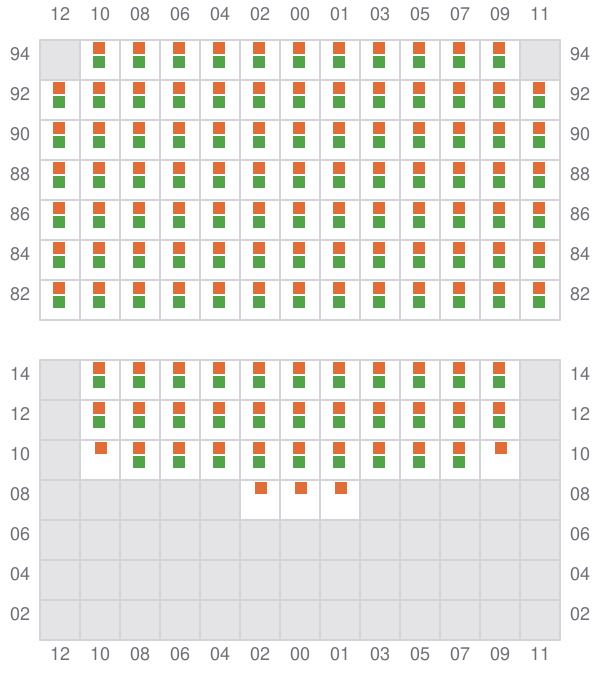

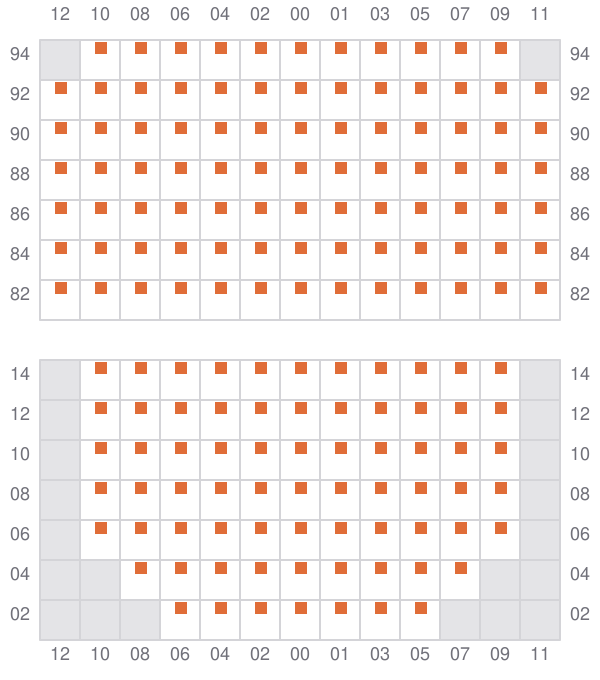

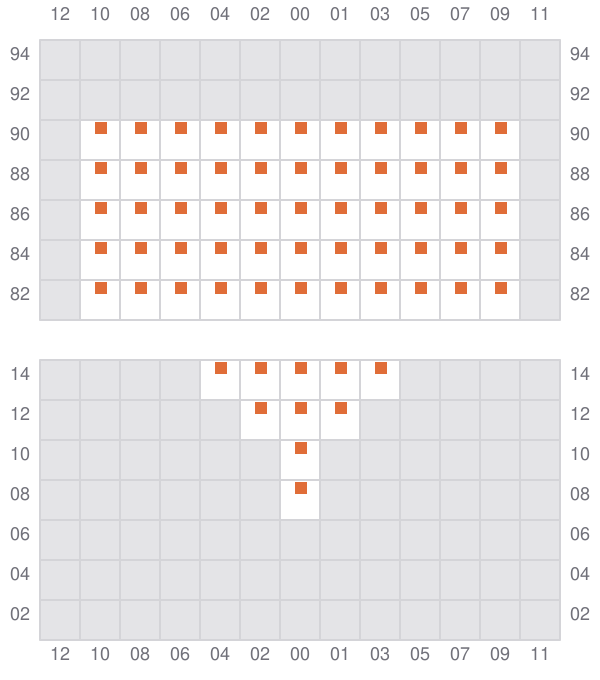

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

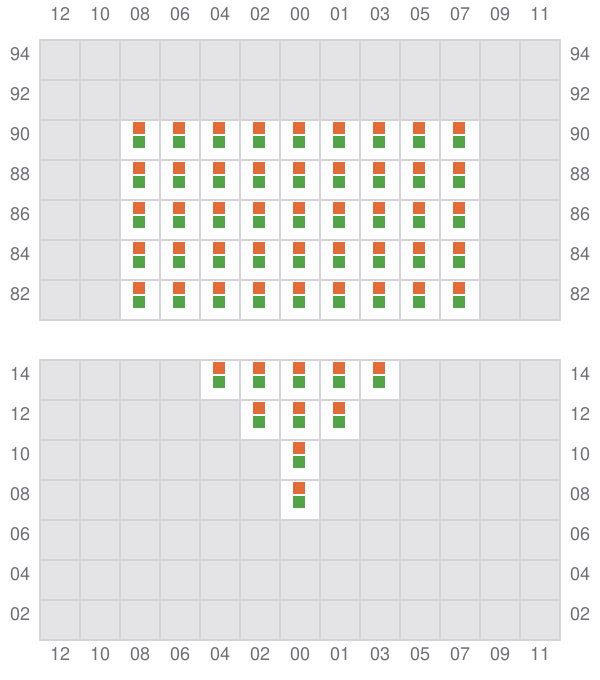

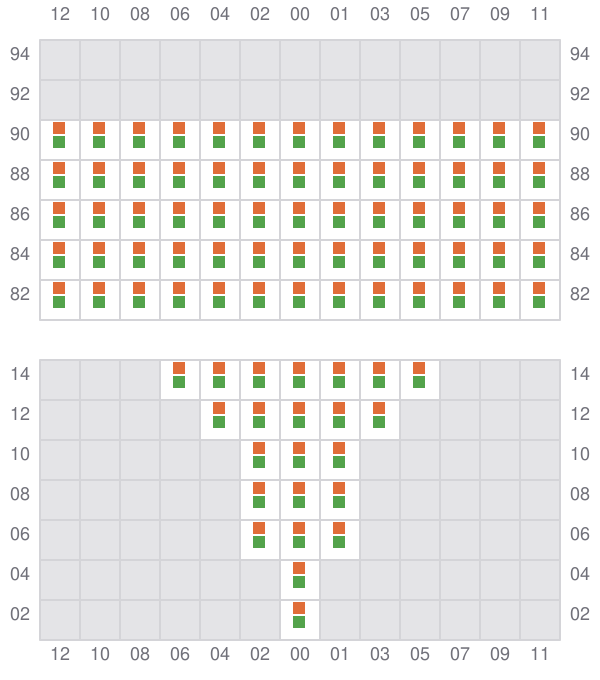

001 (002)
- →
003
- ←
005 (006)
- →

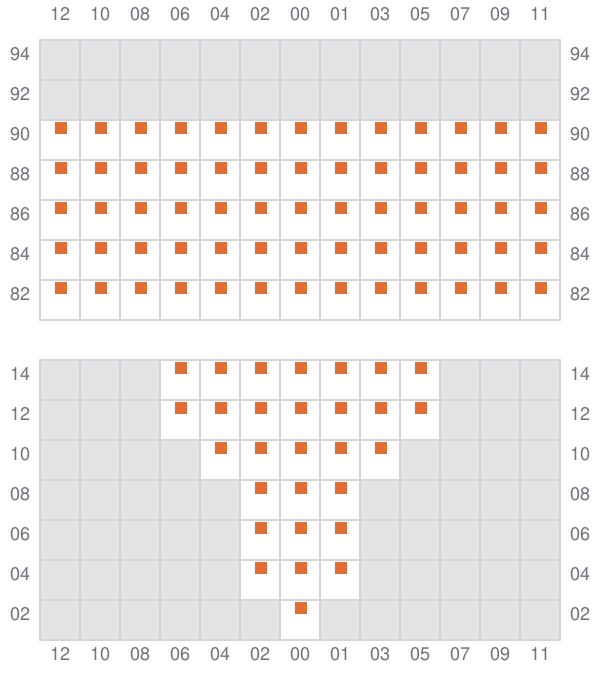

007
- ←

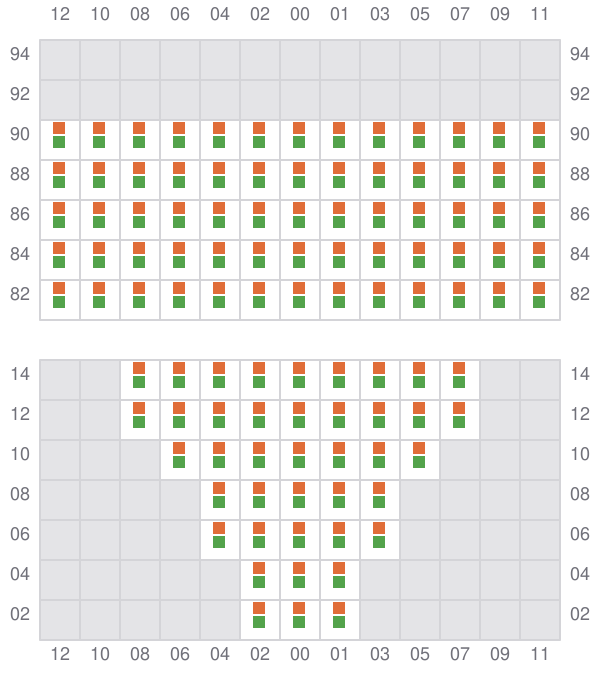

009 (010)
- →

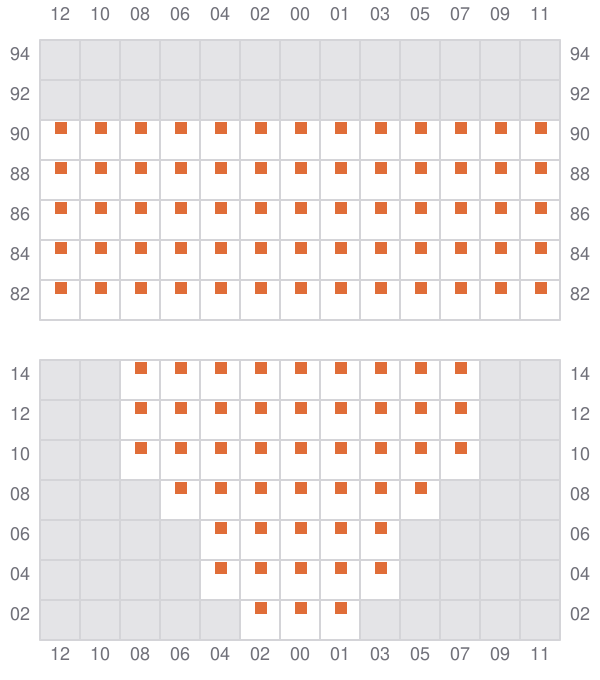

011
- ←

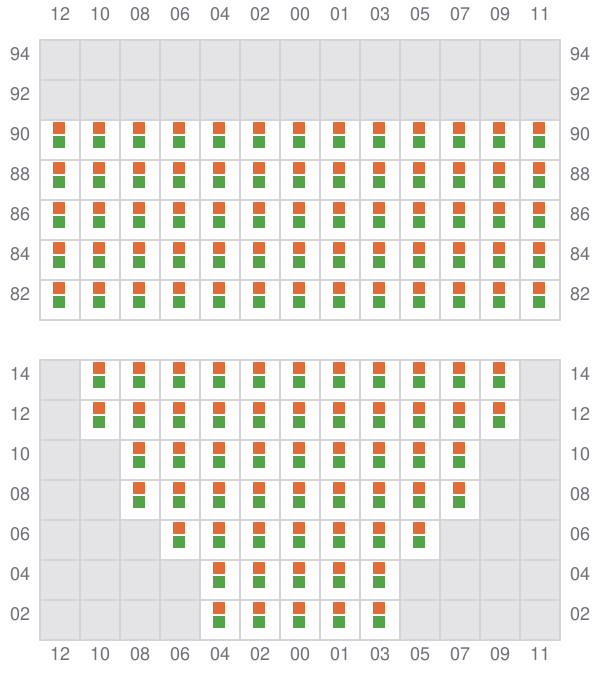

013 (014)
- →
015
- ←
017 (018)
- →
019
- ←
021 (022)
- →
023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←
037 (038)
- →

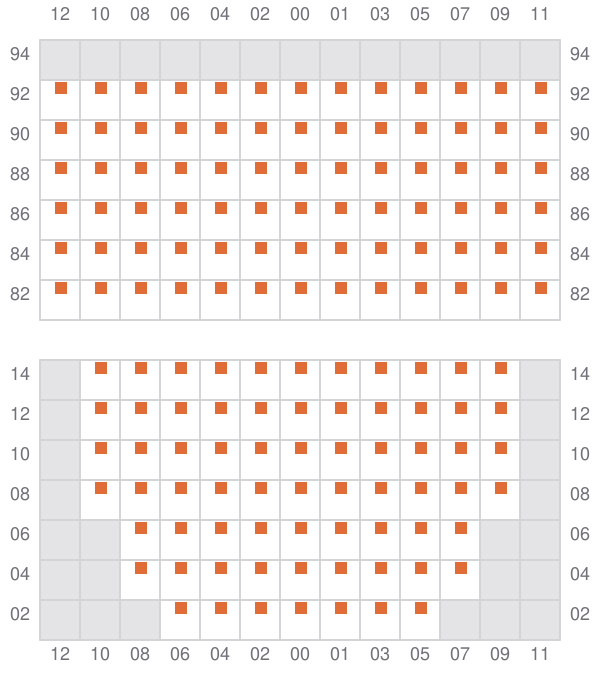

039
- ←

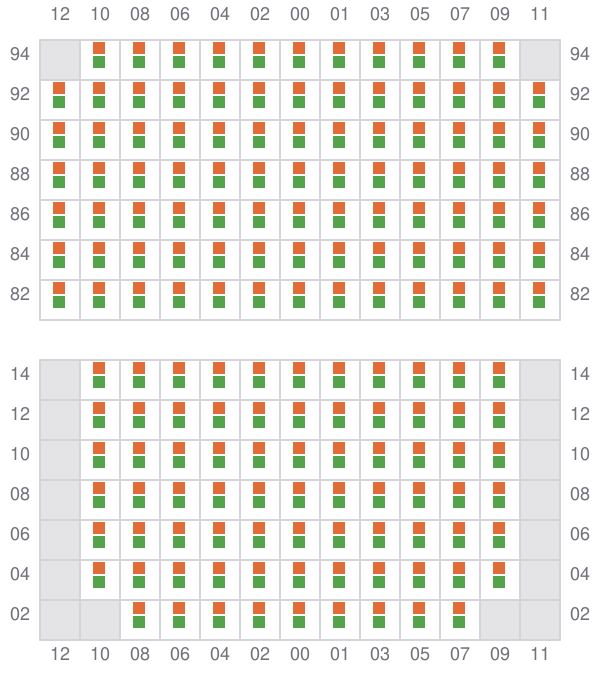

041 (042)
- →

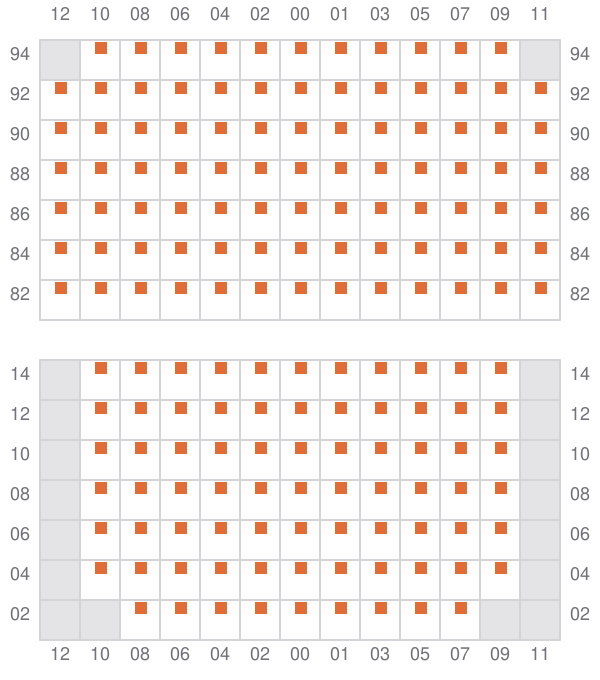

043
- ←

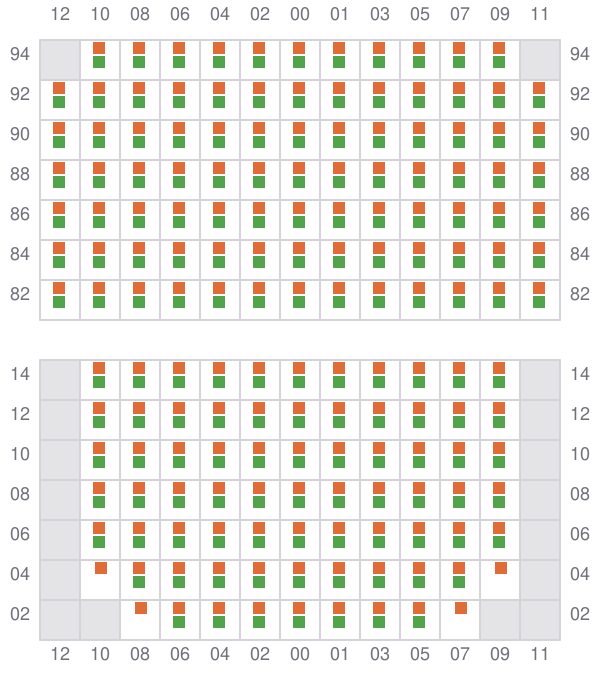

045 (046)
- →
047
- ←

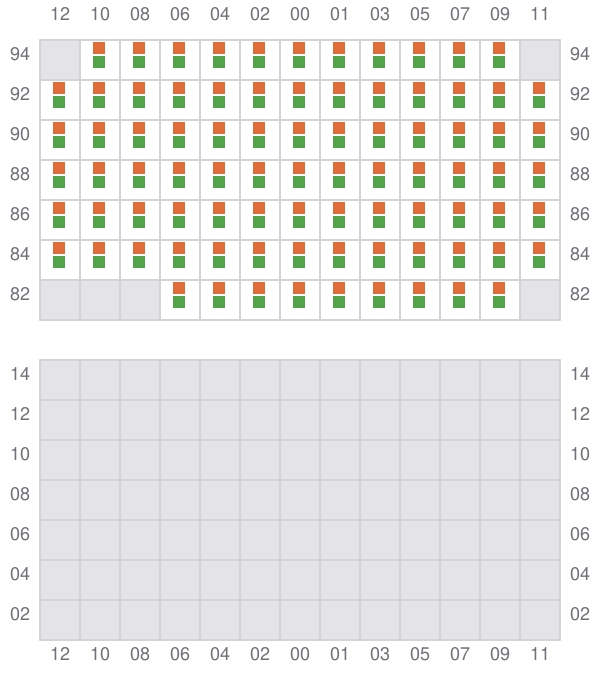

049 (050)
- → / ?

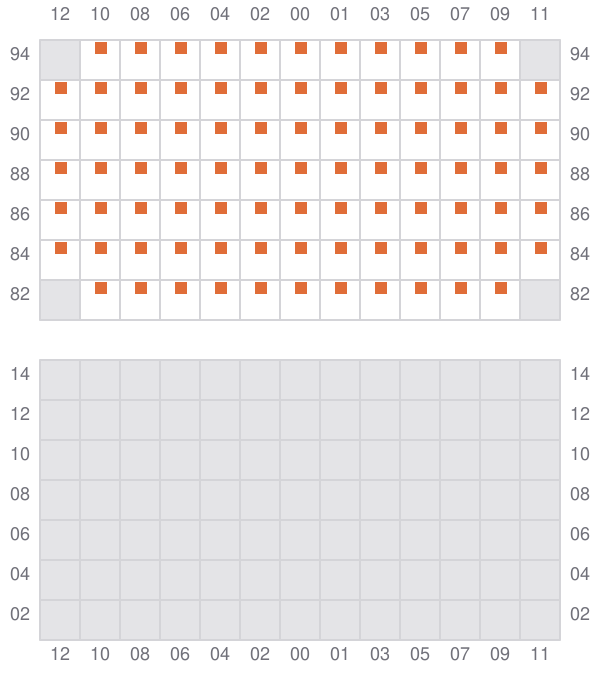

051
- ← / ?
053 (054)
- →
055
- ←

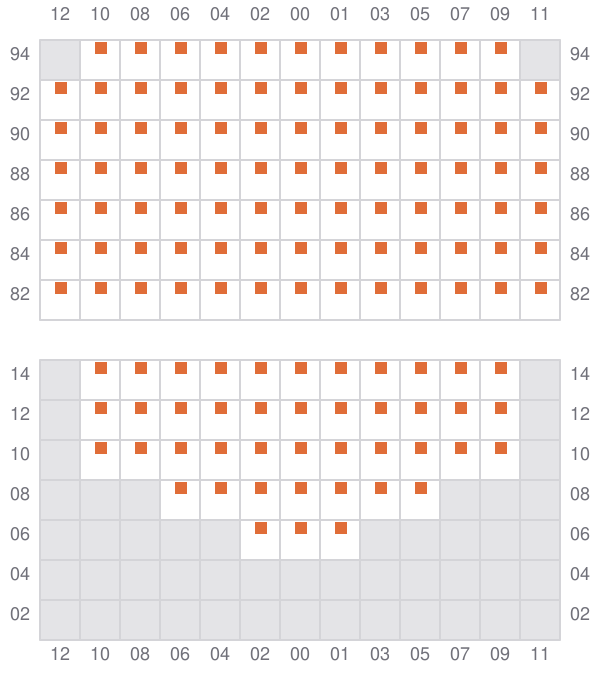

057 (058)
- →

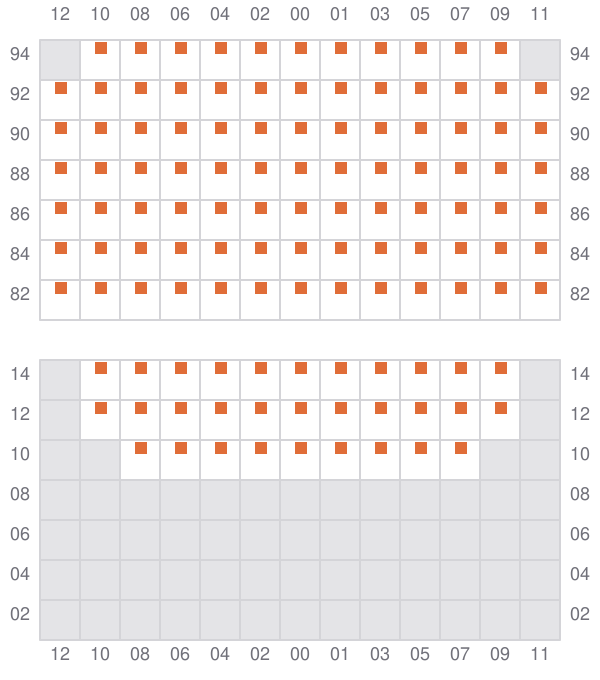

059
- ←

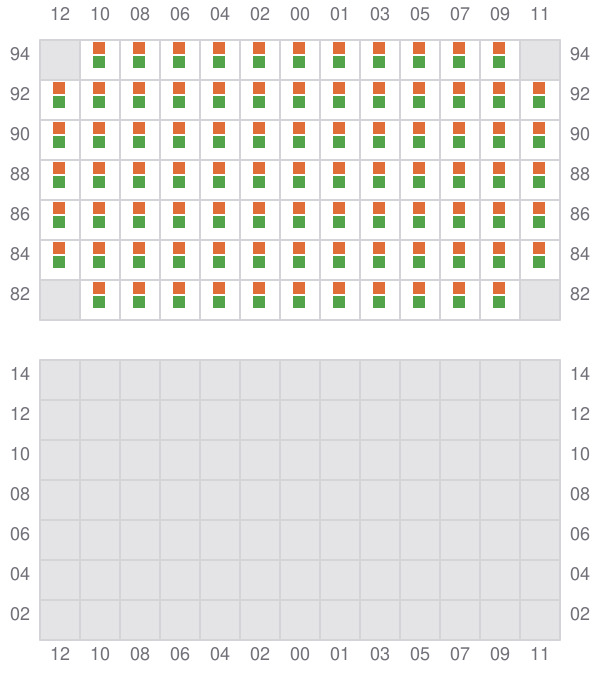

061 (062)
- → / ?
063
- ← / ?
