MSC EYRA
8201648 | H3FW | 8201648 by ************* Last update: Sat Mar 02 2024
General Info
Ship Name:MSC EYRA
IMO Code:8201648
Call Sign:H3FW
Line Operator:8201648
Class Name for Sister Ships:96R
Year Built:1982
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):163.60
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,438
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

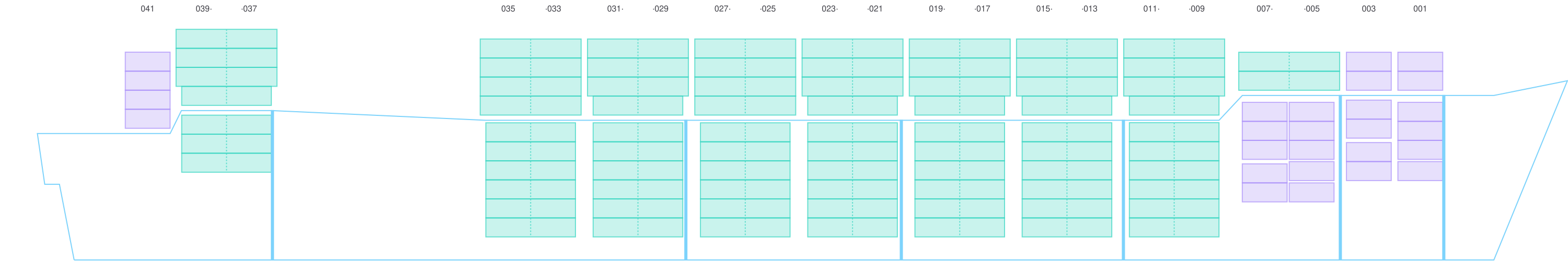

Side View

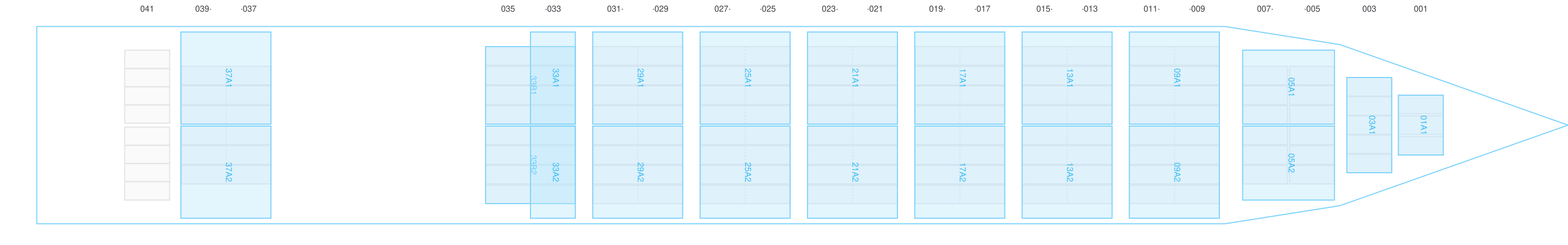

Hatch-Covers View

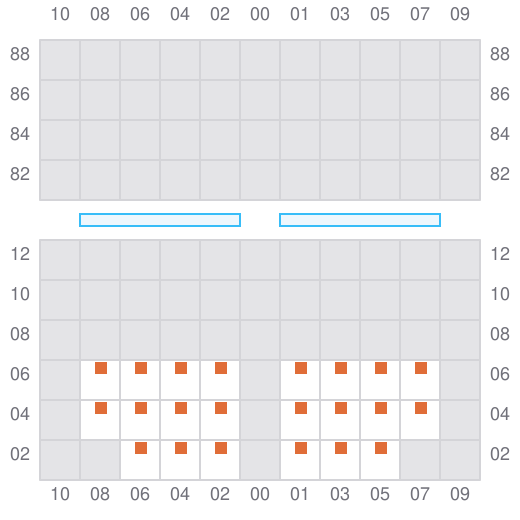

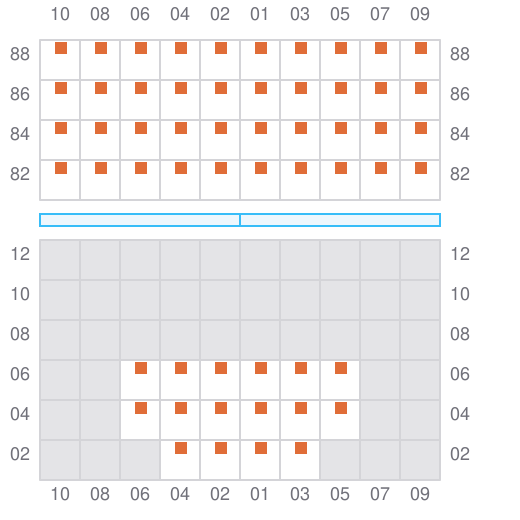

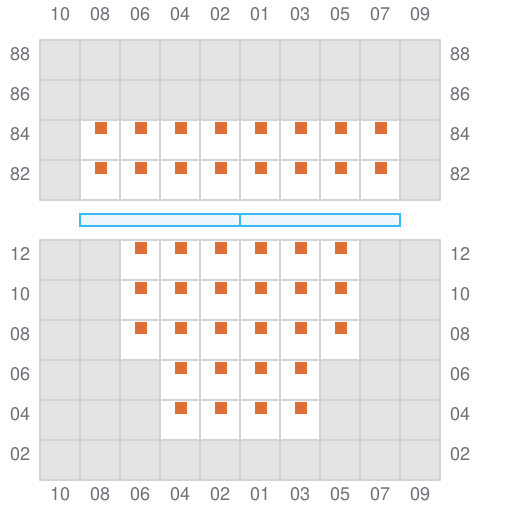

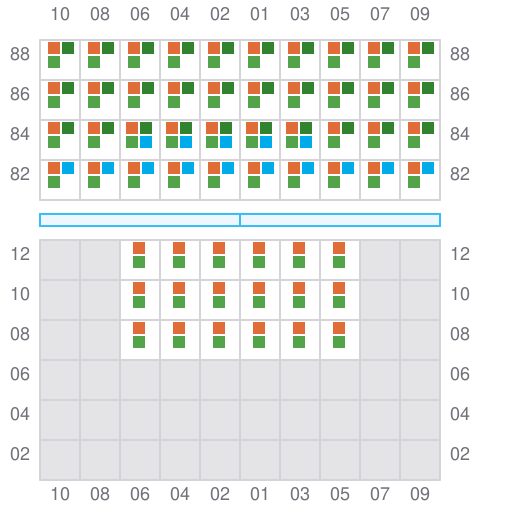

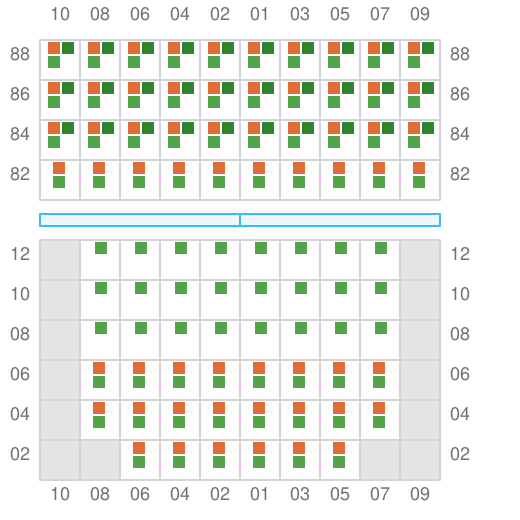

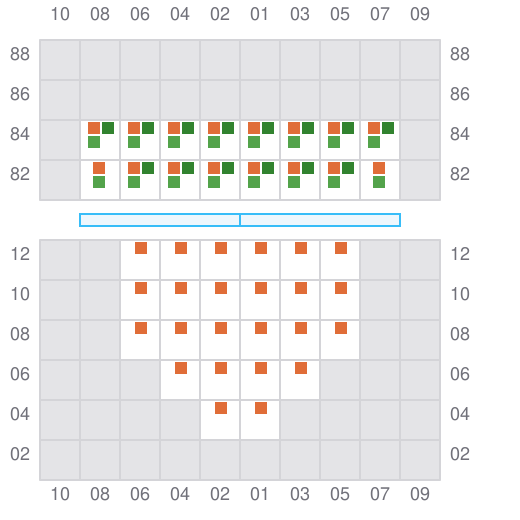

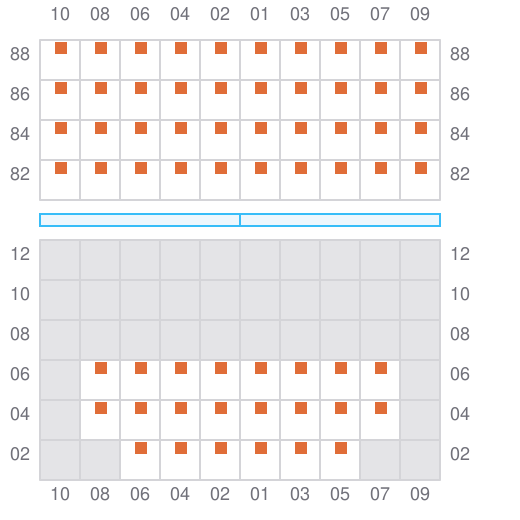

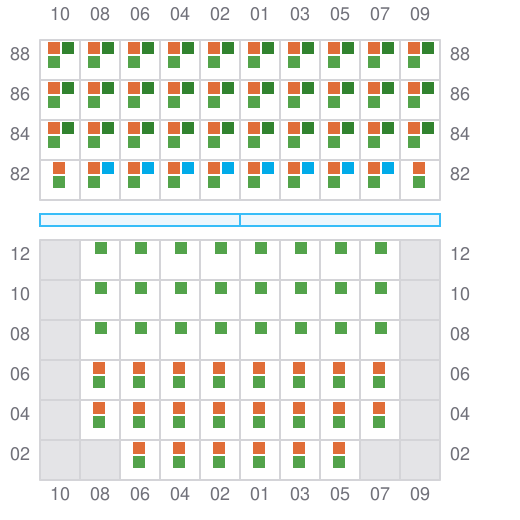

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

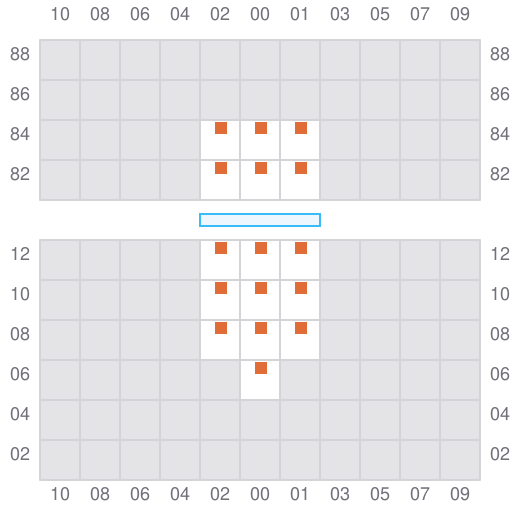

001

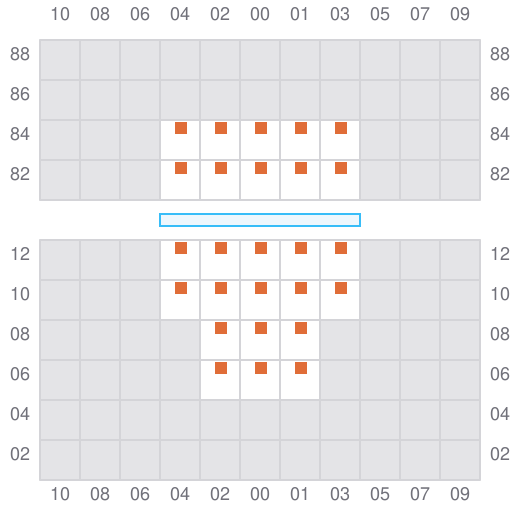

003
005 (006)
- → / ?
007
- ← / ?
009 (010)
- →
011
- ←
- → / ?
013 (014)
- →
- ← / ?
015
- ←
017 (018)
- →
- ← / ?
019
- ←
021 (022)
- →
023
- ←
- → / ?
025 (026)
- →
027
- ←
- → / ?
029 (030)
- →
031
- ←
- → / ?
033 (034)
- →
035
- ? / ←
037 (038)
- →
- ← / ?
039
- ←

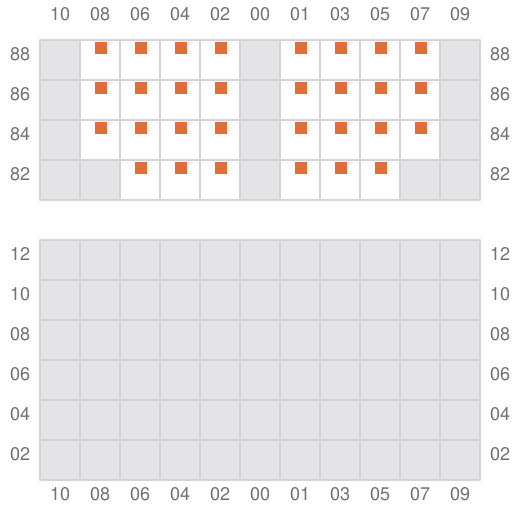

041
