MSC FAIRFIELD
9302633 | CQRO | MSC by ************************** Last update: Fri Jun 16 2023
General Info
Ship Name:MSC FAIRFIELD
IMO Code:9302633
Call Sign:CQRO
Line Operator:MSC
Class Name for Sister Ships:FAI
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,223
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

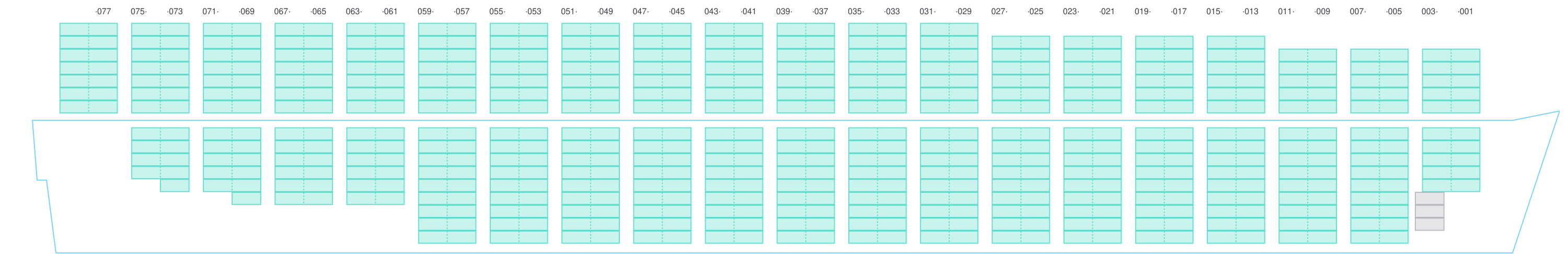

Side View

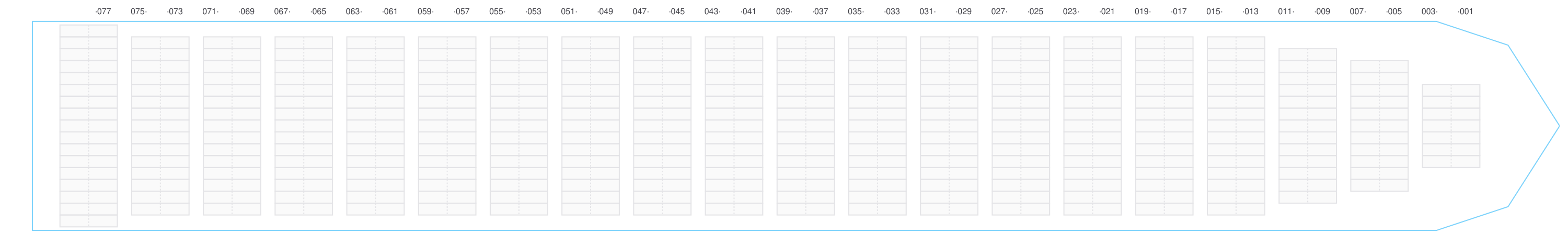

Hatch-Covers View

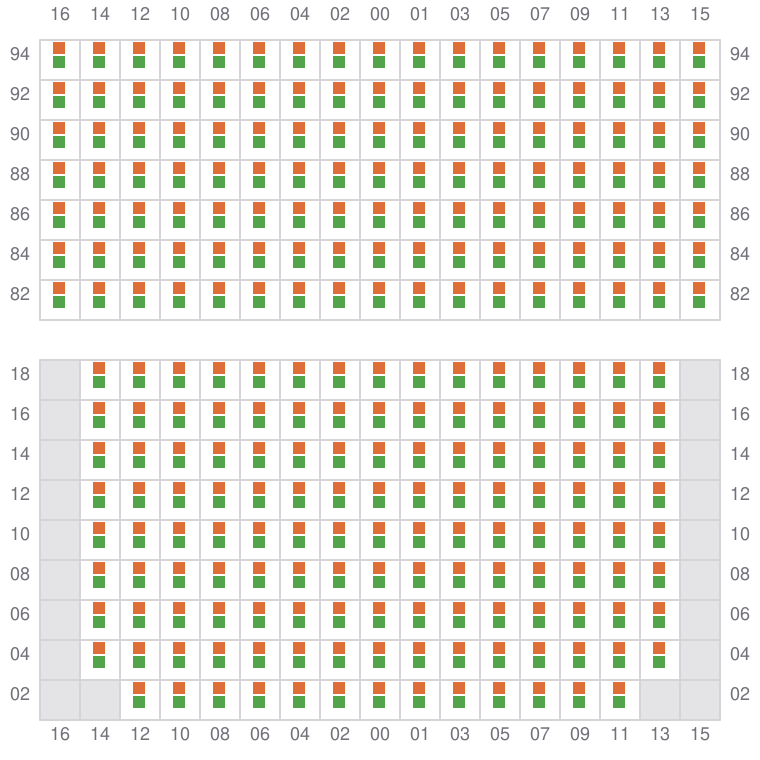

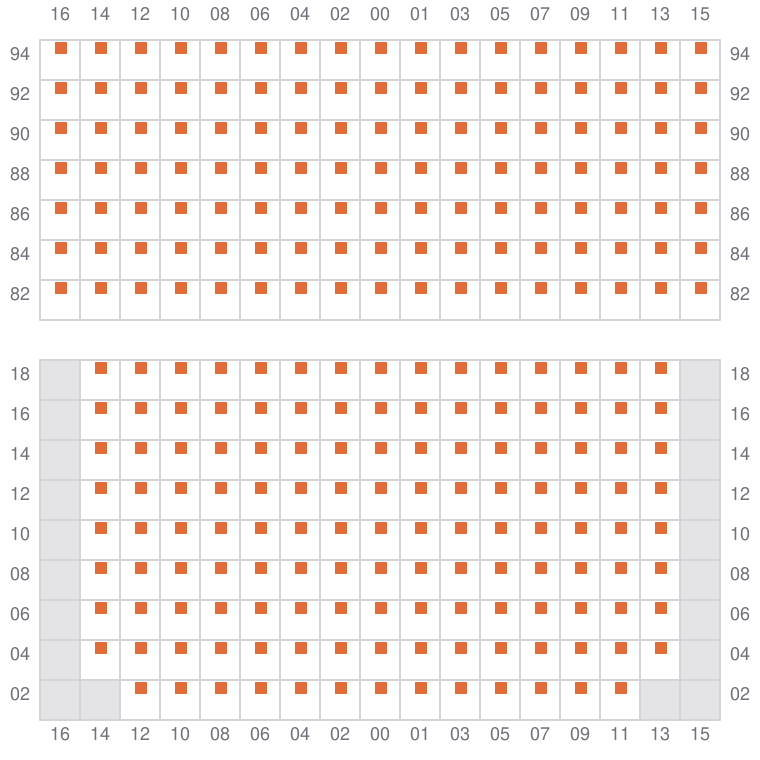

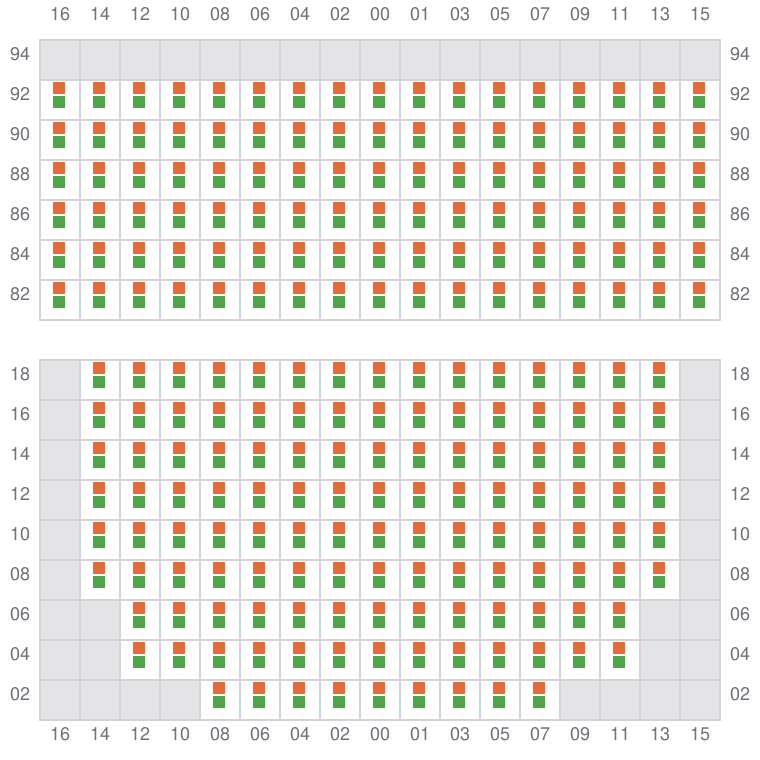

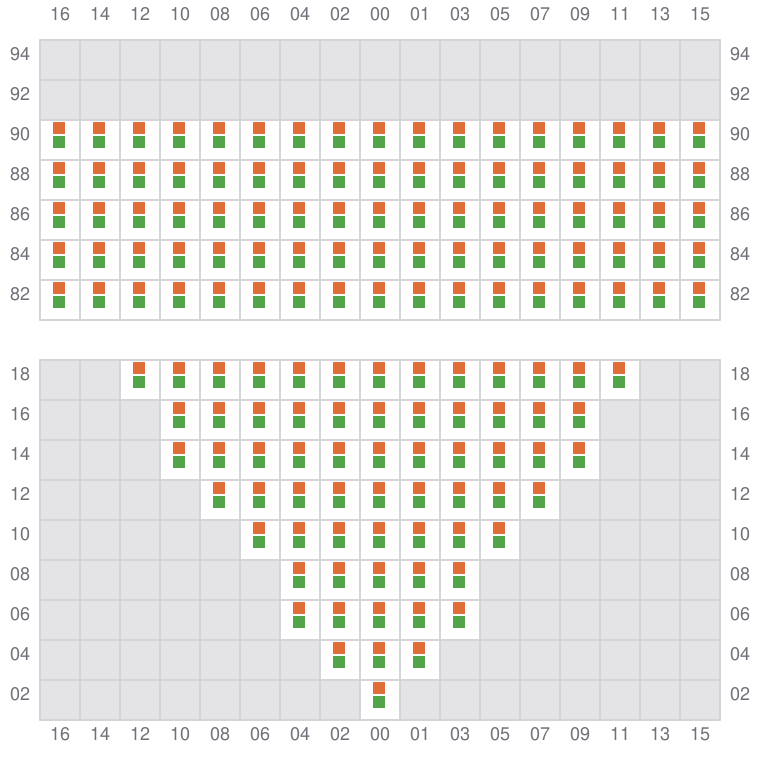

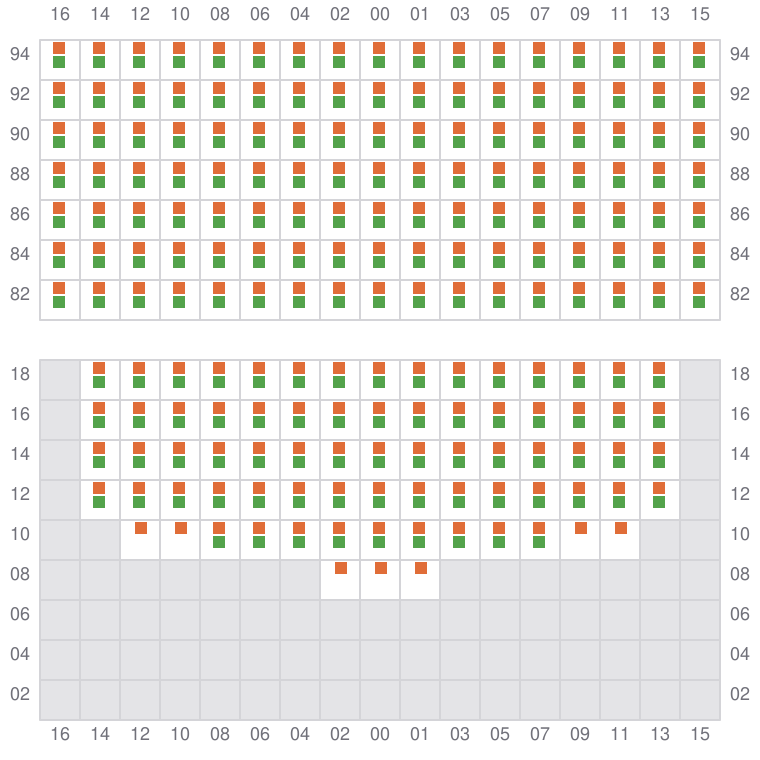

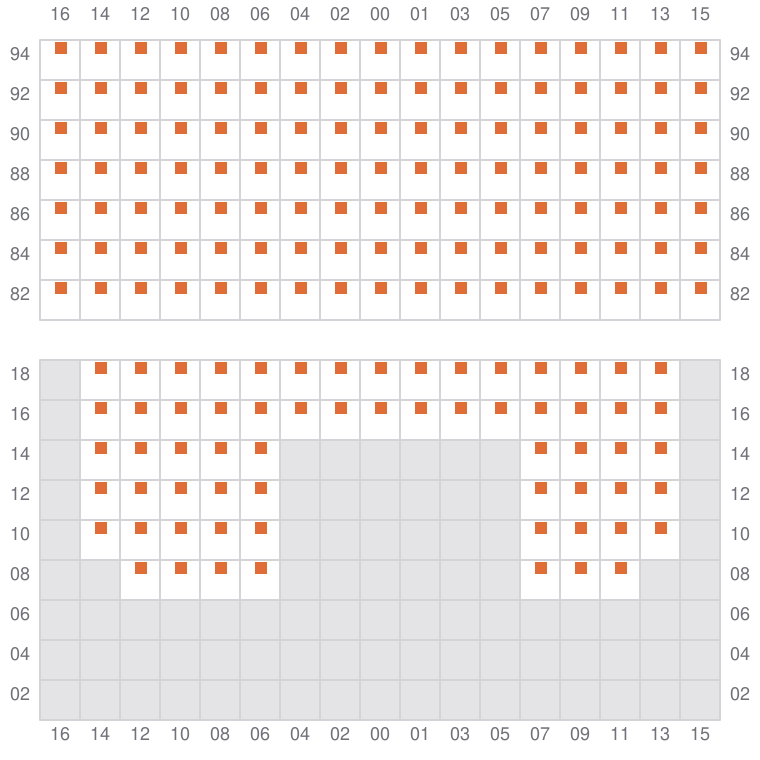

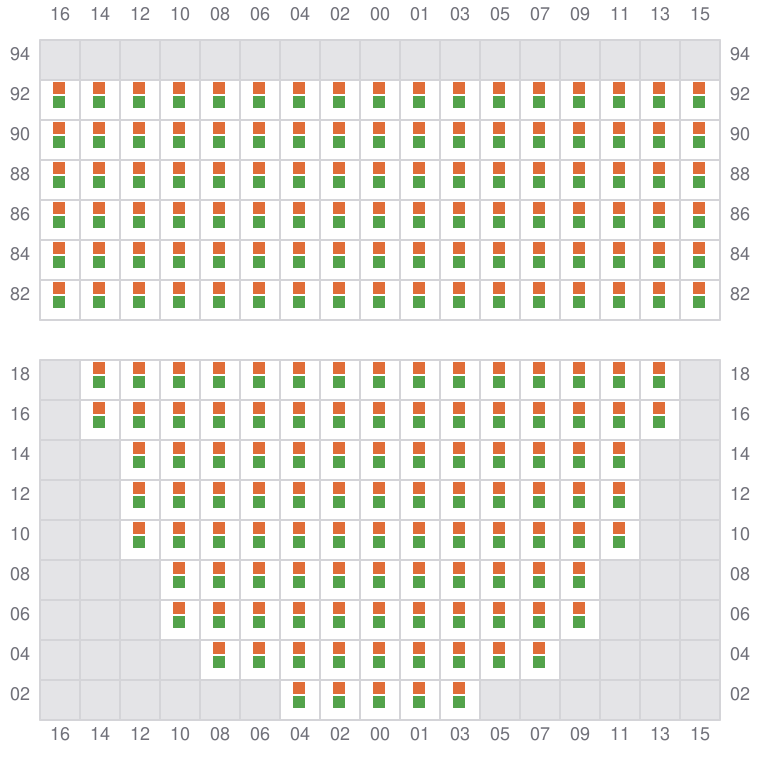

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

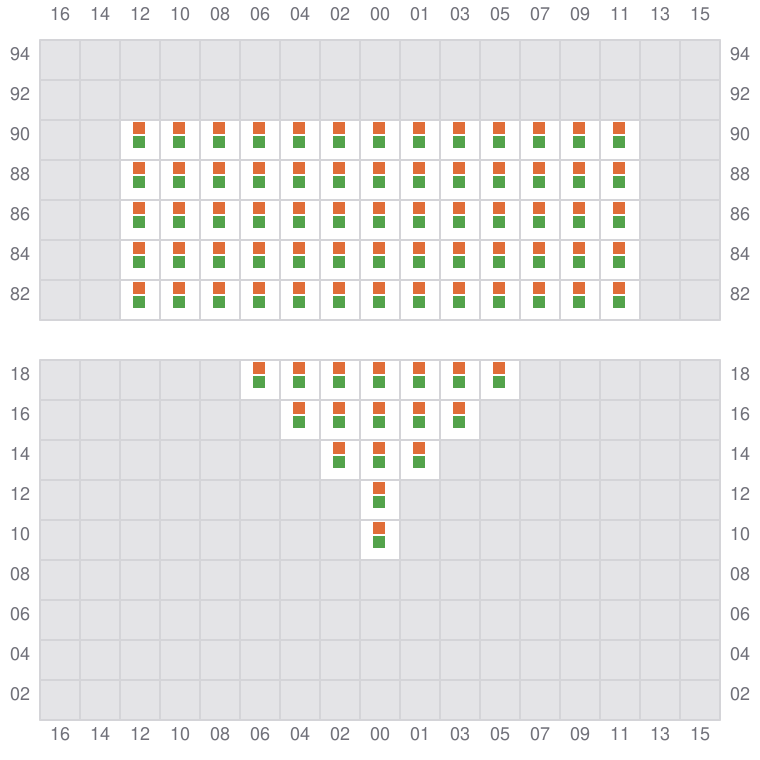

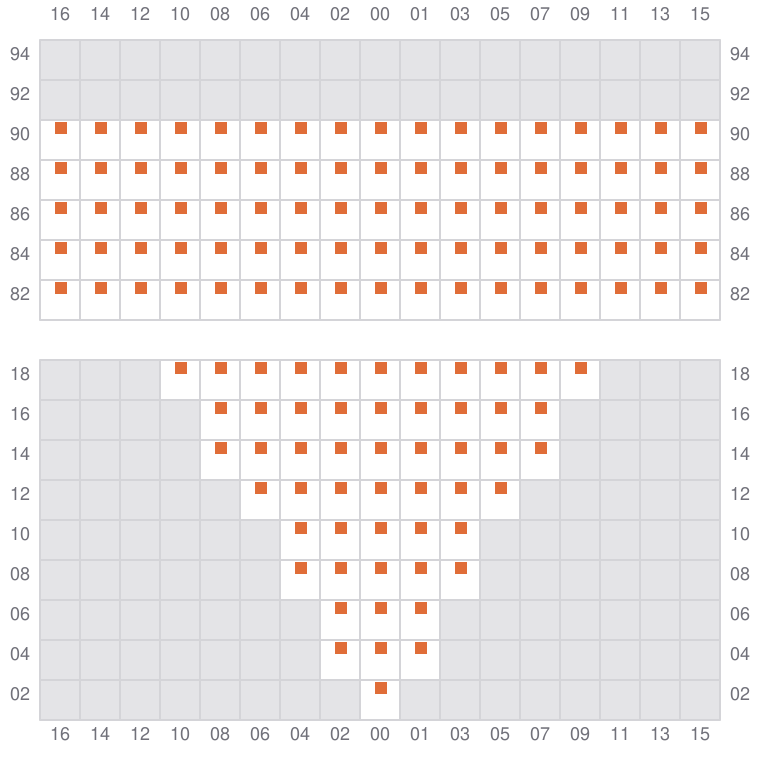

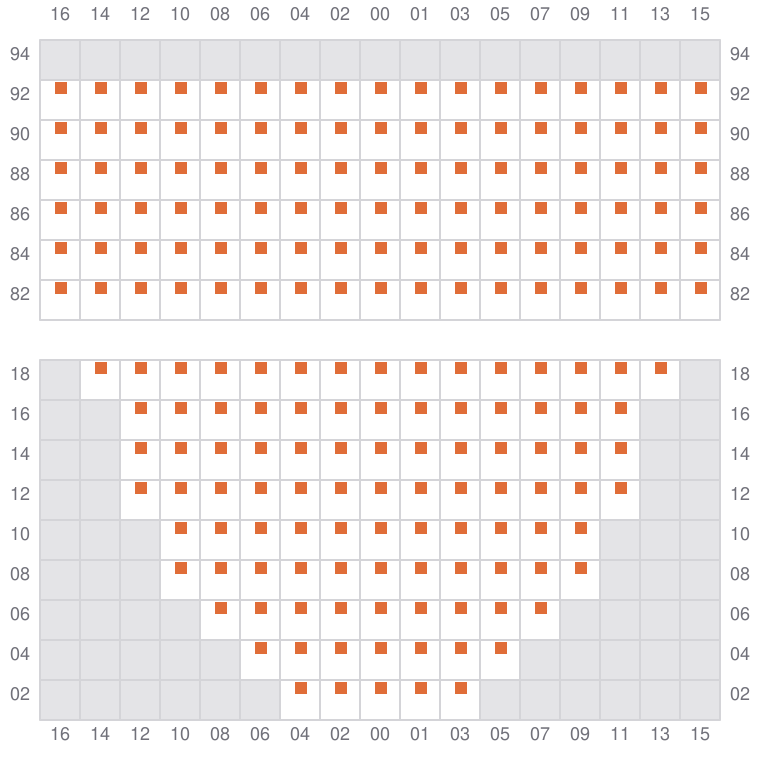

001 (002)
- →

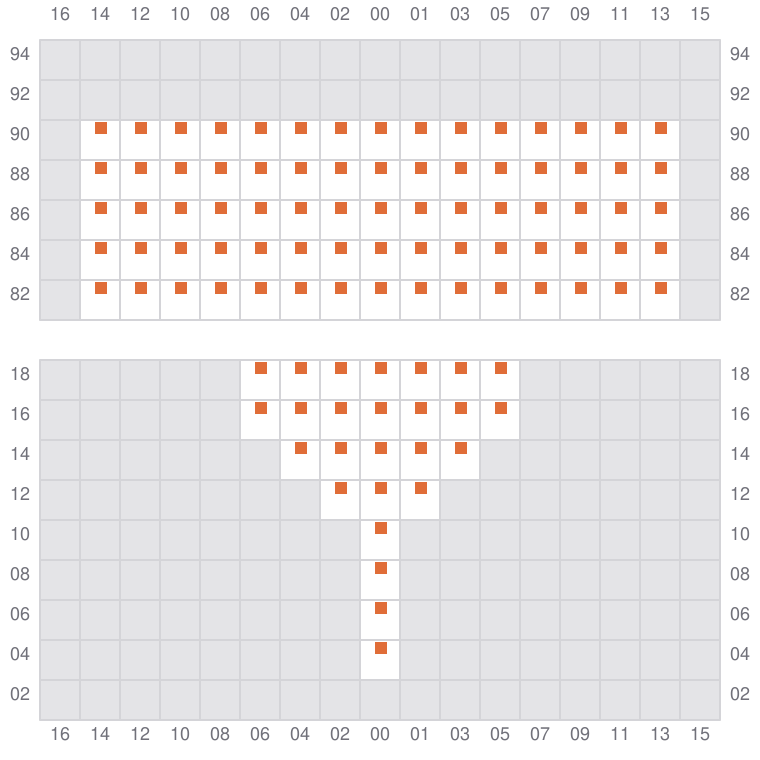

003
- ←

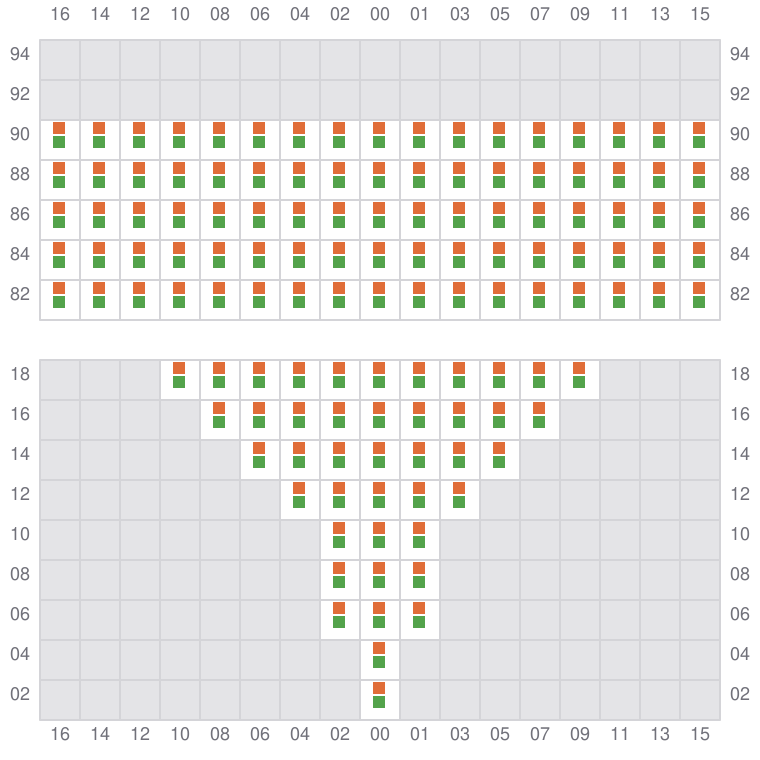

005 (006)
- →
007
- ←
009 (010)
- →

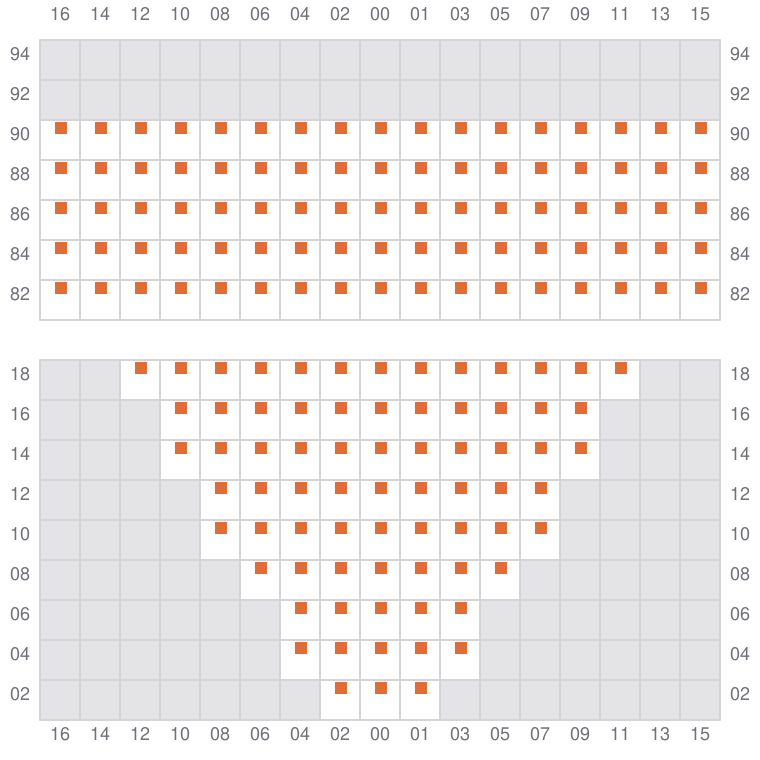

011
- ←

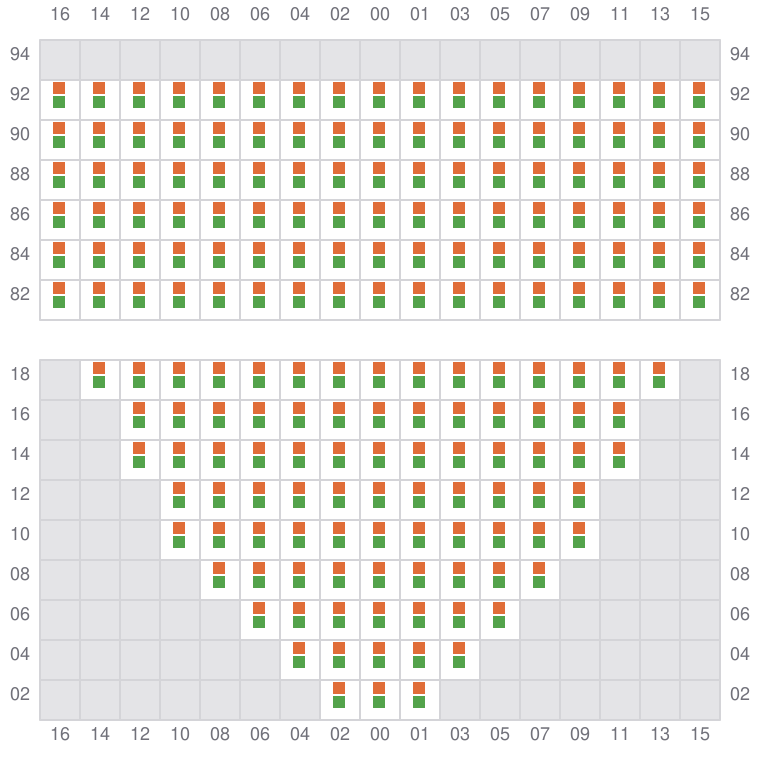

013 (014)
- →
015
- ←
017 (018)
- →
019
- ←

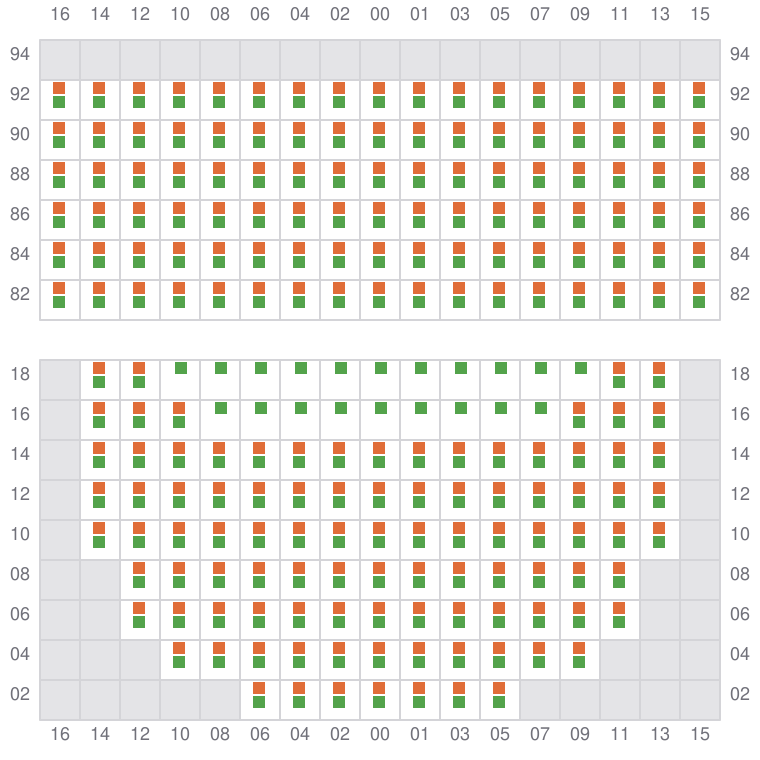

021 (022)
- →
023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←
037 (038)
- →
039
- ←
041 (042)
- →
043
- ←

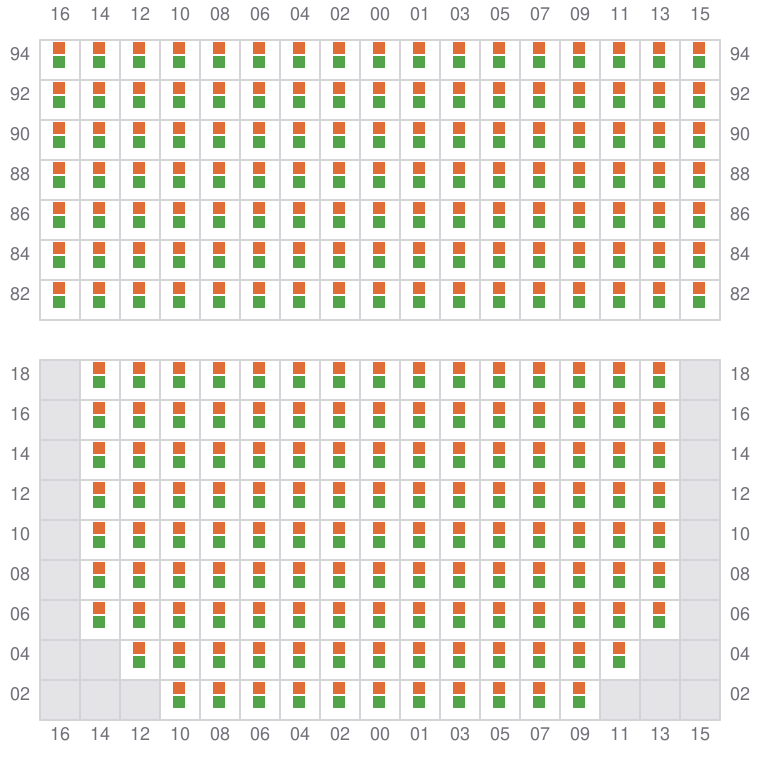

045 (046)
- →
047
- ←
049 (050)
- →
051
- ←

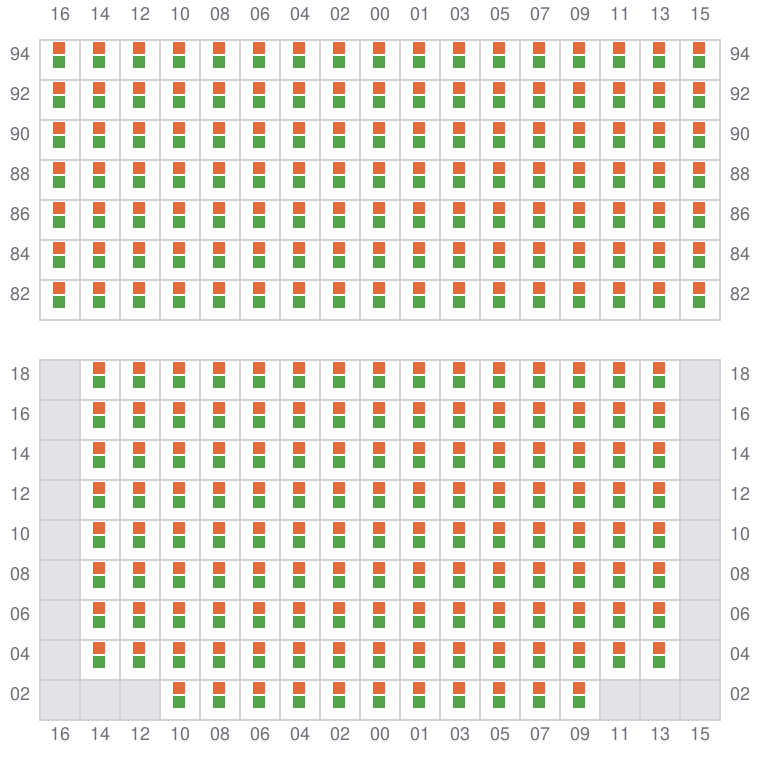

053 (054)
- →
055
- ←

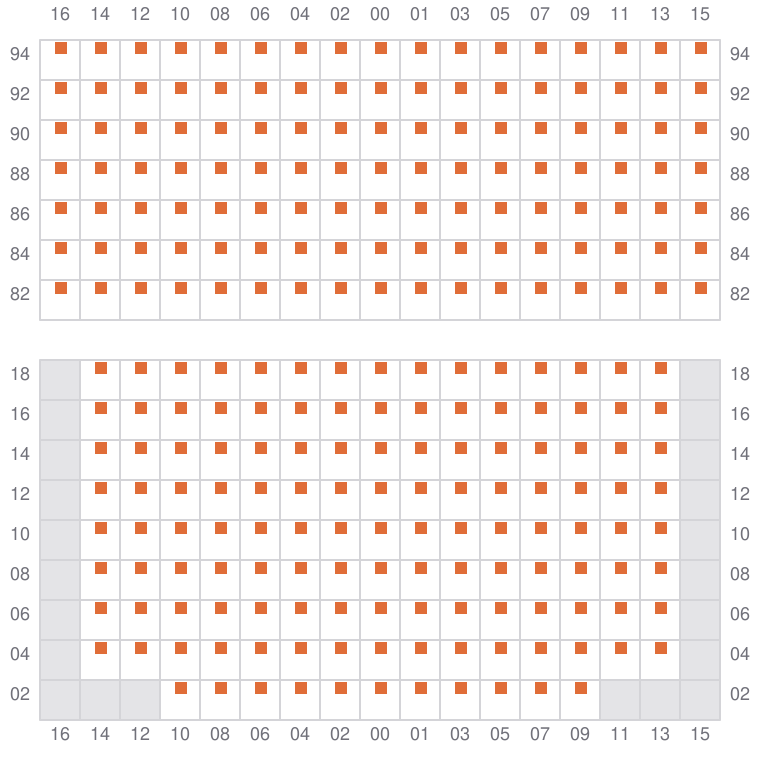

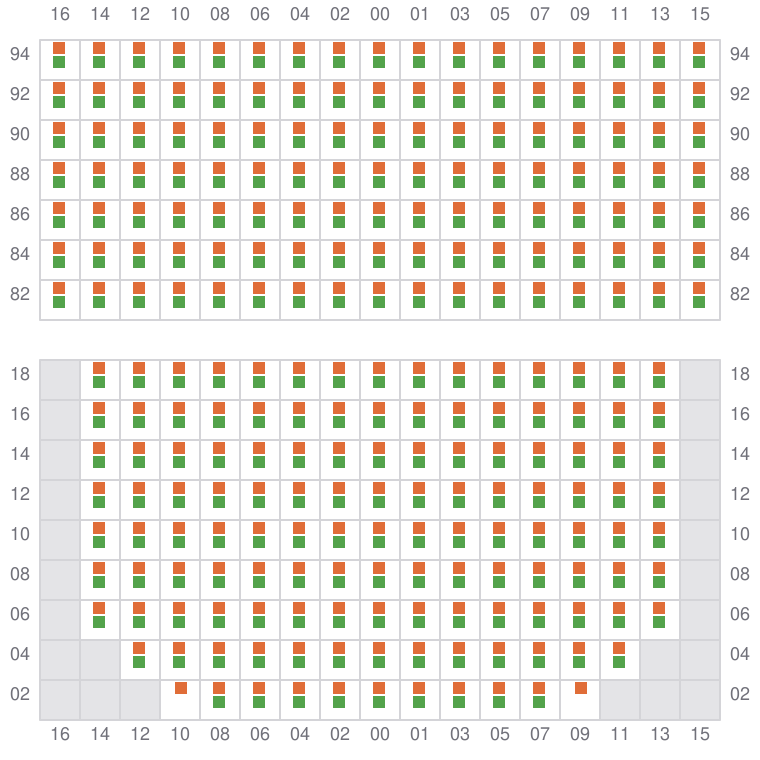

057 (058)
- →
059
- ←
061 (062)
- →
063
- ←
065 (066)
- →

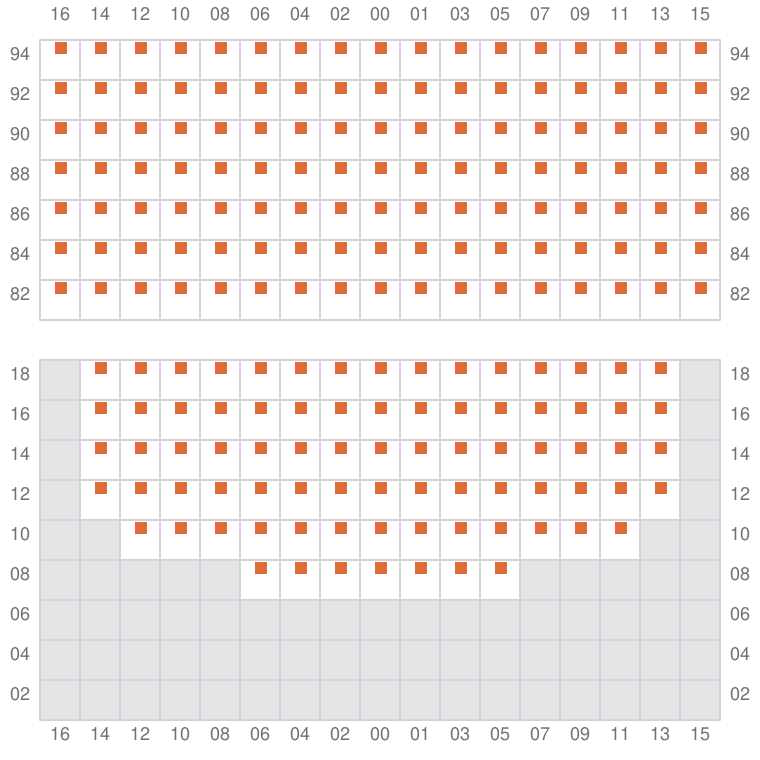

067
- ←
069 (070)
- →

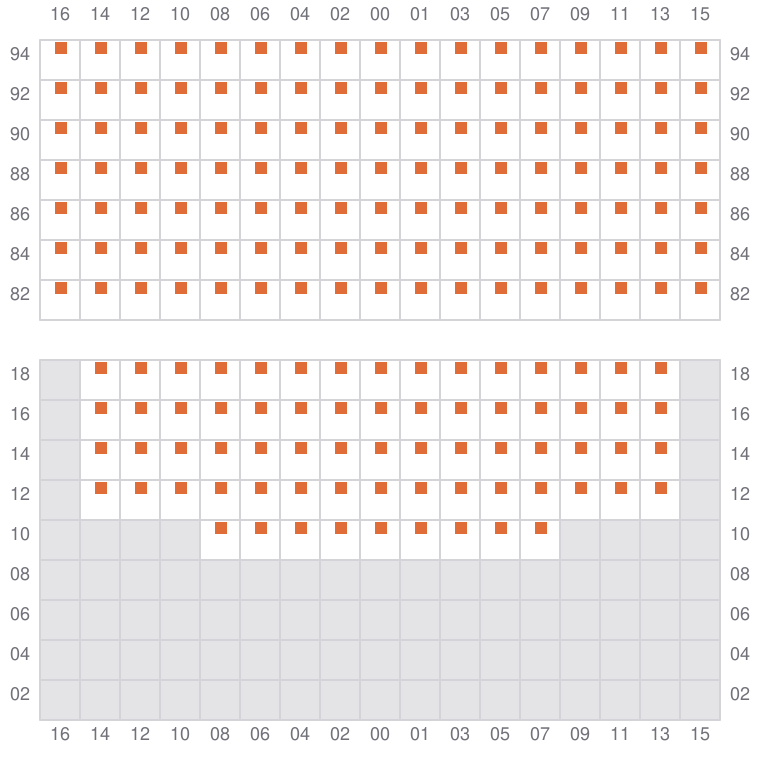

071
- ←

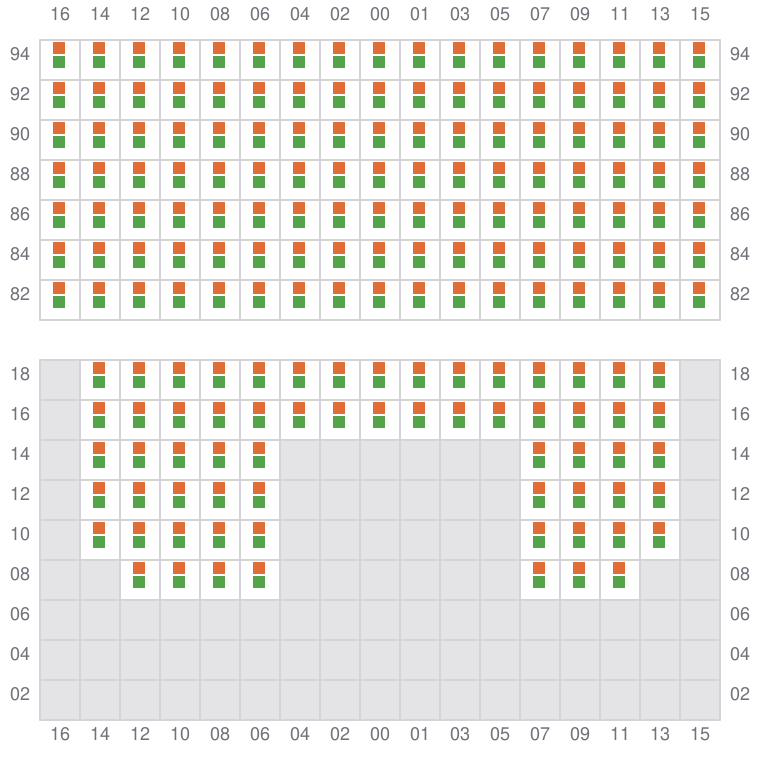

073 (074)
- →

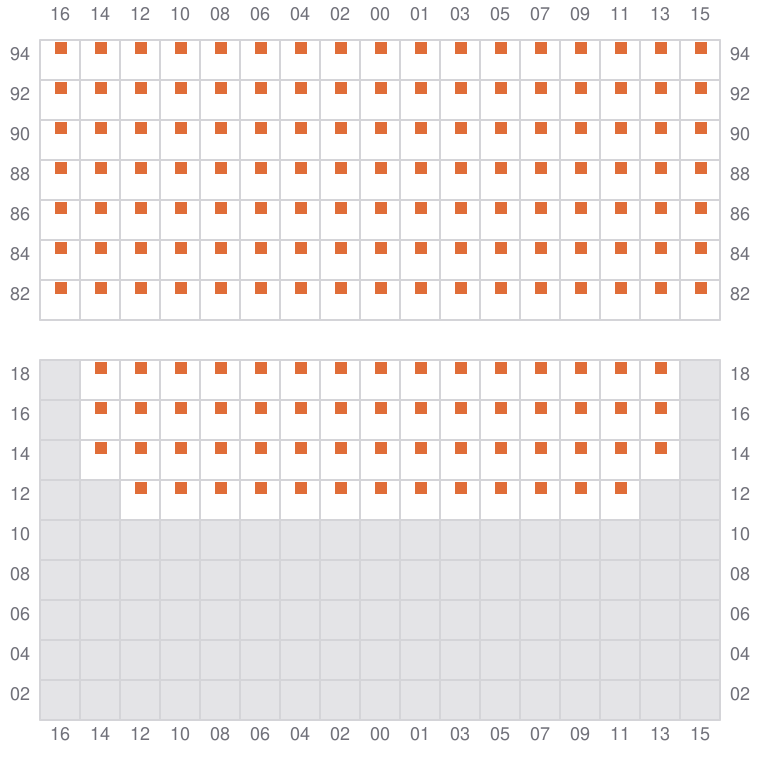

075
- ←

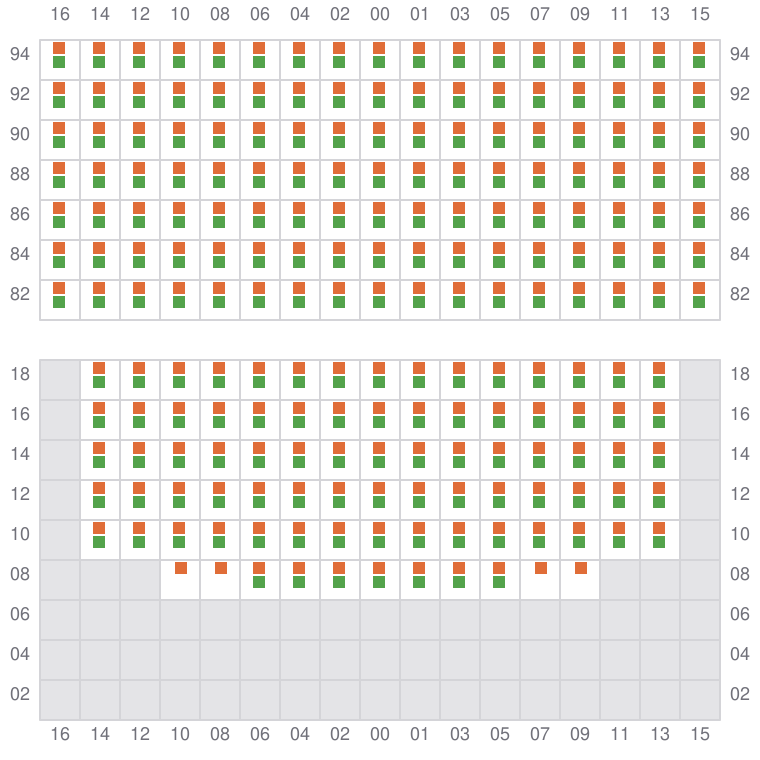

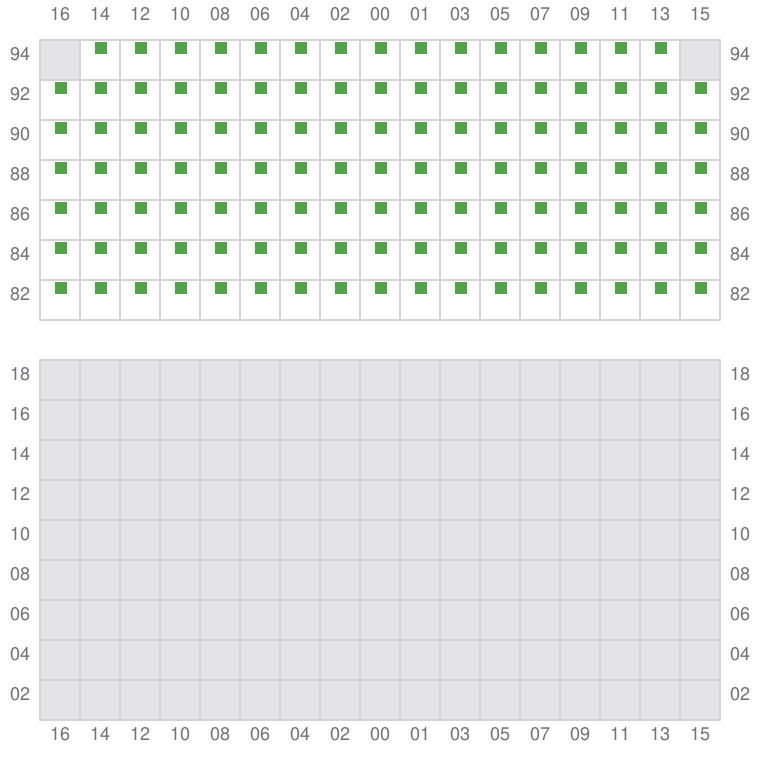

077 (078)
- → / ?
