MSC FELIXSTOWE
9290402 | 3EER9 | 9290402 by ********* Last update: Sun Mar 17 2024

General Info

Ship Name:MSC FELIXSTOWE
IMO Code:9290402
Call Sign:3EER9
Line Operator:9290402
Class Name for Sister Ships:FELX
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,215

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MSC FELIXSTOWE

Hatch-Covers View

Deck view of MSC FELIXSTOWE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

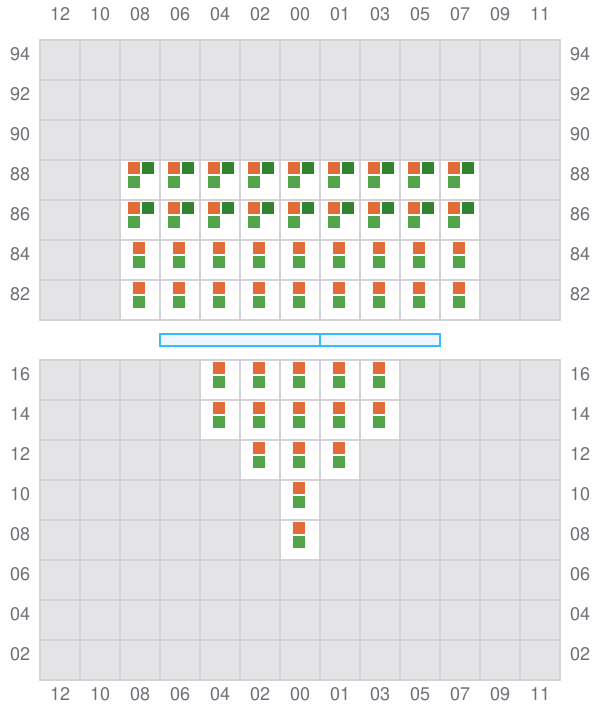

Bay 001 view and slots of MSC FELIXSTOWE

003

  • ←
  • → / ?
  • ← / ?

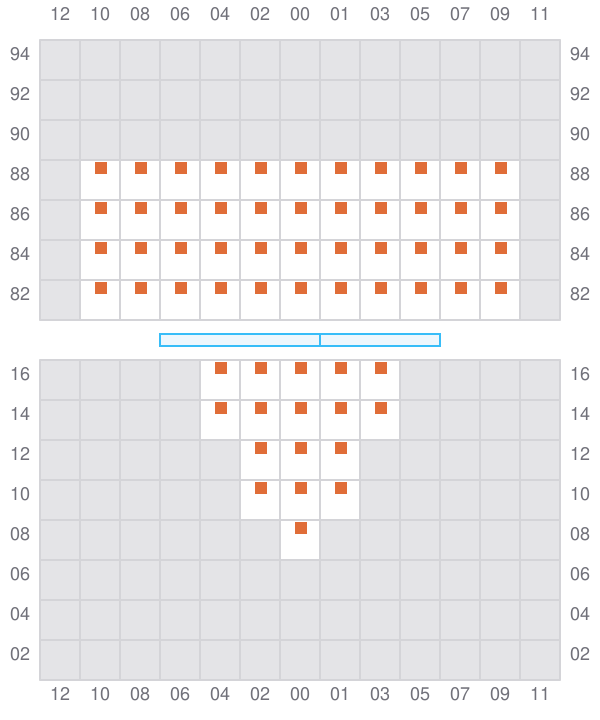

Bay 003 view and slots of MSC FELIXSTOWE

005 (006)

  • →
  • ← / ?
  • → / ?

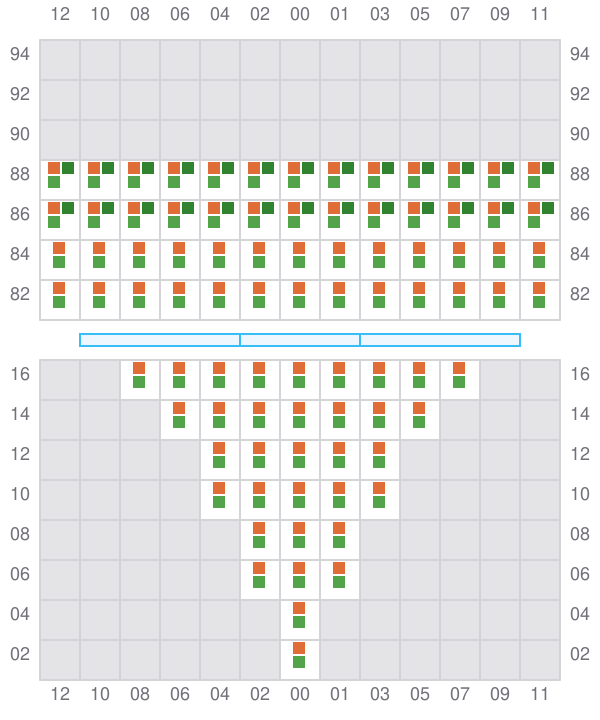

Bay 005 view and slots of MSC FELIXSTOWE

007

  • ←
  • → / ?
  • ← / ?

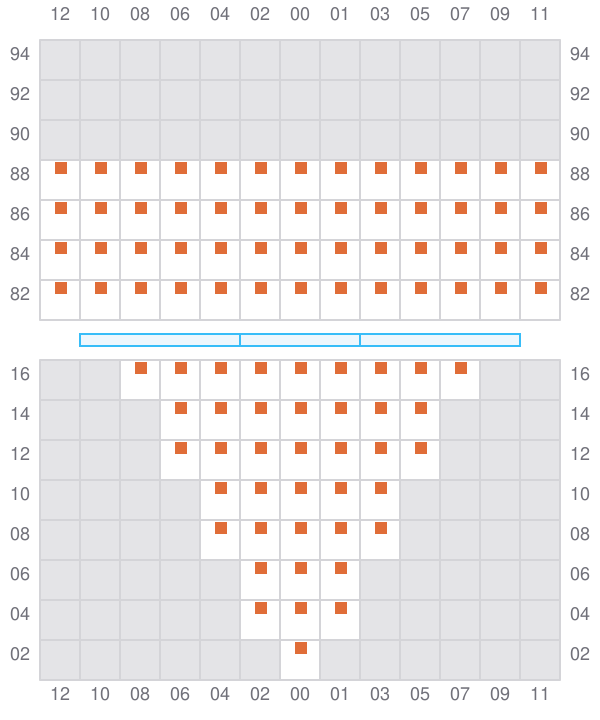

Bay 007 view and slots of MSC FELIXSTOWE

009 (010)

  • →

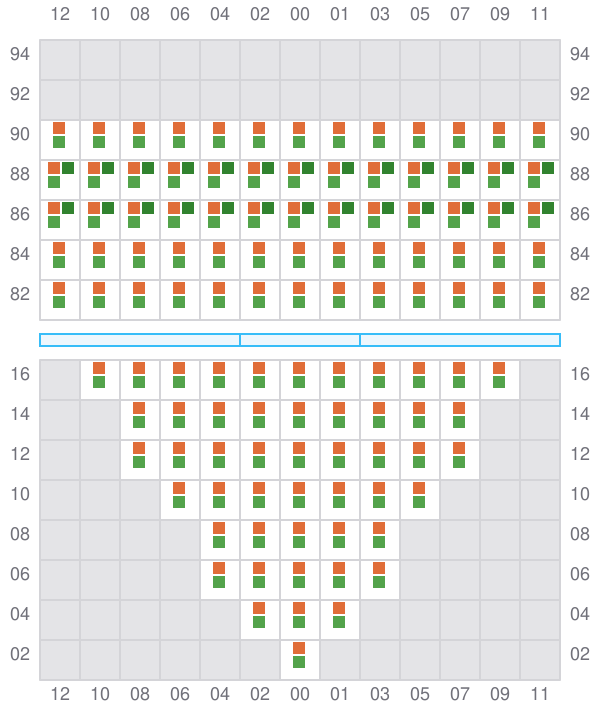

Bay 009 view and slots of MSC FELIXSTOWE

011

  • ←
  • → / ?

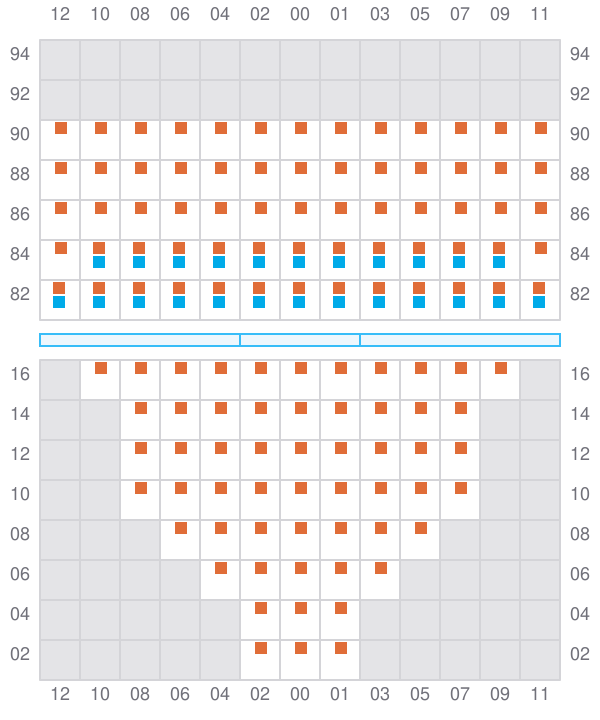

Bay 011 view and slots of MSC FELIXSTOWE

013 (014)

  • →
  • ← / ?
  • → / ?

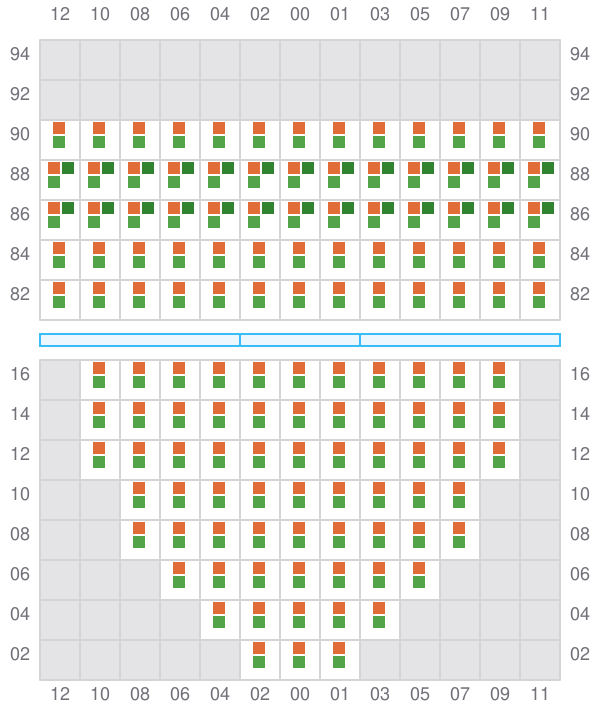

Bay 013 view and slots of MSC FELIXSTOWE

015

  • ←
  • → / ?
  • ← / ?

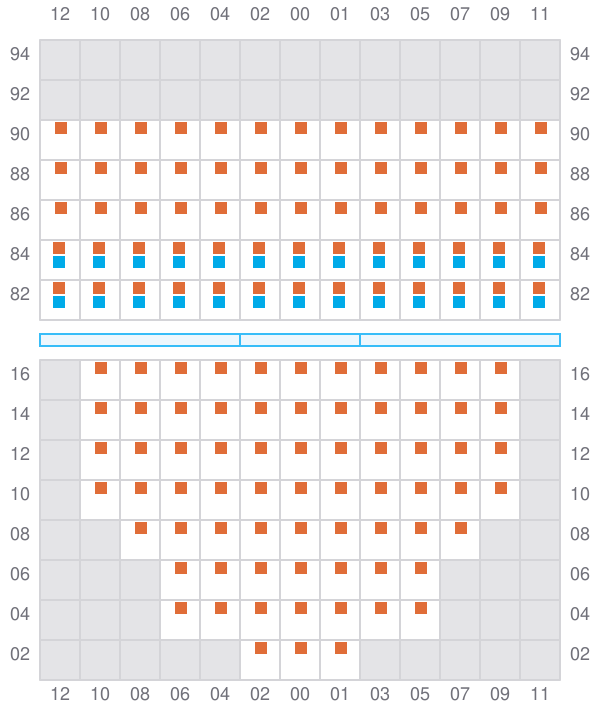

Bay 015 view and slots of MSC FELIXSTOWE

017 (018)

  • →
Bay 017 view and slots of MSC FELIXSTOWE

019

  • ←
  • → / ?

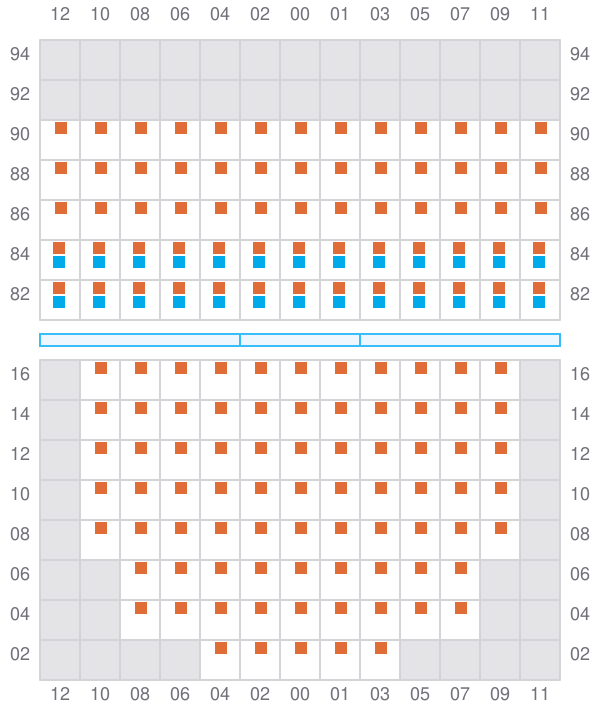

Bay 019 view and slots of MSC FELIXSTOWE

021 (022)

  • →
  • ← / ?

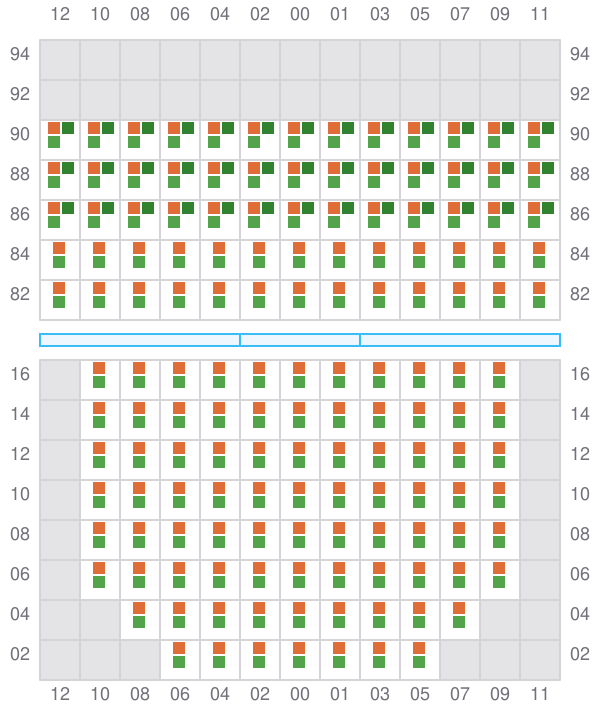

Bay 021 view and slots of MSC FELIXSTOWE

023

  • ← / ?
  • → / ?
  • ← / ?

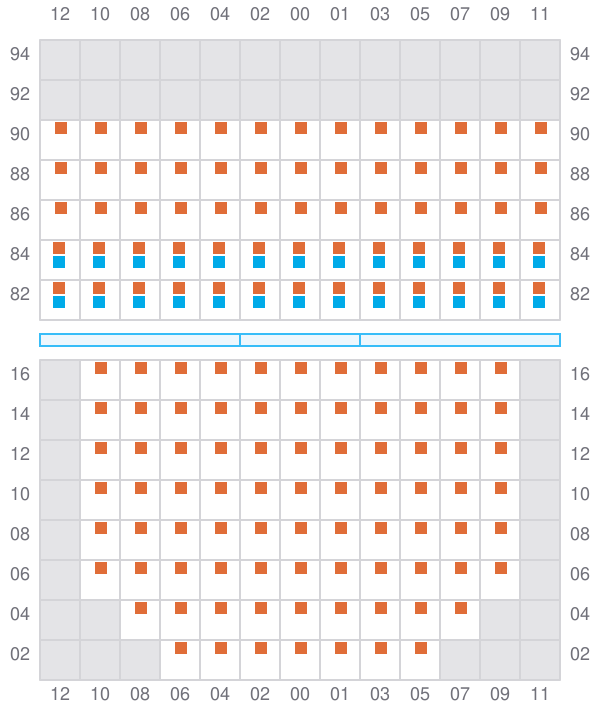

Bay 023 view and slots of MSC FELIXSTOWE

025 (026)

  • →
Bay 025 view and slots of MSC FELIXSTOWE

027

  • ←
  • → / ?

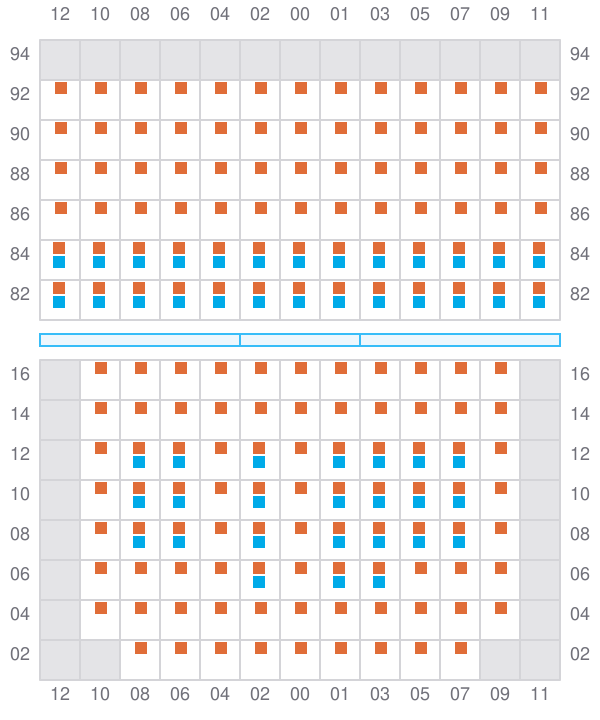

Bay 027 view and slots of MSC FELIXSTOWE

029 (030)

  • →
  • ← / ?

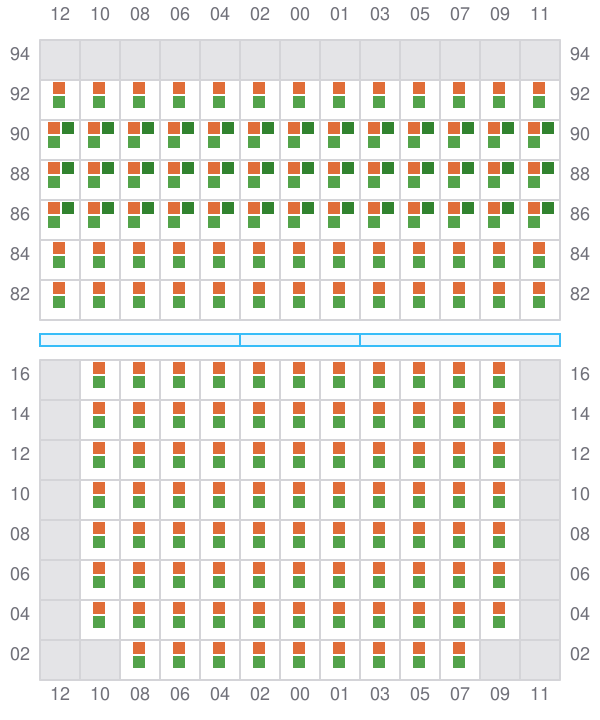

Bay 029 view and slots of MSC FELIXSTOWE

031

  • ←
  • → / ?
Bay 031 view and slots of MSC FELIXSTOWE

033 (034)

  • →
Bay 033 view and slots of MSC FELIXSTOWE

035

  • ←
  • → / ?

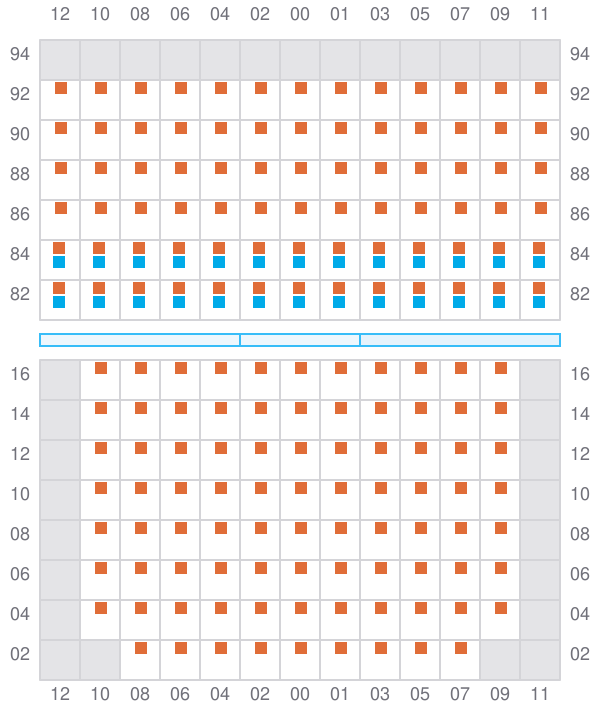

Bay 035 view and slots of MSC FELIXSTOWE

037 (038)

  • →
  • ← / ?
  • → / ?

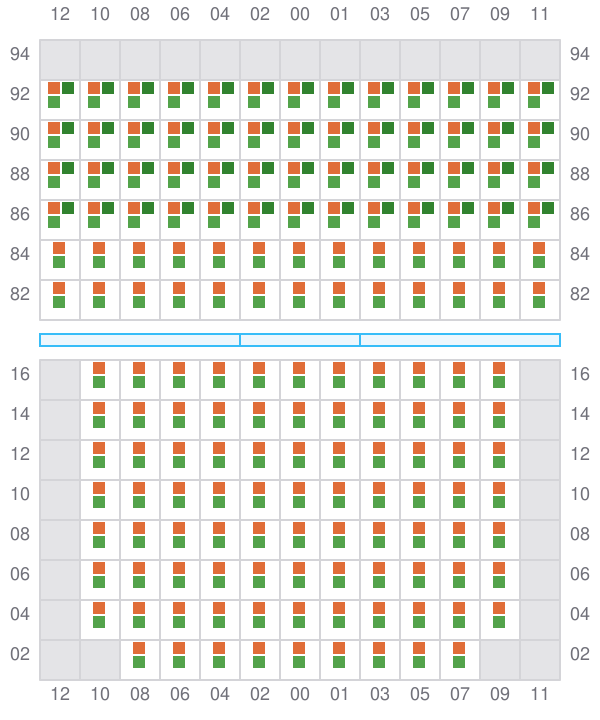

Bay 037 view and slots of MSC FELIXSTOWE

039

  • ← / ?
  • → / ?
  • ← / ?
Bay 039 view and slots of MSC FELIXSTOWE

041 (042)

  • →
Bay 041 view and slots of MSC FELIXSTOWE

043

  • ←
  • → / ?

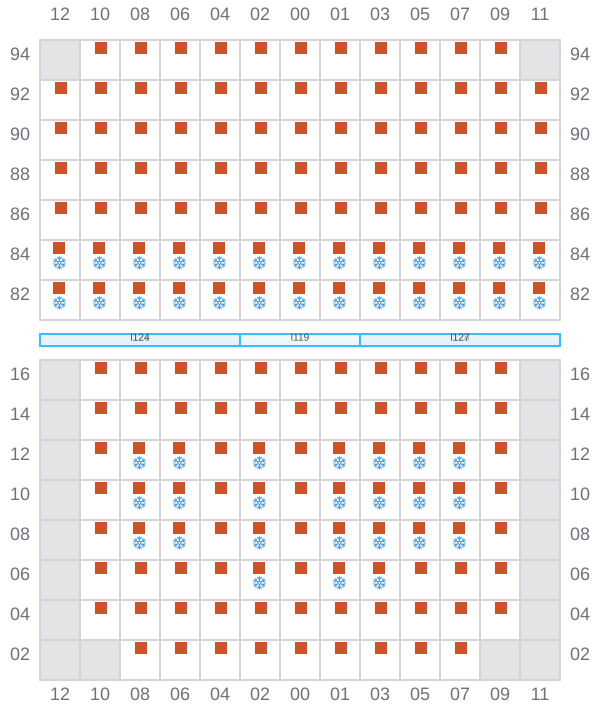

Bay 043 view and slots of MSC FELIXSTOWE

045 (046)

  • →
  • ← / ?
  • → / ?

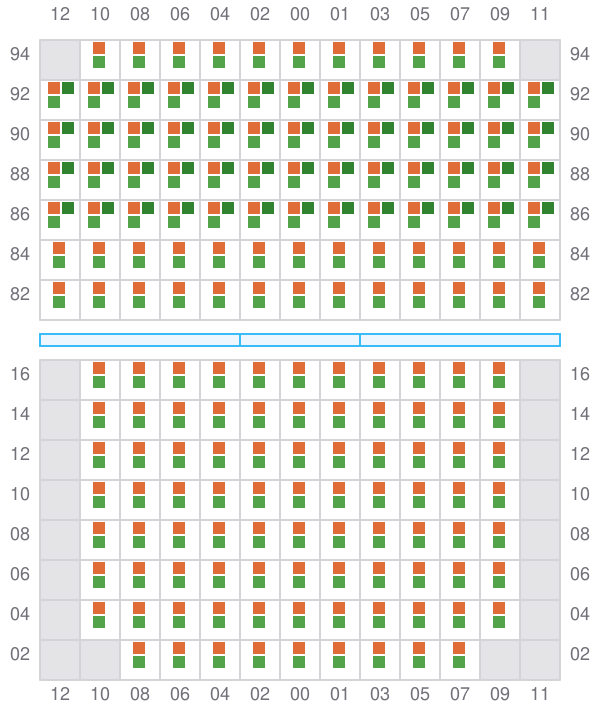

Bay 045 view and slots of MSC FELIXSTOWE

047

  • ←
  • → / ?

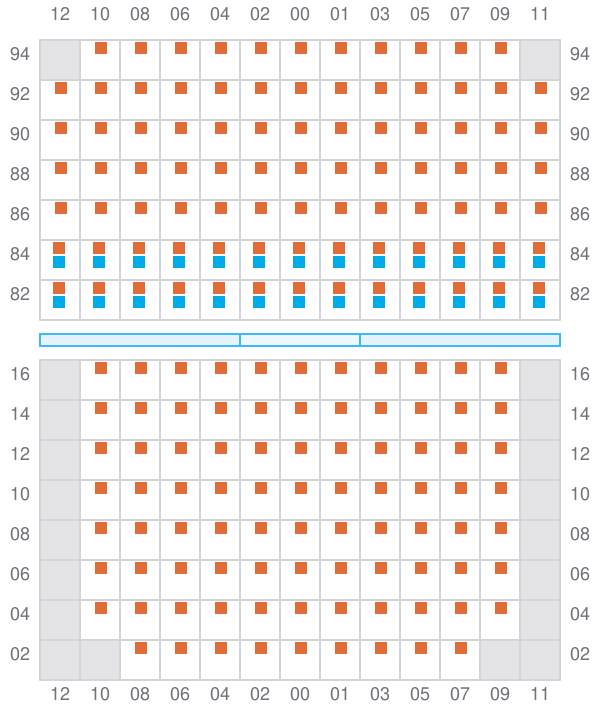

Bay 047 view and slots of MSC FELIXSTOWE

049 (050)

  • →
  • ? / →

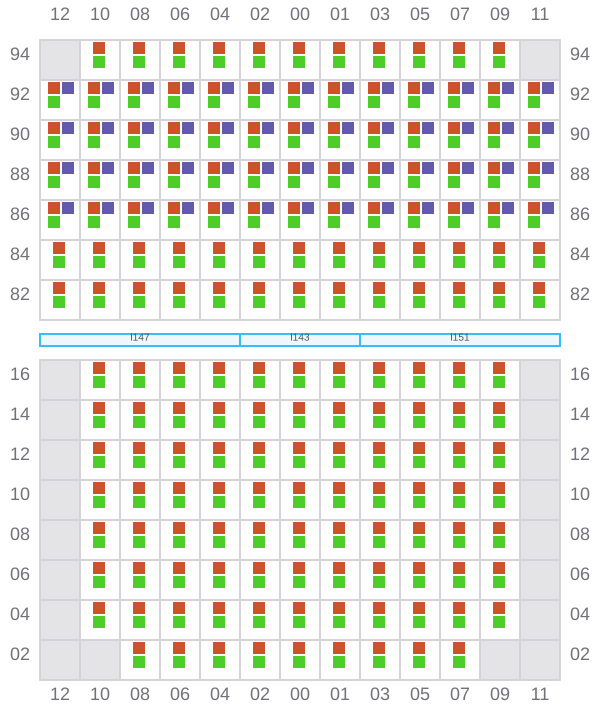

Bay 049 view and slots of MSC FELIXSTOWE

051

  • ←
  • →
  • ? / ←
Bay 051 view and slots of MSC FELIXSTOWE

053 (054)

  • →
  • ← / →
  • → / ?

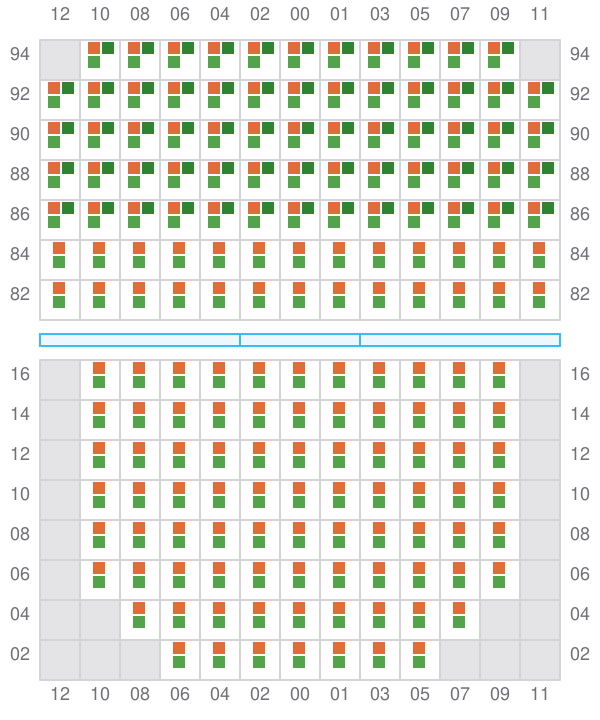

Bay 053 view and slots of MSC FELIXSTOWE

055

  • ←
  • →
  • ← / ?
Bay 055 view and slots of MSC FELIXSTOWE

057 (058)

  • →
  • ← / →
  • → / ?

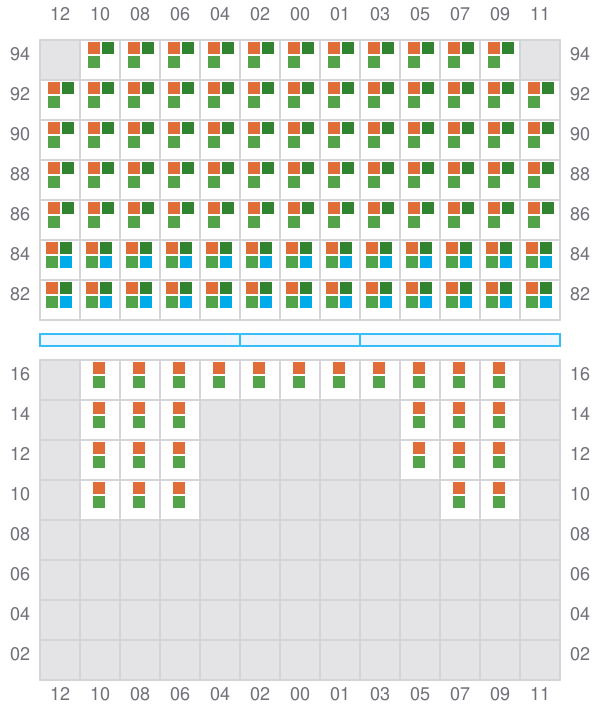

Bay 057 view and slots of MSC FELIXSTOWE

059

  • ←
  • ? / →

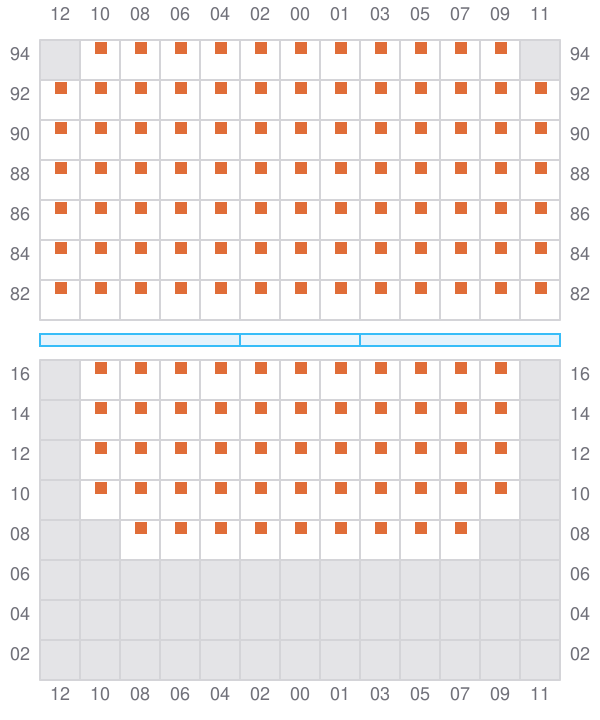

Bay 059 view and slots of MSC FELIXSTOWE

061 (062)

  • →
  • ← / ?
  • → / ?

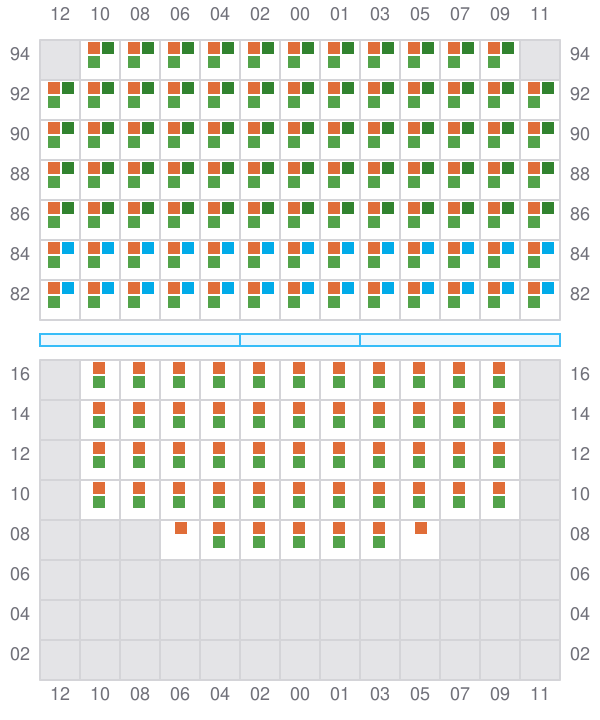

Bay 061 view and slots of MSC FELIXSTOWE

063

  • ←
  • →
  • ← / ?

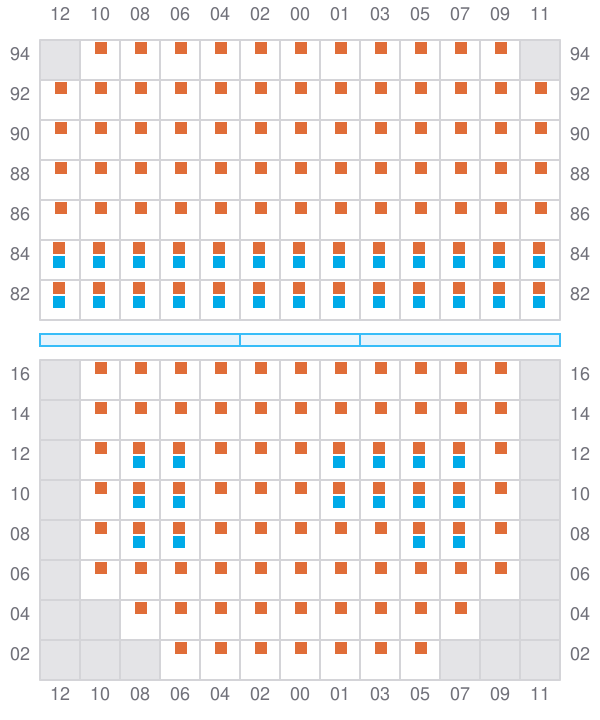

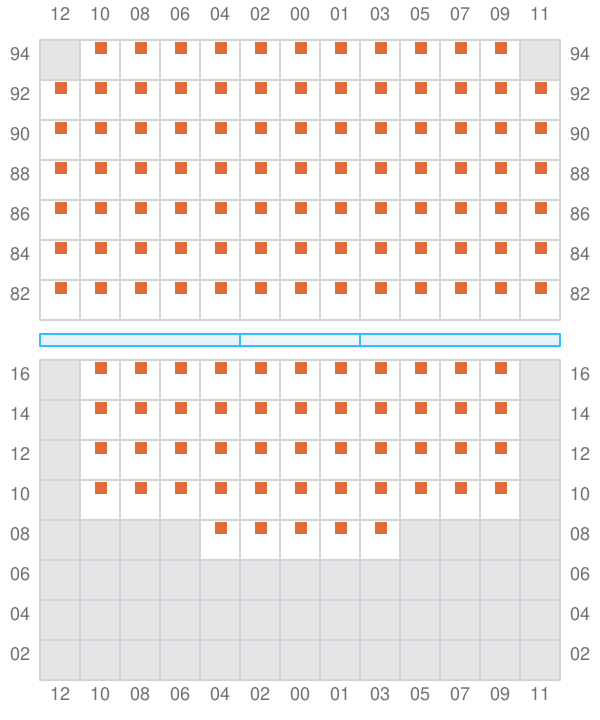

Bay 063 view and slots of MSC FELIXSTOWE

065 (066)

  • →
  • ← / ?

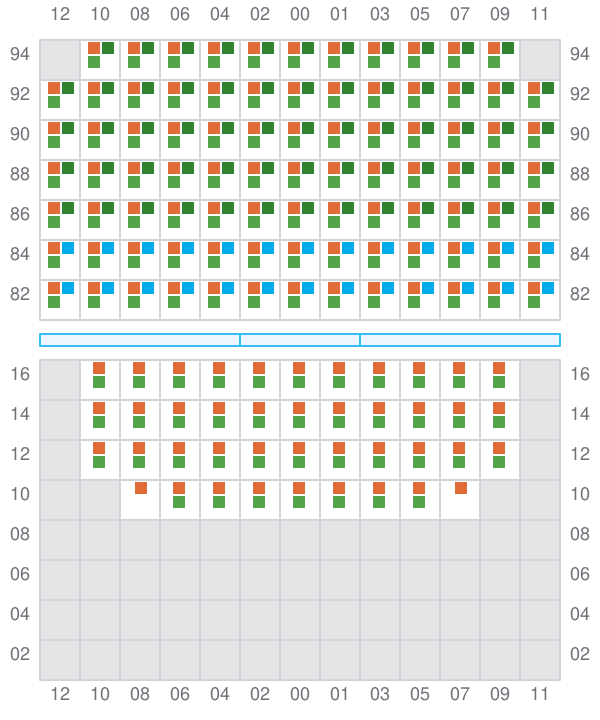

Bay 065 view and slots of MSC FELIXSTOWE

067

  • ←
  • → / ?
  • ← / ?

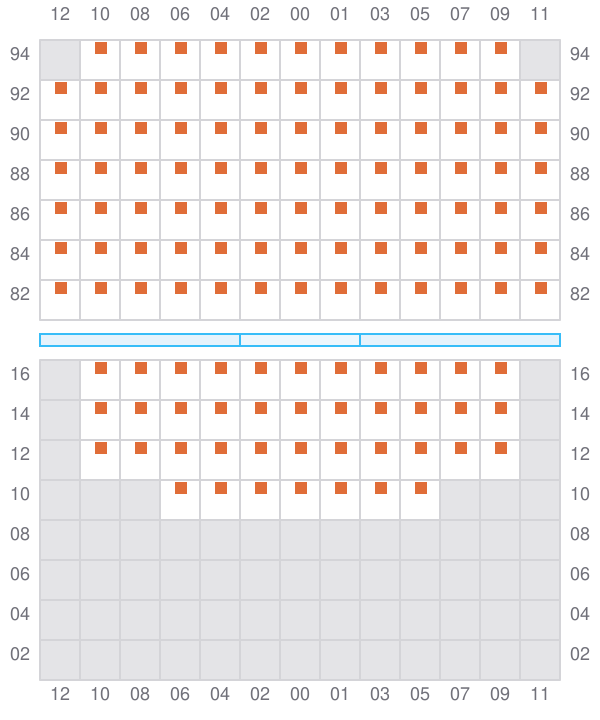

Bay 067 view and slots of MSC FELIXSTOWE

069 (070)

  • → / ?
  • ← / ?
  • → / ?

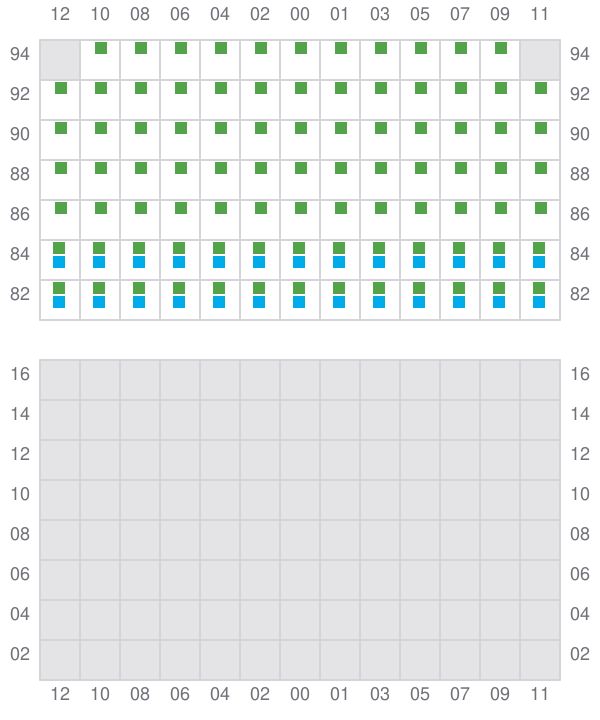

Bay 069 view and slots of MSC FELIXSTOWE
