MSC FLORIANA VI
9168831 | 5LLJ6 | 9168831 by ********* Last update: Tue Apr 30 2024

General Info

Ship Name:MSC FLORIANA VI
IMO Code:9168831
Call Sign:5LLJ6
Line Operator:9168831
Class Name for Sister Ships:EVER UBERTY
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:067
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,204

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

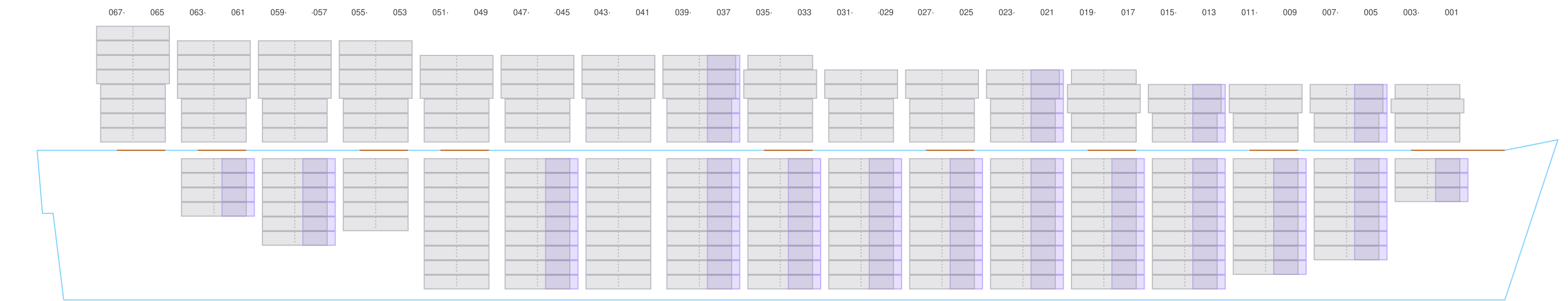

Side view of MSC FLORIANA VI

Hatch-Covers View

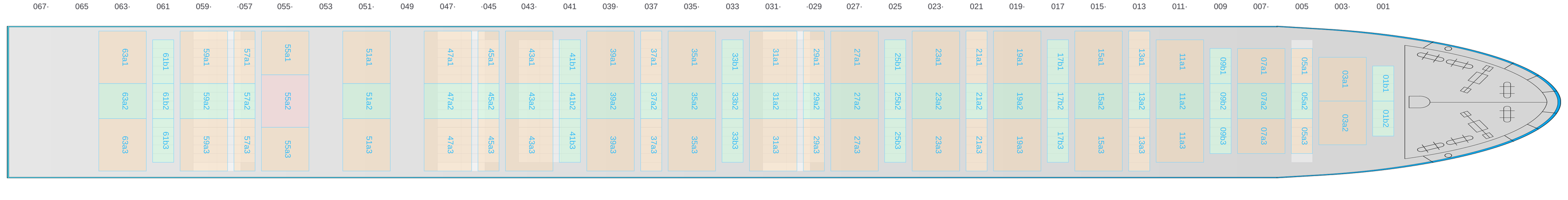

Deck view of MSC FLORIANA VI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • ? / →
Bay 001 view and slots of MSC FLORIANA VI

003 (002)

  • ←
  • →

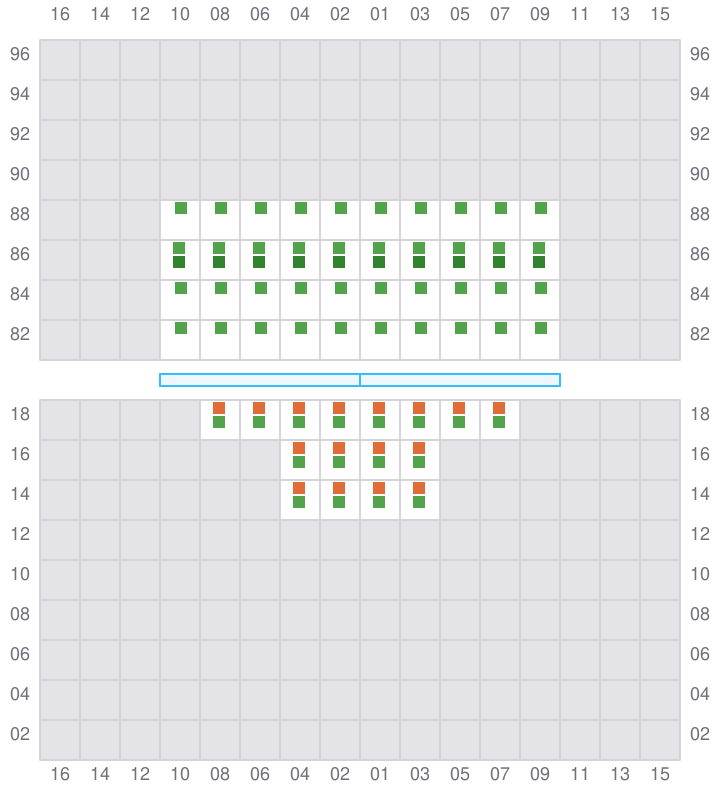

Bay 003 view and slots of MSC FLORIANA VI

005

  • →

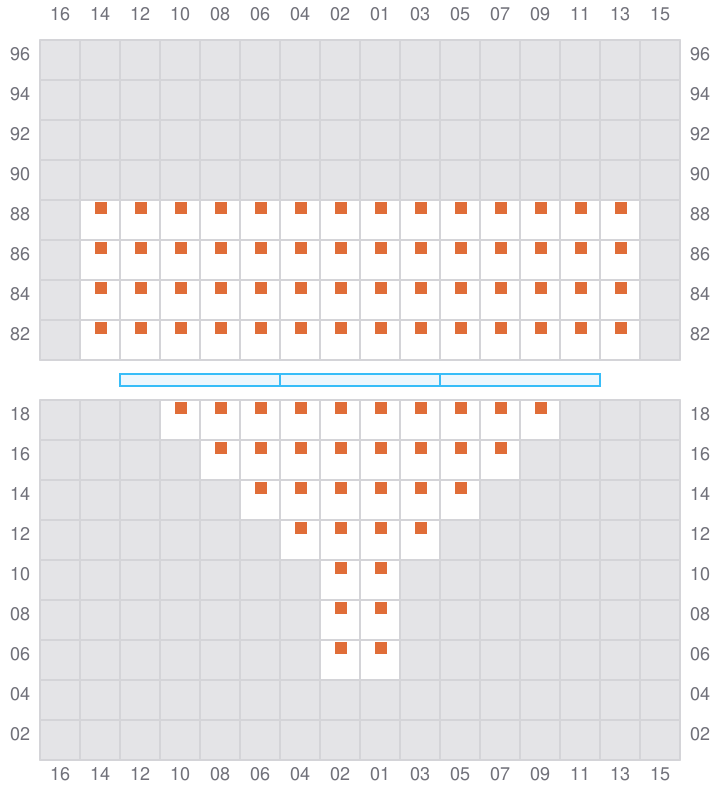

Bay 005 view and slots of MSC FLORIANA VI

007 (006)

  • ←
  • → / ?
  • →

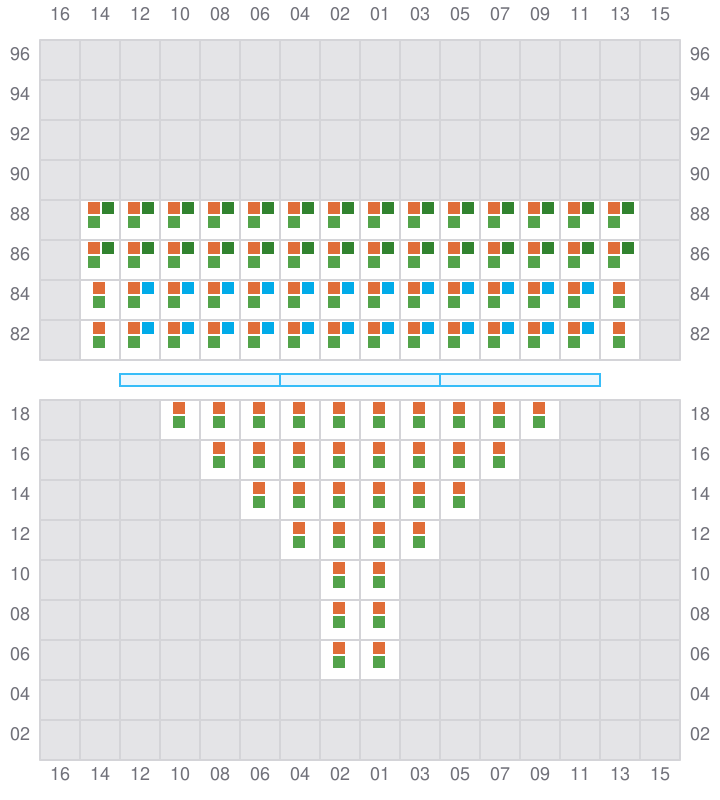

Bay 007 view and slots of MSC FLORIANA VI

009

  • ? / →
Bay 009 view and slots of MSC FLORIANA VI

011 (010)

  • ←
  • → / ?
  • →

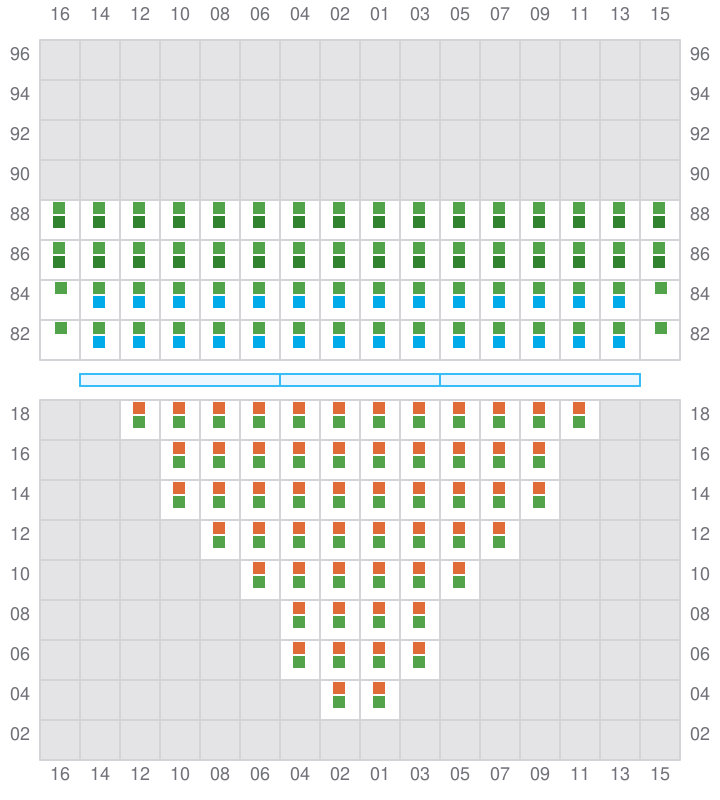

Bay 011 view and slots of MSC FLORIANA VI

013

  • →
Bay 013 view and slots of MSC FLORIANA VI

015 (014)

  • ←
  • → / ?
  • →
Bay 015 view and slots of MSC FLORIANA VI

017

  • ? / →

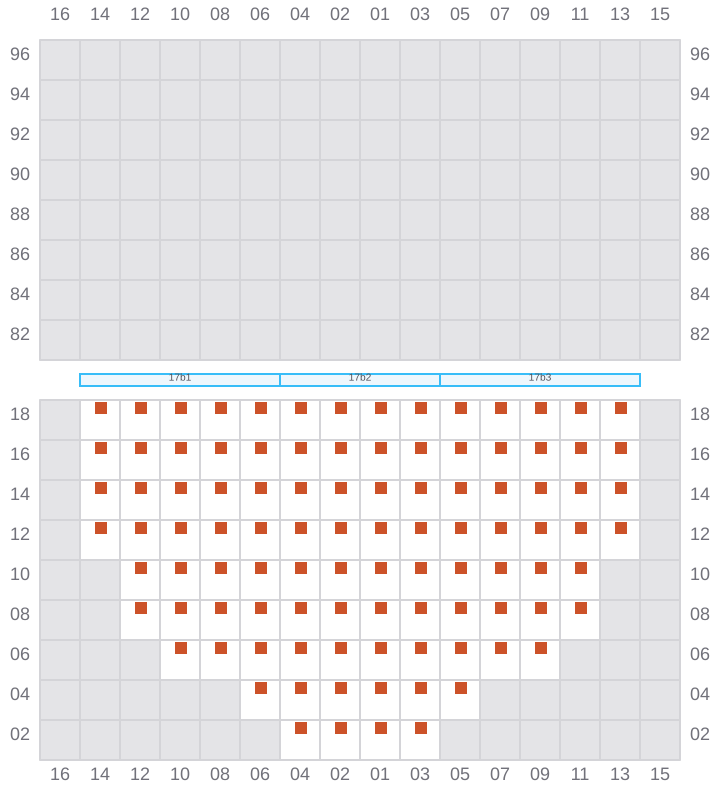

Bay 017 view and slots of MSC FLORIANA VI

019 (018)

  • ←
  • → / ?
  • →

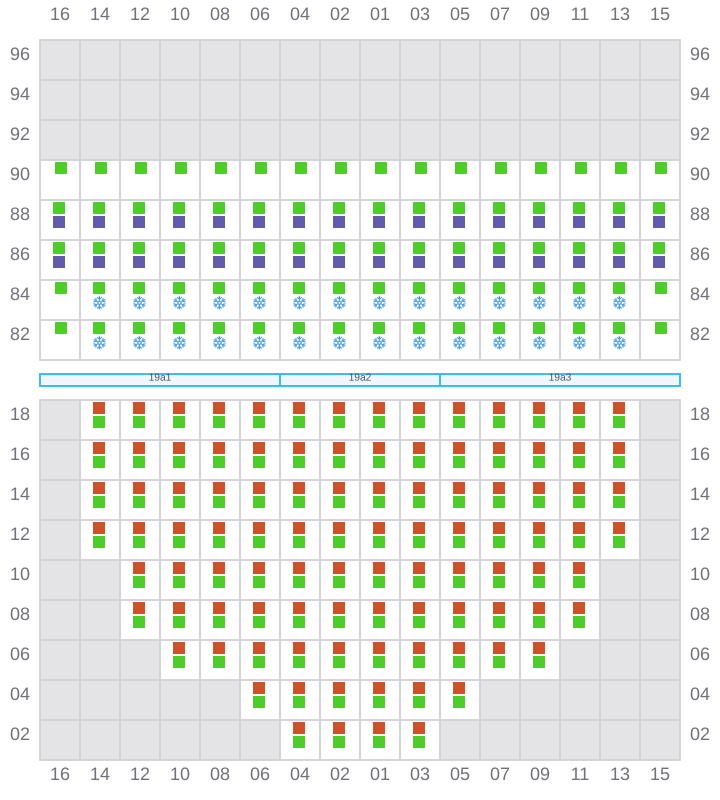

Bay 019 view and slots of MSC FLORIANA VI

021

  • →

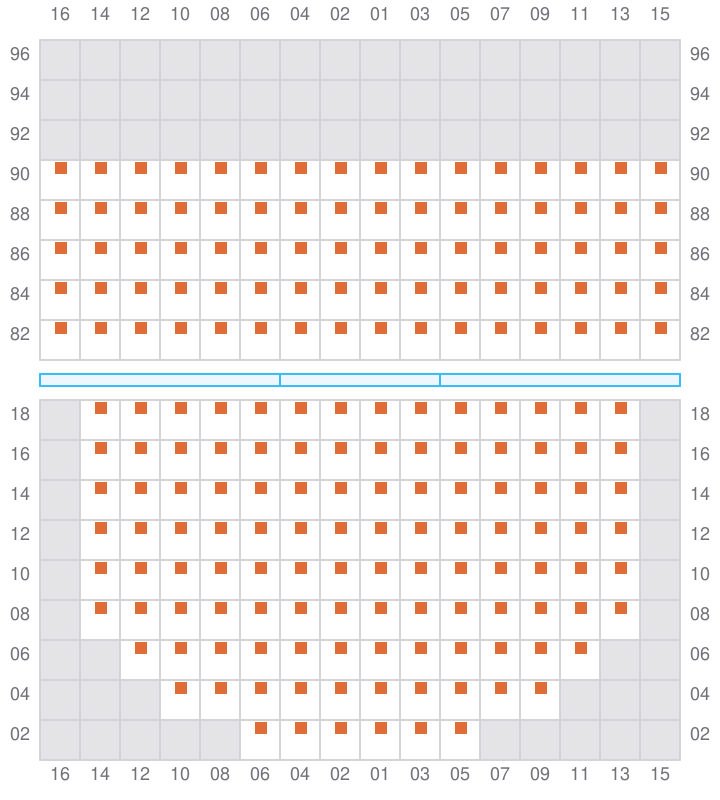

Bay 021 view and slots of MSC FLORIANA VI

023 (022)

  • ←
  • → / ?
  • →

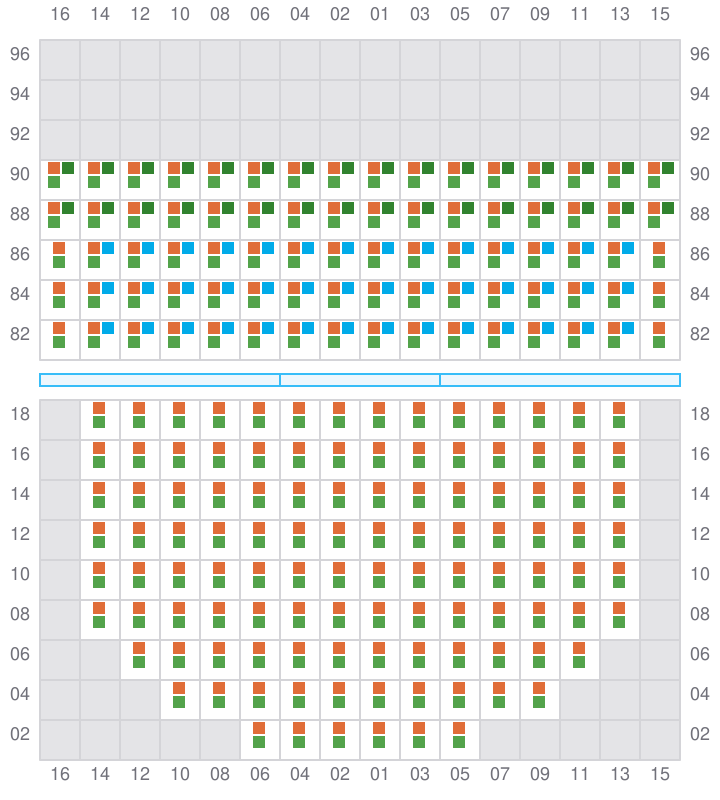

Bay 023 view and slots of MSC FLORIANA VI

025

  • ? / →

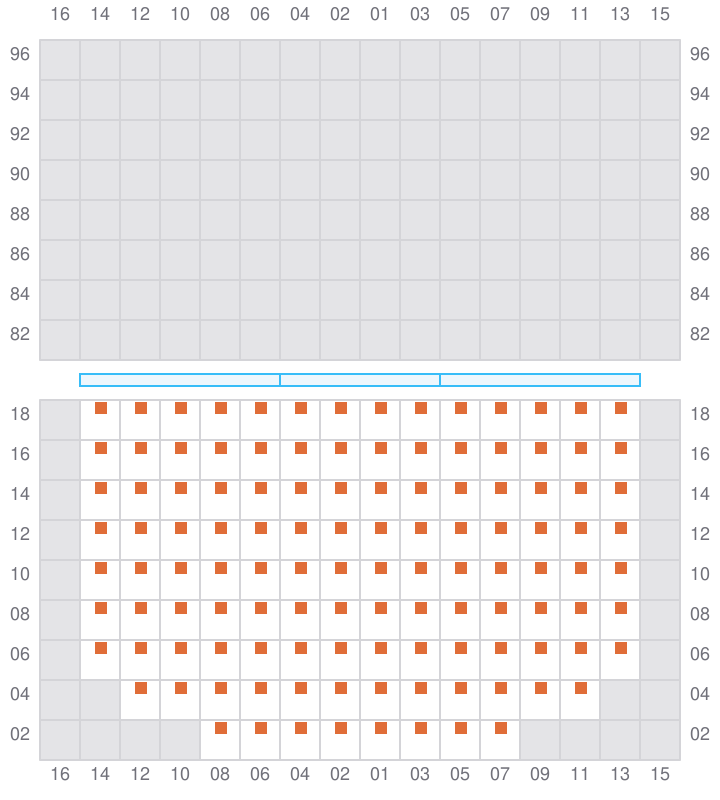

Bay 025 view and slots of MSC FLORIANA VI

027 (026)

  • ←
  • →
  • →
Bay 027 view and slots of MSC FLORIANA VI

029

  • → / ?
  • →

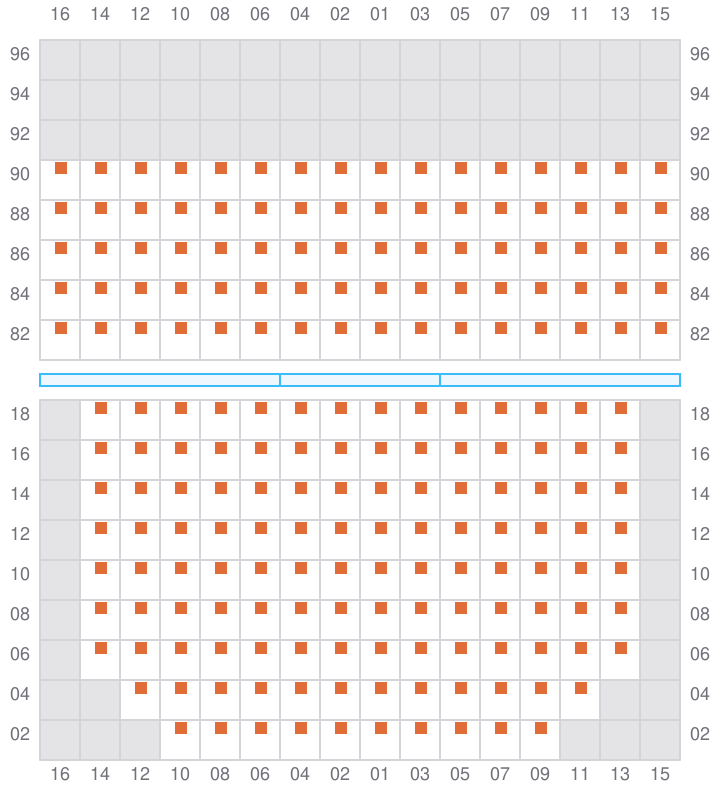

Bay 029 view and slots of MSC FLORIANA VI

031 (030)

  • ←
  • → / ?
  • →

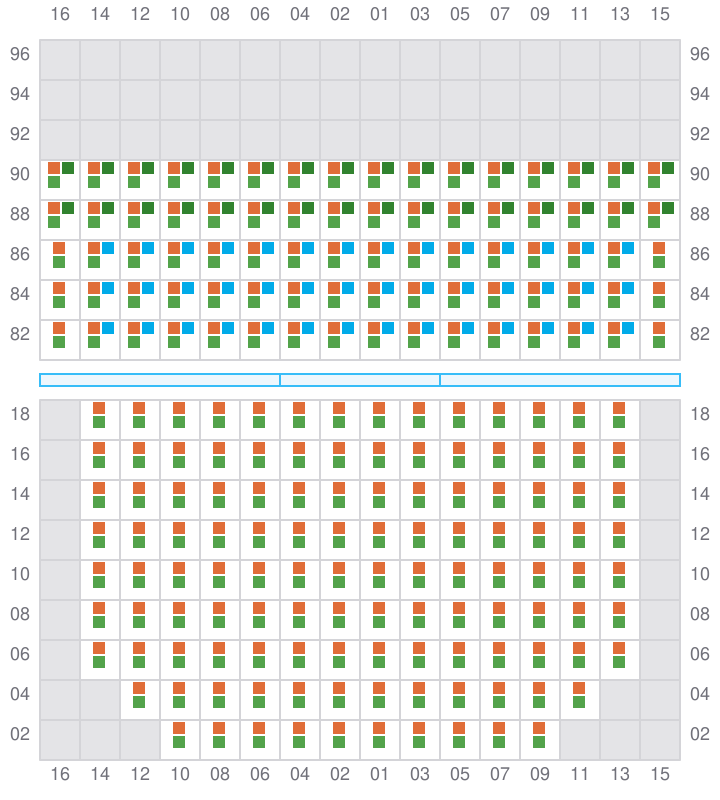

Bay 031 view and slots of MSC FLORIANA VI

033

  • ? / →

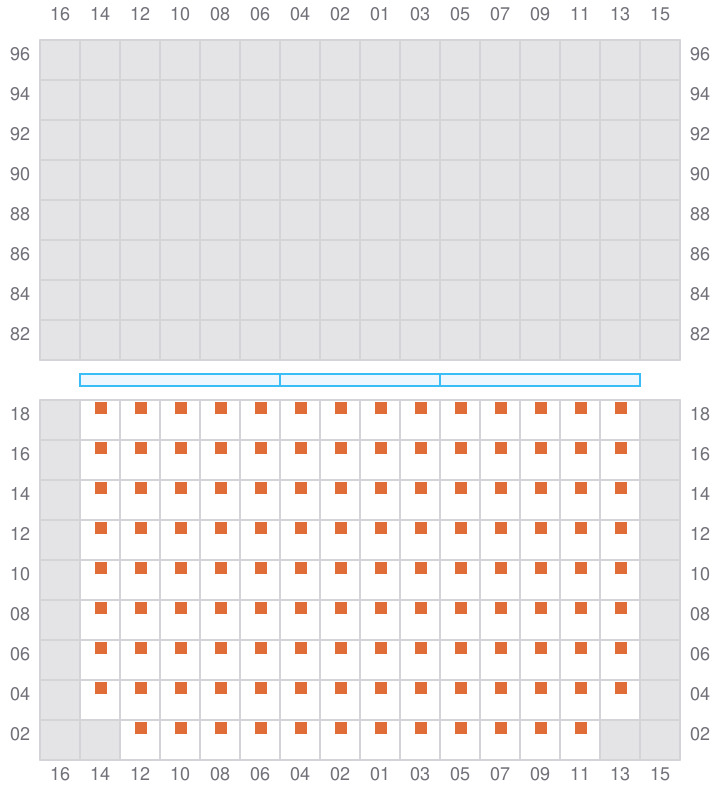

Bay 033 view and slots of MSC FLORIANA VI

035 (034)

  • ←
  • → / ?
  • →

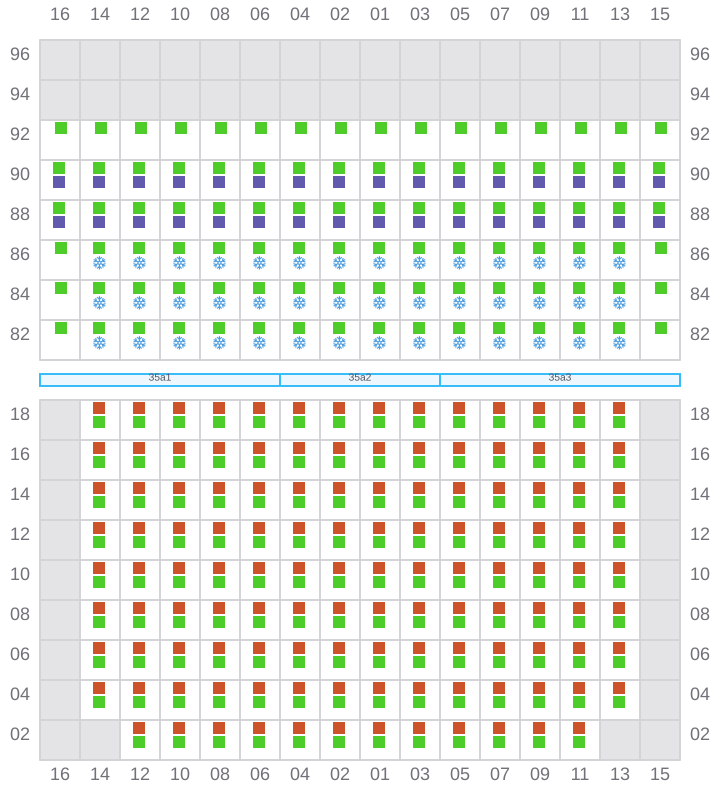

Bay 035 view and slots of MSC FLORIANA VI

037

  • →

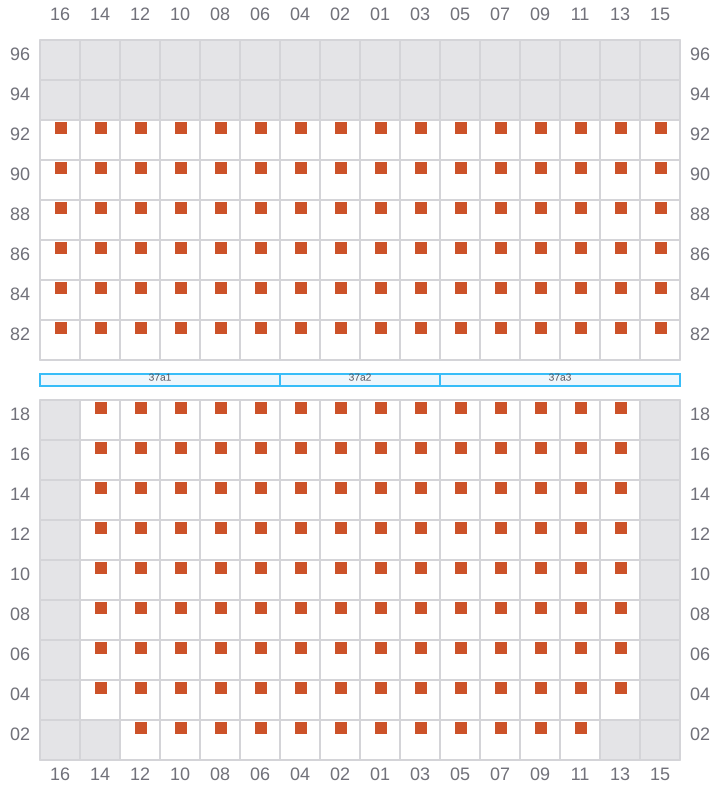

Bay 037 view and slots of MSC FLORIANA VI

039 (038)

  • ←
  • → / ?
  • →

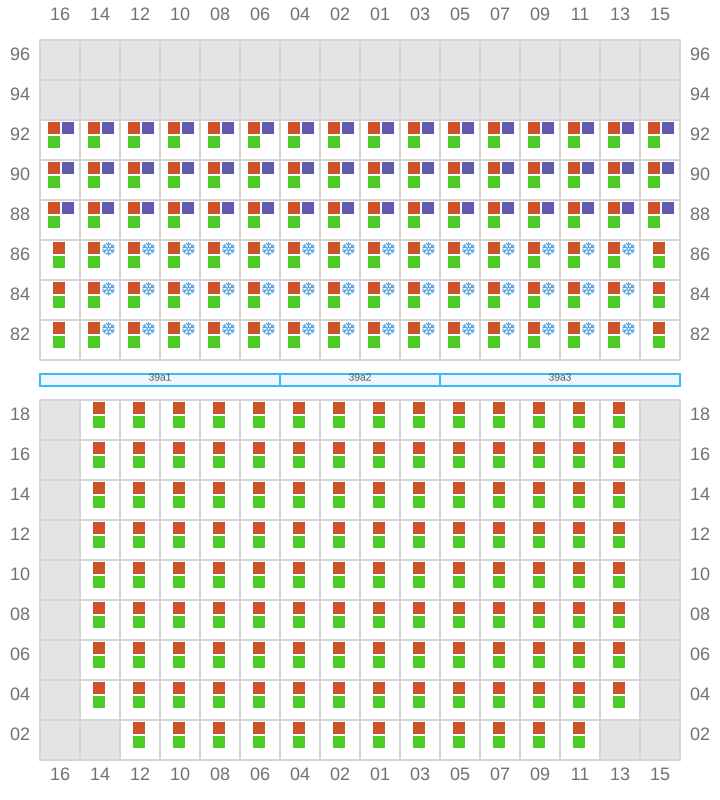

Bay 039 view and slots of MSC FLORIANA VI

041

  • ? / →
  • ? / →

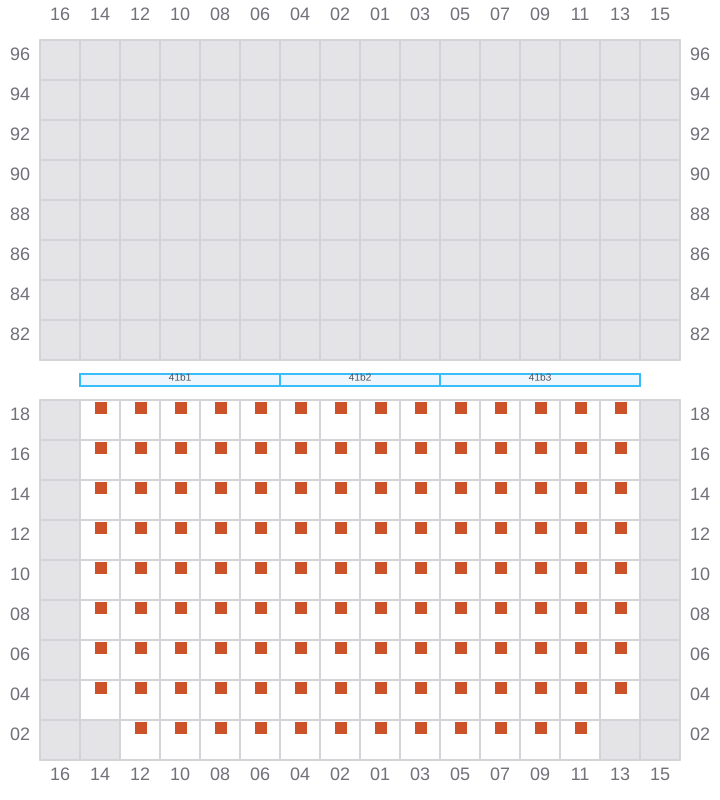

Bay 041 view and slots of MSC FLORIANA VI

043 (042)

  • ←
  • → / ?
  • →

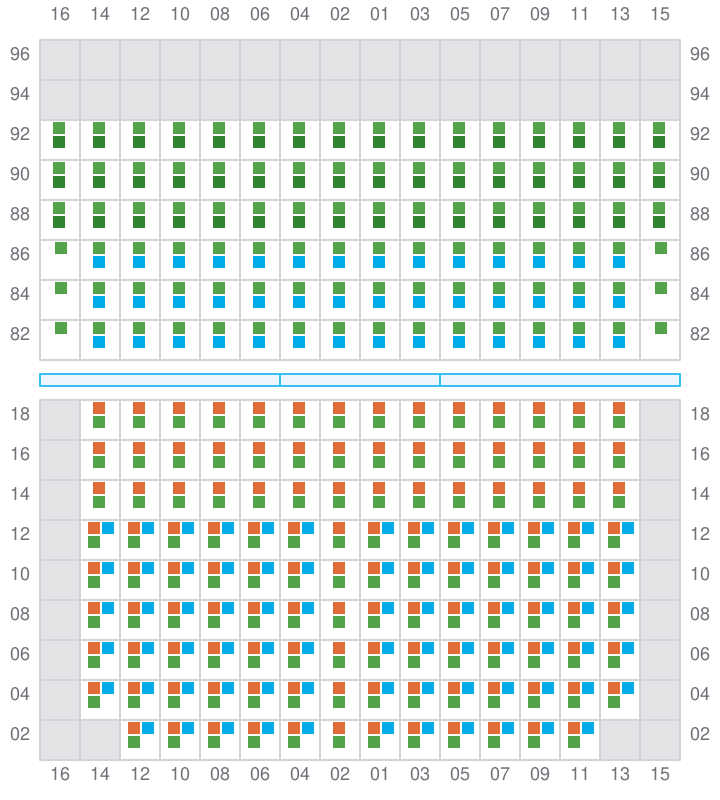

Bay 043 view and slots of MSC FLORIANA VI

045

  • → / ?
  • →

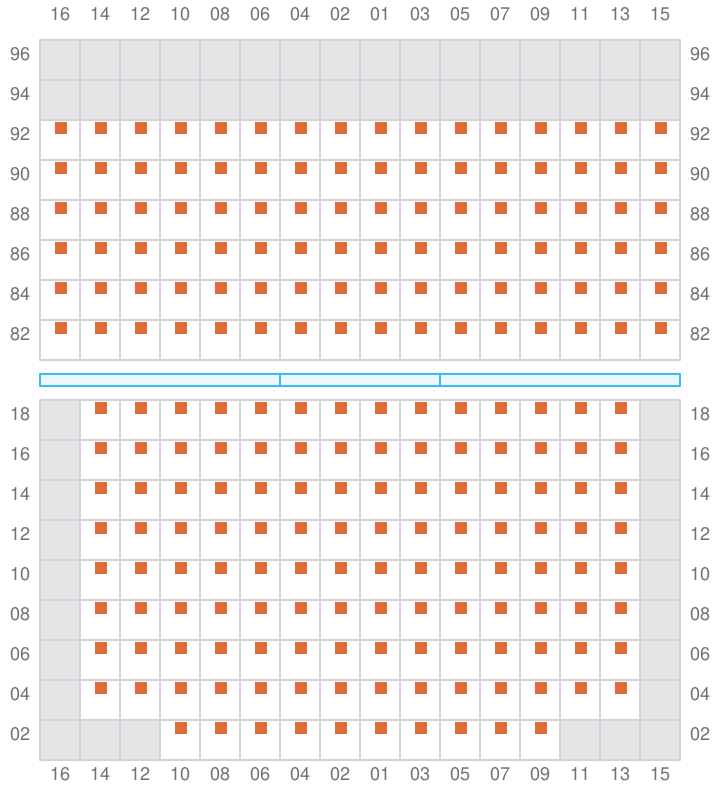

Bay 045 view and slots of MSC FLORIANA VI

047 (046)

  • ←
  • → / ?
  • →
Bay 047 view and slots of MSC FLORIANA VI

049

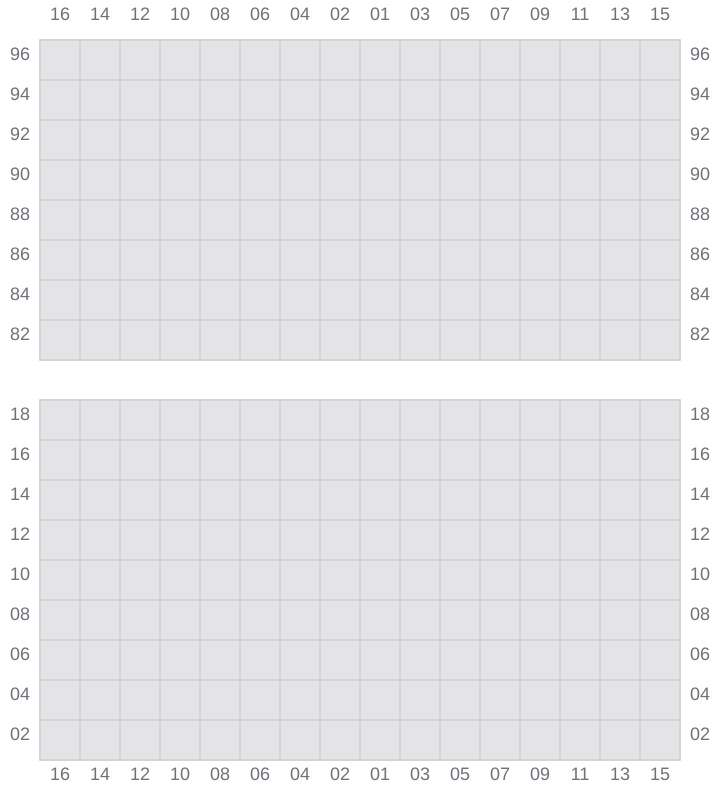

Bay 049 view and slots of MSC FLORIANA VI

051 (050)

  • ←
  • → / ?
  • →

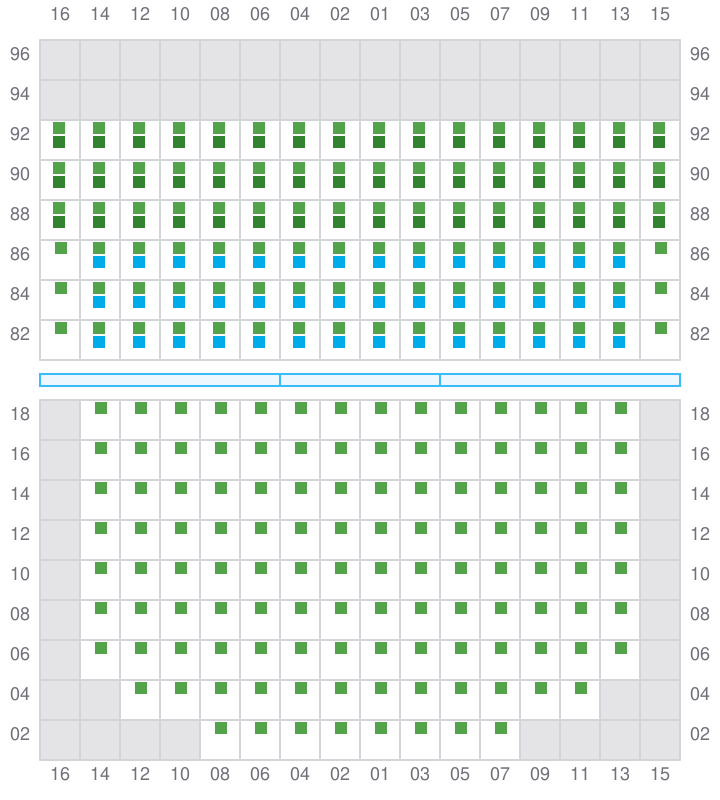

Bay 051 view and slots of MSC FLORIANA VI

053

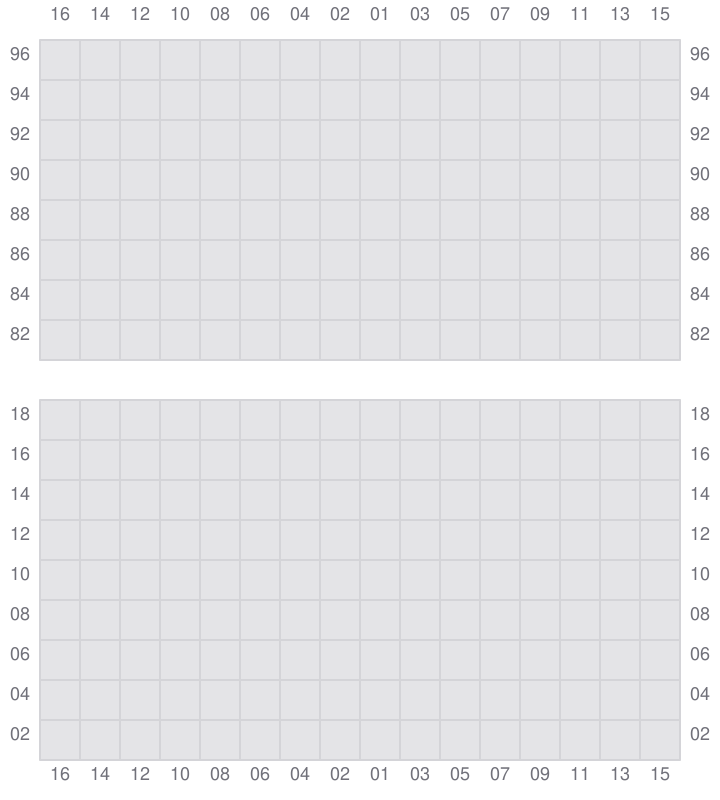

Bay 053 view and slots of MSC FLORIANA VI

055 (054)

  • ←
  • → / ?
  • → / ?

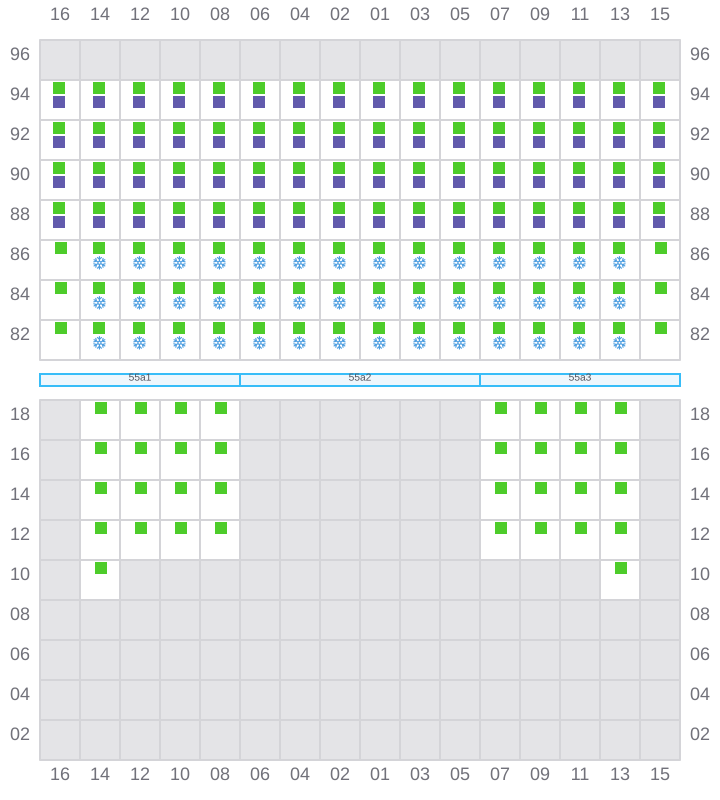

Bay 055 view and slots of MSC FLORIANA VI

057

  • → / ?
  • →

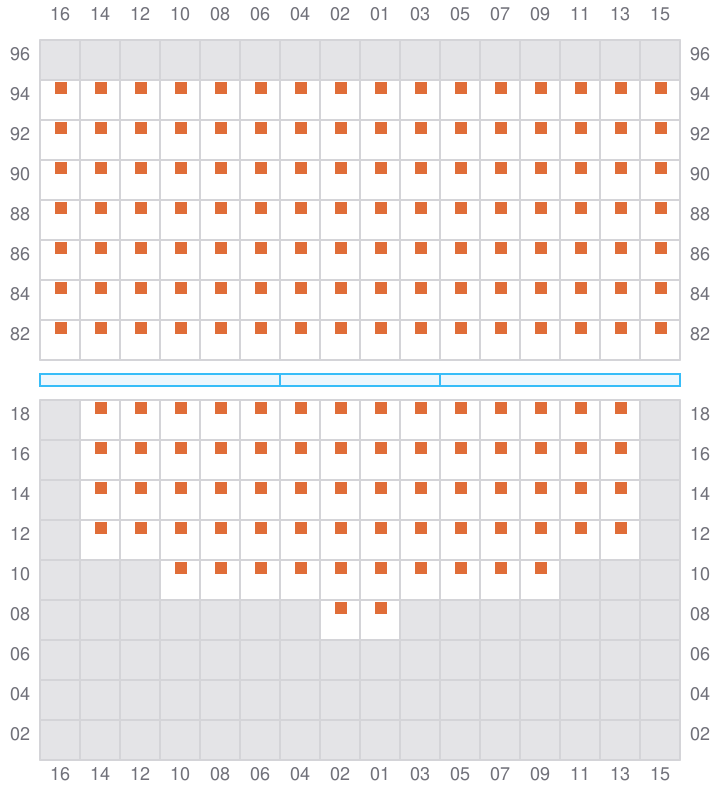

Bay 057 view and slots of MSC FLORIANA VI

059 (058)

  • ←
  • → / ?
  • →
Bay 059 view and slots of MSC FLORIANA VI

061

  • ? / →

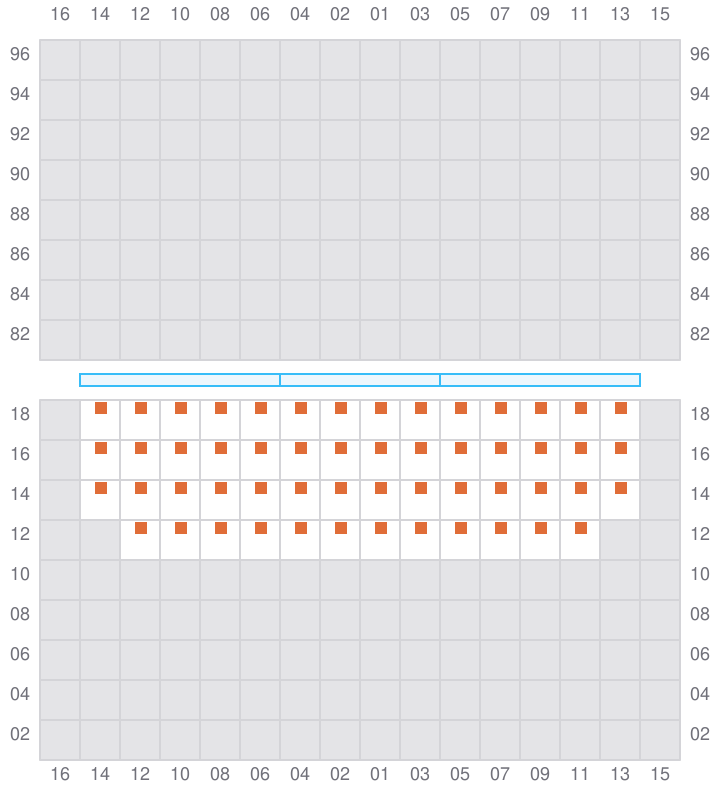

Bay 061 view and slots of MSC FLORIANA VI

063 (062)

  • ←
  • → / ?
  • →

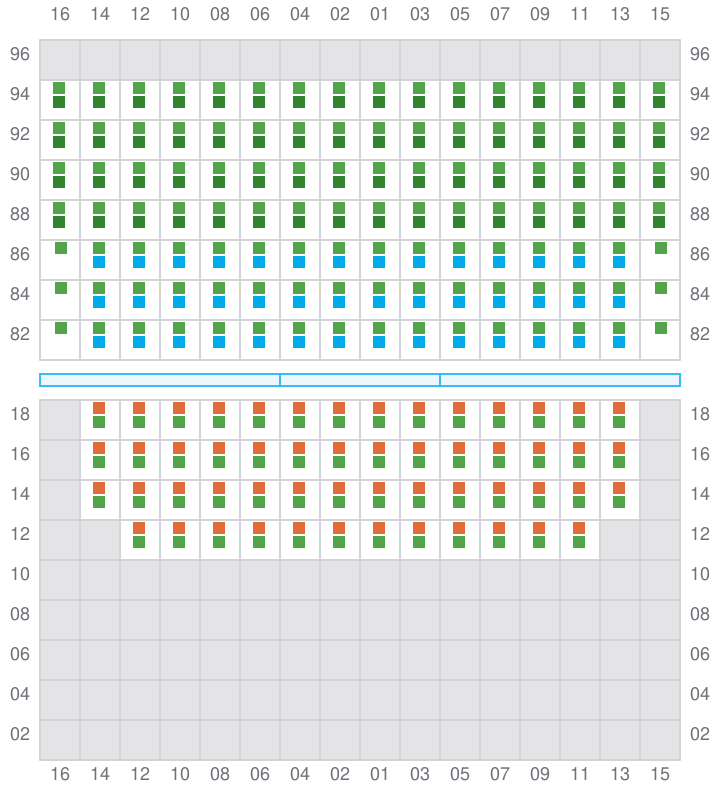

Bay 063 view and slots of MSC FLORIANA VI

065

Bay 065 view and slots of MSC FLORIANA VI

067 (066)

  • ← / ?
  • → / ?
  • → / ?

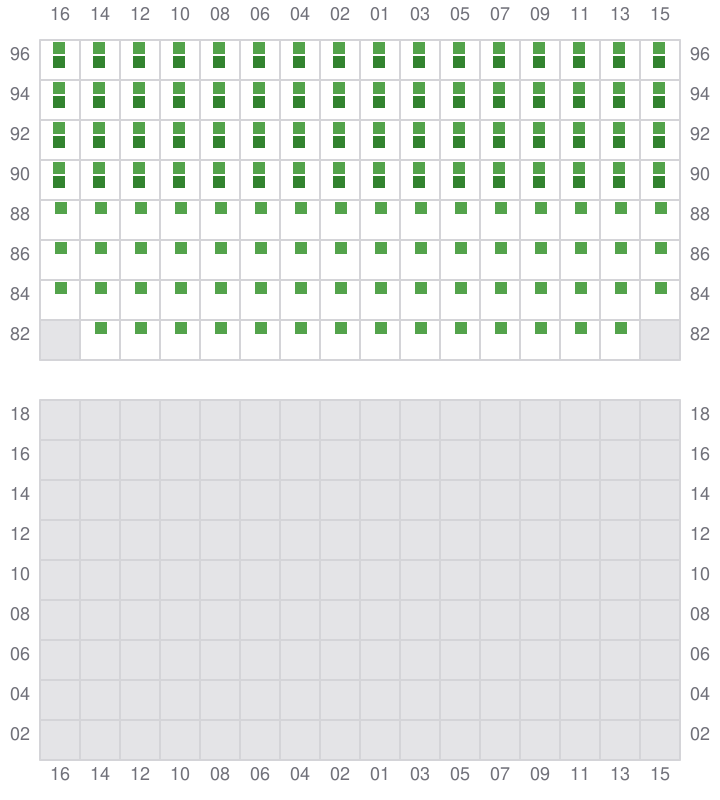

Bay 067 view and slots of MSC FLORIANA VI
