MSC FRANCESCA
9401116 | 3FXI | MSC by ************************** Last update: Sun May 28 2023

General Info

Ship Name:MSC FRANCESCA
IMO Code:9401116
Call Sign:3FXI
Line Operator:MSC
Class Name for Sister Ships:FRAS
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:11,708

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of MSC FRANCESCA

Hatch-Covers View

Deck view of MSC FRANCESCA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

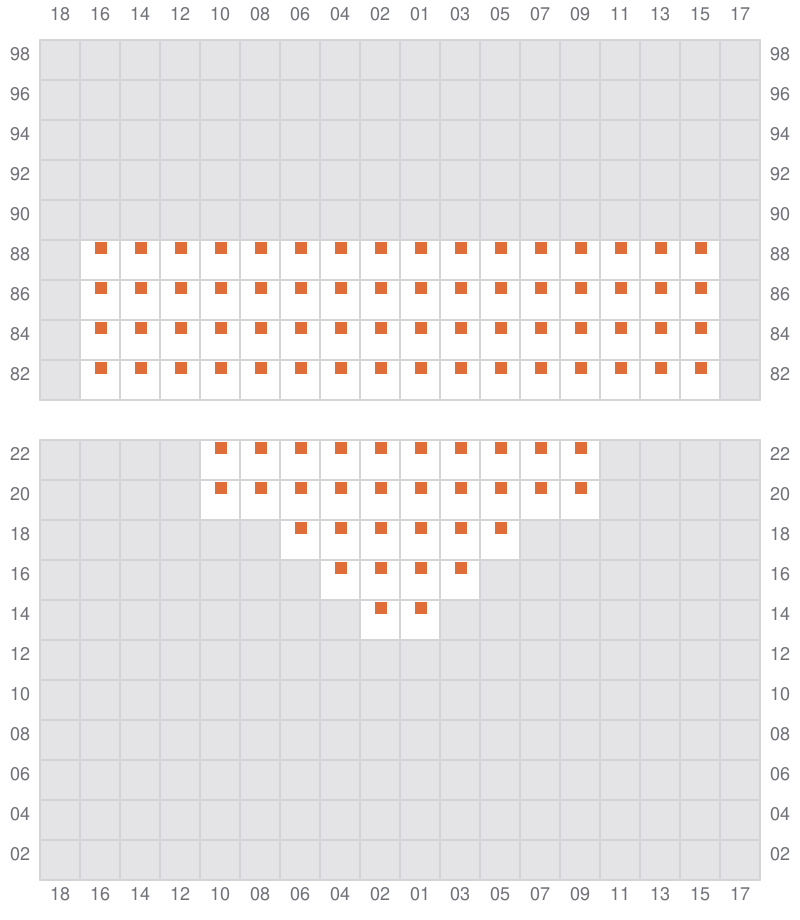

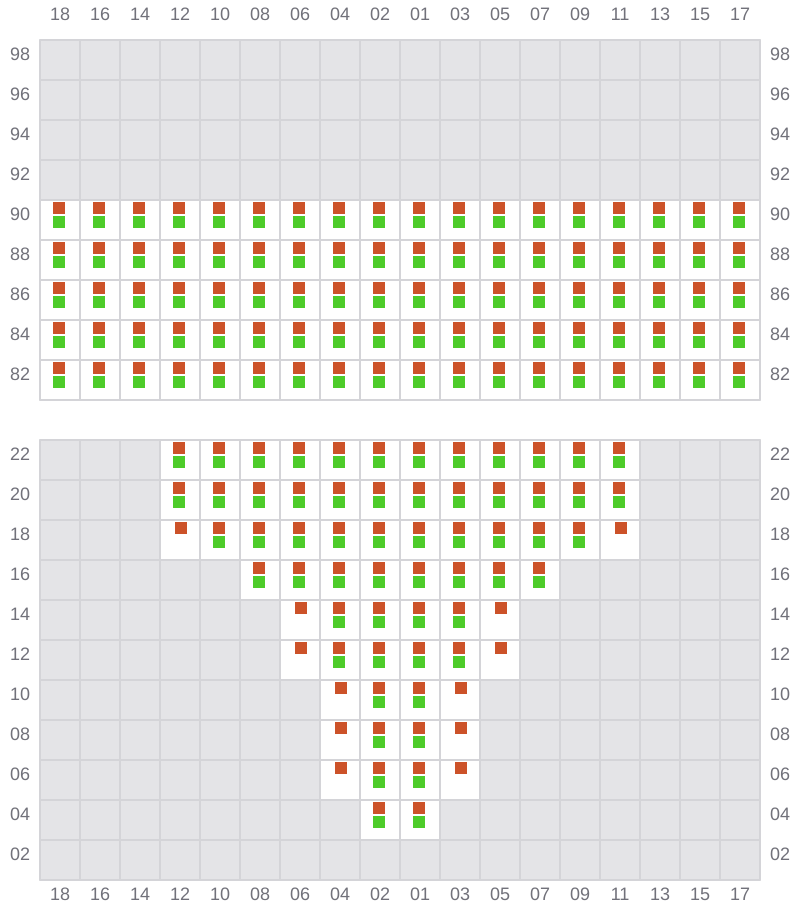

Bay 001 view and slots of MSC FRANCESCA

003 (002)

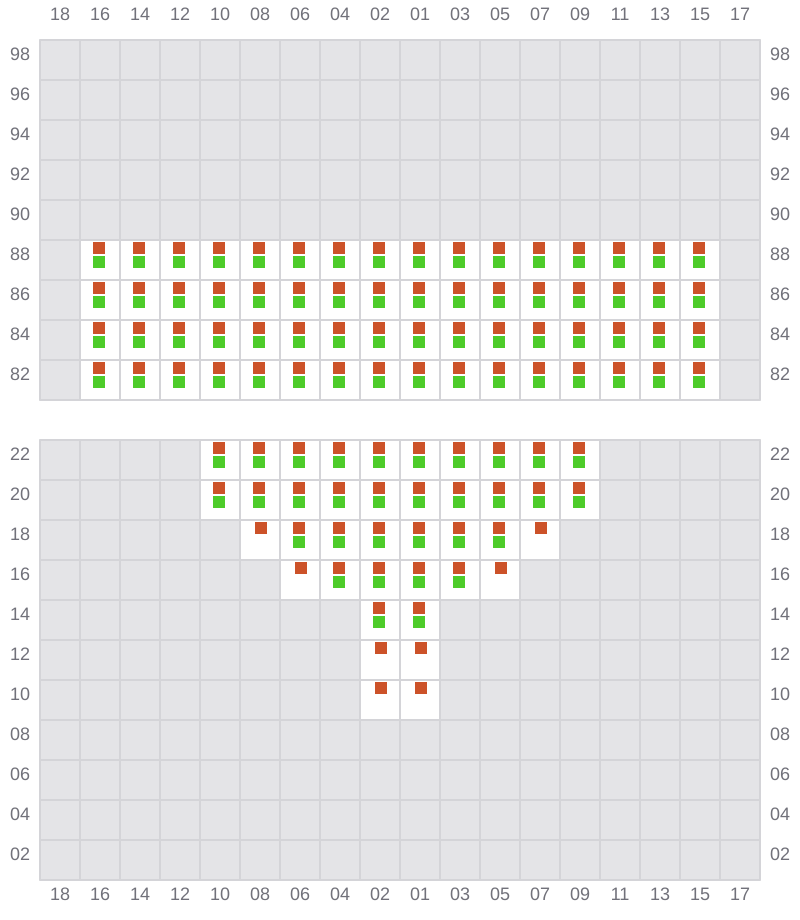

Bay 003 view and slots of MSC FRANCESCA

005

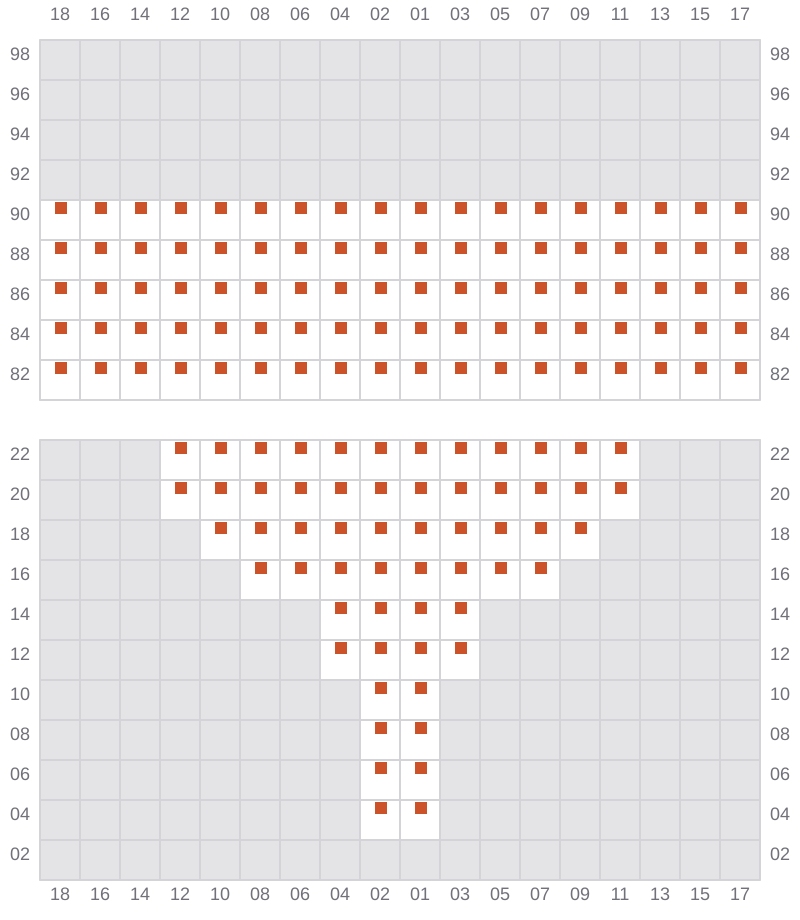

Bay 005 view and slots of MSC FRANCESCA

007 (006)

Bay 007 view and slots of MSC FRANCESCA

009

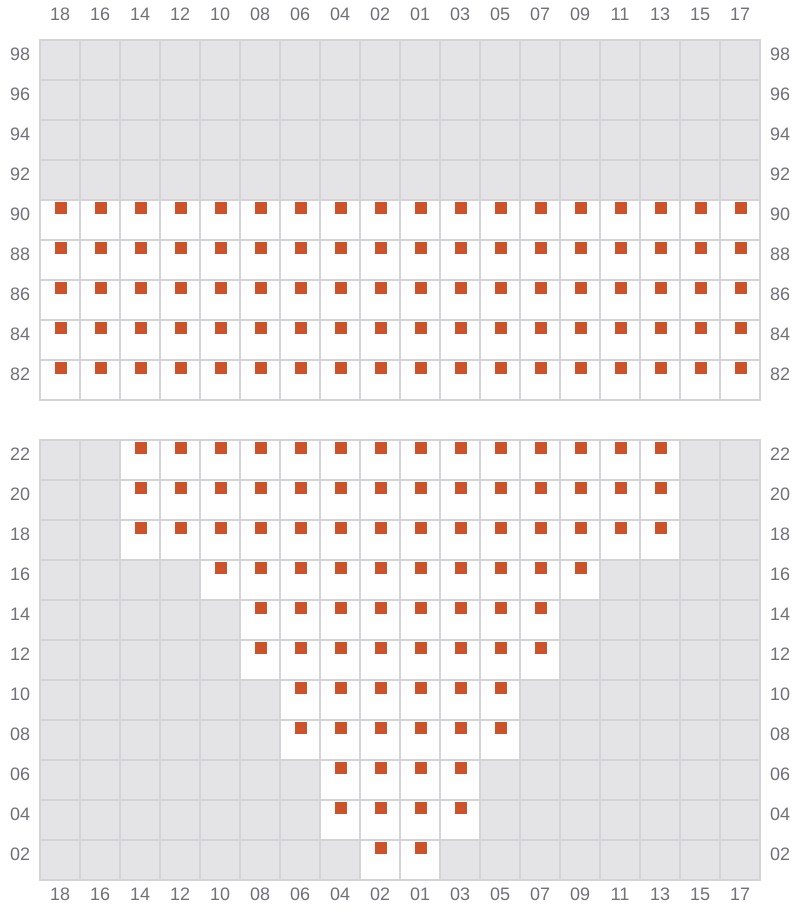

Bay 009 view and slots of MSC FRANCESCA

011 (010)

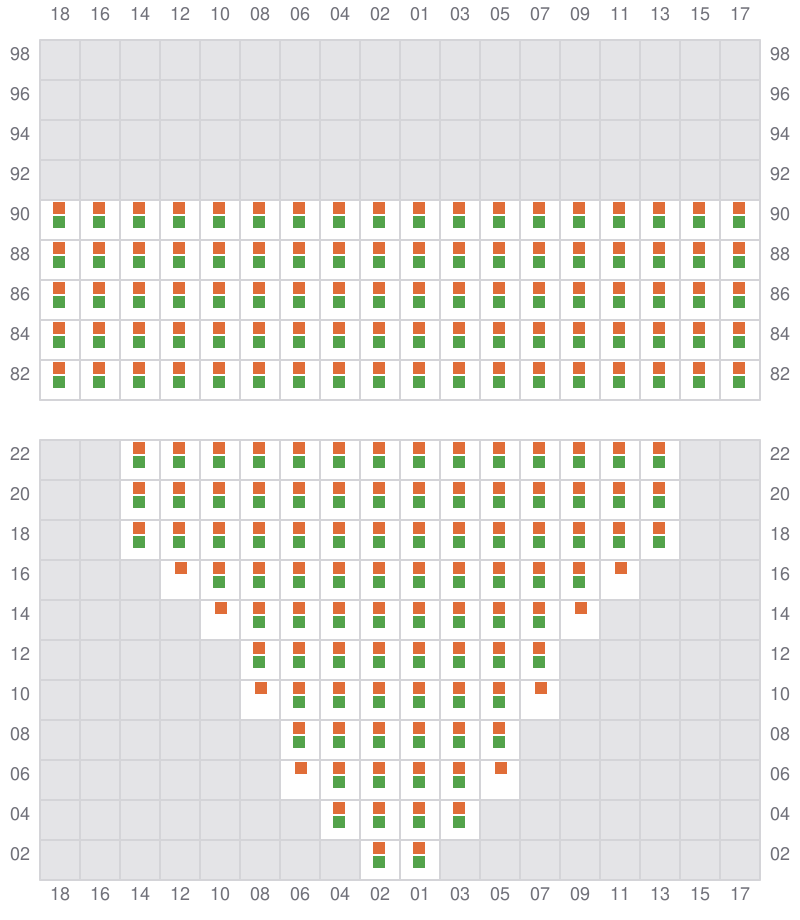

Bay 011 view and slots of MSC FRANCESCA

013

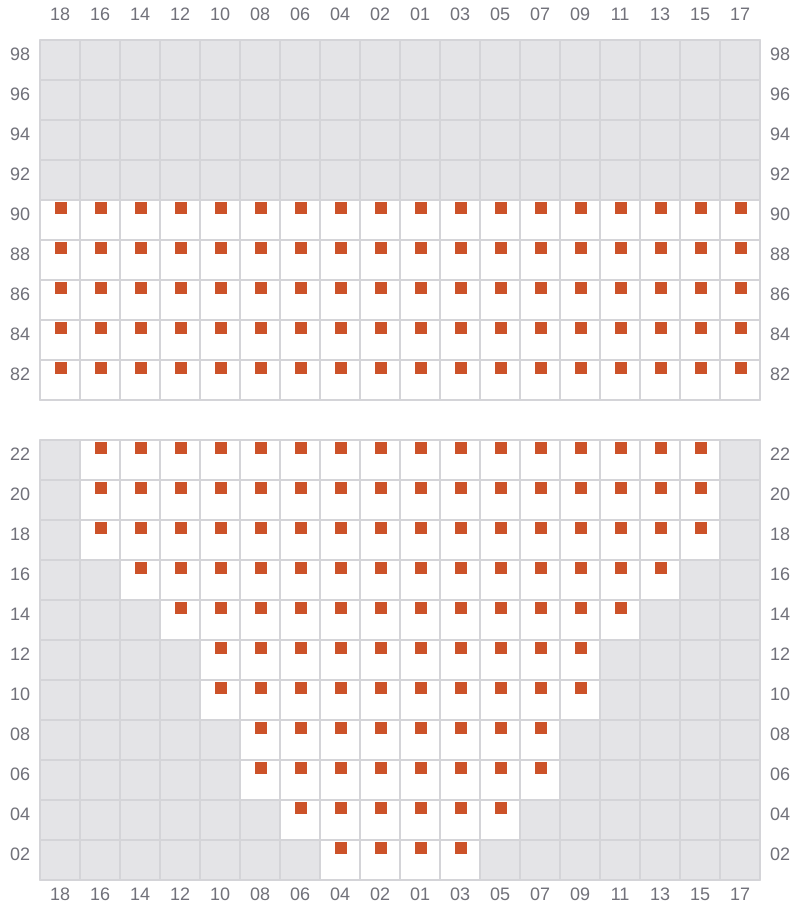

Bay 013 view and slots of MSC FRANCESCA

015 (014)

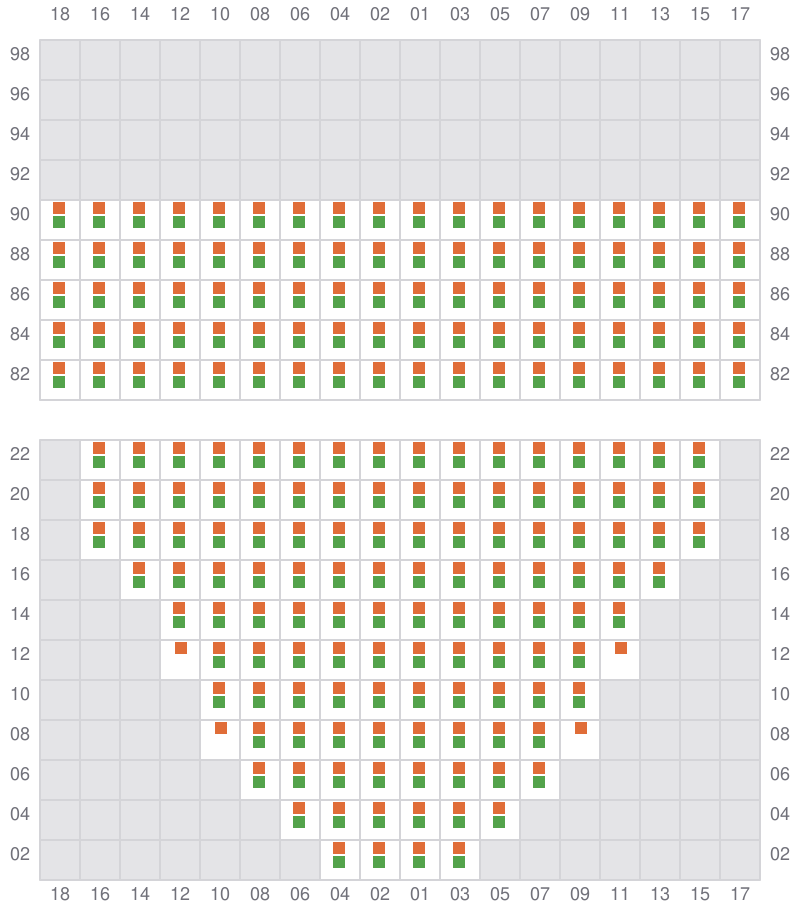

Bay 015 view and slots of MSC FRANCESCA

017

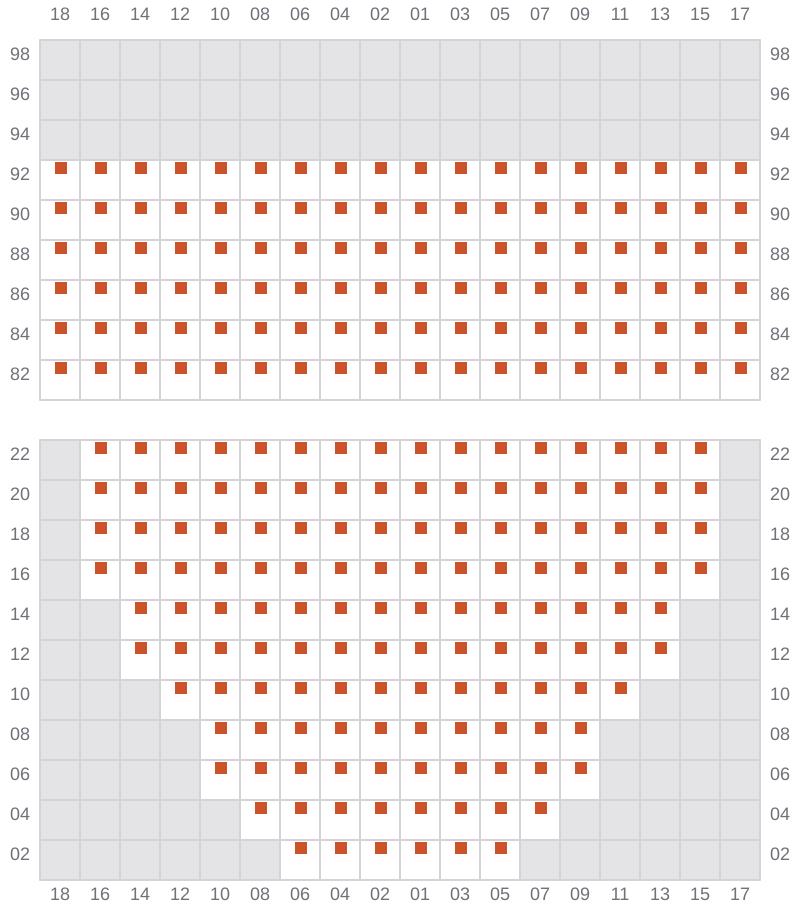

Bay 017 view and slots of MSC FRANCESCA

019 (018)

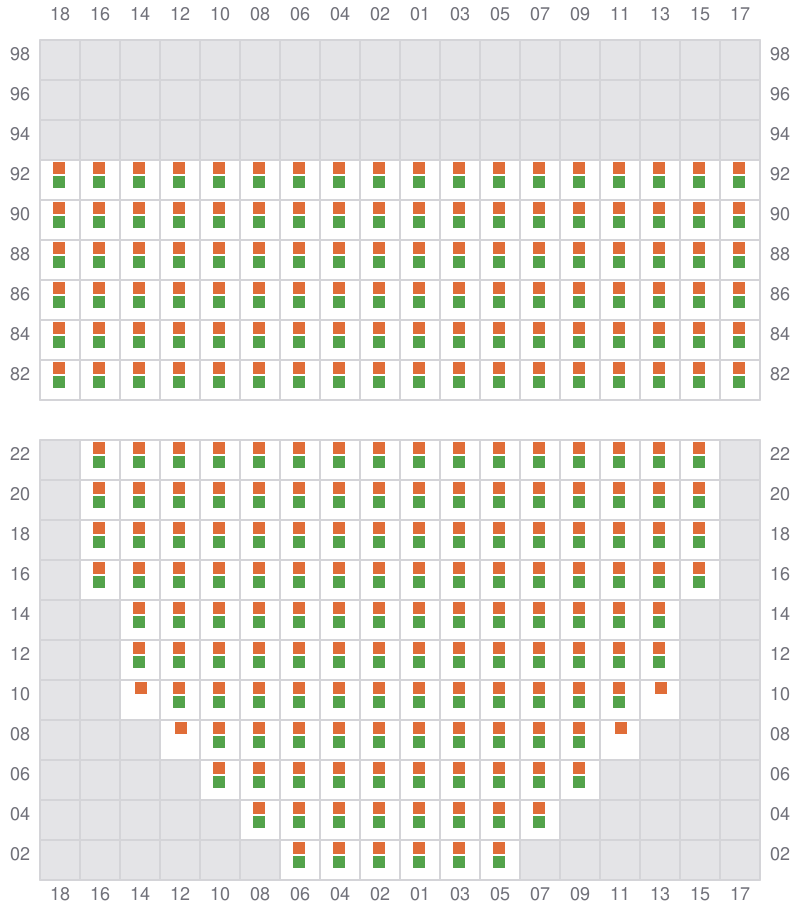

Bay 019 view and slots of MSC FRANCESCA

021

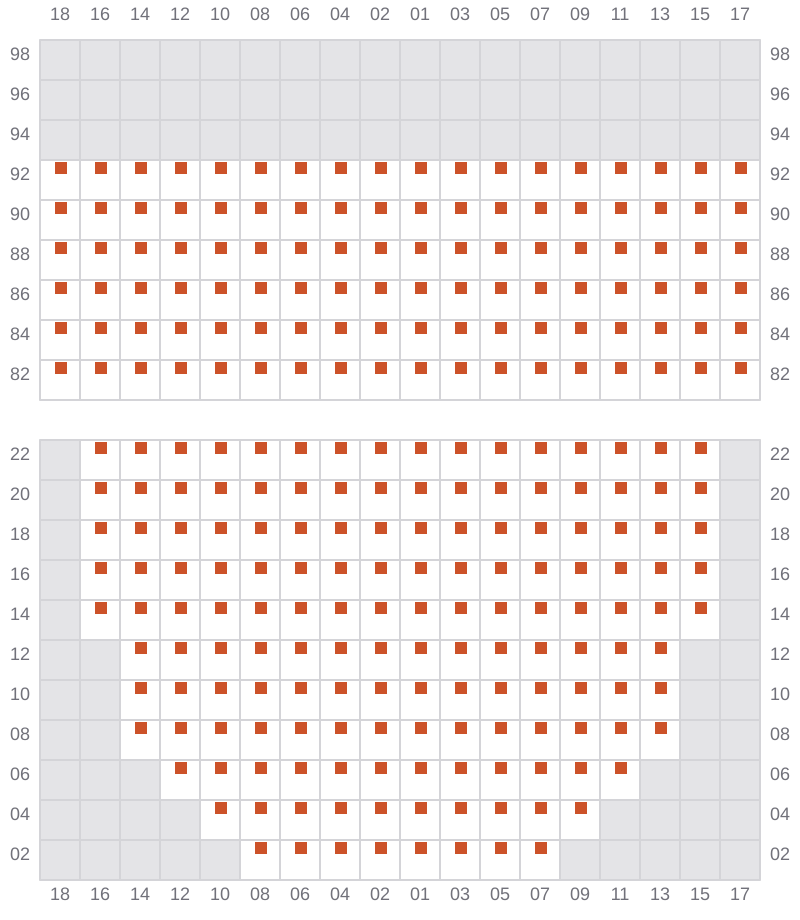

Bay 021 view and slots of MSC FRANCESCA

023 (022)

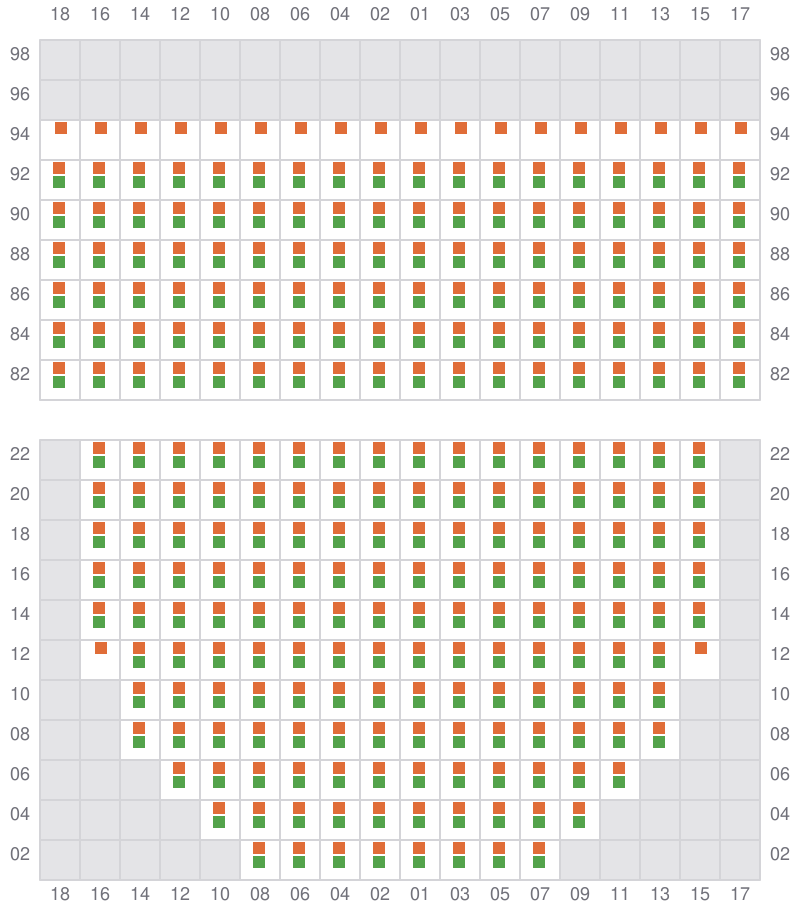

Bay 023 view and slots of MSC FRANCESCA

025

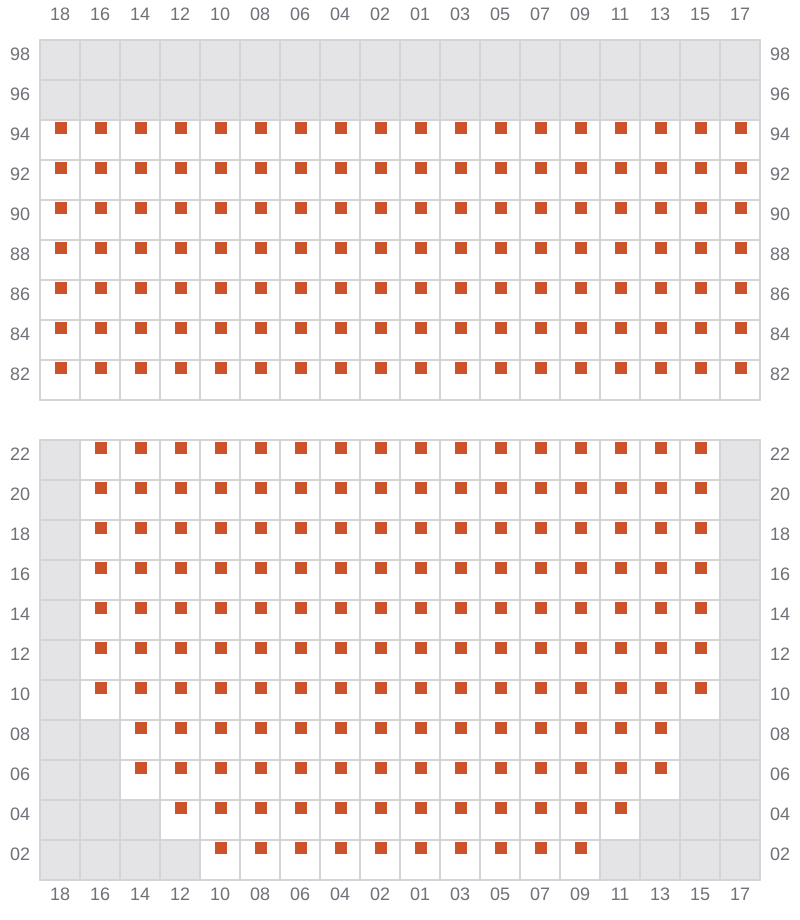

Bay 025 view and slots of MSC FRANCESCA

027 (026)

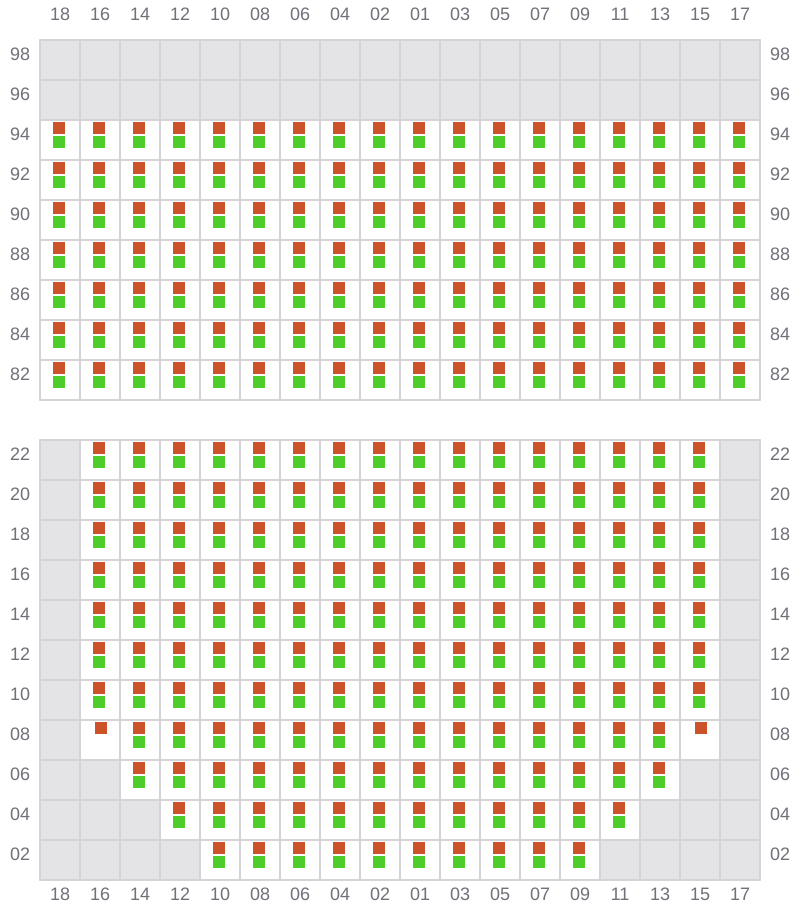

Bay 027 view and slots of MSC FRANCESCA

029

Bay 029 view and slots of MSC FRANCESCA

031 (030)

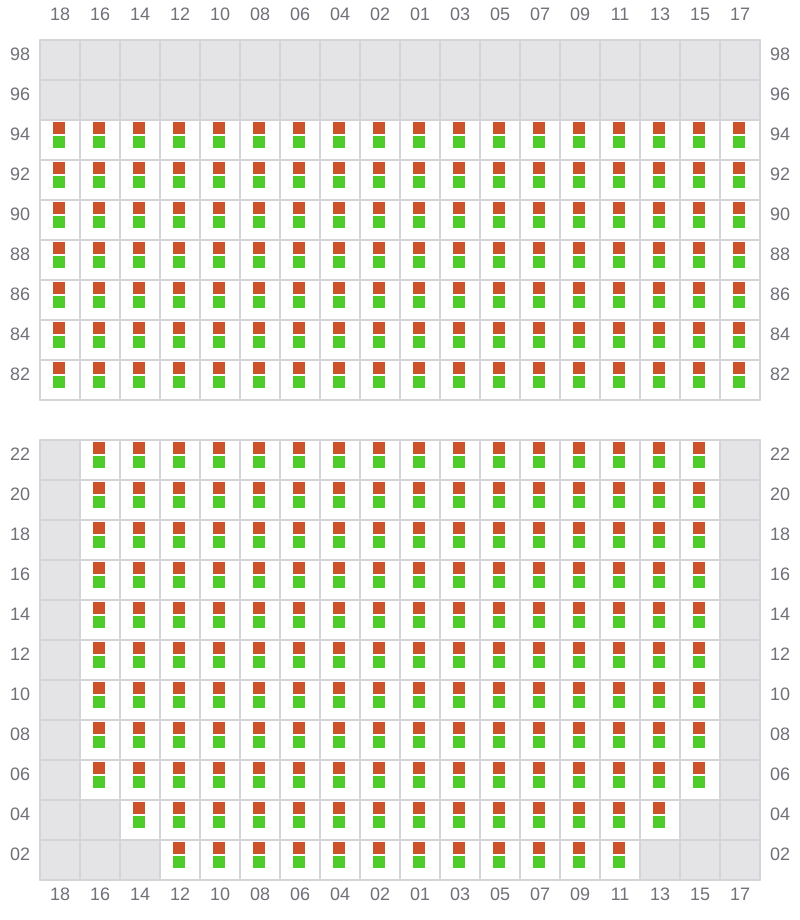

Bay 031 view and slots of MSC FRANCESCA

033

Bay 033 view and slots of MSC FRANCESCA

035 (034)

Bay 035 view and slots of MSC FRANCESCA

037

Bay 037 view and slots of MSC FRANCESCA

039 (038)

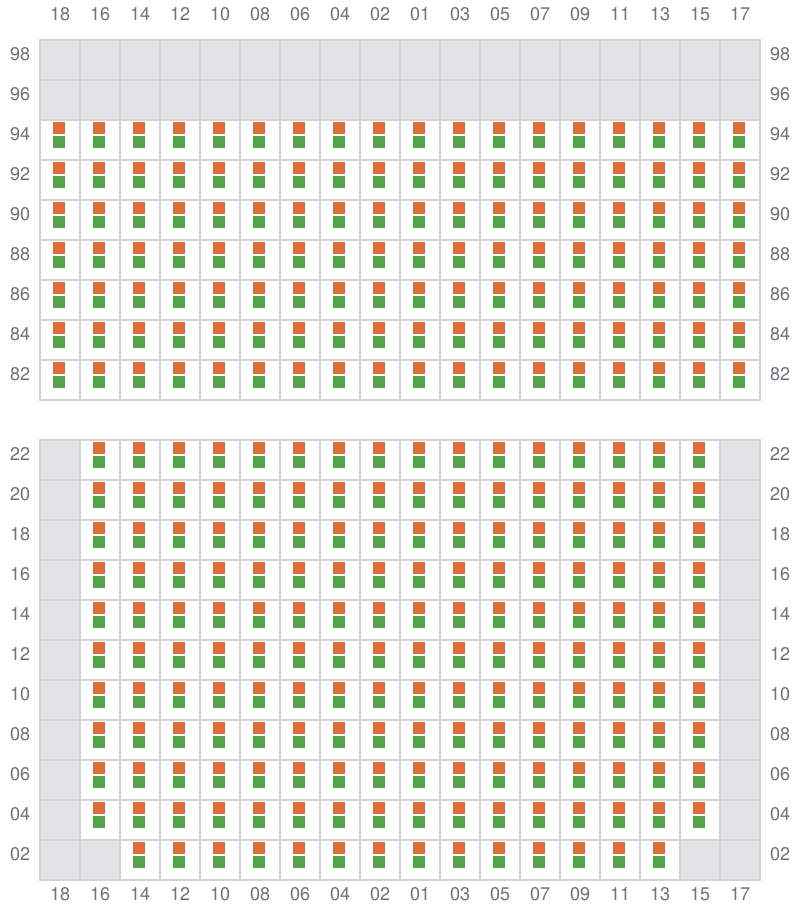

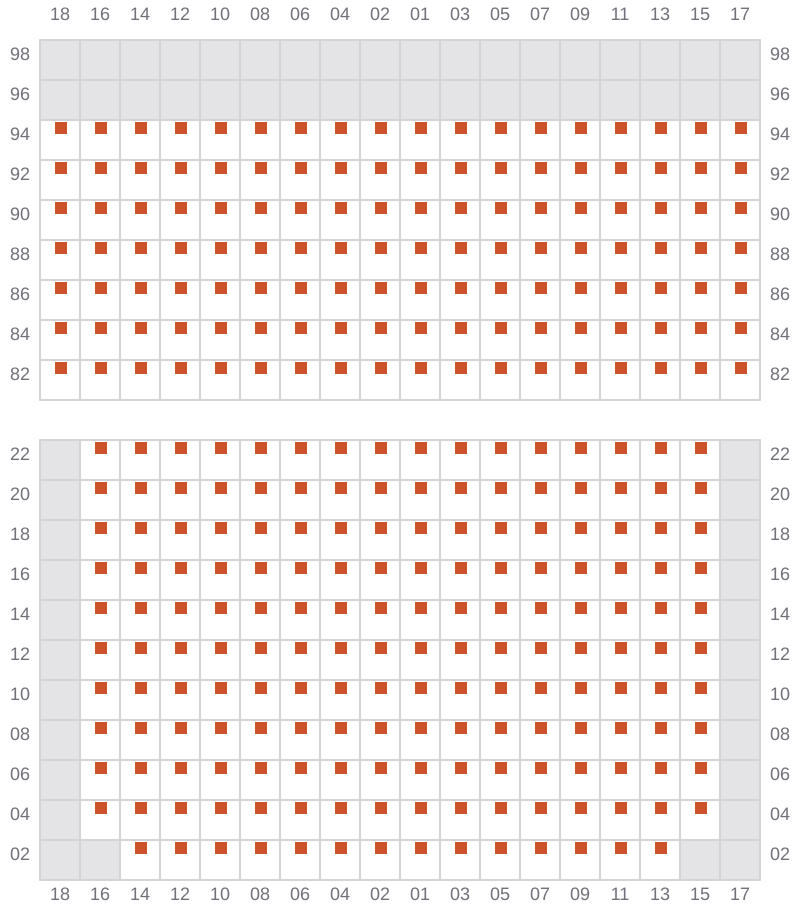

Bay 039 view and slots of MSC FRANCESCA

041

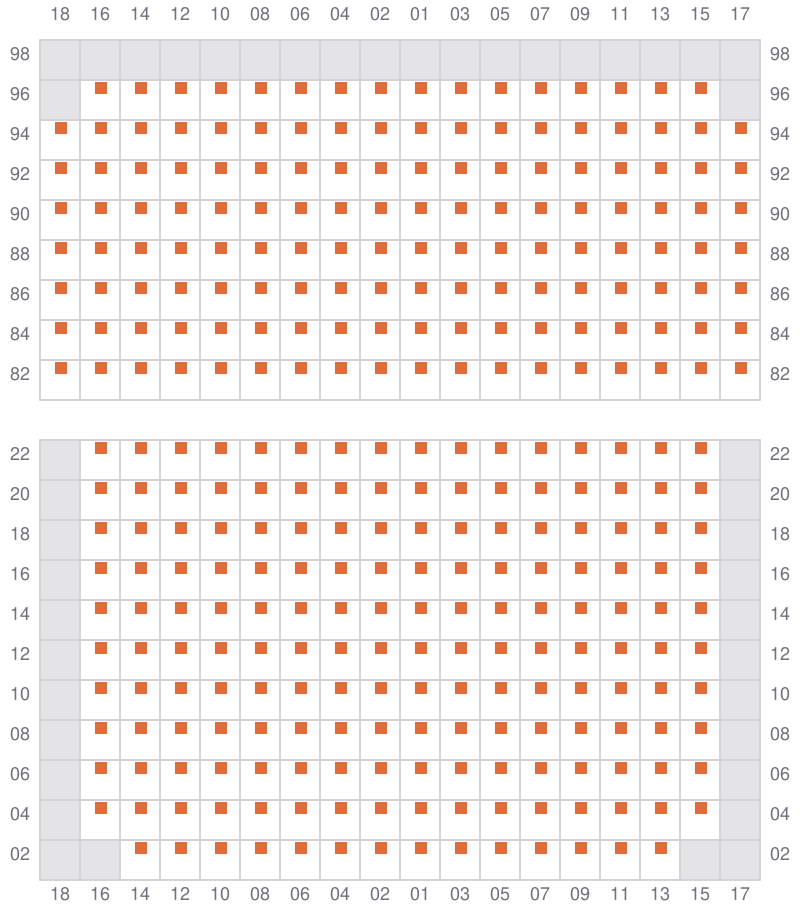

Bay 041 view and slots of MSC FRANCESCA

043 (042)

Bay 043 view and slots of MSC FRANCESCA

045

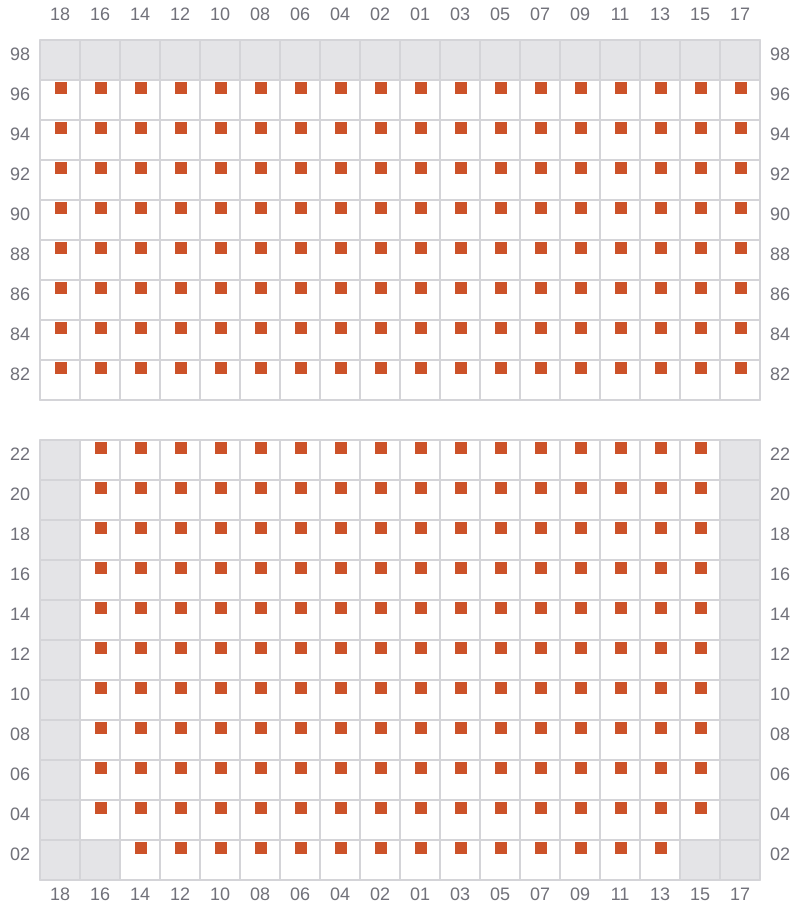

Bay 045 view and slots of MSC FRANCESCA

047 (046)

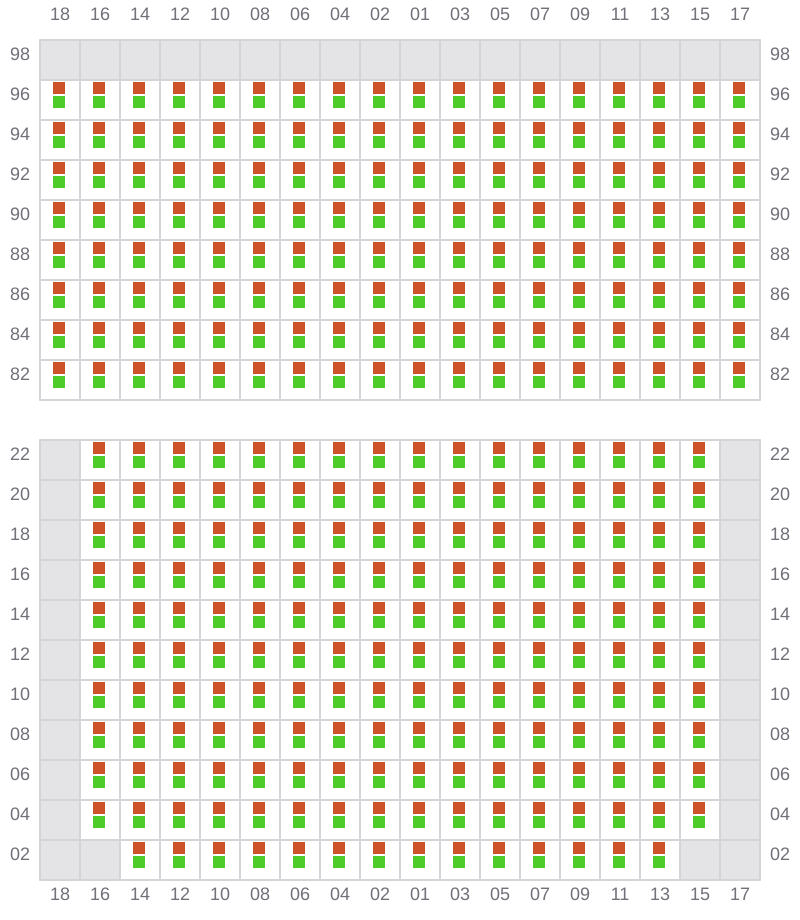

Bay 047 view and slots of MSC FRANCESCA

049

Bay 049 view and slots of MSC FRANCESCA

051 (050)

Bay 051 view and slots of MSC FRANCESCA

053

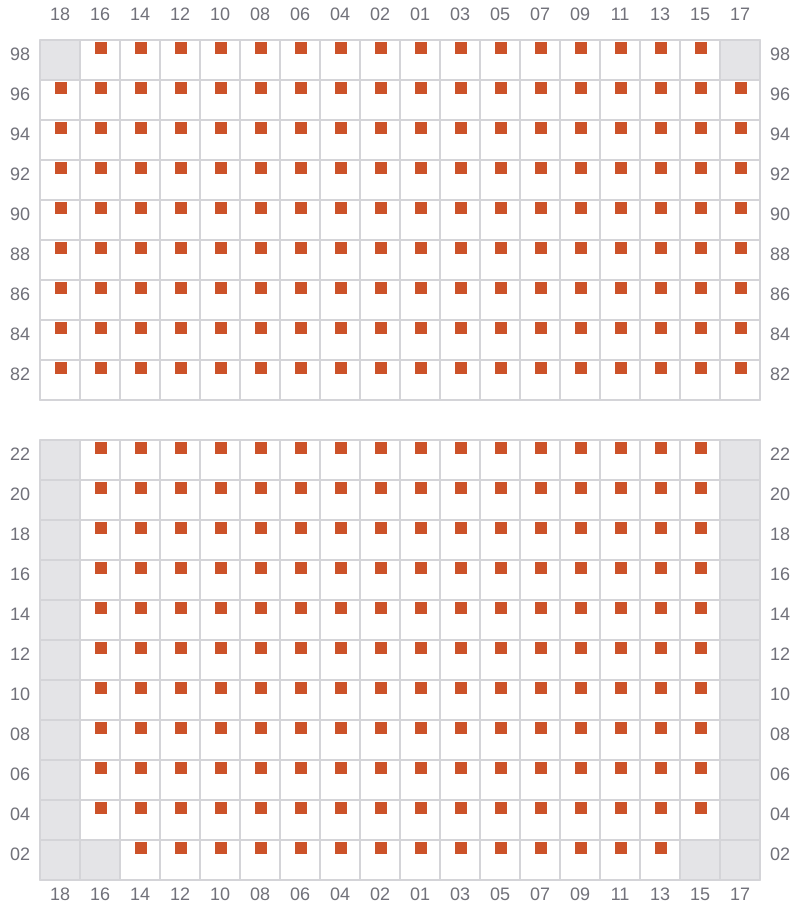

Bay 053 view and slots of MSC FRANCESCA

055 (054)

Bay 055 view and slots of MSC FRANCESCA

057

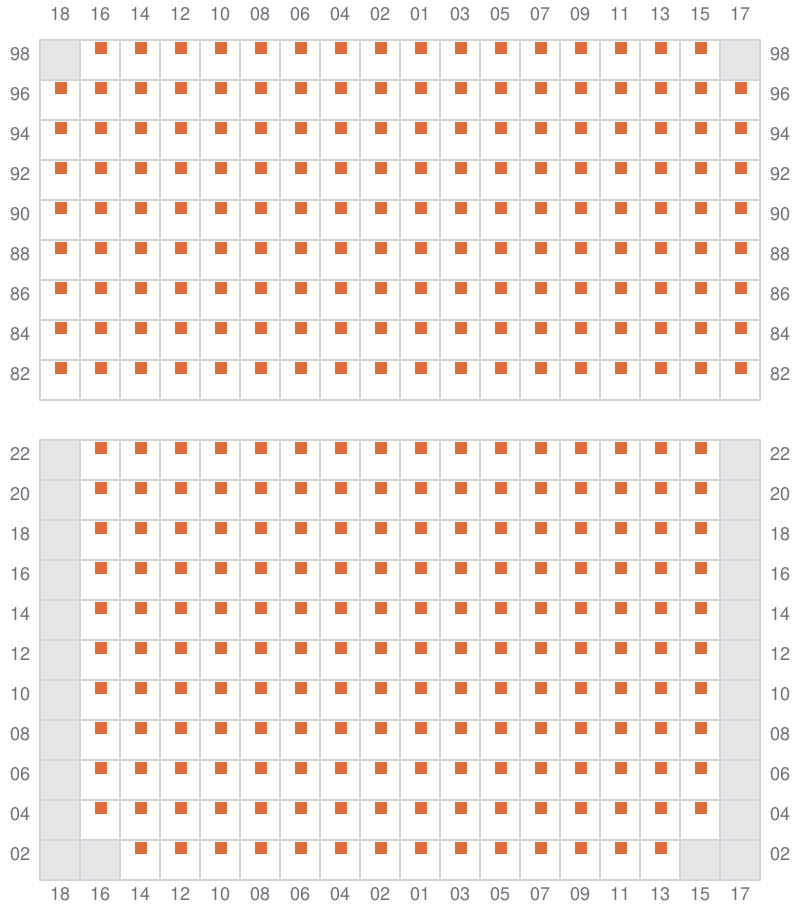

Bay 057 view and slots of MSC FRANCESCA

059 (058)

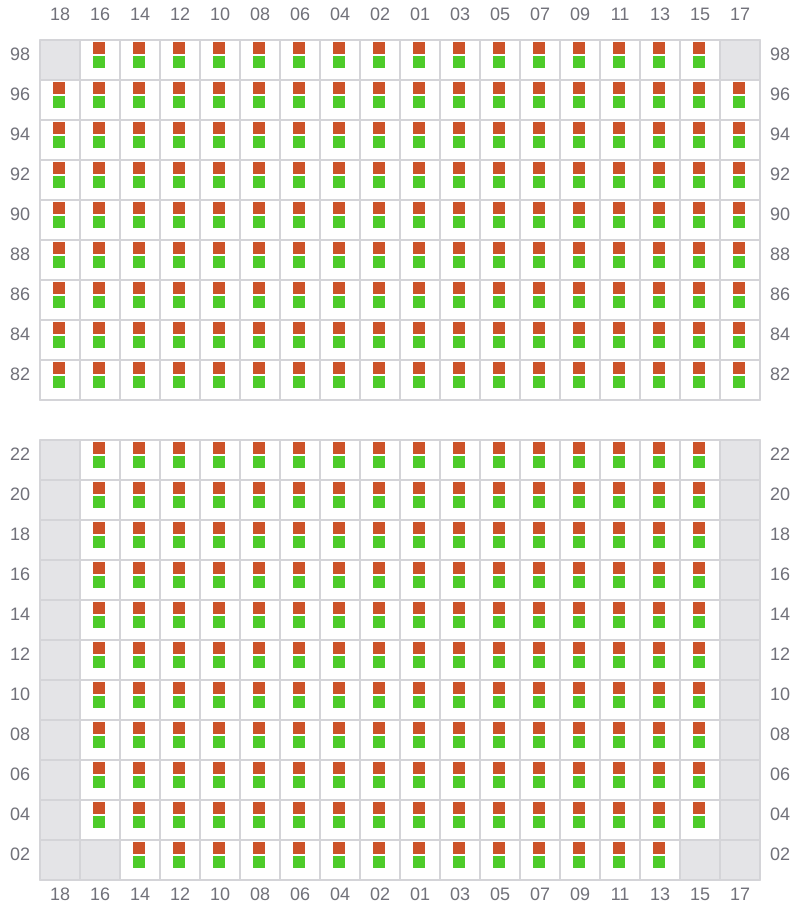

Bay 059 view and slots of MSC FRANCESCA

061

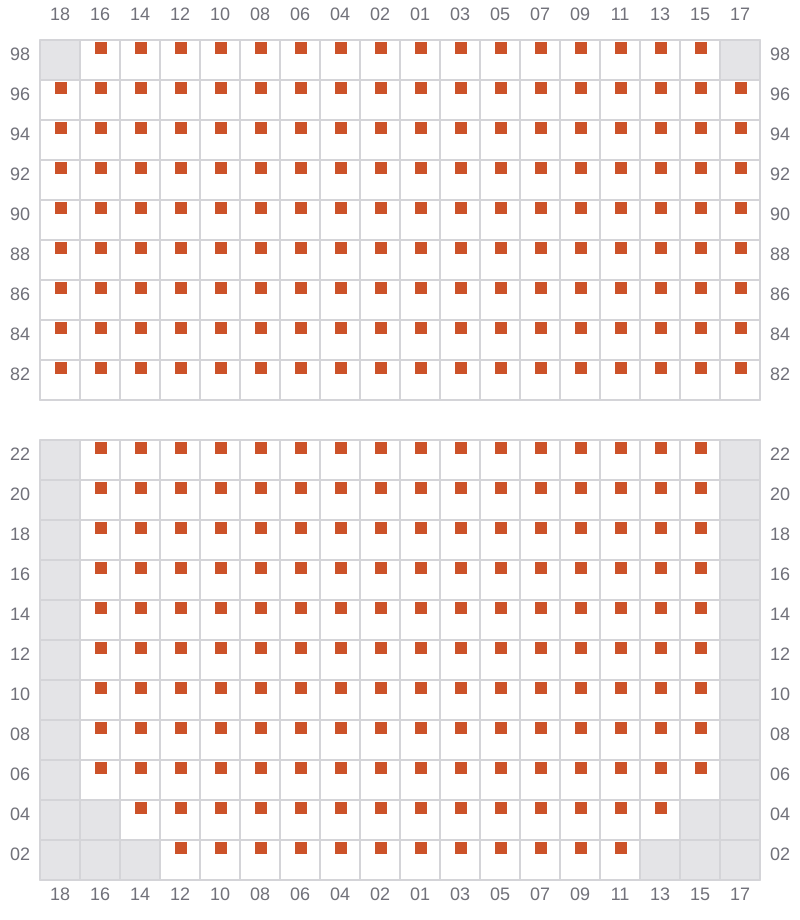

Bay 061 view and slots of MSC FRANCESCA

063 (062)

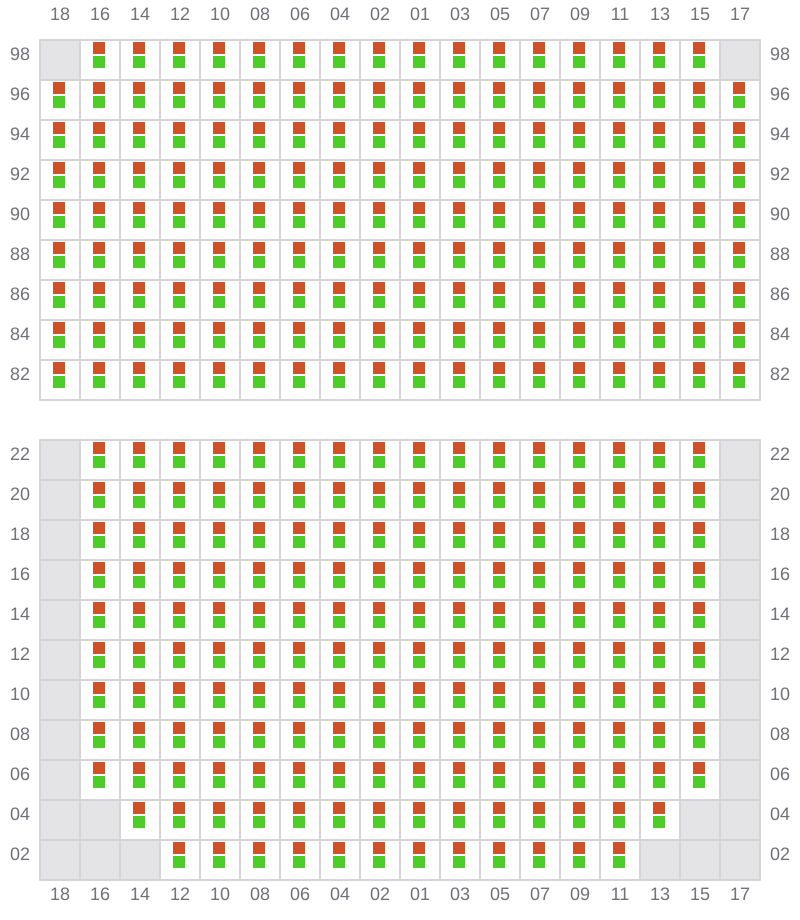

Bay 063 view and slots of MSC FRANCESCA

065

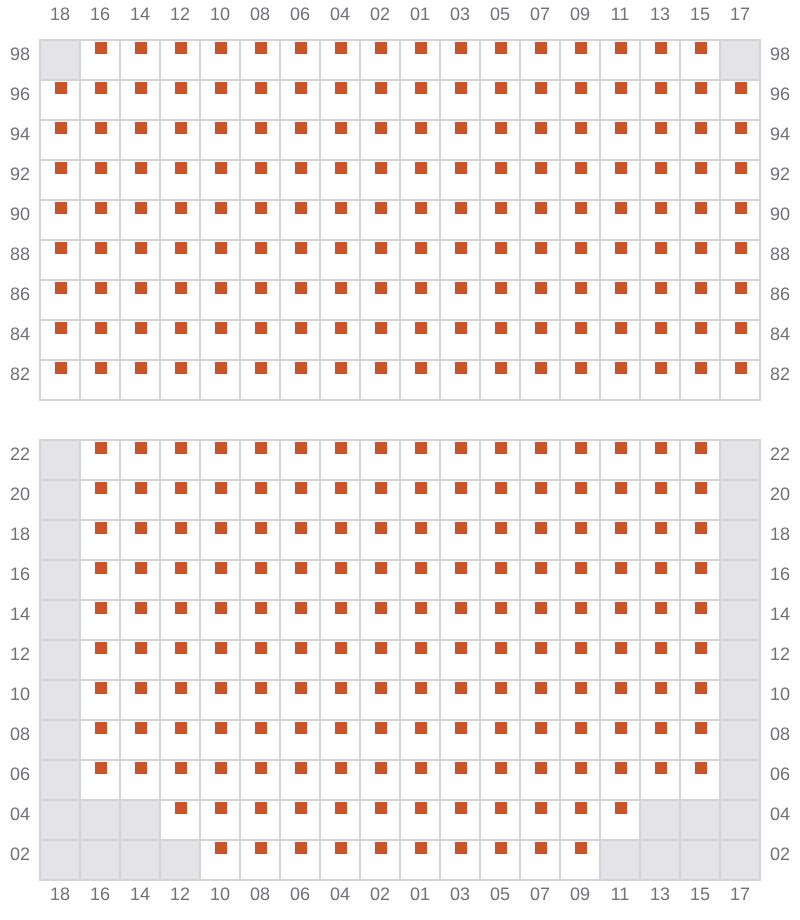

Bay 065 view and slots of MSC FRANCESCA

067 (066)

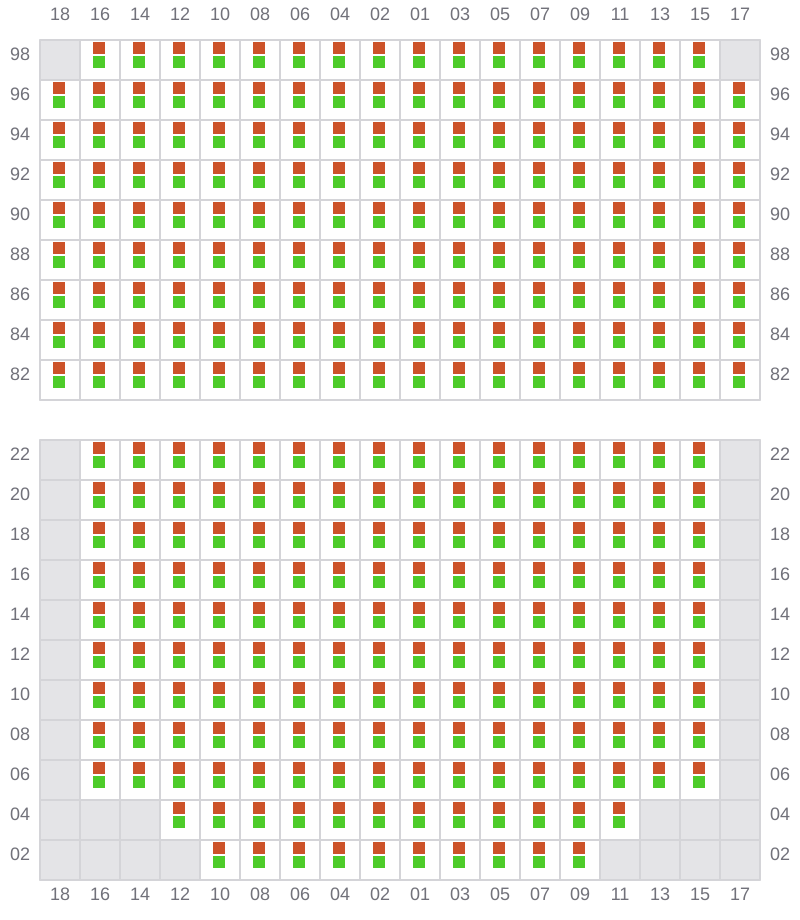

Bay 067 view and slots of MSC FRANCESCA

069

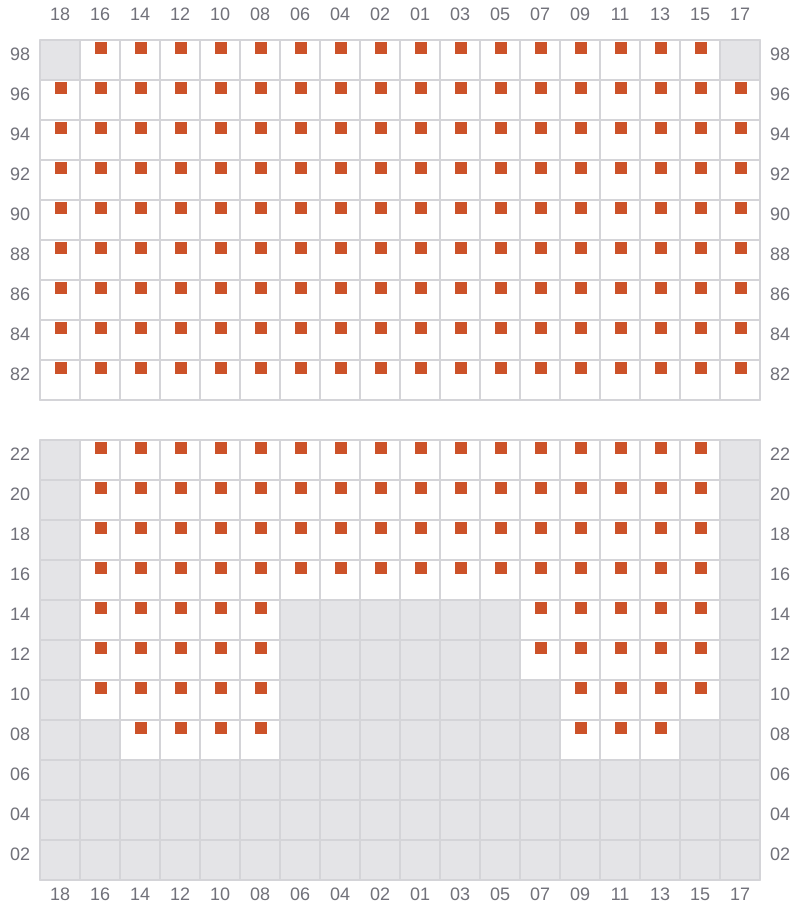

Bay 069 view and slots of MSC FRANCESCA

071 (070)

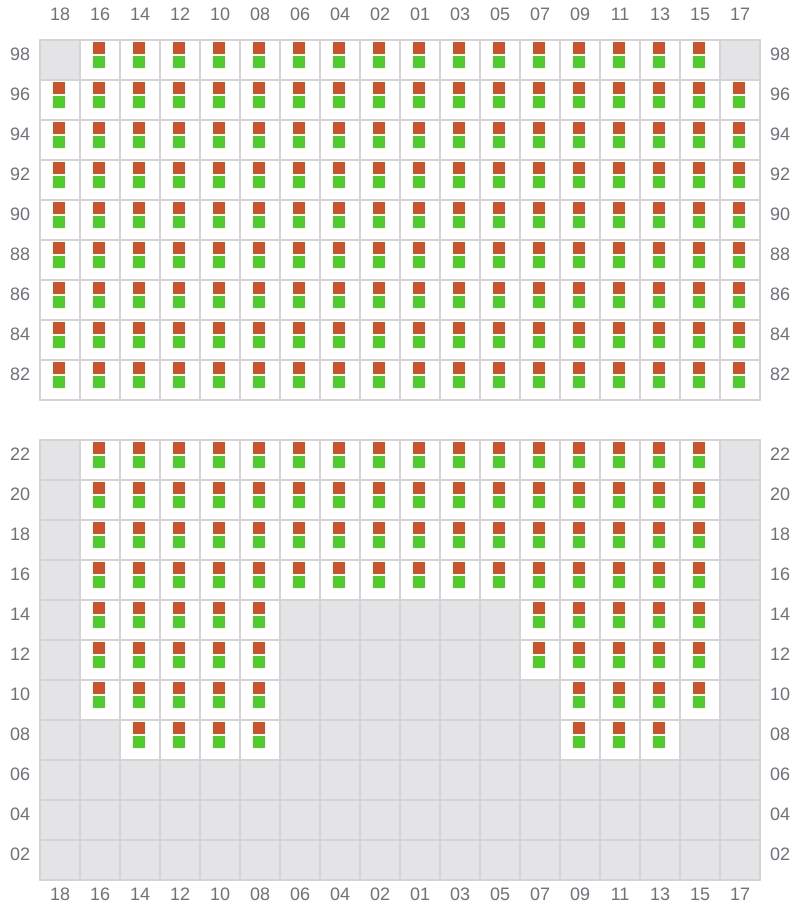

Bay 071 view and slots of MSC FRANCESCA

073

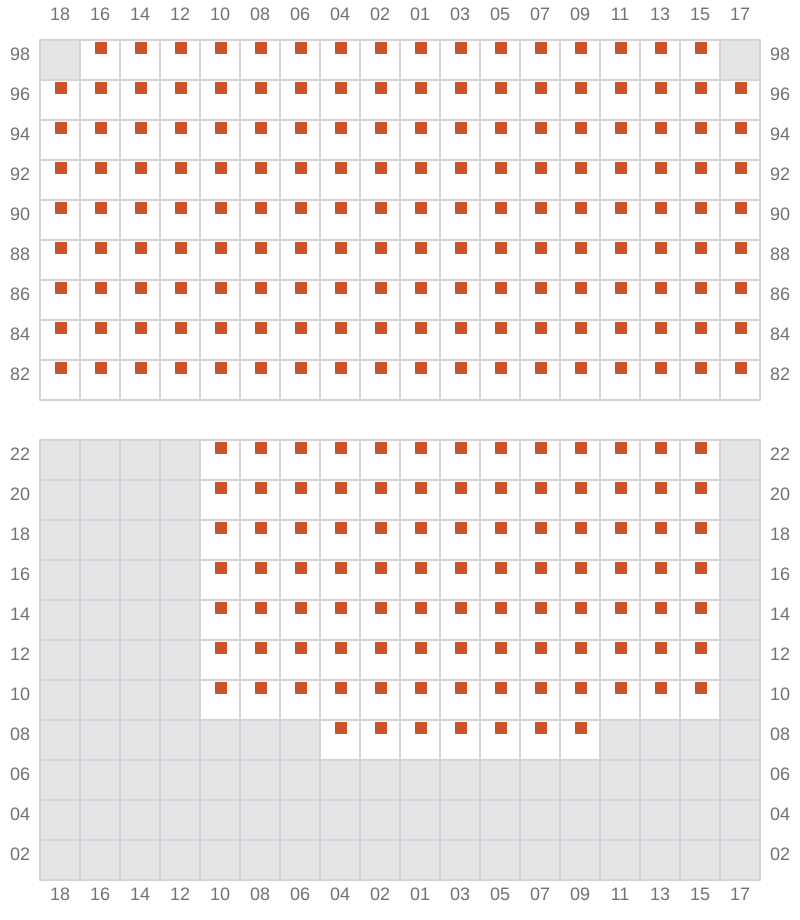

Bay 073 view and slots of MSC FRANCESCA

075 (074)

Bay 075 view and slots of MSC FRANCESCA

077

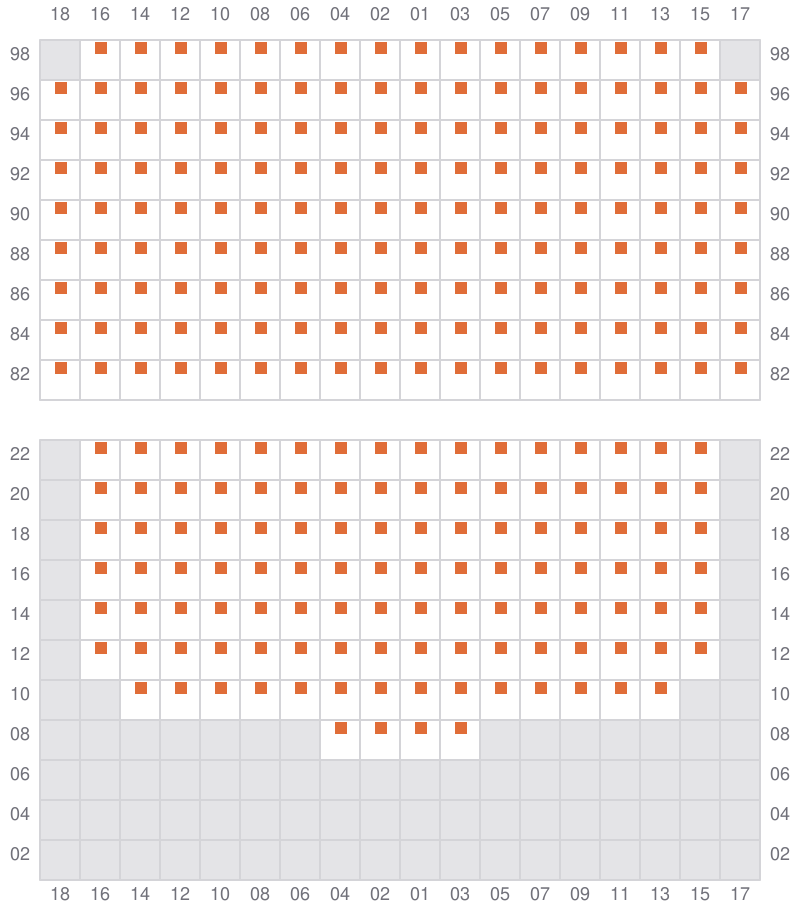

Bay 077 view and slots of MSC FRANCESCA

079 (078)

Bay 079 view and slots of MSC FRANCESCA

081

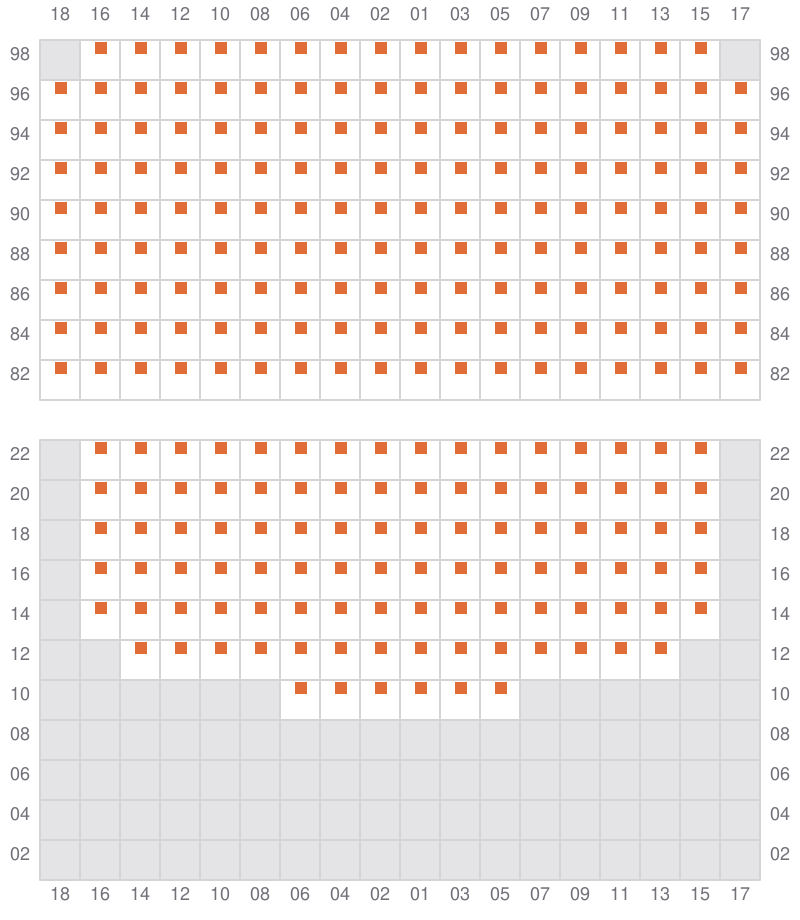

Bay 081 view and slots of MSC FRANCESCA

083 (082)

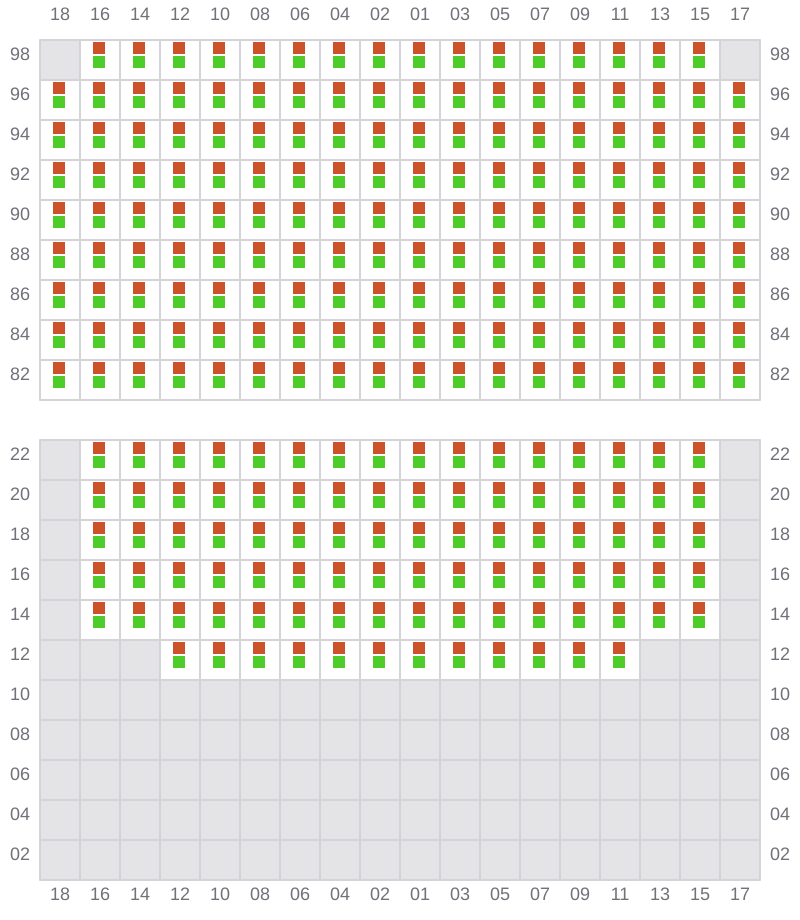

Bay 083 view and slots of MSC FRANCESCA

085 (086)

Bay 085 view and slots of MSC FRANCESCA
