MSC GAIA
9401142 | 3EXO7 | 9401142 by ********* Last update: Wed Jun 26 2024

General Info

Ship Name:MSC GAIA

IMO Code:9401142

Call Sign:3EXO7

Line Operator:9401142

Class Name for Sister Ships:MSC

Year Built:2010

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:087

Max ISO Row:20

Center Line Row:No

Max Above ISO Tier:98

Min Above ISO Tier:78

Max Below ISO Tier:22

Min Below ISO Tier:02

Total TEU:13,798

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

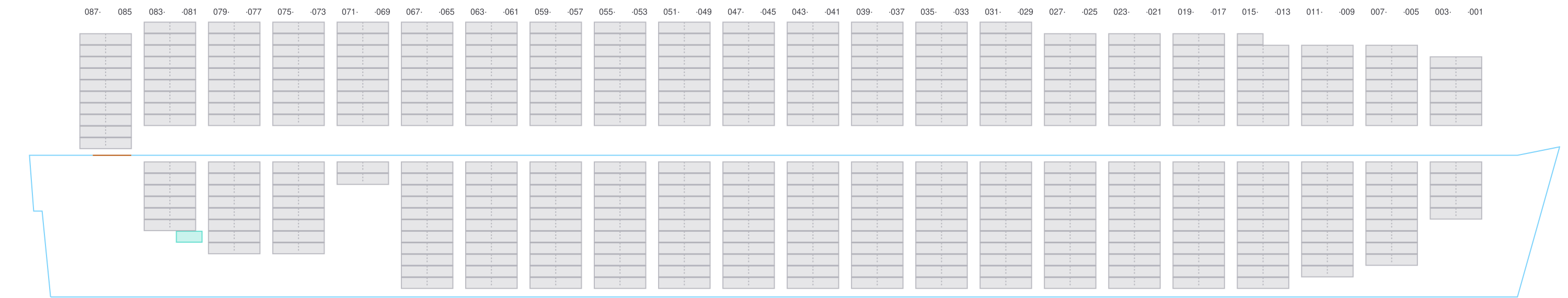

Side view of MSC GAIA

Hatch-Covers View

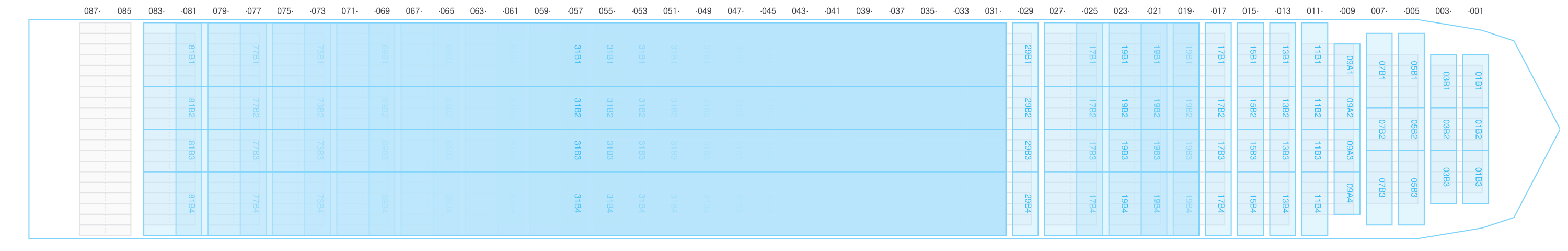

Deck view of MSC GAIA

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

→

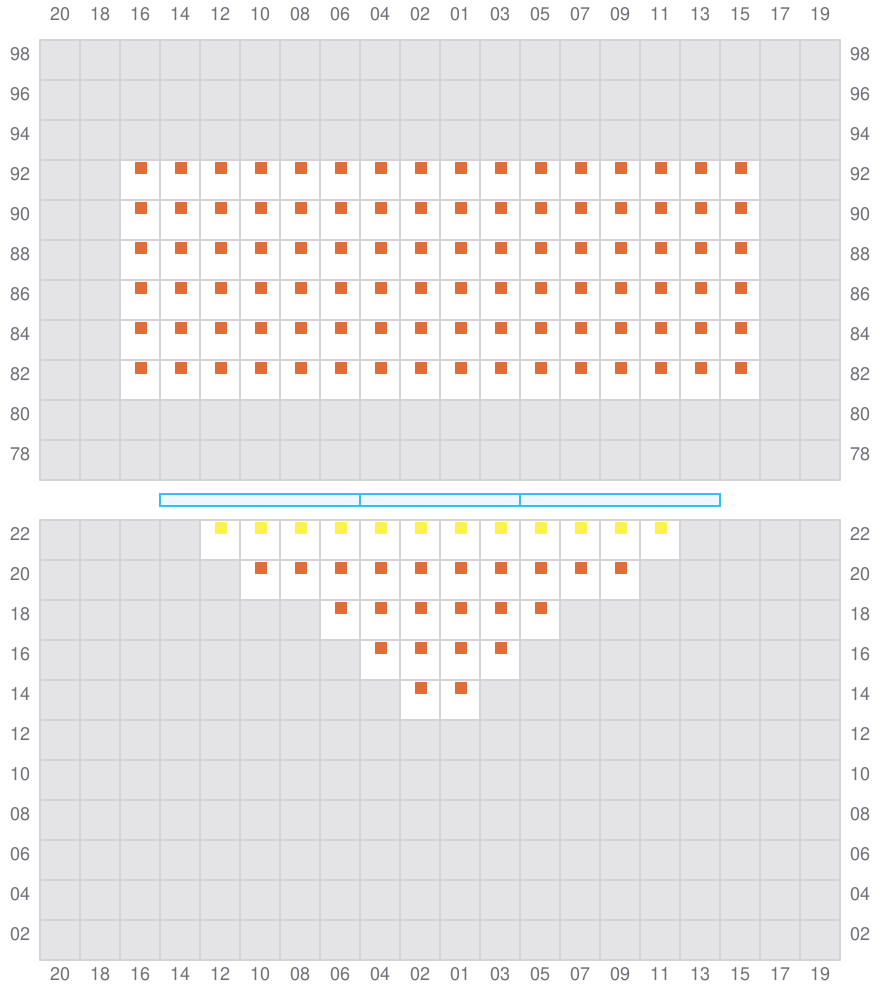

Bay 001 view and slots of MSC GAIA

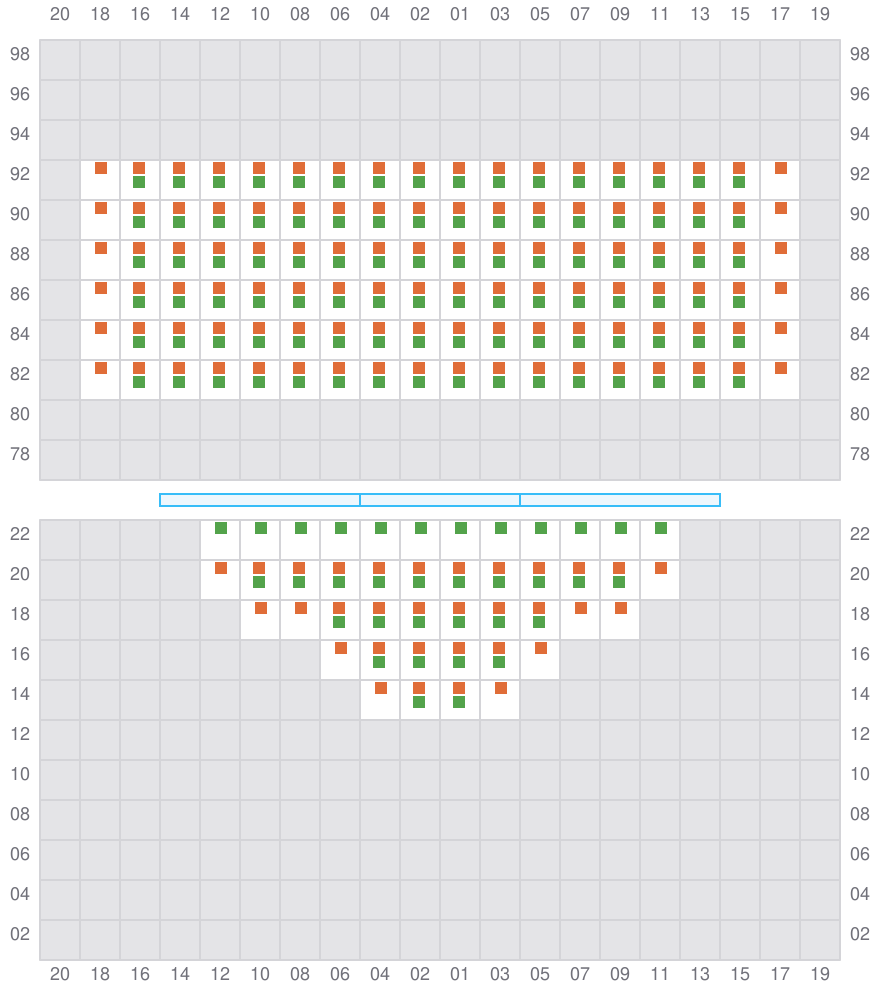

003 (002)

←

Bay 003 view and slots of MSC GAIA

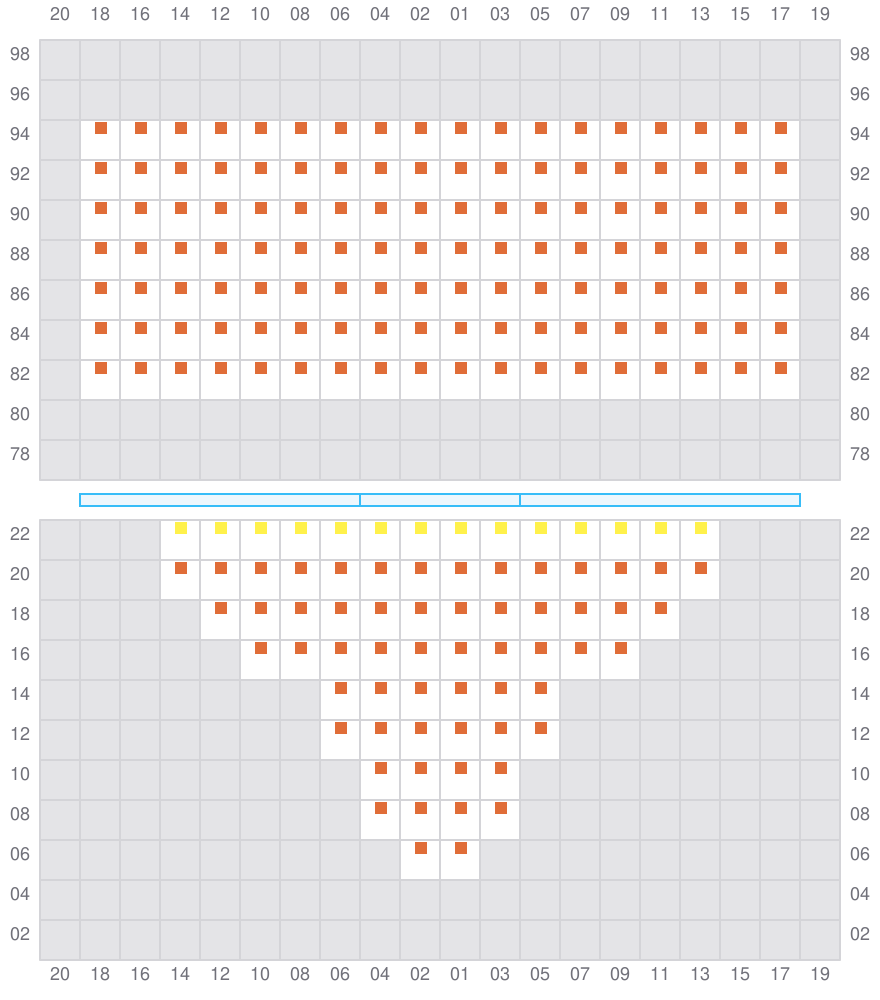

005

→

Bay 005 view and slots of MSC GAIA

007 (006)

←

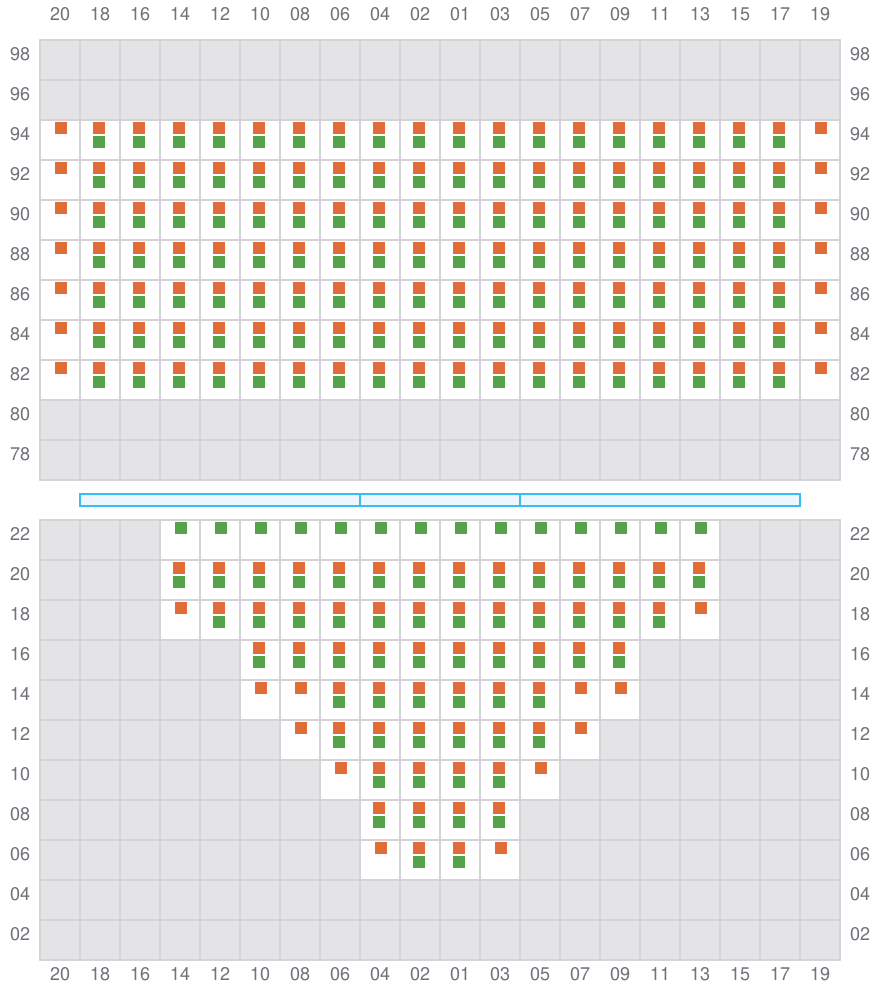

Bay 007 view and slots of MSC GAIA

009

→

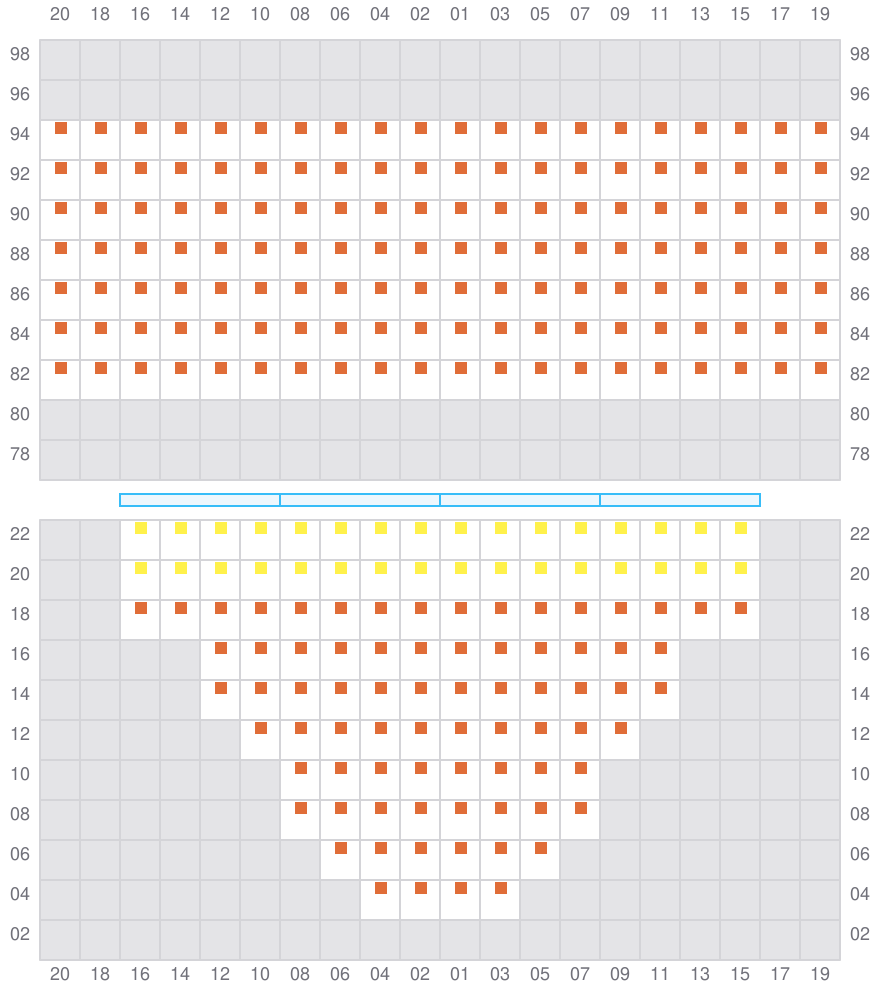

Bay 009 view and slots of MSC GAIA

011 (010)

←

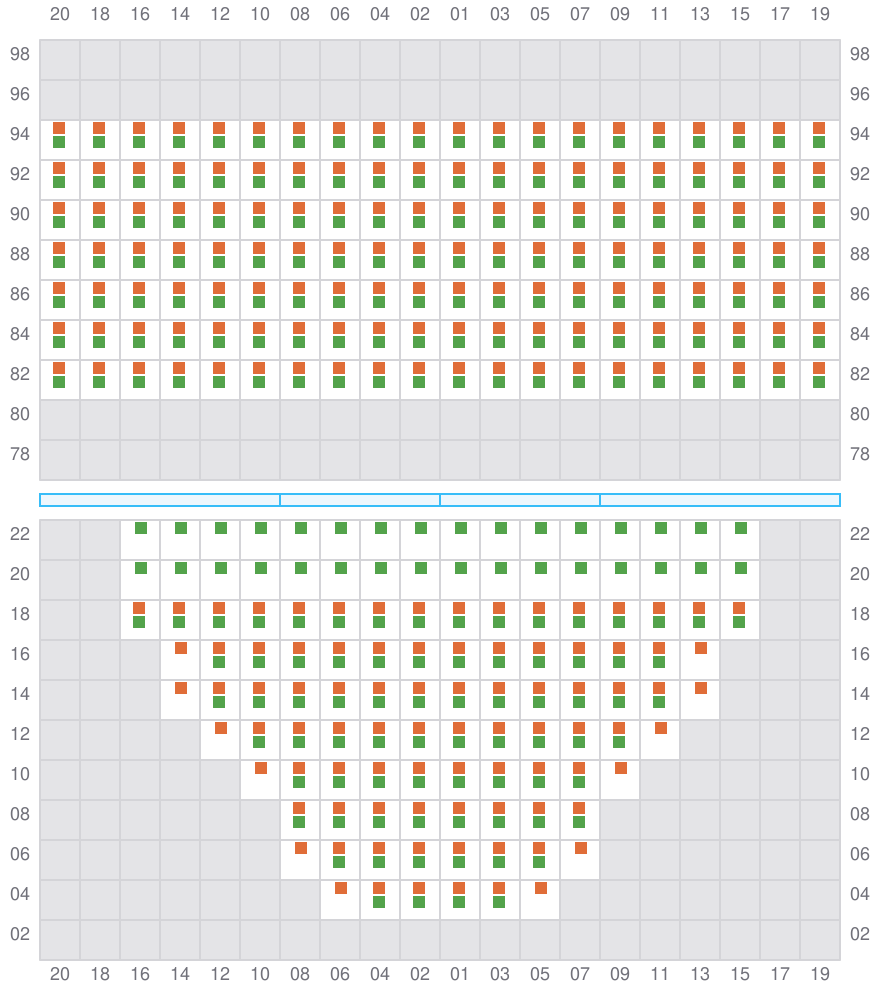

Bay 011 view and slots of MSC GAIA

013

→

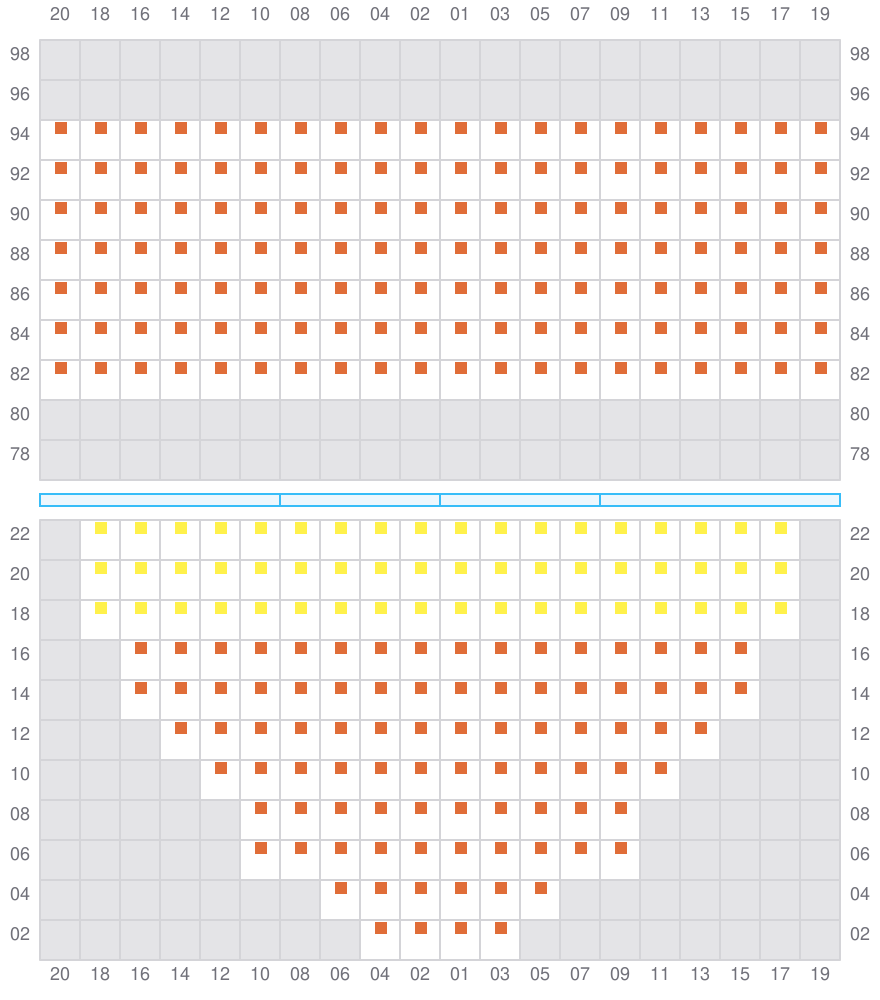

Bay 013 view and slots of MSC GAIA

015 (014)

←

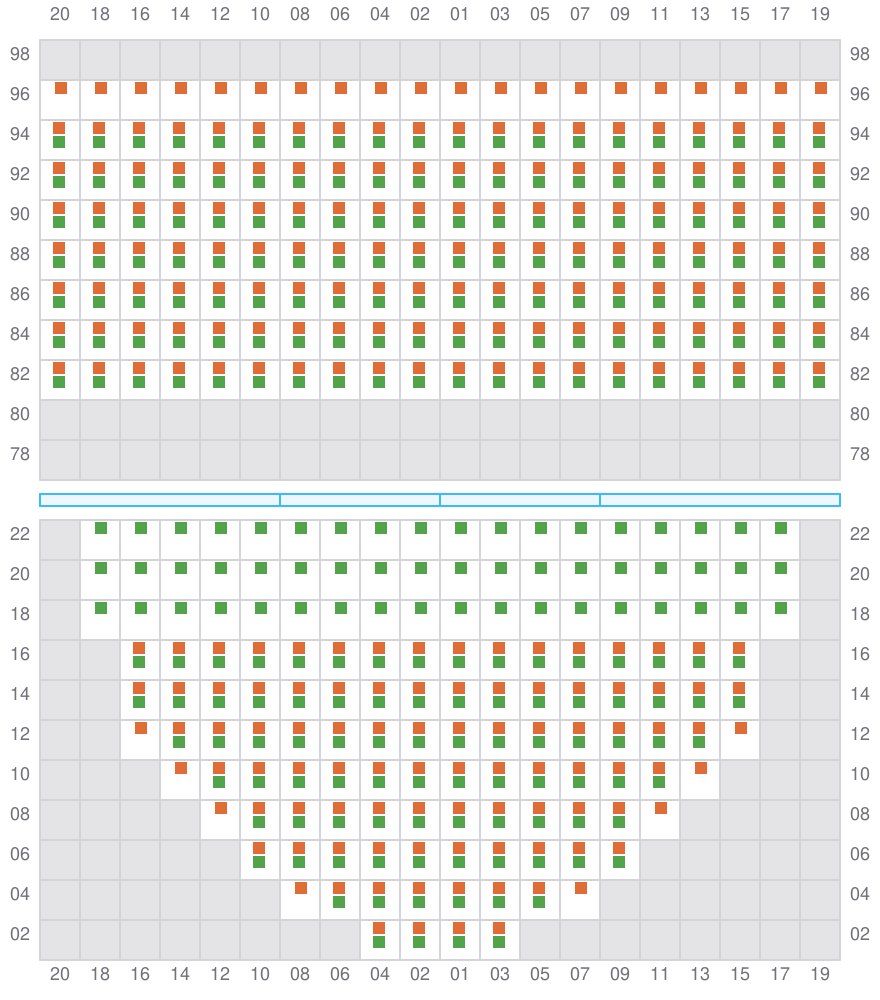

Bay 015 view and slots of MSC GAIA

017

→

Bay 017 view and slots of MSC GAIA

019 (018)

←

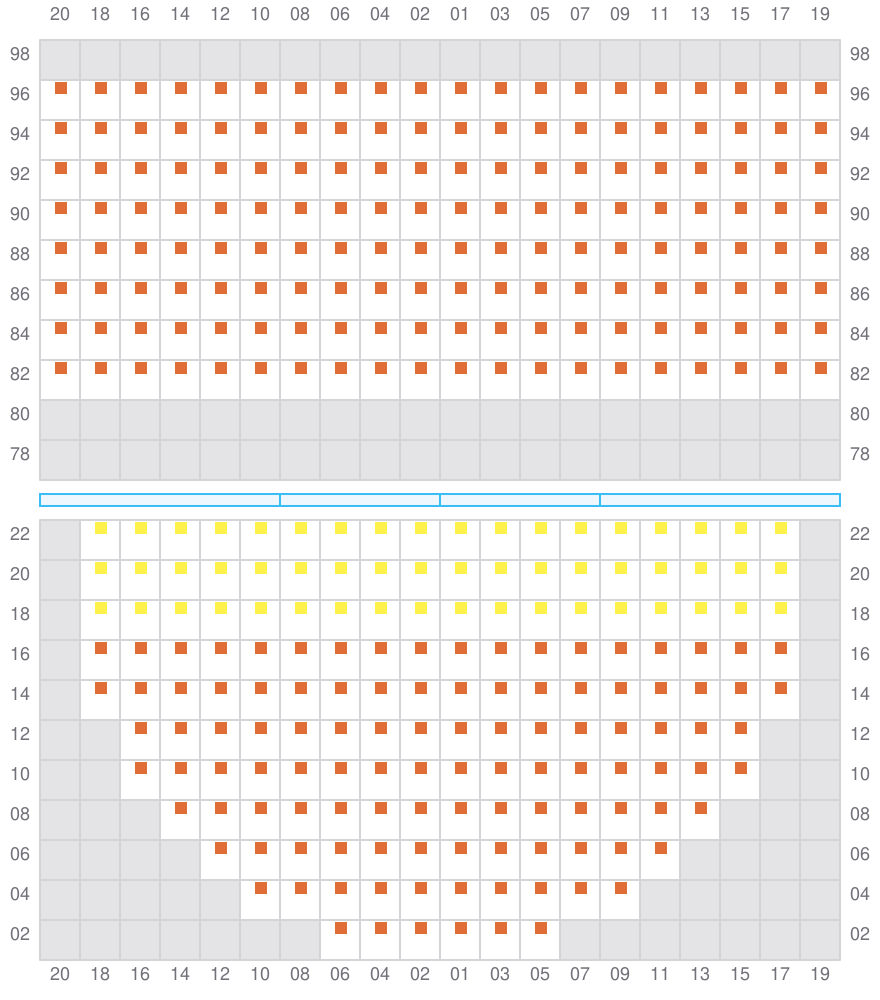

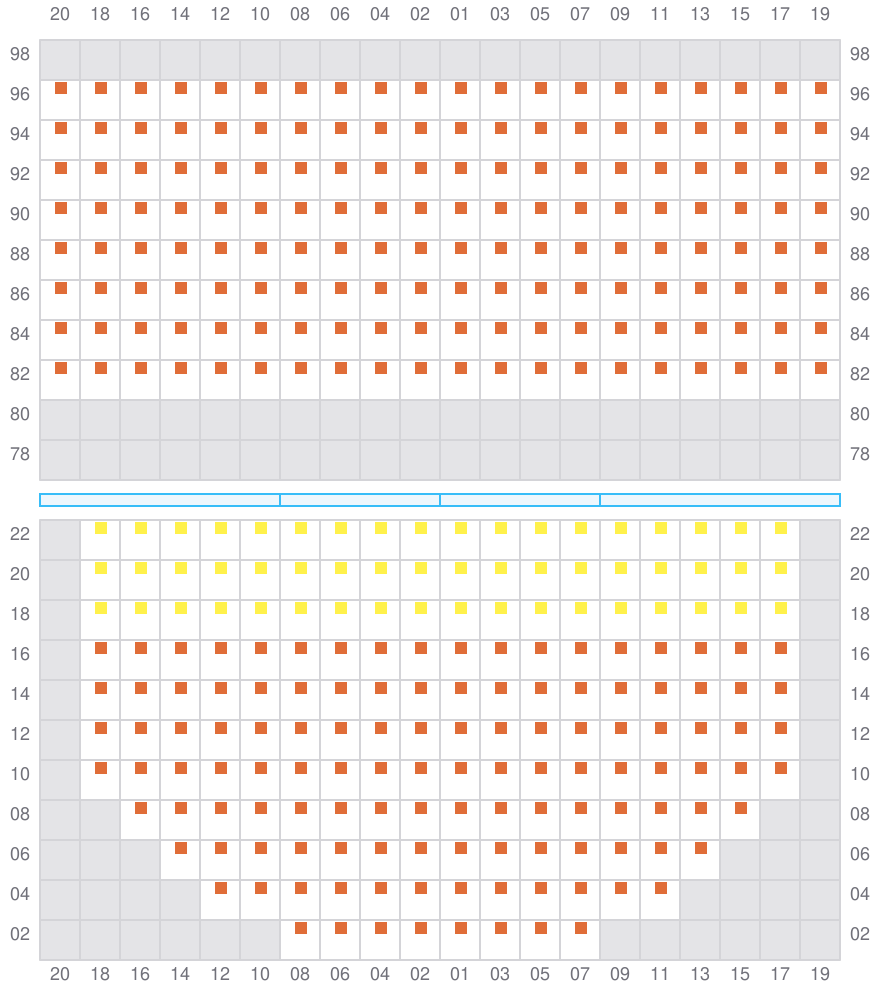

Bay 019 view and slots of MSC GAIA

021

→

Bay 021 view and slots of MSC GAIA

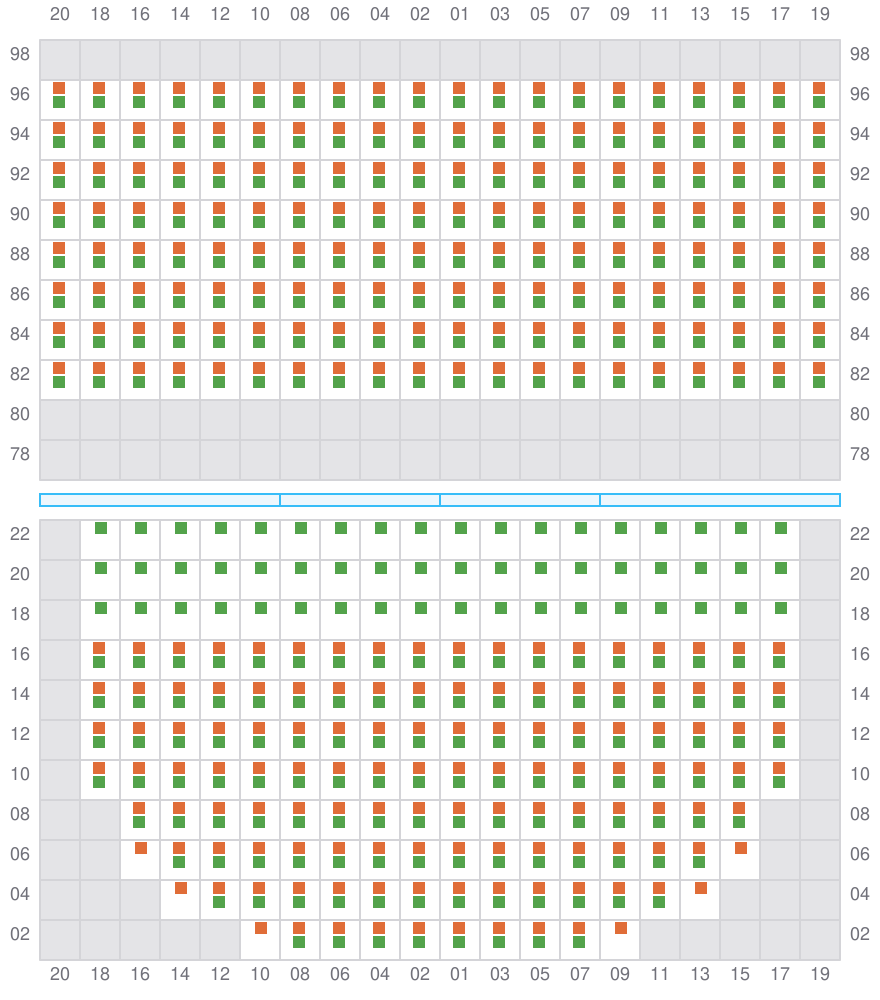

023 (022)

←

Bay 023 view and slots of MSC GAIA

025

→

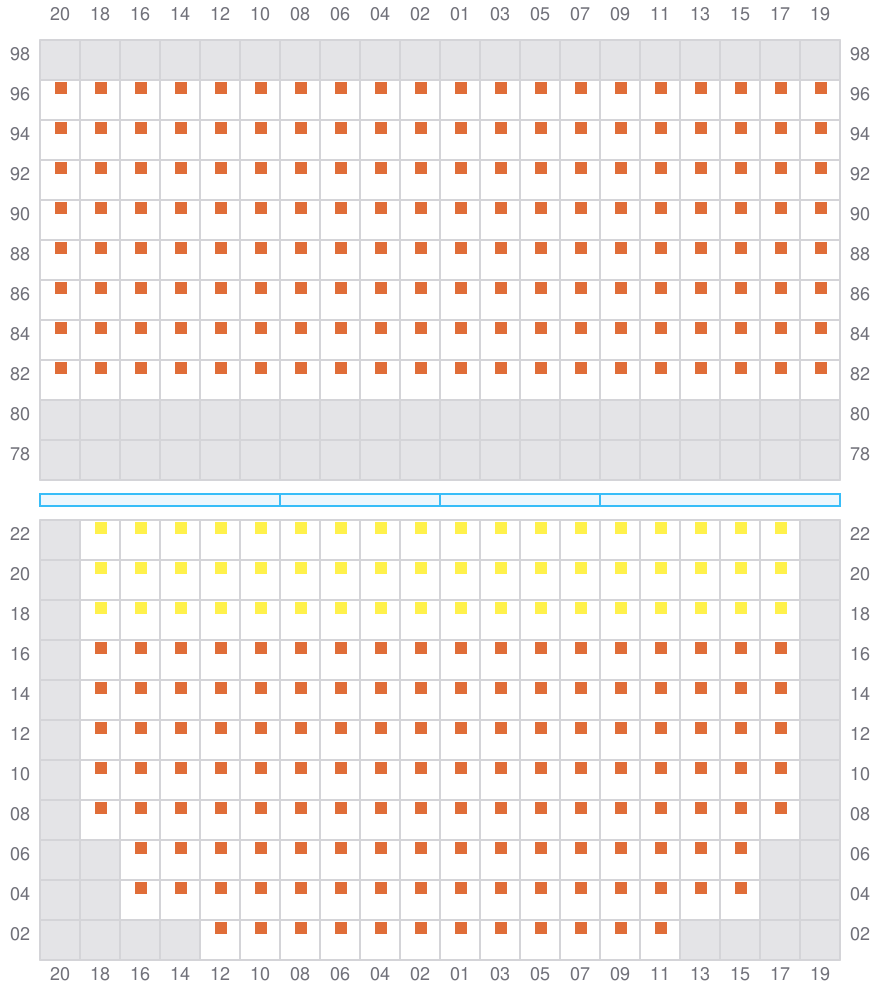

Bay 025 view and slots of MSC GAIA

027 (026)

←

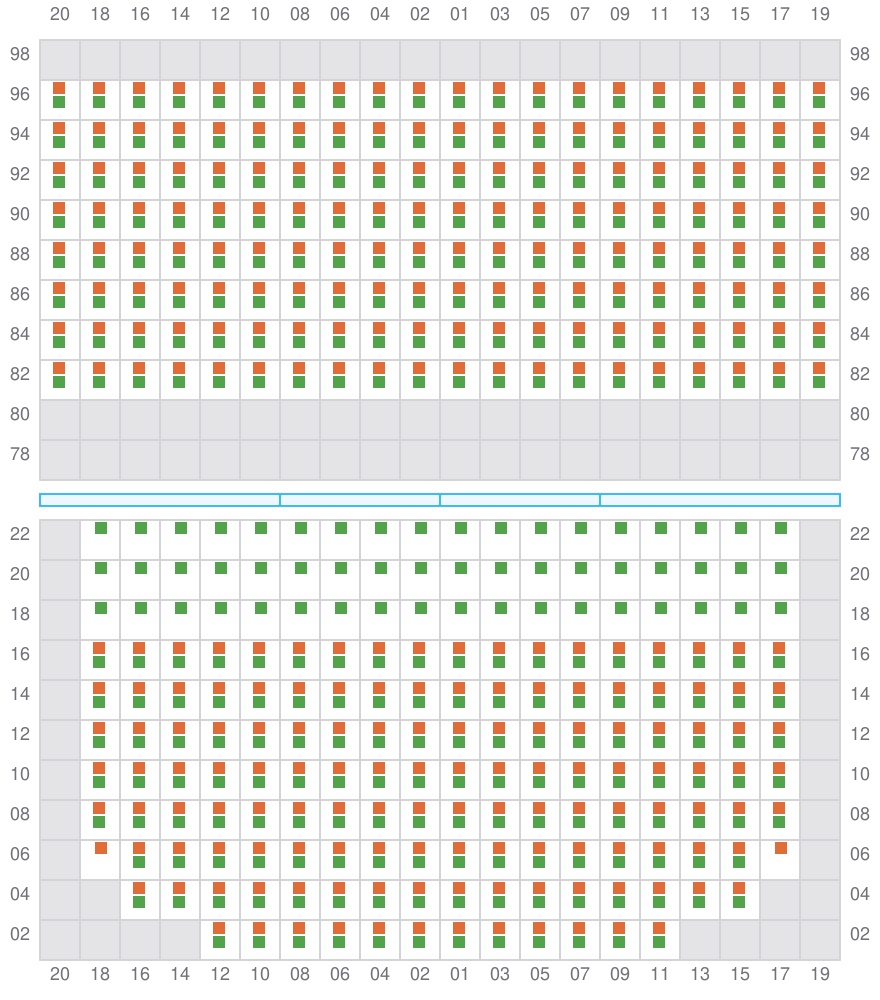

Bay 027 view and slots of MSC GAIA

029

→

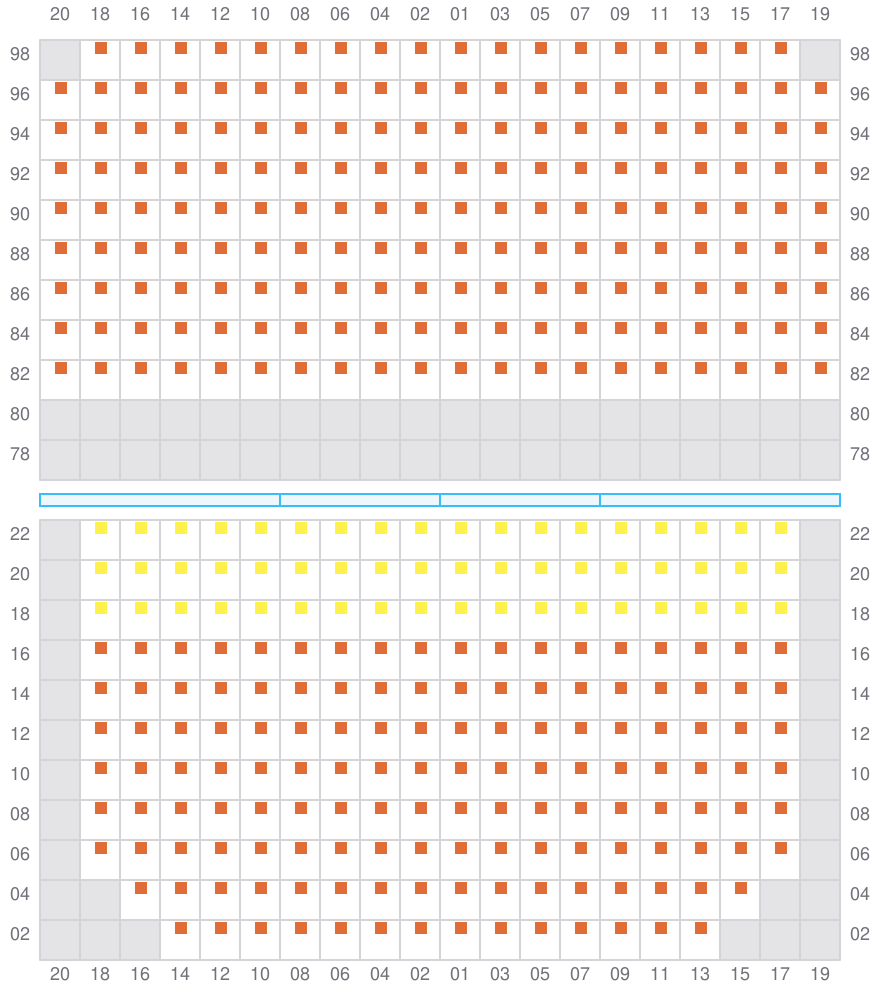

Bay 029 view and slots of MSC GAIA

031 (030)

←
^→ / _?

Bay 031 view and slots of MSC GAIA

033

→

Bay 033 view and slots of MSC GAIA

035 (034)

←
^→ / _?

Bay 035 view and slots of MSC GAIA

037

→

Bay 037 view and slots of MSC GAIA

039 (038)

←
^→ / _?

Bay 039 view and slots of MSC GAIA

041

→

Bay 041 view and slots of MSC GAIA

043 (042)

←
^→ / _?

Bay 043 view and slots of MSC GAIA

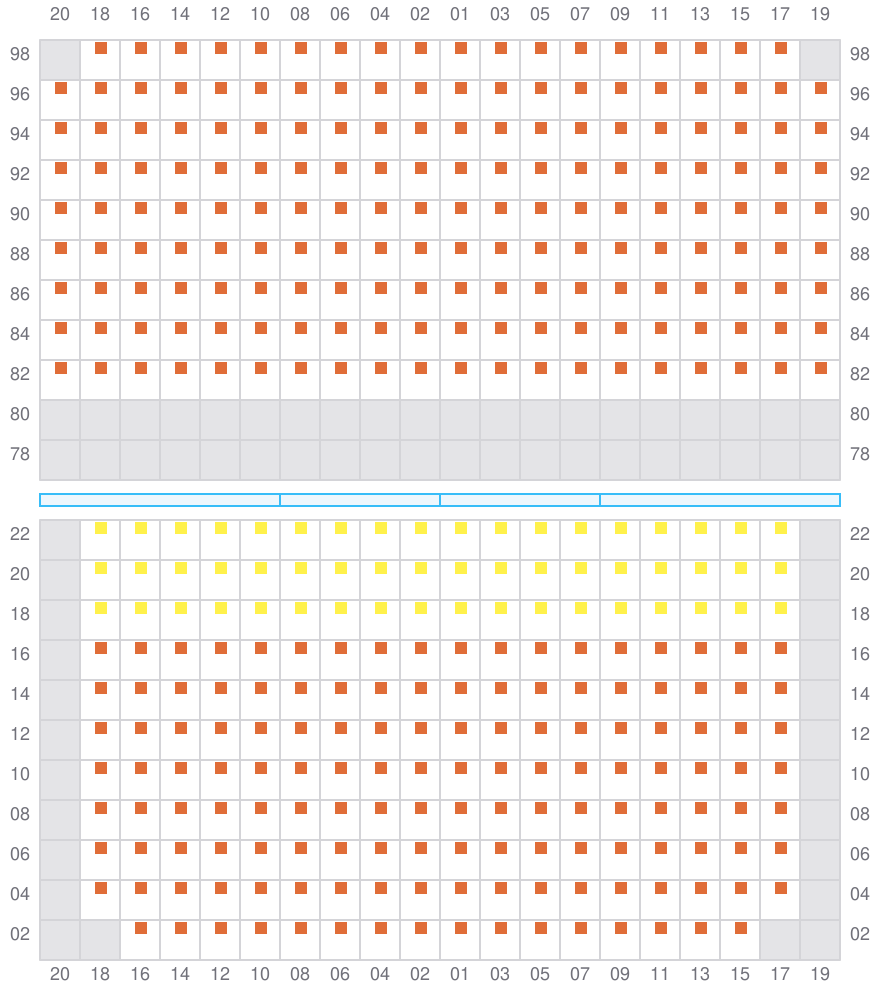

045

→

Bay 045 view and slots of MSC GAIA

047 (046)

←
^→ / _?

Bay 047 view and slots of MSC GAIA

049

→

Bay 049 view and slots of MSC GAIA

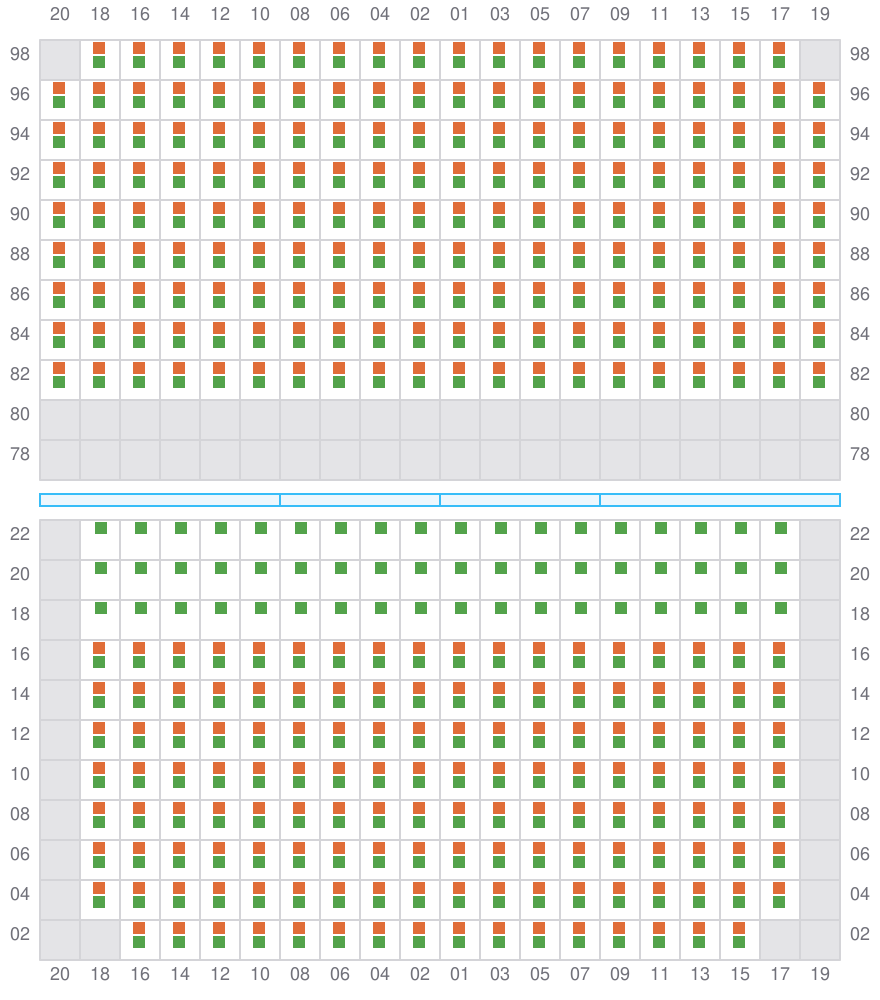

051 (050)

←
^→ / _?

Bay 051 view and slots of MSC GAIA

053

→

Bay 053 view and slots of MSC GAIA

055 (054)

←
^→ / _?

Bay 055 view and slots of MSC GAIA

057

→

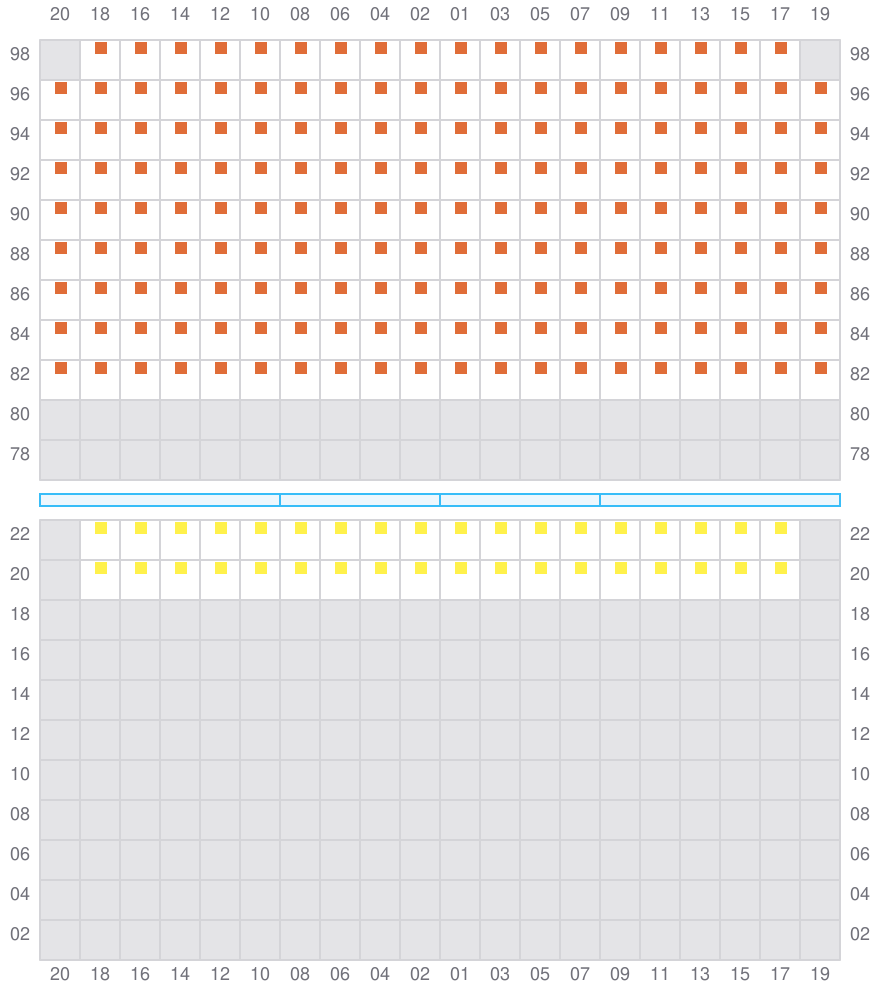

Bay 057 view and slots of MSC GAIA

059 (058)

←
^→ / _?

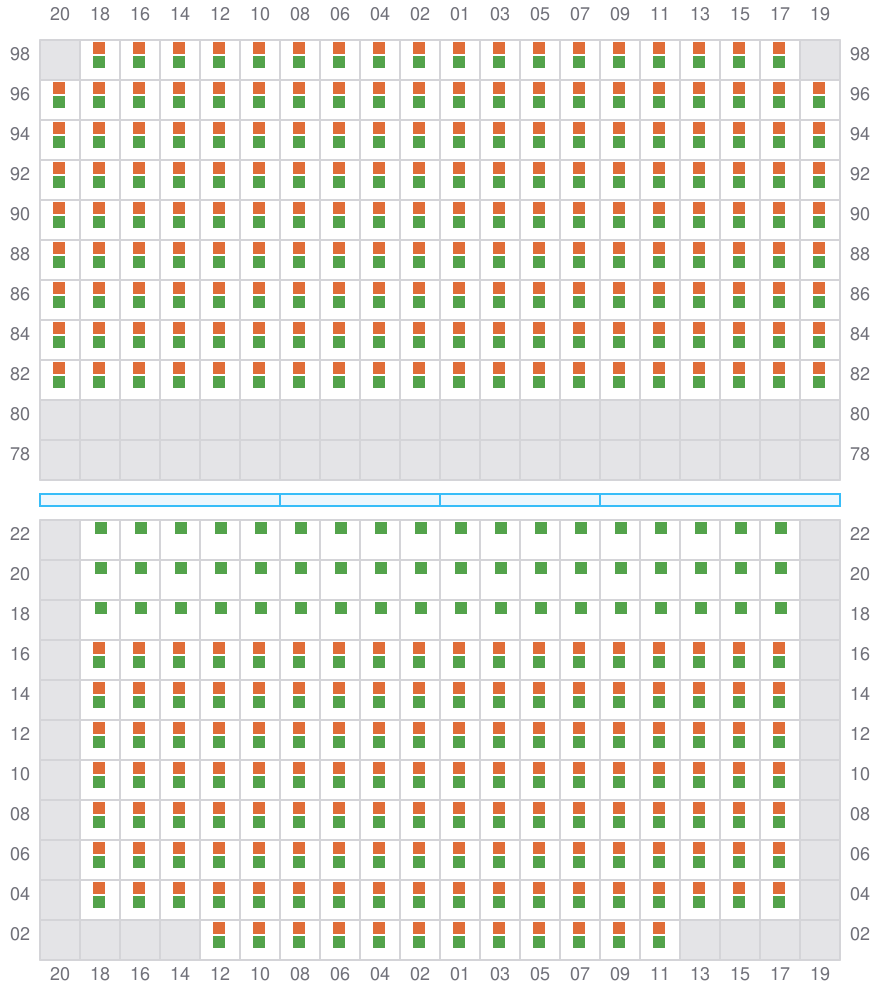

Bay 059 view and slots of MSC GAIA

061

→

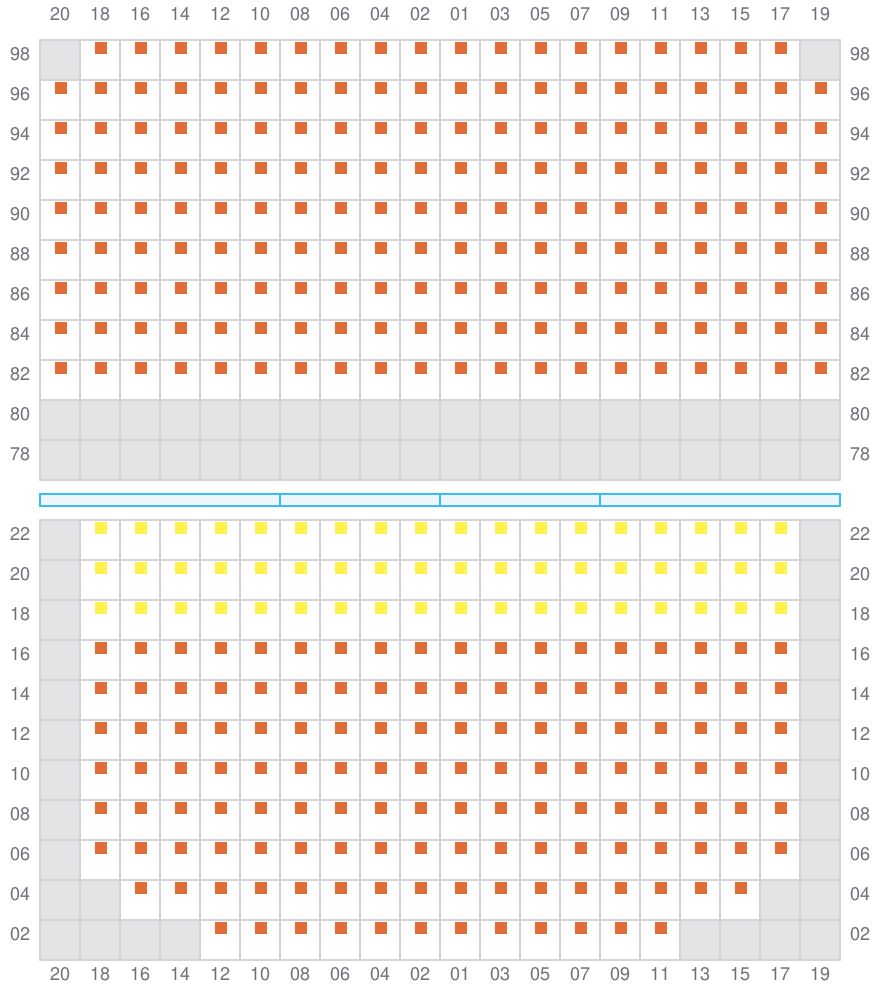

Bay 061 view and slots of MSC GAIA

063 (062)

←
^→ / _?

Bay 063 view and slots of MSC GAIA

065

→

Bay 065 view and slots of MSC GAIA

067 (066)

←
^→ / _?

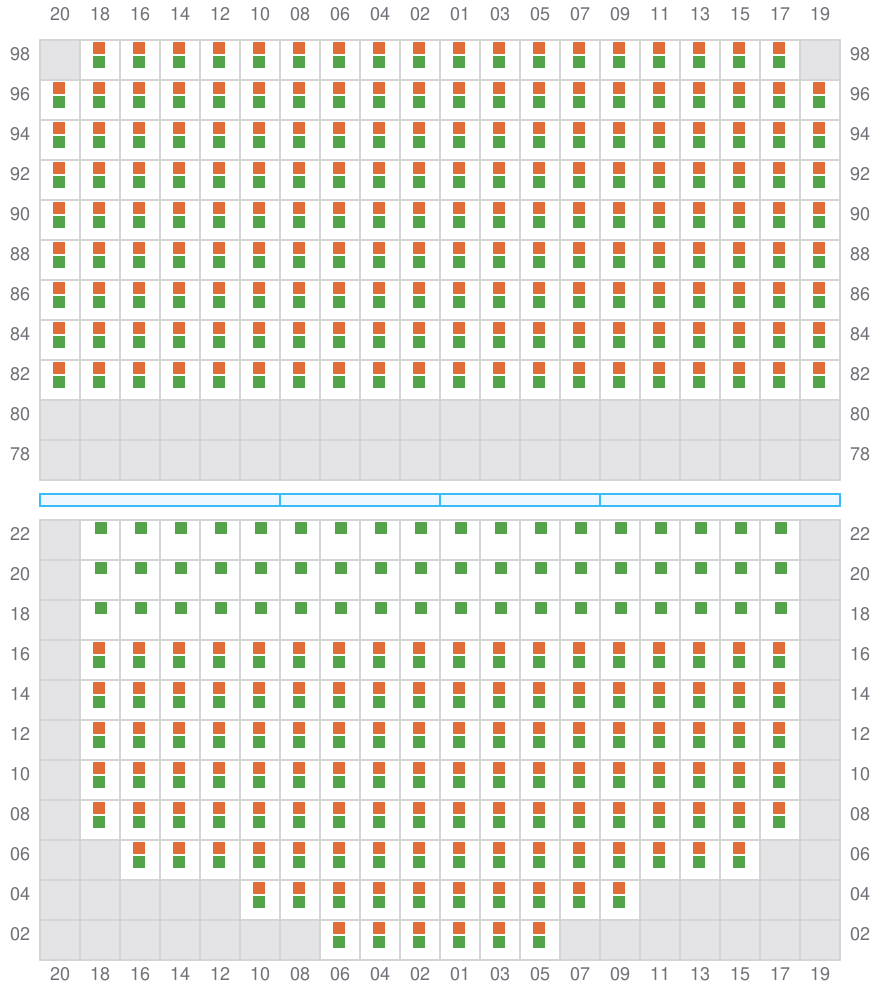

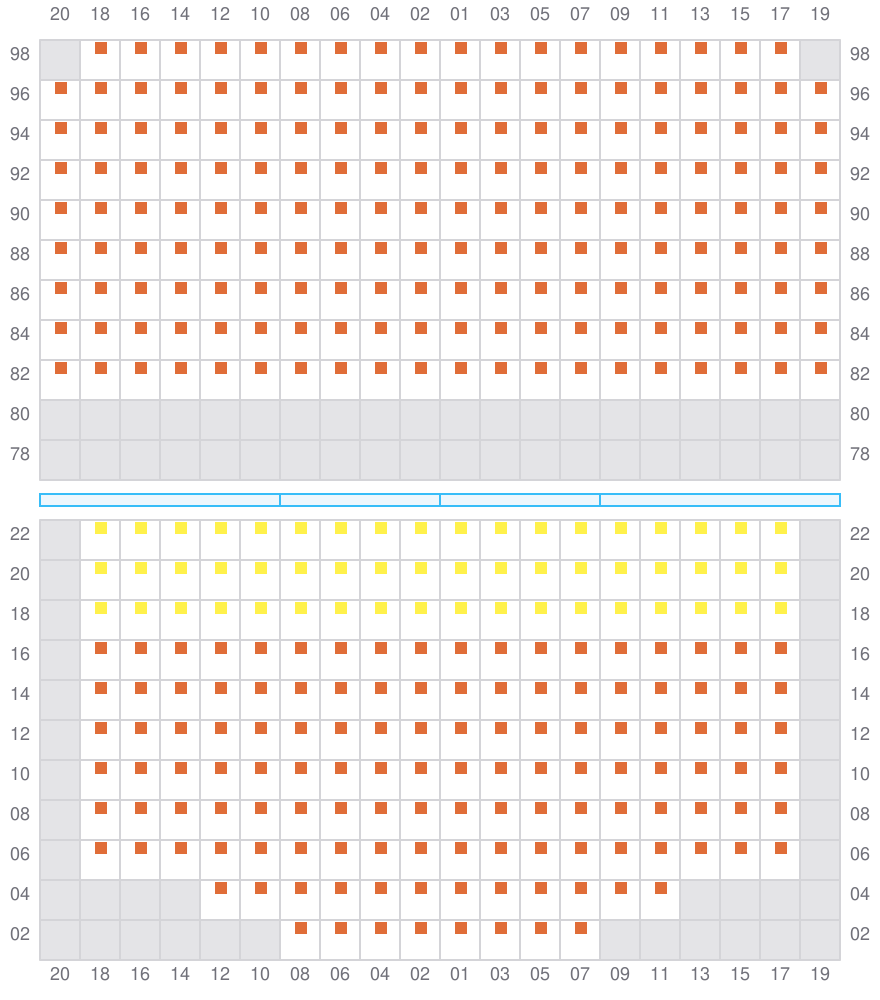

Bay 067 view and slots of MSC GAIA

069

→

Bay 069 view and slots of MSC GAIA

071 (070)

←
^→ / _?

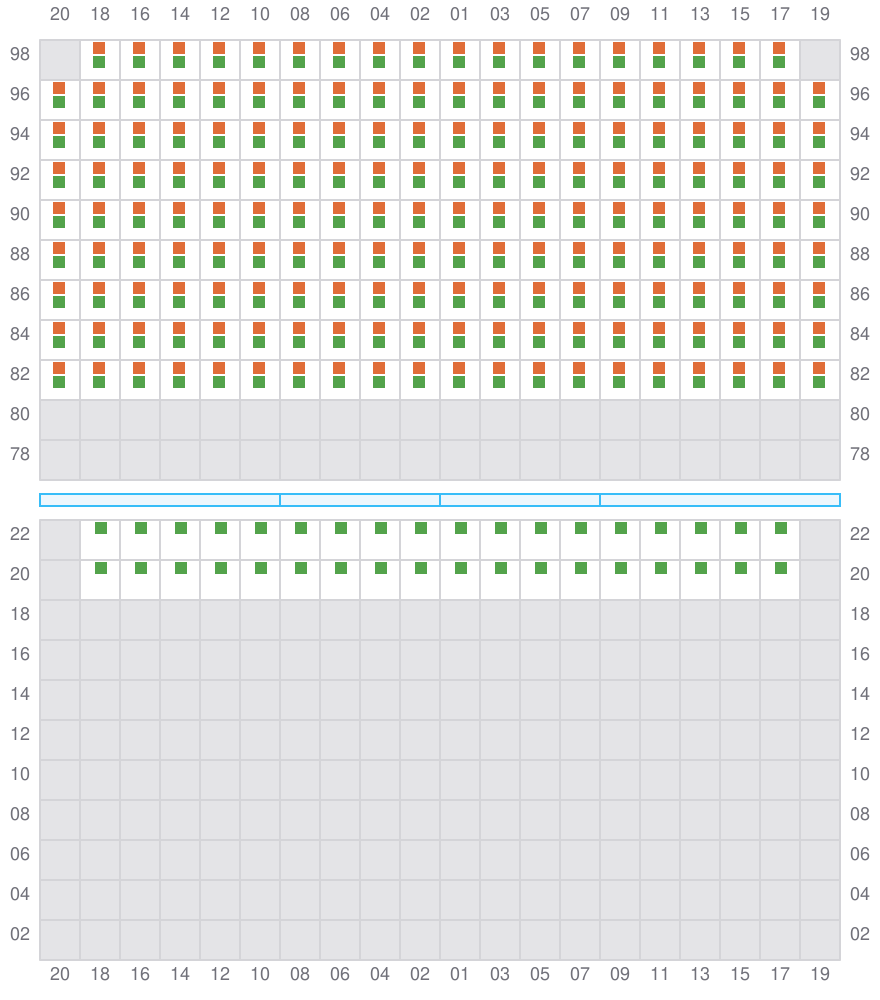

Bay 071 view and slots of MSC GAIA

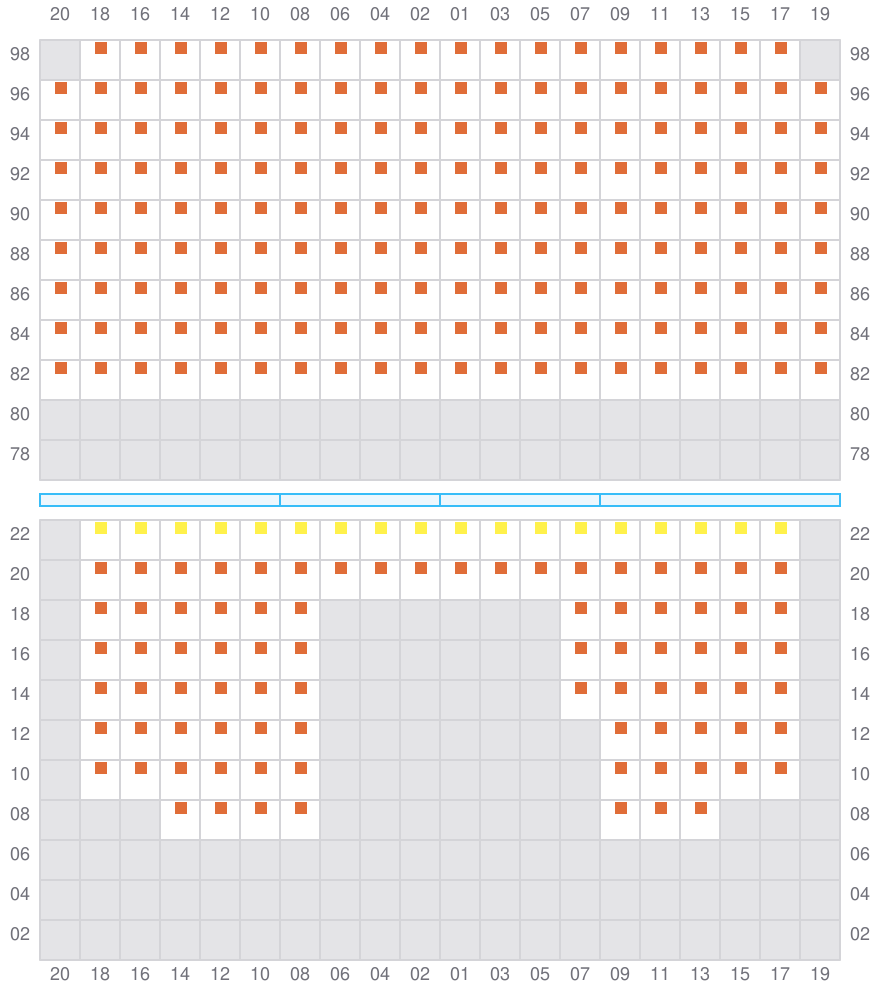

073

→

Bay 073 view and slots of MSC GAIA

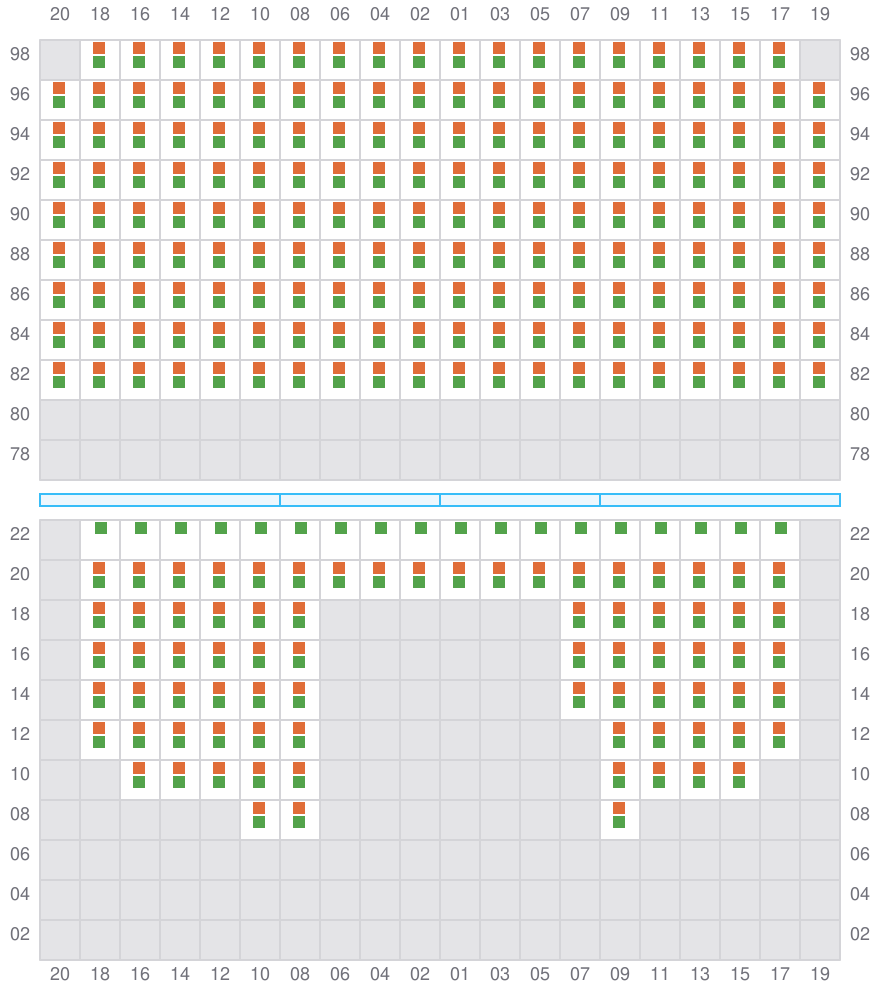

075 (074)

←
^→ / _?

Bay 075 view and slots of MSC GAIA

077

→

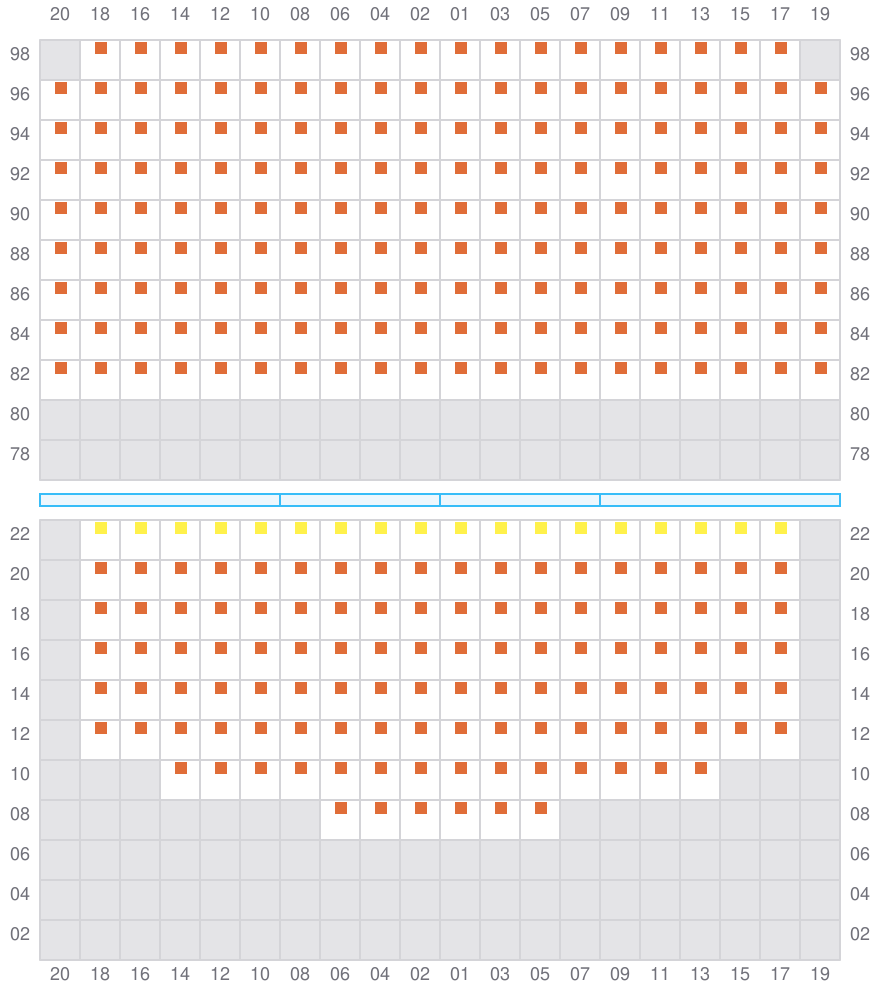

Bay 077 view and slots of MSC GAIA

079 (078)

←
^→ / _?

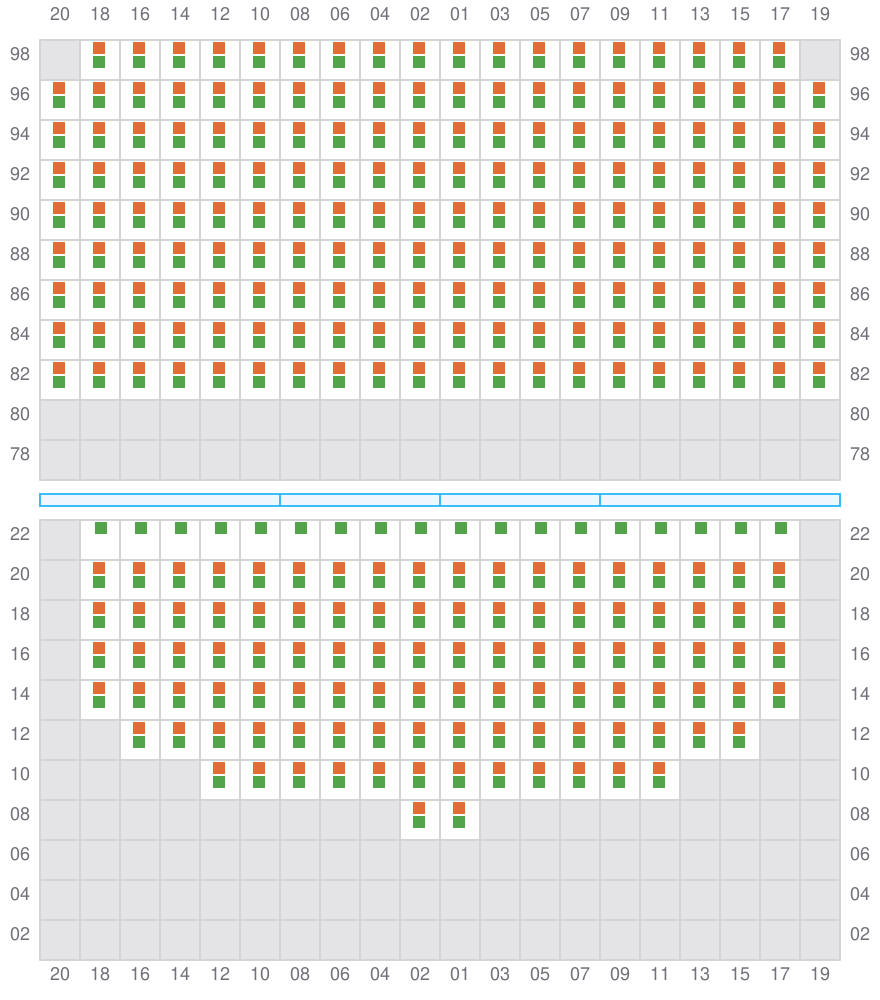

Bay 079 view and slots of MSC GAIA

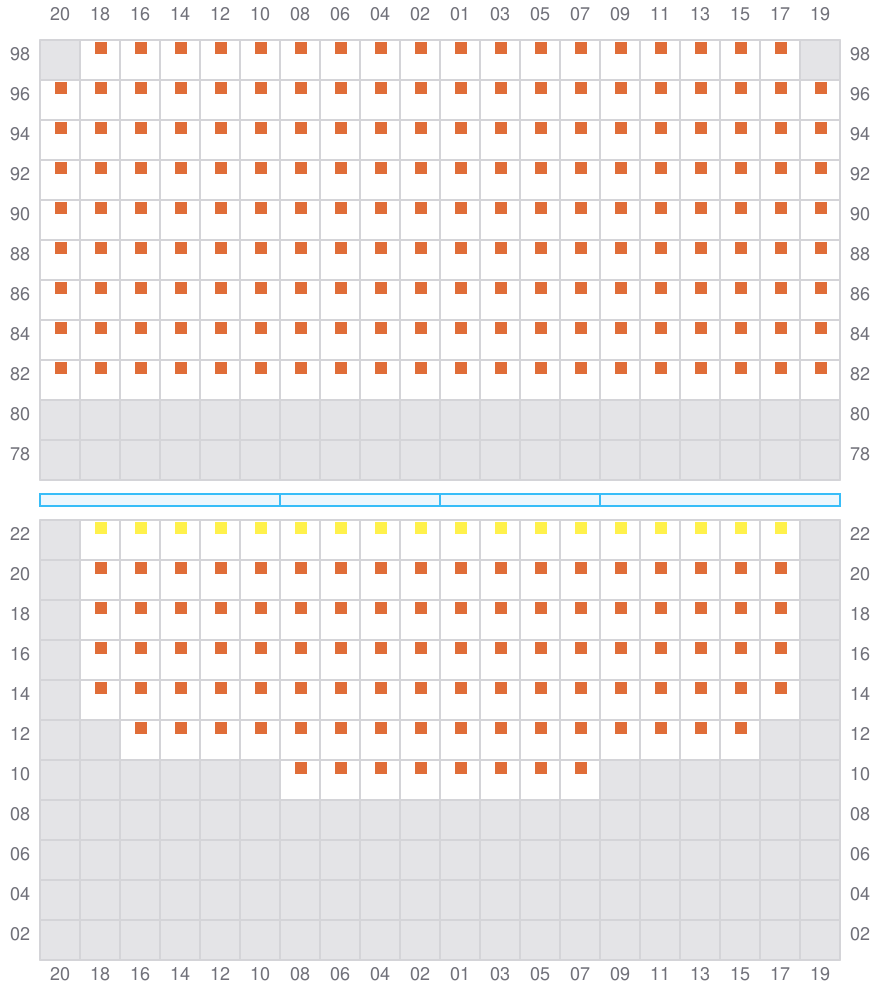

081

→

Bay 081 view and slots of MSC GAIA

083 (082)

←
^→ / _?

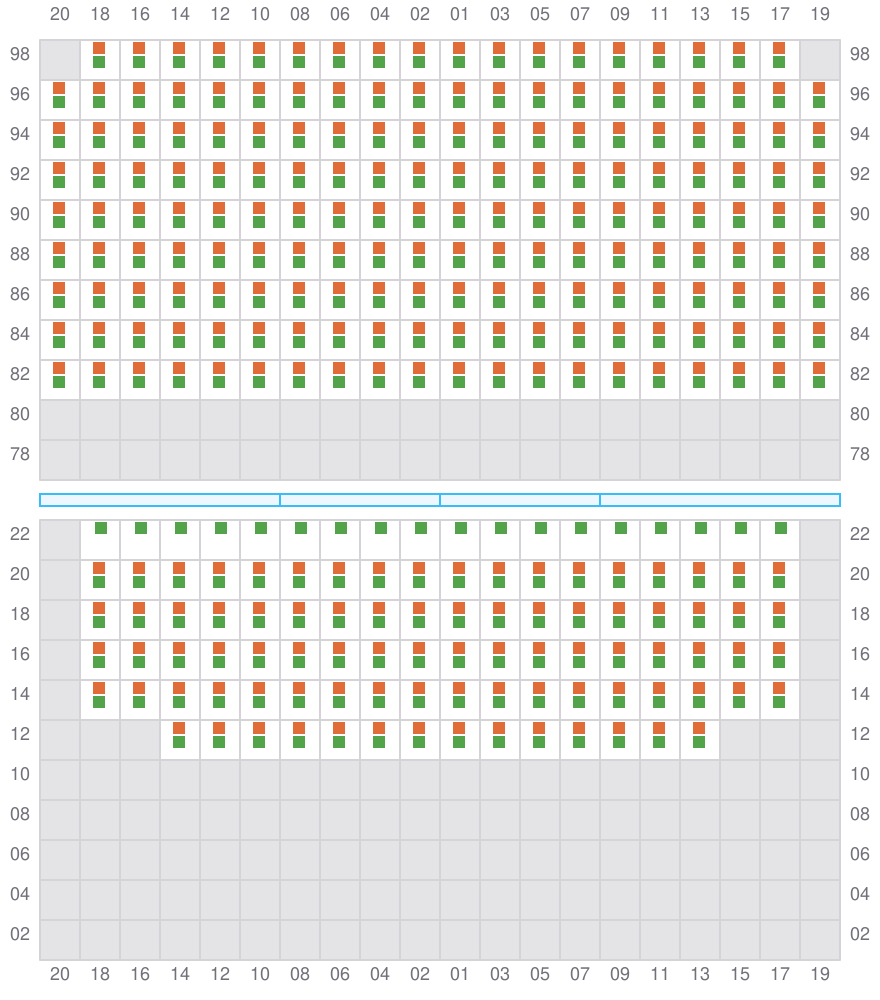

Bay 083 view and slots of MSC GAIA

085

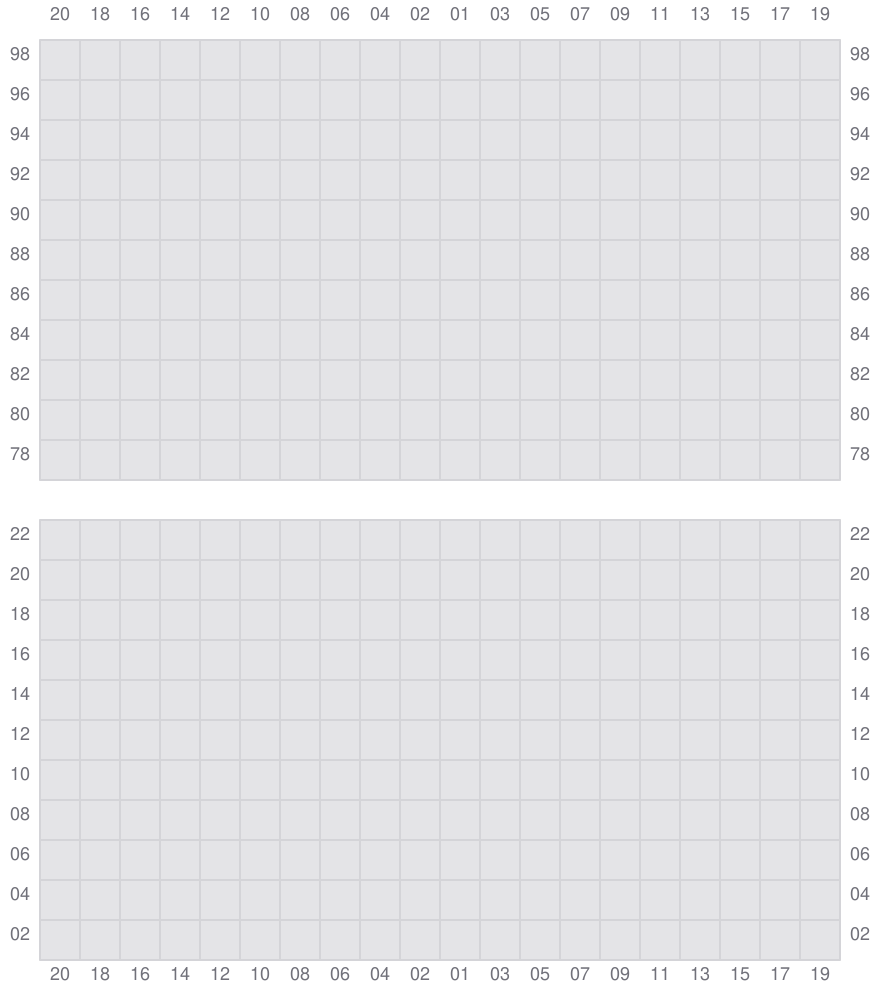

Bay 085 view and slots of MSC GAIA

087 (086)

^← / _?

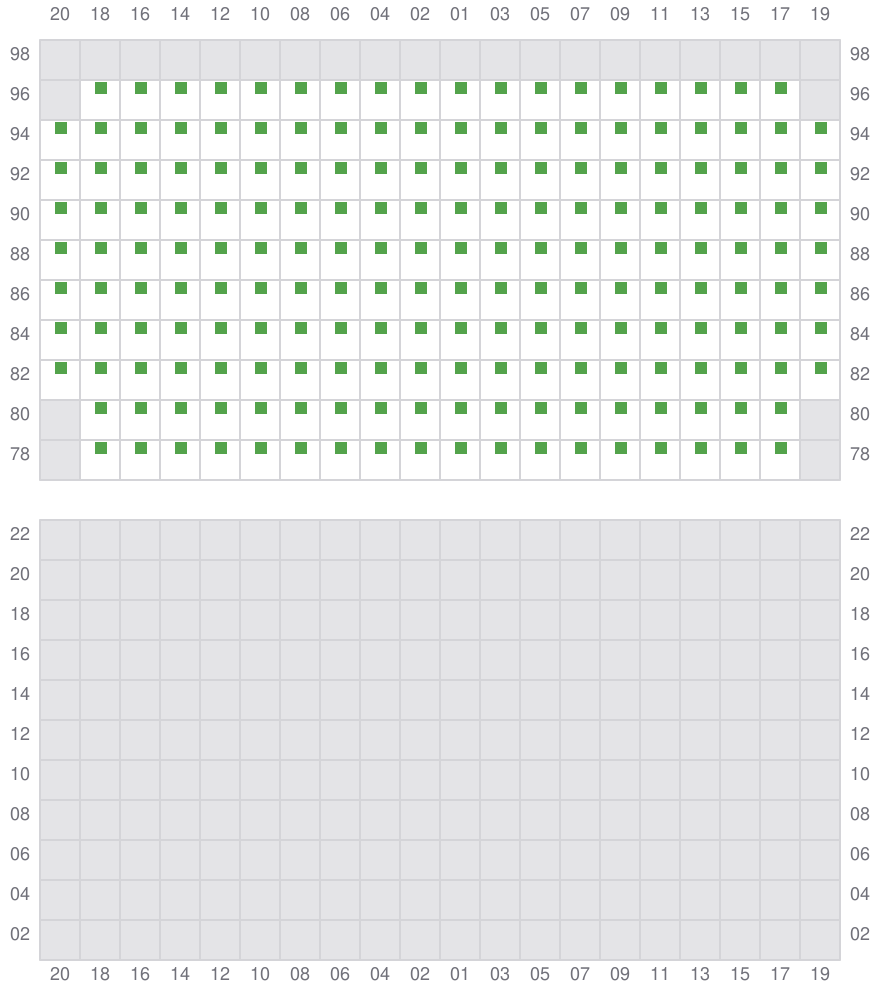

Bay 087 view and slots of MSC GAIA
