MSC GAYANE
9770763 | D5OZ5 | MSC by ******************** Last update: Tue Feb 03 2026
General Info
Ship Name:MSC GAYANE
IMO Code:9770763
Call Sign:D5OZ5
Line Operator:MSC
Class Name for Sister Ships:MSGY
Year Built:2018
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):300.85
LOA (Length Overall):314.35
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:073
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:72
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:10,305
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

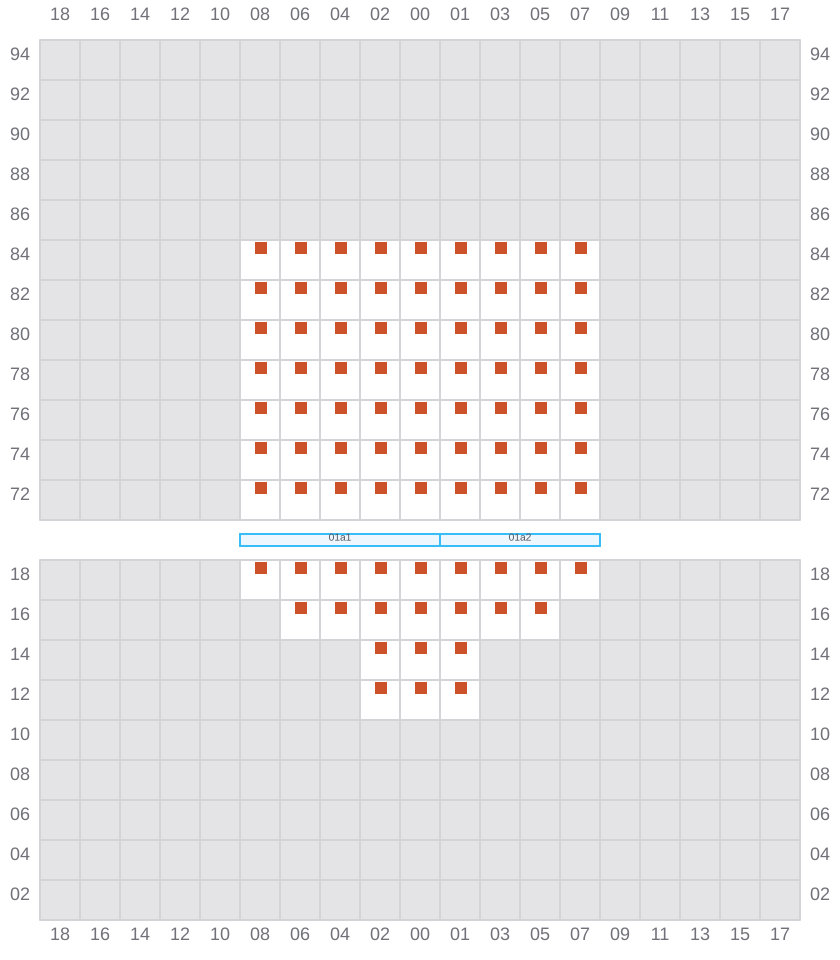

001
- →

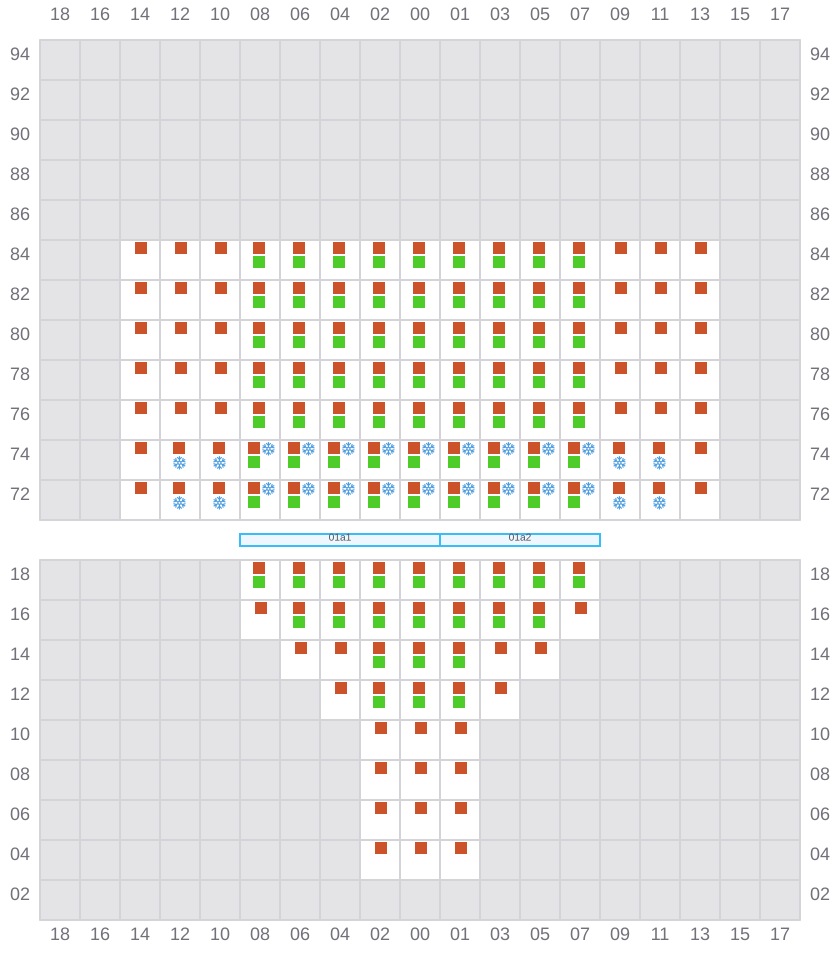

003 (002)
- ←

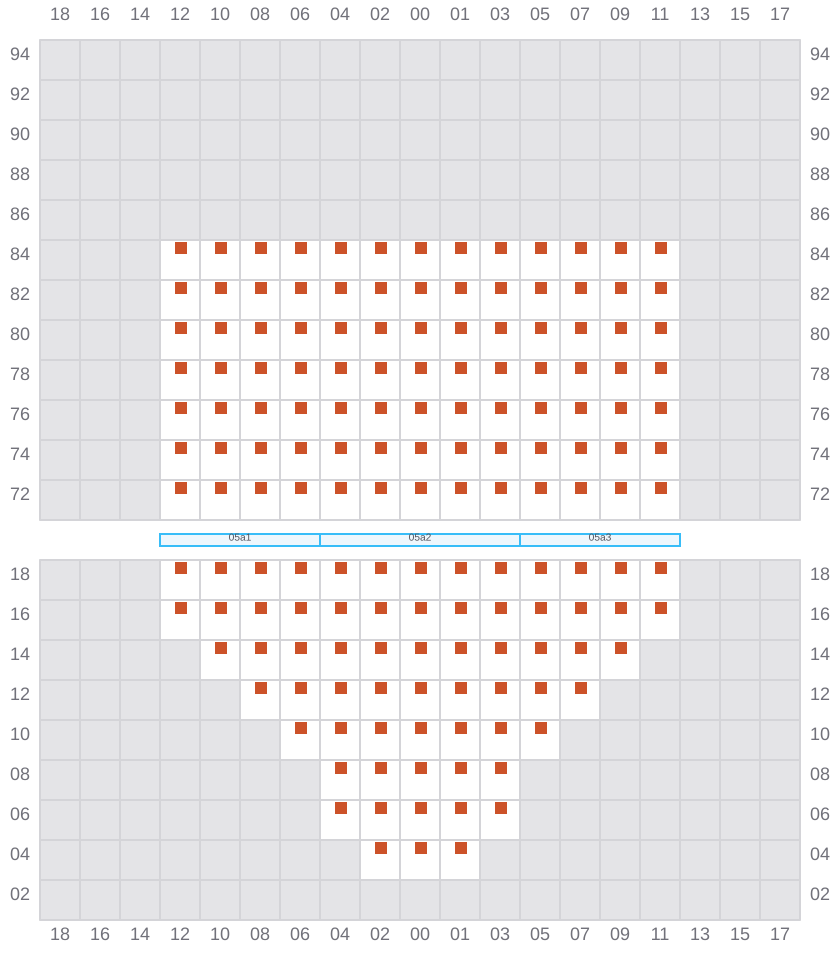

005
- →
007 (006)
- ←
009
- →

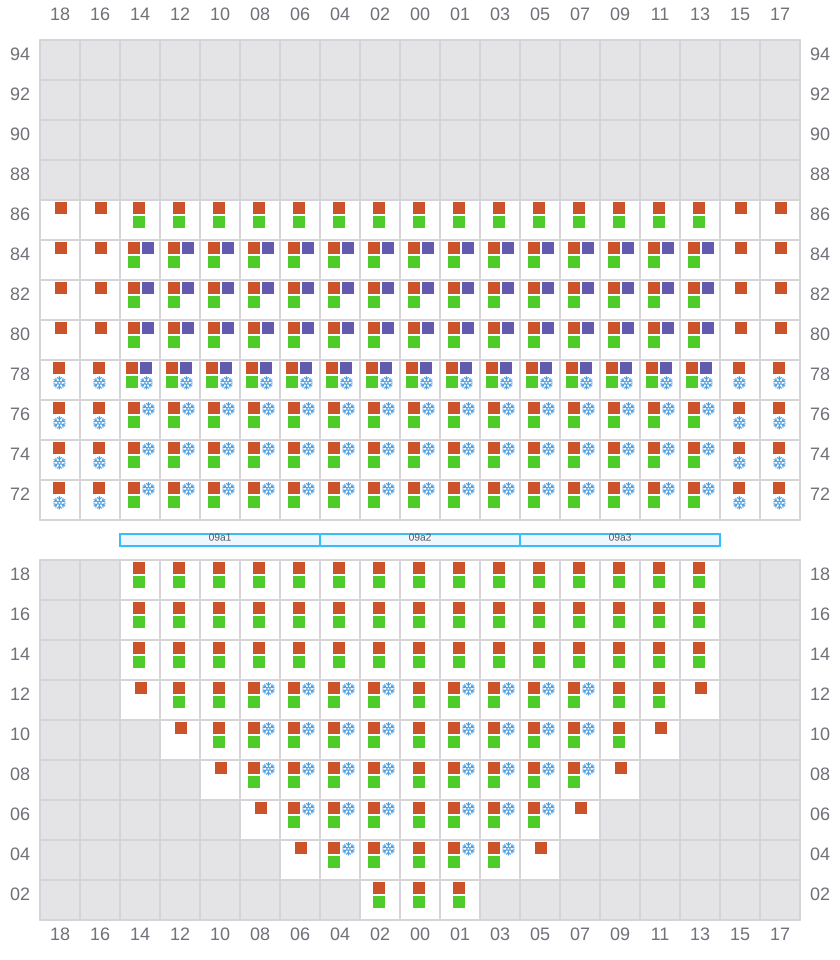

011 (010)
- ←

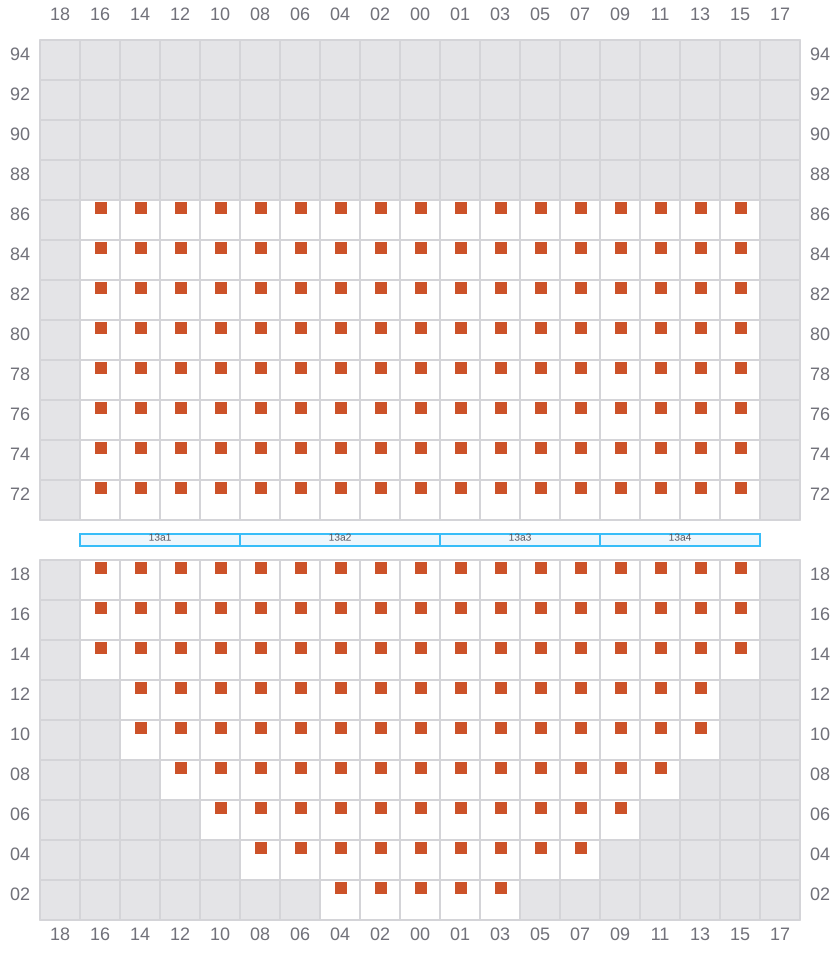

013
- →

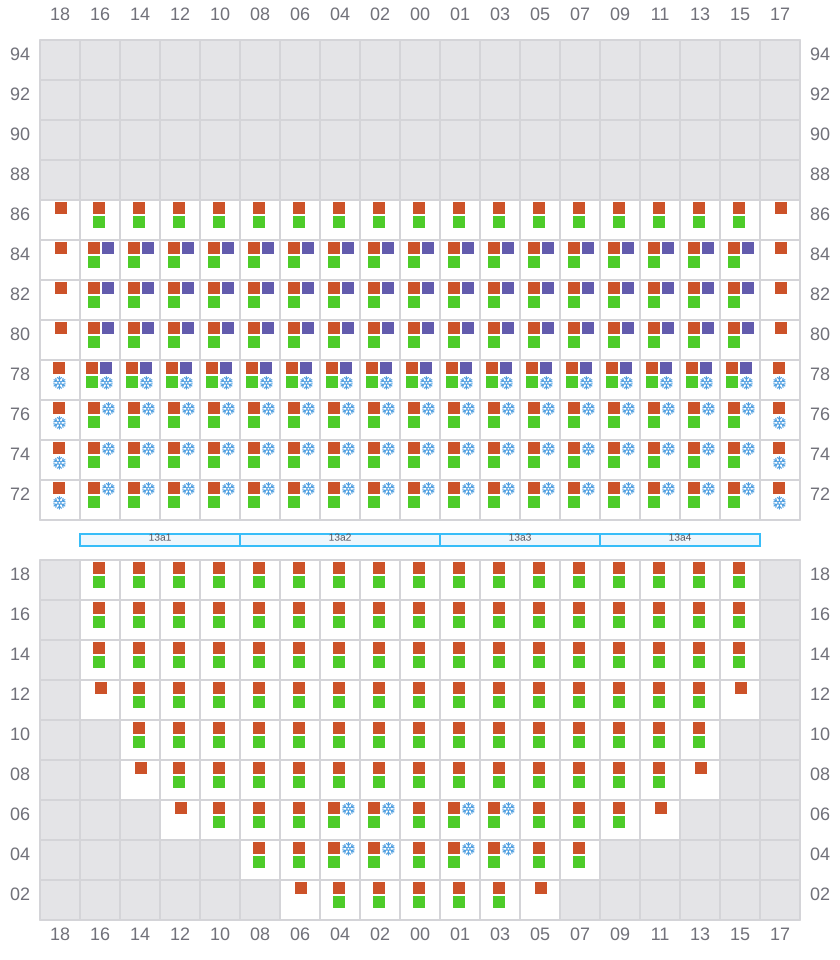

015 (014)
- ←
017
- →
019 (018)
- ←

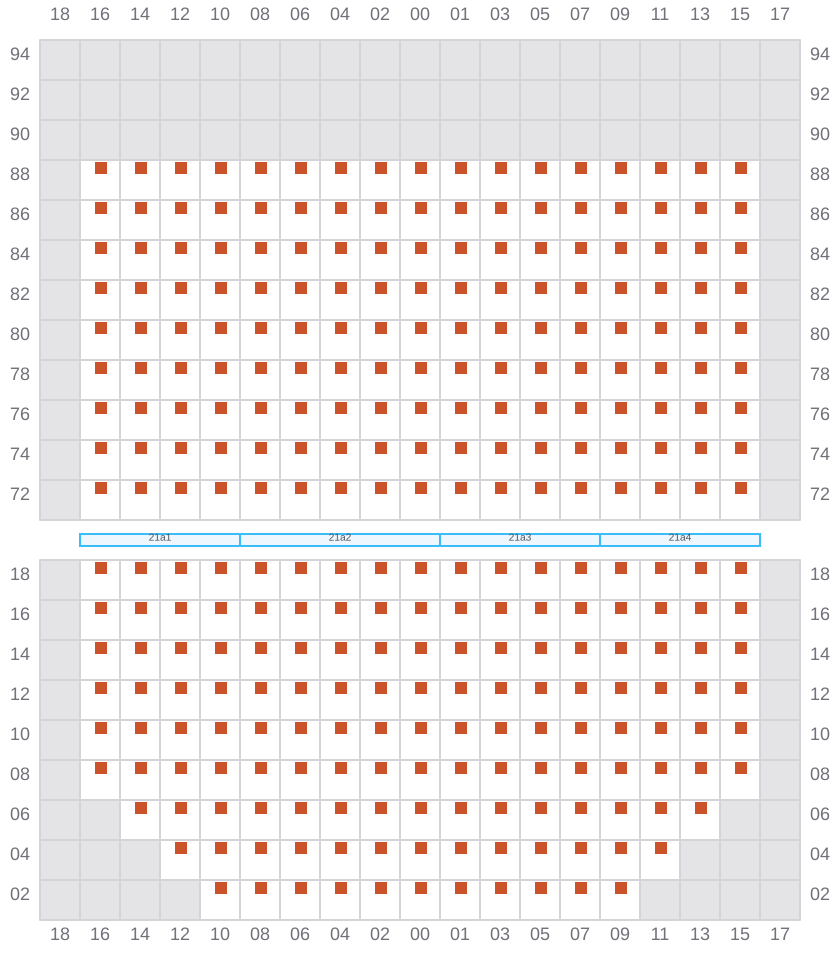

021
- →
023 (022)
- ←
025
- →

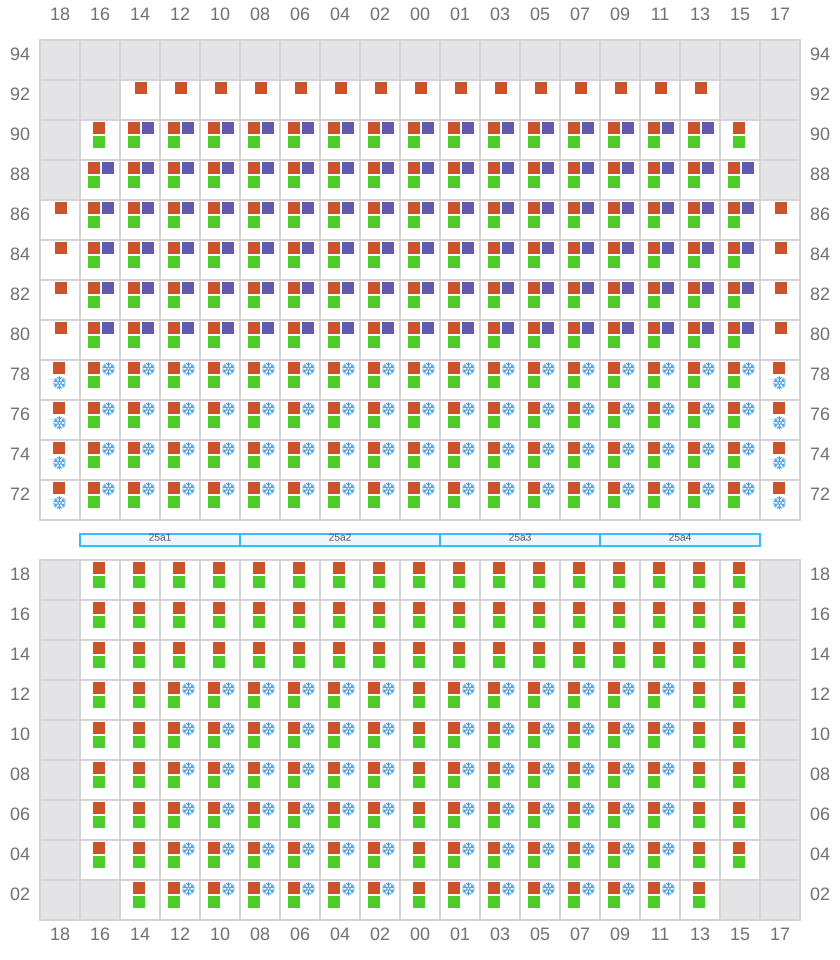

027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←

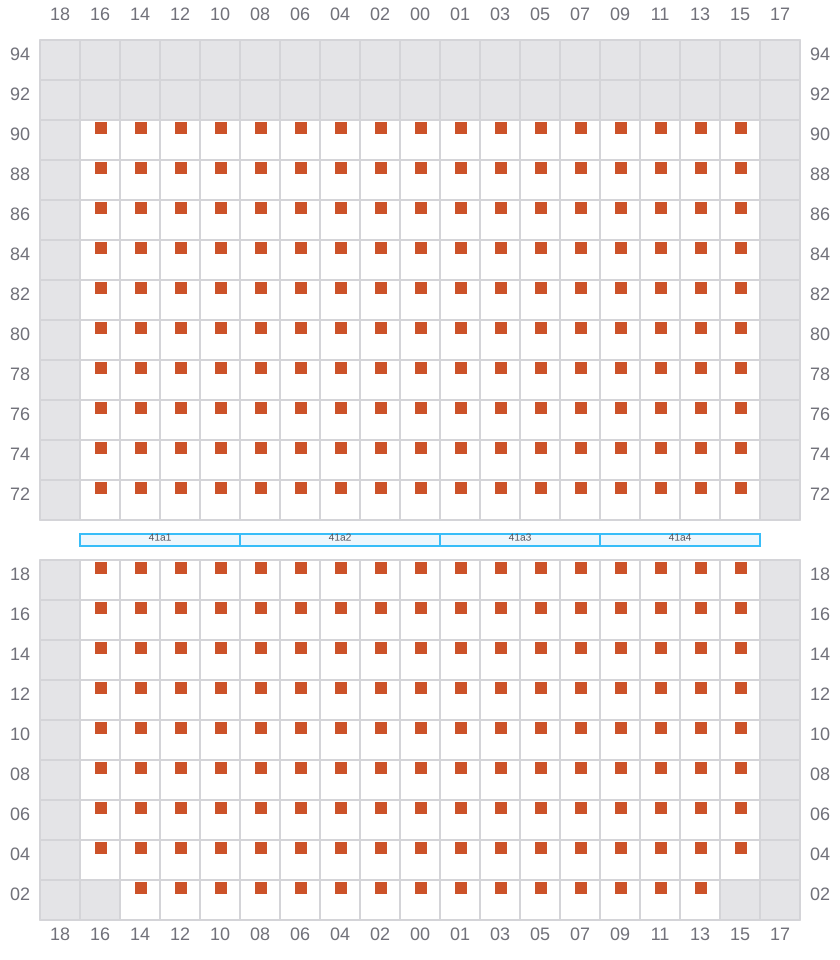

041
- →
043 (042)
- ←

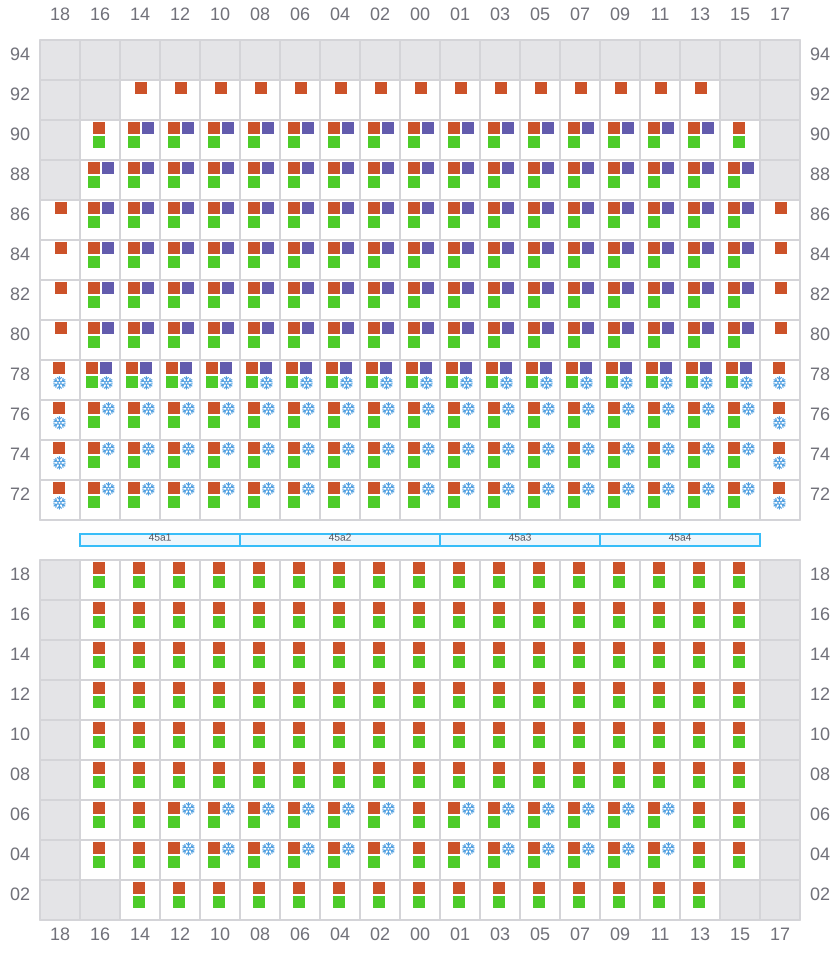

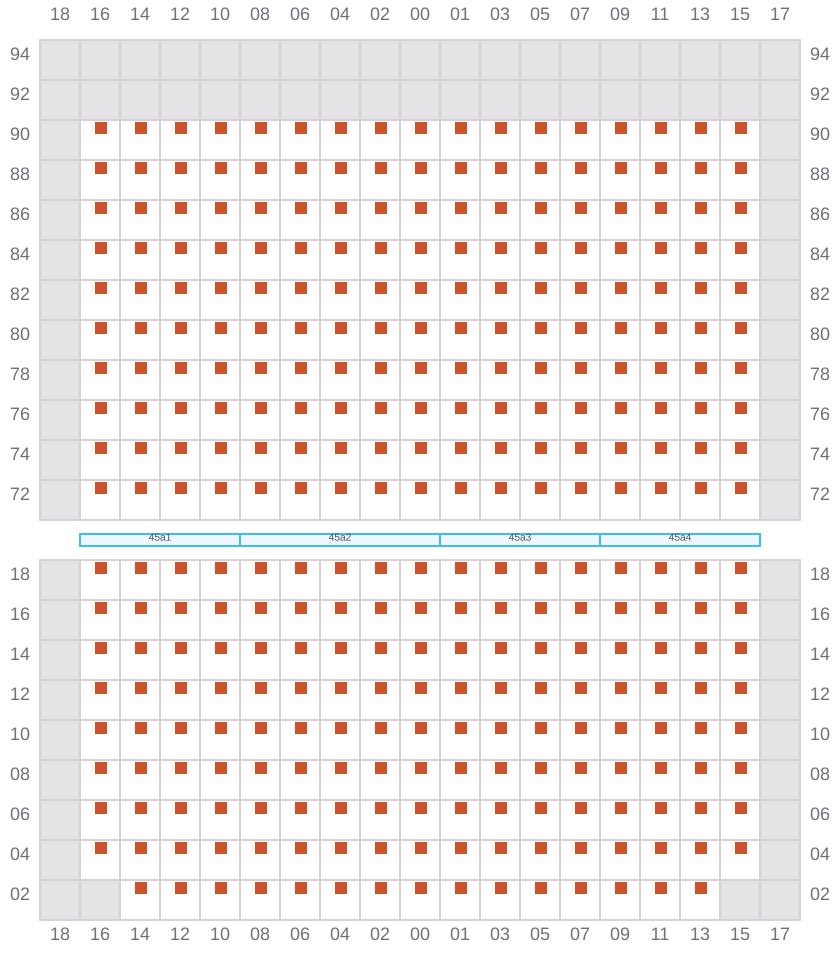

045
- →
047 (046)
- ←

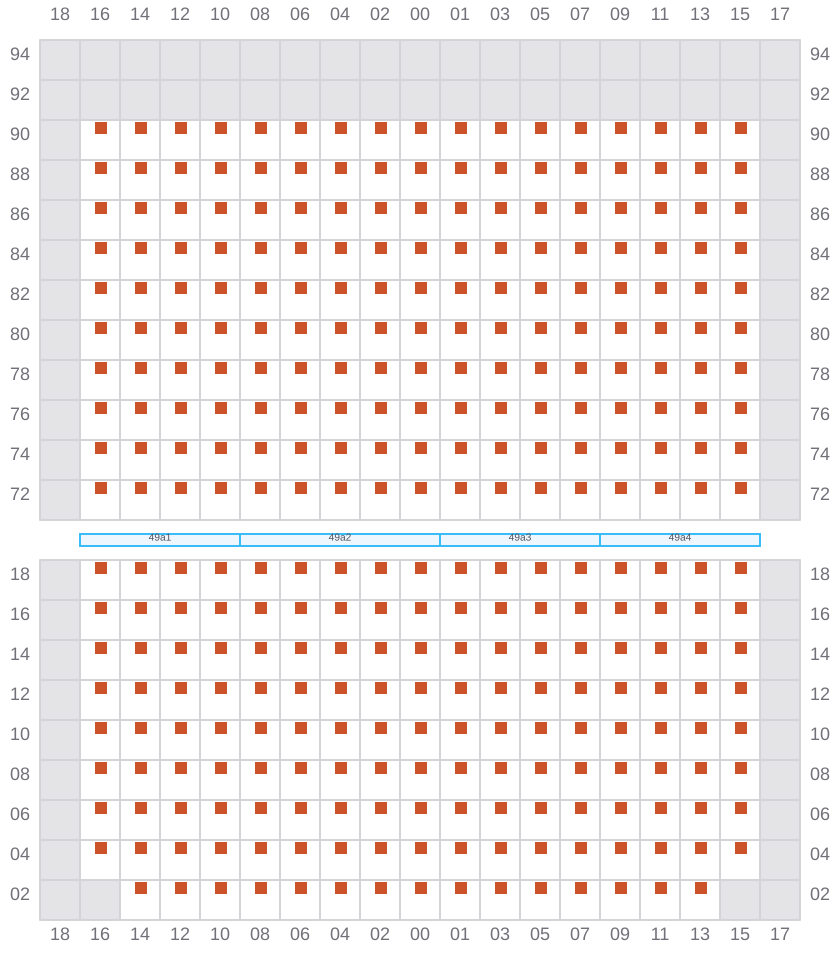

049
- →
051 (050)
- ←

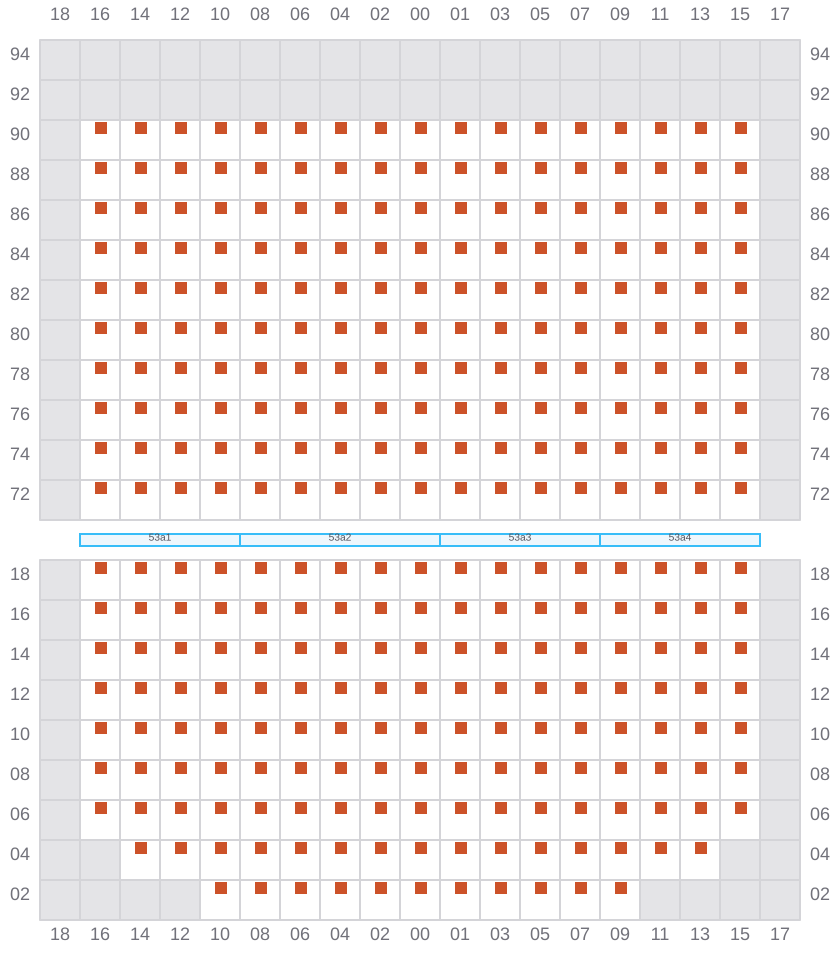

053
- →

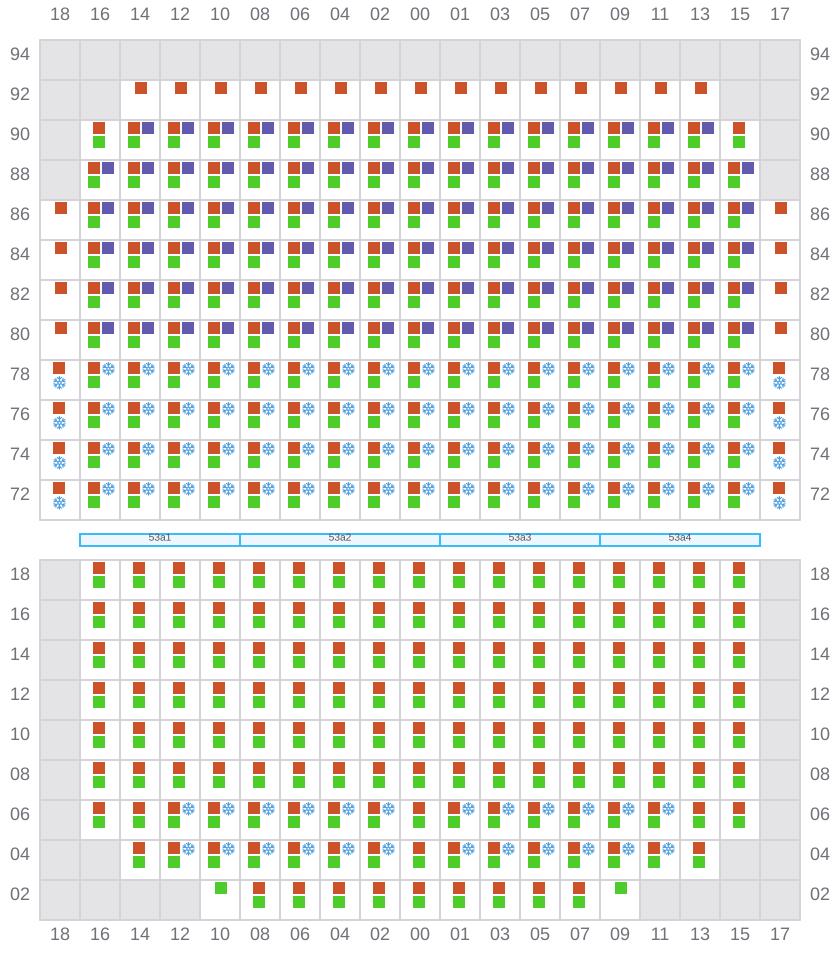

055 (054)
- ←

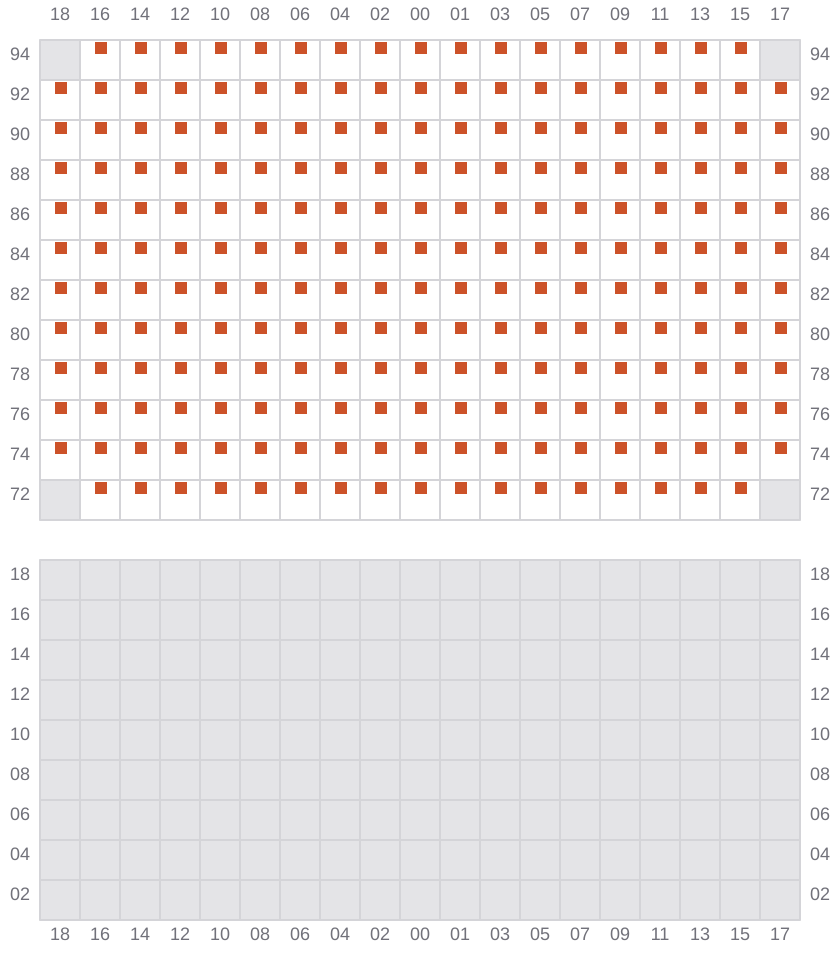

057
- → / ?
059
- →
061 (060)
- ←

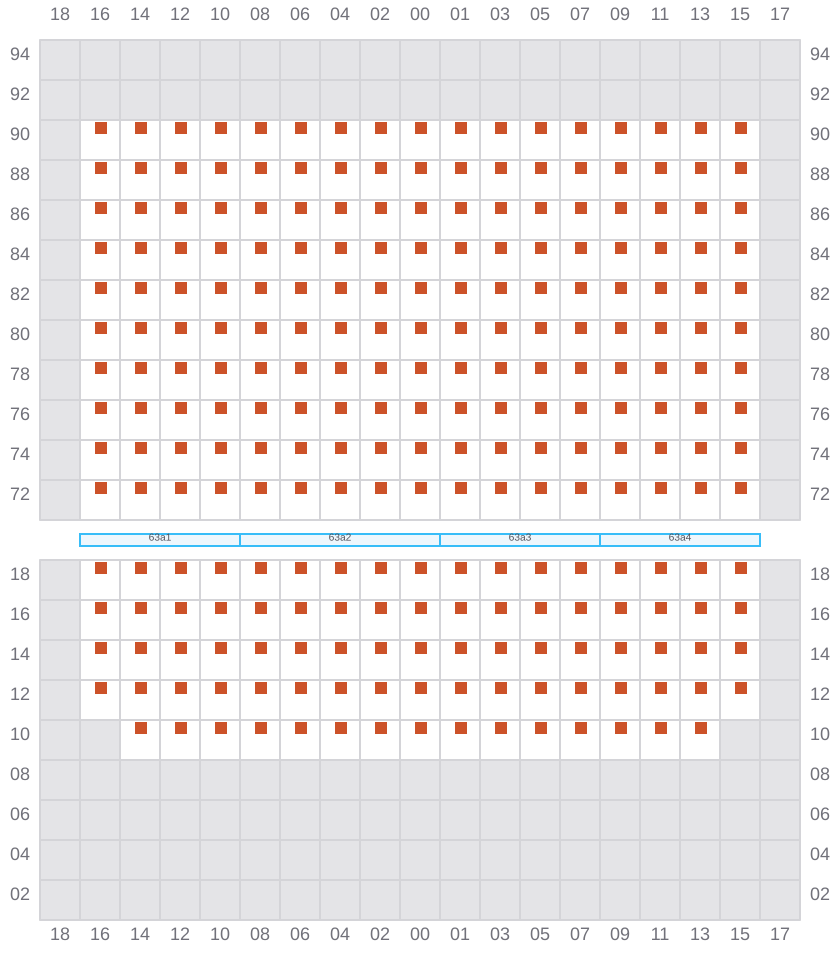

063
- →

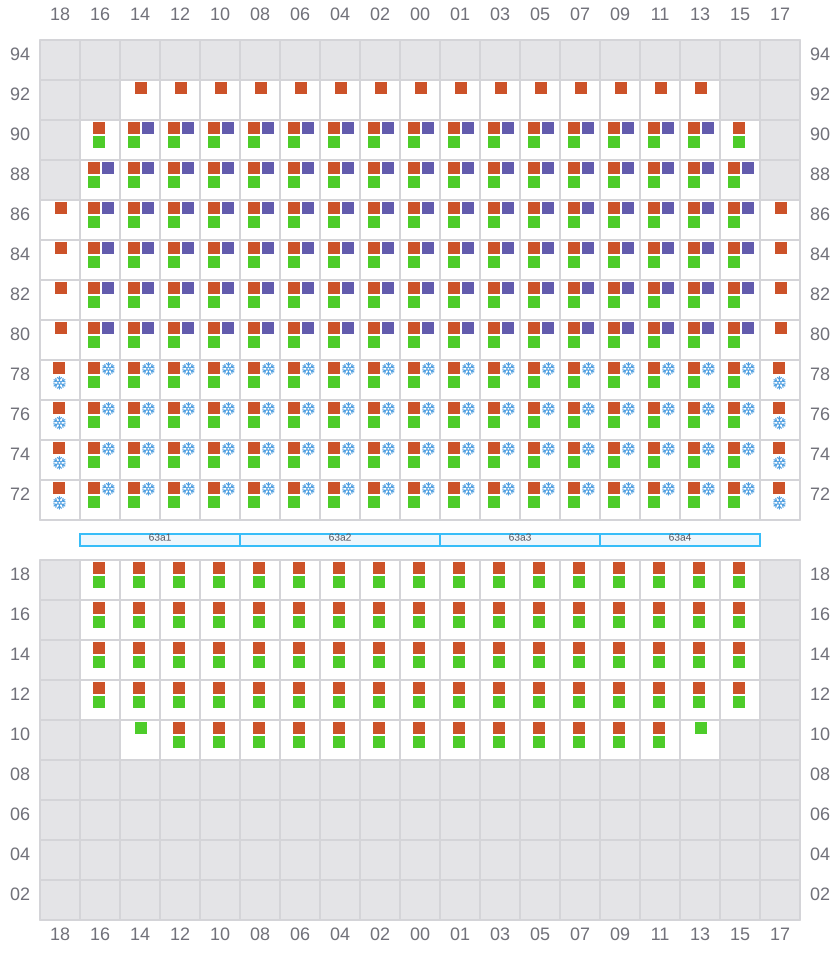

065 (064)
- ←

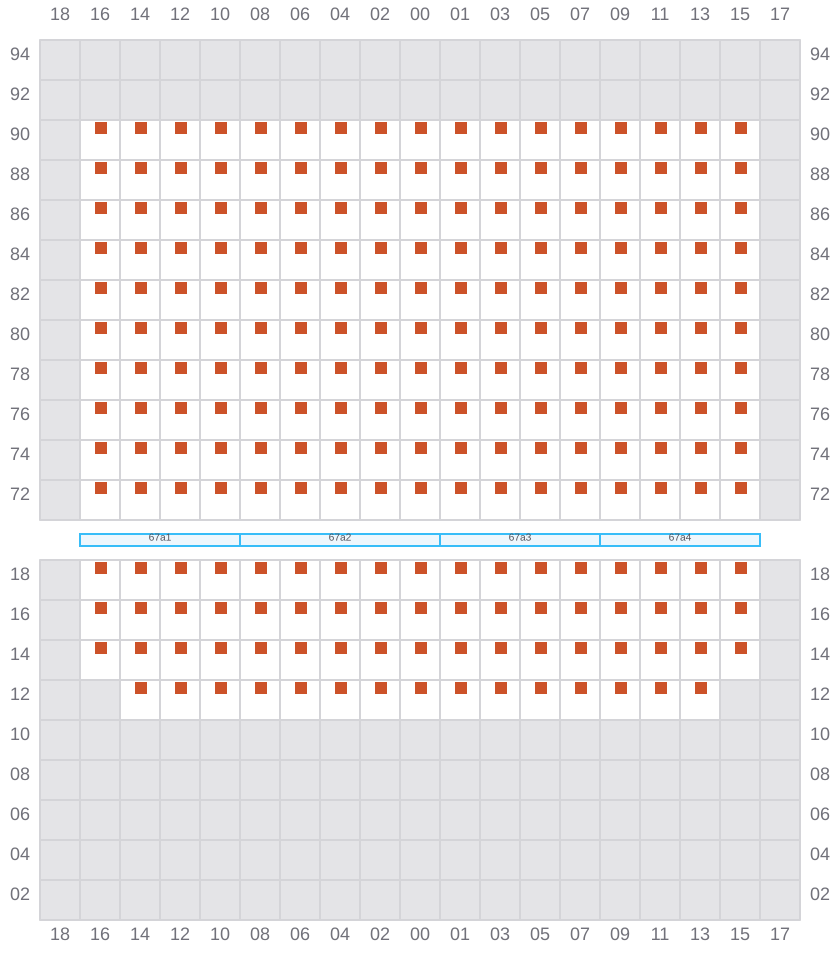

067
- →
069 (068)
- ←

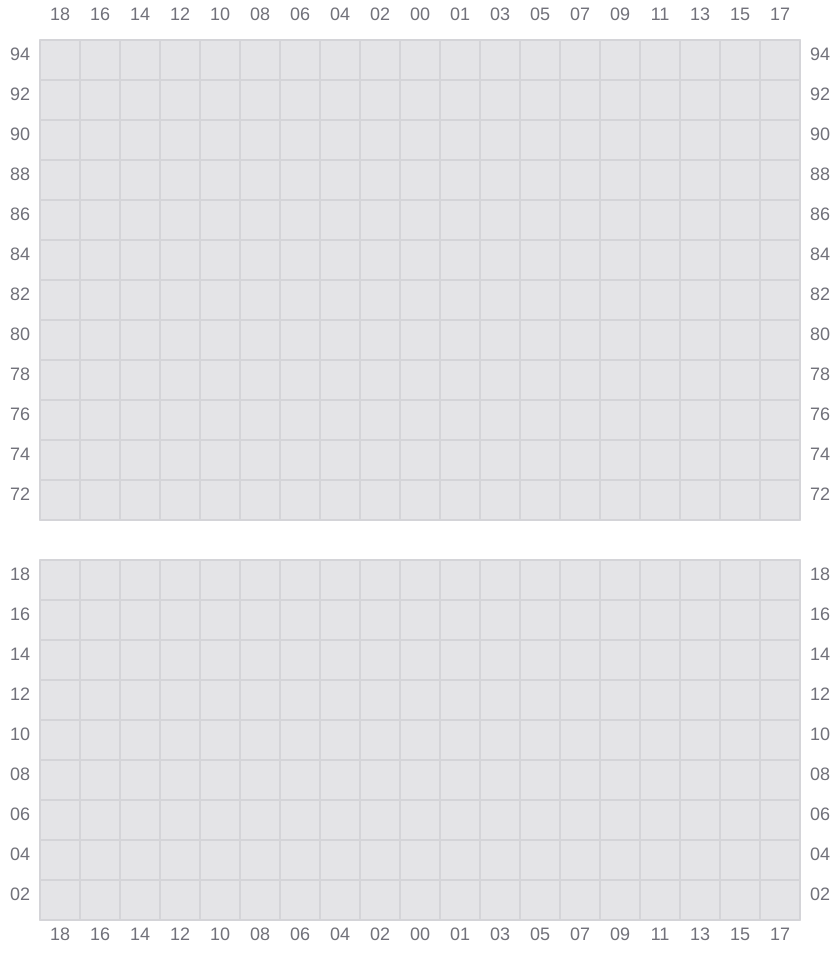

071
- →
073 (072)
- ←
