MSC GIADA III
9232773 | A8HE4 | 9232773 by ********* Last update: Wed Jul 24 2024

General Info

Ship Name:MSC GIADA III
IMO Code:9232773
Call Sign:A8HE4
Line Operator:9232773
Class Name for Sister Ships:CSV
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:059
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,045

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MSC GIADA III

Hatch-Covers View

Deck view of MSC GIADA III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

Bay 001 view and slots of MSC GIADA III

003 (004)

  • →
Bay 003 view and slots of MSC GIADA III

005

  • ←
  • → / ?
Bay 005 view and slots of MSC GIADA III

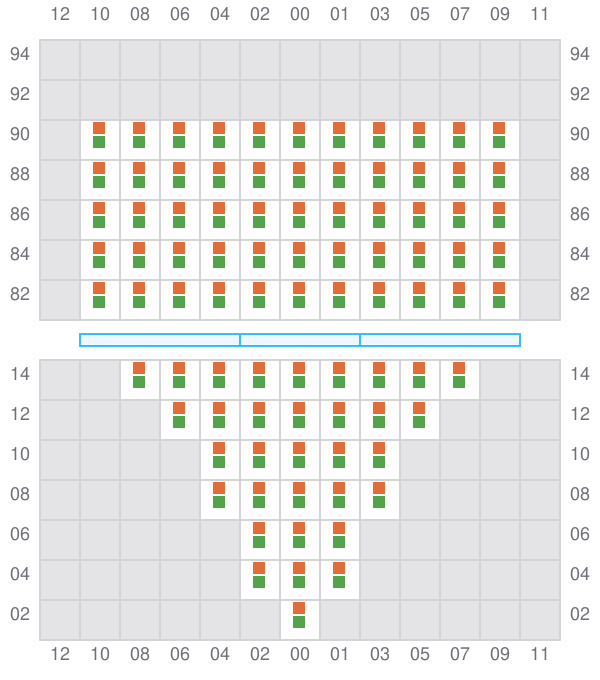

007 (008)

  • →
Bay 007 view and slots of MSC GIADA III

009

  • ←
  • → / ?
Bay 009 view and slots of MSC GIADA III

011 (012)

  • →
Bay 011 view and slots of MSC GIADA III

013

  • ←
  • →
Bay 013 view and slots of MSC GIADA III

015 (016)

  • →
Bay 015 view and slots of MSC GIADA III

017

  • ←
  • →
Bay 017 view and slots of MSC GIADA III

019 (020)

  • →
Bay 019 view and slots of MSC GIADA III

021

  • ←
  • →
Bay 021 view and slots of MSC GIADA III

023 (024)

  • →
Bay 023 view and slots of MSC GIADA III

025

  • ←
  • →
Bay 025 view and slots of MSC GIADA III

027 (028)

  • →
Bay 027 view and slots of MSC GIADA III

029

  • ←
  • →
Bay 029 view and slots of MSC GIADA III

031 (032)

  • →
Bay 031 view and slots of MSC GIADA III

033

  • ←
  • →
Bay 033 view and slots of MSC GIADA III

035 (036)

  • →
Bay 035 view and slots of MSC GIADA III

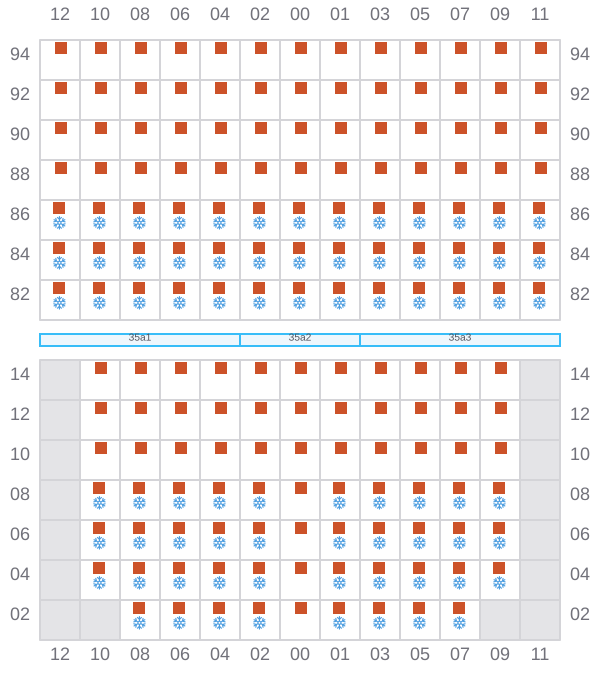

037

  • ←
  • →
Bay 037 view and slots of MSC GIADA III

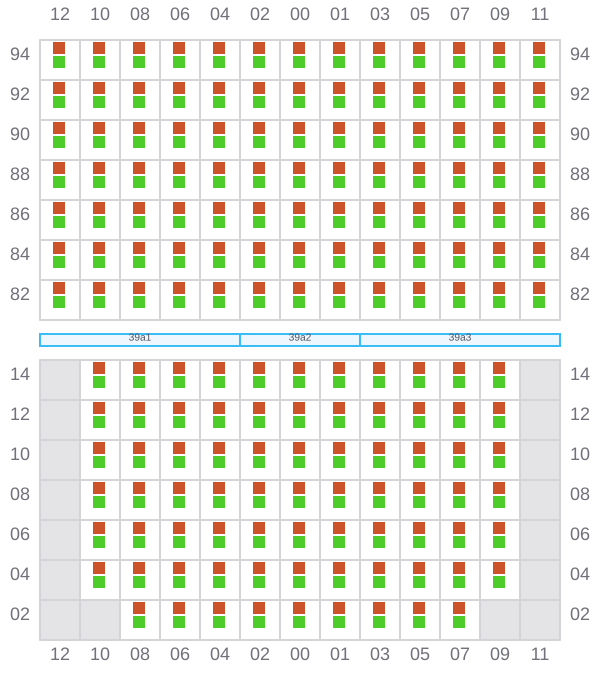

039 (040)

  • →
Bay 039 view and slots of MSC GIADA III

041

  • ←
  • →
Bay 041 view and slots of MSC GIADA III

043 (044)

  • →
Bay 043 view and slots of MSC GIADA III

045

  • ←
  • →
Bay 045 view and slots of MSC GIADA III

047 (048)

  • →
Bay 047 view and slots of MSC GIADA III

049

  • ←
  • →
Bay 049 view and slots of MSC GIADA III

051 (052)

  • → / ?
Bay 051 view and slots of MSC GIADA III

053

  • ← / ?
  • → / ?
Bay 053 view and slots of MSC GIADA III

055 (056)

  • →
Bay 055 view and slots of MSC GIADA III

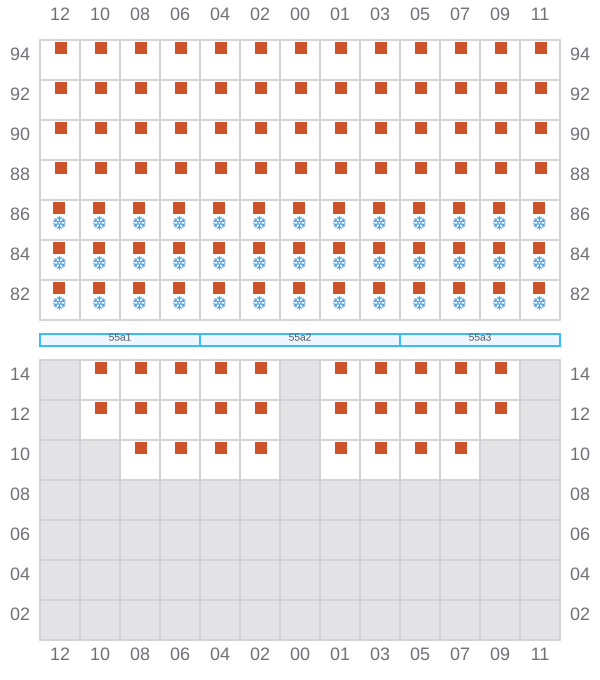

057

  • ←
  • → / ?
Bay 057 view and slots of MSC GIADA III

059 (060)

  • → / ?
  • → / ?
Bay 059 view and slots of MSC GIADA III
