MSC GINA
9202663 | 3FLY9 | MSC by ************************** Last update: Sat Jun 17 2023

General Info

Ship Name:MSC GINA
IMO Code:9202663
Call Sign:3FLY9
Line Operator:MSC
Class Name for Sister Ships:GIN
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,064

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

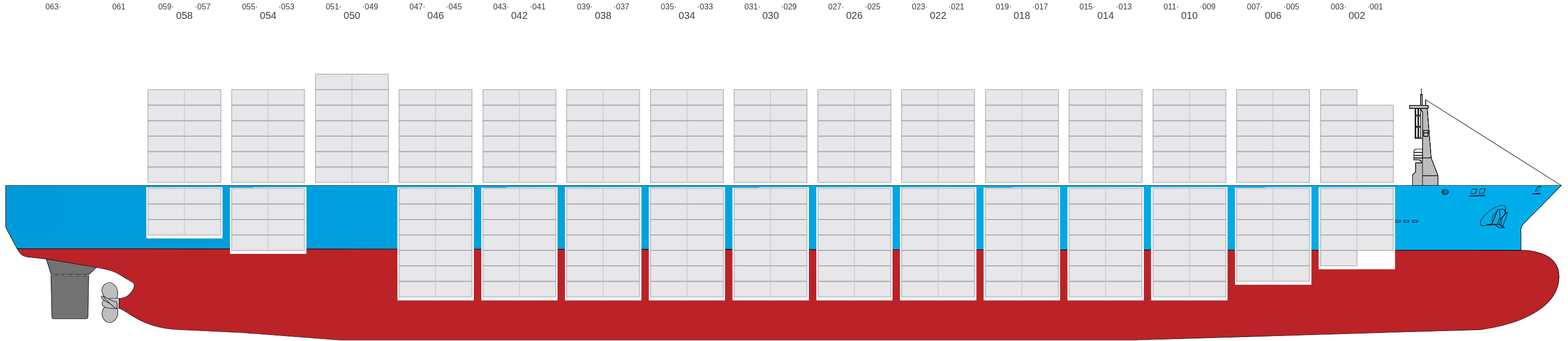

Side view of MSC GINA

Hatch-Covers View

Deck view of MSC GINA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

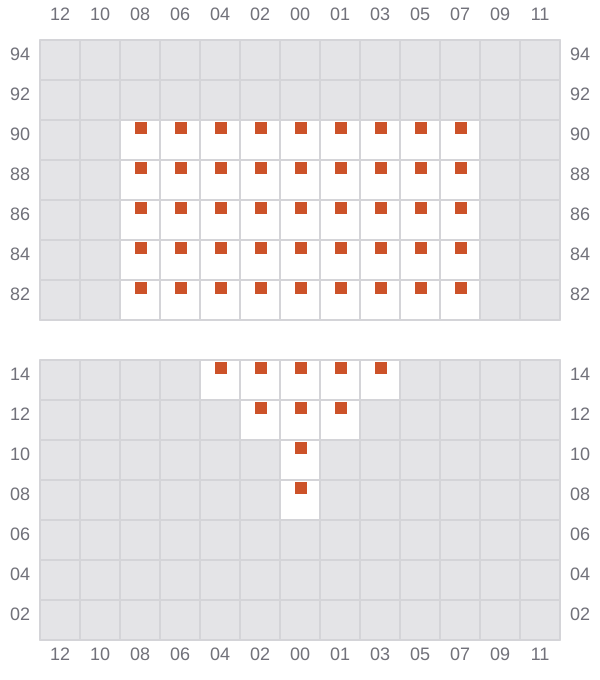

001

  • →
Bay 001 view and slots of MSC GINA

003 (002)

  • ←

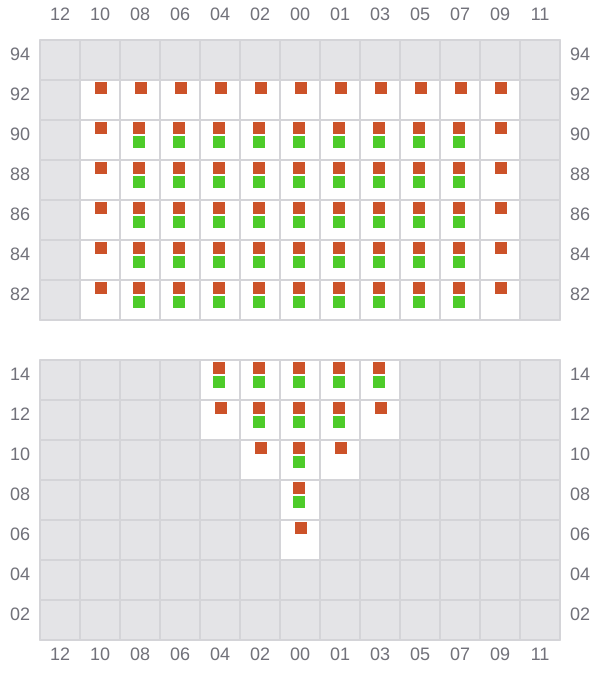

Bay 003 view and slots of MSC GINA

005

  • →

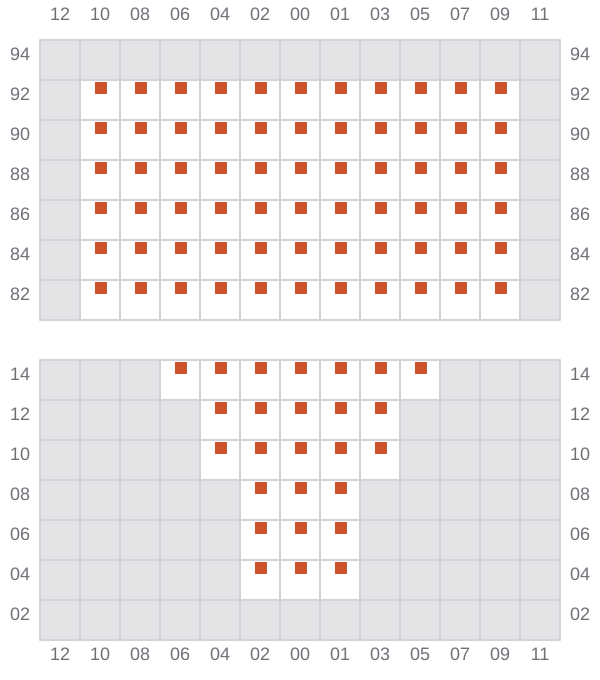

Bay 005 view and slots of MSC GINA

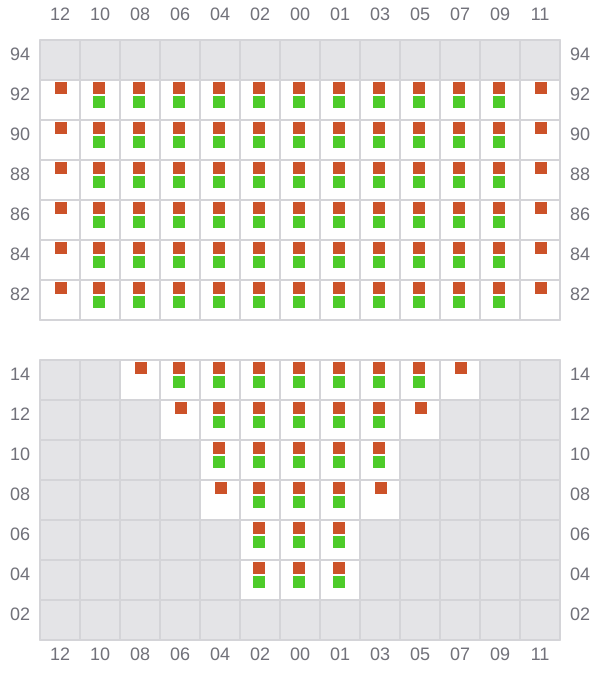

007 (006)

  • ←
Bay 007 view and slots of MSC GINA

009

  • →
Bay 009 view and slots of MSC GINA

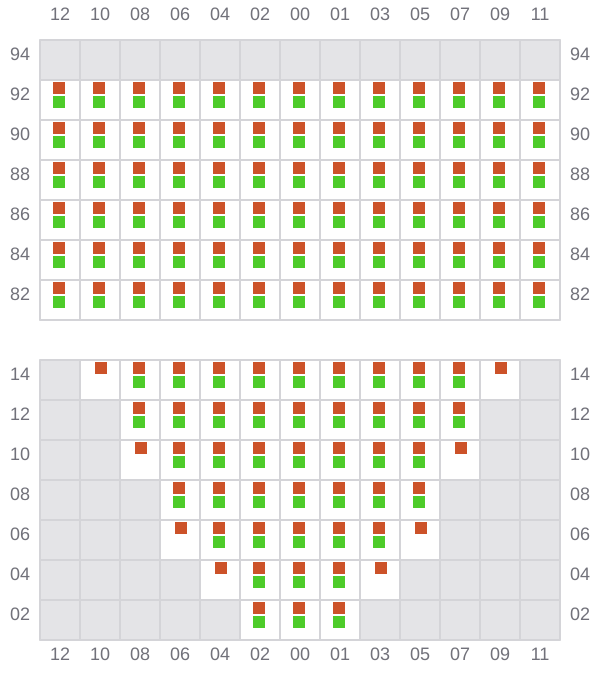

011 (010)

  • ←
Bay 011 view and slots of MSC GINA

013

  • →

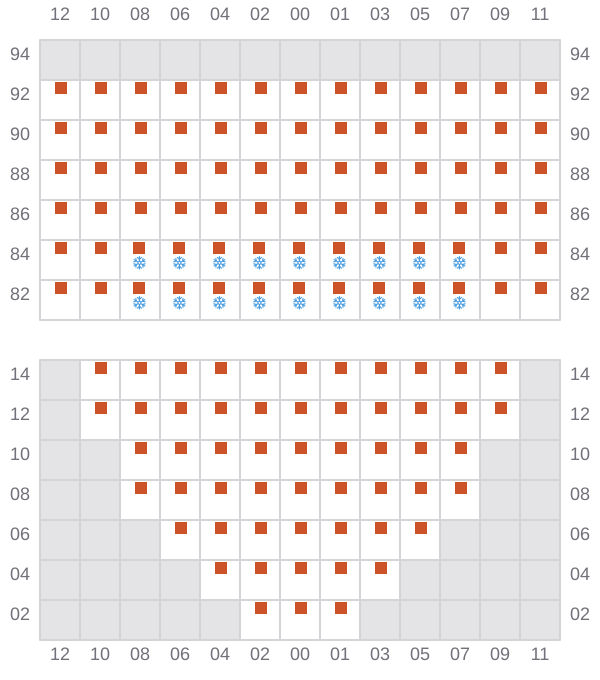

Bay 013 view and slots of MSC GINA

015 (014)

  • ←

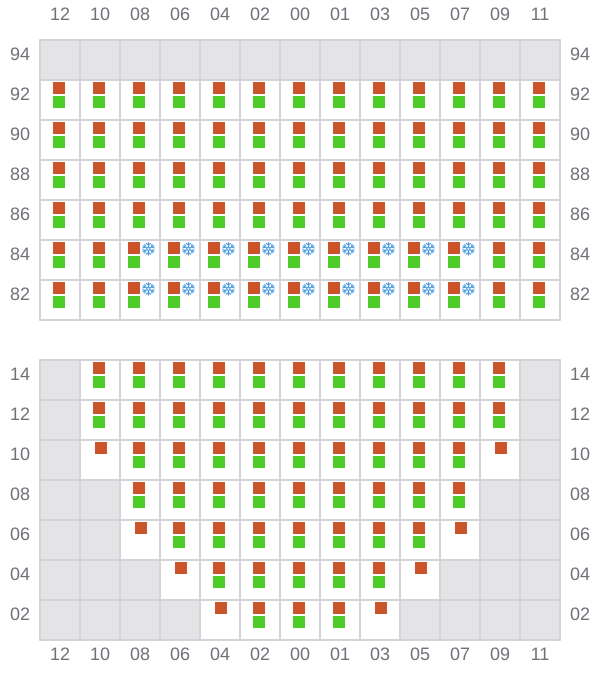

Bay 015 view and slots of MSC GINA

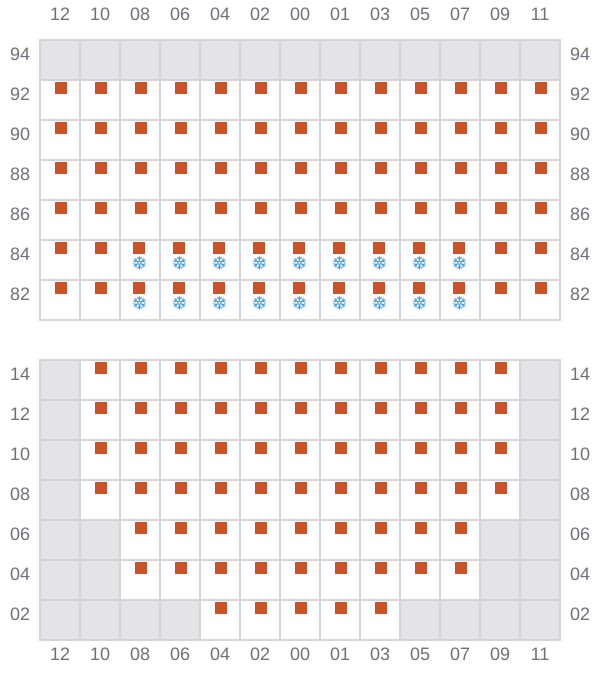

017

  • →
Bay 017 view and slots of MSC GINA

019 (018)

  • ←

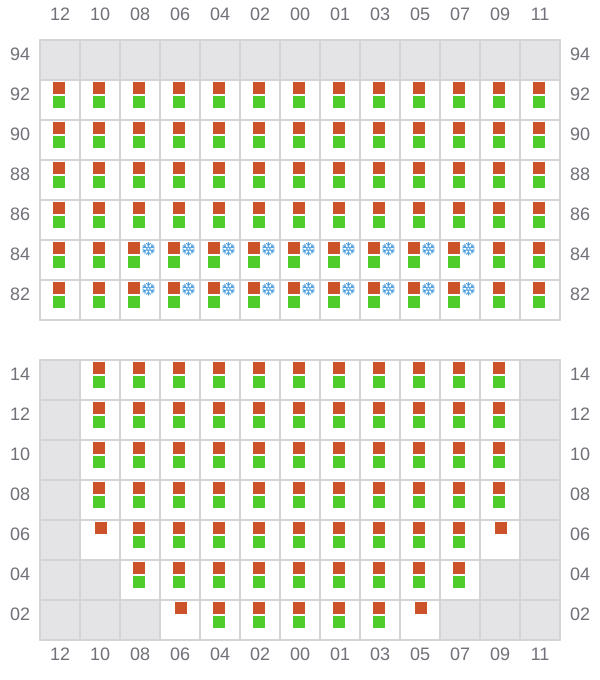

Bay 019 view and slots of MSC GINA

021

  • →
Bay 021 view and slots of MSC GINA

023 (022)

  • ←

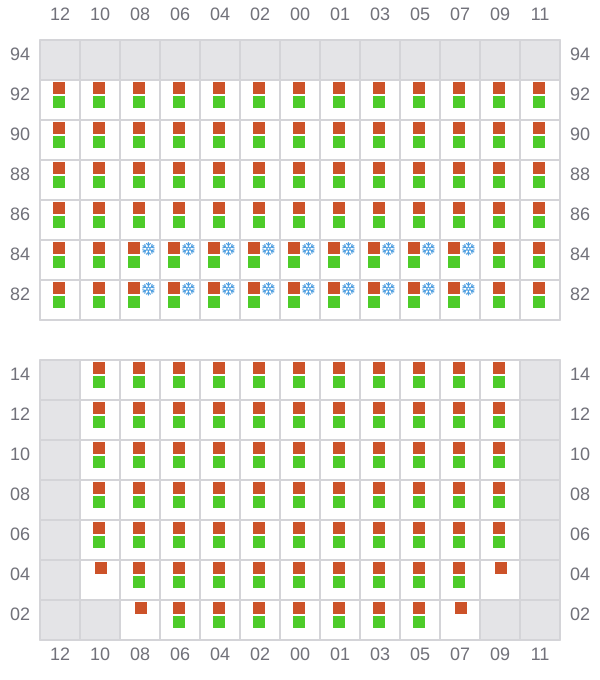

Bay 023 view and slots of MSC GINA

025

  • →
Bay 025 view and slots of MSC GINA

027 (026)

  • ←

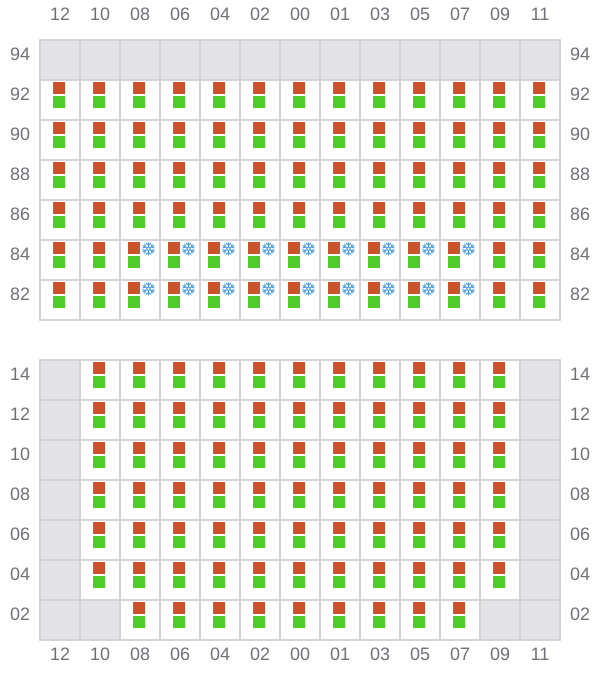

Bay 027 view and slots of MSC GINA

029

  • →
Bay 029 view and slots of MSC GINA

031 (030)

  • ←
Bay 031 view and slots of MSC GINA

033

  • →
Bay 033 view and slots of MSC GINA

035 (034)

  • ←
Bay 035 view and slots of MSC GINA

037

  • →

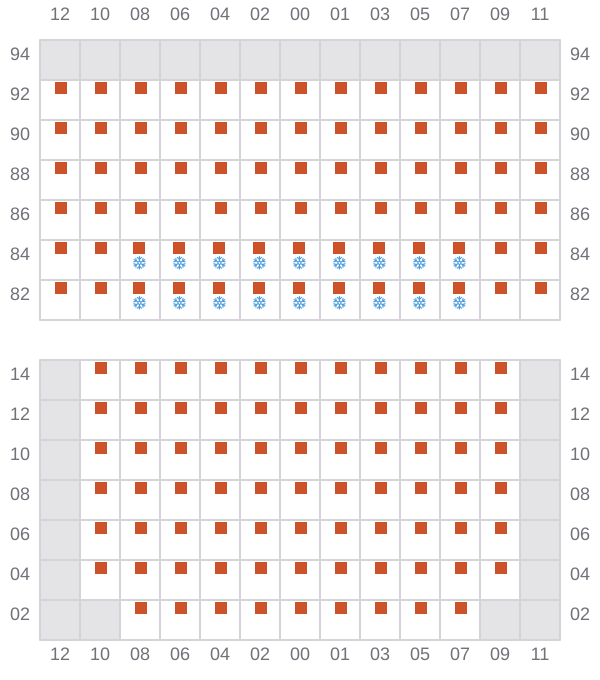

Bay 037 view and slots of MSC GINA

039 (038)

  • ←
Bay 039 view and slots of MSC GINA

041

  • →
Bay 041 view and slots of MSC GINA

043 (042)

  • ←

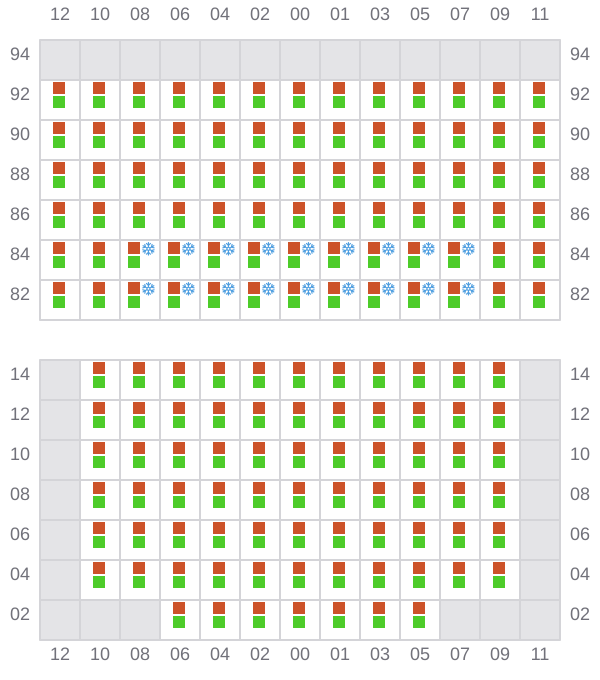

Bay 043 view and slots of MSC GINA

045

  • →
Bay 045 view and slots of MSC GINA

047 (046)

  • ←
Bay 047 view and slots of MSC GINA

049

  • → / ?

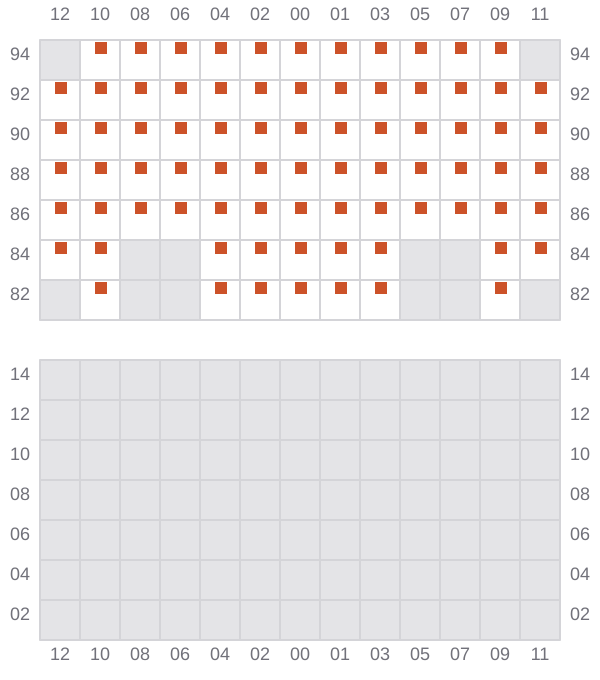

Bay 049 view and slots of MSC GINA

051 (050)

  • ← / ?

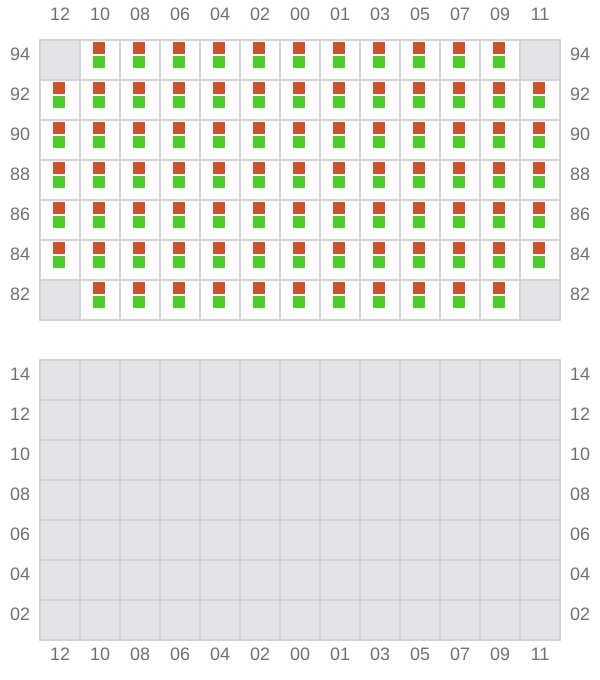

Bay 051 view and slots of MSC GINA

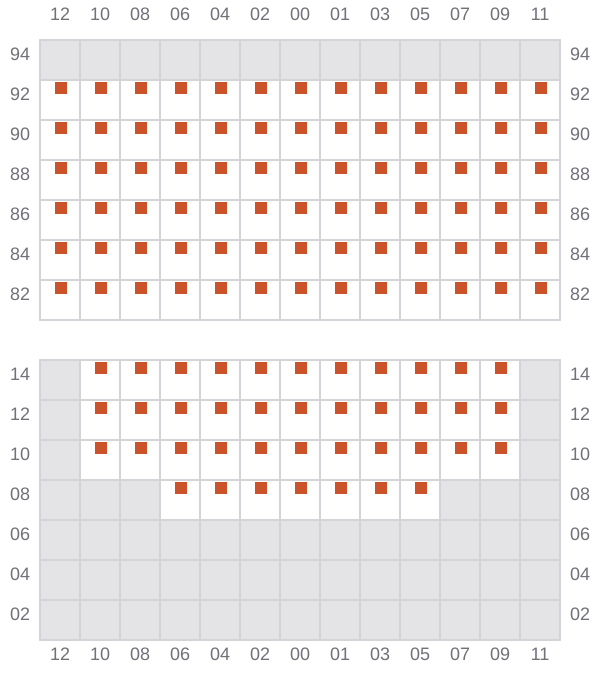

053

  • →
Bay 053 view and slots of MSC GINA

055 (054)

  • ←

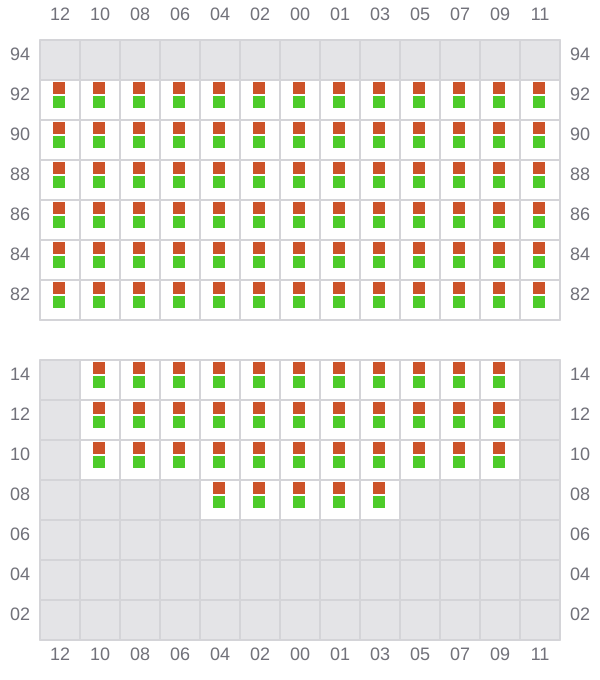

Bay 055 view and slots of MSC GINA

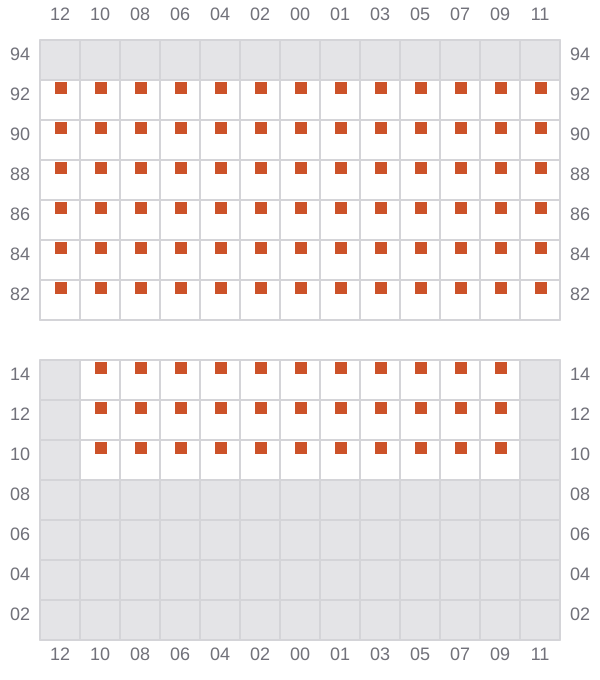

057

  • →
Bay 057 view and slots of MSC GINA

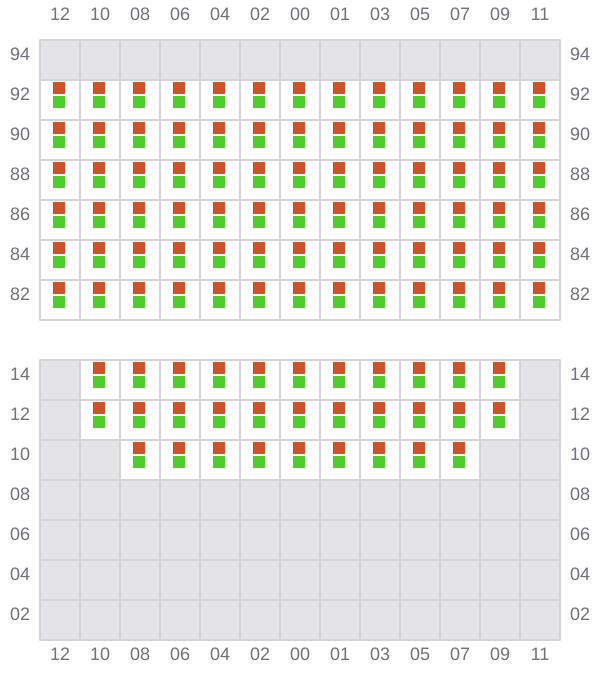

059 (058)

  • ←
Bay 059 view and slots of MSC GINA

061

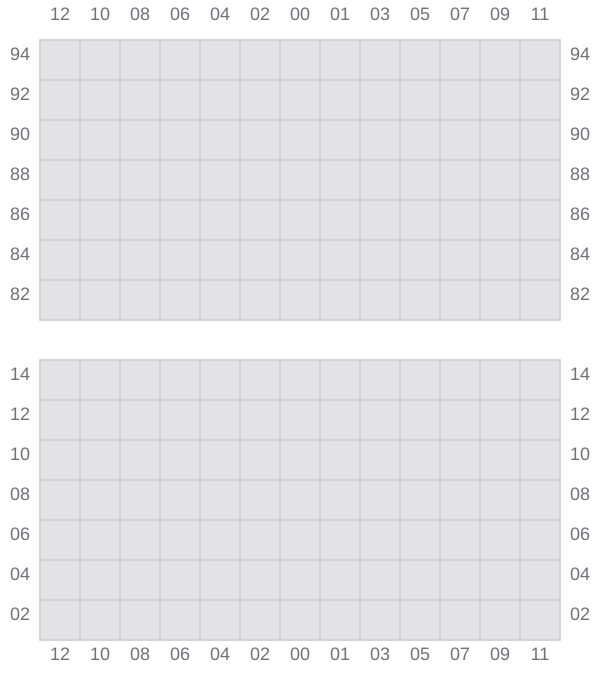

Bay 061 view and slots of MSC GINA

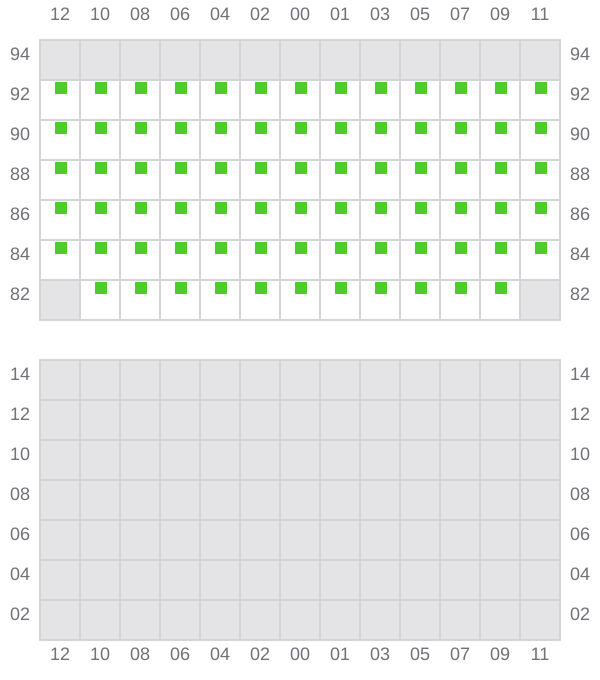

063 (062)

  • ← / ?
Bay 063 view and slots of MSC GINA
