MSC GISELLE
9720196 | CQEY5 | 9720196 by ********* Last update: Wed Jun 05 2024
General Info
Ship Name:MSC GISELLE
IMO Code:9720196
Call Sign:CQEY5
Line Operator:9720196
Class Name for Sister Ships:MSC GISELLE
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.30
LOA (Length Overall):299.82
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,441
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

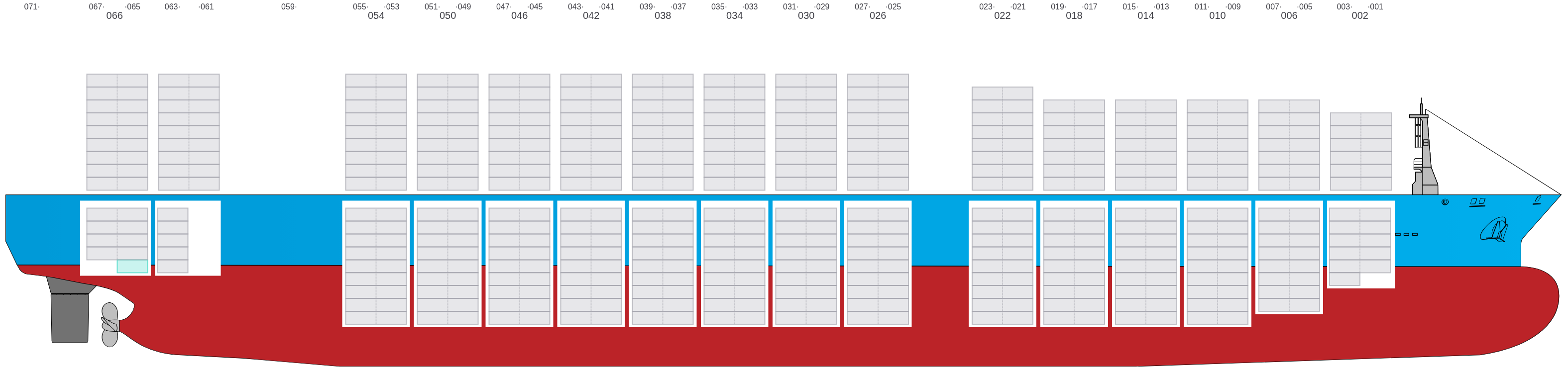

Side View

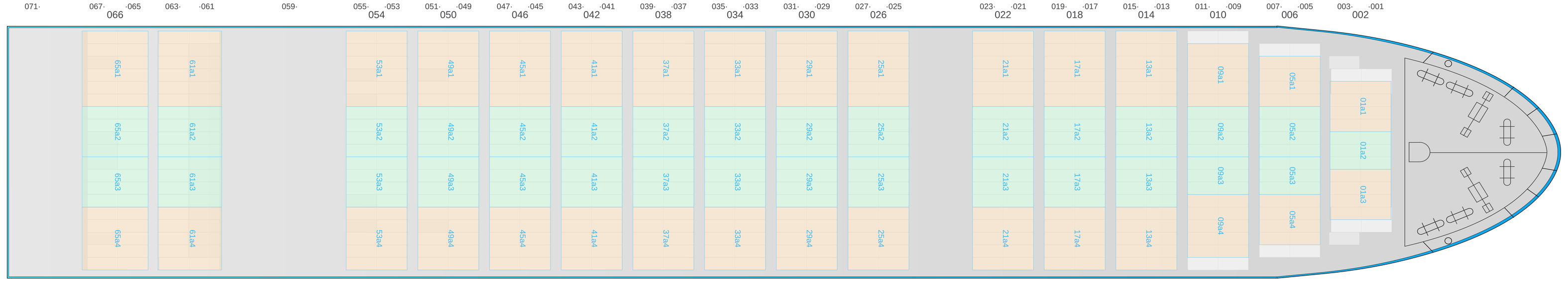

Hatch-Covers View

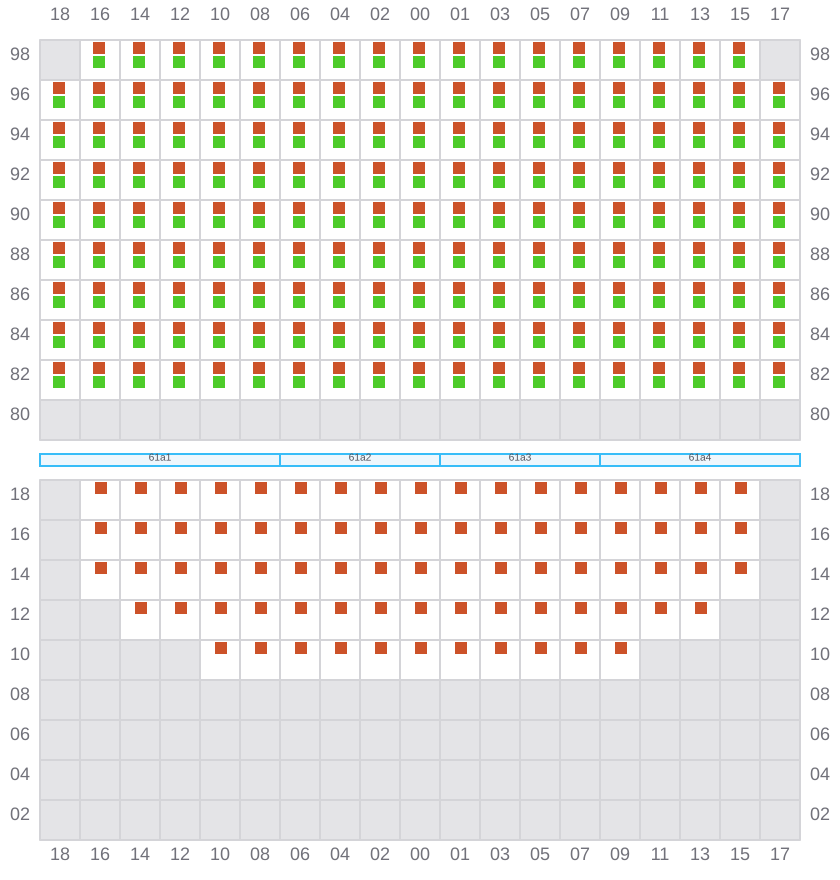

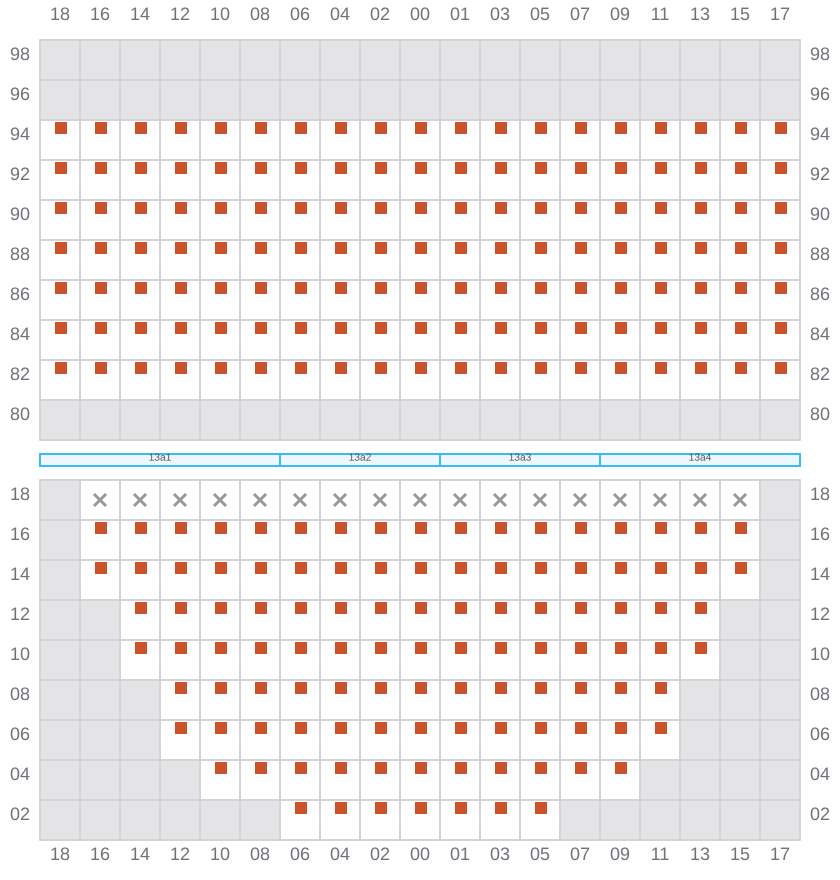

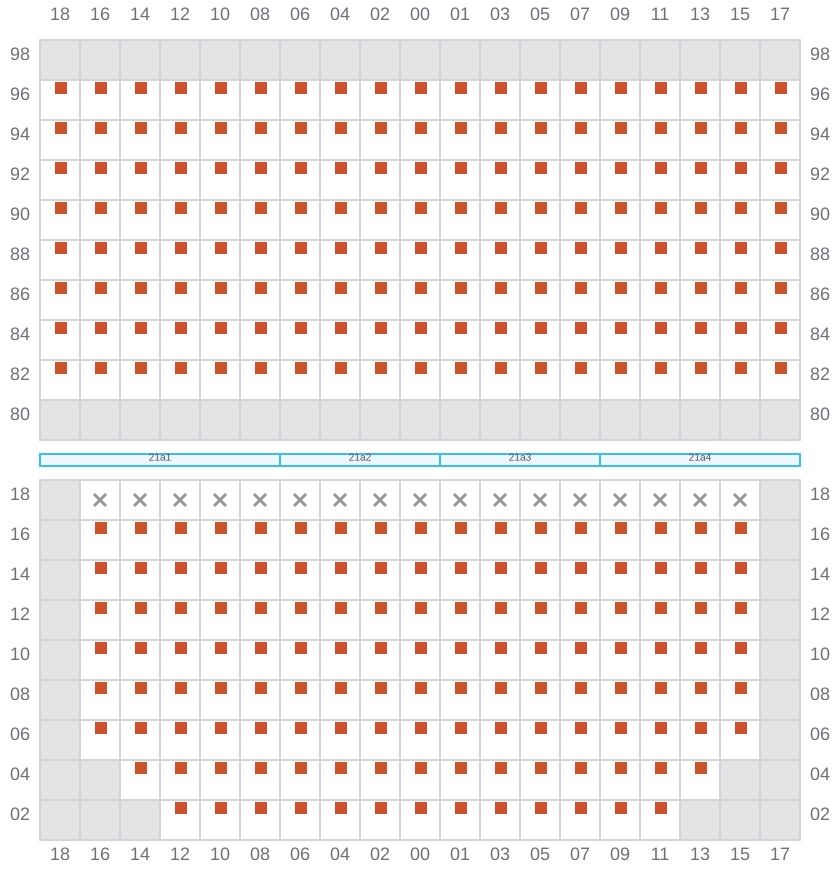

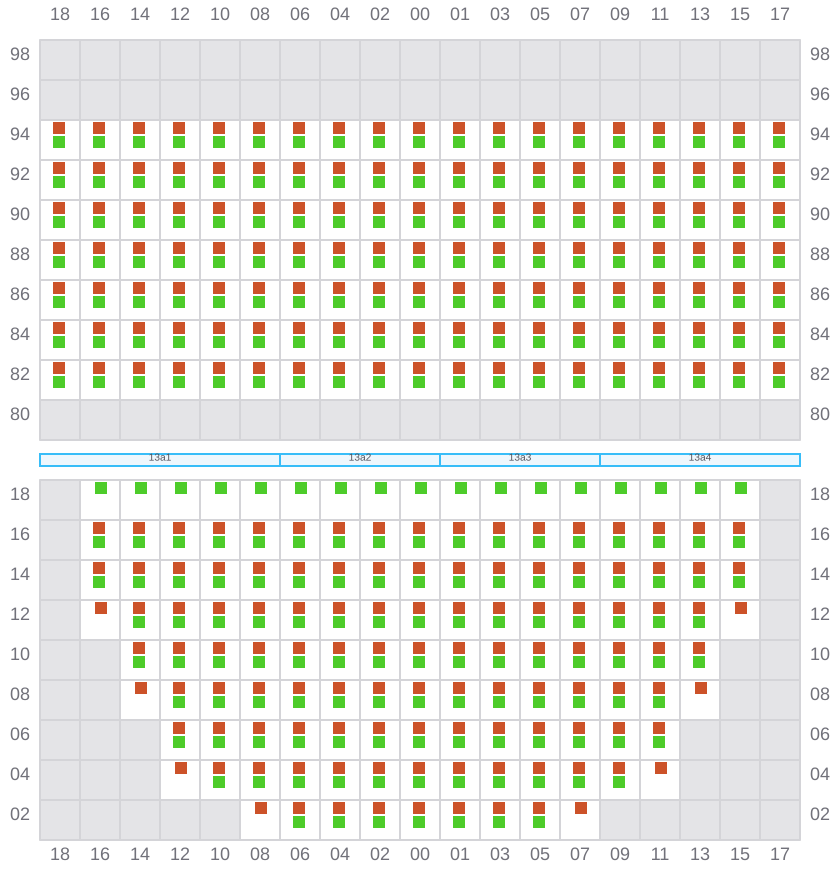

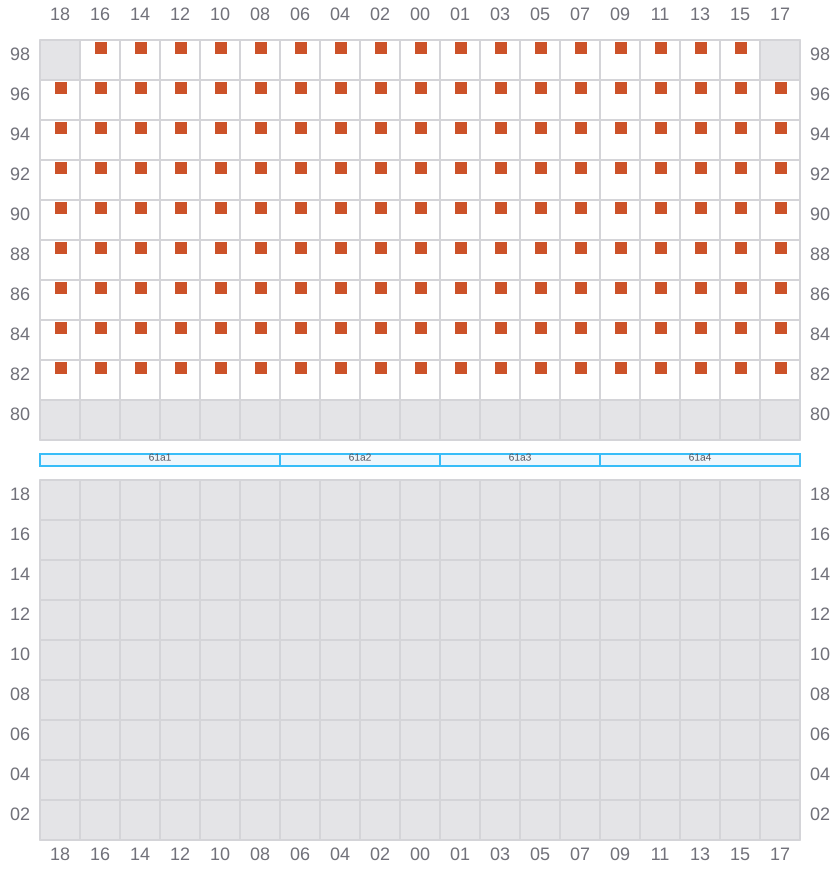

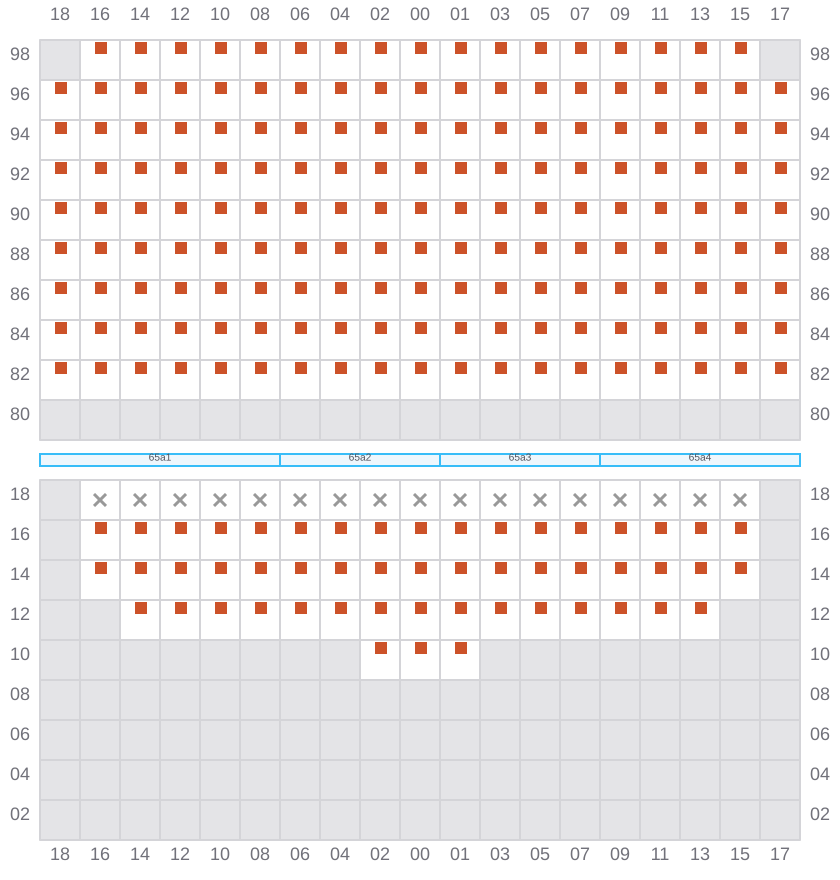

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

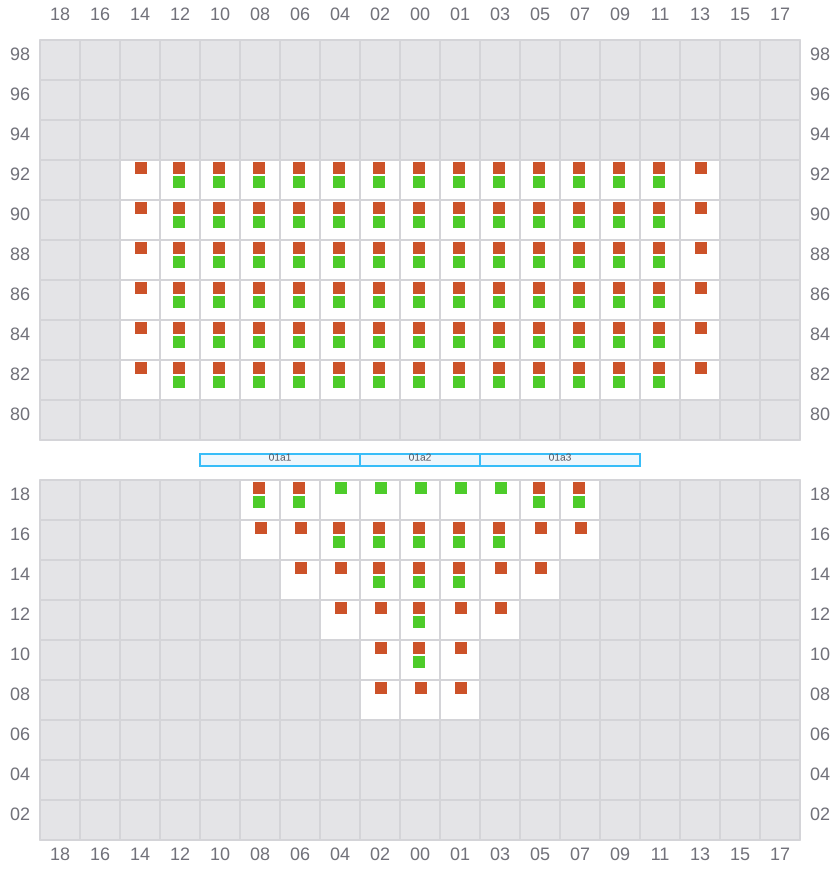

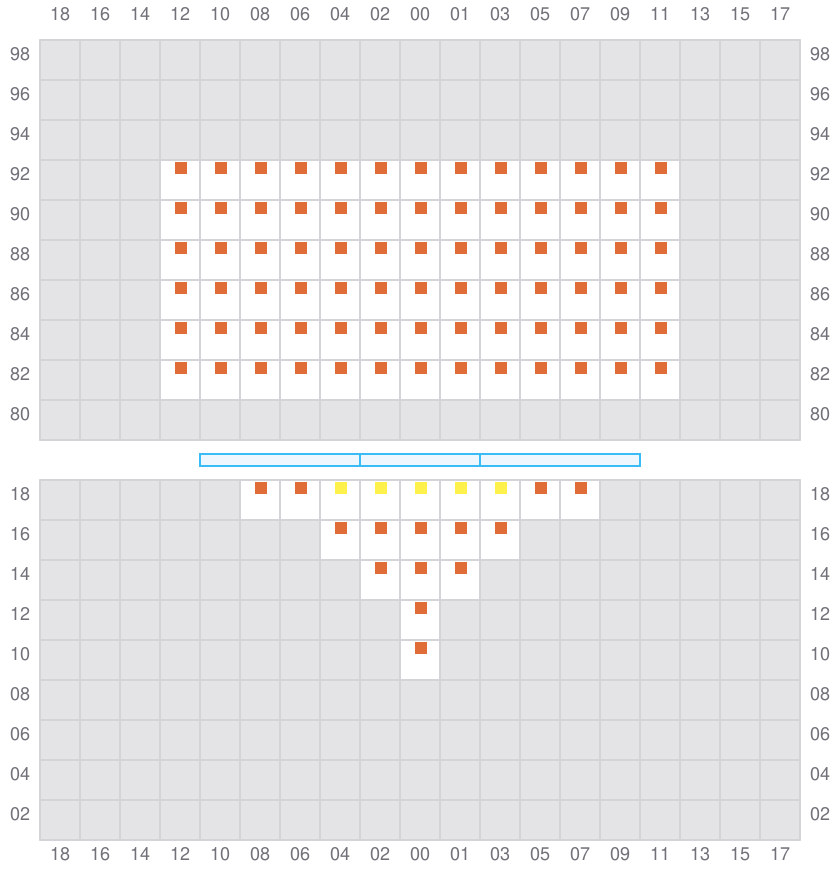

001
- →
003 (002)
- ←

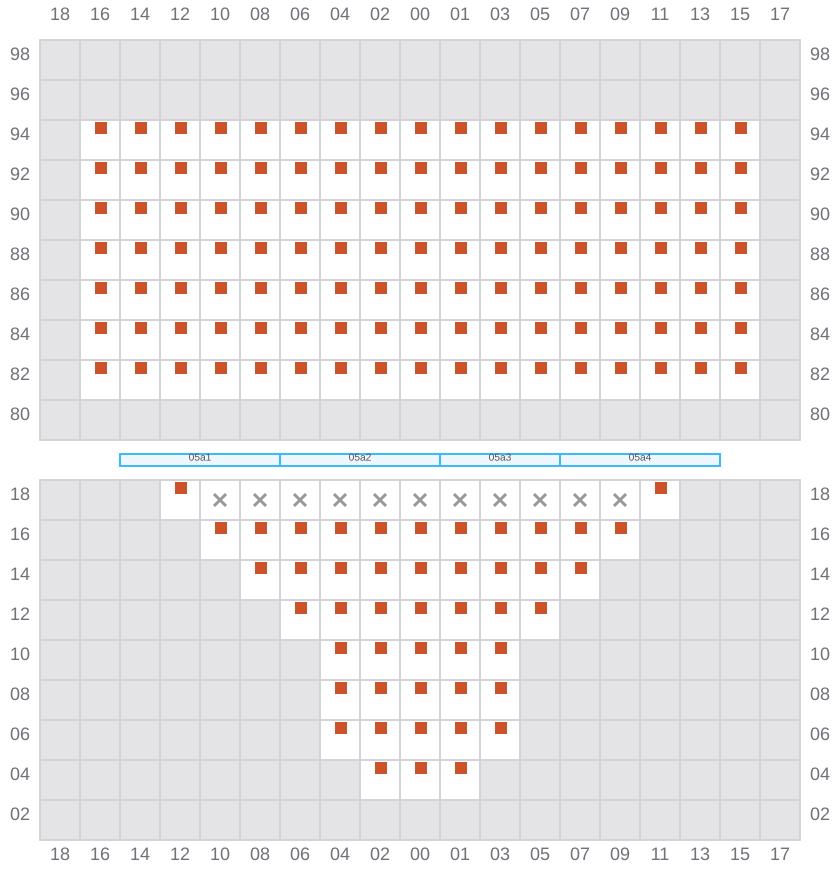

005
- →

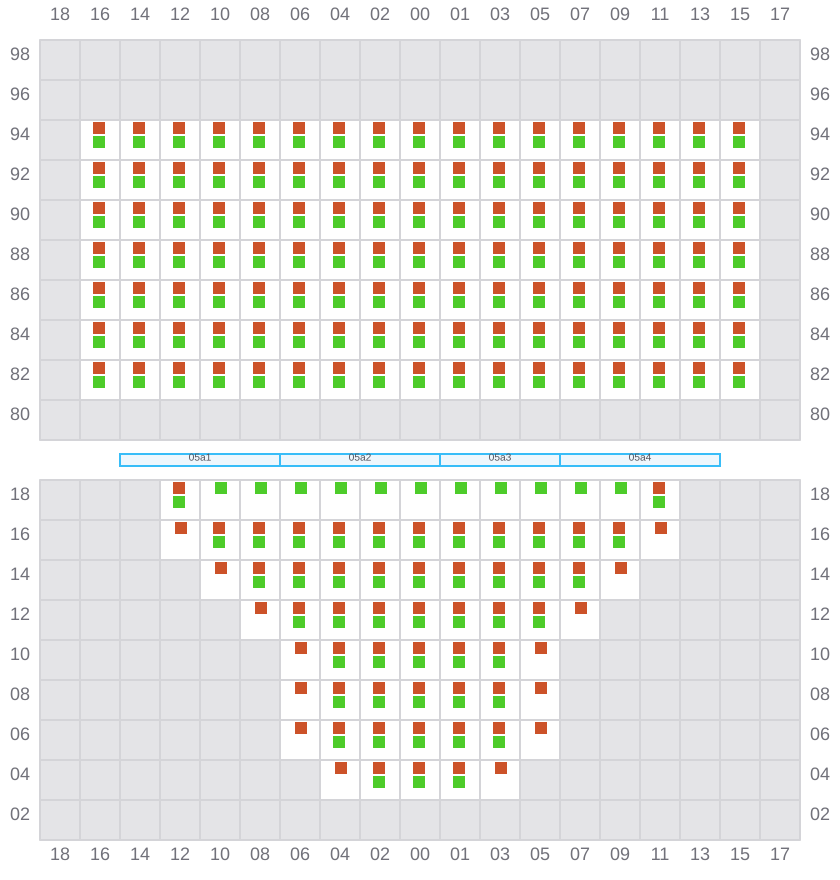

007 (006)
- ←

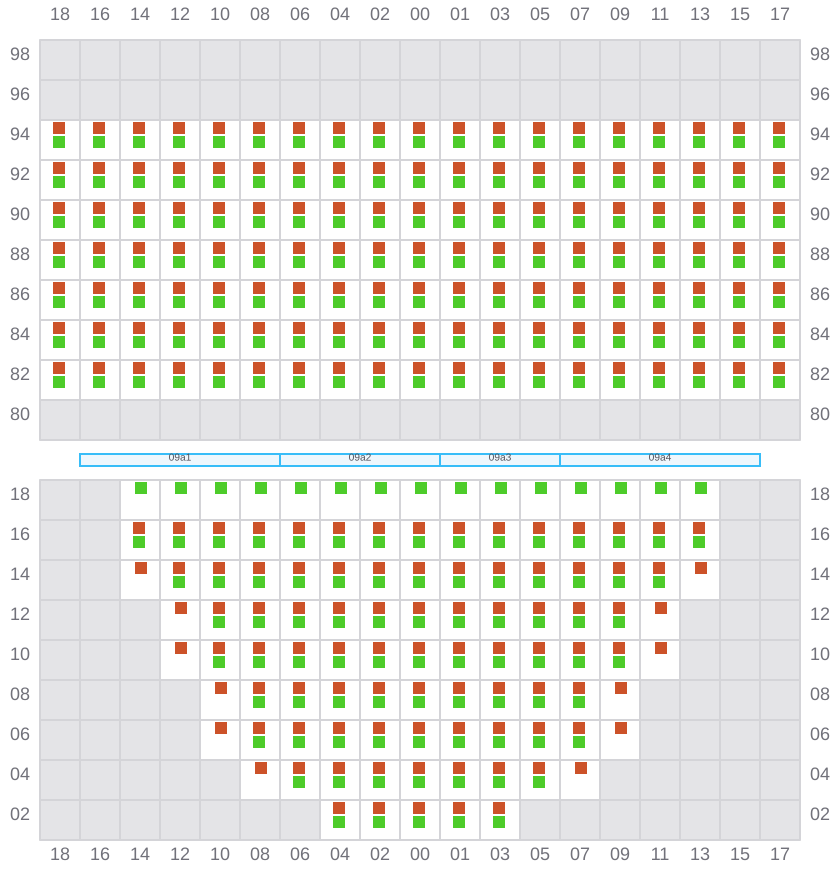

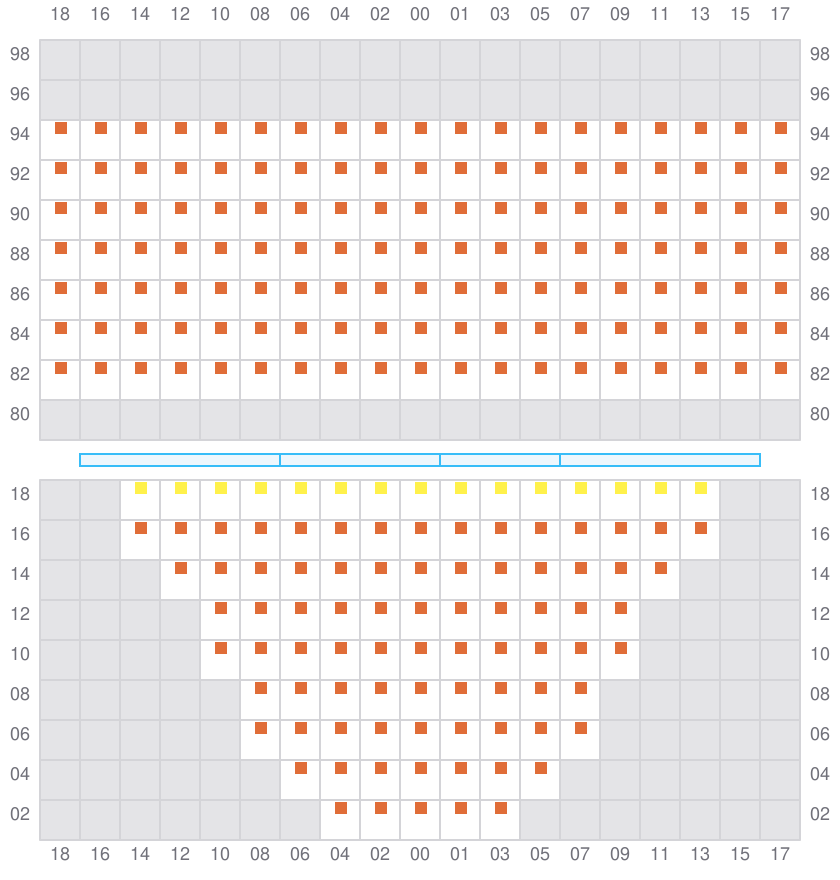

009
- →
011 (010)
- ←
013
- →
015 (014)
- ←

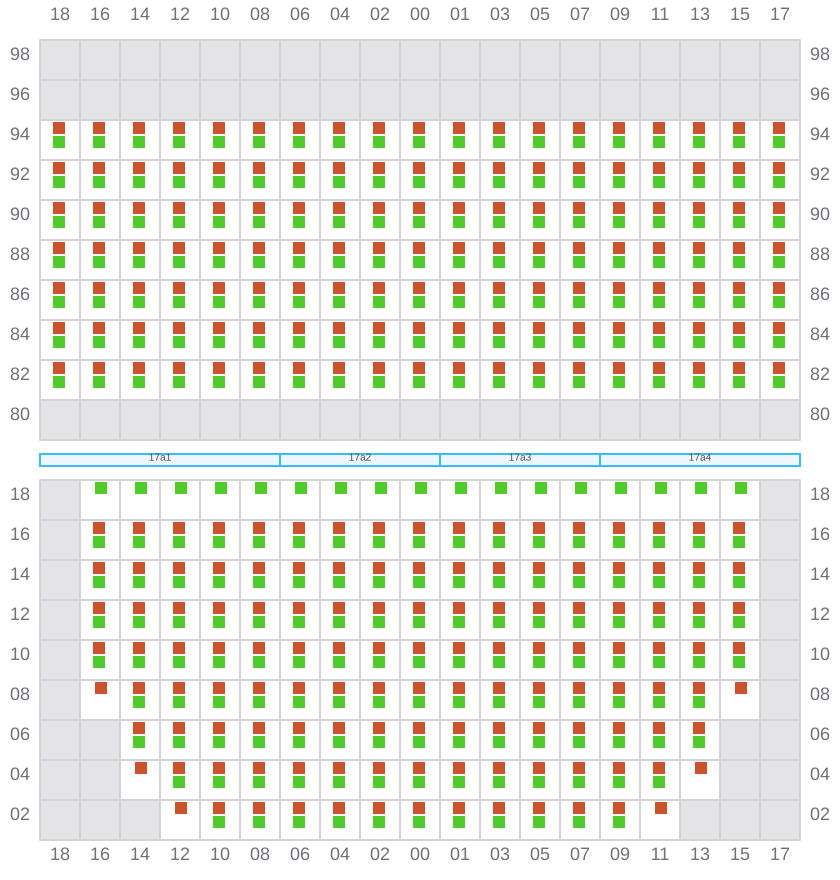

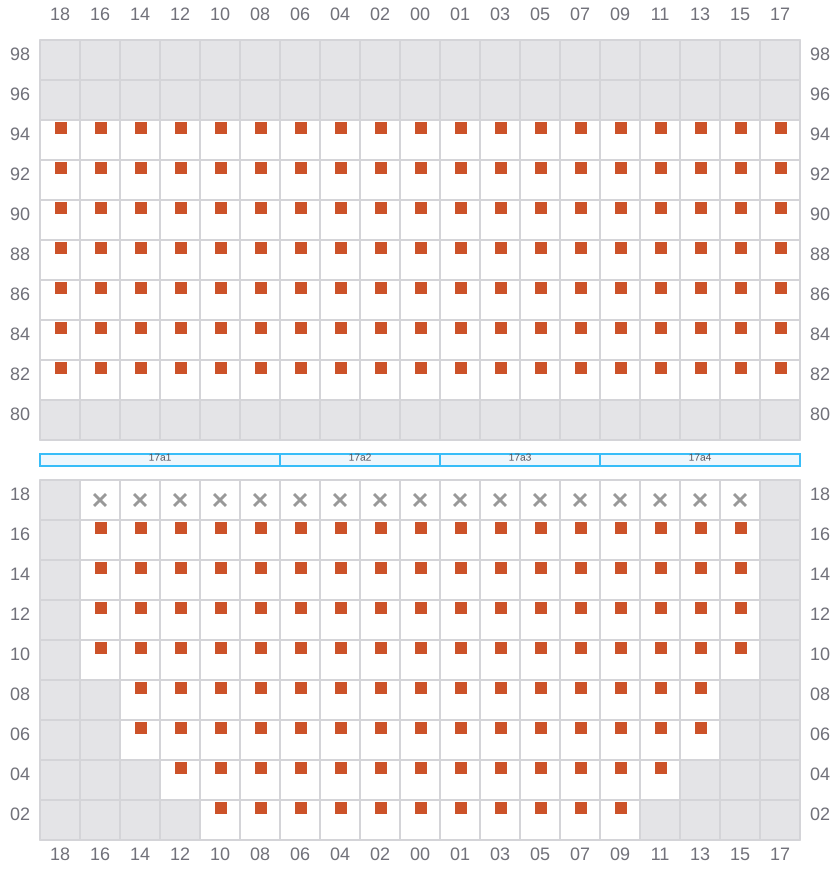

017
- →
019 (018)
- ←
021
- →
023 (022)
- ←

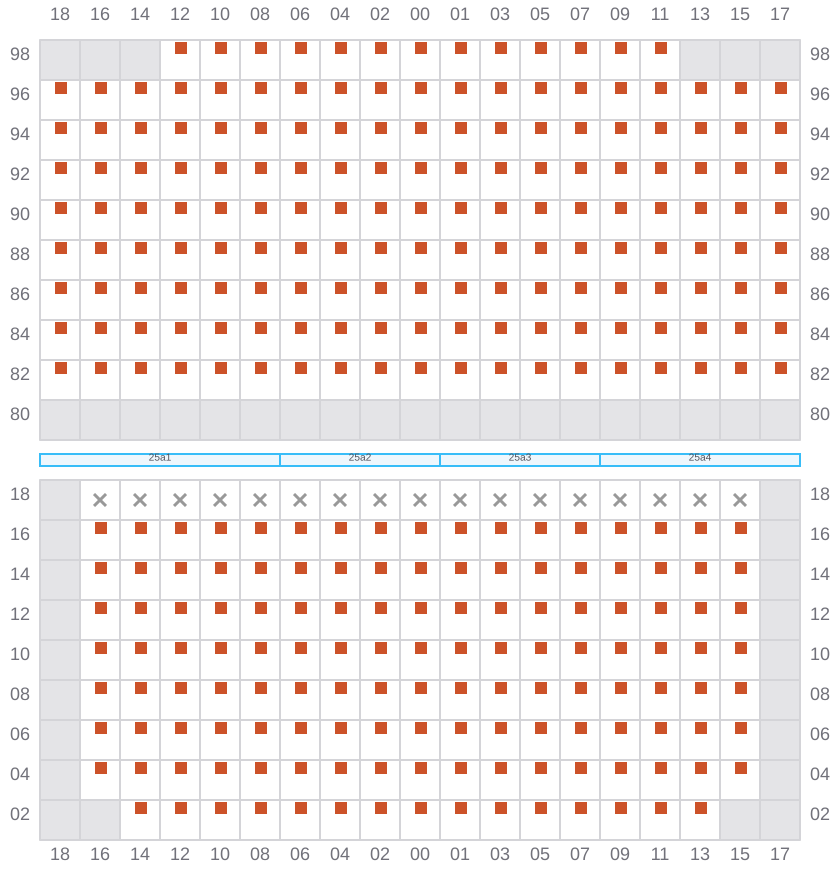

025
- →

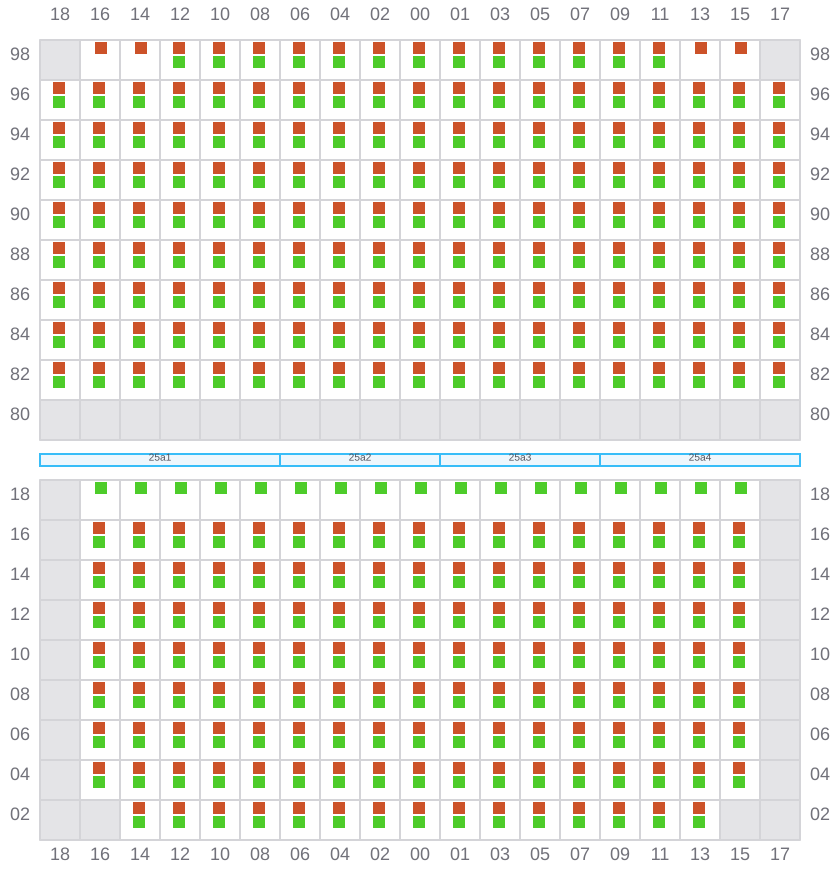

027 (026)
- ←
029
- →
031 (030)
- ←

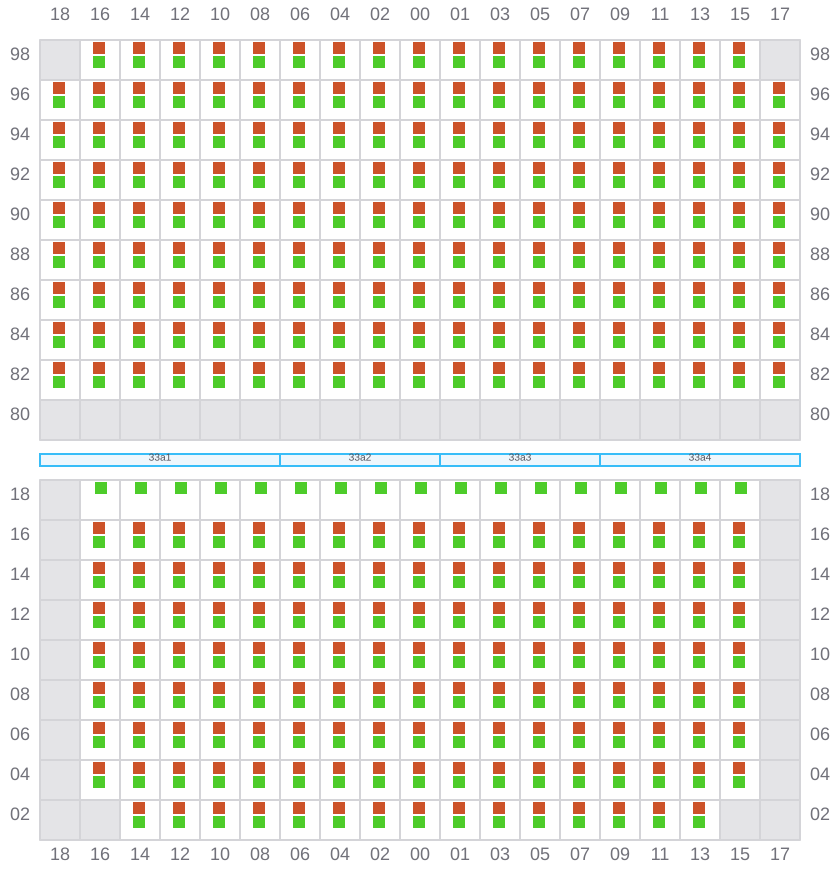

033
- →
035 (034)
- ←

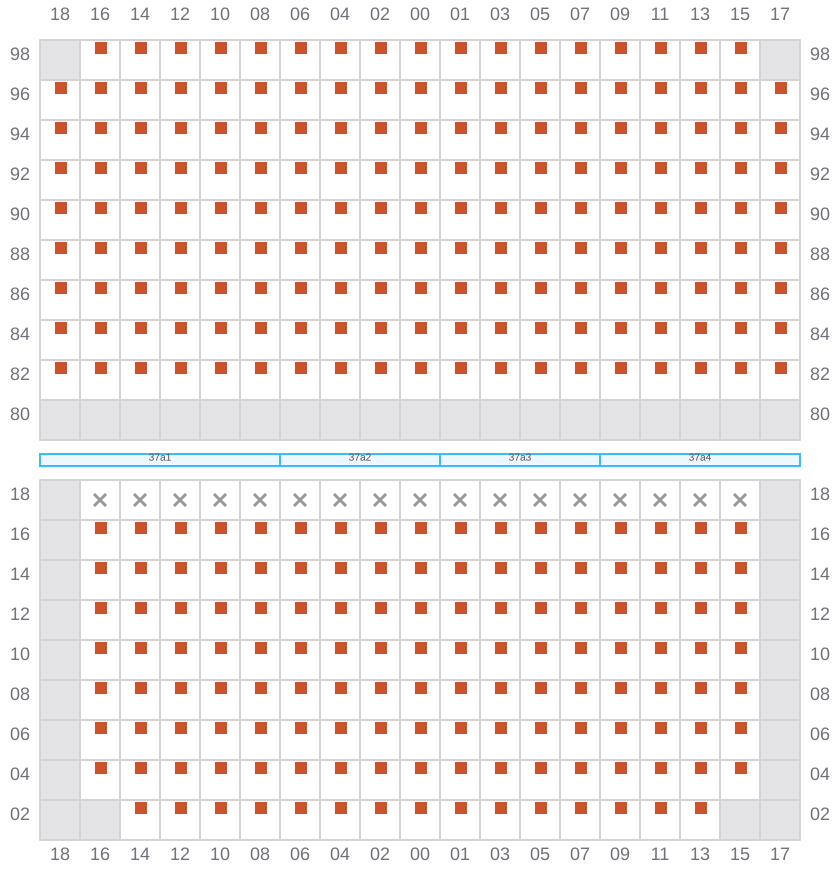

037
- →
039 (038)
- ←

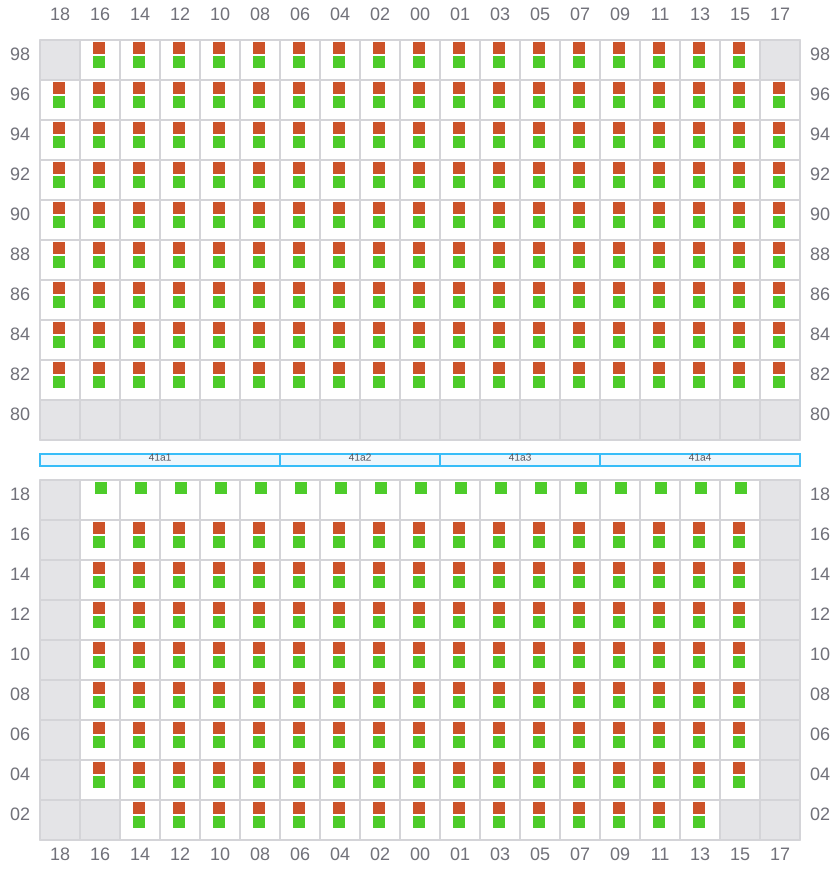

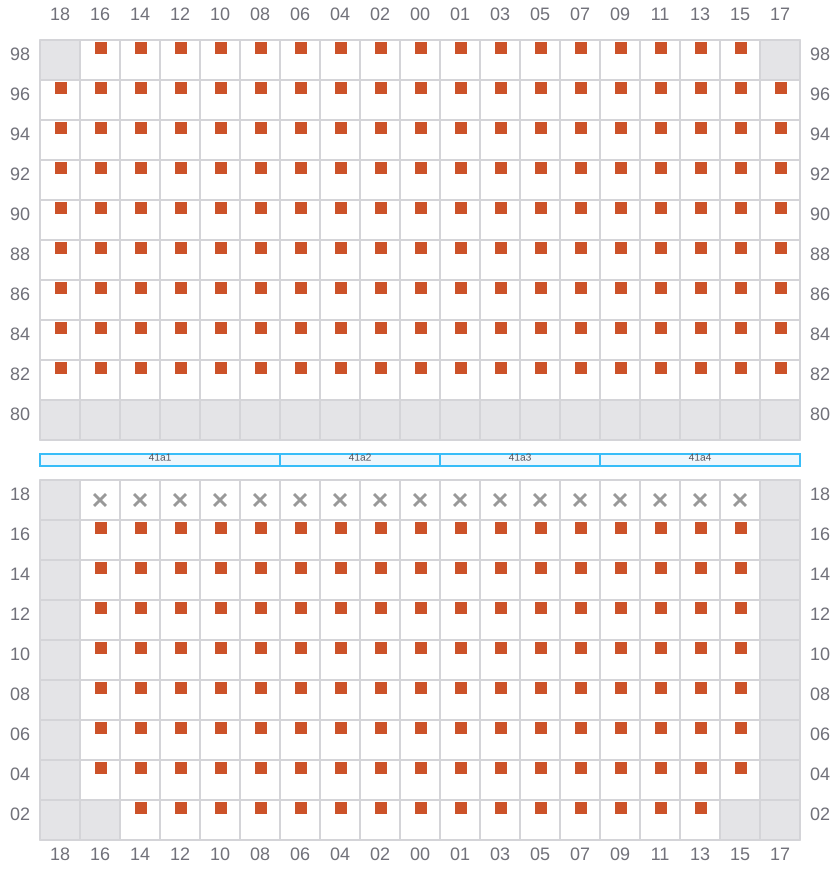

041
- →
043 (042)
- ←
045
- →
047 (046)
- ←

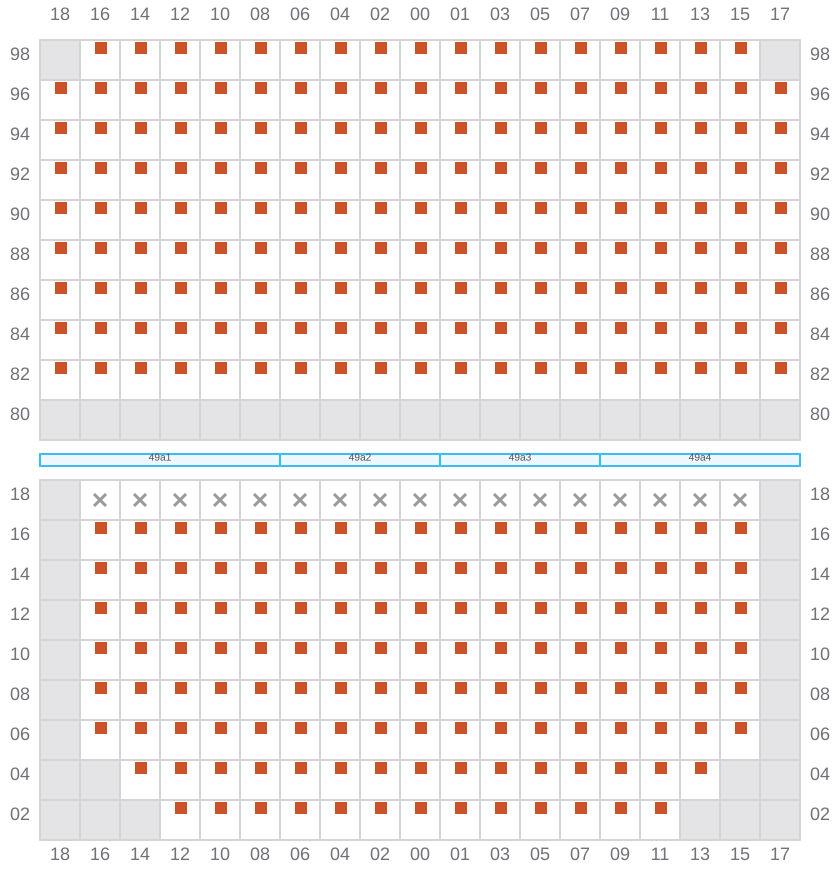

049
- →
051 (050)
- ←

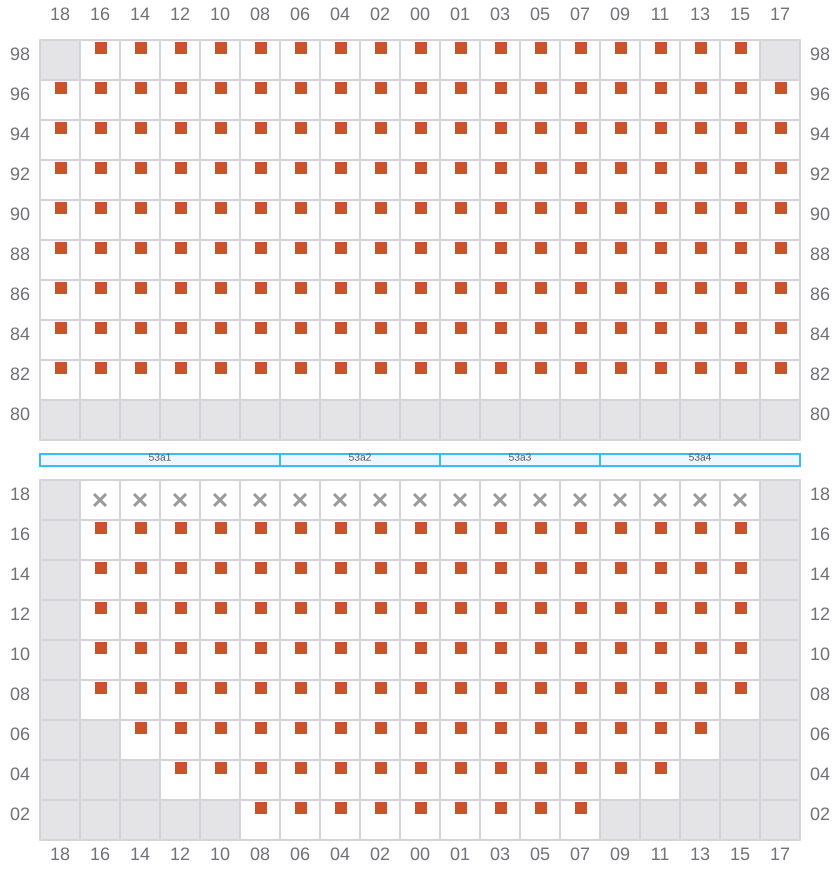

053
- →

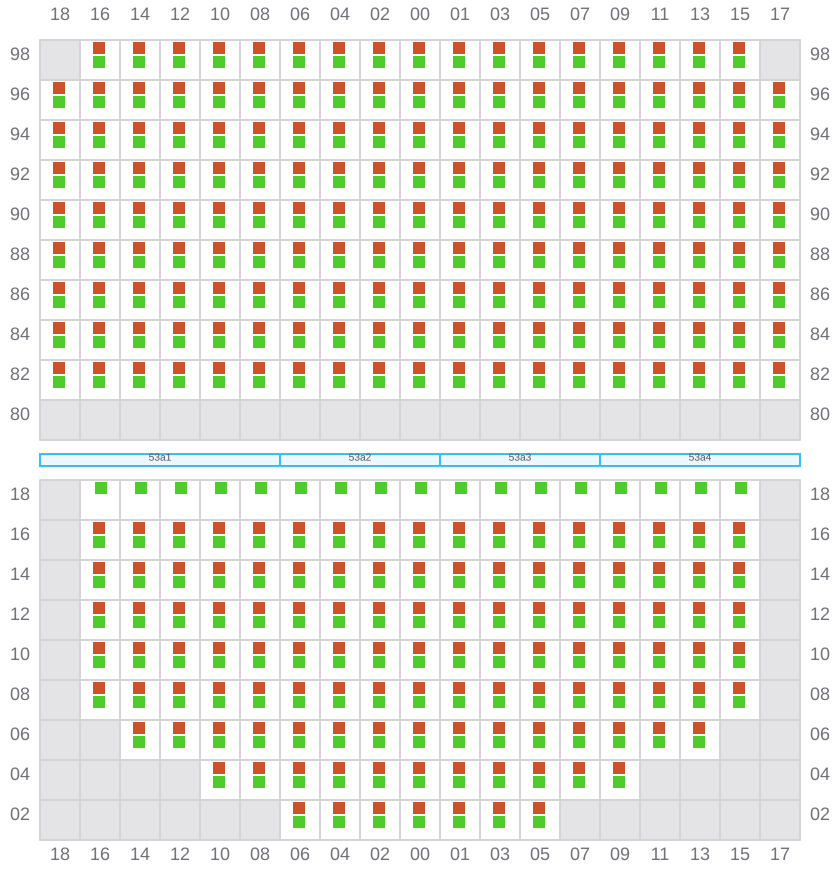

055 (054)
- ←
057
059 (058)
- ← / ?
061
- → / ?
063 (062)
- ←

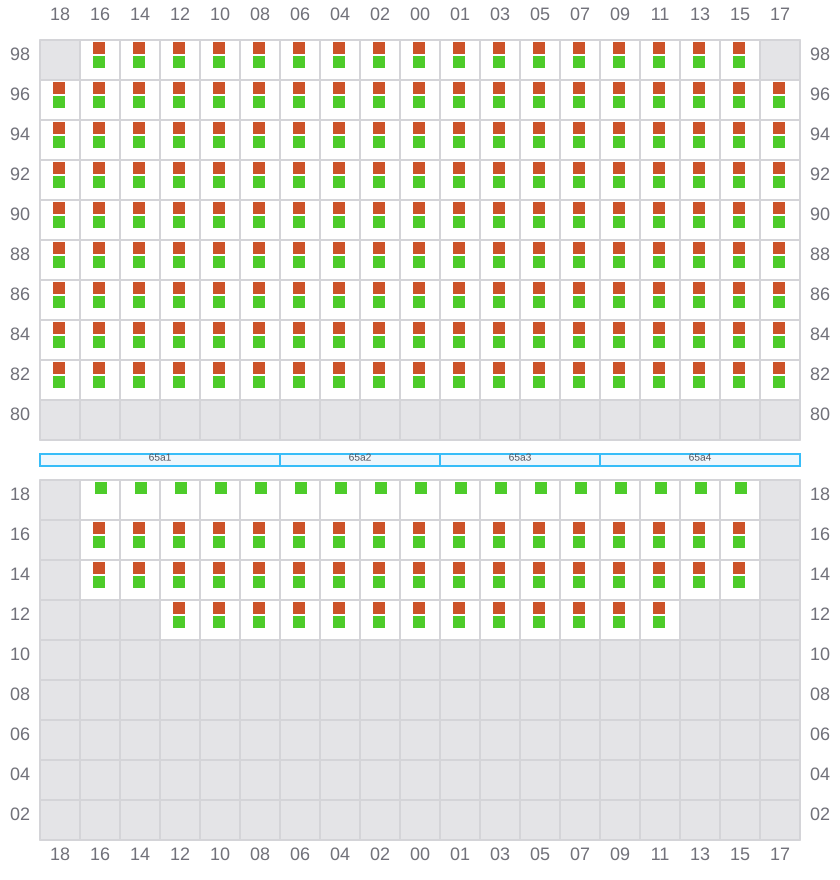

065
- →
067 (066)
- ←

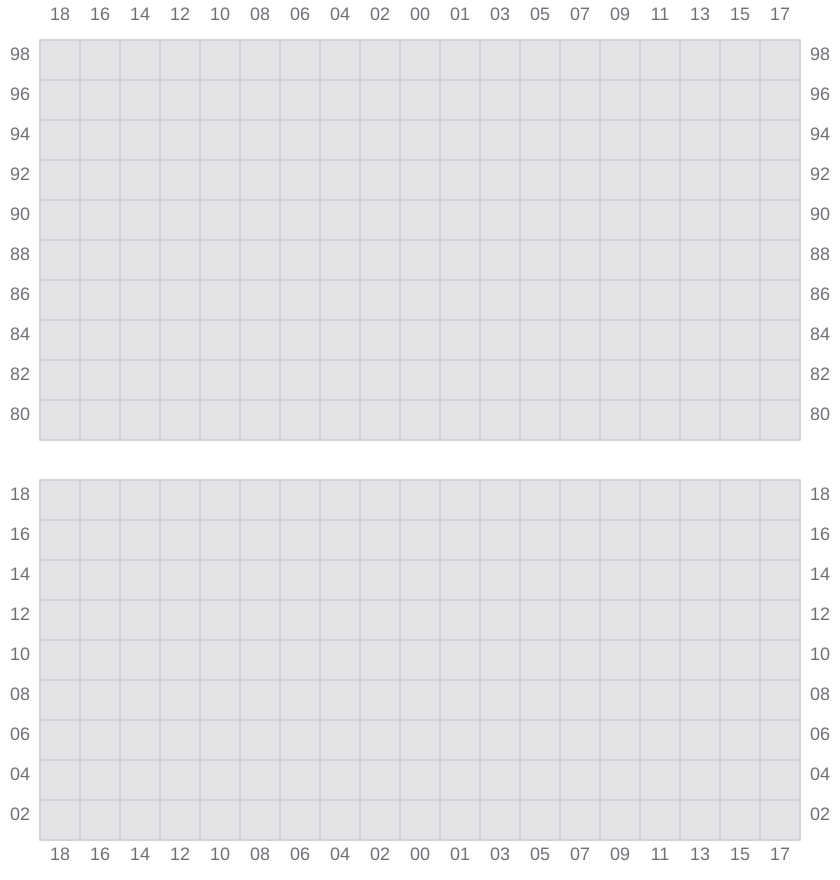

069

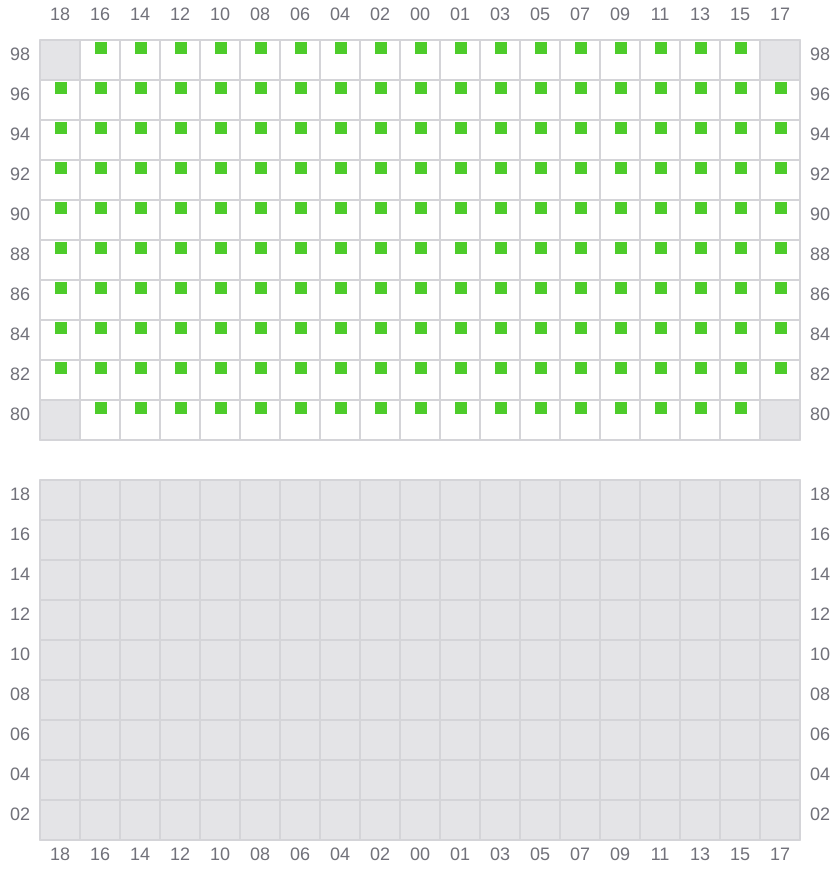

071 (070)
- ← / ?
