MSC GUERNSEY
9631876 | CQEF5 | MSC by ************************** Last update: Sun May 28 2023

General Info

Ship Name:MSC GUERNSEY
IMO Code:9631876
Call Sign:CQEF5
Line Operator:MSC
Class Name for Sister Ships:GUER
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:059
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,673

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

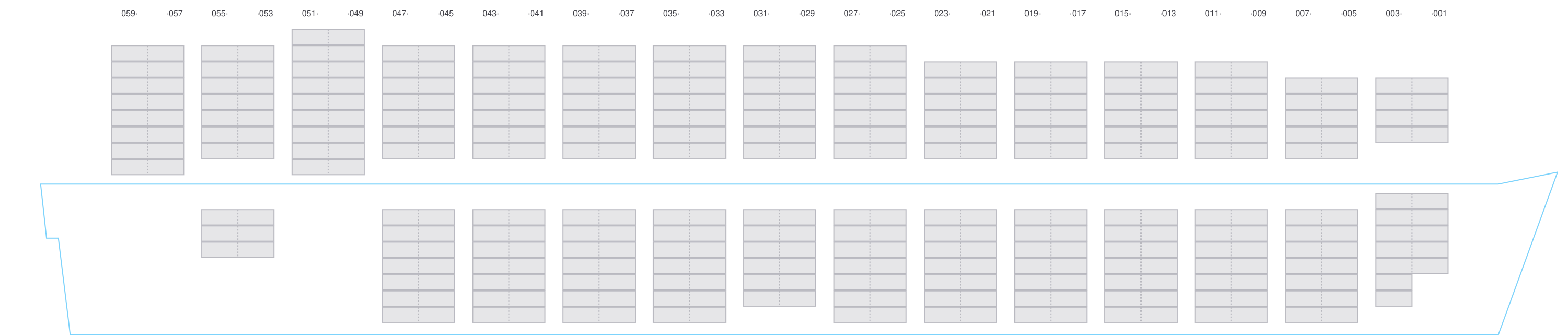

Side View

Side view of MSC GUERNSEY

Hatch-Covers View

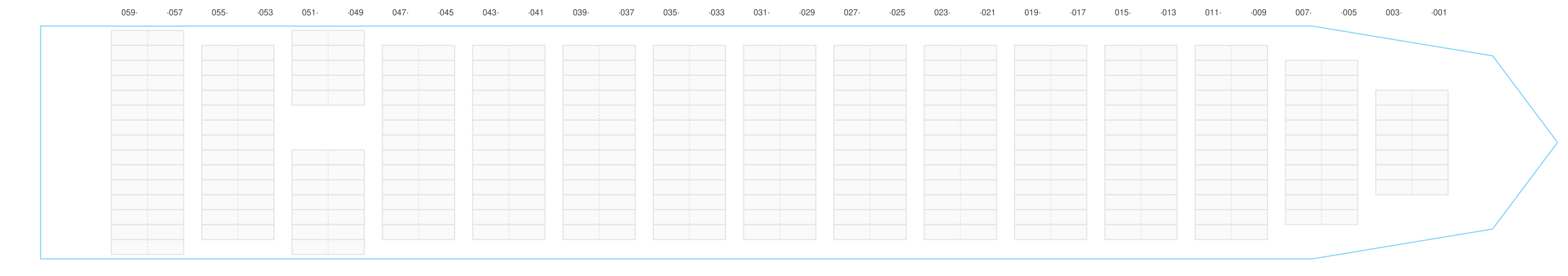

Deck view of MSC GUERNSEY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

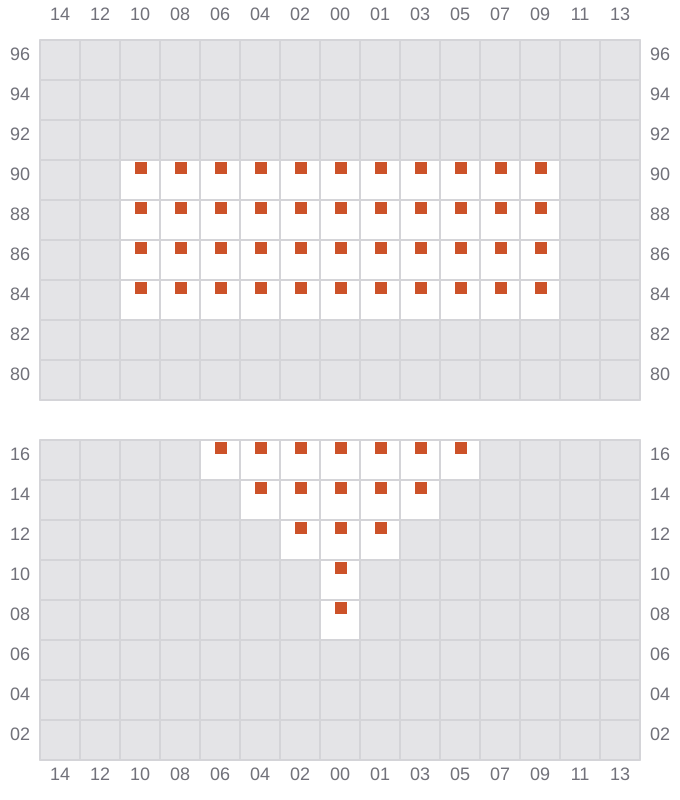

Bay 001 view and slots of MSC GUERNSEY

003 (002)

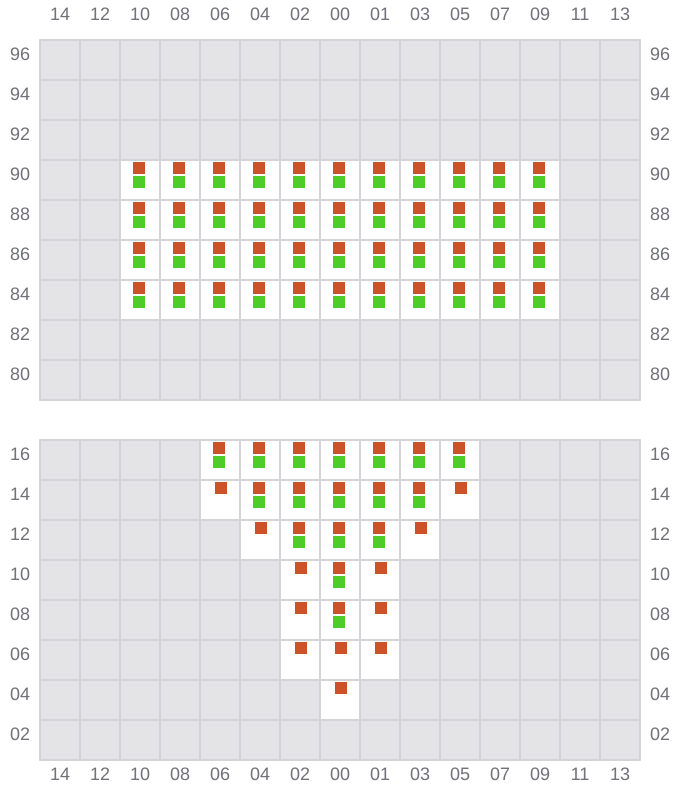

Bay 003 view and slots of MSC GUERNSEY

005

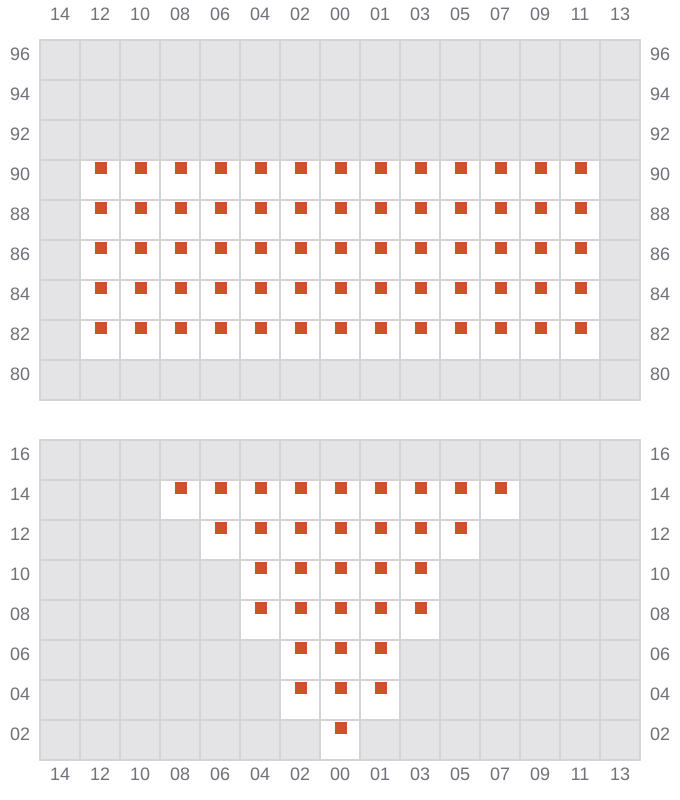

Bay 005 view and slots of MSC GUERNSEY

007 (006)

Bay 007 view and slots of MSC GUERNSEY

009

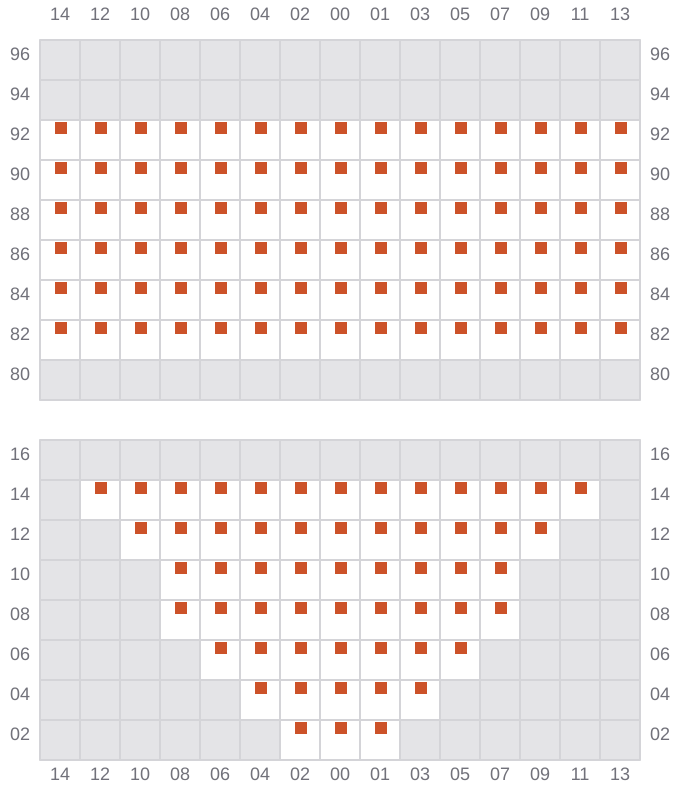

Bay 009 view and slots of MSC GUERNSEY

011 (010)

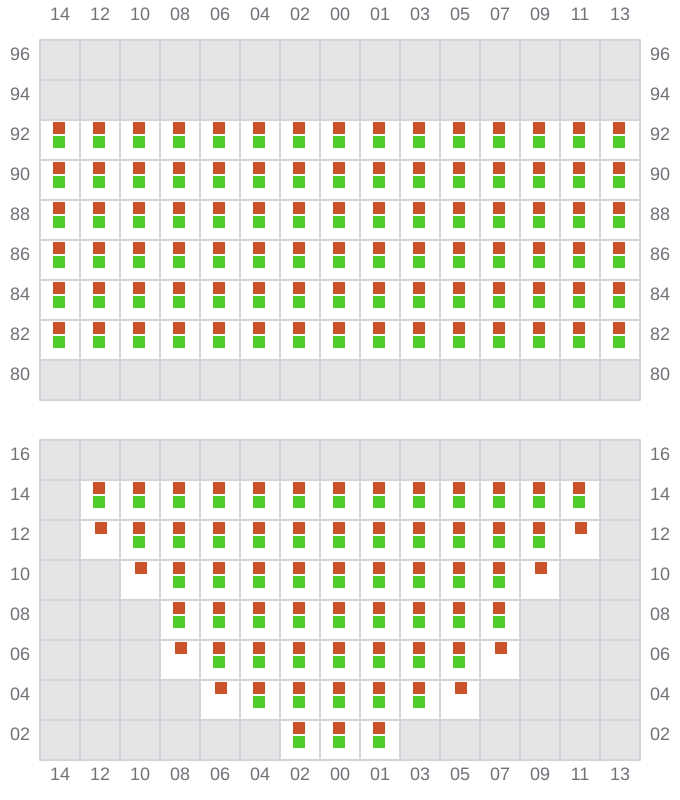

Bay 011 view and slots of MSC GUERNSEY

013

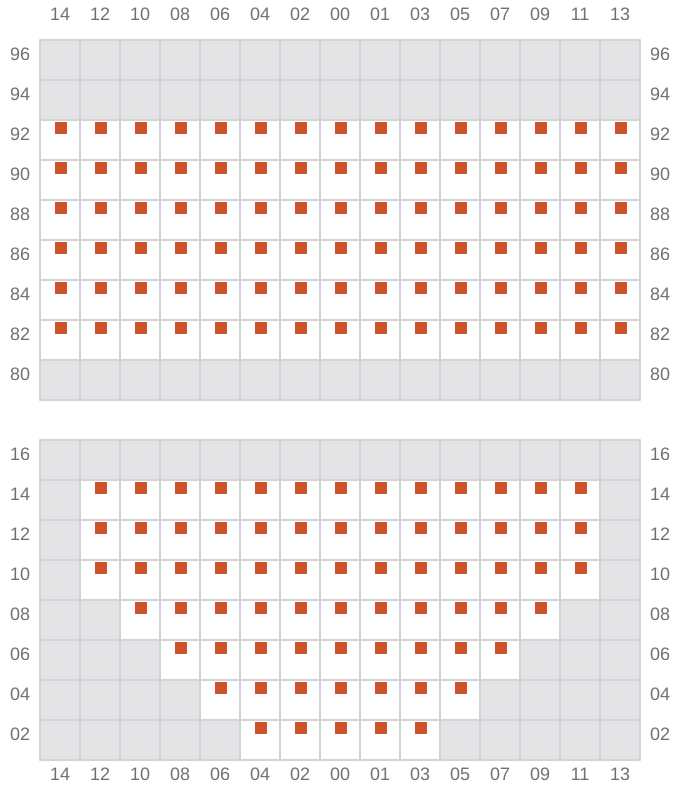

Bay 013 view and slots of MSC GUERNSEY

015 (014)

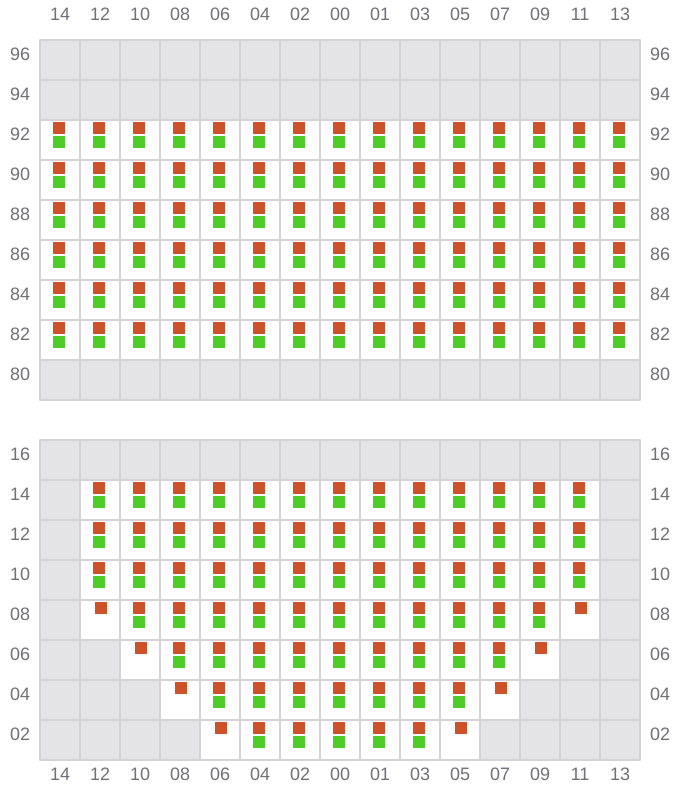

Bay 015 view and slots of MSC GUERNSEY

017

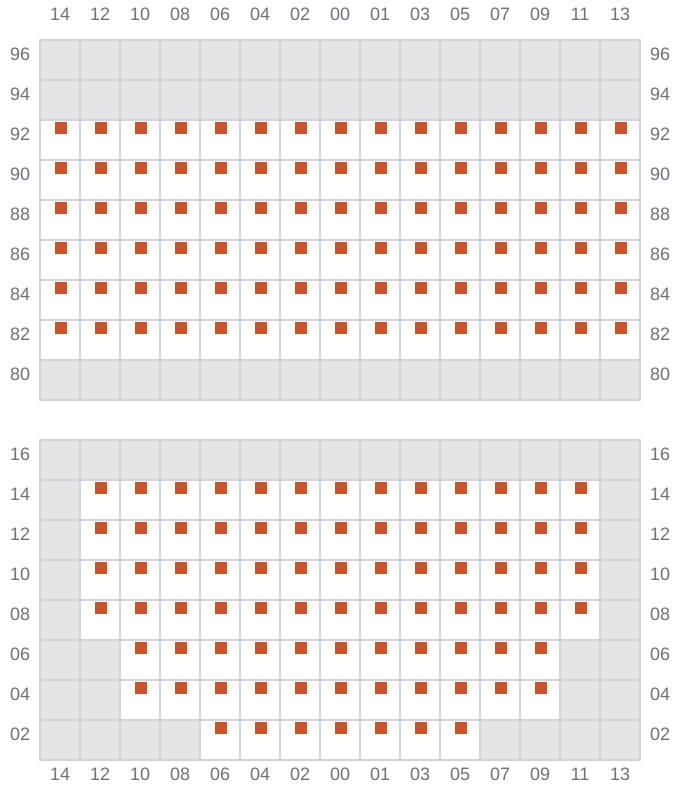

Bay 017 view and slots of MSC GUERNSEY

019 (018)

Bay 019 view and slots of MSC GUERNSEY

021

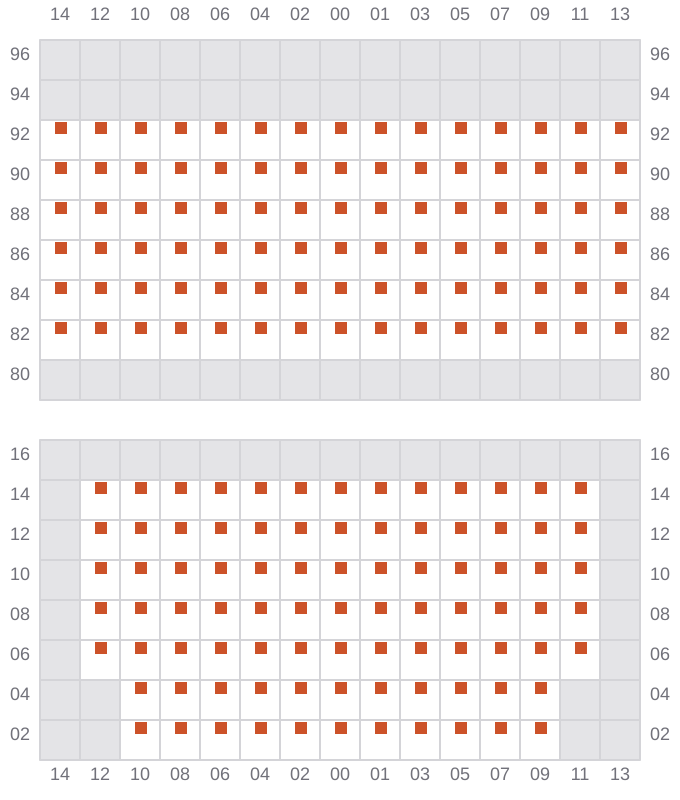

Bay 021 view and slots of MSC GUERNSEY

023 (022)

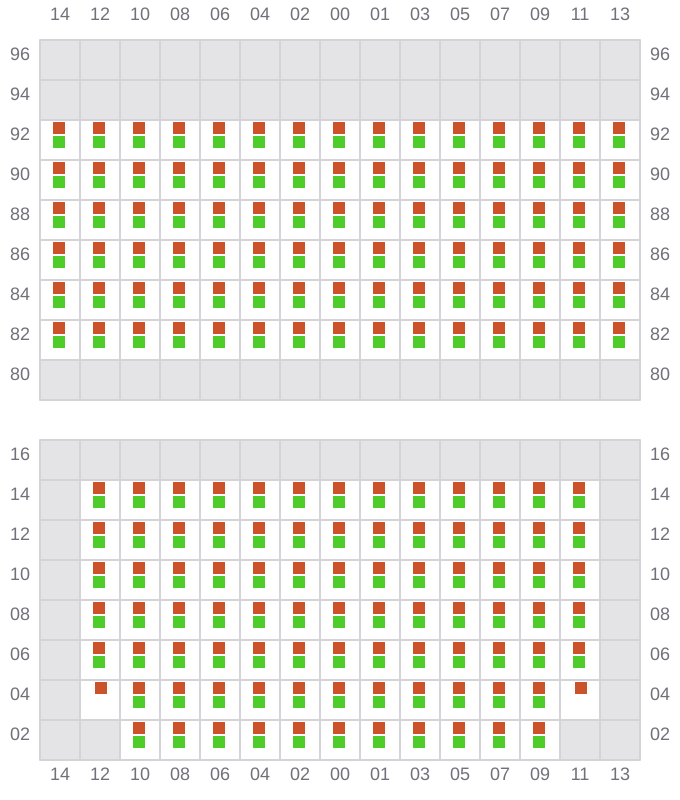

Bay 023 view and slots of MSC GUERNSEY

025

Bay 025 view and slots of MSC GUERNSEY

027 (026)

Bay 027 view and slots of MSC GUERNSEY

029

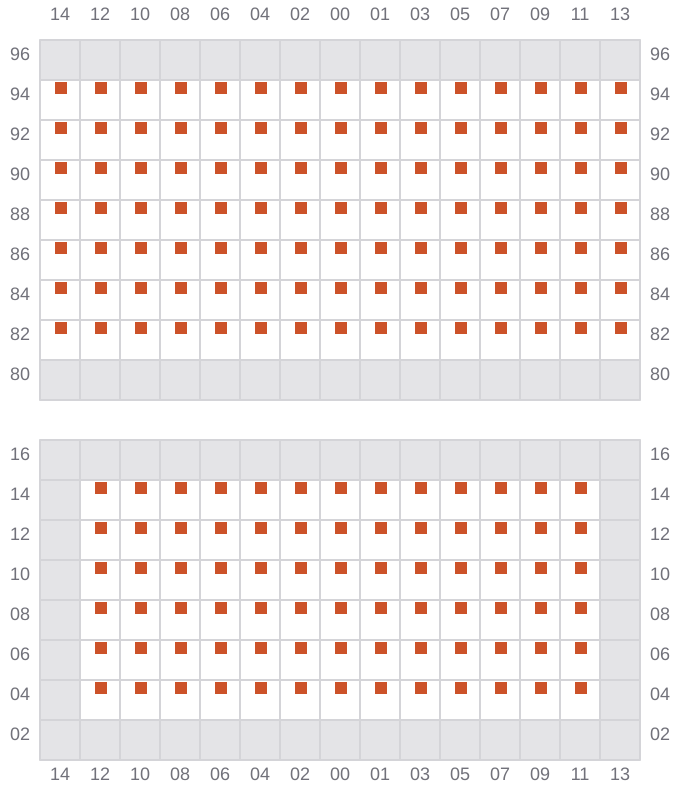

Bay 029 view and slots of MSC GUERNSEY

031 (030)

Bay 031 view and slots of MSC GUERNSEY

033

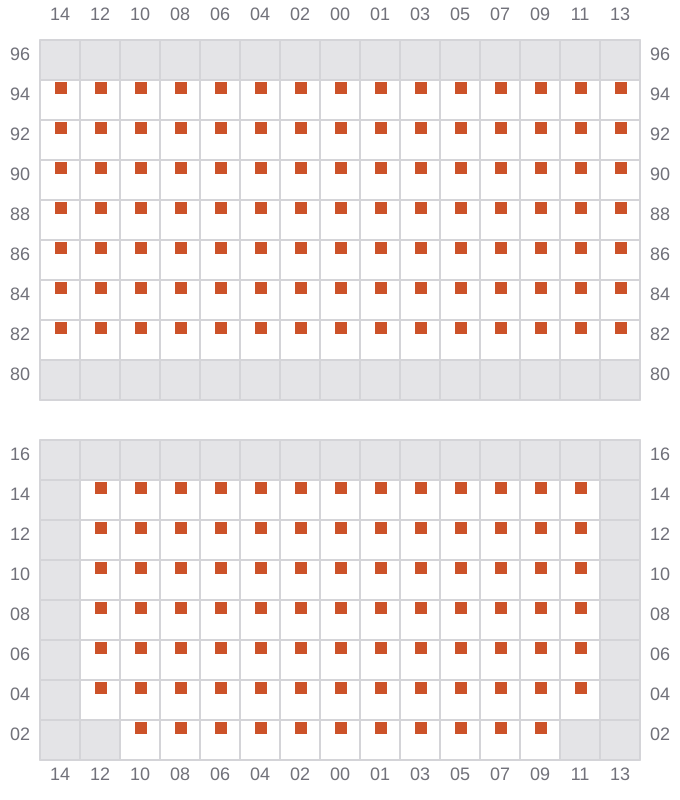

Bay 033 view and slots of MSC GUERNSEY

035 (034)

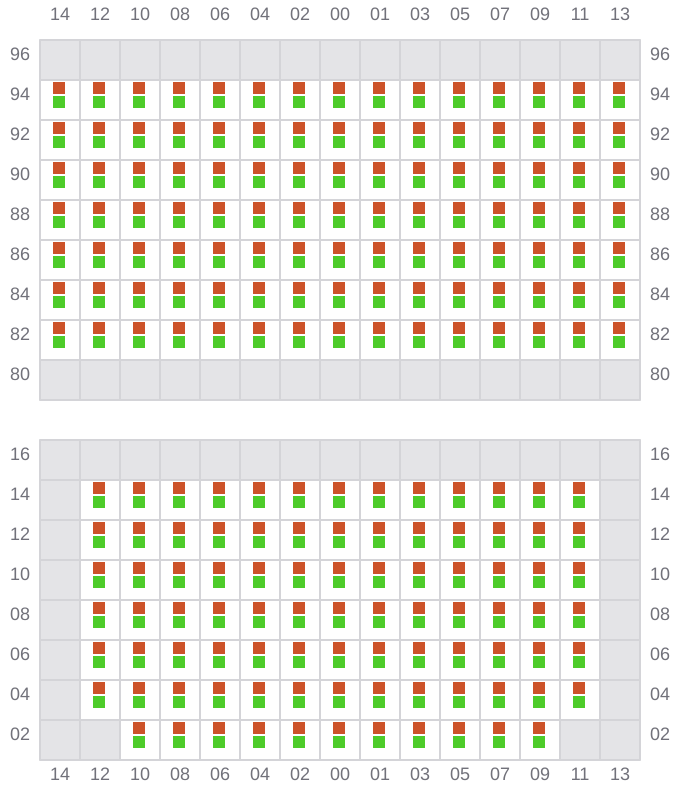

Bay 035 view and slots of MSC GUERNSEY

037

Bay 037 view and slots of MSC GUERNSEY

039 (038)

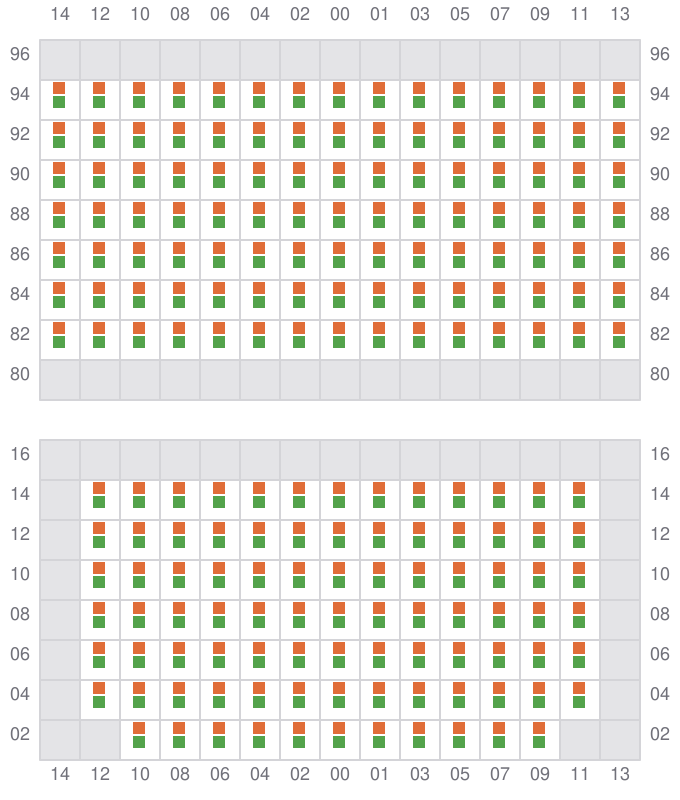

Bay 039 view and slots of MSC GUERNSEY

041

Bay 041 view and slots of MSC GUERNSEY

043 (042)

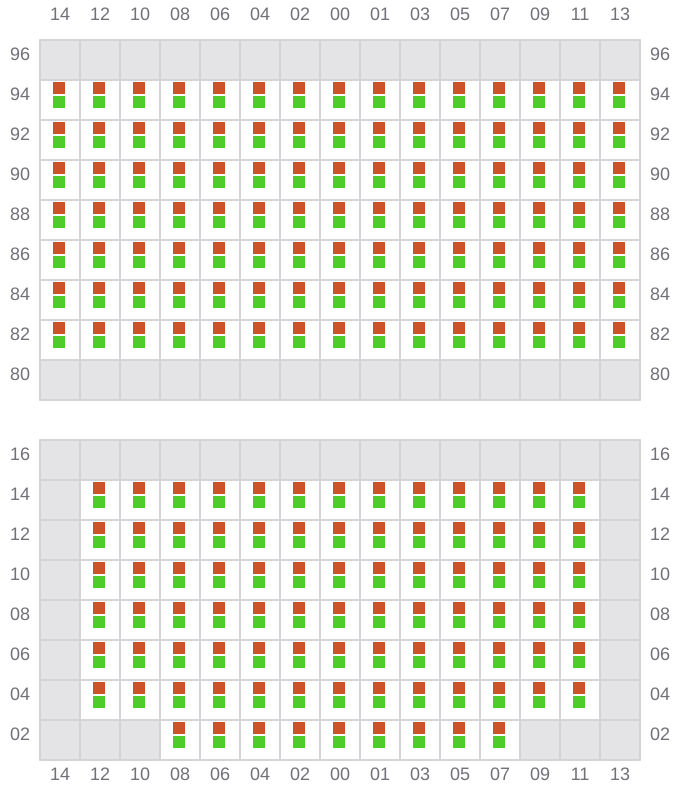

Bay 043 view and slots of MSC GUERNSEY

045

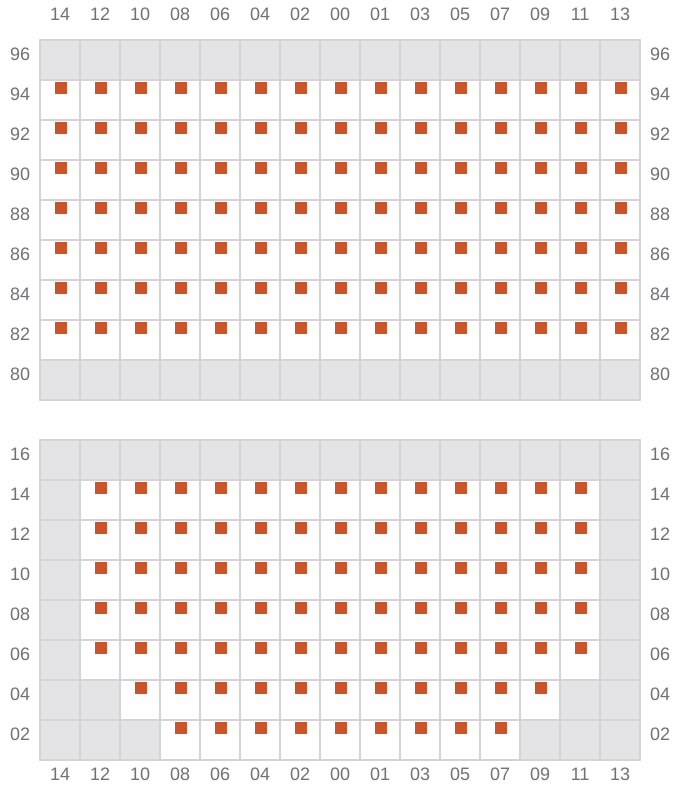

Bay 045 view and slots of MSC GUERNSEY

047 (046)

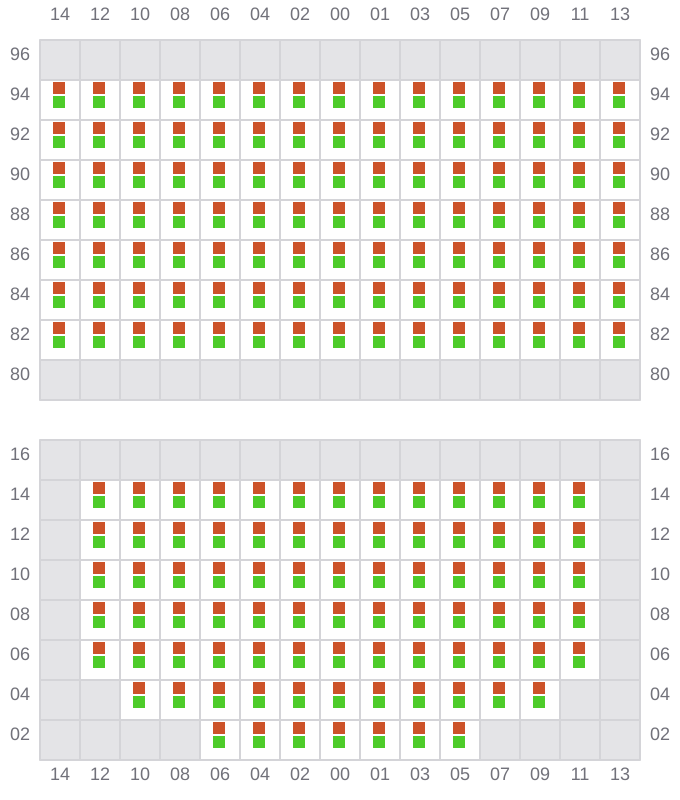

Bay 047 view and slots of MSC GUERNSEY

049

Bay 049 view and slots of MSC GUERNSEY

051 (050)

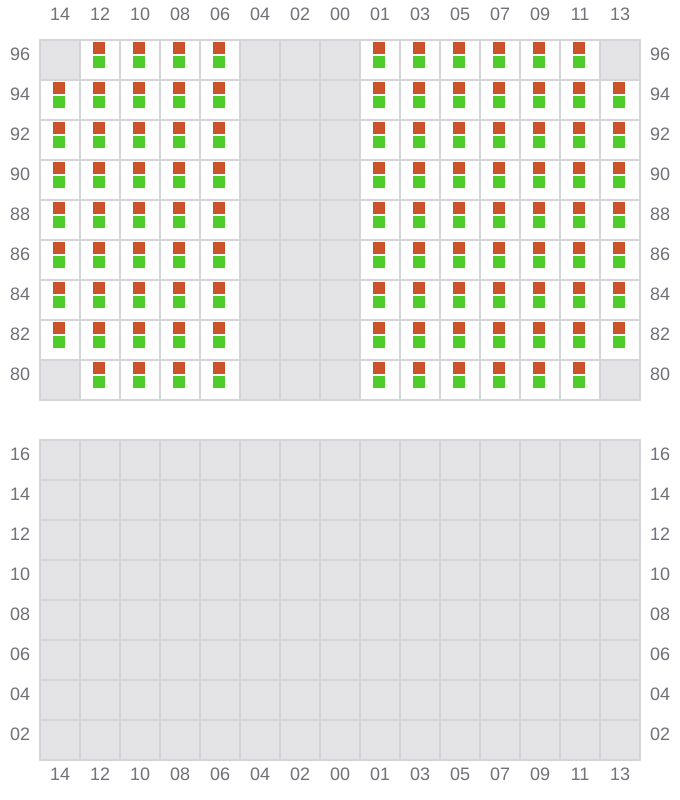

Bay 051 view and slots of MSC GUERNSEY

053

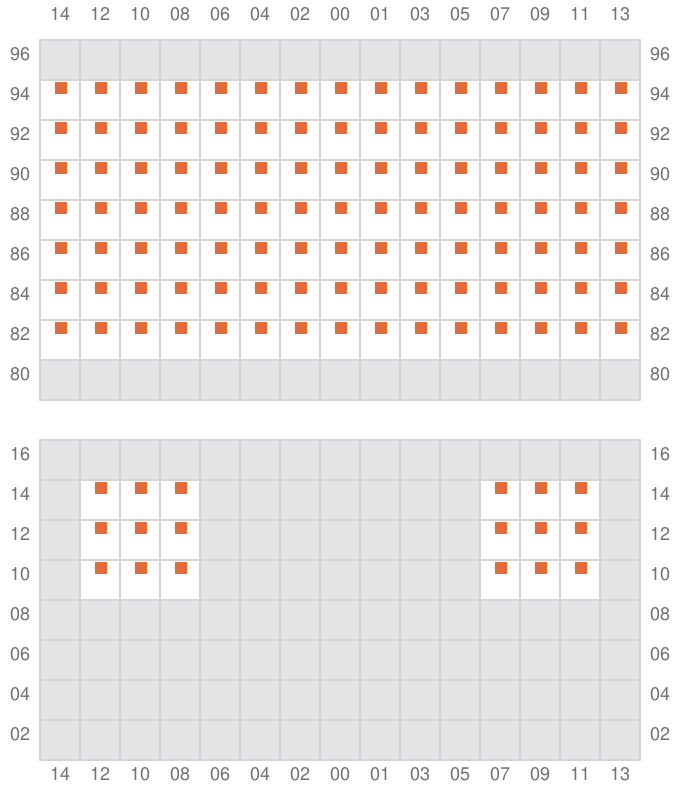

Bay 053 view and slots of MSC GUERNSEY

055 (054)

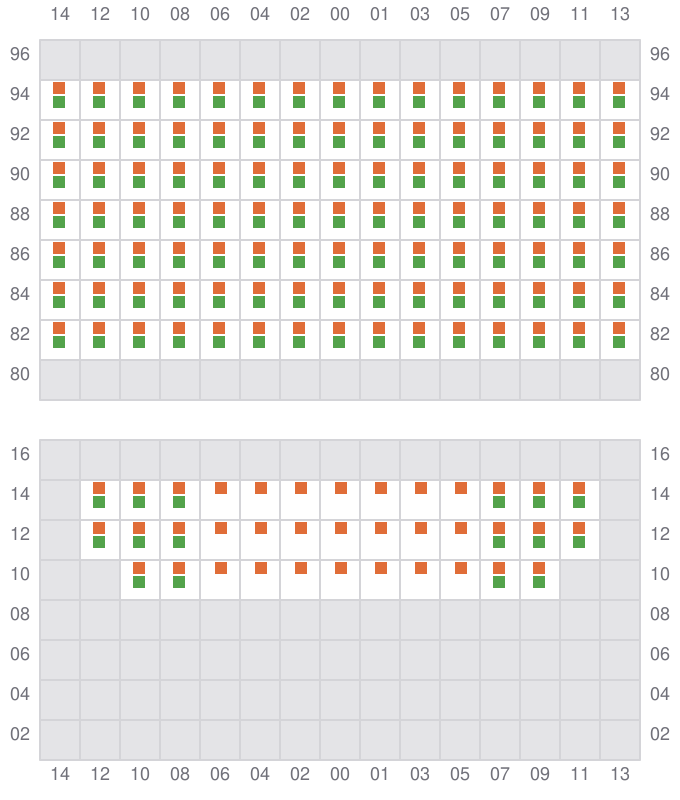

Bay 055 view and slots of MSC GUERNSEY

057

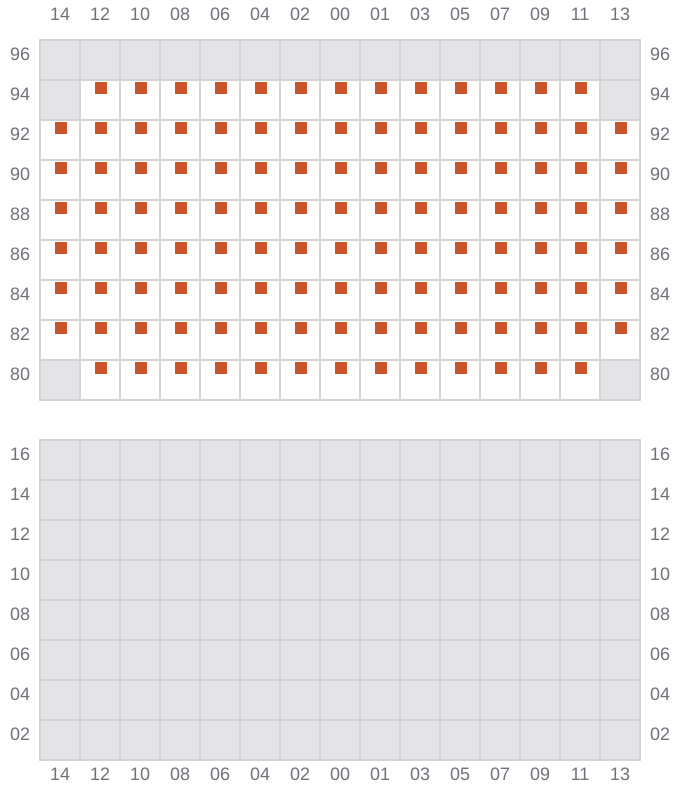

Bay 057 view and slots of MSC GUERNSEY

059 (058)

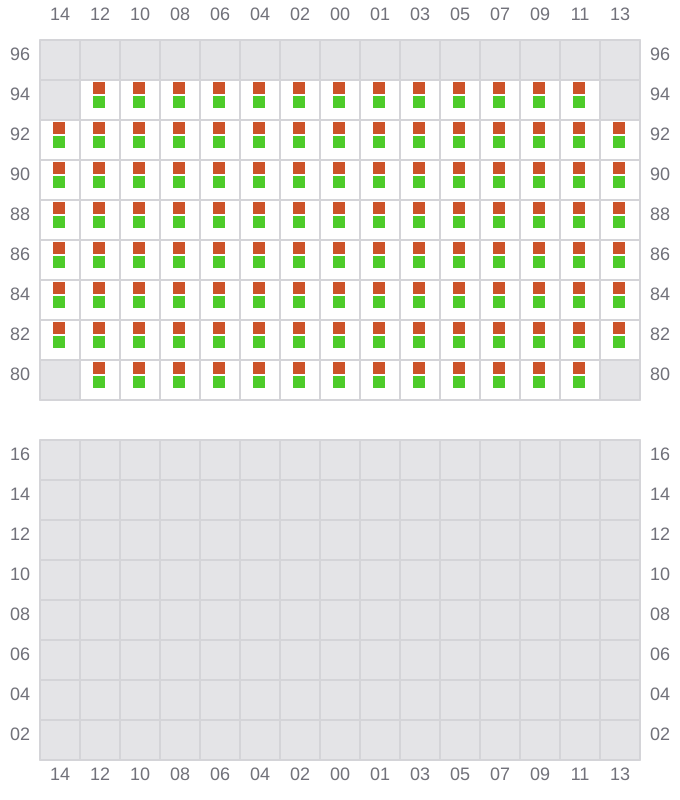

Bay 059 view and slots of MSC GUERNSEY
