MSC HAMBURG
9647461 | 3FYY8 | MSC by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:MSC HAMBURG

IMO Code:9647461

Call Sign:3FYY8

Line Operator:MSC

Class Name for Sister Ships:MHH

Year Built:2015

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):383.00

LOA (Length Overall):399.00

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:067

Max ISO Row:16

Center Line Row:No

Max Above ISO Tier:96

Min Above ISO Tier:82

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:6,580

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

Side view of MSC HAMBURG

Hatch-Covers View

Deck view of MSC HAMBURG

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

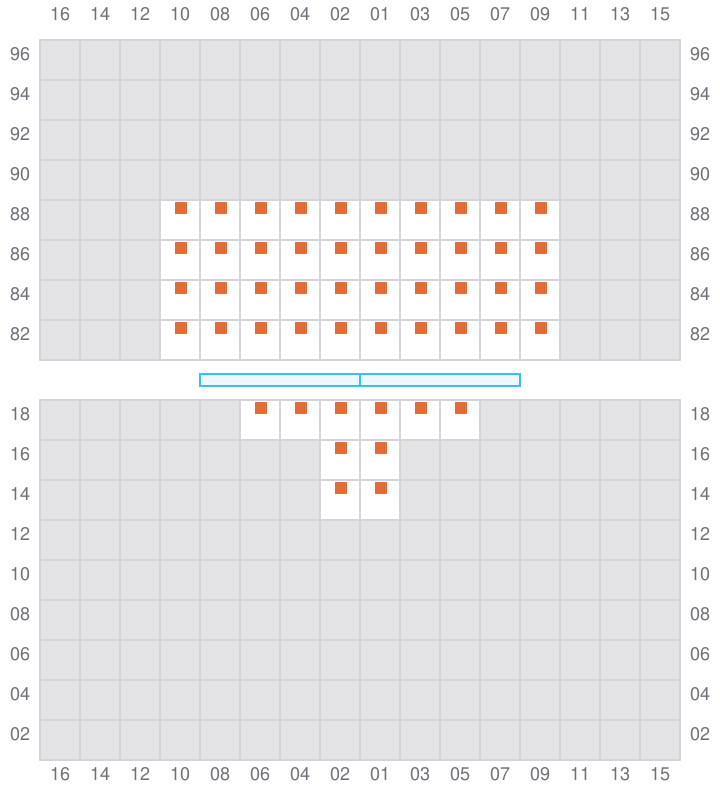

Bay 001 view and slots of MSC HAMBURG

003 (004)

^→ / _?

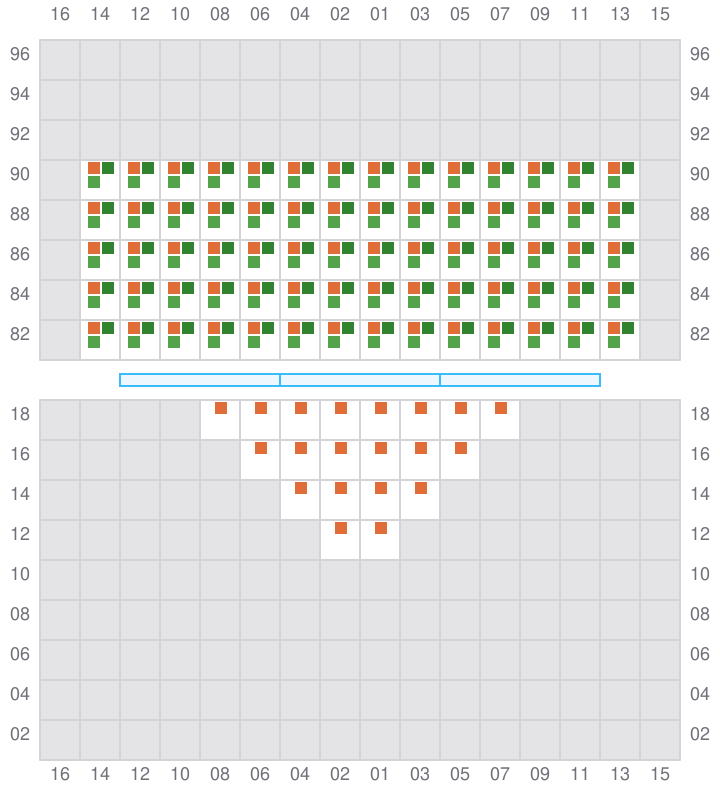

Bay 003 view and slots of MSC HAMBURG

005

^← / _?
^→ / _?

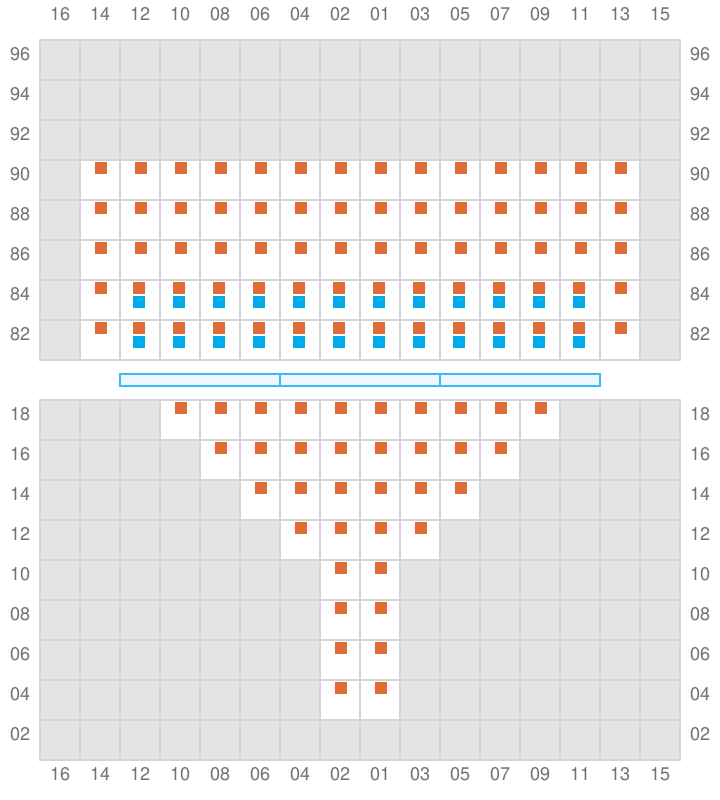

Bay 005 view and slots of MSC HAMBURG

007 (008)

→

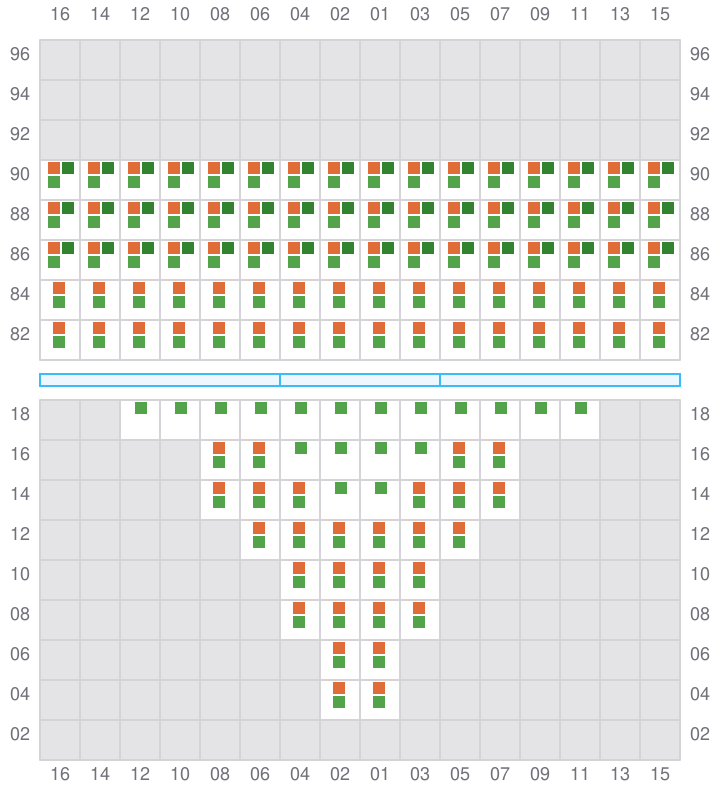

Bay 007 view and slots of MSC HAMBURG

009

←
^→ / _?

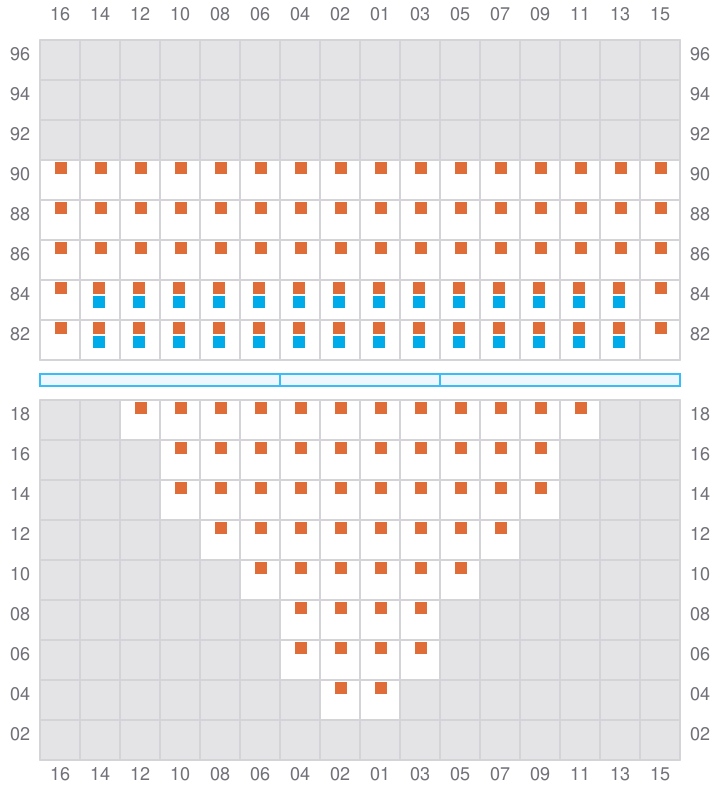

Bay 009 view and slots of MSC HAMBURG

011 (012)

^→ / _?

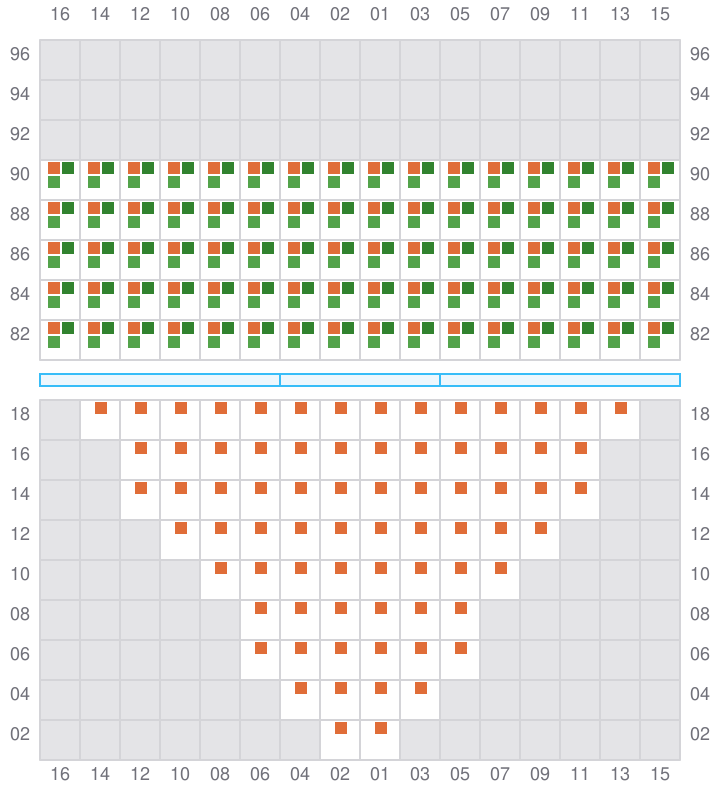

Bay 011 view and slots of MSC HAMBURG

013

^← / _?
^→ / _?

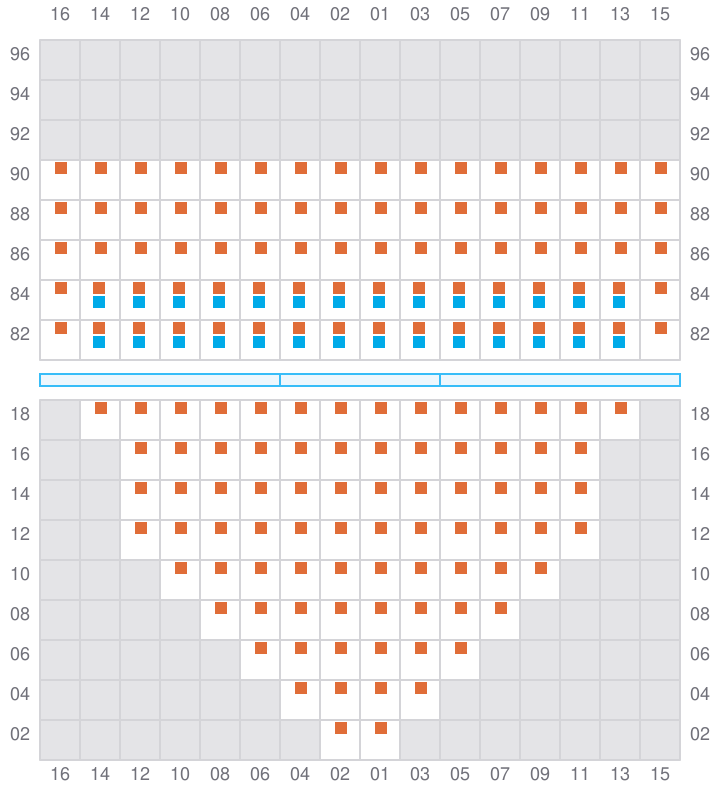

Bay 013 view and slots of MSC HAMBURG

015 (016)

→

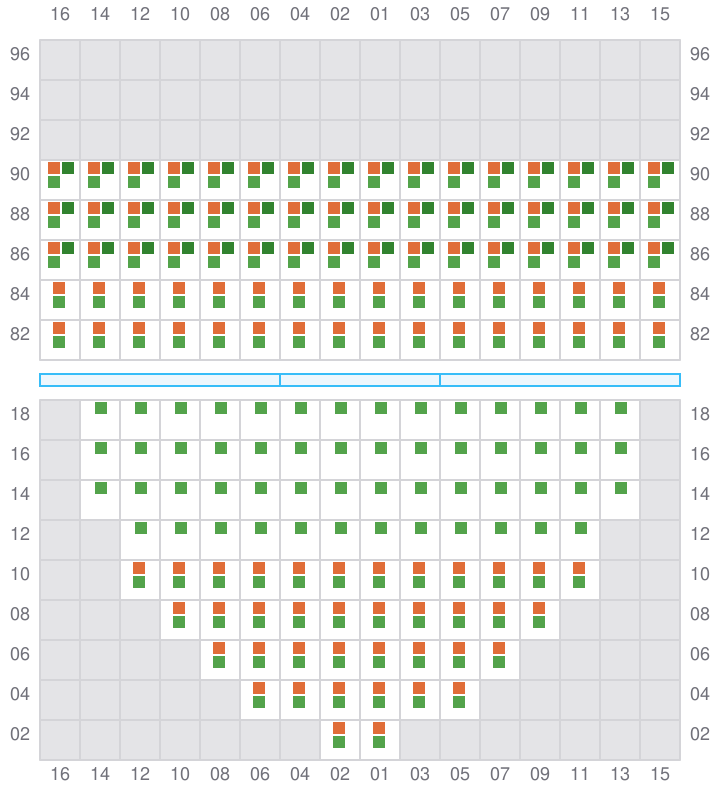

Bay 015 view and slots of MSC HAMBURG

017

←
^→ / _?

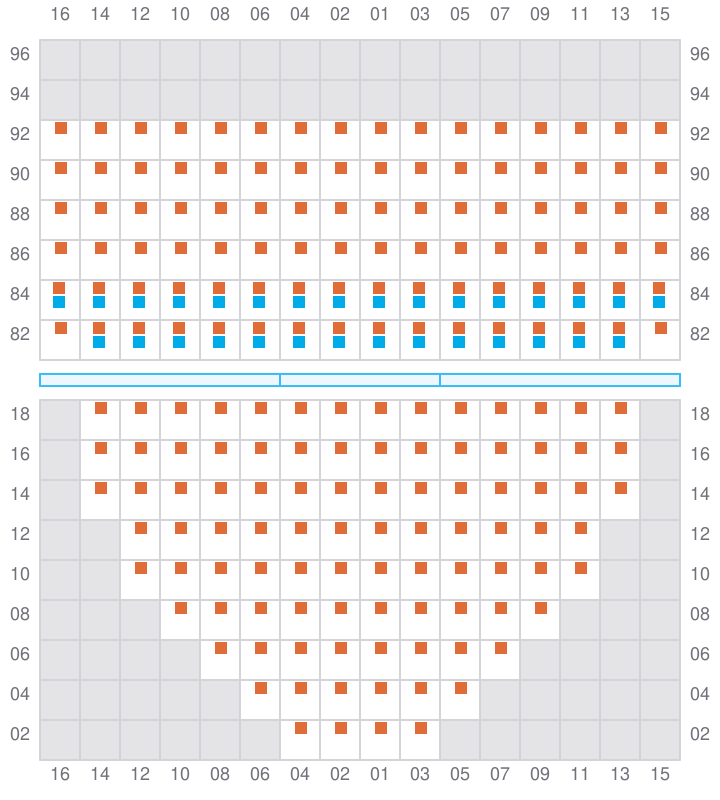

Bay 017 view and slots of MSC HAMBURG

019 (020)

→

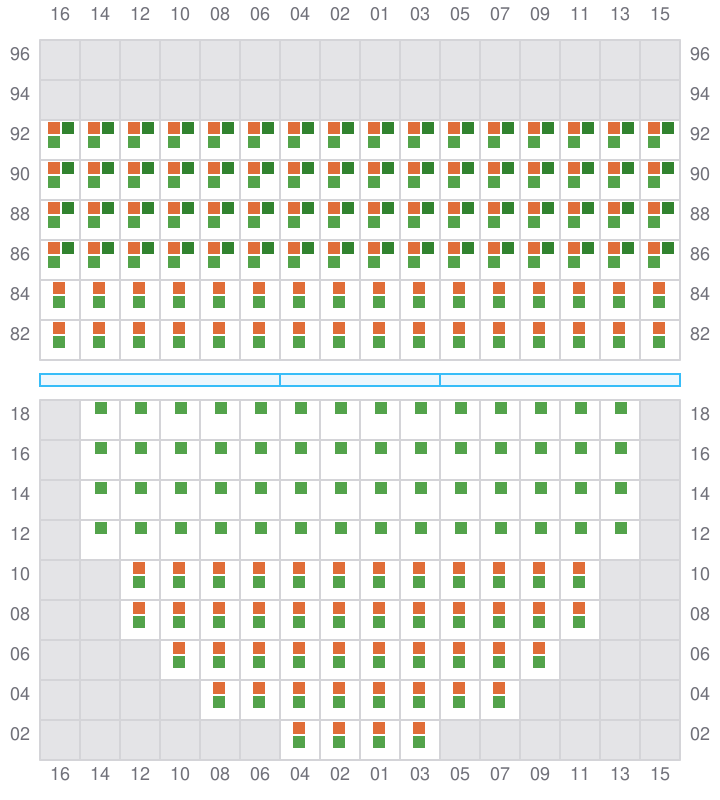

Bay 019 view and slots of MSC HAMBURG

021

←
^→ / _?

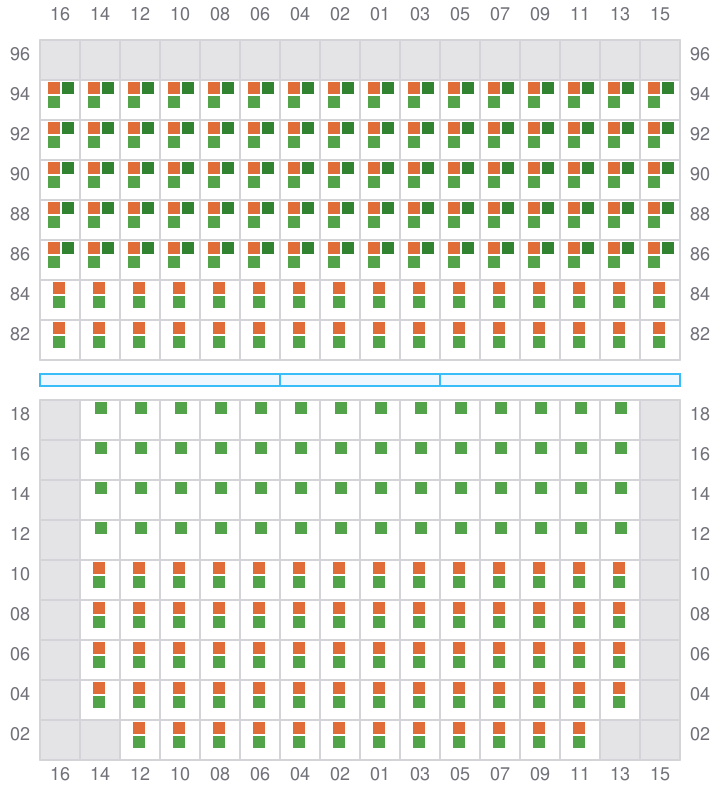

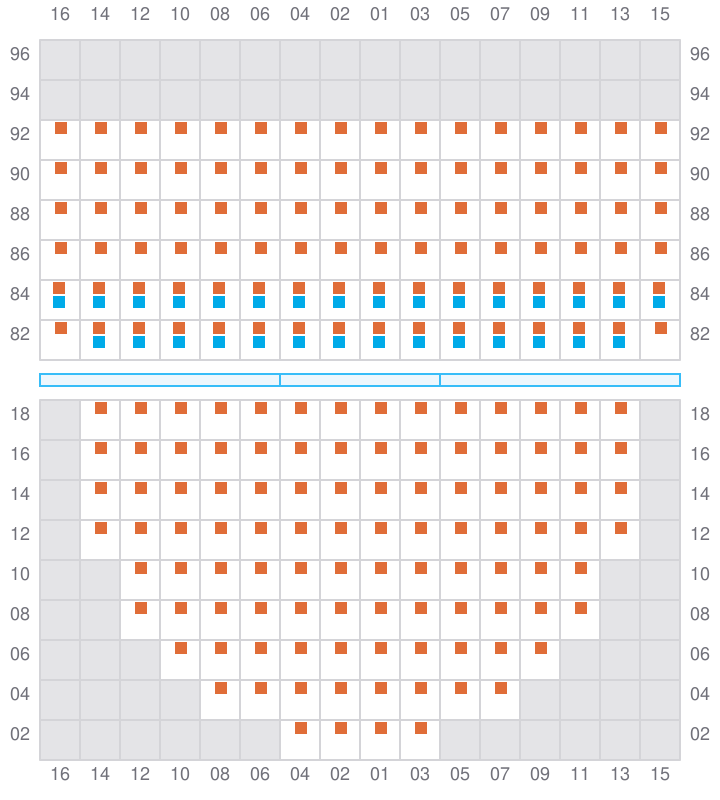

Bay 021 view and slots of MSC HAMBURG

023 (024)

→

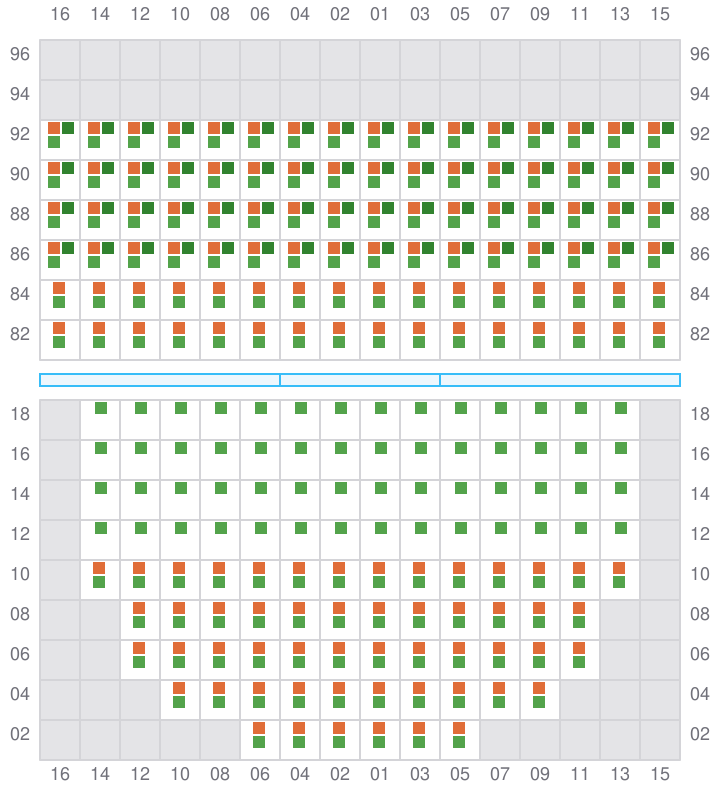

Bay 023 view and slots of MSC HAMBURG

025

←
^→ / _?

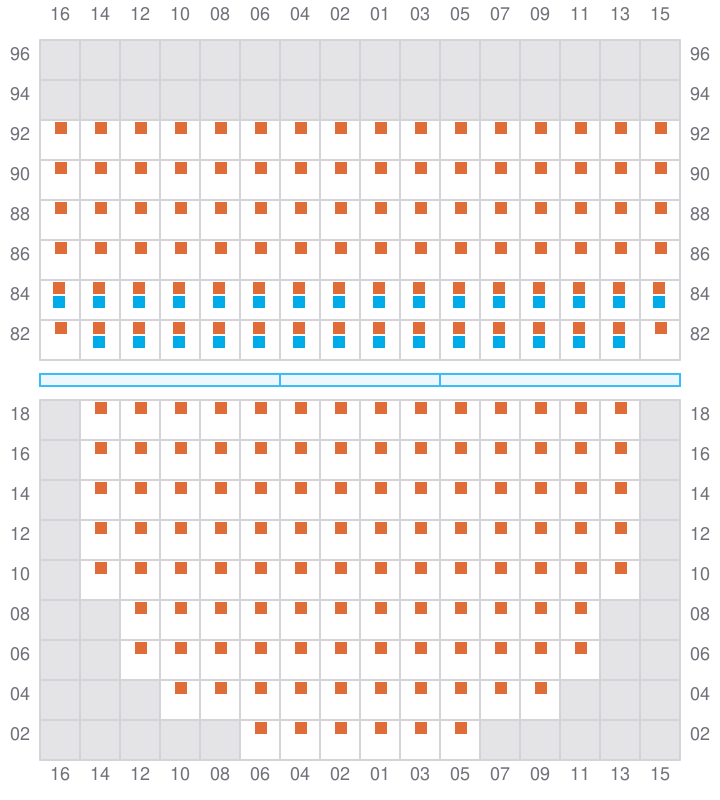

Bay 025 view and slots of MSC HAMBURG

027 (028)

→

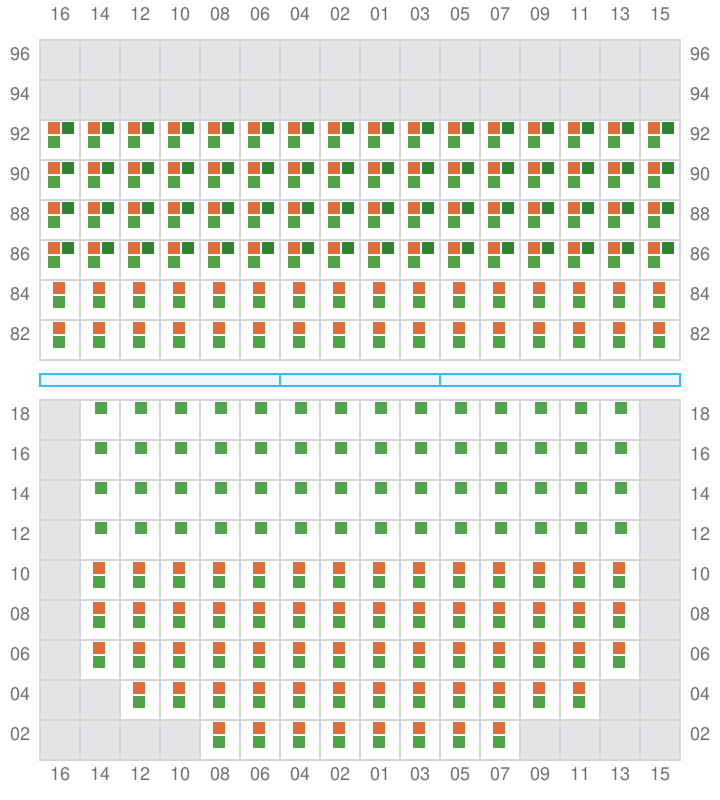

Bay 027 view and slots of MSC HAMBURG

029

←
^→ / _?

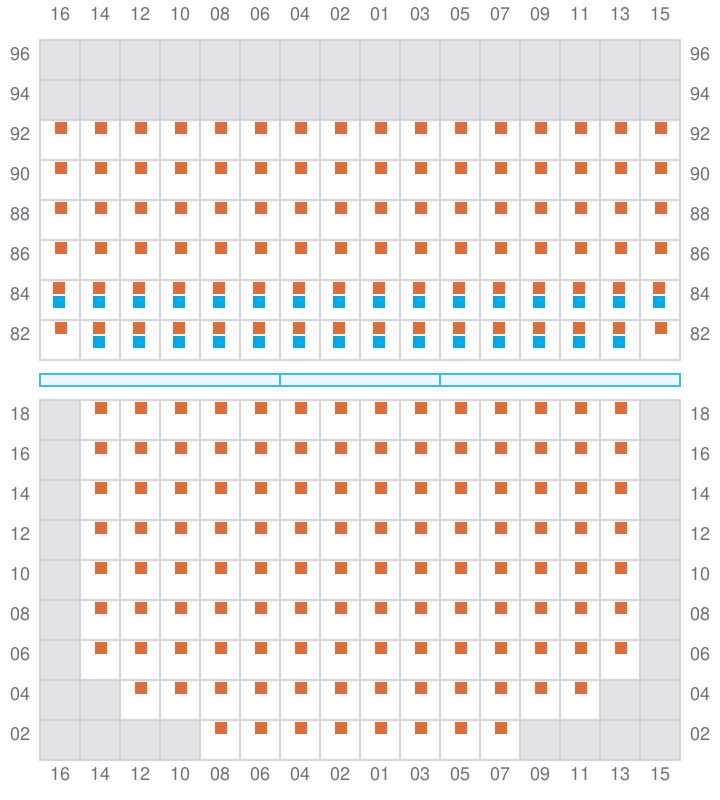

Bay 029 view and slots of MSC HAMBURG

031 (032)

→

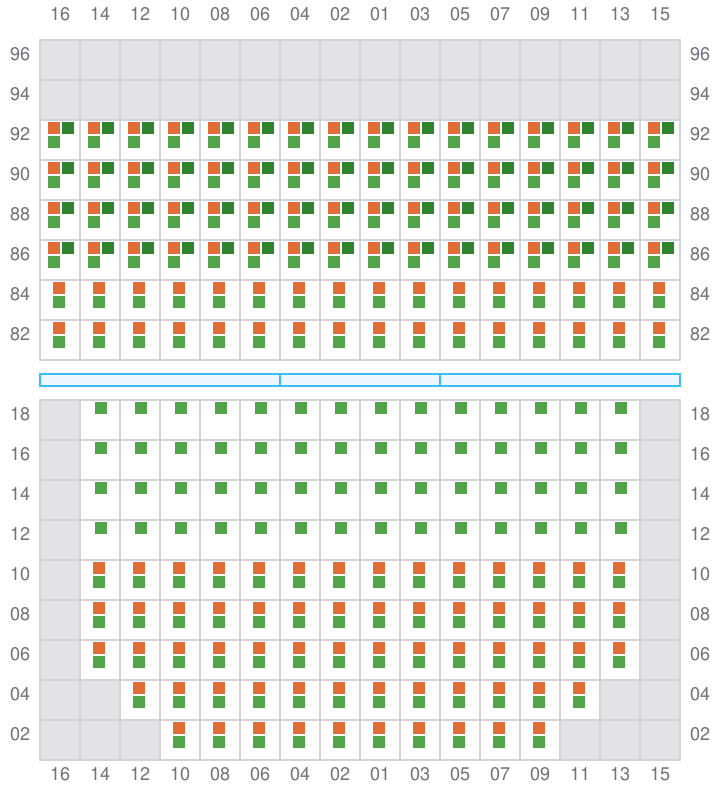

Bay 031 view and slots of MSC HAMBURG

033

←
^→ / _?

Bay 033 view and slots of MSC HAMBURG

035 (036)

→

Bay 035 view and slots of MSC HAMBURG

037

←
^→ / _?

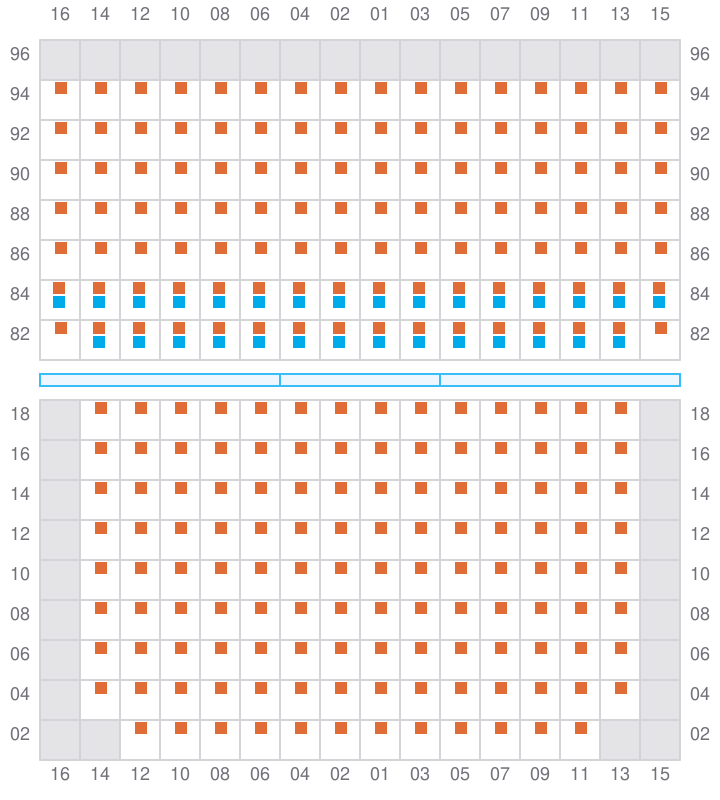

Bay 037 view and slots of MSC HAMBURG

039 (040)

→

Bay 039 view and slots of MSC HAMBURG

041

←
^→ / _?

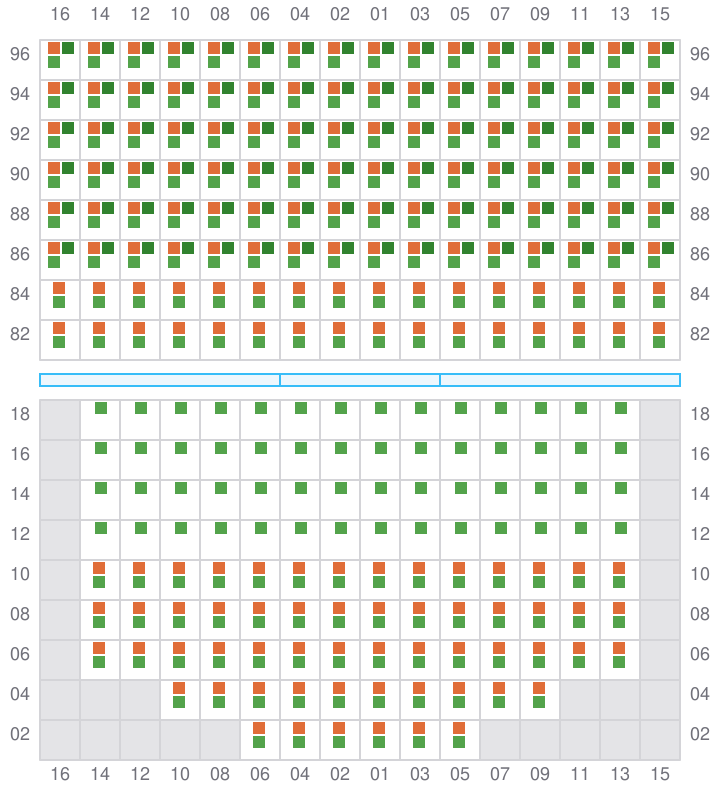

Bay 041 view and slots of MSC HAMBURG

043 (044)

→

Bay 043 view and slots of MSC HAMBURG

045

←
^→ / _?

Bay 045 view and slots of MSC HAMBURG

047 (048)

→

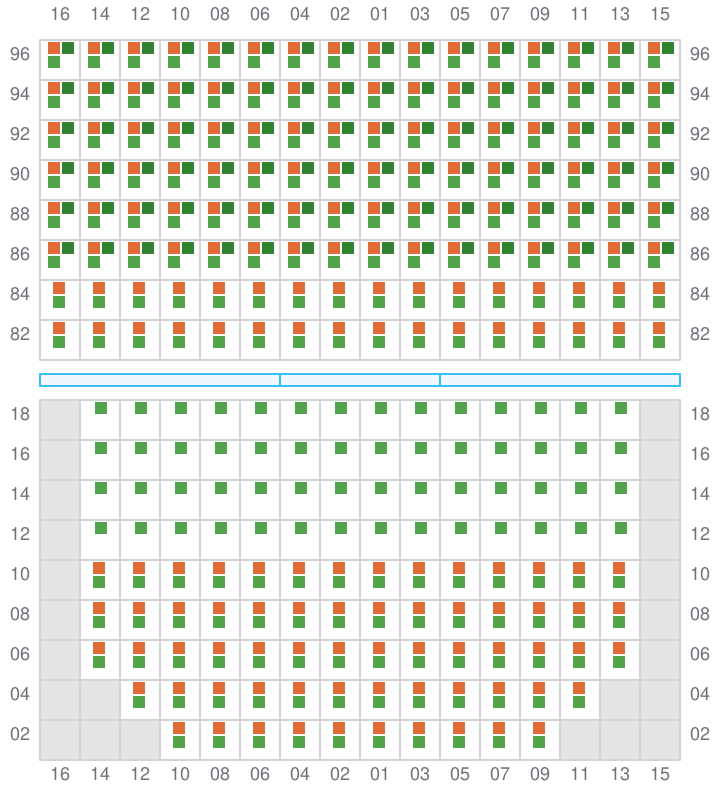

Bay 047 view and slots of MSC HAMBURG

049

←
^→ / _?

Bay 049 view and slots of MSC HAMBURG

051 (052)

→

Bay 051 view and slots of MSC HAMBURG

053

←
^→ / _?

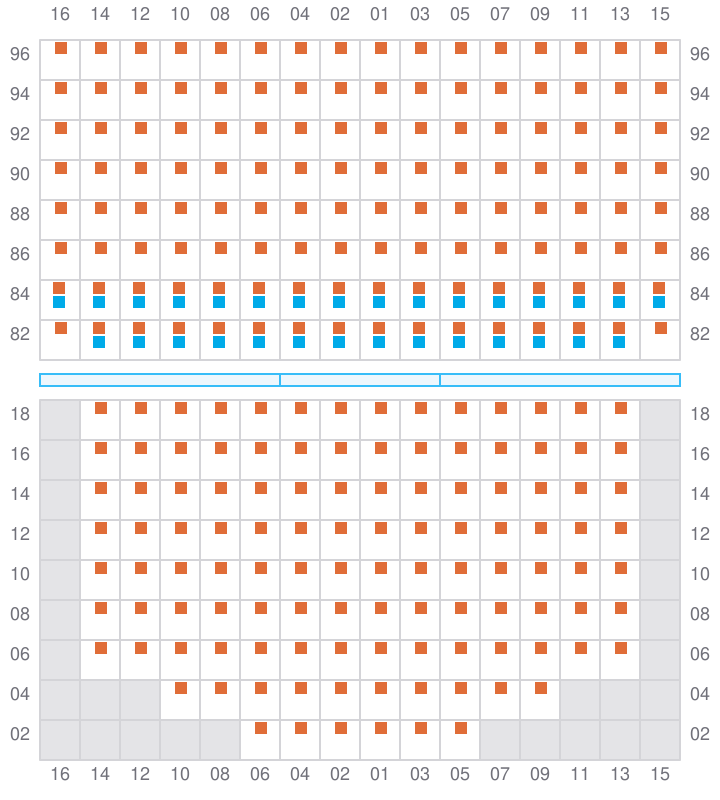

Bay 053 view and slots of MSC HAMBURG

055 (056)

→

Bay 055 view and slots of MSC HAMBURG

057

←
^→ / _?

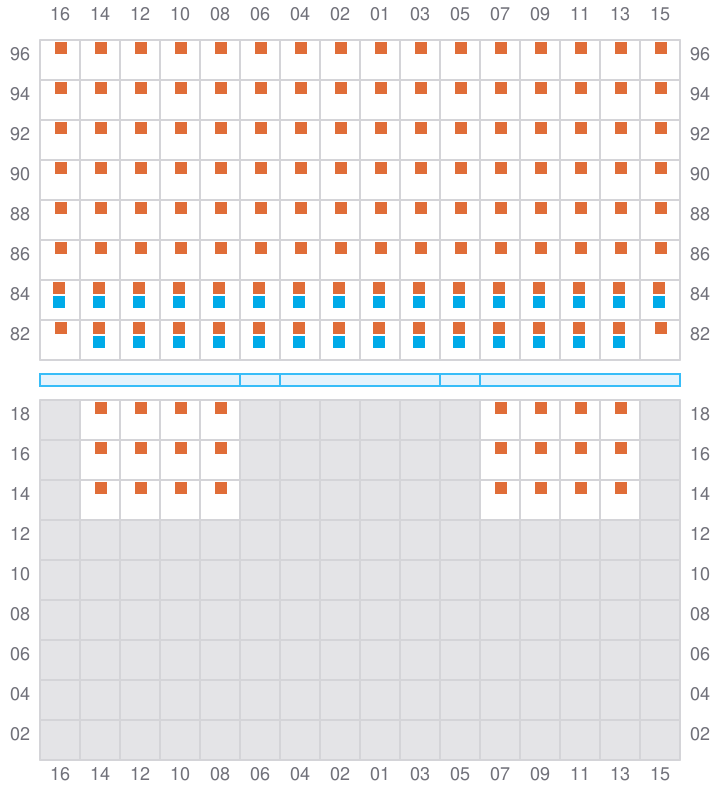

Bay 057 view and slots of MSC HAMBURG

059 (060)

→
^← / _?

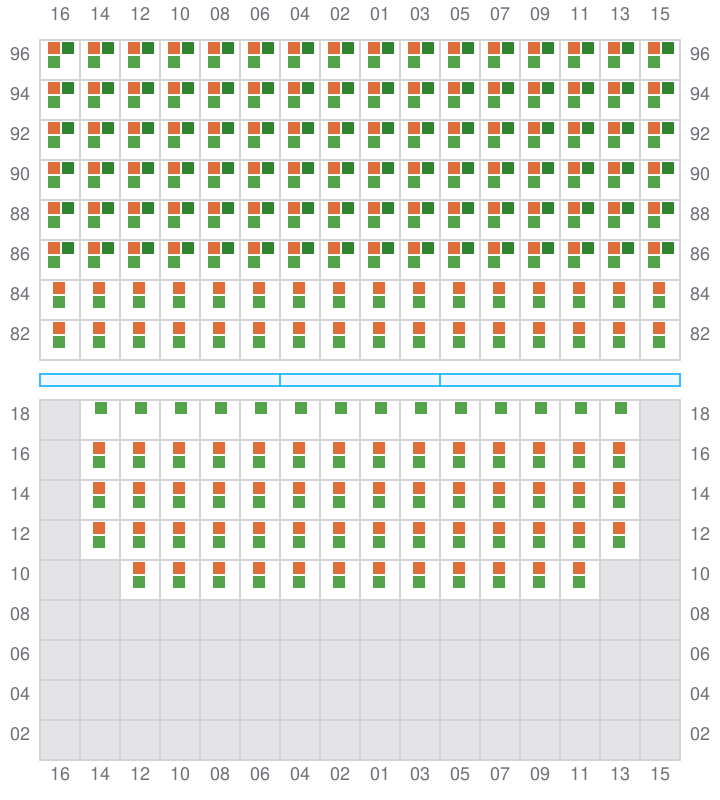

Bay 059 view and slots of MSC HAMBURG

061

←
^→ / _?

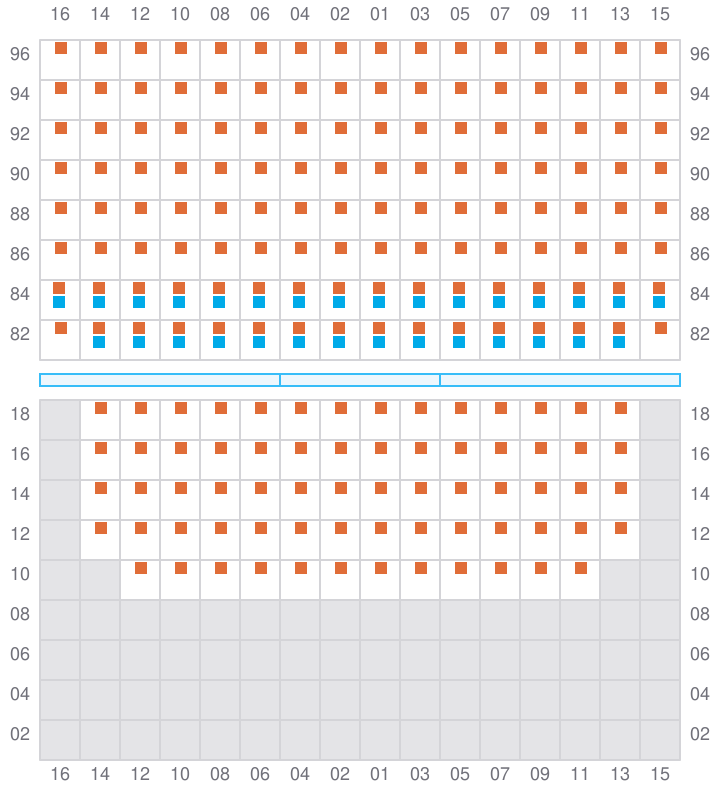

Bay 061 view and slots of MSC HAMBURG

063 (064)

→
^← / _?

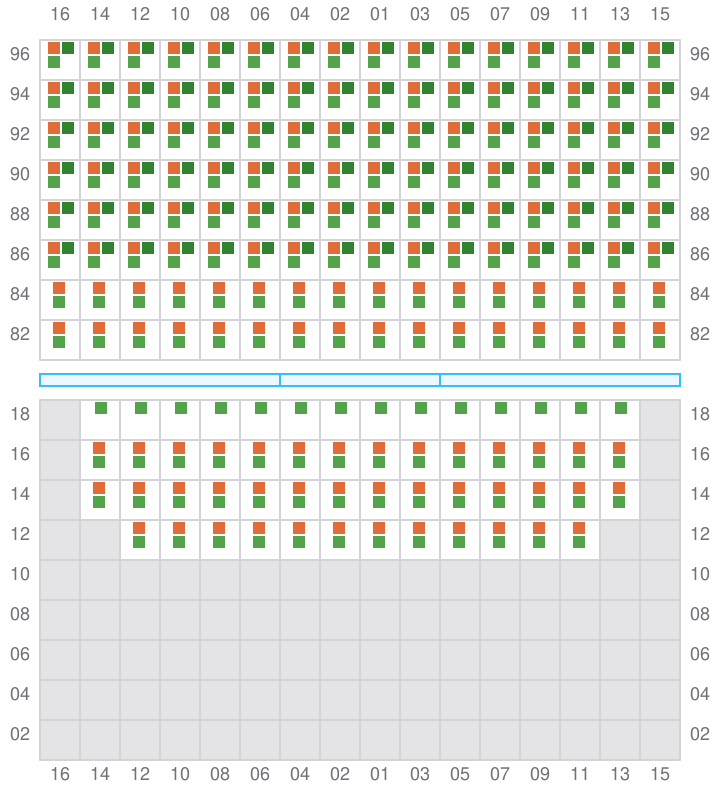

Bay 063 view and slots of MSC HAMBURG

065

←
^→ / _?

Bay 065 view and slots of MSC HAMBURG

067 (068)

^→ / _?
^← / _?

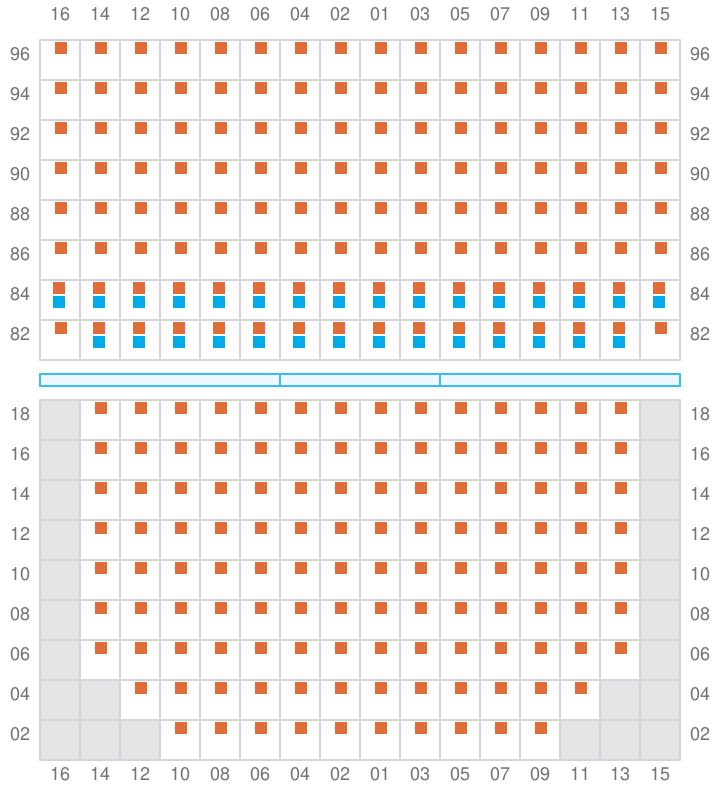

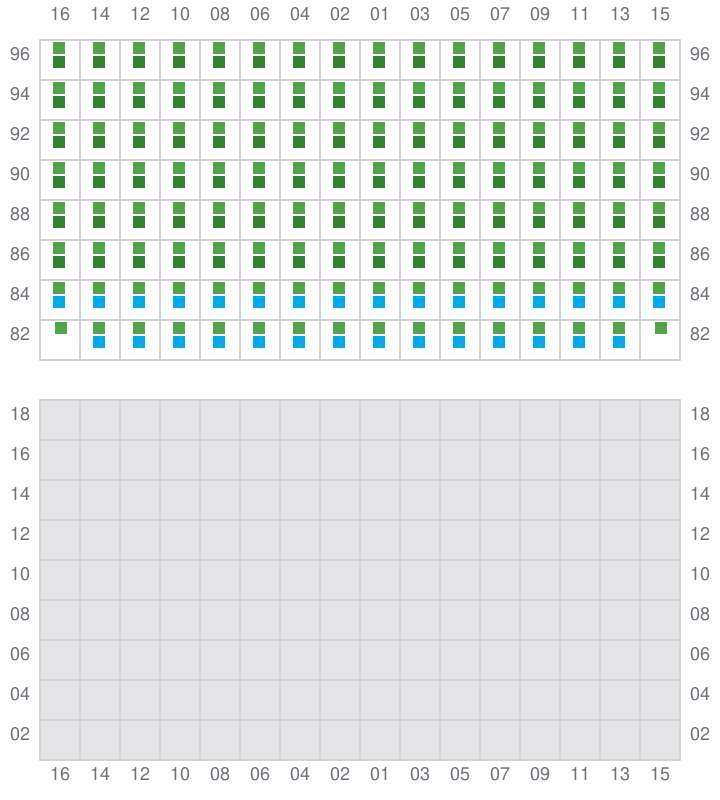

Bay 067 view and slots of MSC HAMBURG
