MSC HEIDI
9309473 | 3EHC4 | MSC by ************************** Last update: Sat May 27 2023

General Info

Ship Name:MSC HEIDI
IMO Code:9309473
Call Sign:3EHC4
Line Operator:MSC
Class Name for Sister Ships:MHEI
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,411

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

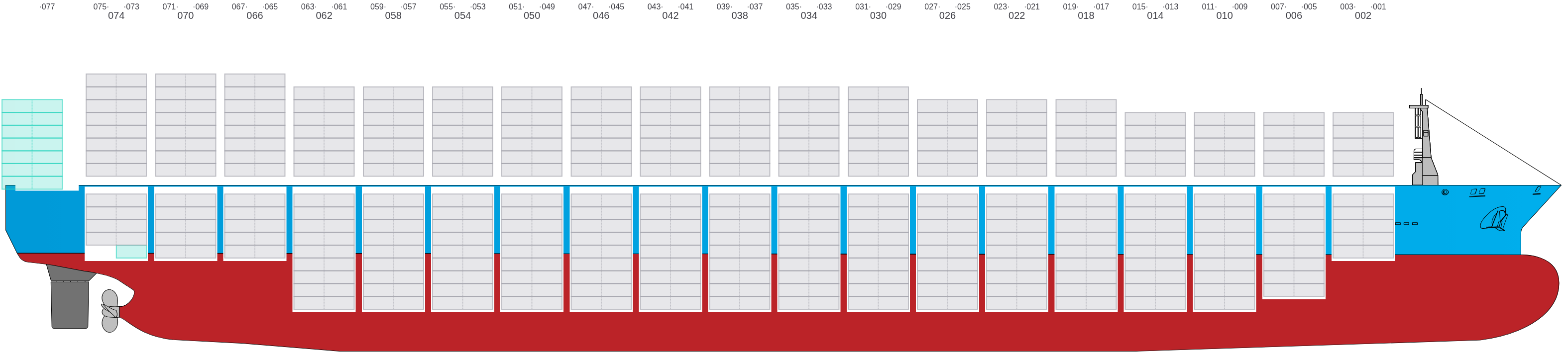

Side View

Side view of MSC HEIDI

Hatch-Covers View

Deck view of MSC HEIDI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

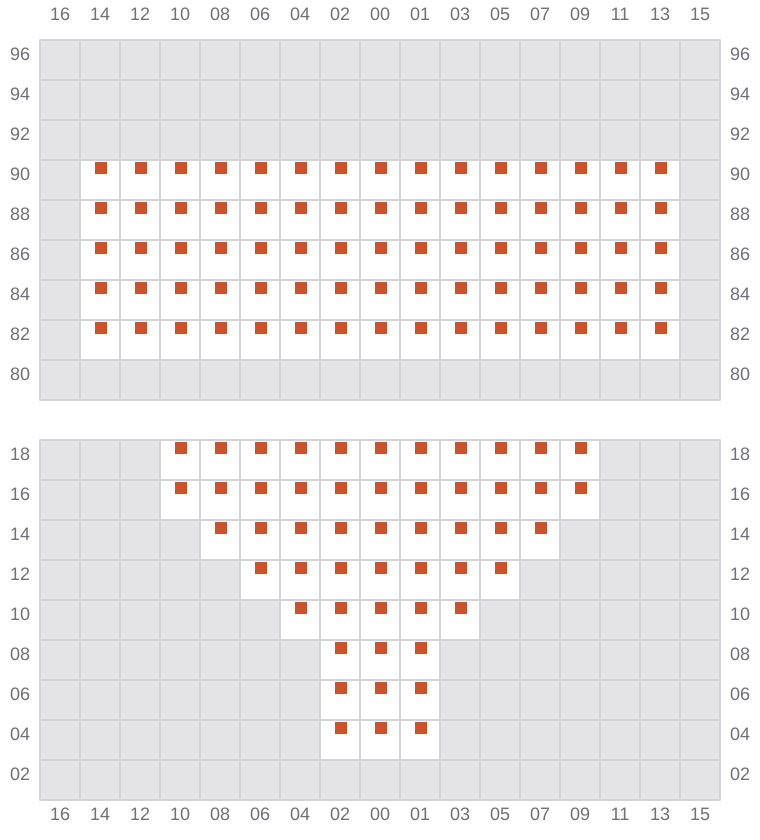

001

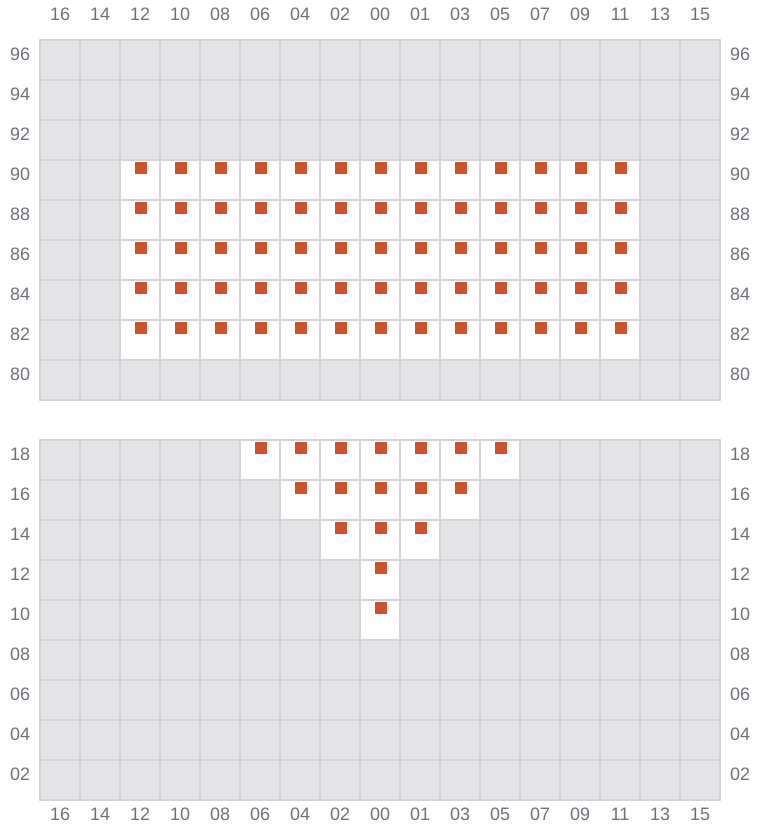

Bay 001 view and slots of MSC HEIDI

003 (002)

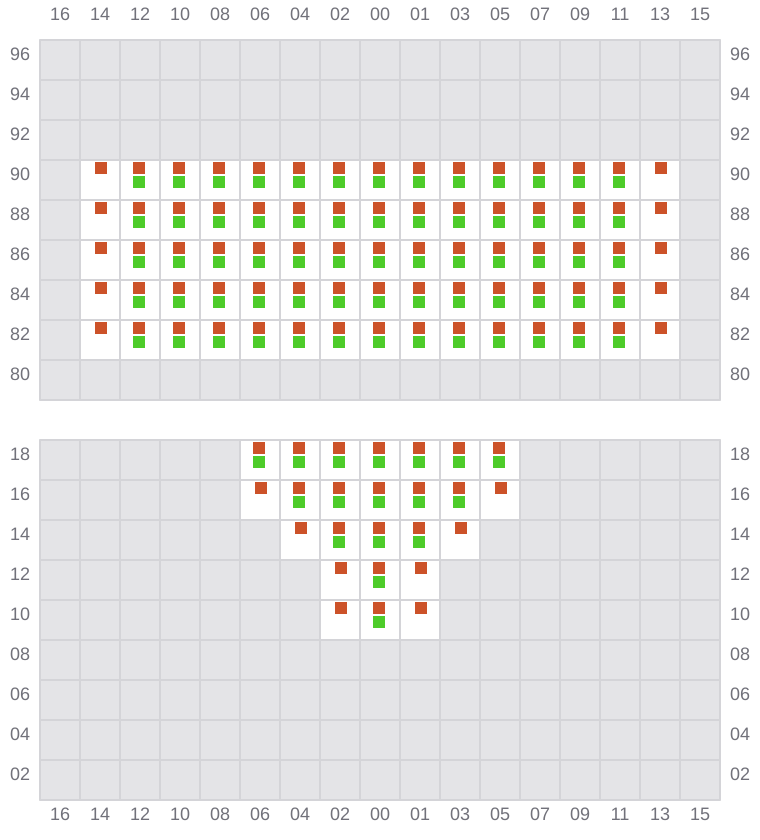

Bay 003 view and slots of MSC HEIDI

005

Bay 005 view and slots of MSC HEIDI

007 (006)

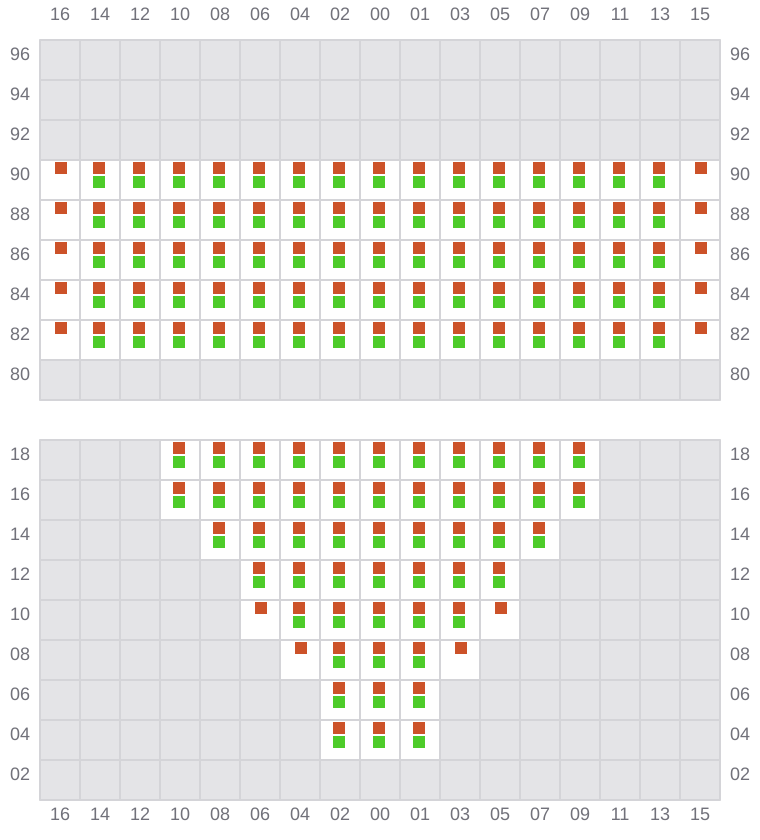

Bay 007 view and slots of MSC HEIDI

009

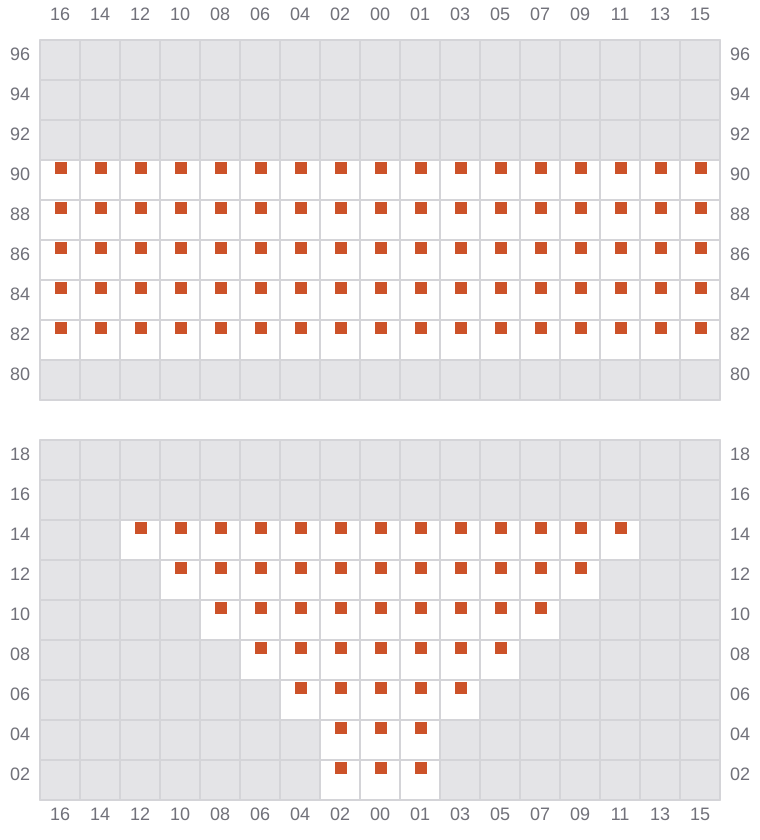

Bay 009 view and slots of MSC HEIDI

011 (010)

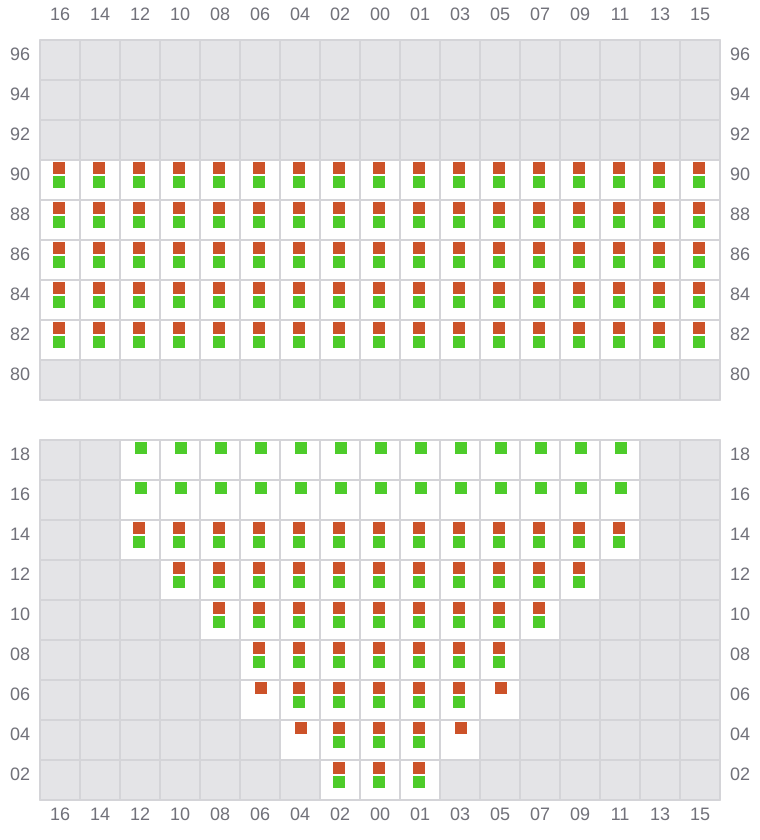

Bay 011 view and slots of MSC HEIDI

013

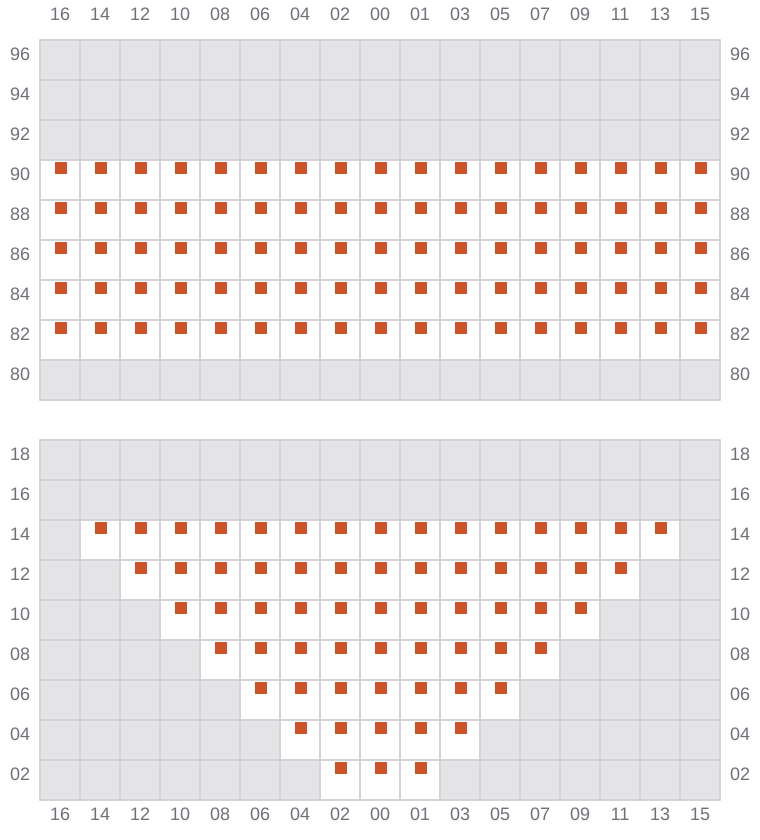

Bay 013 view and slots of MSC HEIDI

015 (014)

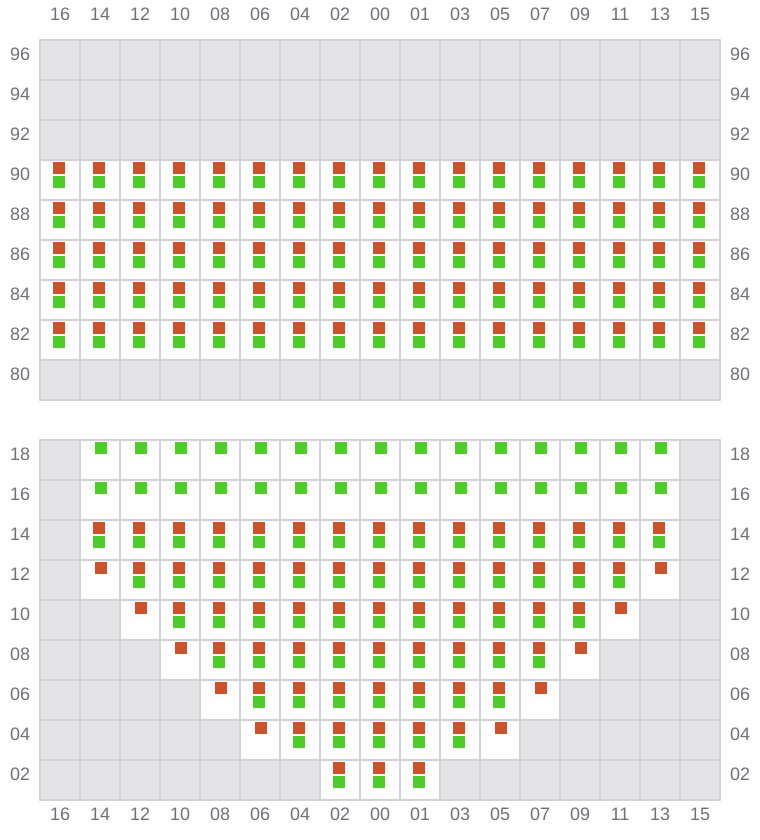

Bay 015 view and slots of MSC HEIDI

017

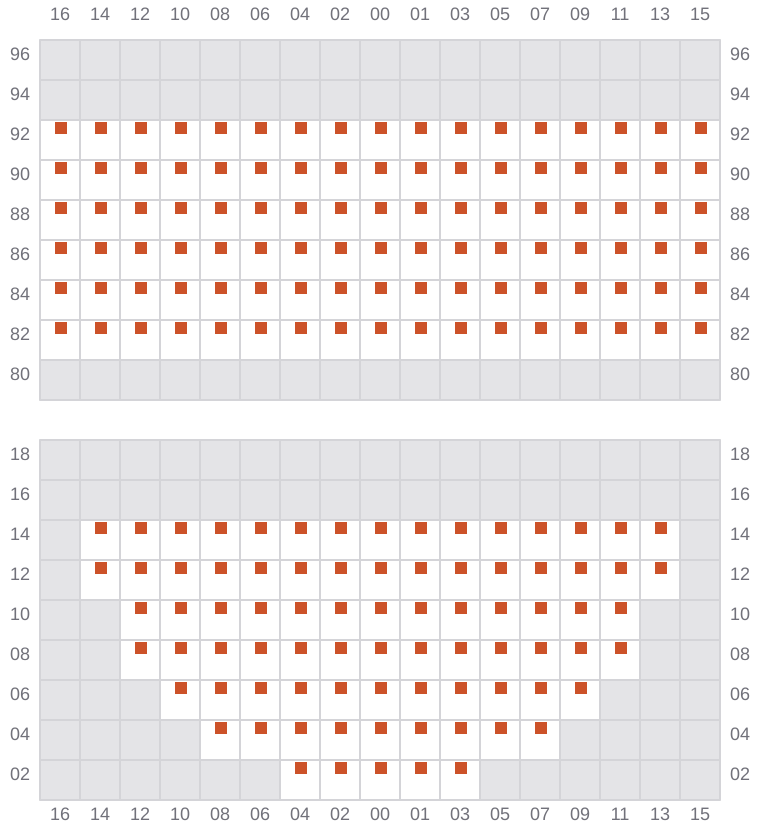

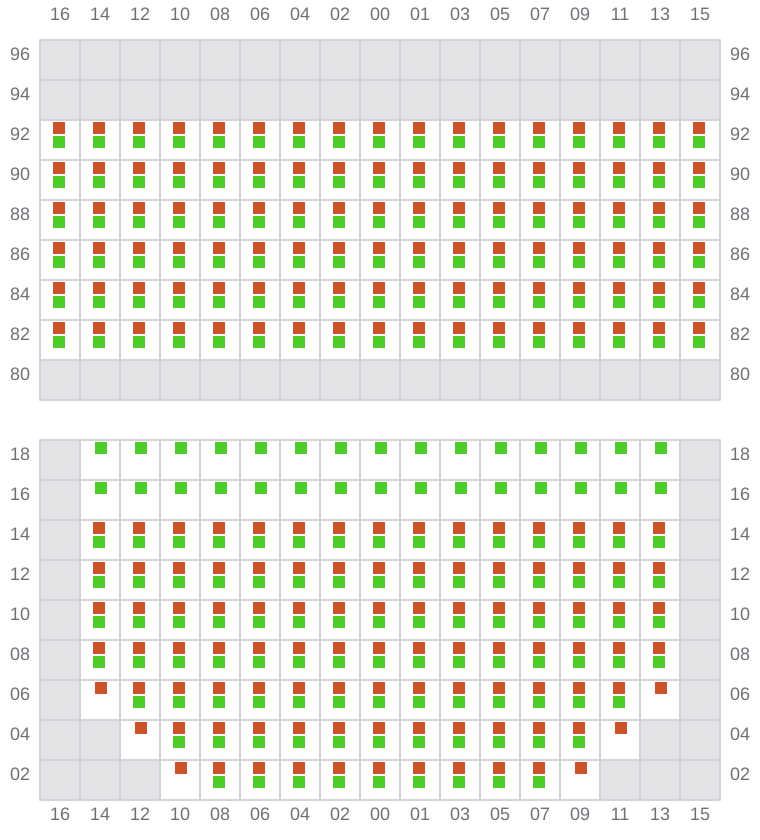

Bay 017 view and slots of MSC HEIDI

019 (018)

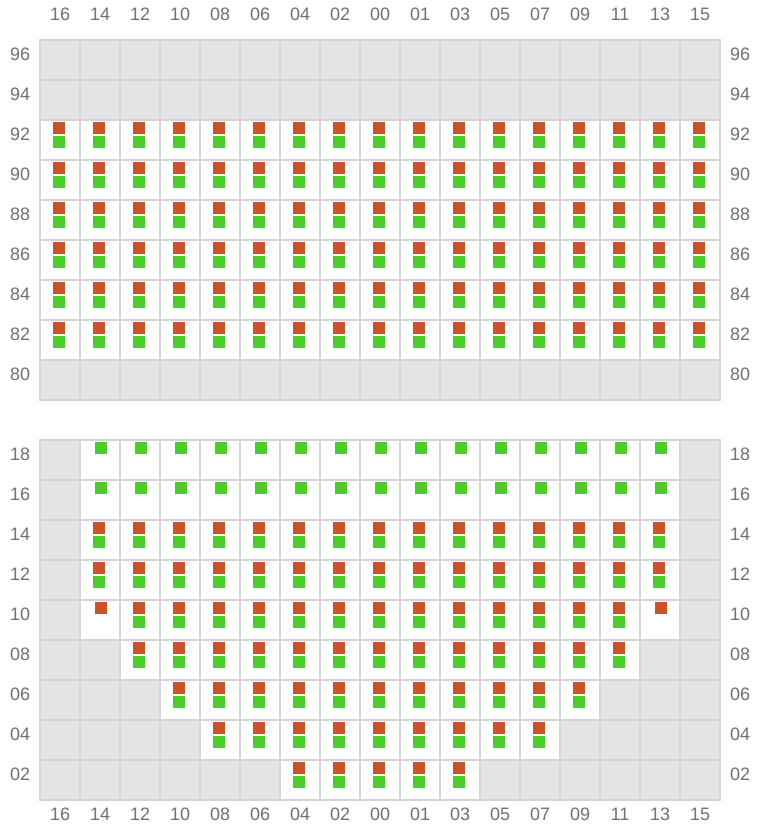

Bay 019 view and slots of MSC HEIDI

021

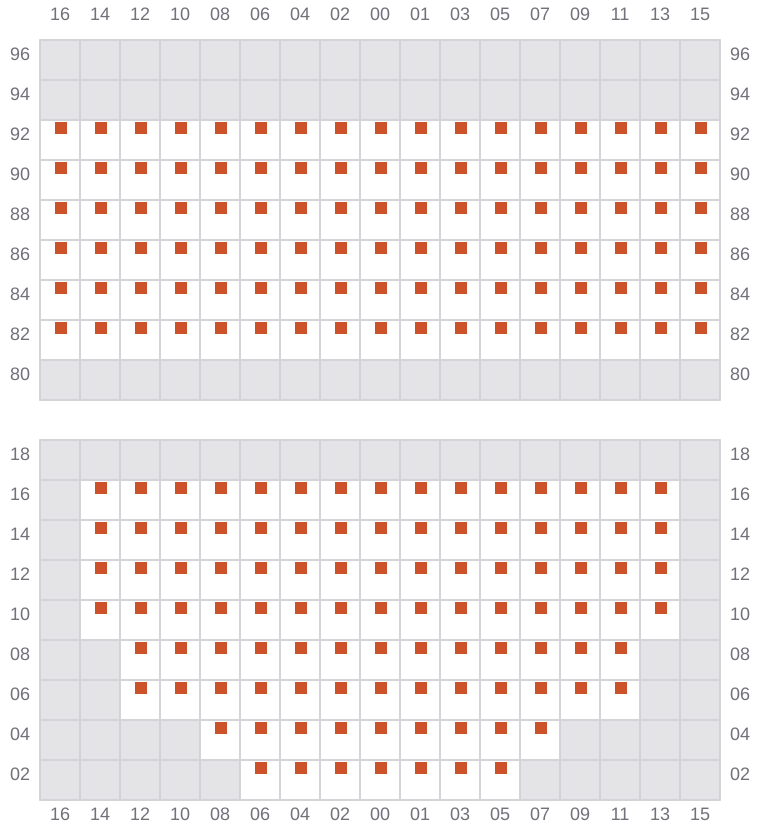

Bay 021 view and slots of MSC HEIDI

023 (022)

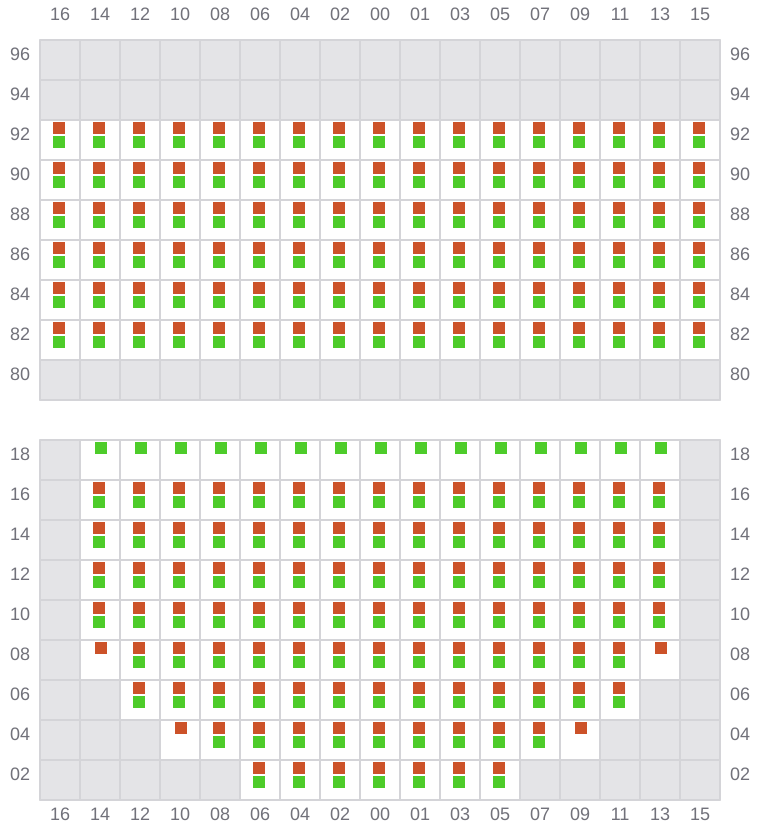

Bay 023 view and slots of MSC HEIDI

025

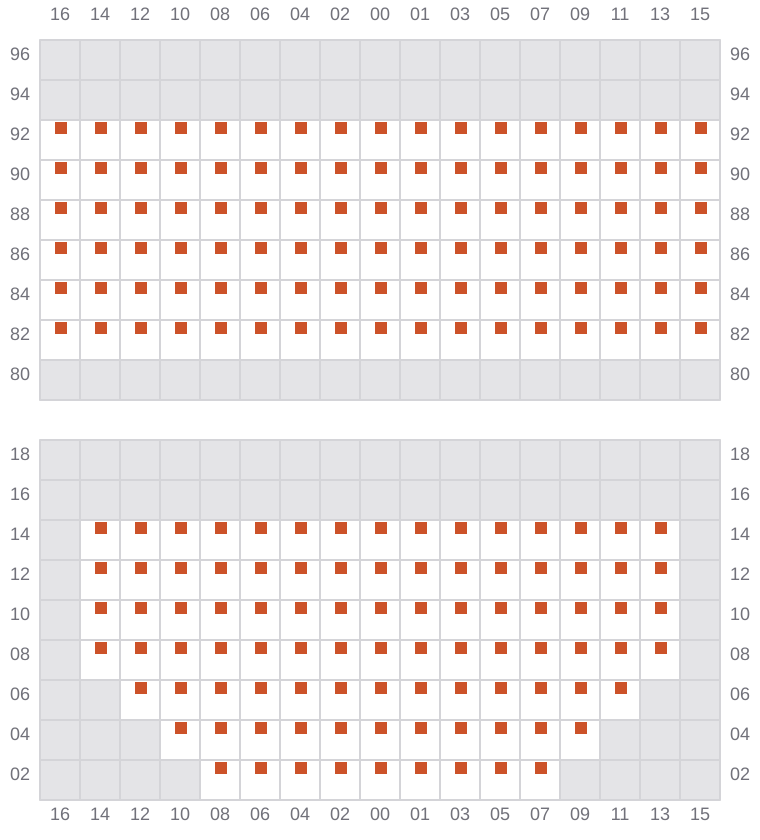

Bay 025 view and slots of MSC HEIDI

027 (026)

Bay 027 view and slots of MSC HEIDI

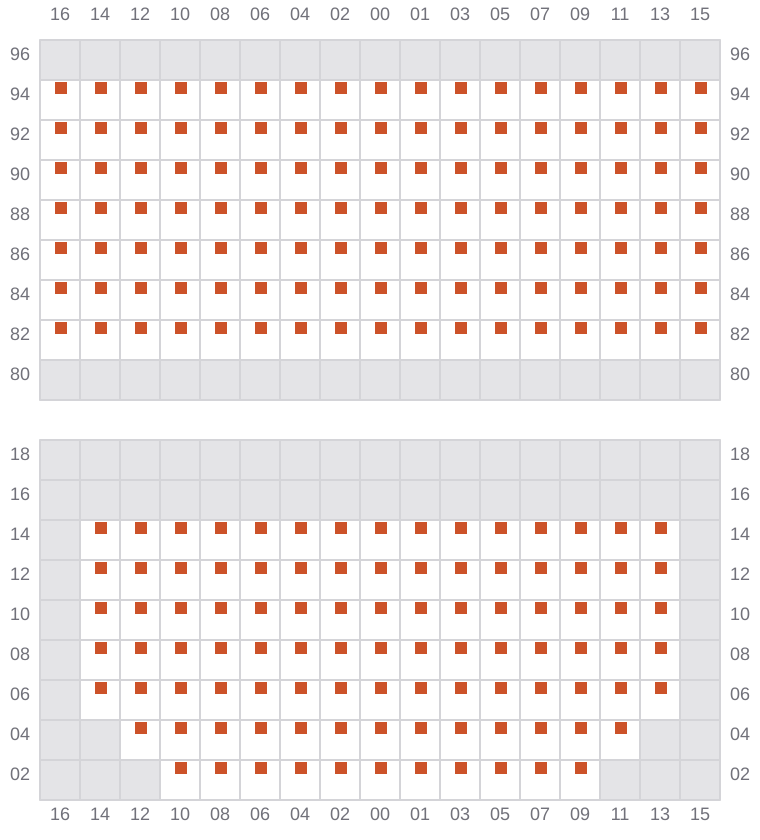

029

Bay 029 view and slots of MSC HEIDI

031 (030)

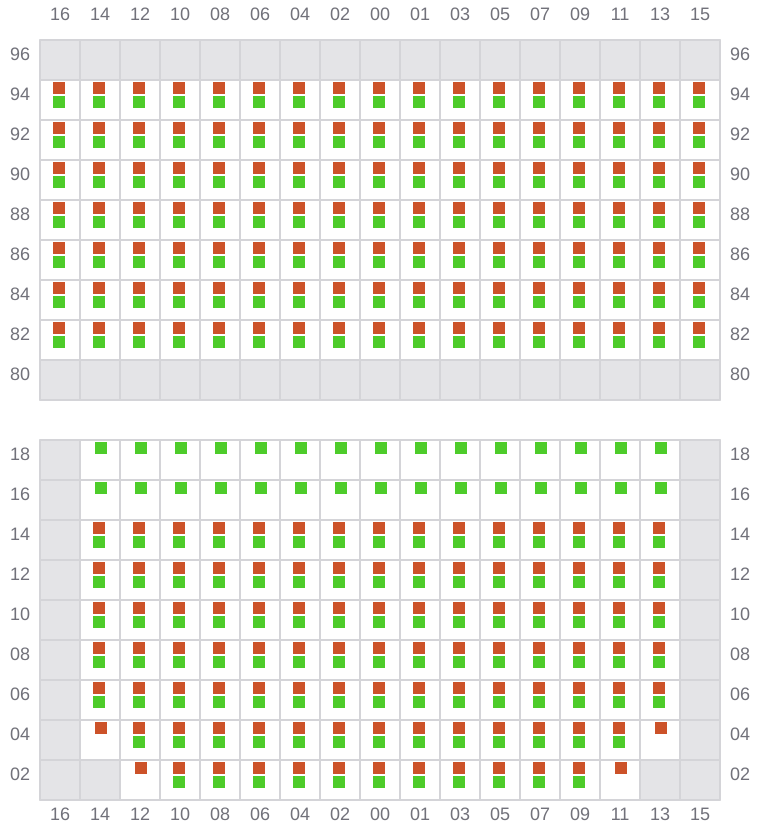

Bay 031 view and slots of MSC HEIDI

033

Bay 033 view and slots of MSC HEIDI

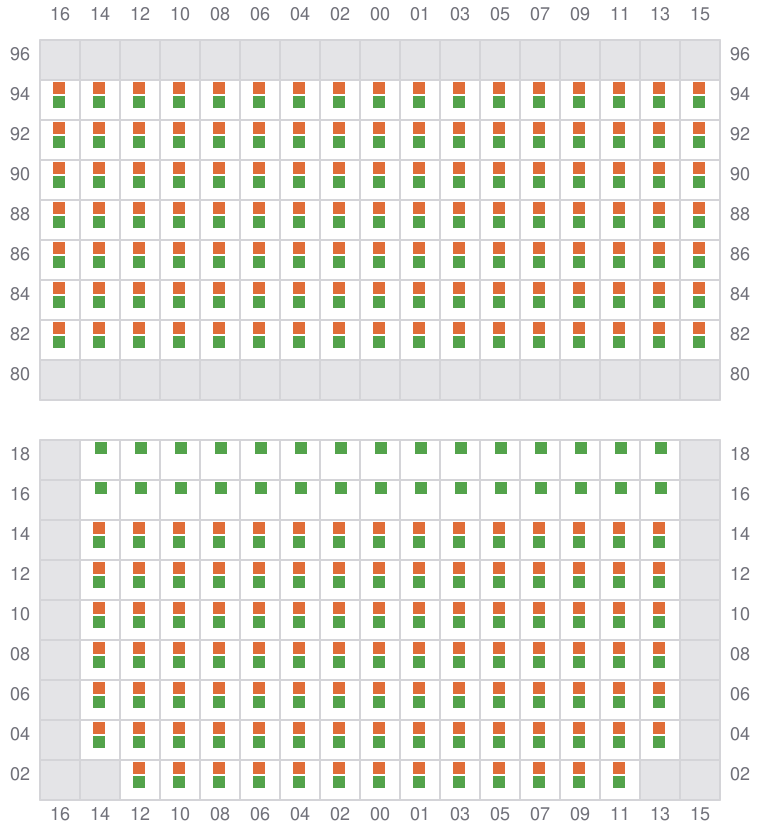

035 (034)

Bay 035 view and slots of MSC HEIDI

037

Bay 037 view and slots of MSC HEIDI

039 (038)

Bay 039 view and slots of MSC HEIDI

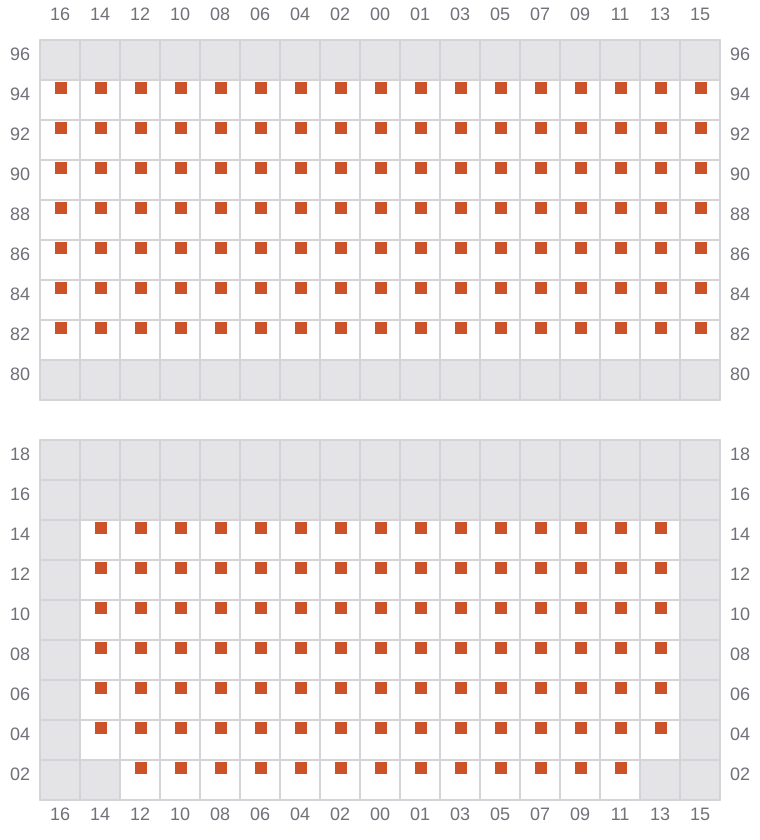

041

Bay 041 view and slots of MSC HEIDI

043 (042)

Bay 043 view and slots of MSC HEIDI

045

Bay 045 view and slots of MSC HEIDI

047 (046)

Bay 047 view and slots of MSC HEIDI

049

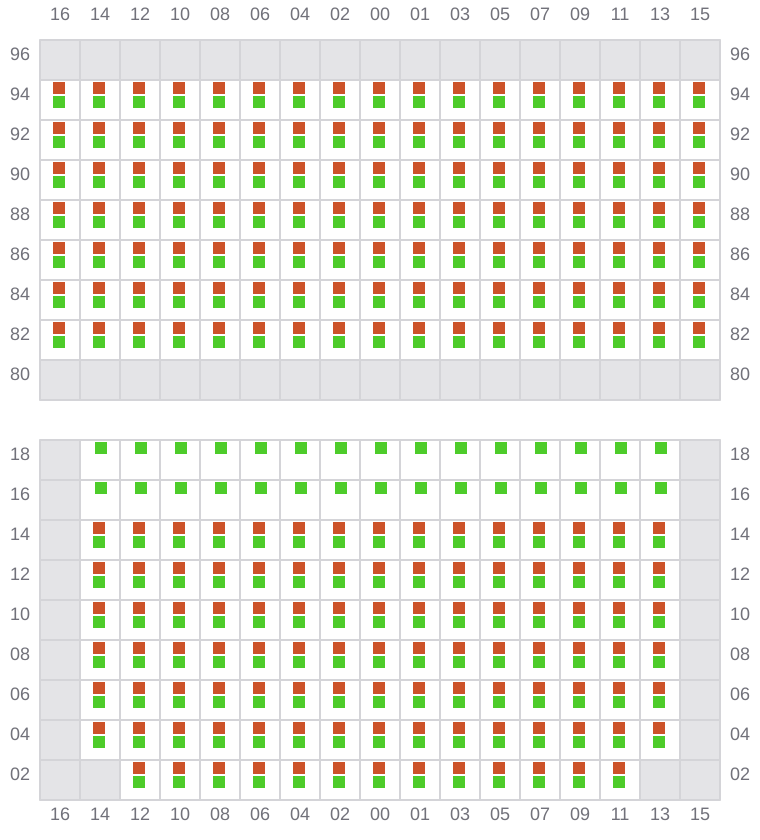

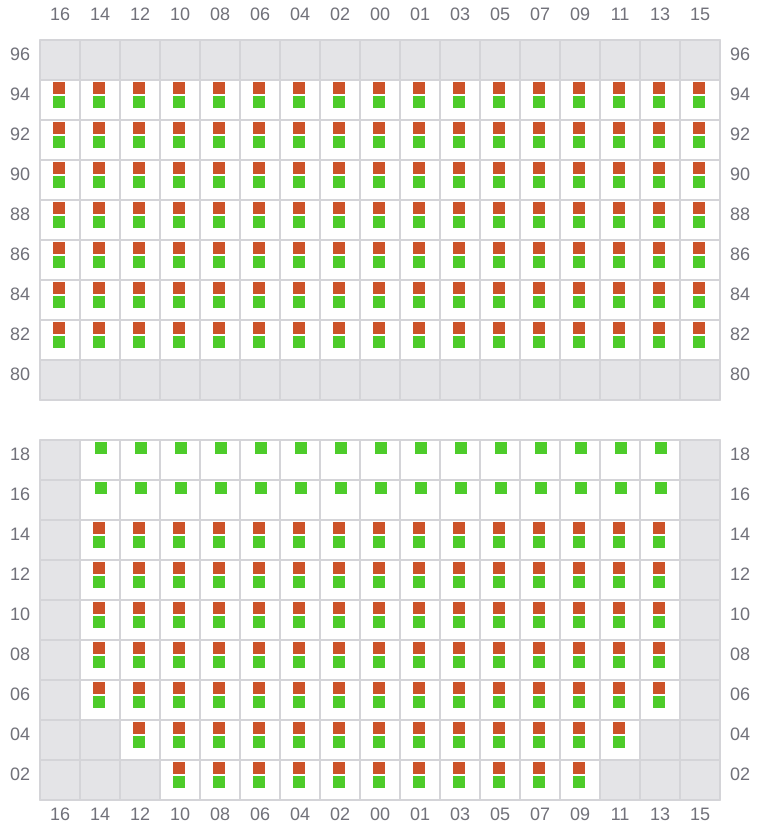

Bay 049 view and slots of MSC HEIDI

051 (050)

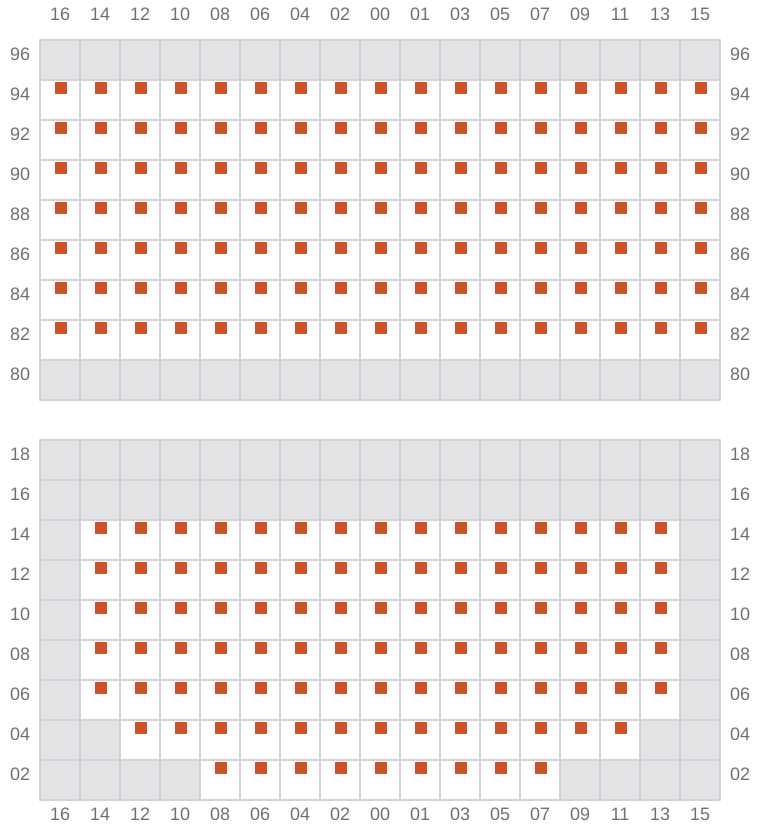

Bay 051 view and slots of MSC HEIDI

053

Bay 053 view and slots of MSC HEIDI

055 (054)

Bay 055 view and slots of MSC HEIDI

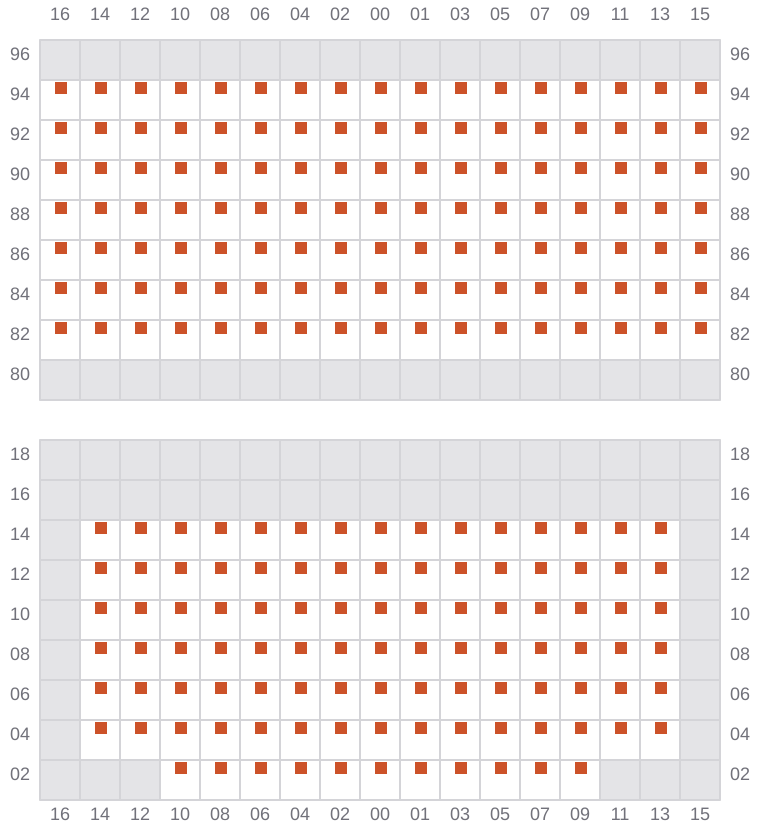

057

Bay 057 view and slots of MSC HEIDI

059 (058)

Bay 059 view and slots of MSC HEIDI

061

Bay 061 view and slots of MSC HEIDI

063 (062)

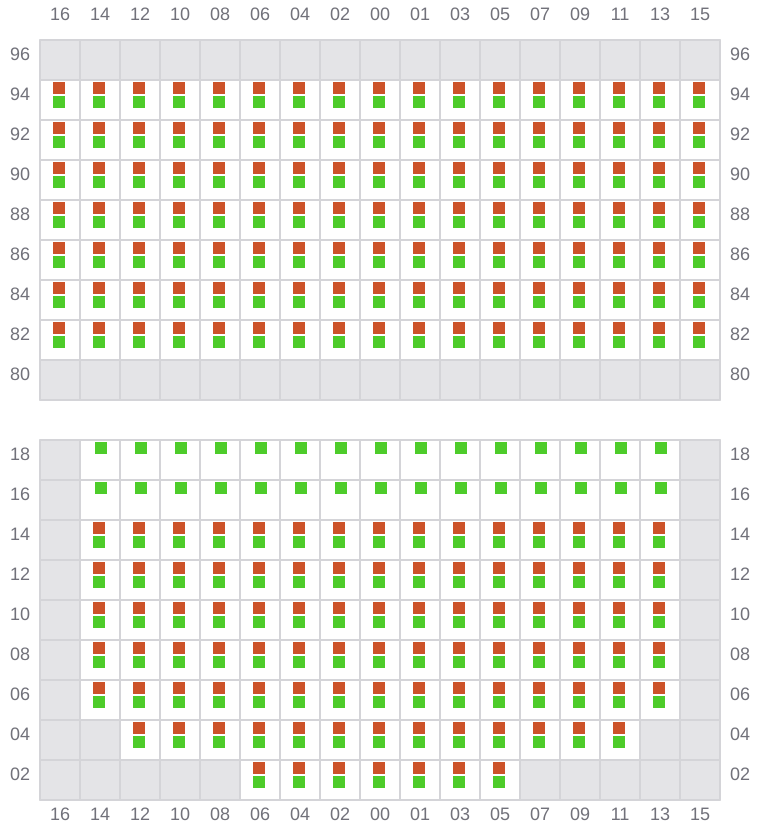

Bay 063 view and slots of MSC HEIDI

065

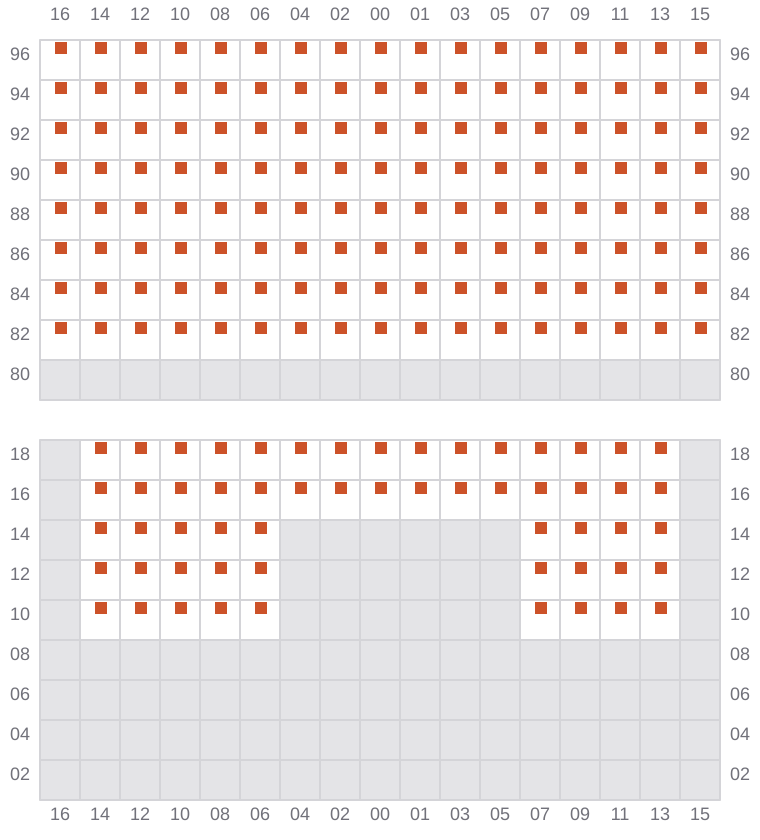

Bay 065 view and slots of MSC HEIDI

067 (066)

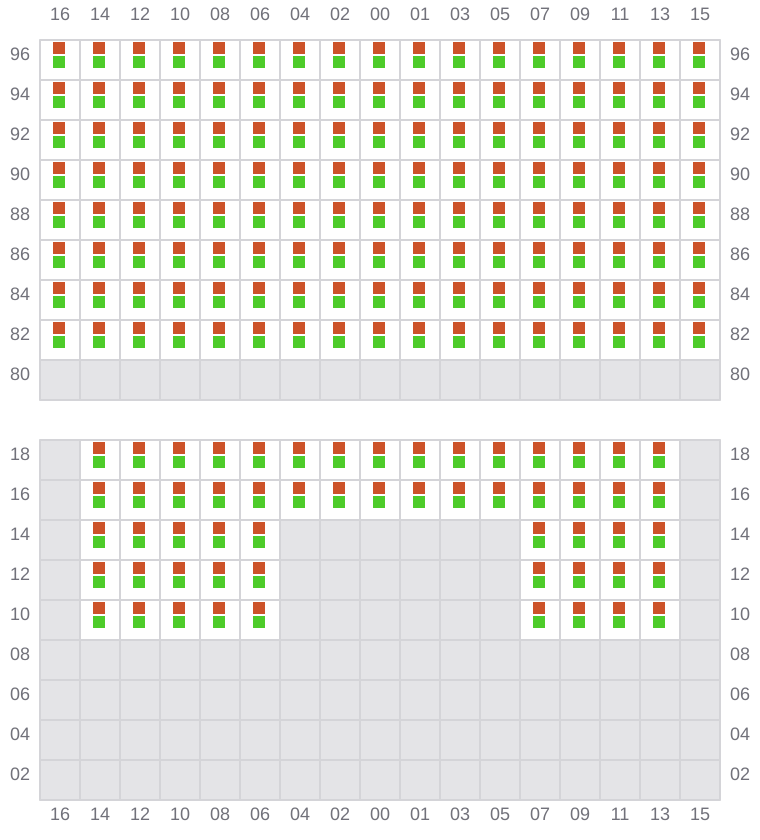

Bay 067 view and slots of MSC HEIDI

069

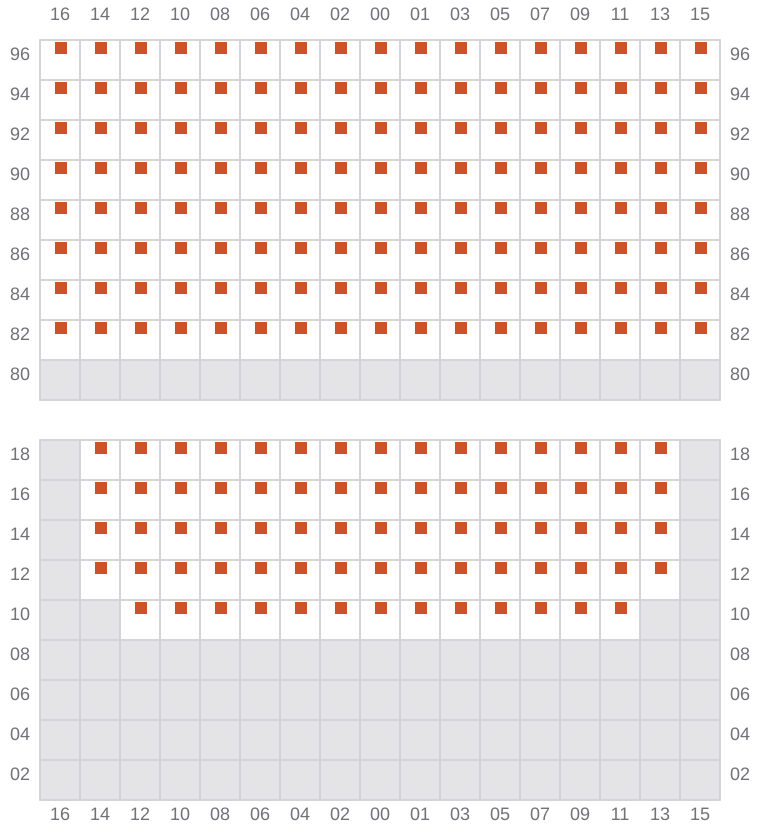

Bay 069 view and slots of MSC HEIDI

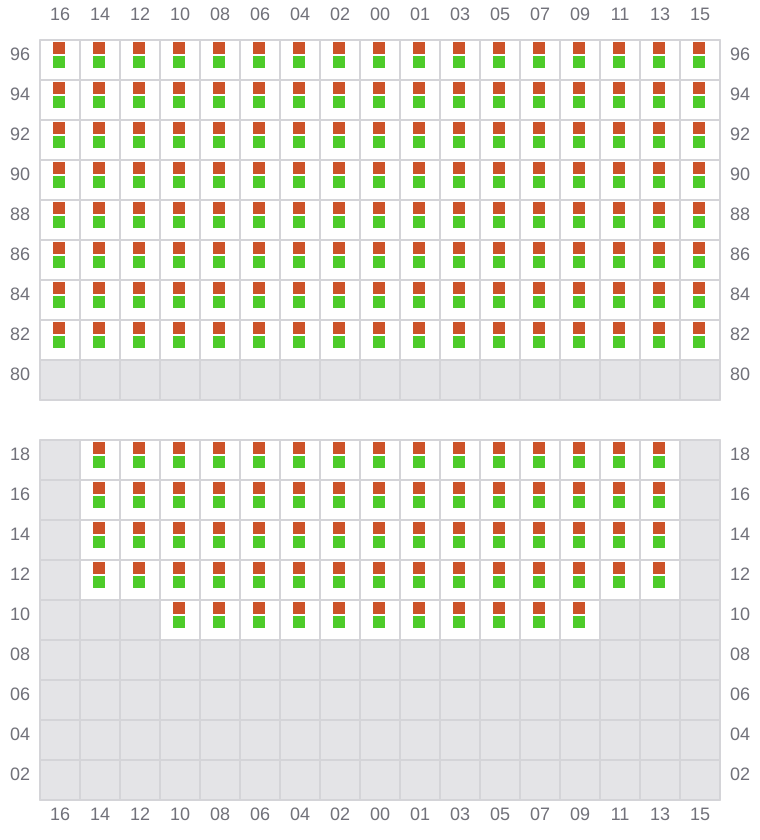

071 (070)

Bay 071 view and slots of MSC HEIDI

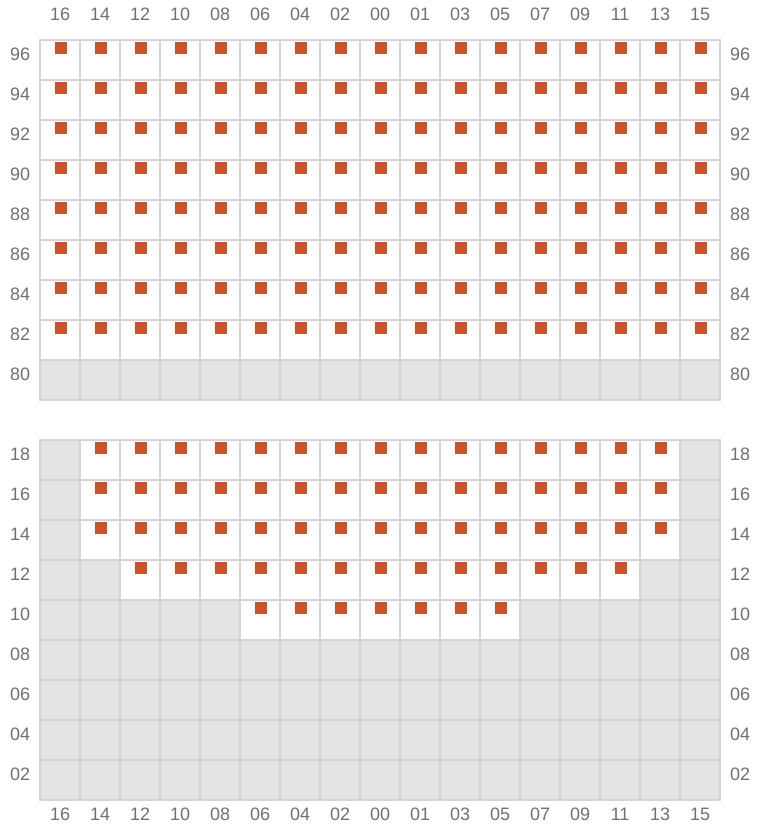

073

Bay 073 view and slots of MSC HEIDI

075 (074)

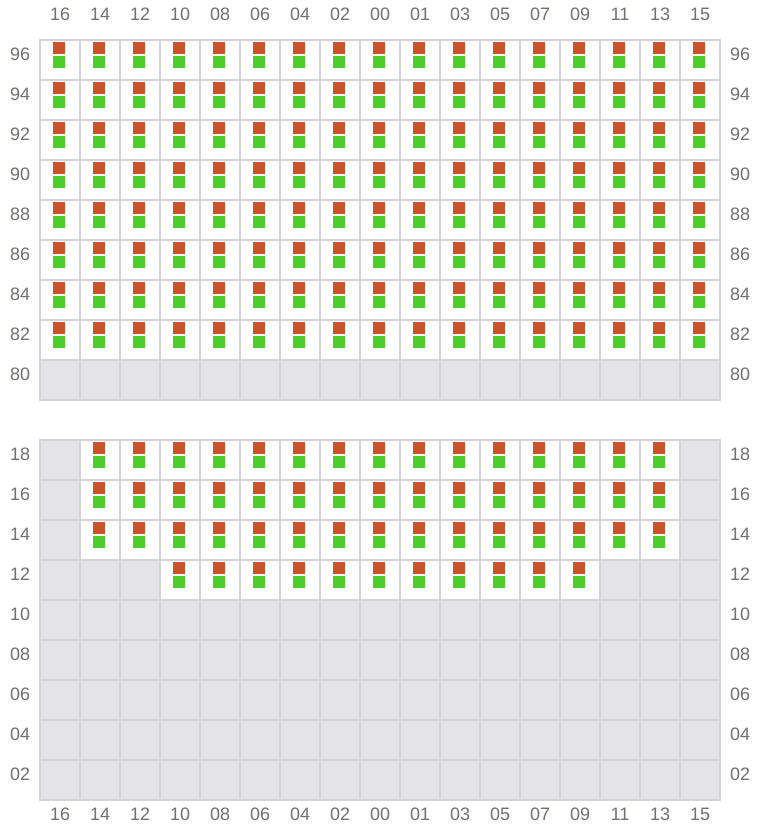

Bay 075 view and slots of MSC HEIDI

077 (078)

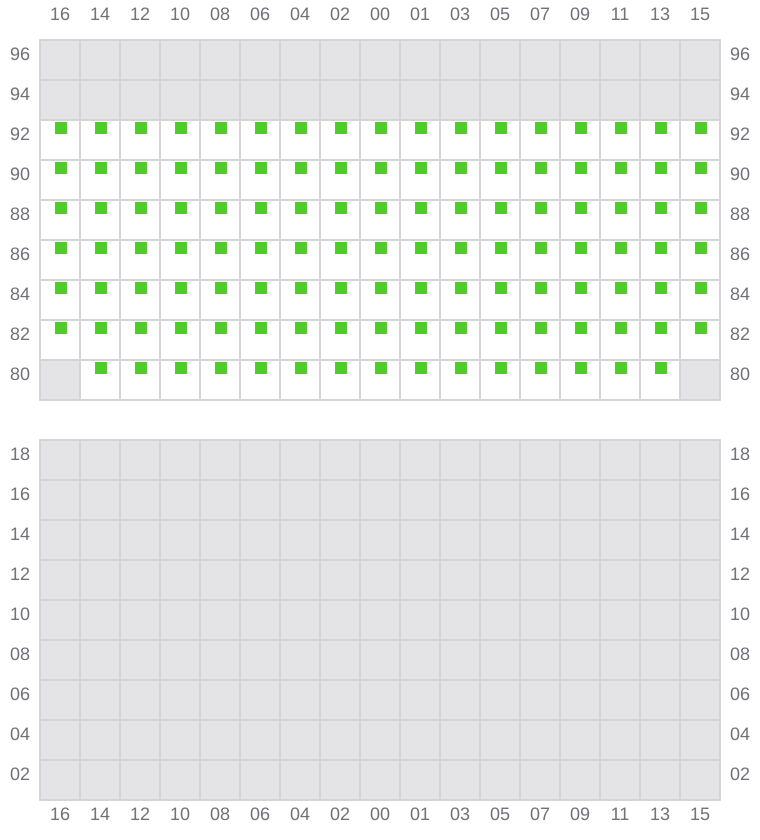

Bay 077 view and slots of MSC HEIDI
