MSC HELENA III
9219393 | 3EBE7 | 9219393 by ********* Last update: Thu Apr 04 2024

General Info

Ship Name:MSC HELENA III
IMO Code:9219393
Call Sign:3EBE7
Line Operator:9219393
Class Name for Sister Ships:APL
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):210.20
LOA (Length Overall):220.35
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,108

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

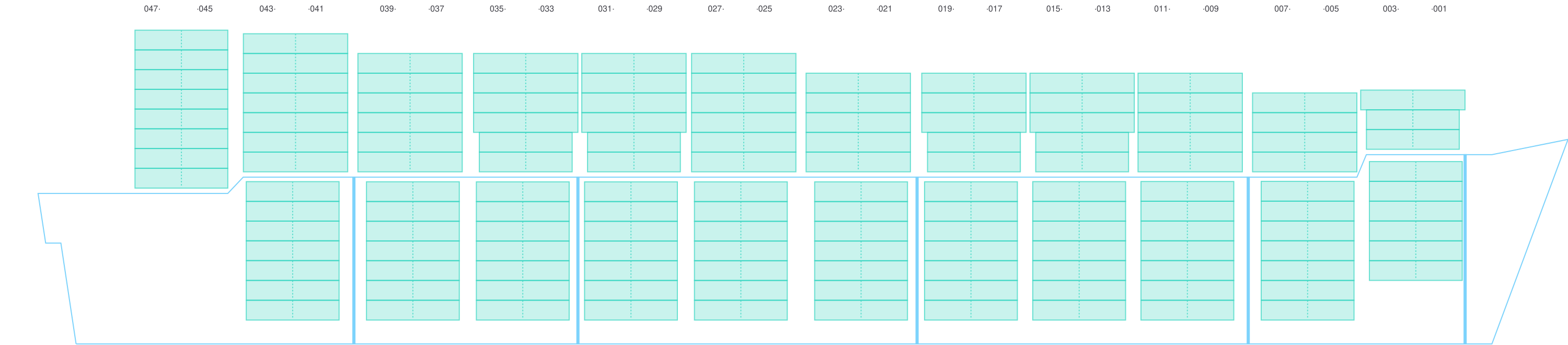

Side view of MSC HELENA III

Hatch-Covers View

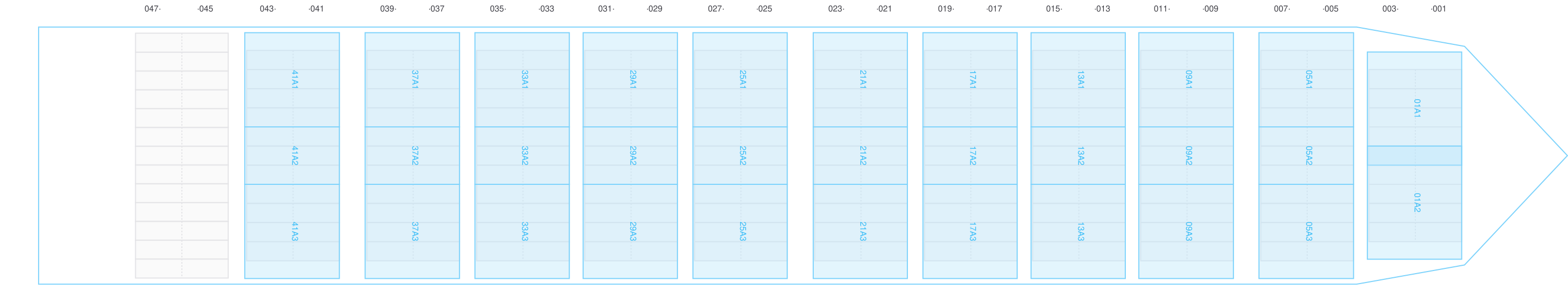

Deck view of MSC HELENA III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

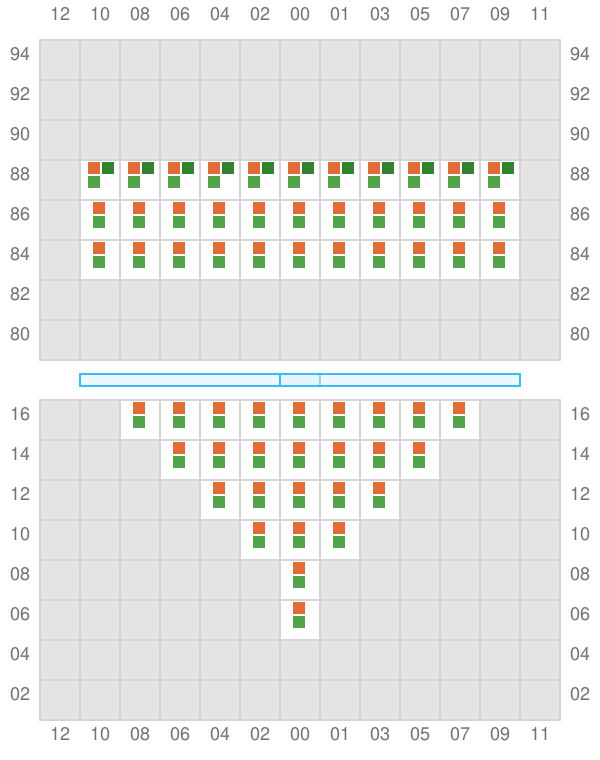

Bay 001 view and slots of MSC HELENA III

003

  • ←

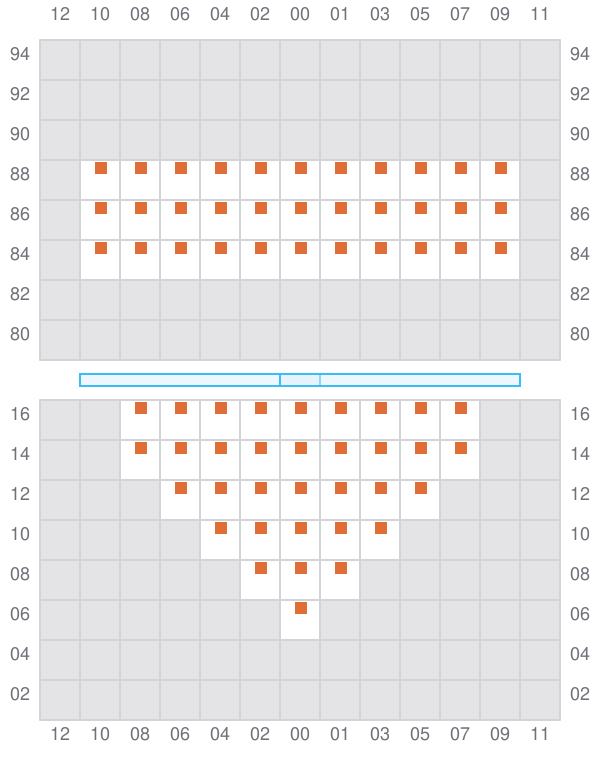

Bay 003 view and slots of MSC HELENA III

005 (006)

  • →

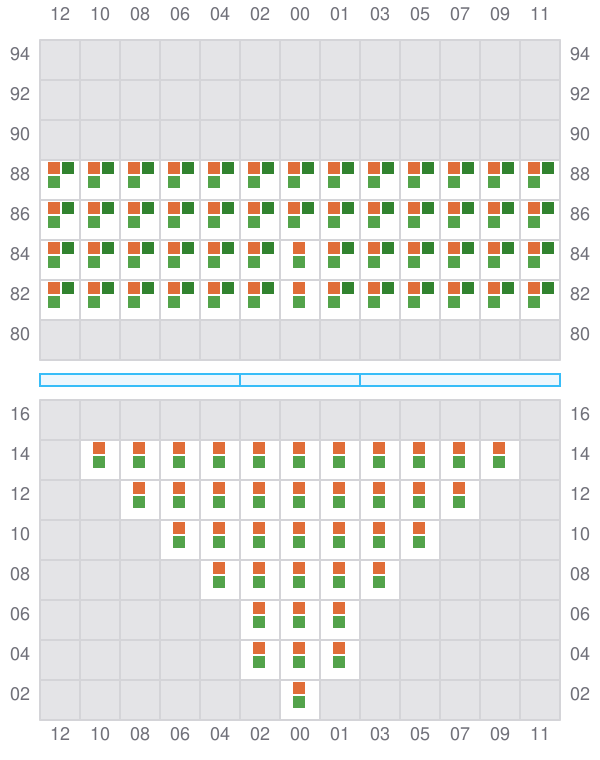

Bay 005 view and slots of MSC HELENA III

007

  • ←

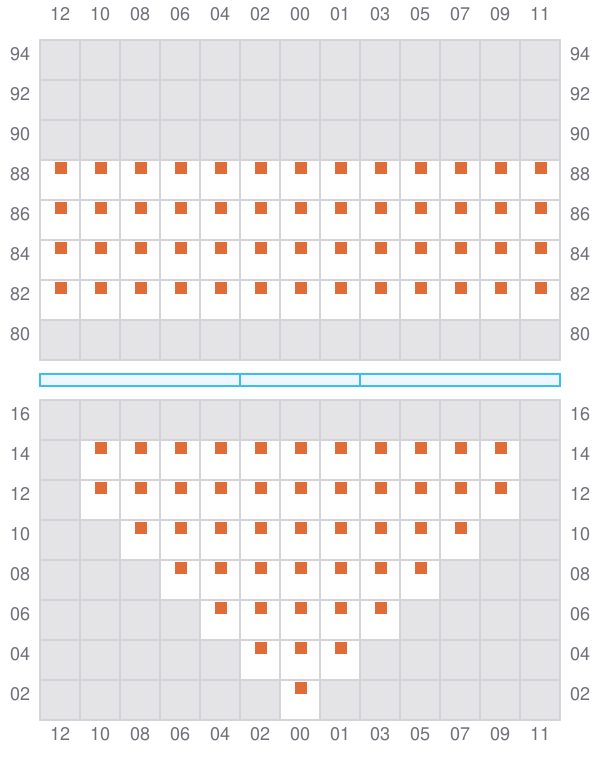

Bay 007 view and slots of MSC HELENA III

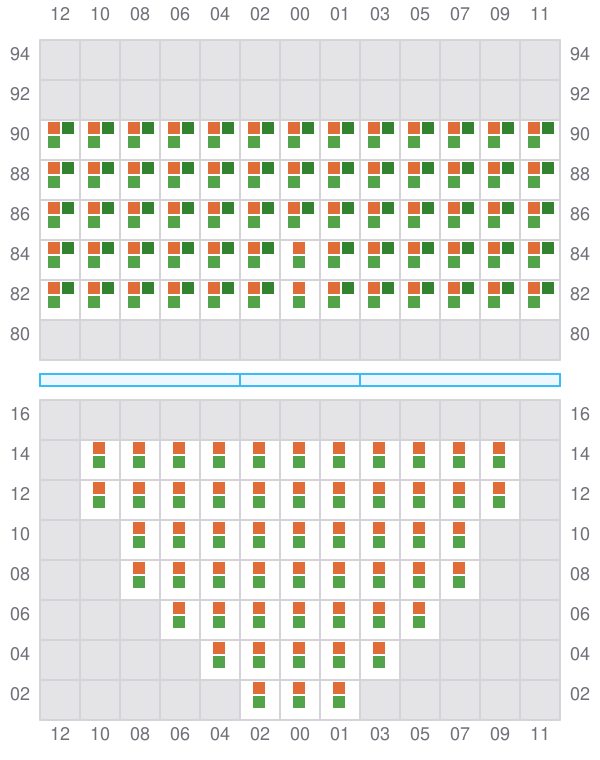

009 (010)

  • →
Bay 009 view and slots of MSC HELENA III

011

  • ←
  • ? / →

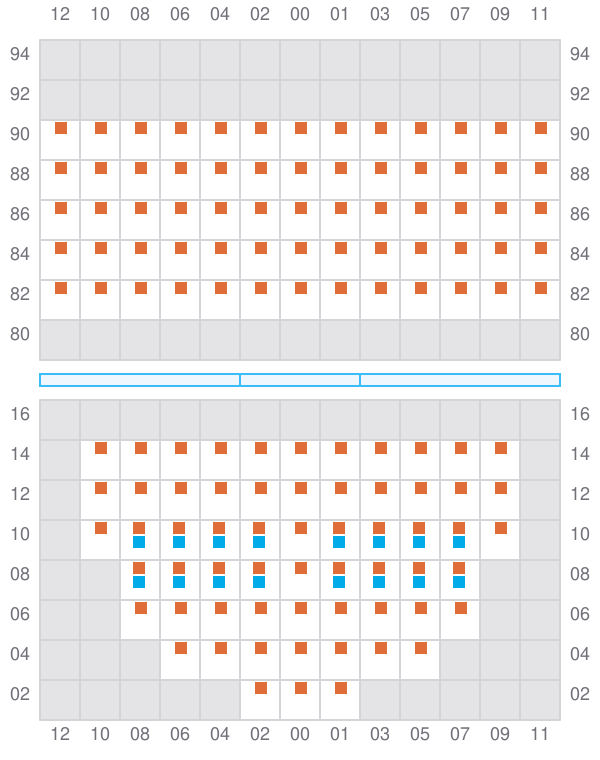

Bay 011 view and slots of MSC HELENA III

013 (014)

  • →
  • ? / ←

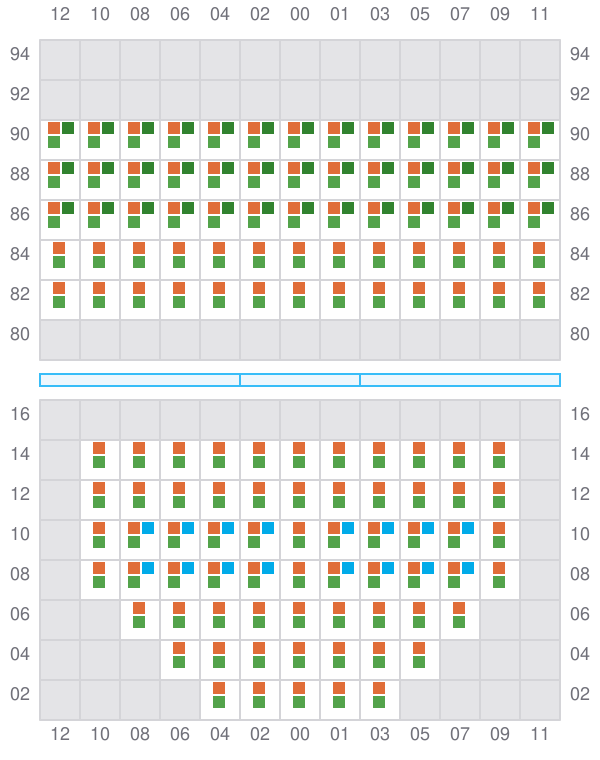

Bay 013 view and slots of MSC HELENA III

015

  • ←
Bay 015 view and slots of MSC HELENA III

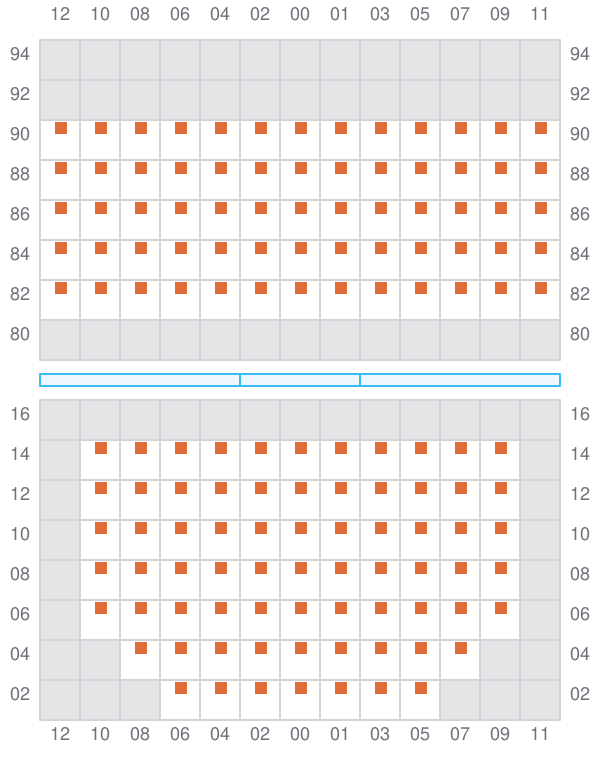

017 (018)

  • →

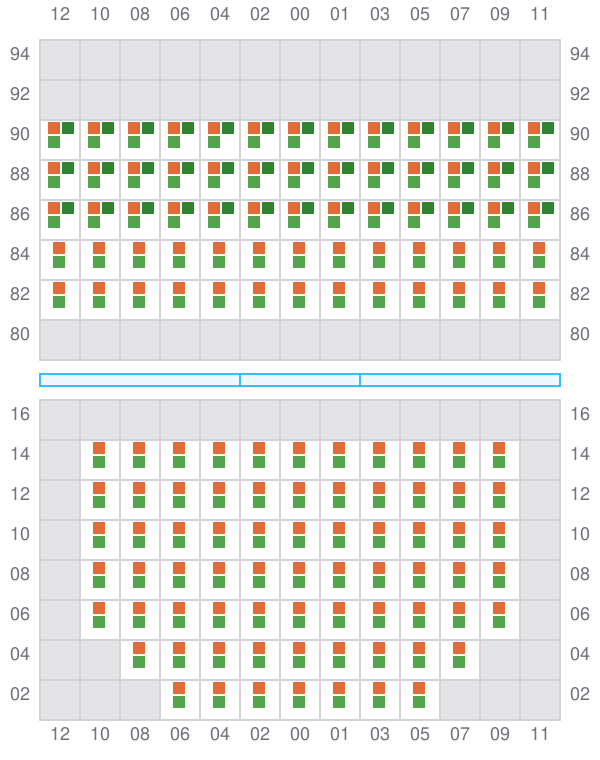

Bay 017 view and slots of MSC HELENA III

019

  • ←
  • →

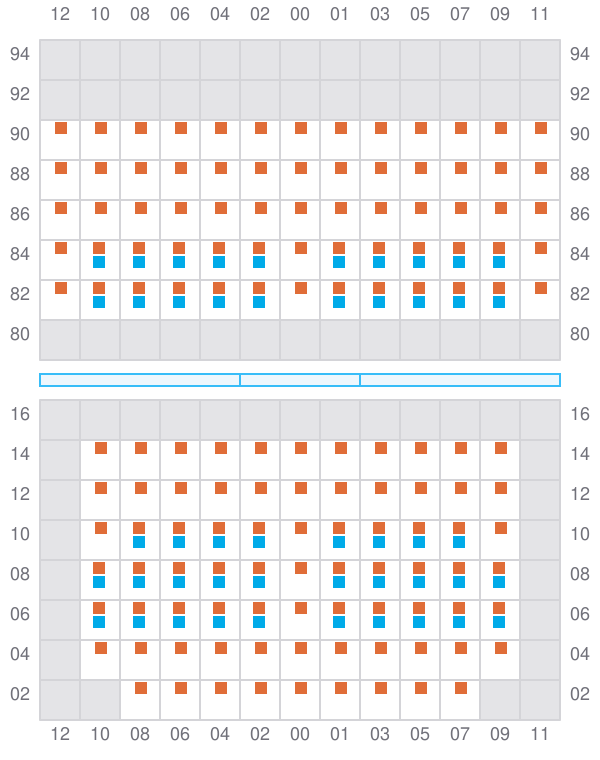

Bay 019 view and slots of MSC HELENA III

021 (022)

  • →
  • ←

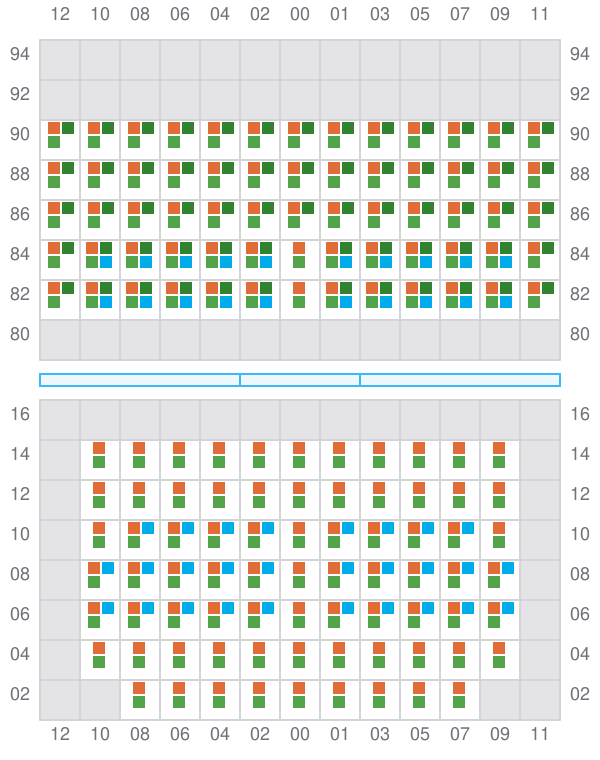

Bay 021 view and slots of MSC HELENA III

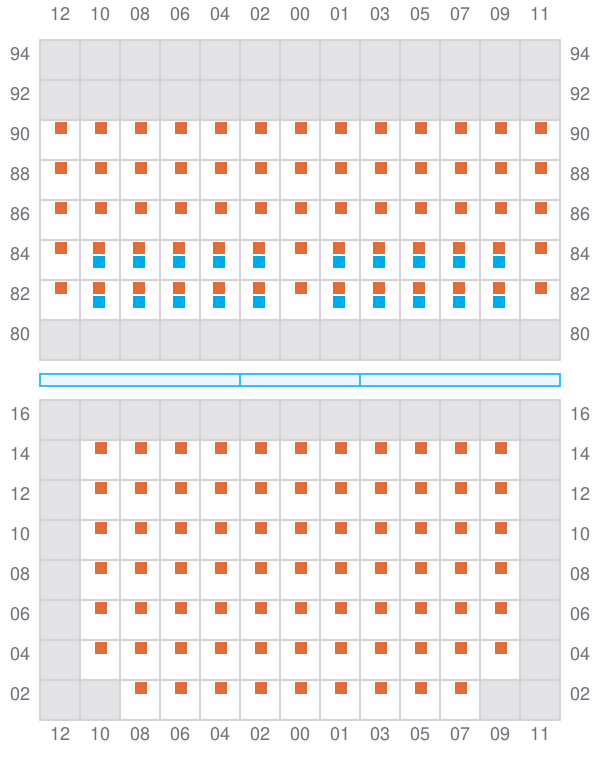

023

  • ←
  • → / ?
Bay 023 view and slots of MSC HELENA III

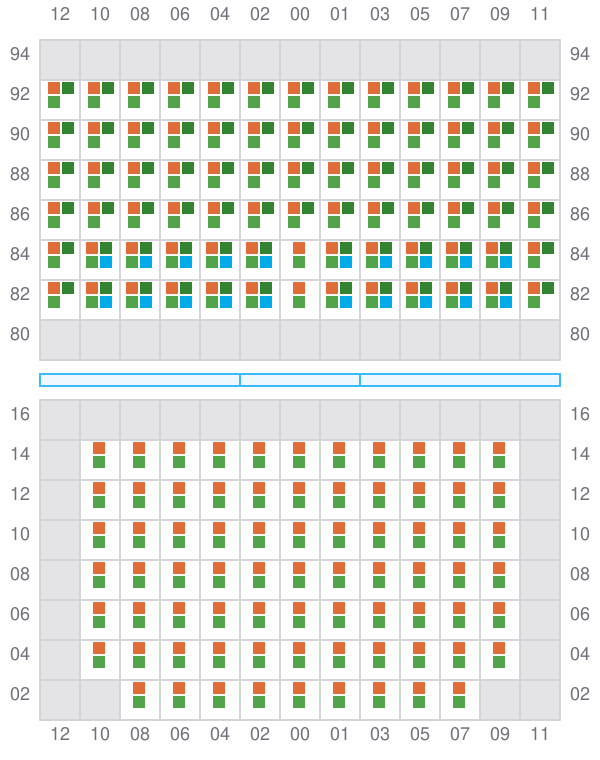

025 (026)

  • →
  • ← / ?
Bay 025 view and slots of MSC HELENA III

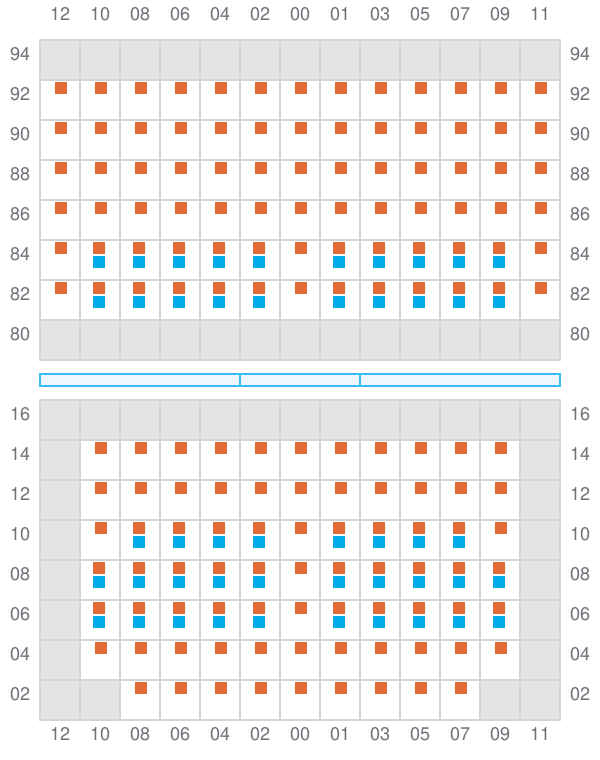

027

  • ←
  • →
Bay 027 view and slots of MSC HELENA III

029 (030)

  • →
  • ←

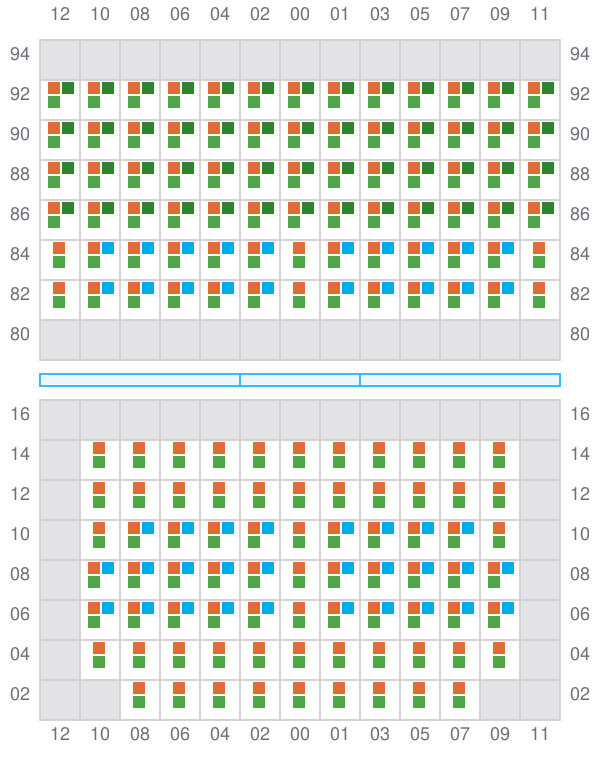

Bay 029 view and slots of MSC HELENA III

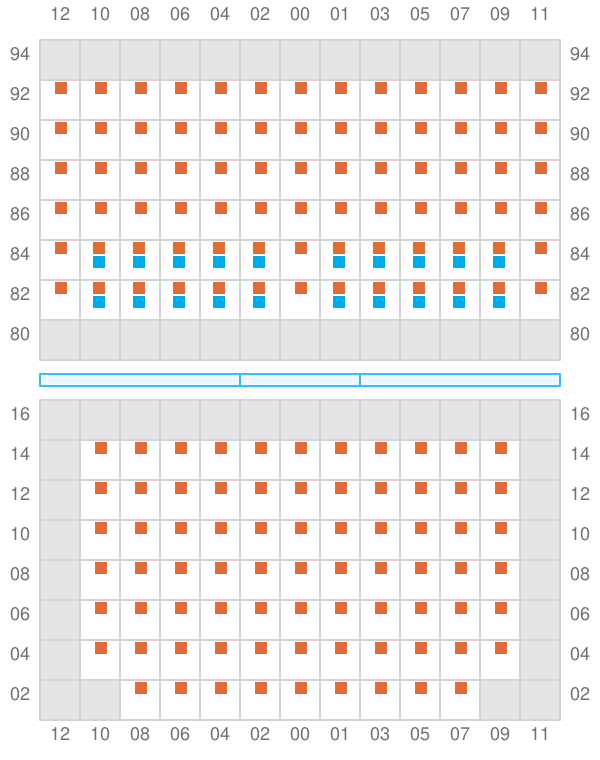

031

  • ←
  • → / ?
Bay 031 view and slots of MSC HELENA III

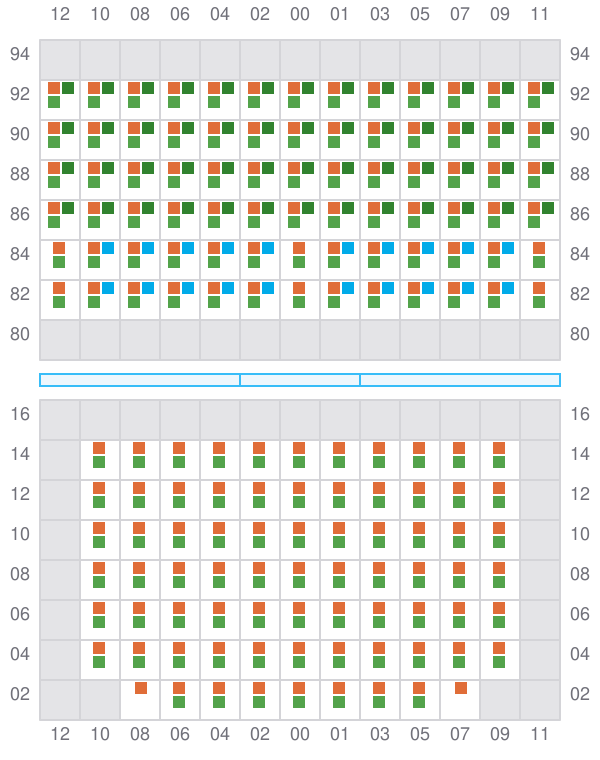

033 (034)

  • →
  • ← / ?
Bay 033 view and slots of MSC HELENA III

035

  • ←
  • →

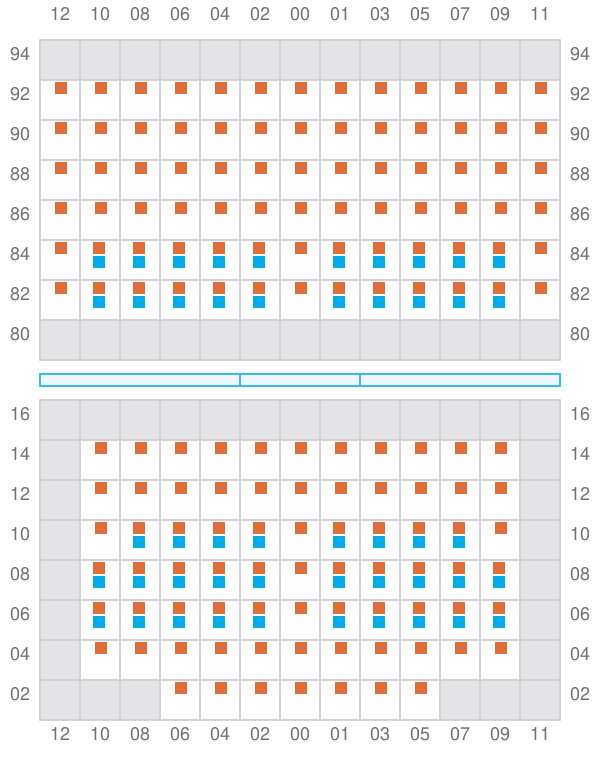

Bay 035 view and slots of MSC HELENA III

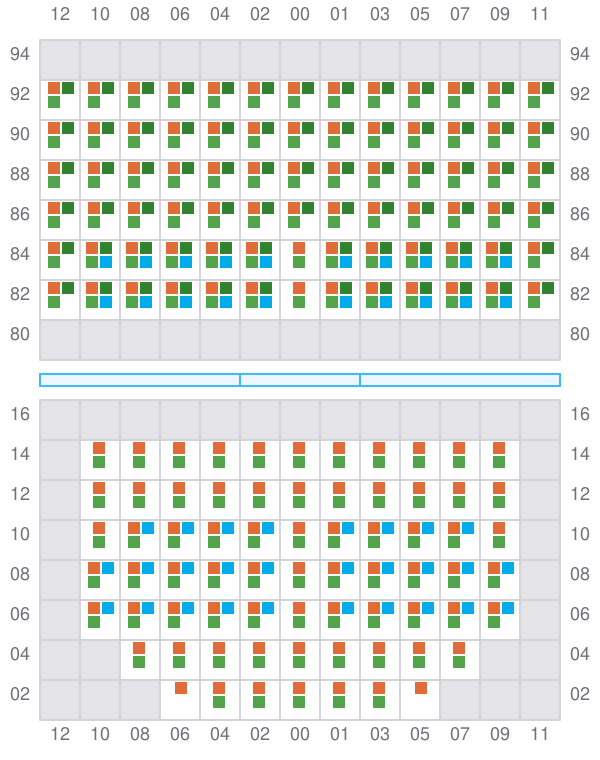

037 (038)

  • →
  • ←
Bay 037 view and slots of MSC HELENA III

039

  • ←
  • → / ?

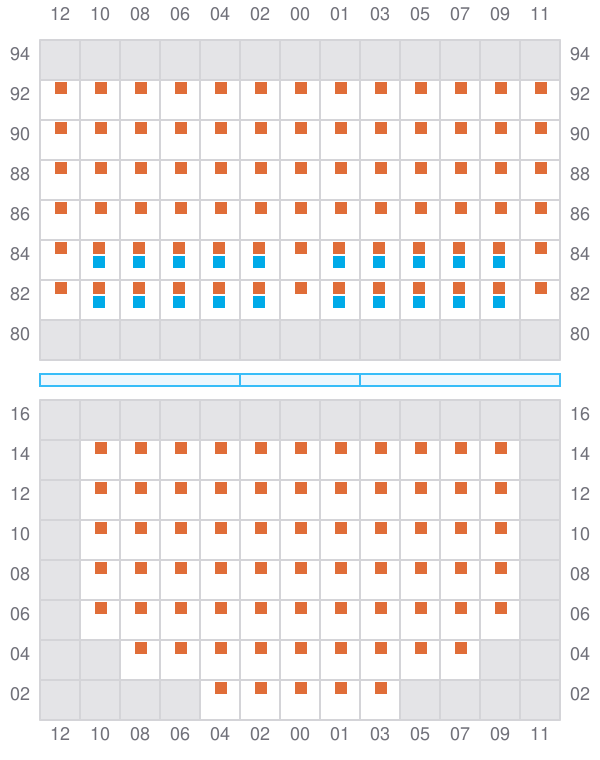

Bay 039 view and slots of MSC HELENA III

041 (042)

  • →
  • ← / ?

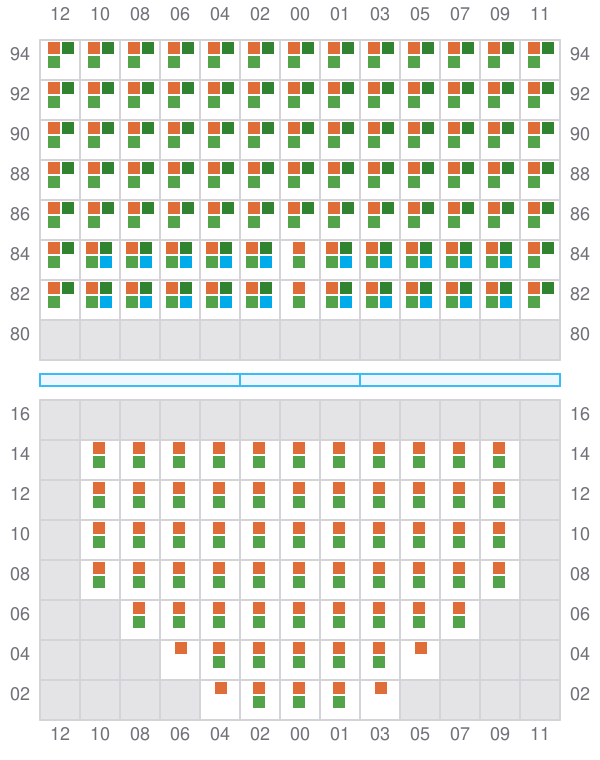

Bay 041 view and slots of MSC HELENA III

043

  • ←
  • → / ?

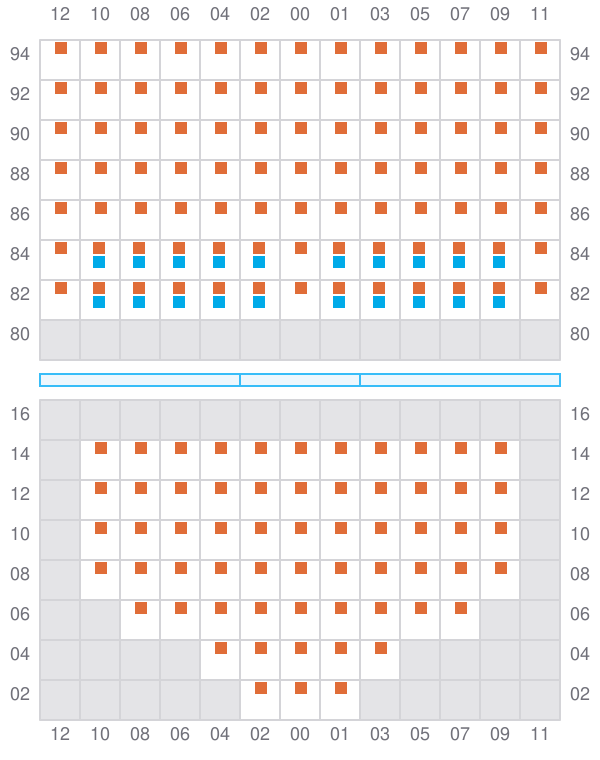

Bay 043 view and slots of MSC HELENA III

045 (046)

  • → / ?
  • ← / ?

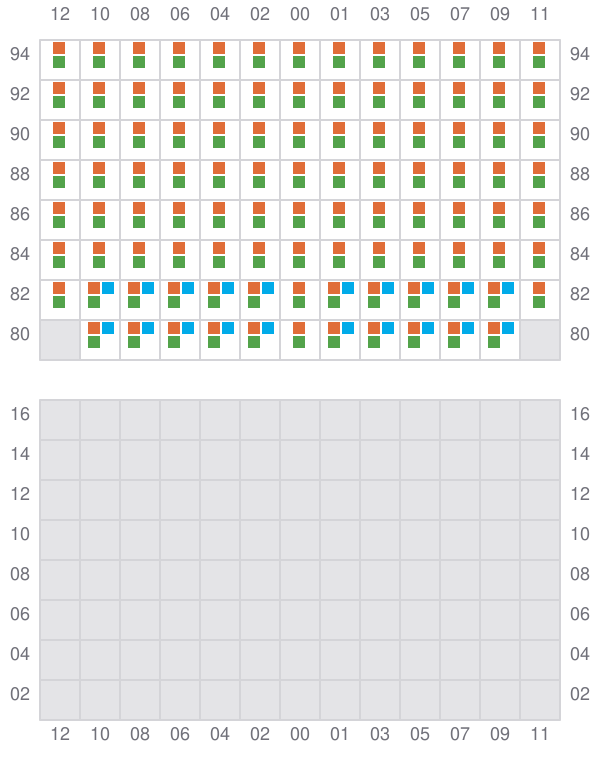

Bay 045 view and slots of MSC HELENA III

047

  • ← / ?
  • ← / ?

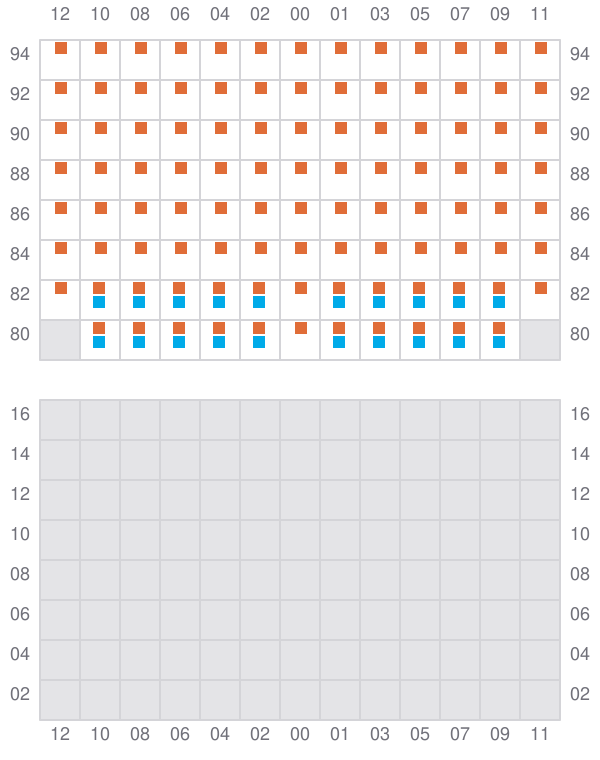

Bay 047 view and slots of MSC HELENA III
