MSC IDA II
9224946 | D5WM9 | 9224946 by ********* Last update: Wed Apr 10 2024

General Info

Ship Name:MSC IDA II
IMO Code:9224946
Call Sign:D5WM9
Line Operator:9224946
Class Name for Sister Ships:CGM LA TOUR
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:041
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,284

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

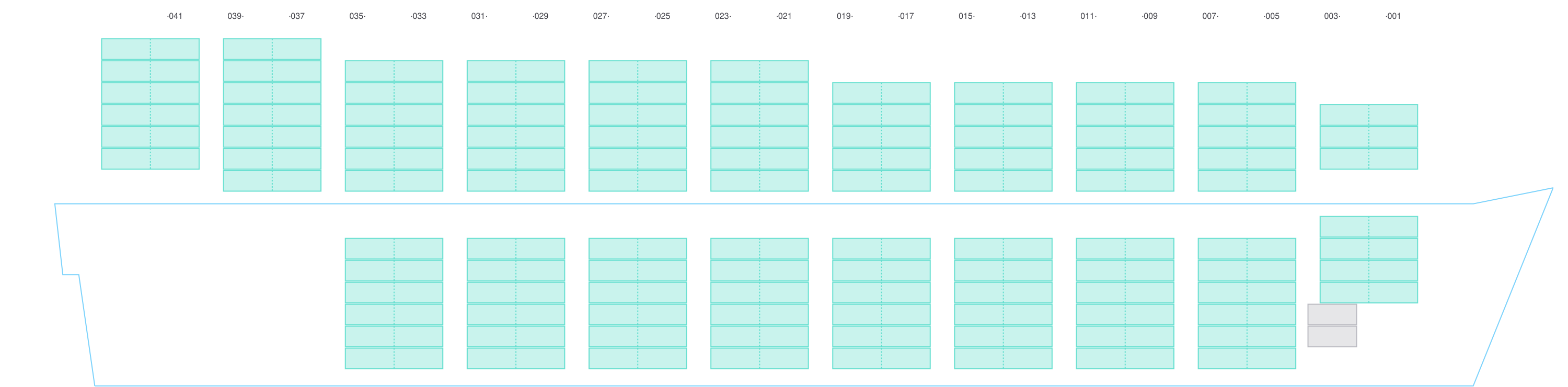

Side View

Side view of MSC IDA II

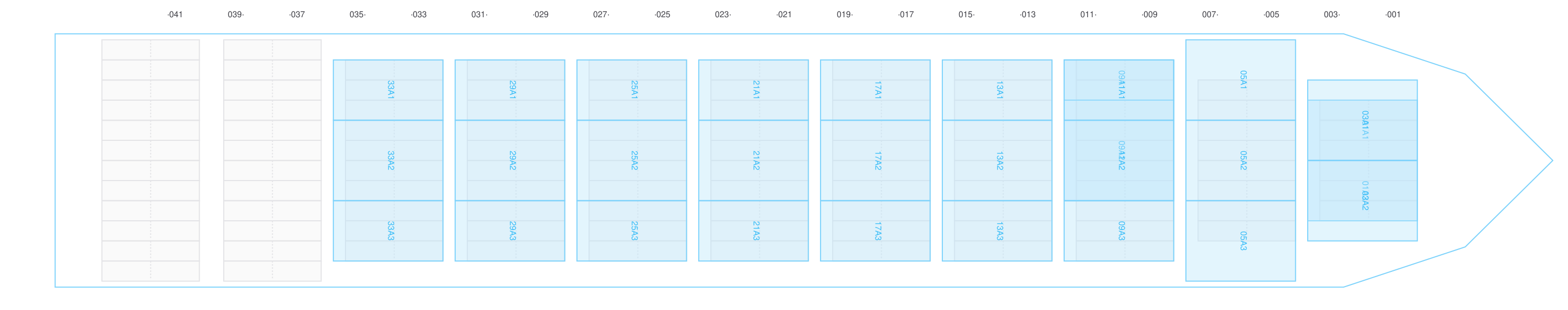

Hatch-Covers View

Deck view of MSC IDA II

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

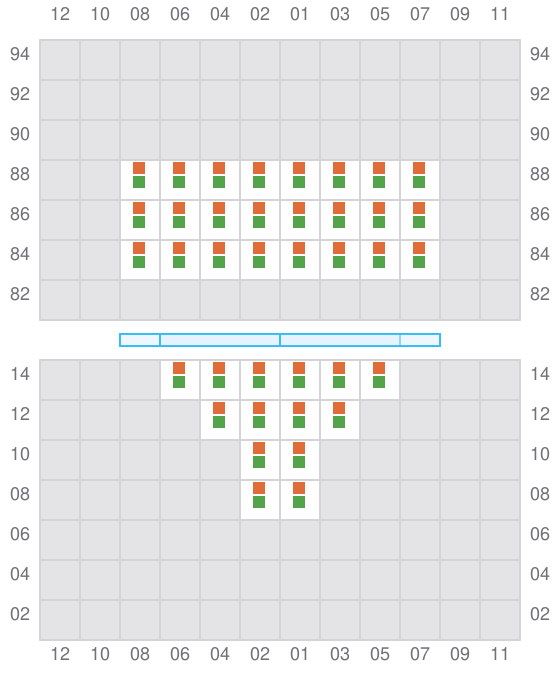

001 (002)

  • →
  • ? / →
Bay 001 view and slots of MSC IDA II

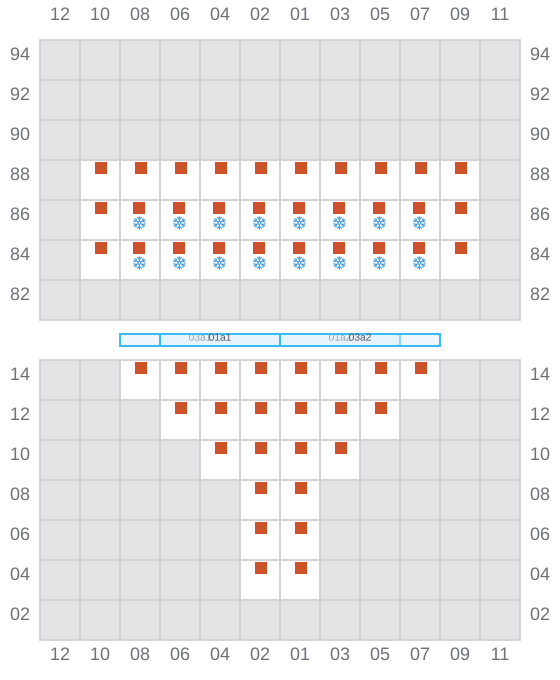

003

  • ←
  • →
Bay 003 view and slots of MSC IDA II

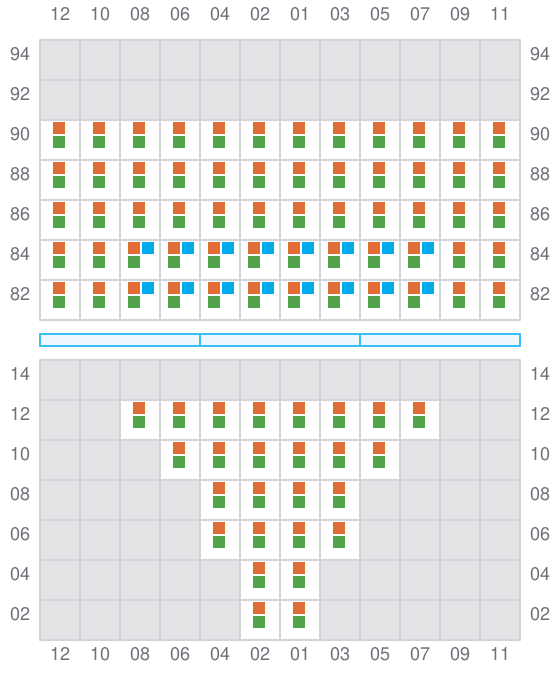

005 (006)

  • →
  • →
Bay 005 view and slots of MSC IDA II

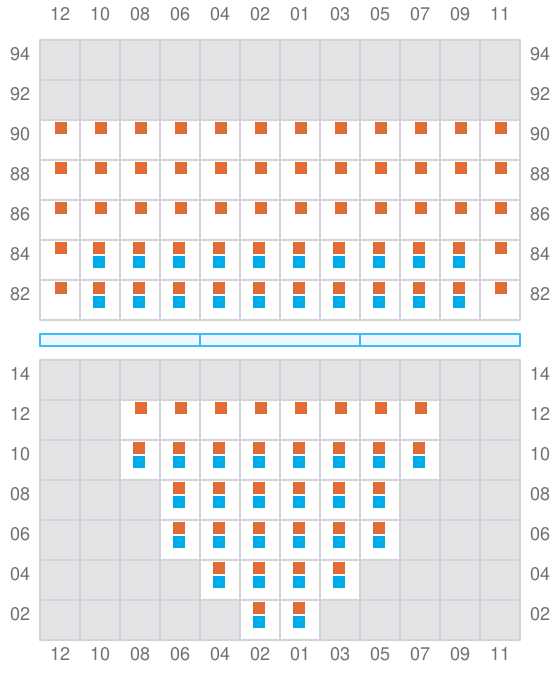

007

  • ←
  • →
Bay 007 view and slots of MSC IDA II

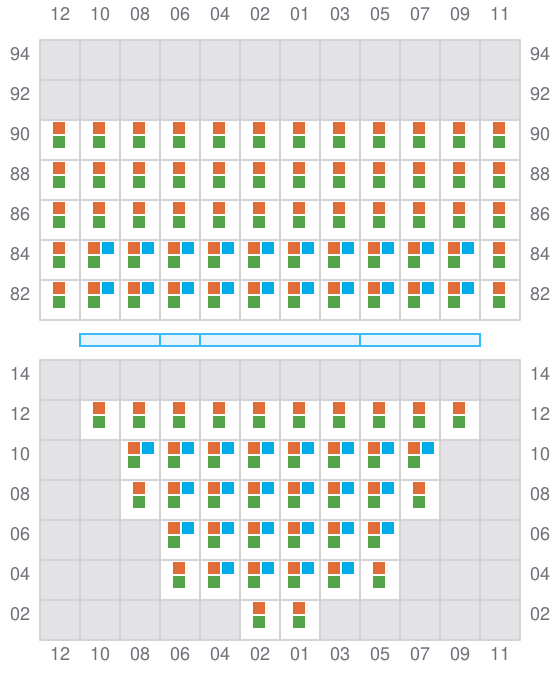

009 (010)

  • →
  • →
Bay 009 view and slots of MSC IDA II

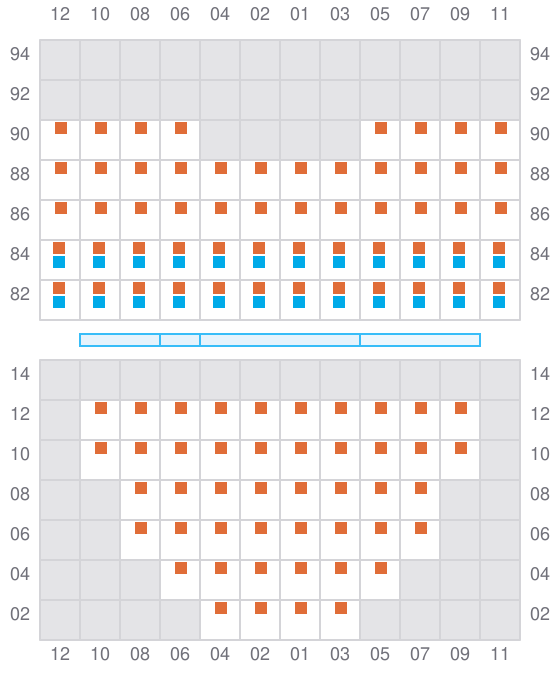

011

  • ←
  • →
Bay 011 view and slots of MSC IDA II

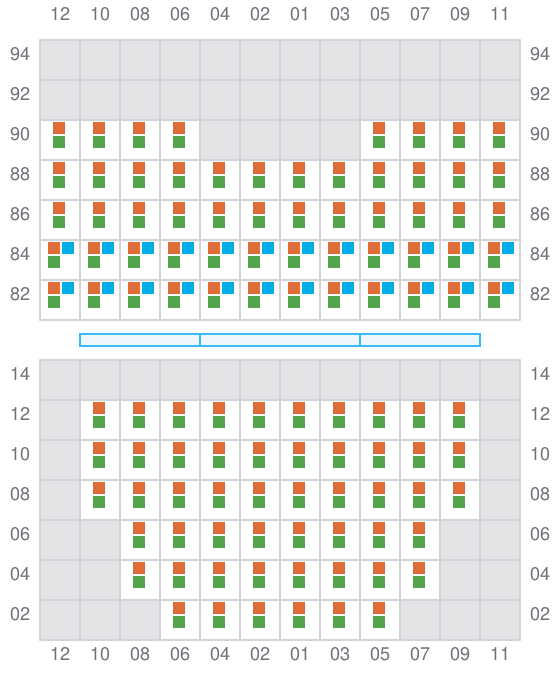

013 (014)

  • →
  • →
Bay 013 view and slots of MSC IDA II

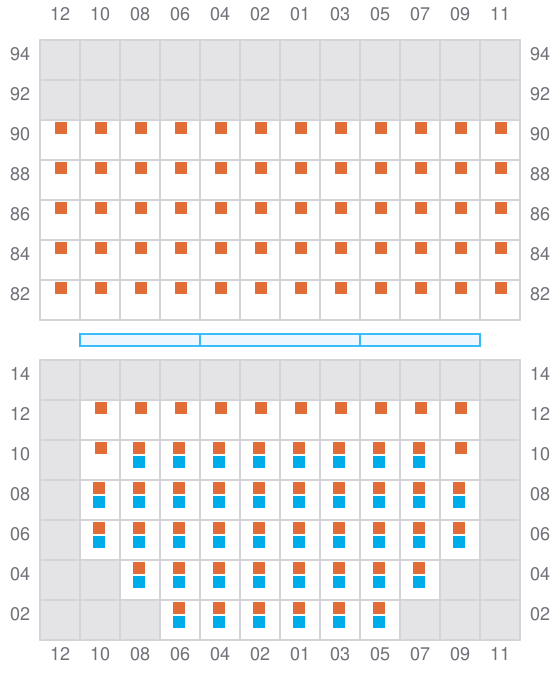

015

  • ←
  • →
Bay 015 view and slots of MSC IDA II

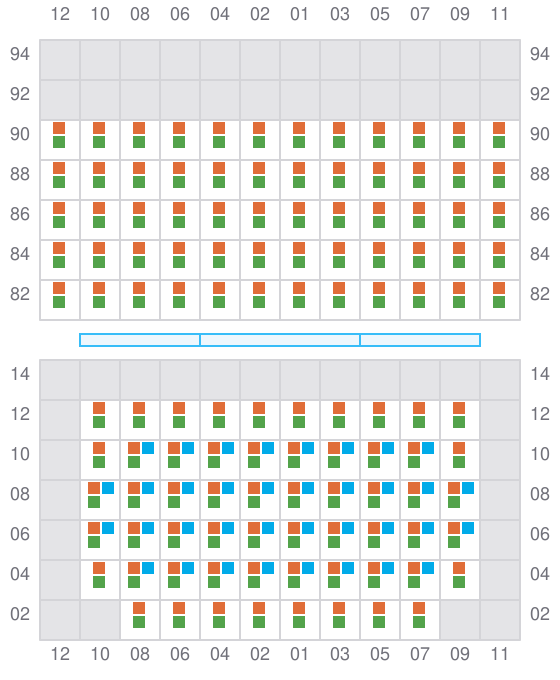

017 (018)

  • →
  • →
Bay 017 view and slots of MSC IDA II

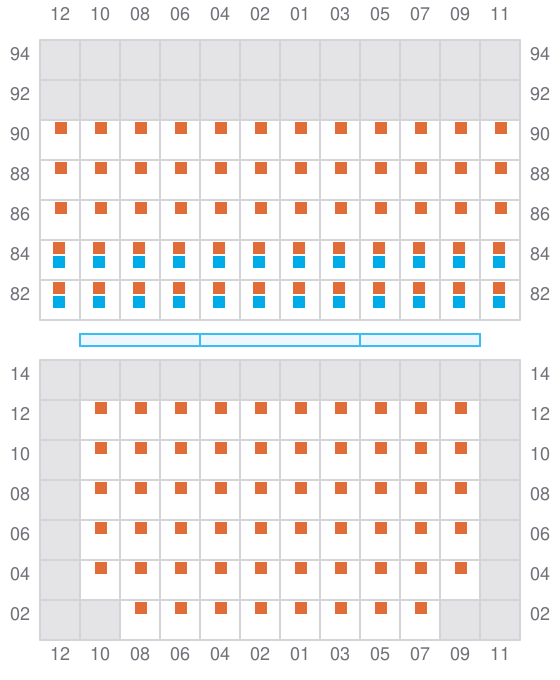

019

  • ←
  • →
Bay 019 view and slots of MSC IDA II

021 (022)

  • →
  • →
Bay 021 view and slots of MSC IDA II

023

  • ←
  • →
Bay 023 view and slots of MSC IDA II

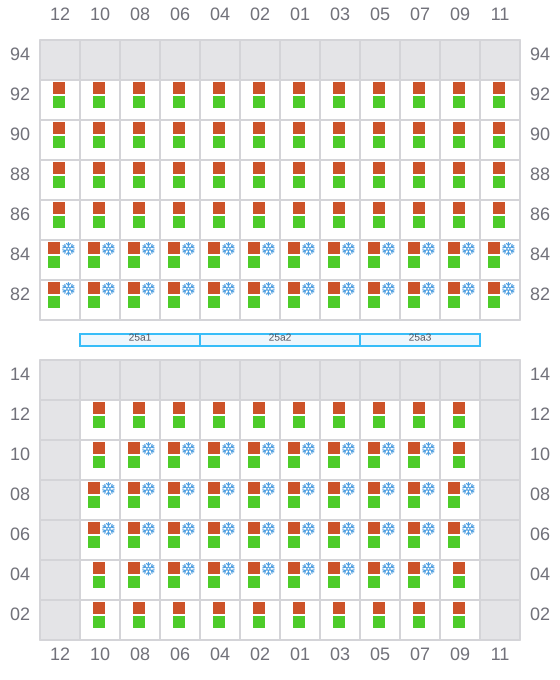

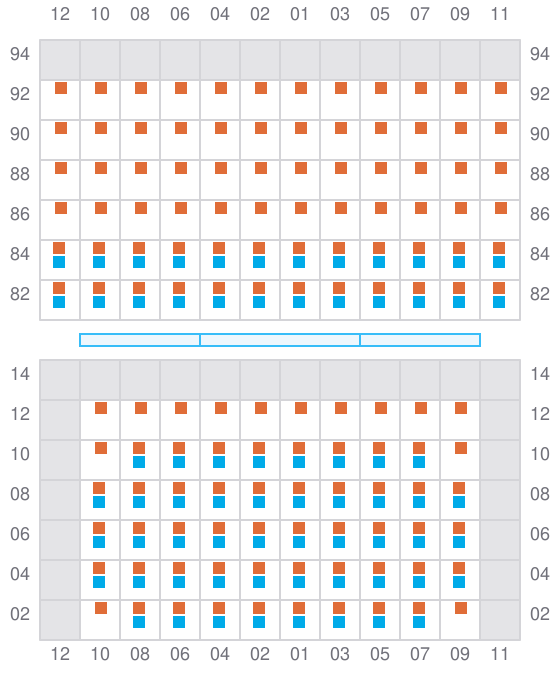

025 (026)

  • →
  • →
Bay 025 view and slots of MSC IDA II

027

  • ←
  • →
Bay 027 view and slots of MSC IDA II

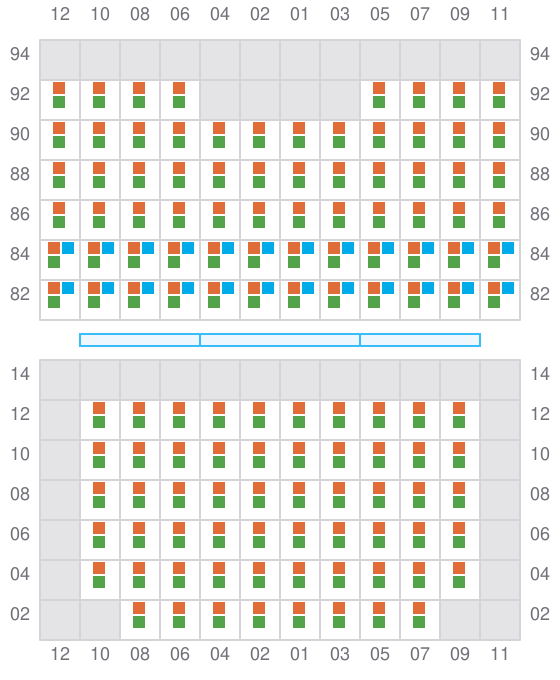

029 (030)

  • →
  • →
Bay 029 view and slots of MSC IDA II

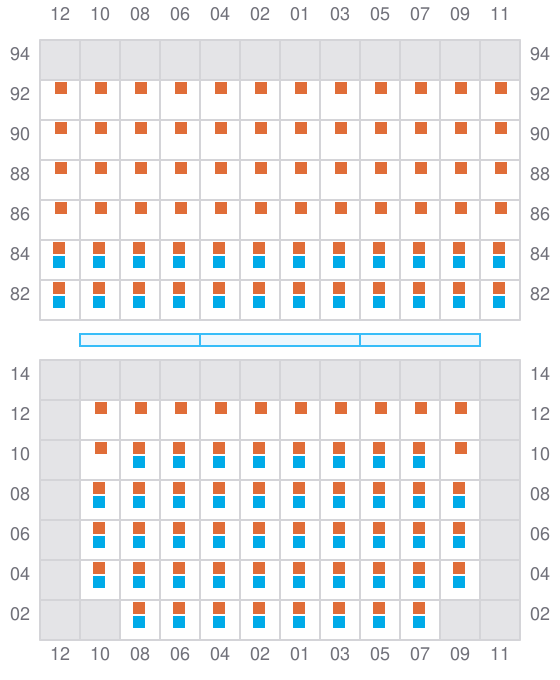

031

  • ←
  • →
Bay 031 view and slots of MSC IDA II

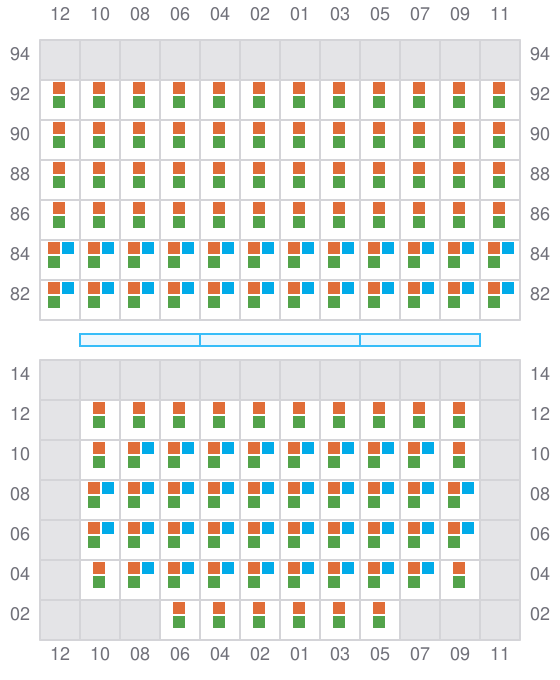

033 (034)

  • →
  • →
Bay 033 view and slots of MSC IDA II

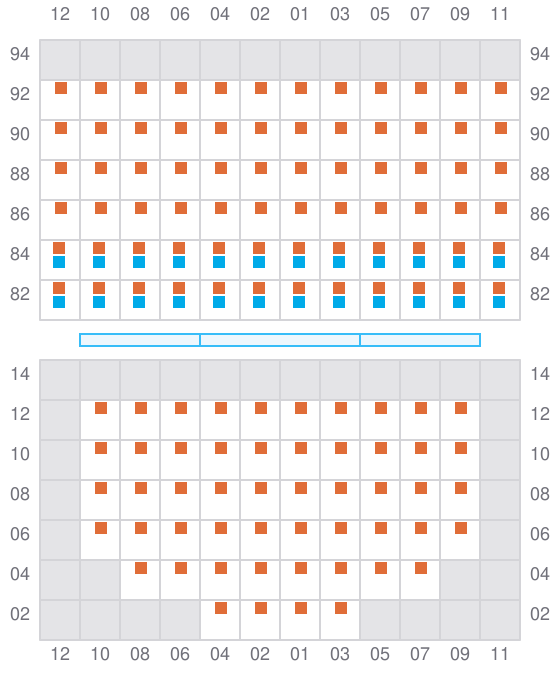

035

  • ←
  • →
Bay 035 view and slots of MSC IDA II

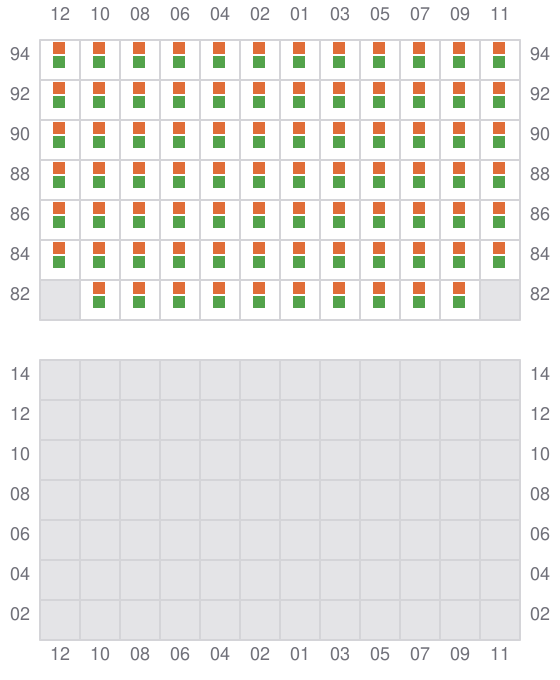

037 (038)

  • → / ?
  • → / ?
Bay 037 view and slots of MSC IDA II

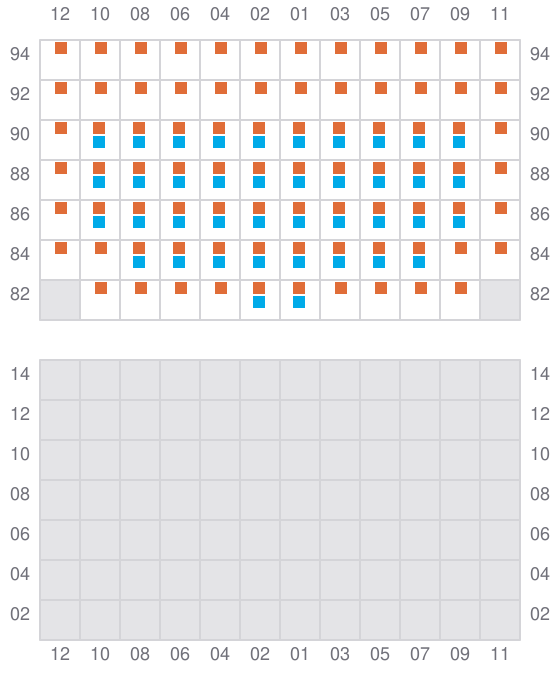

039

  • ← / ?
  • → / ?
Bay 039 view and slots of MSC IDA II

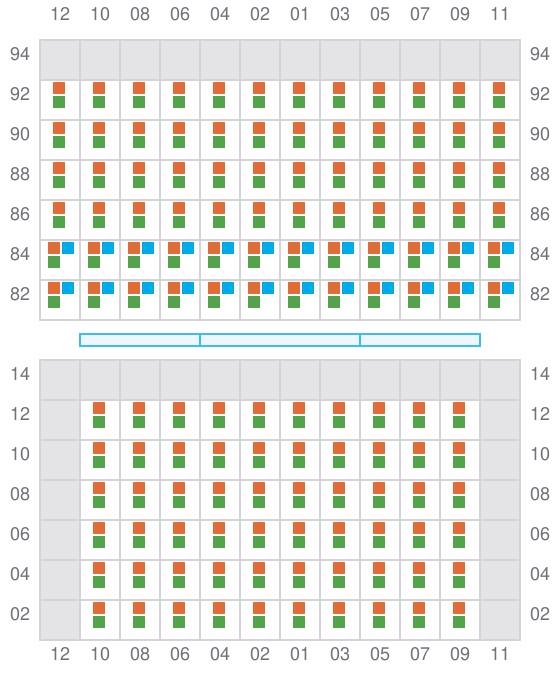

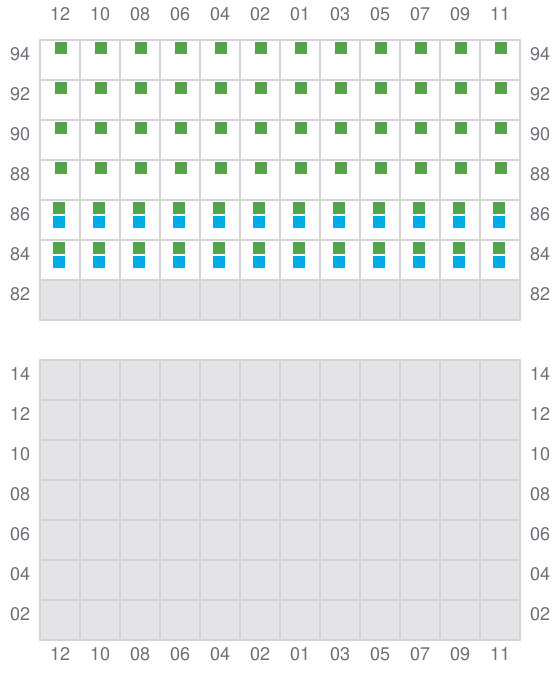

041 (042)

  • → / ?
  • → / ?
Bay 041 view and slots of MSC IDA II
