MSC ILLINOIS VII
9197545 | 5LGR6 | MSL by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:MSC ILLINOIS VII
IMO Code:9197545
Call Sign:5LGR6
Line Operator:MSL
Class Name for Sister Ships:SEAL
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):292.16
LOA (Length Overall):303.98
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,458

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

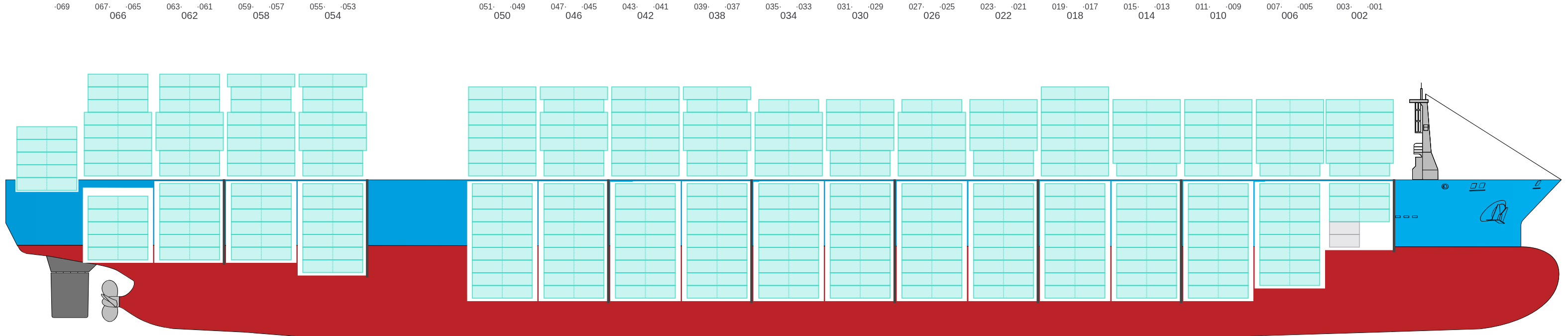

Side view of MSC ILLINOIS VII

Hatch-Covers View

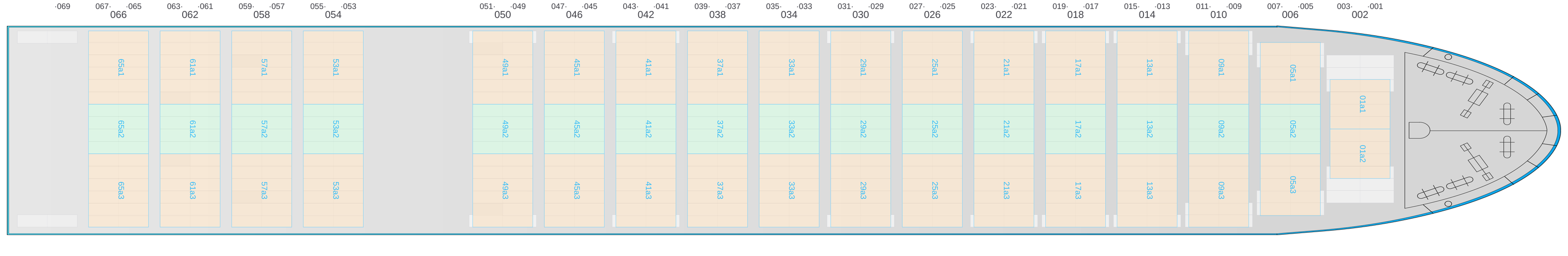

Deck view of MSC ILLINOIS VII

ISO Bays

Legend
  • 20'
  • 40'
  • 45'

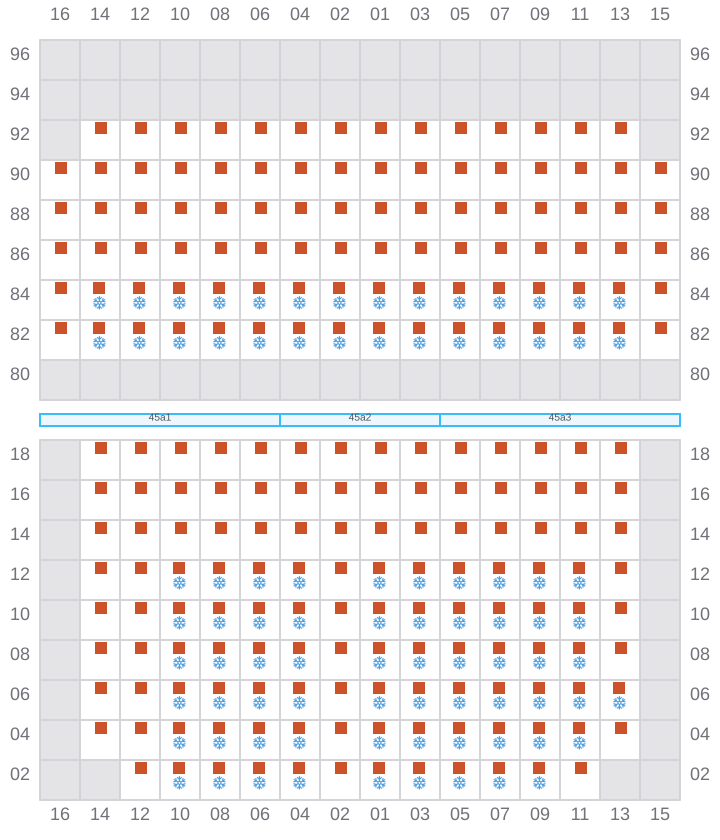

  • Reefer
  • Restricted slot ×

001 (002)

  • →

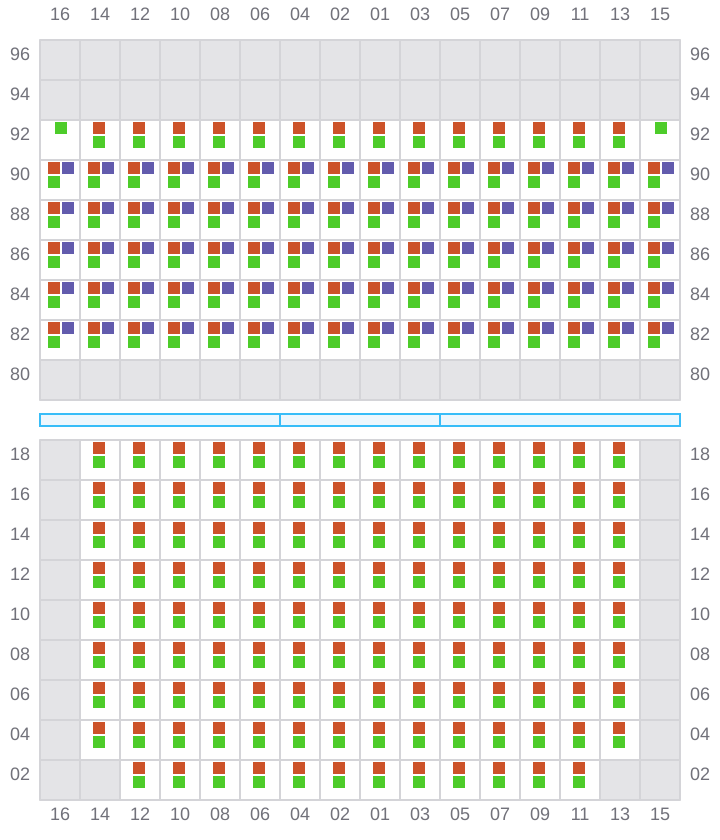

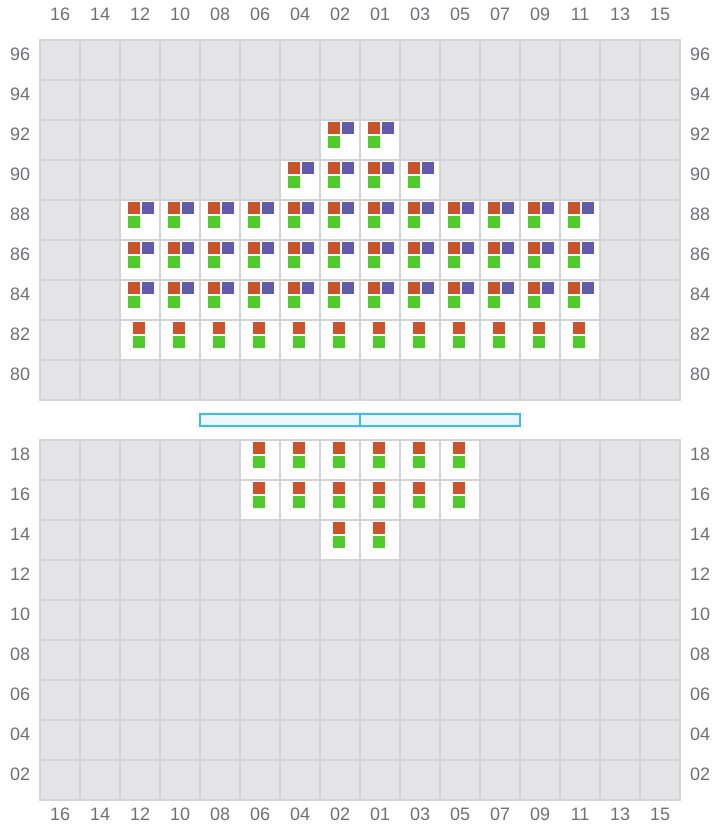

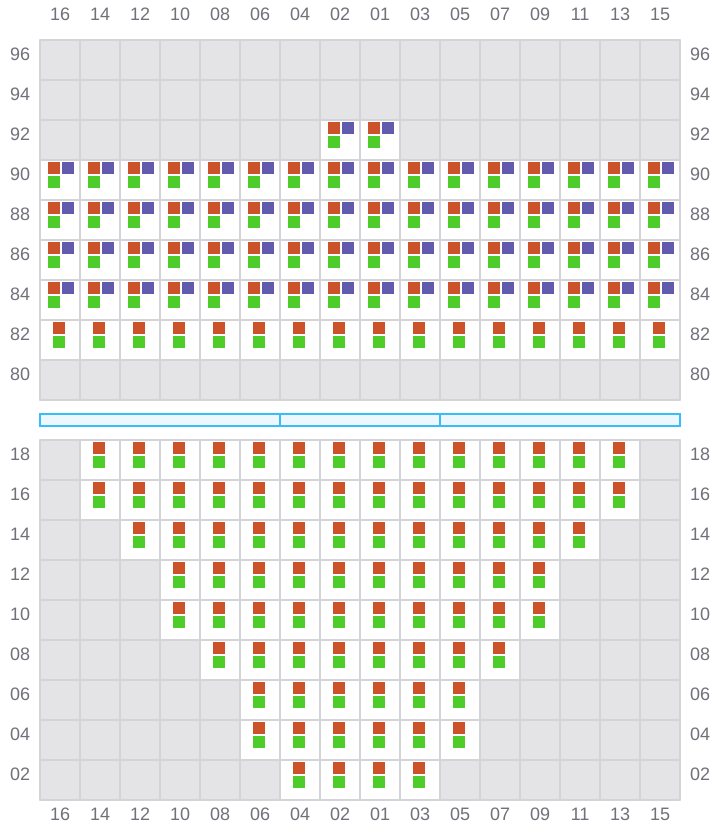

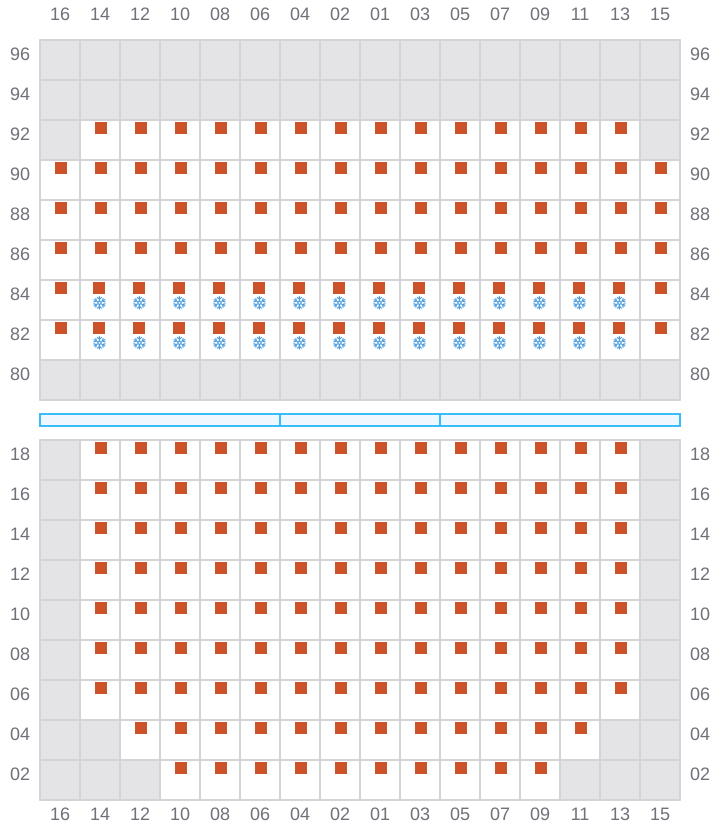

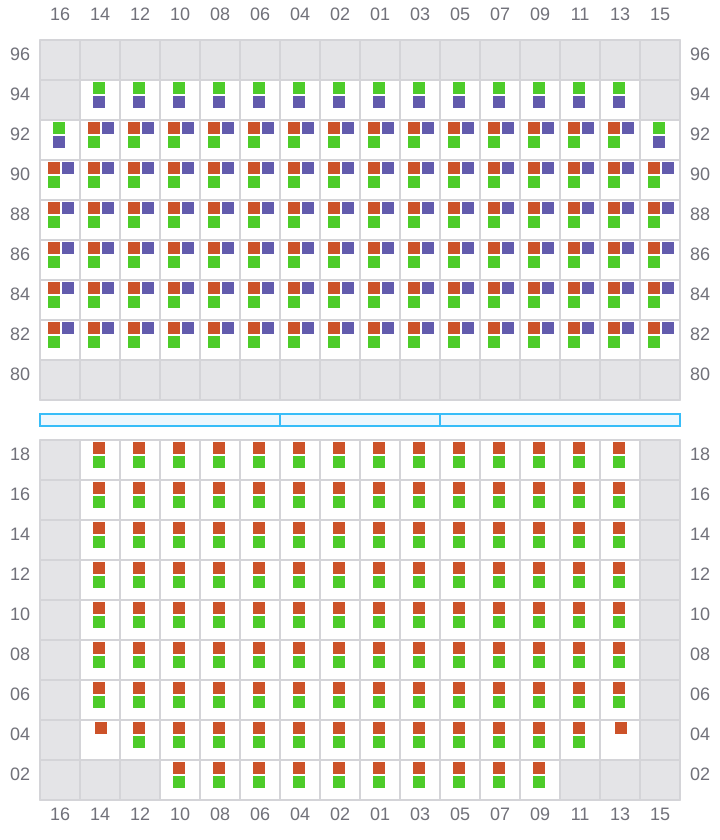

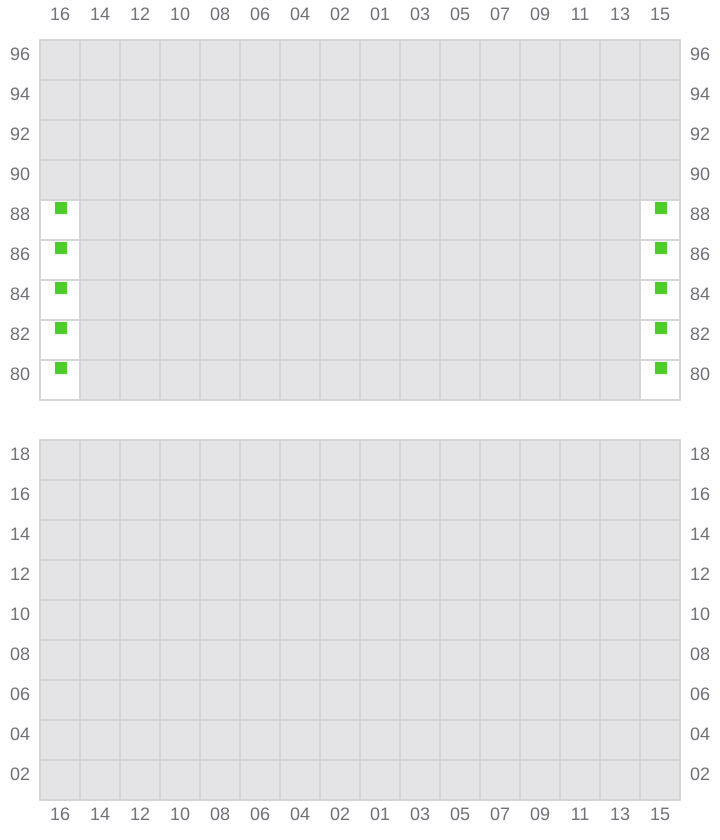

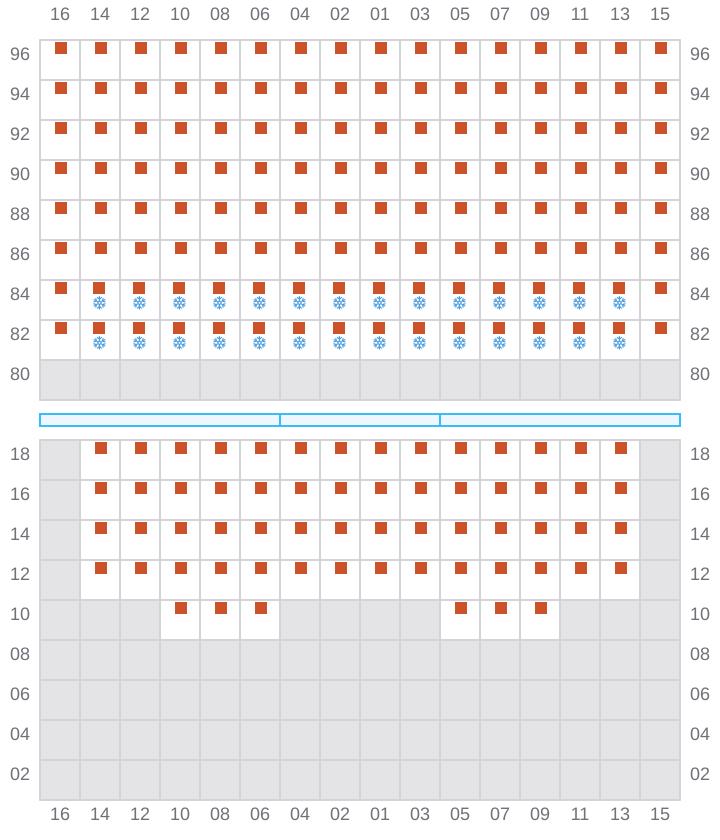

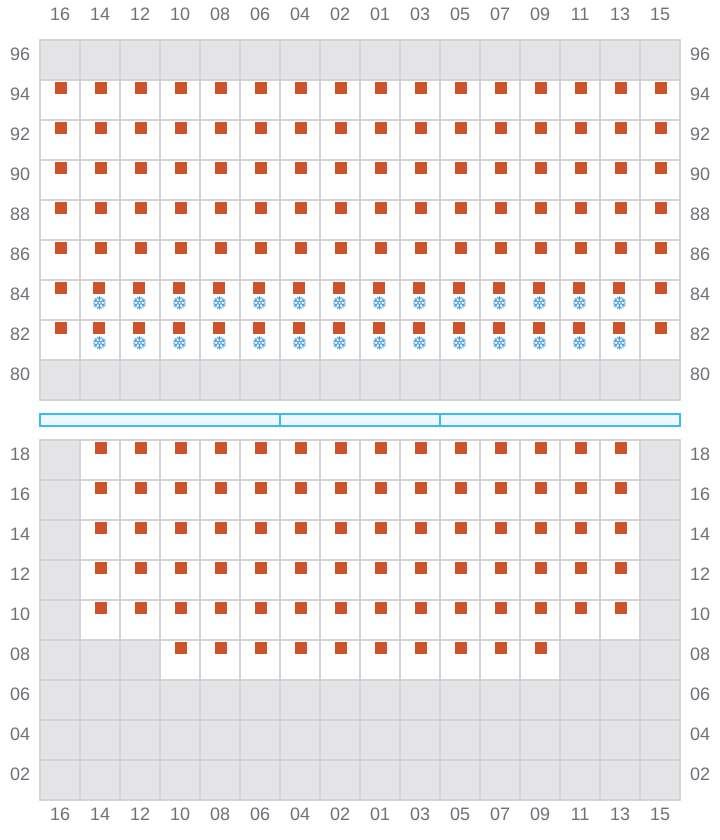

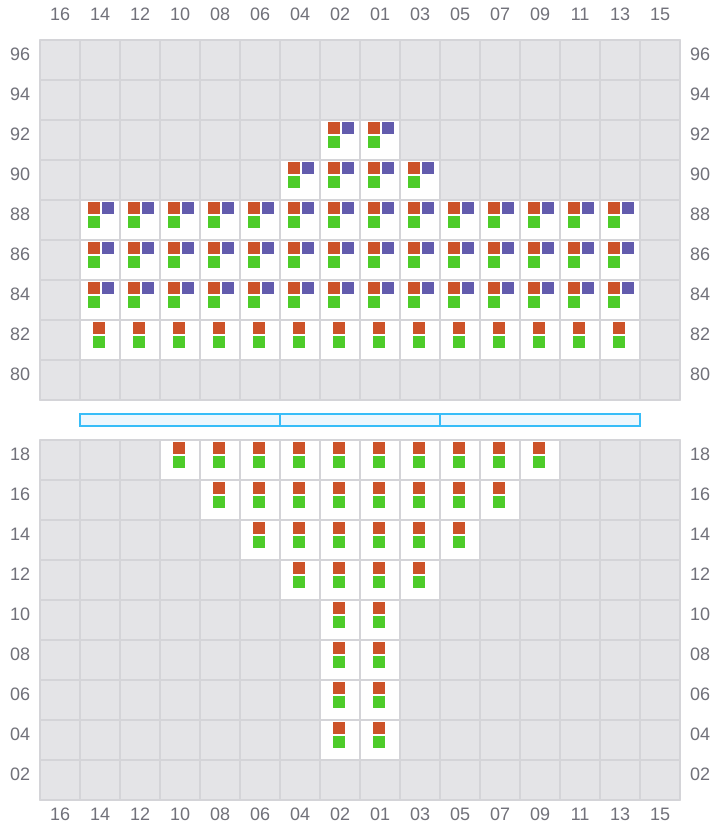

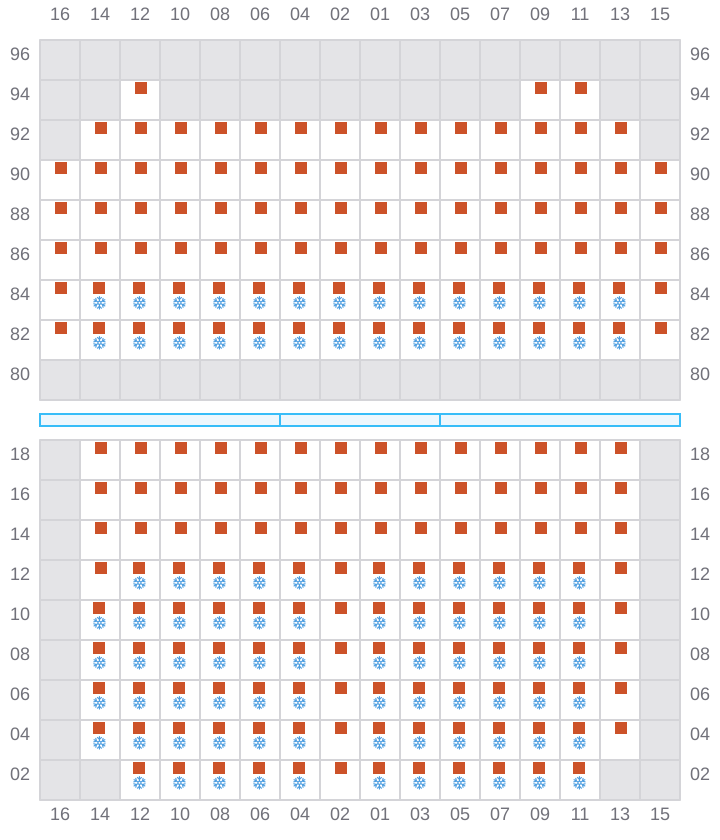

Bay 001 view and slots of MSC ILLINOIS VII

003

  • ←

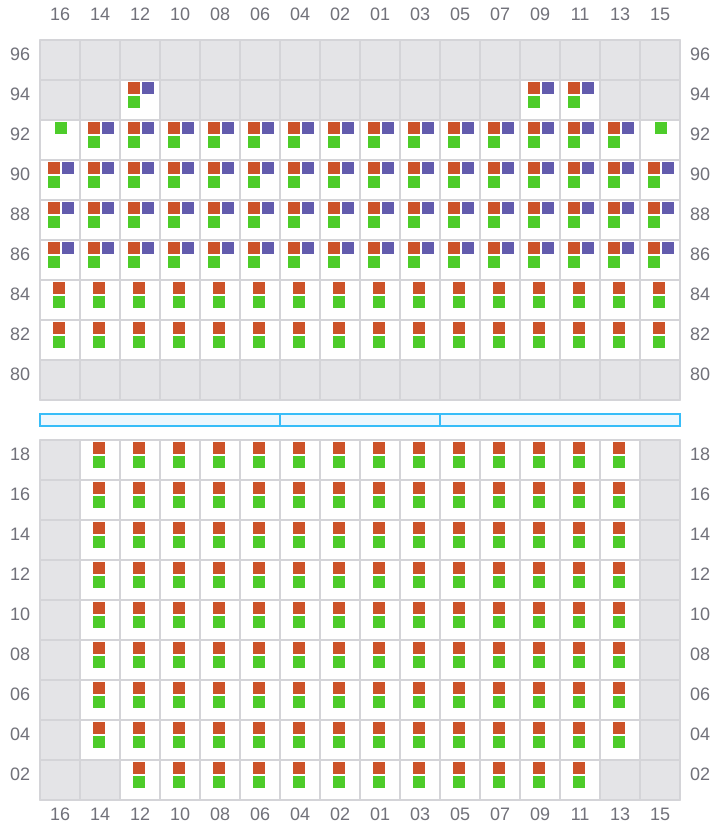

Bay 003 view and slots of MSC ILLINOIS VII

005 (006)

  • →

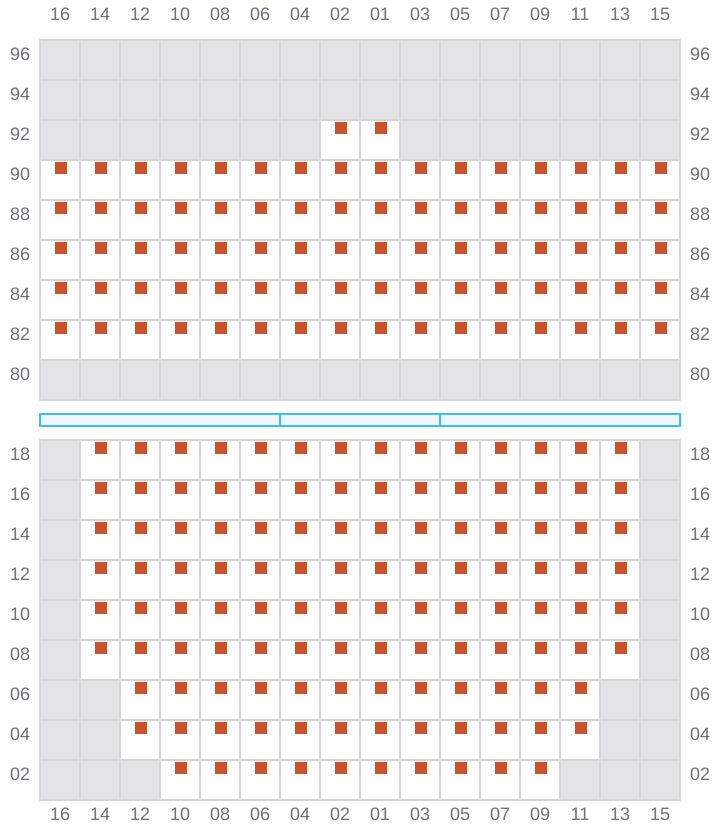

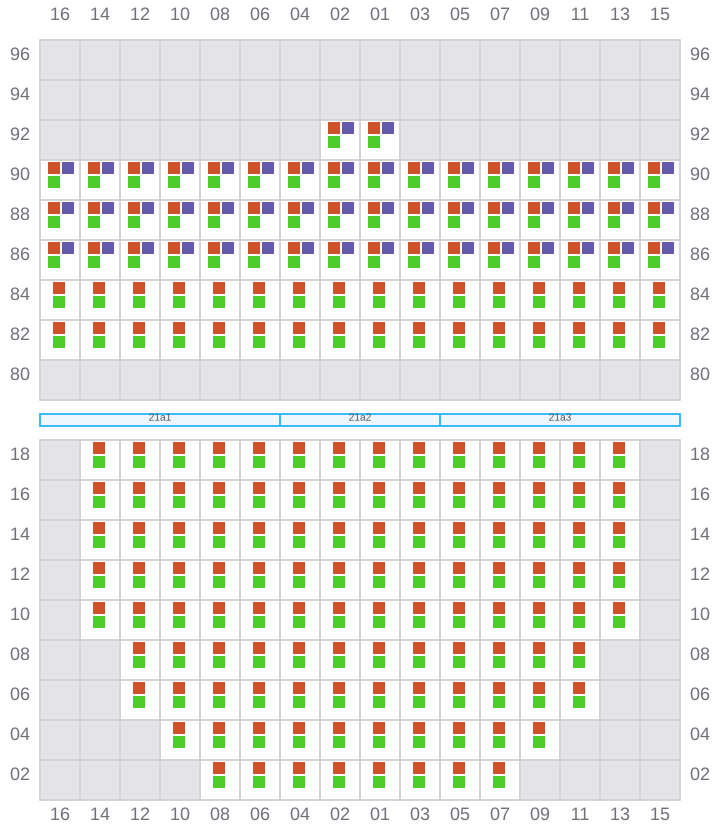

Bay 005 view and slots of MSC ILLINOIS VII

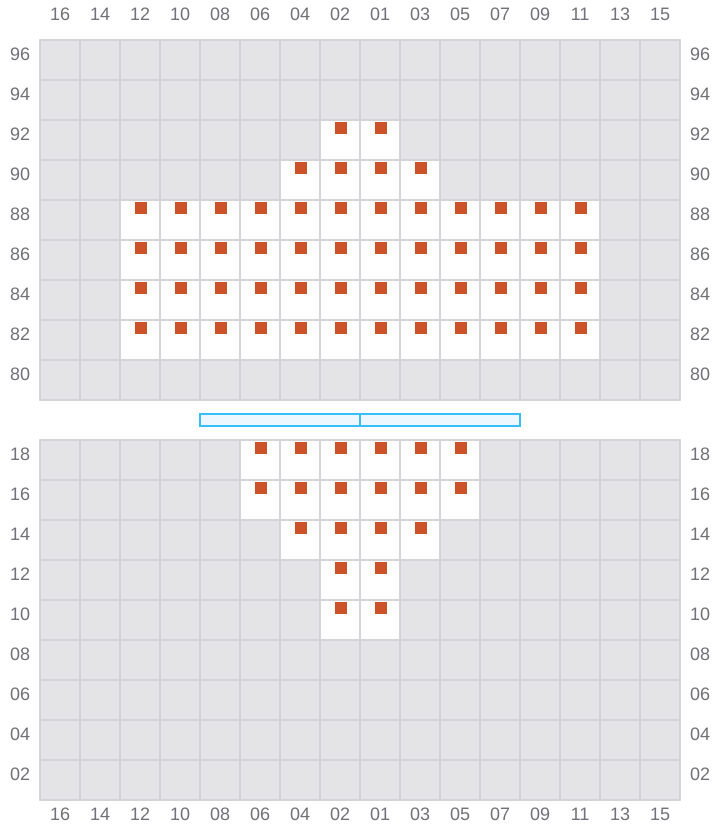

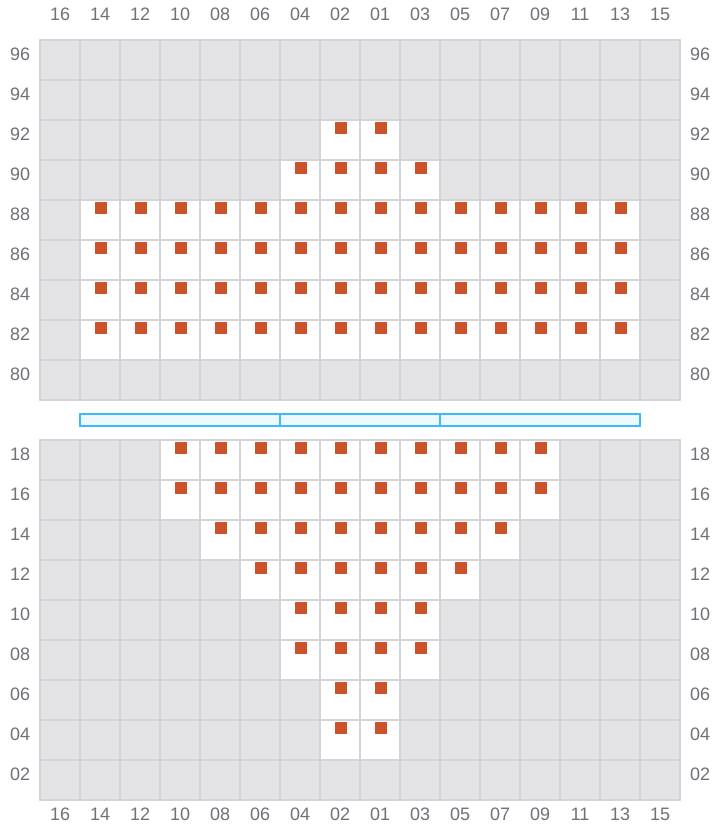

007

  • ←

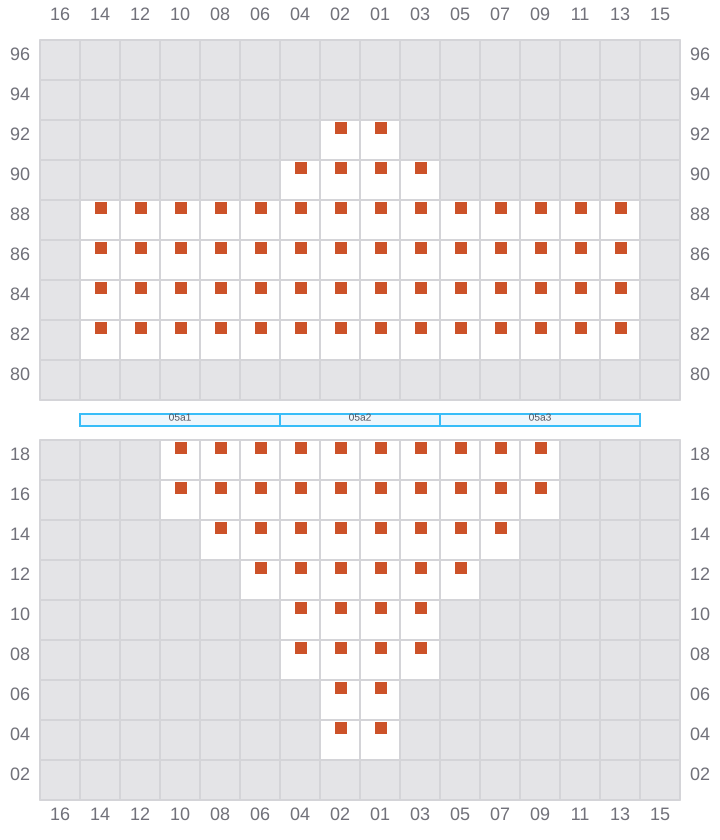

Bay 007 view and slots of MSC ILLINOIS VII

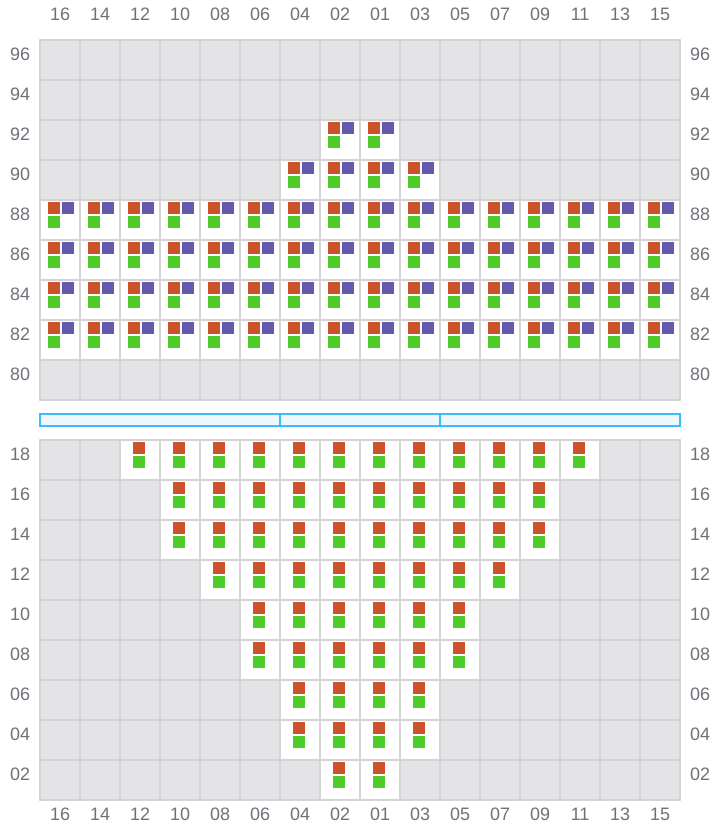

009 (010)

  • →

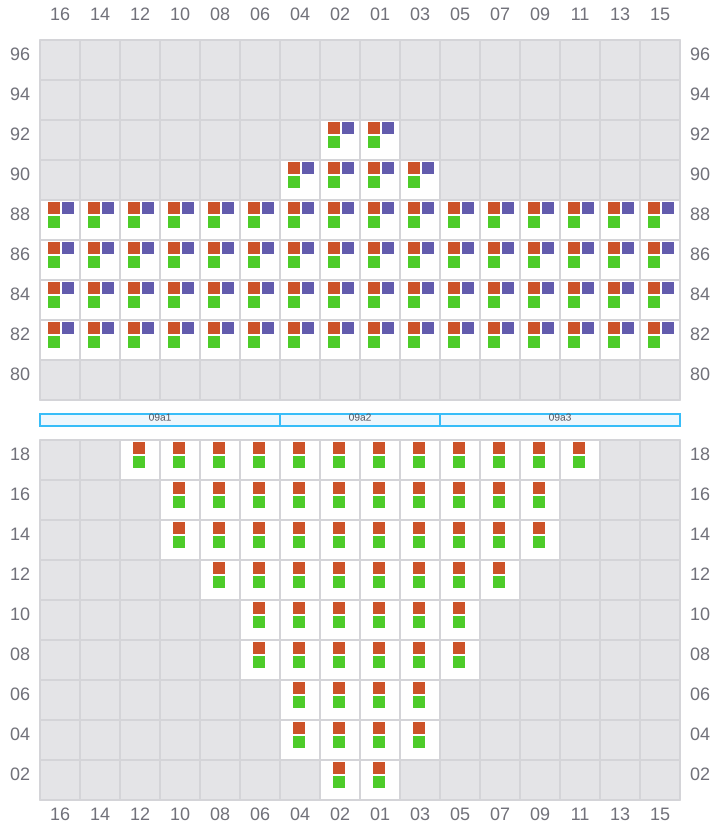

Bay 009 view and slots of MSC ILLINOIS VII

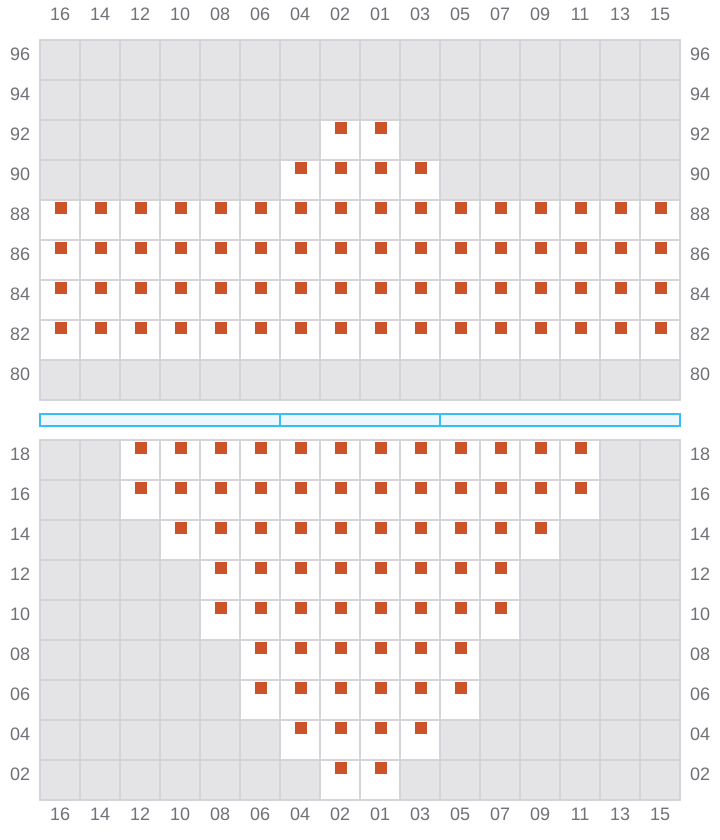

011

  • ←
Bay 011 view and slots of MSC ILLINOIS VII

013 (014)

  • →

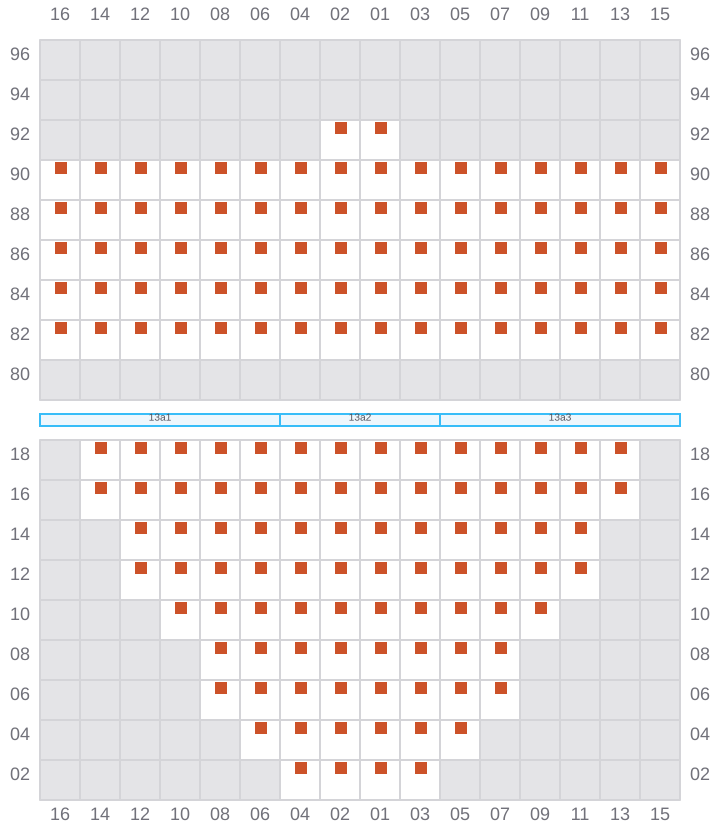

Bay 013 view and slots of MSC ILLINOIS VII

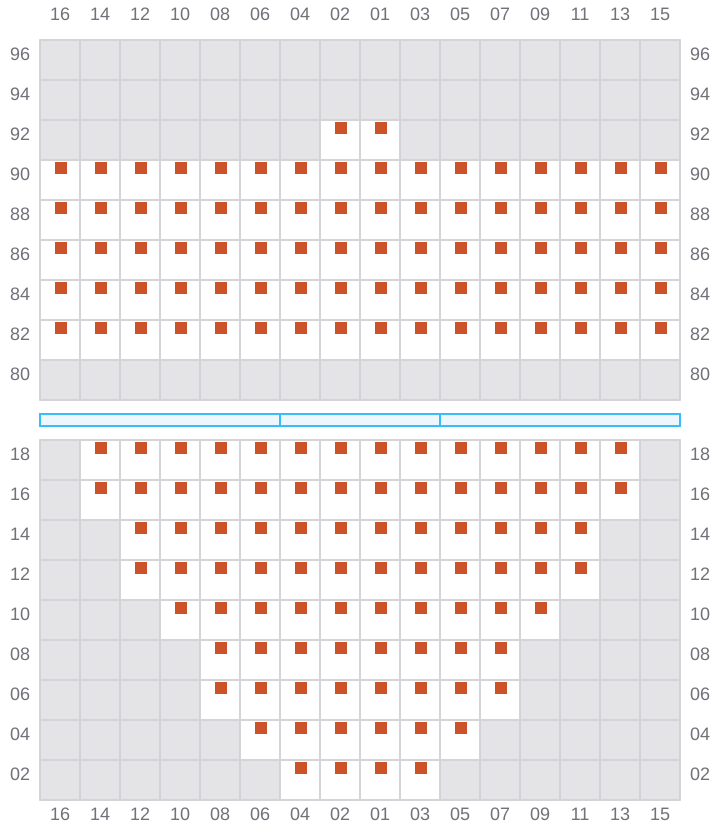

015

  • ←

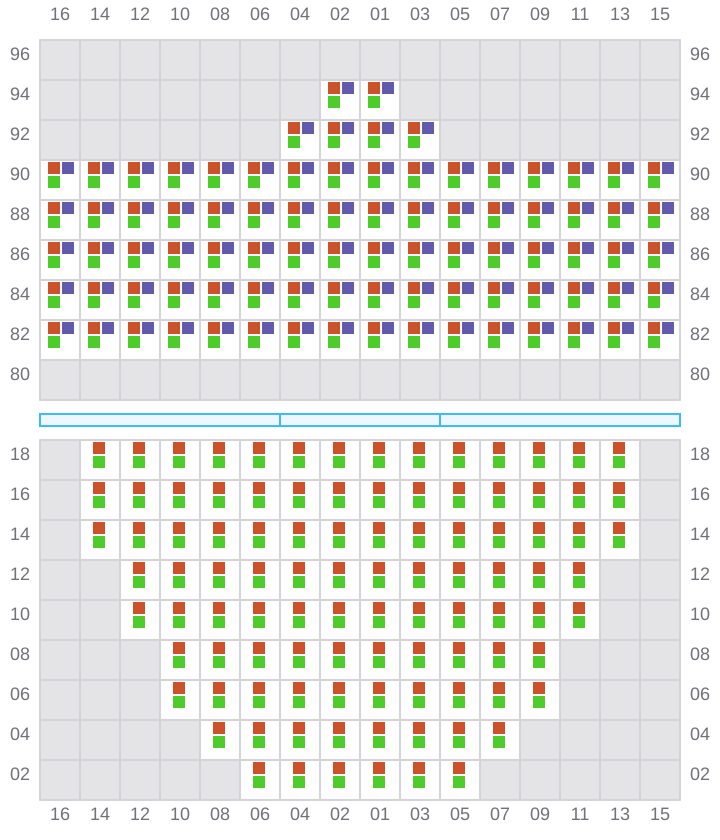

Bay 015 view and slots of MSC ILLINOIS VII

017 (018)

  • →

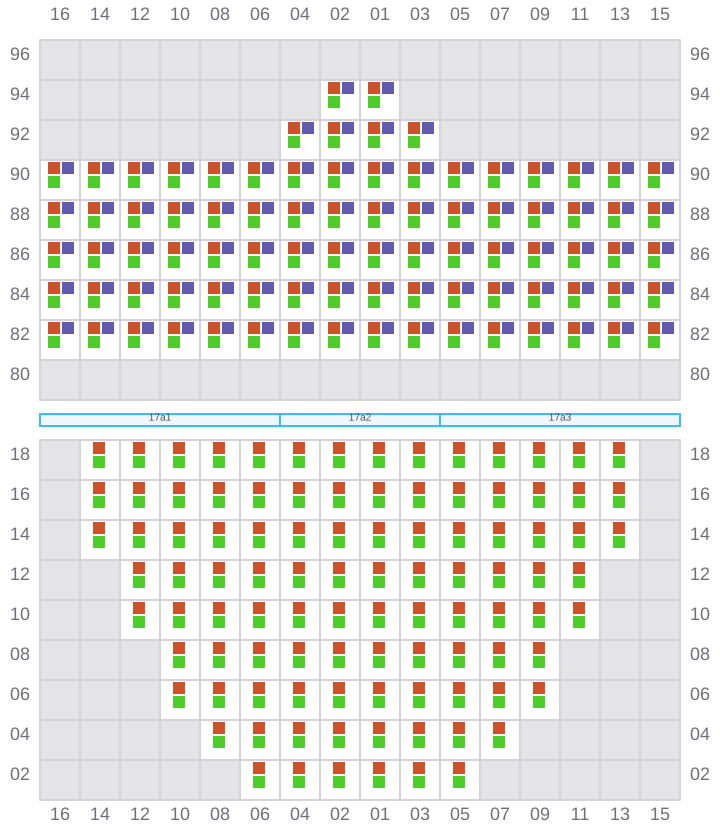

Bay 017 view and slots of MSC ILLINOIS VII

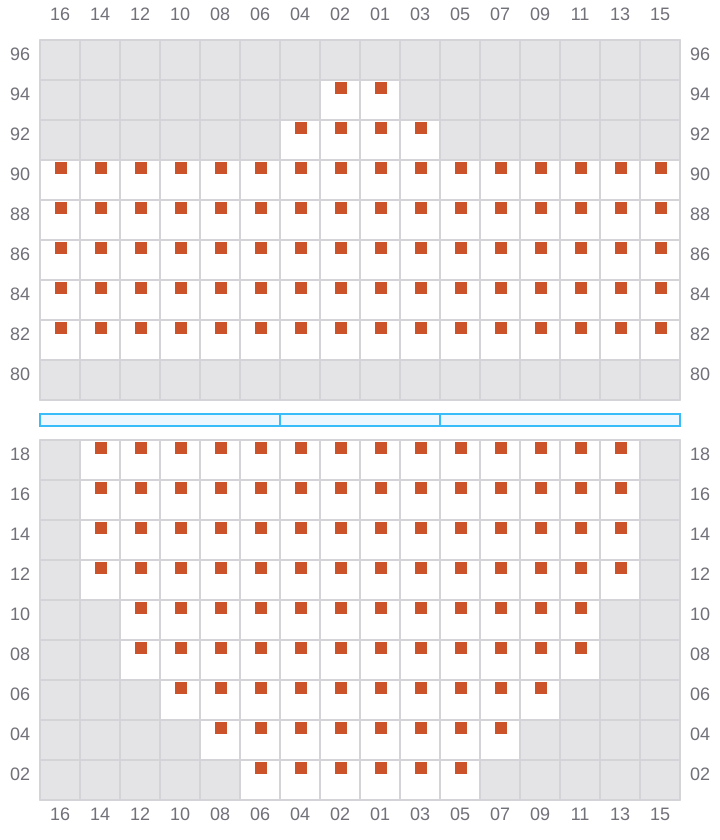

019

  • ←
Bay 019 view and slots of MSC ILLINOIS VII

021 (022)

  • →

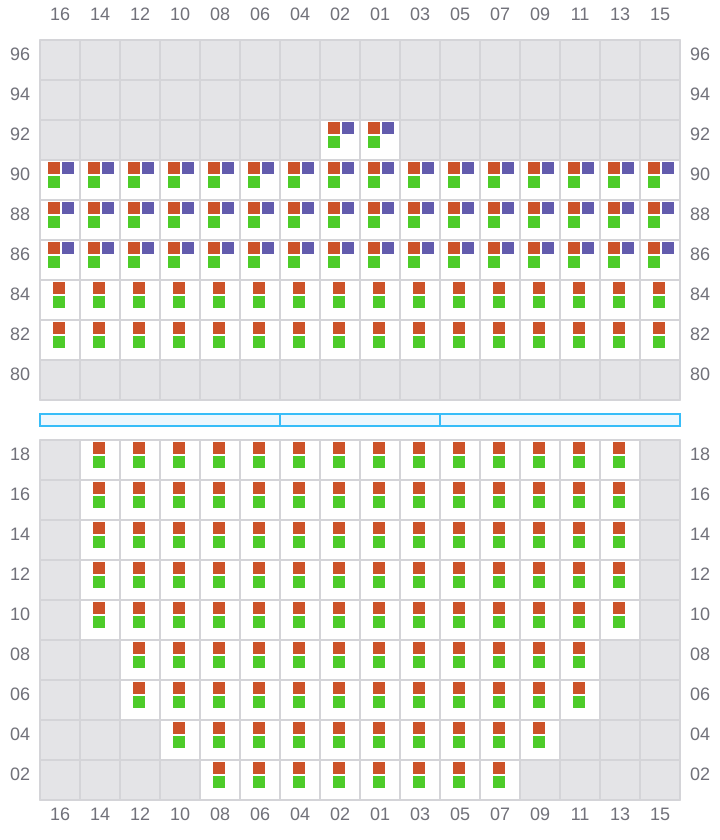

Bay 021 view and slots of MSC ILLINOIS VII

023

  • ←
Bay 023 view and slots of MSC ILLINOIS VII

025 (026)

  • →

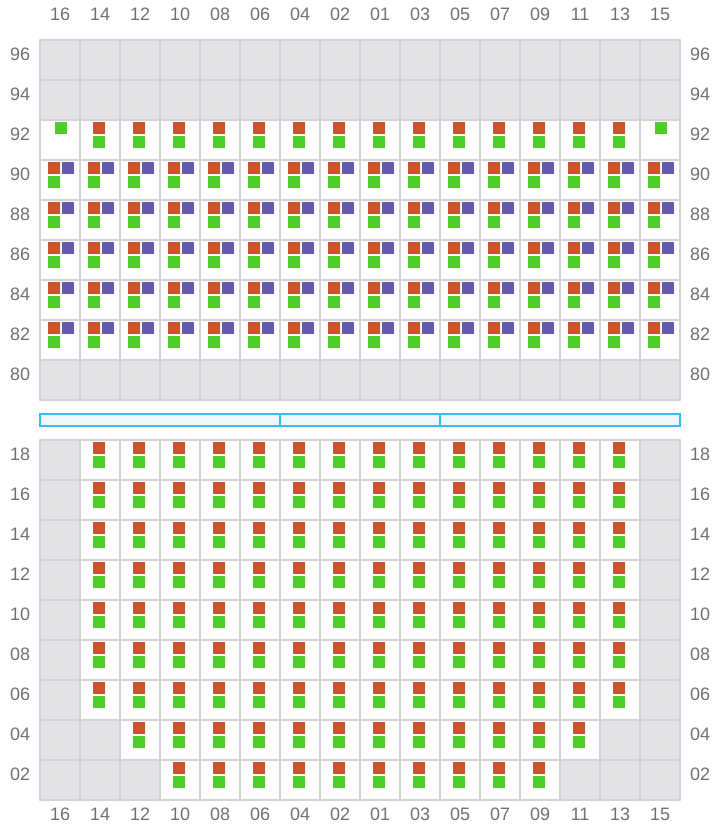

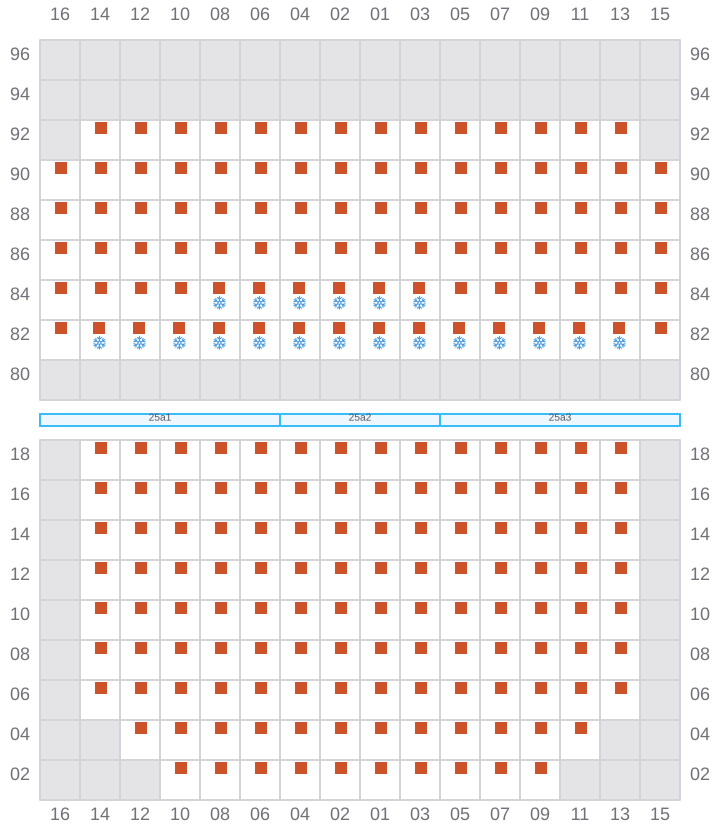

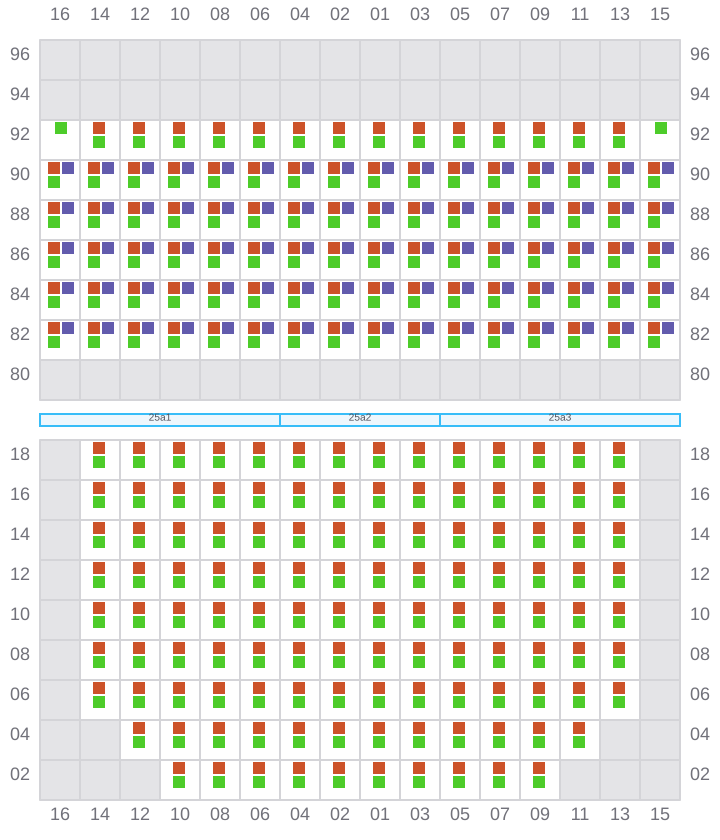

Bay 025 view and slots of MSC ILLINOIS VII

027

  • ←
  • → / ?
Bay 027 view and slots of MSC ILLINOIS VII

029 (030)

  • →

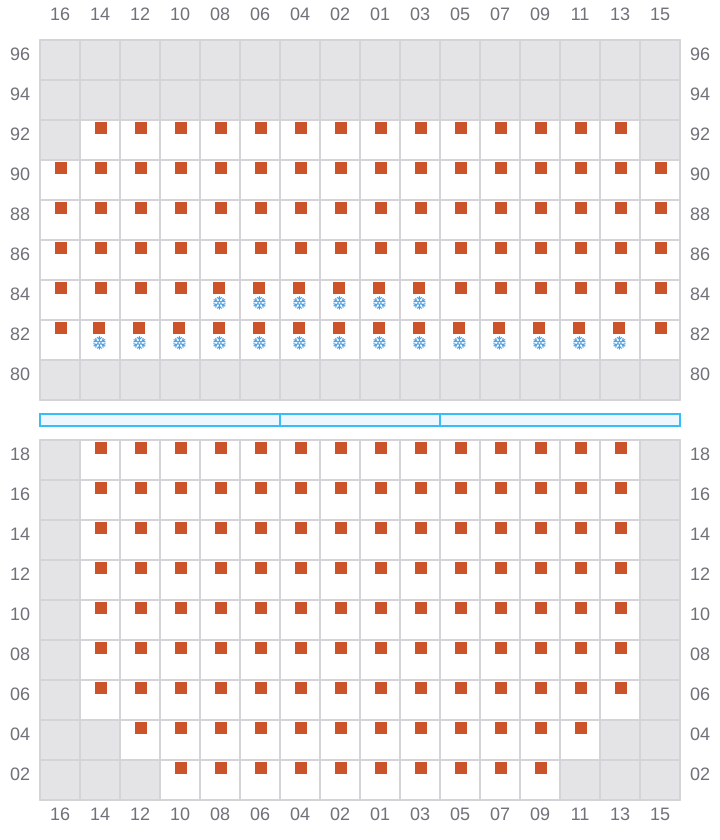

Bay 029 view and slots of MSC ILLINOIS VII

031

  • ←
  • →

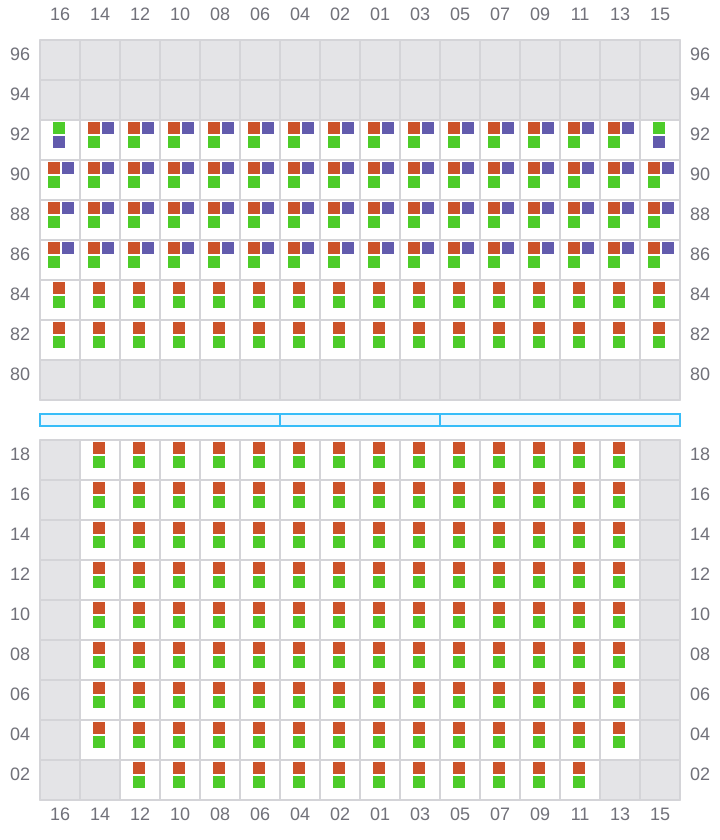

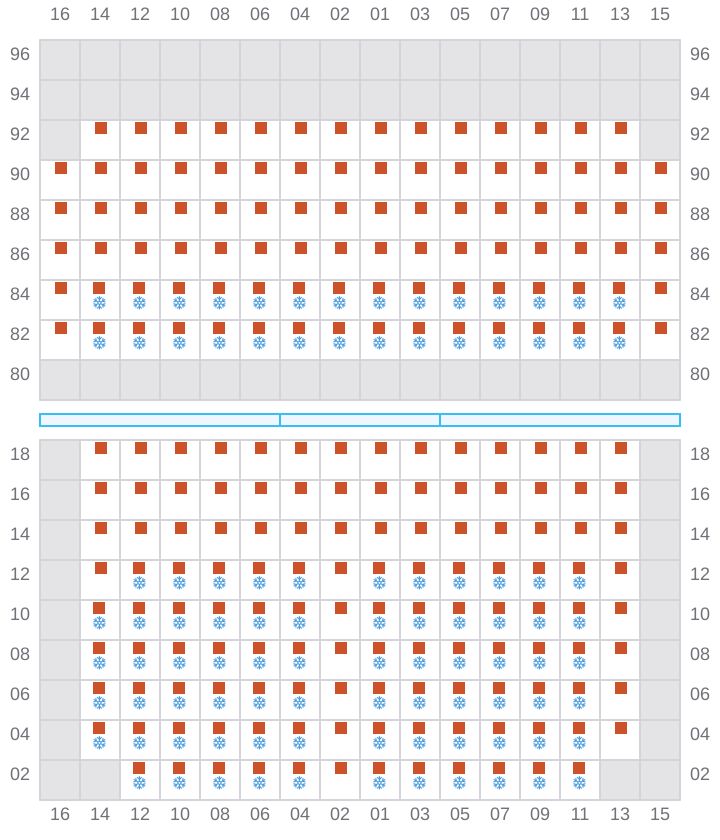

Bay 031 view and slots of MSC ILLINOIS VII

033 (034)

  • →
Bay 033 view and slots of MSC ILLINOIS VII

035

  • ←
  • → / ?
Bay 035 view and slots of MSC ILLINOIS VII

037 (038)

  • →
Bay 037 view and slots of MSC ILLINOIS VII

039

  • ←
  • →
Bay 039 view and slots of MSC ILLINOIS VII

041 (042)

  • →

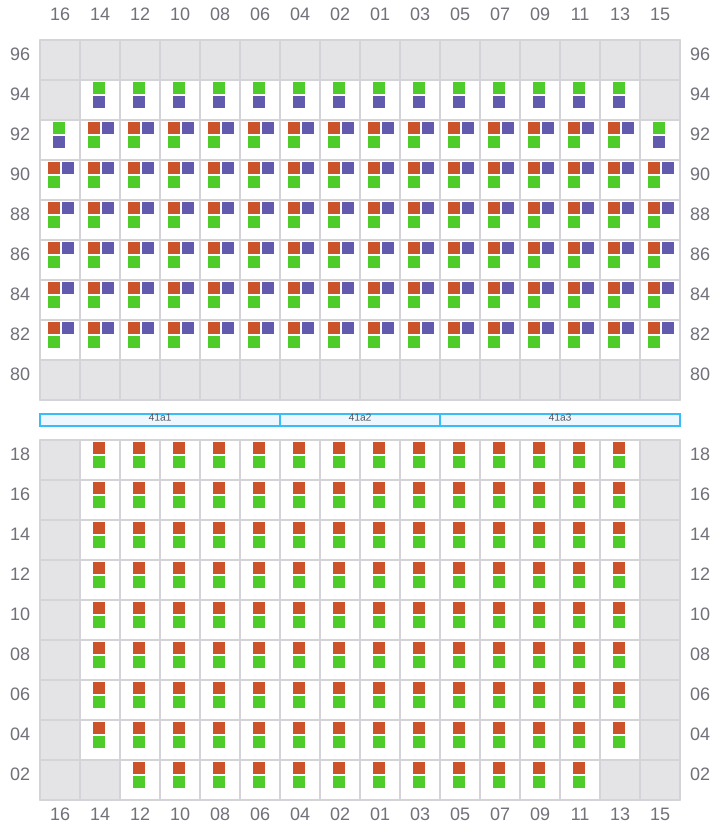

Bay 041 view and slots of MSC ILLINOIS VII

043

  • ←
  • → / ?

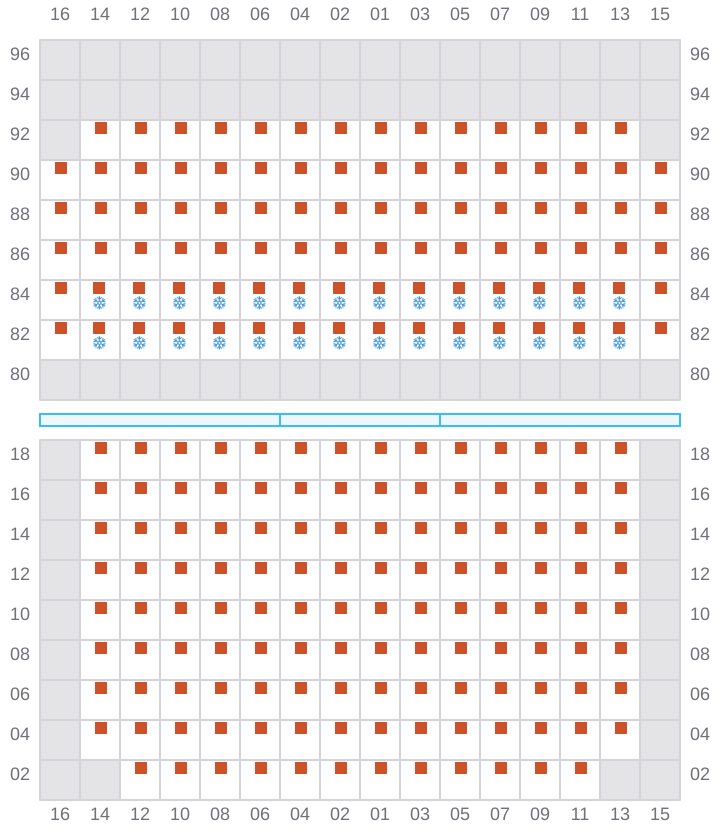

Bay 043 view and slots of MSC ILLINOIS VII

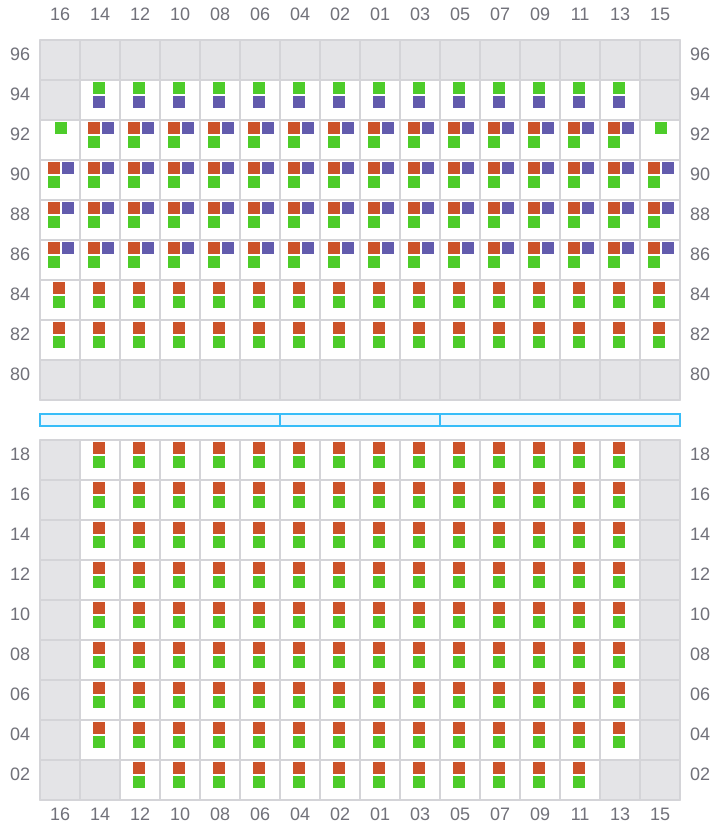

045 (046)

  • →
Bay 045 view and slots of MSC ILLINOIS VII

047

  • ←
  • →
Bay 047 view and slots of MSC ILLINOIS VII

049 (050)

  • →

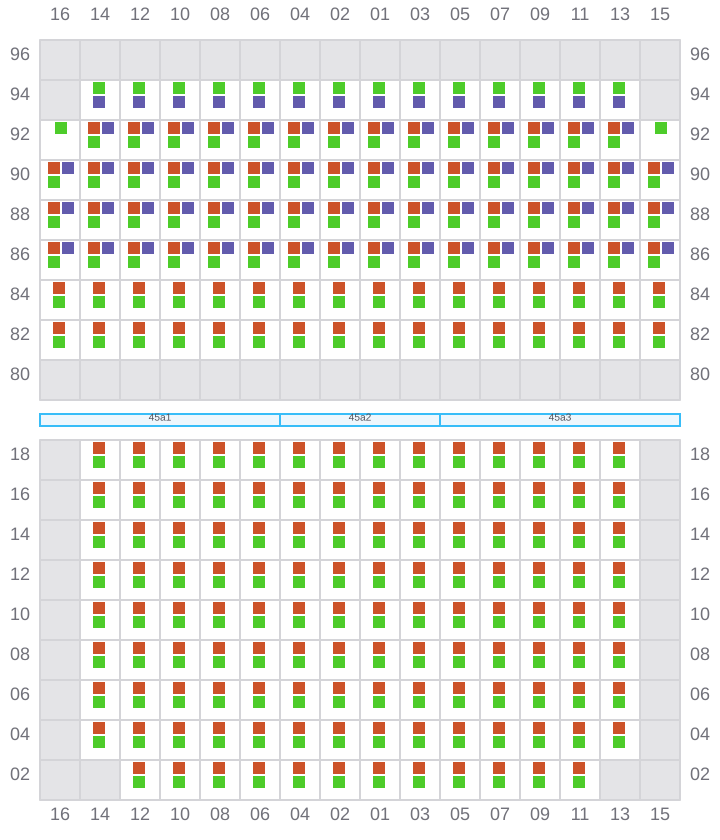

Bay 049 view and slots of MSC ILLINOIS VII

051

  • ←
  • → / ?
Bay 051 view and slots of MSC ILLINOIS VII

053 (054)

  • →

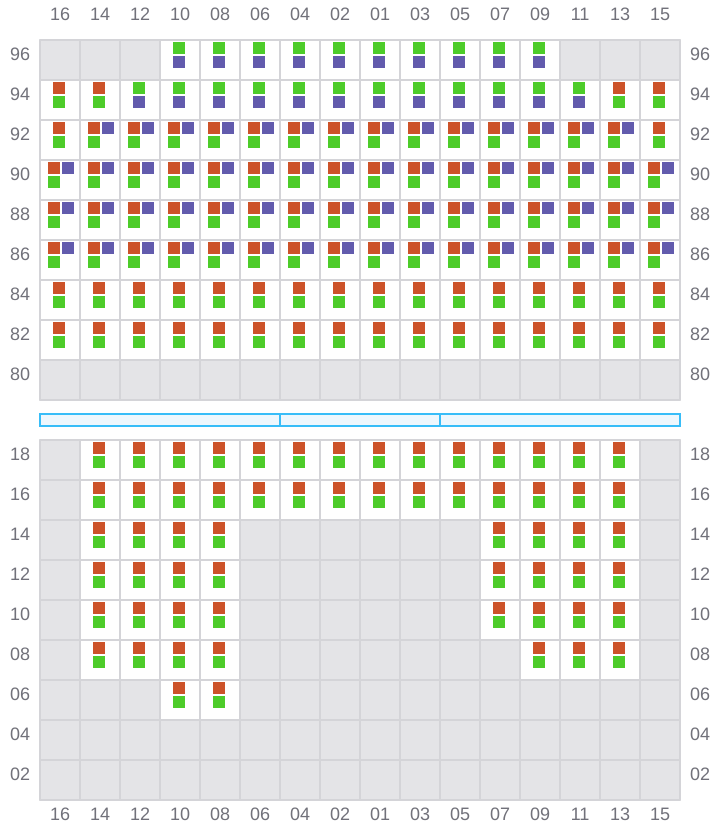

Bay 053 view and slots of MSC ILLINOIS VII

055

  • ←
  • → / ?

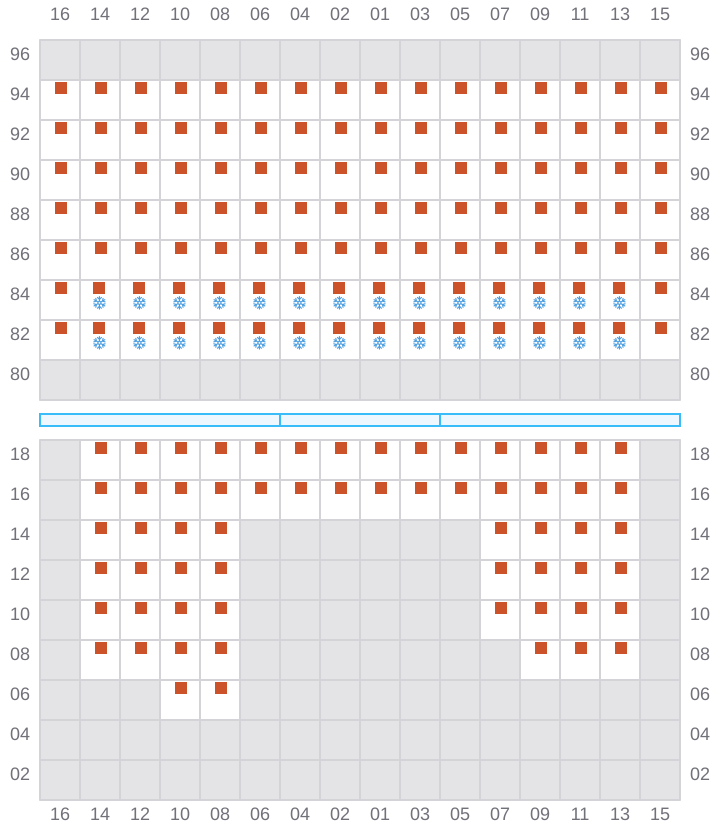

Bay 055 view and slots of MSC ILLINOIS VII

057 (058)

  • →

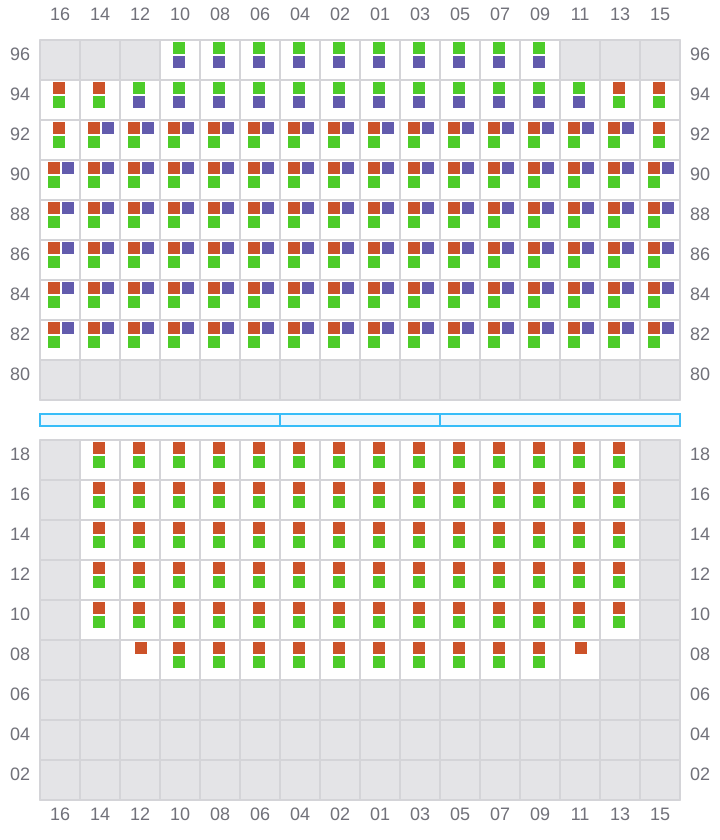

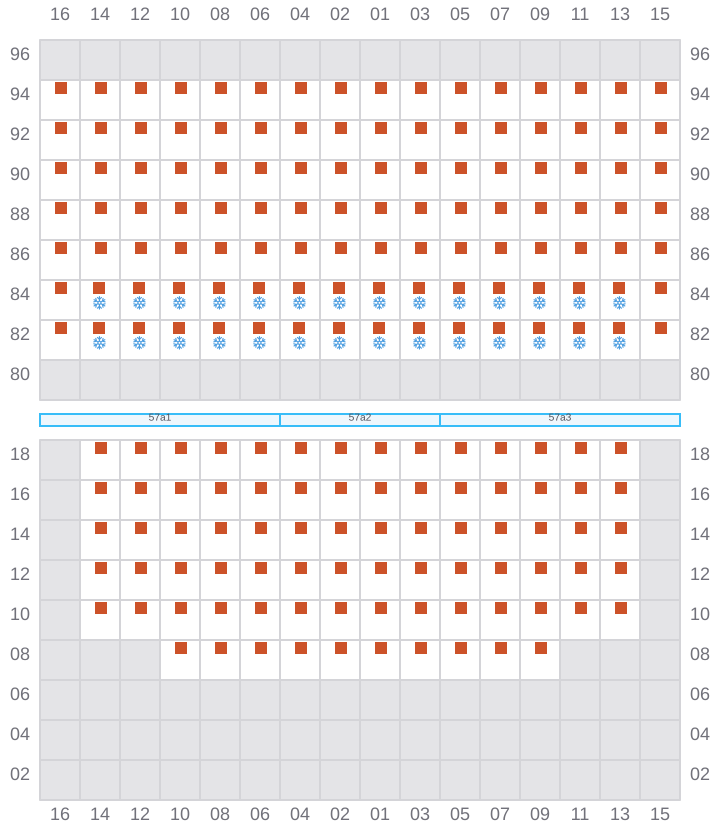

Bay 057 view and slots of MSC ILLINOIS VII

059

  • ←
  • → / ?
Bay 059 view and slots of MSC ILLINOIS VII

061 (062)

  • →

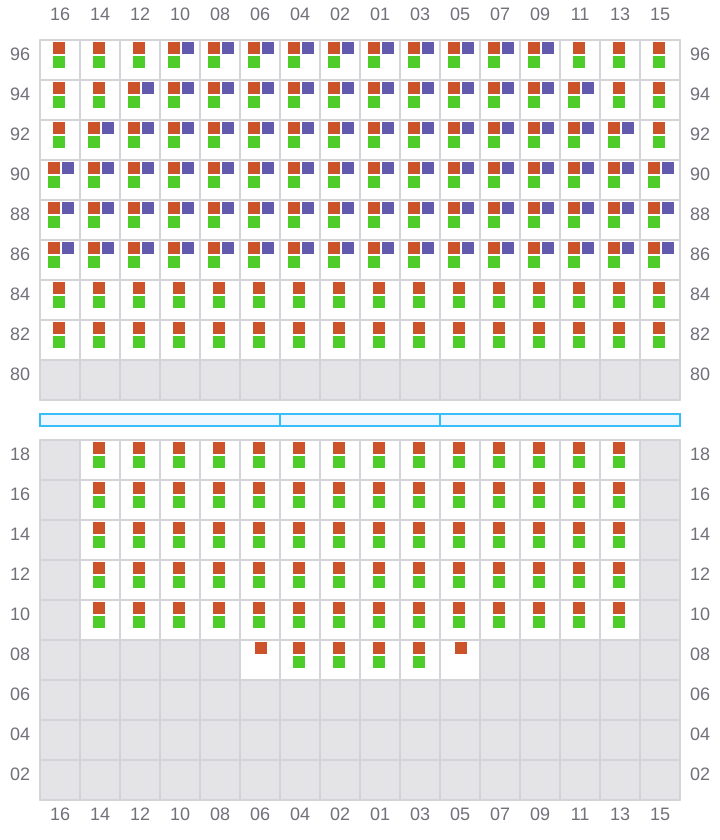

Bay 061 view and slots of MSC ILLINOIS VII

063

  • ←
  • → / ?

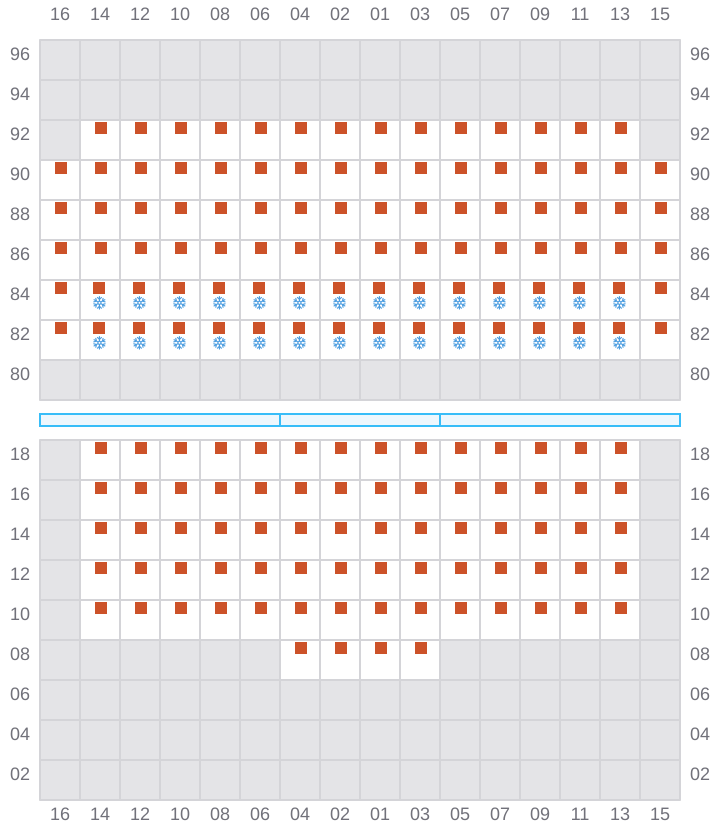

Bay 063 view and slots of MSC ILLINOIS VII

065 (066)

  • →

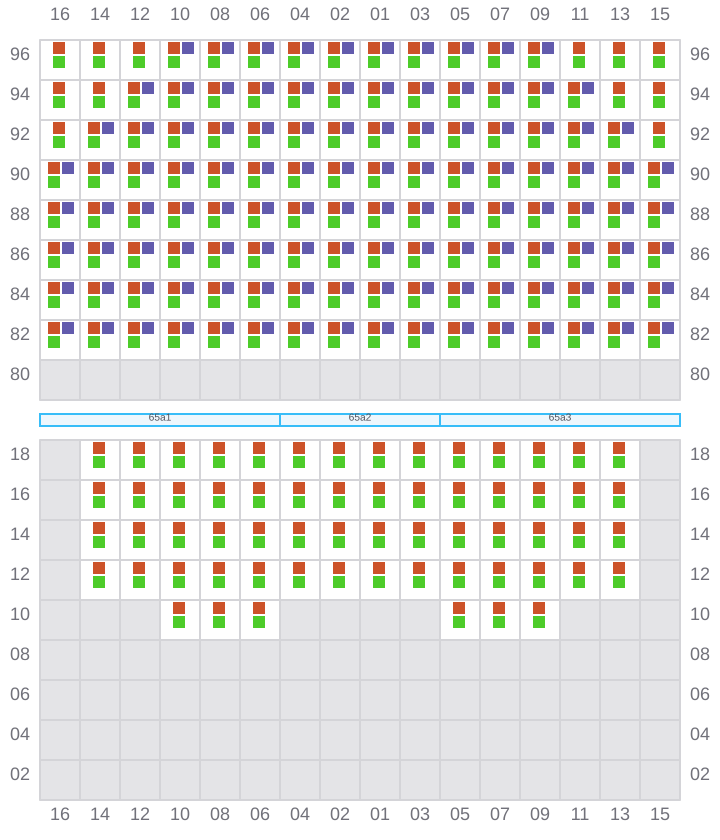

Bay 065 view and slots of MSC ILLINOIS VII
