MSC ILONA
9225641 | D5VK6 | 9225641 by ********* Last update: Mon May 20 2024
General Info
Ship Name:MSC ILONA
IMO Code:9225641
Call Sign:D5VK6
Line Operator:9225641
Class Name for Sister Ships:MSC ILONA
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):286.00
LOA (Length Overall):299.98
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,298
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

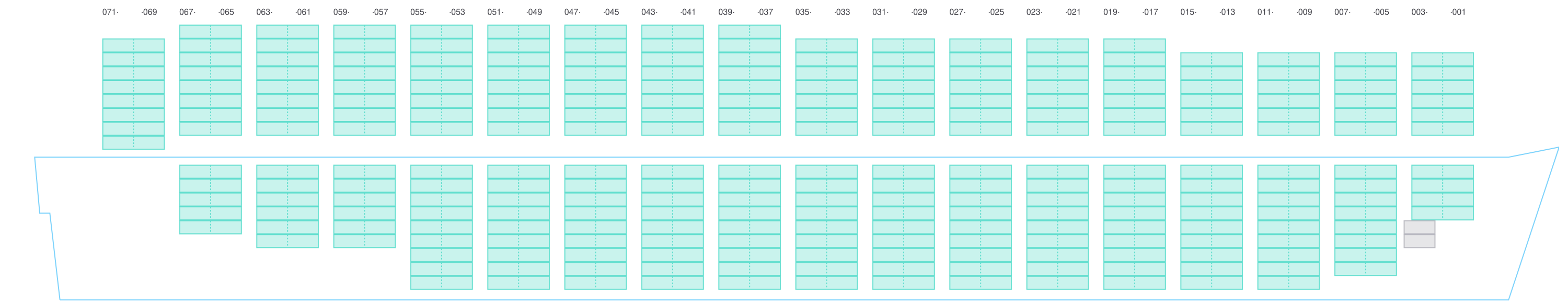

Side View
Hatch-Covers View

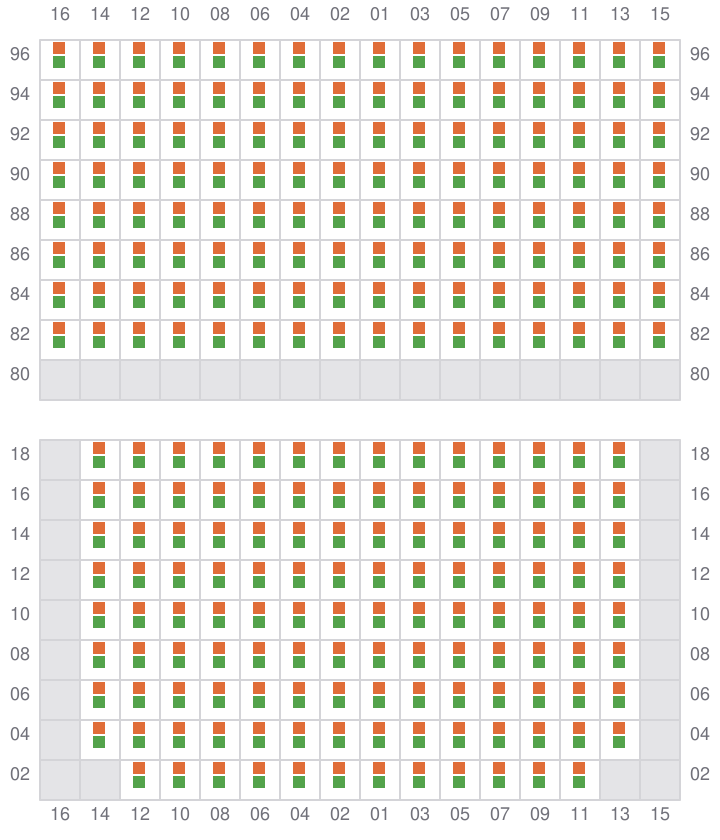

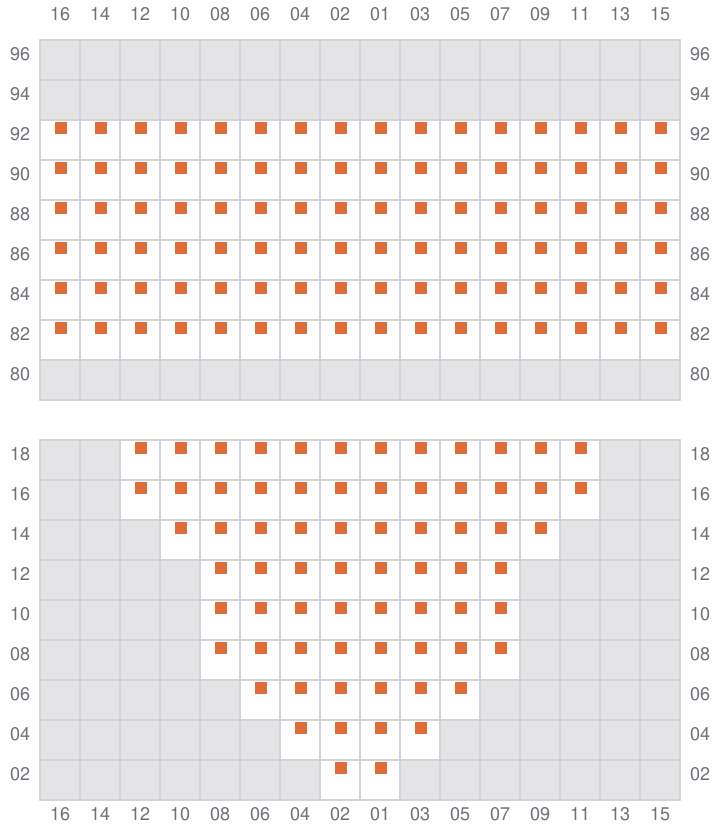

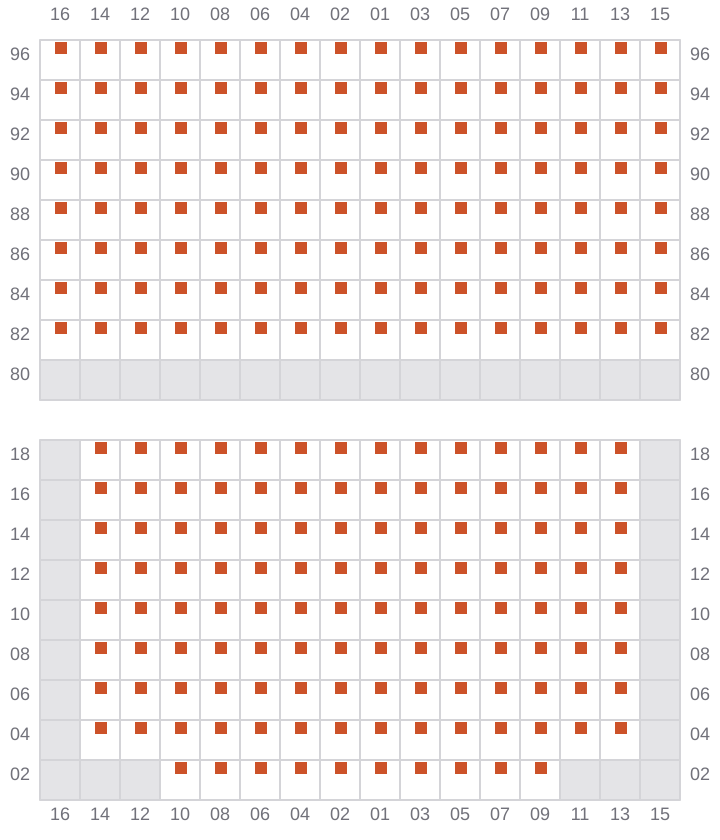

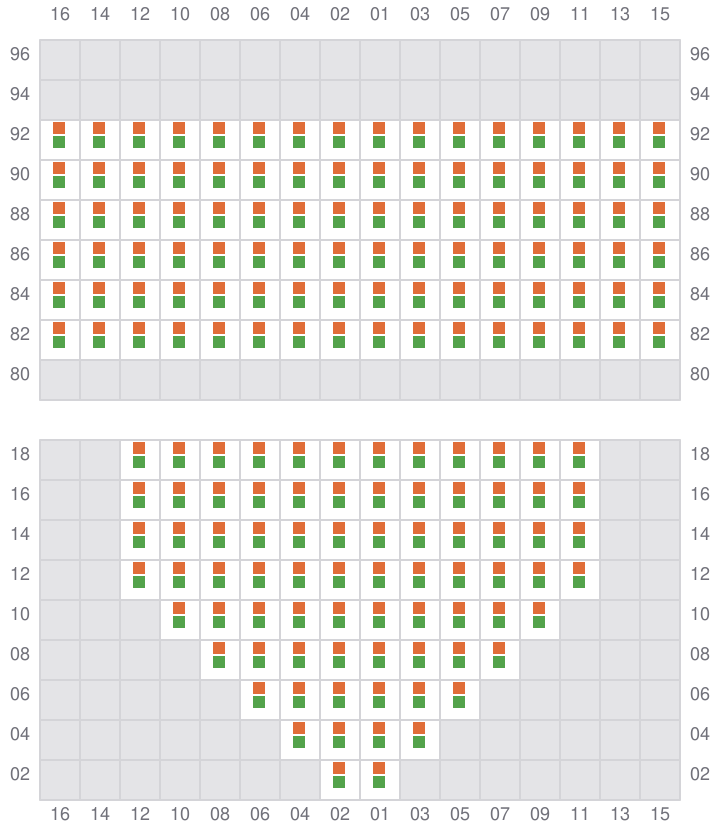

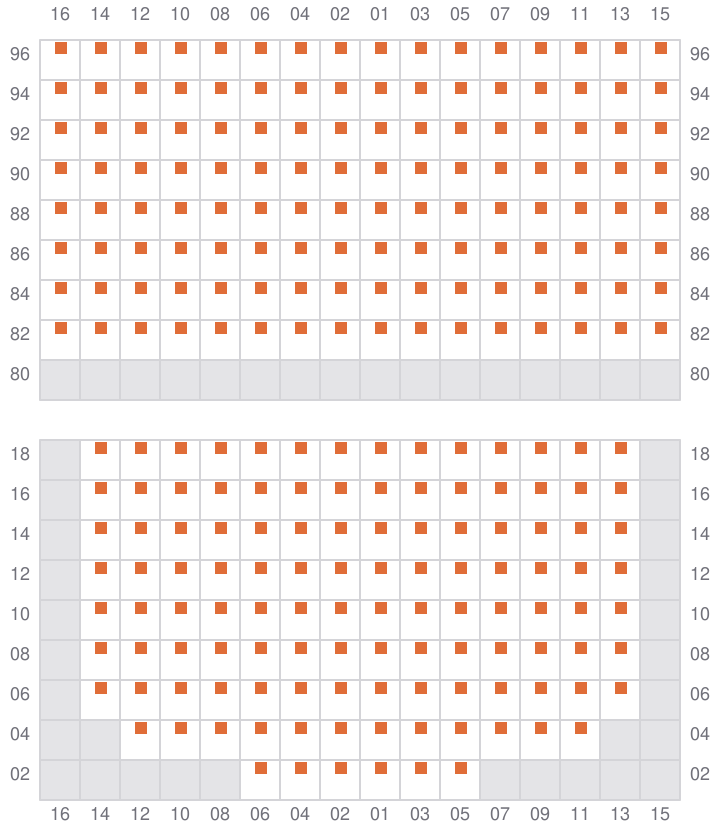

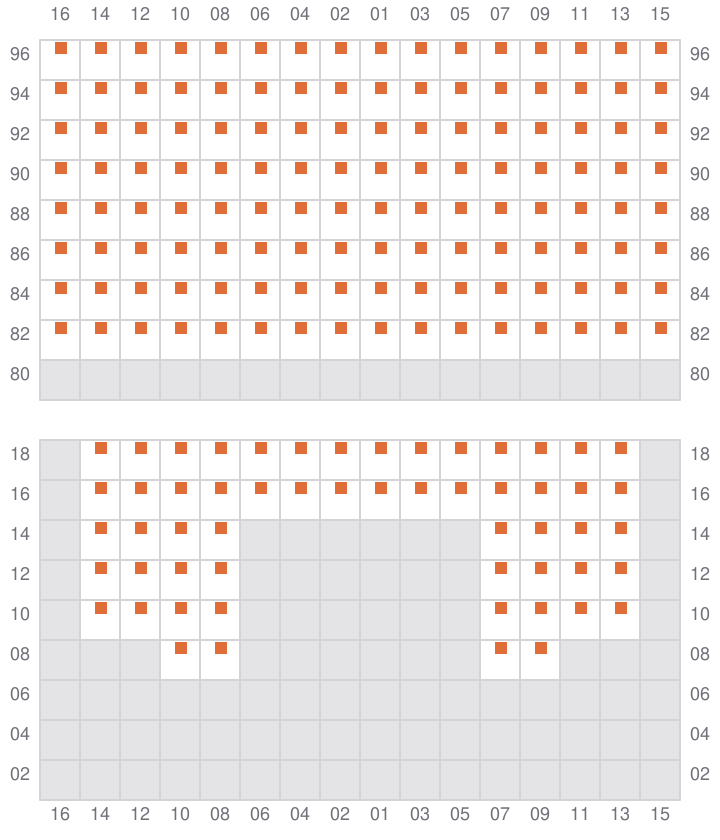

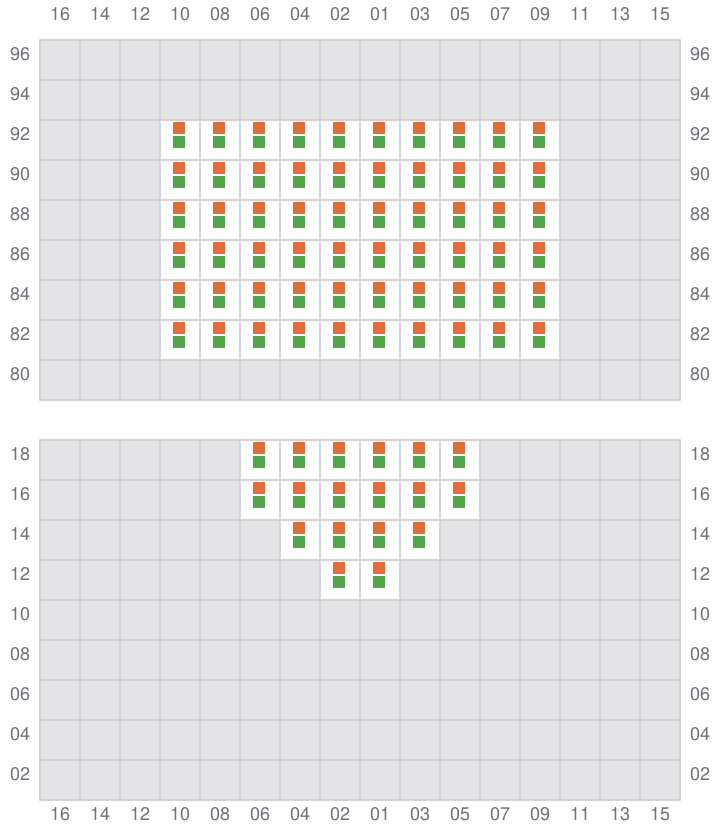

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

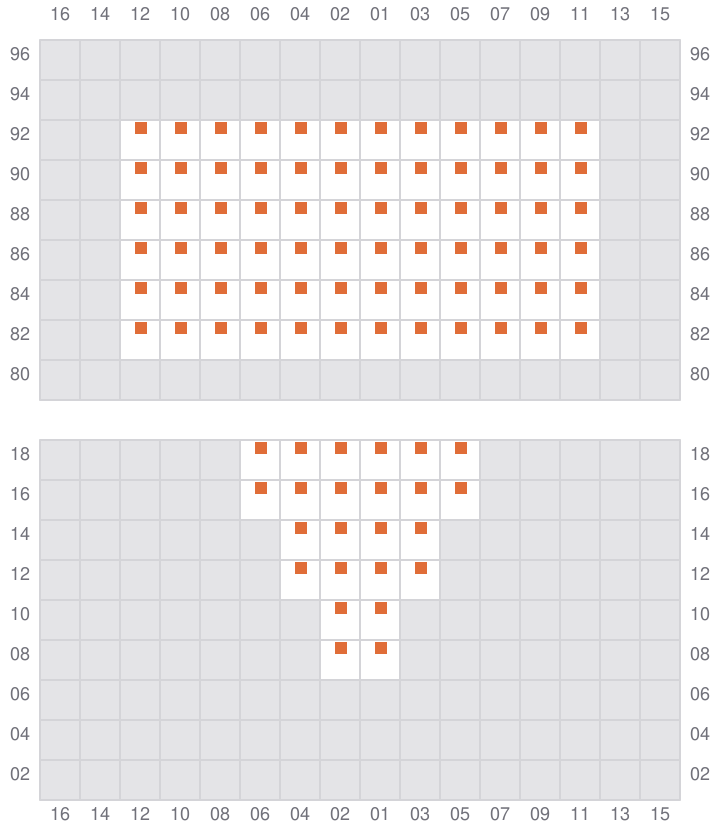

003
- ←

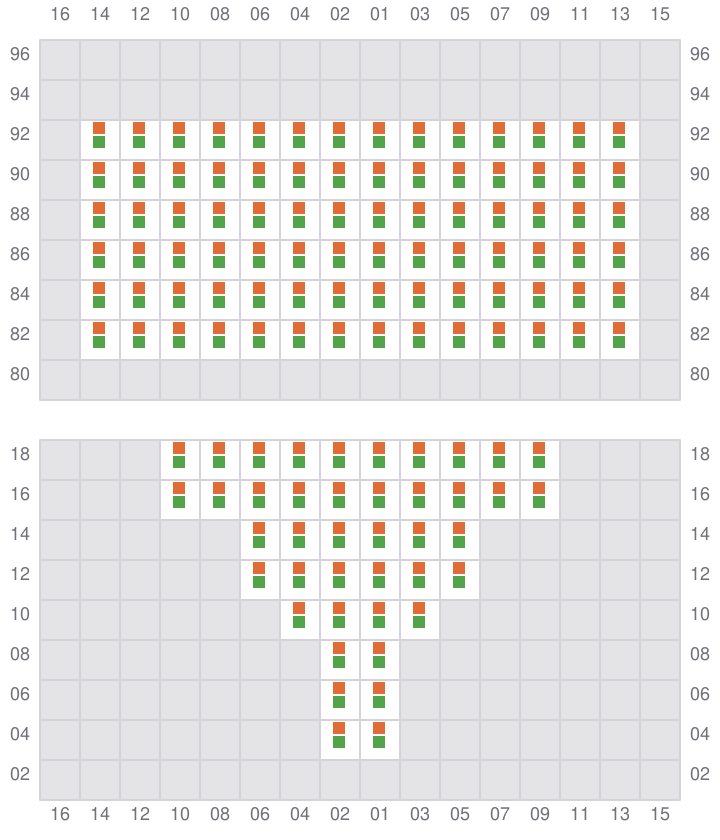

005 (006)
- →

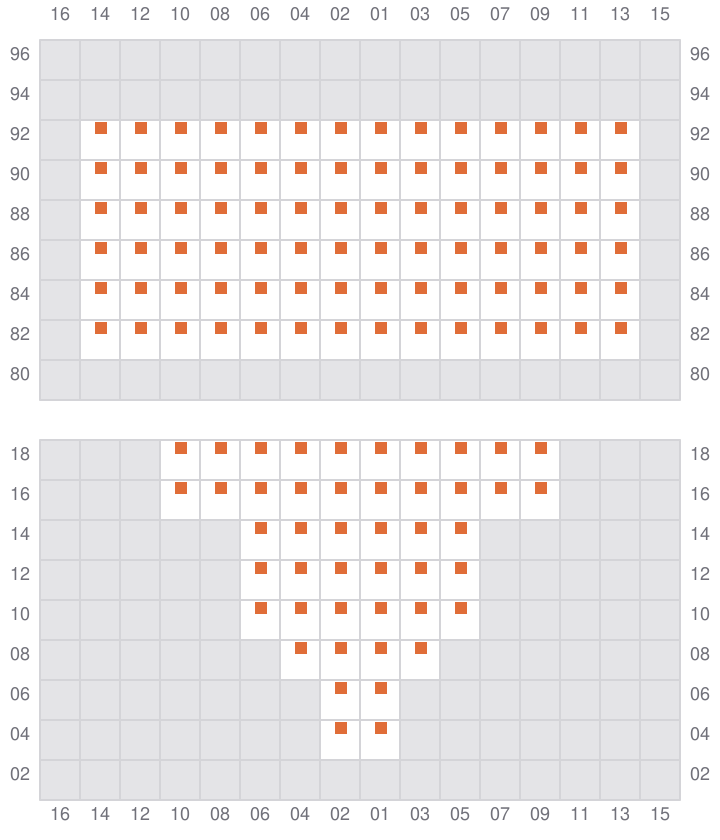

007
- ←

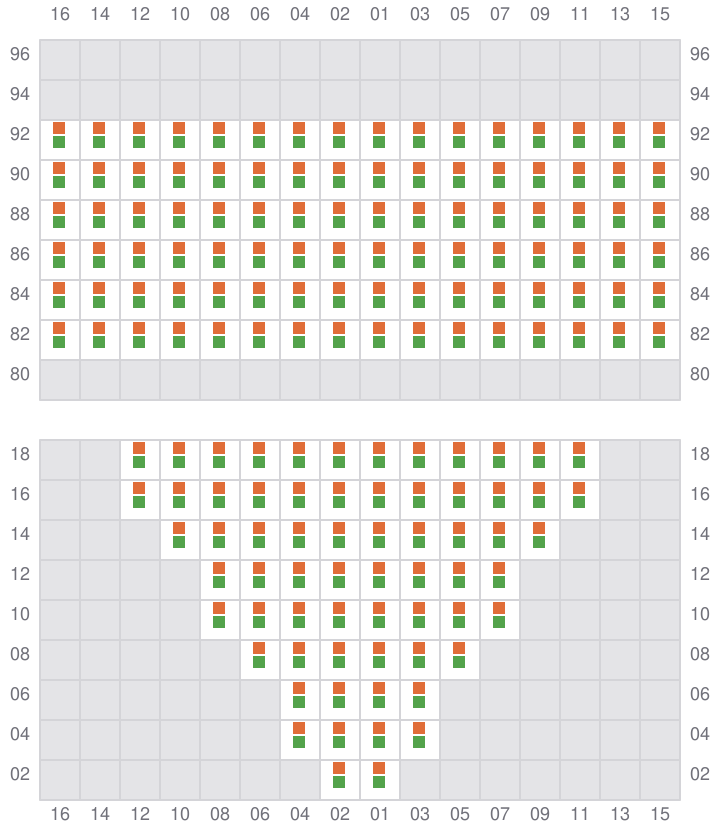

009 (010)
- →
011
- ←
013 (014)
- →

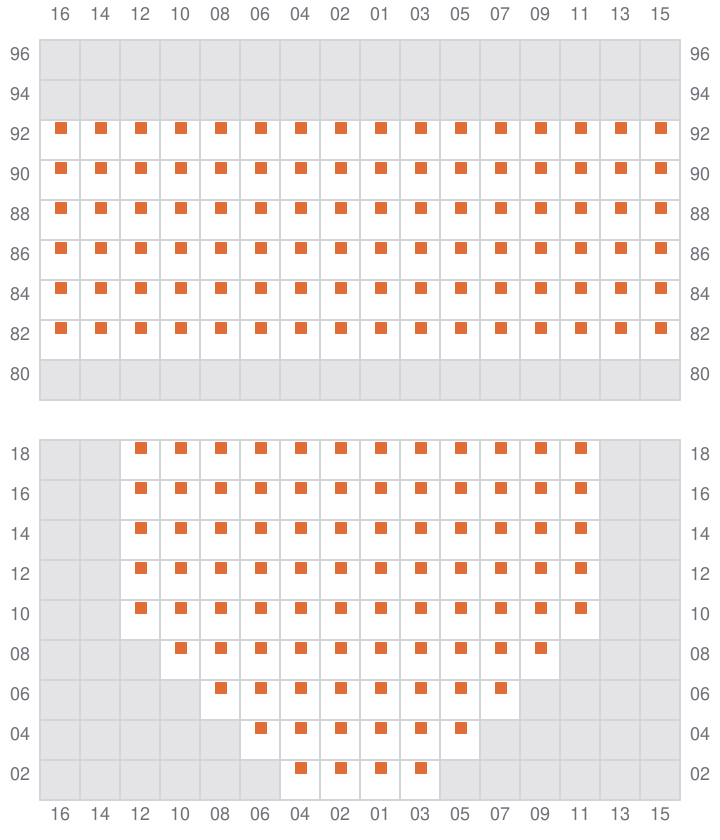

015
- ←

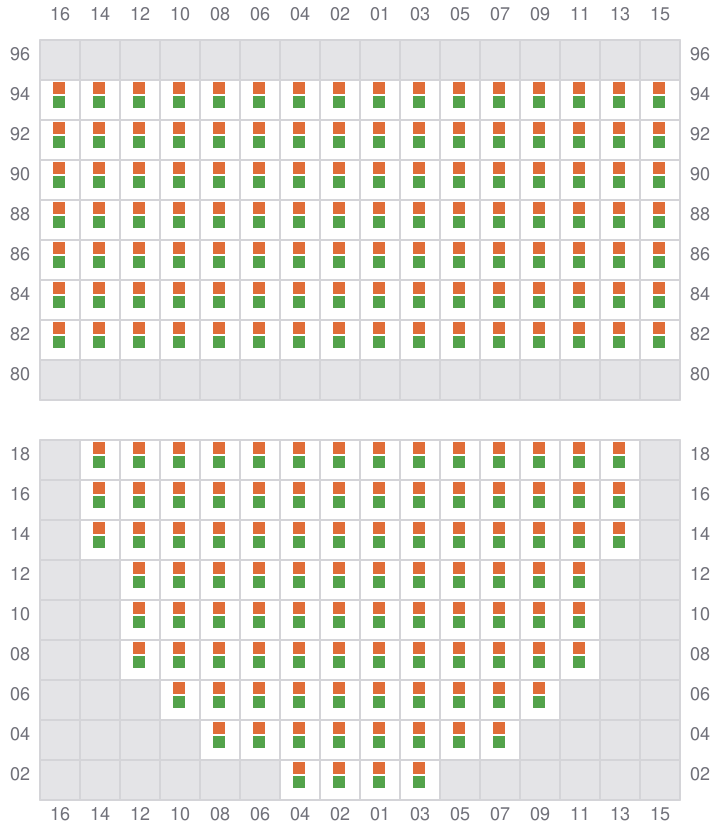

017 (018)
- →

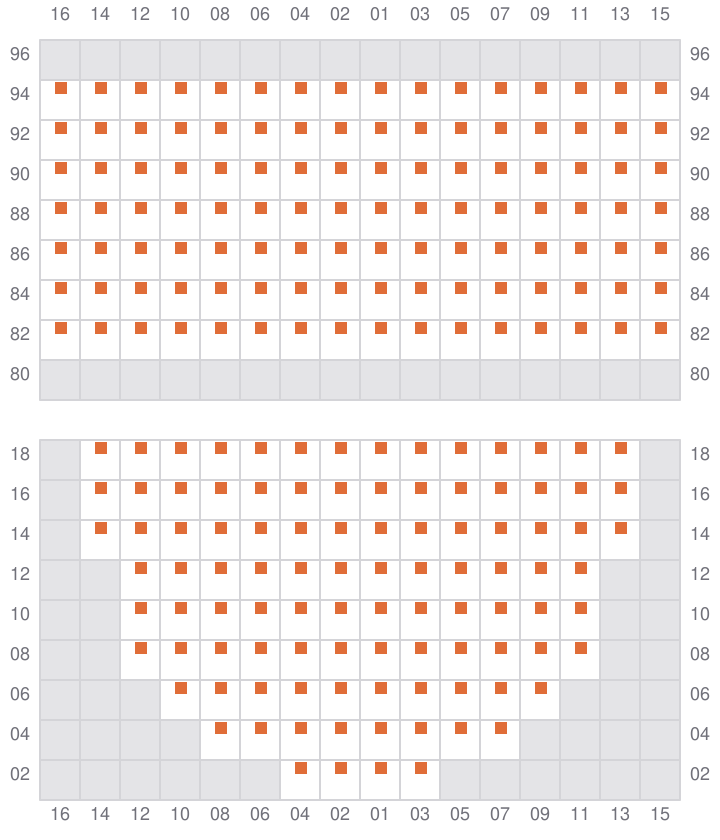

019
- ←

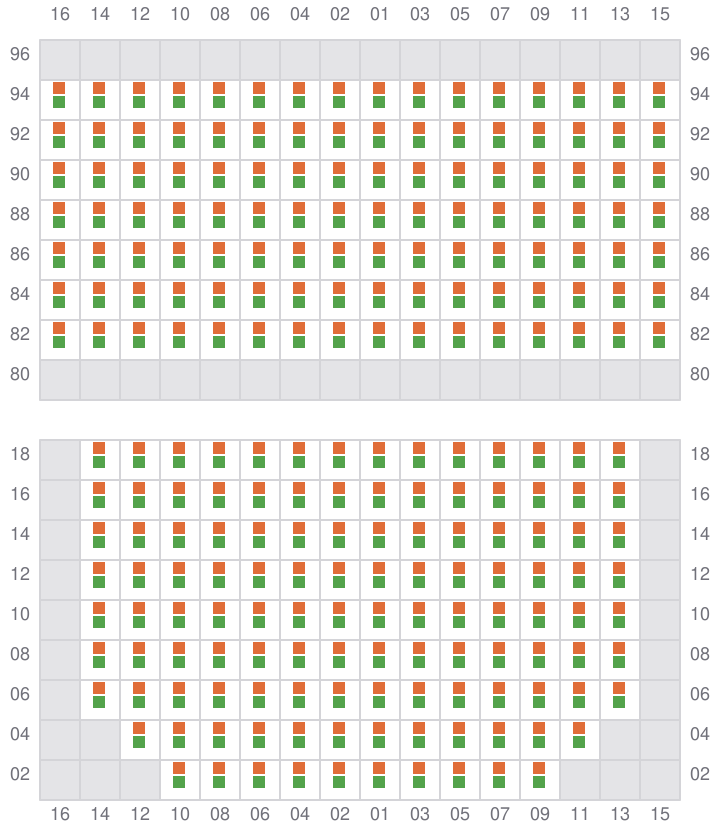

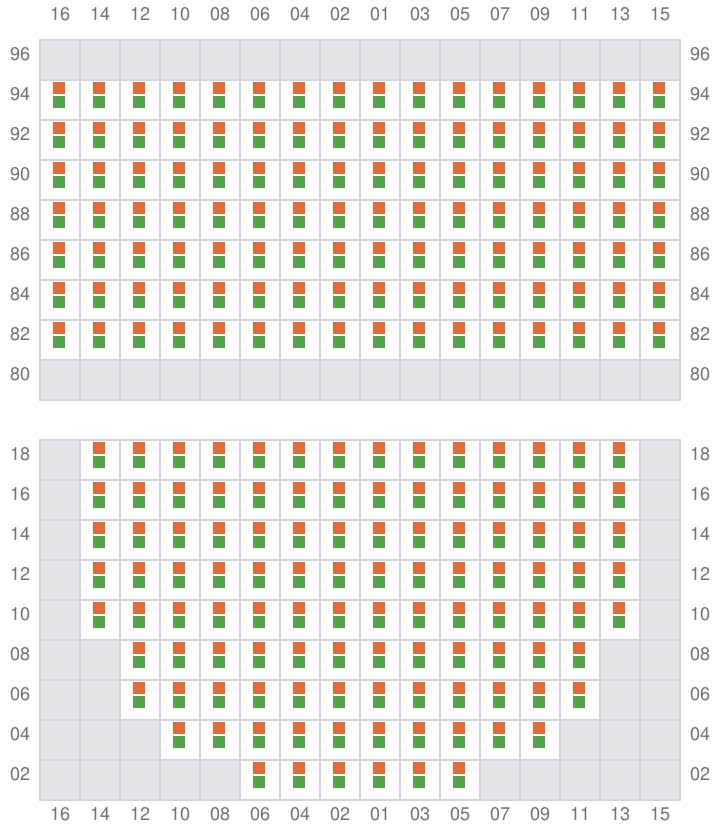

021 (022)
- →

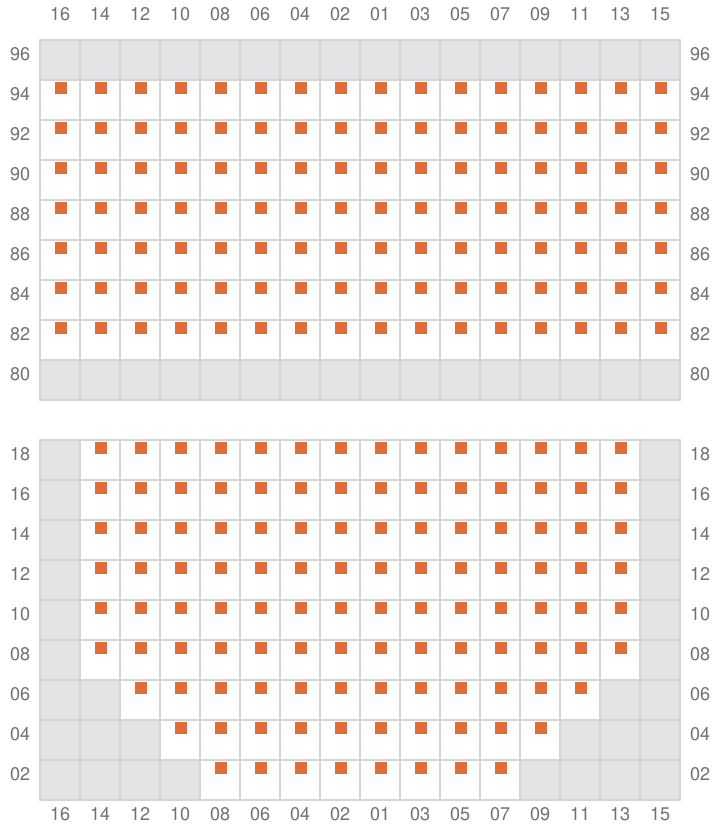

023
- ←

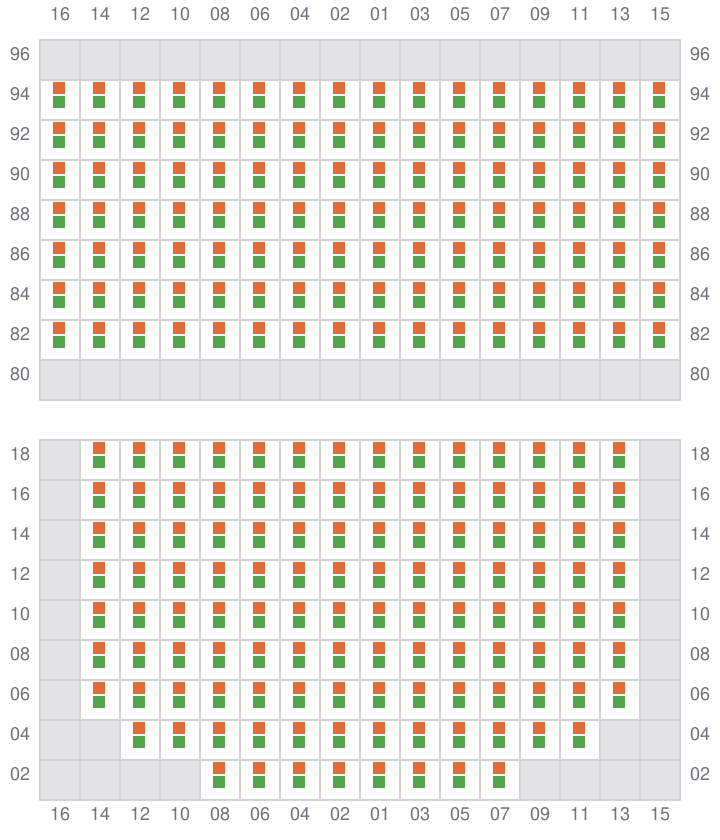

025 (026)
- →

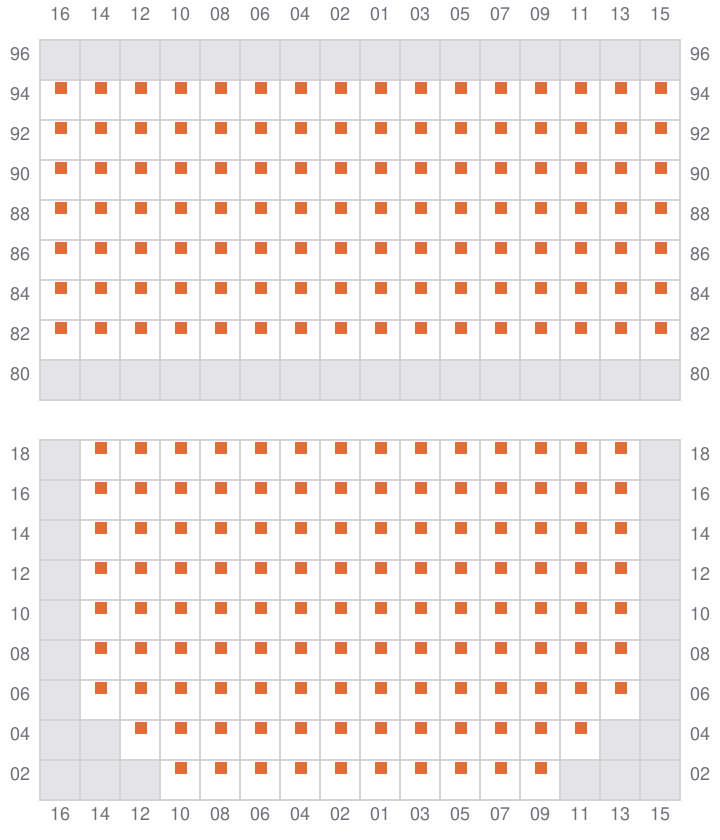

027
- ←
029 (030)
- →

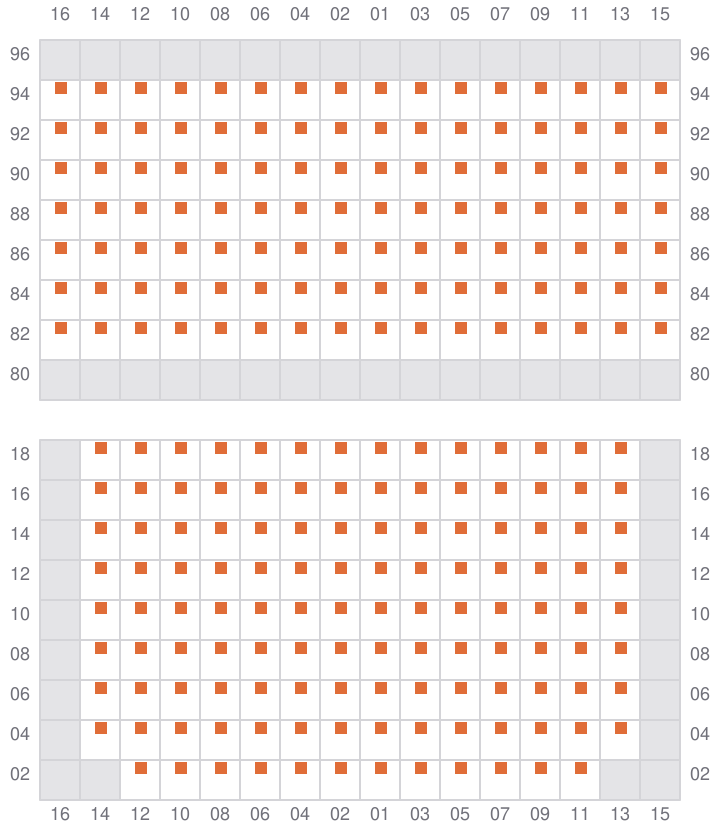

031
- ←

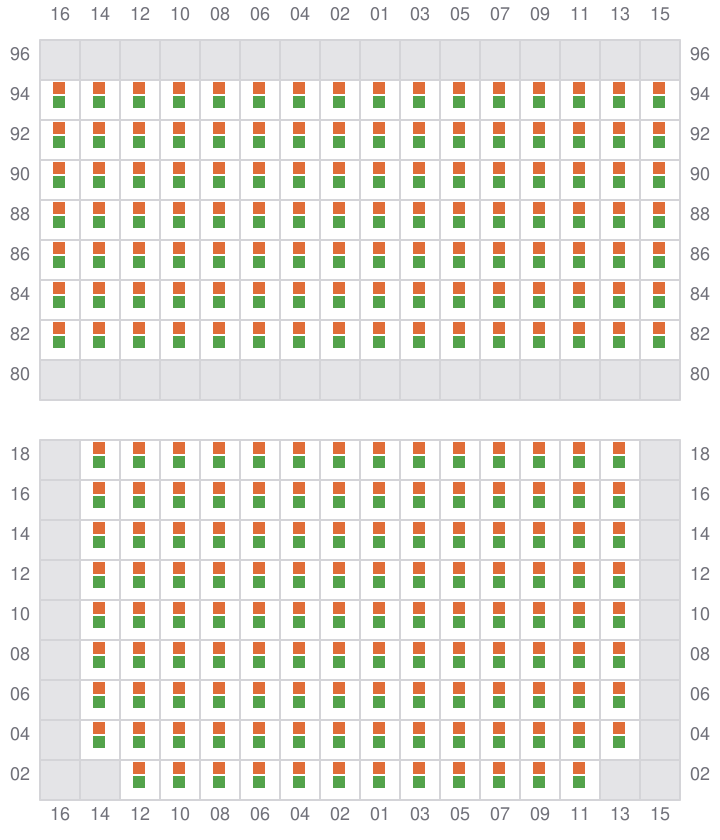

033 (034)
- →
035
- ←
037 (038)
- →

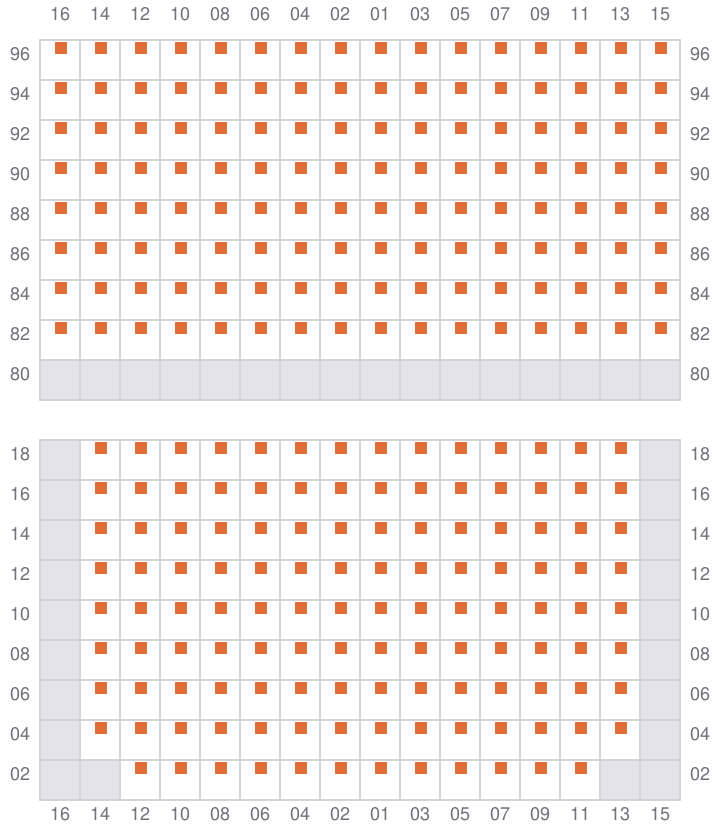

039
- ←
041 (042)
- →
043
- ←
045 (046)
- →
047
- ←
049 (050)
- →
051
- ←

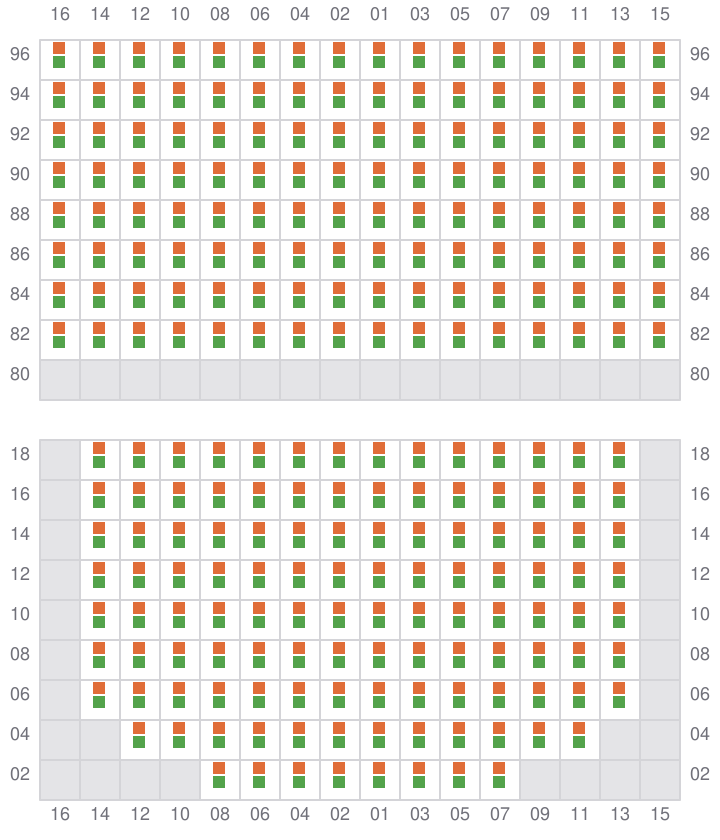

053 (054)
- →
055
- ←

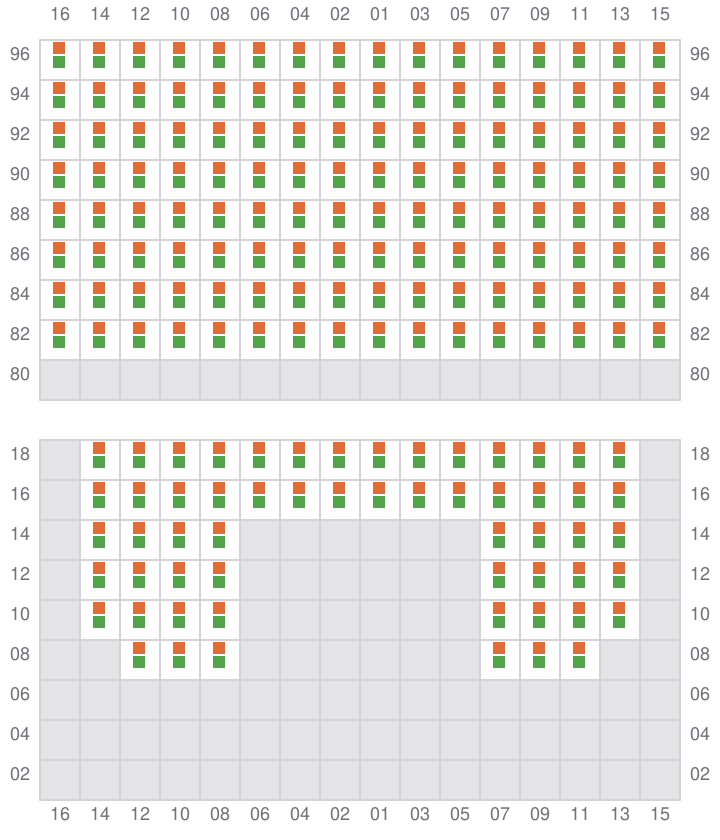

057 (058)
- →
059
- ←

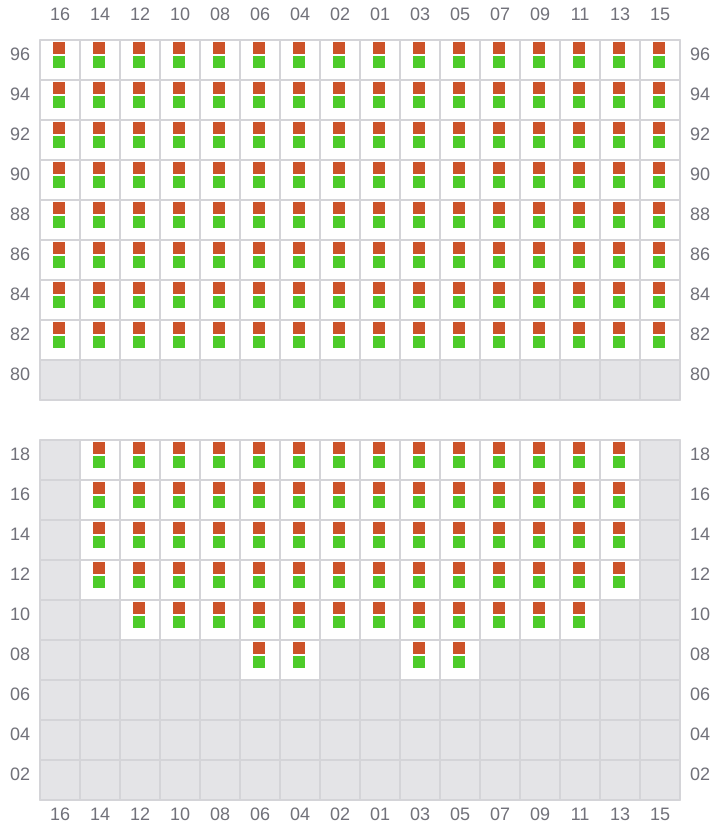

061 (062)
- →

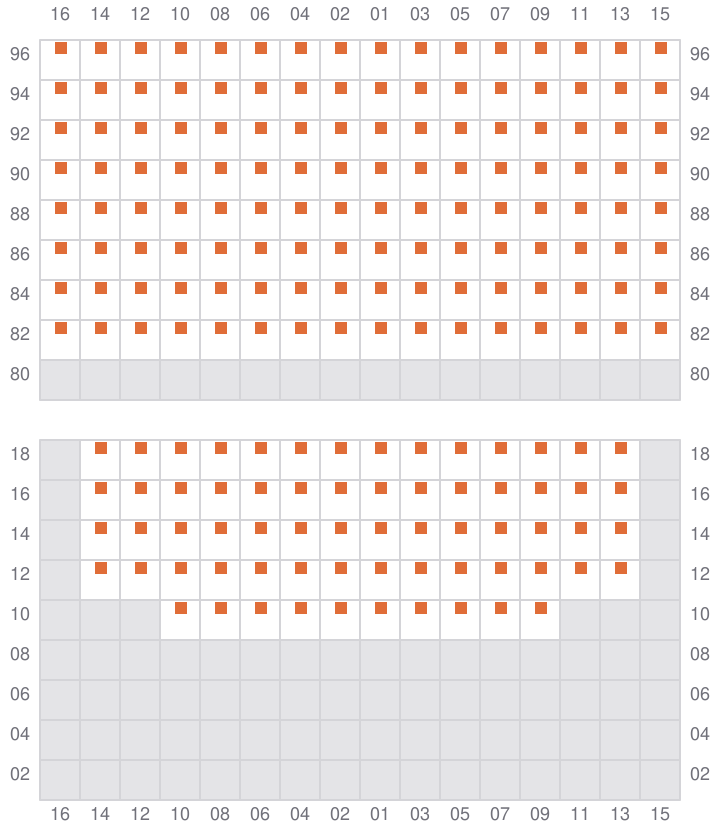

063
- ←

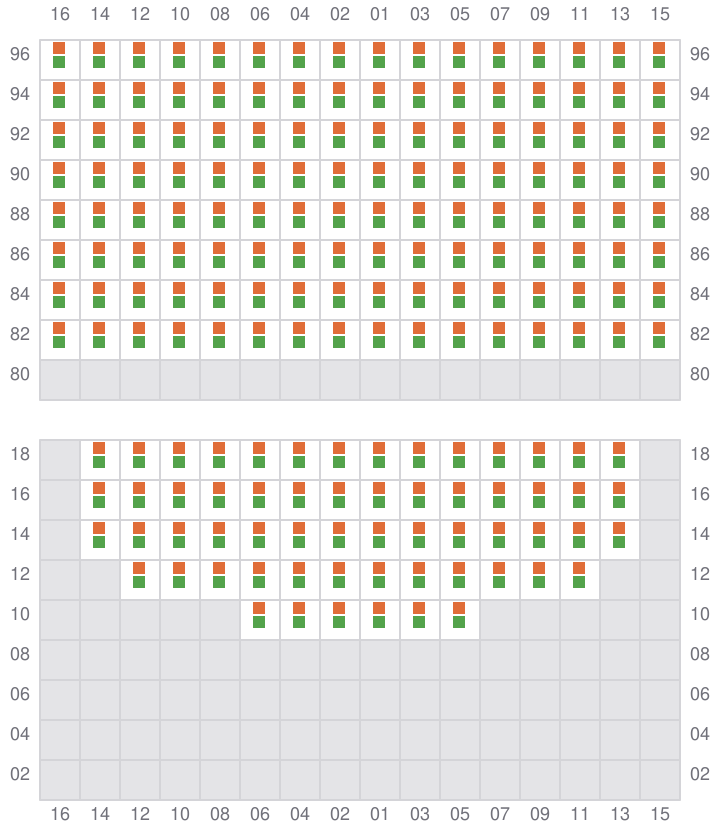

065 (066)
- →

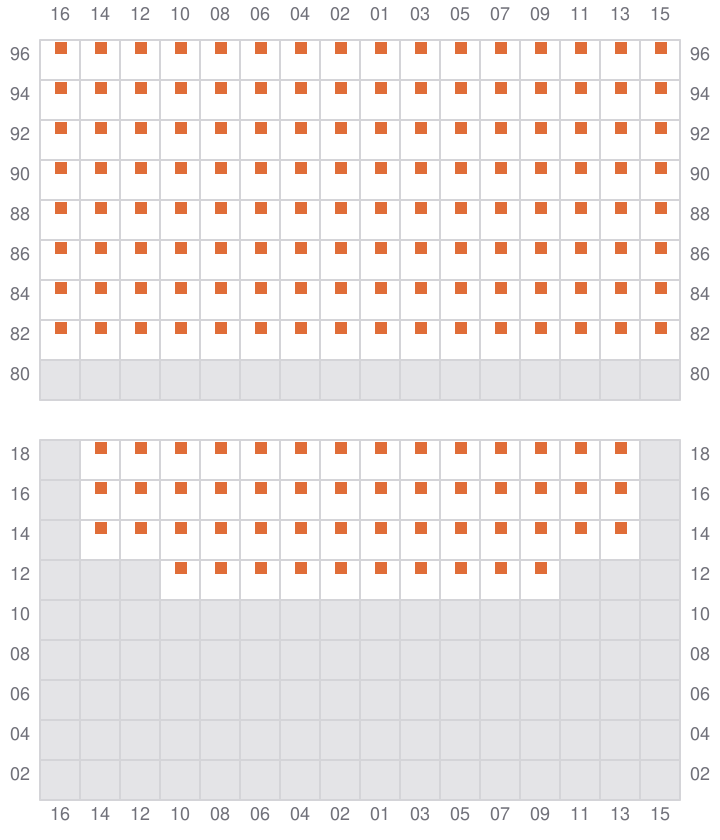

067
- ←

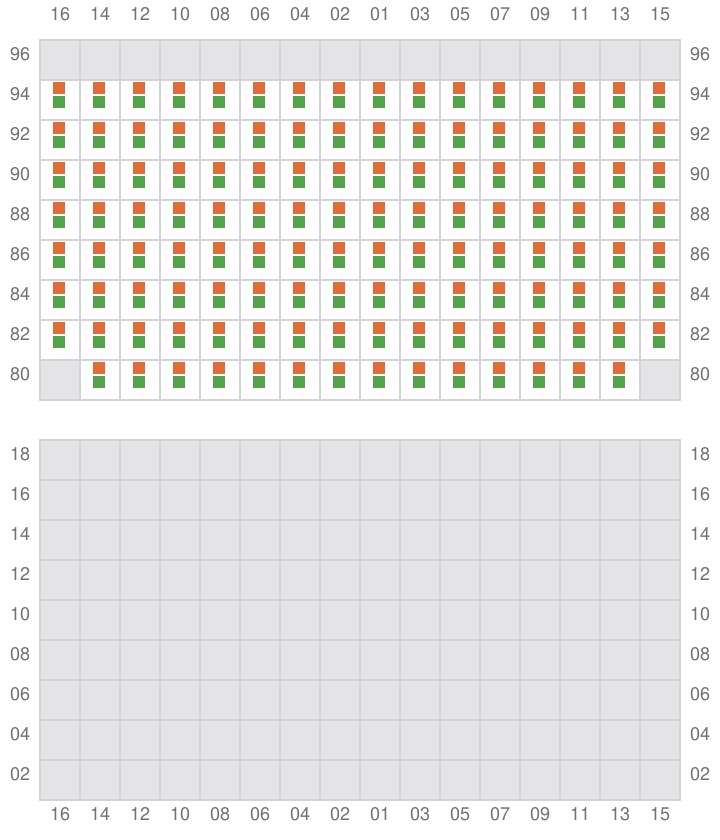

069 (070)
- → / ?

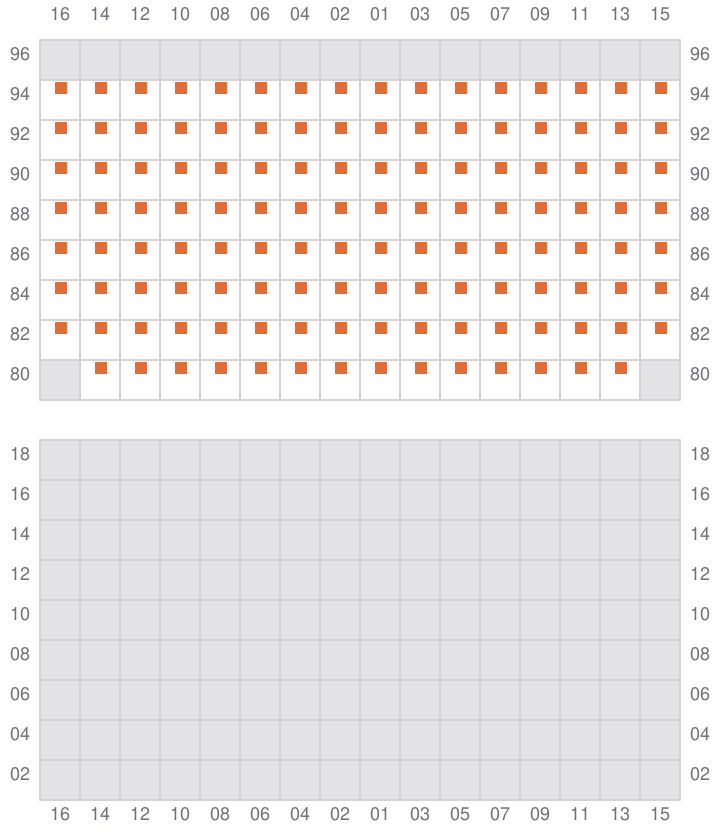

071
- ← / ?
