MSC IMMA III
9124366 | 3ETY3 | 9124366 by ********* Last update: Tue Apr 30 2024

General Info

Ship Name:MSC IMMA III
IMO Code:9124366
Call Sign:3ETY3
Line Operator:9124366
Class Name for Sister Ships:E
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):190.00
LOA (Length Overall):201.47
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,811

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

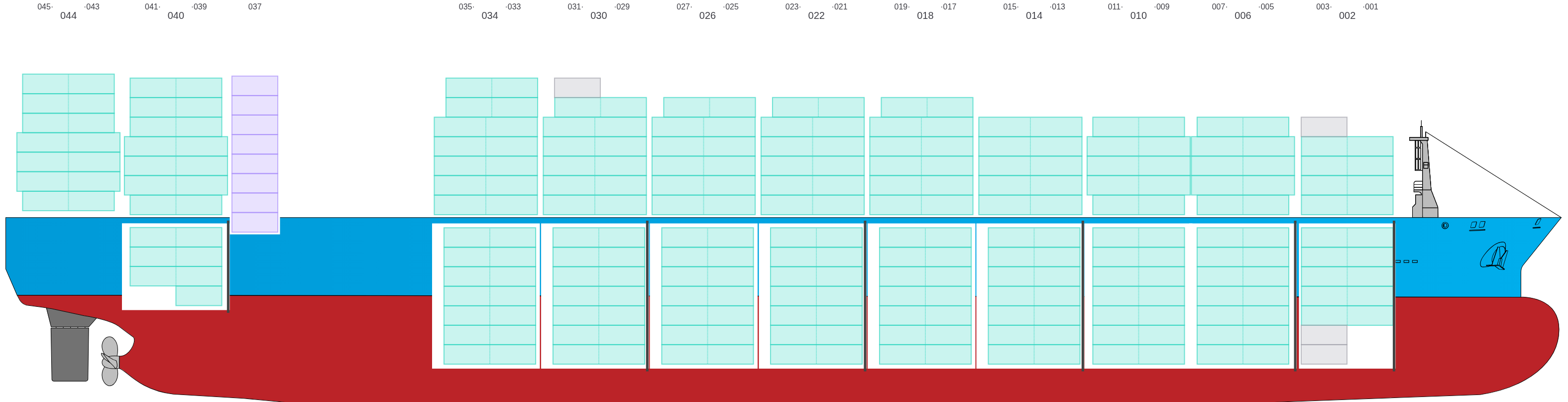

Side View

Side view of MSC IMMA III

Hatch-Covers View

Deck view of MSC IMMA III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

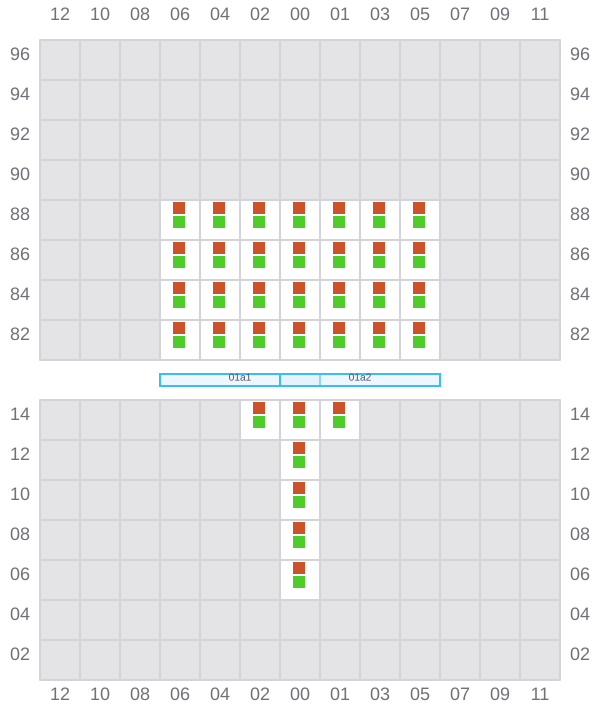

001 (002)

  • →
Bay 001 view and slots of MSC IMMA III

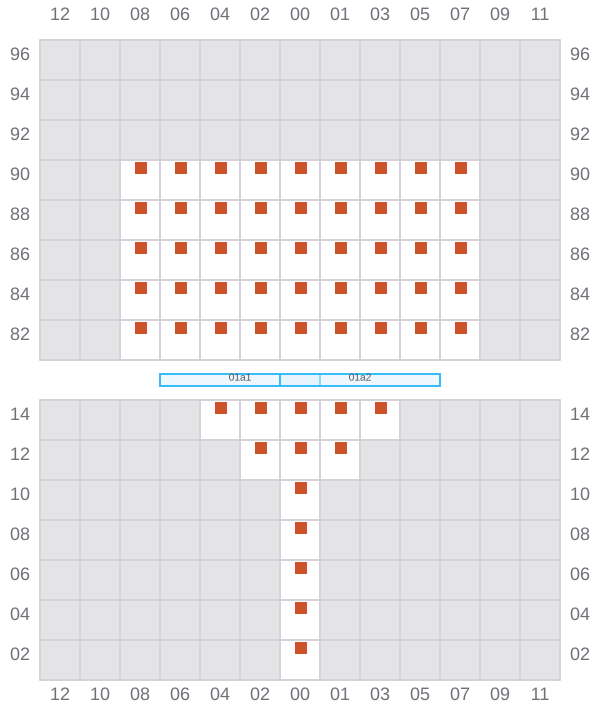

003

  • ←
Bay 003 view and slots of MSC IMMA III

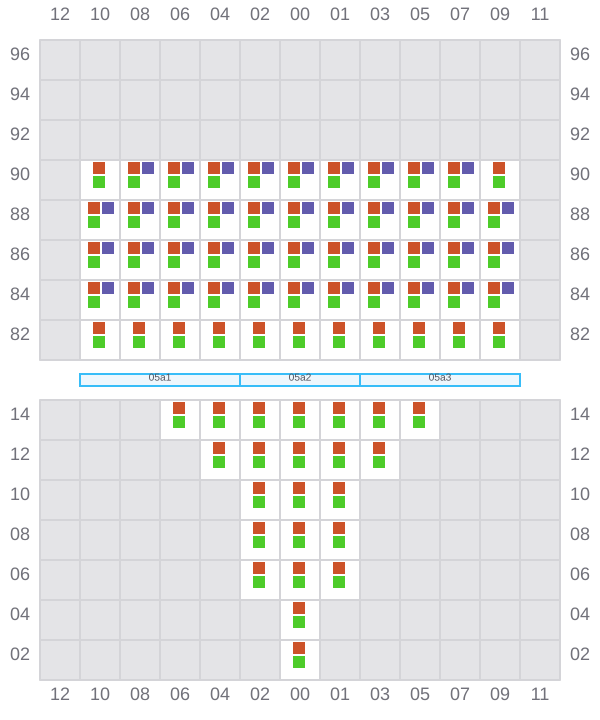

005 (006)

  • →
Bay 005 view and slots of MSC IMMA III

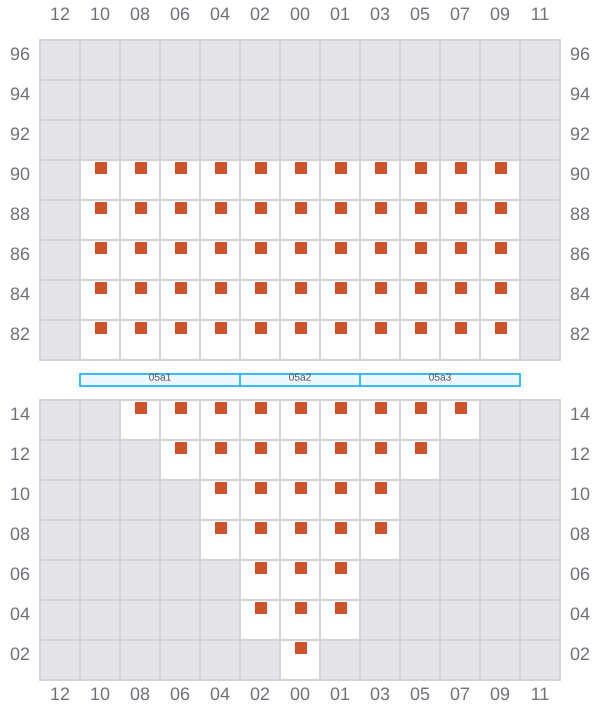

007

  • ←
Bay 007 view and slots of MSC IMMA III

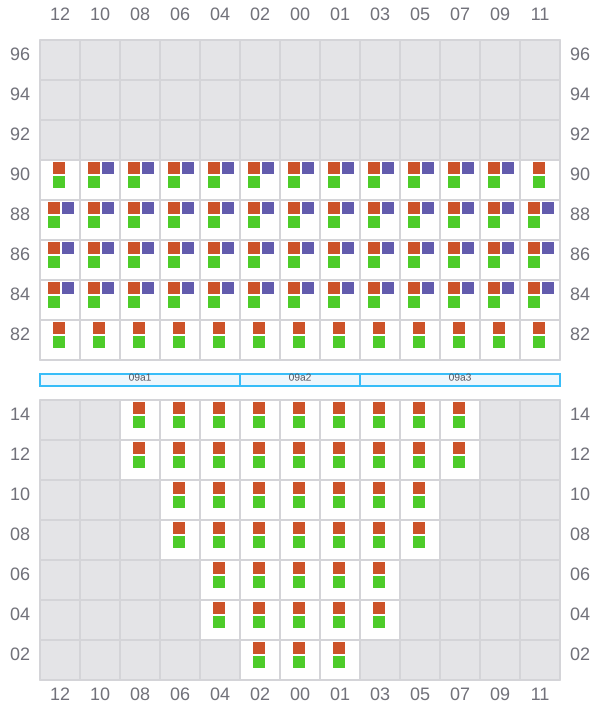

009 (010)

  • →

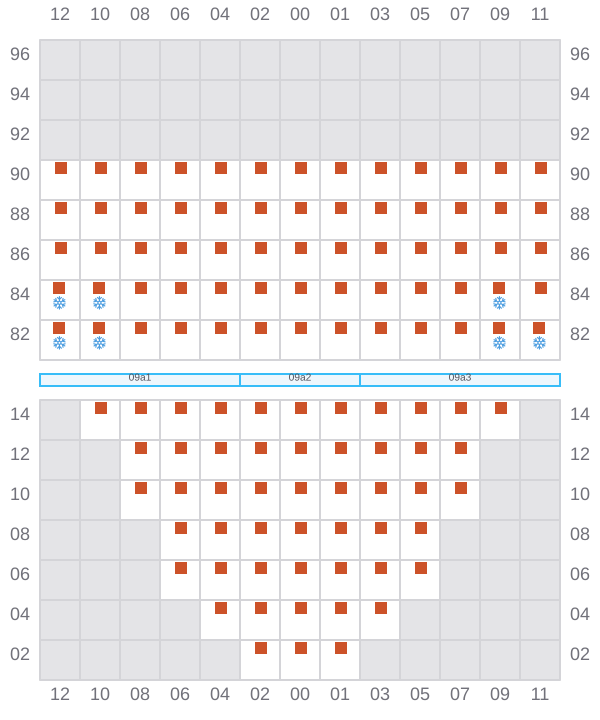

Bay 009 view and slots of MSC IMMA III

011

  • ←
  • → / ?
Bay 011 view and slots of MSC IMMA III

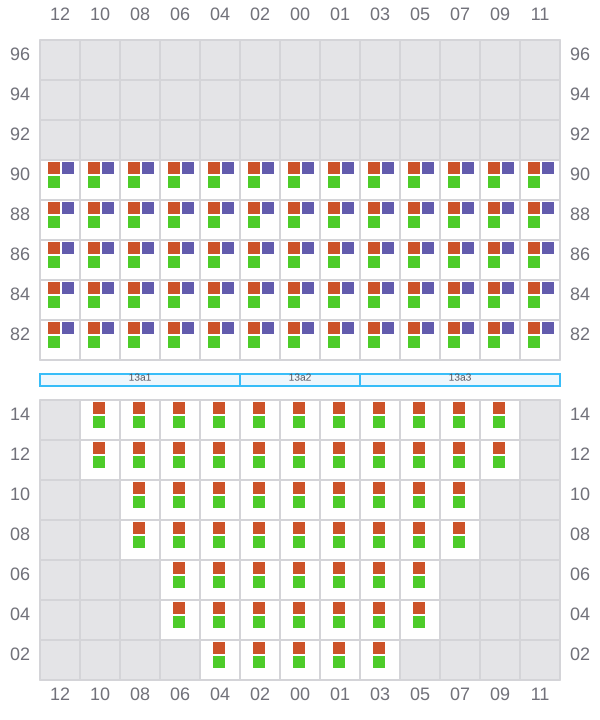

013 (014)

  • →

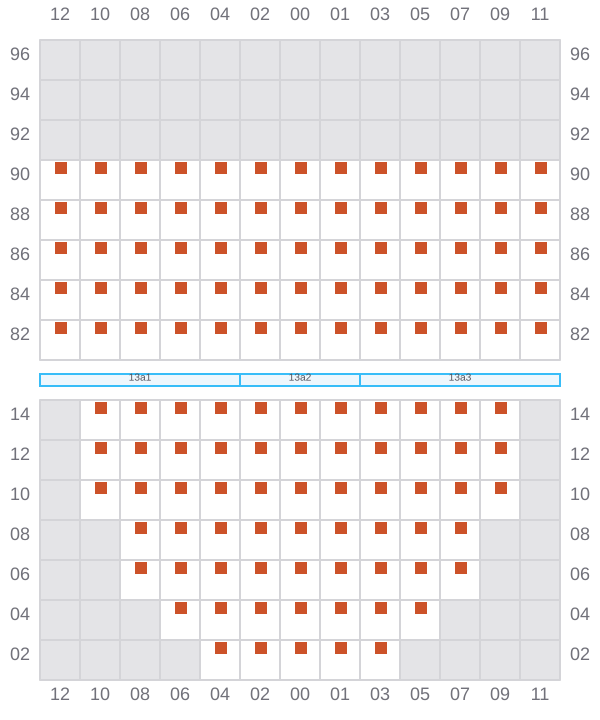

Bay 013 view and slots of MSC IMMA III

015

  • ←
Bay 015 view and slots of MSC IMMA III

017 (018)

  • →

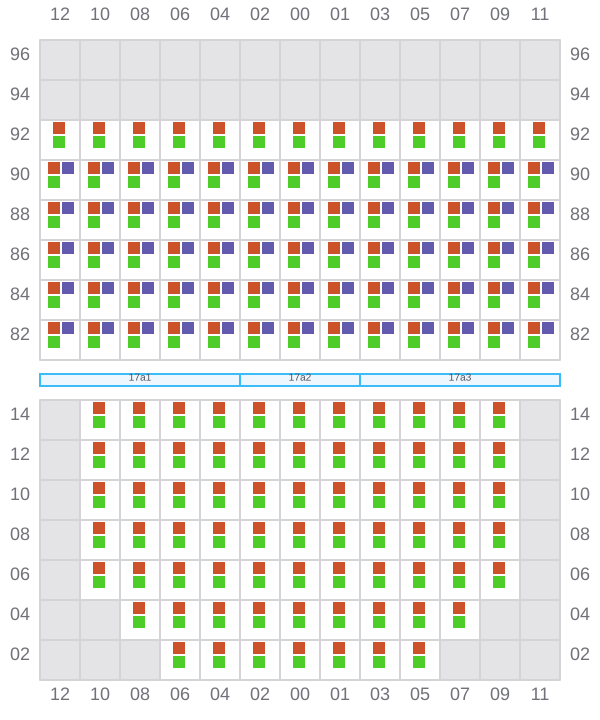

Bay 017 view and slots of MSC IMMA III

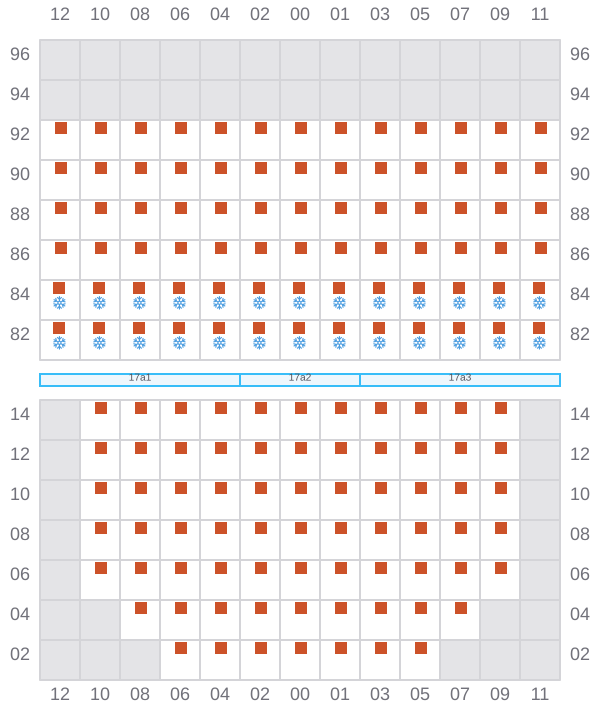

019

  • ←
  • → / ?
Bay 019 view and slots of MSC IMMA III

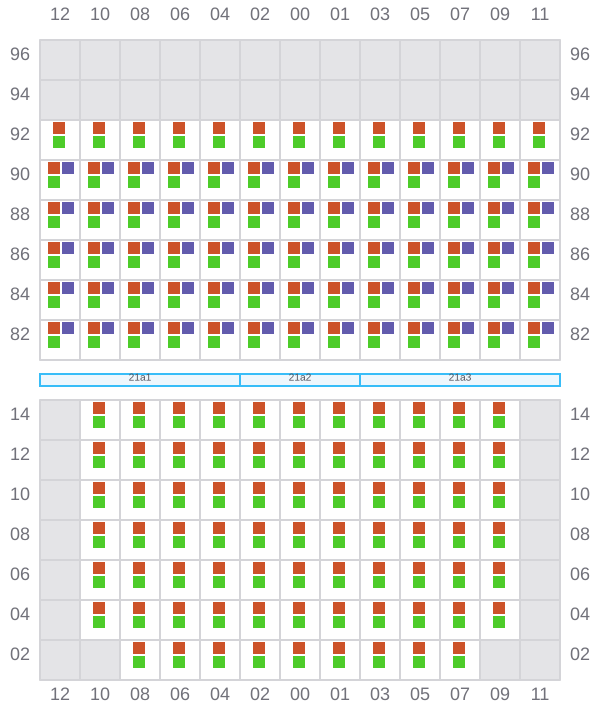

021 (022)

  • →
Bay 021 view and slots of MSC IMMA III

023

  • ←
  • → / ?

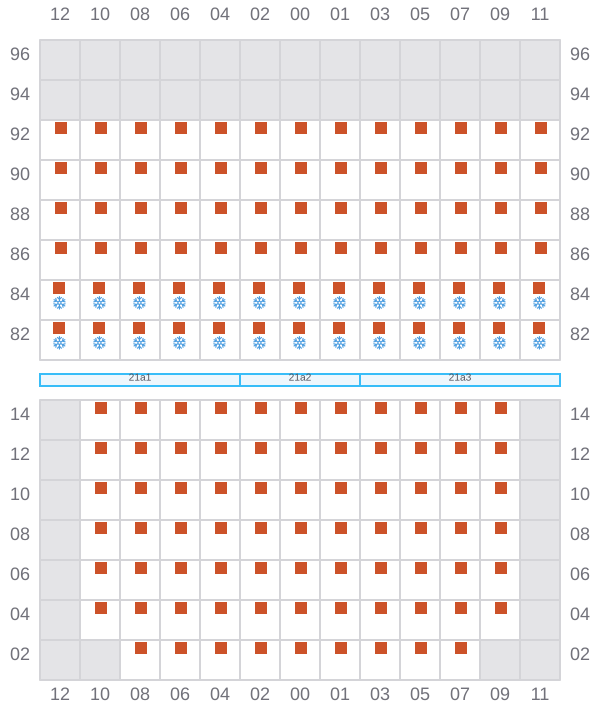

Bay 023 view and slots of MSC IMMA III

025 (026)

  • →
Bay 025 view and slots of MSC IMMA III

027

  • ←
  • → / ?
Bay 027 view and slots of MSC IMMA III

029 (030)

  • →
Bay 029 view and slots of MSC IMMA III

031

  • ←
  • → / ?

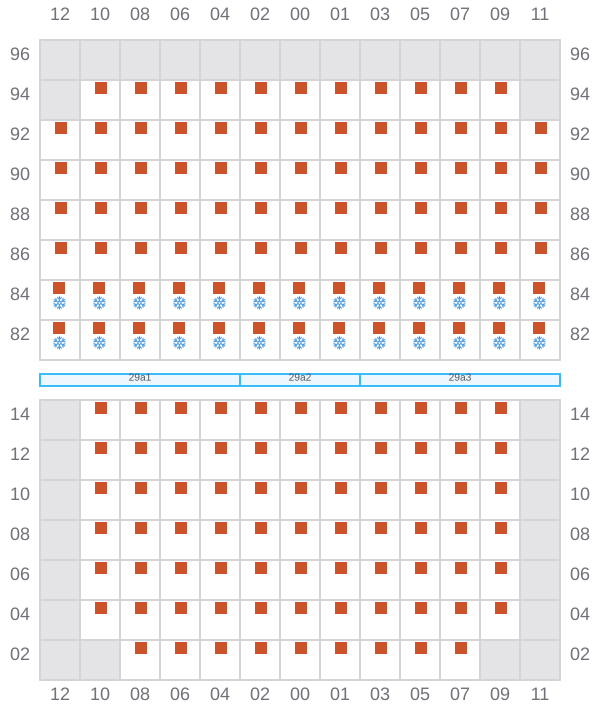

Bay 031 view and slots of MSC IMMA III

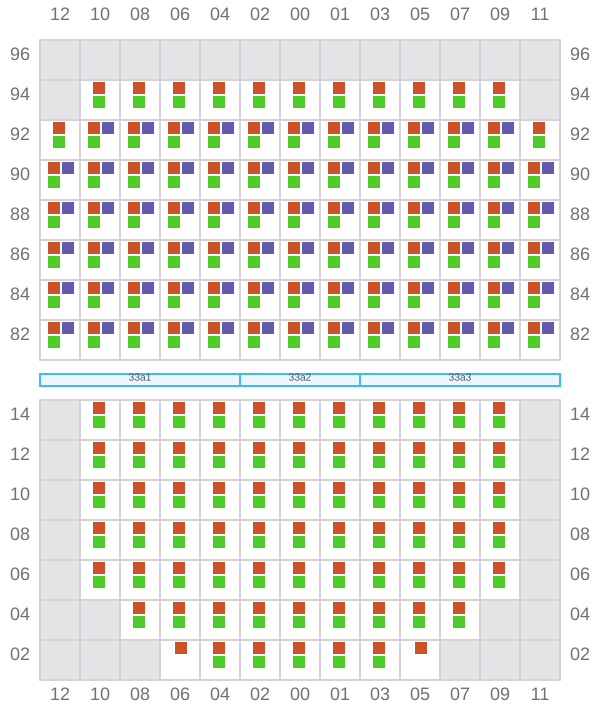

033 (034)

  • →
Bay 033 view and slots of MSC IMMA III

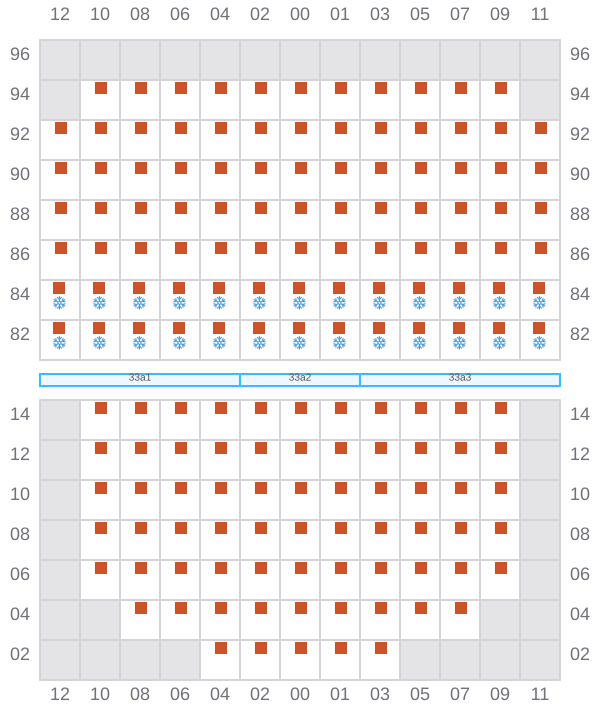

035

  • ←
  • → / ?
Bay 035 view and slots of MSC IMMA III

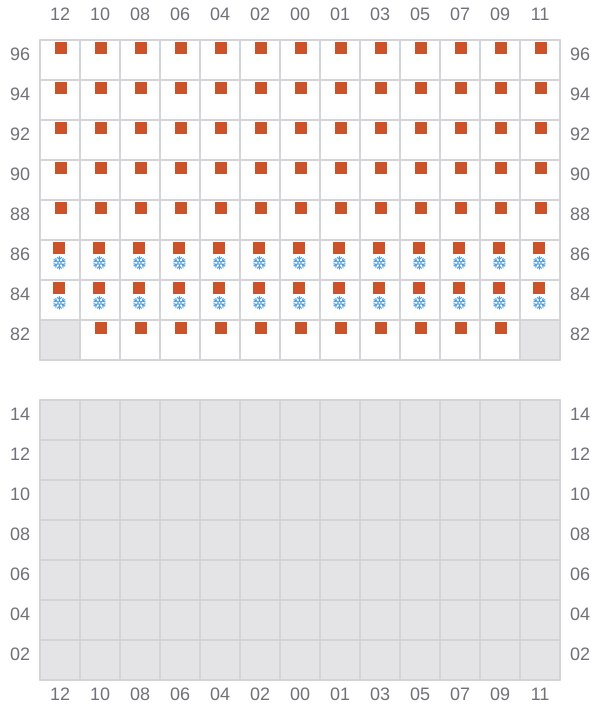

037

  • → / ?
Bay 037 view and slots of MSC IMMA III

039 (040)

  • →

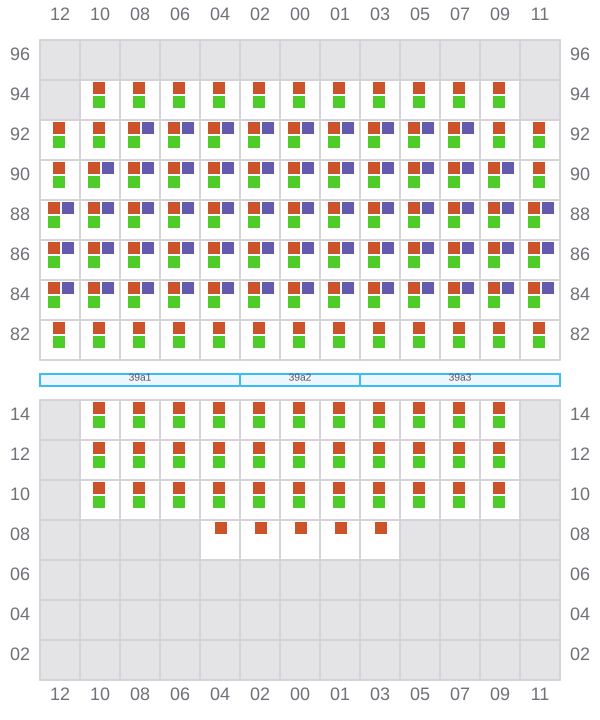

Bay 039 view and slots of MSC IMMA III

041

  • ←
  • → / ?

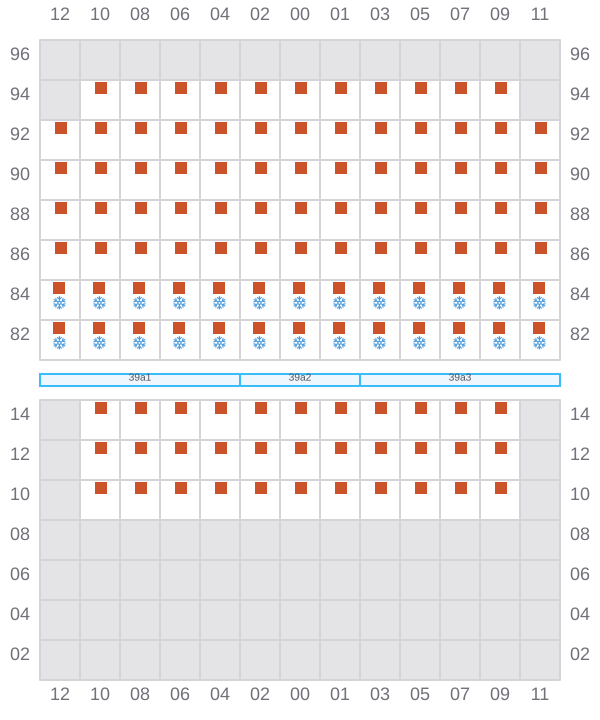

Bay 041 view and slots of MSC IMMA III

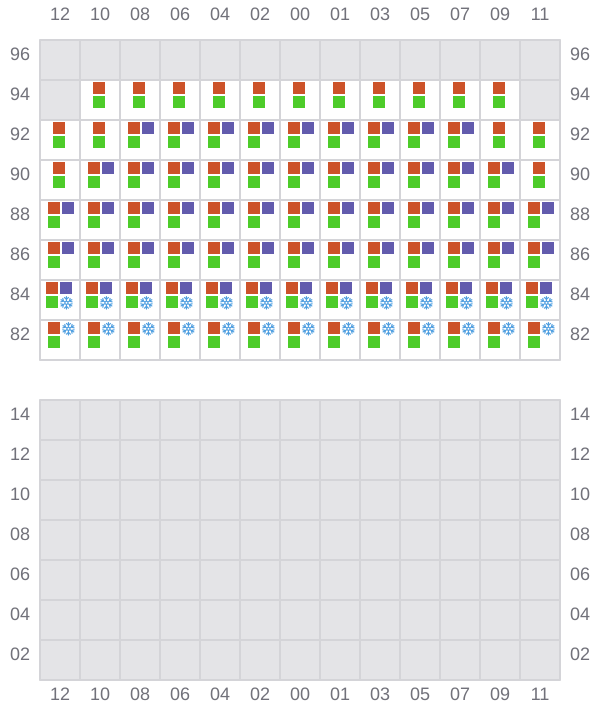

043 (044)

  • → / ?
  • ← / ?
Bay 043 view and slots of MSC IMMA III

045

  • ← / ?

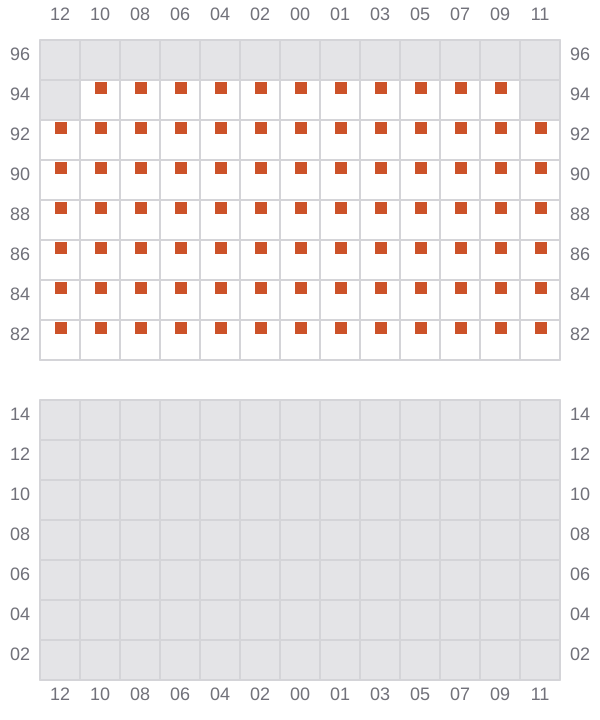

Bay 045 view and slots of MSC IMMA III
