MSC INDIA
9231248 | CQIM9 | MSC by ************************** Last update: Sat Jun 17 2023
General Info
Ship Name:MSC INDIA
IMO Code:9231248
Call Sign:CQIM9
Line Operator:MSC
Class Name for Sister Ships:IND
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,926
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

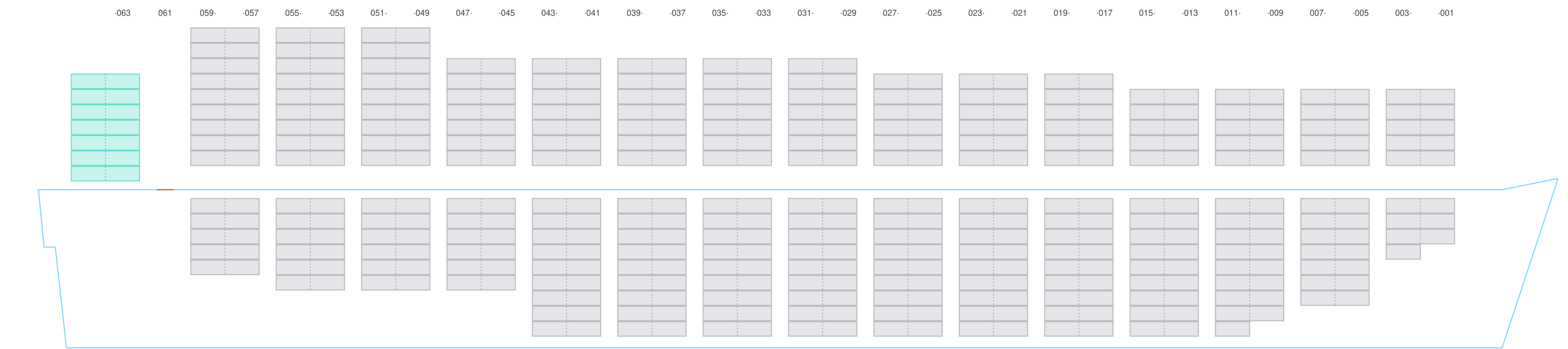

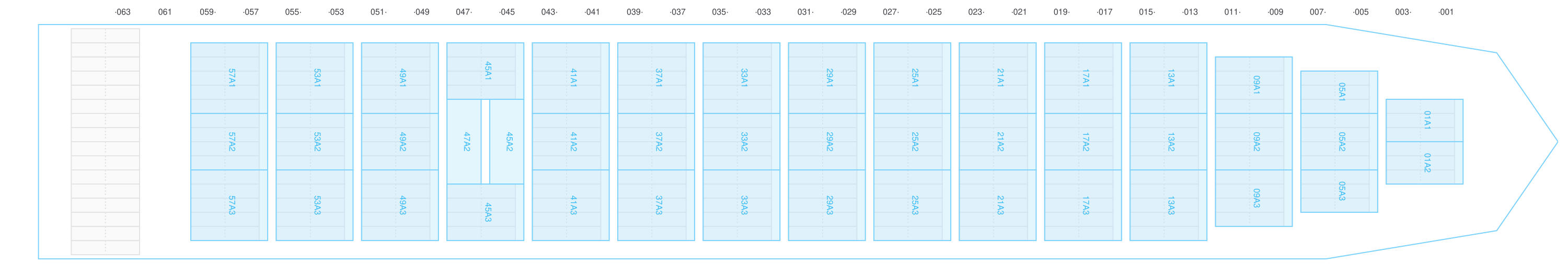

Side View
Hatch-Covers View

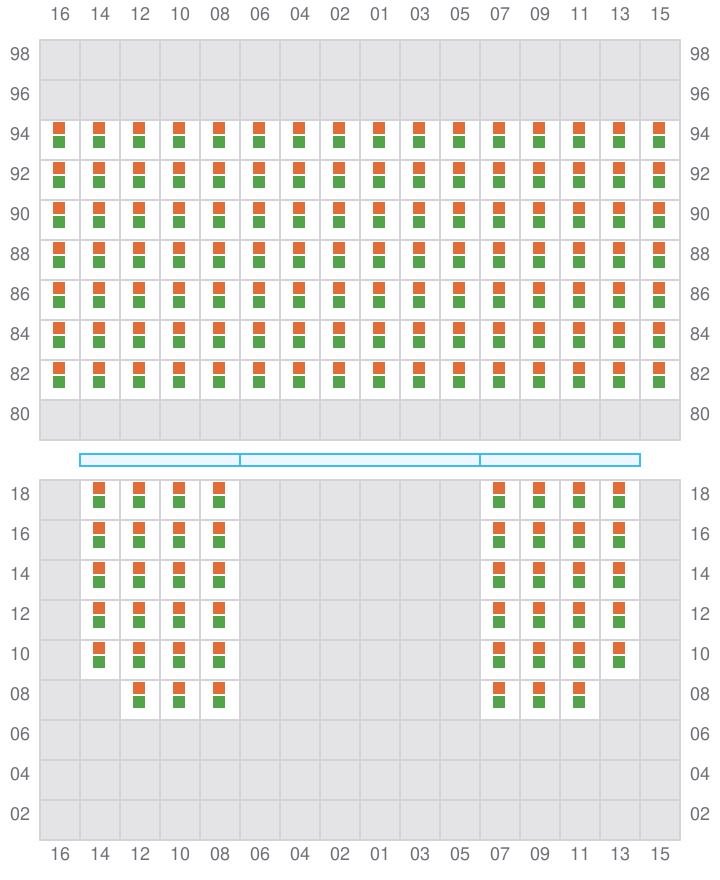

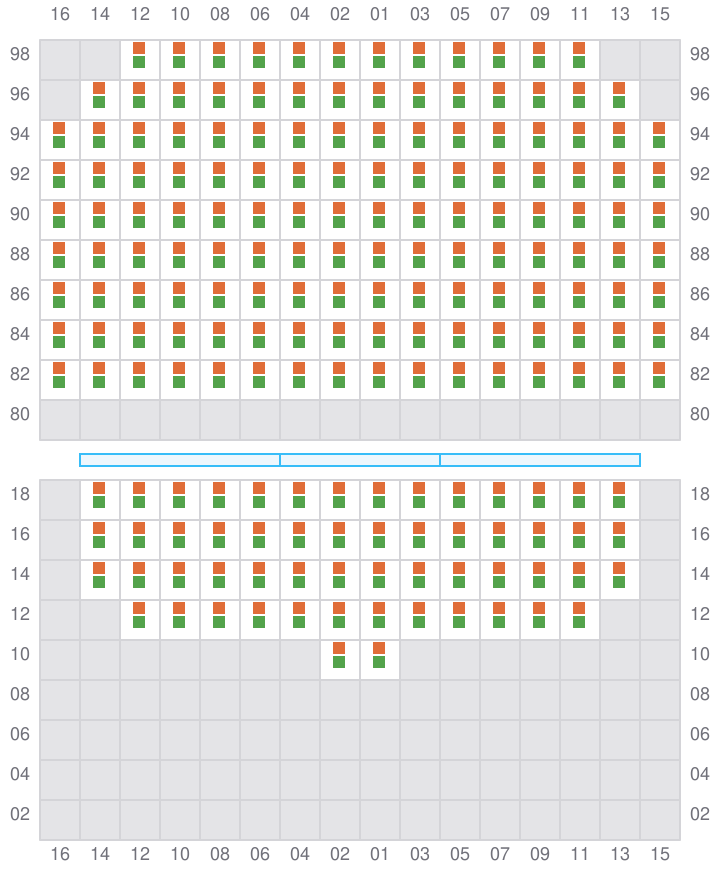

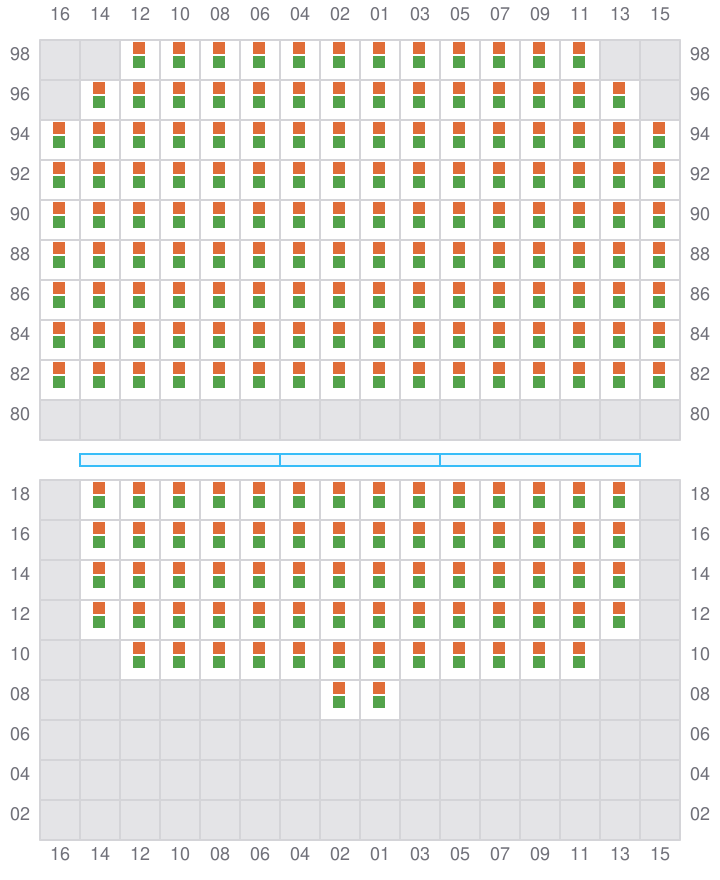

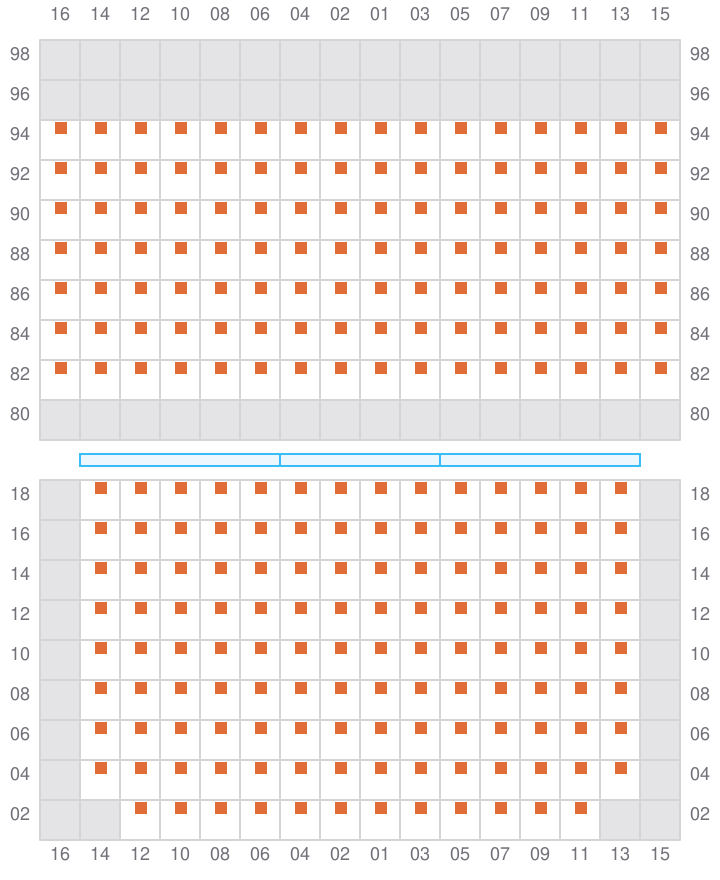

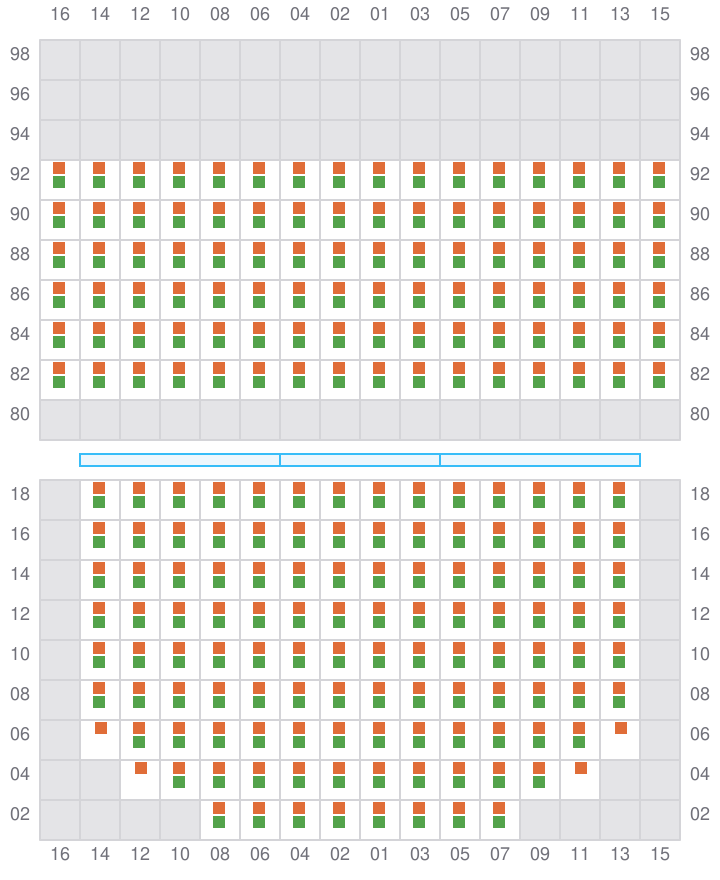

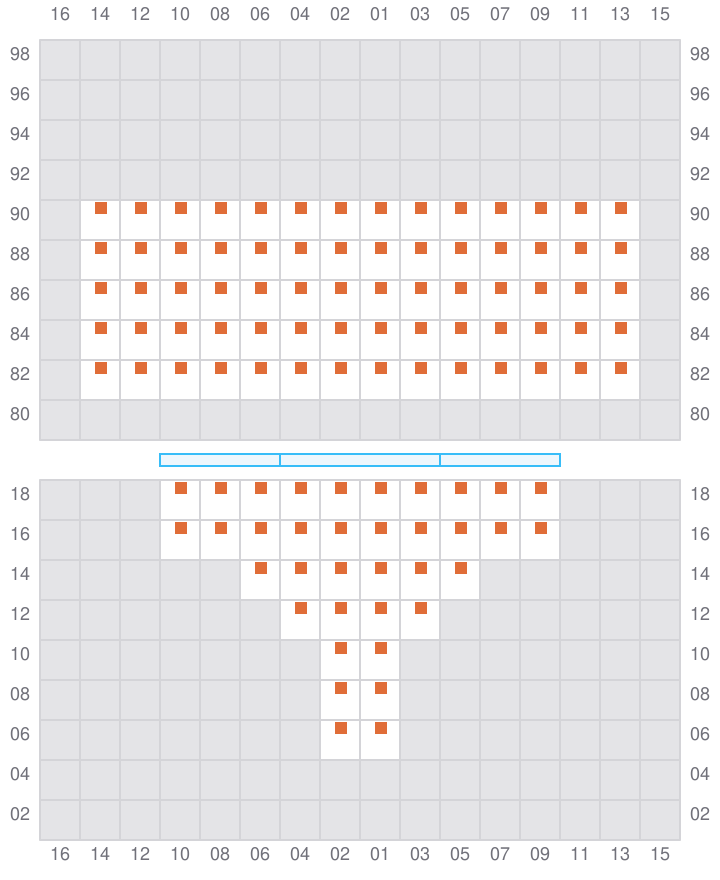

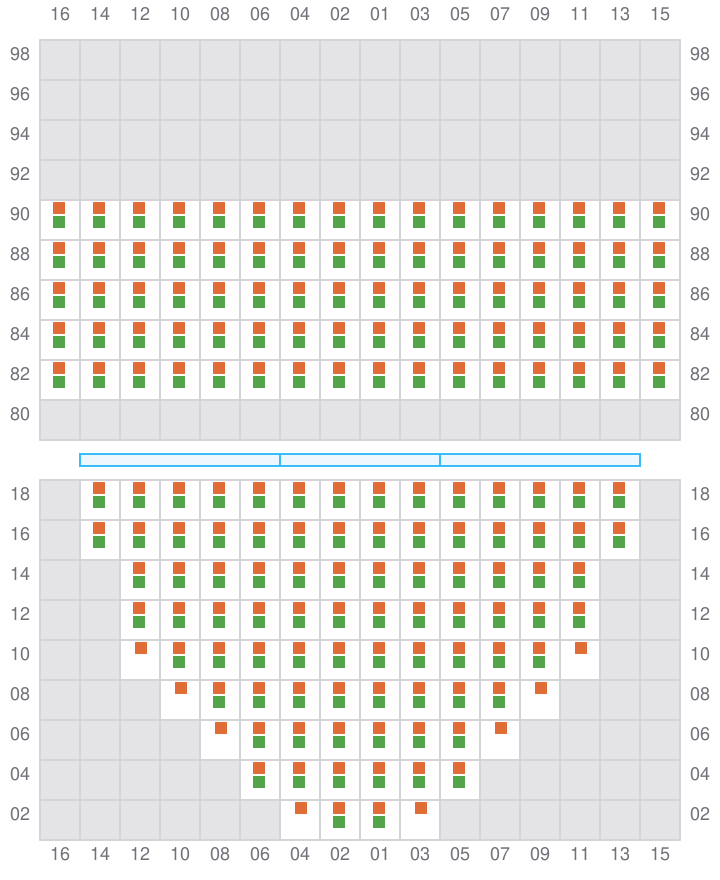

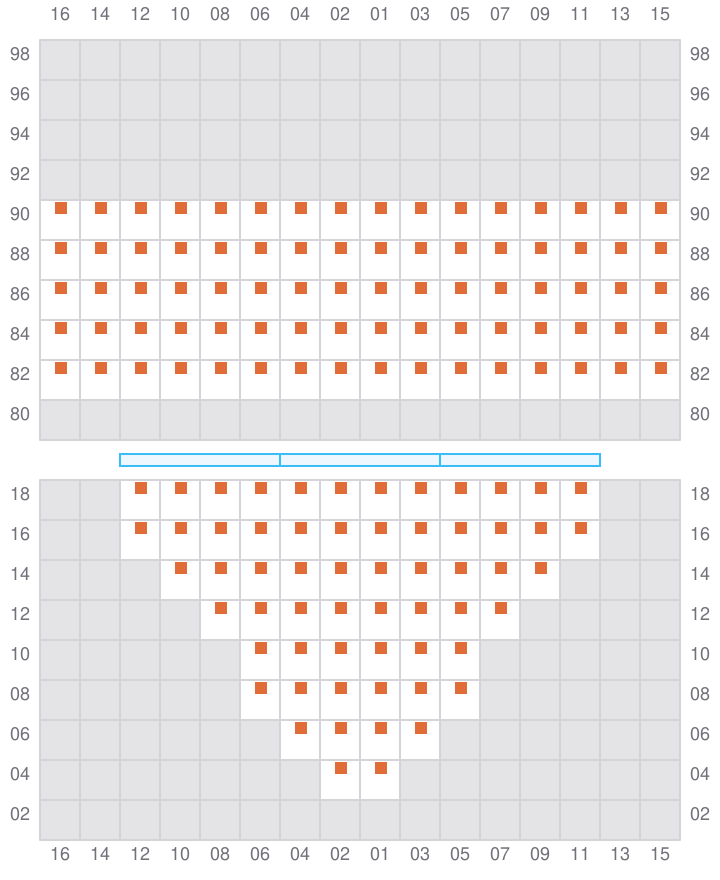

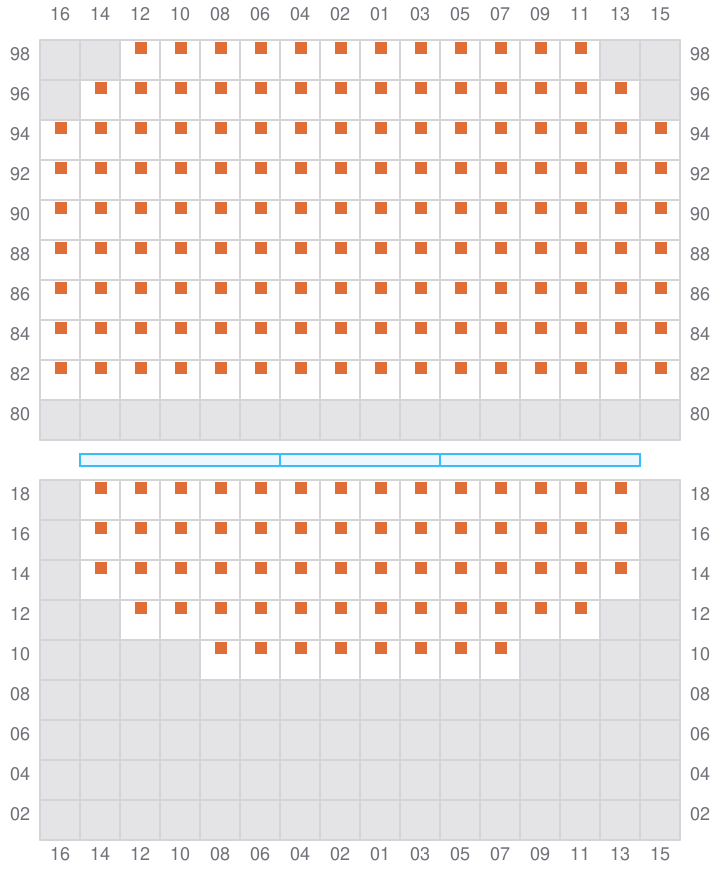

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

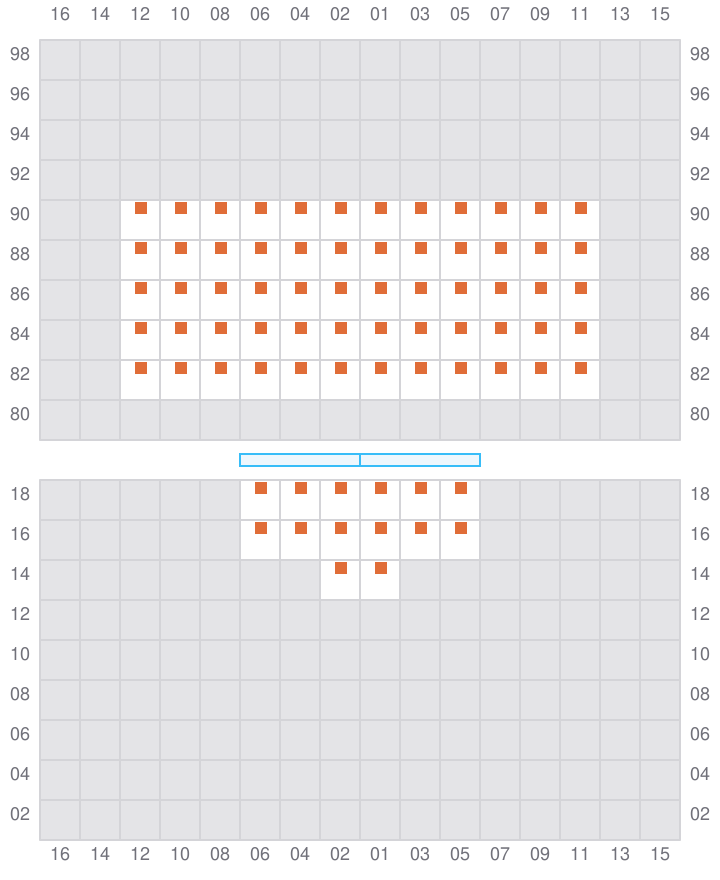

001
- →

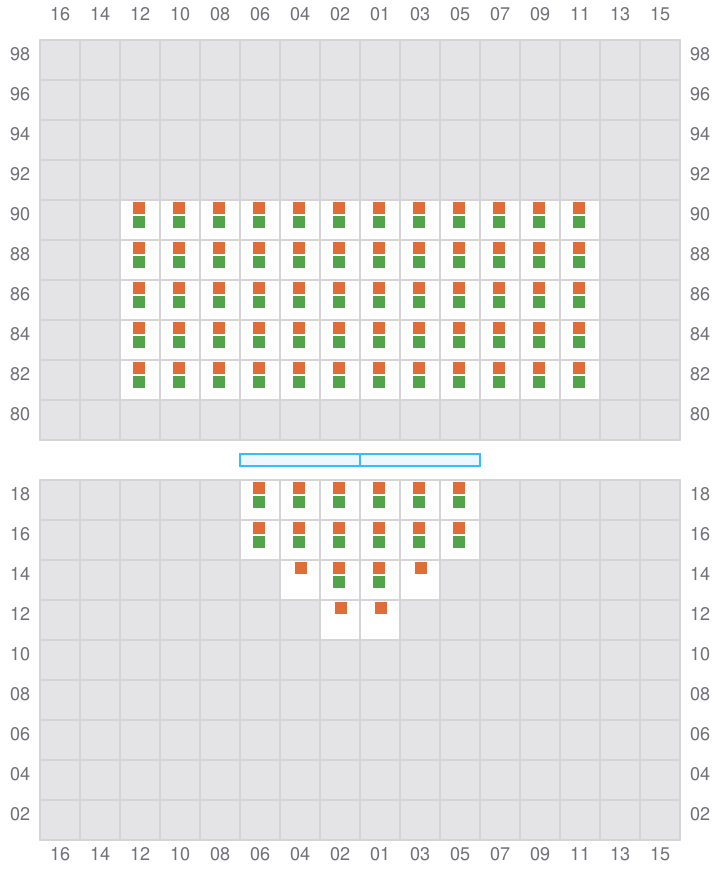

003 (002)
- ←
005
- →

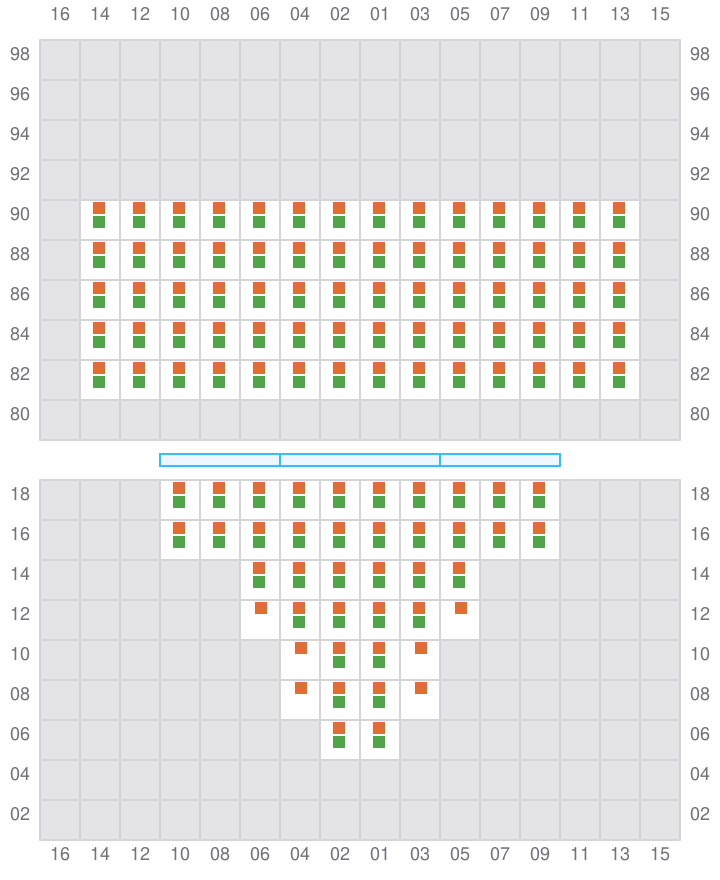

007 (006)
- ←

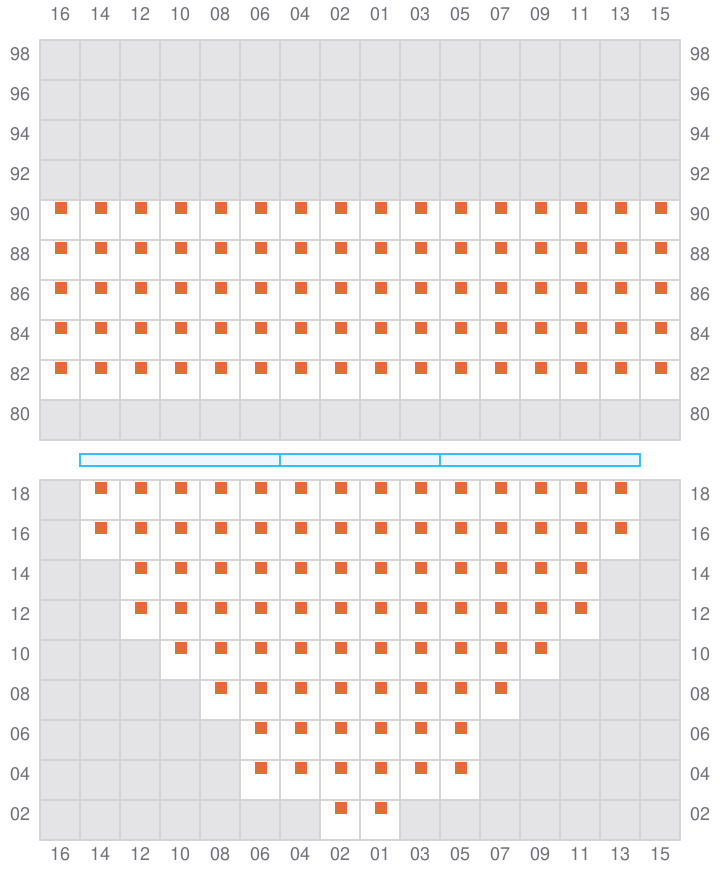

009
- →

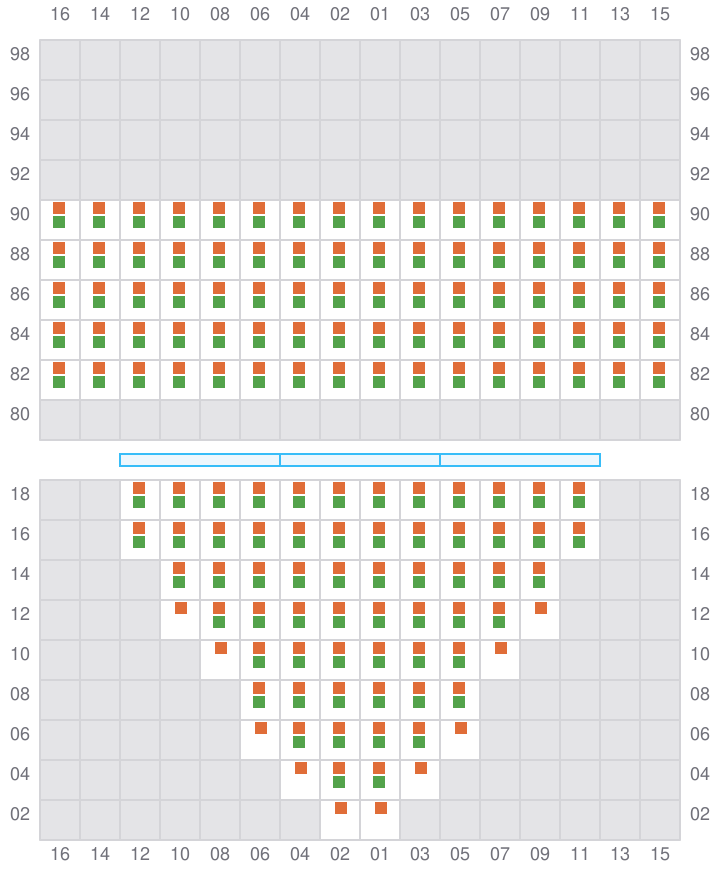

011 (010)
- ←
013
- →

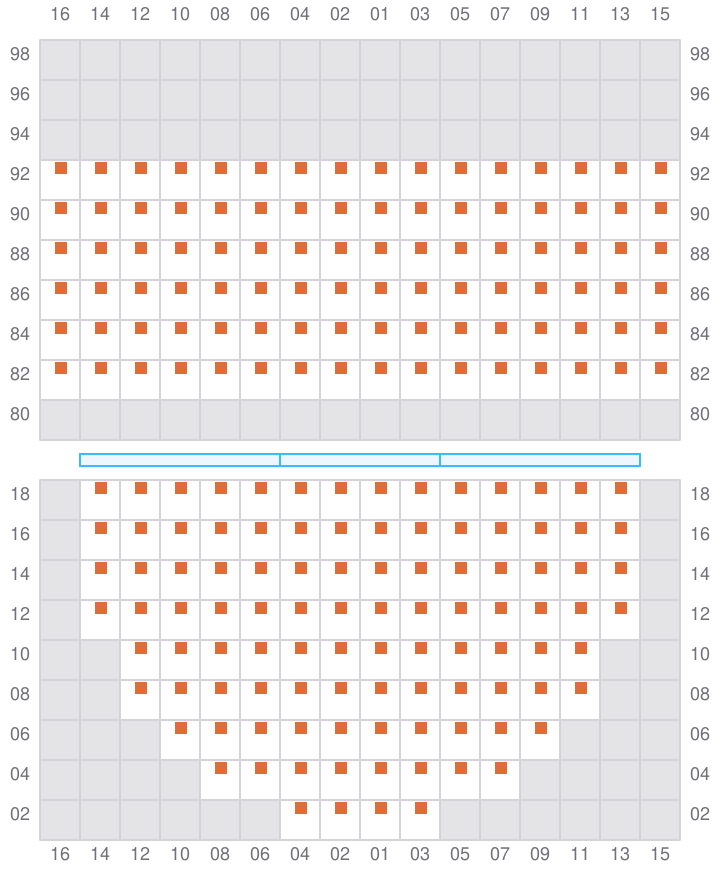

015 (014)
- ←
017
- →
019 (018)
- ←

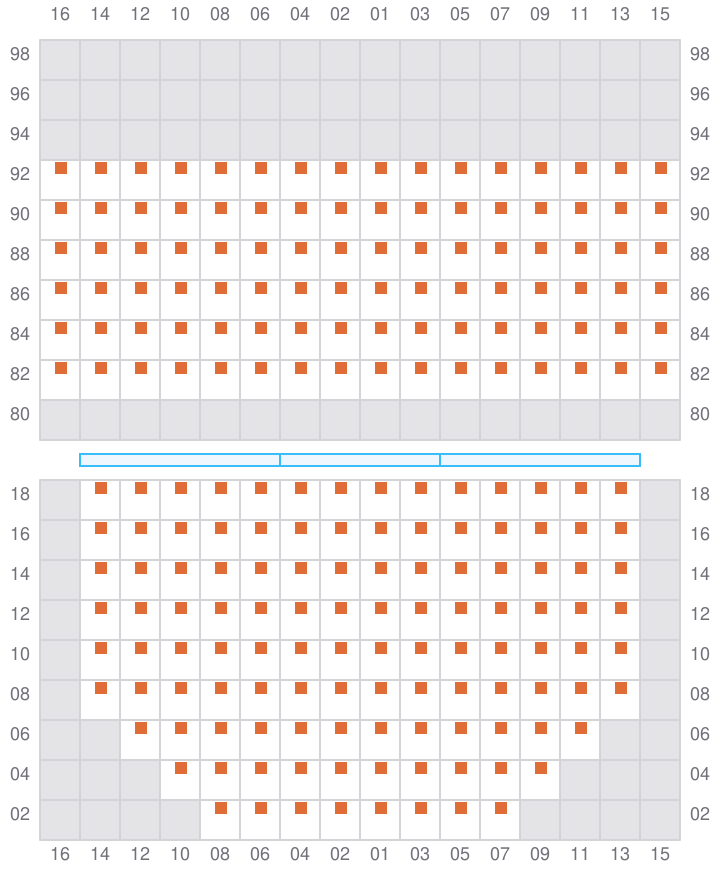

021
- →

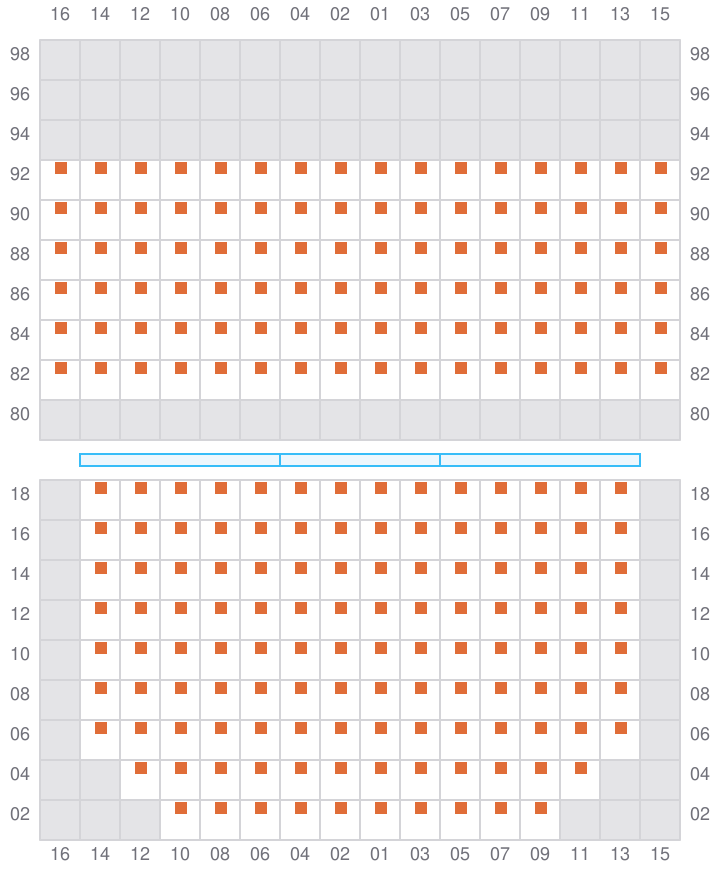

023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →

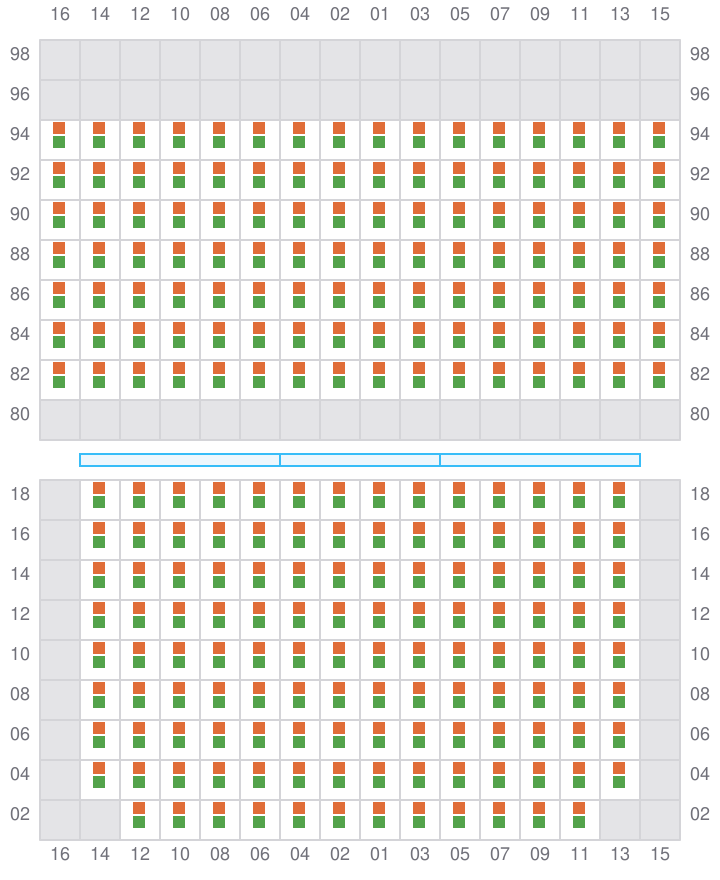

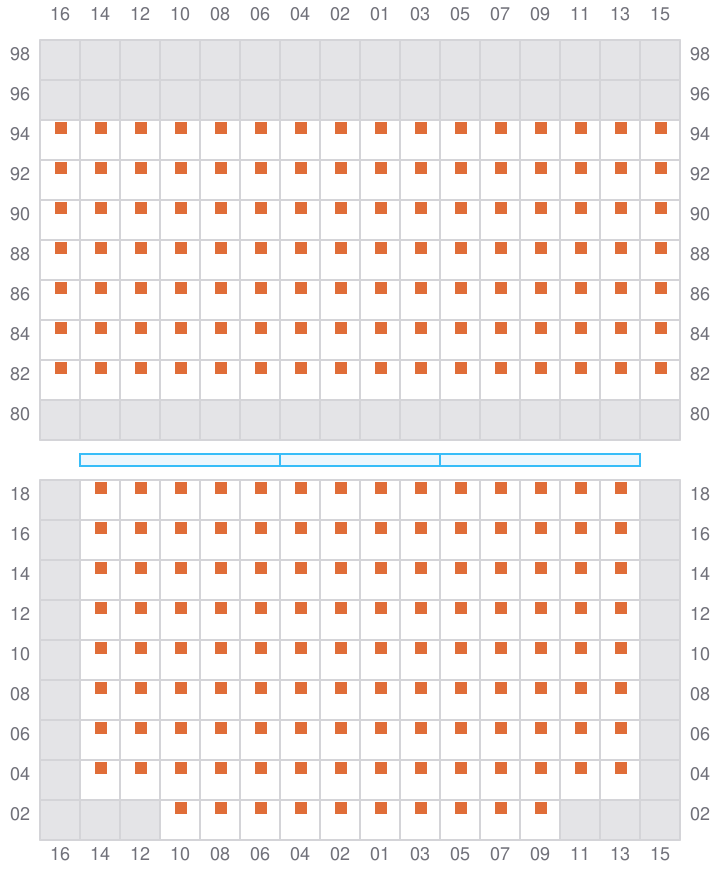

039 (038)
- ←
041
- →
043 (042)
- ←

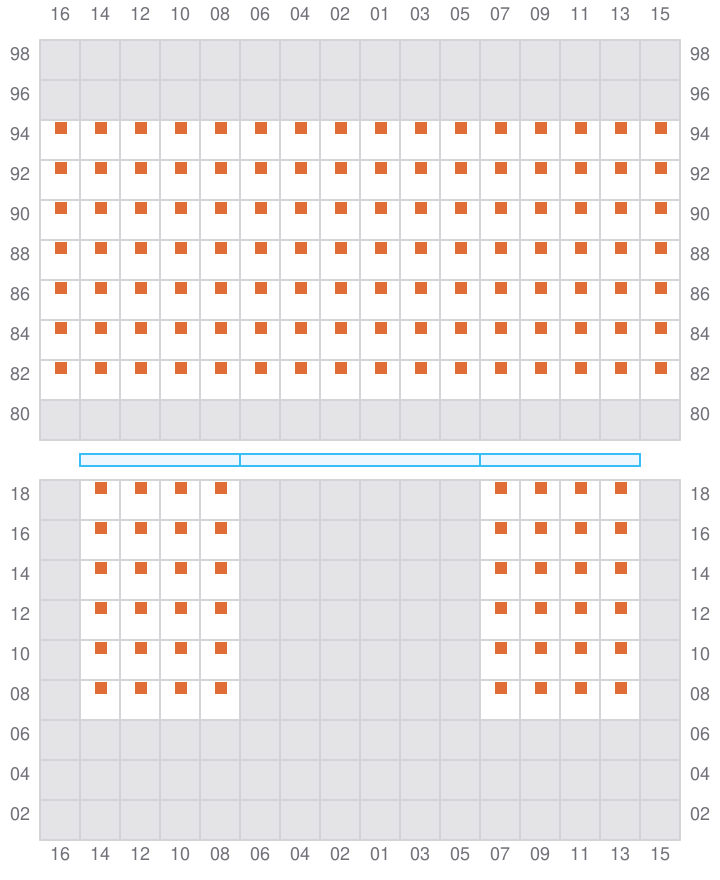

045
- →
047 (046)
- ←
049
- →

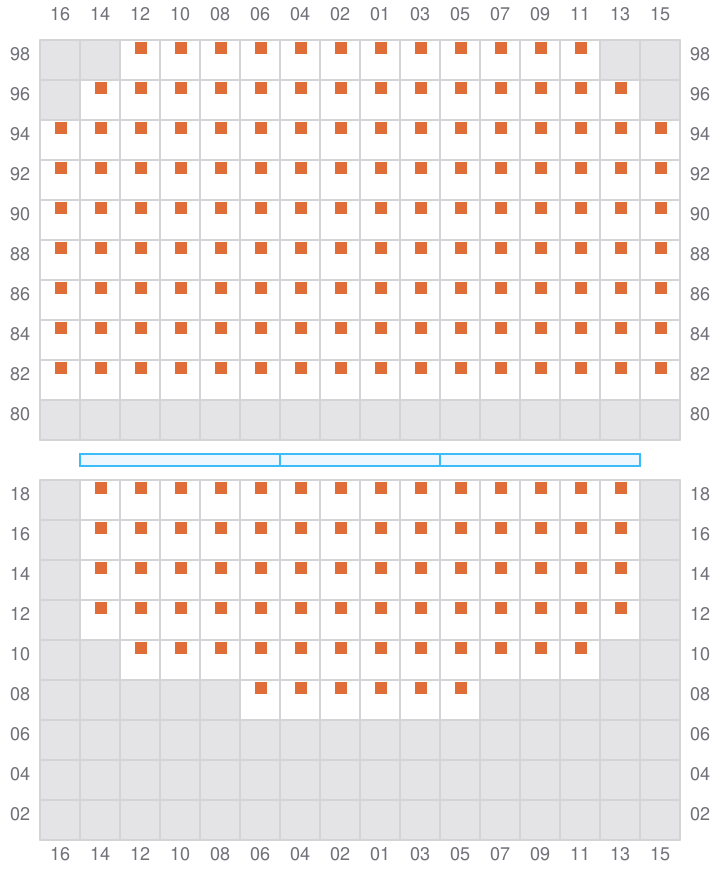

051 (050)
- ←
053
- →
055 (054)
- ←
057
- →
059 (058)
- ←

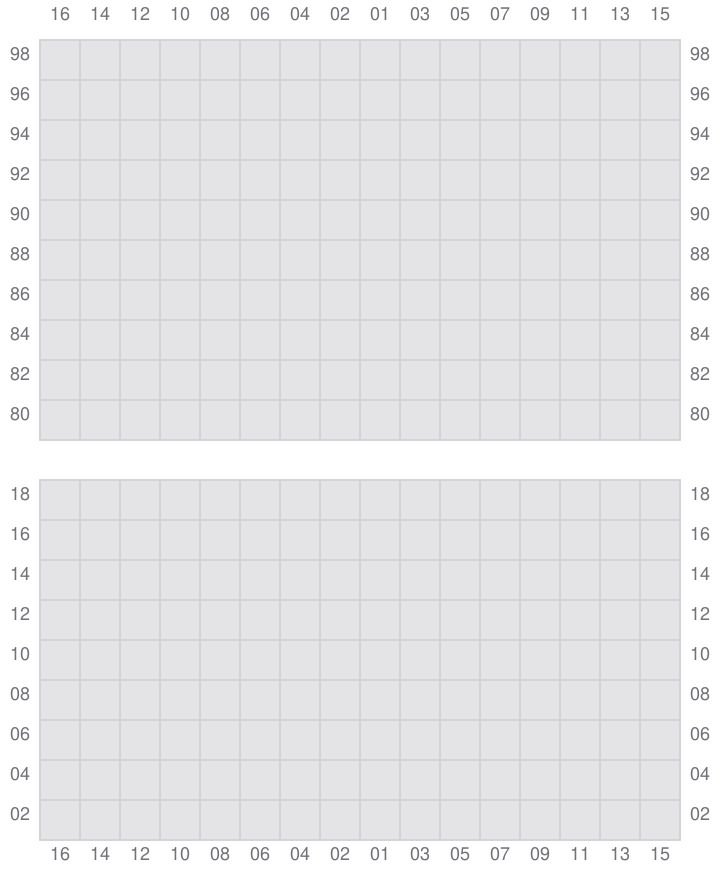

061

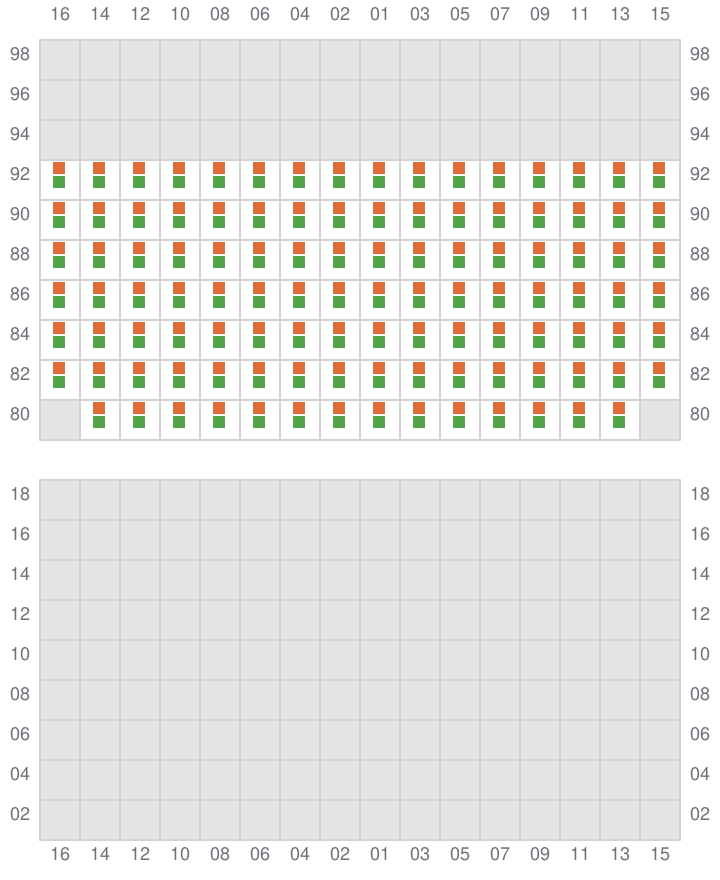

063 (064)
- → / ?
