MSC INES
9305714 | 3EFZ3 | 9305714 by ********* Last update: Tue Jun 18 2024
General Info
Ship Name:MSC INES
IMO Code:9305714
Call Sign:3EFZ3
Line Operator:9305714
Class Name for Sister Ships:MED
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):333.44
LOA (Length Overall):348.50
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:083
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,307
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

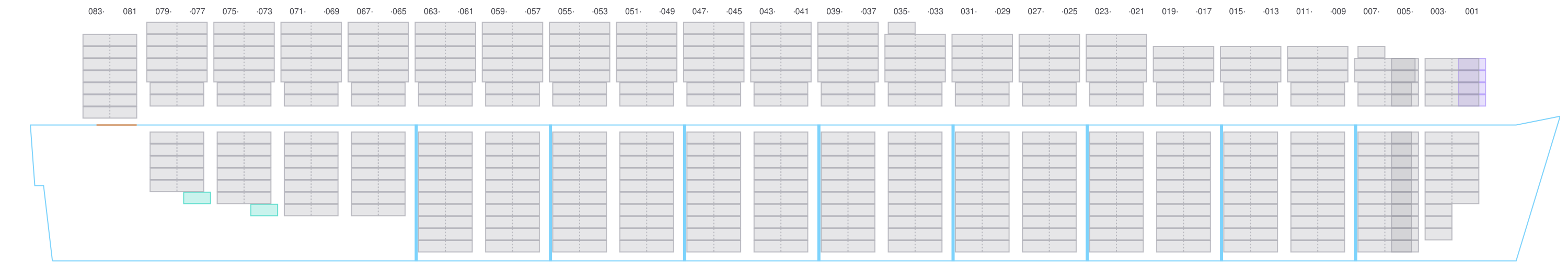

Side View

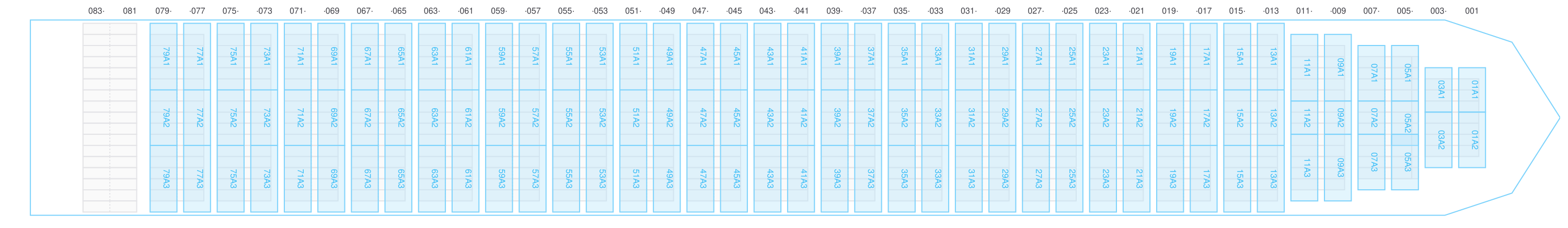

Hatch-Covers View

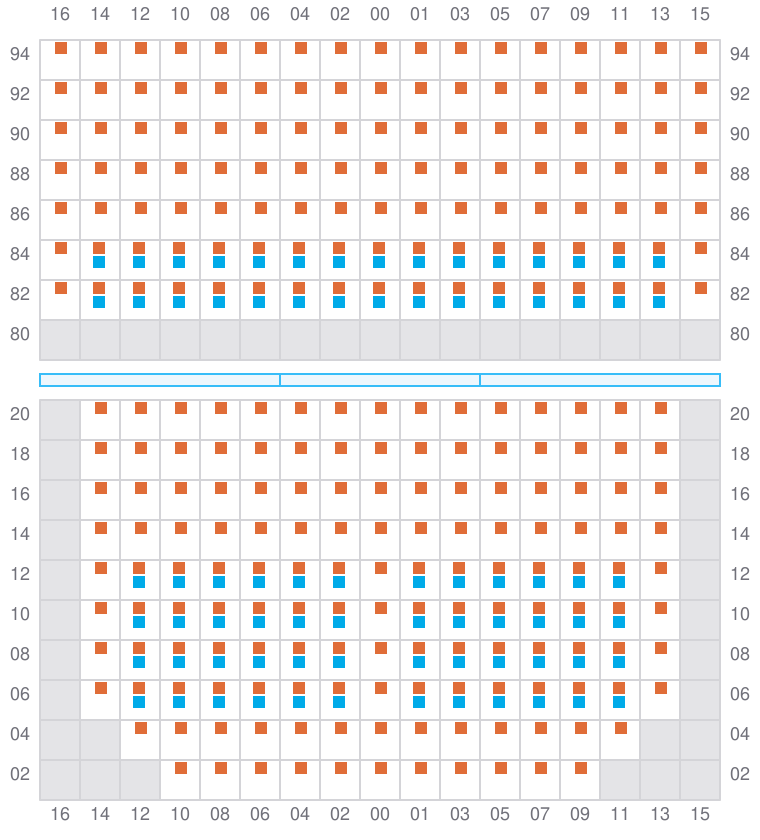

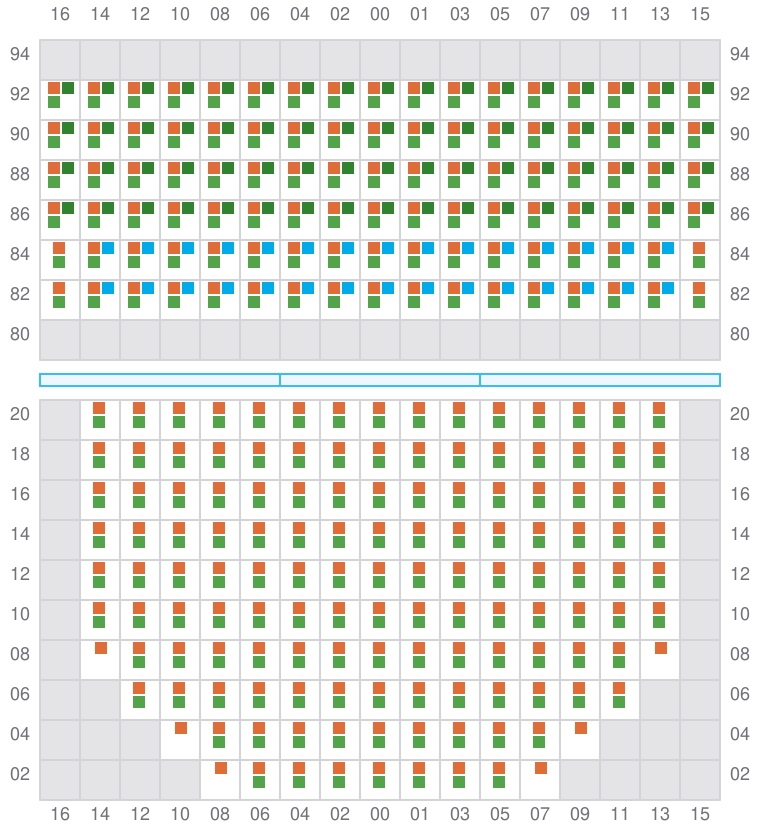

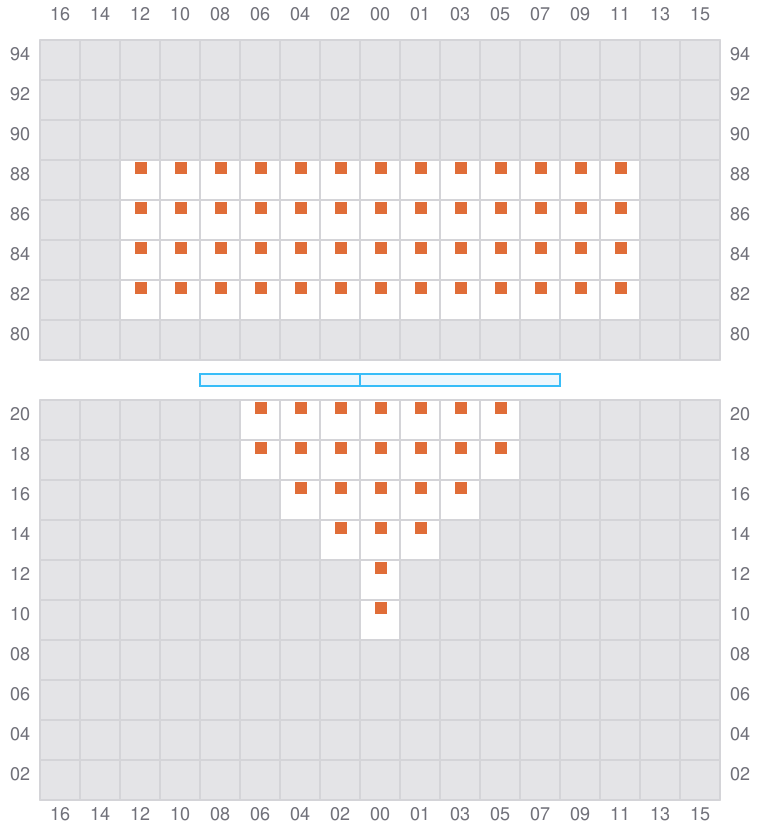

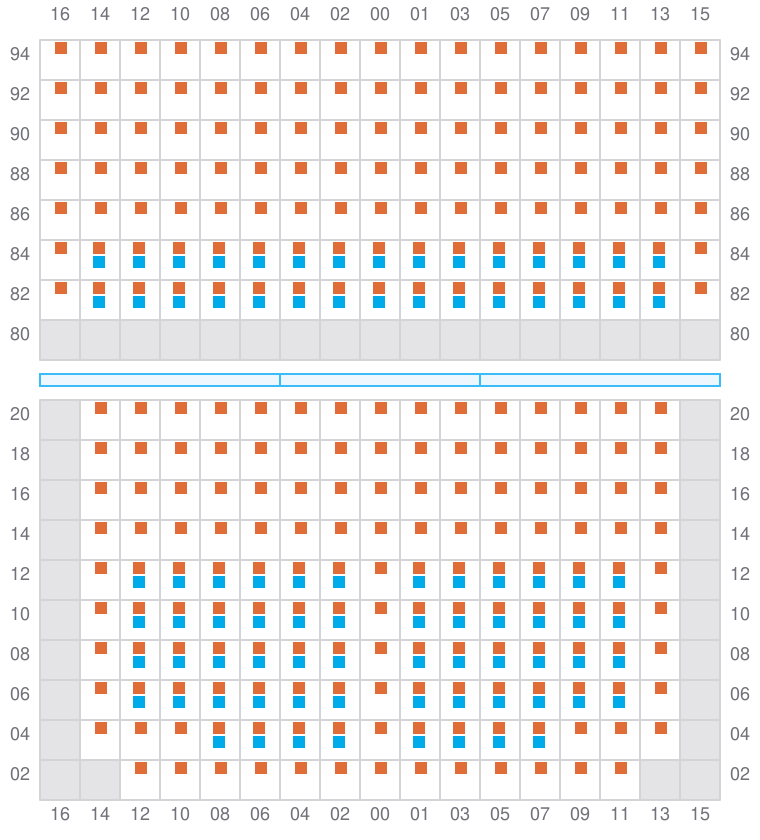

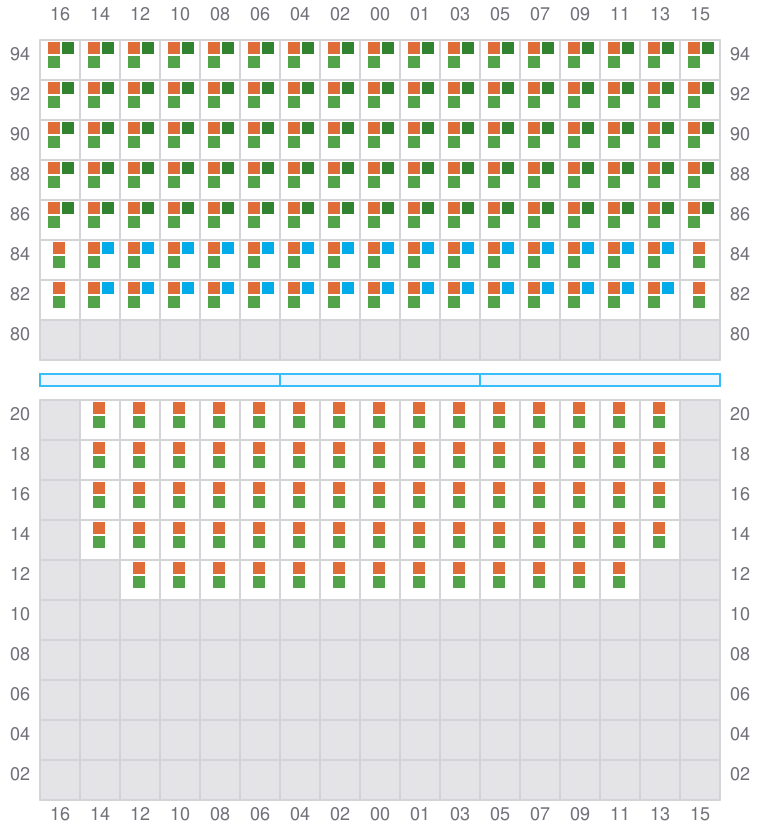

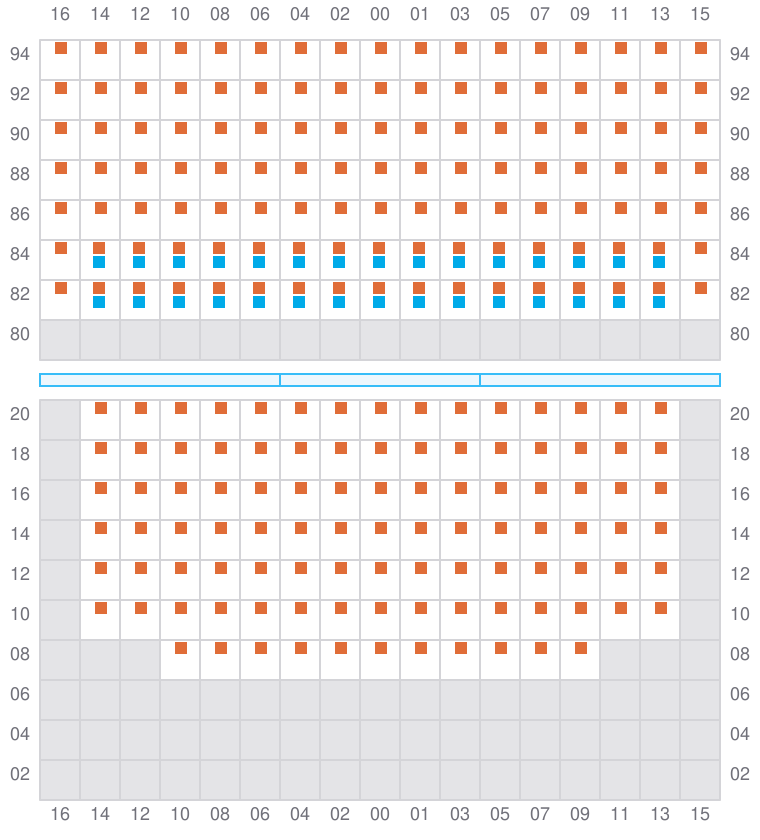

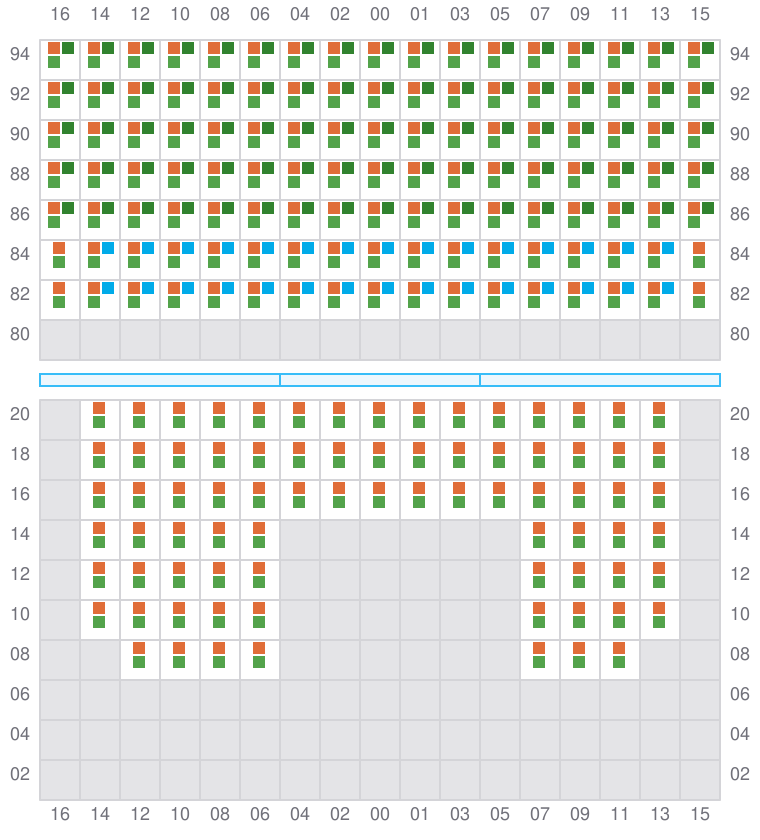

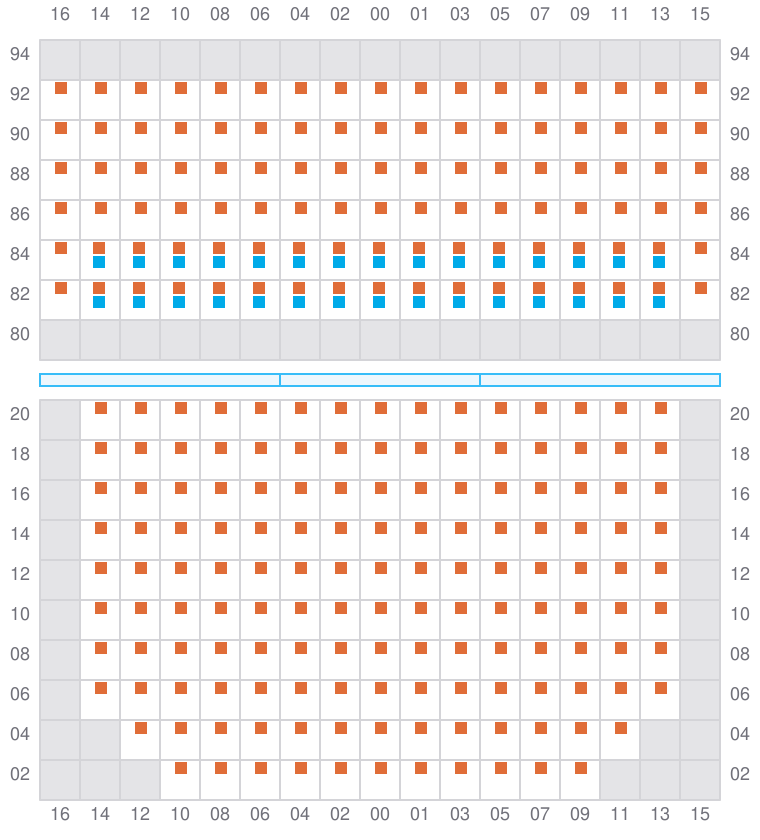

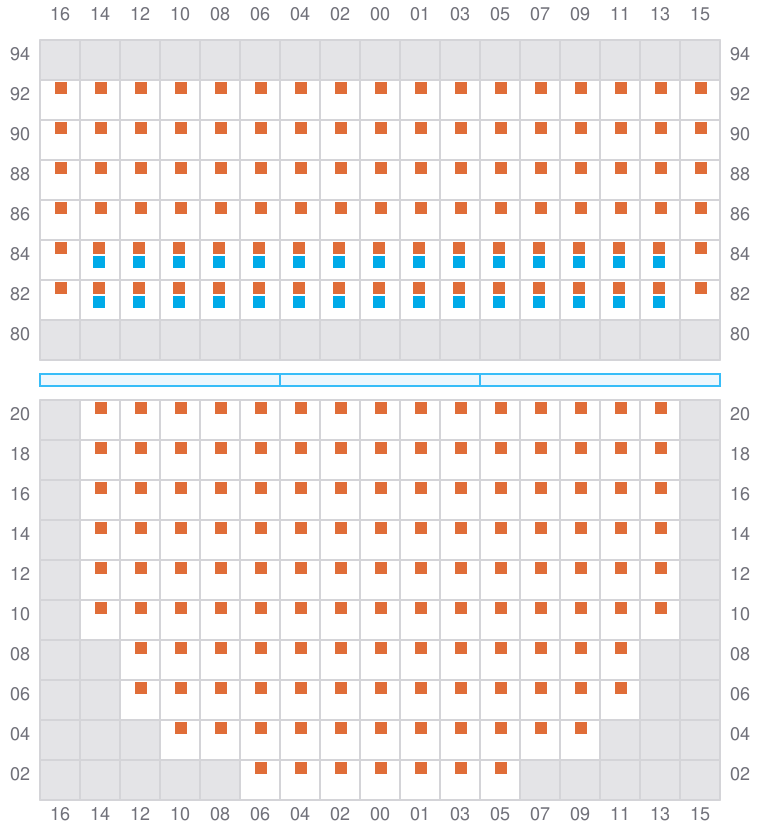

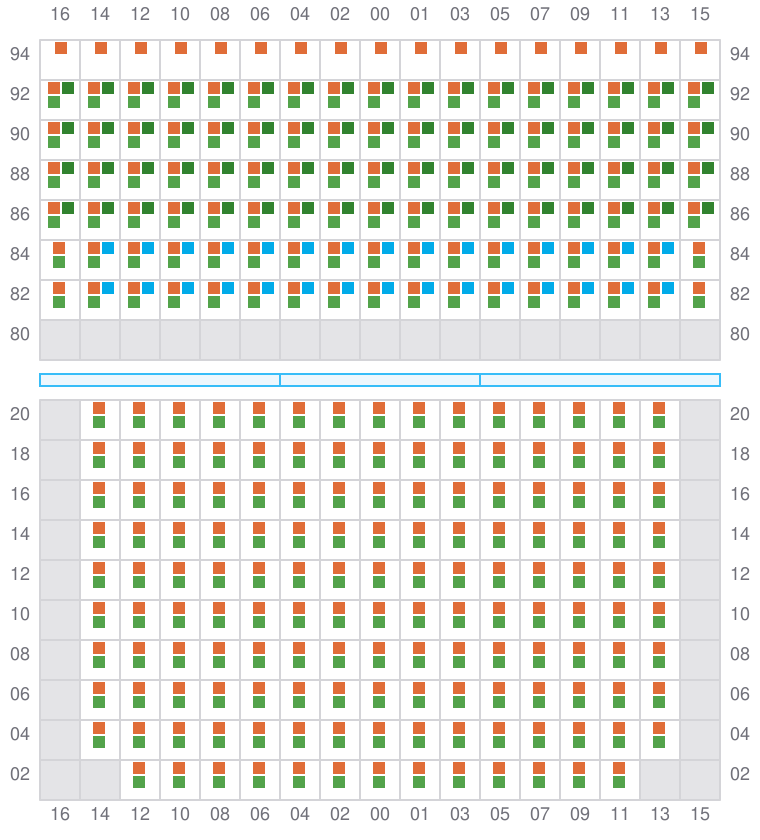

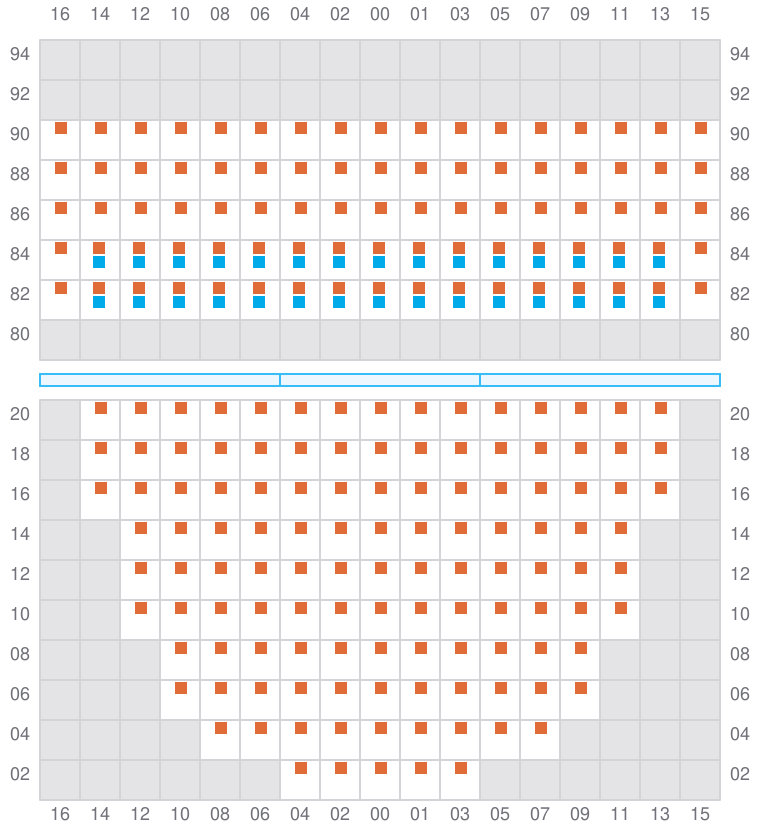

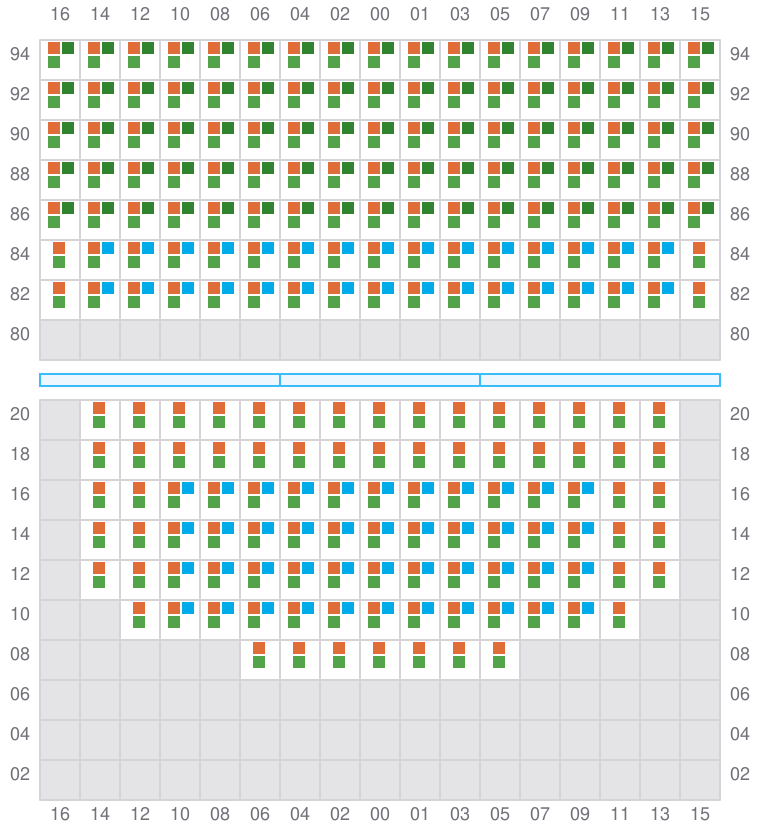

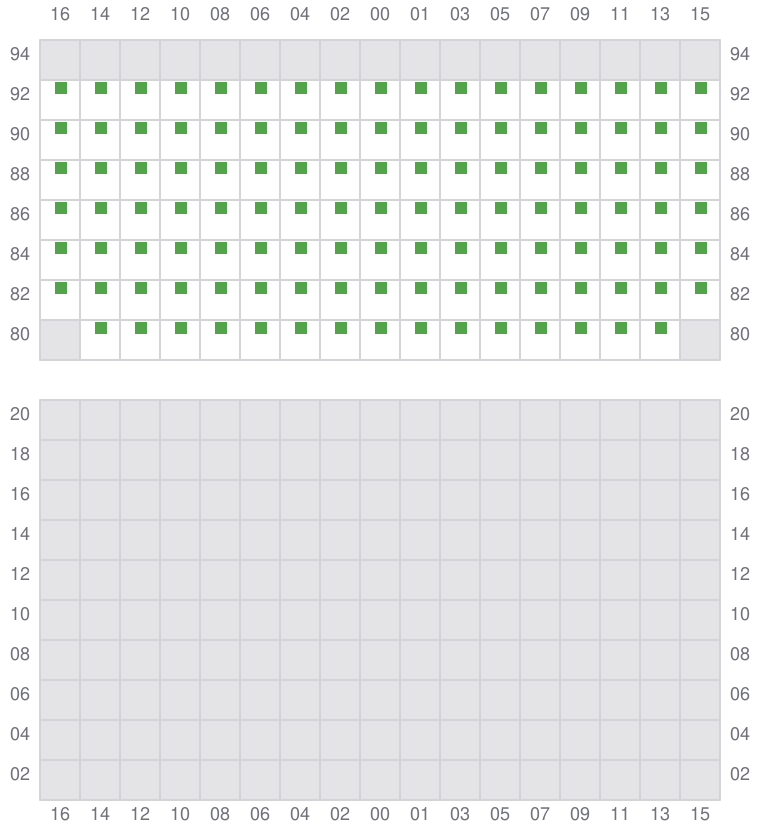

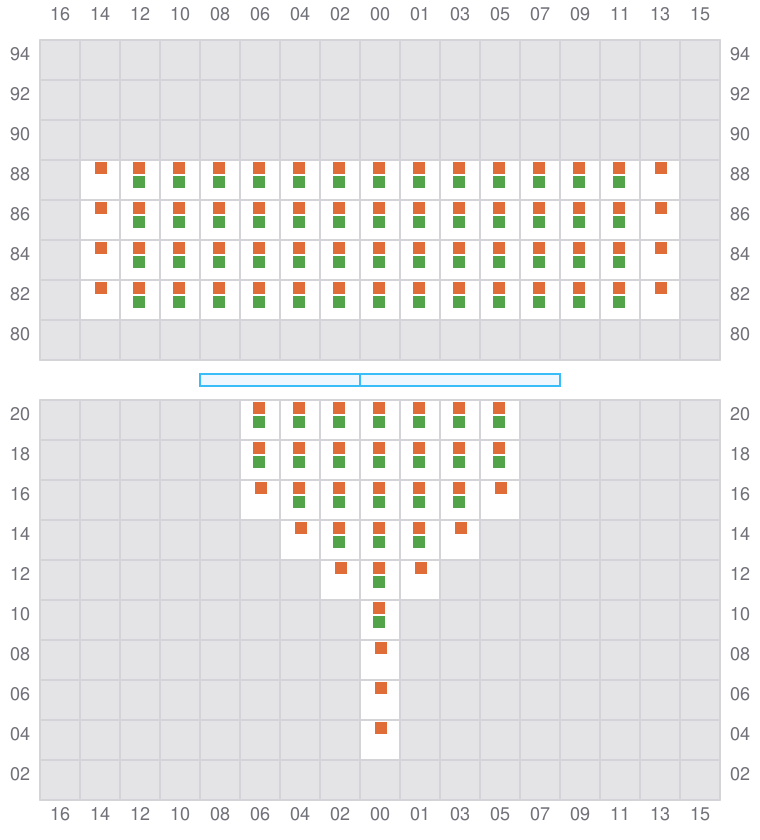

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- ? / →
003 (002)
- ←

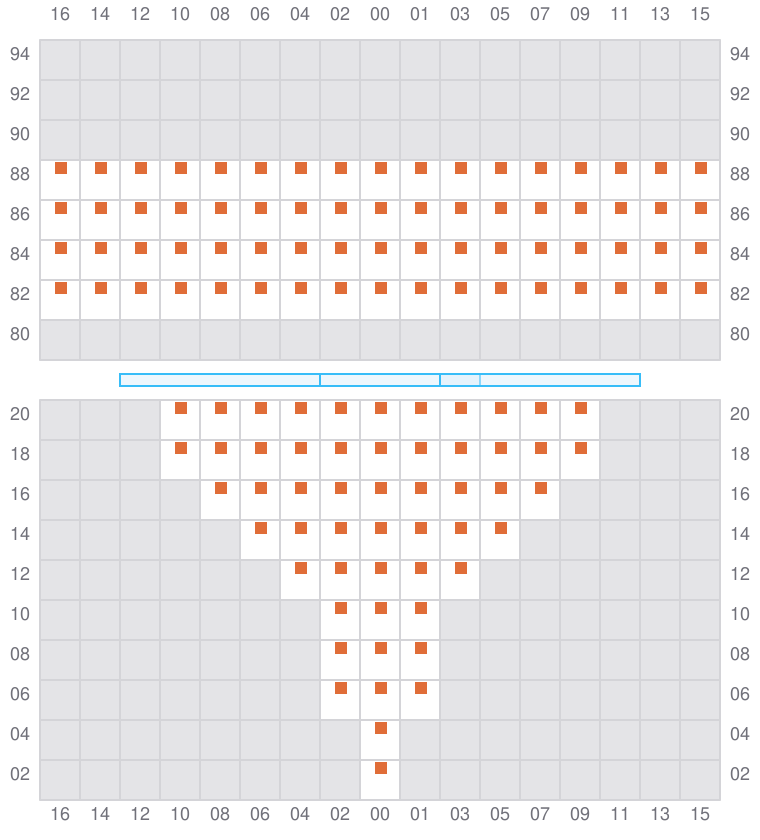

005
- ←

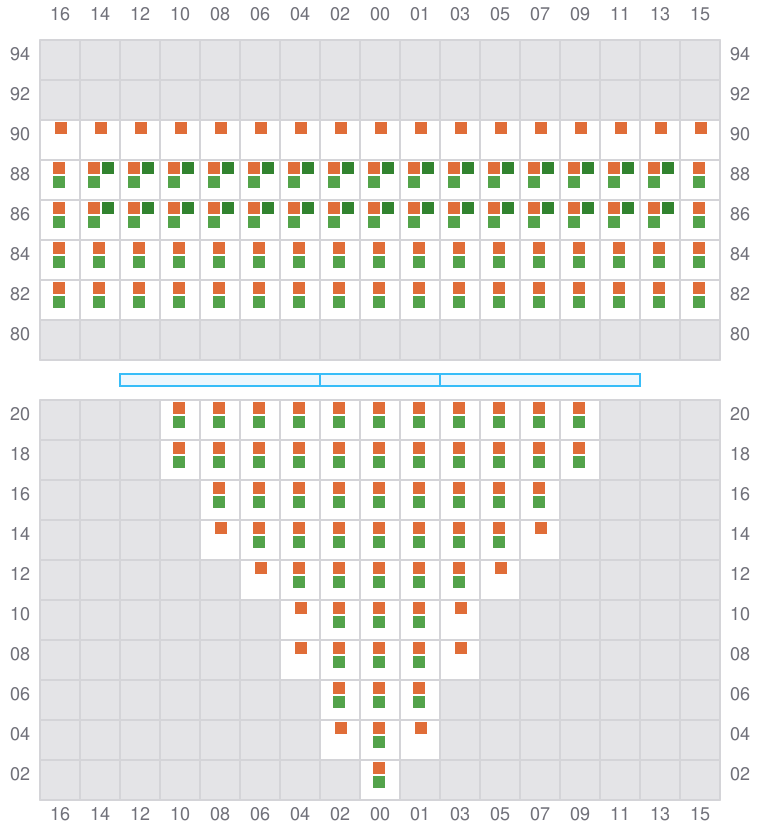

007 (006)
- ←

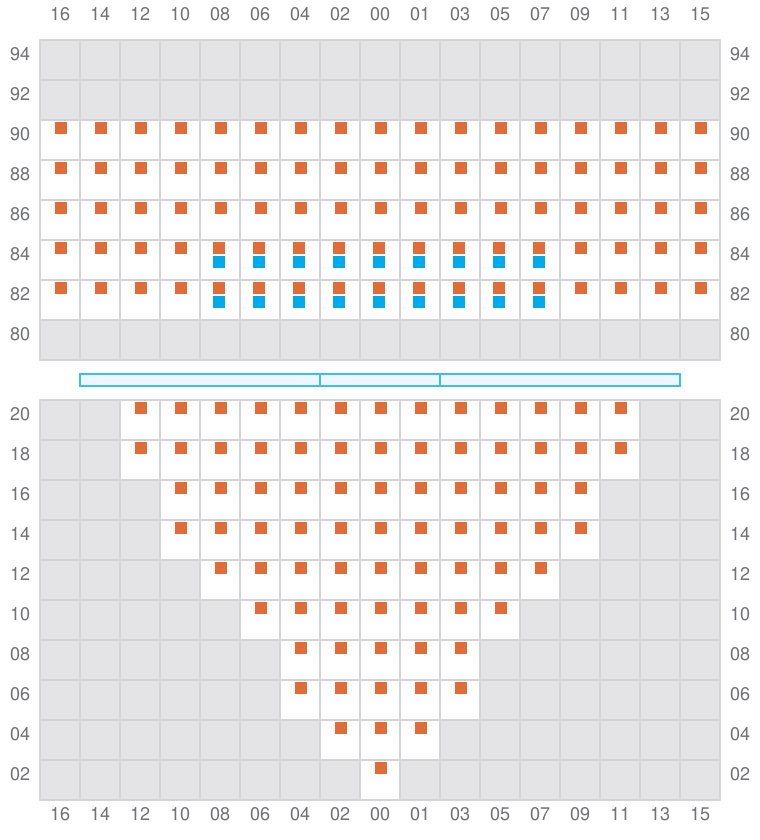

009
- →
011 (010)
- ←

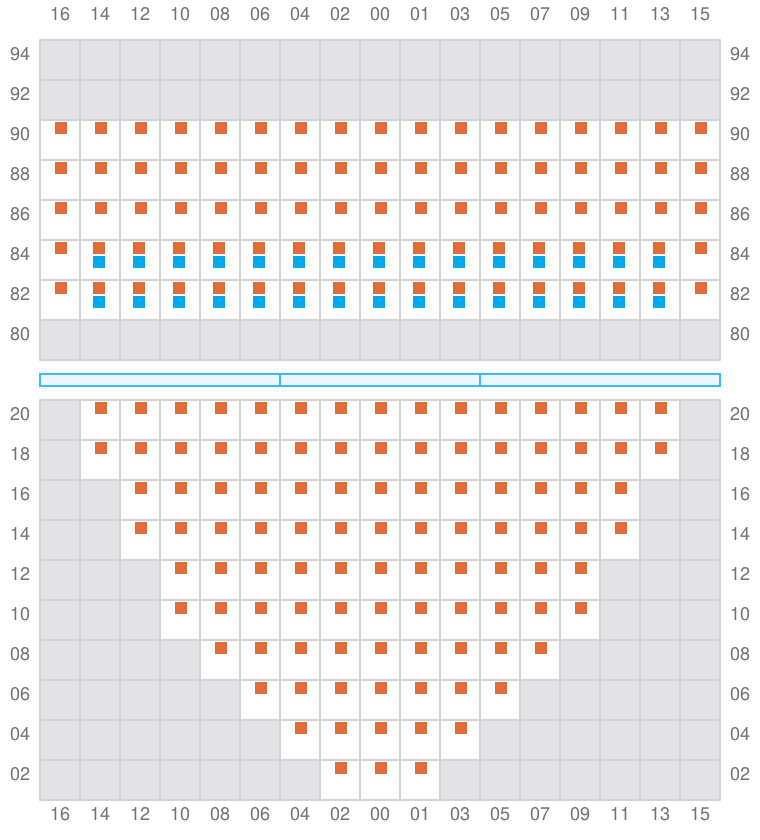

013
- →

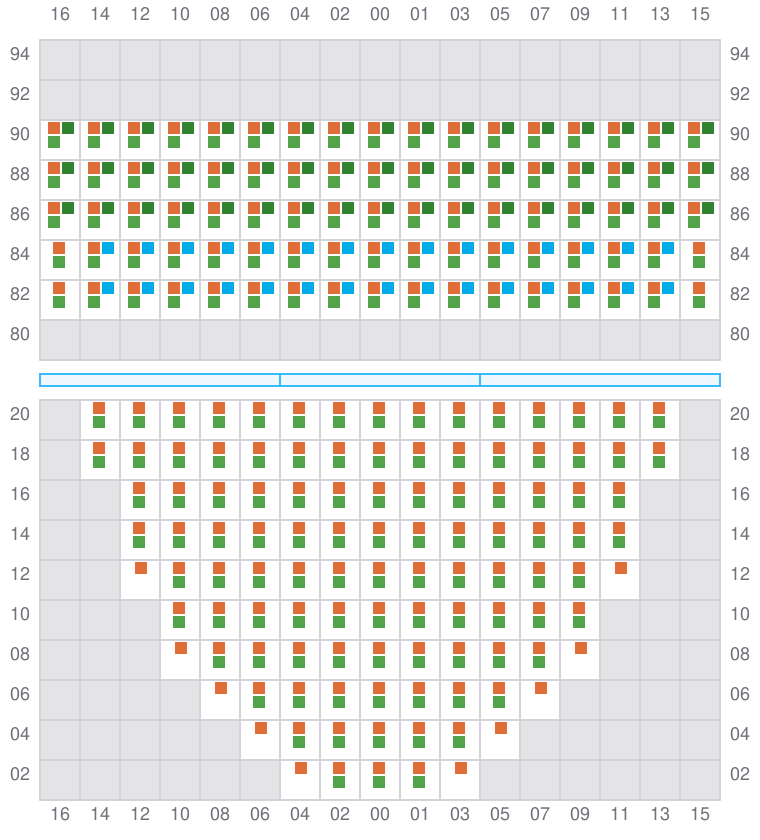

015 (014)
- ←
017
- →
019 (018)
- ←
021
- →

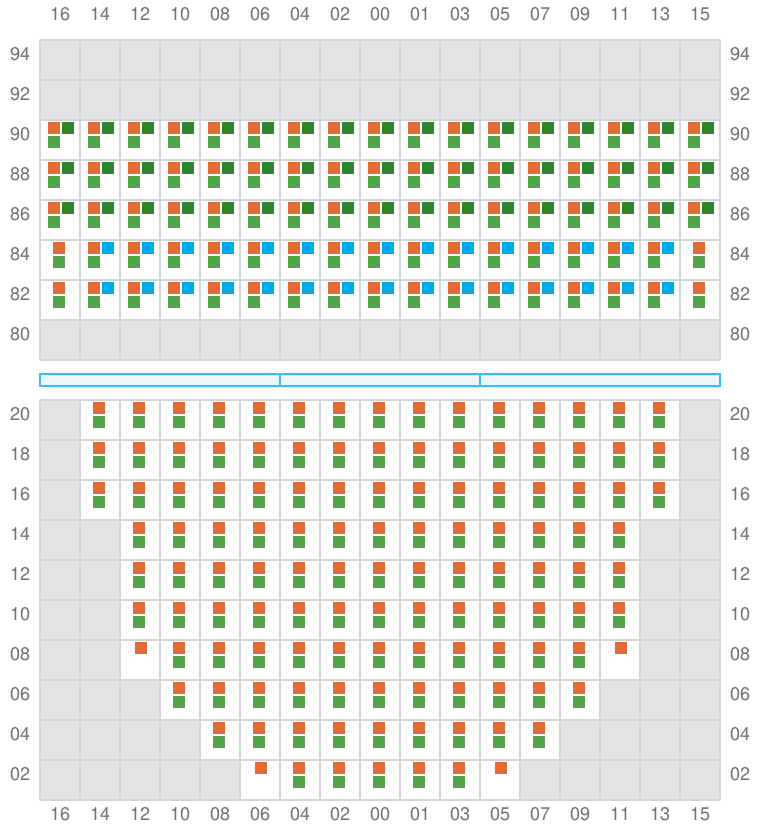

023 (022)
- ←

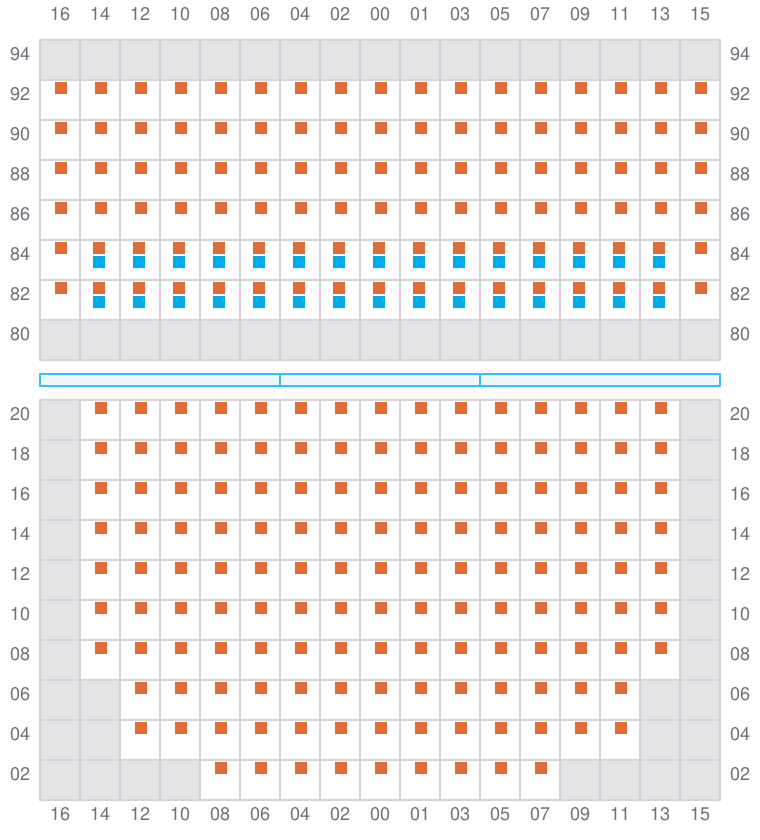

025
- →
027 (026)
- ←
029
- →
031 (030)
- ←

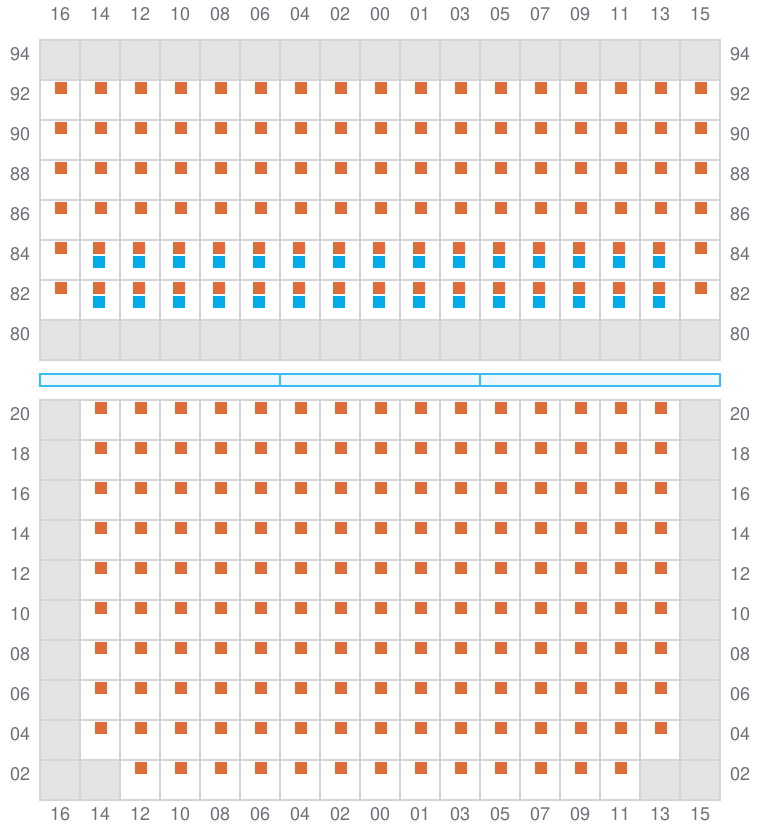

033
- →
035 (034)
- ←

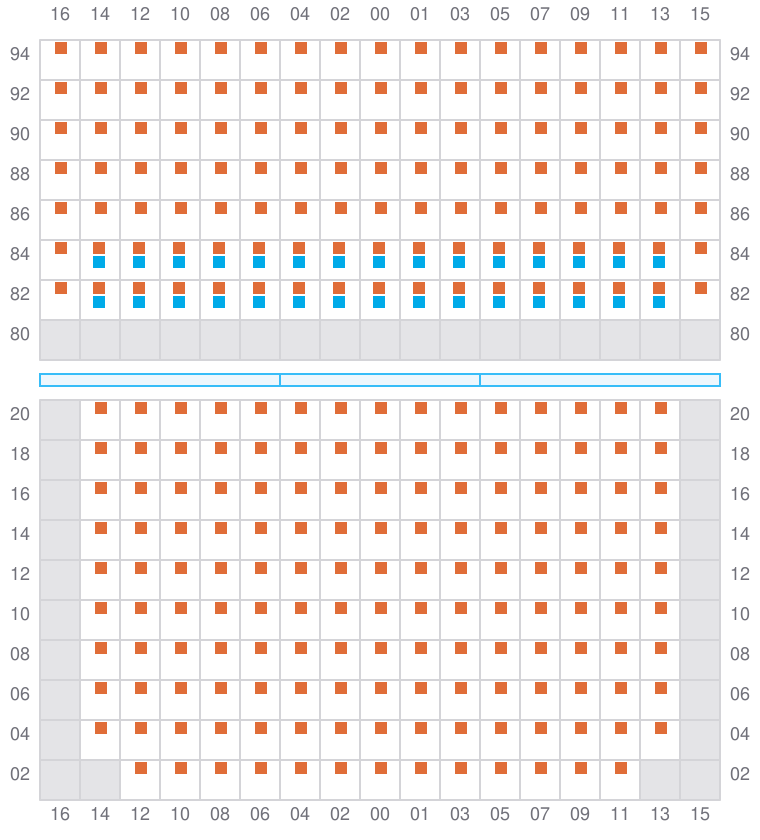

037
- →
039 (038)
- ←
041
- →
043 (042)
- ←

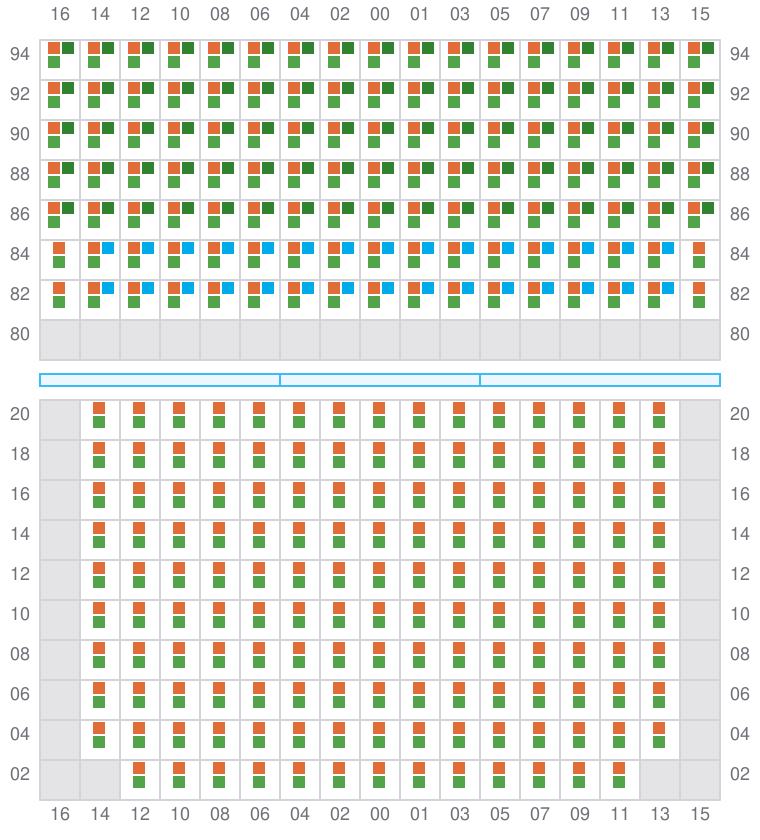

045
- →
047 (046)
- ←
049
- →
051 (050)
- ←
053
- →
055 (054)
- ←
057
- →

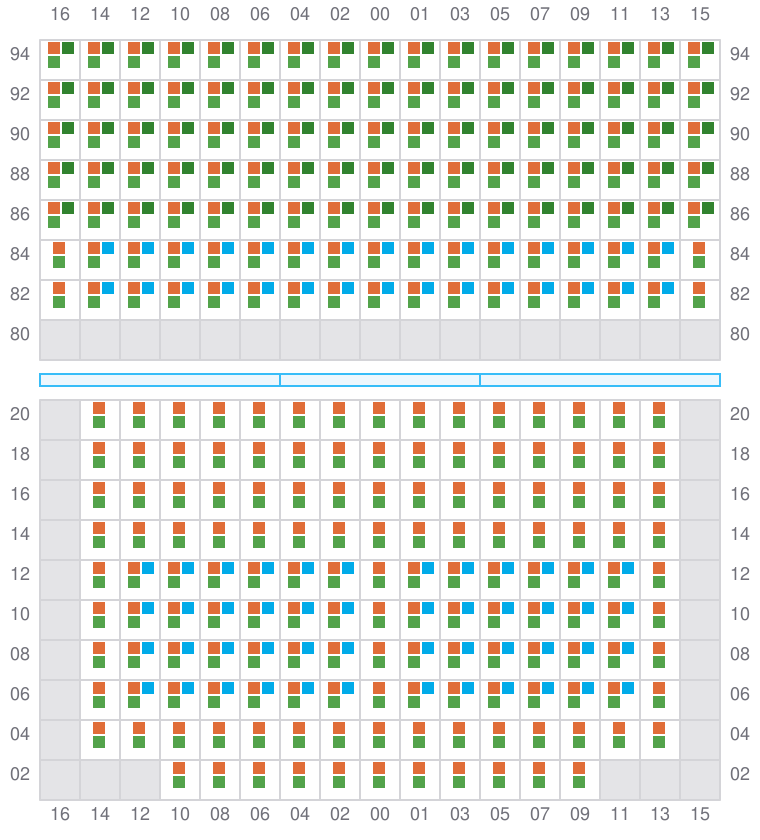

059 (058)
- ←
061
- →
063 (062)
- ←

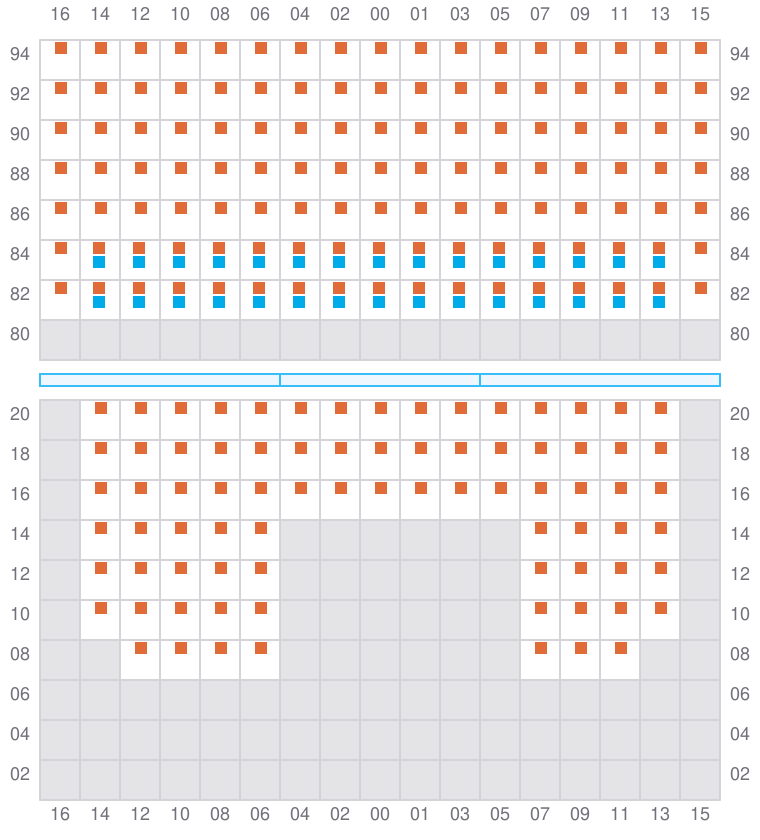

065
- →
067 (066)
- ←
069
- →
071 (070)
- ←
073
- →
075 (074)
- ←
077
- →
079 (078)
- ←

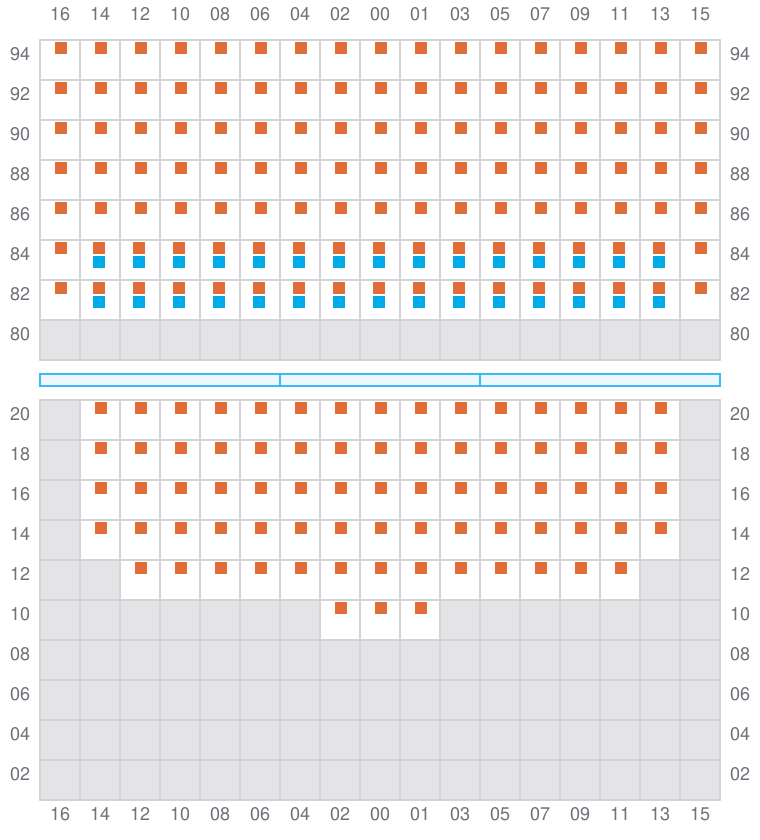

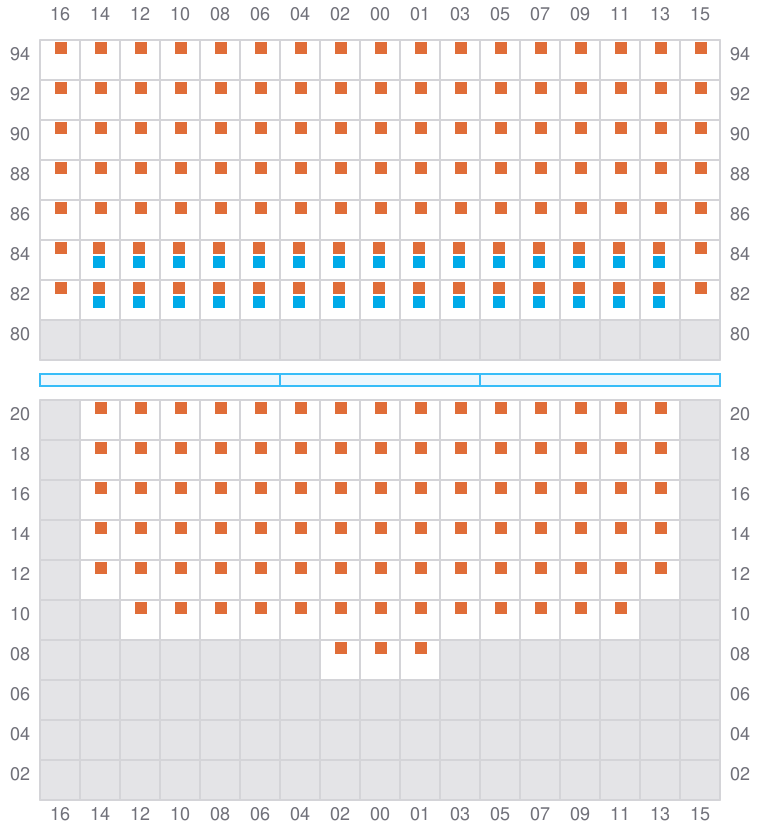

081
083 (082)
- ← / ?
