MSC INGRID
9181651 | HOHA | 9181651 by ********* Last update: Tue Jun 04 2024
General Info
Ship Name:MSC INGRID
IMO Code:9181651
Call Sign:HOHA
Line Operator:9181651
Class Name for Sister Ships:MSC INGRID
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):282.00
LOA (Length Overall):294.06
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,890
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

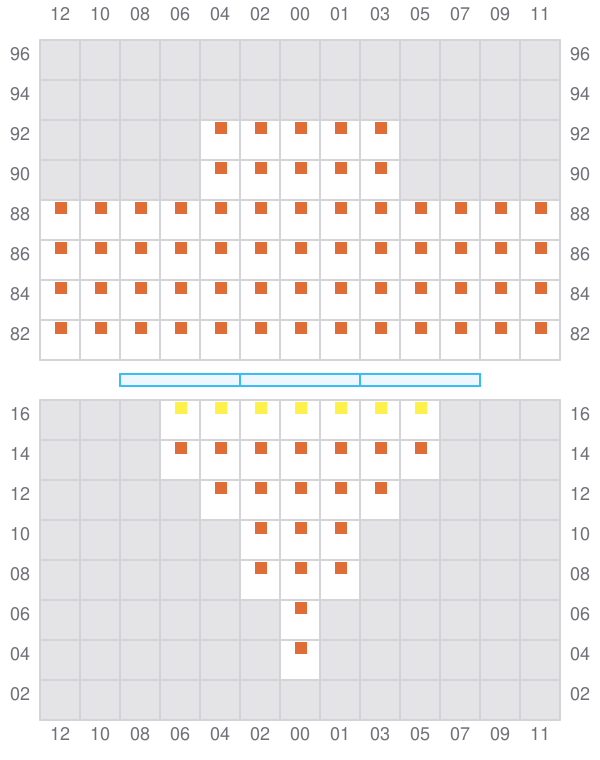

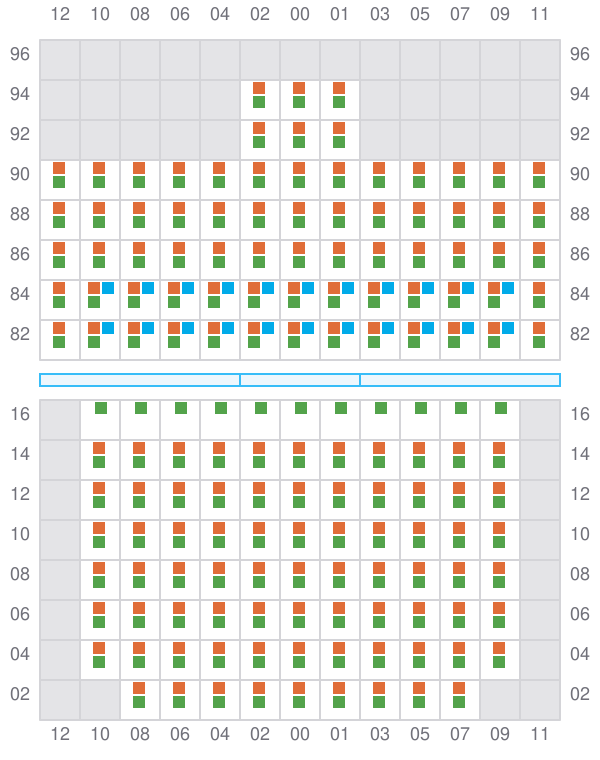

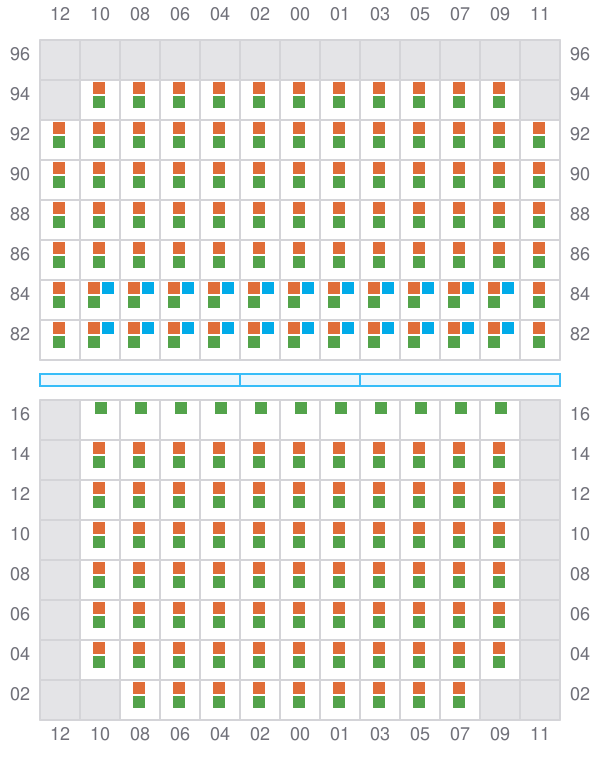

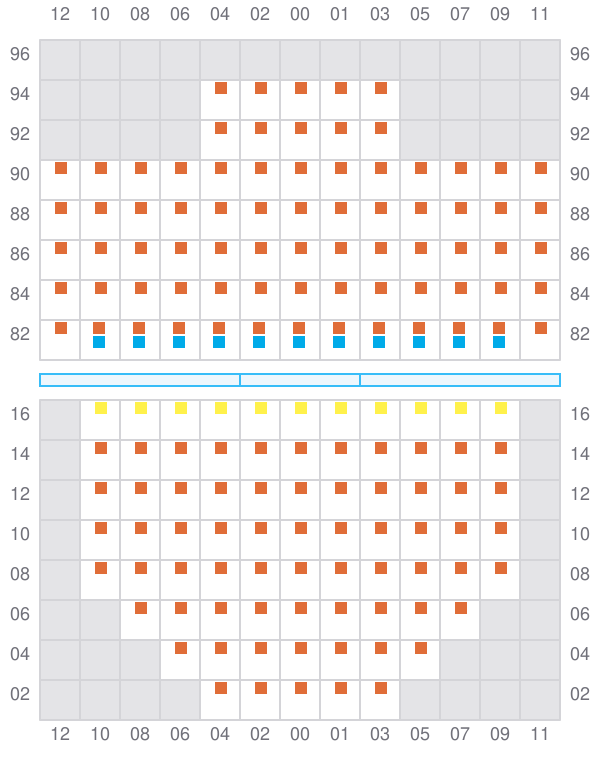

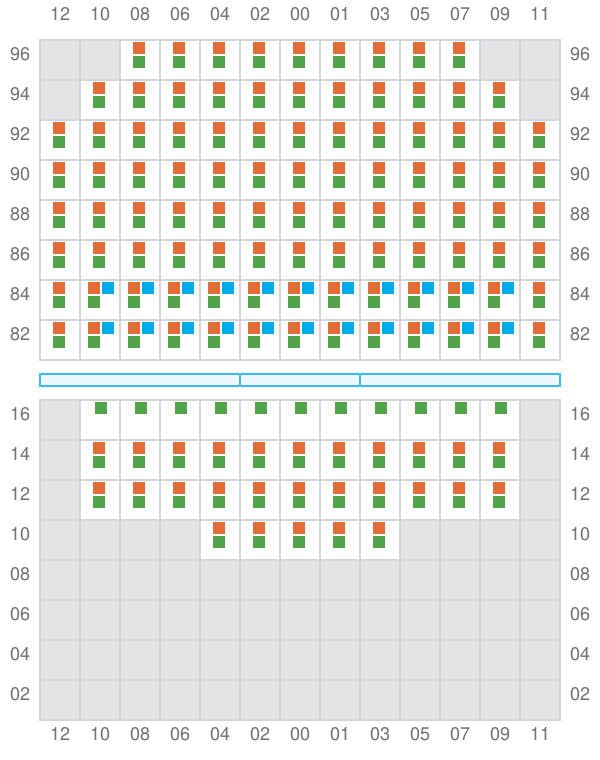

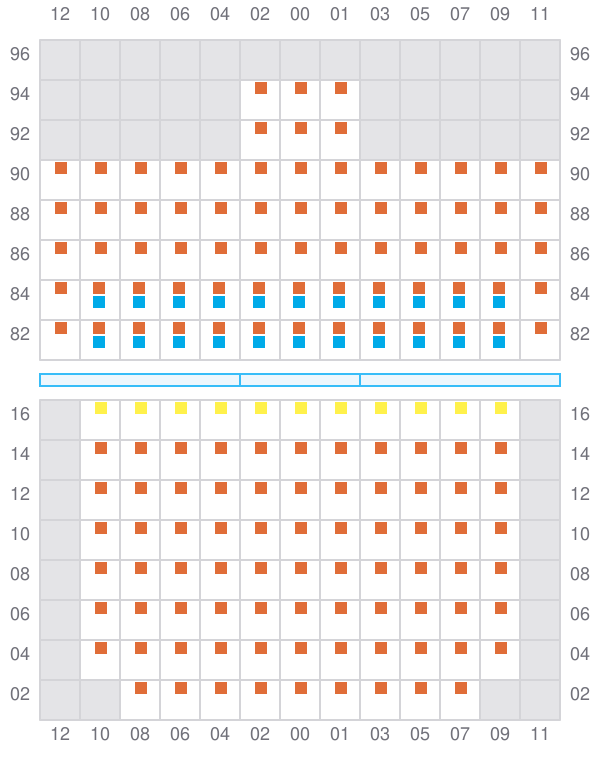

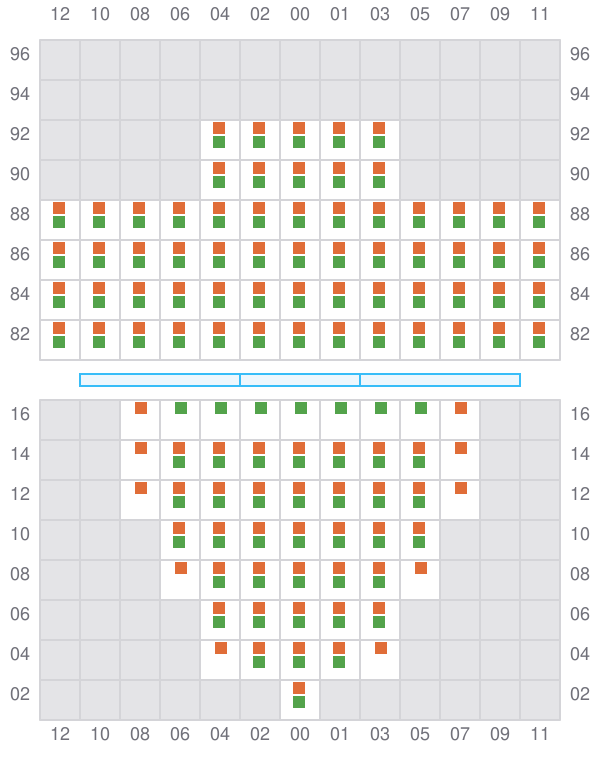

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

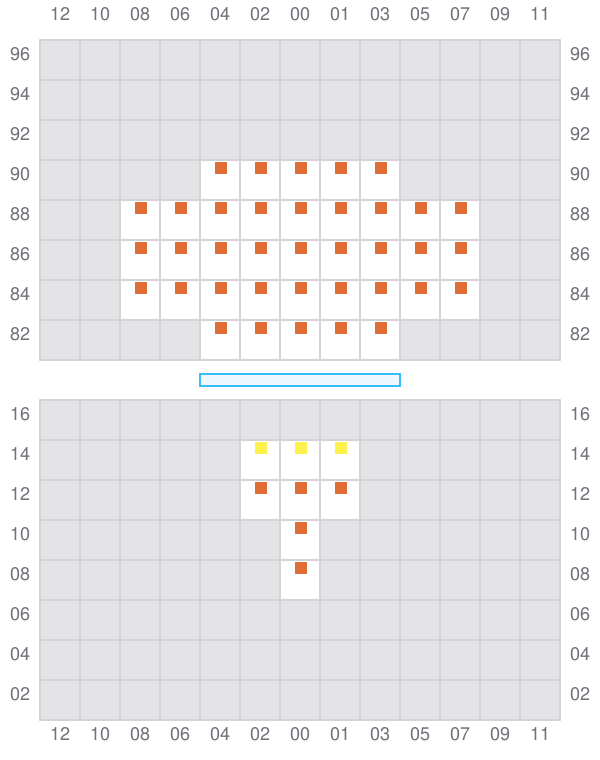

001
- →

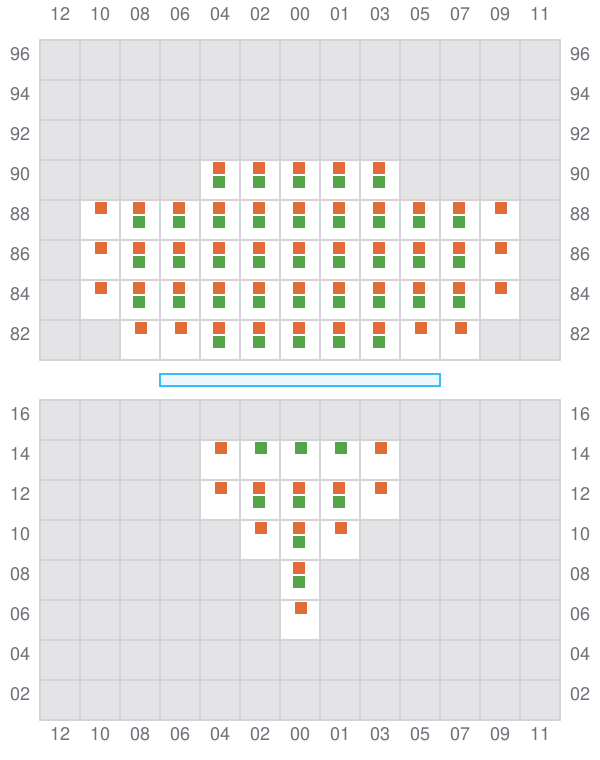

003 (002)
- ←
005
- →
007 (006)
- ←

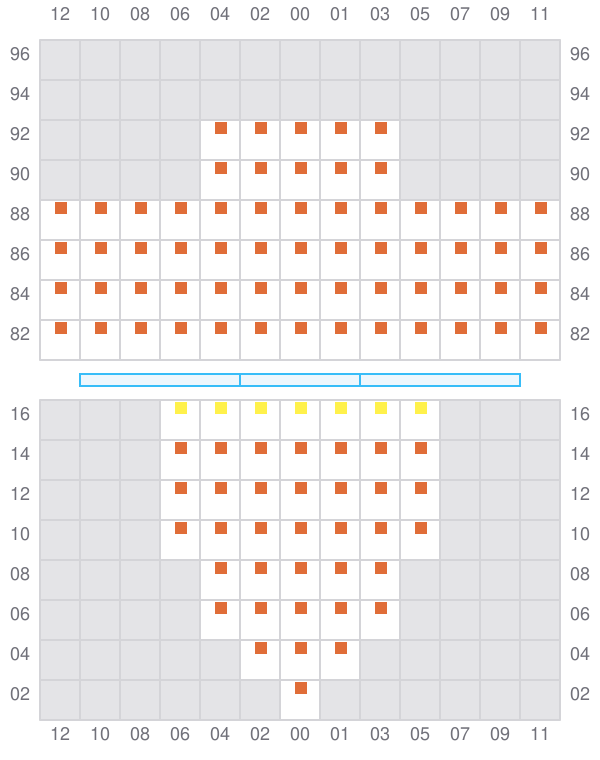

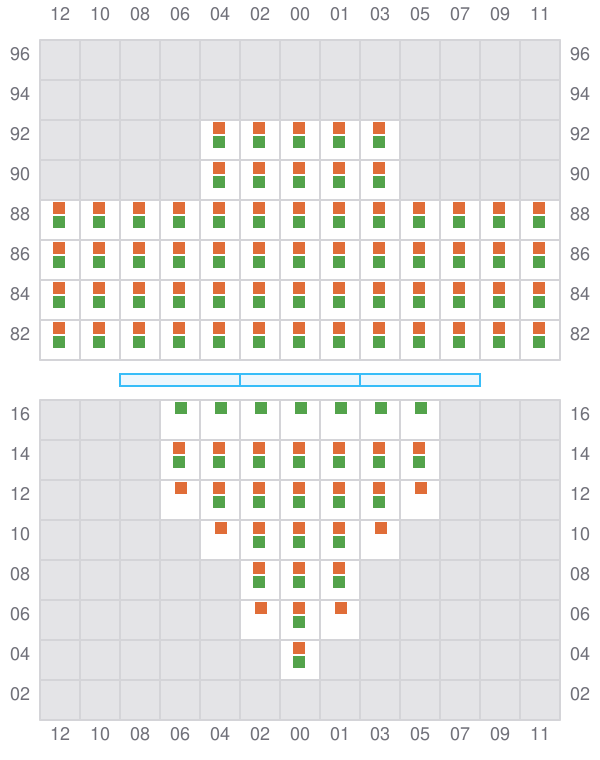

009
- →
011 (010)
- ←

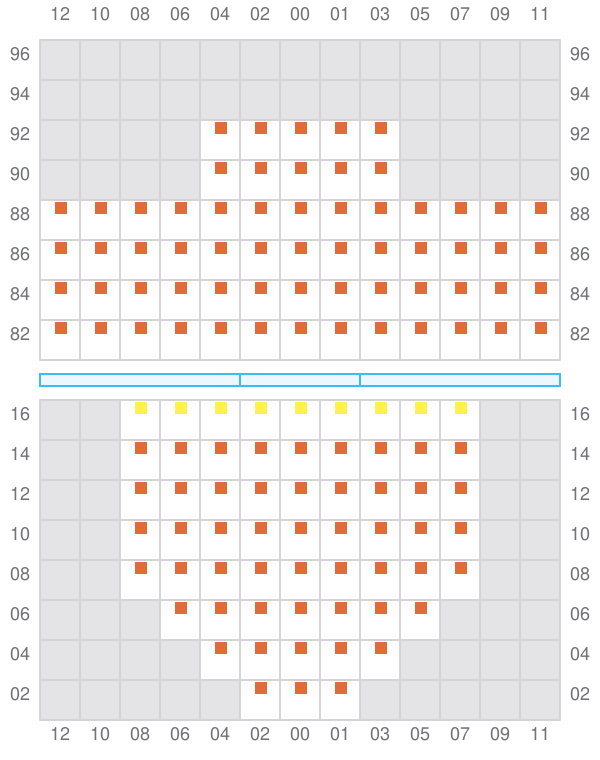

013
- →

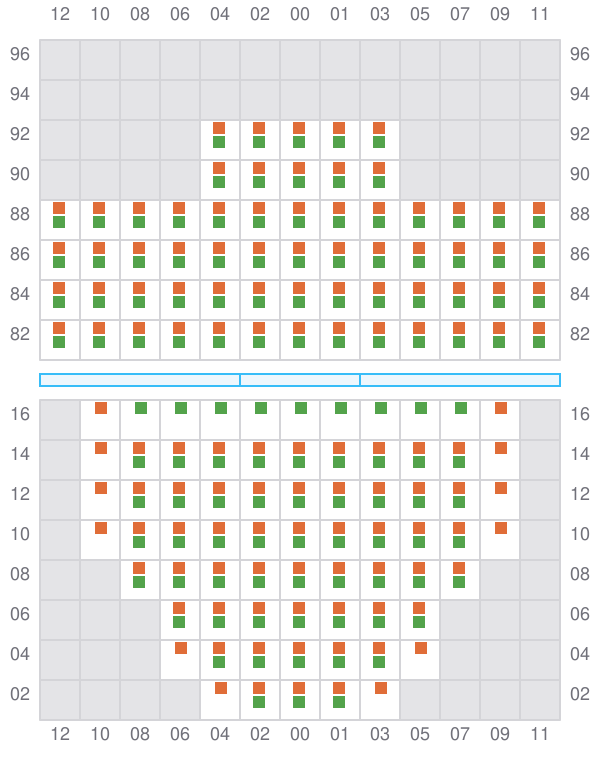

015 (014)
- ←
017
- →

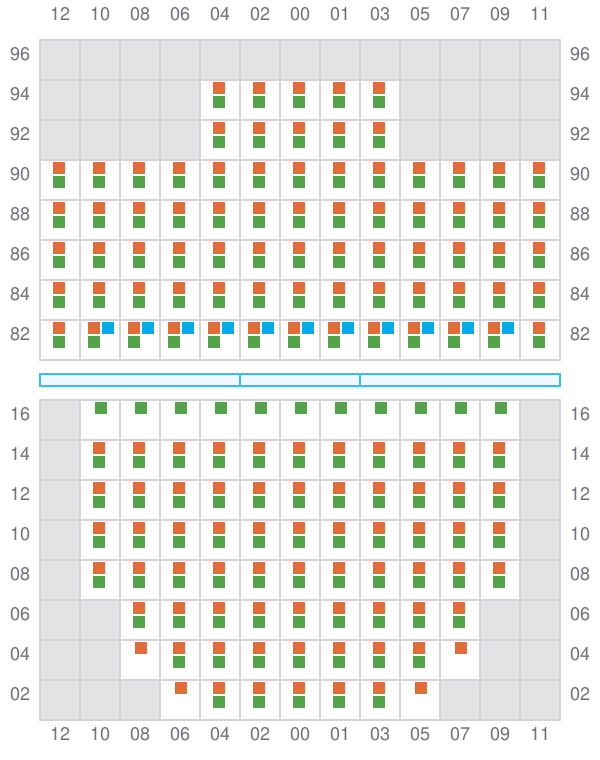

019 (018)
- ←

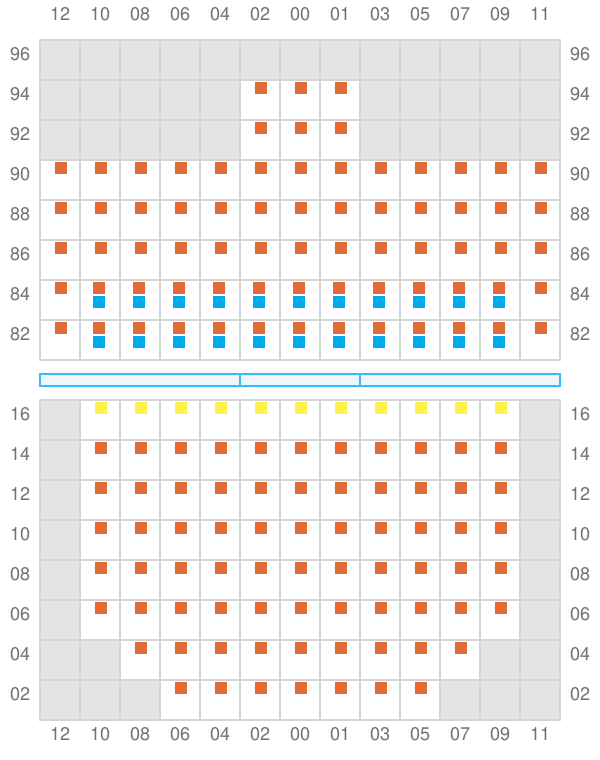

021
- →
023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←

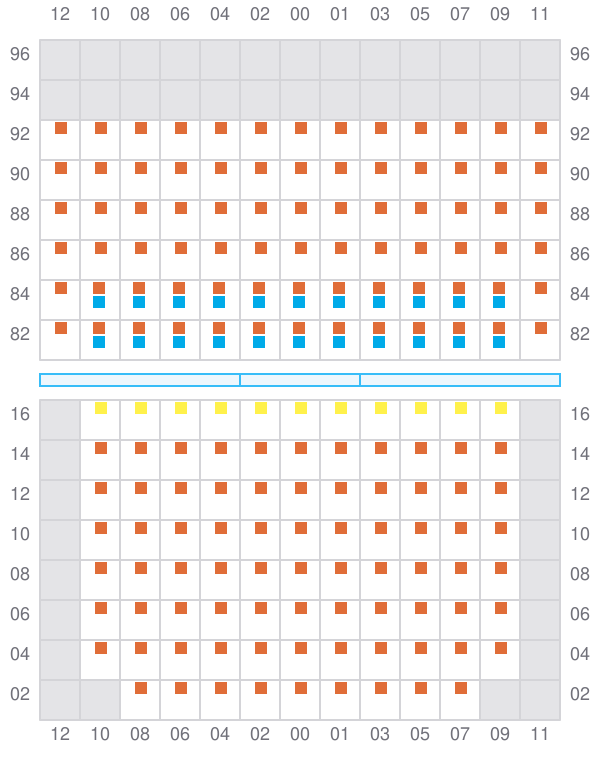

037
- →

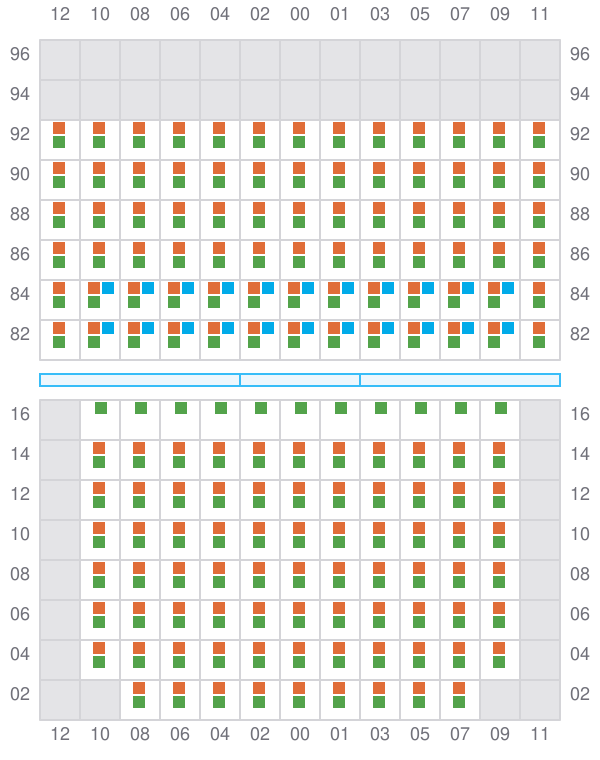

039 (038)
- ←
041
- →
043 (042)
- ←

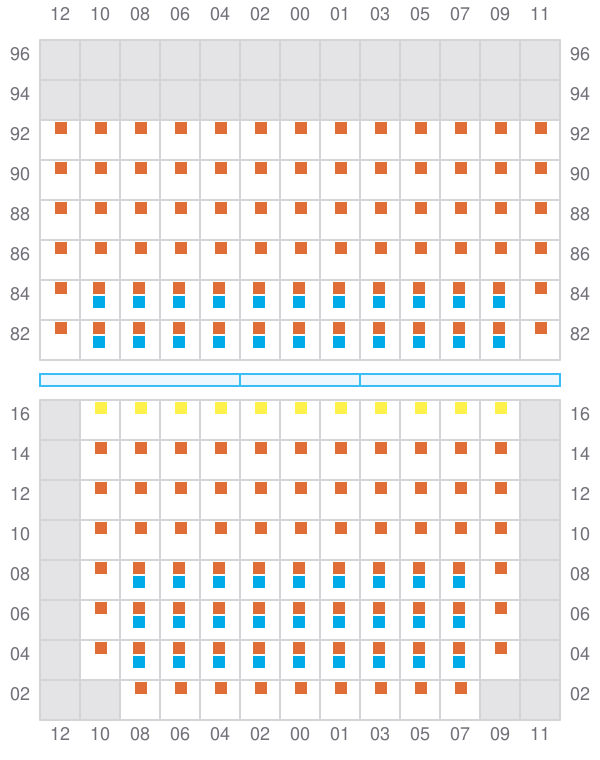

045
- →

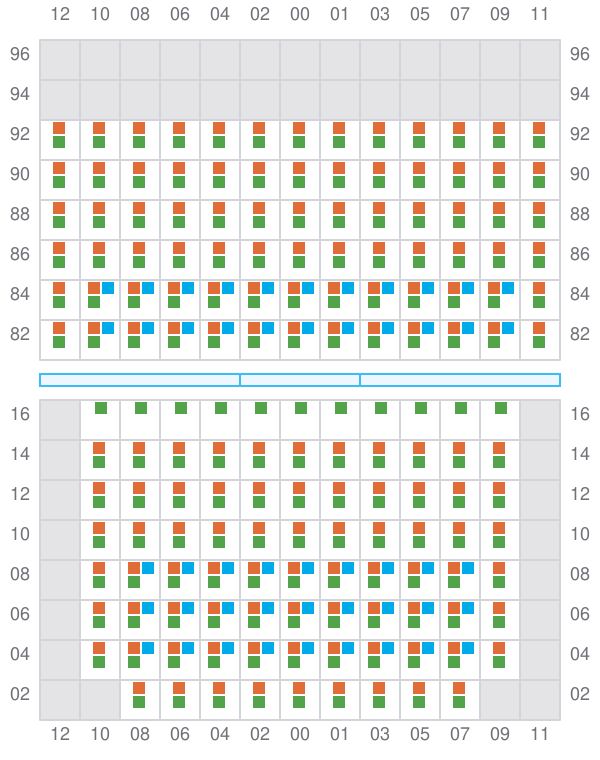

047 (046)
- ←

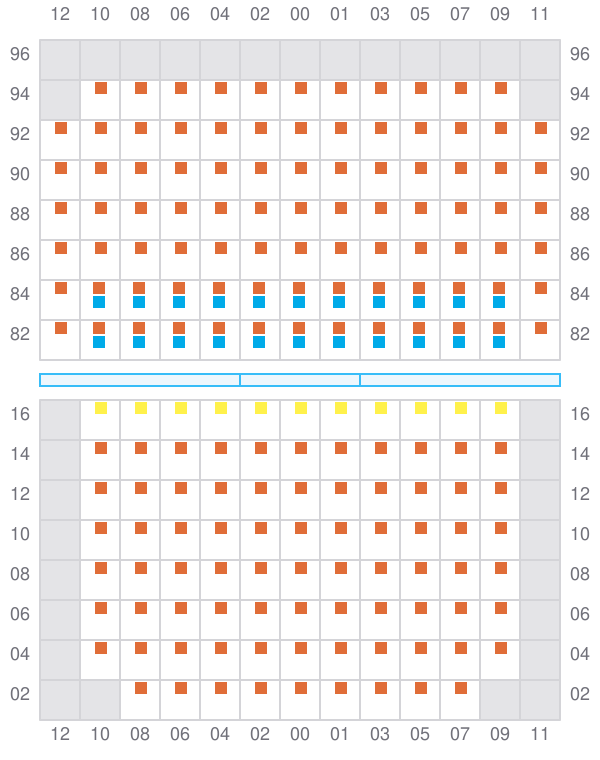

049
- →
051 (050)
- ←

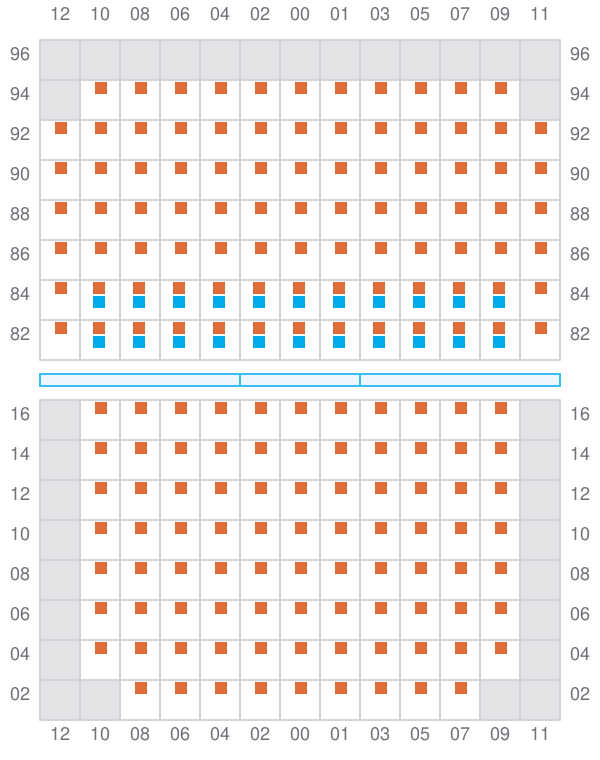

053

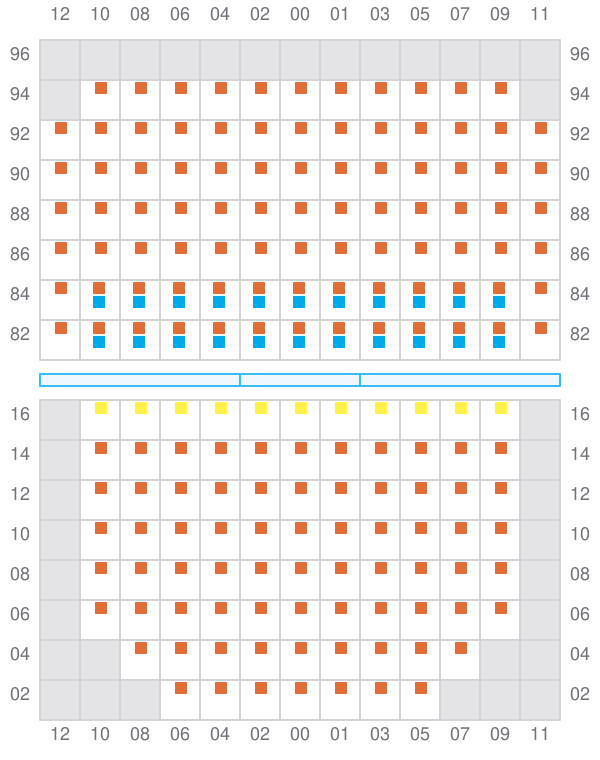

055
- →

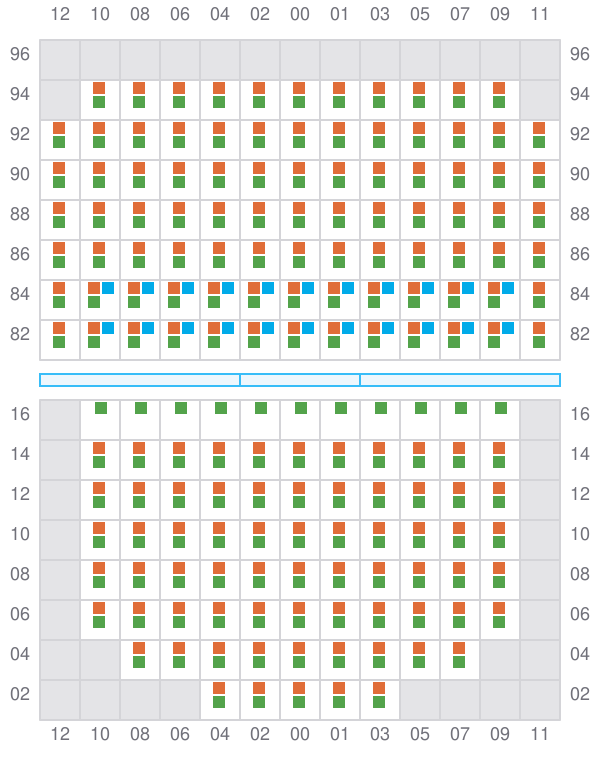

057 (056)
- ←

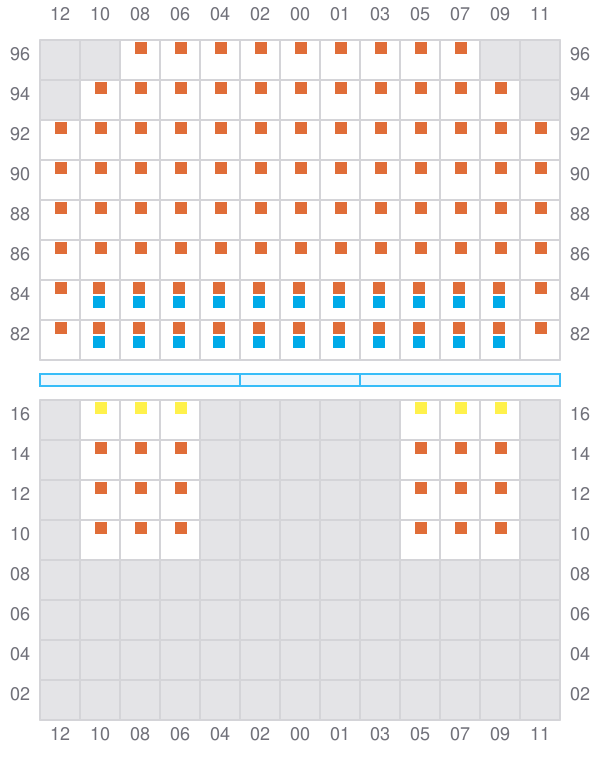

059
- →

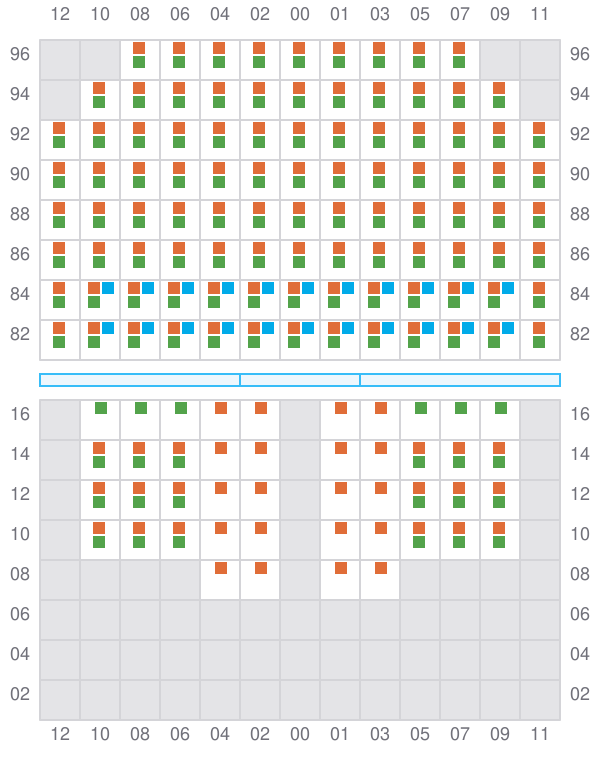

061 (060)
- ←

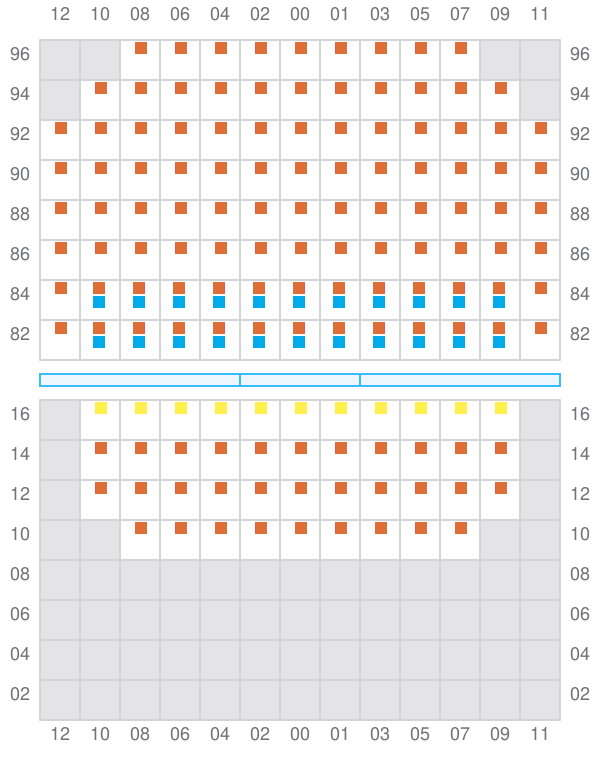

063
- →
065 (064)
- ←
067

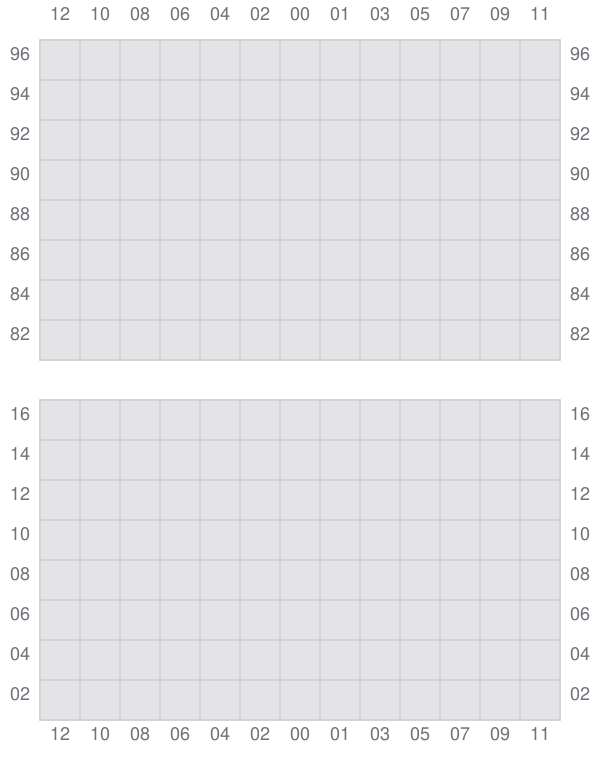

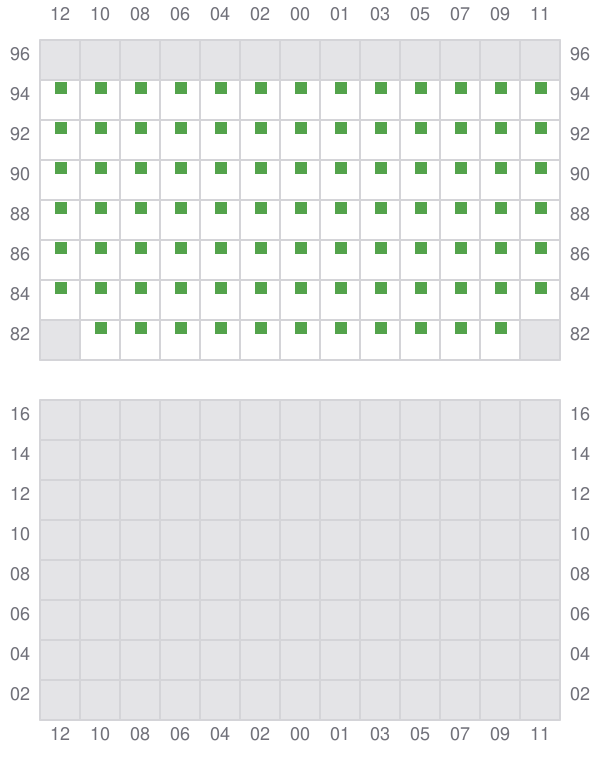

069
