MSC INGY
9755945 | D5KX9 | 9755945 by ********* Last update: Wed Jun 05 2024
General Info
Ship Name:MSC INGY
IMO Code:9755945
Call Sign:D5KX9
Line Operator:9755945
Class Name for Sister Ships:MSC INGY
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:095
Max ISO Row:22
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:19,466
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

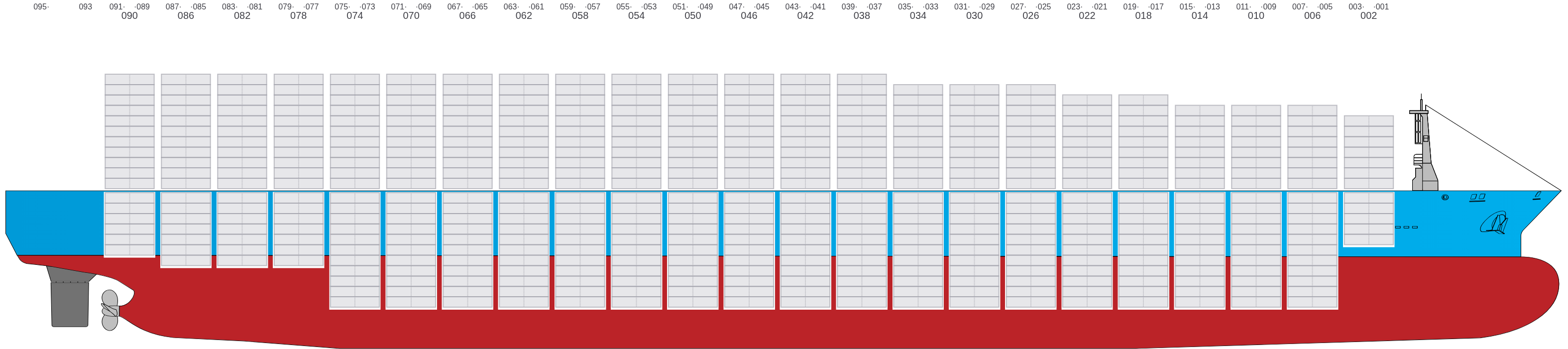

Side View
Hatch-Covers View

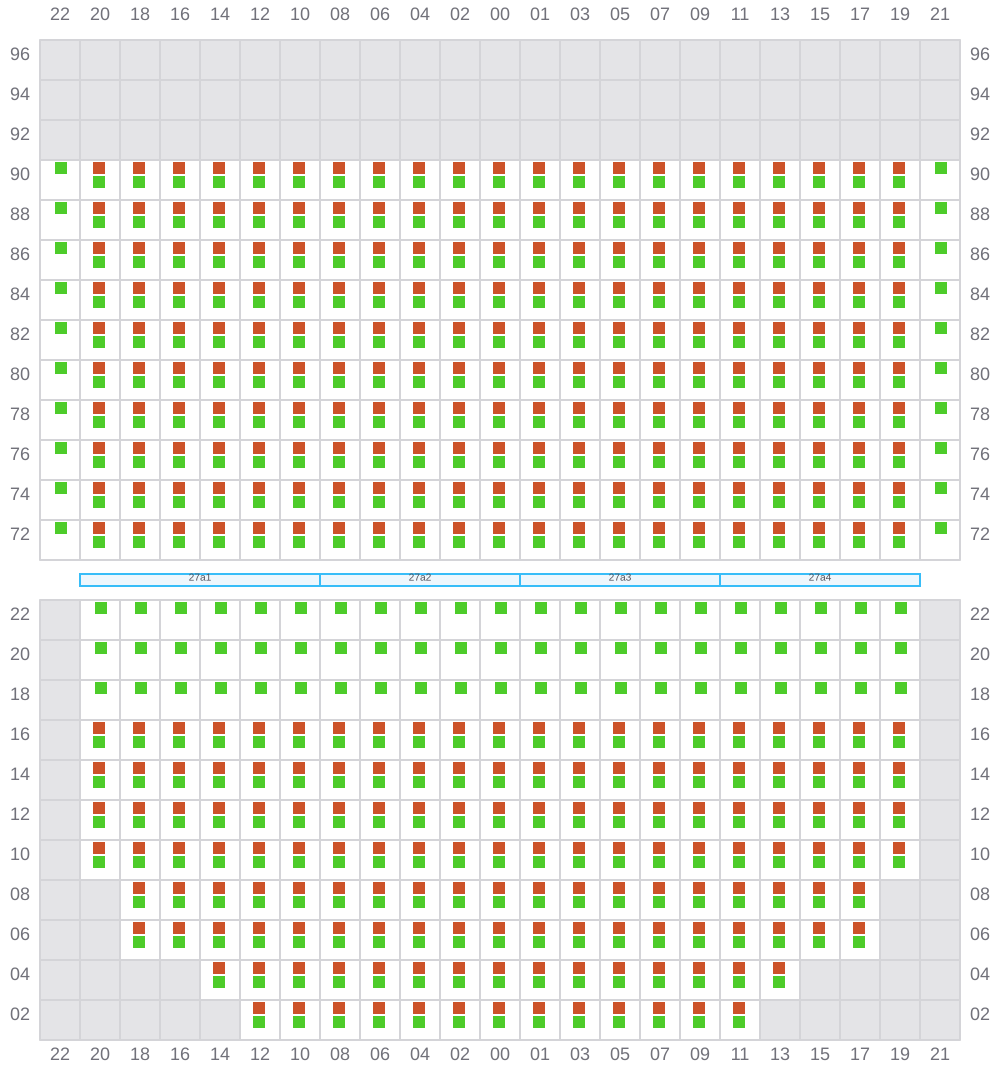

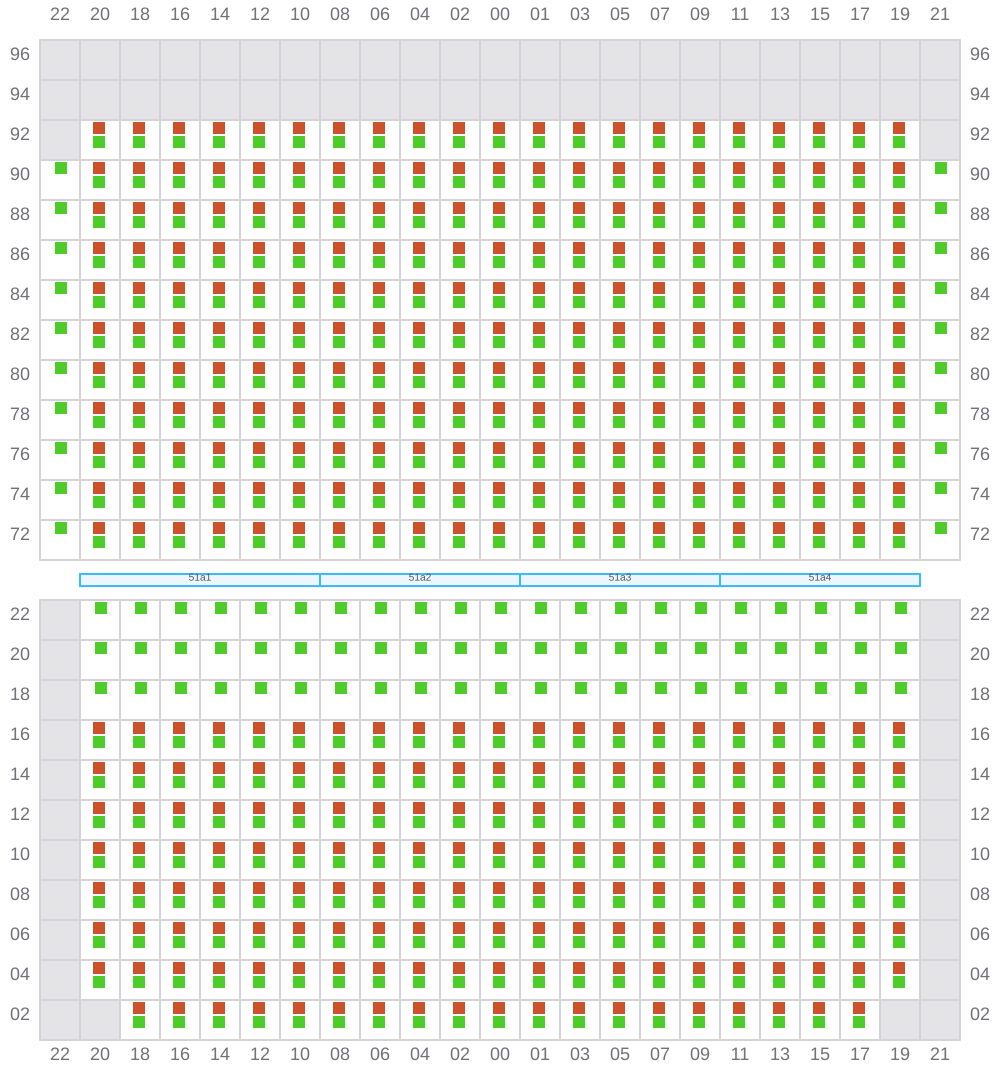

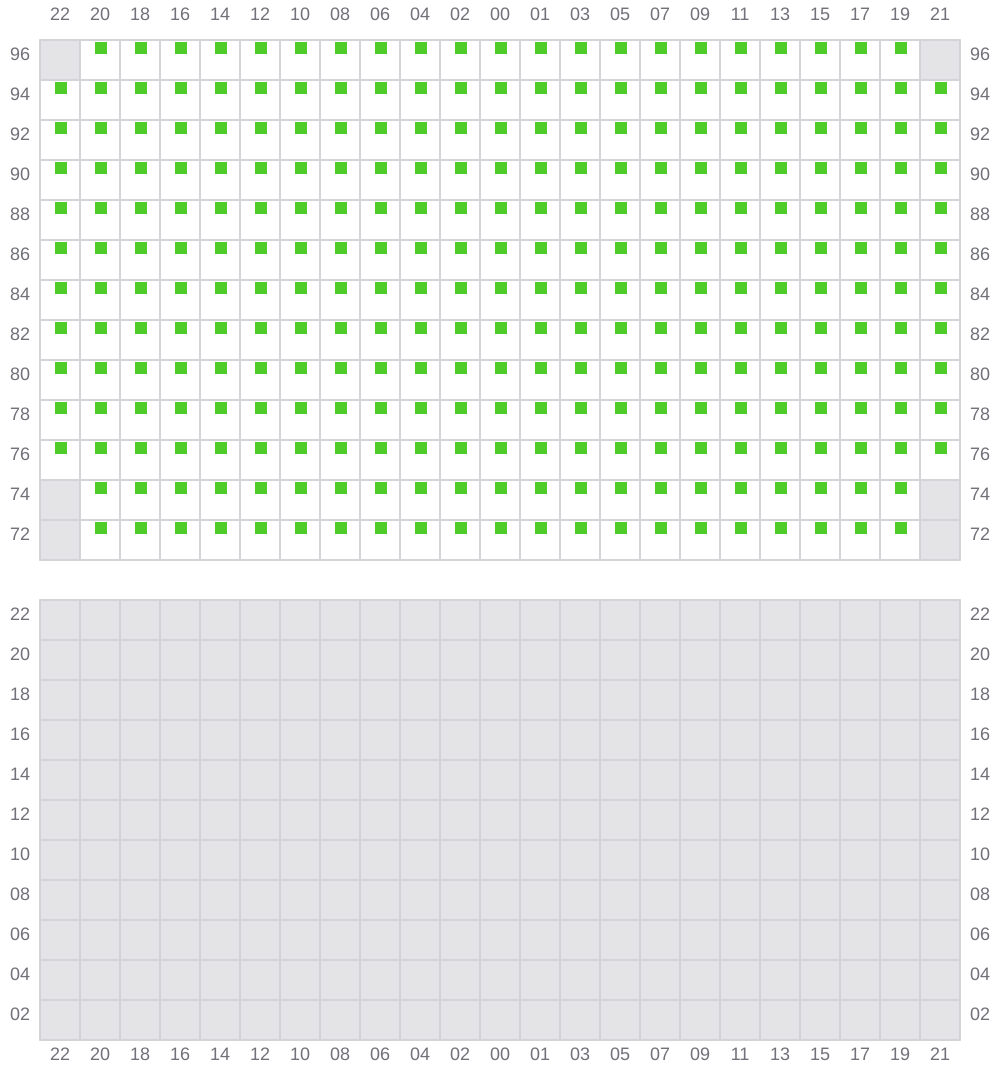

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →

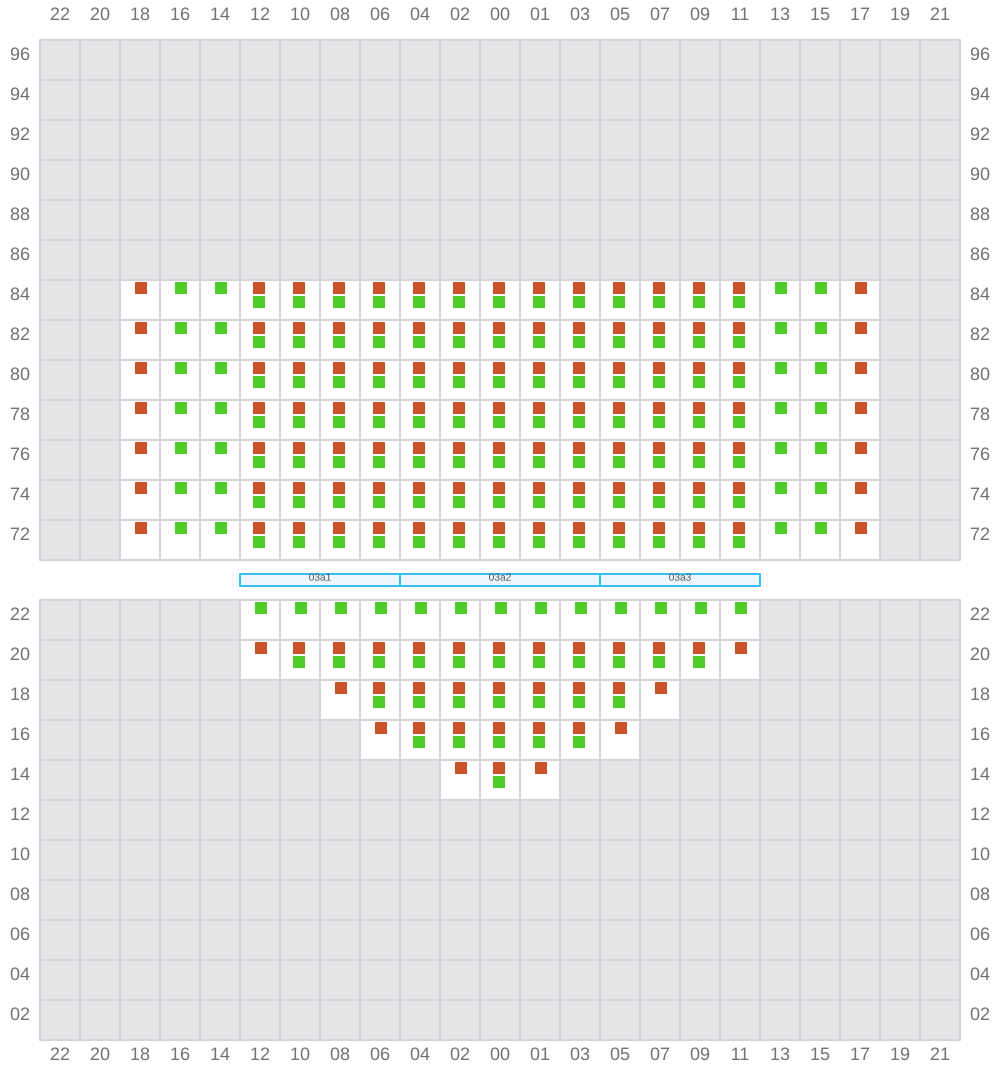

003 (002)
- ←

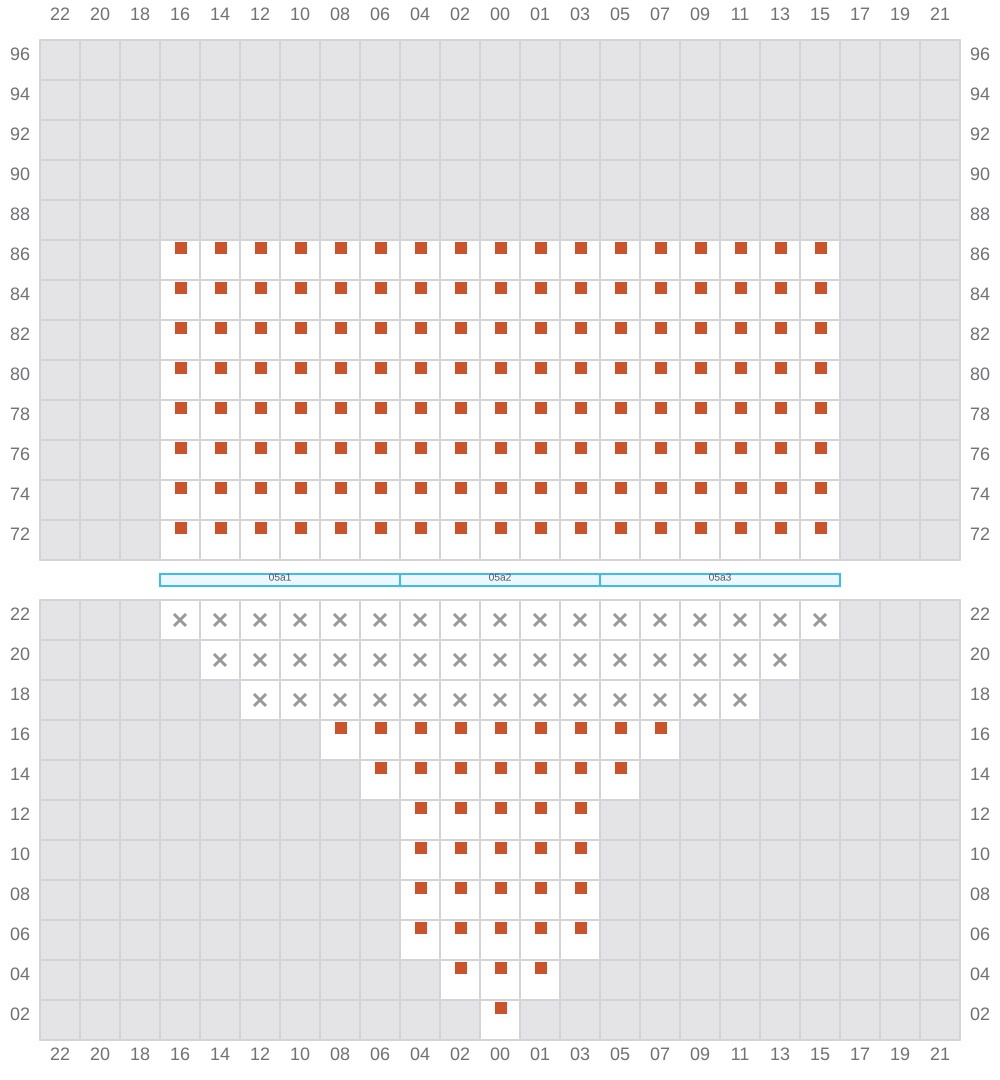

005
- →
007 (006)
- ←
009
- →
011 (010)
- ←
013
- →
015 (014)
- ←
017
- →
019 (018)
- ←
021
- →
023 (022)
- ←
025
- →
027 (026)
- ←
029
- →

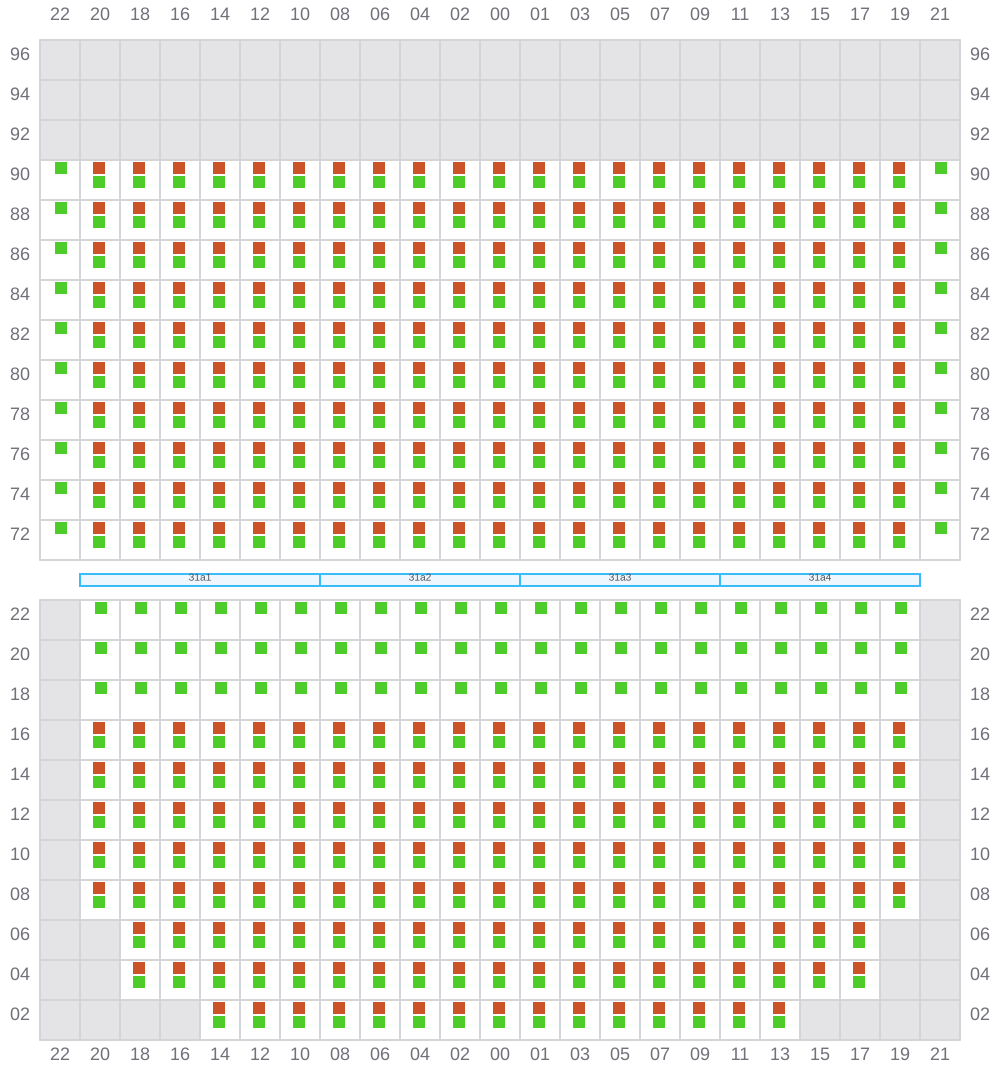

031 (030)
- ←
033
- →

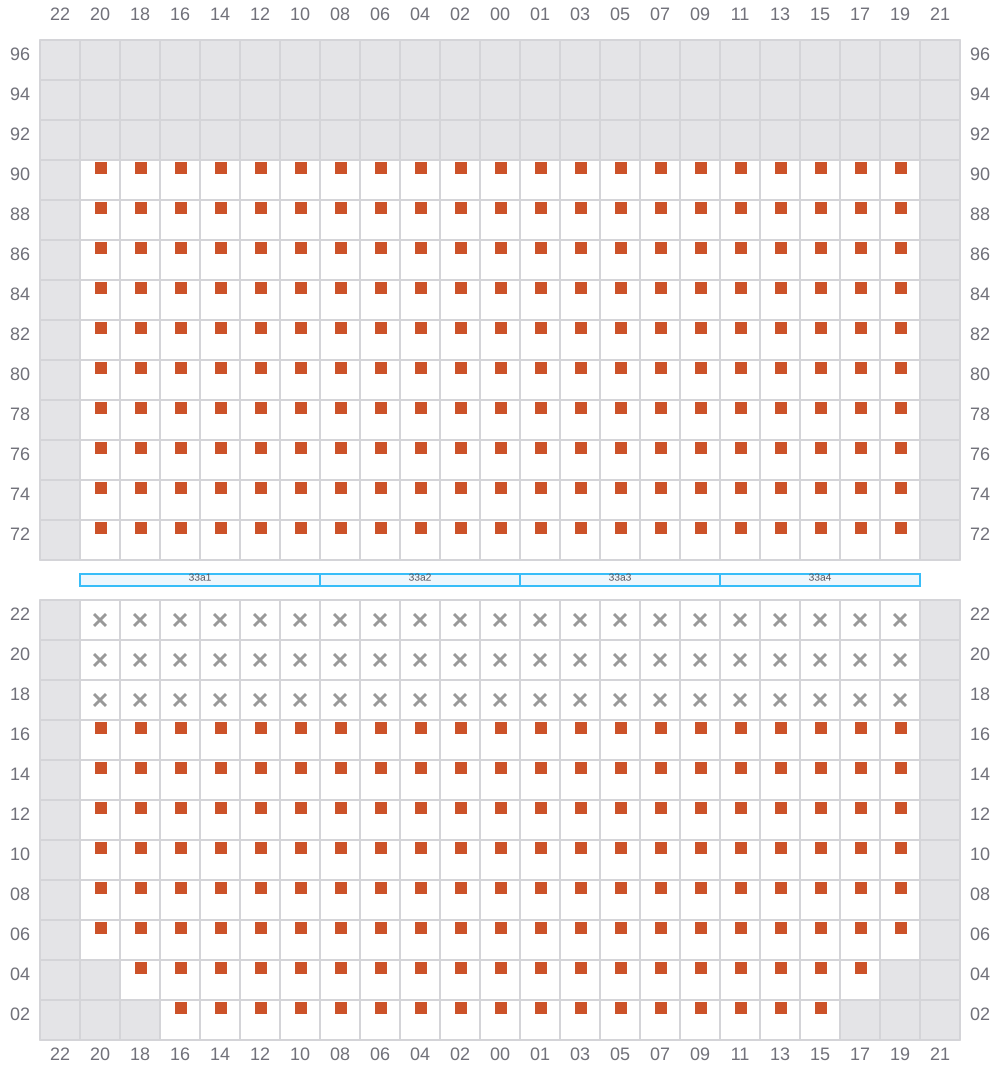

035 (034)
- ←
037
- →
039 (038)
- ←

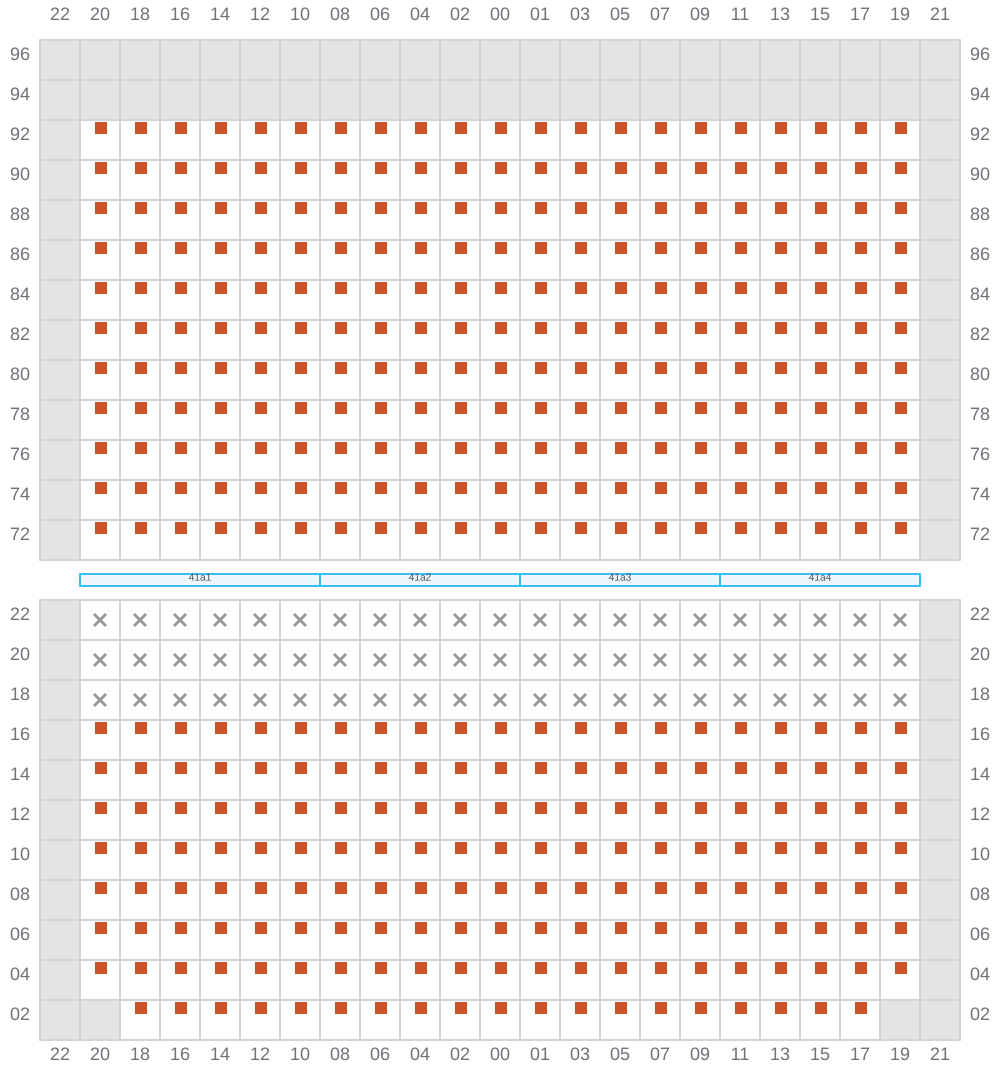

041
- →
043 (042)
- ←
045
- →
047 (046)
- ←
049
- →
051 (050)
- ←
053
- →
055 (054)
- ←
057
- →
059 (058)
- ←
061
- →
063 (062)
- ←
065
- →
067 (066)
- ←
069
- →

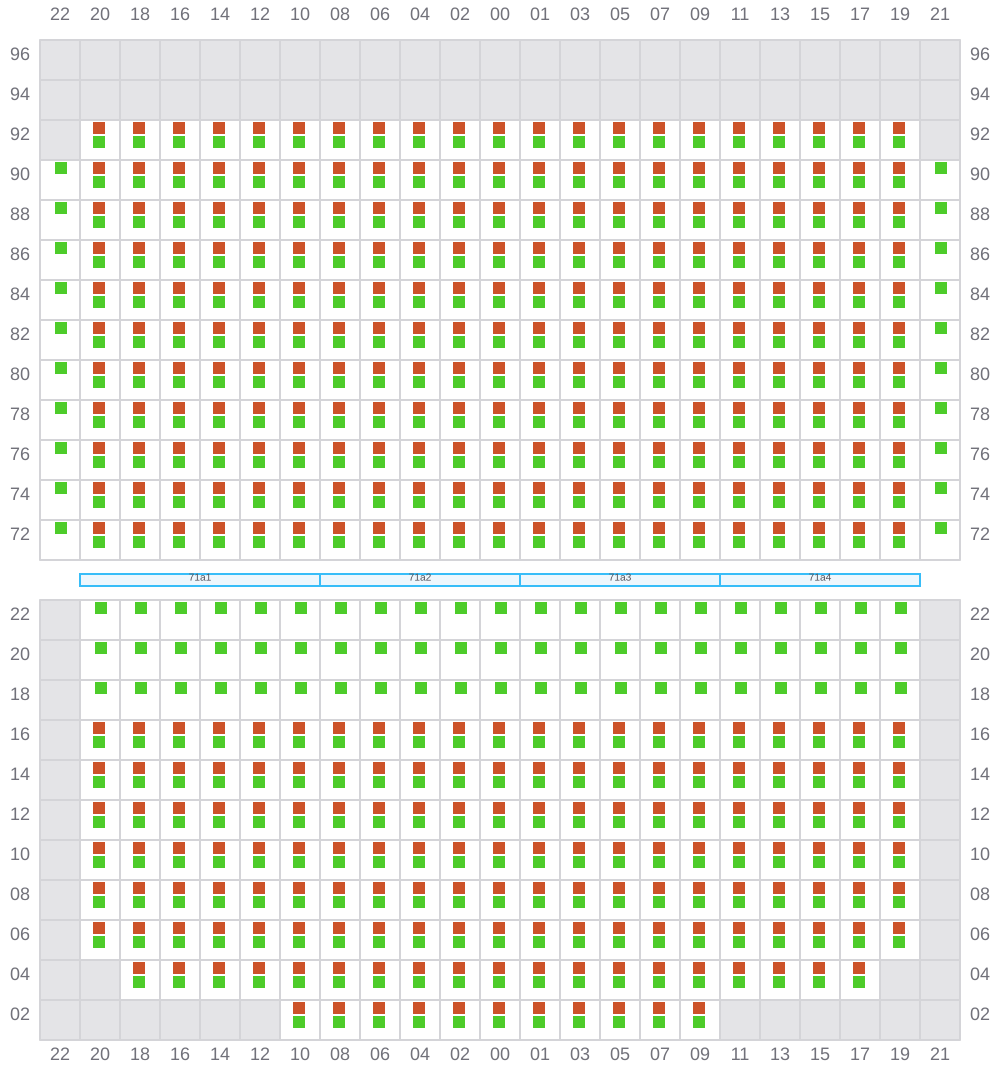

071 (070)
- ←
073
- →
075 (074)
- ←
077
- →
079 (078)
- ←
081
- →
083 (082)
- ←
085
- →

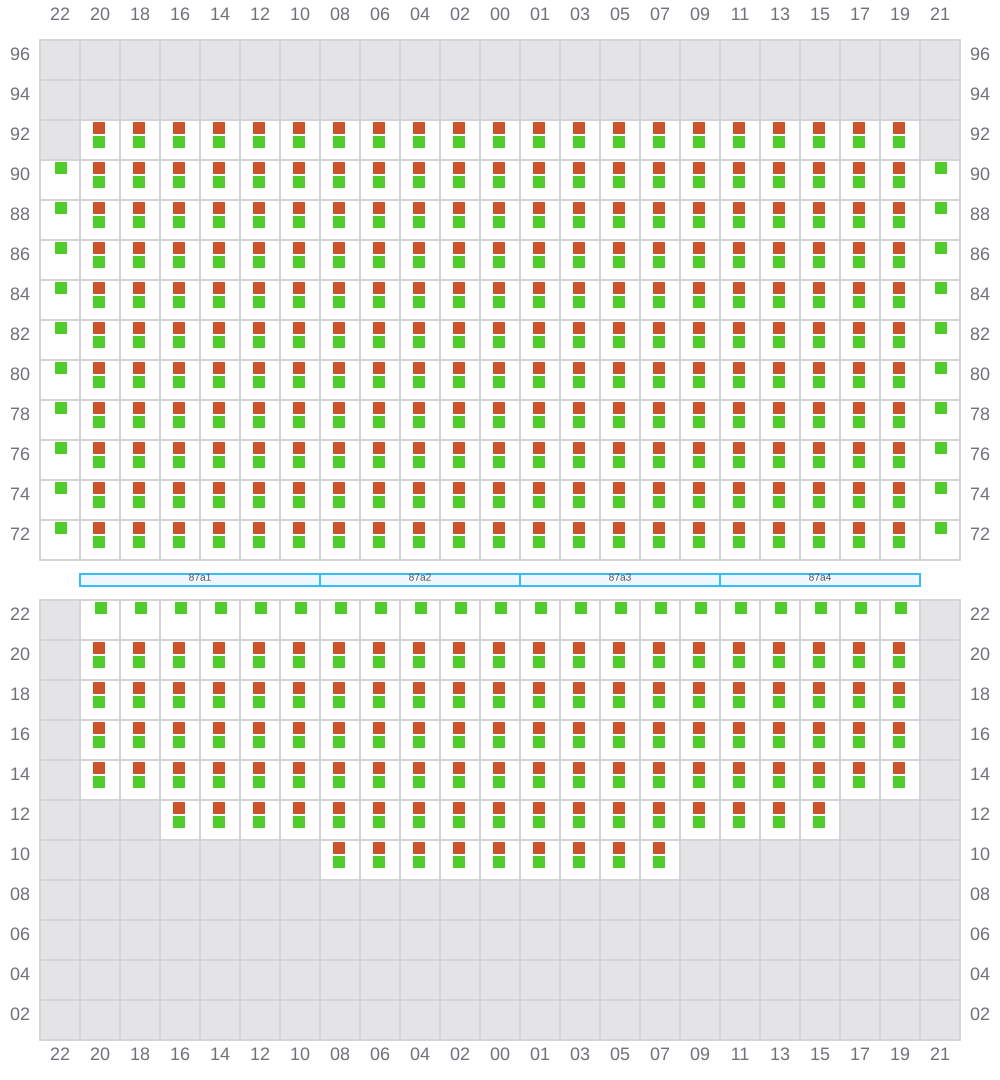

087 (086)
- ←
089
- →
091 (090)
- ←
093
095 (094)
- ← / ?
