MSC IZMIR F
9127021 | D5ND3 | 7361219 by ************* Last update: Fri Mar 01 2024
General Info
Ship Name:MSC IZMIR F
IMO Code:9127021
Call Sign:D5ND3
Line Operator:7361219
Class Name for Sister Ships:17L
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,268
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

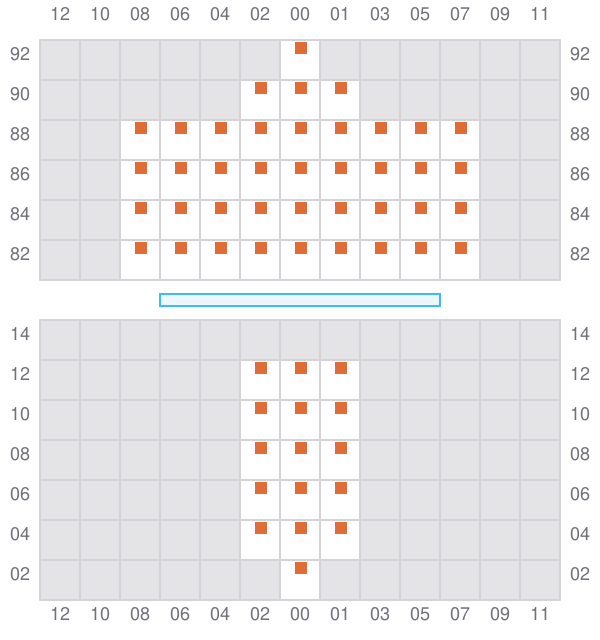

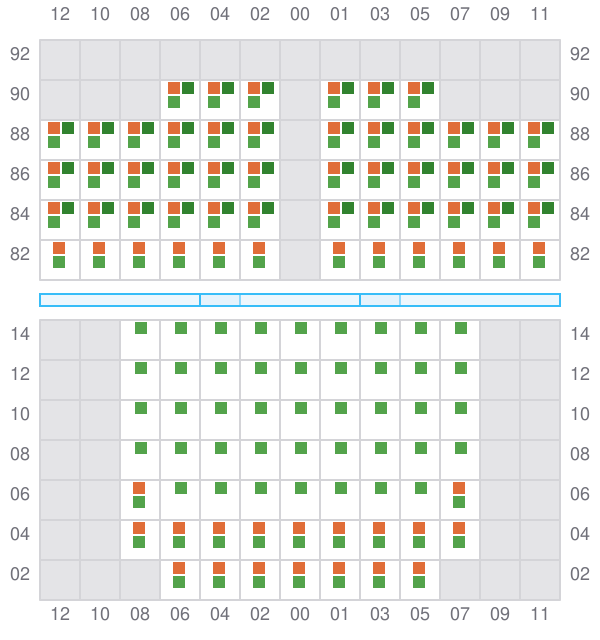

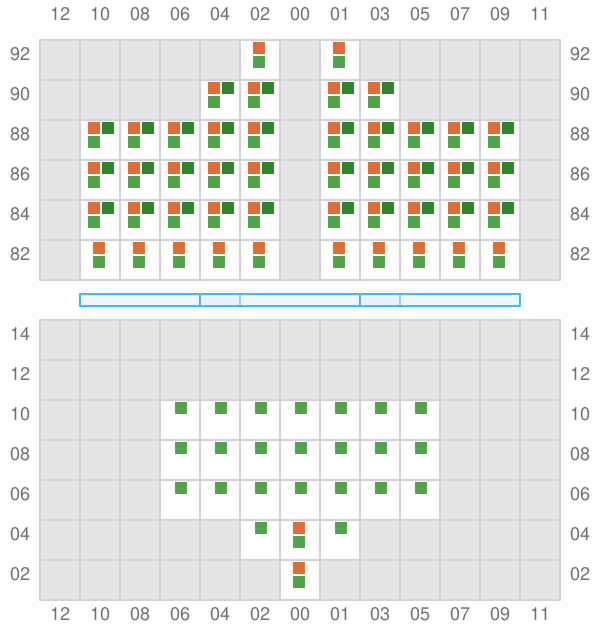

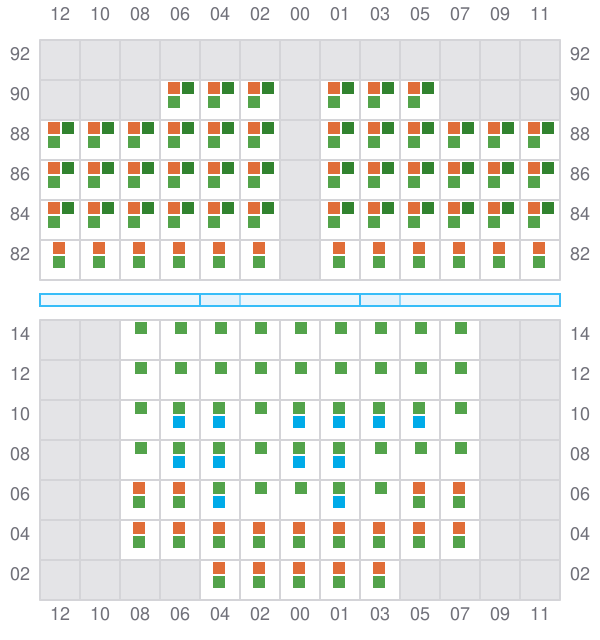

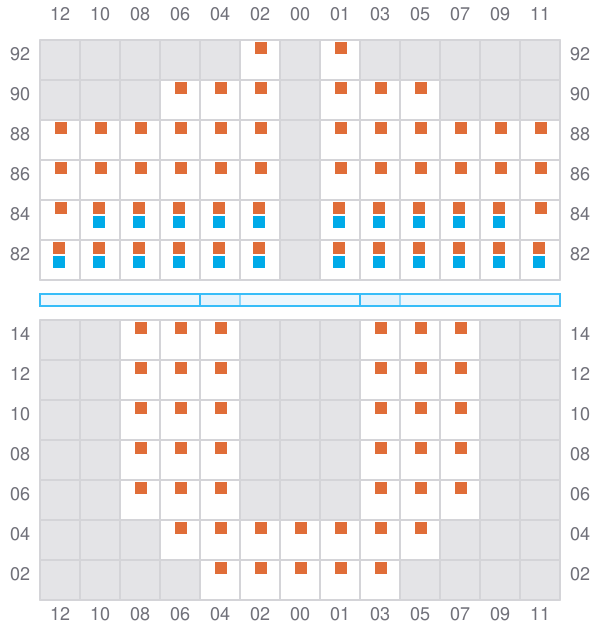

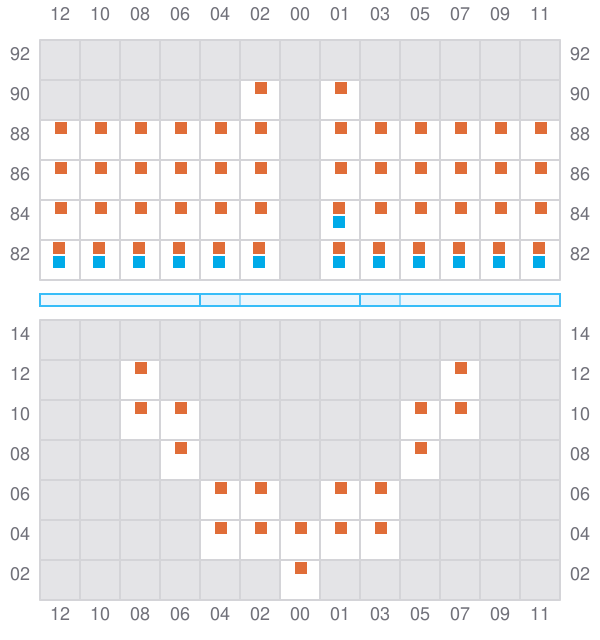

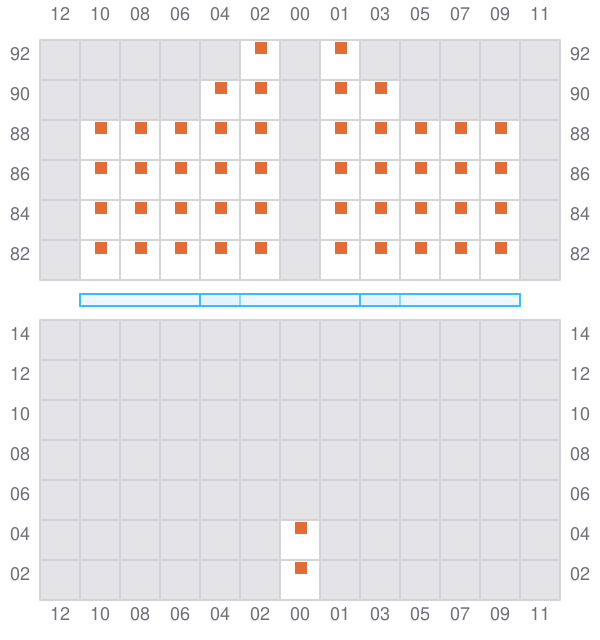

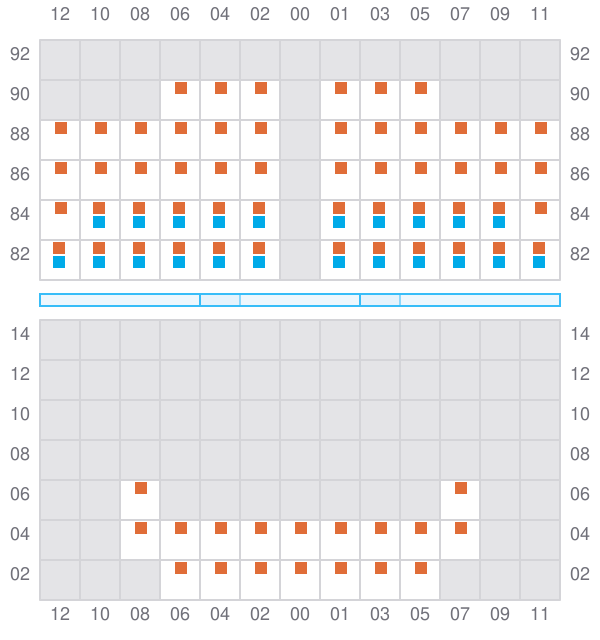

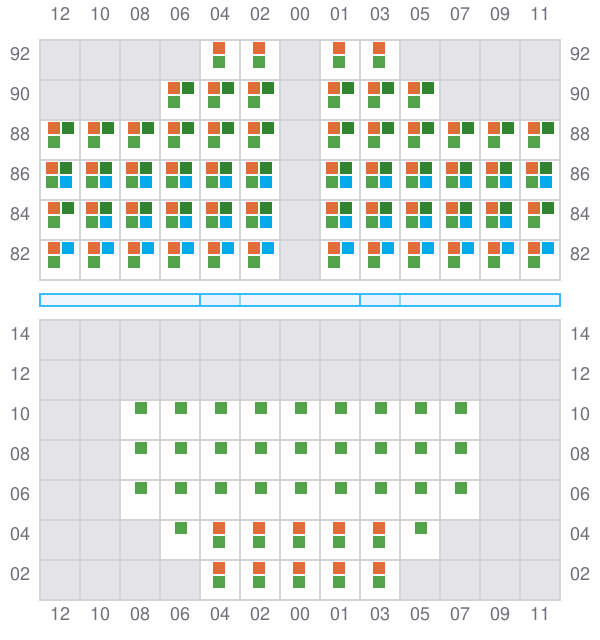

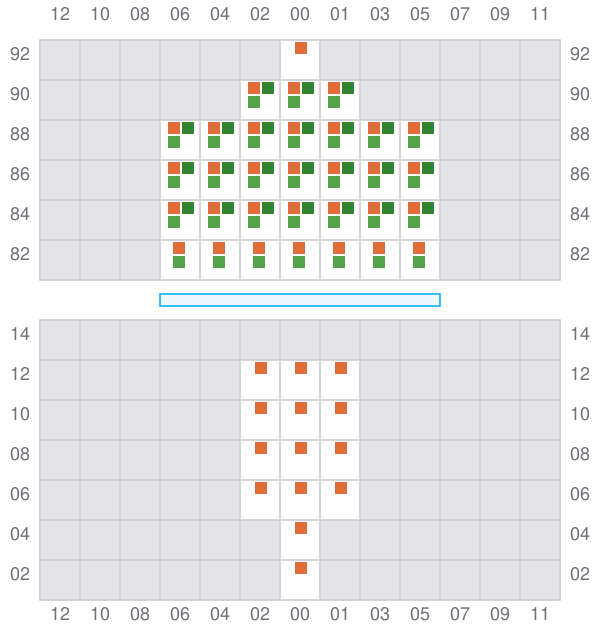

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- → / ?
003
- ← / ?

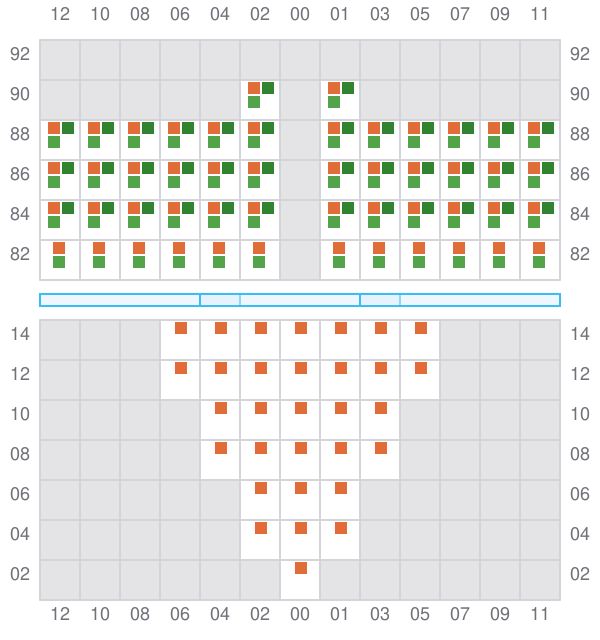

005 (006)
- → / ?

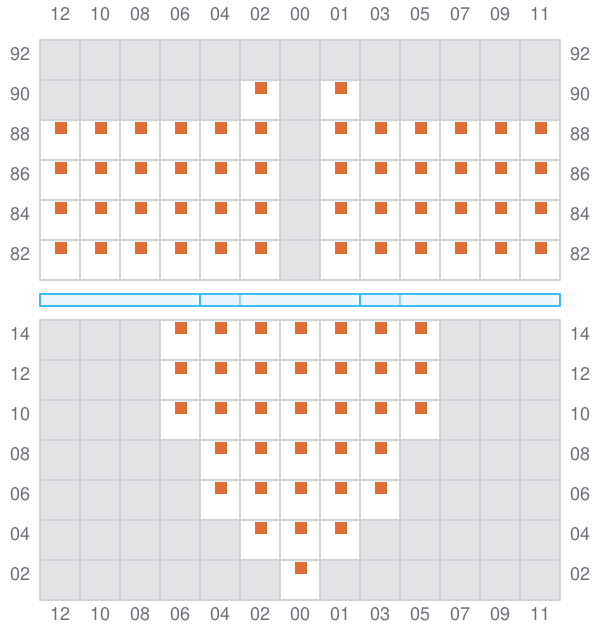

007
- ← / ?

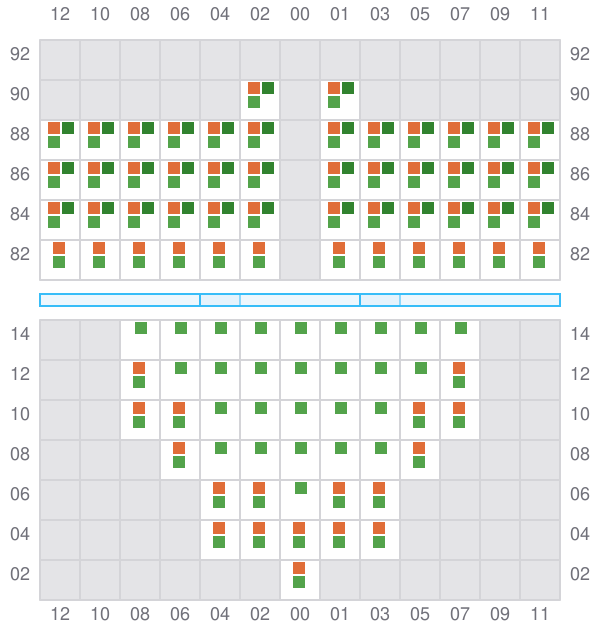

009 (010)
- →
011
- ←
- → / ?

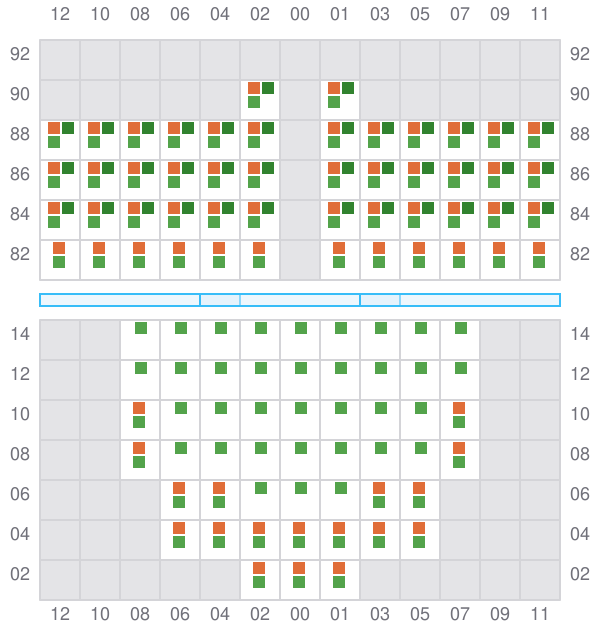

013 (014)
- →

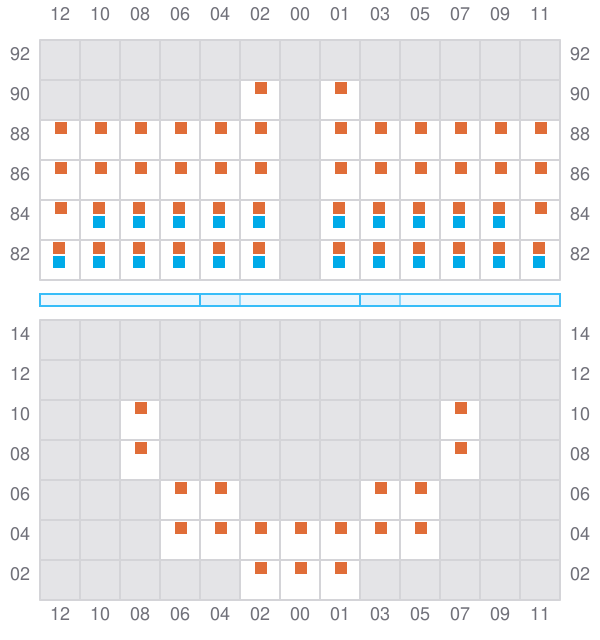

015
- ←
- → / ?

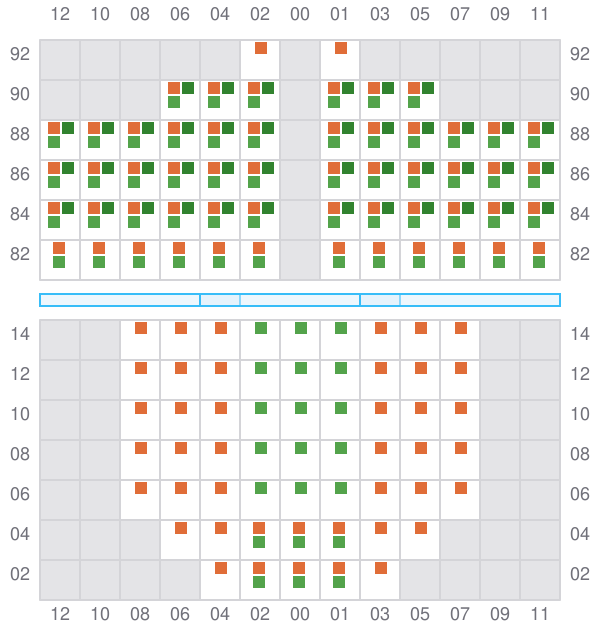

017 (018)
- →
- ? / →
019
- ←
- → / ?

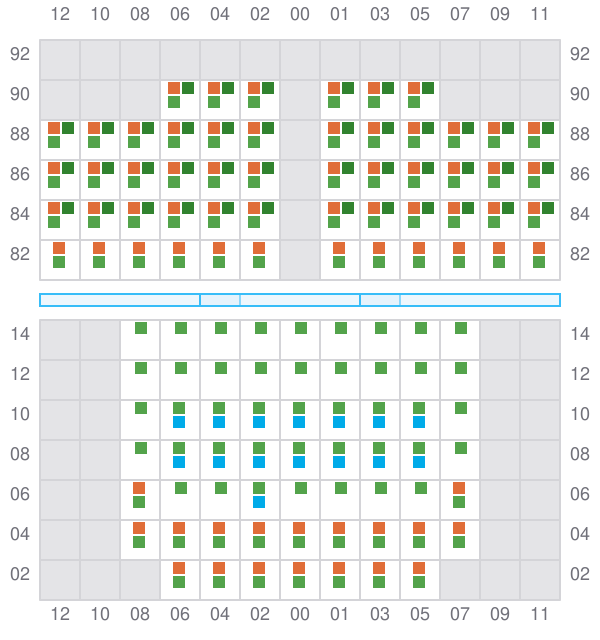

021 (022)
- →
- ? / →

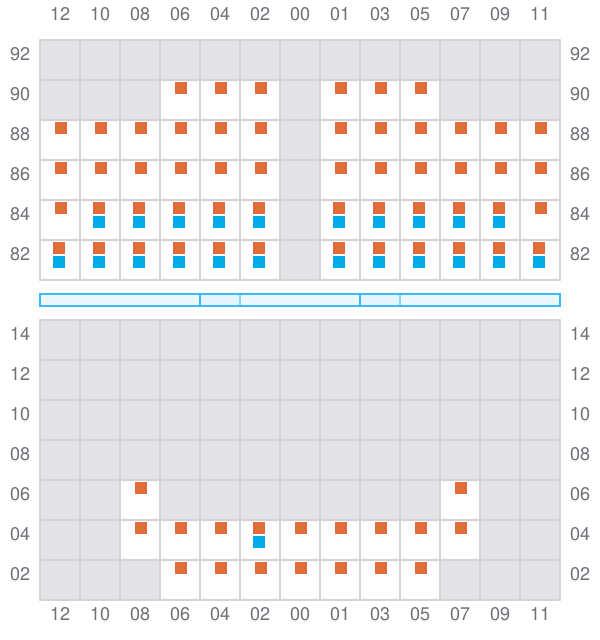

023
- ←
- →

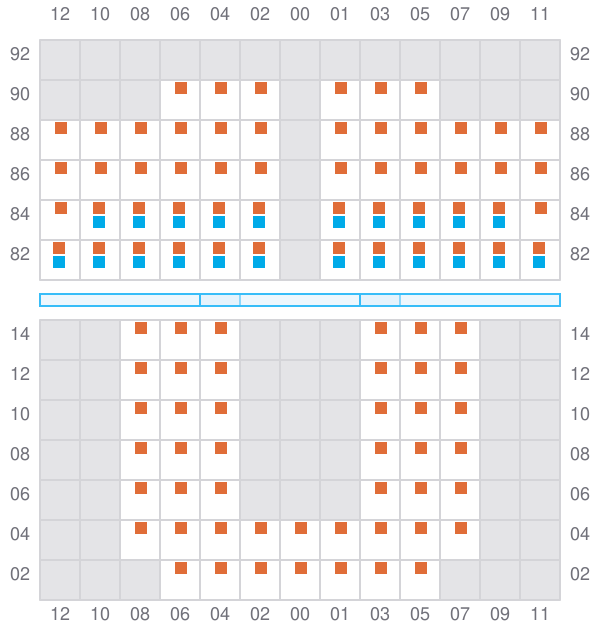

025 (026)
- →
027
- ←
- → / ?
029 (030)
- →
031
- ←
- → / ?
033 (034)
- →
- ? / →

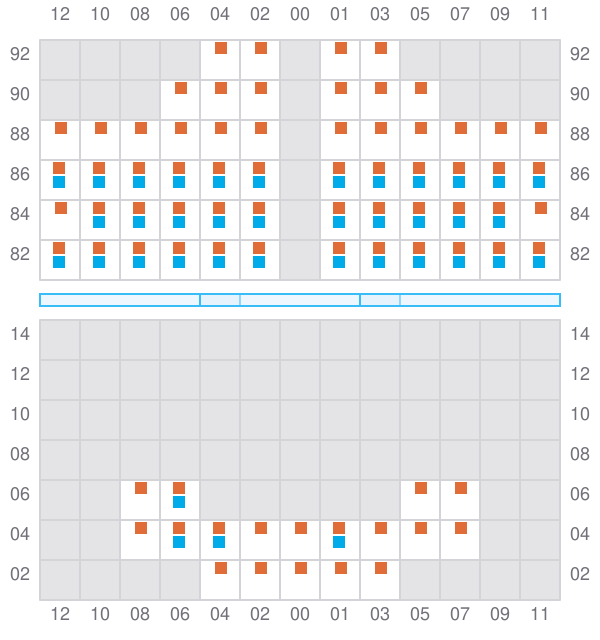

035
- ←
- →
037 (038)
- →
- ← / ?

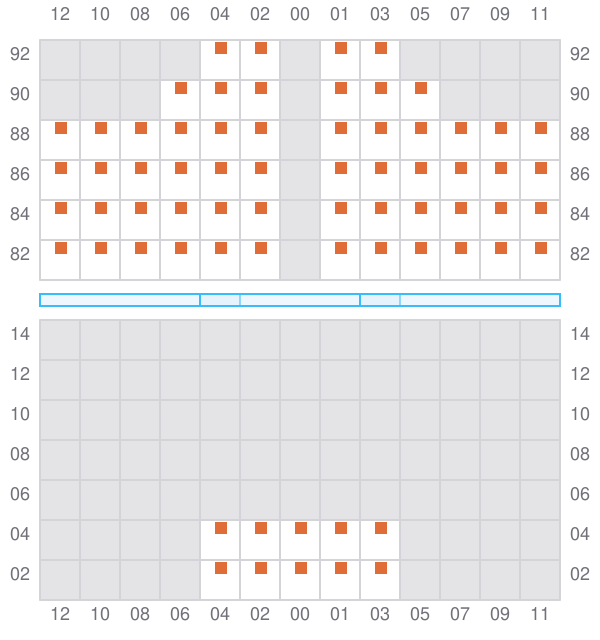

039
- ←
041 (042)
- →
043
- ←

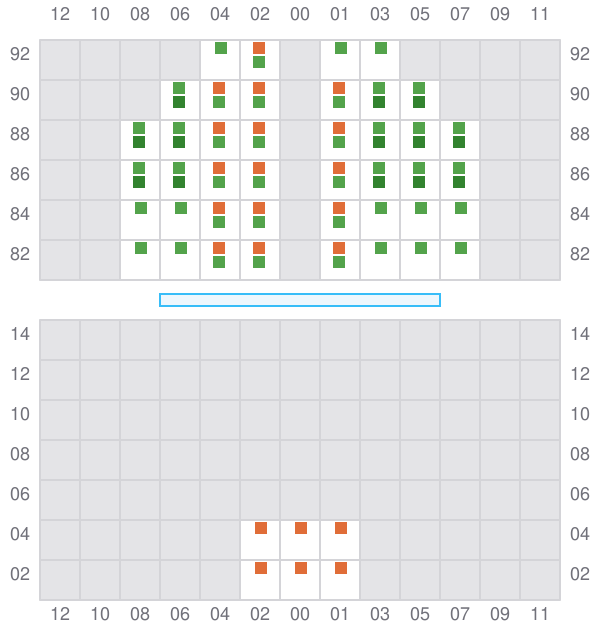

045 (046)
- → / ?

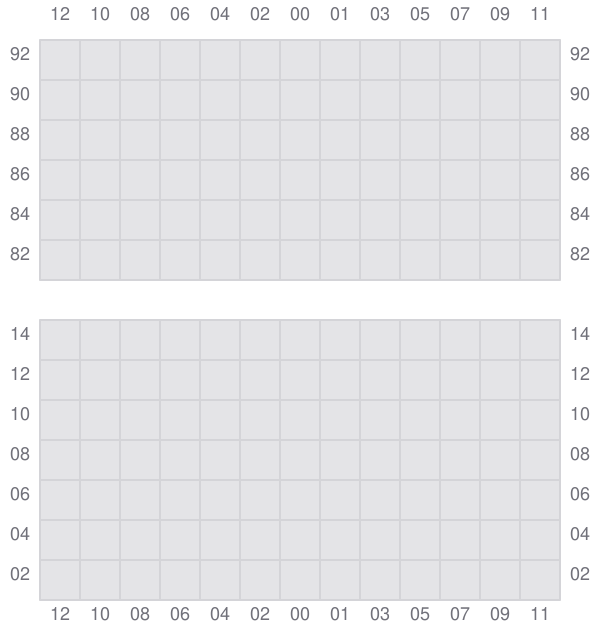

047

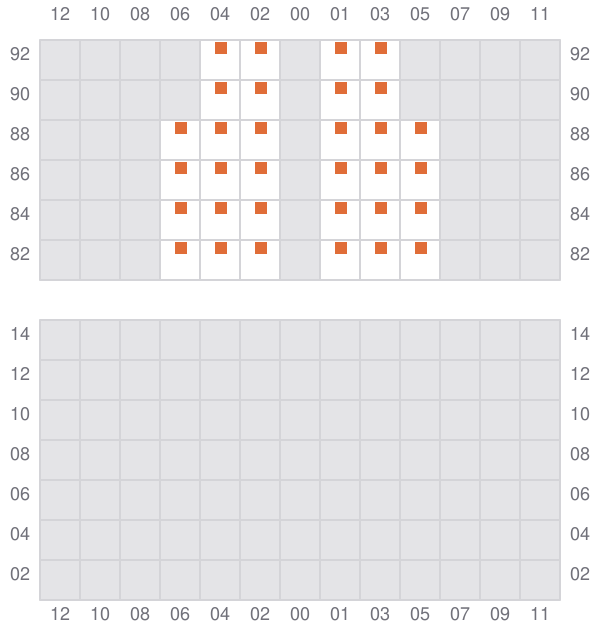

049
