MSC JANIS 3
9134490 | D5JJ5 | CNI by ************************** Last update: Wed Jun 28 2023

General Info

Ship Name:MSC JANIS 3
IMO Code:9134490
Call Sign:D5JJ5
Line Operator:CNI
Class Name for Sister Ships:ANTR
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,051

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

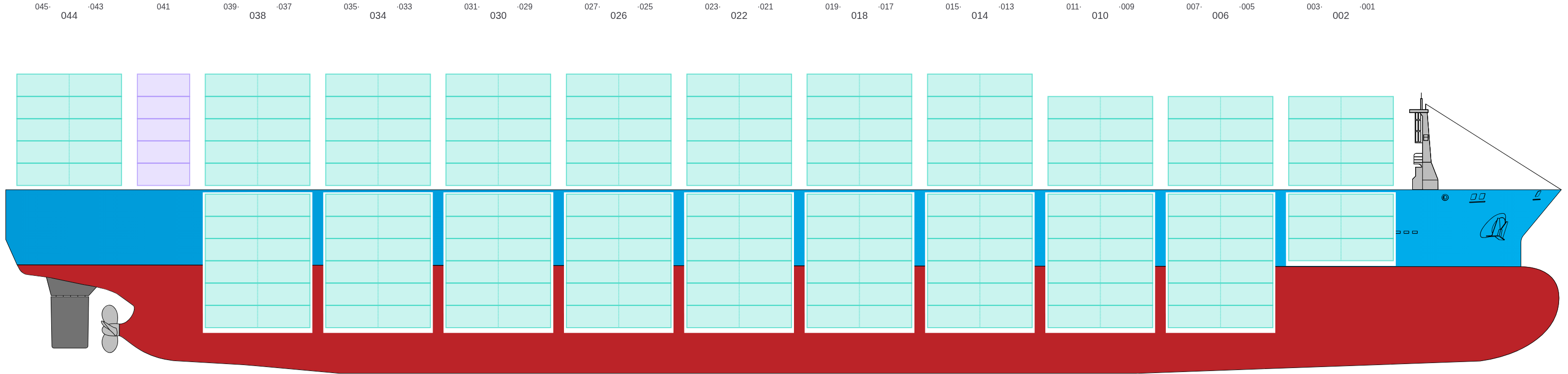

Side View

Side view of MSC JANIS 3

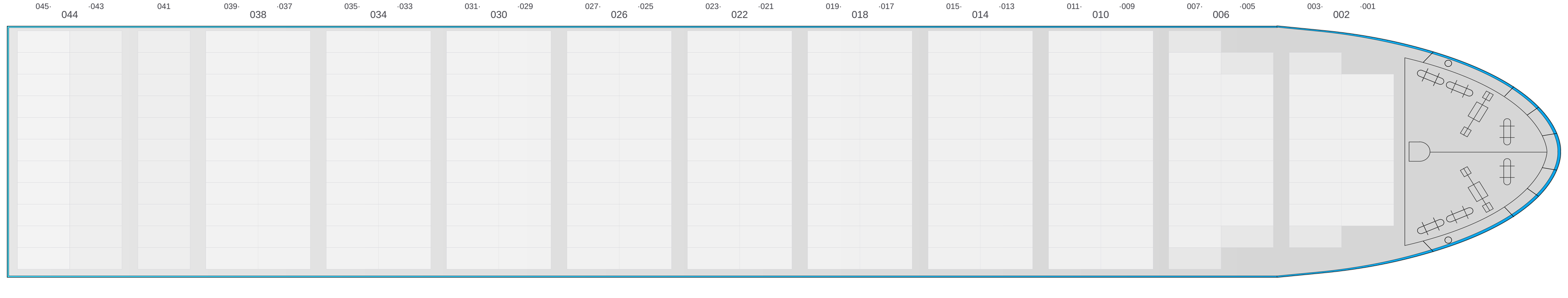

Hatch-Covers View

Deck view of MSC JANIS 3

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

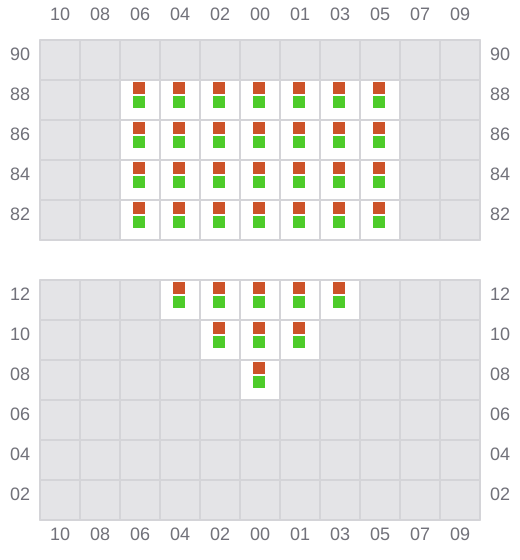

001 (002)

  • →
Bay 001 view and slots of MSC JANIS 3

003

  • ←

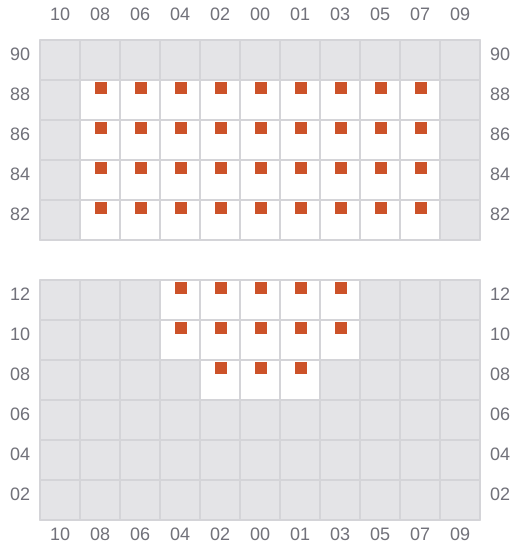

Bay 003 view and slots of MSC JANIS 3

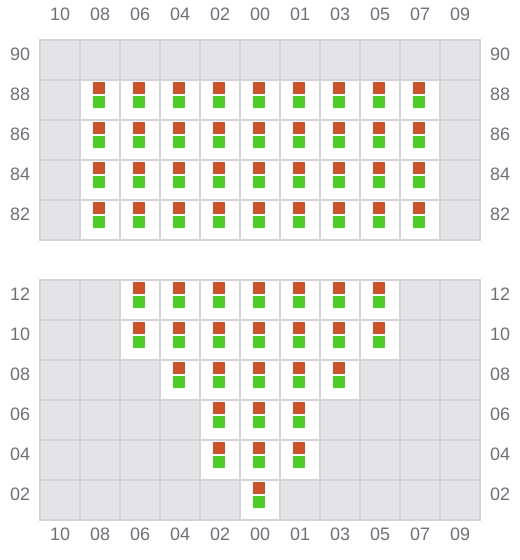

005 (006)

  • →
Bay 005 view and slots of MSC JANIS 3

007

  • ←

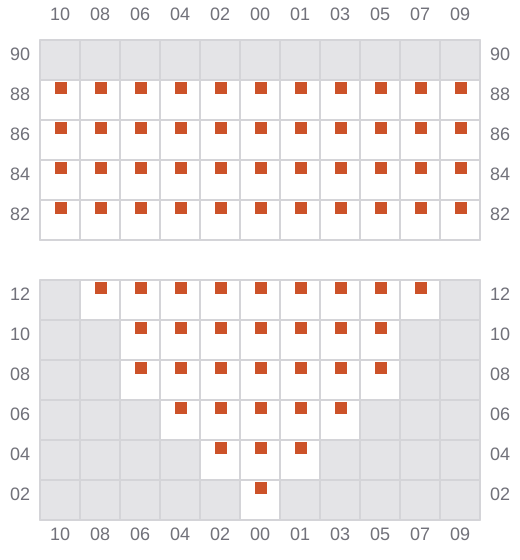

Bay 007 view and slots of MSC JANIS 3

009 (010)

  • →

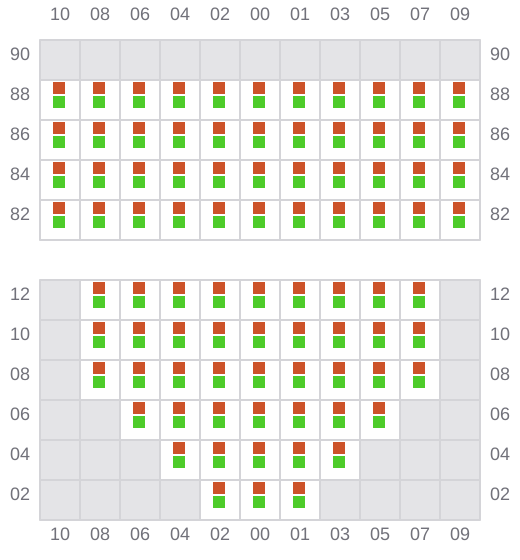

Bay 009 view and slots of MSC JANIS 3

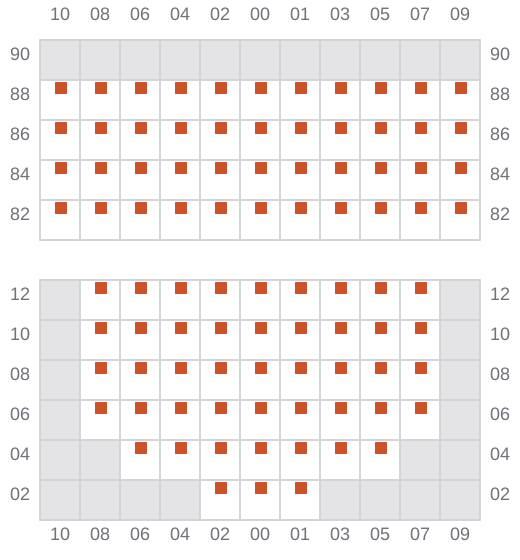

011

  • ←
Bay 011 view and slots of MSC JANIS 3

013 (014)

  • →
Bay 013 view and slots of MSC JANIS 3

015

  • ←
Bay 015 view and slots of MSC JANIS 3

017 (018)

  • →

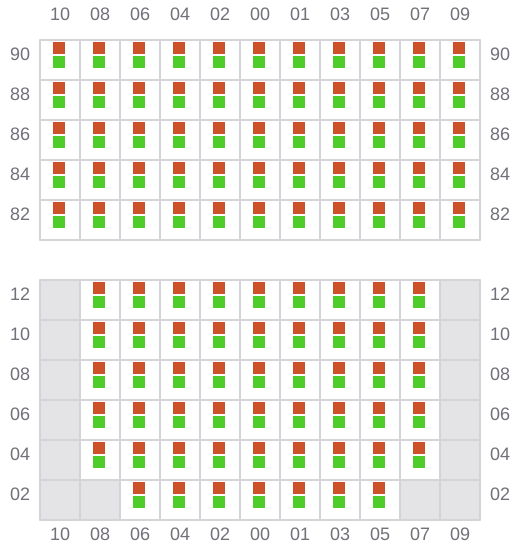

Bay 017 view and slots of MSC JANIS 3

019

  • ←

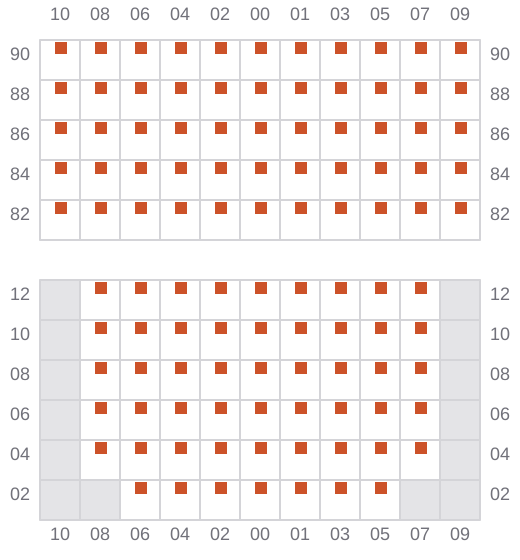

Bay 019 view and slots of MSC JANIS 3

021 (022)

  • →
Bay 021 view and slots of MSC JANIS 3

023

  • ←
Bay 023 view and slots of MSC JANIS 3

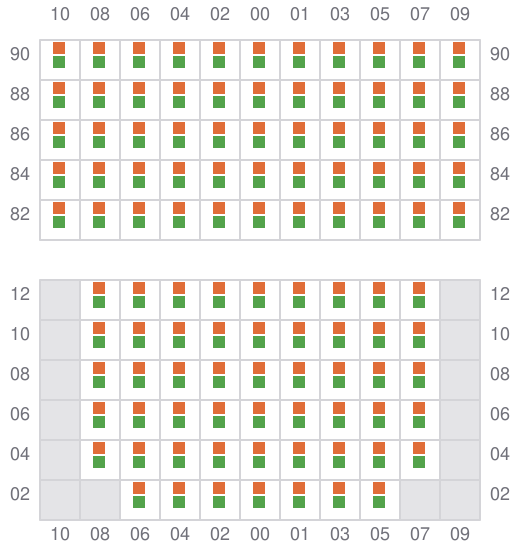

025 (026)

  • →
Bay 025 view and slots of MSC JANIS 3

027

  • ←
Bay 027 view and slots of MSC JANIS 3

029 (030)

  • →
Bay 029 view and slots of MSC JANIS 3

031

  • ←
Bay 031 view and slots of MSC JANIS 3

033 (034)

  • →
Bay 033 view and slots of MSC JANIS 3

035

  • ←

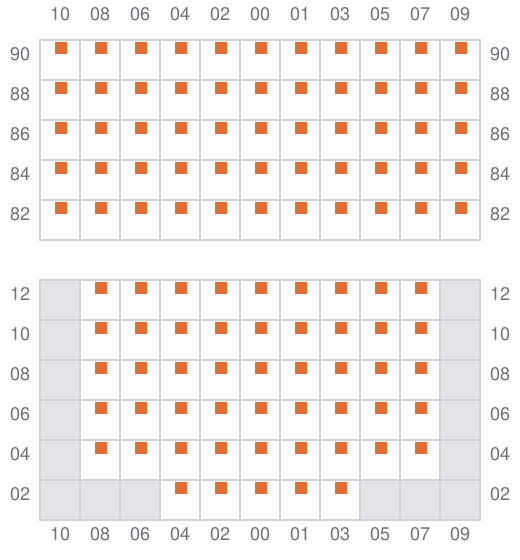

Bay 035 view and slots of MSC JANIS 3

037 (038)

  • →

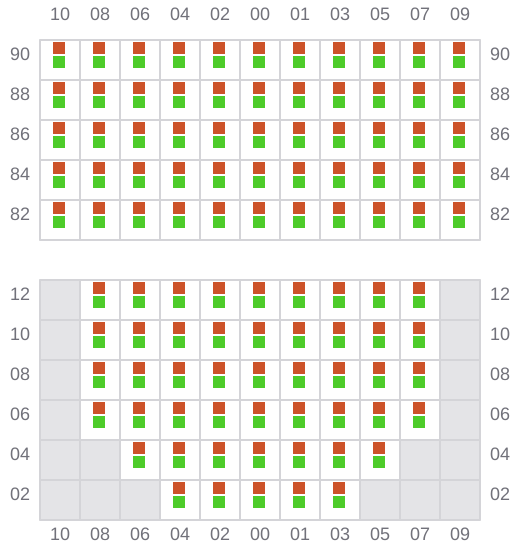

Bay 037 view and slots of MSC JANIS 3

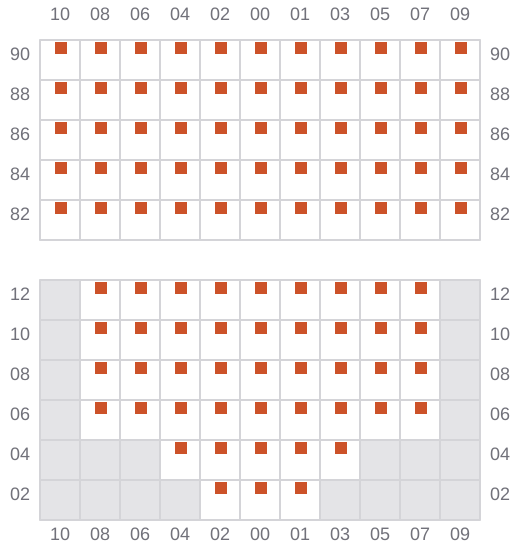

039

  • ←
Bay 039 view and slots of MSC JANIS 3

041

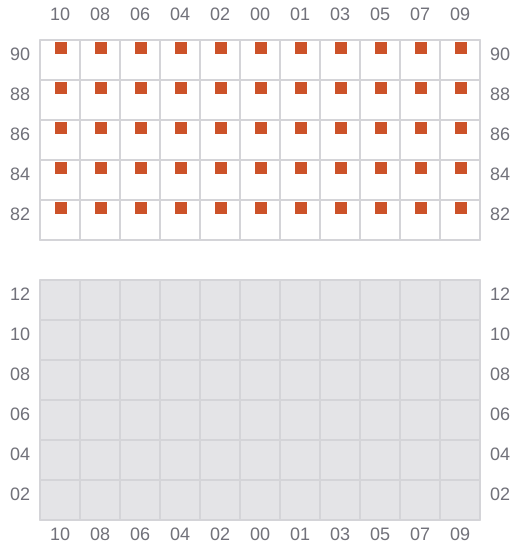

Bay 041 view and slots of MSC JANIS 3

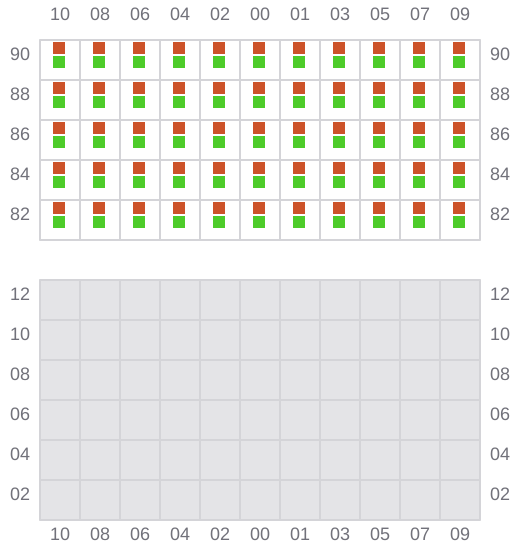

043 (044)

  • → / ?
Bay 043 view and slots of MSC JANIS 3

045

  • ← / ?
Bay 045 view and slots of MSC JANIS 3
