The TEDIVO Vessel Designer allows you to create and download your own vessel
definitions.
MSC JANIS 3
9134490 | D5JJ5 | 9134490 by ********* Last update: Fri May 17 2024
General Info
Ship Name:MSC JANIS 3
IMO Code:9134490
Call Sign:D5JJ5
Line Operator:9134490
Class Name for Sister Ships:CONTI SEATTLE
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):195.00
LOA (Length Overall):205.50
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,043
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

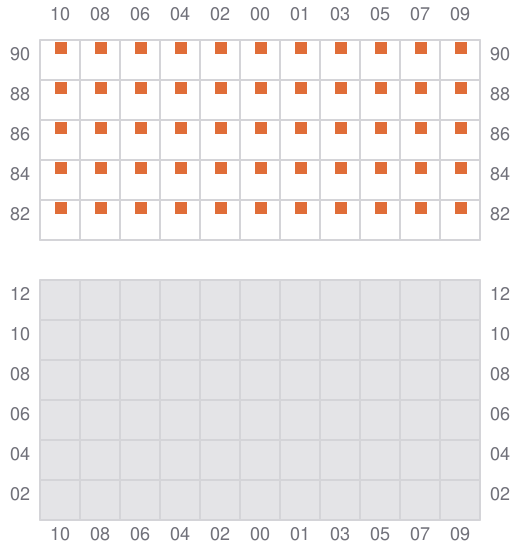

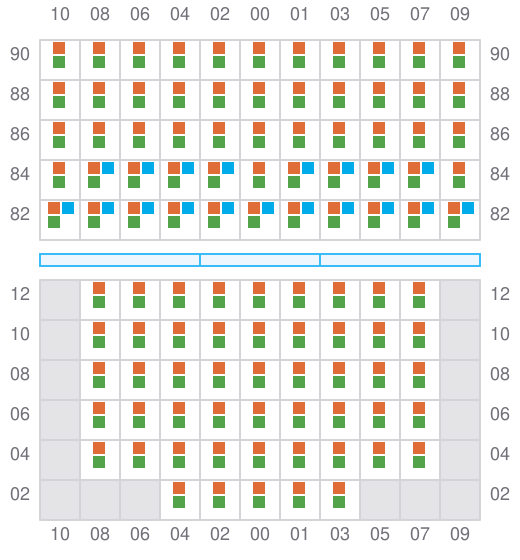

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

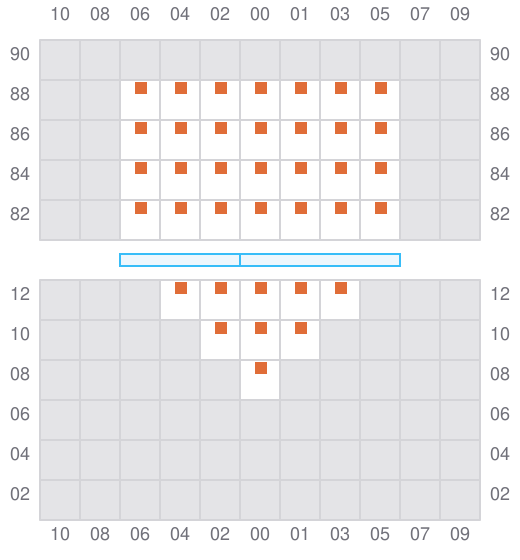

001
- →

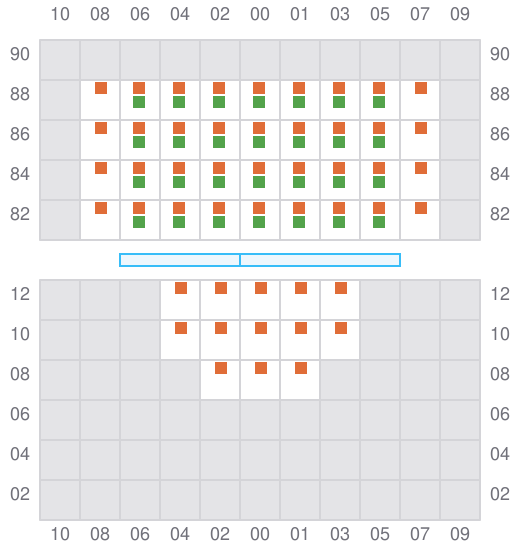

003 (002)
- ←

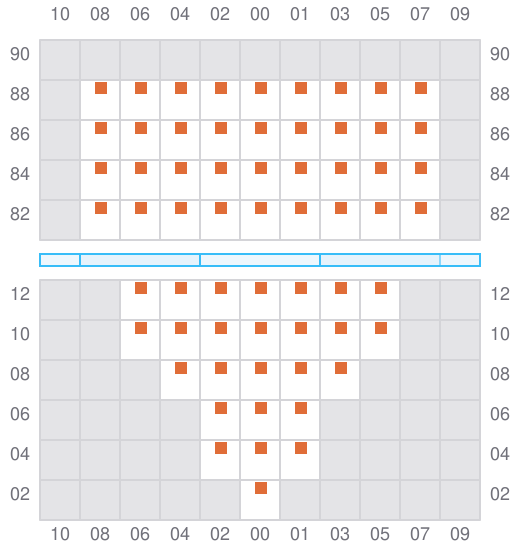

005
- →

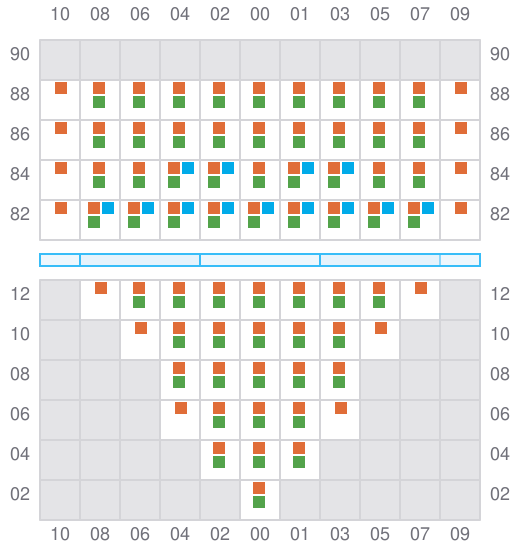

007 (006)
- ←

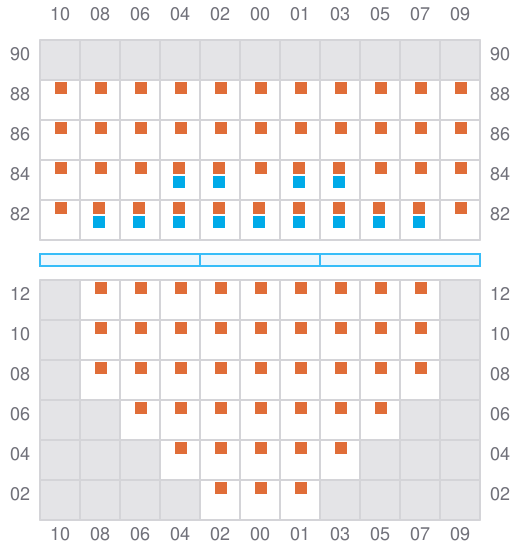

009
- →

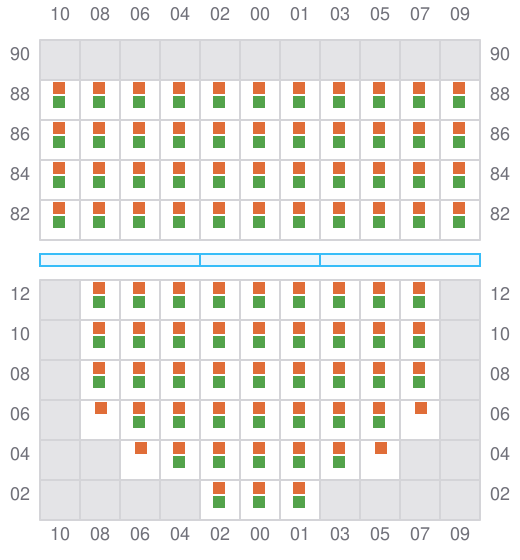

011 (010)
- ←

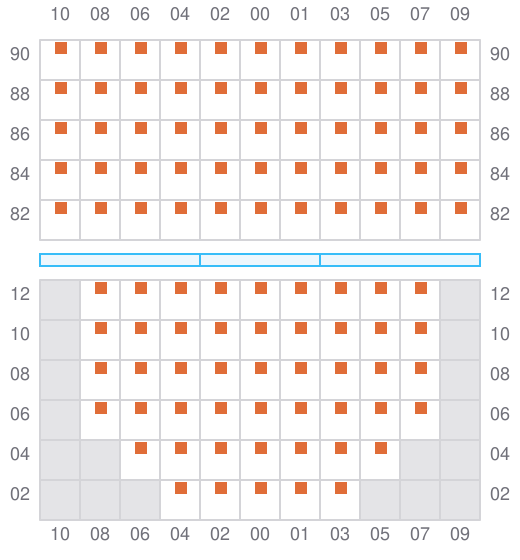

013
- →
015 (014)
- ←
017
- →

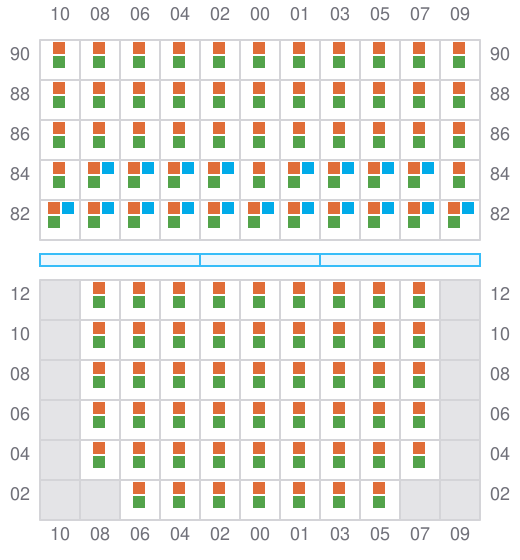

019 (018)
- ←
021
- →

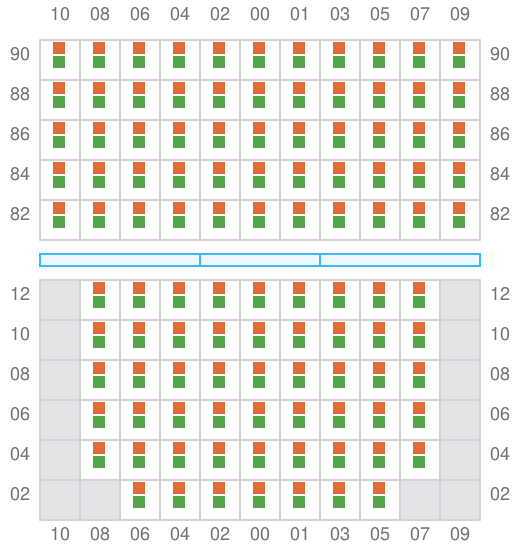

023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←

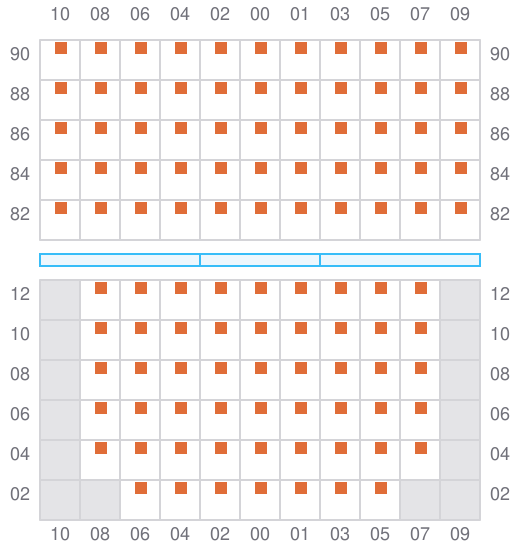

033
- →
035 (034)
- ←

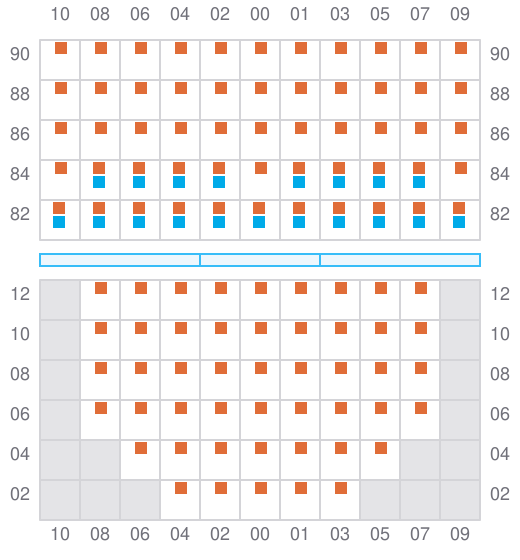

037
- →

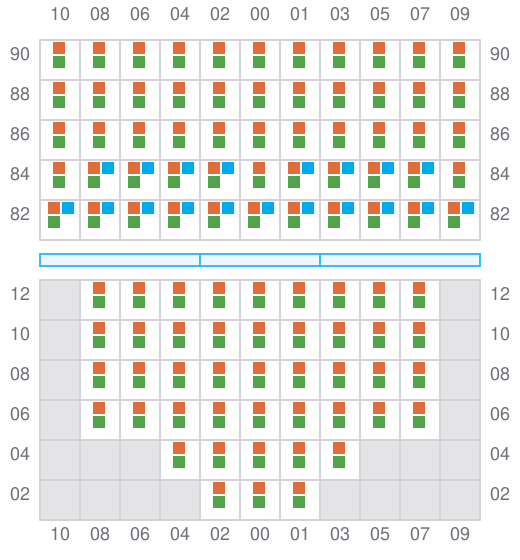

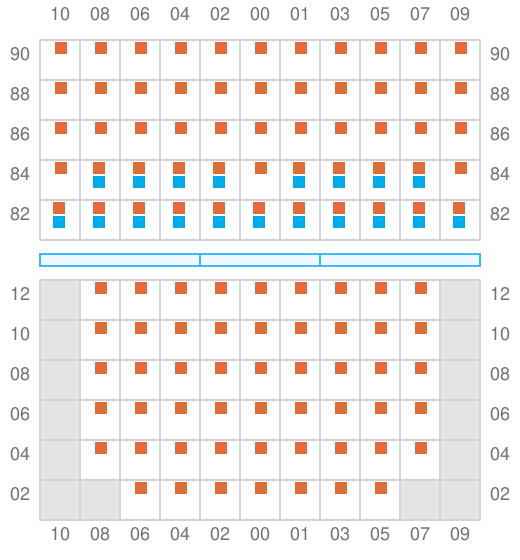

039 (038)
- ←

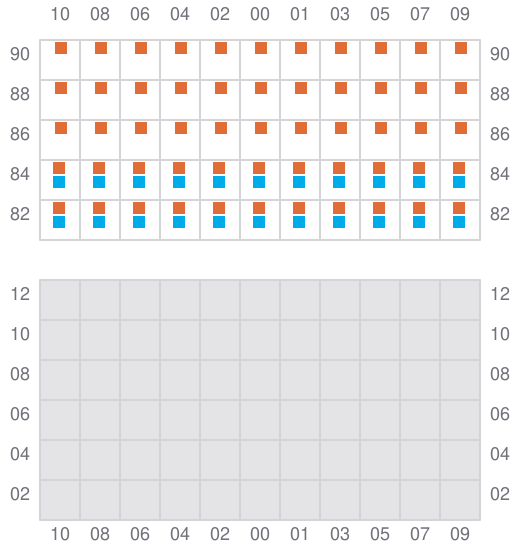

041
043
- → / ?

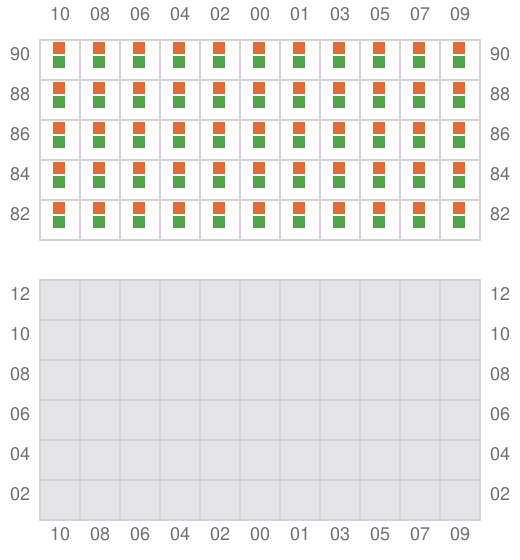

045 (044)
- ← / ?
