MSC JAPAN
9110975 | 3ECR5 | MSC by ************************** Last update: Sat Jun 17 2023

General Info

Ship Name:MSC JAPAN
IMO Code:9110975
Call Sign:3ECR5
Line Operator:MSC
Class Name for Sister Ships:JAP
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:057
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,416

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

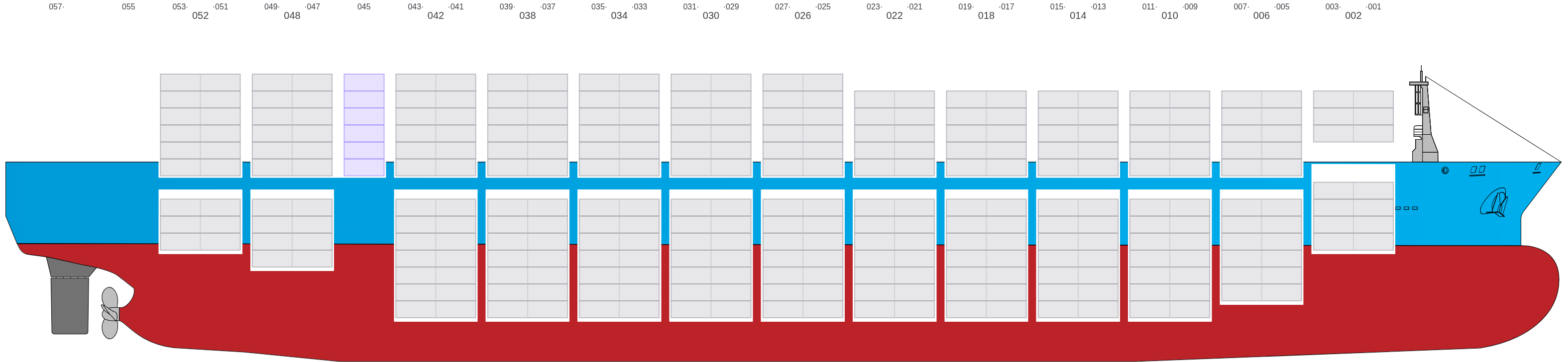

Side view of MSC JAPAN

Hatch-Covers View

Deck view of MSC JAPAN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

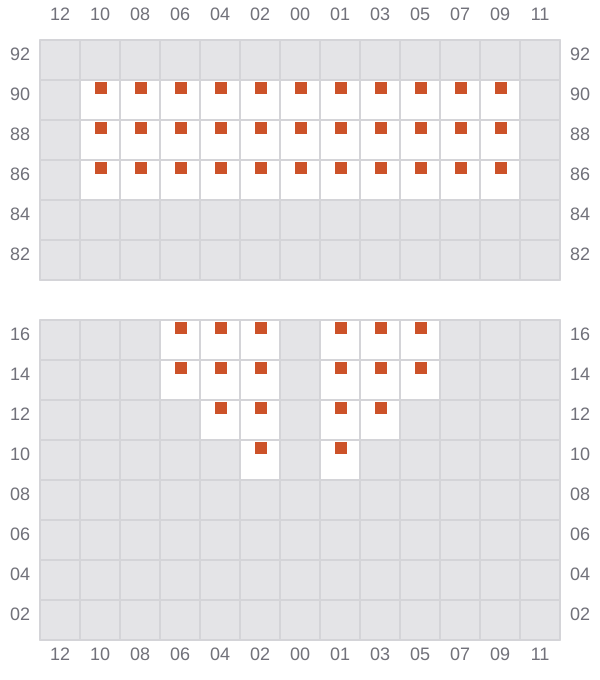

Bay 001 view and slots of MSC JAPAN

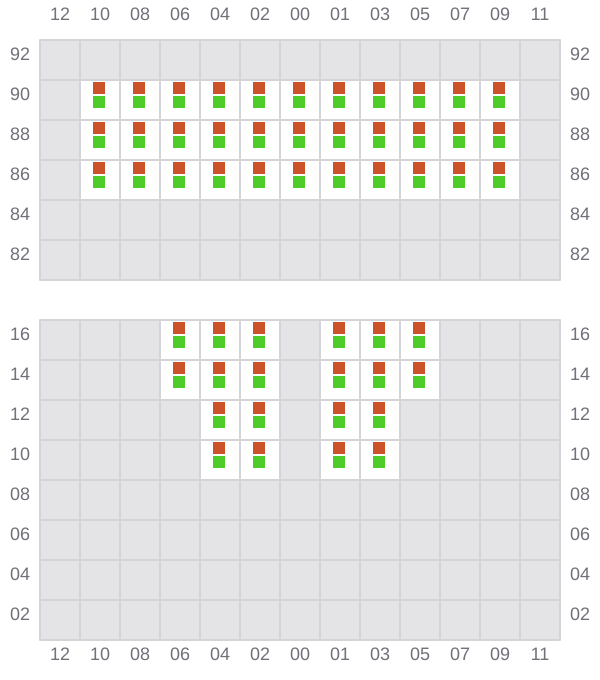

003 (002)

Bay 003 view and slots of MSC JAPAN

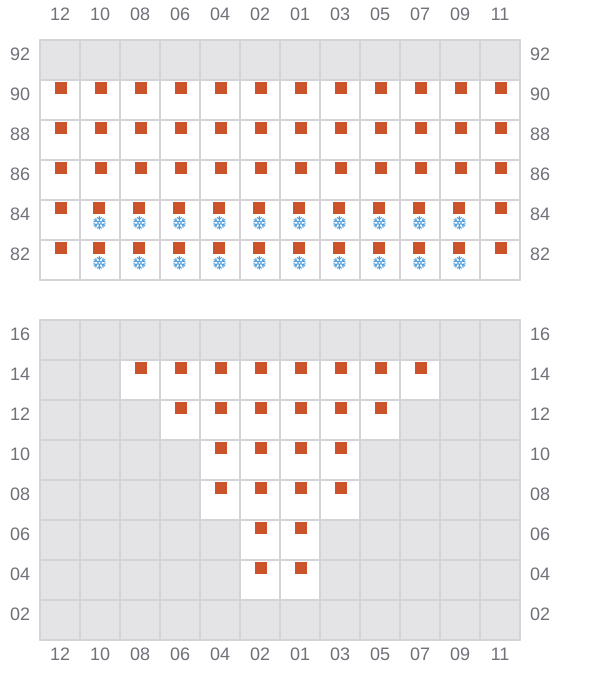

005

Bay 005 view and slots of MSC JAPAN

007 (006)

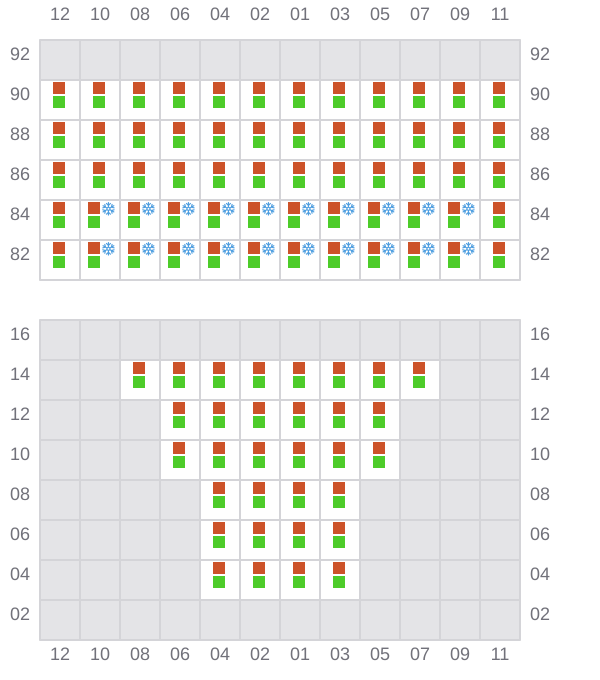

Bay 007 view and slots of MSC JAPAN

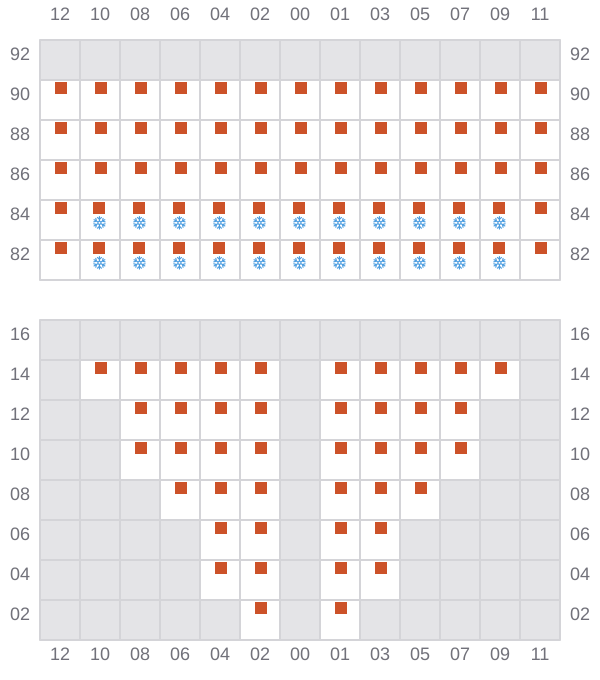

009

Bay 009 view and slots of MSC JAPAN

011 (010)

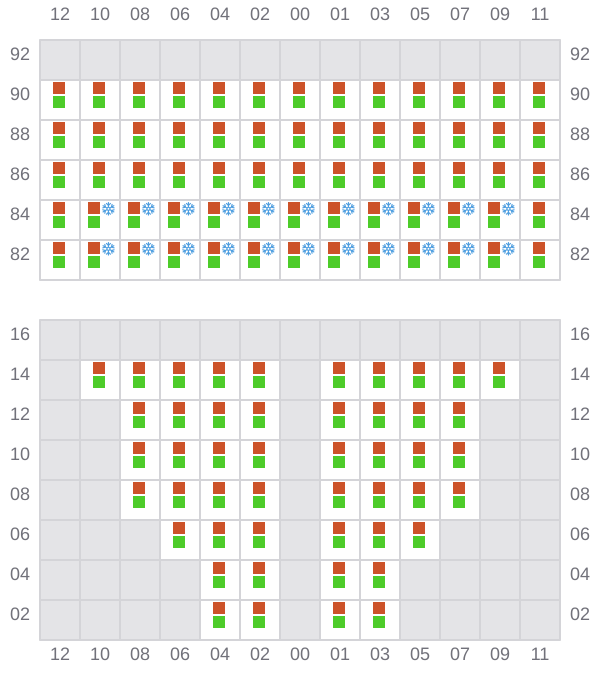

Bay 011 view and slots of MSC JAPAN

013

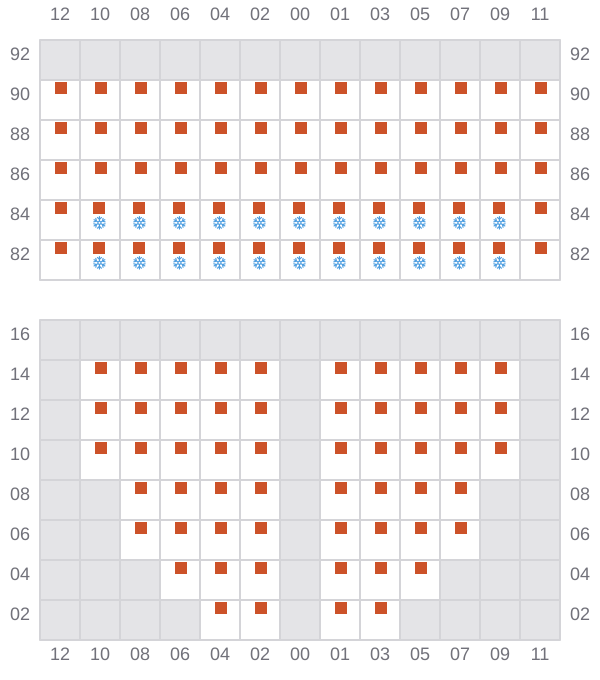

Bay 013 view and slots of MSC JAPAN

015 (014)

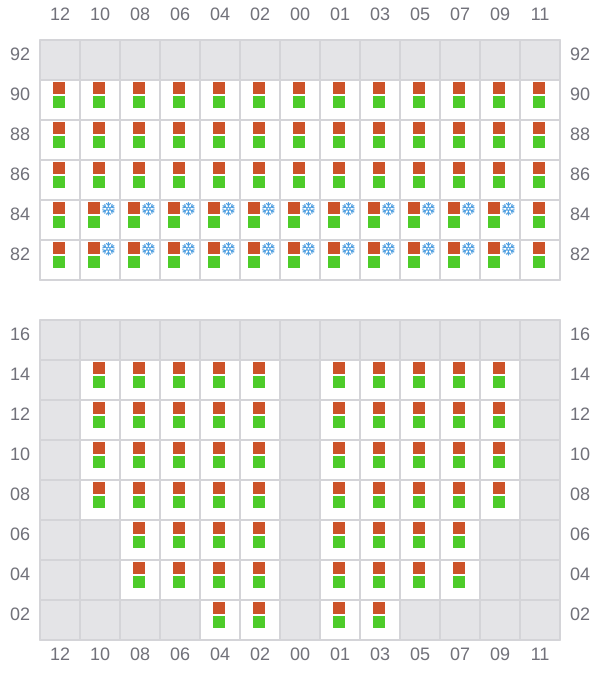

Bay 015 view and slots of MSC JAPAN

017

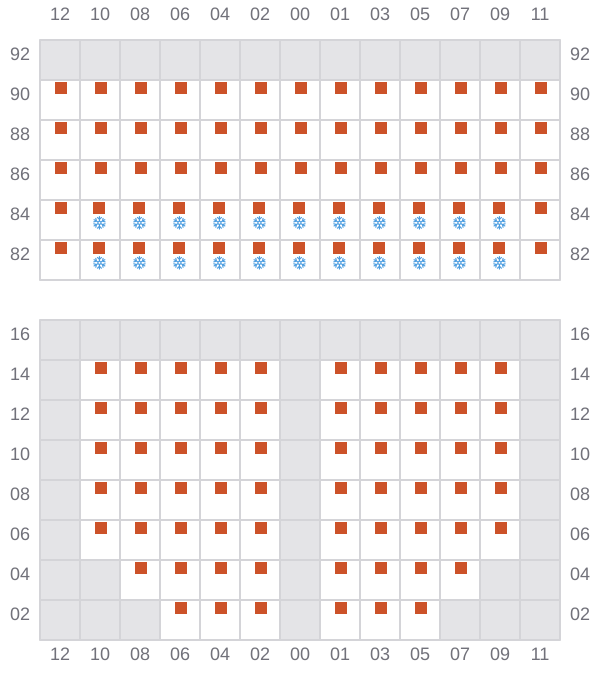

Bay 017 view and slots of MSC JAPAN

019 (018)

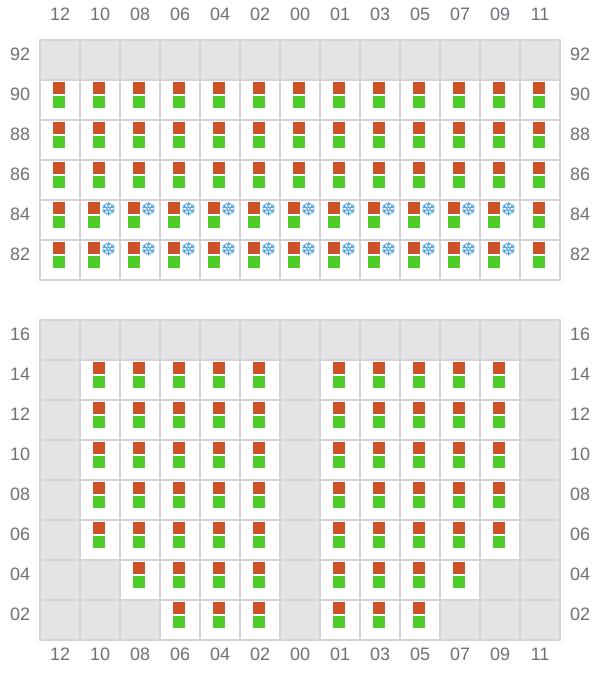

Bay 019 view and slots of MSC JAPAN

021

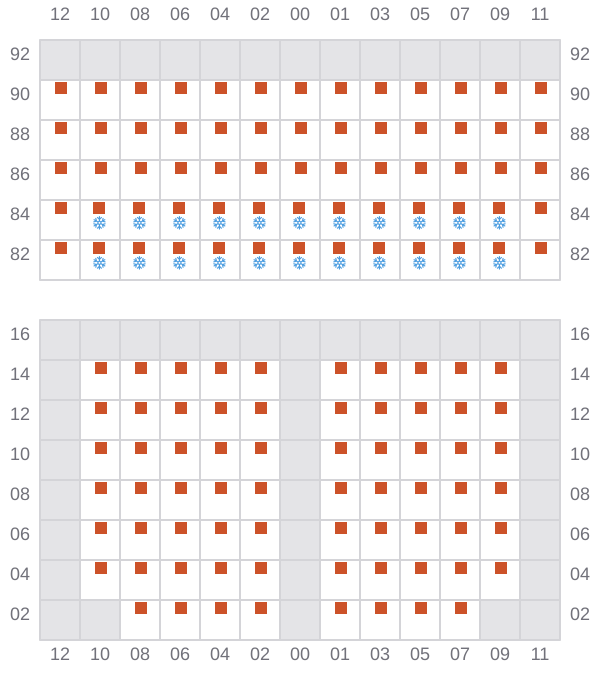

Bay 021 view and slots of MSC JAPAN

023 (022)

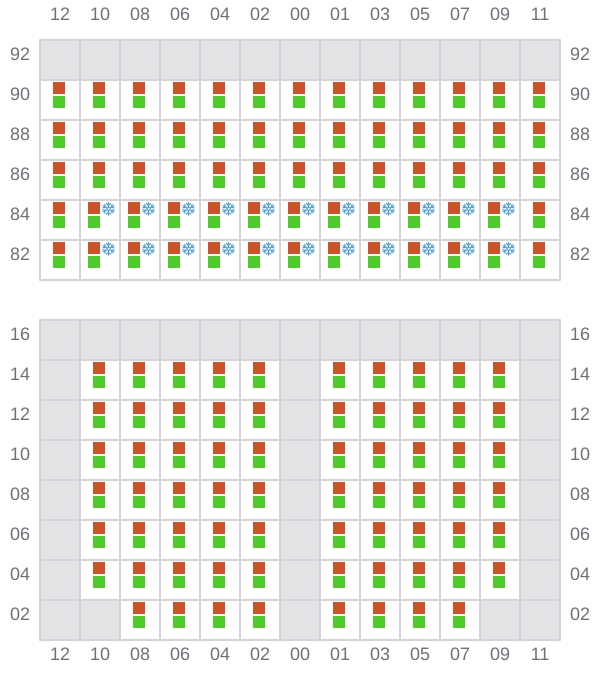

Bay 023 view and slots of MSC JAPAN

025

Bay 025 view and slots of MSC JAPAN

027 (026)

Bay 027 view and slots of MSC JAPAN

029

Bay 029 view and slots of MSC JAPAN

031 (030)

Bay 031 view and slots of MSC JAPAN

033

Bay 033 view and slots of MSC JAPAN

035 (034)

Bay 035 view and slots of MSC JAPAN

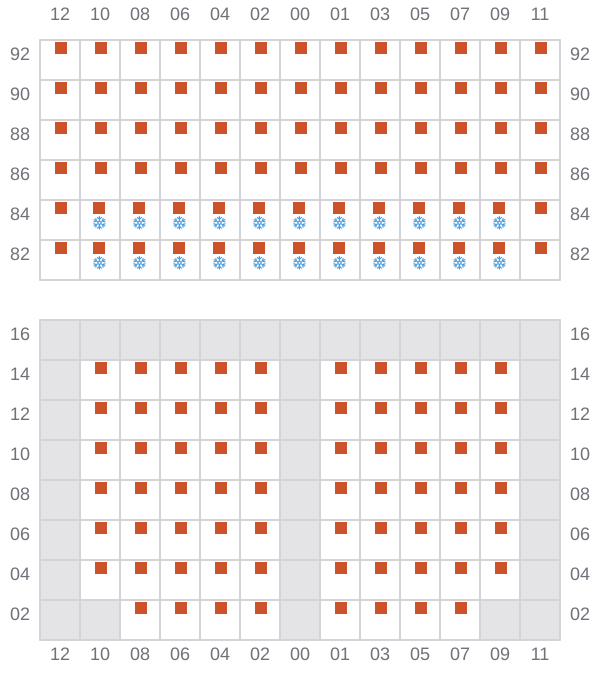

037

Bay 037 view and slots of MSC JAPAN

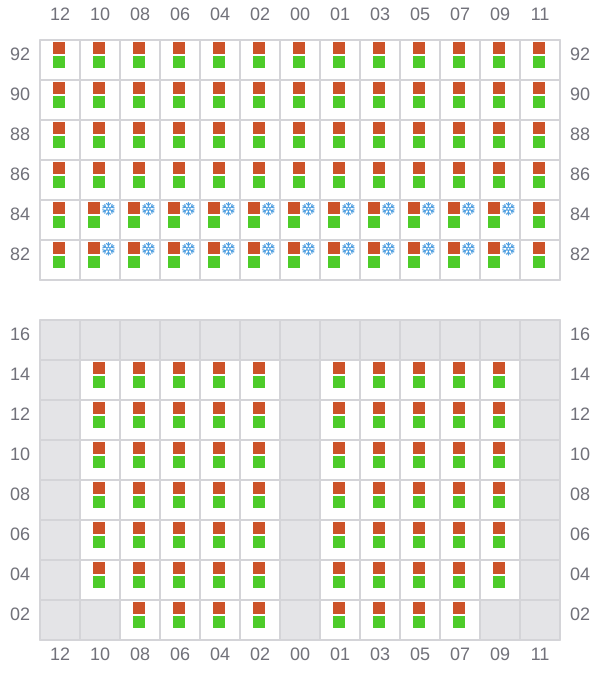

039 (038)

Bay 039 view and slots of MSC JAPAN

041

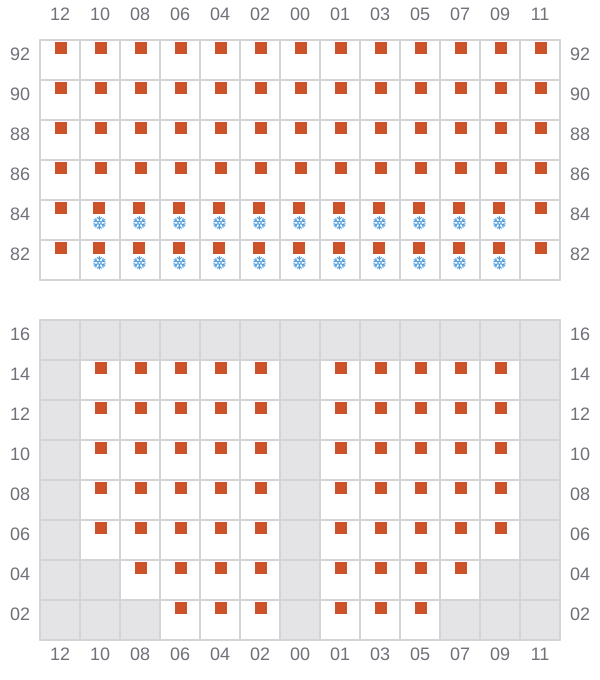

Bay 041 view and slots of MSC JAPAN

043 (042)

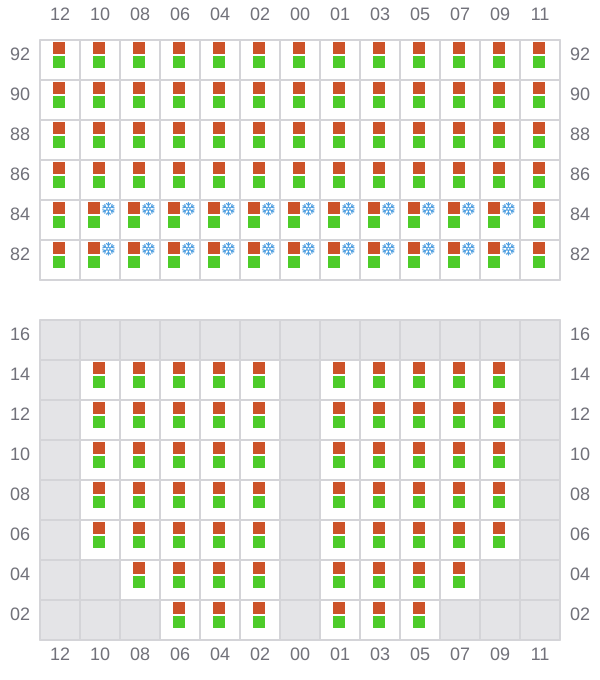

Bay 043 view and slots of MSC JAPAN

045

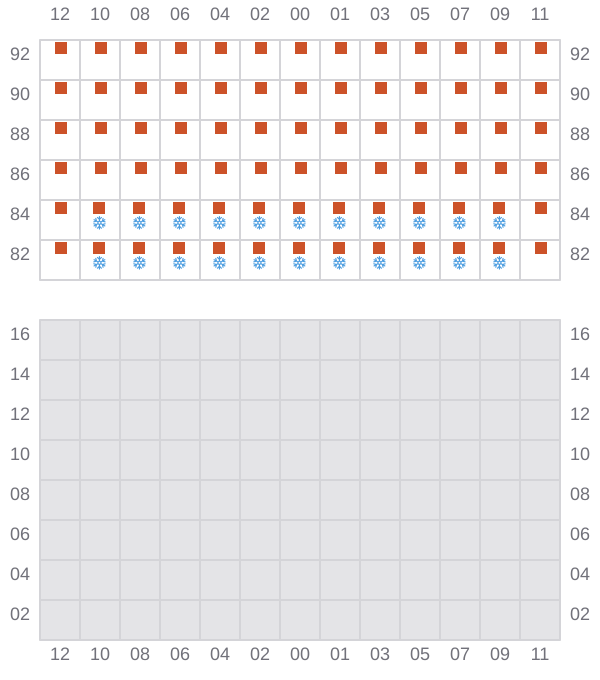

Bay 045 view and slots of MSC JAPAN

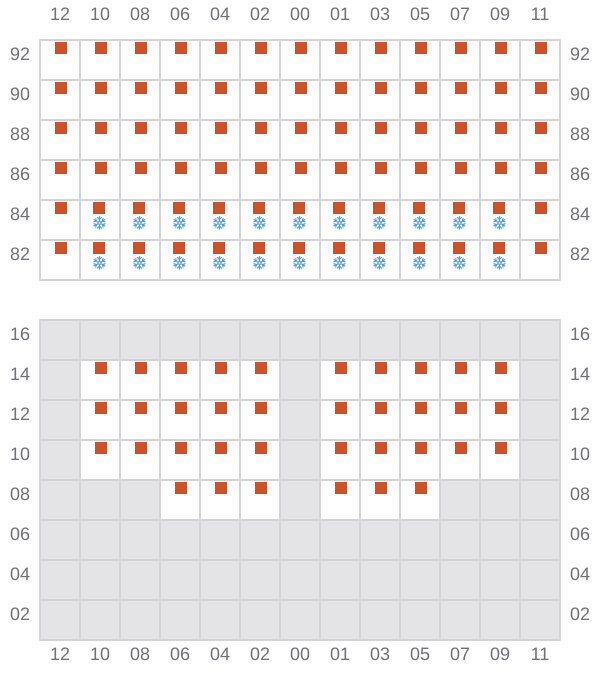

047

Bay 047 view and slots of MSC JAPAN

049 (048)

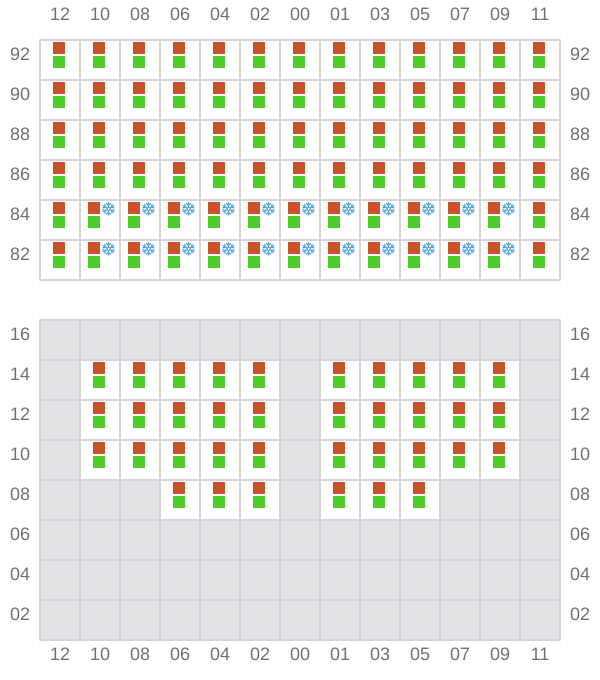

Bay 049 view and slots of MSC JAPAN

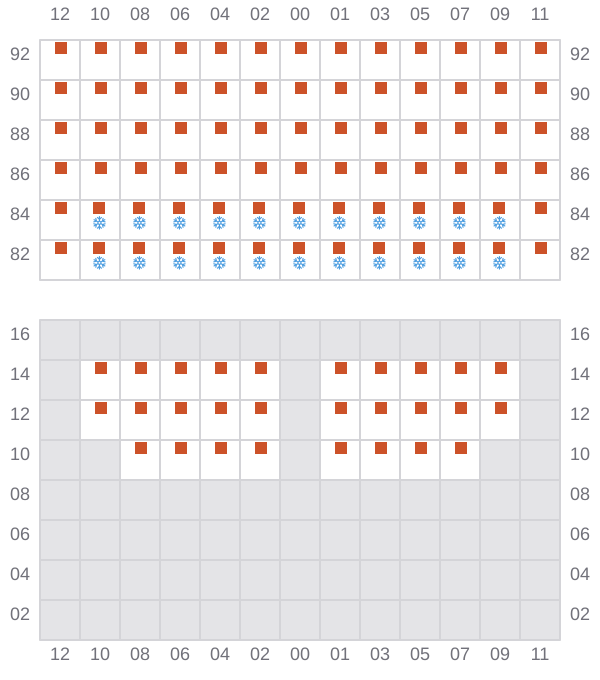

051

Bay 051 view and slots of MSC JAPAN

053 (052)

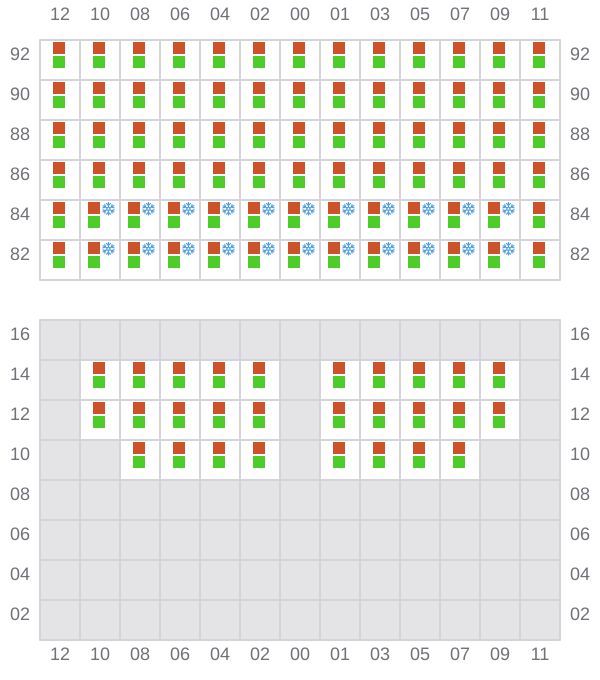

Bay 053 view and slots of MSC JAPAN

055

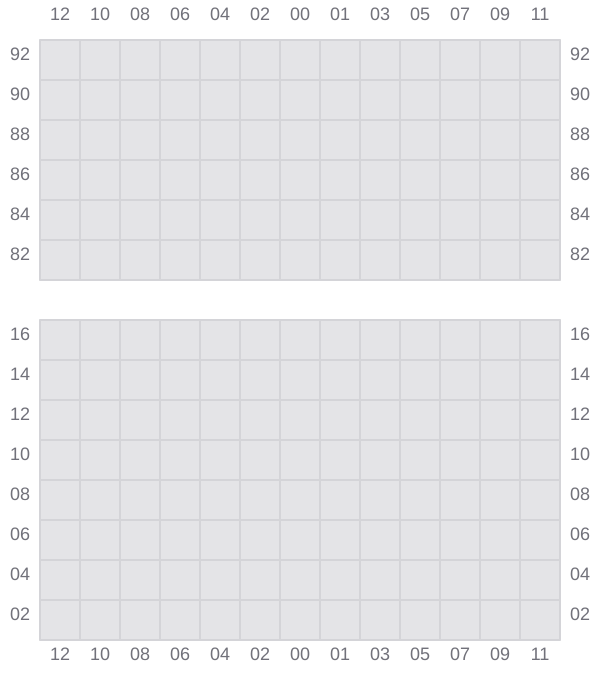

Bay 055 view and slots of MSC JAPAN

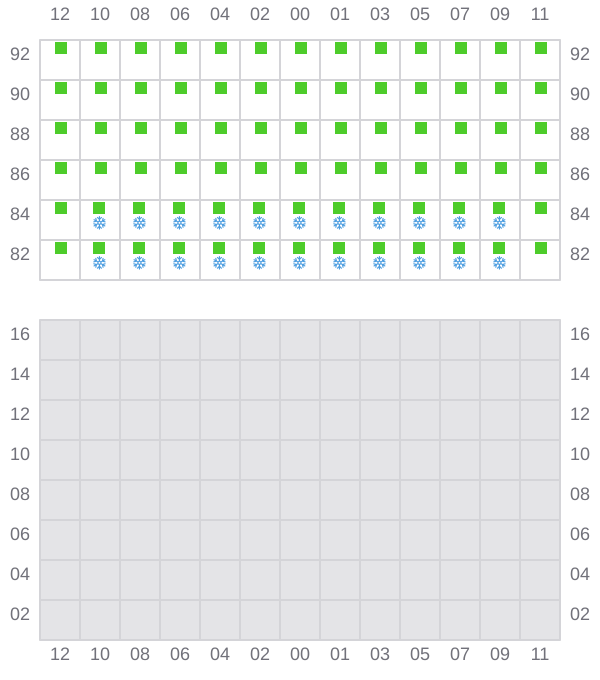

057 (056)

Bay 057 view and slots of MSC JAPAN
