MSC JASPER VIII
9466960 | CQIP9 | 9466960 by ********* Last update: Wed Mar 27 2024

General Info

Ship Name:MSC JASPER VIII

IMO Code:9466960

Call Sign:CQIP9

Line Operator:9466960

Class Name for Sister Ships:62P

Year Built:2009

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):317.21

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:077

Max ISO Row:16

Center Line Row:Yes

Max Above ISO Tier:96

Min Above ISO Tier:80

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:8,411

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

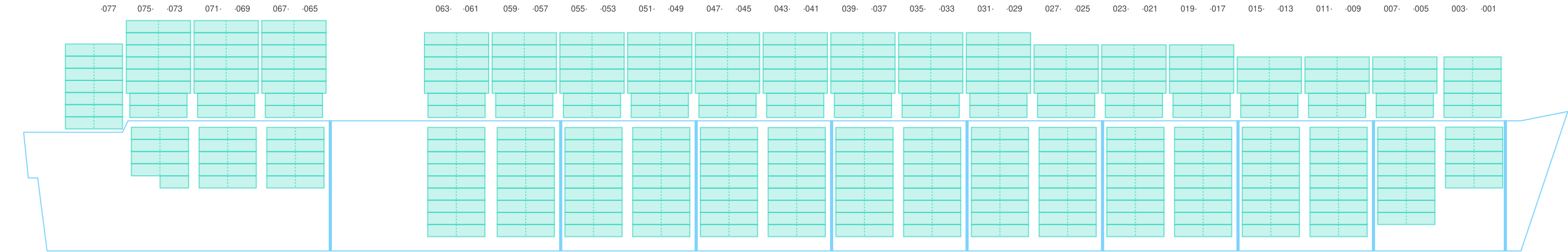

Side view of MSC JASPER VIII

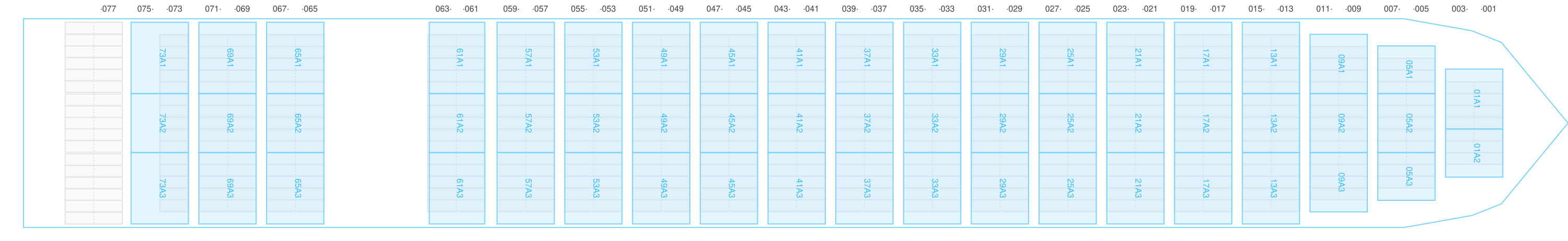

Hatch-Covers View

Deck view of MSC JASPER VIII

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

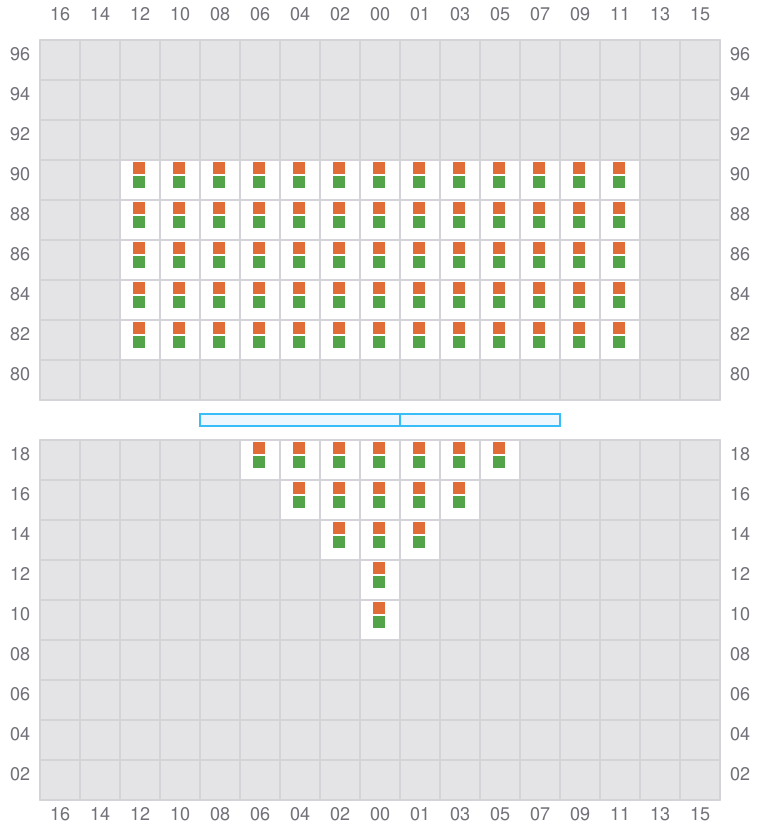

Bay 001 view and slots of MSC JASPER VIII

003

←

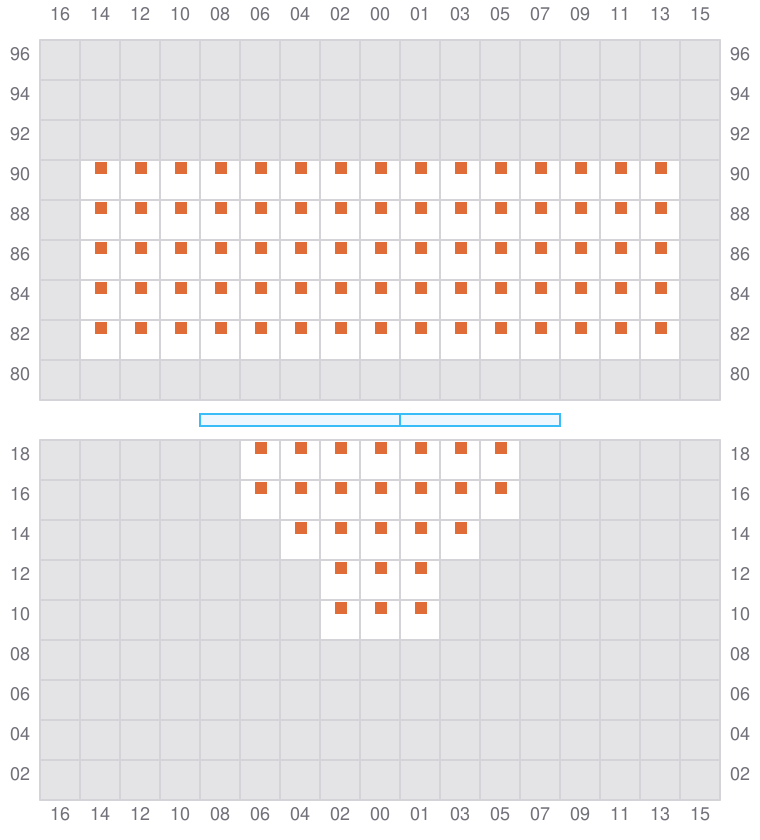

Bay 003 view and slots of MSC JASPER VIII

005 (006)

→

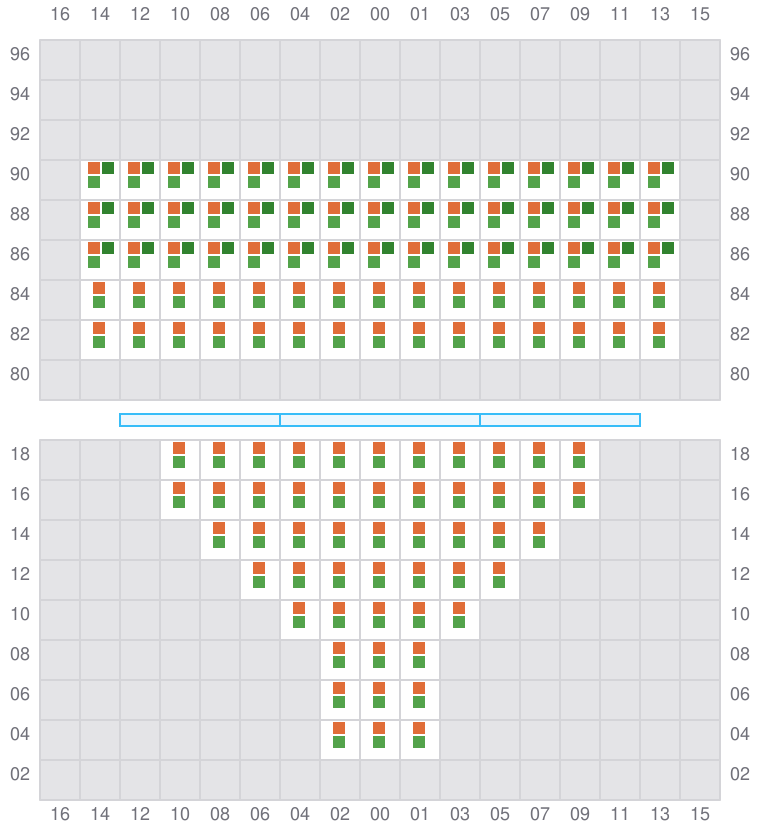

Bay 005 view and slots of MSC JASPER VIII

007

←

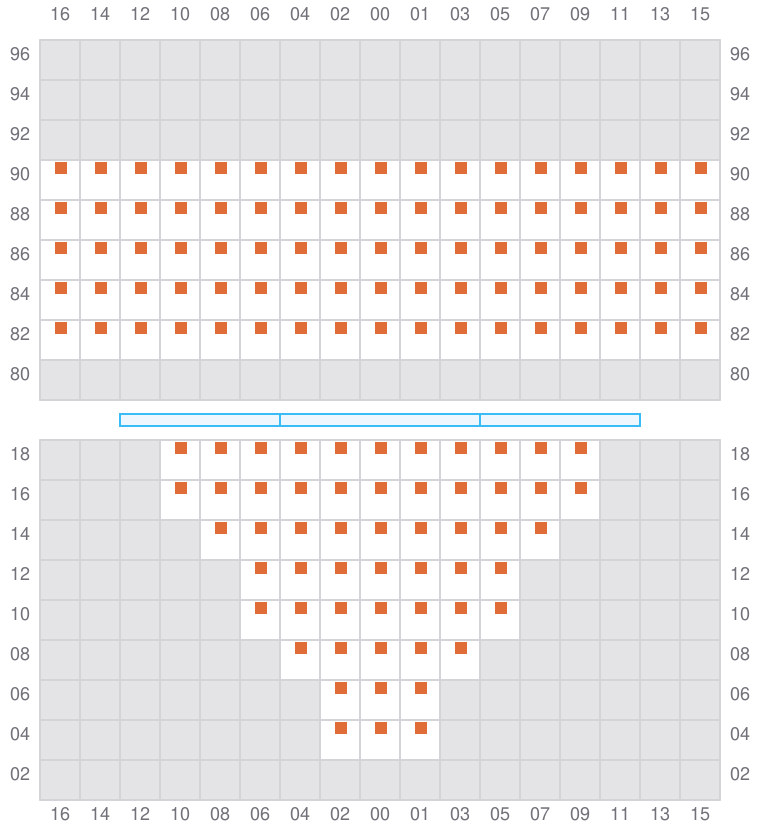

Bay 007 view and slots of MSC JASPER VIII

009 (010)

→

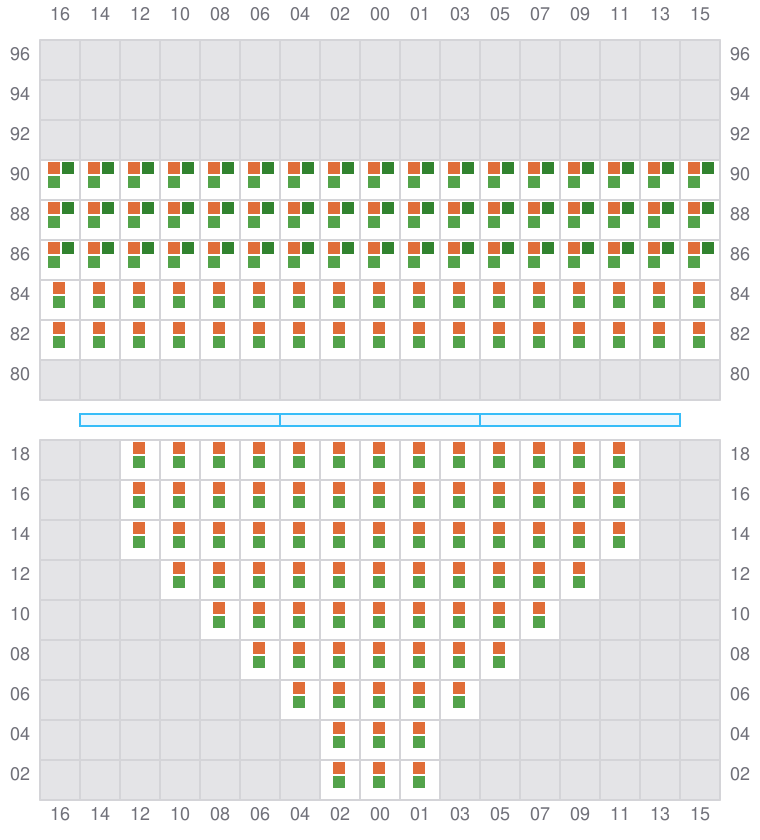

Bay 009 view and slots of MSC JASPER VIII

011

←
^→ / _?

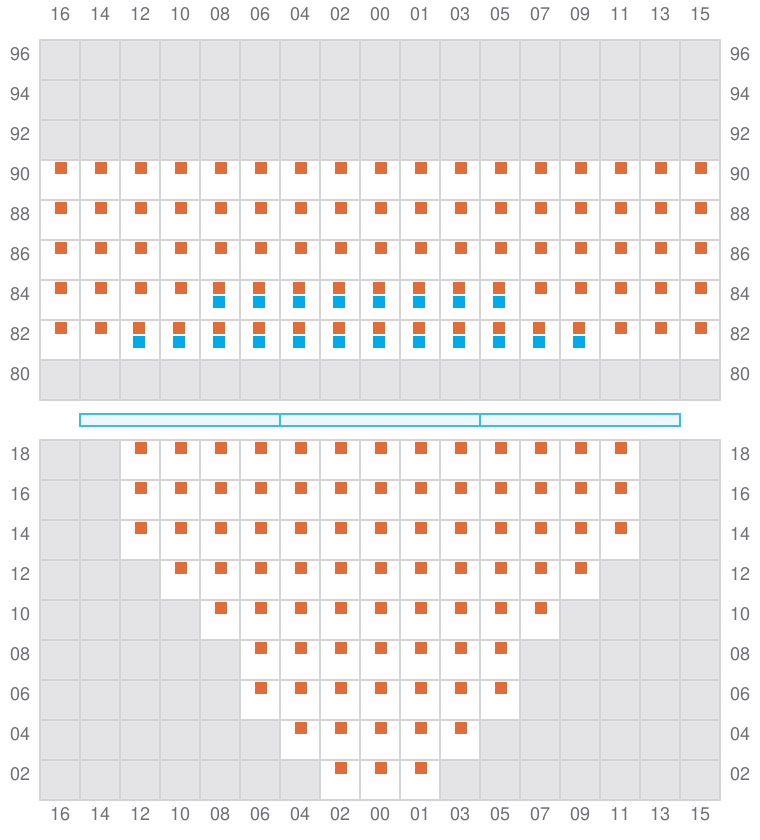

Bay 011 view and slots of MSC JASPER VIII

013 (014)

→

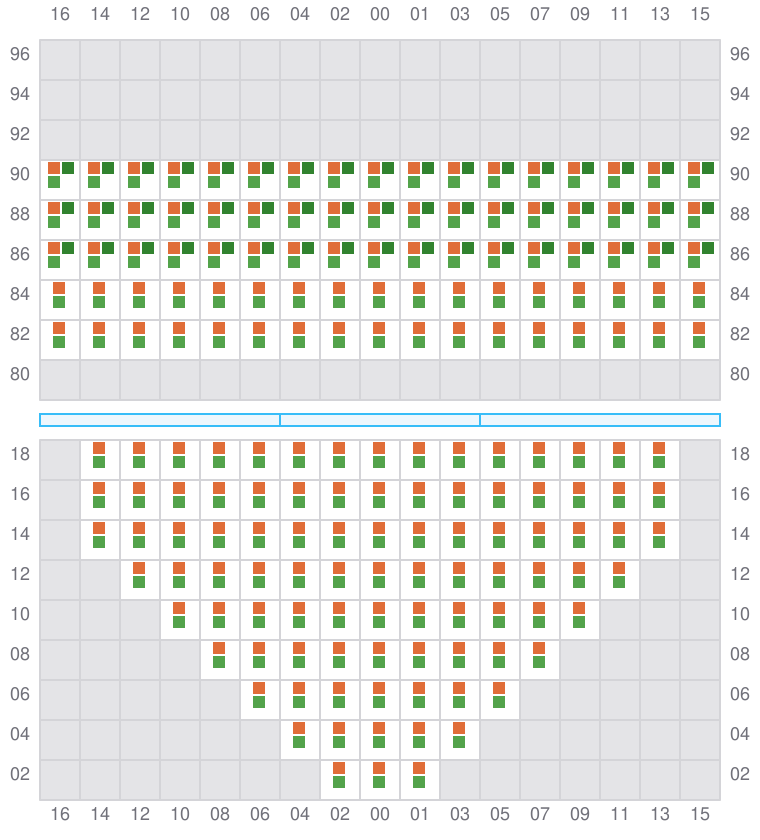

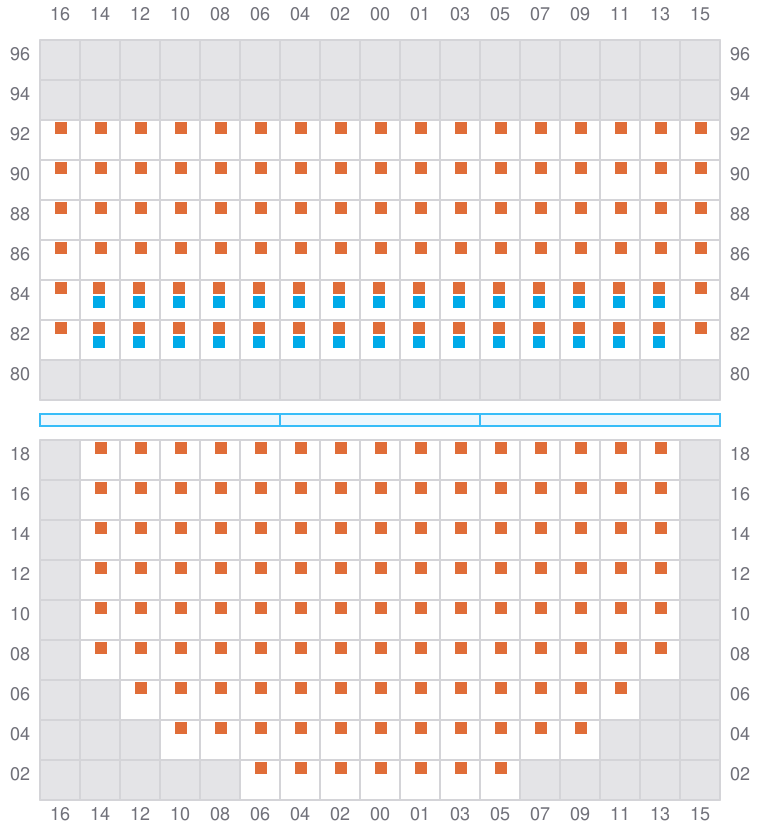

Bay 013 view and slots of MSC JASPER VIII

015

←
^→ / _?

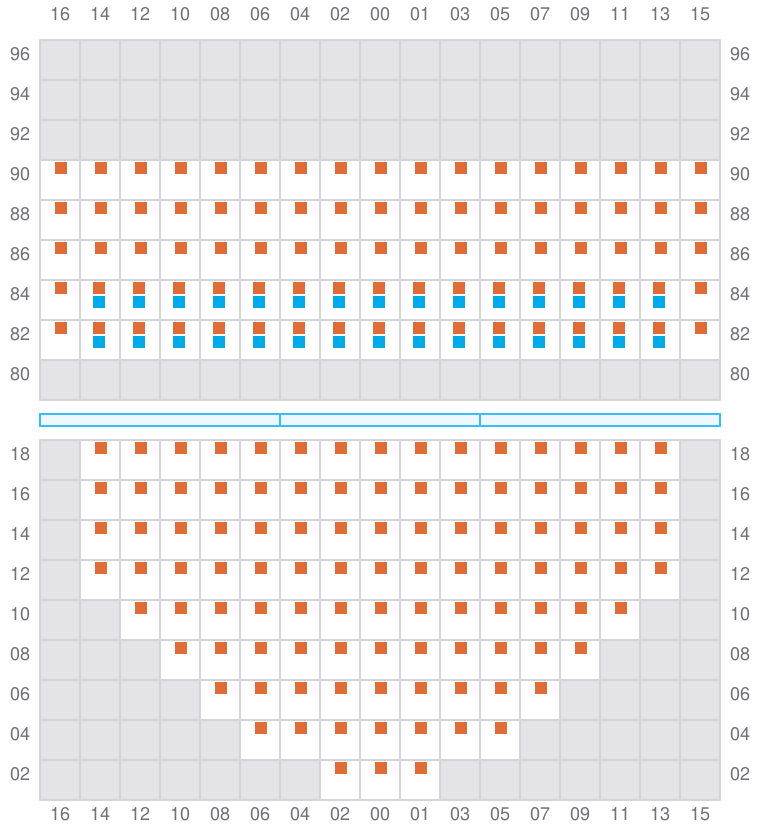

Bay 015 view and slots of MSC JASPER VIII

017 (018)

→

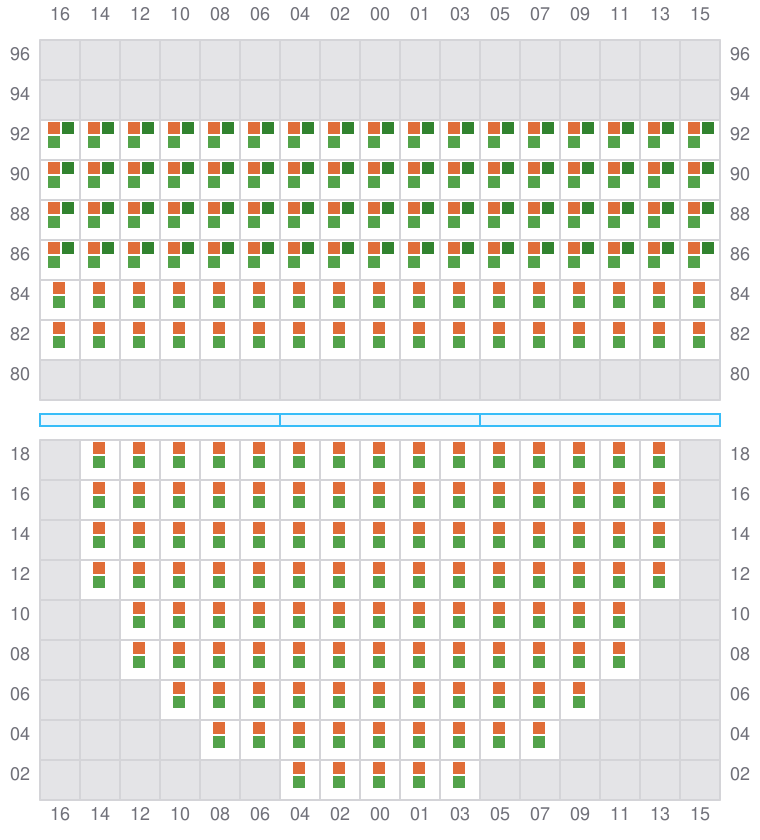

Bay 017 view and slots of MSC JASPER VIII

019

←
^→ / _?

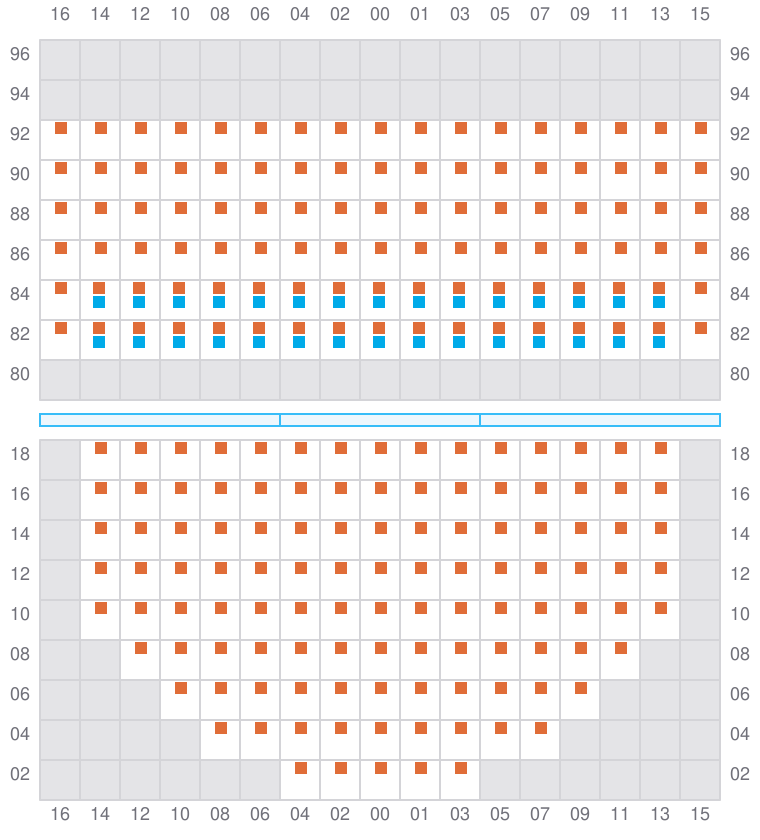

Bay 019 view and slots of MSC JASPER VIII

021 (022)

→
^? / _←

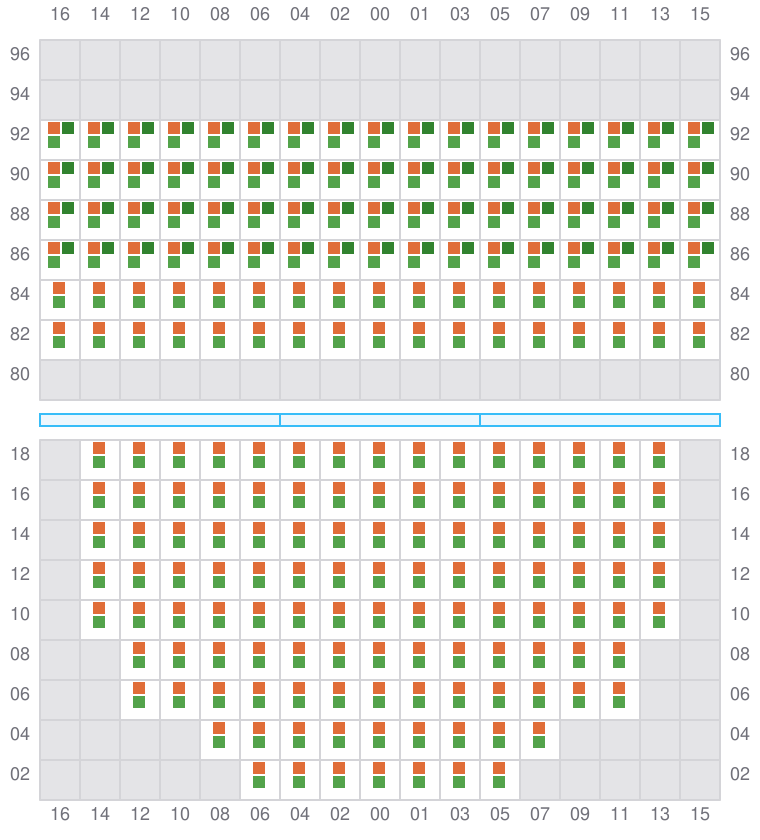

Bay 021 view and slots of MSC JASPER VIII

023

←
^→ / _?

Bay 023 view and slots of MSC JASPER VIII

025 (026)

→

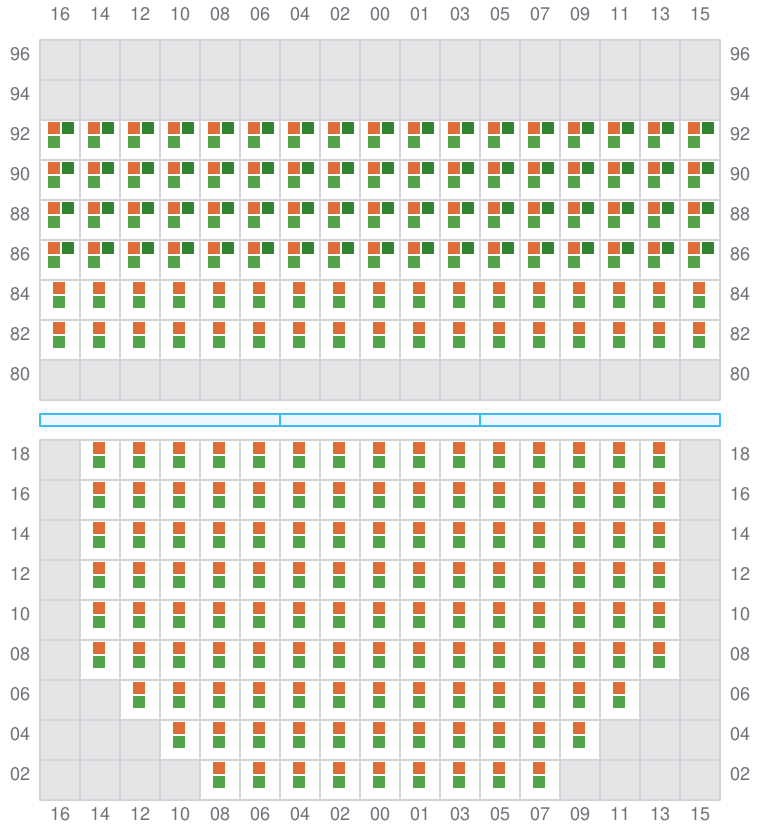

Bay 025 view and slots of MSC JASPER VIII

027

←
^→ / _?

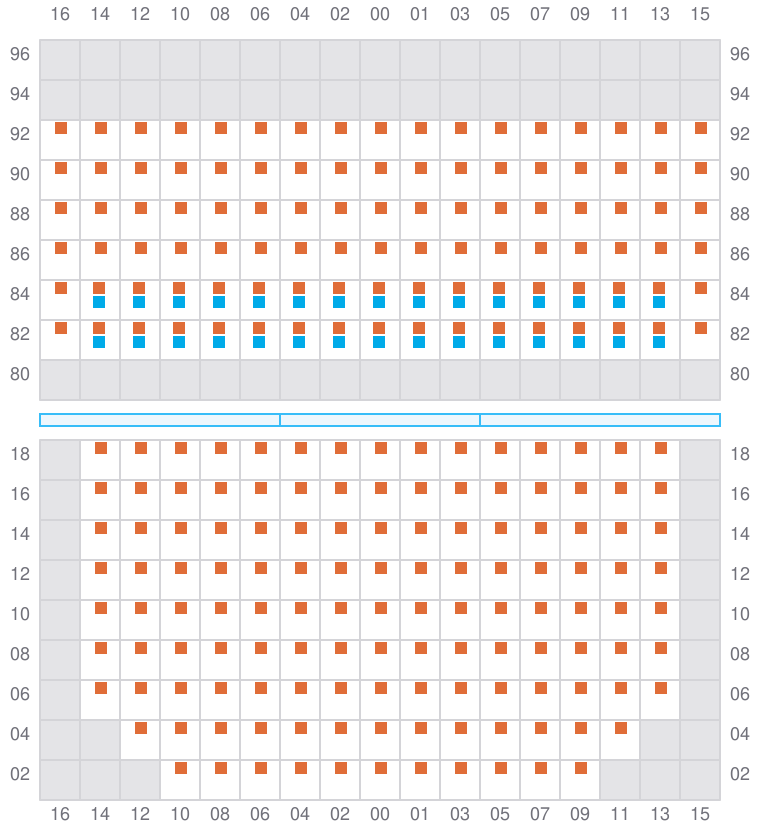

Bay 027 view and slots of MSC JASPER VIII

029 (030)

→
^? / _←

Bay 029 view and slots of MSC JASPER VIII

031

←
^→ / _?

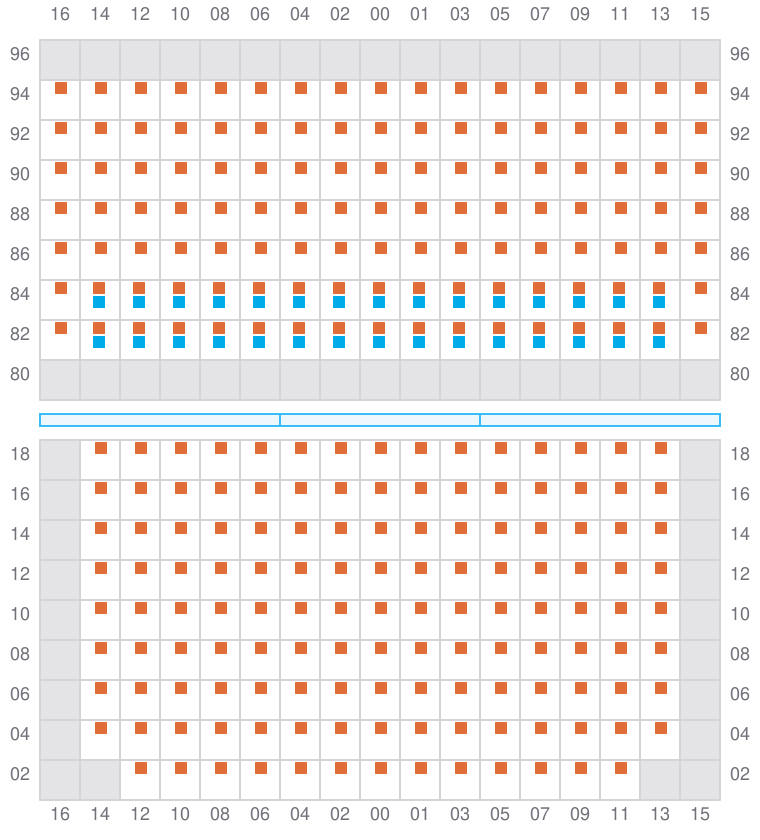

Bay 031 view and slots of MSC JASPER VIII

033 (034)

→

Bay 033 view and slots of MSC JASPER VIII

035

←
^→ / _?

Bay 035 view and slots of MSC JASPER VIII

037 (038)

→

Bay 037 view and slots of MSC JASPER VIII

039

←
^→ / _?

Bay 039 view and slots of MSC JASPER VIII

041 (042)

→

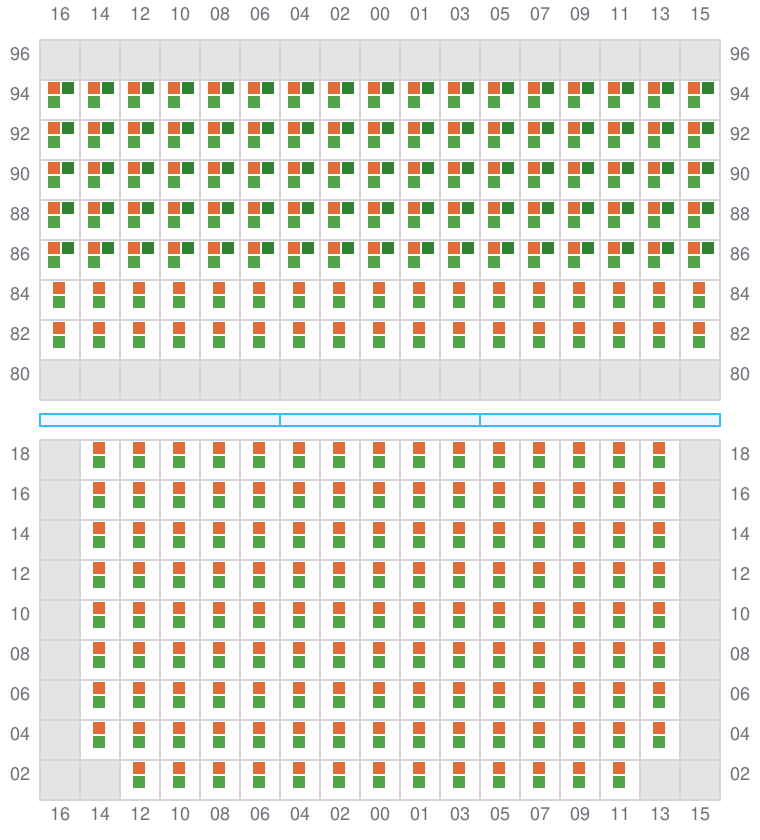

Bay 041 view and slots of MSC JASPER VIII

043

←
^→ / _?

Bay 043 view and slots of MSC JASPER VIII

045 (046)

→
^? / _←

Bay 045 view and slots of MSC JASPER VIII

047

←
^→ / _?

Bay 047 view and slots of MSC JASPER VIII

049 (050)

→

Bay 049 view and slots of MSC JASPER VIII

051

←
→

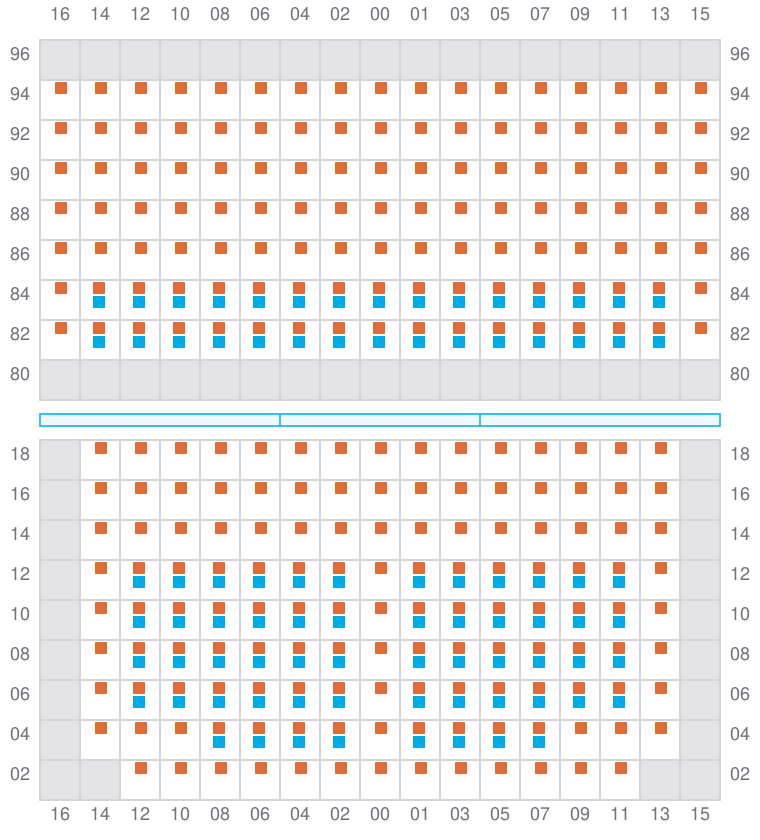

Bay 051 view and slots of MSC JASPER VIII

053 (054)

→

Bay 053 view and slots of MSC JASPER VIII

055

←
→

Bay 055 view and slots of MSC JASPER VIII

057 (058)

→

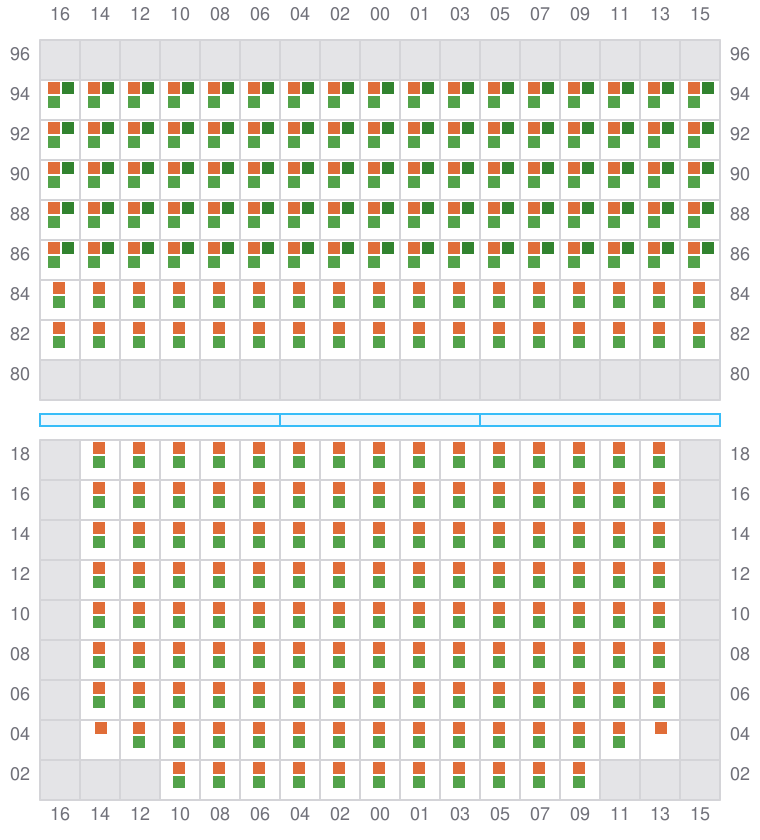

Bay 057 view and slots of MSC JASPER VIII

059

←
→

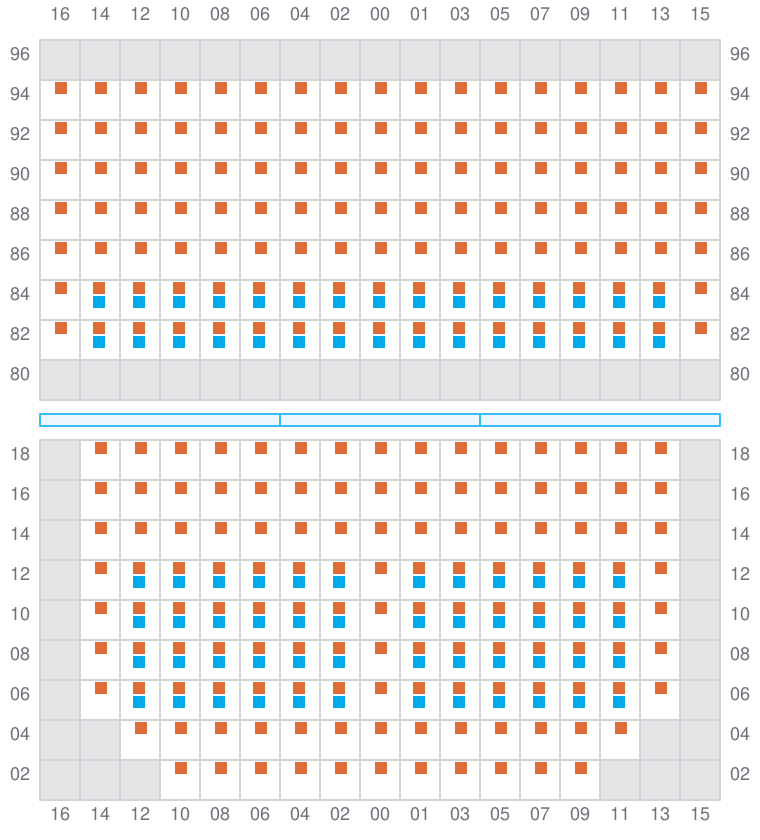

Bay 059 view and slots of MSC JASPER VIII

061 (062)

→
^? / _←

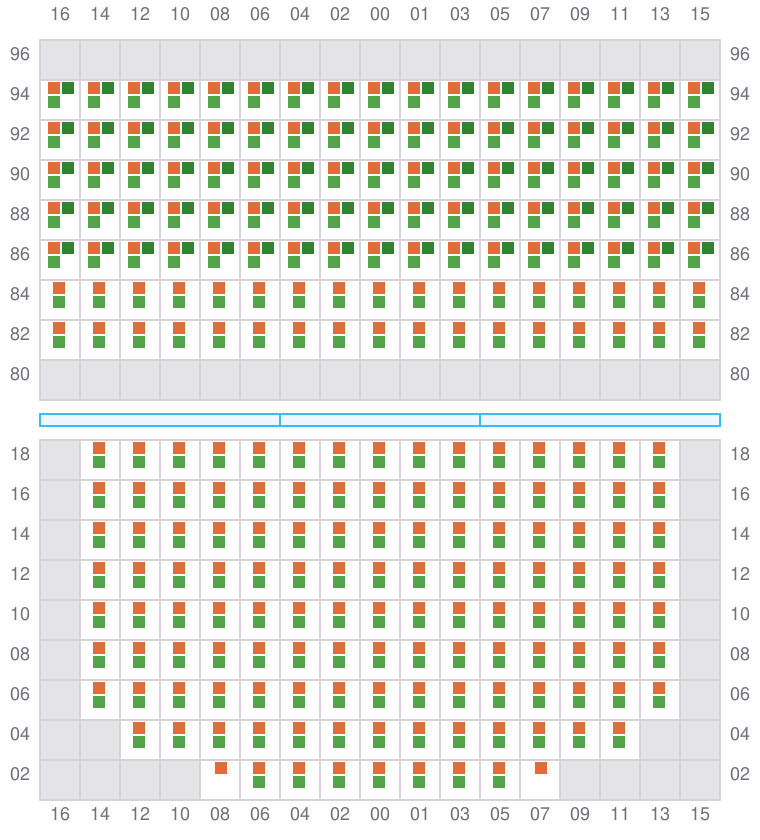

Bay 061 view and slots of MSC JASPER VIII

063

←
→

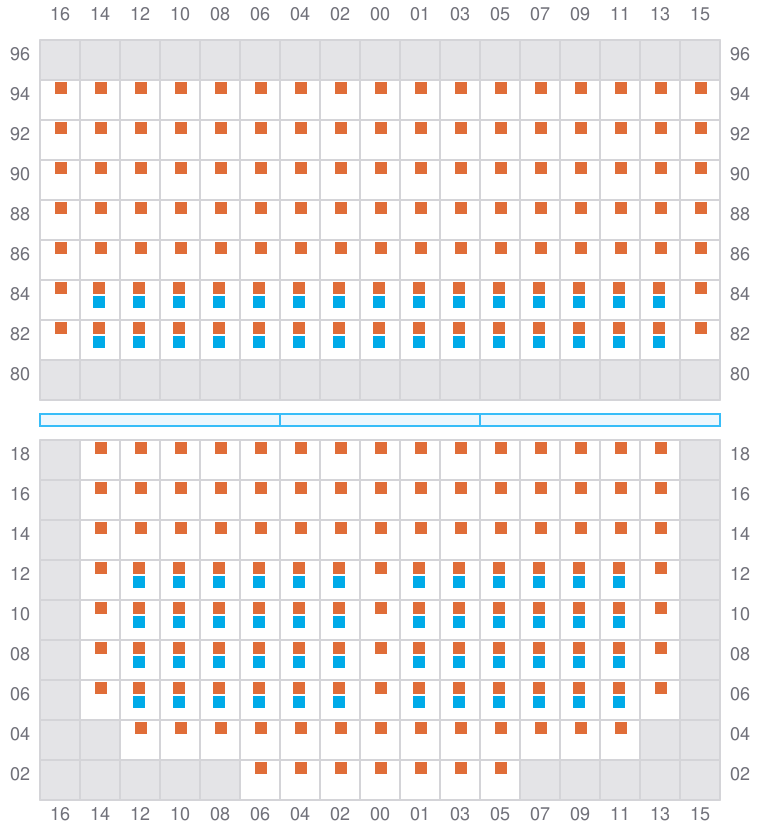

Bay 063 view and slots of MSC JASPER VIII

065 (066)

→

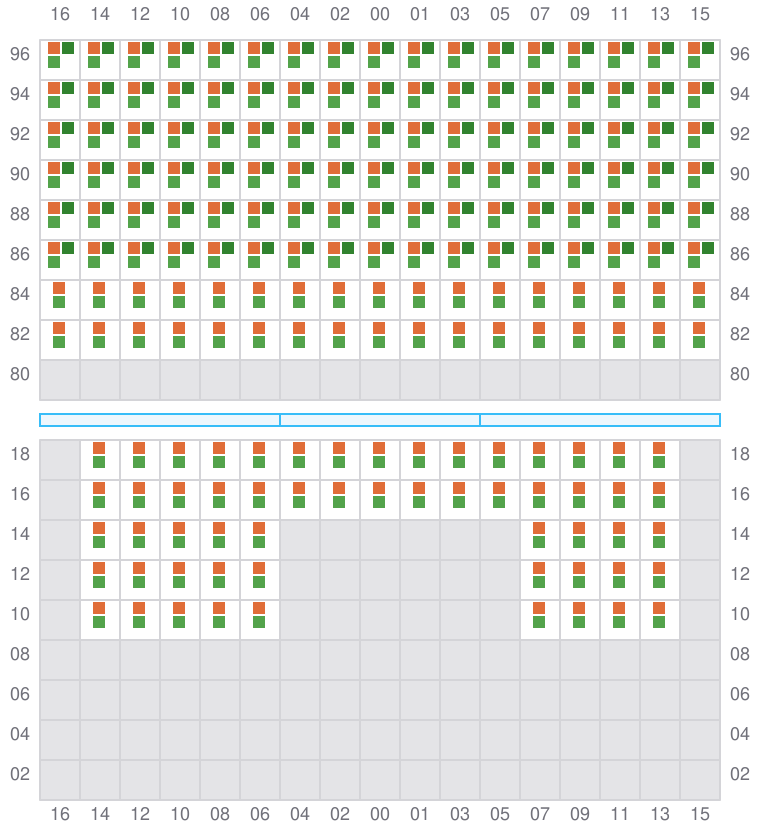

Bay 065 view and slots of MSC JASPER VIII

067

←
^→ / _?

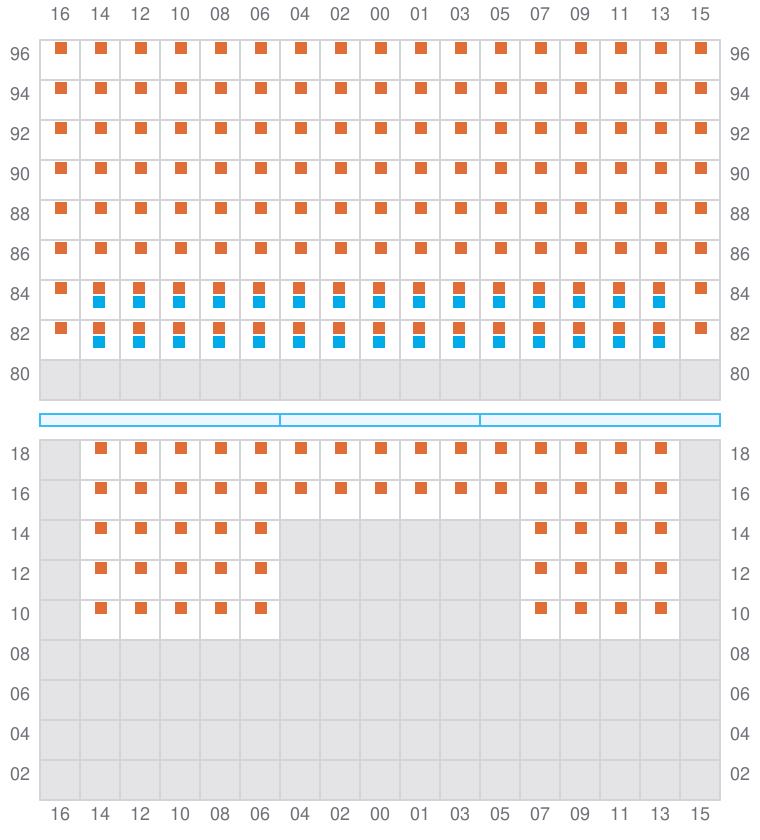

Bay 067 view and slots of MSC JASPER VIII

069 (070)

→

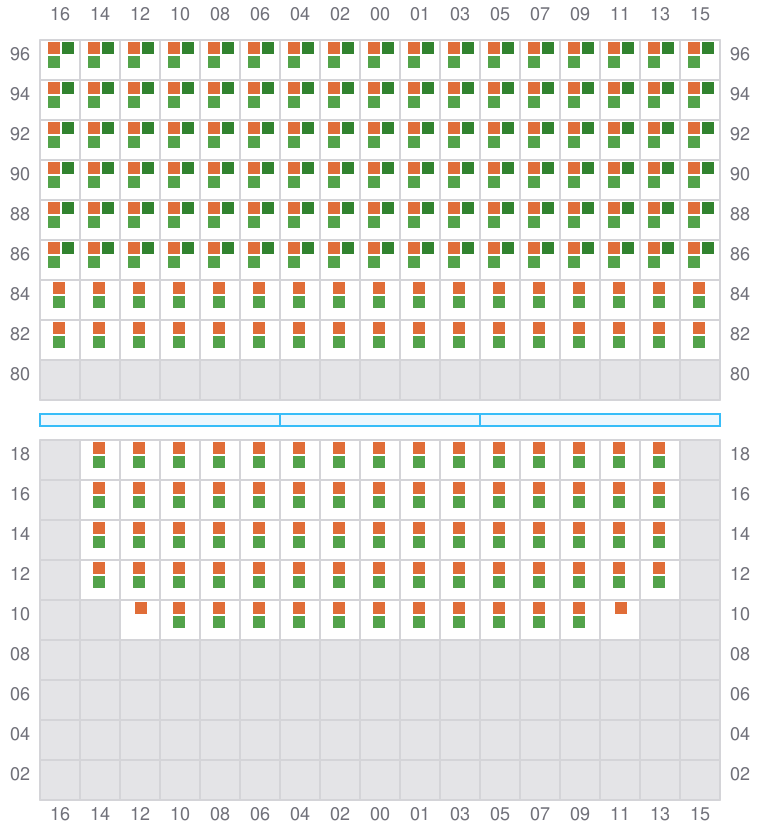

Bay 069 view and slots of MSC JASPER VIII

071

←
^→ / _?

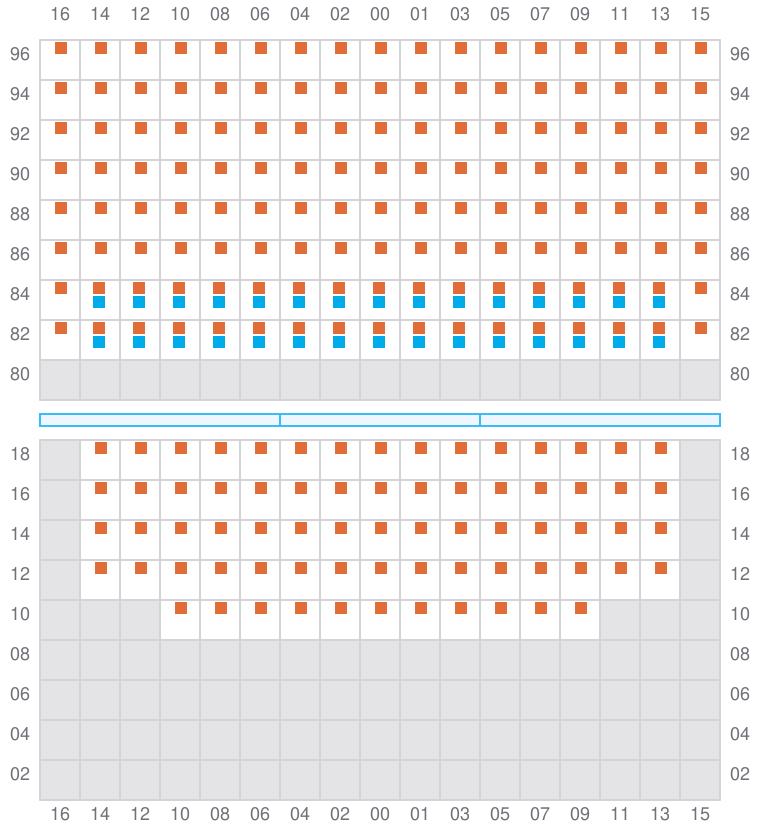

Bay 071 view and slots of MSC JASPER VIII

073 (074)

→

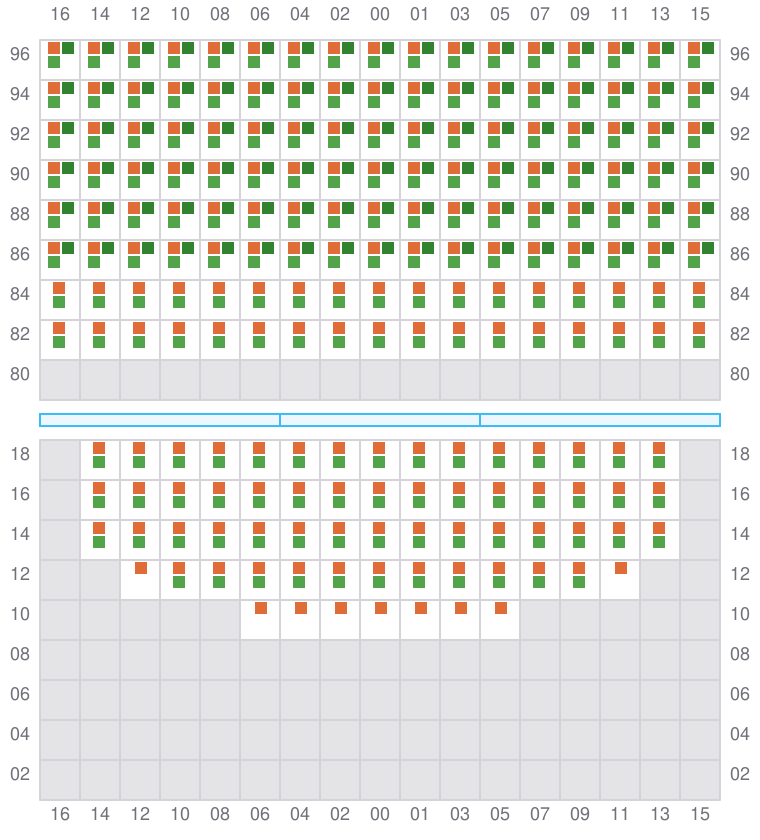

Bay 073 view and slots of MSC JASPER VIII

075

←
^→ / _?

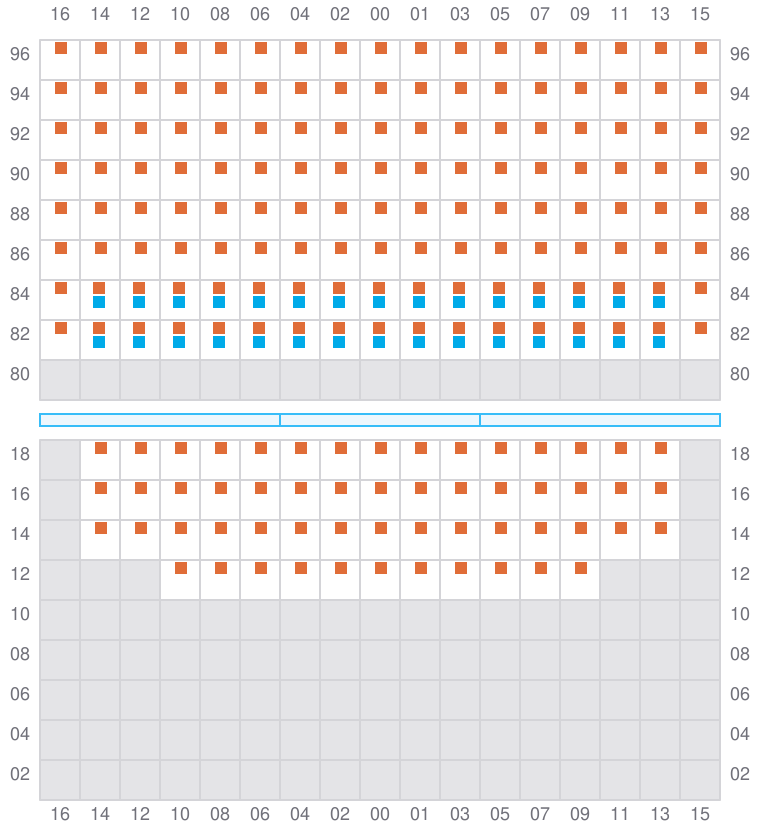

Bay 075 view and slots of MSC JASPER VIII

077 (078)

^→ / _?

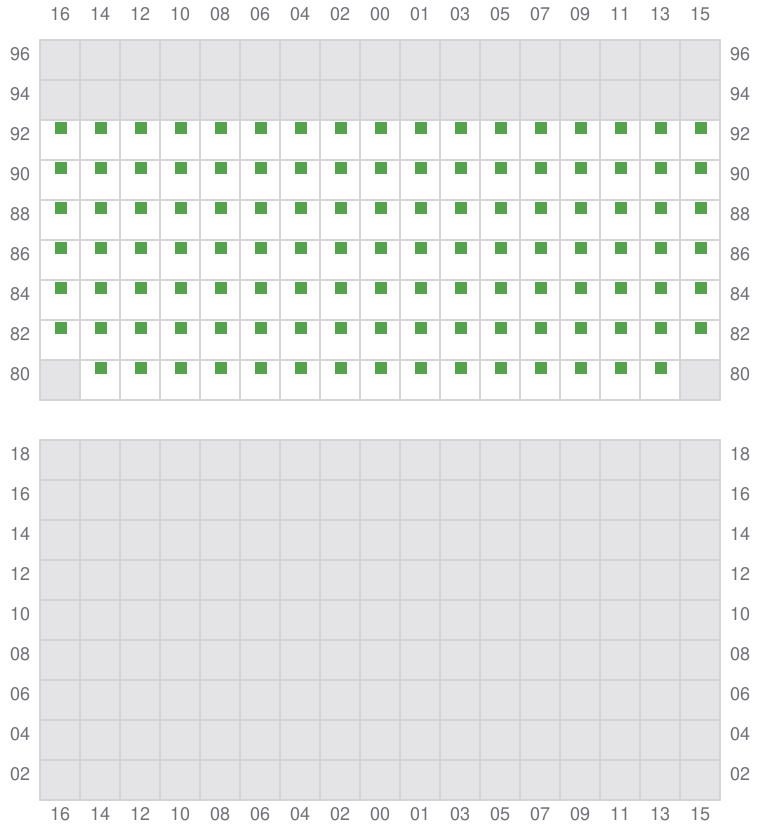

Bay 077 view and slots of MSC JASPER VIII
