MSC JENNIFER II
9433157 | A8PT7 | 9433157 by ********* Last update: Tue Jun 18 2024

General Info

Ship Name:MSC JENNIFER II
IMO Code:9433157
Call Sign:A8PT7
Line Operator:9433157
Class Name for Sister Ships:MCC
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,794

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

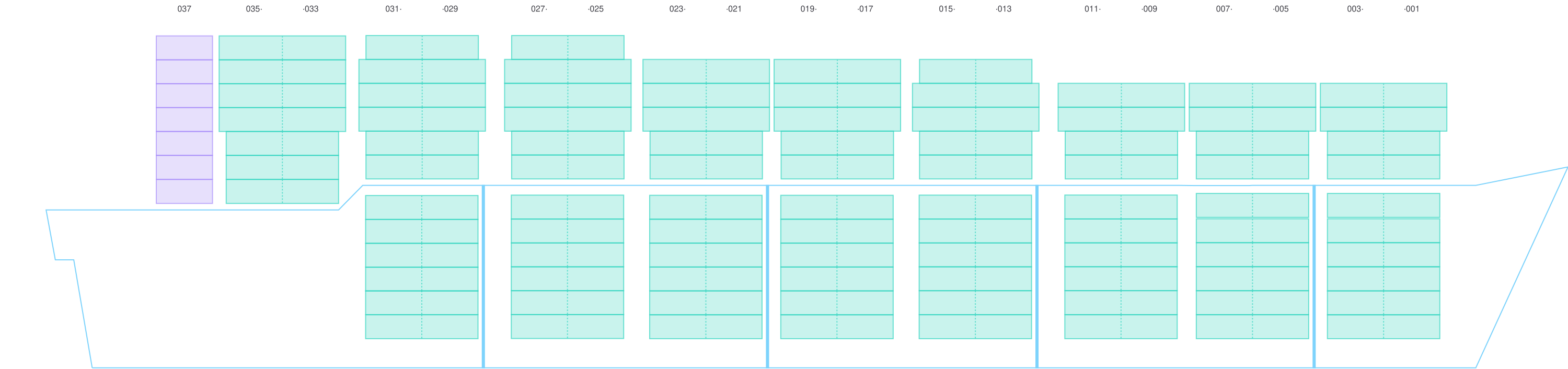

Side view of MSC JENNIFER II

Hatch-Covers View

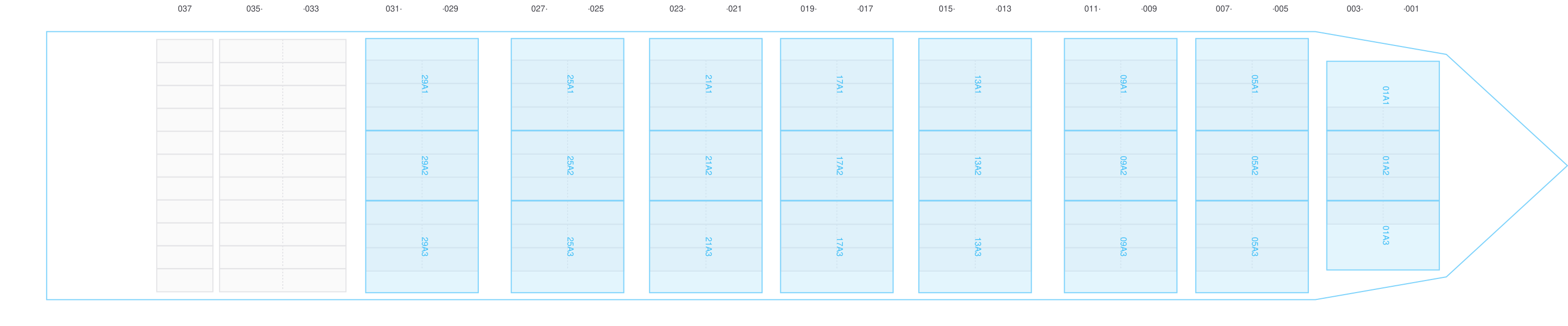

Deck view of MSC JENNIFER II

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

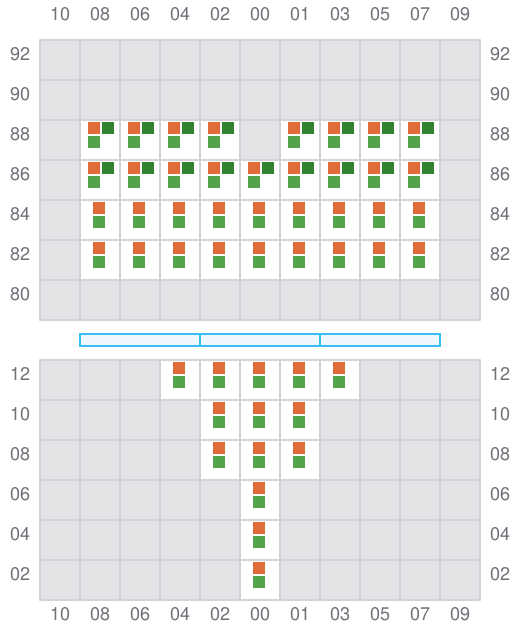

001 (002)

  • →
Bay 001 view and slots of MSC JENNIFER II

003

  • ←

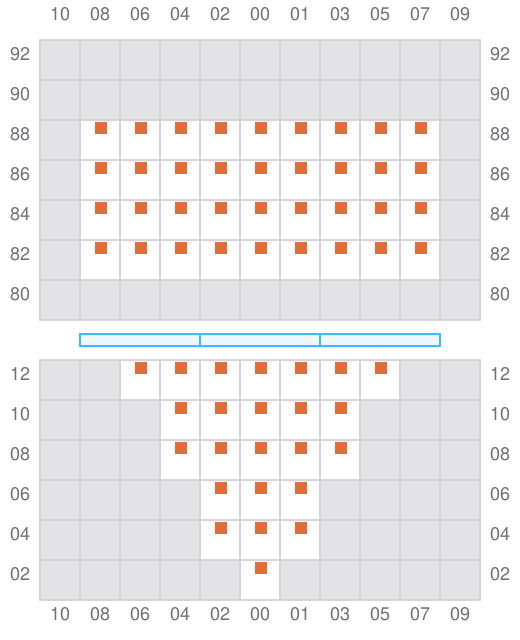

Bay 003 view and slots of MSC JENNIFER II

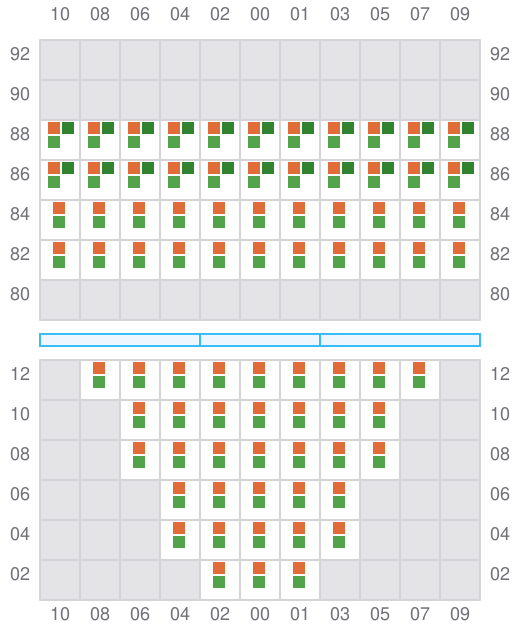

005 (006)

  • →
Bay 005 view and slots of MSC JENNIFER II

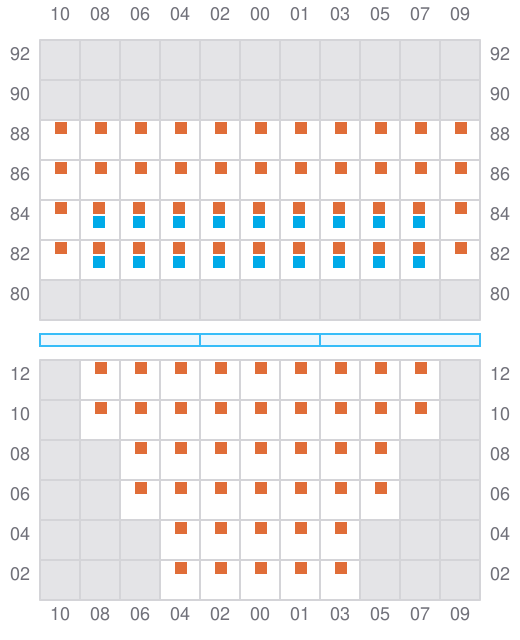

007

  • ←
  • → / ?
Bay 007 view and slots of MSC JENNIFER II

009 (010)

  • →
  • ? / ←

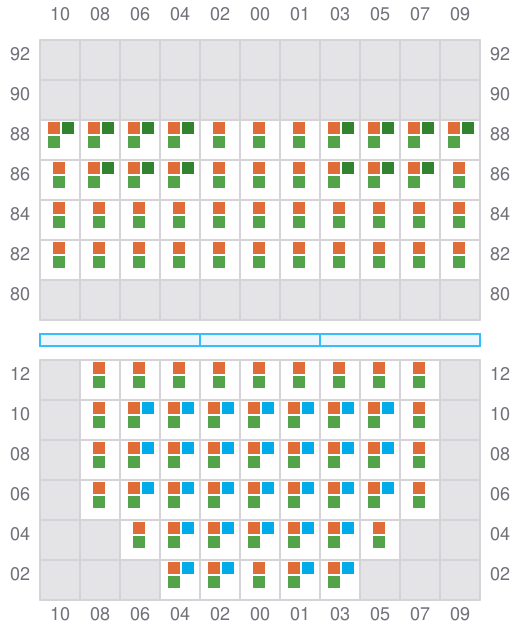

Bay 009 view and slots of MSC JENNIFER II

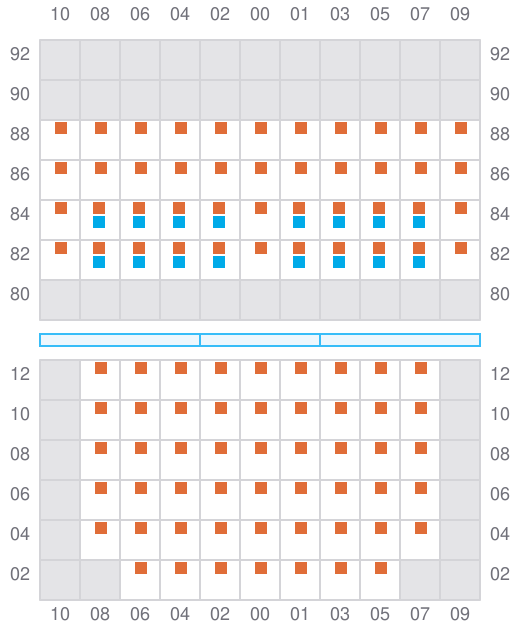

011

  • ←
  • → / ?
Bay 011 view and slots of MSC JENNIFER II

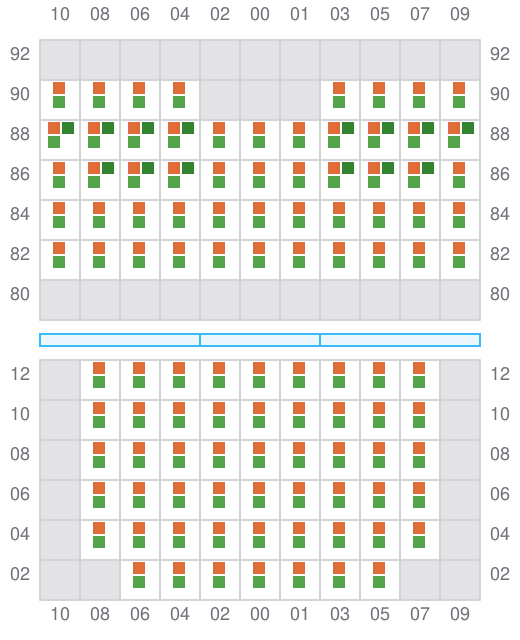

013 (014)

  • →
Bay 013 view and slots of MSC JENNIFER II

015

  • ←
  • →

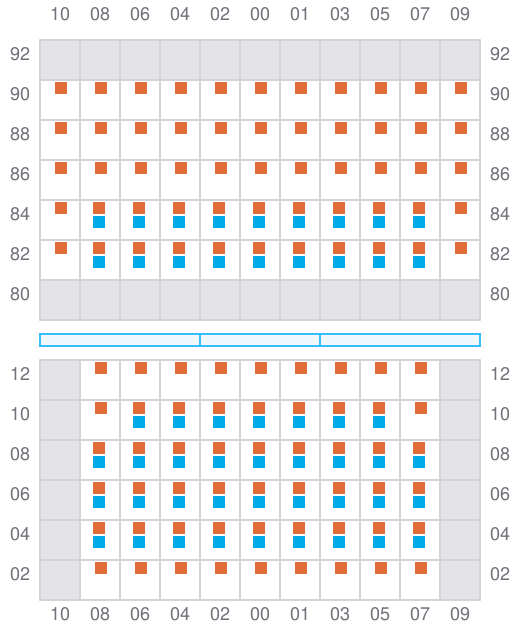

Bay 015 view and slots of MSC JENNIFER II

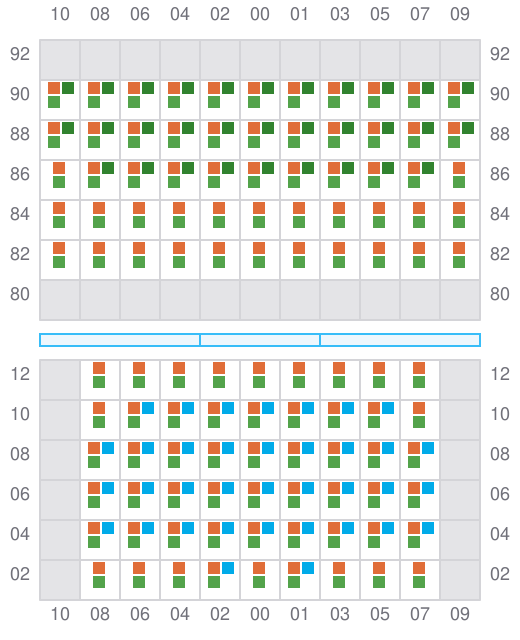

017 (018)

  • →
  • ? / ←
Bay 017 view and slots of MSC JENNIFER II

019

  • ←
  • → / ?

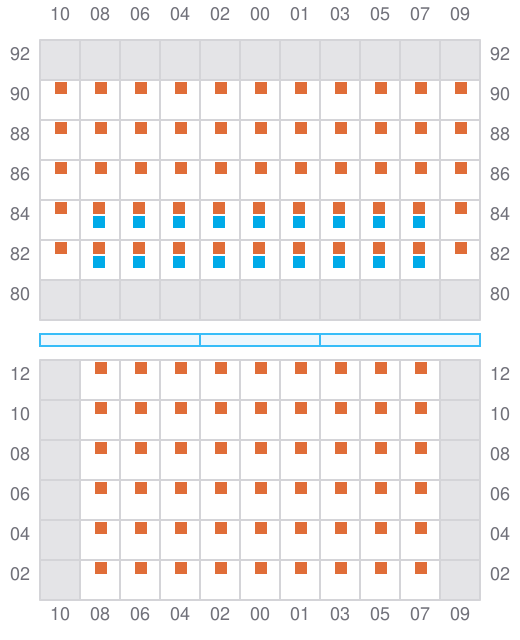

Bay 019 view and slots of MSC JENNIFER II

021 (022)

  • →

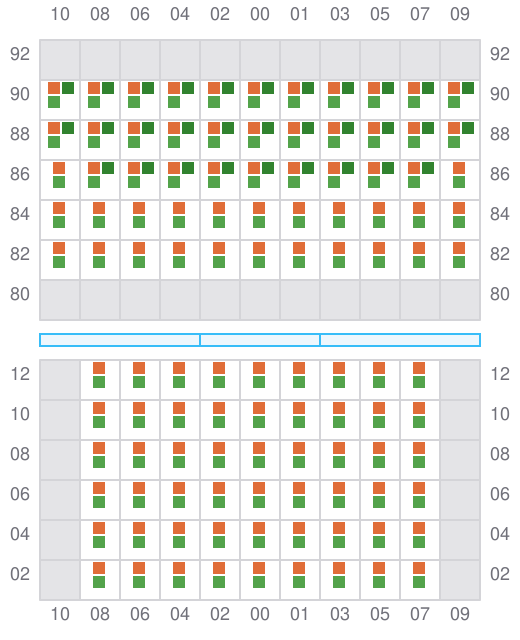

Bay 021 view and slots of MSC JENNIFER II

023

  • ←
  • →

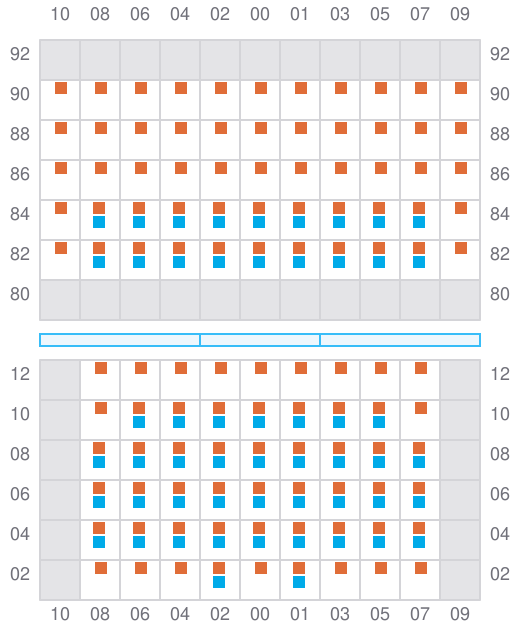

Bay 023 view and slots of MSC JENNIFER II

025 (026)

  • →
  • ? / ←

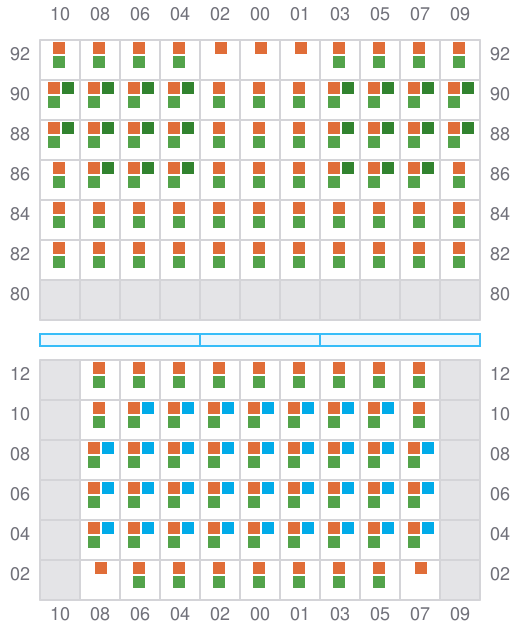

Bay 025 view and slots of MSC JENNIFER II

027

  • ←
  • → / ?

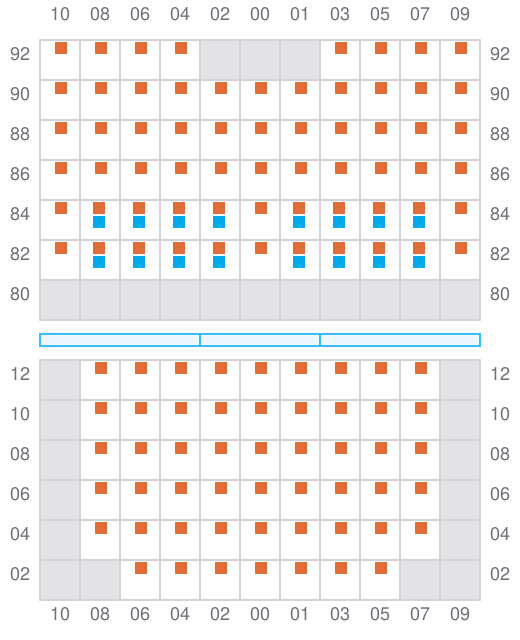

Bay 027 view and slots of MSC JENNIFER II

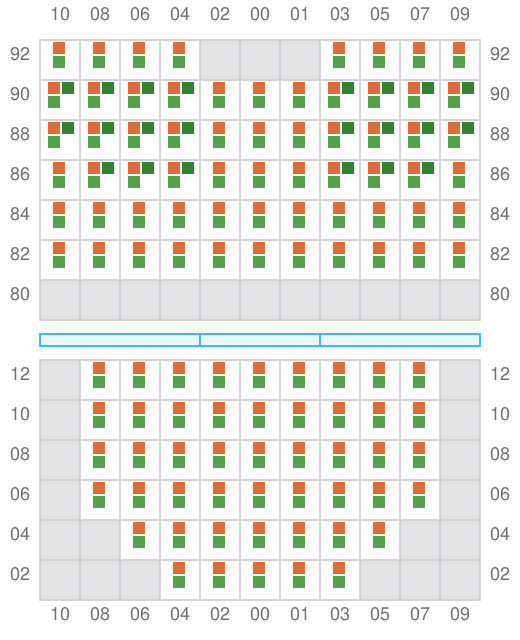

029 (030)

  • →
Bay 029 view and slots of MSC JENNIFER II

031

  • ←
  • → / ?

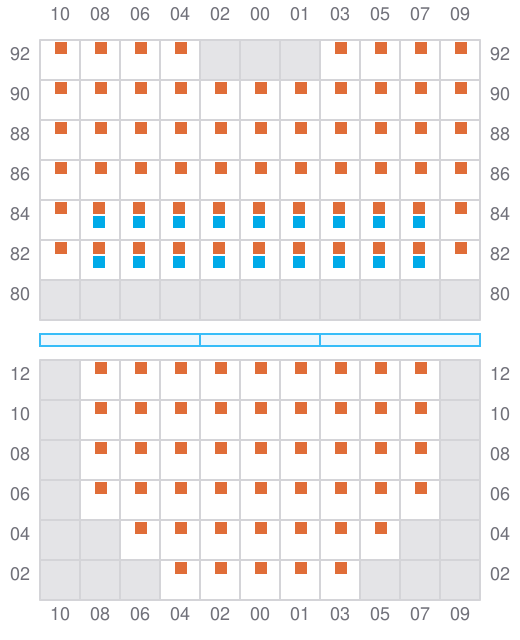

Bay 031 view and slots of MSC JENNIFER II

033 (034)

  • → / ?
  • ← / ?

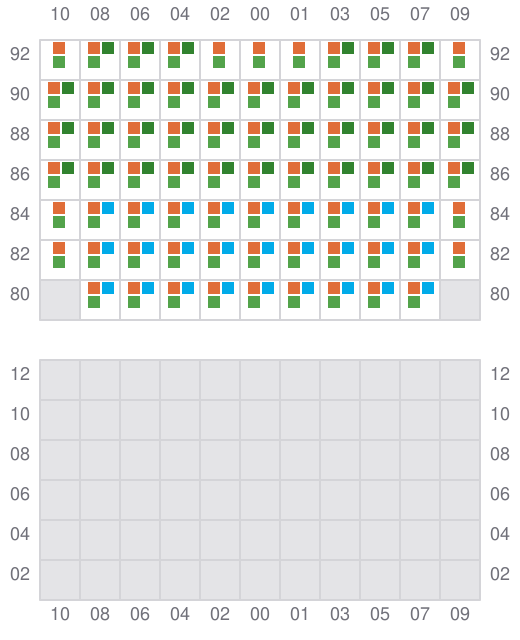

Bay 033 view and slots of MSC JENNIFER II

035

  • ← / ?
Bay 035 view and slots of MSC JENNIFER II

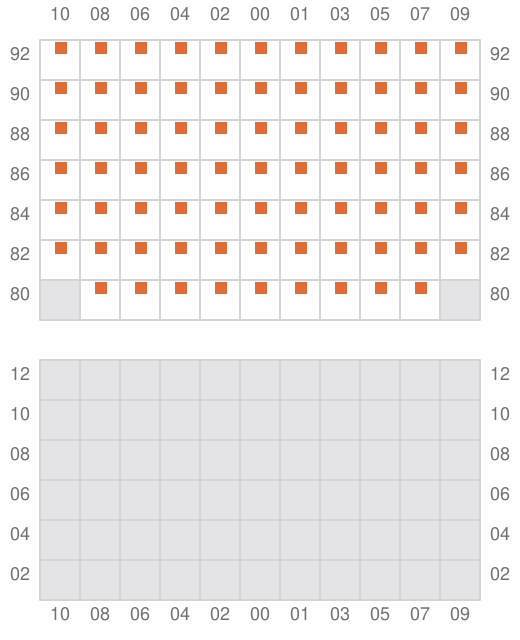

037

Bay 037 view and slots of MSC JENNIFER II
