MSC JEONGMIN
9720471 | CQZA | MSC by ************************** Last update: Sun Jun 18 2023

General Info

Ship Name:MSC JEONGMIN

IMO Code:9720471

Call Sign:CQZA

Line Operator:MSC

Class Name for Sister Ships:MJM

Year Built:2016

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:069

Max ISO Row:18

Center Line Row:Yes

Max Above ISO Tier:98

Min Above ISO Tier:80

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:9,420

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

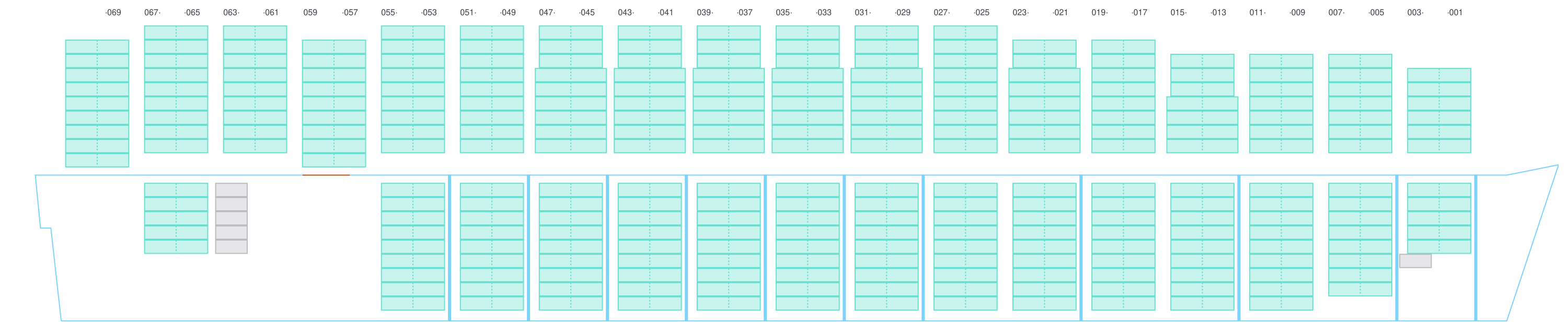

Side view of MSC JEONGMIN

Hatch-Covers View

Deck view of MSC JEONGMIN

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

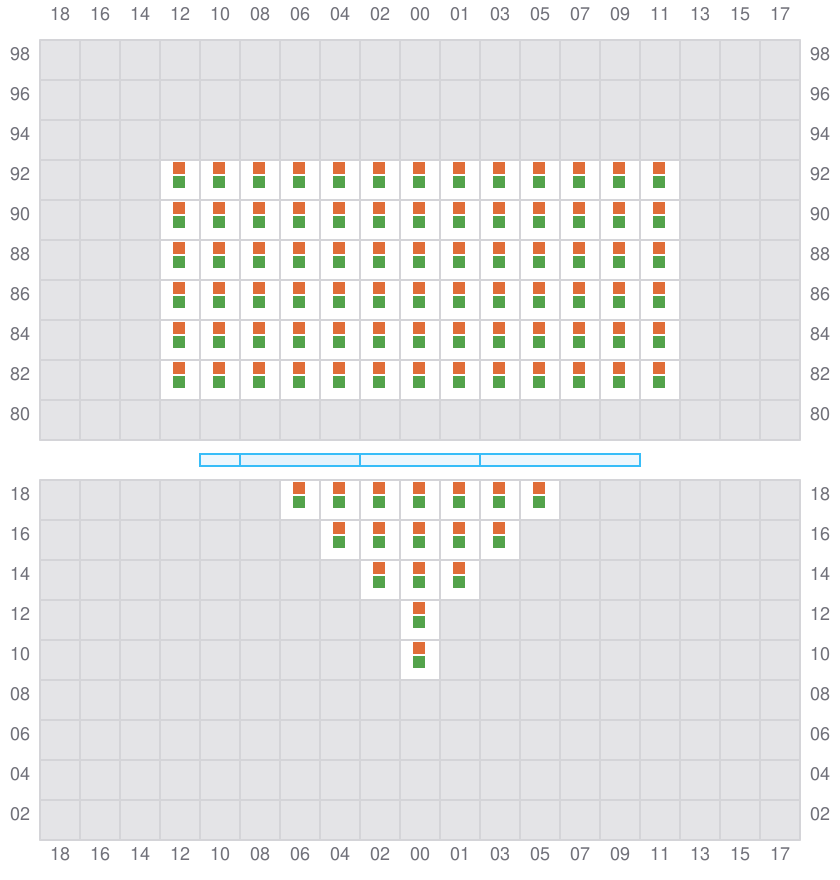

Bay 001 view and slots of MSC JEONGMIN

003

←
^→ / _?

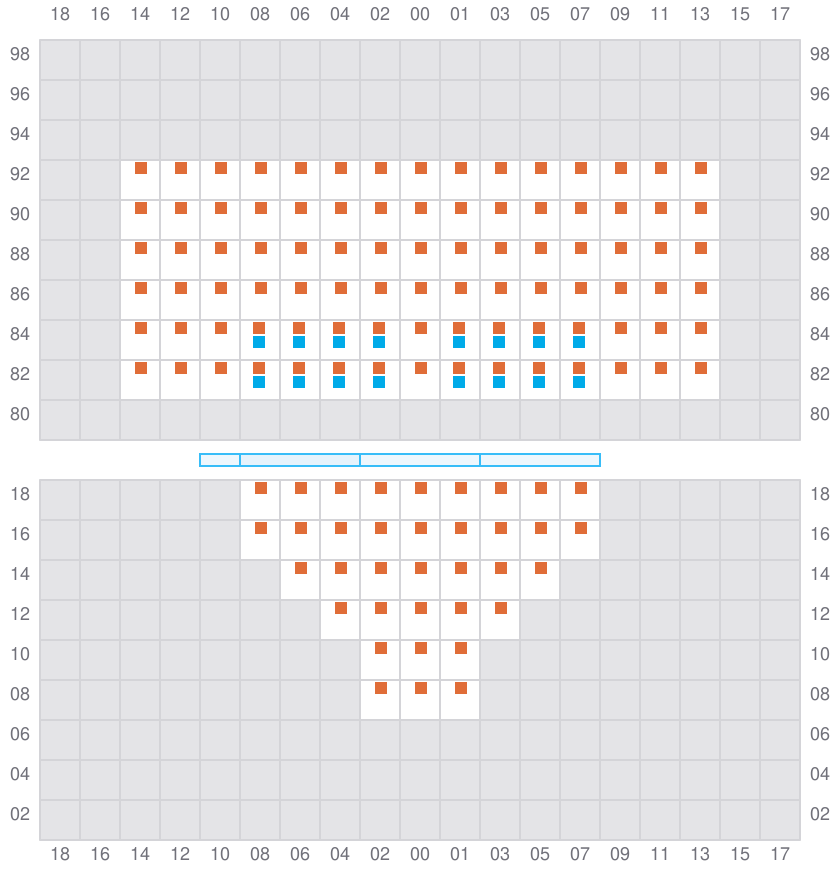

Bay 003 view and slots of MSC JEONGMIN

005 (006)

→

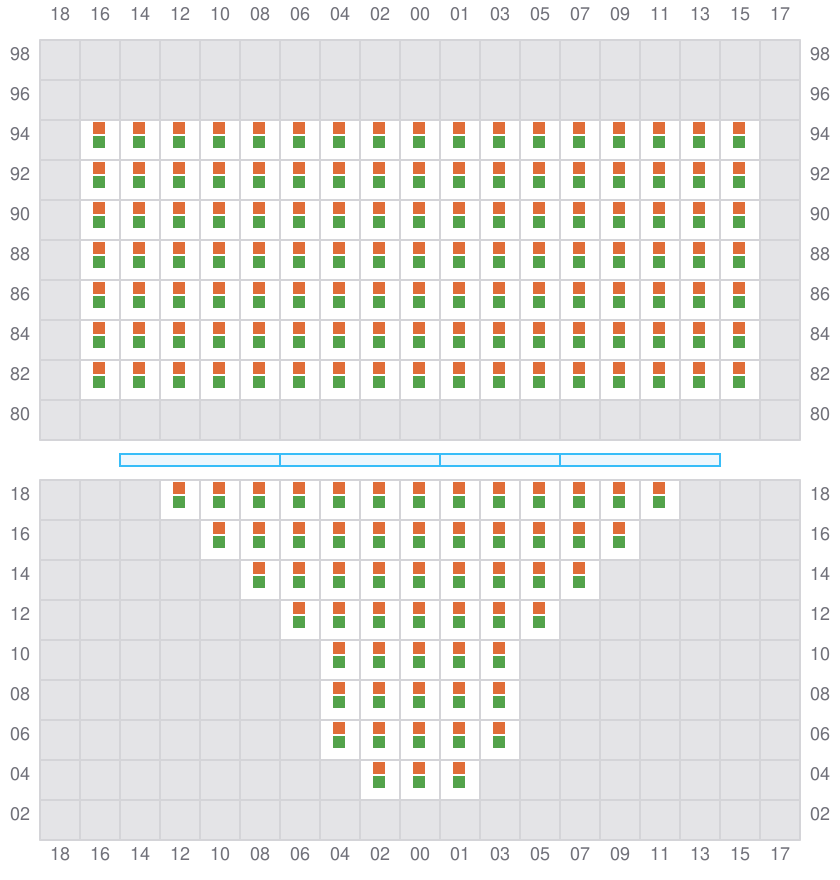

Bay 005 view and slots of MSC JEONGMIN

007

←
^→ / _?

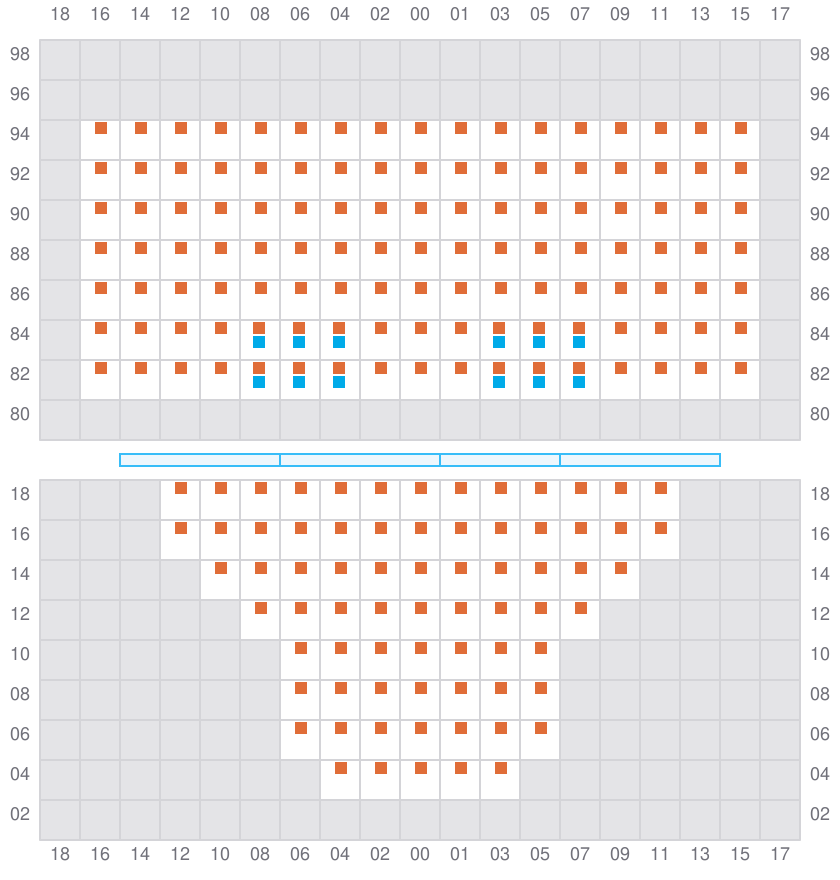

Bay 007 view and slots of MSC JEONGMIN

009 (010)

→

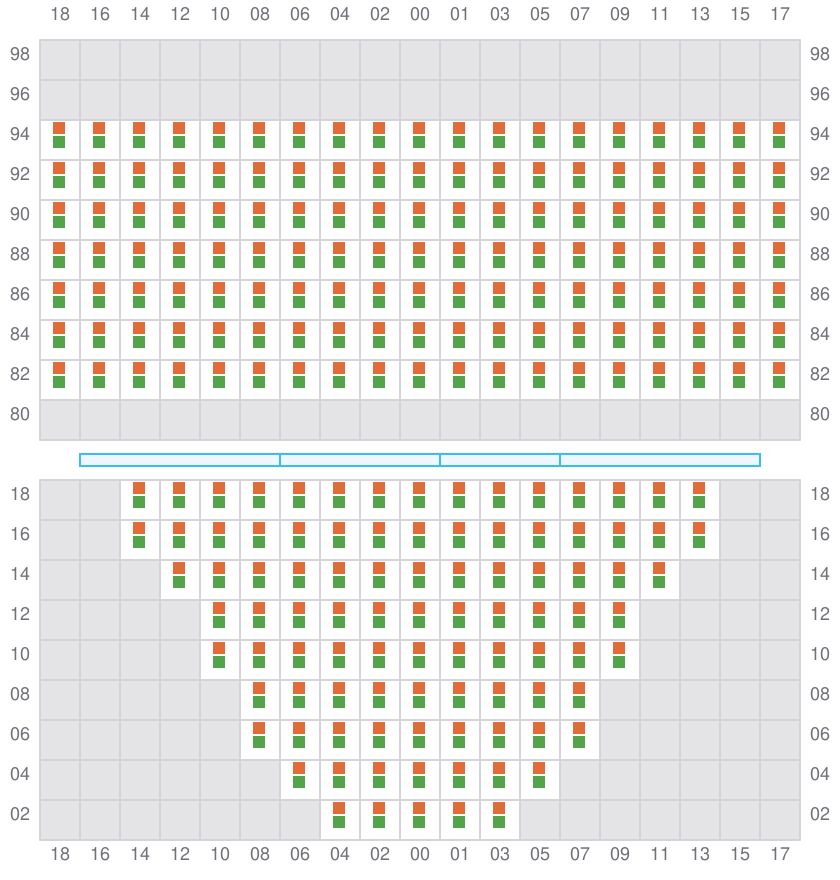

Bay 009 view and slots of MSC JEONGMIN

011

←
^→ / _?

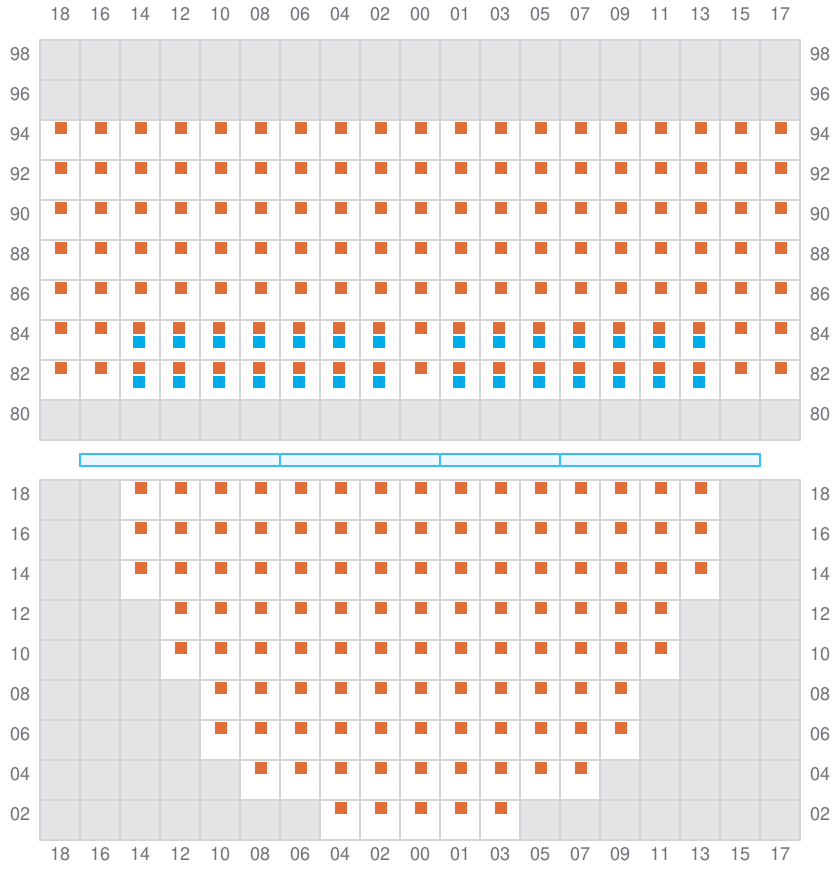

Bay 011 view and slots of MSC JEONGMIN

013 (014)

→

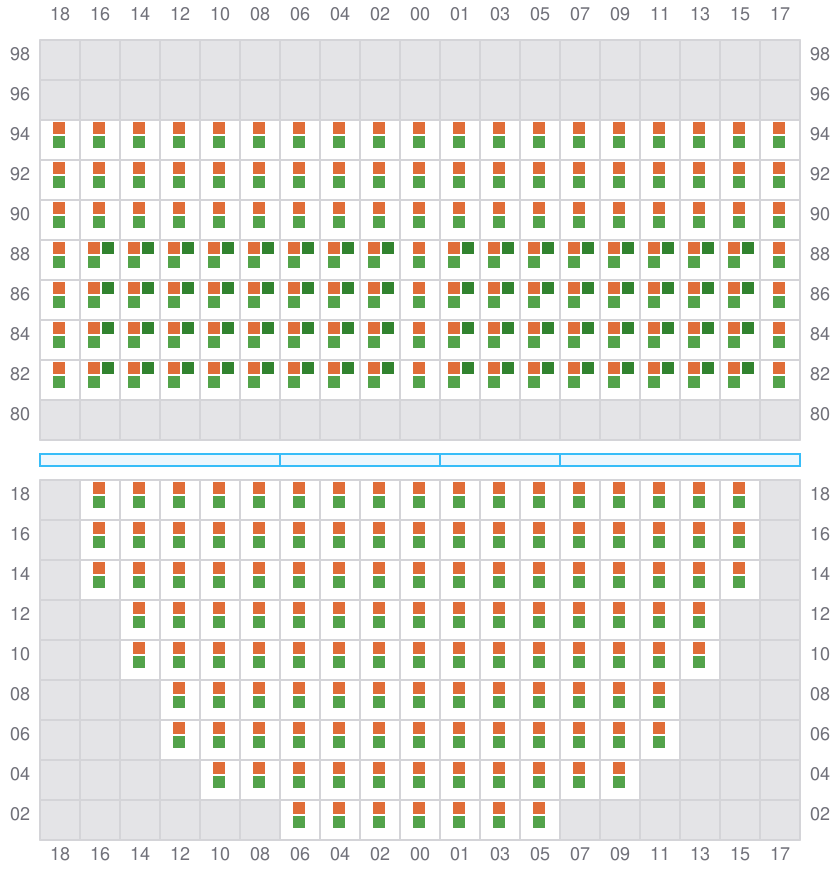

Bay 013 view and slots of MSC JEONGMIN

015

←
^→ / _?

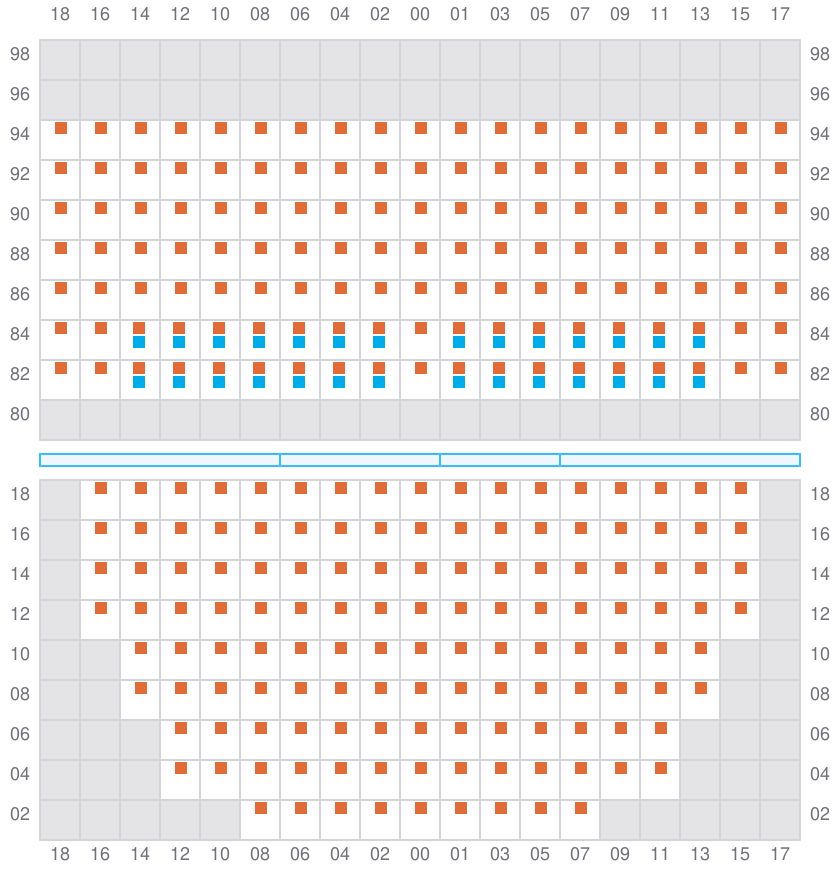

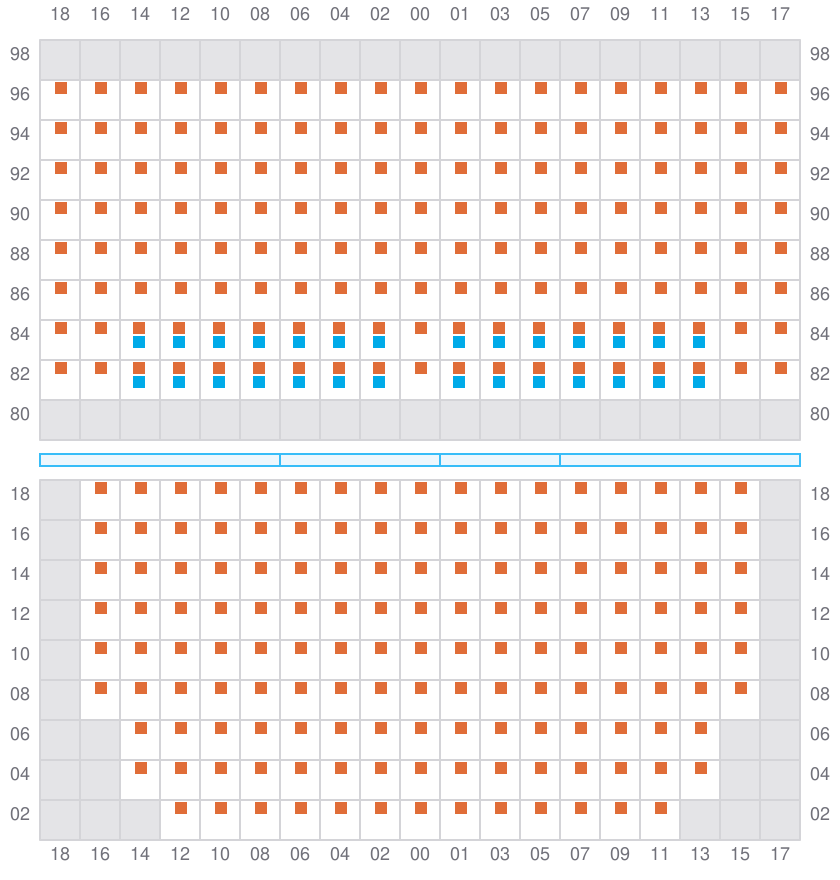

Bay 015 view and slots of MSC JEONGMIN

017 (018)

→

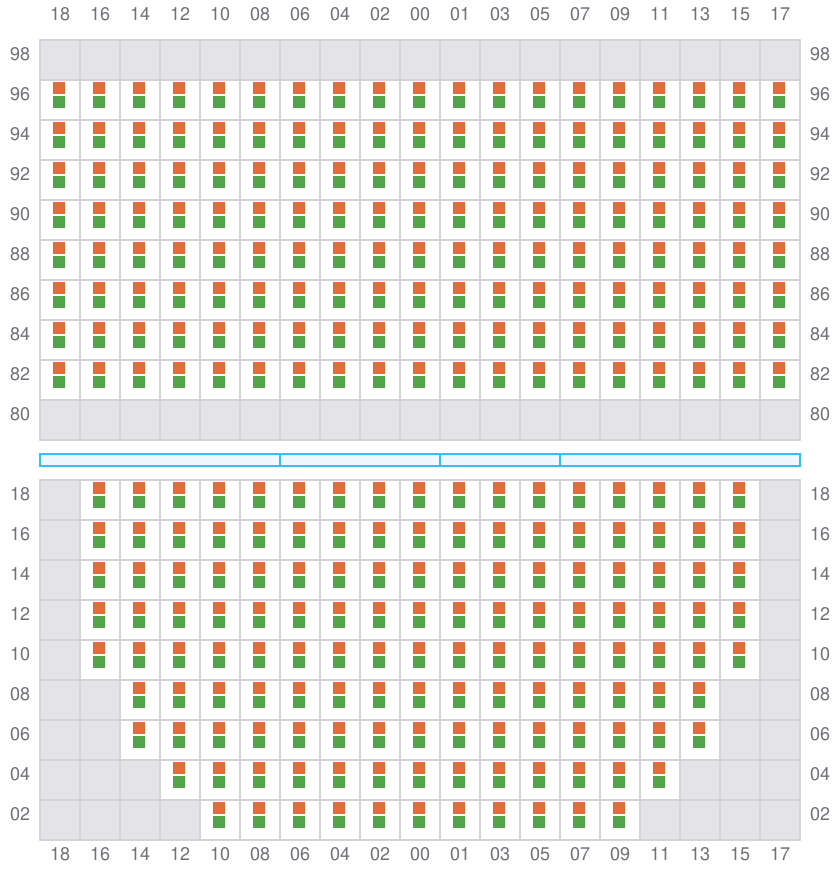

Bay 017 view and slots of MSC JEONGMIN

019

←
^→ / _?

Bay 019 view and slots of MSC JEONGMIN

021 (022)

→

Bay 021 view and slots of MSC JEONGMIN

023

←
→

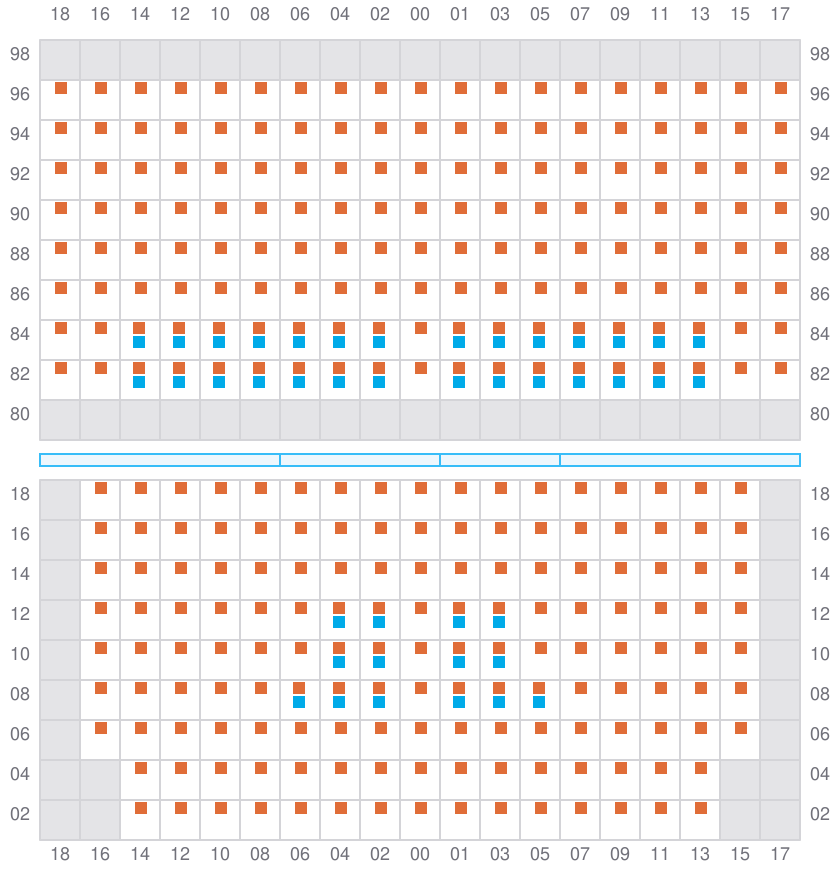

Bay 023 view and slots of MSC JEONGMIN

025 (026)

→

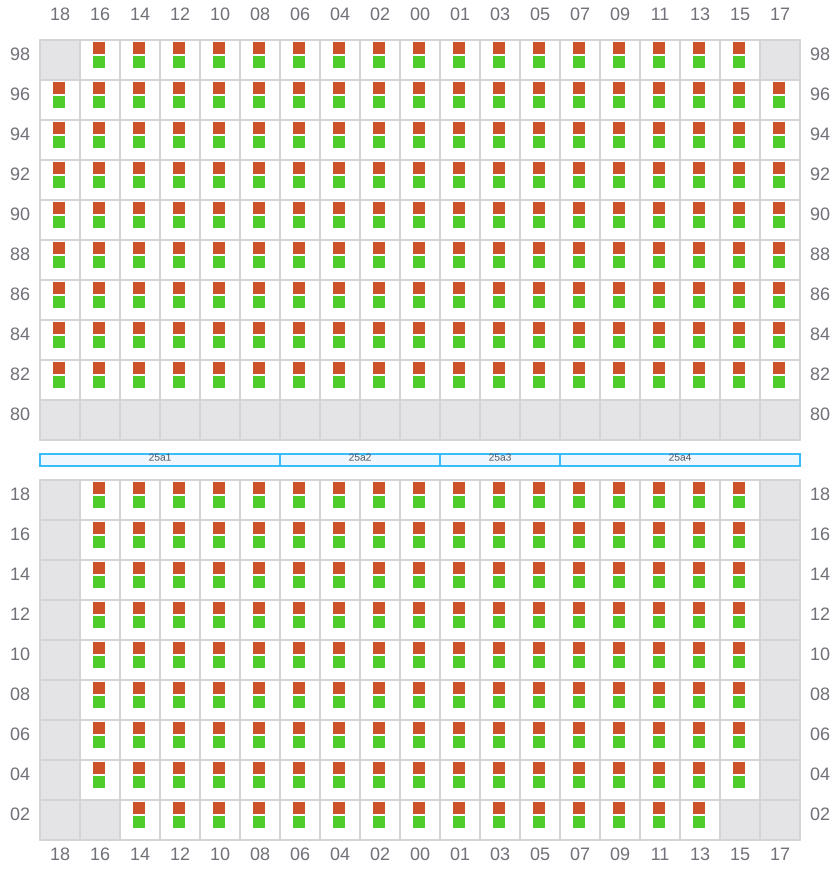

Bay 025 view and slots of MSC JEONGMIN

027

←
→

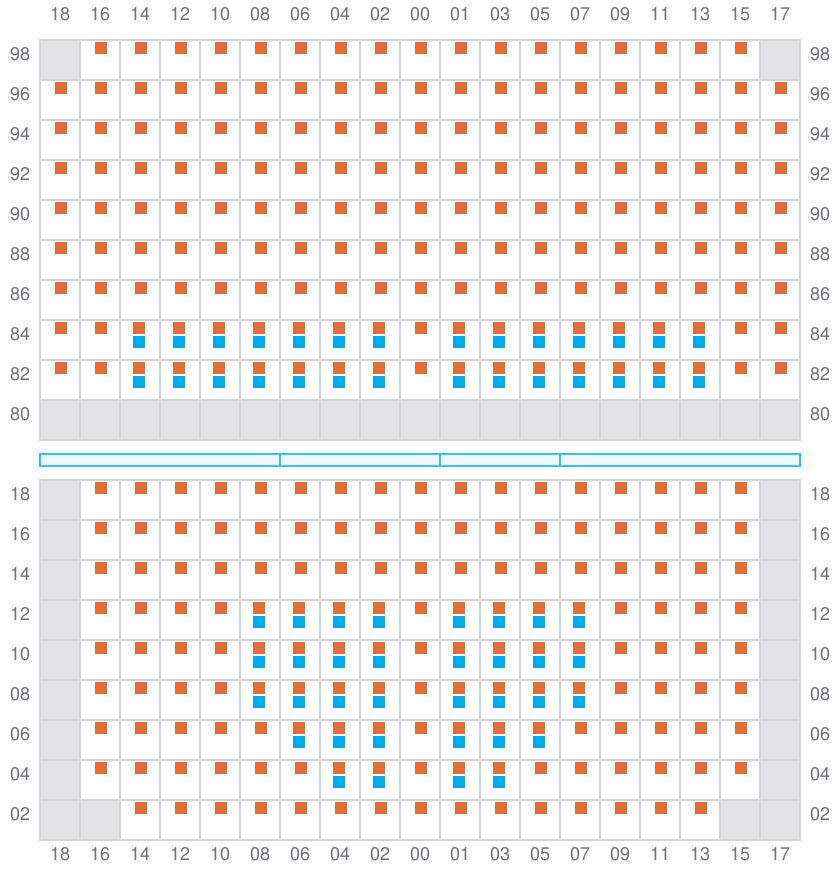

Bay 027 view and slots of MSC JEONGMIN

029 (030)

→

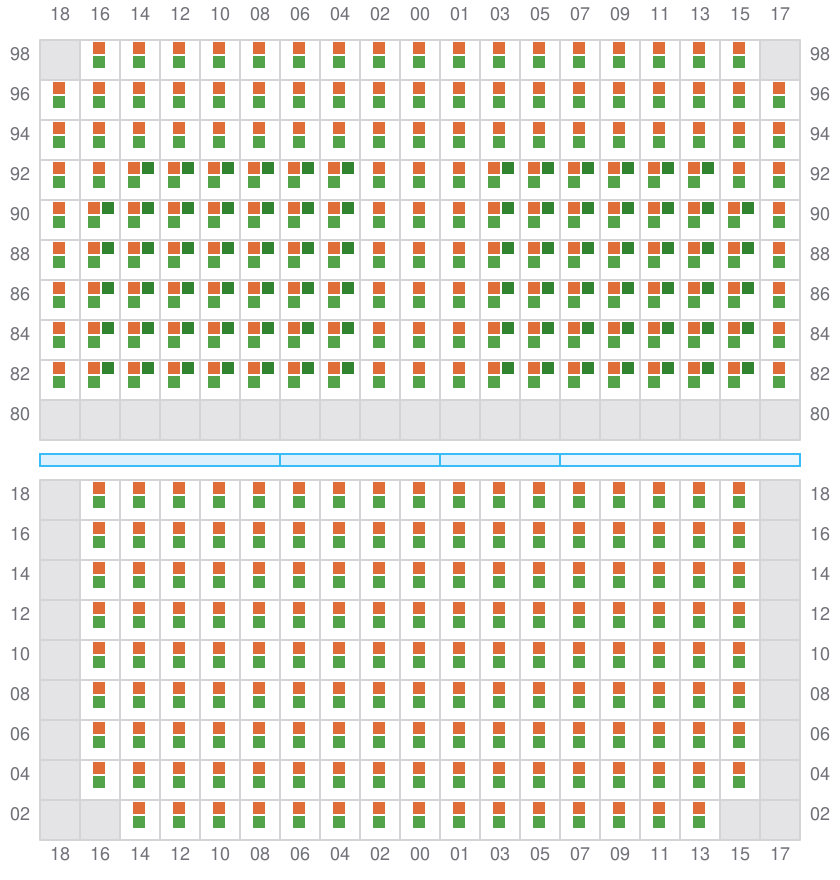

Bay 029 view and slots of MSC JEONGMIN

031

←
→

Bay 031 view and slots of MSC JEONGMIN

033 (034)

→

Bay 033 view and slots of MSC JEONGMIN

035

←
→

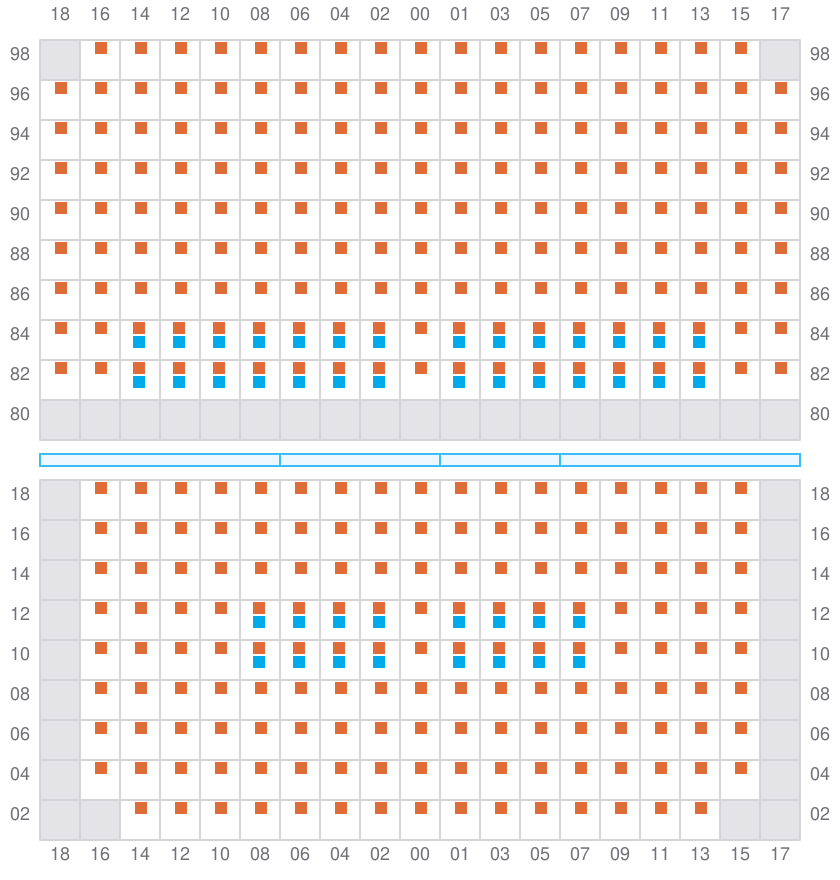

Bay 035 view and slots of MSC JEONGMIN

037 (038)

→

Bay 037 view and slots of MSC JEONGMIN

039

←
→

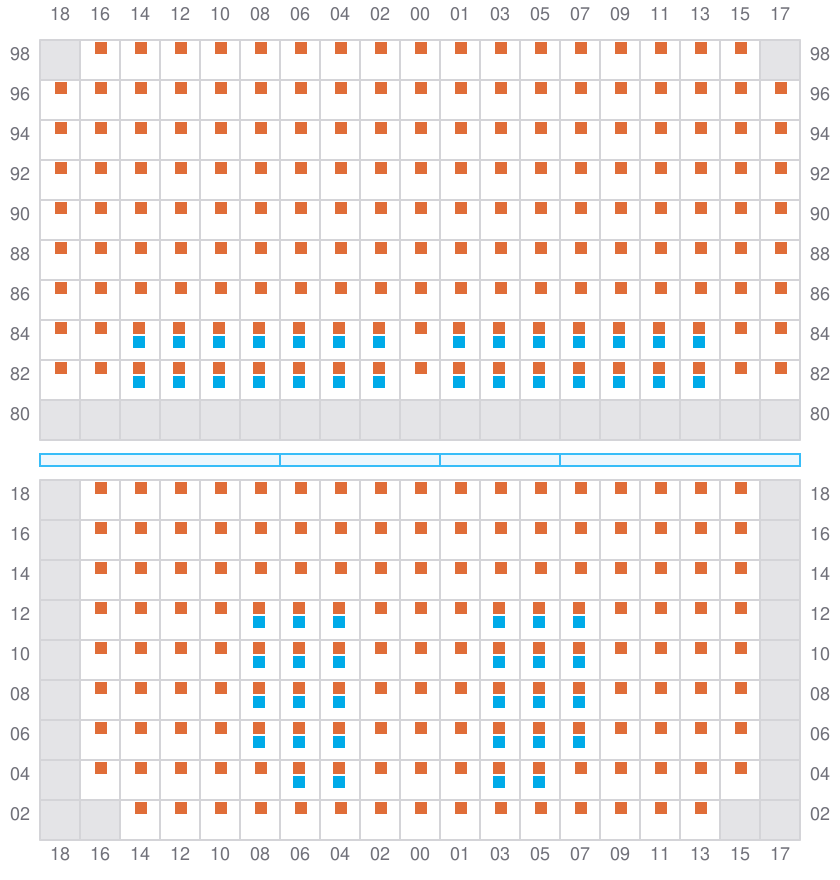

Bay 039 view and slots of MSC JEONGMIN

041 (042)

→

Bay 041 view and slots of MSC JEONGMIN

043

←
→

Bay 043 view and slots of MSC JEONGMIN

045 (046)

→

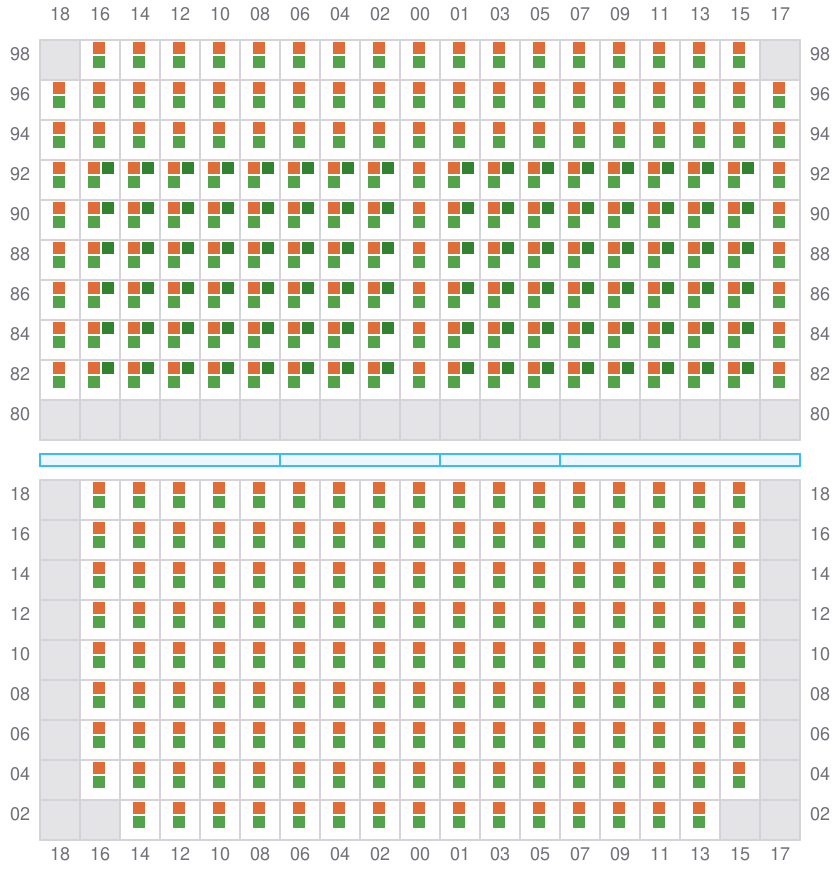

Bay 045 view and slots of MSC JEONGMIN

047

←
→

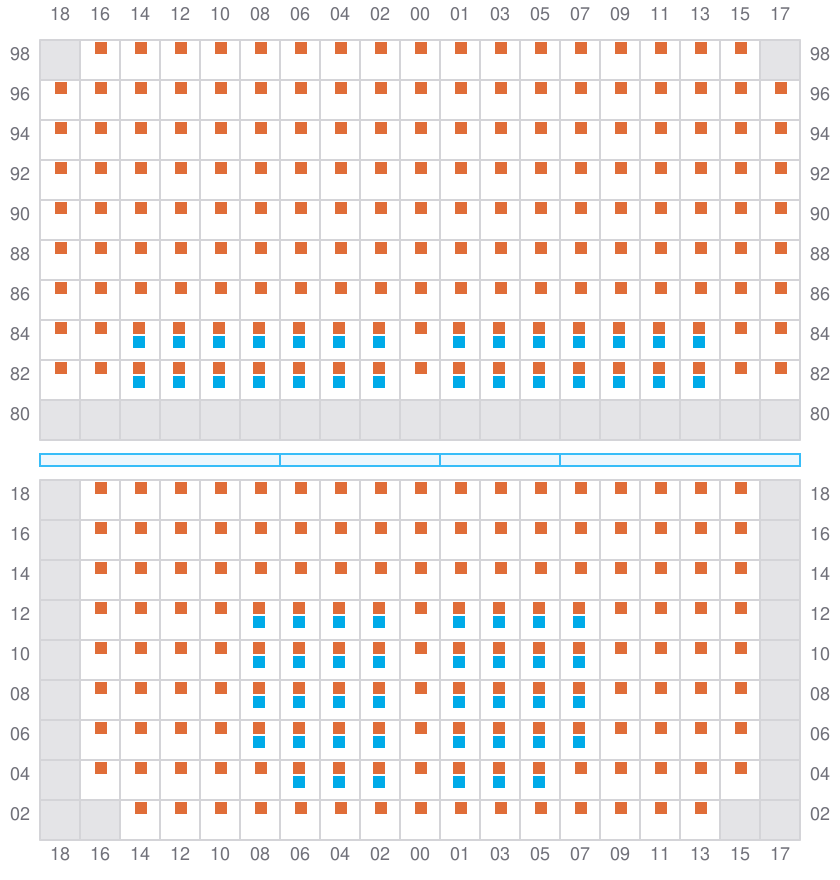

Bay 047 view and slots of MSC JEONGMIN

049 (050)

→

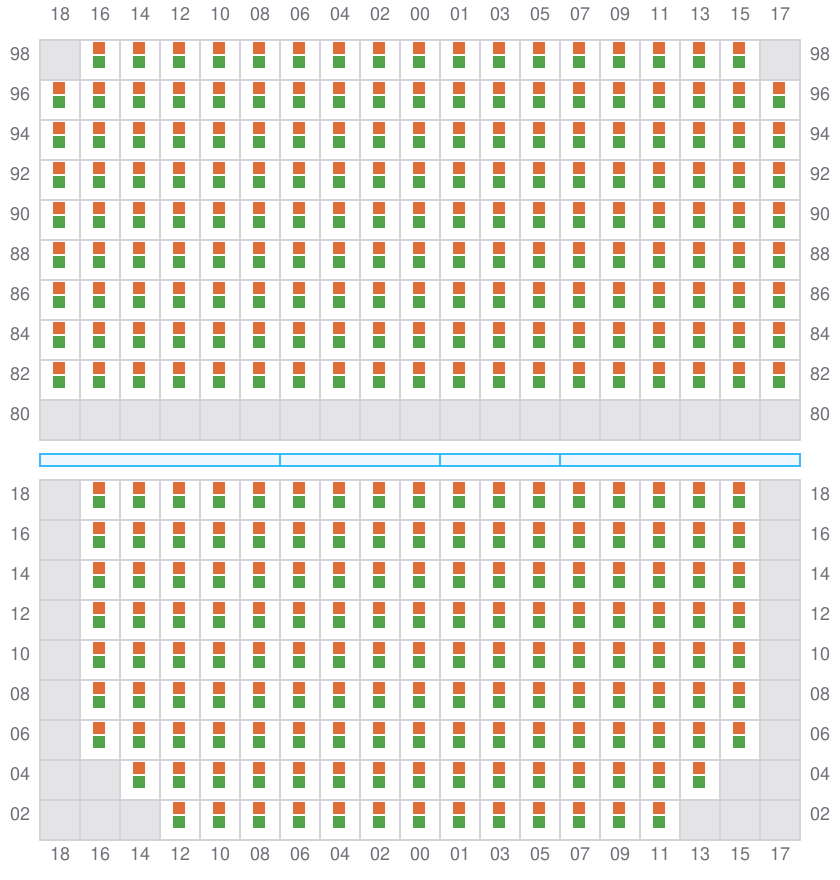

Bay 049 view and slots of MSC JEONGMIN

051

←
→

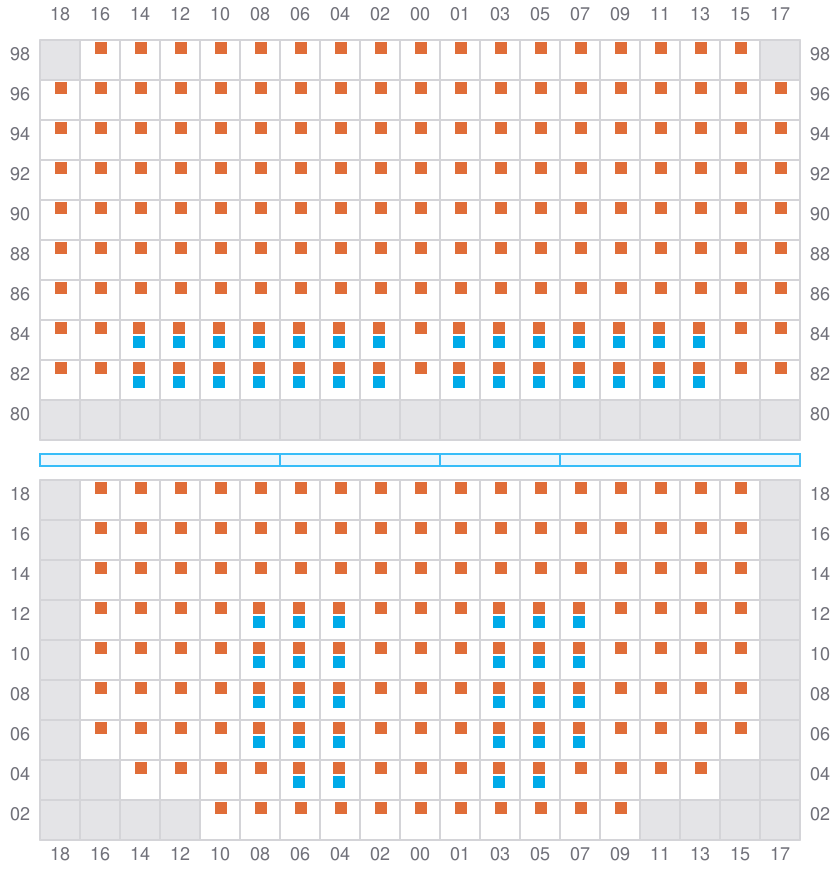

Bay 051 view and slots of MSC JEONGMIN

053 (054)

→

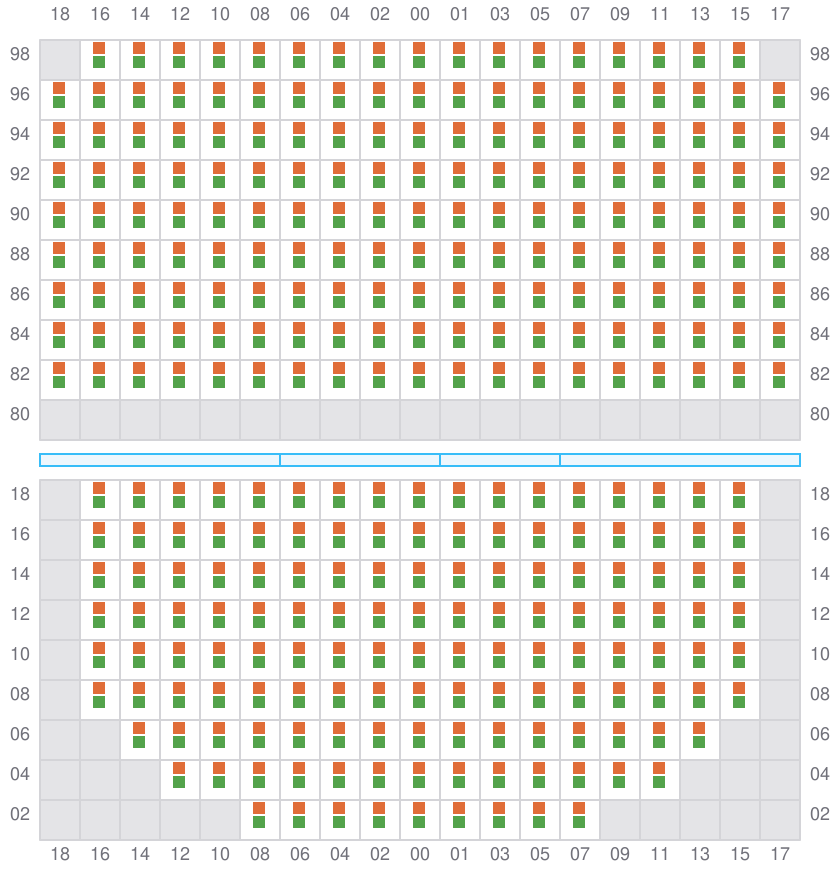

Bay 053 view and slots of MSC JEONGMIN

055

←
^→ / _?

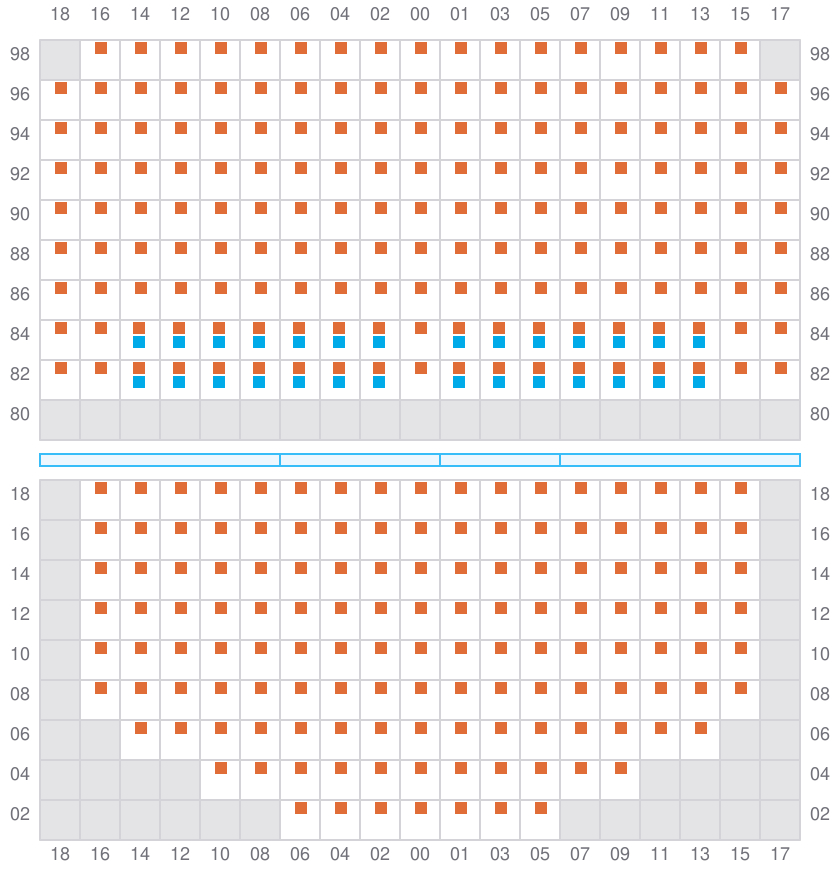

Bay 055 view and slots of MSC JEONGMIN

057 (058)

^→ / _?

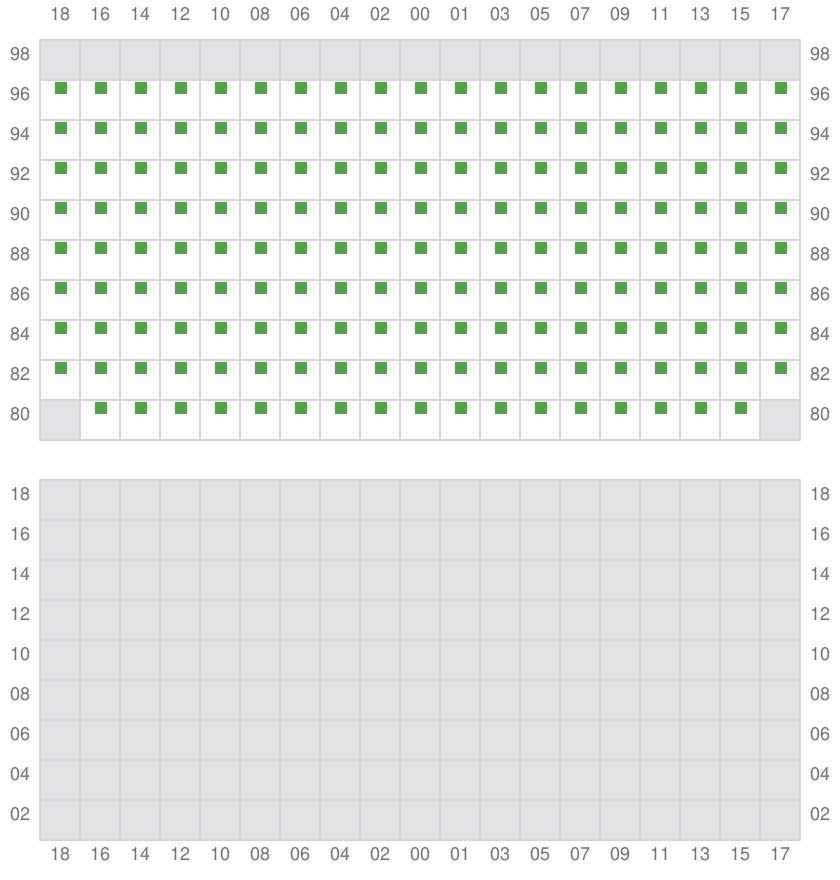

Bay 057 view and slots of MSC JEONGMIN

059

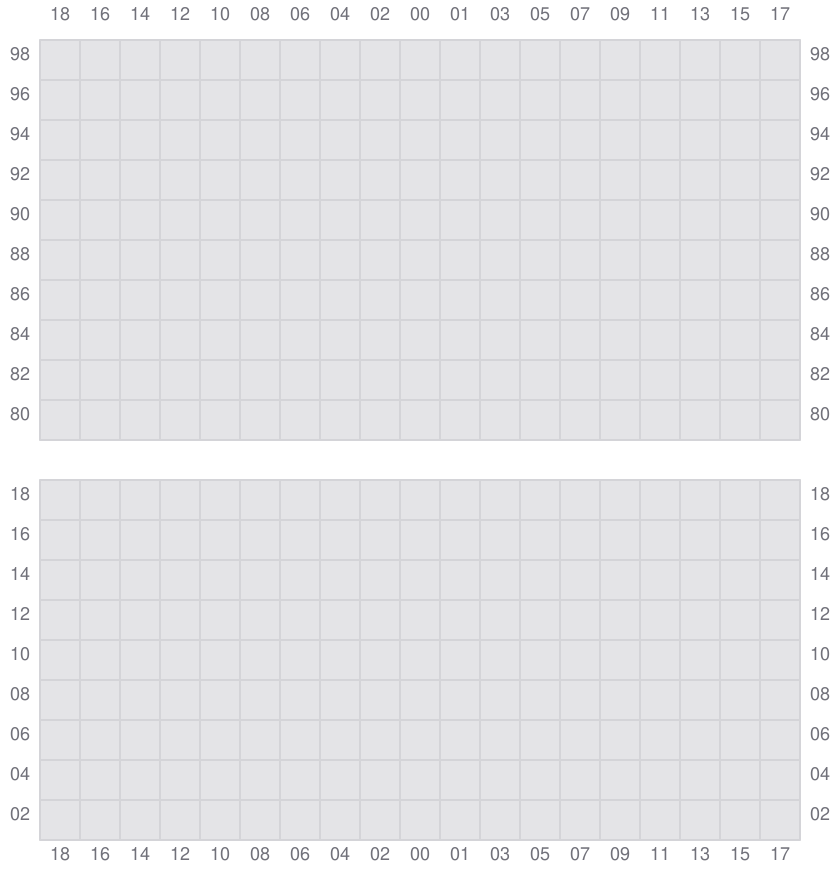

Bay 059 view and slots of MSC JEONGMIN

061 (062)

^→ / _?
^← / _?

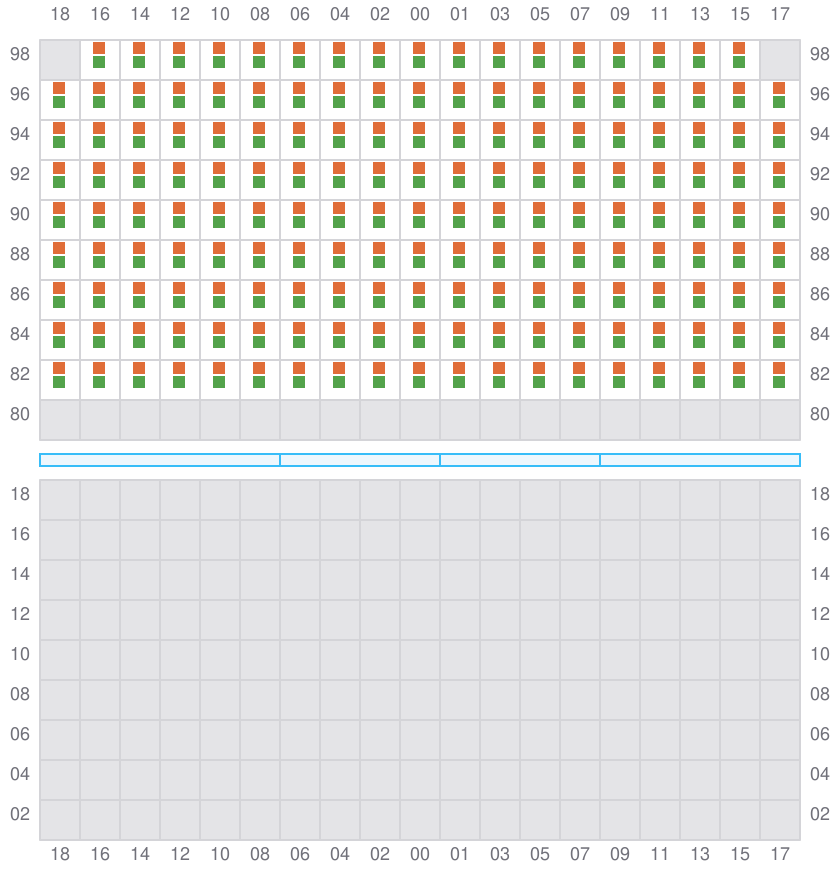

Bay 061 view and slots of MSC JEONGMIN

063

←

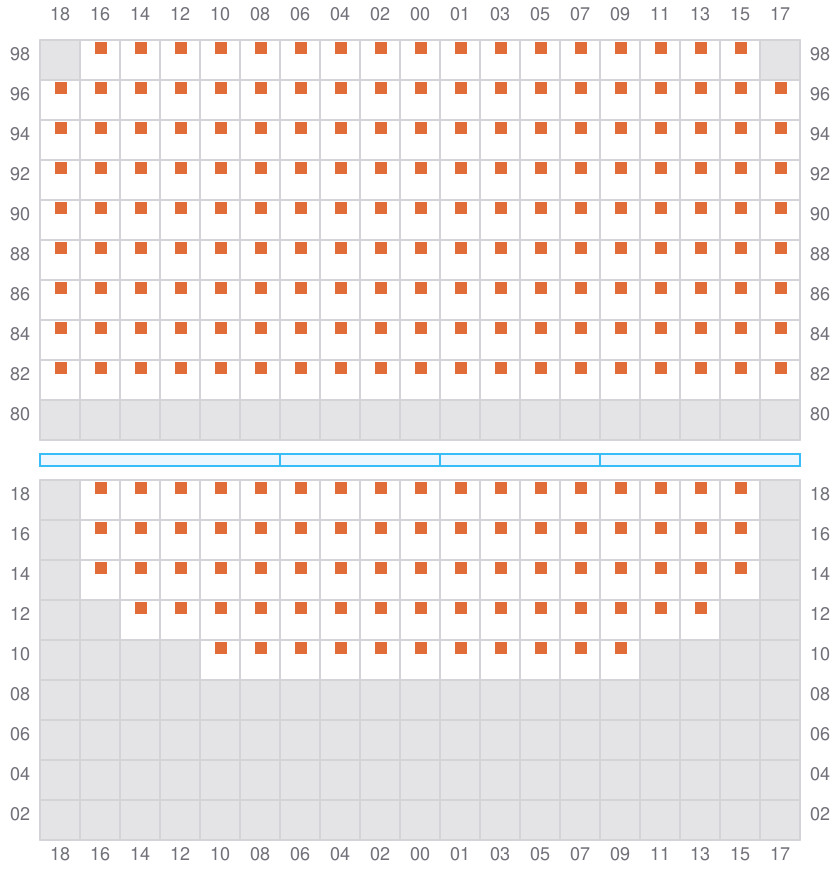

Bay 063 view and slots of MSC JEONGMIN

065 (066)

→

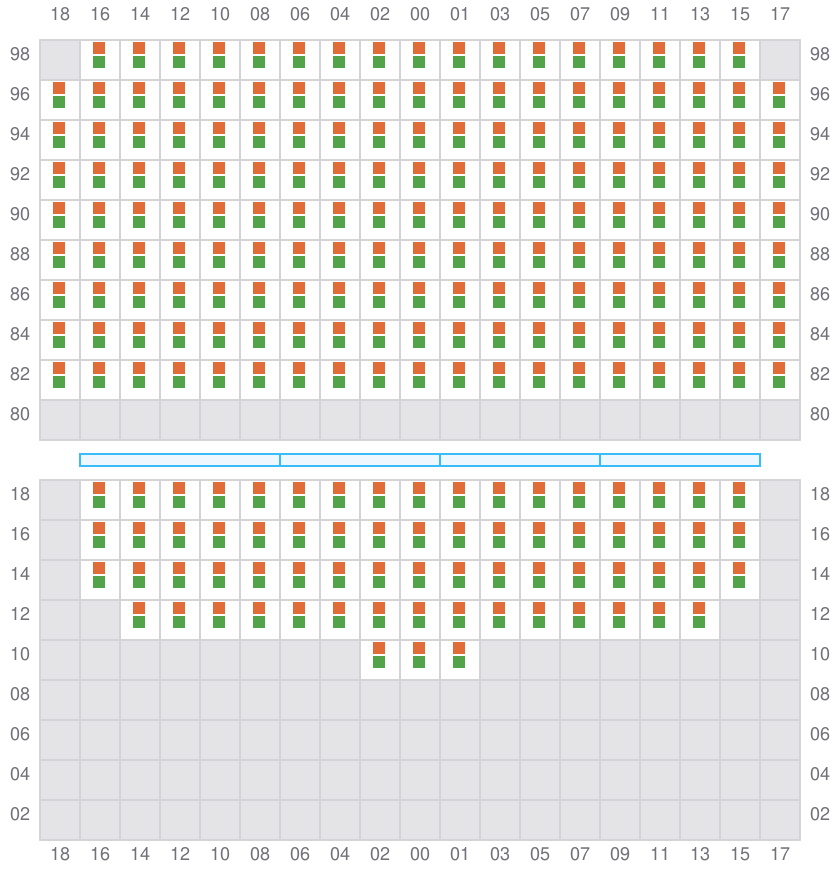

Bay 065 view and slots of MSC JEONGMIN

067

←

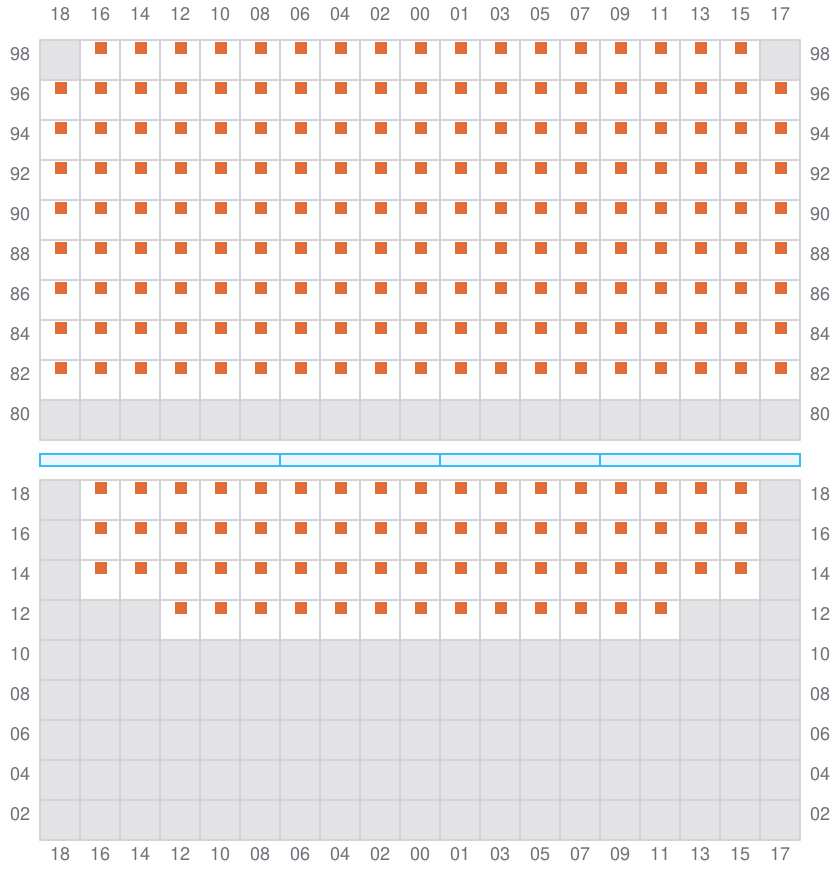

Bay 067 view and slots of MSC JEONGMIN

069 (070)

^→ / _?

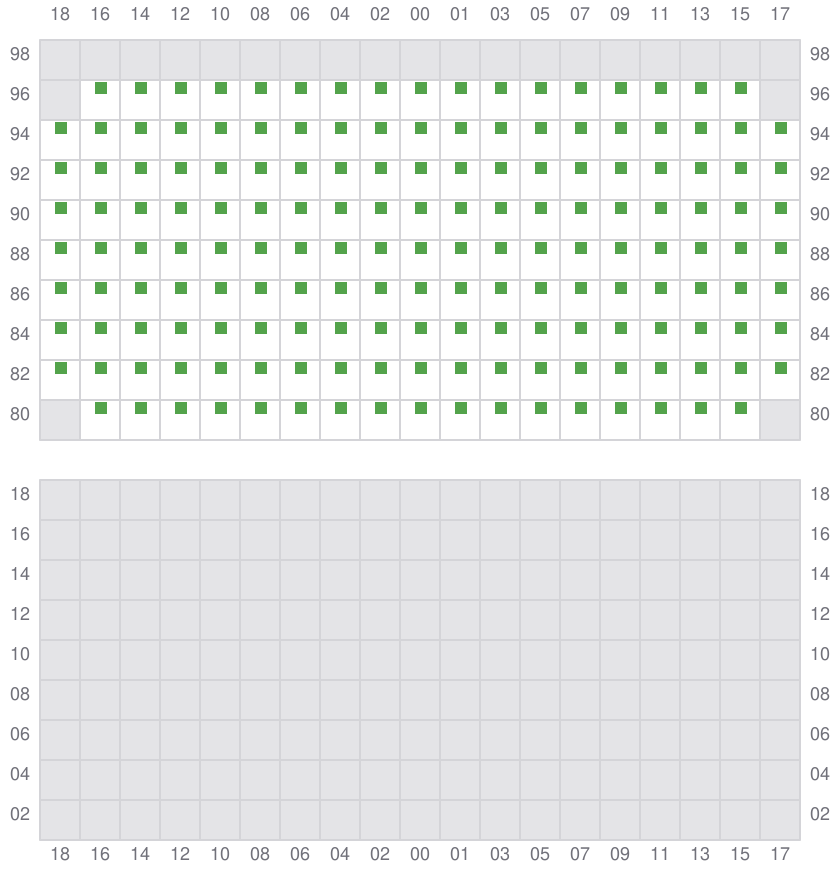

Bay 069 view and slots of MSC JEONGMIN
