MSC JERSEY
9622007 | CQIG8 | 9622007 by ********* Last update: Wed Jul 31 2024
General Info
Ship Name:MSC JERSEY
IMO Code:9622007
Call Sign:CQIG8
Line Operator:9622007
Class Name for Sister Ships:MAE
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,806
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

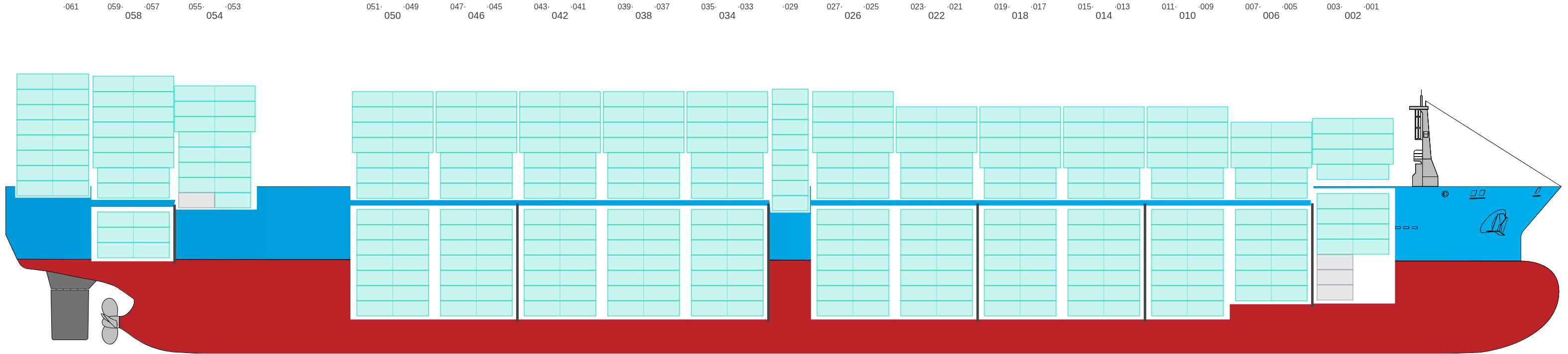

Side View
Hatch-Covers View

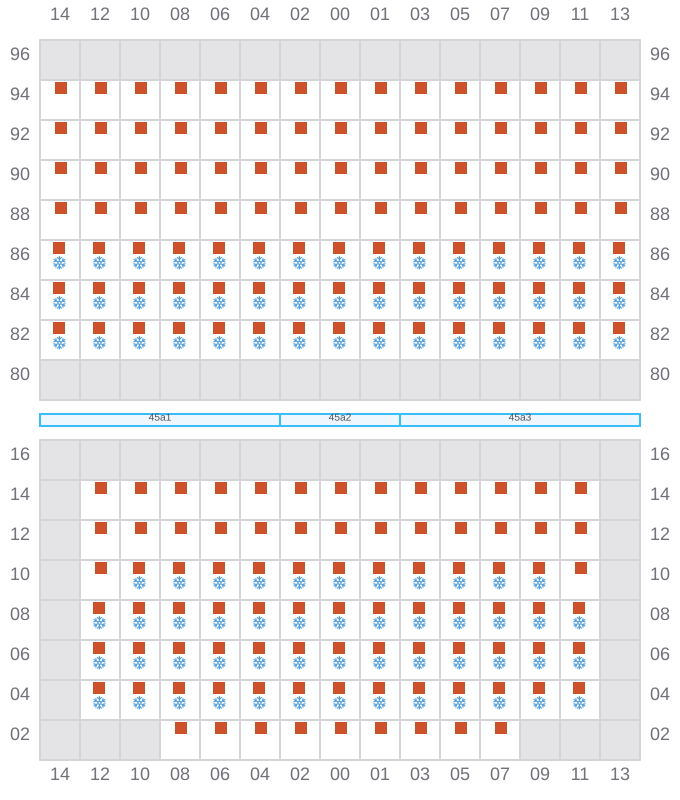

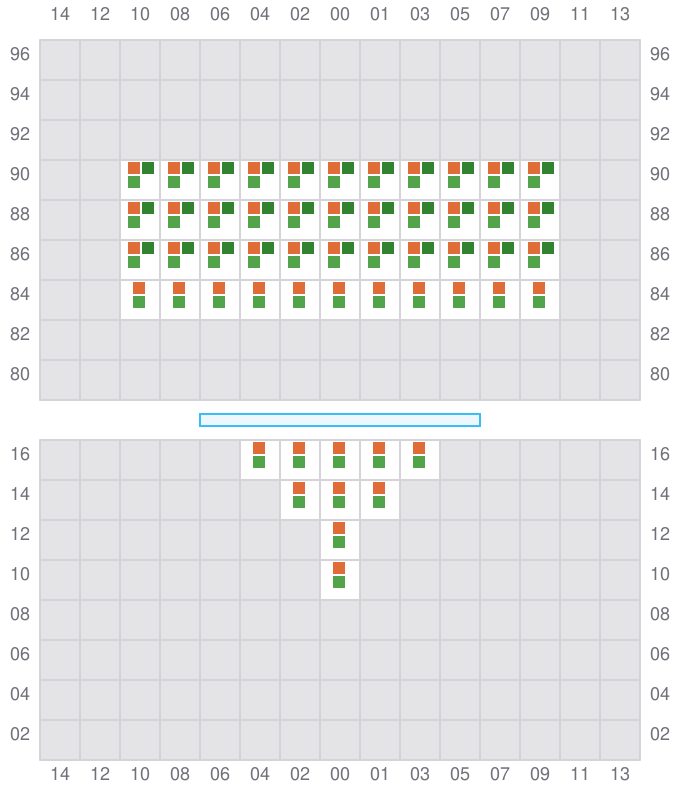

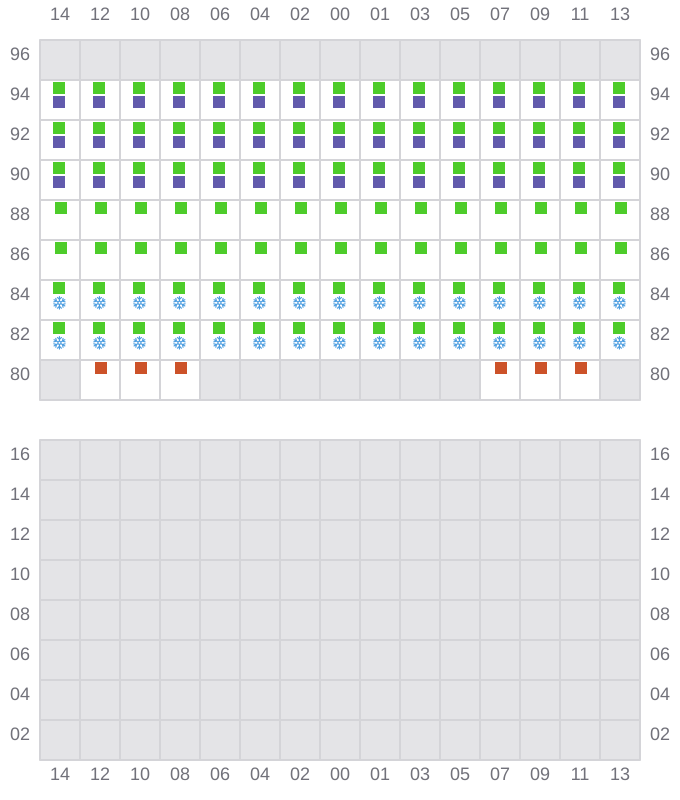

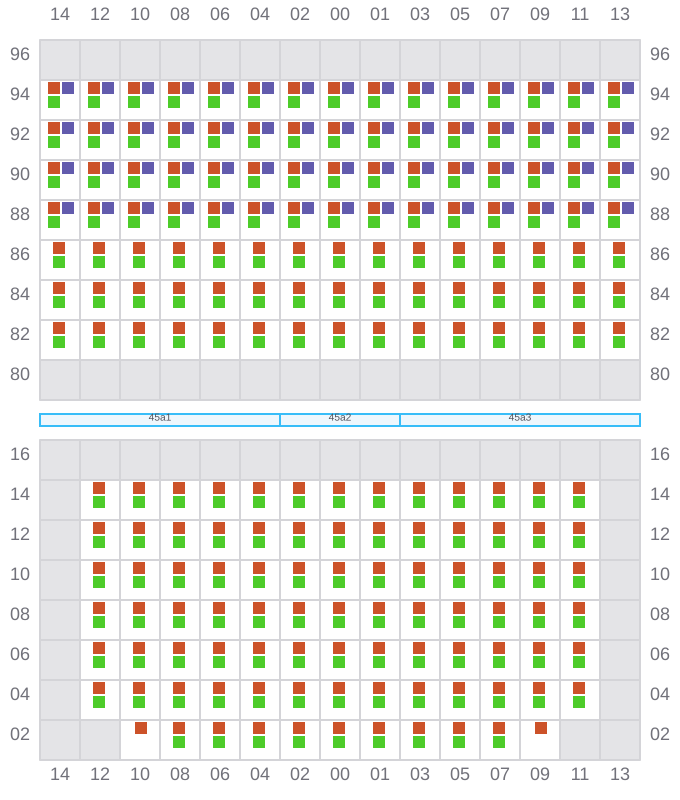

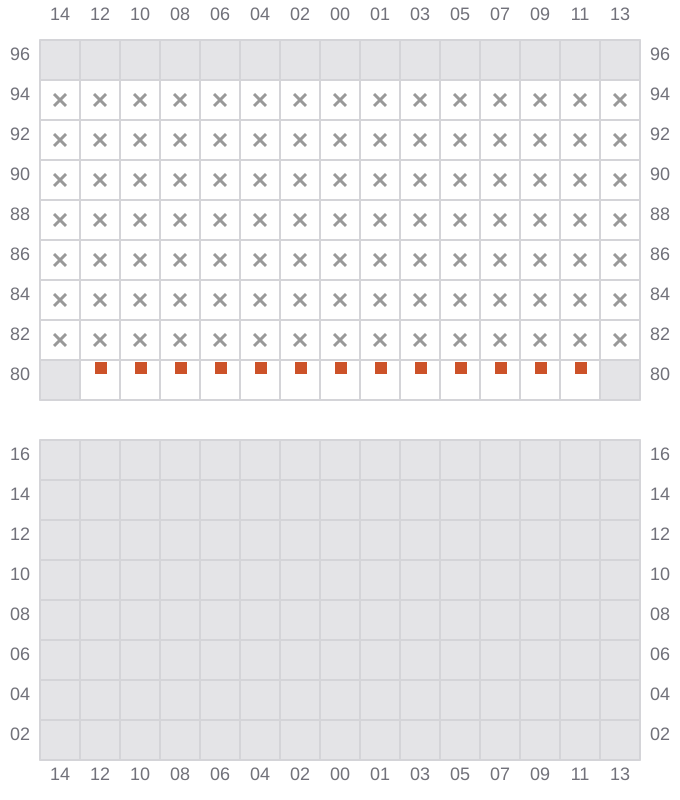

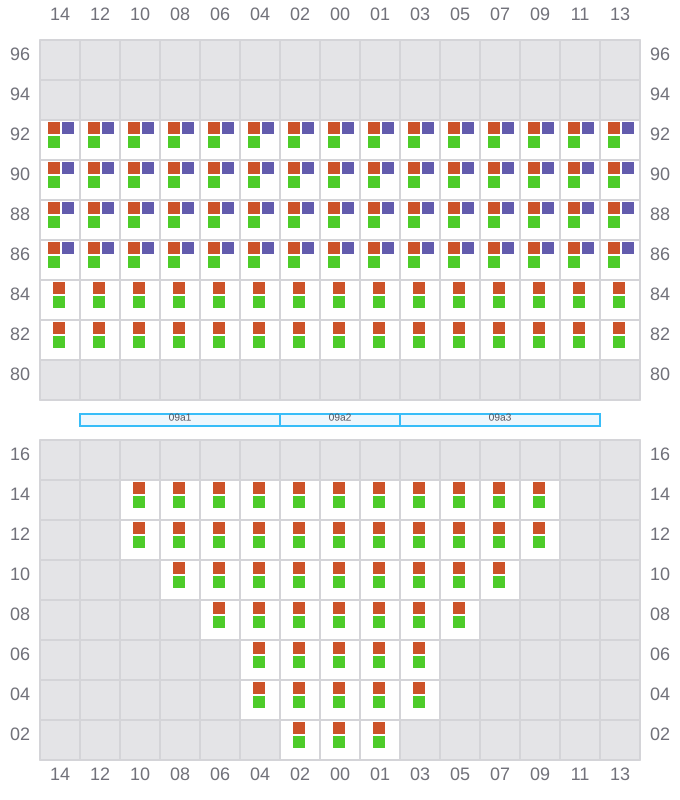

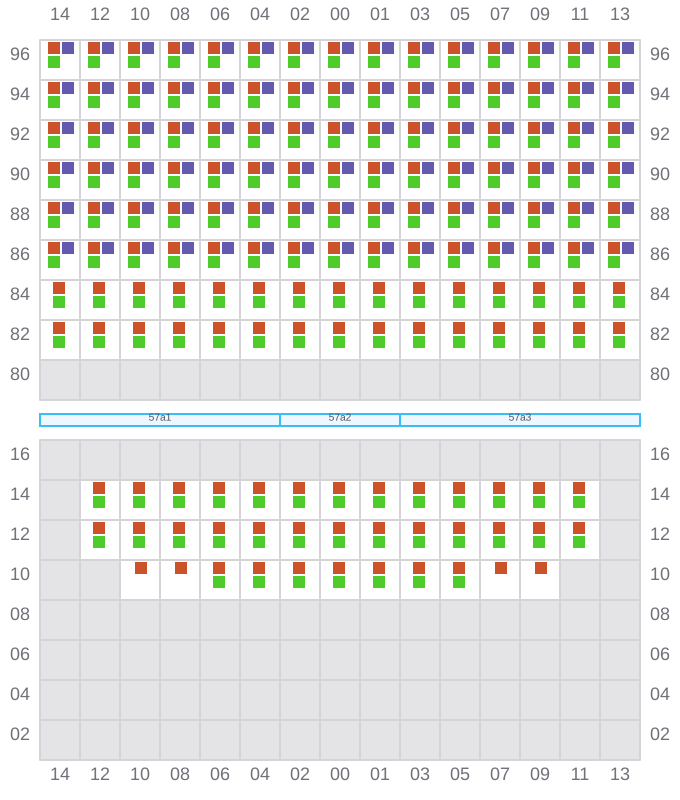

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

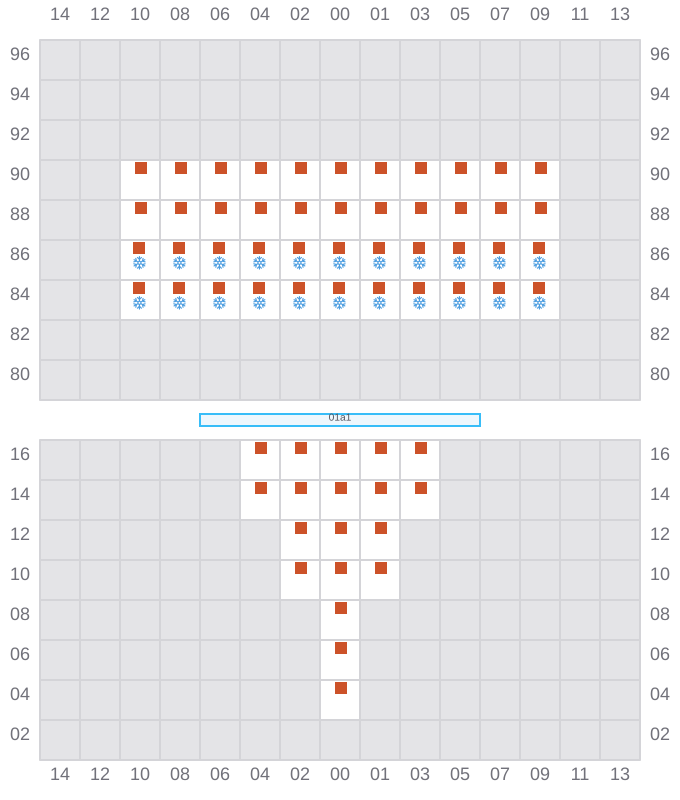

001 (002)
- →
003
- ←
- → / ?

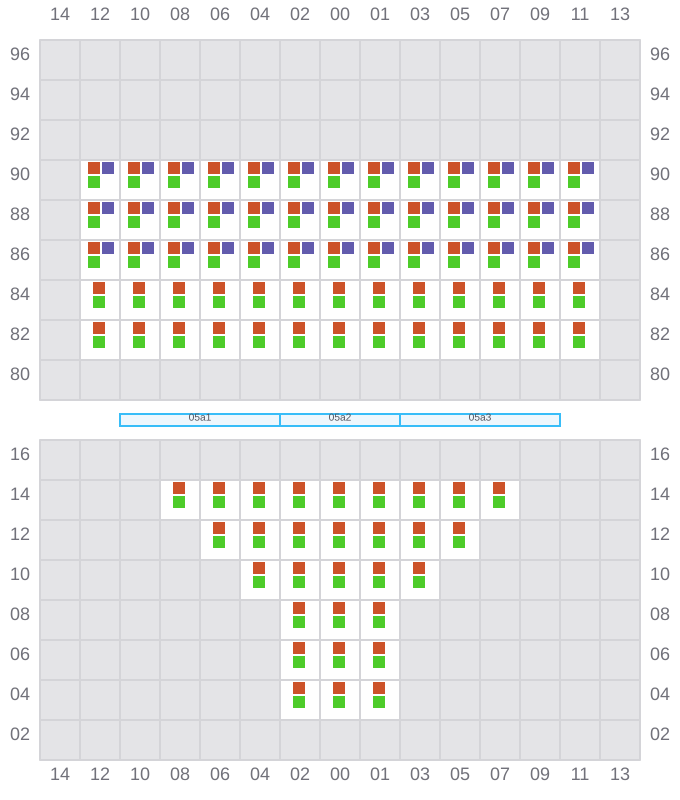

005 (006)
- →
007
- ←
- → / ?

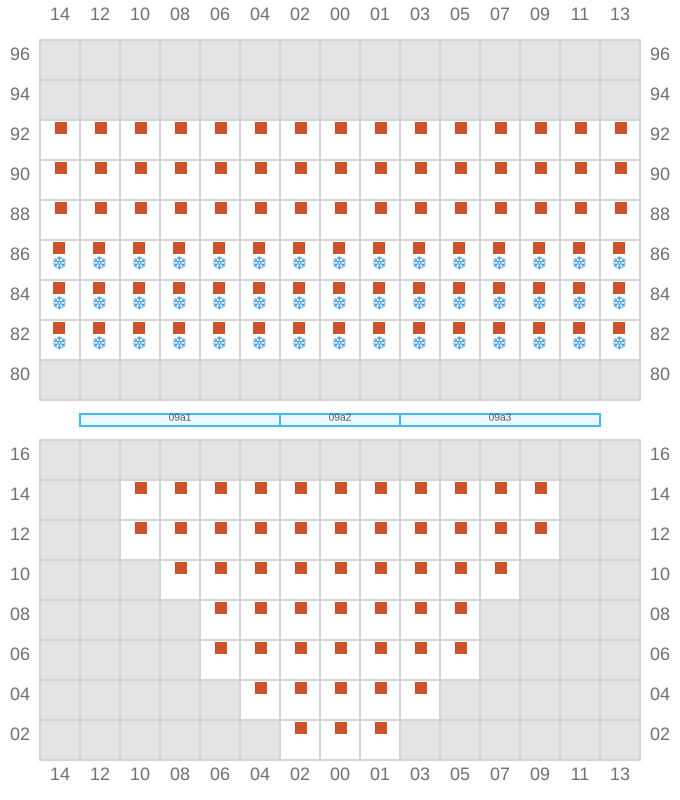

009 (010)
- →
011
- ←
- → / ?

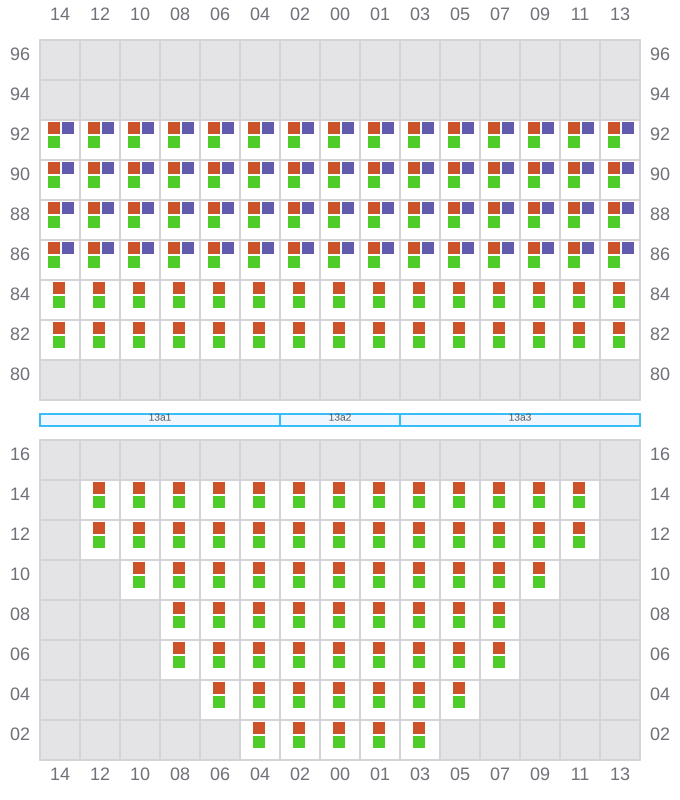

013 (014)
- →
015
- ←
- → / ?

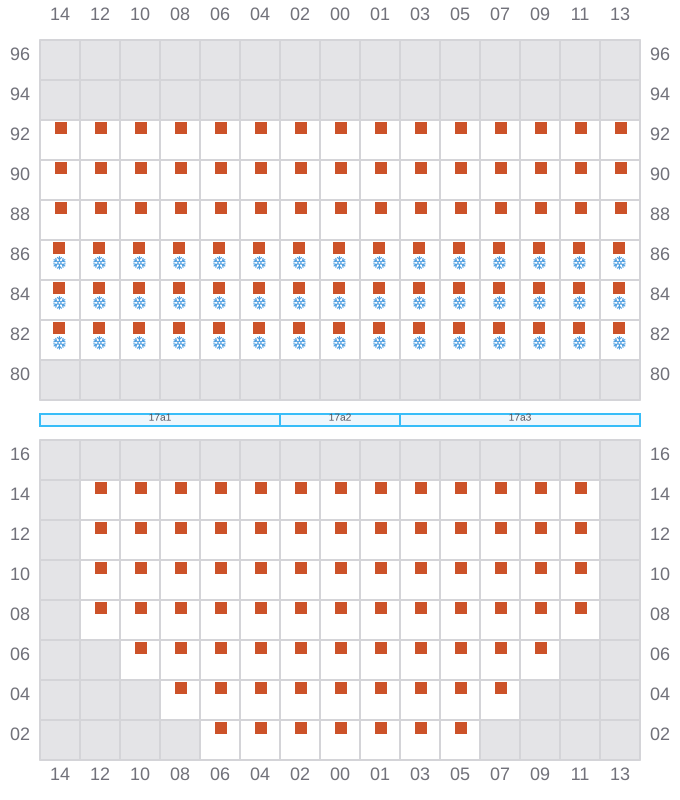

017 (018)
- →
019
- ←
- → / ?
021 (022)
- →
023
- ←
- → / ?
025 (026)
- →
027
- ←
- → / ?
029
- → / ?
031
033 (034)
- →
035
- ←
- → / ?

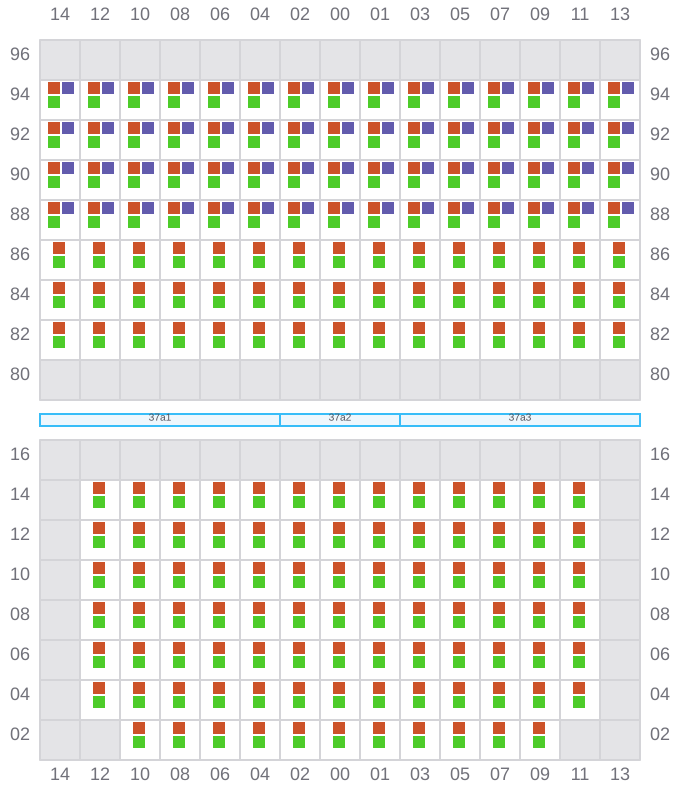

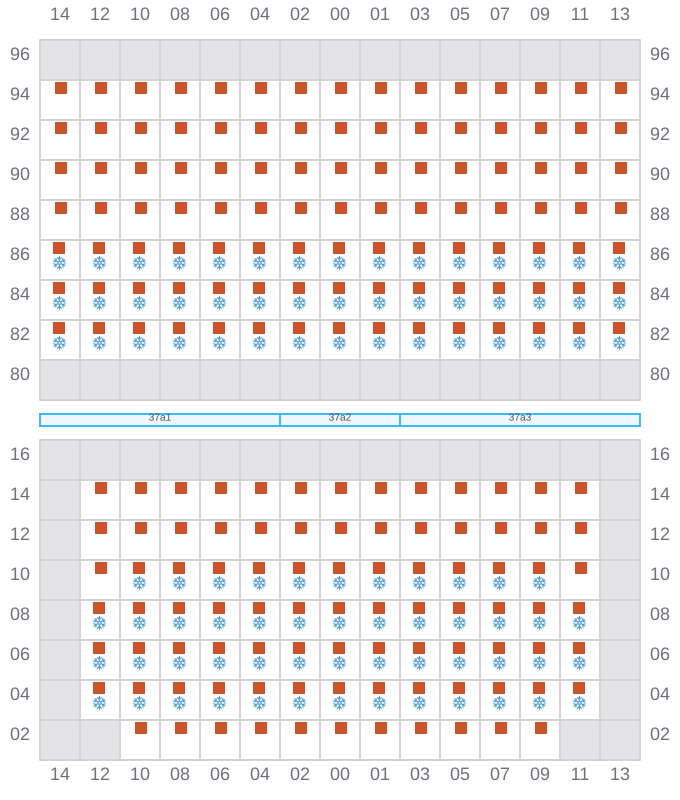

037 (038)
- →
039
- ←
- →

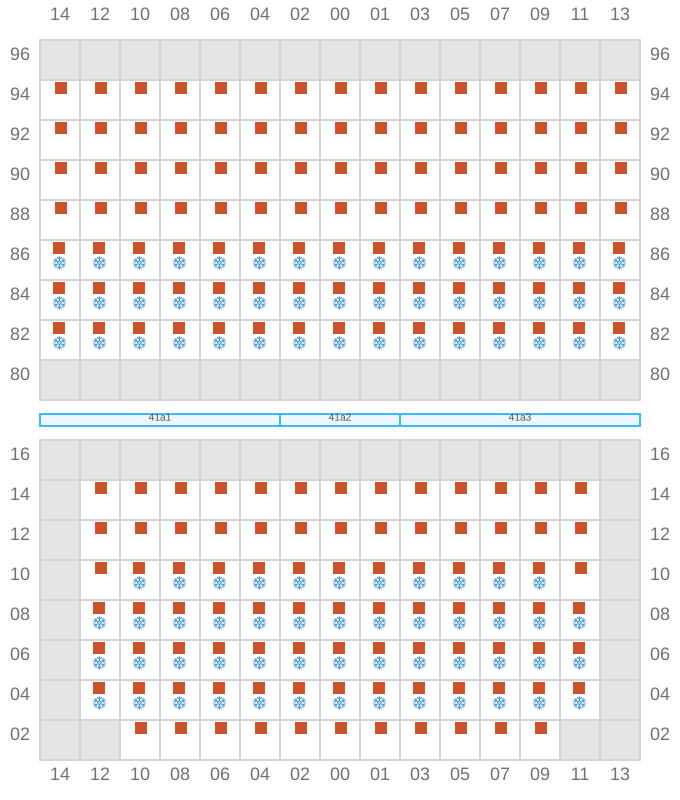

041 (042)
- →
043
- ←
- →
045 (046)
- →
047
- ←
- →

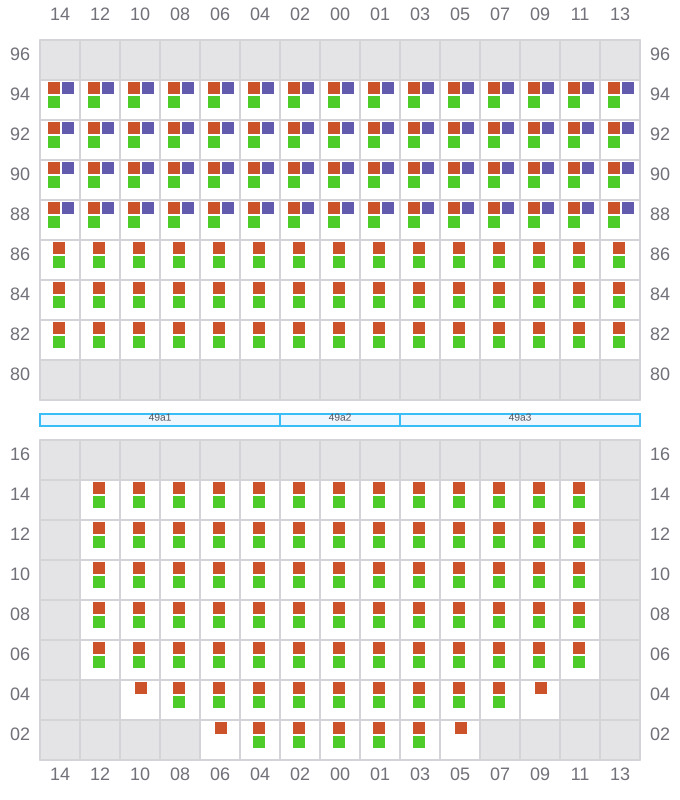

049 (050)
- →
051
- ←
- → / ?
053 (054)
- → / ?
- → / ?
055
- ← / ?
- → / ?

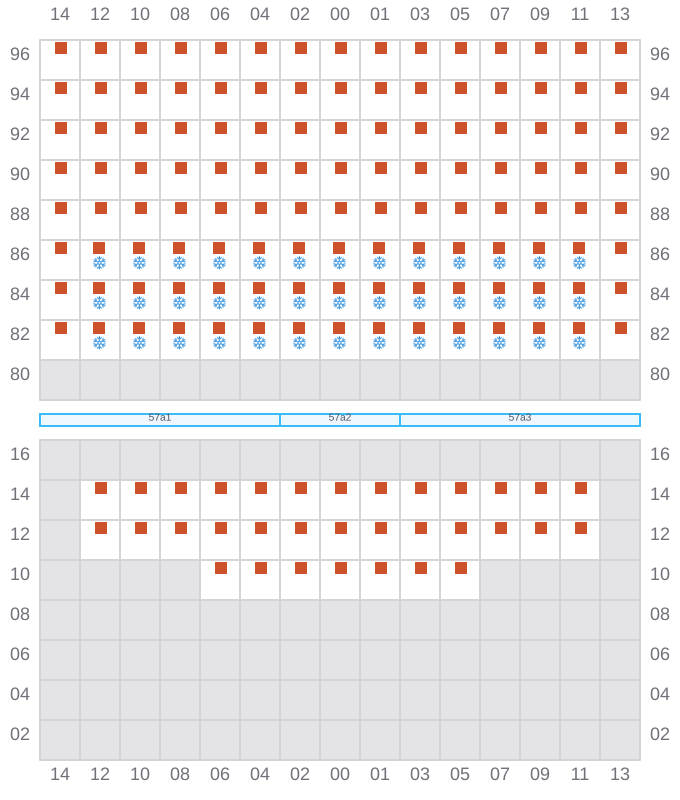

057 (058)
- →
059
- ←
- → / ?

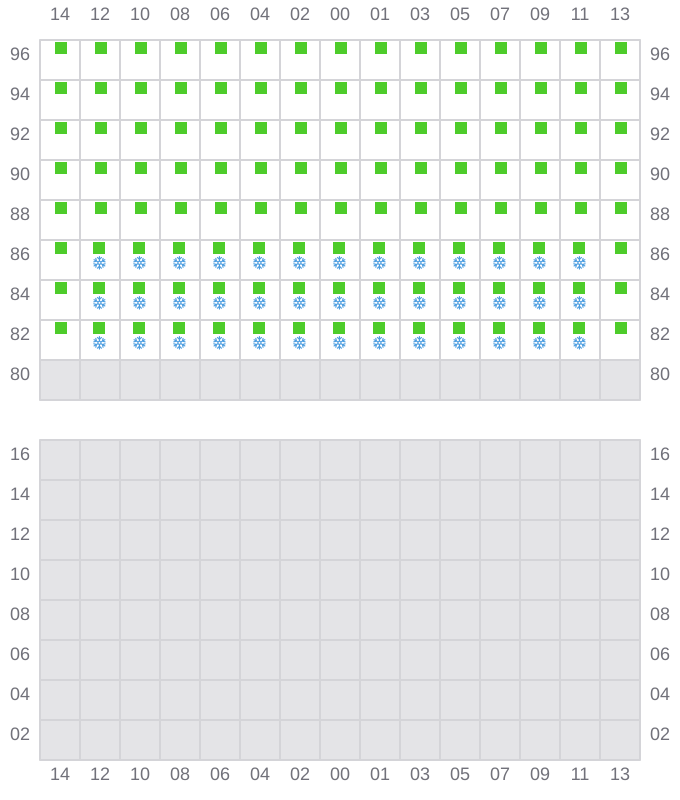

061 (062)
- → / ?
- ← / ?
