MSC JERSEY
9622007 | CQIG8 | 9622007 by ******************** Last update: Mon Aug 19 2024

General Info

Ship Name:MSC JERSEY

IMO Code:9622007

Call Sign:CQIG8

Line Operator:9622007

Class Name for Sister Ships:MAE

Year Built:2014

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:063

Max ISO Row:14

Center Line Row:Yes

Max Above ISO Tier:96

Min Above ISO Tier:80

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:4,806

Centers of Gravity

LCG Values:Known

LCG Data:97%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

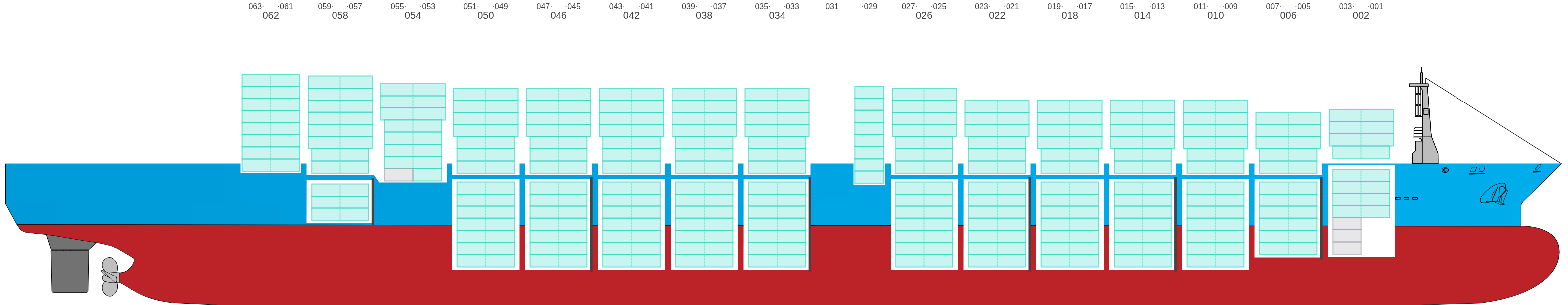

Side view of MSC JERSEY

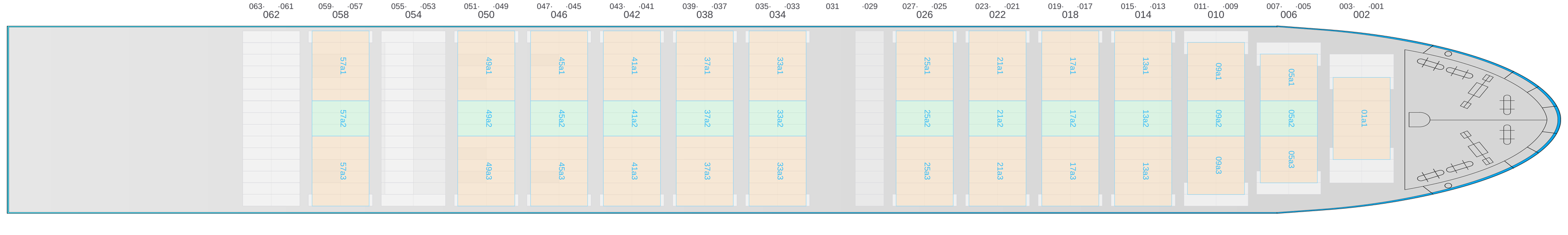

Hatch-Covers View

Deck view of MSC JERSEY

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

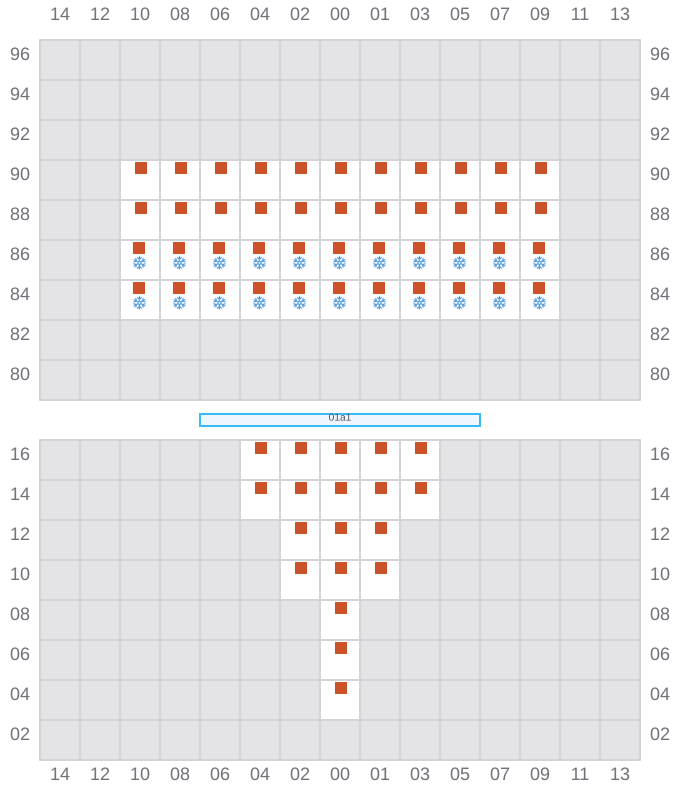

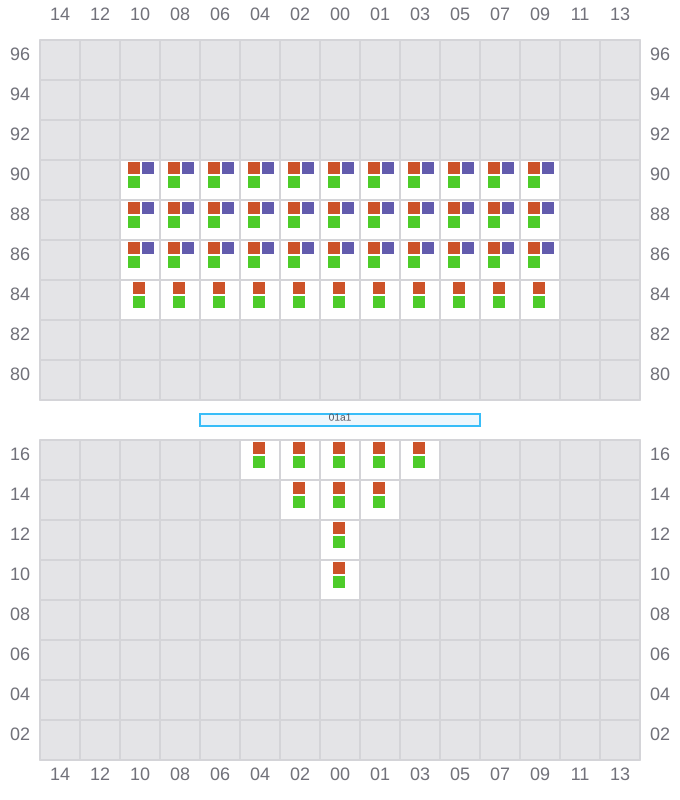

Bay 001 view and slots of MSC JERSEY

003

←
^→ / _?

Bay 003 view and slots of MSC JERSEY

005 (006)

→

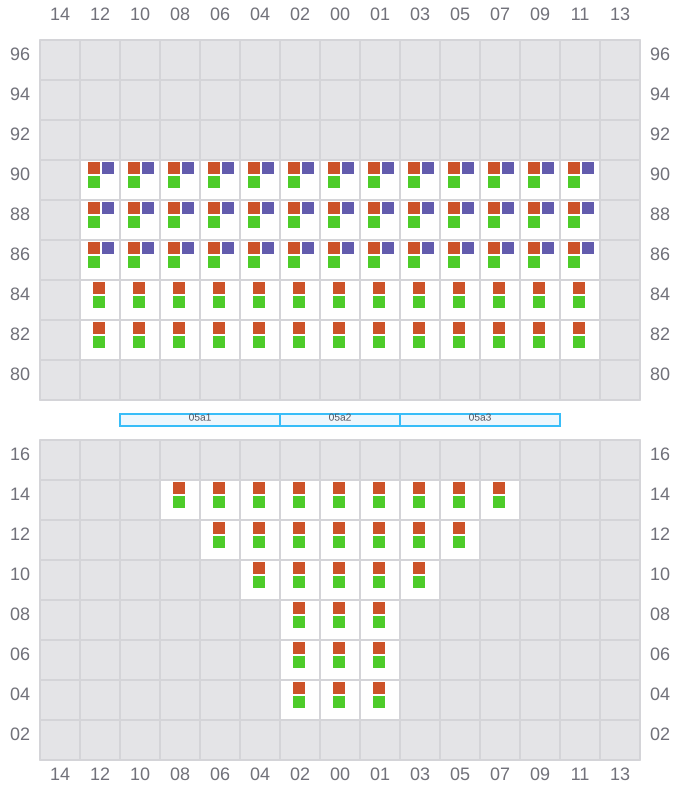

Bay 005 view and slots of MSC JERSEY

007

←
^→ / _?

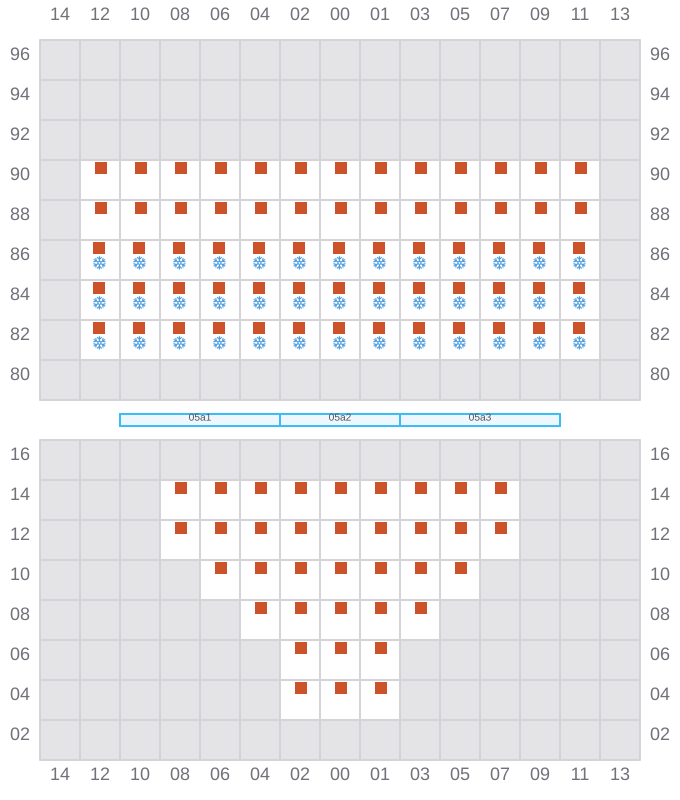

Bay 007 view and slots of MSC JERSEY

009 (010)

→

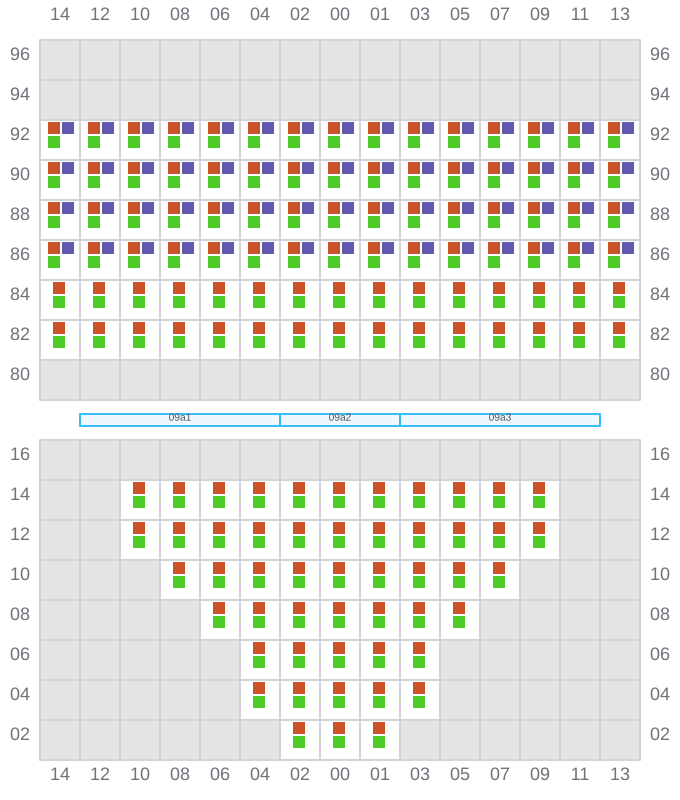

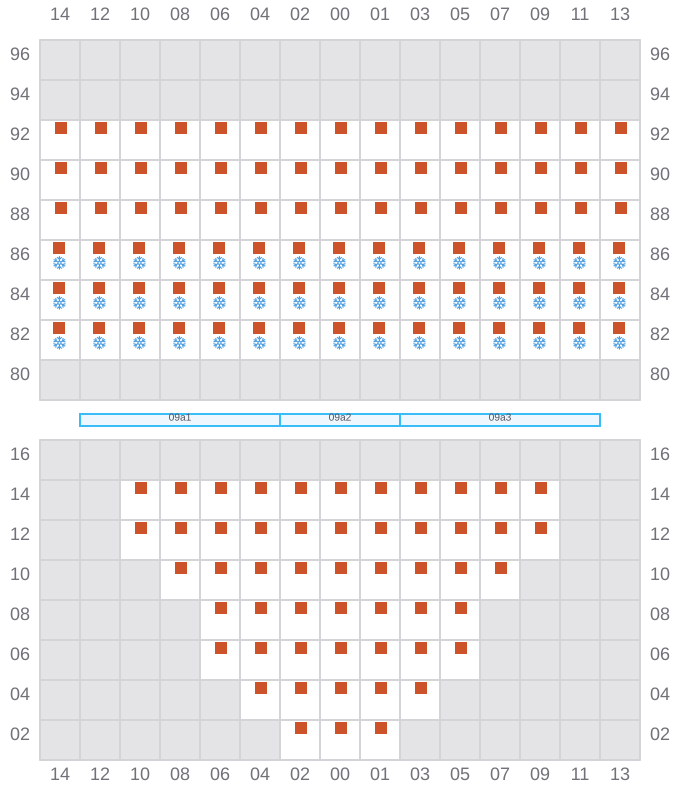

Bay 009 view and slots of MSC JERSEY

011

←
^→ / _?

Bay 011 view and slots of MSC JERSEY

013 (014)

→

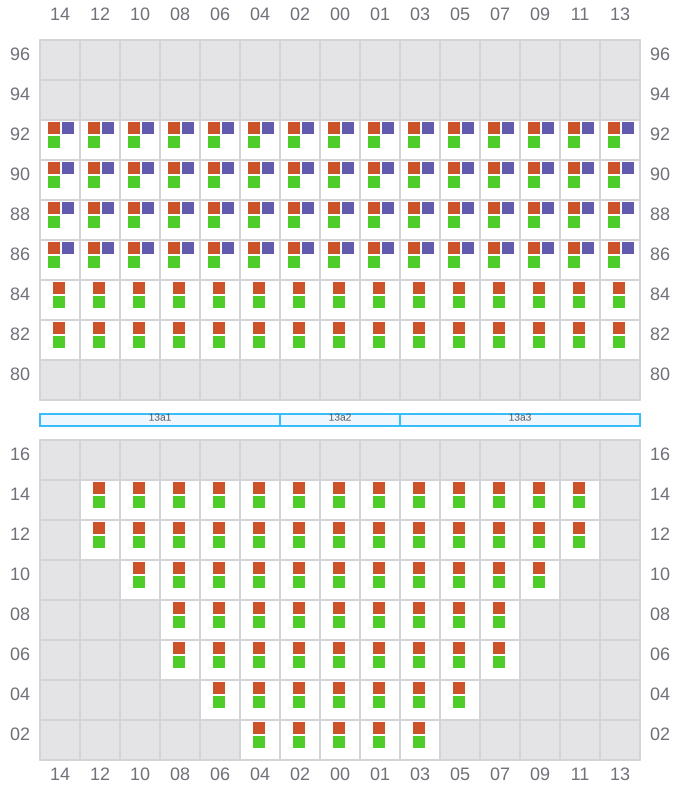

Bay 013 view and slots of MSC JERSEY

015

←
^→ / _?

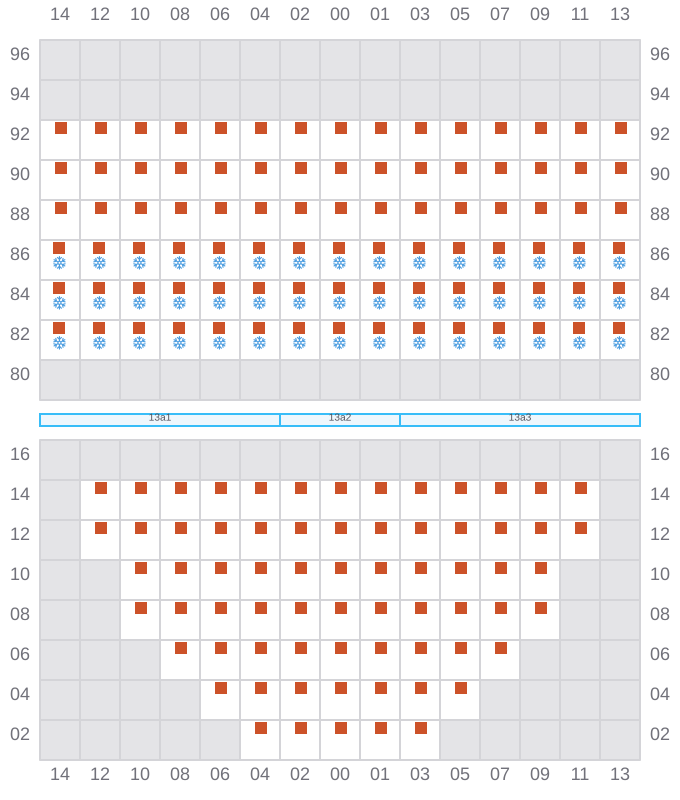

Bay 015 view and slots of MSC JERSEY

017 (018)

→

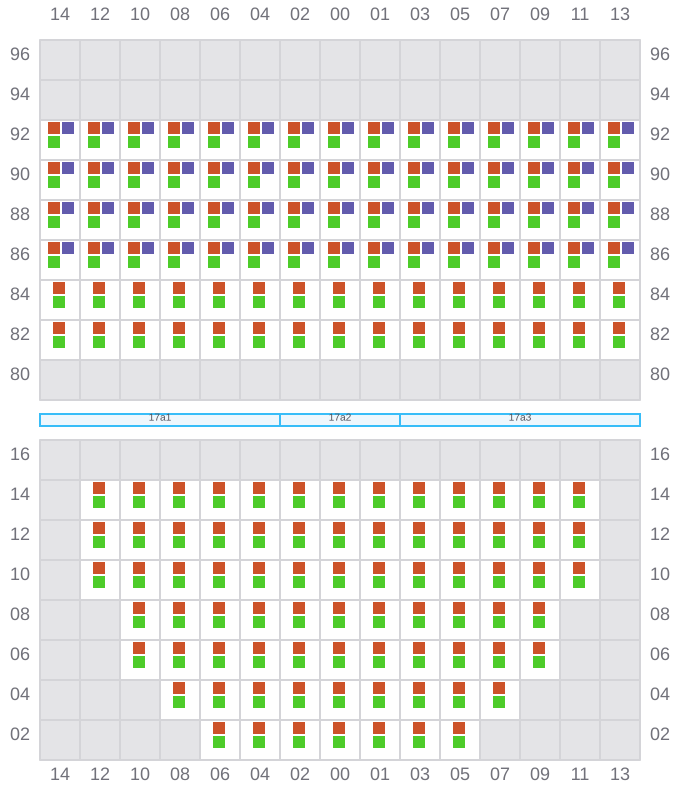

Bay 017 view and slots of MSC JERSEY

019

←
^→ / _?

Bay 019 view and slots of MSC JERSEY

021 (022)

→

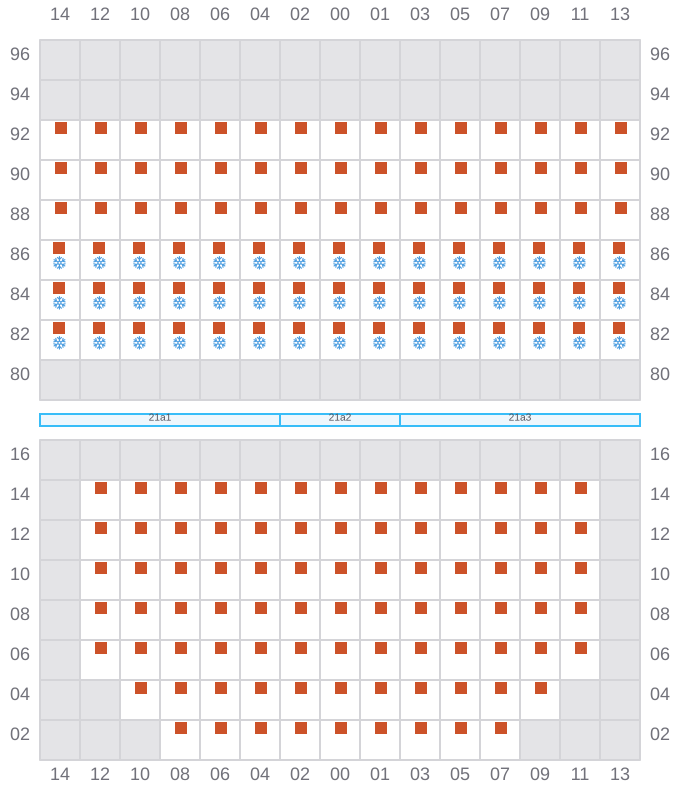

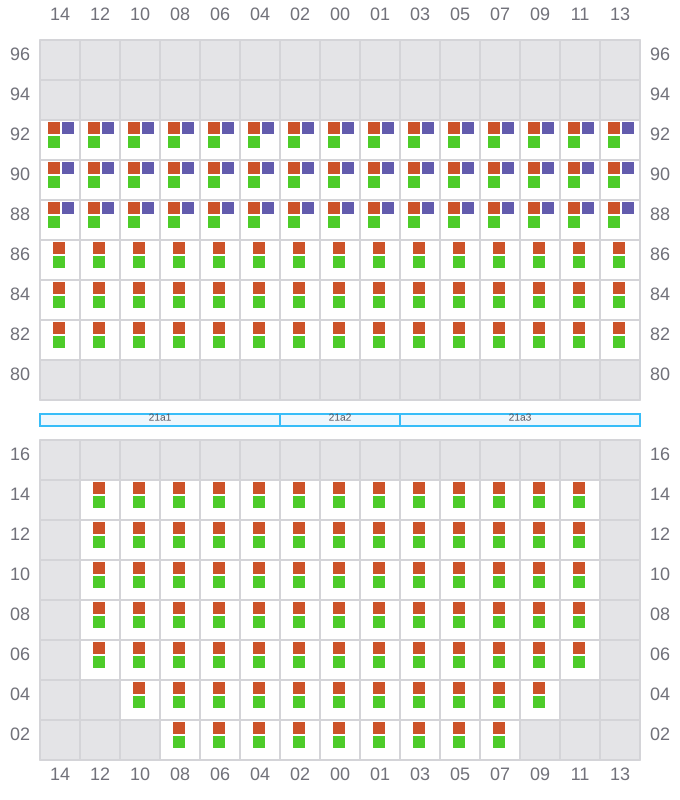

Bay 021 view and slots of MSC JERSEY

023

←
^→ / _?

Bay 023 view and slots of MSC JERSEY

025 (026)

→

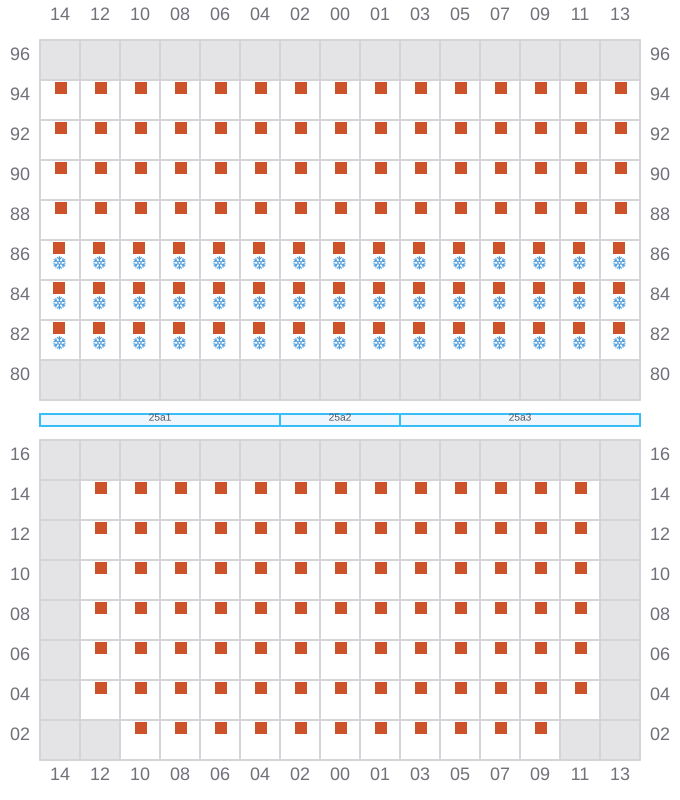

Bay 025 view and slots of MSC JERSEY

027

←
^→ / _?

Bay 027 view and slots of MSC JERSEY

029

^→ / _?

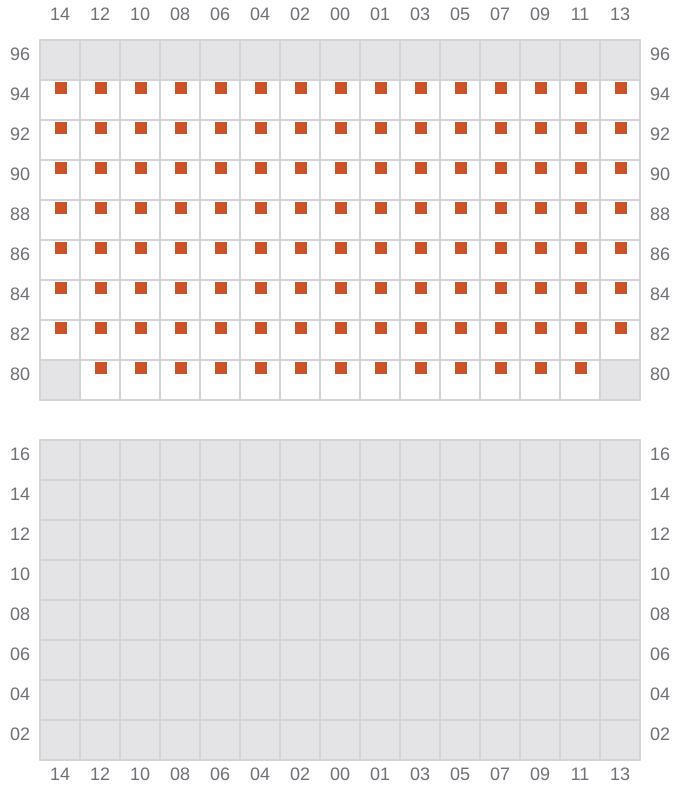

Bay 029 view and slots of MSC JERSEY

031

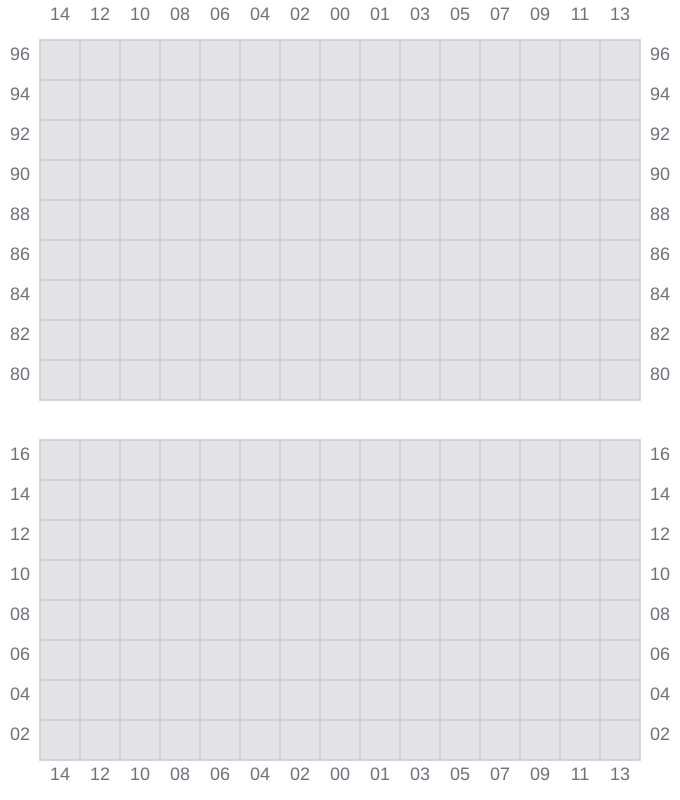

Bay 031 view and slots of MSC JERSEY

033 (034)

→

Bay 033 view and slots of MSC JERSEY

035

←
^→ / _?

Bay 035 view and slots of MSC JERSEY

037 (038)

→

Bay 037 view and slots of MSC JERSEY

039

←
→

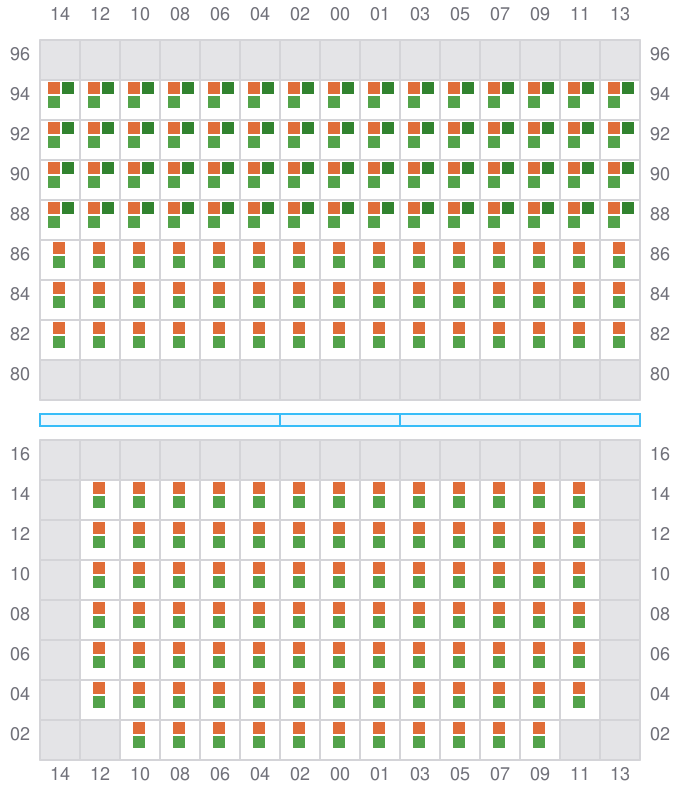

Bay 039 view and slots of MSC JERSEY

041 (042)

→

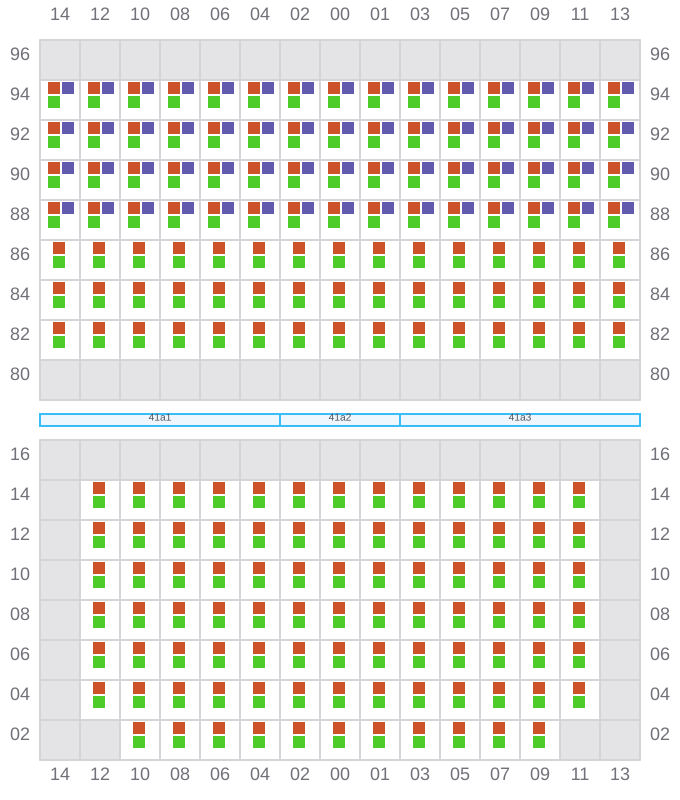

Bay 041 view and slots of MSC JERSEY

043

←
→

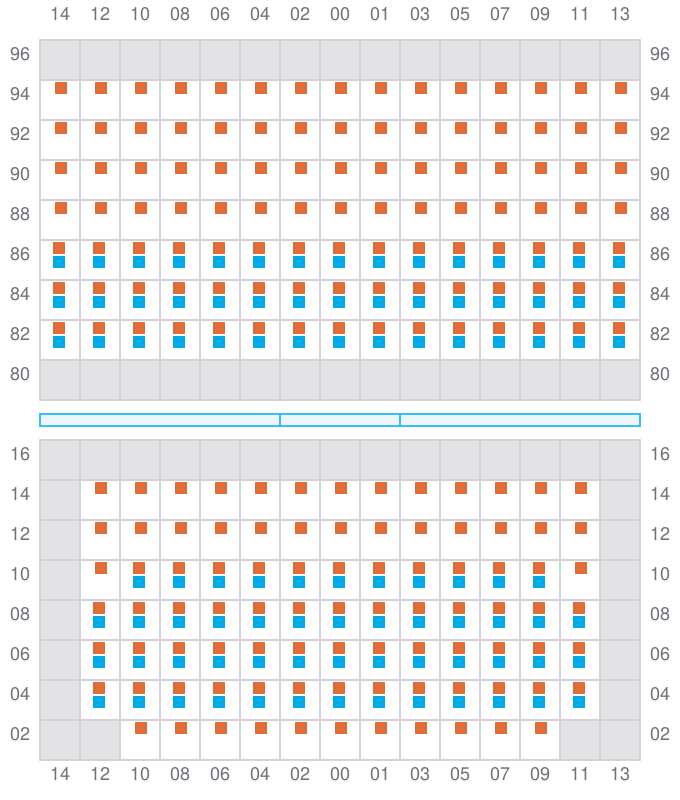

Bay 043 view and slots of MSC JERSEY

045 (046)

→

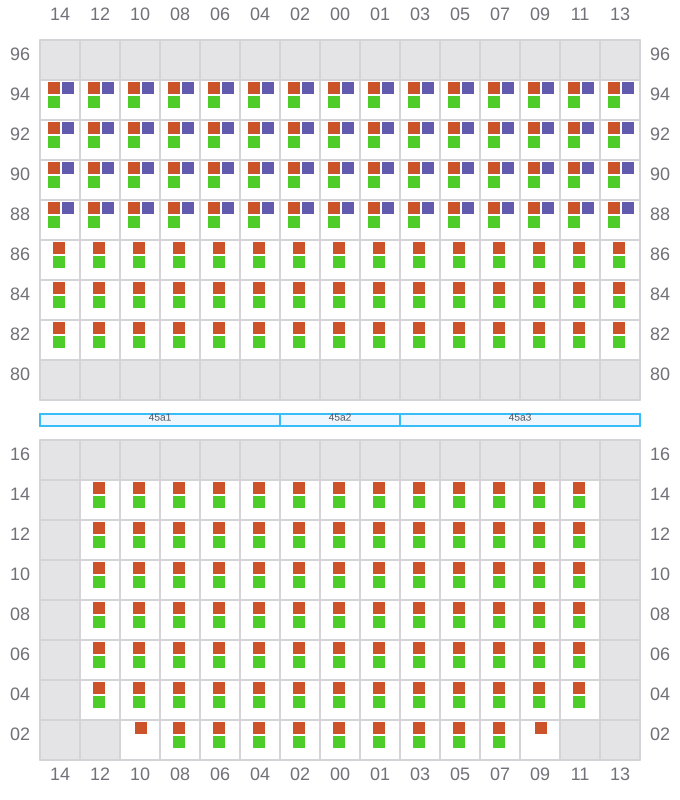

Bay 045 view and slots of MSC JERSEY

047

←
→

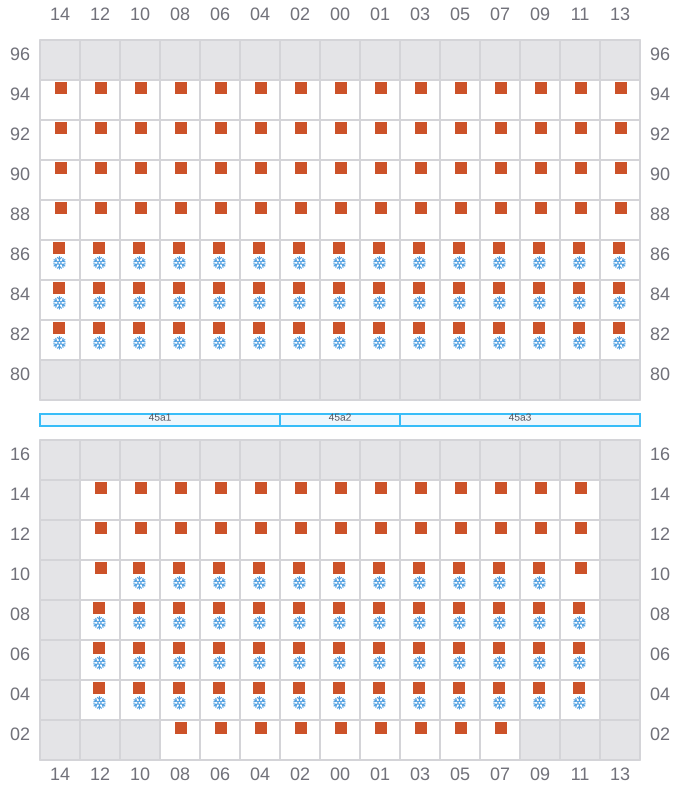

Bay 047 view and slots of MSC JERSEY

049 (050)

→

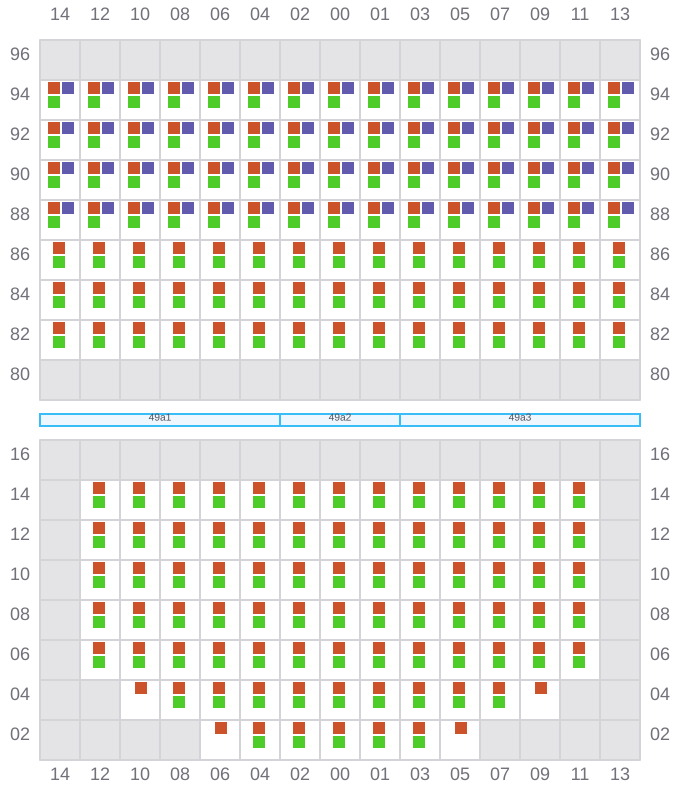

Bay 049 view and slots of MSC JERSEY

051

←
^→ / _?

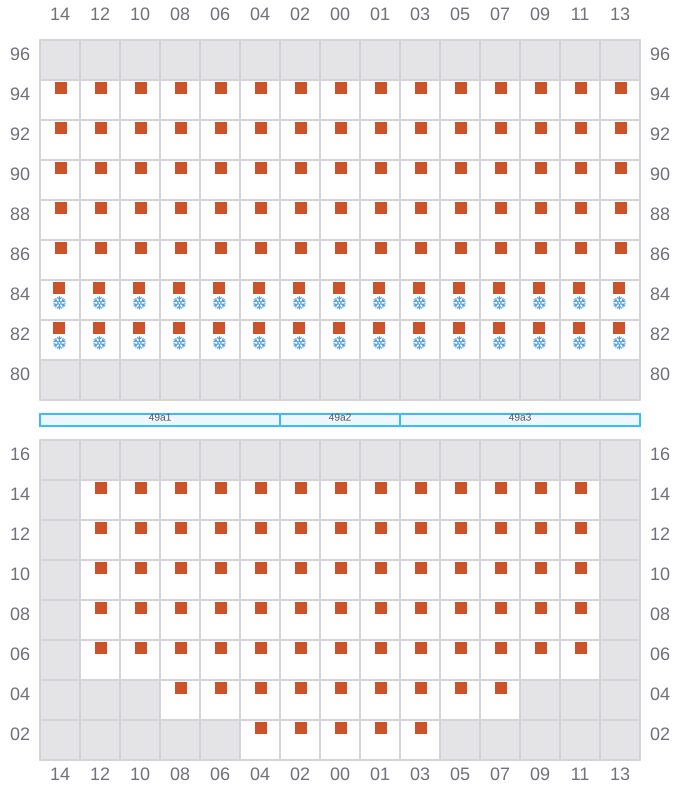

Bay 051 view and slots of MSC JERSEY

053 (054)

^→ / _?
^→ / _?

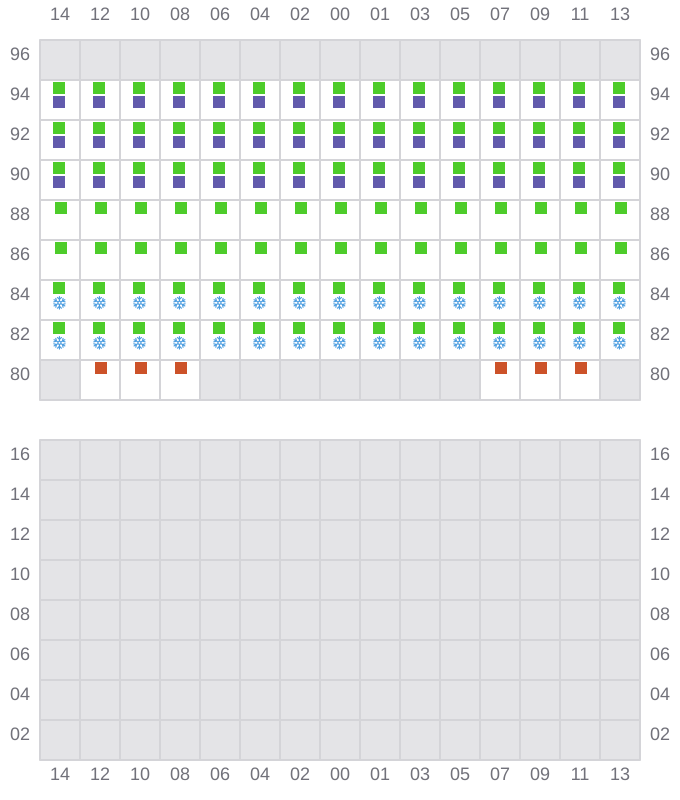

Bay 053 view and slots of MSC JERSEY

055

^← / _?
^→ / _?

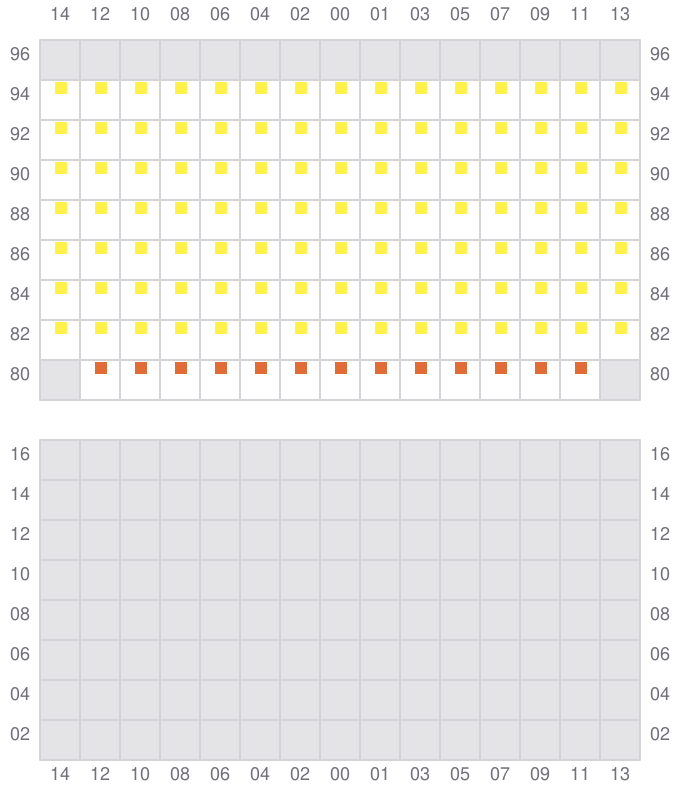

Bay 055 view and slots of MSC JERSEY

057 (058)

→

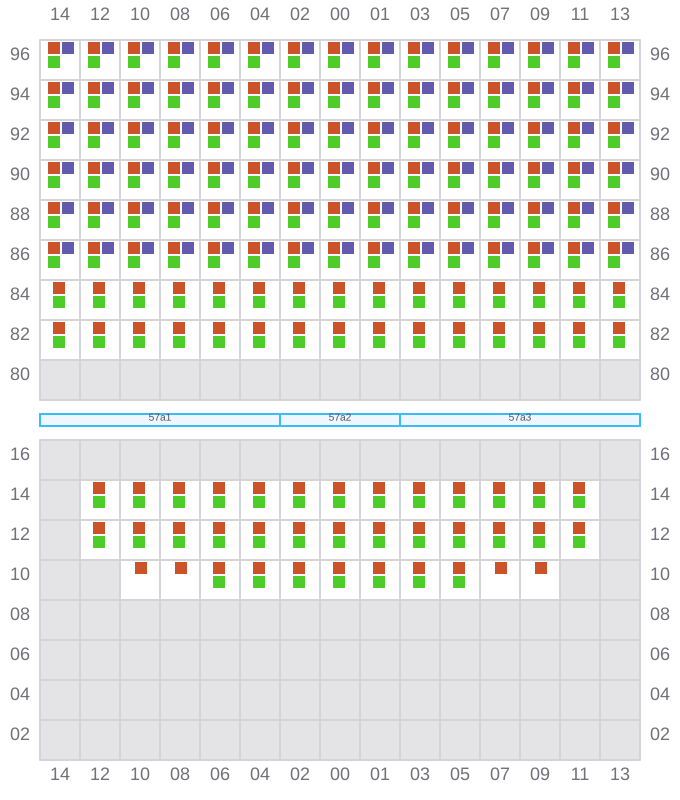

Bay 057 view and slots of MSC JERSEY

059

←
^→ / _?

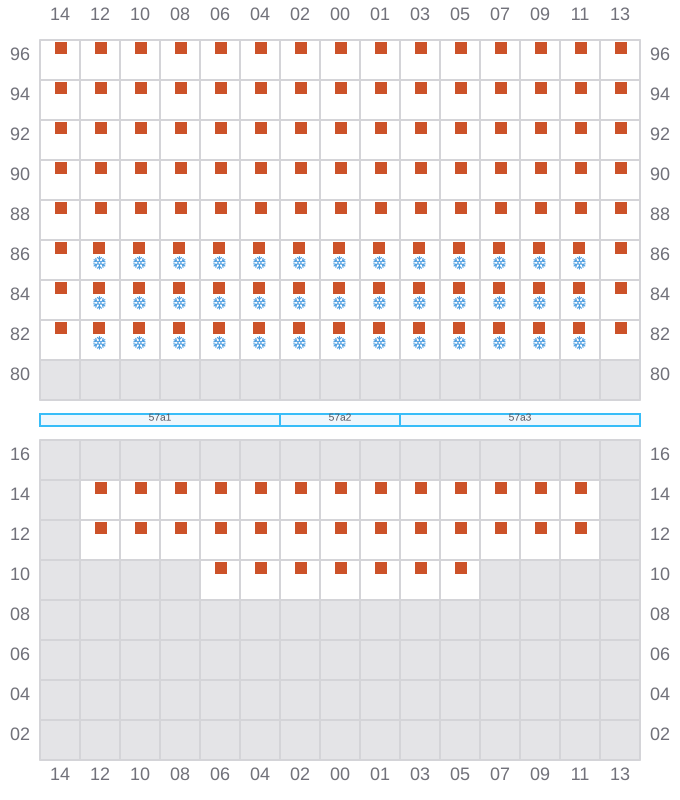

Bay 059 view and slots of MSC JERSEY

061 (062)

^→ / _?
^← / _?

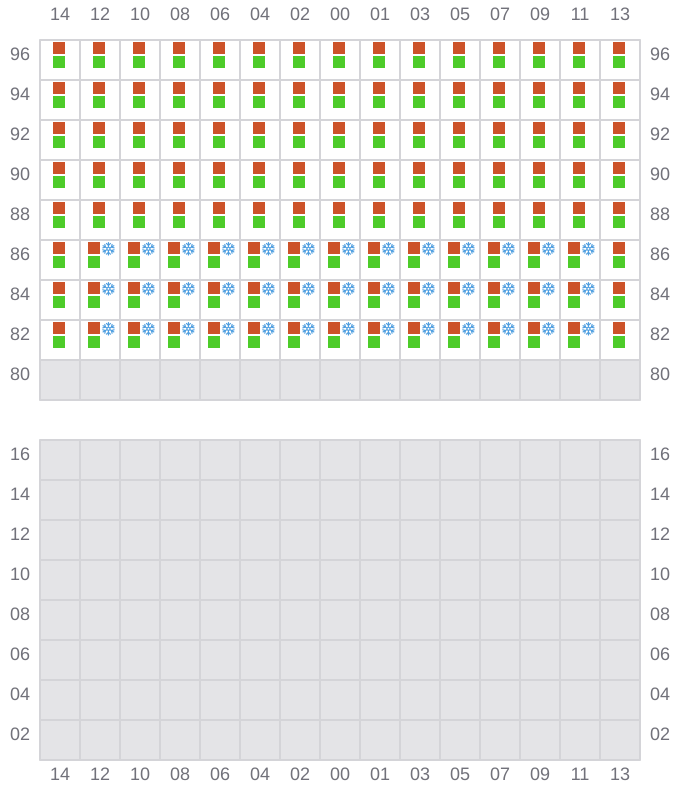

Bay 061 view and slots of MSC JERSEY

063 (062)

^← / _?

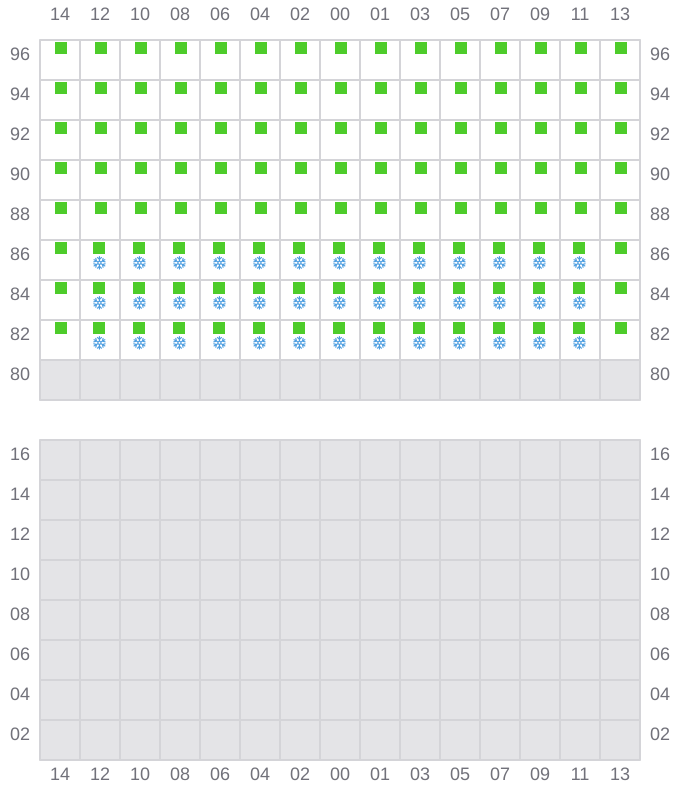

Bay 063 view and slots of MSC JERSEY
