MSC JESSENIA R
9215672 | D5YE2 | MSC by ************************** Last update: Sat Jun 17 2023

General Info

Ship Name:MSC JESSENIA R
IMO Code:9215672
Call Sign:D5YE2
Line Operator:MSC
Class Name for Sister Ships:JSR
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:059
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,718

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

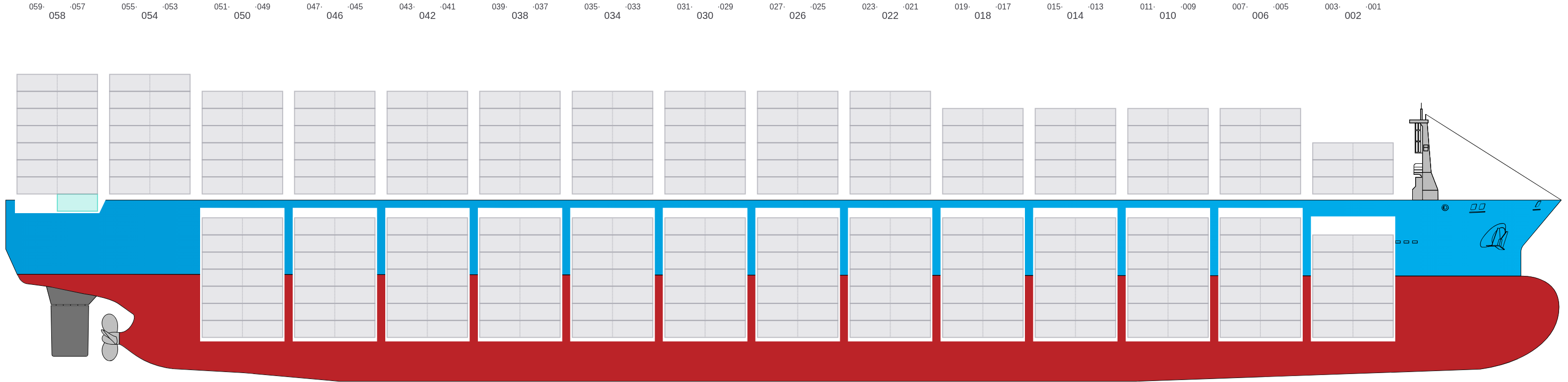

Side view of MSC JESSENIA R

Hatch-Covers View

Deck view of MSC JESSENIA R

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

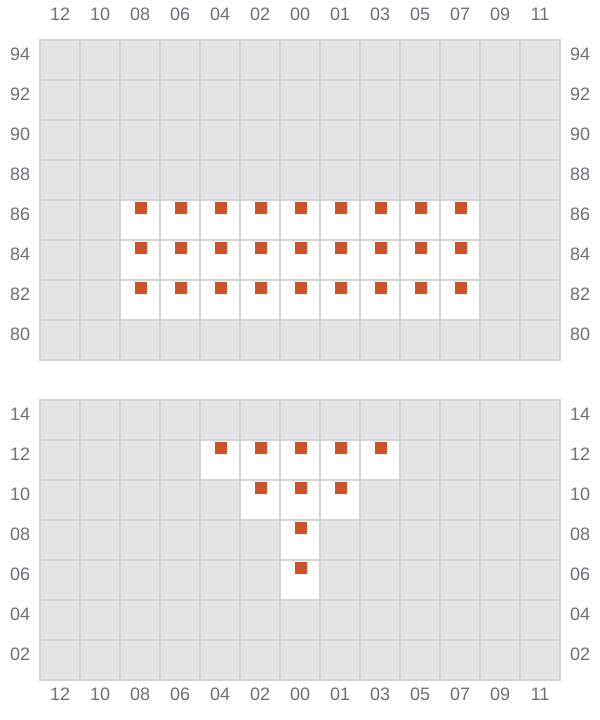

Bay 001 view and slots of MSC JESSENIA R

003 (002)

  • ←

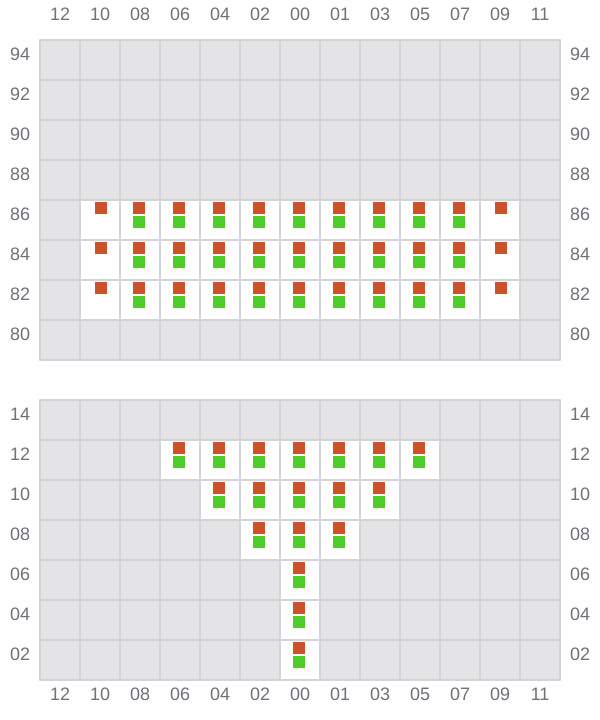

Bay 003 view and slots of MSC JESSENIA R

005

  • →

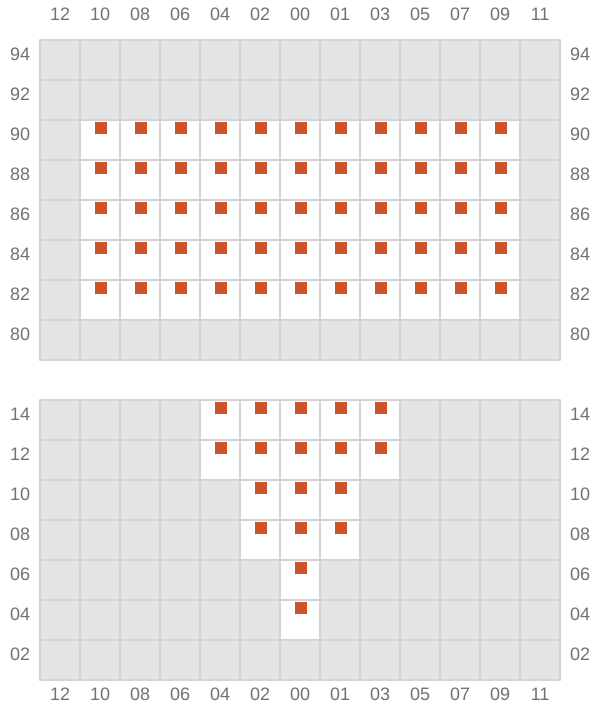

Bay 005 view and slots of MSC JESSENIA R

007 (006)

  • ←

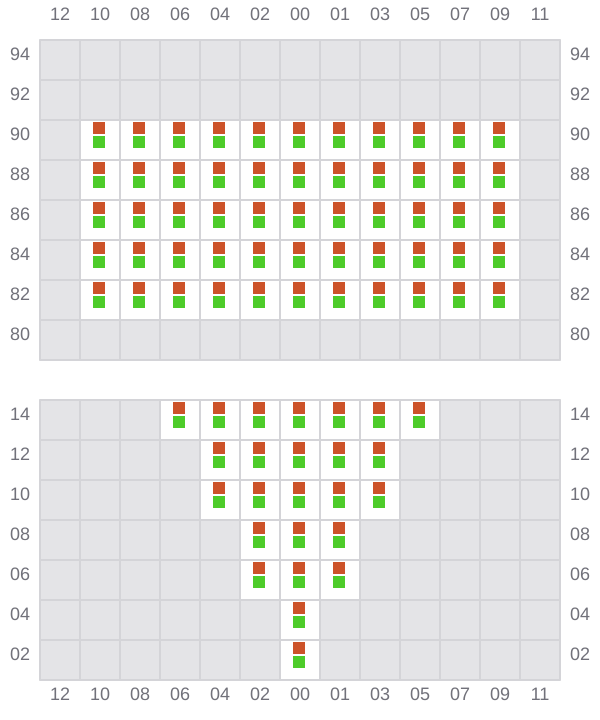

Bay 007 view and slots of MSC JESSENIA R

009

  • →

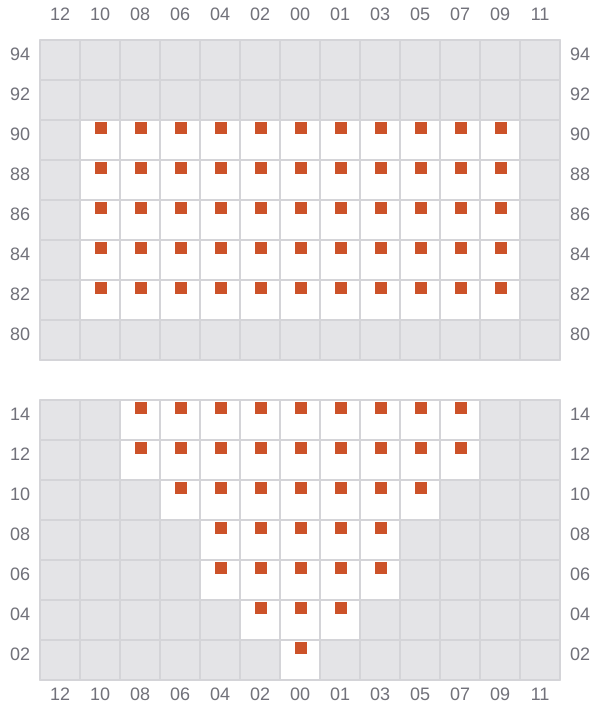

Bay 009 view and slots of MSC JESSENIA R

011 (010)

  • ←

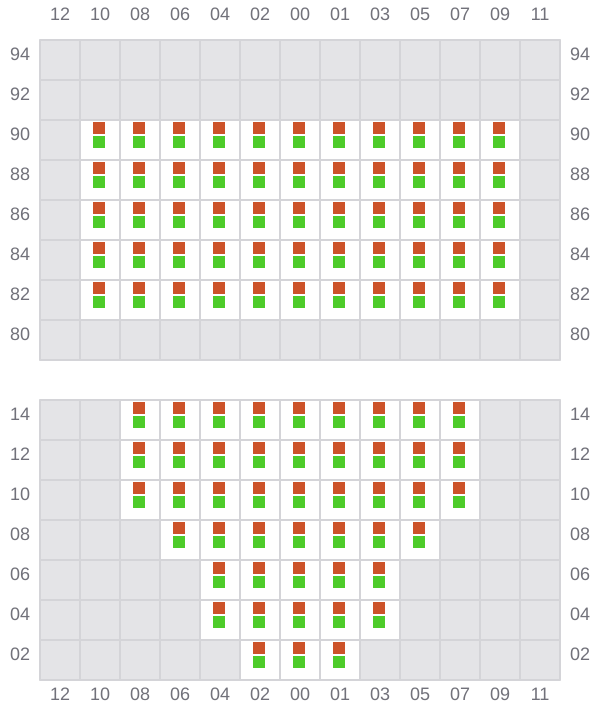

Bay 011 view and slots of MSC JESSENIA R

013

  • →

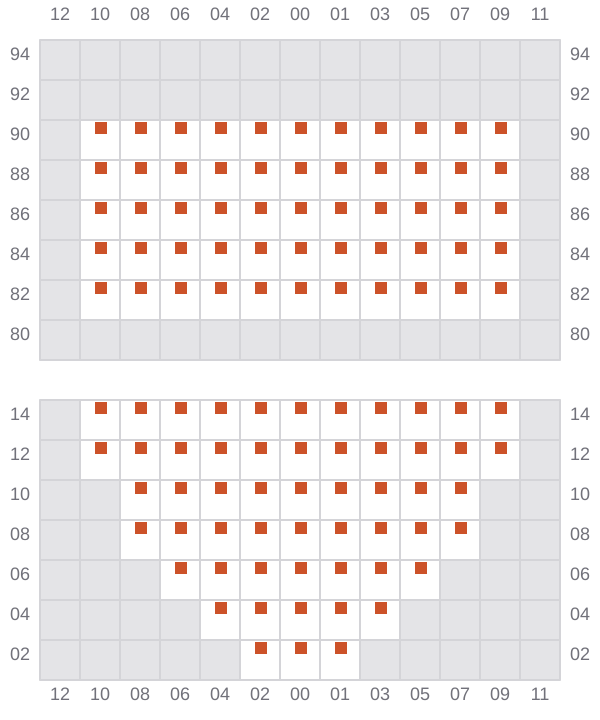

Bay 013 view and slots of MSC JESSENIA R

015 (014)

  • ←

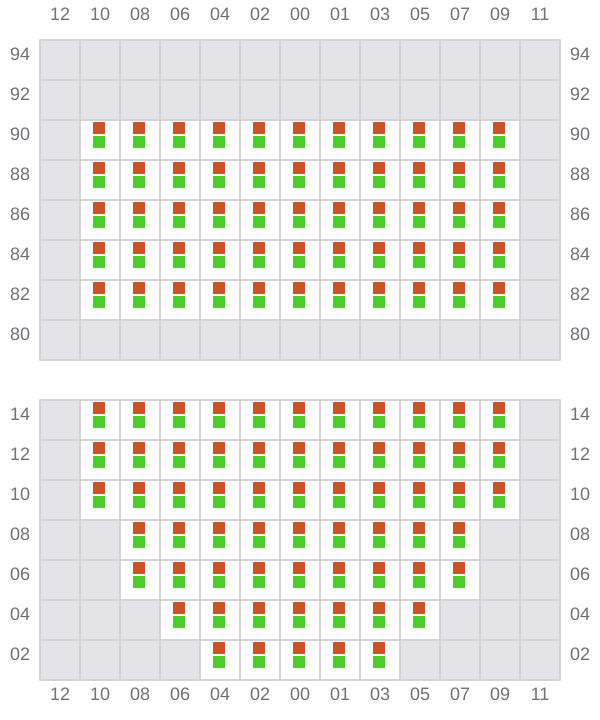

Bay 015 view and slots of MSC JESSENIA R

017

  • →

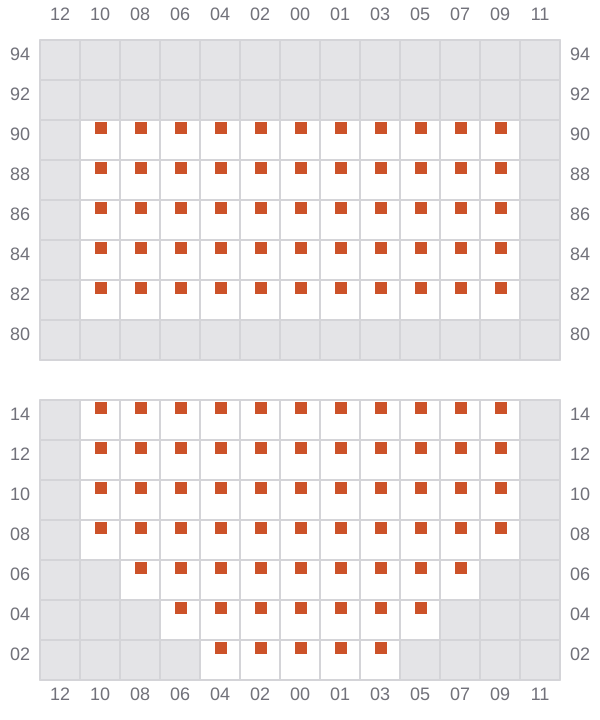

Bay 017 view and slots of MSC JESSENIA R

019 (018)

  • ←

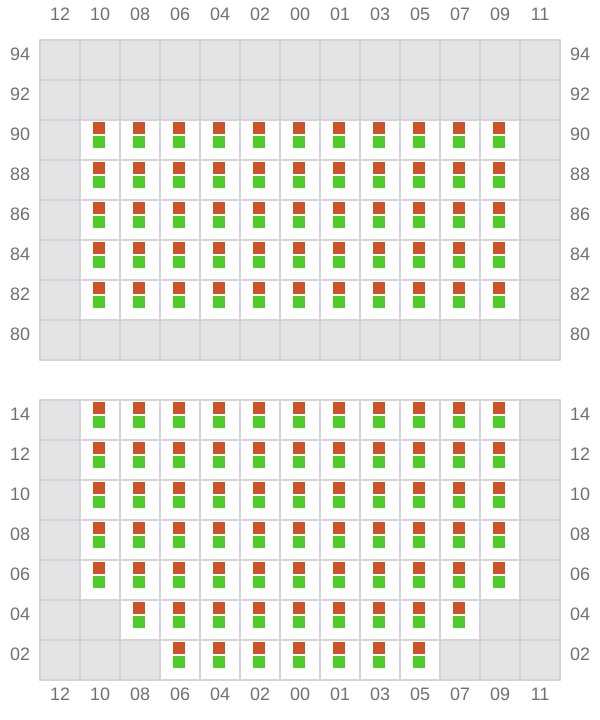

Bay 019 view and slots of MSC JESSENIA R

021

  • →

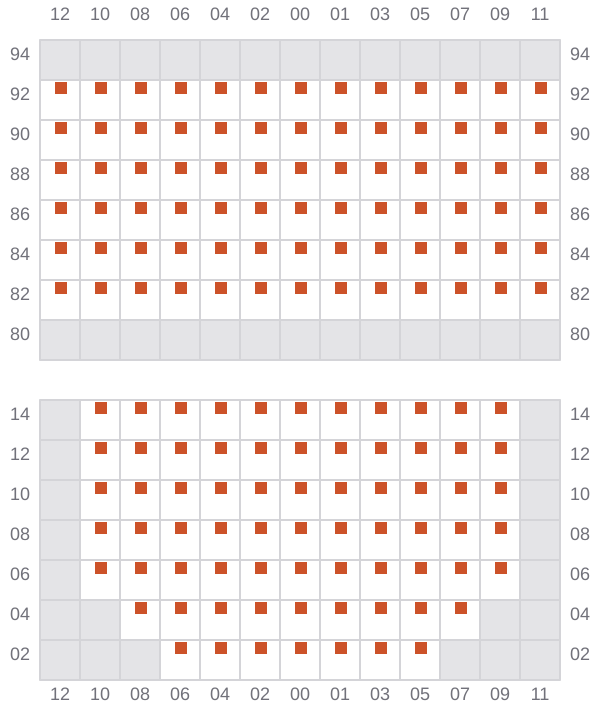

Bay 021 view and slots of MSC JESSENIA R

023 (022)

  • ←

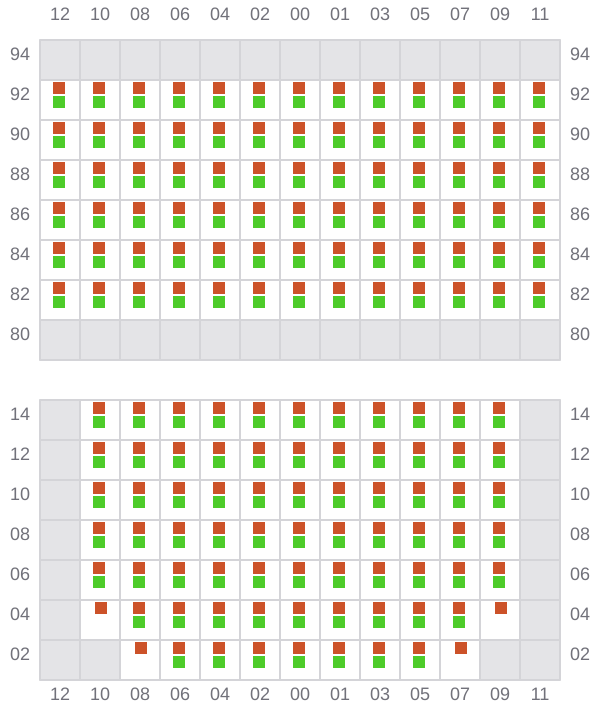

Bay 023 view and slots of MSC JESSENIA R

025

  • →
Bay 025 view and slots of MSC JESSENIA R

027 (026)

  • ←

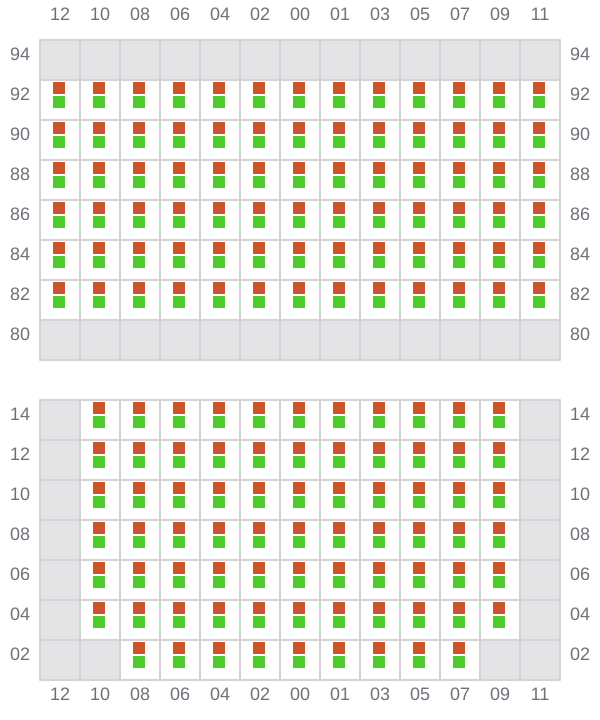

Bay 027 view and slots of MSC JESSENIA R

029

  • →
Bay 029 view and slots of MSC JESSENIA R

031 (030)

  • ←
Bay 031 view and slots of MSC JESSENIA R

033

  • →
Bay 033 view and slots of MSC JESSENIA R

035 (034)

  • ←
Bay 035 view and slots of MSC JESSENIA R

037

  • →
Bay 037 view and slots of MSC JESSENIA R

039 (038)

  • ←
Bay 039 view and slots of MSC JESSENIA R

041

  • →

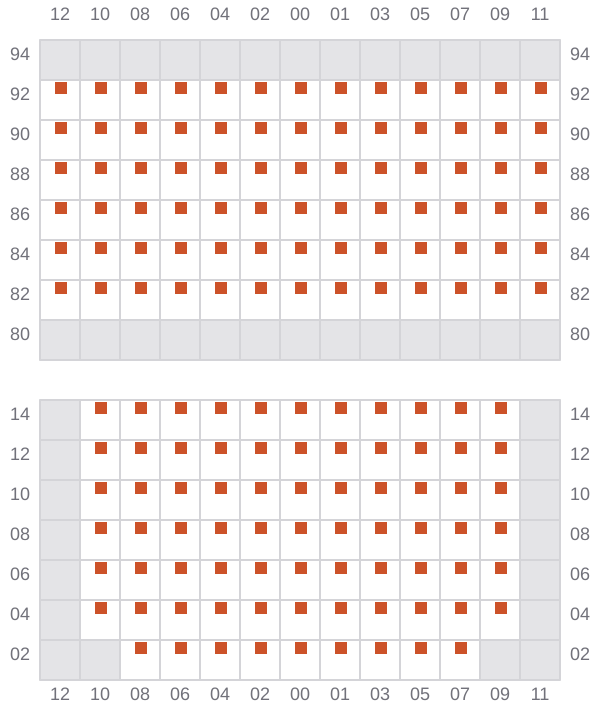

Bay 041 view and slots of MSC JESSENIA R

043 (042)

  • ←
Bay 043 view and slots of MSC JESSENIA R

045

  • →

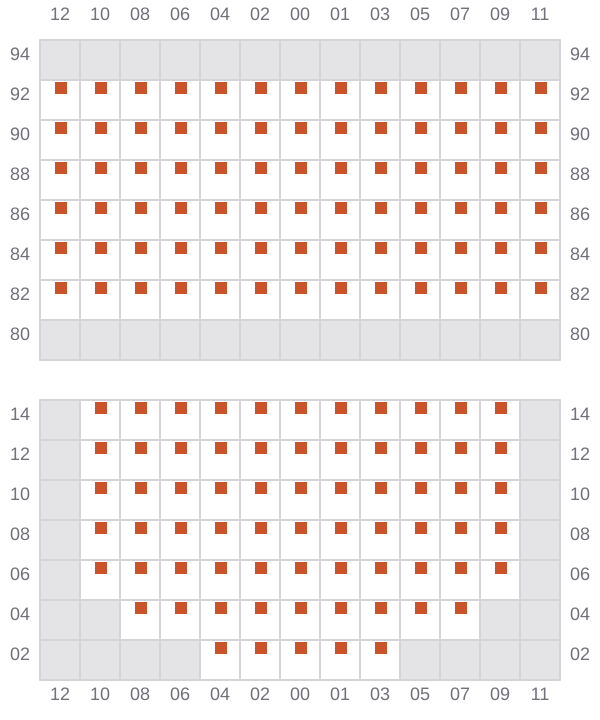

Bay 045 view and slots of MSC JESSENIA R

047 (046)

  • ←

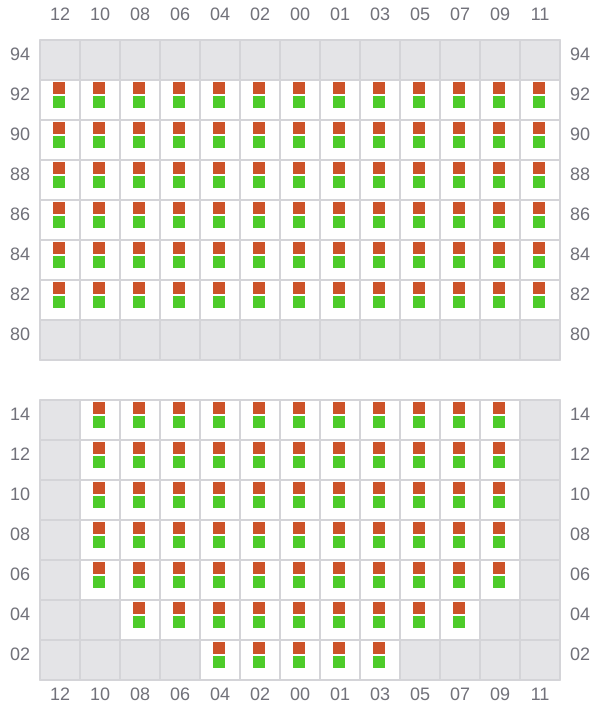

Bay 047 view and slots of MSC JESSENIA R

049

  • →

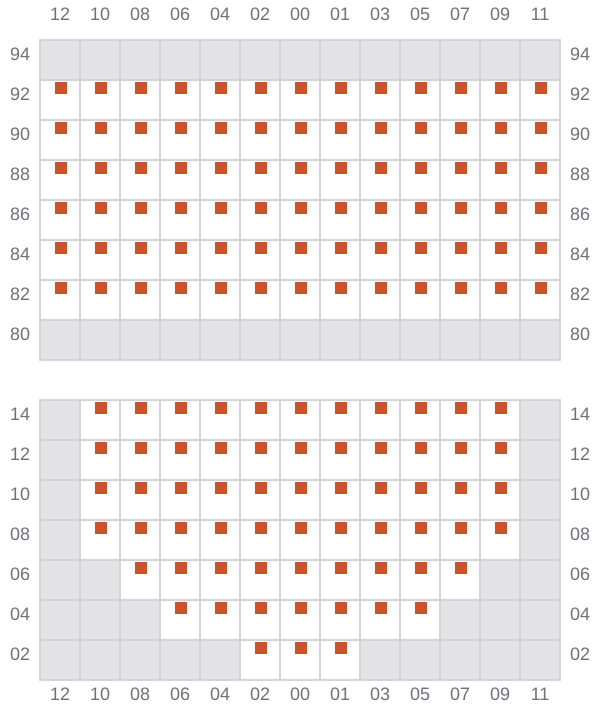

Bay 049 view and slots of MSC JESSENIA R

051 (050)

  • ←

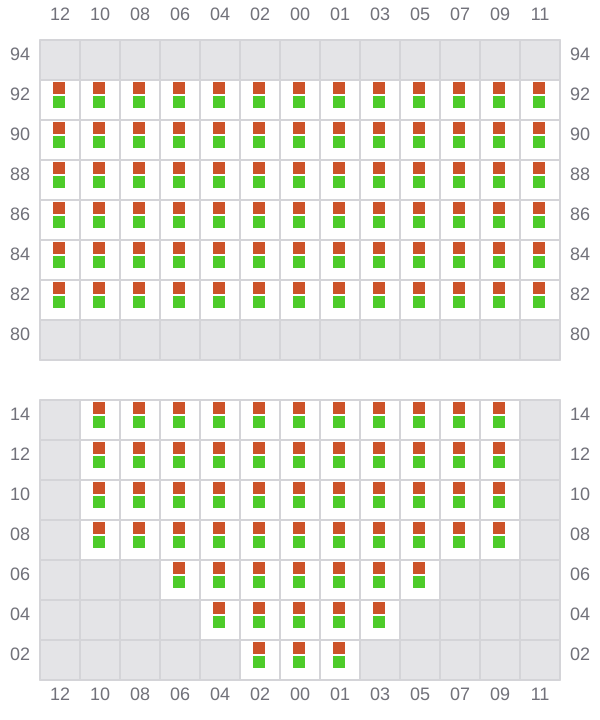

Bay 051 view and slots of MSC JESSENIA R

053

  • → / ?

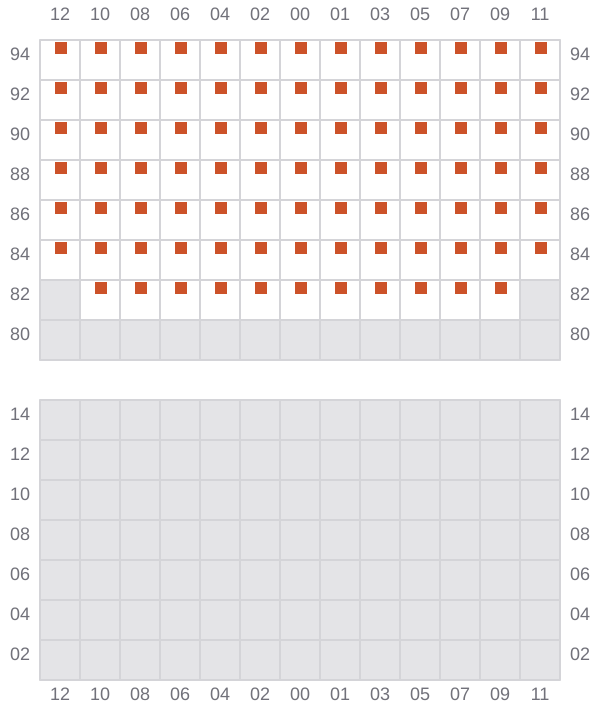

Bay 053 view and slots of MSC JESSENIA R

055 (054)

  • ← / ?
Bay 055 view and slots of MSC JESSENIA R

057

  • → / ?

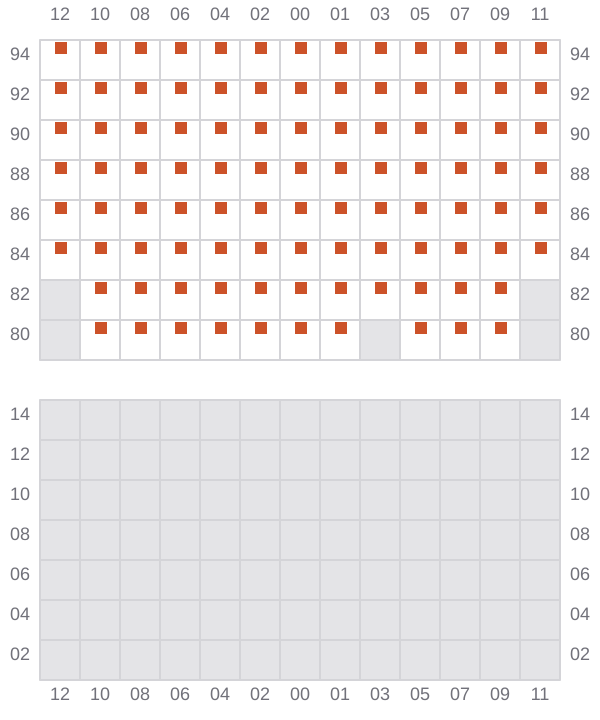

Bay 057 view and slots of MSC JESSENIA R

059 (058)

  • ← / ?

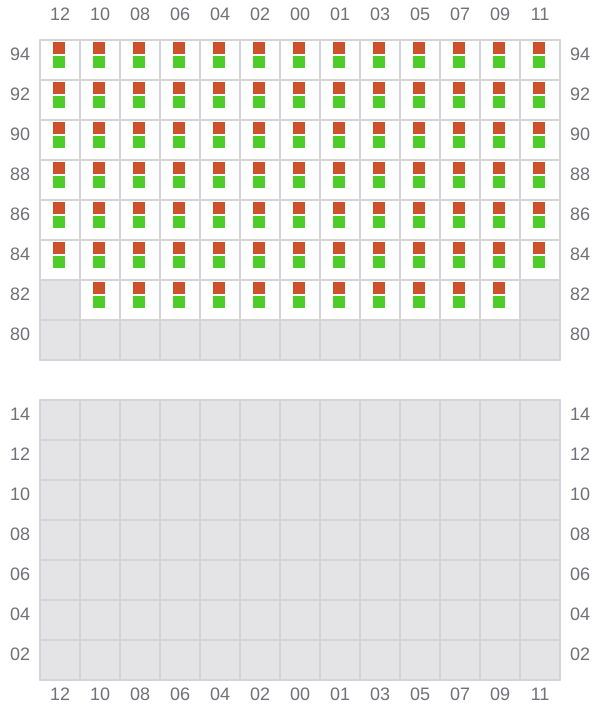

Bay 059 view and slots of MSC JESSENIA R
