MSC JOANNA
9304435 | 3EHF2 | MSC by ************************** Last update: Sat Jun 17 2023

General Info

Ship Name:MSC JOANNA
IMO Code:9304435
Call Sign:3EHF2
Line Operator:MSC
Class Name for Sister Ships:JOA
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,182

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

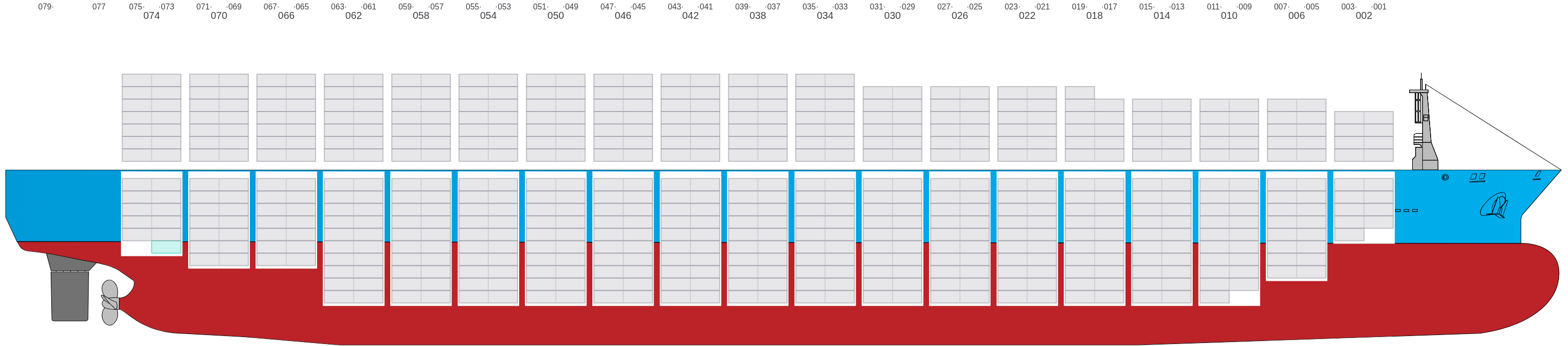

Side view of MSC JOANNA

Hatch-Covers View

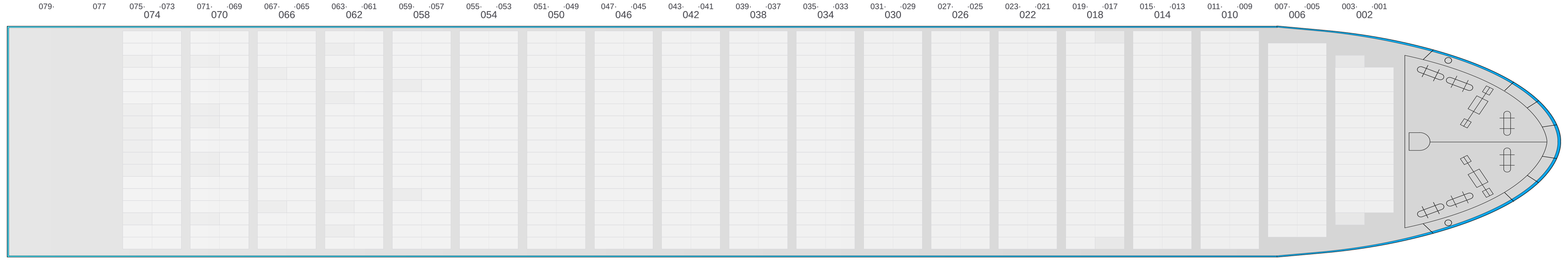

Deck view of MSC JOANNA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

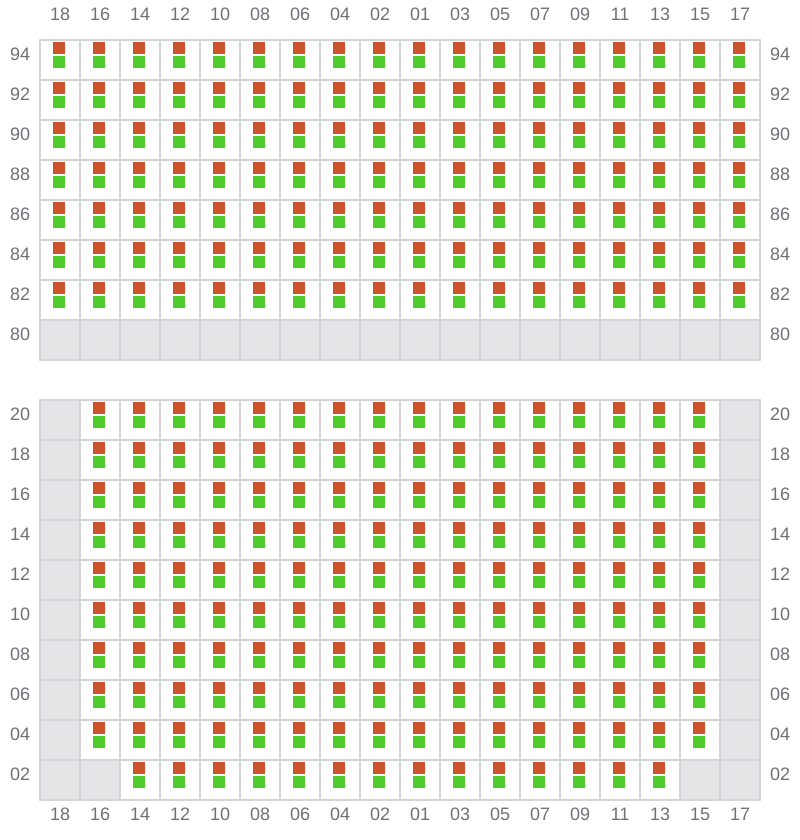

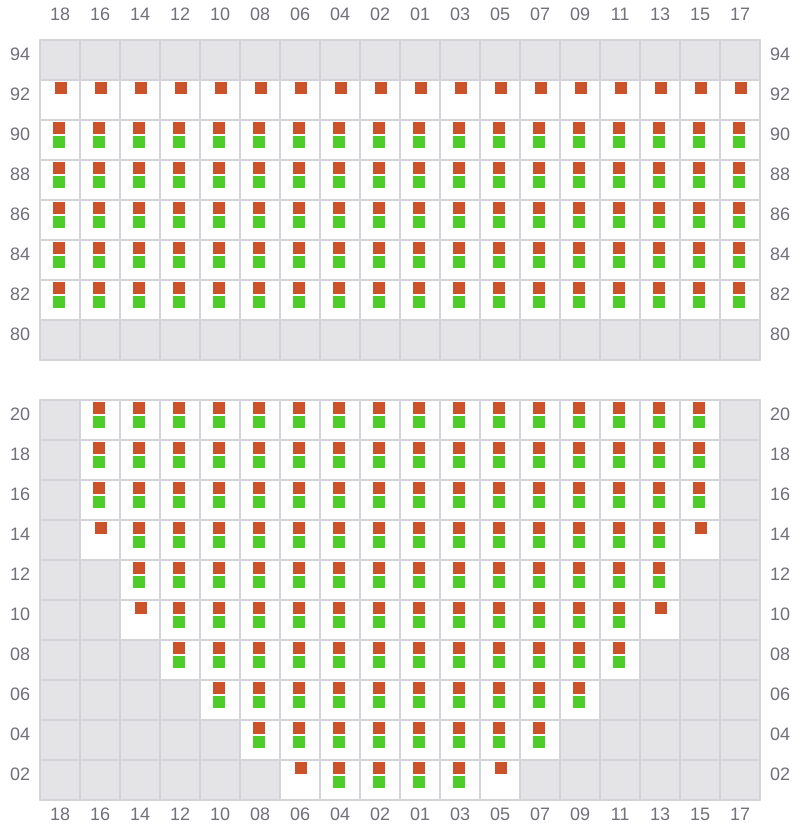

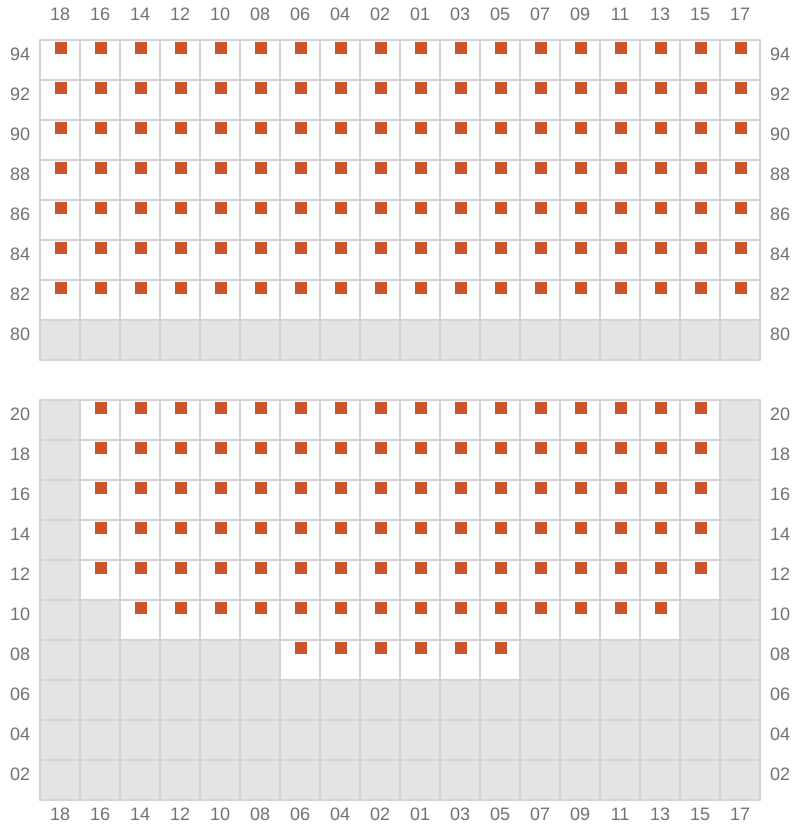

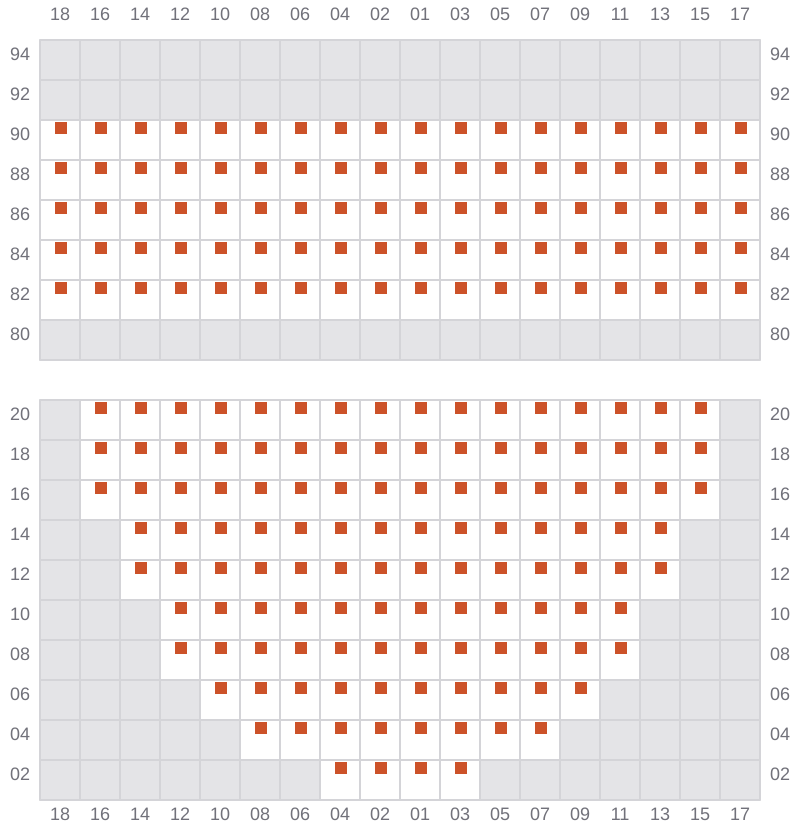

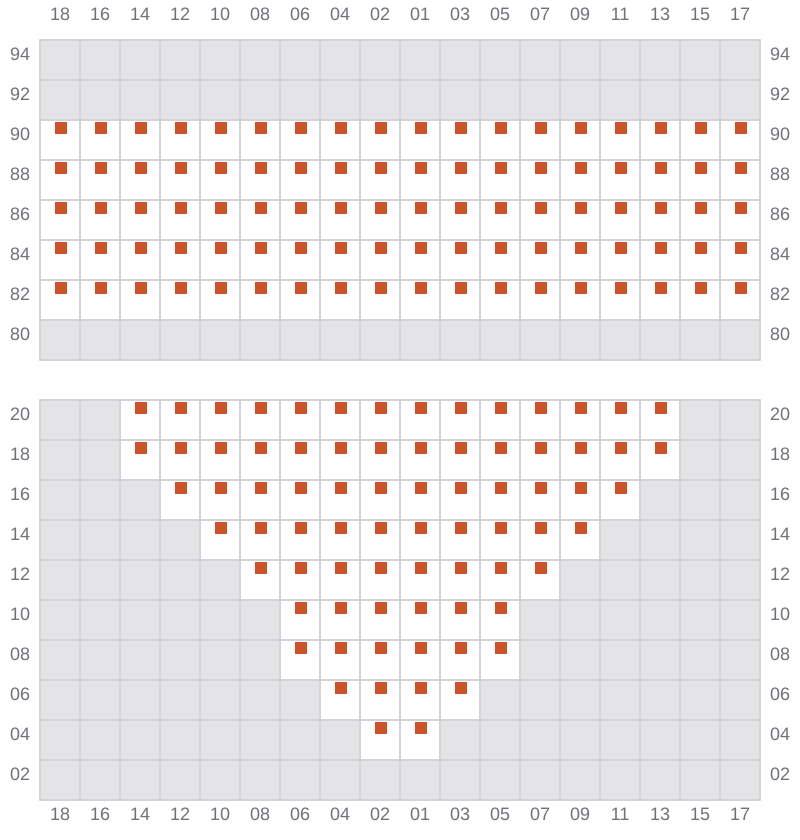

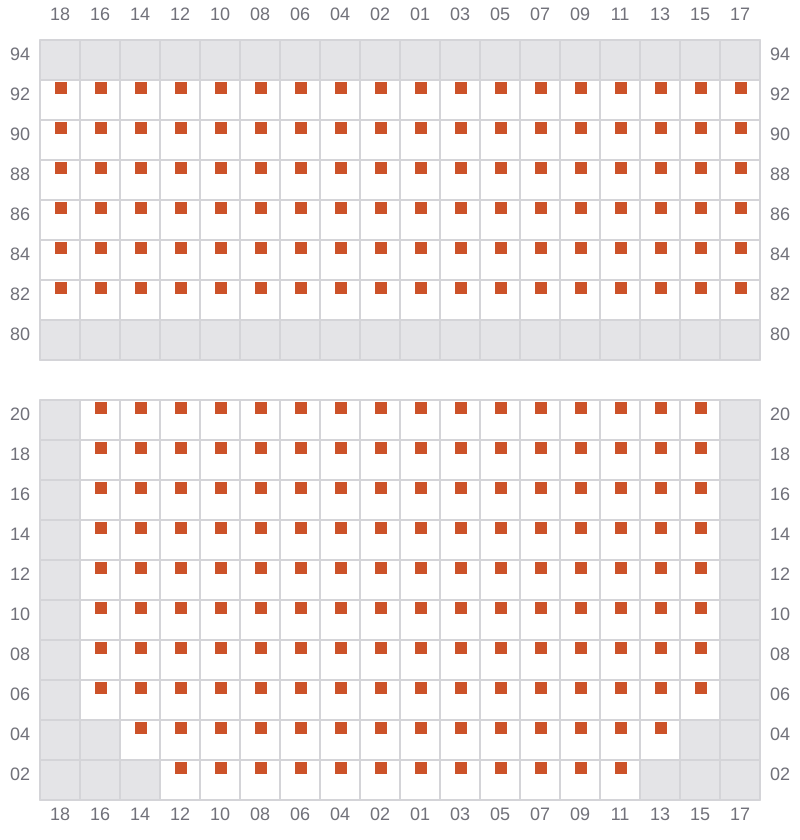

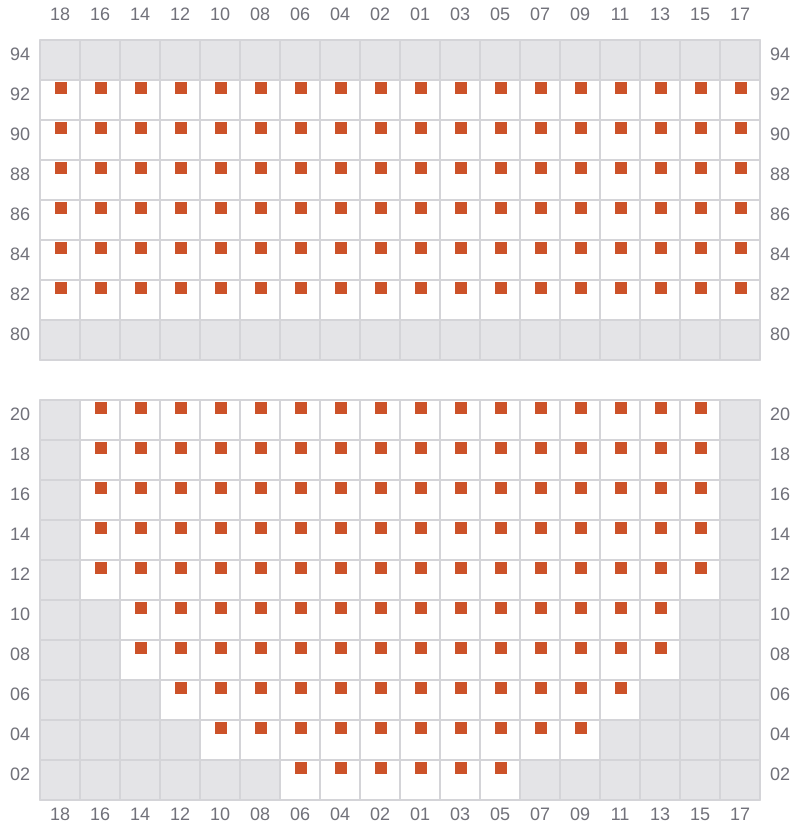

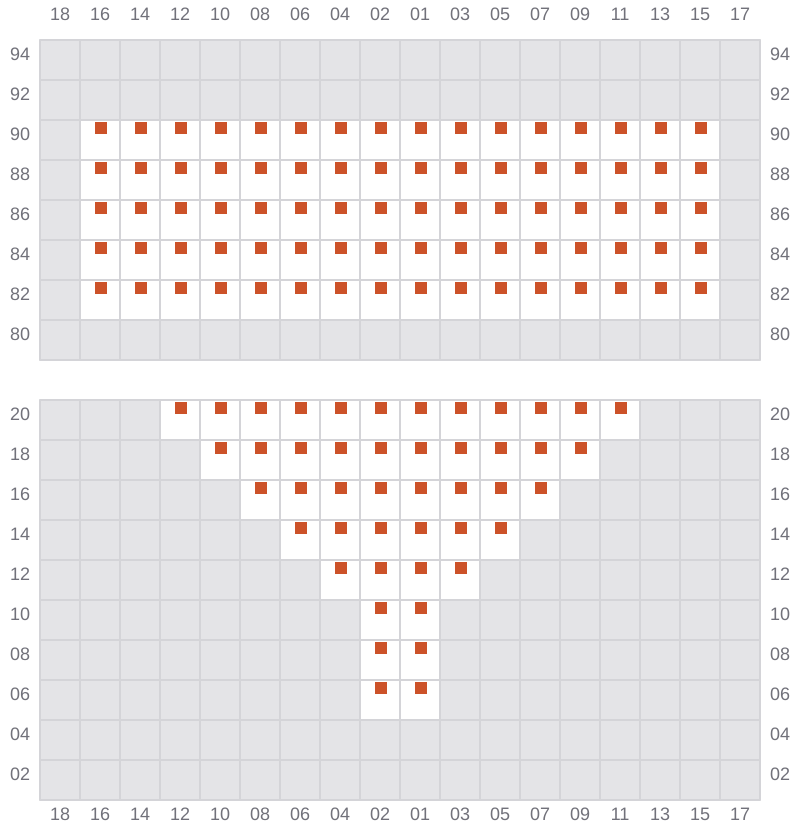

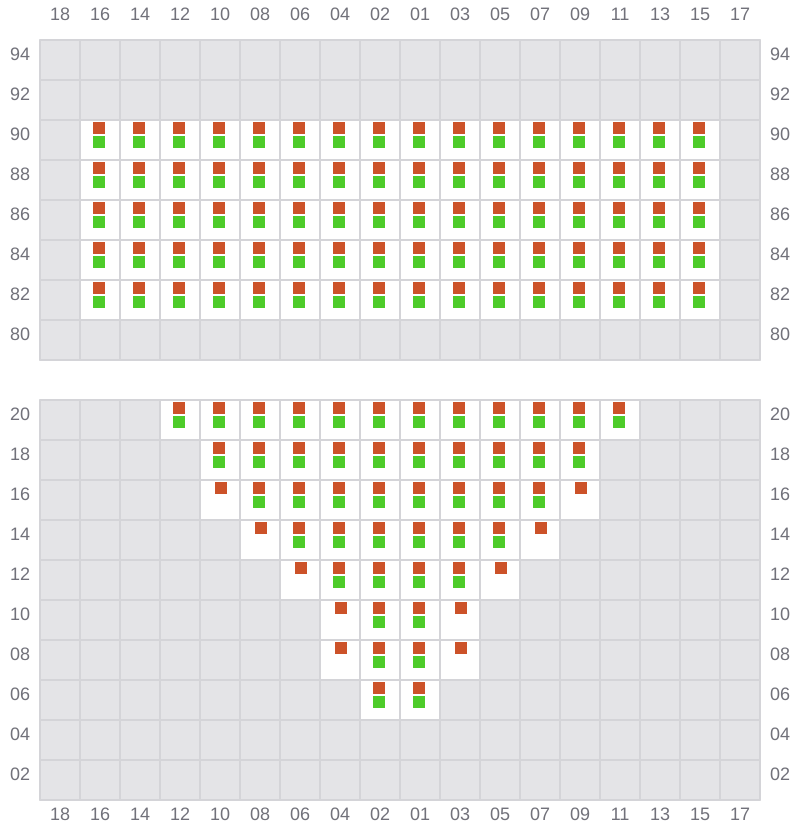

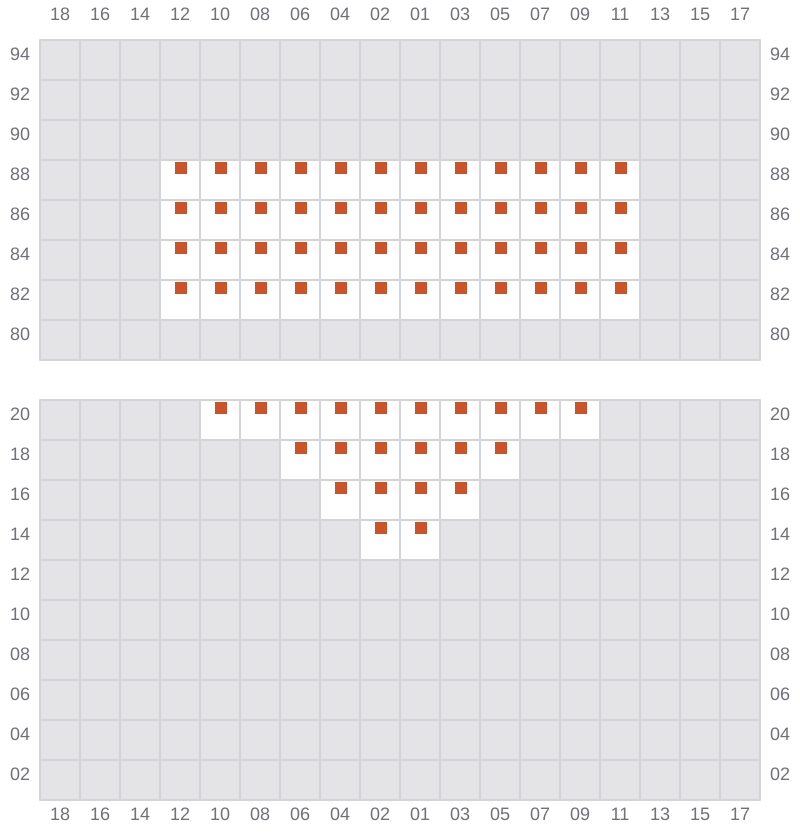

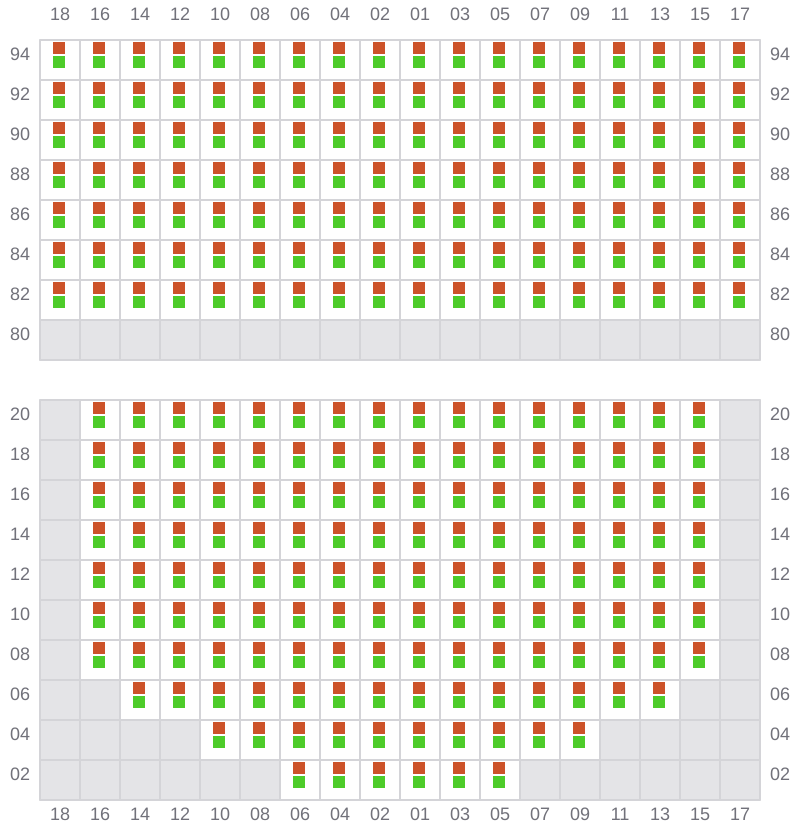

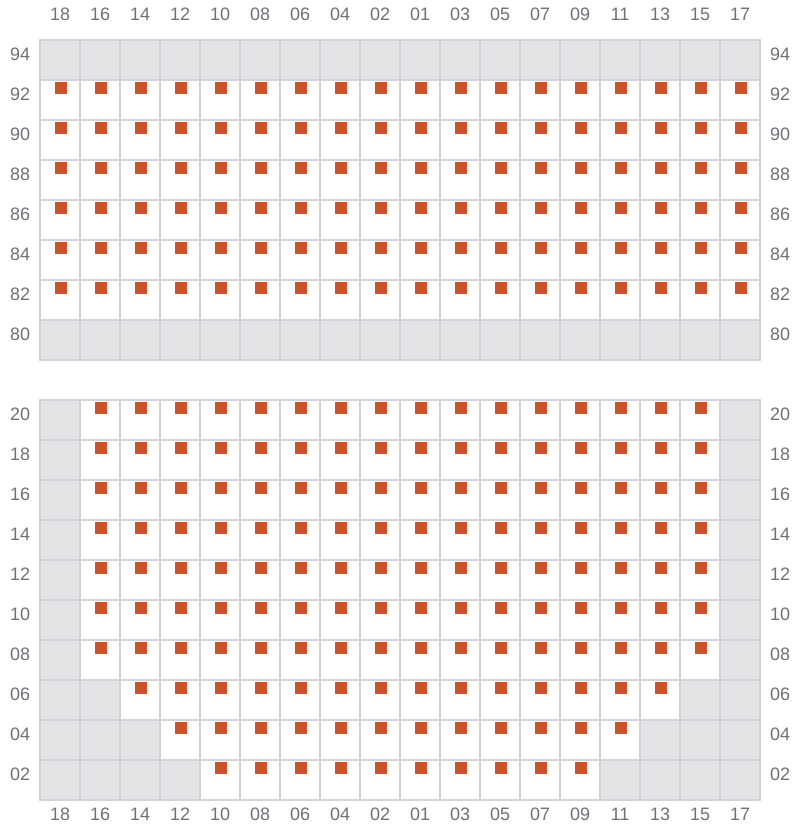

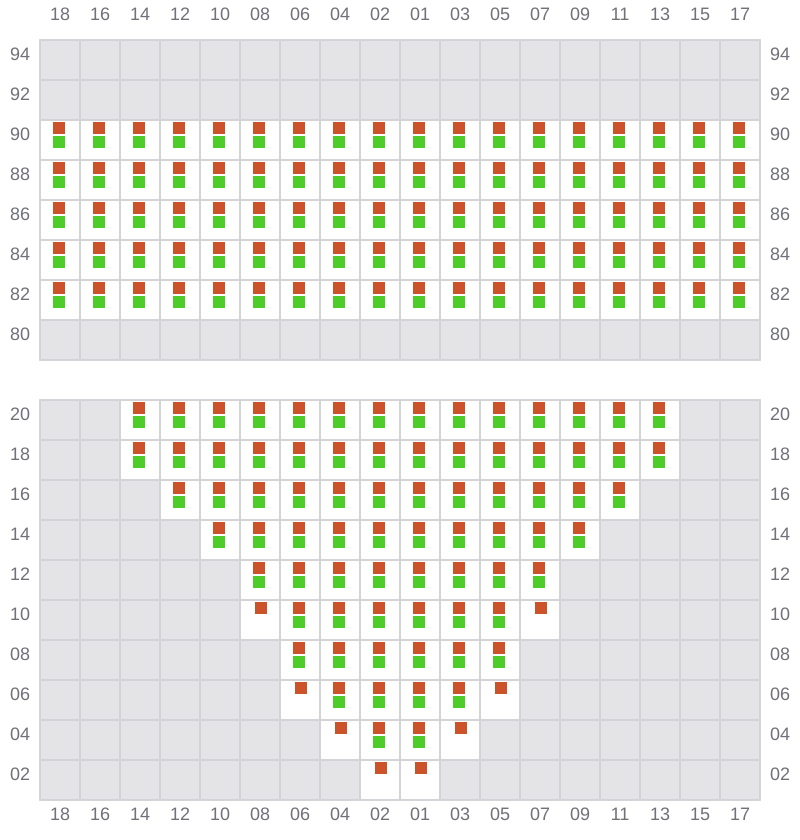

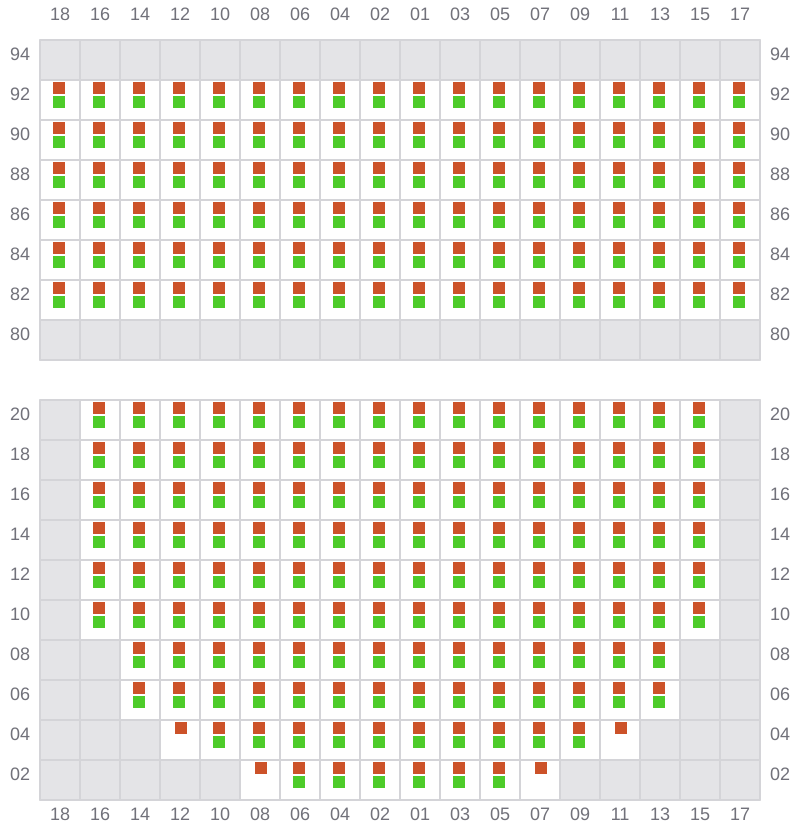

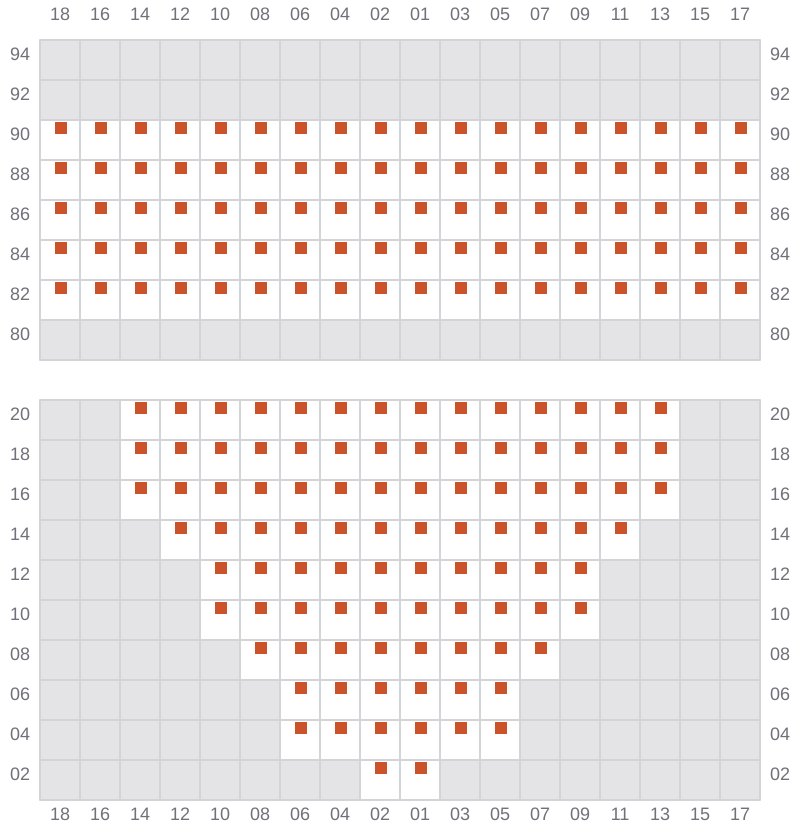

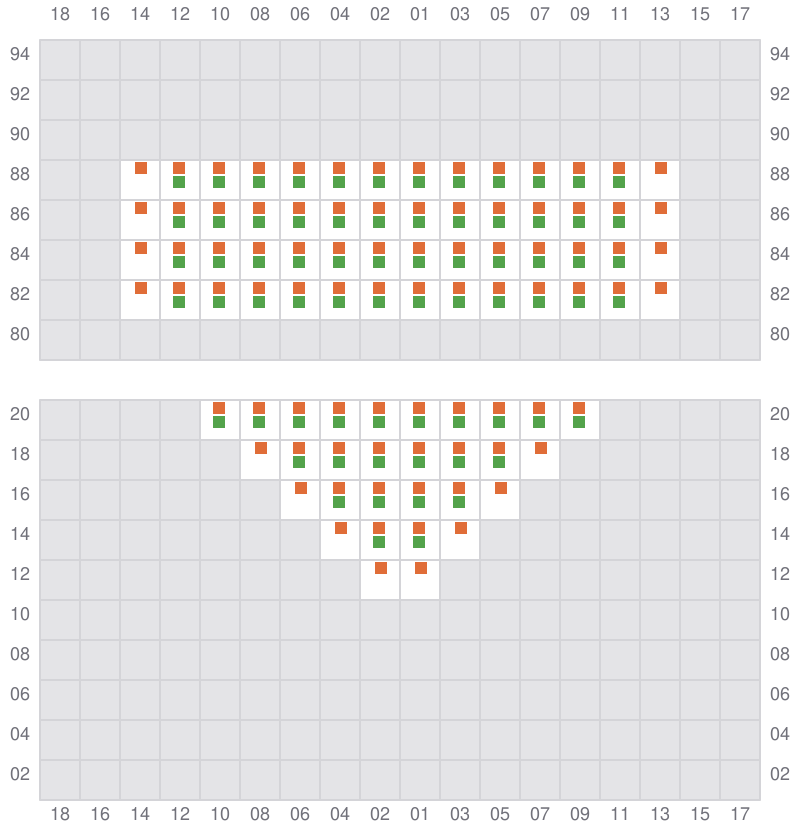

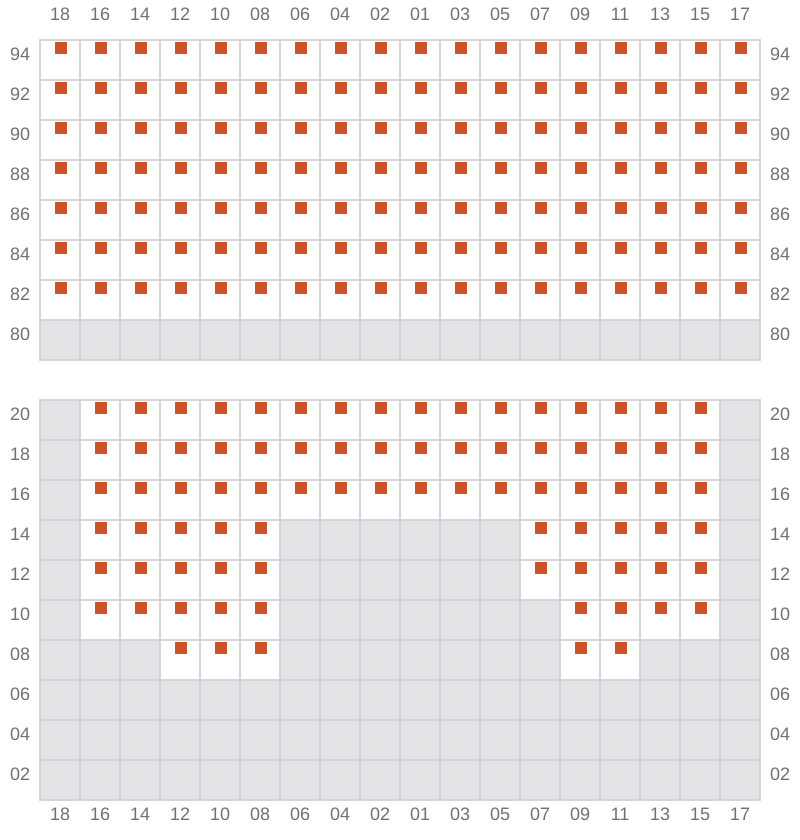

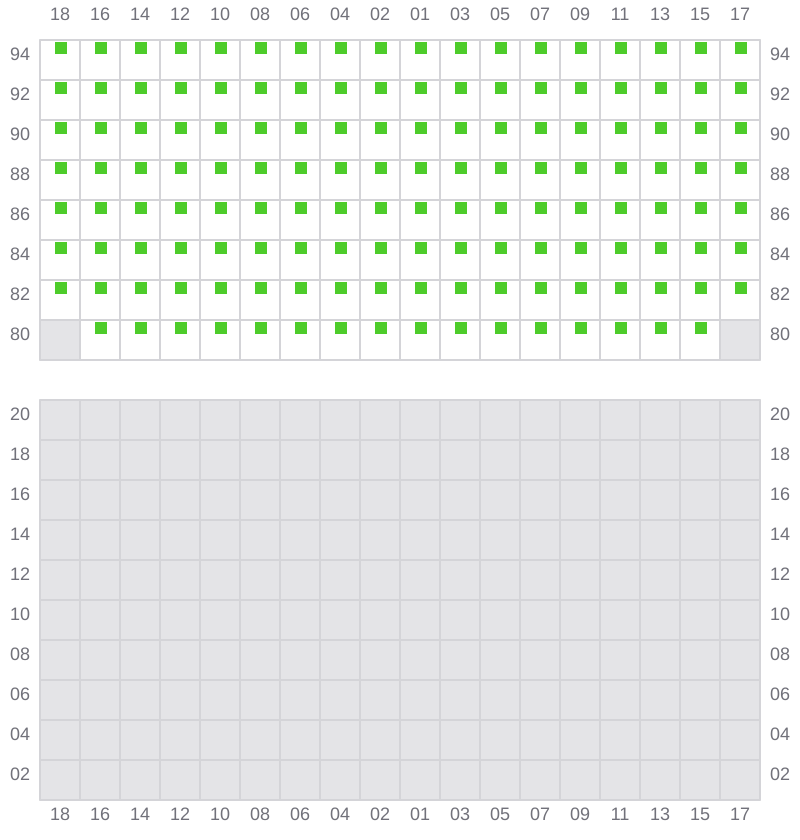

Bay 001 view and slots of MSC JOANNA

003 (002)

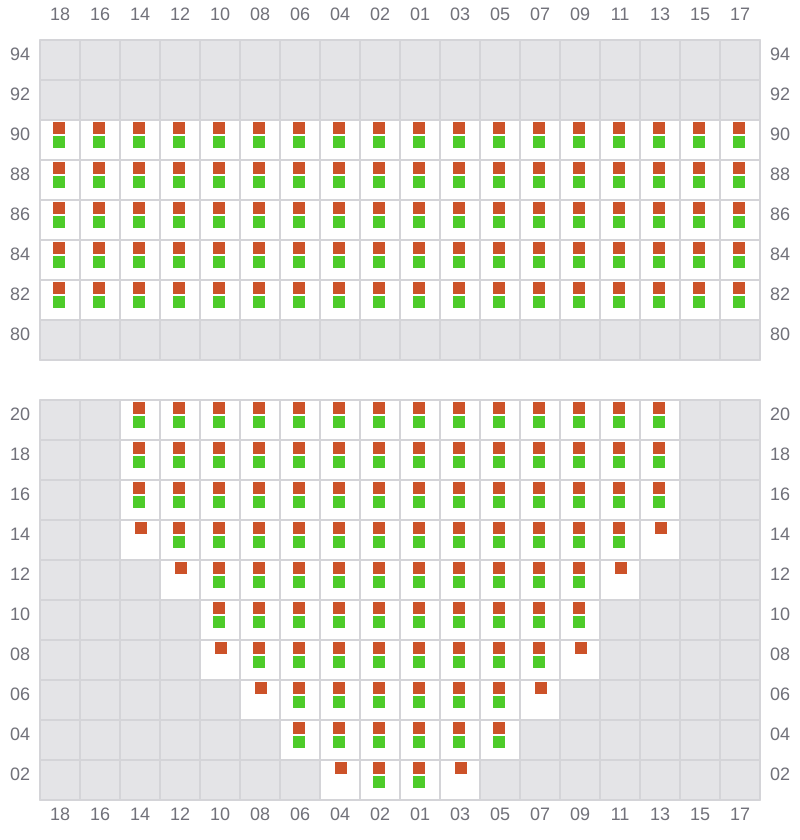

Bay 003 view and slots of MSC JOANNA

005

Bay 005 view and slots of MSC JOANNA

007 (006)

Bay 007 view and slots of MSC JOANNA

009

Bay 009 view and slots of MSC JOANNA

011 (010)

Bay 011 view and slots of MSC JOANNA

013

Bay 013 view and slots of MSC JOANNA

015 (014)

Bay 015 view and slots of MSC JOANNA

017

Bay 017 view and slots of MSC JOANNA

019 (018)

Bay 019 view and slots of MSC JOANNA

021

Bay 021 view and slots of MSC JOANNA

023 (022)

Bay 023 view and slots of MSC JOANNA

025

Bay 025 view and slots of MSC JOANNA

027 (026)

Bay 027 view and slots of MSC JOANNA

029

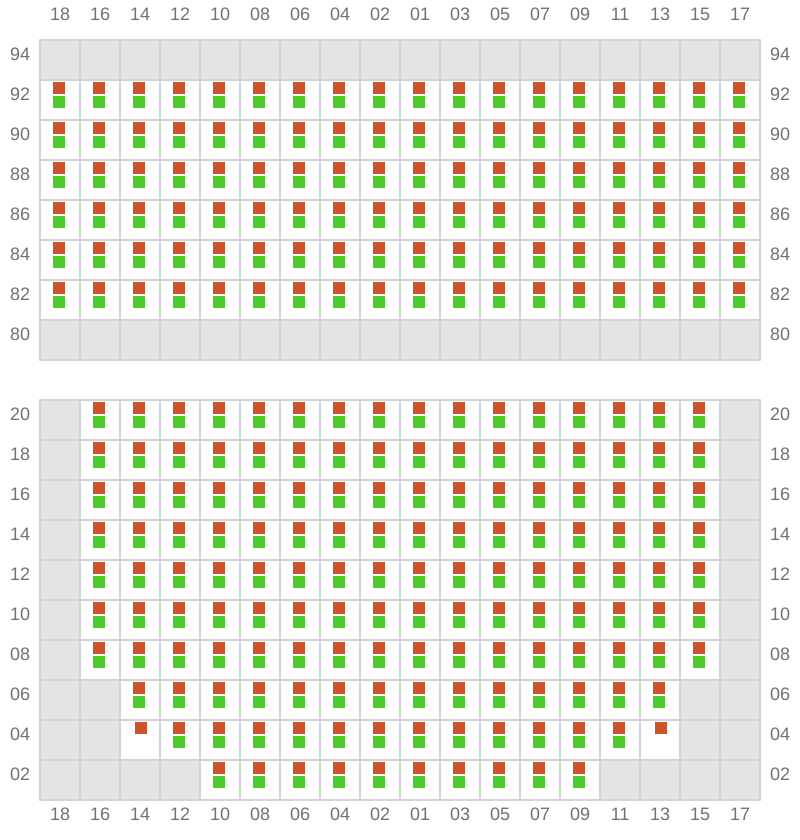

Bay 029 view and slots of MSC JOANNA

031 (030)

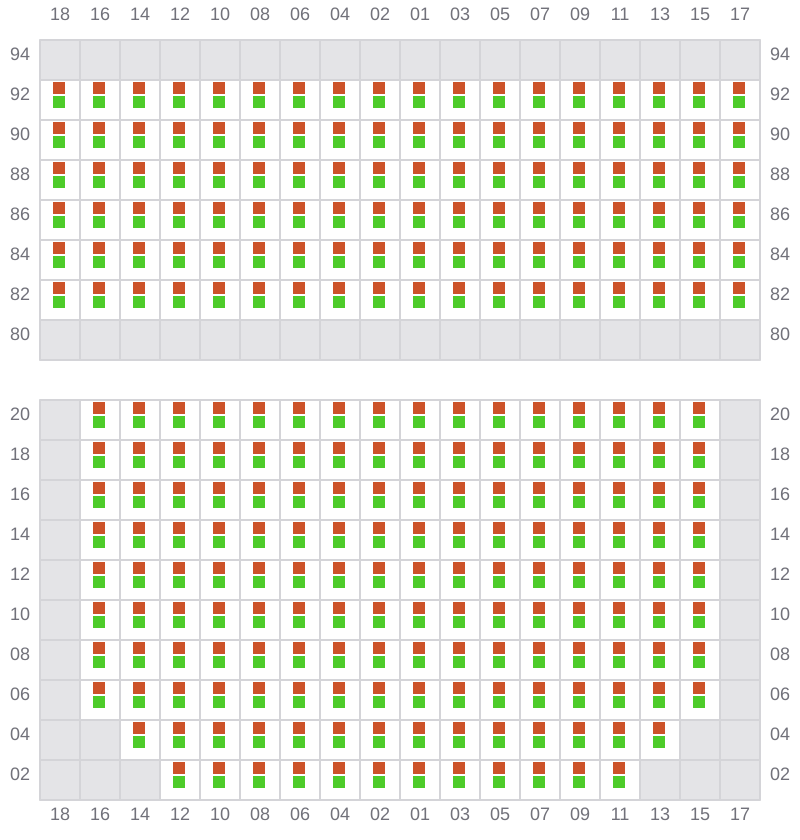

Bay 031 view and slots of MSC JOANNA

033

Bay 033 view and slots of MSC JOANNA

035 (034)

Bay 035 view and slots of MSC JOANNA

037

Bay 037 view and slots of MSC JOANNA

039 (038)

Bay 039 view and slots of MSC JOANNA

041

Bay 041 view and slots of MSC JOANNA

043 (042)

Bay 043 view and slots of MSC JOANNA

045

Bay 045 view and slots of MSC JOANNA

047 (046)

Bay 047 view and slots of MSC JOANNA

049

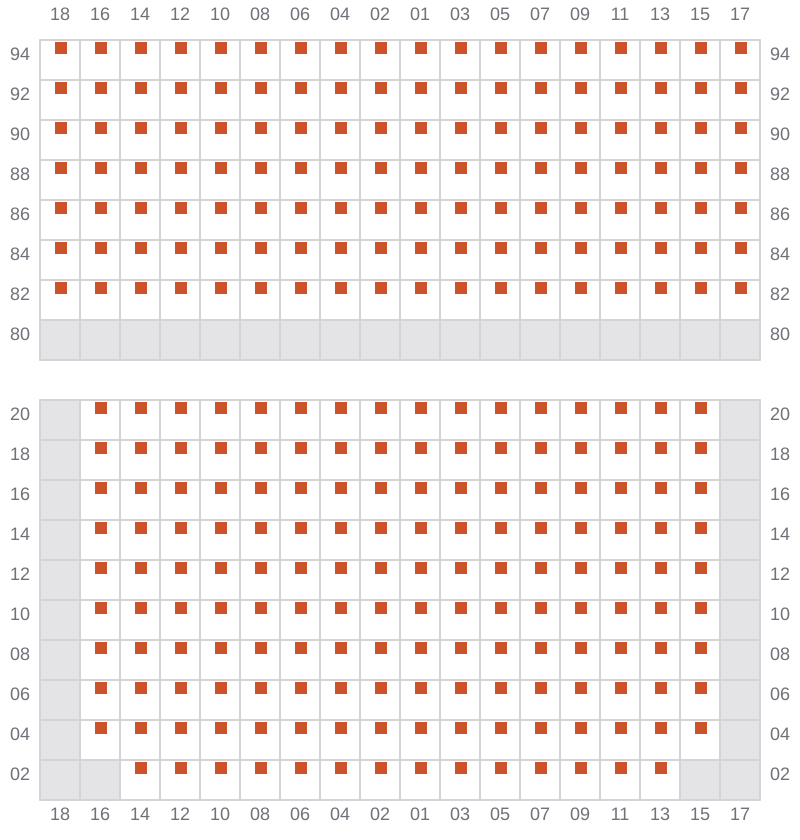

Bay 049 view and slots of MSC JOANNA

051 (050)

Bay 051 view and slots of MSC JOANNA

053

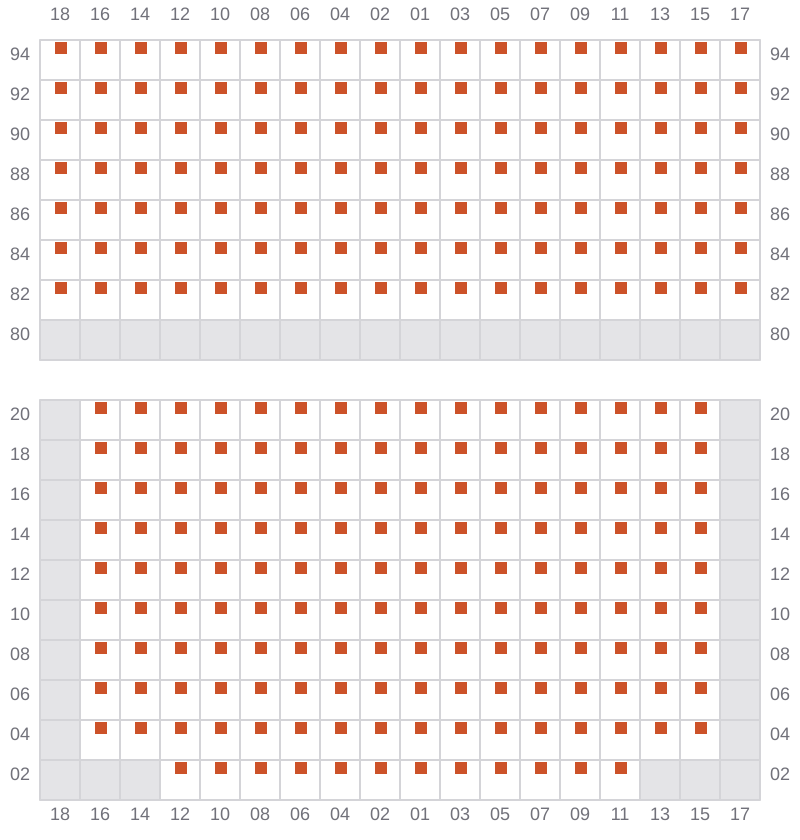

Bay 053 view and slots of MSC JOANNA

055 (054)

Bay 055 view and slots of MSC JOANNA

057

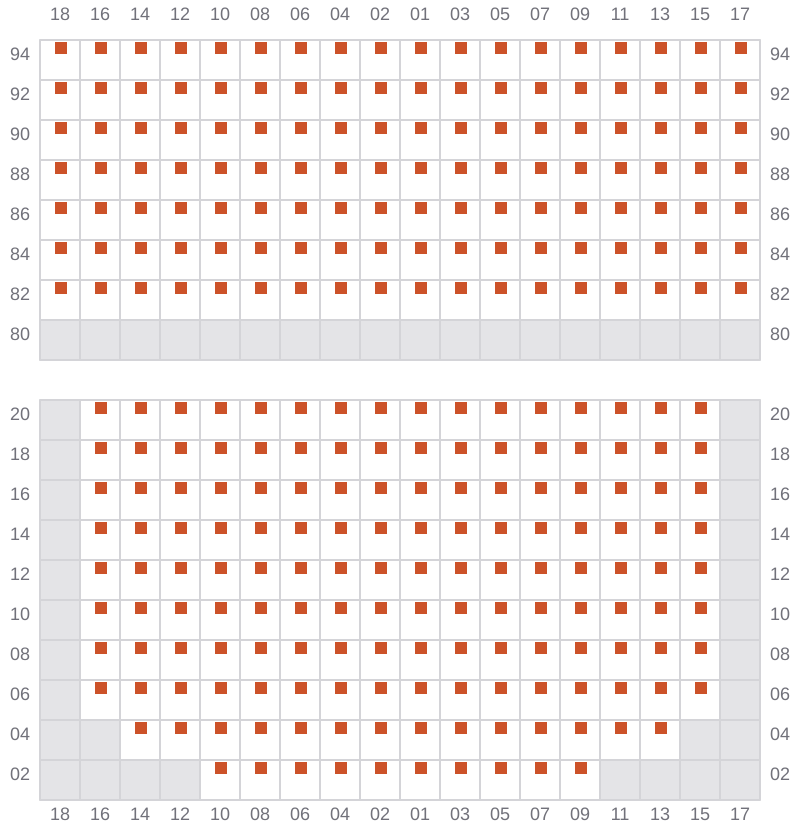

Bay 057 view and slots of MSC JOANNA

059 (058)

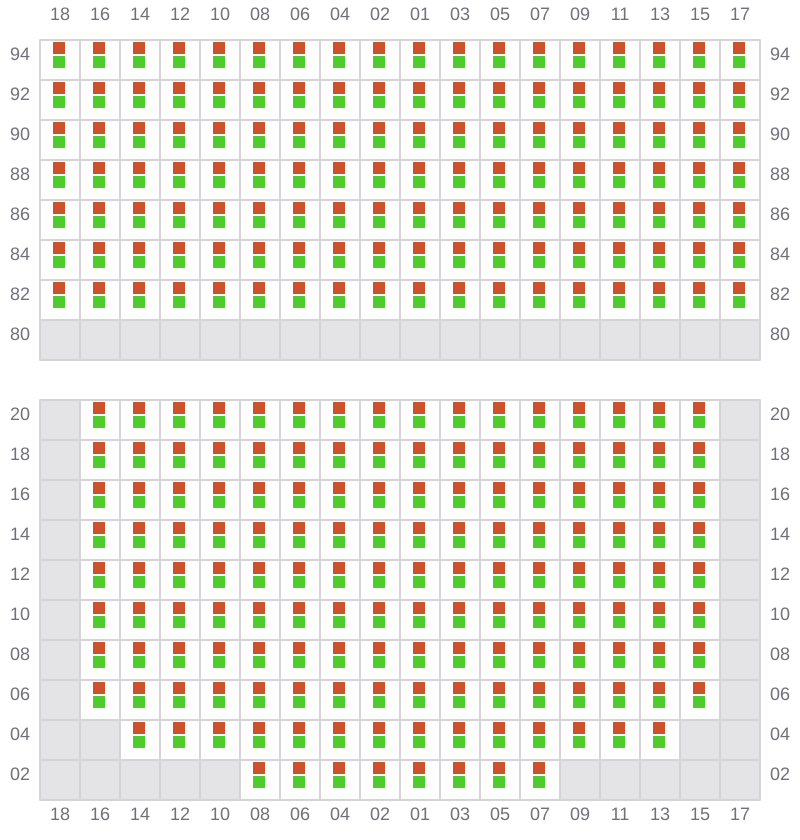

Bay 059 view and slots of MSC JOANNA

061

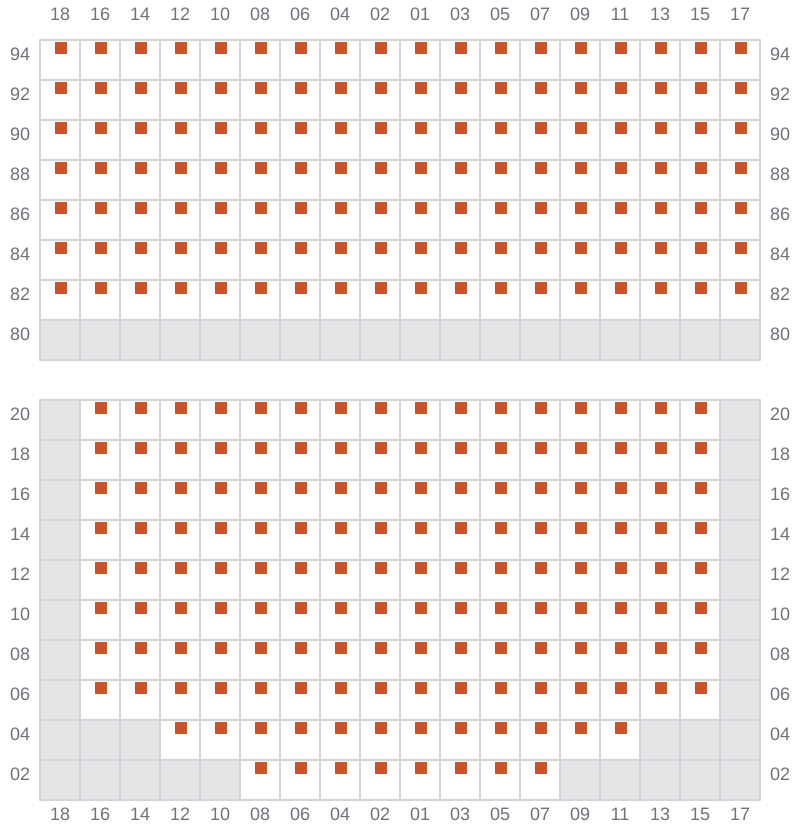

Bay 061 view and slots of MSC JOANNA

063 (062)

Bay 063 view and slots of MSC JOANNA

065

Bay 065 view and slots of MSC JOANNA

067 (066)

Bay 067 view and slots of MSC JOANNA

069

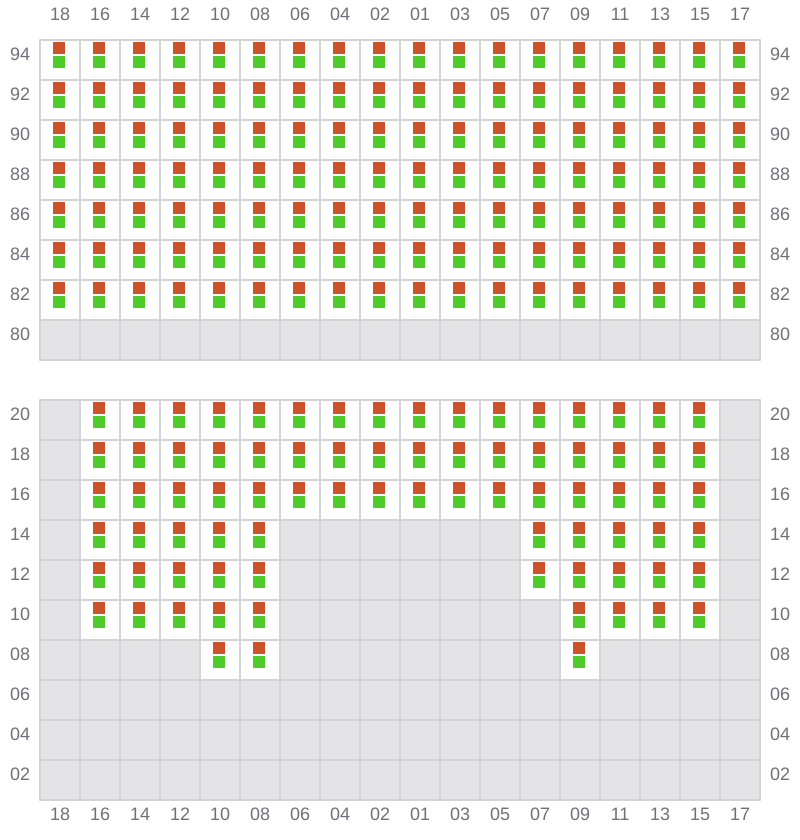

Bay 069 view and slots of MSC JOANNA

071 (070)

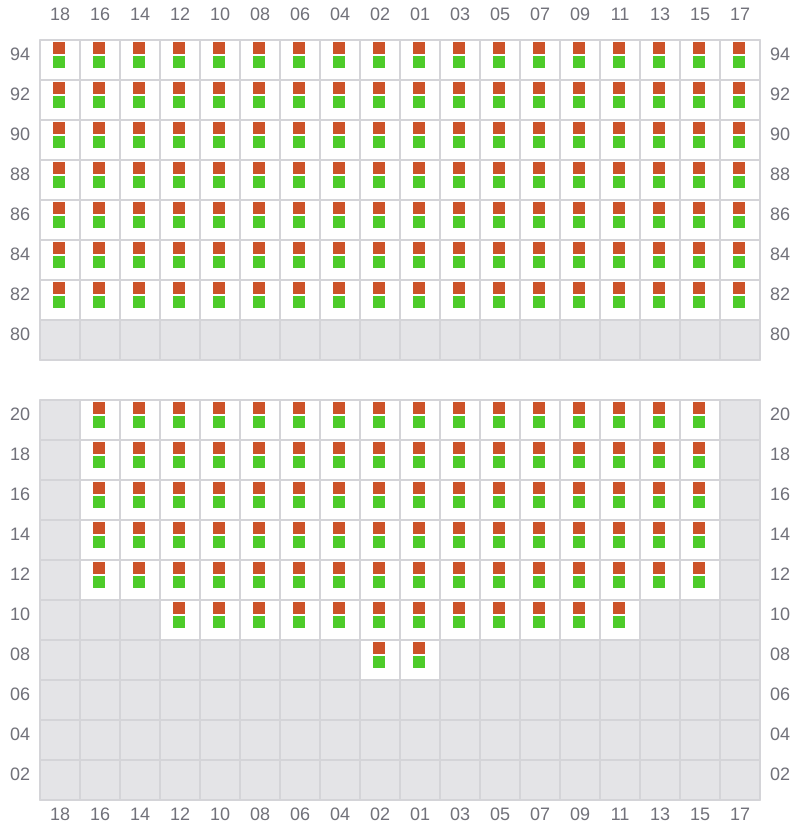

Bay 071 view and slots of MSC JOANNA

073

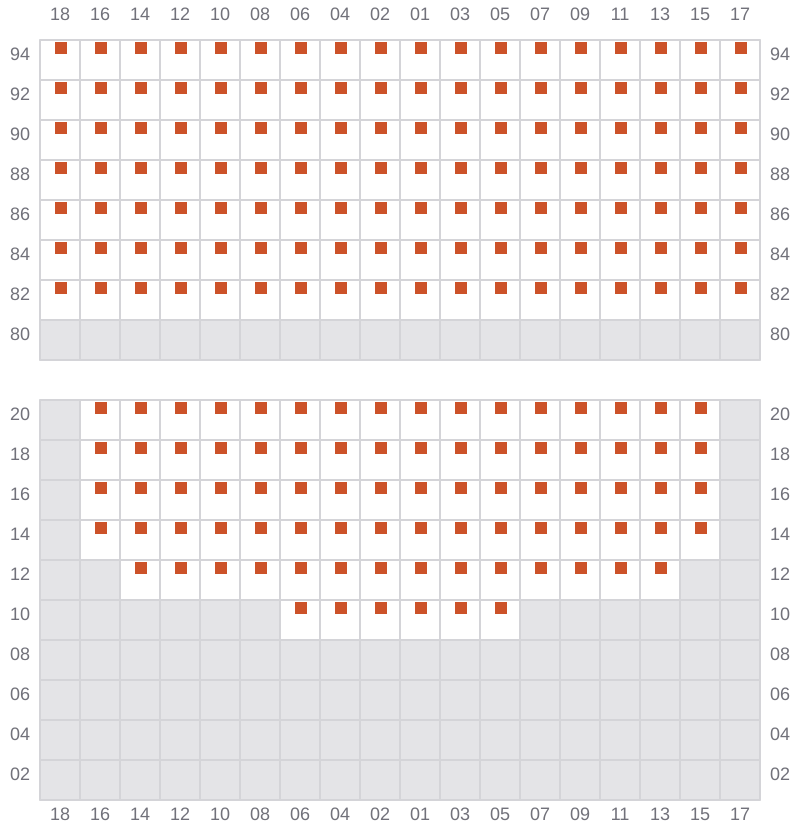

Bay 073 view and slots of MSC JOANNA

075 (074)

Bay 075 view and slots of MSC JOANNA

077

Bay 077 view and slots of MSC JOANNA

079 (078)

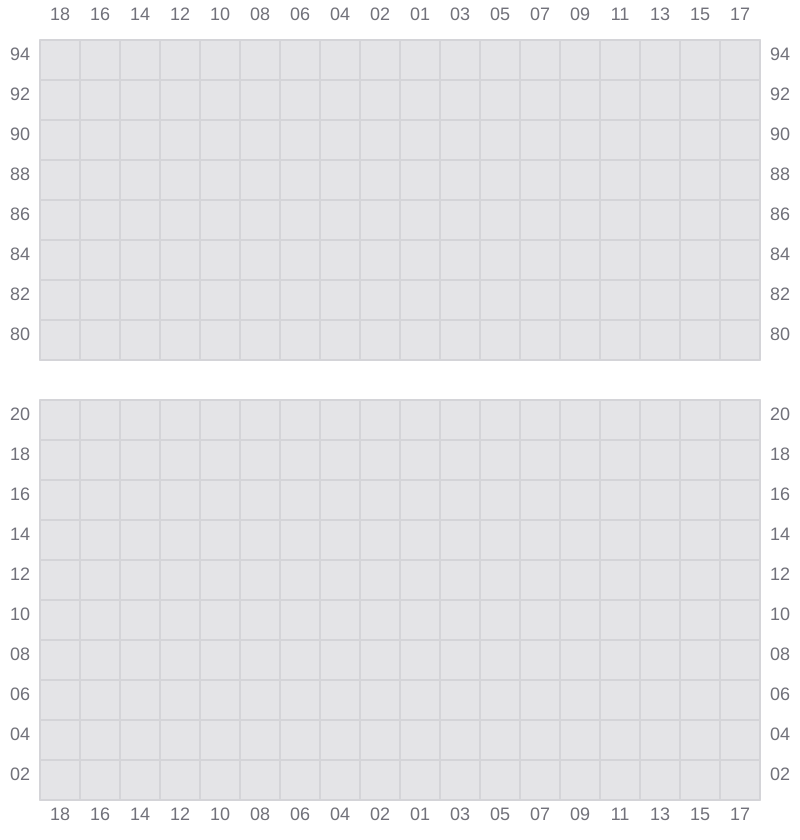

Bay 079 view and slots of MSC JOANNA
