MSC JUDITH
9299549 | 3EGR5 | MSC by ************************** Last update: Sat Jun 17 2023

General Info

Ship Name:MSC JUDITH

IMO Code:9299549

Call Sign:3EGR5

Line Operator:MSC

Class Name for Sister Ships:JUD

Year Built:2006

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:077

Max ISO Row:16

Center Line Row:Yes

Max Above ISO Tier:84

Min Above ISO Tier:70

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:8,218

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

Side view of MSC JUDITH

Hatch-Covers View

Deck view of MSC JUDITH

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

^→ / _?

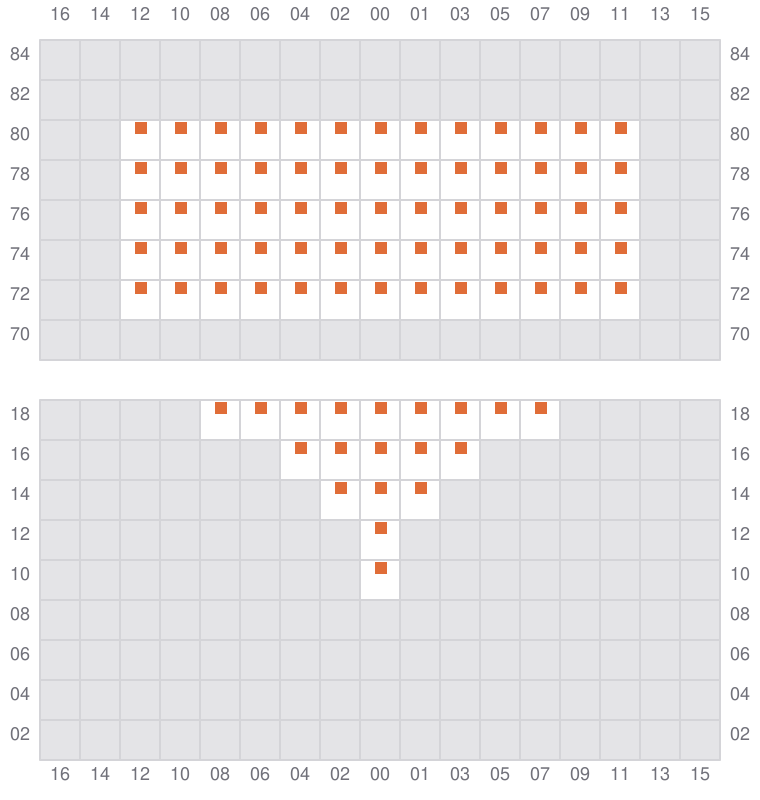

Bay 001 view and slots of MSC JUDITH

003

→

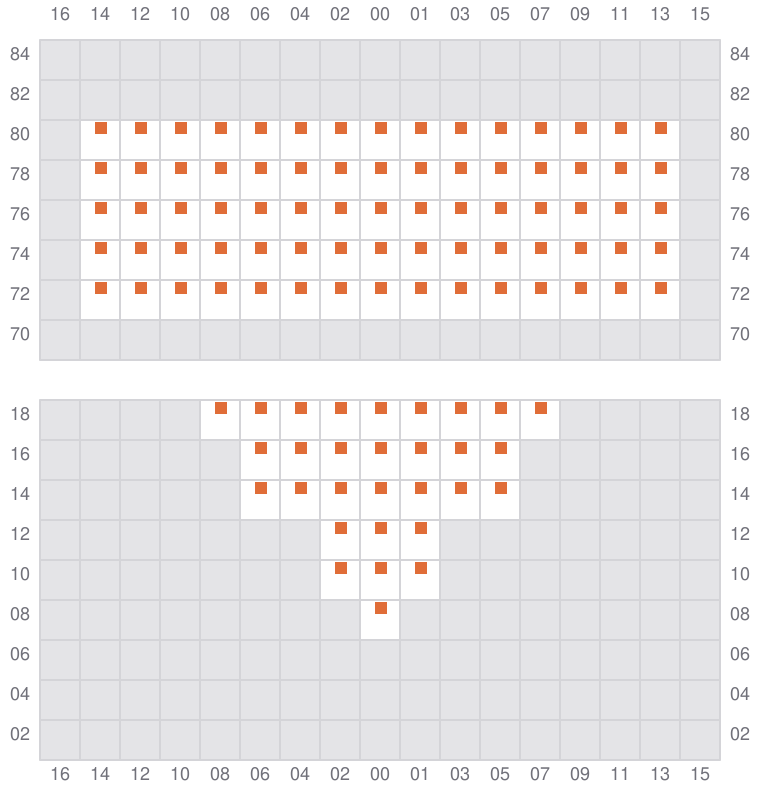

Bay 003 view and slots of MSC JUDITH

005 (004)

←

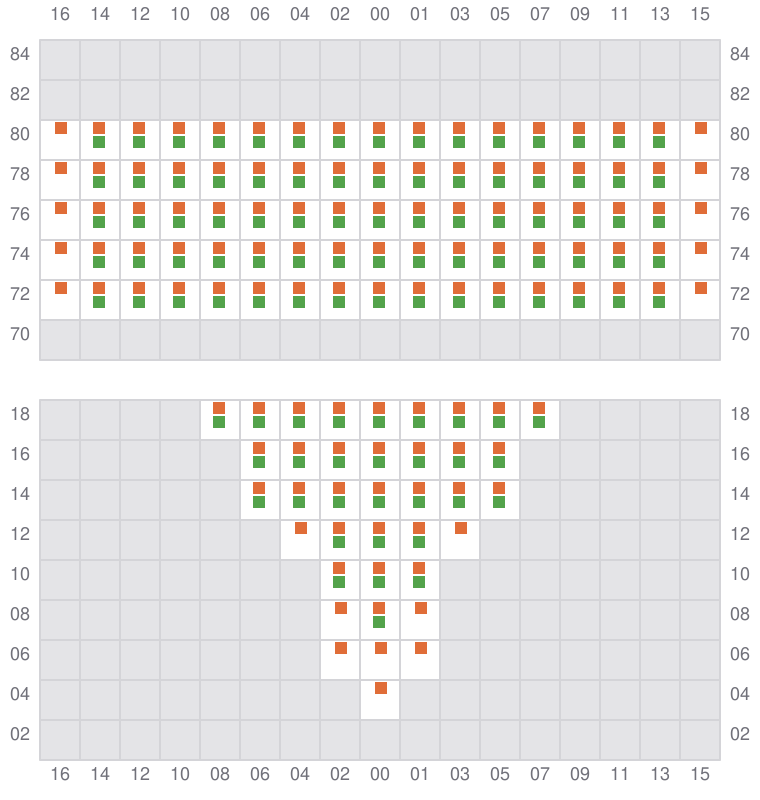

Bay 005 view and slots of MSC JUDITH

007

→

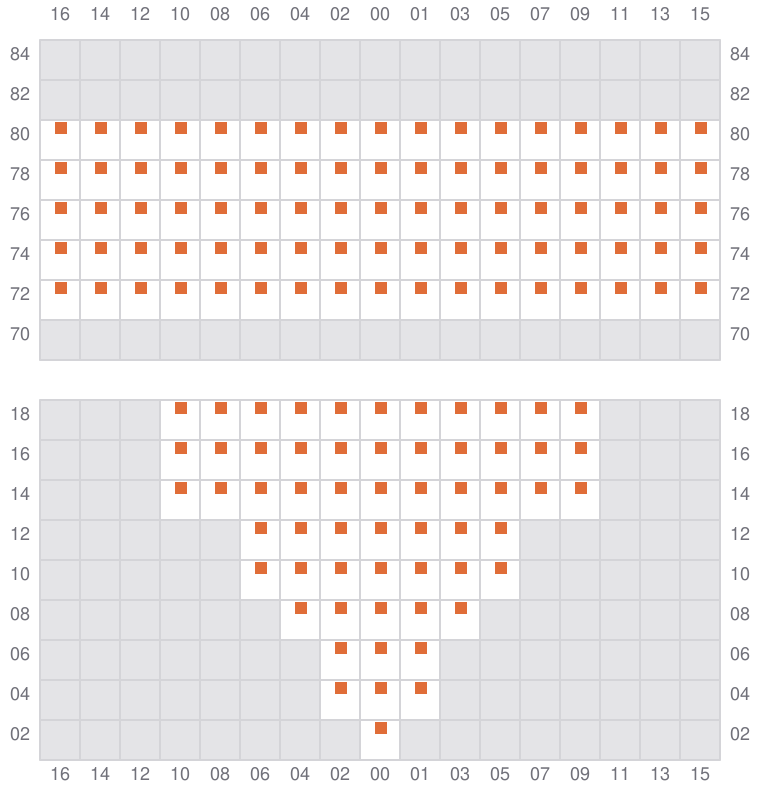

Bay 007 view and slots of MSC JUDITH

009 (008)

←

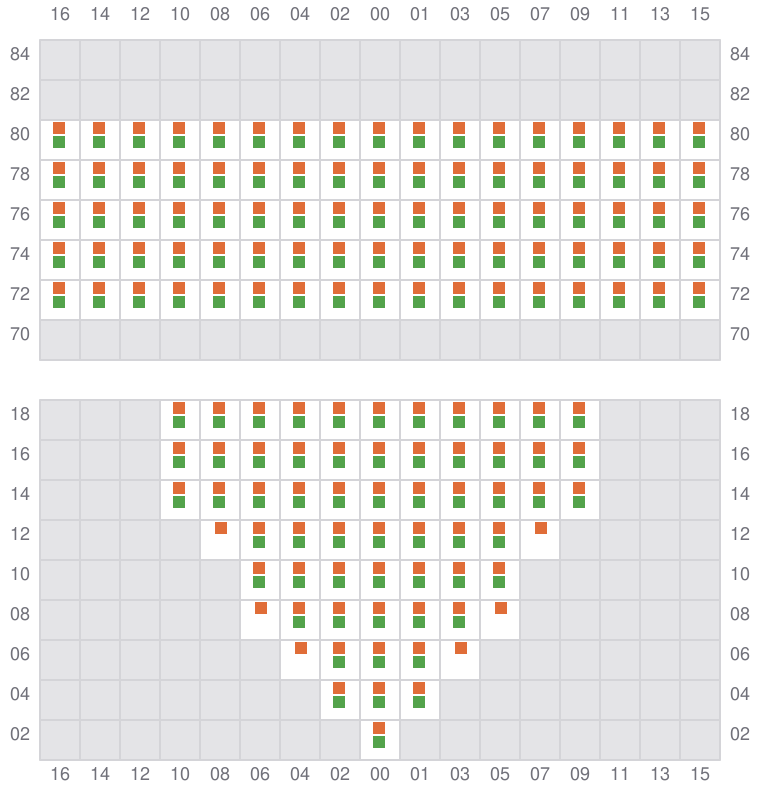

Bay 009 view and slots of MSC JUDITH

011

→

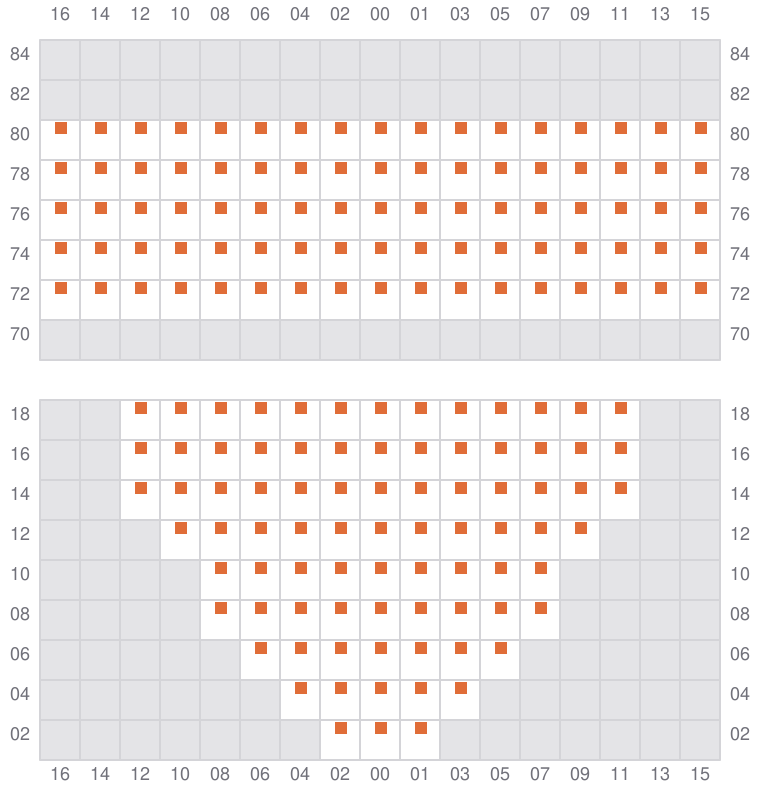

Bay 011 view and slots of MSC JUDITH

013 (012)

←

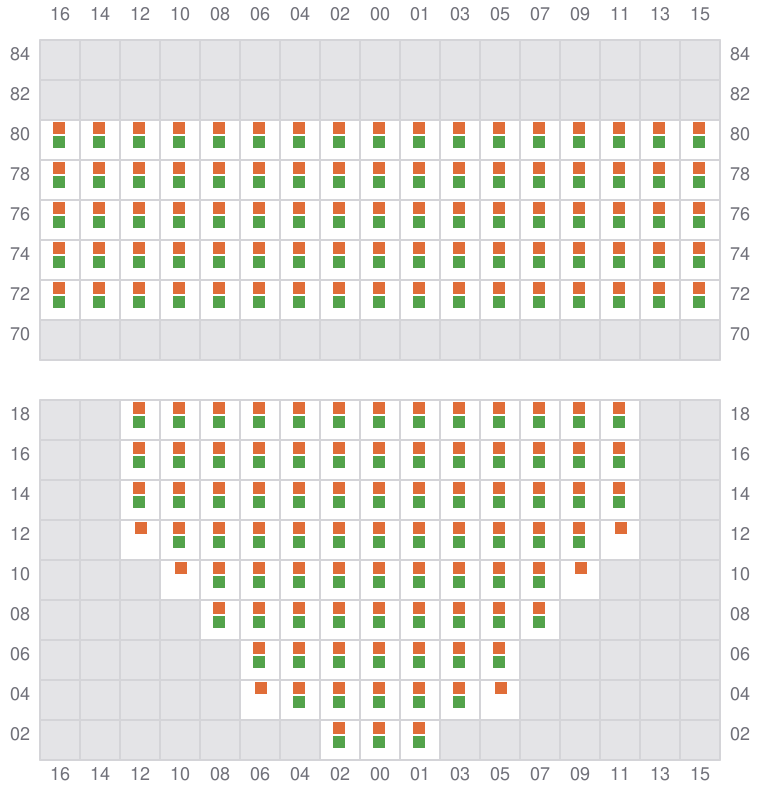

Bay 013 view and slots of MSC JUDITH

015

→

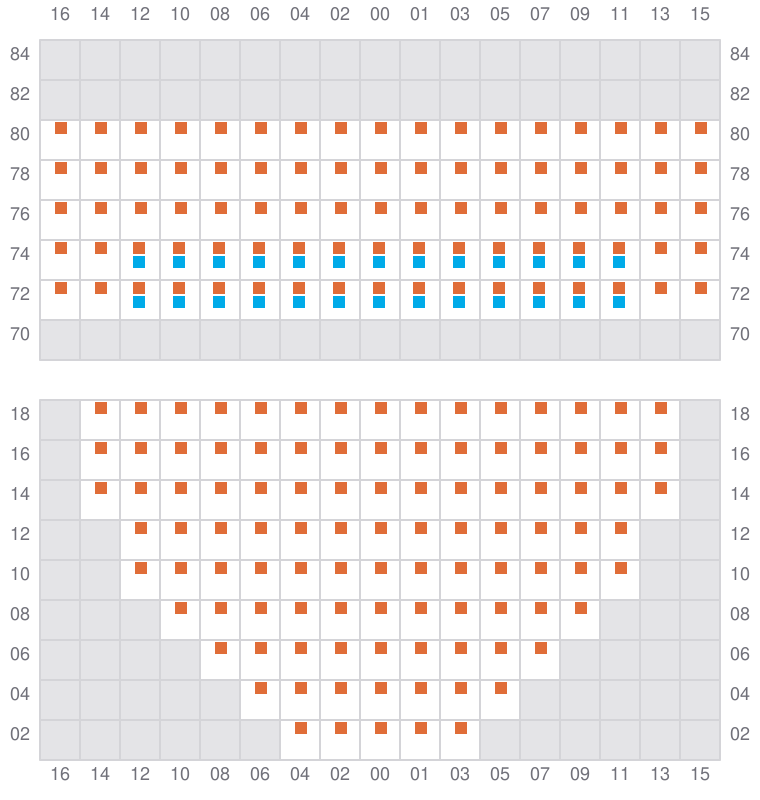

Bay 015 view and slots of MSC JUDITH

017 (016)

←

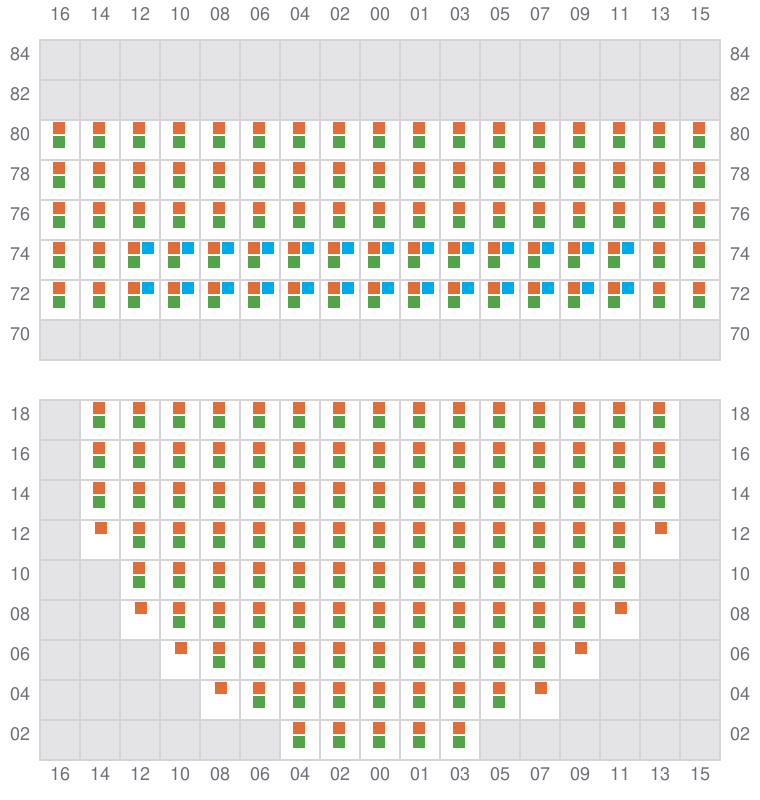

Bay 017 view and slots of MSC JUDITH

019

→

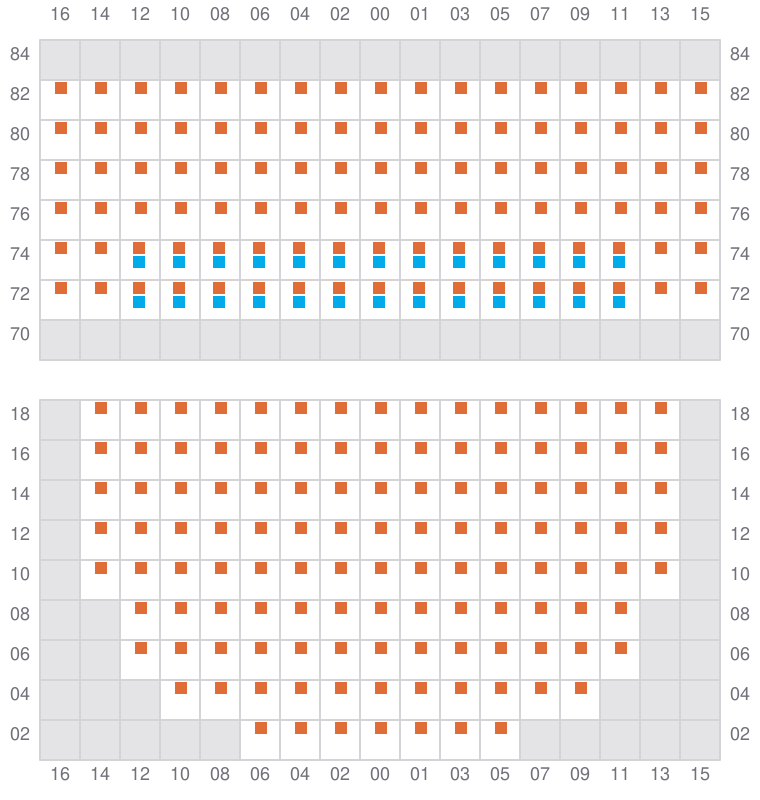

Bay 019 view and slots of MSC JUDITH

021 (020)

←

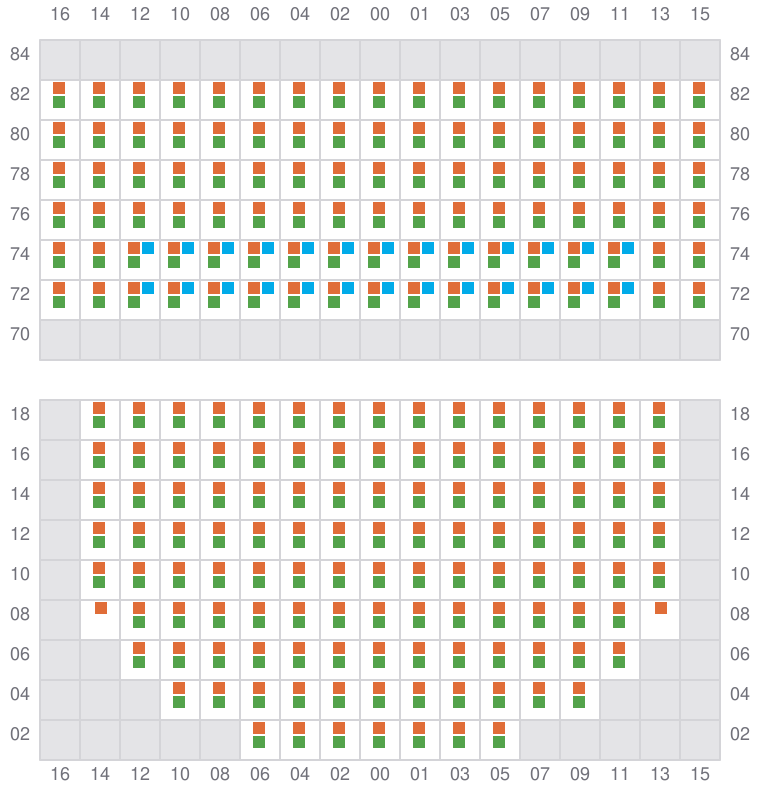

Bay 021 view and slots of MSC JUDITH

023

→

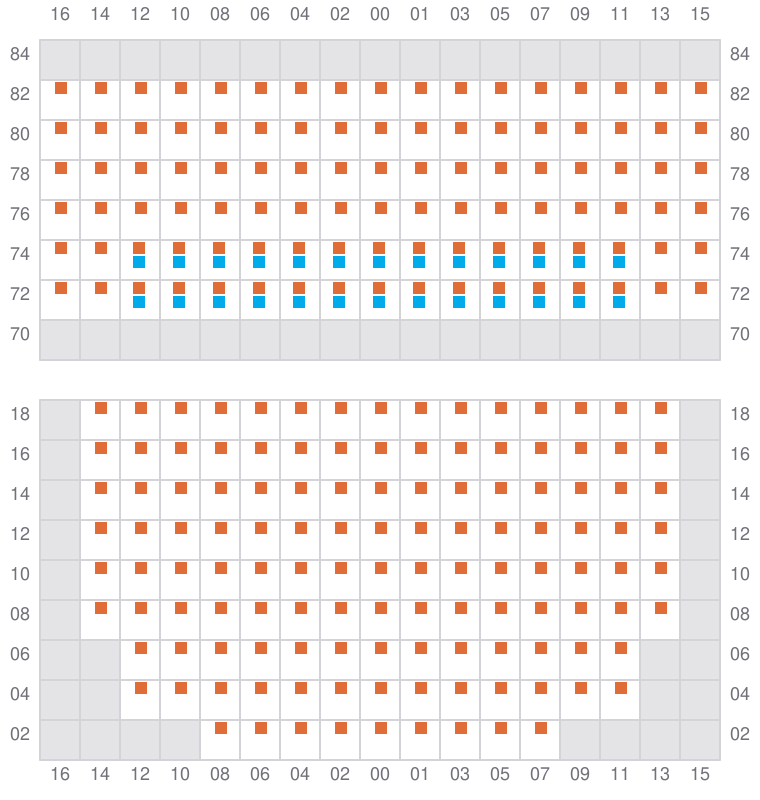

Bay 023 view and slots of MSC JUDITH

025 (024)

←

Bay 025 view and slots of MSC JUDITH

027

→

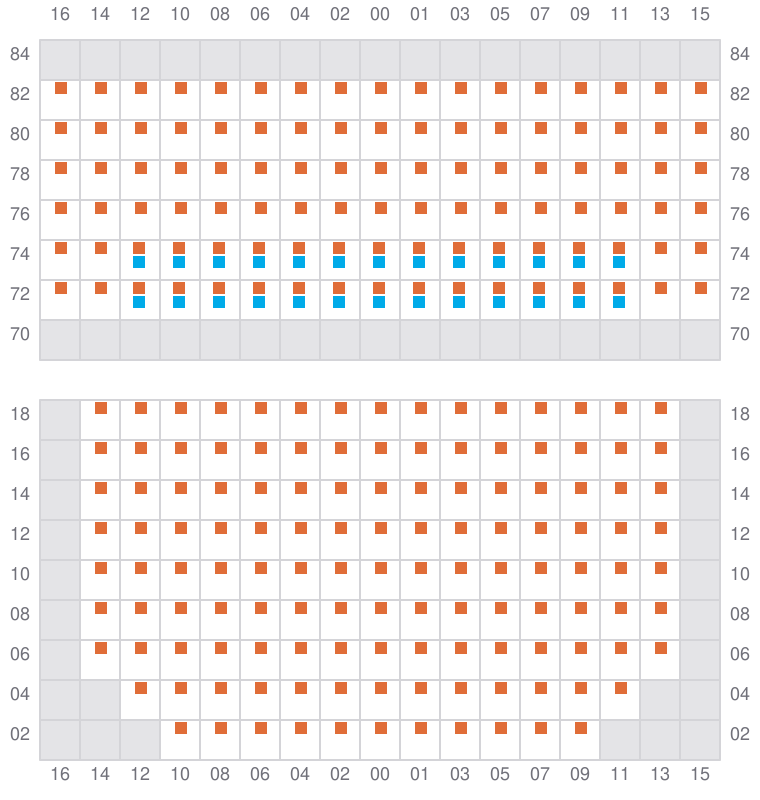

Bay 027 view and slots of MSC JUDITH

029 (028)

←

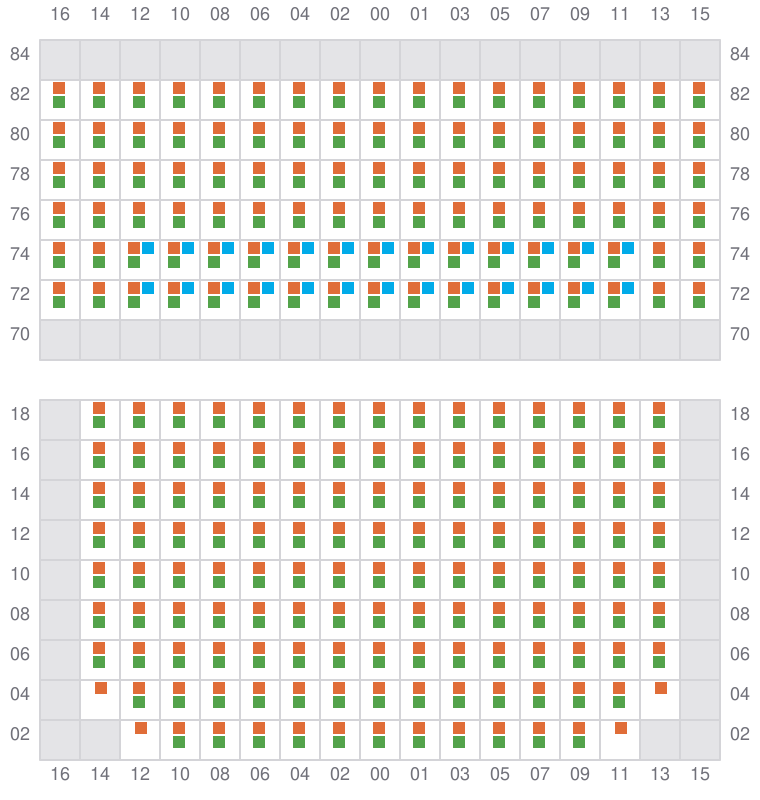

Bay 029 view and slots of MSC JUDITH

031

→

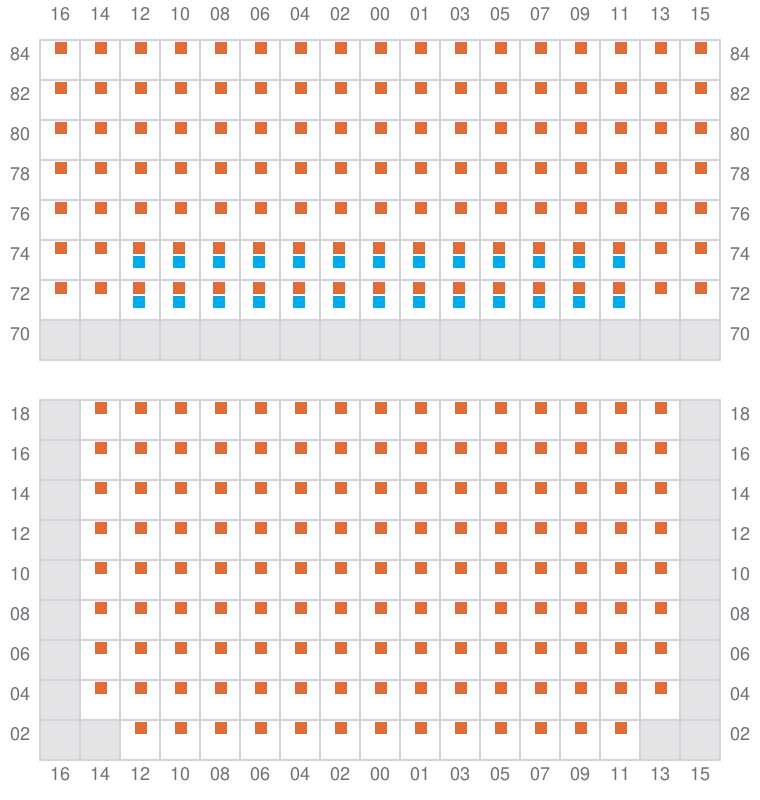

Bay 031 view and slots of MSC JUDITH

033 (032)

←

Bay 033 view and slots of MSC JUDITH

035

^→ / _?

Bay 035 view and slots of MSC JUDITH

037 (036)

←

Bay 037 view and slots of MSC JUDITH

039

→

Bay 039 view and slots of MSC JUDITH

041 (040)

←

Bay 041 view and slots of MSC JUDITH

043

→

Bay 043 view and slots of MSC JUDITH

045 (044)

←

Bay 045 view and slots of MSC JUDITH

047

→

Bay 047 view and slots of MSC JUDITH

049 (048)

←

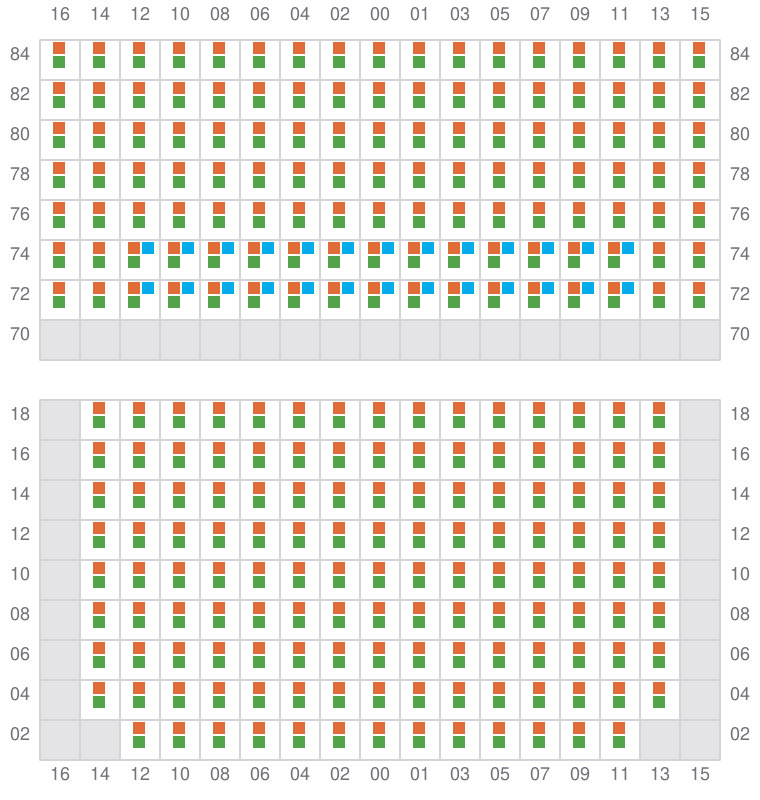

Bay 049 view and slots of MSC JUDITH

051

→

Bay 051 view and slots of MSC JUDITH

053 (052)

←

Bay 053 view and slots of MSC JUDITH

055

→

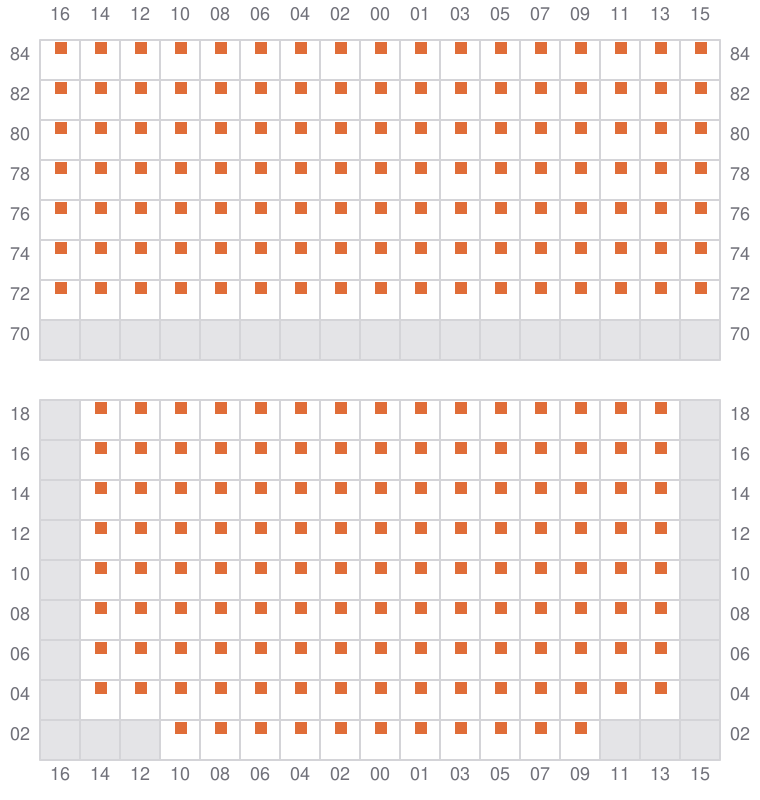

Bay 055 view and slots of MSC JUDITH

057 (056)

←

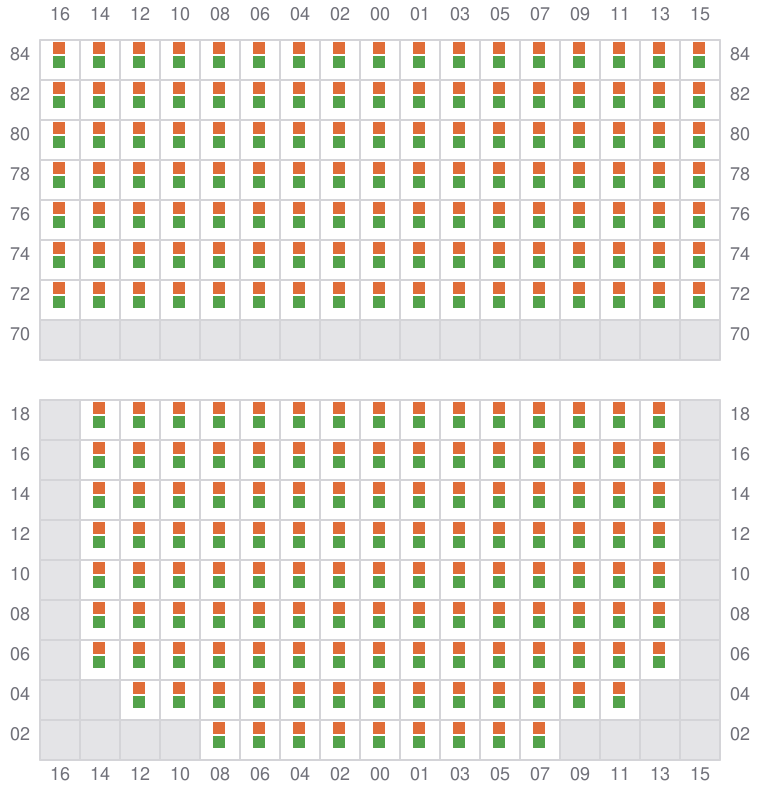

Bay 057 view and slots of MSC JUDITH

059

→

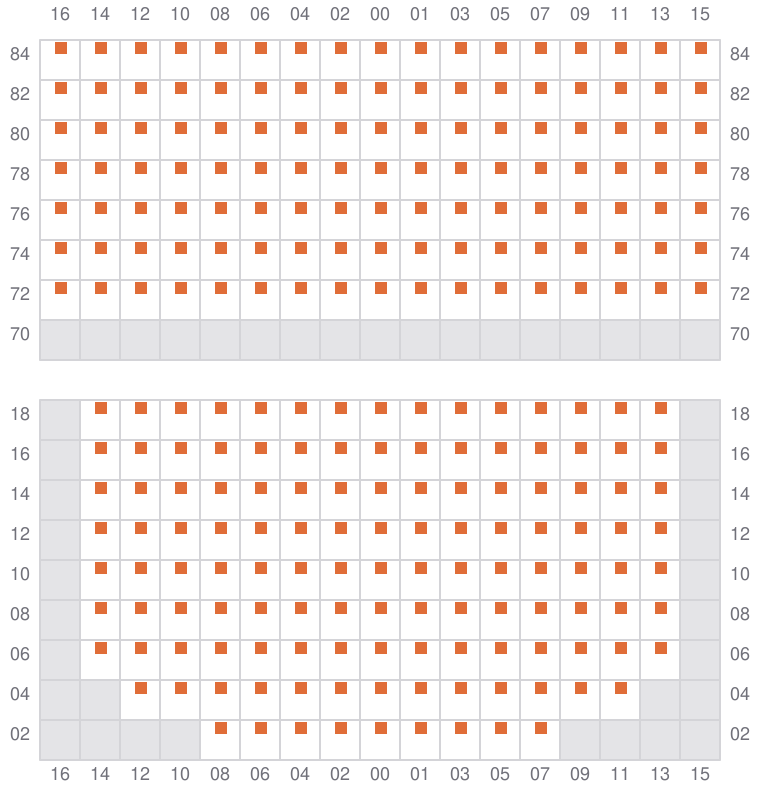

Bay 059 view and slots of MSC JUDITH

061 (060)

←

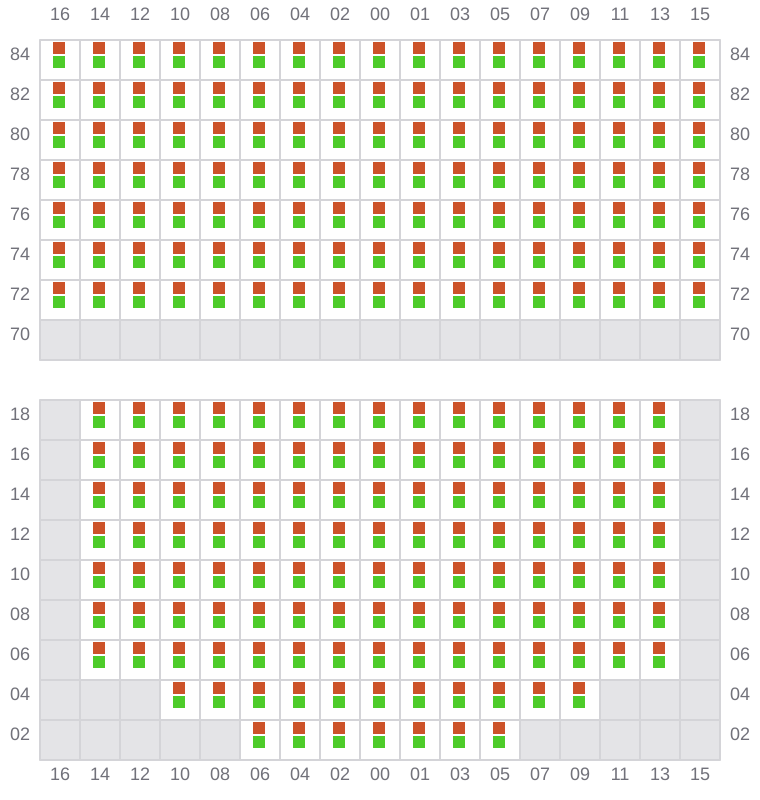

Bay 061 view and slots of MSC JUDITH

063

→

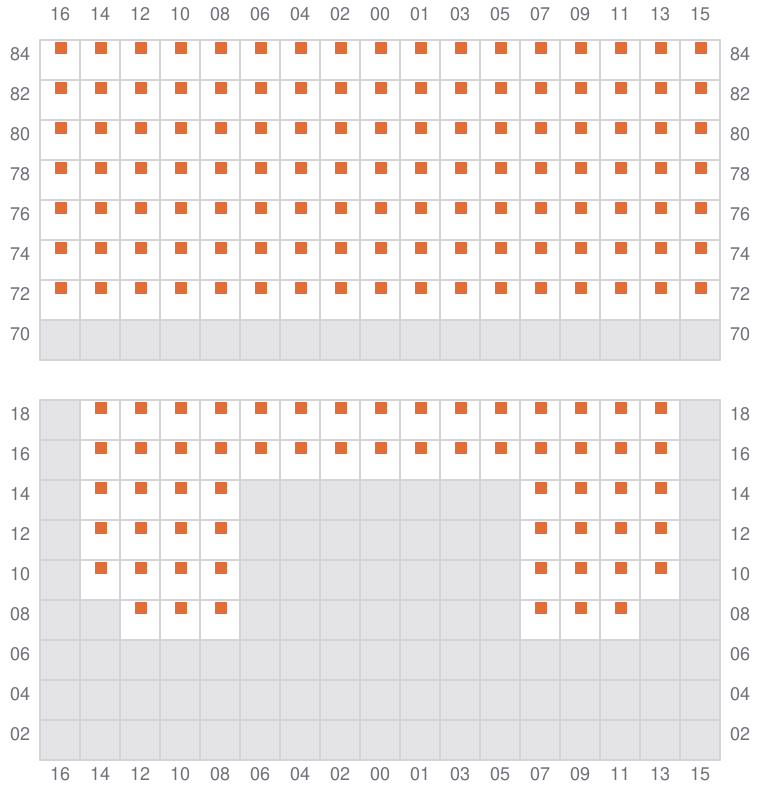

Bay 063 view and slots of MSC JUDITH

065 (064)

←

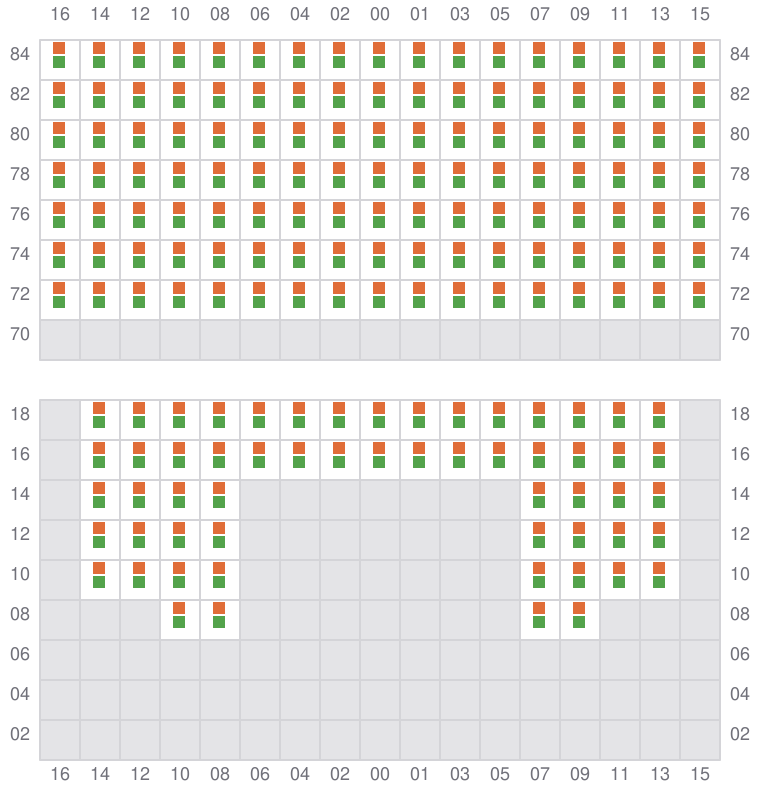

Bay 065 view and slots of MSC JUDITH

067

→

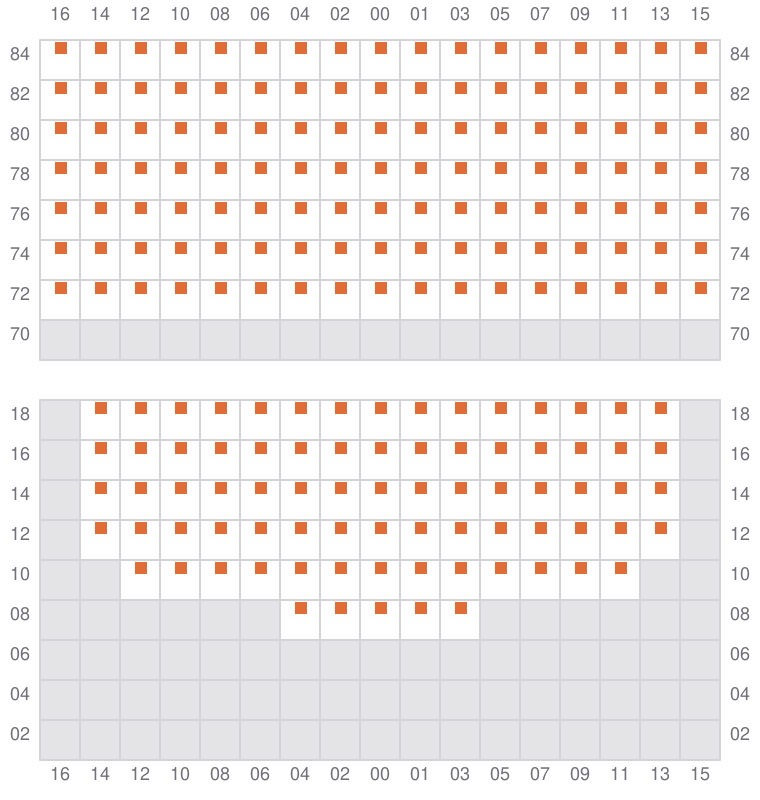

Bay 067 view and slots of MSC JUDITH

069 (068)

←

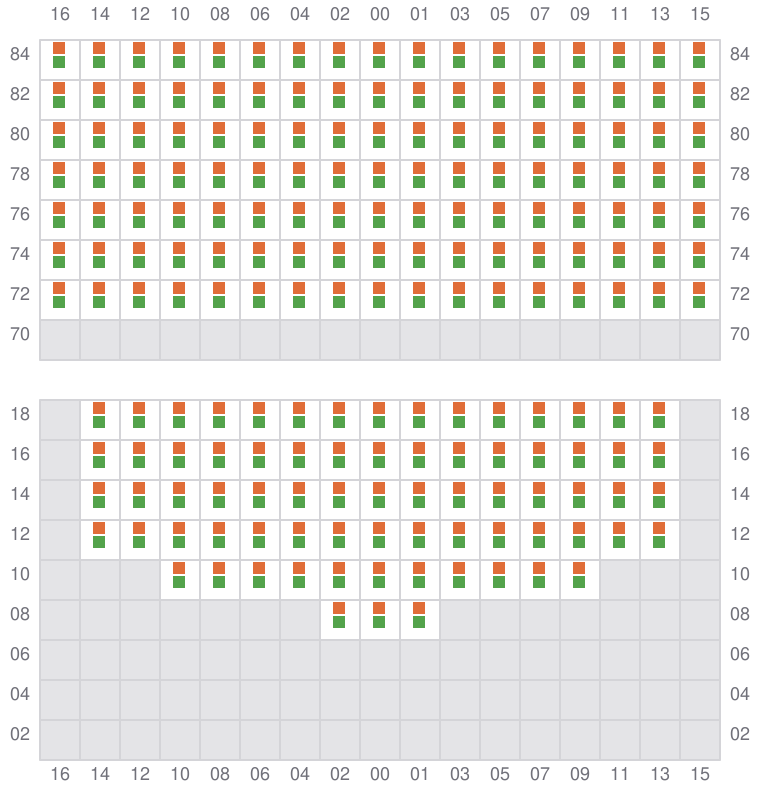

Bay 069 view and slots of MSC JUDITH

071

→

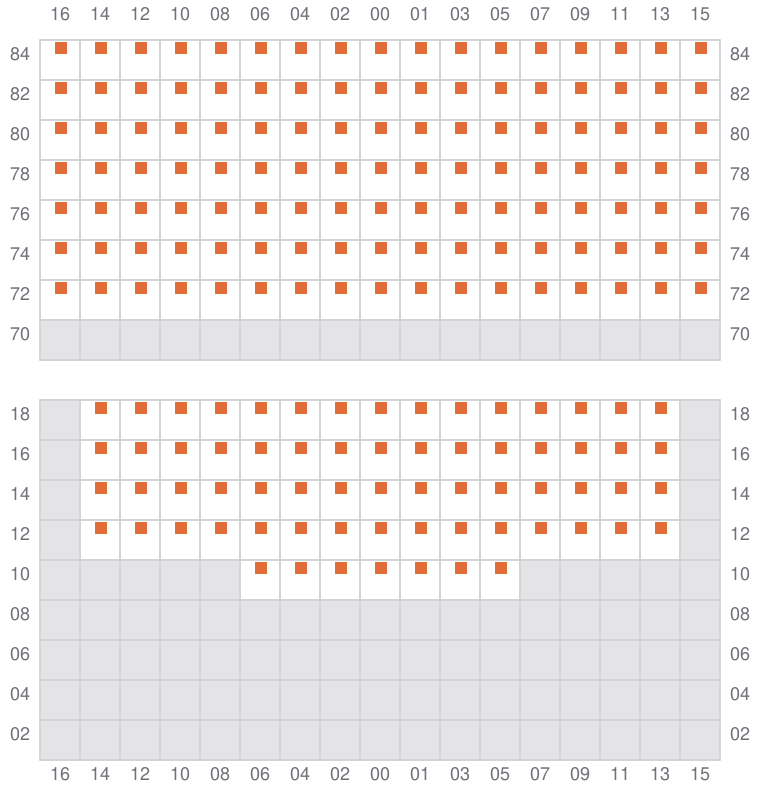

Bay 071 view and slots of MSC JUDITH

073 (072)

←

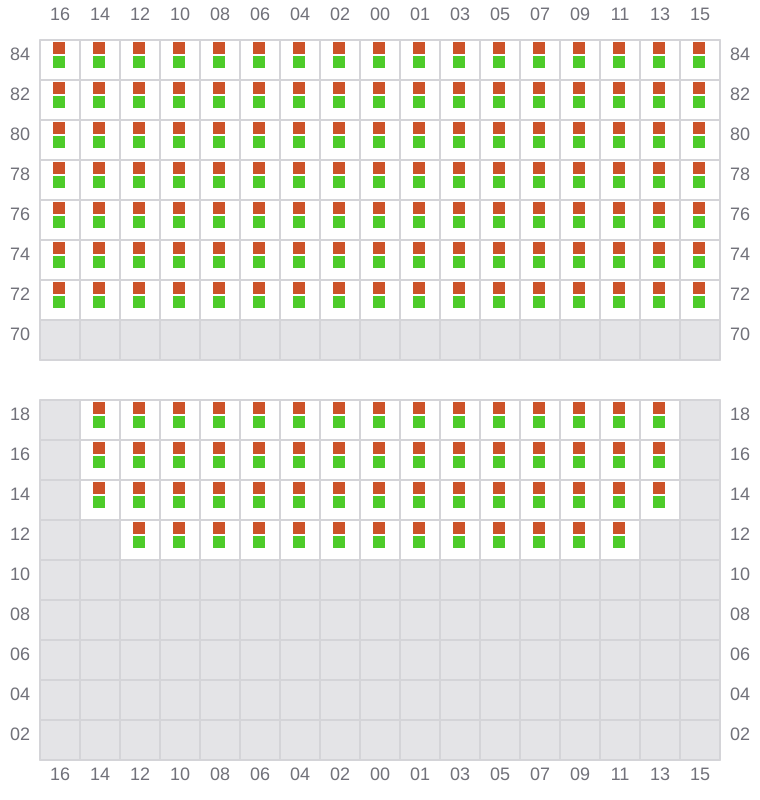

Bay 073 view and slots of MSC JUDITH

075

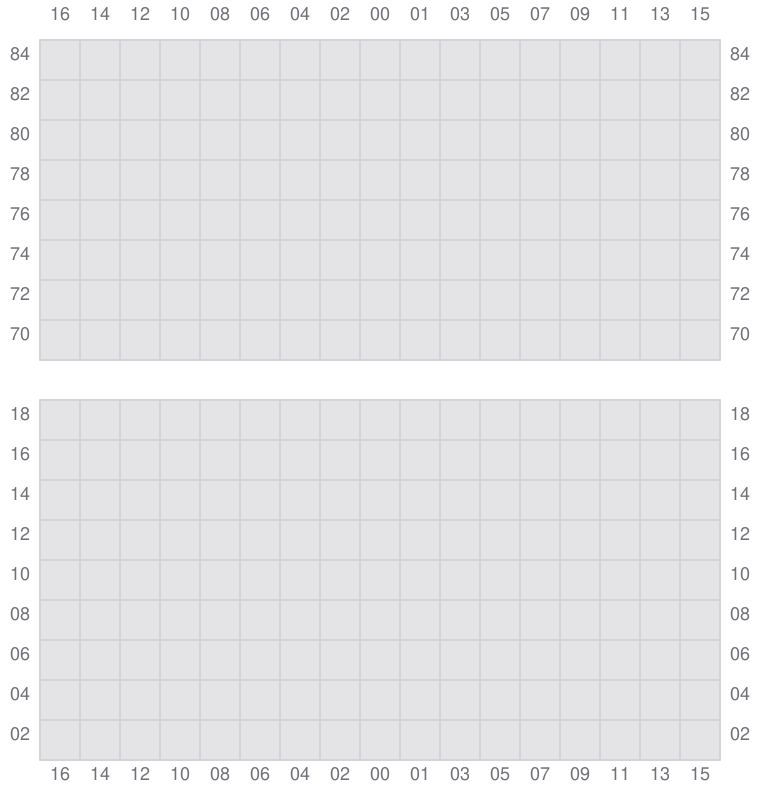

Bay 075 view and slots of MSC JUDITH

077

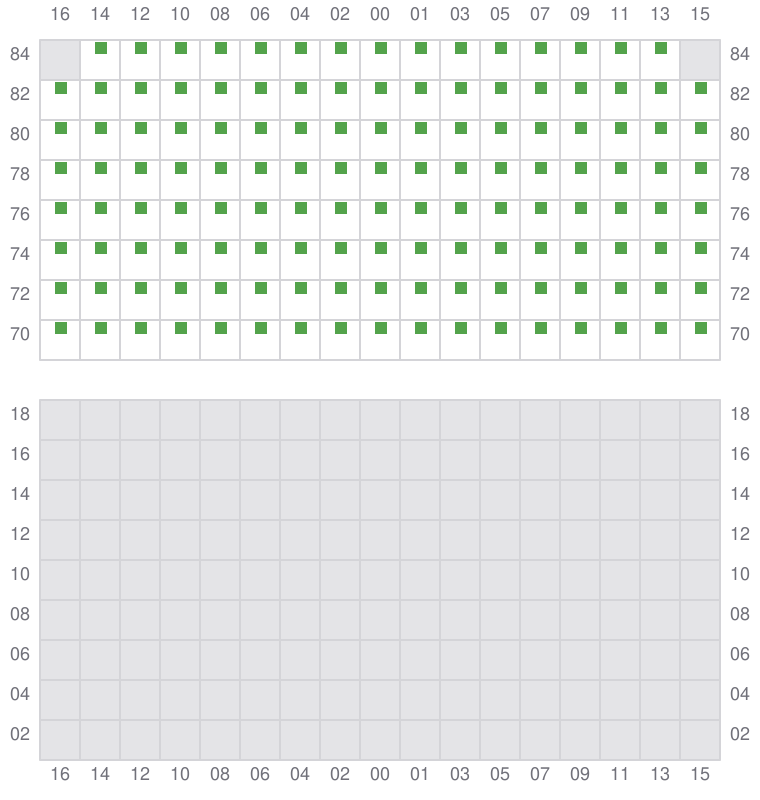

Bay 077 view and slots of MSC JUDITH
