MSC JUDITH
9299549 | 3EGR5 | 9299549 by ********* Last update: Wed May 15 2024
General Info
Ship Name:MSC JUDITH
IMO Code:9299549
Call Sign:3EGR5
Line Operator:9299549
Class Name for Sister Ships:MSC JUDITH
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):309.20
LOA (Length Overall):324.84
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:075
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,089
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- ? / →
003
- →
005 (004)
- ←

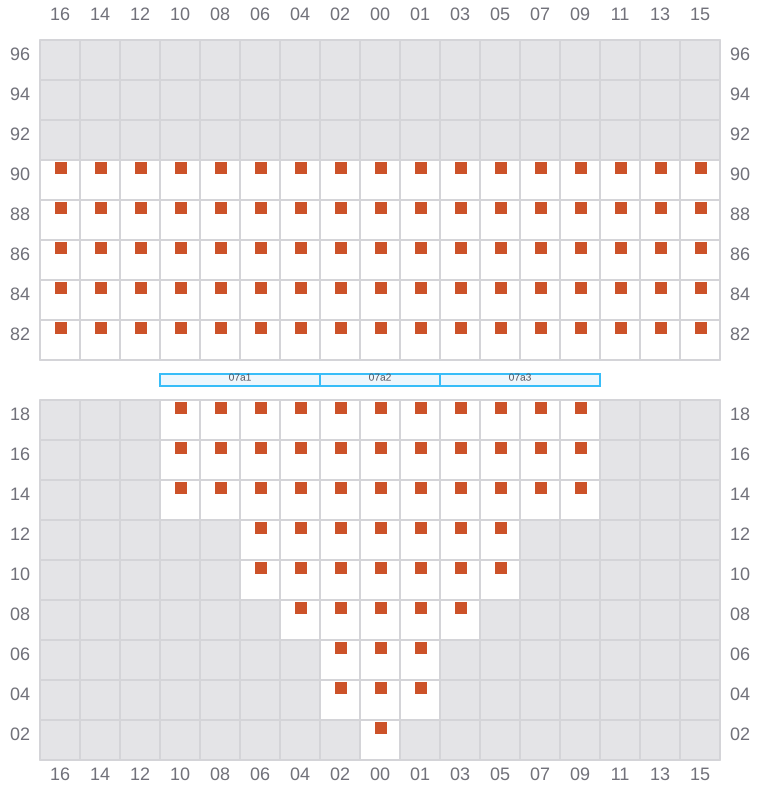

007
- →
009 (008)
- ←

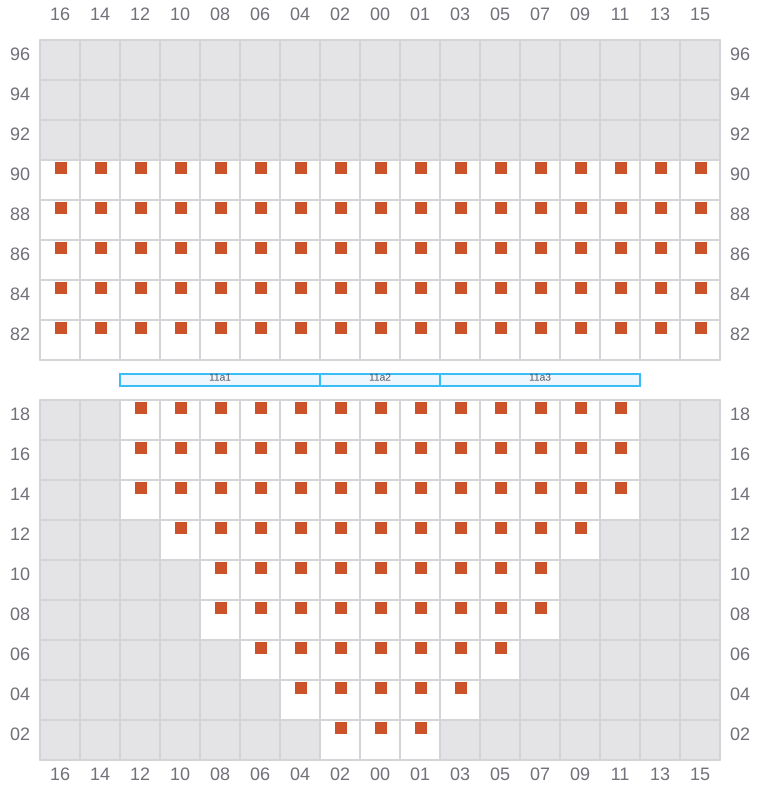

011
- →

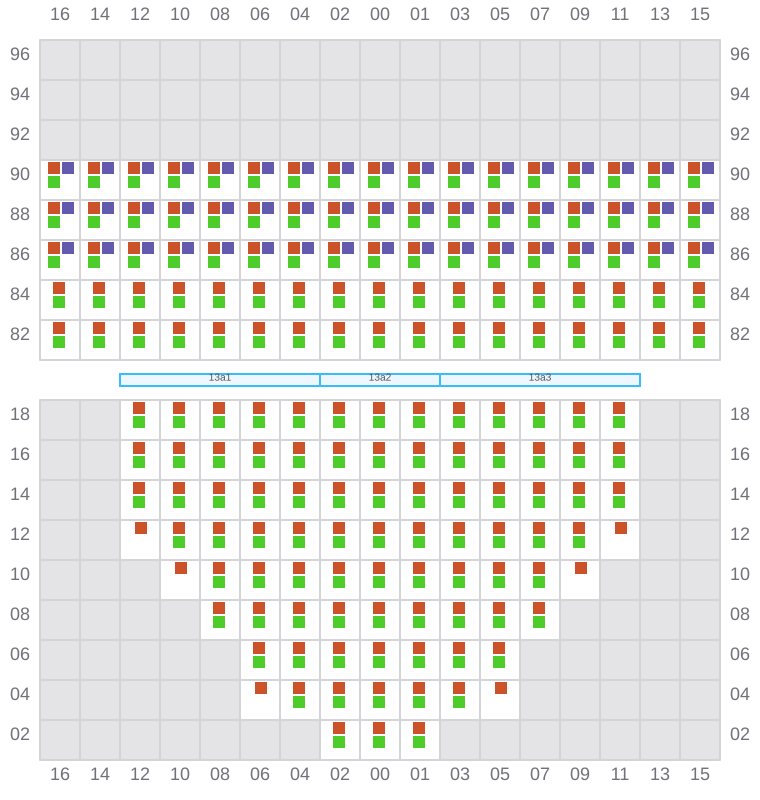

013 (012)
- ←
015
- →

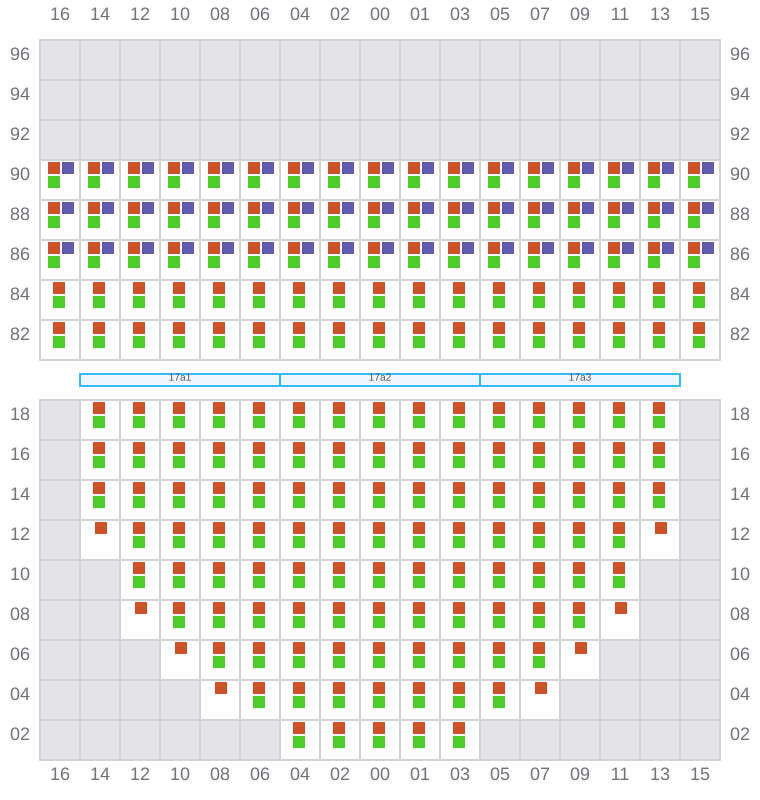

017 (016)
- ←

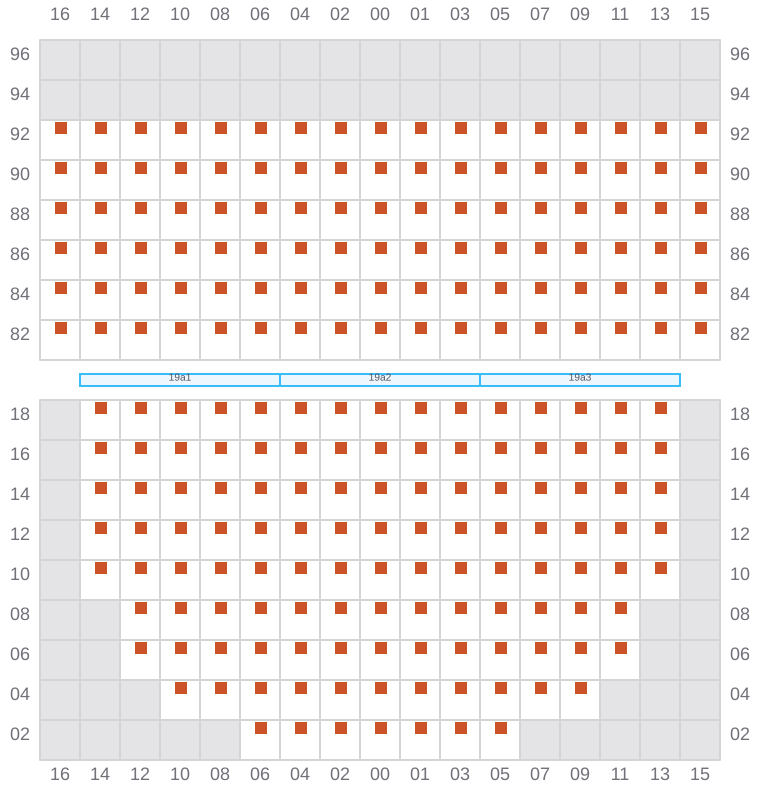

019
- →
021 (020)
- ←
023
- →

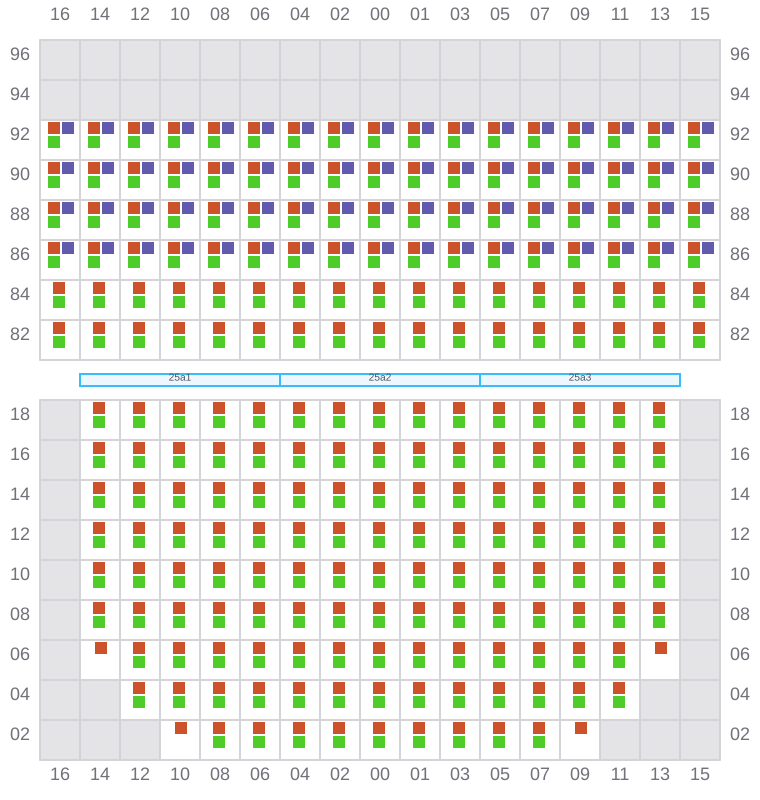

025 (024)
- ←
027
- →
029 (028)
- ←

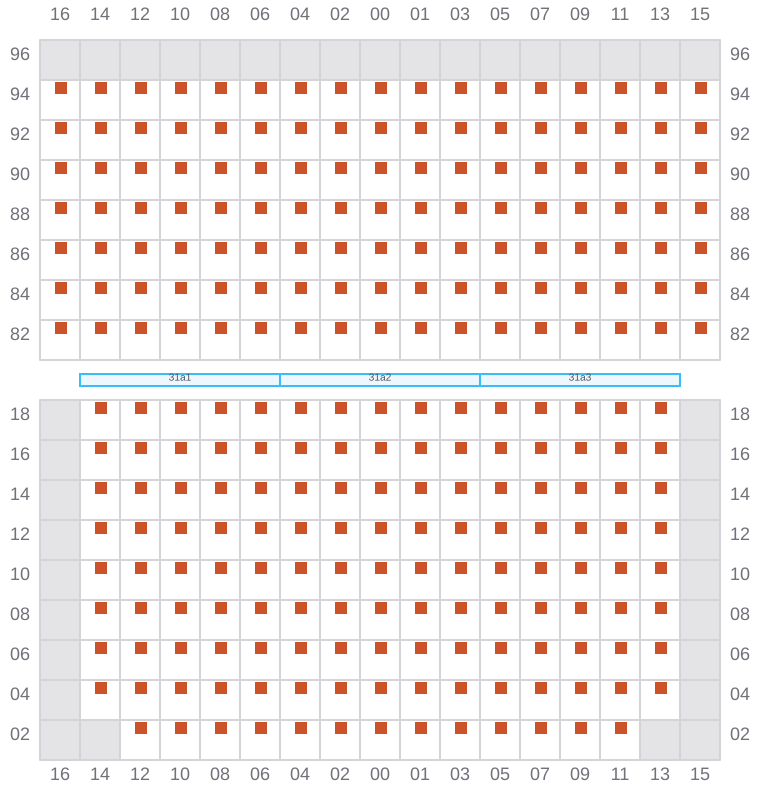

031
- →
033 (032)
- ←

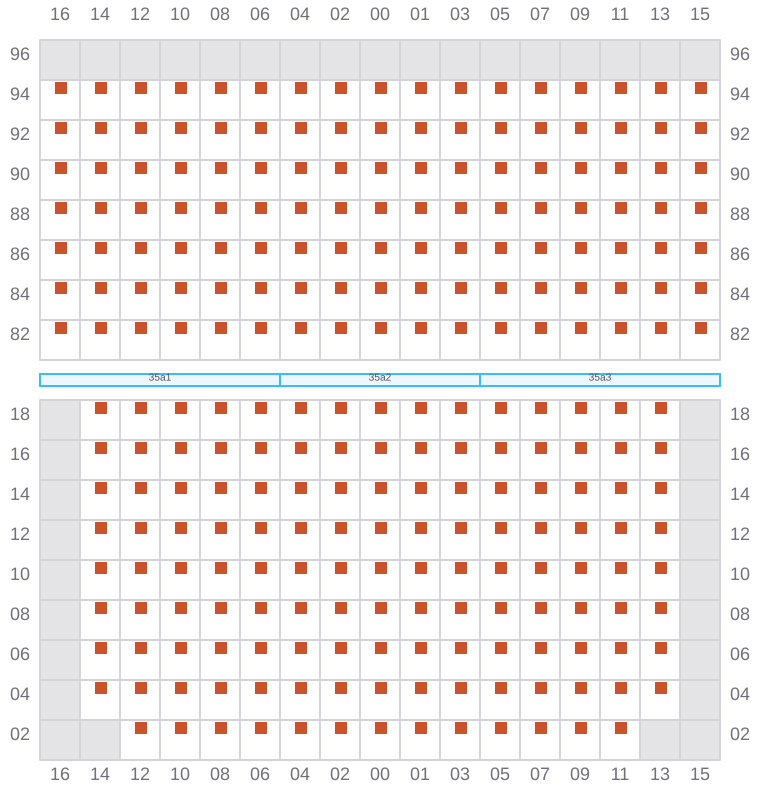

035
- →
037 (036)
- ←
039
- →
041 (040)
- ←
043
- →
045 (044)
- ←
047
- →
049 (048)
- ←

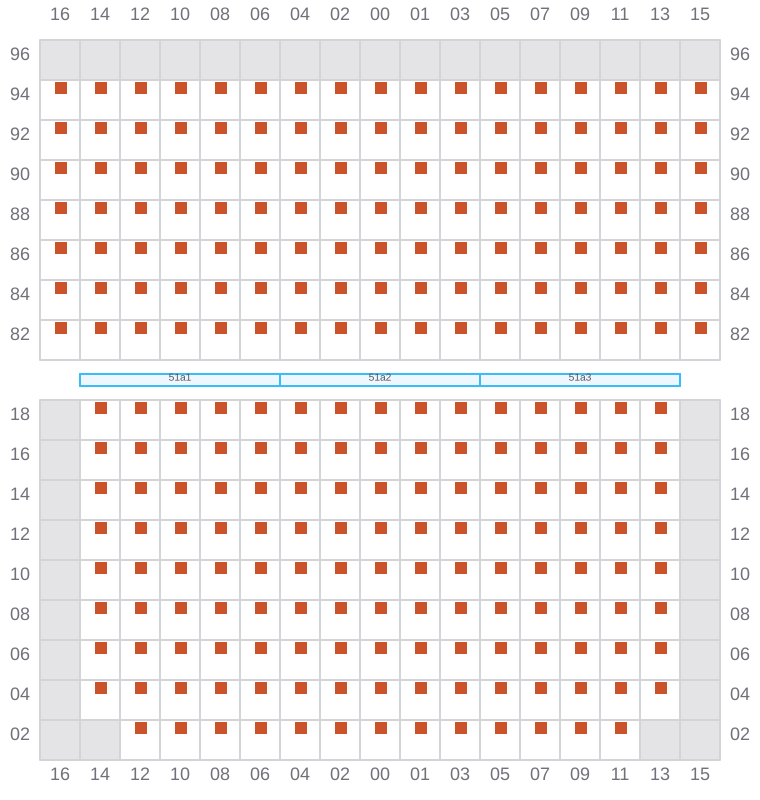

051
- →

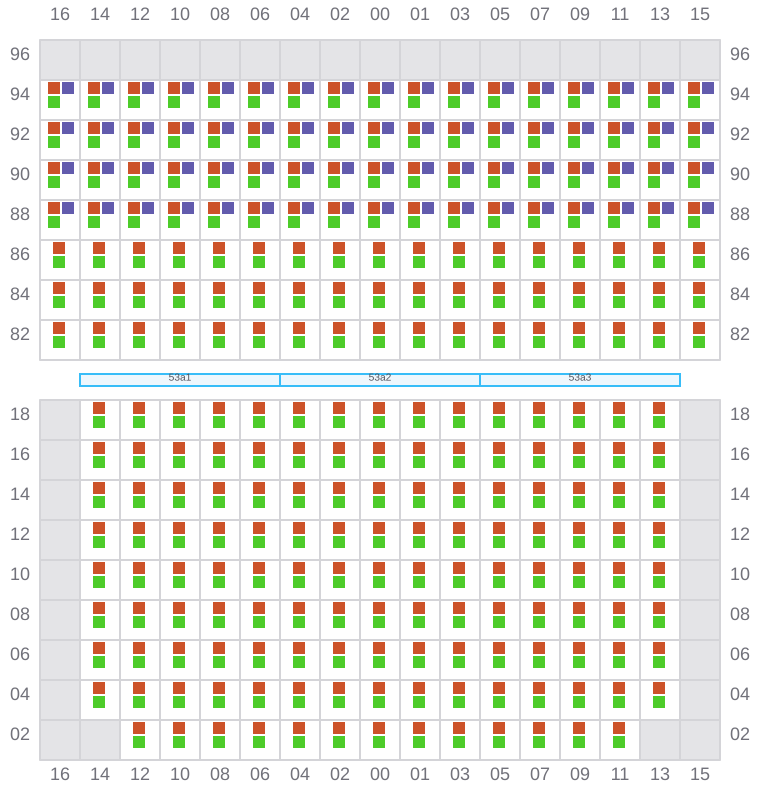

053 (052)
- ←
055
- →
057 (056)
- ←
059
- →
061 (060)
- ←

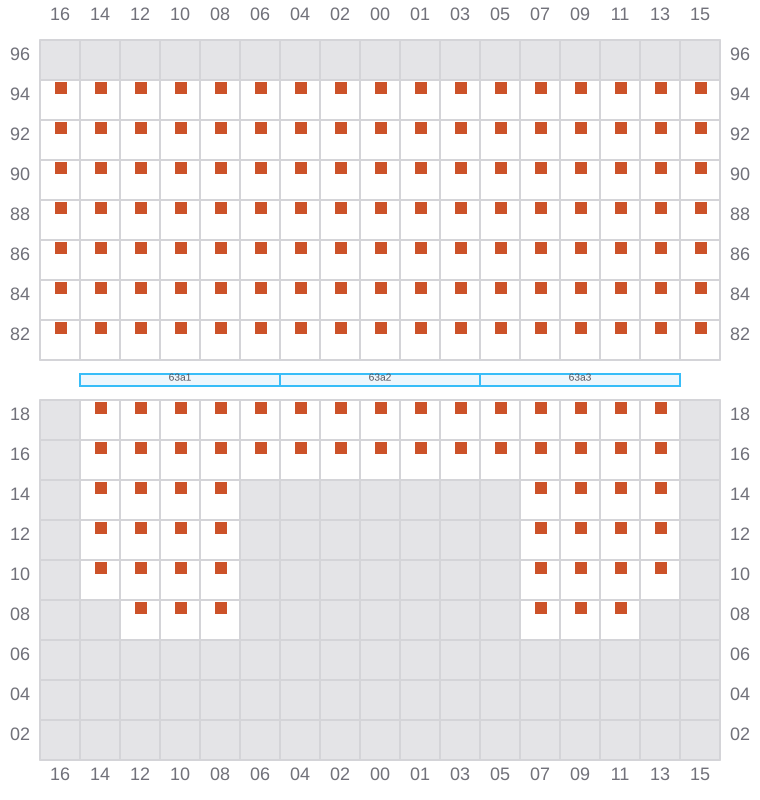

063
- →
065 (064)
- ←
067
- →
069 (068)
- ←
071
- →
073 (072)
- ←
075 (076)
- → / ?
