MSC JULIANA III
9275036 | A8DG7 | 9275036 by ********* Last update: Sat Mar 16 2024

General Info

Ship Name:MSC JULIANA III
IMO Code:9275036
Call Sign:A8DG7
Line Operator:9275036
Class Name for Sister Ships:5RF
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):199.00
LOA (Length Overall):210.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,556

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

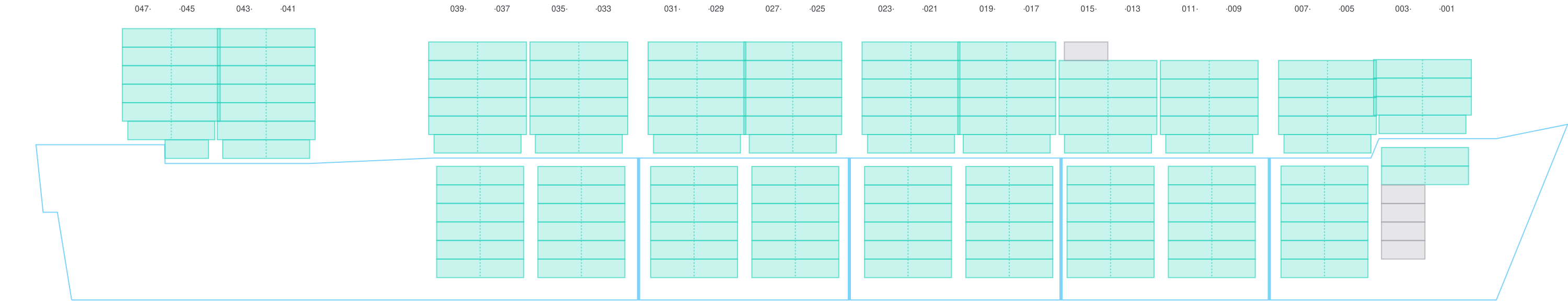

Side View

Side view of MSC JULIANA III

Hatch-Covers View

Deck view of MSC JULIANA III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

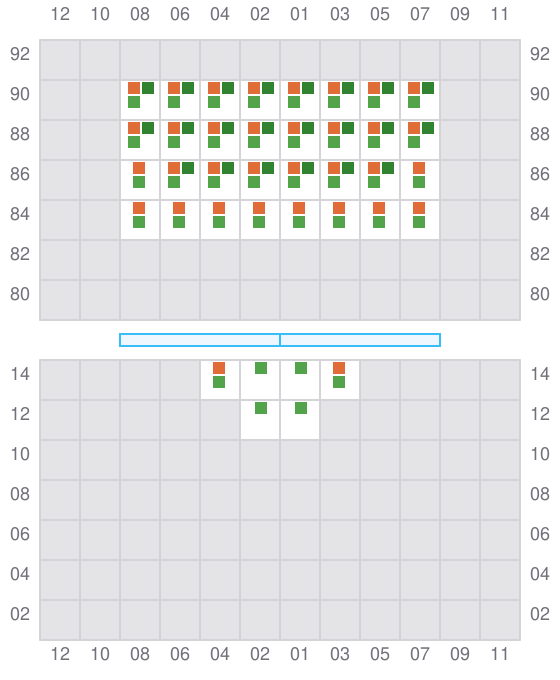

001 (002)

  • →
Bay 001 view and slots of MSC JULIANA III

003

  • ←
  • → / ?

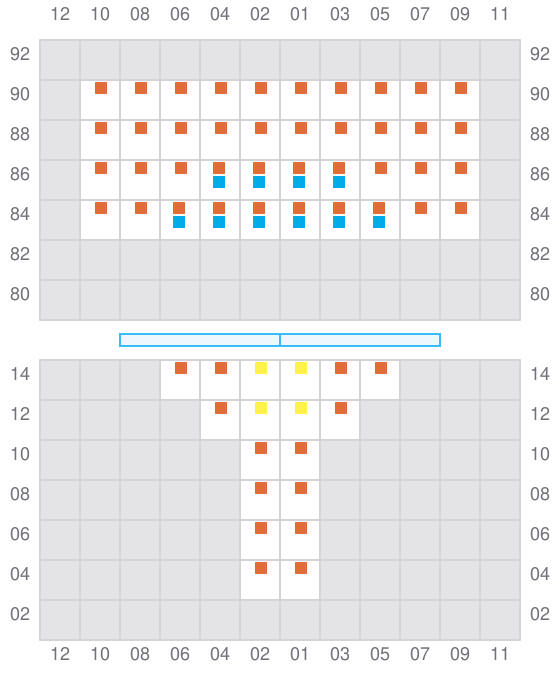

Bay 003 view and slots of MSC JULIANA III

005 (006)

  • →

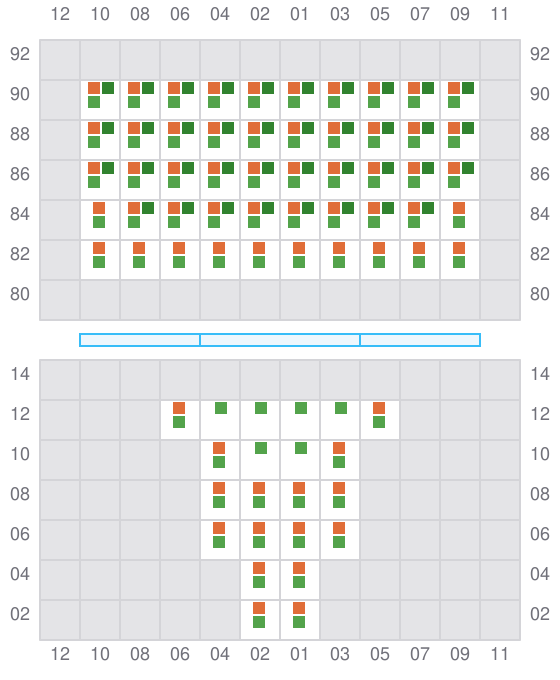

Bay 005 view and slots of MSC JULIANA III

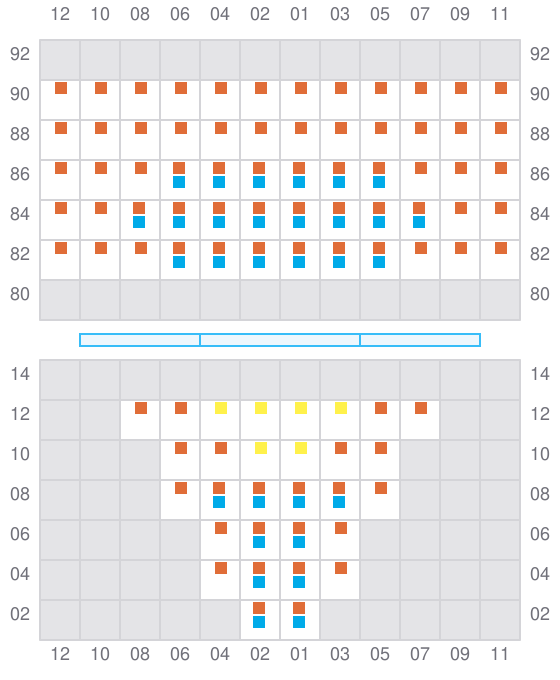

007

  • ←
  • →
Bay 007 view and slots of MSC JULIANA III

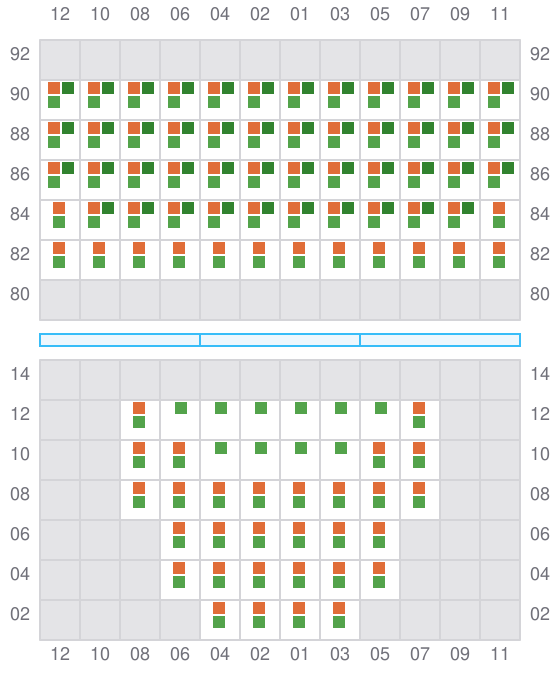

009 (010)

  • →
Bay 009 view and slots of MSC JULIANA III

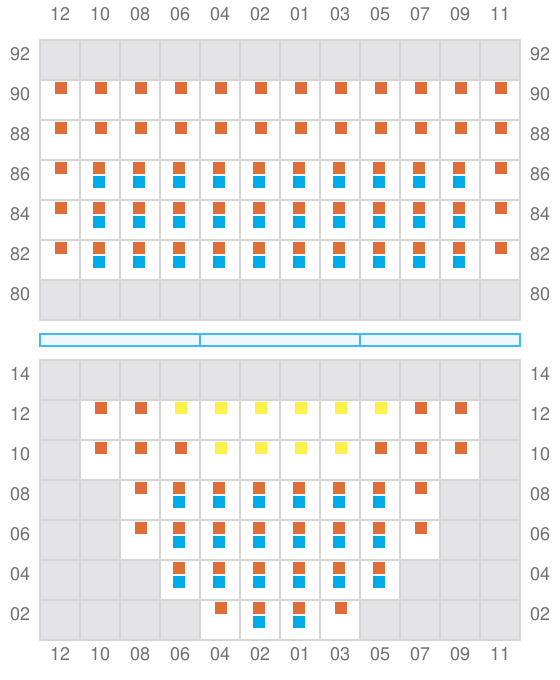

011

  • ←
  • →
Bay 011 view and slots of MSC JULIANA III

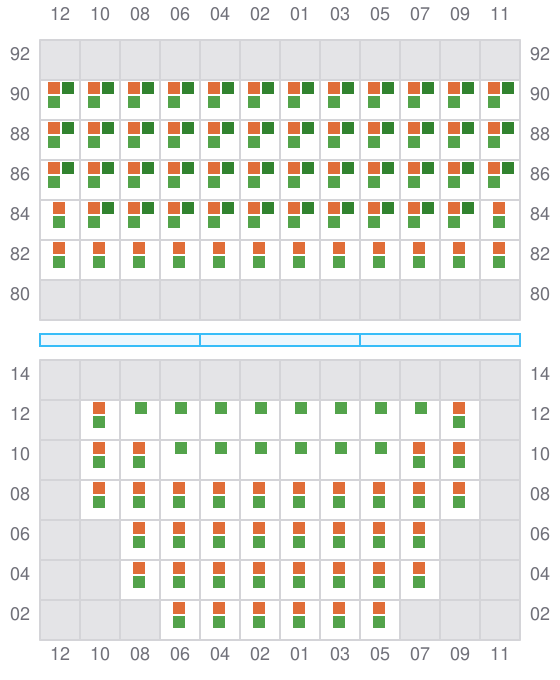

013 (014)

  • →
Bay 013 view and slots of MSC JULIANA III

015

  • ←
  • →

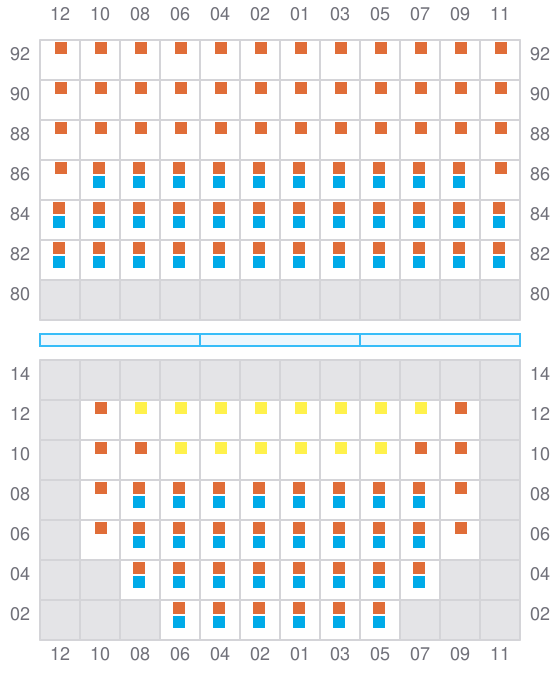

Bay 015 view and slots of MSC JULIANA III

017 (018)

  • →
Bay 017 view and slots of MSC JULIANA III

019

  • ←
  • →
Bay 019 view and slots of MSC JULIANA III

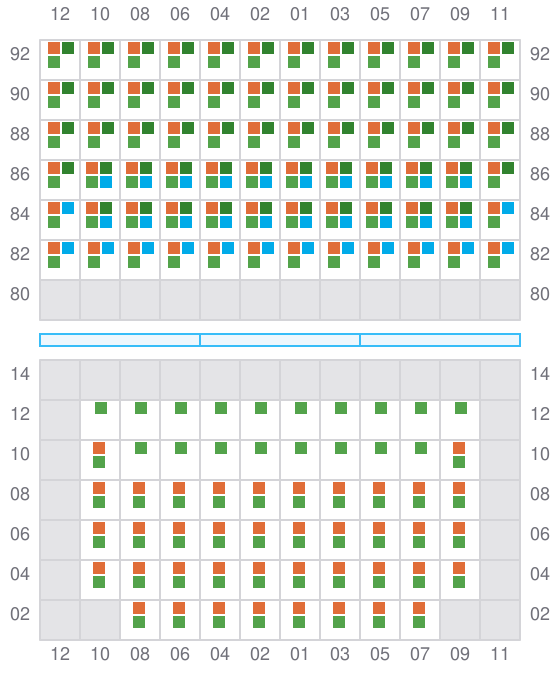

021 (022)

  • →
  • ← / ?
Bay 021 view and slots of MSC JULIANA III

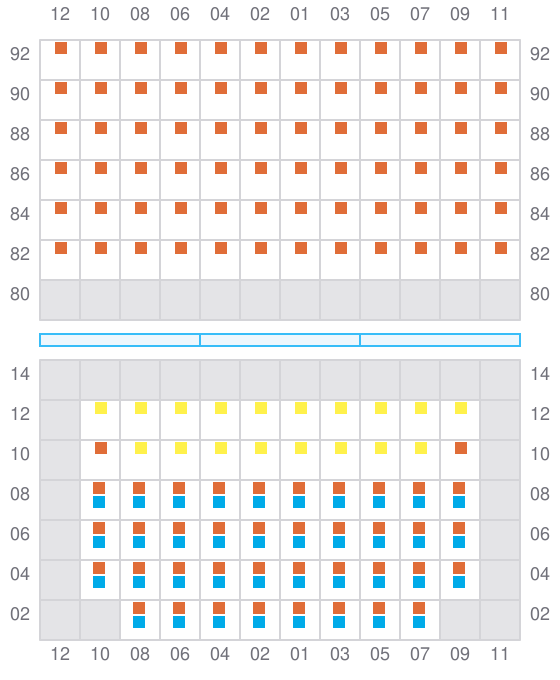

023

  • ←
  • ? / →
Bay 023 view and slots of MSC JULIANA III

025 (026)

  • →
Bay 025 view and slots of MSC JULIANA III

027

  • ←
  • →
Bay 027 view and slots of MSC JULIANA III

029 (030)

  • →
  • ←
Bay 029 view and slots of MSC JULIANA III

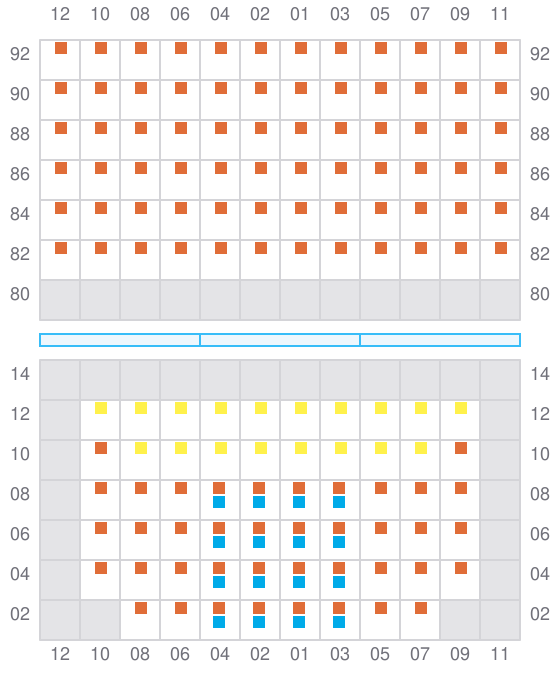

031

  • ←
  • ? / →
Bay 031 view and slots of MSC JULIANA III

033 (034)

  • →
Bay 033 view and slots of MSC JULIANA III

035

  • ←
  • →
Bay 035 view and slots of MSC JULIANA III

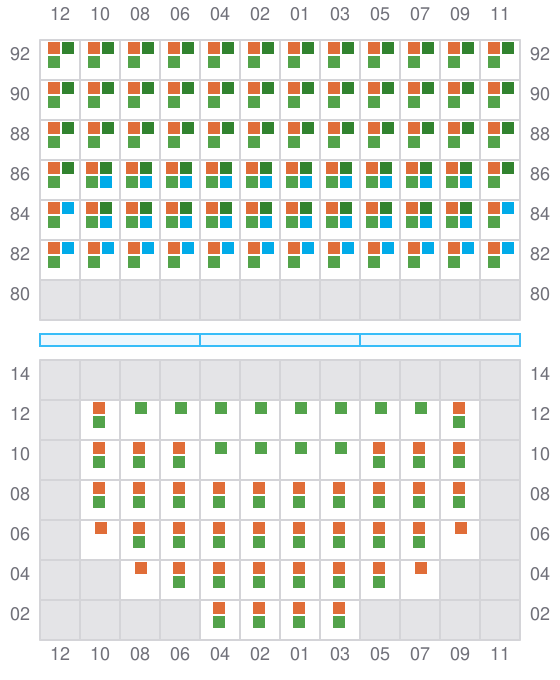

037 (038)

  • →
  • ← / ?

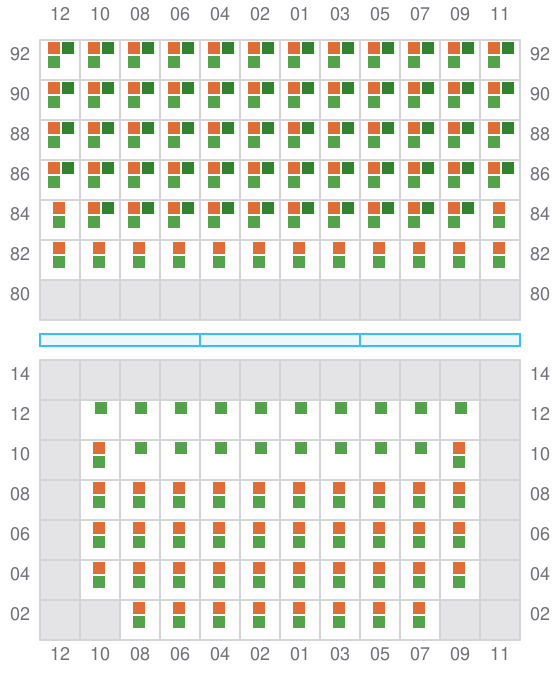

Bay 037 view and slots of MSC JULIANA III

039

  • ←
  • ? / →

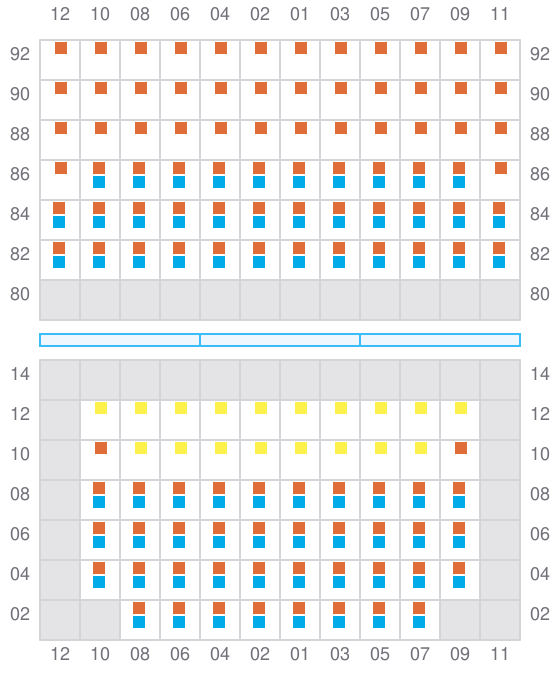

Bay 039 view and slots of MSC JULIANA III

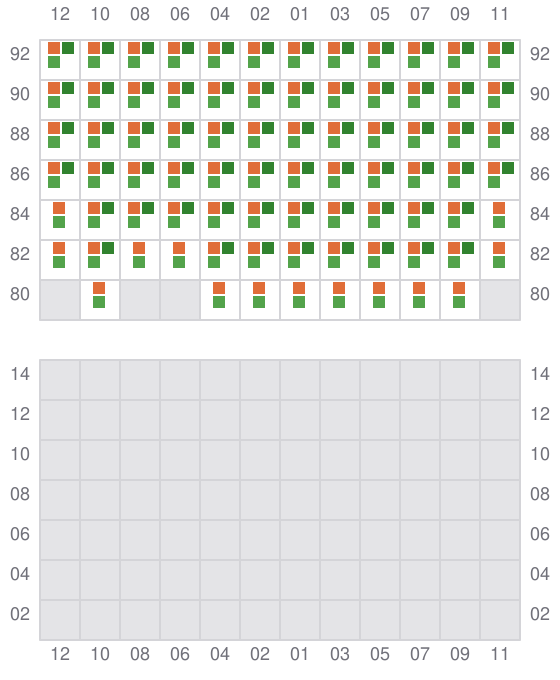

041 (042)

  • → / ?

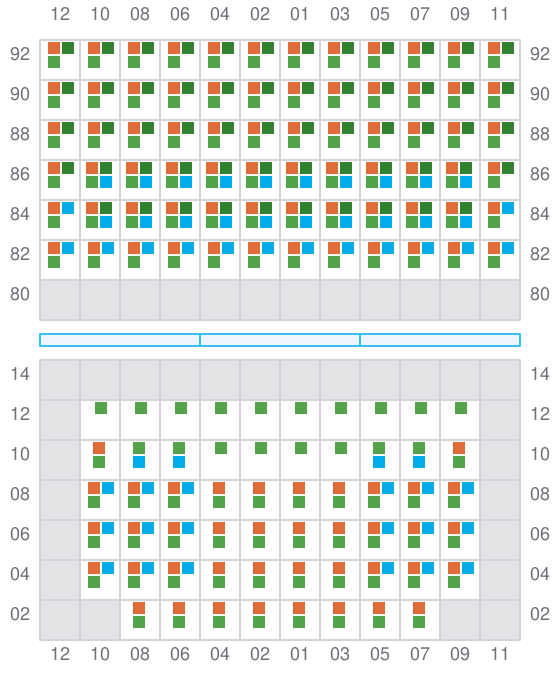

Bay 041 view and slots of MSC JULIANA III

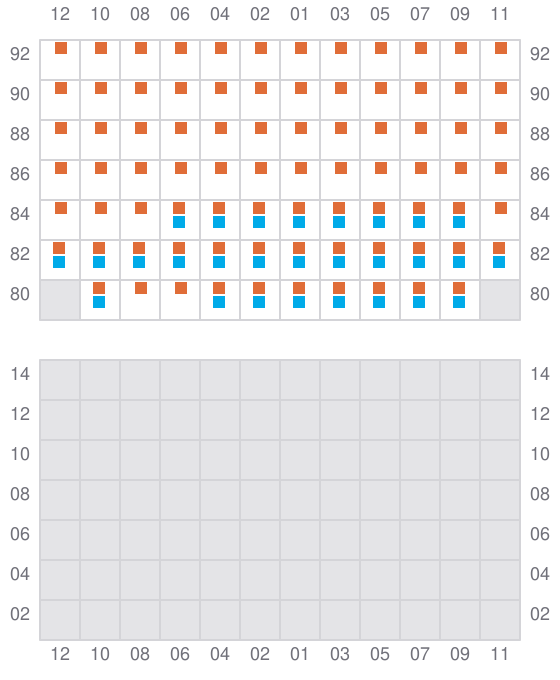

043

  • ← / ?
  • → / ?
Bay 043 view and slots of MSC JULIANA III

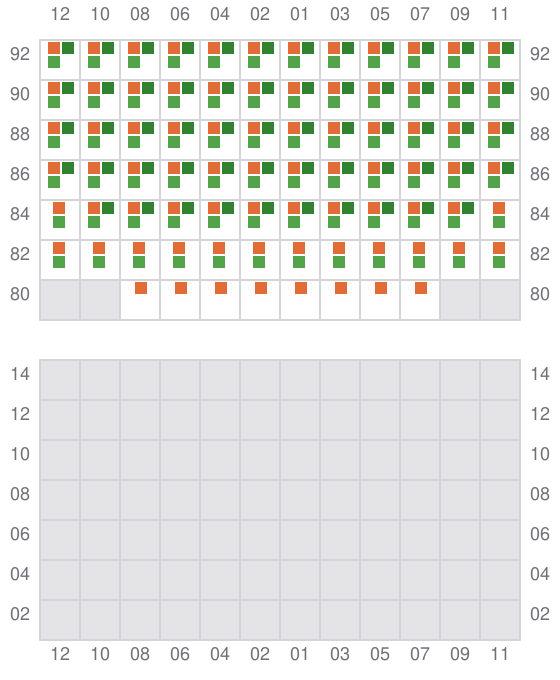

045 (046)

  • → / ?
  • ← / ?

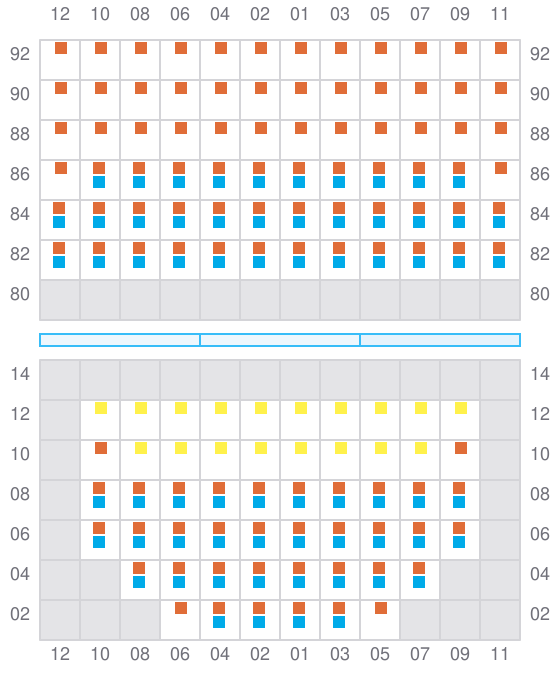

Bay 045 view and slots of MSC JULIANA III

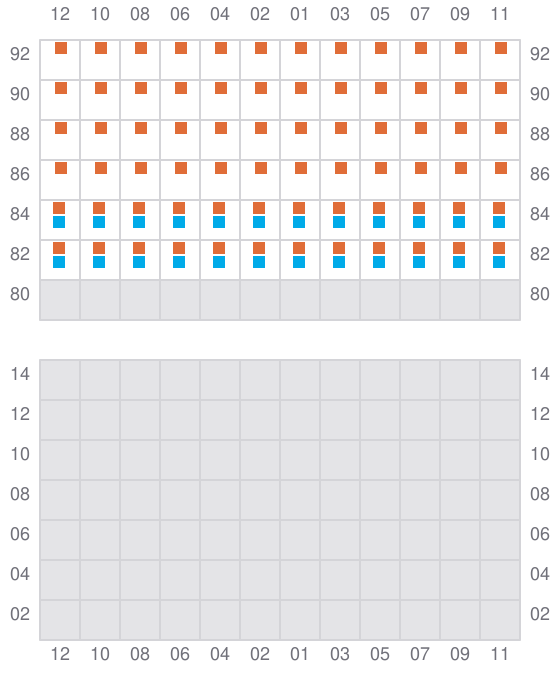

047

  • ← / ?
Bay 047 view and slots of MSC JULIANA III
