MSC JUSTICE VIII
9450351 | CQIY7 | 9450351 by ********* Last update: Wed Mar 27 2024

General Info

Ship Name:MSC JUSTICE VIII
IMO Code:9450351
Call Sign:CQIY7
Line Operator:9450351
Class Name for Sister Ships:G71
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):317.21
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,836

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

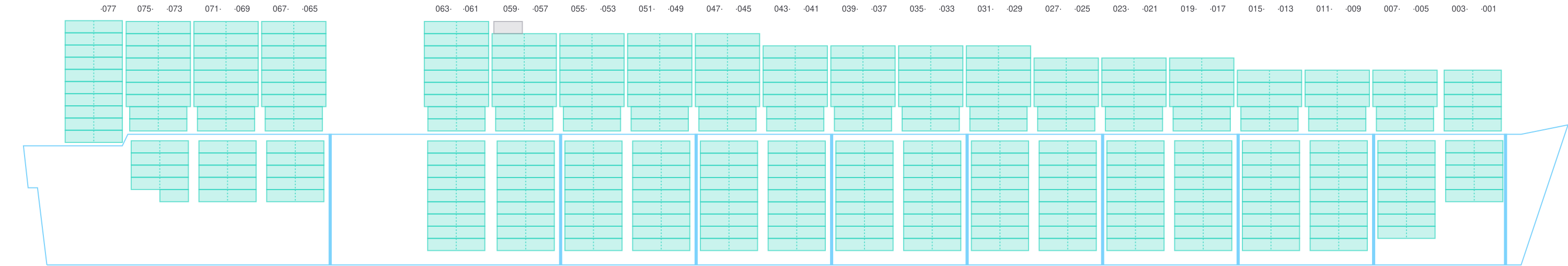

Side view of MSC JUSTICE VIII

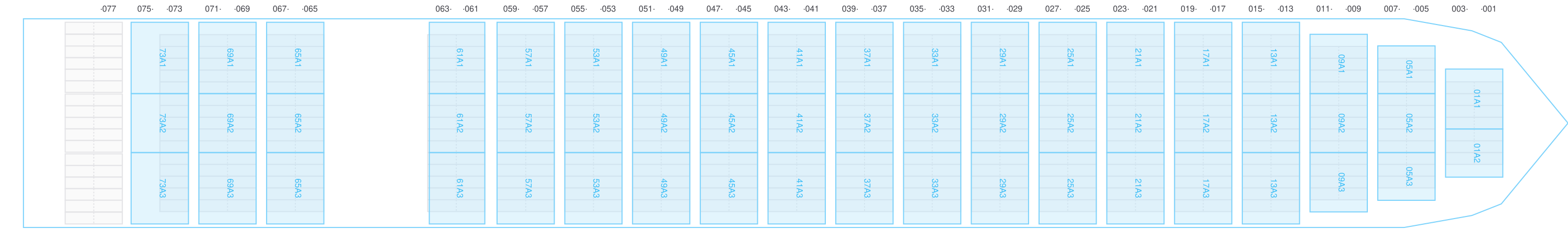

Hatch-Covers View

Deck view of MSC JUSTICE VIII

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

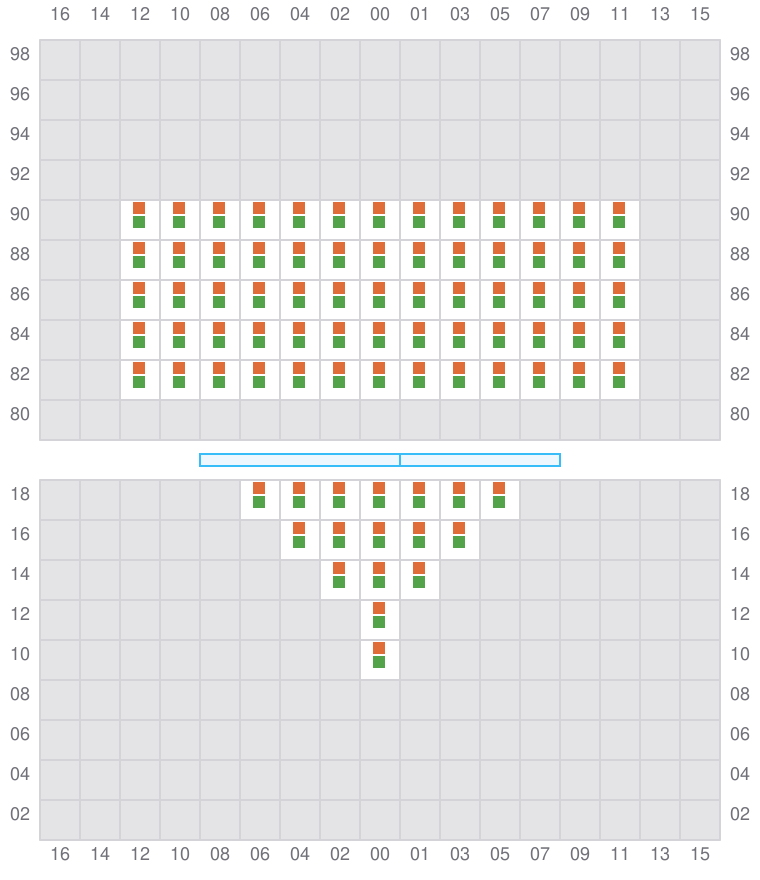

Bay 001 view and slots of MSC JUSTICE VIII

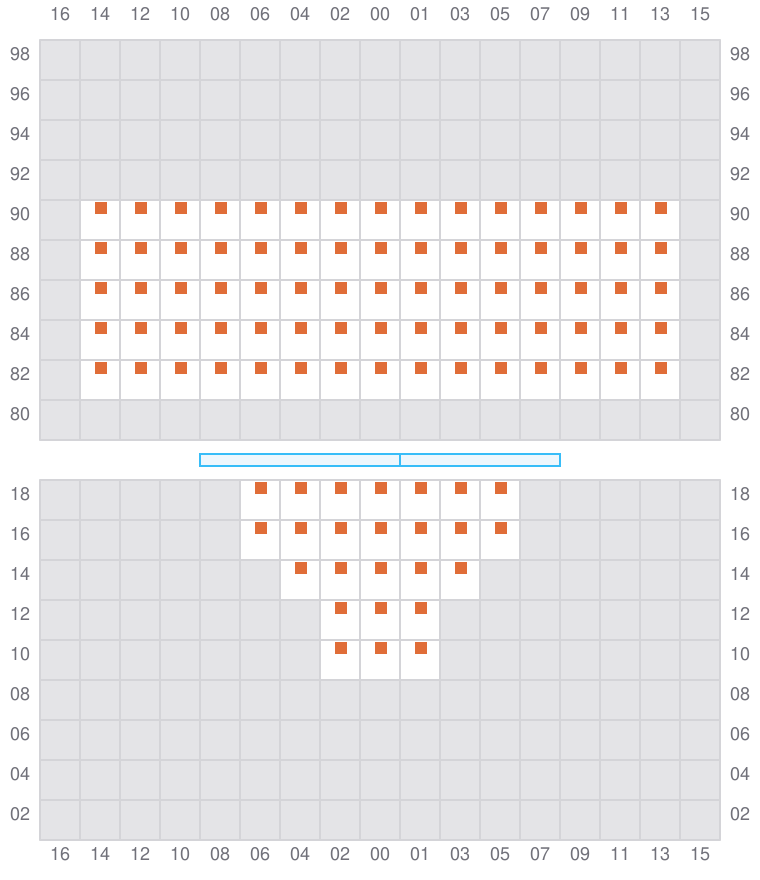

003

  • ←
Bay 003 view and slots of MSC JUSTICE VIII

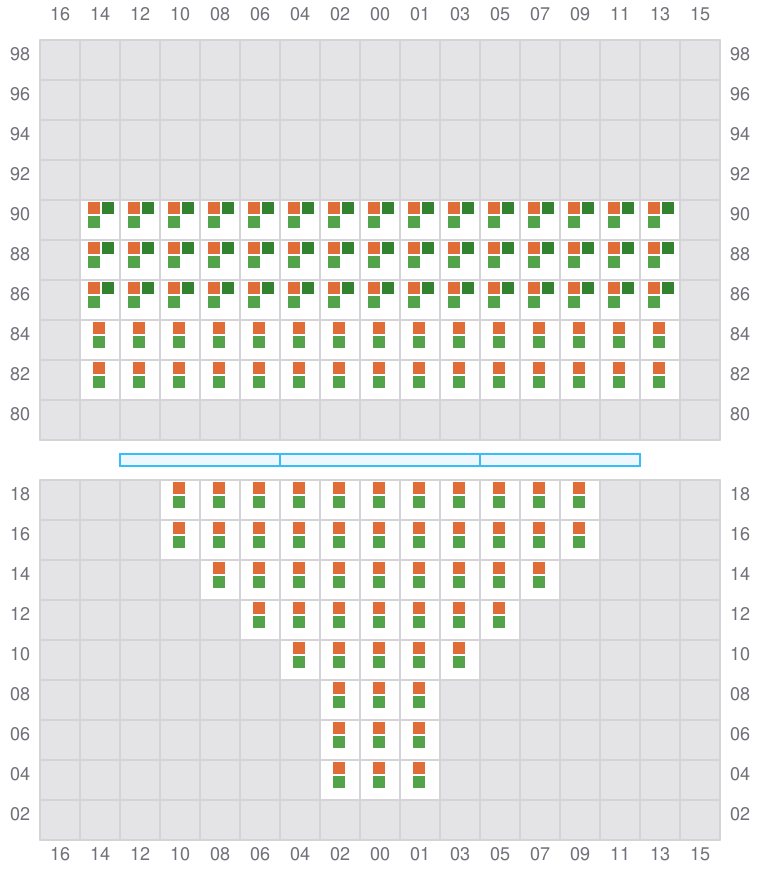

005 (006)

  • →
Bay 005 view and slots of MSC JUSTICE VIII

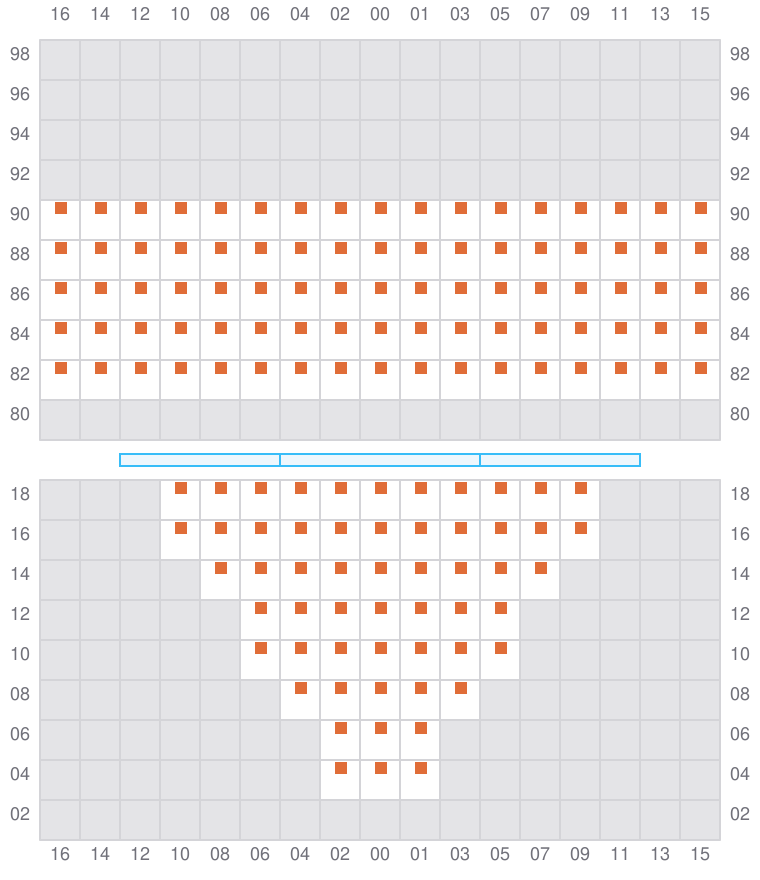

007

  • ←
Bay 007 view and slots of MSC JUSTICE VIII

009 (010)

  • →

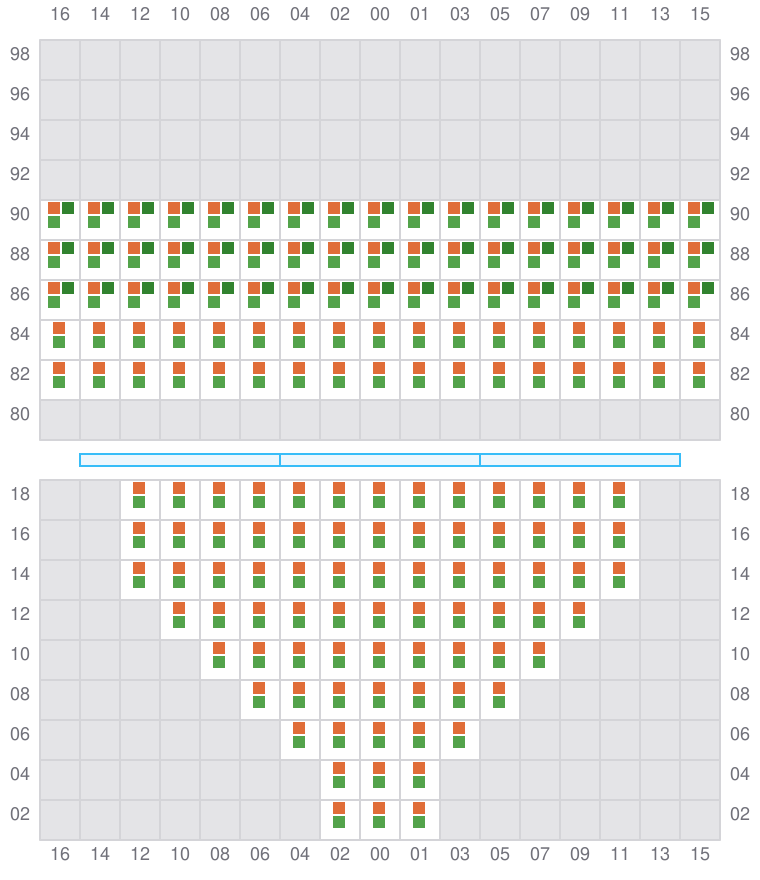

Bay 009 view and slots of MSC JUSTICE VIII

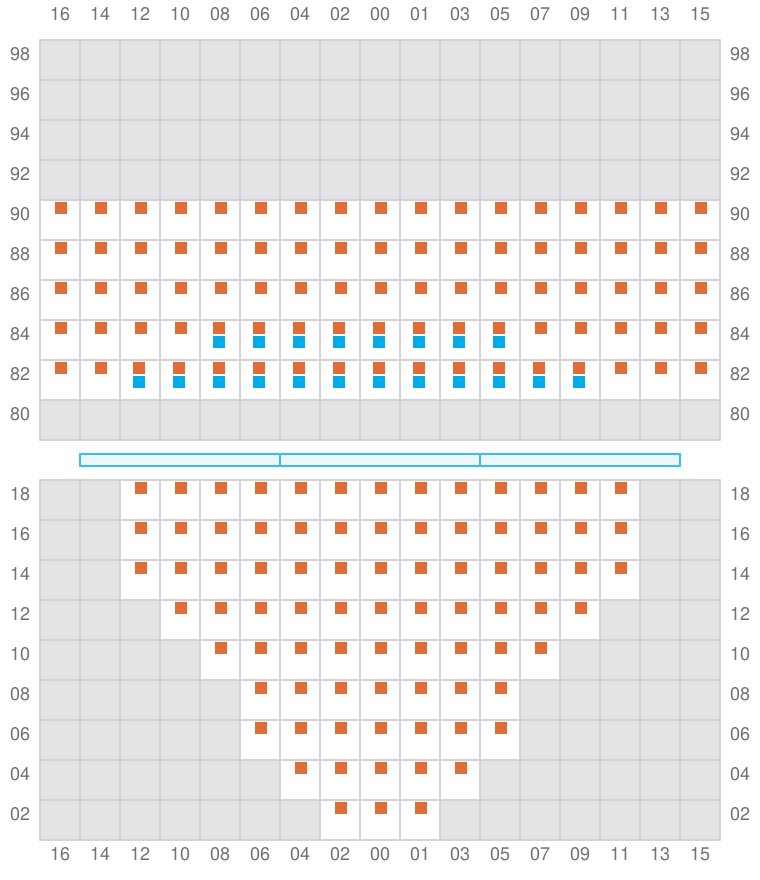

011

  • ←
  • → / ?
Bay 011 view and slots of MSC JUSTICE VIII

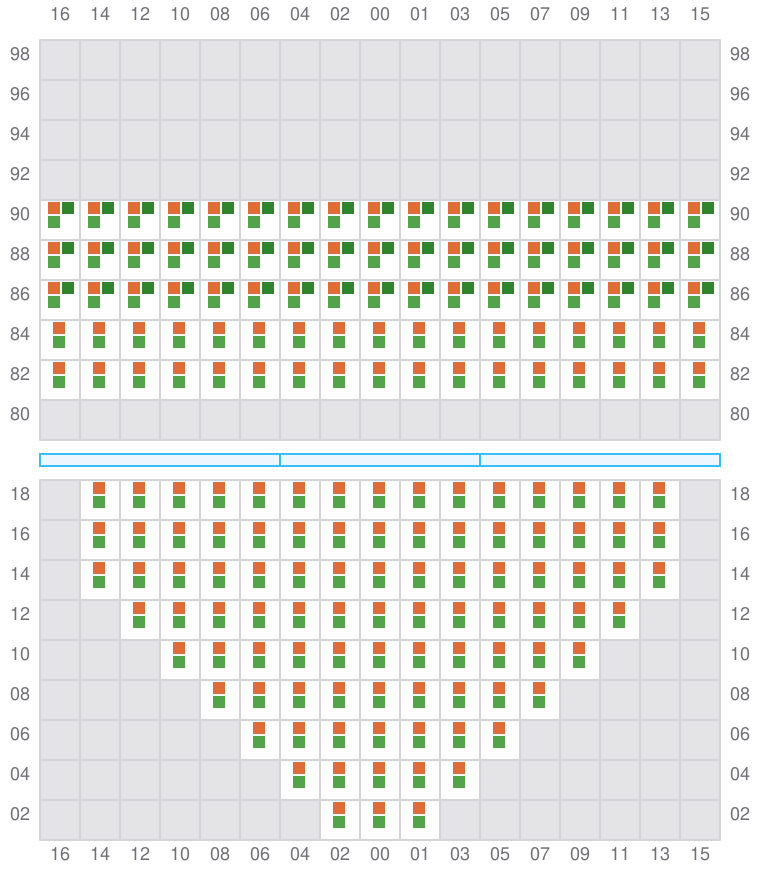

013 (014)

  • →
Bay 013 view and slots of MSC JUSTICE VIII

015

  • ←
  • → / ?

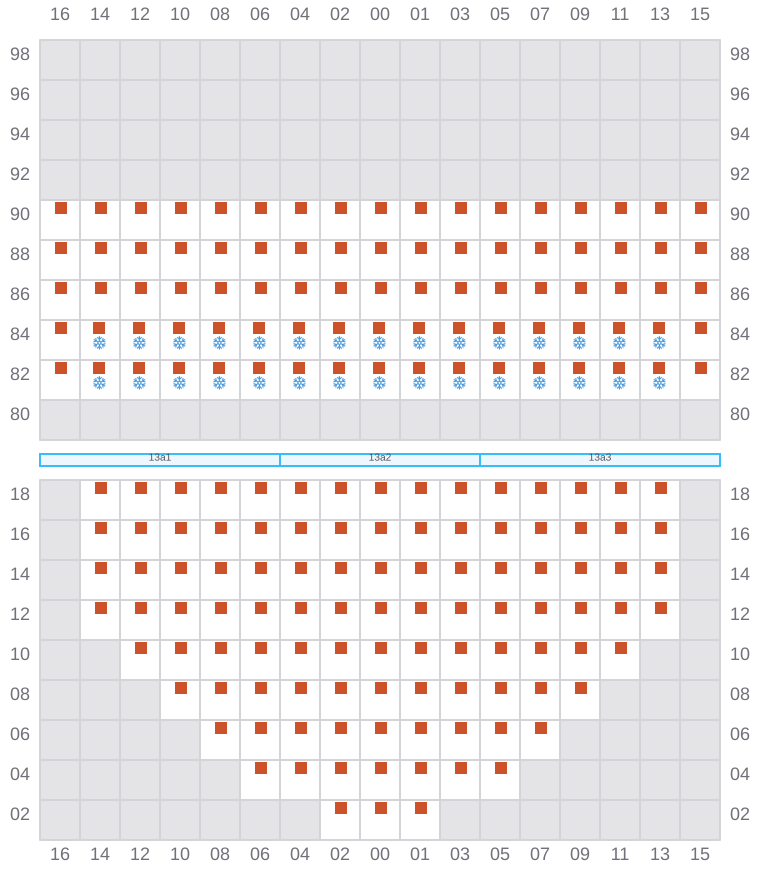

Bay 015 view and slots of MSC JUSTICE VIII

017 (018)

  • →

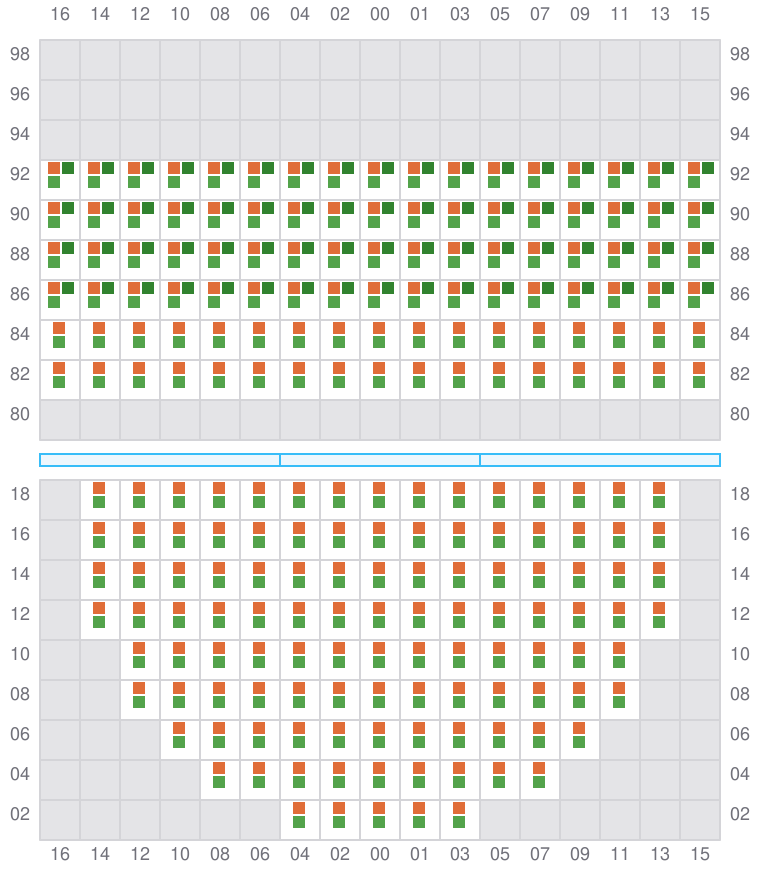

Bay 017 view and slots of MSC JUSTICE VIII

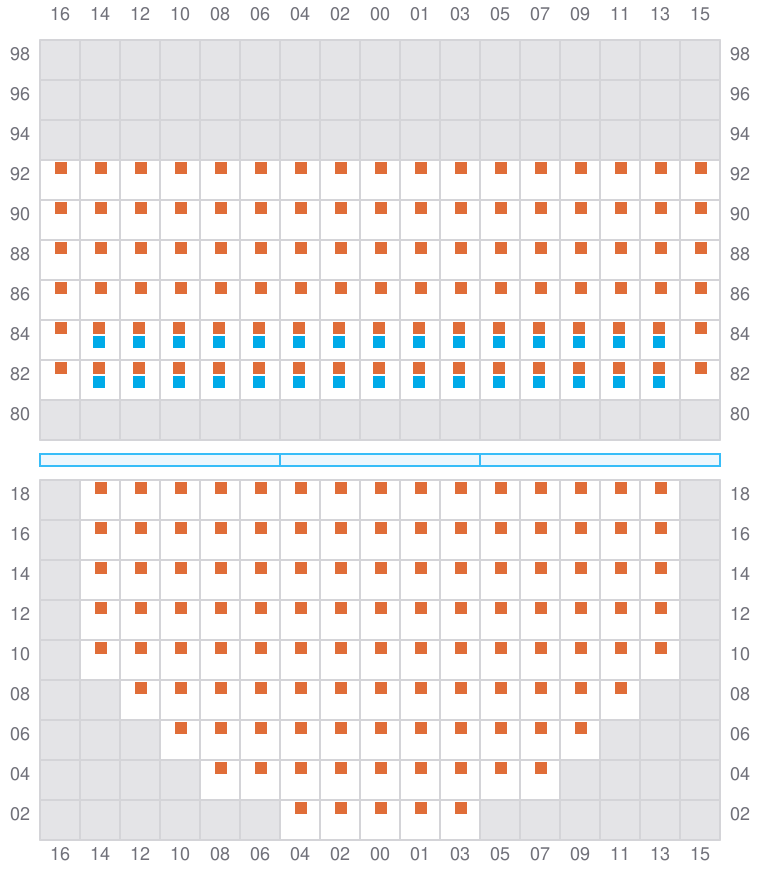

019

  • ←
  • → / ?
Bay 019 view and slots of MSC JUSTICE VIII

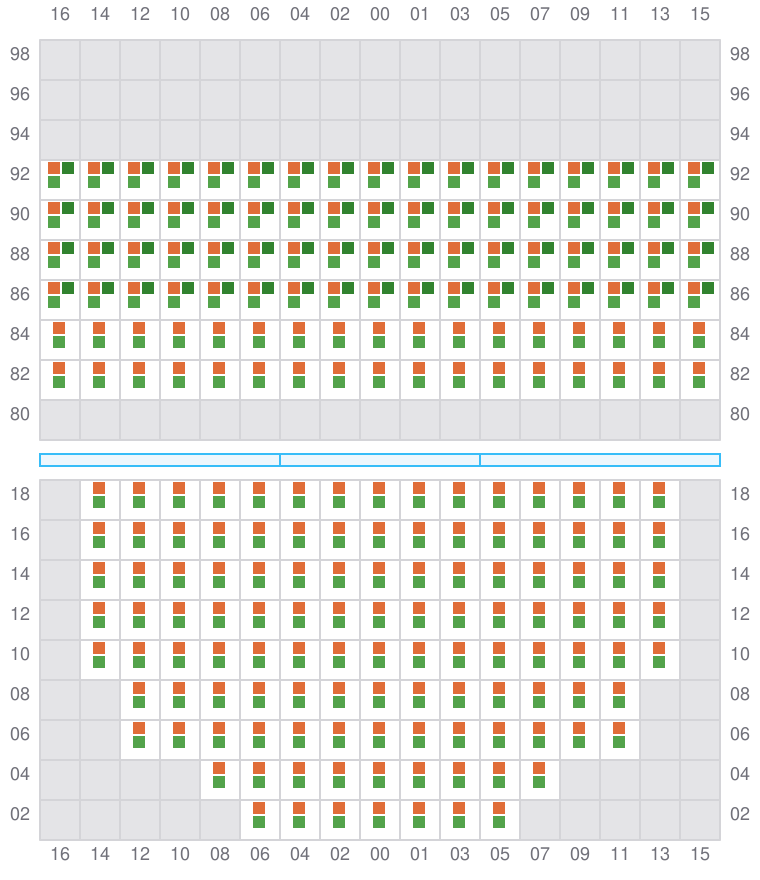

021 (022)

  • →
  • ? / ←
Bay 021 view and slots of MSC JUSTICE VIII

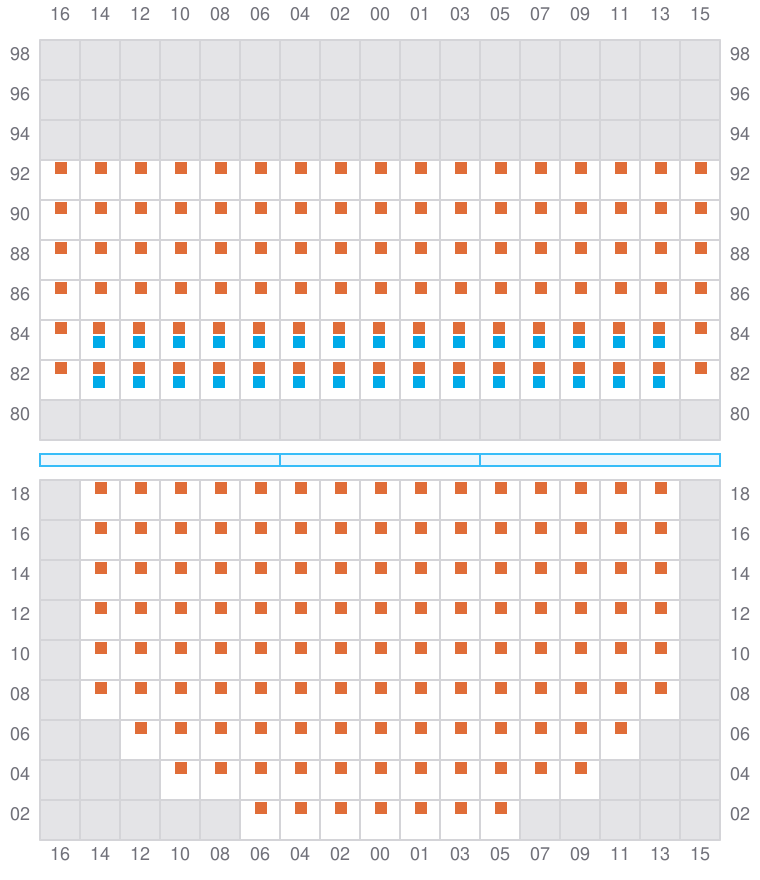

023

  • ←
  • → / ?
Bay 023 view and slots of MSC JUSTICE VIII

025 (026)

  • →
Bay 025 view and slots of MSC JUSTICE VIII

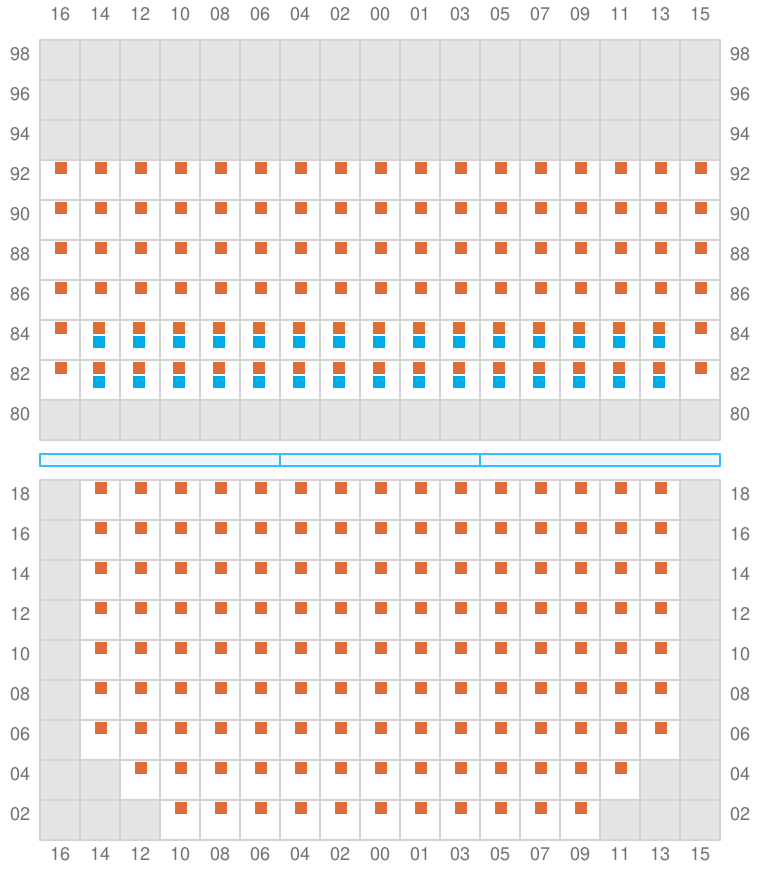

027

  • ←
  • → / ?
Bay 027 view and slots of MSC JUSTICE VIII

029 (030)

  • →
  • ? / ←
Bay 029 view and slots of MSC JUSTICE VIII

031

  • ←
  • → / ?
Bay 031 view and slots of MSC JUSTICE VIII

033 (034)

  • →
Bay 033 view and slots of MSC JUSTICE VIII

035

  • ←
  • → / ?
Bay 035 view and slots of MSC JUSTICE VIII

037 (038)

  • →
Bay 037 view and slots of MSC JUSTICE VIII

039

  • ←
  • → / ?
Bay 039 view and slots of MSC JUSTICE VIII

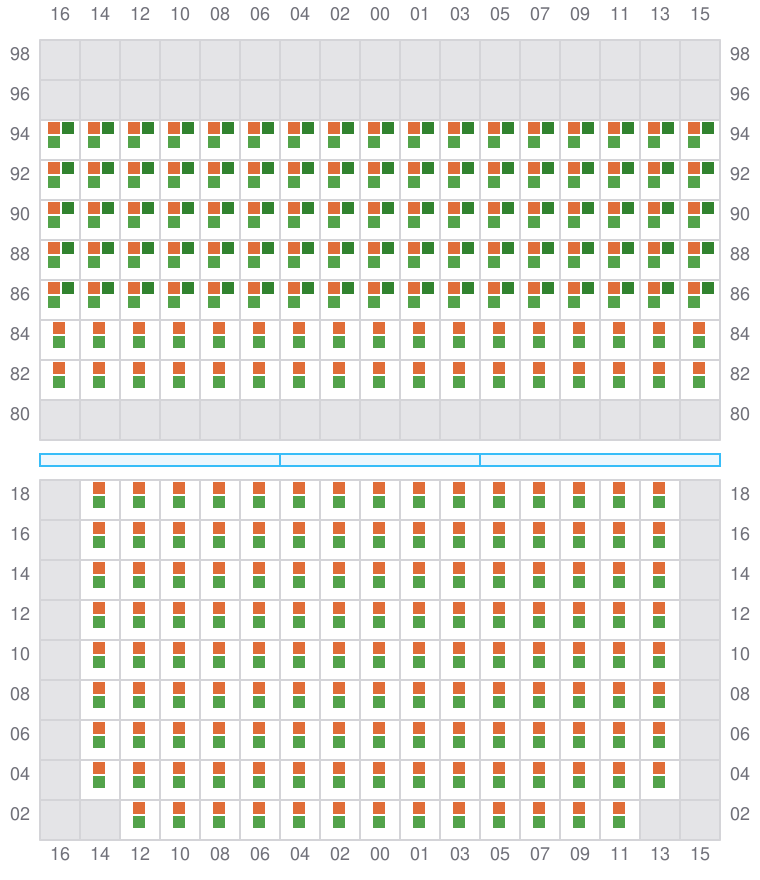

041 (042)

  • →
Bay 041 view and slots of MSC JUSTICE VIII

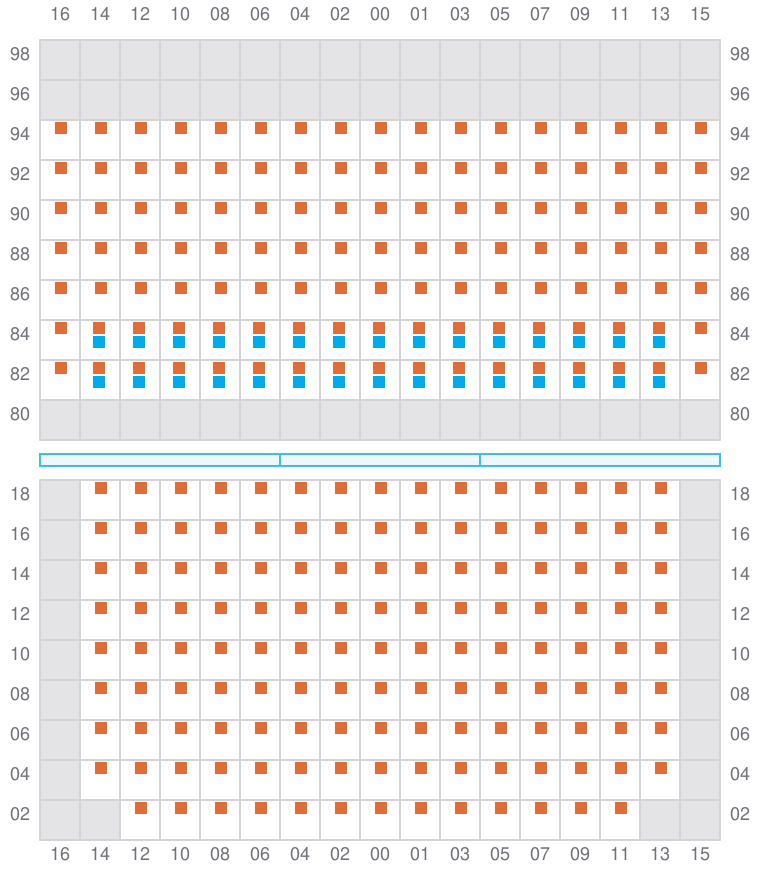

043

  • ←
  • → / ?
Bay 043 view and slots of MSC JUSTICE VIII

045 (046)

  • →
  • ? / ←
Bay 045 view and slots of MSC JUSTICE VIII

047

  • ←
  • → / ?

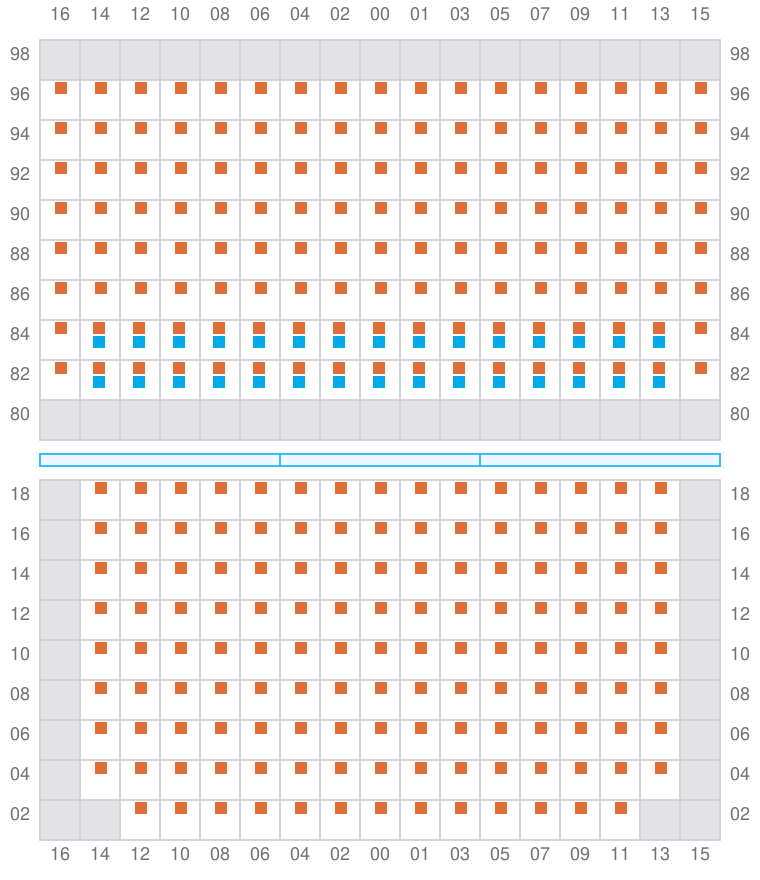

Bay 047 view and slots of MSC JUSTICE VIII

049 (050)

  • →
Bay 049 view and slots of MSC JUSTICE VIII

051

  • ←
  • →

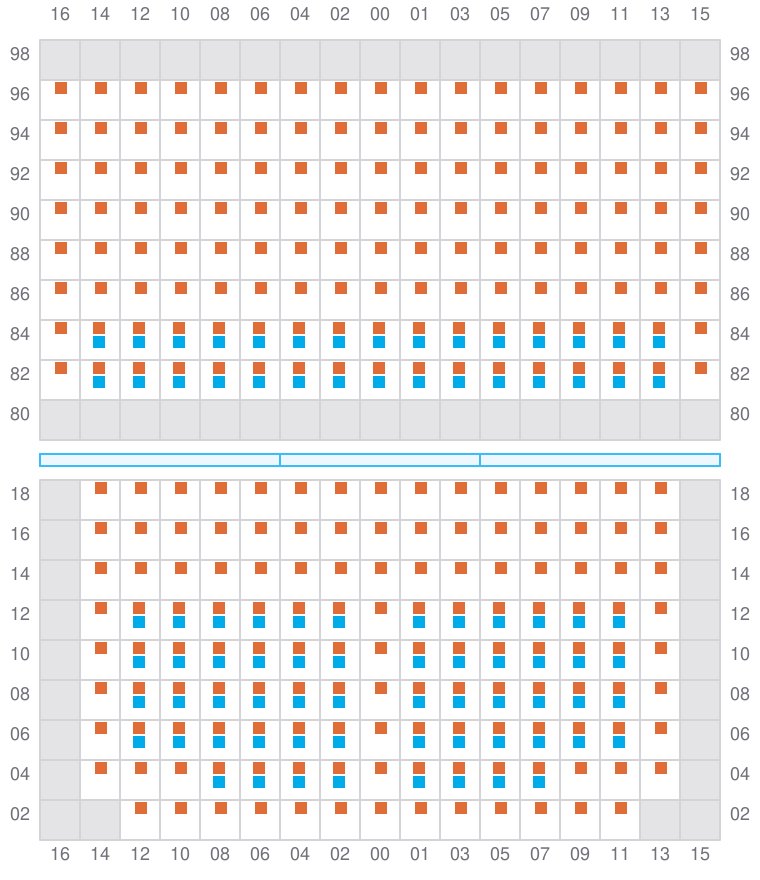

Bay 051 view and slots of MSC JUSTICE VIII

053 (054)

  • →
Bay 053 view and slots of MSC JUSTICE VIII

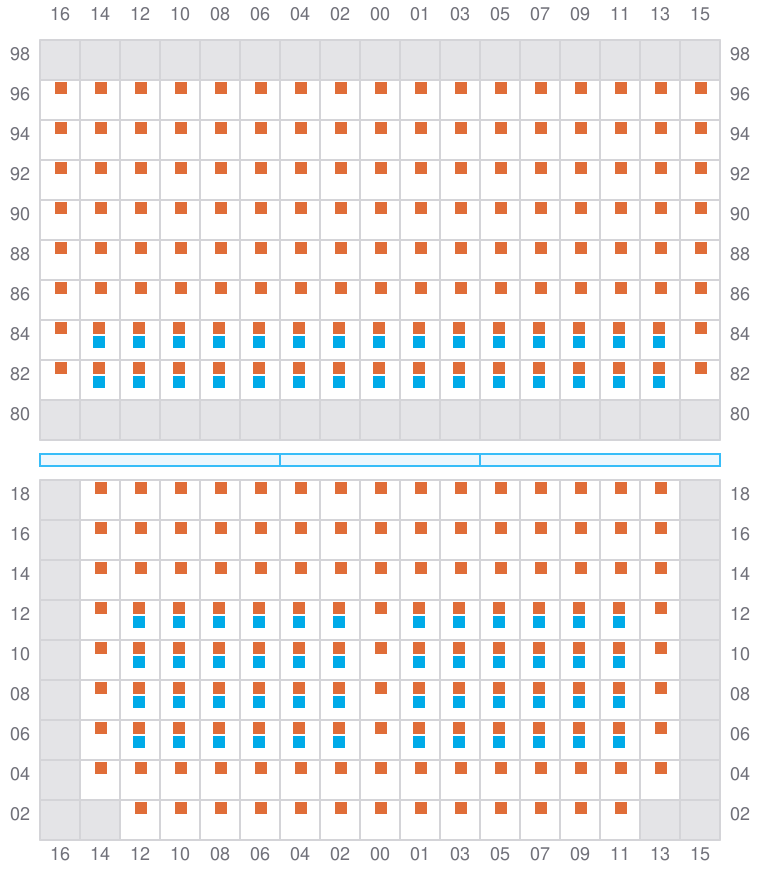

055

  • ←
  • →
Bay 055 view and slots of MSC JUSTICE VIII

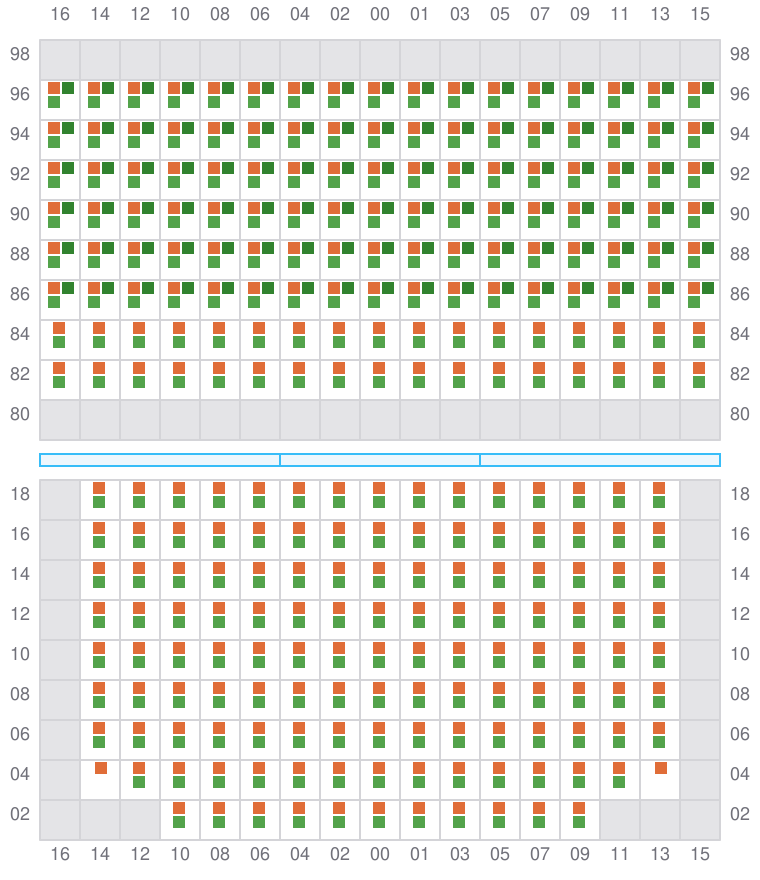

057 (058)

  • →
Bay 057 view and slots of MSC JUSTICE VIII

059

  • ←
  • →

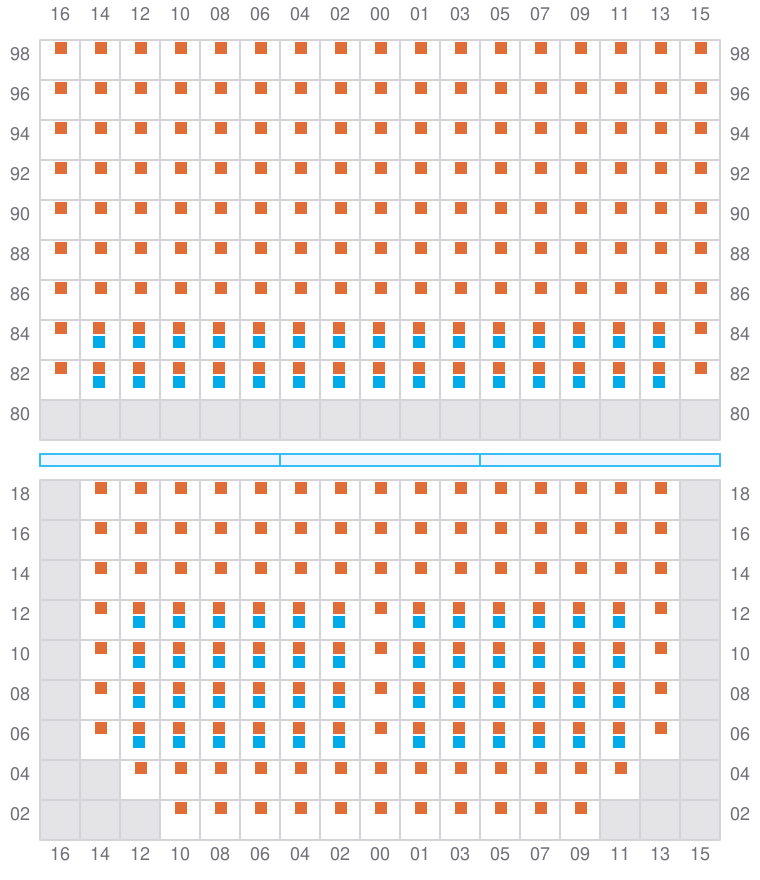

Bay 059 view and slots of MSC JUSTICE VIII

061 (062)

  • →
  • ? / ←
Bay 061 view and slots of MSC JUSTICE VIII

063

  • ←
  • →

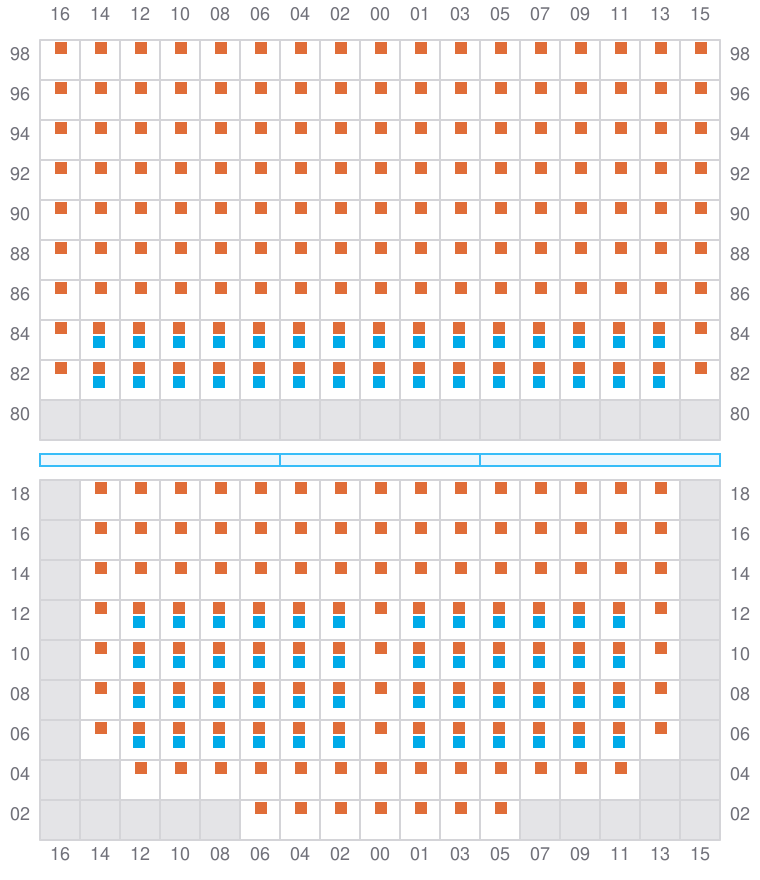

Bay 063 view and slots of MSC JUSTICE VIII

065 (066)

  • →

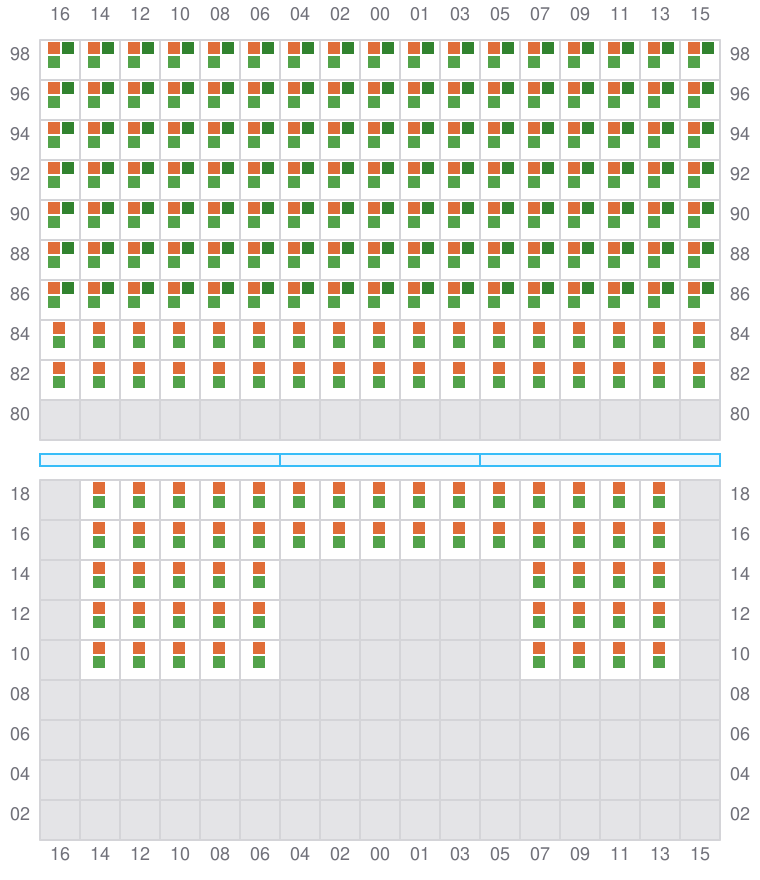

Bay 065 view and slots of MSC JUSTICE VIII

067

  • ←
  • → / ?

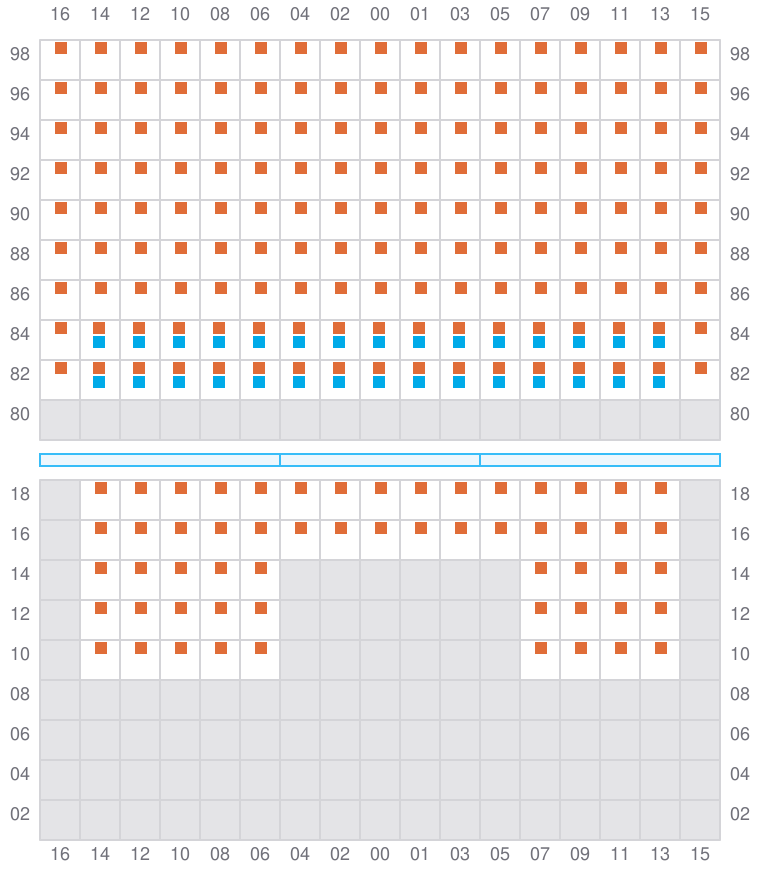

Bay 067 view and slots of MSC JUSTICE VIII

069 (070)

  • →

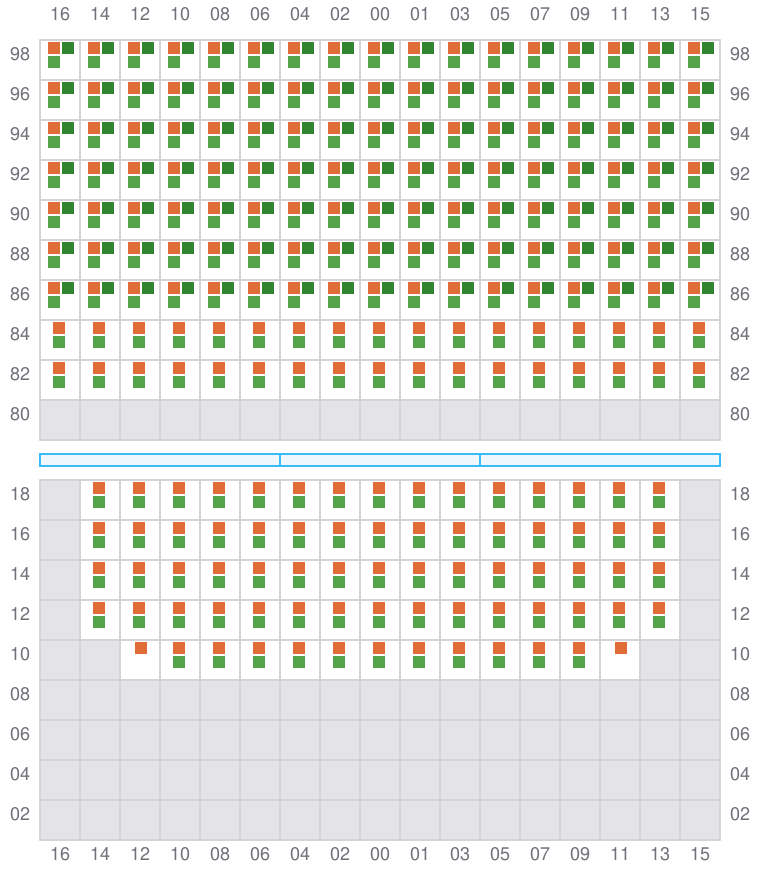

Bay 069 view and slots of MSC JUSTICE VIII

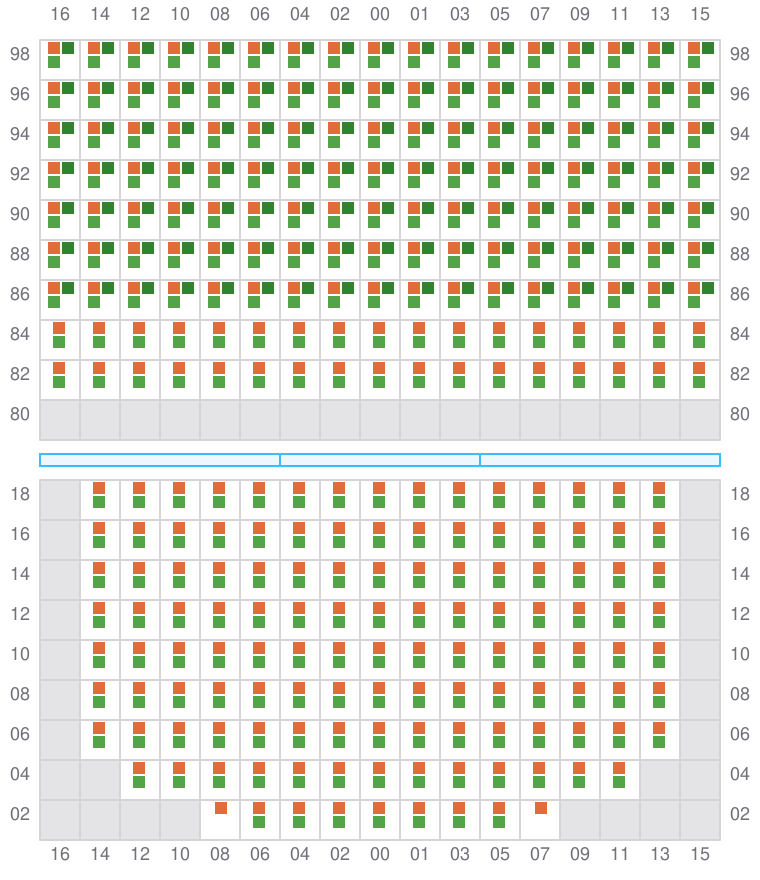

071

  • ←
  • → / ?

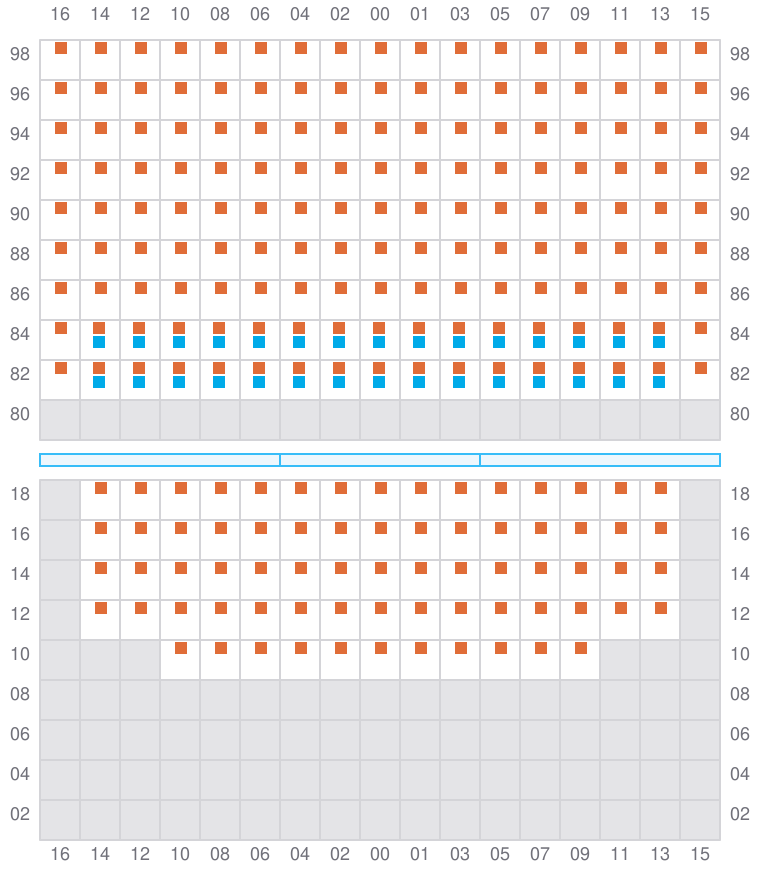

Bay 071 view and slots of MSC JUSTICE VIII

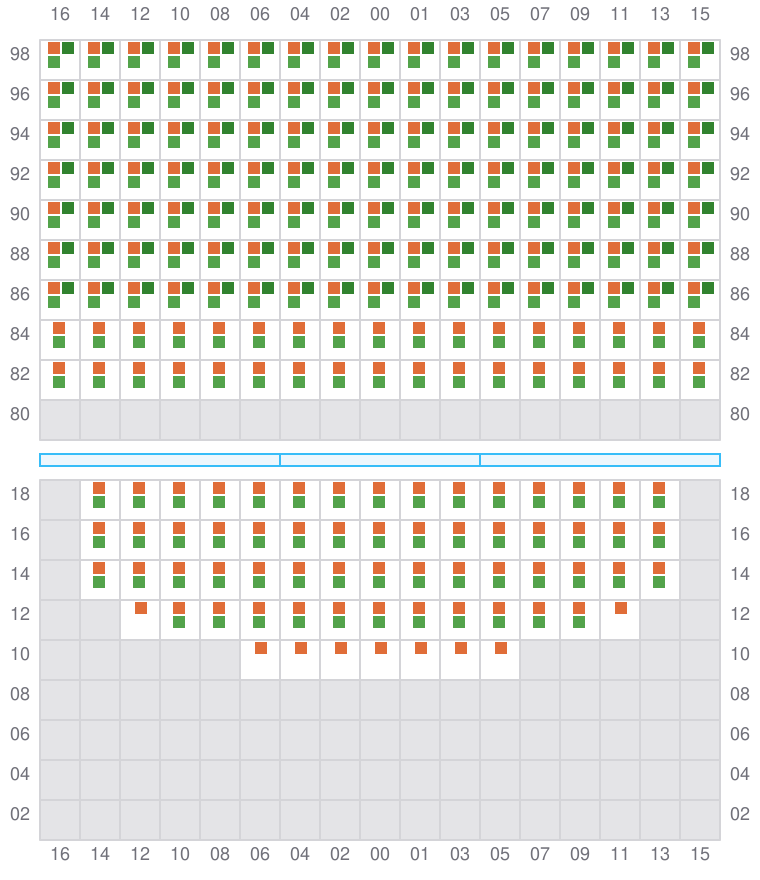

073 (074)

  • →
Bay 073 view and slots of MSC JUSTICE VIII

075

  • ←
  • → / ?

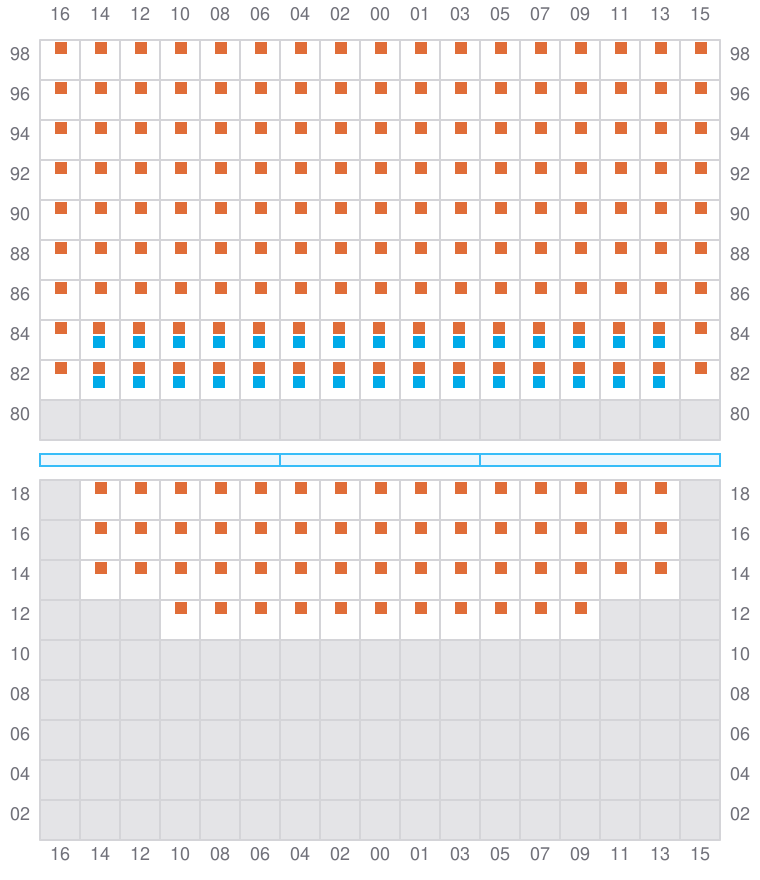

Bay 075 view and slots of MSC JUSTICE VIII

077 (078)

  • → / ?

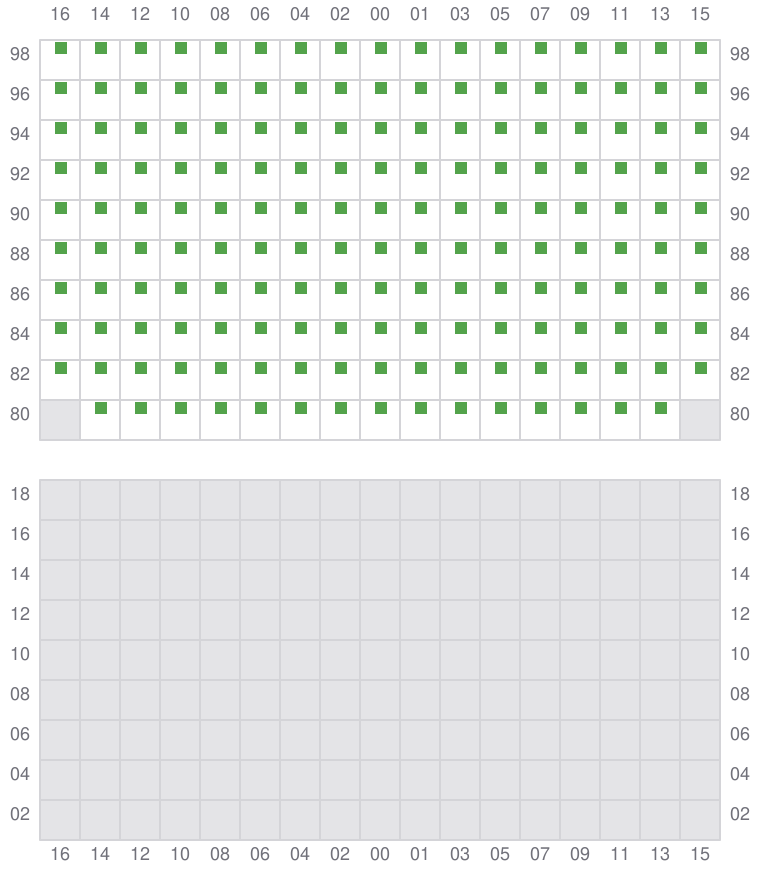

Bay 077 view and slots of MSC JUSTICE VIII
