MSC KALAMATA VII
9244946 | 5LHF8 | MSK by ************************** Last update: Sat Jun 24 2023

General Info

Ship Name:MSC KALAMATA VII
IMO Code:9244946
Call Sign:5LHF8
Line Operator:MSK
Class Name for Sister Ships:KAL
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):292.16
LOA (Length Overall):303.84
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,694

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

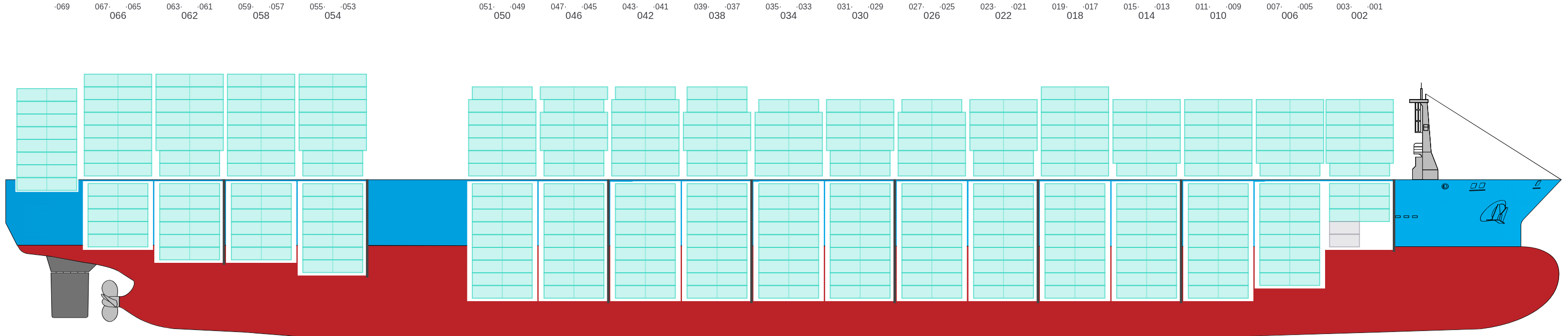

Side View

Side view of MSC KALAMATA VII

Hatch-Covers View

Deck view of MSC KALAMATA VII

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

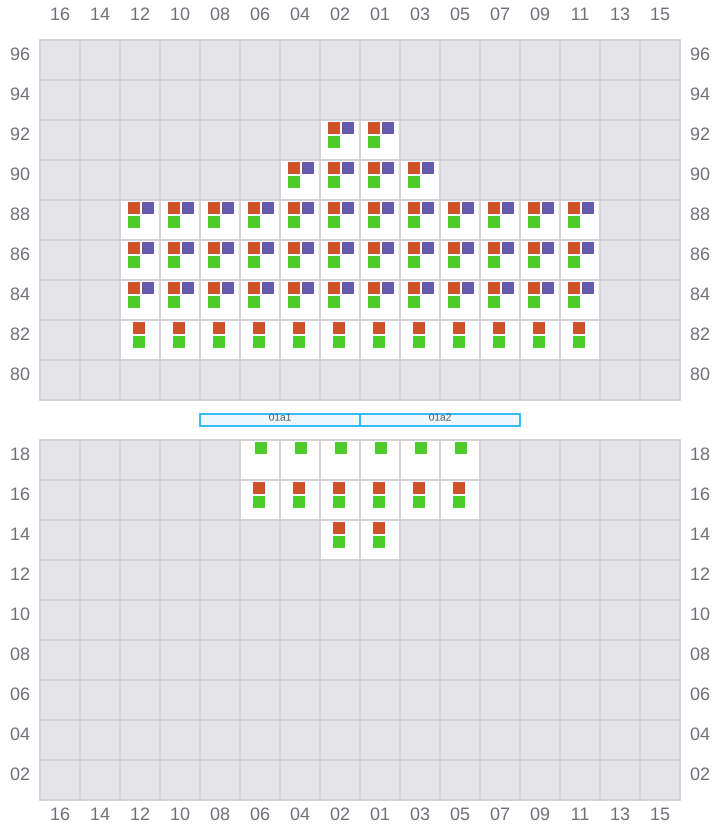

001 (002)

  • →
Bay 001 view and slots of MSC KALAMATA VII

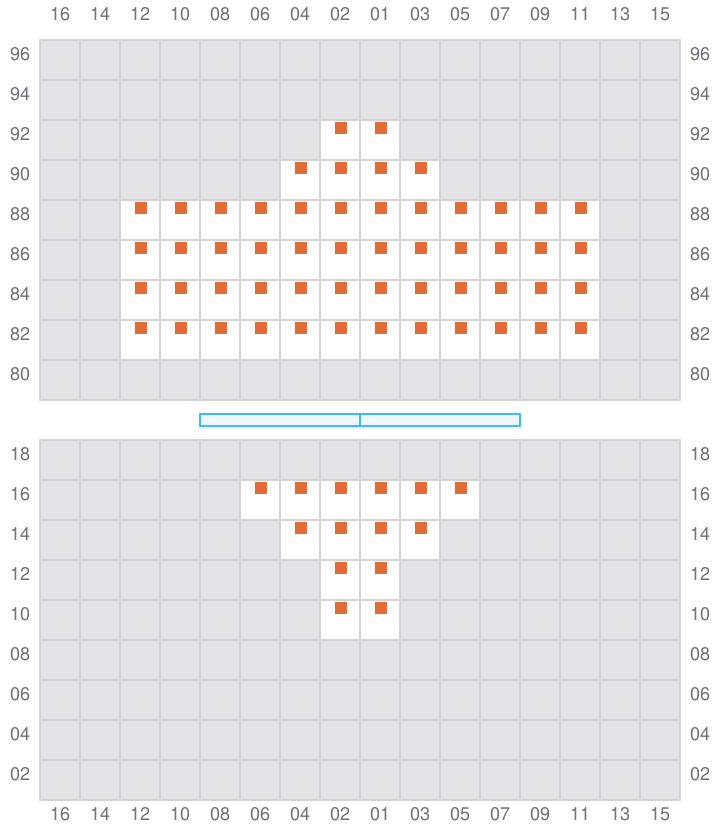

003

  • ←
Bay 003 view and slots of MSC KALAMATA VII

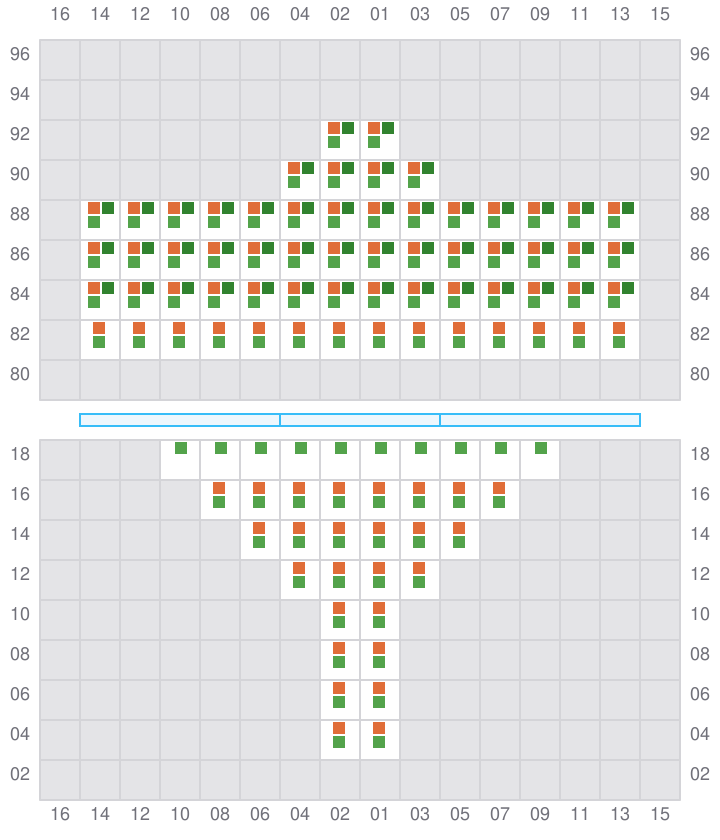

005 (006)

  • →
Bay 005 view and slots of MSC KALAMATA VII

007

  • ←
Bay 007 view and slots of MSC KALAMATA VII

009 (010)

  • →

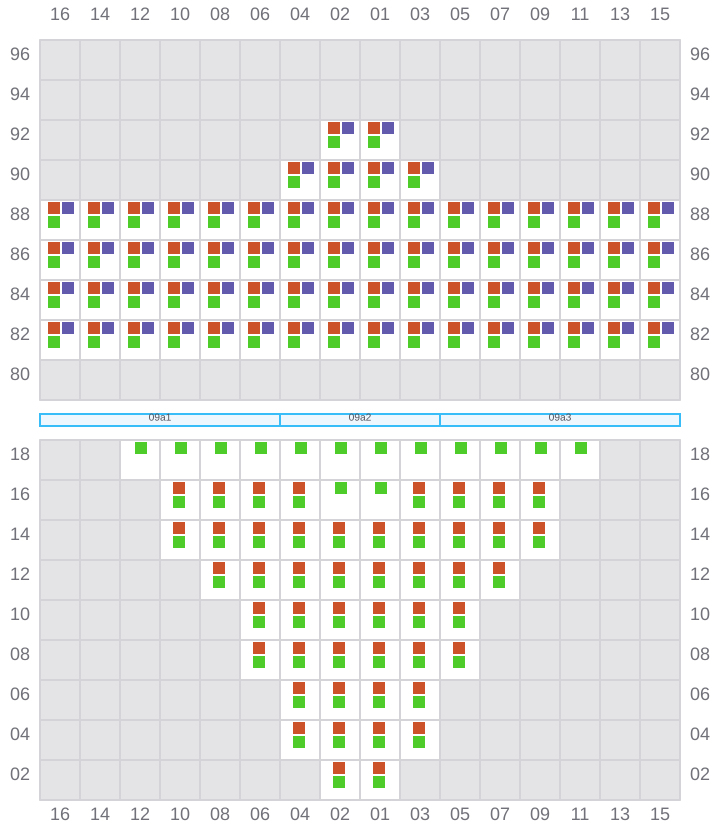

Bay 009 view and slots of MSC KALAMATA VII

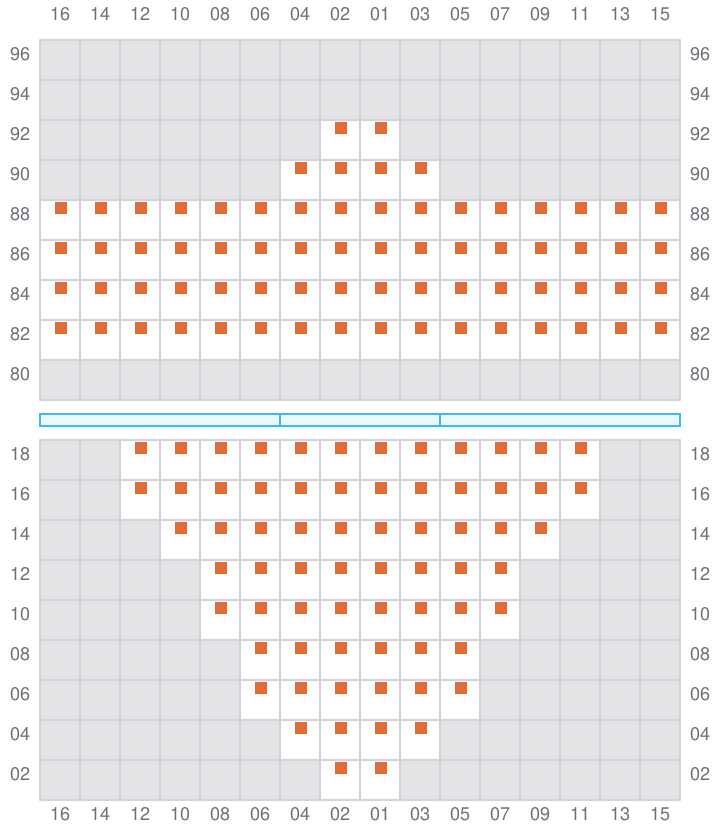

011

  • ←
Bay 011 view and slots of MSC KALAMATA VII

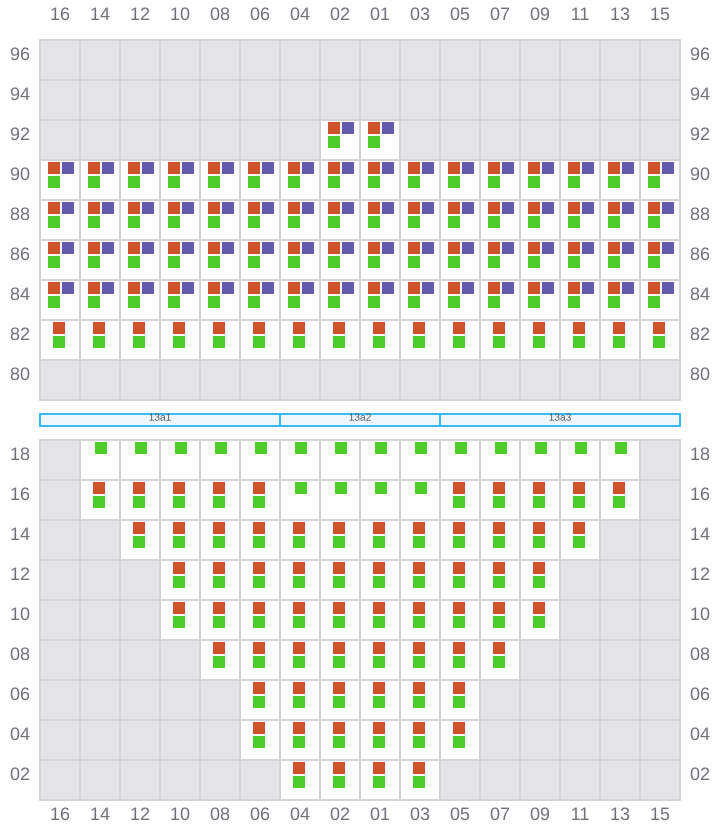

013 (014)

  • →
Bay 013 view and slots of MSC KALAMATA VII

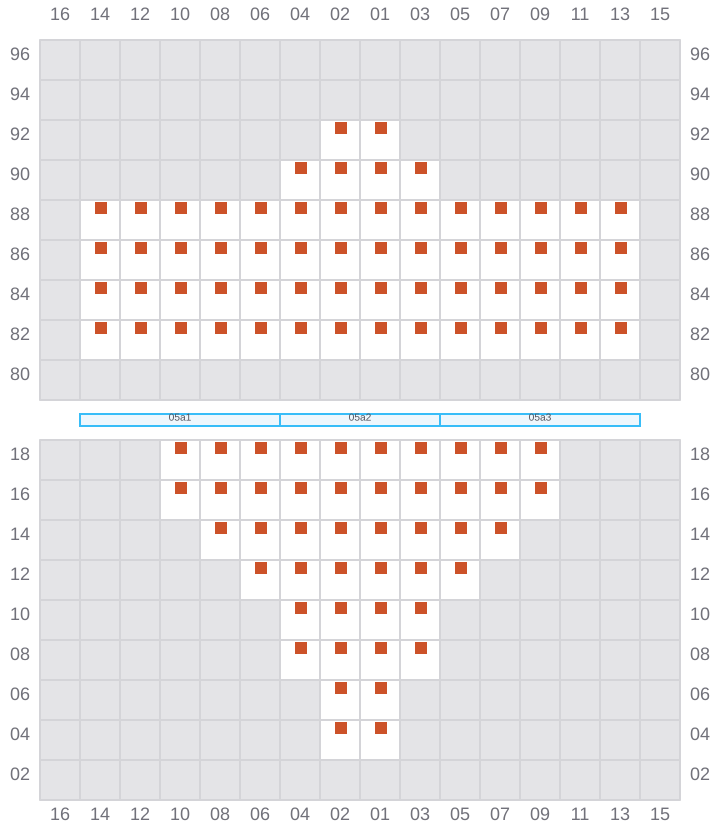

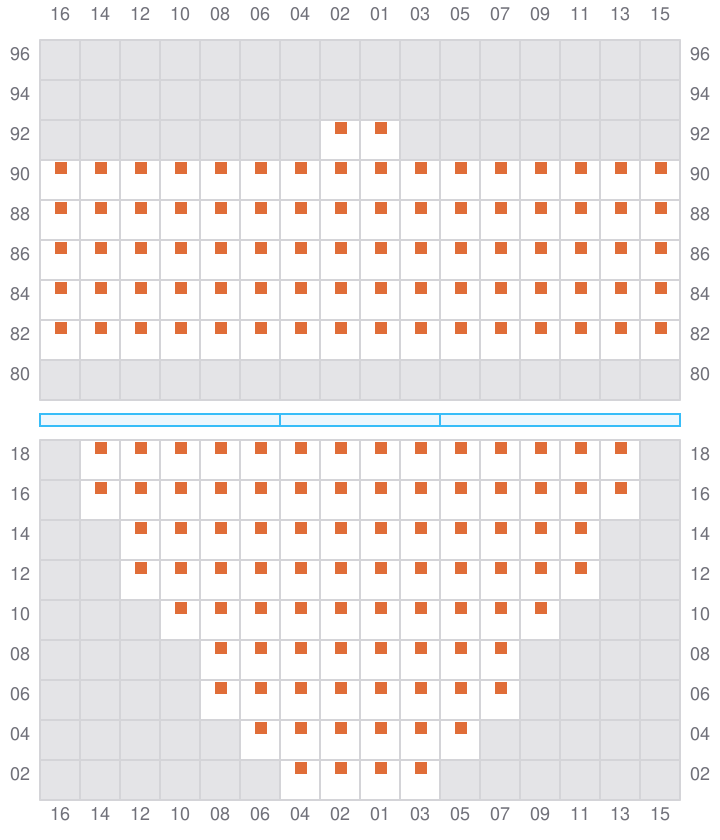

015

  • ←
Bay 015 view and slots of MSC KALAMATA VII

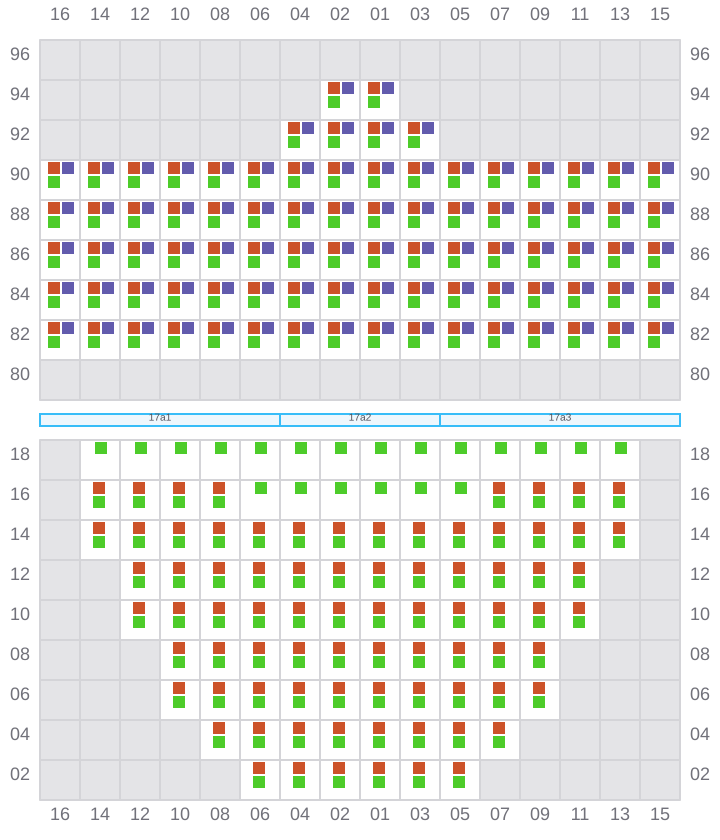

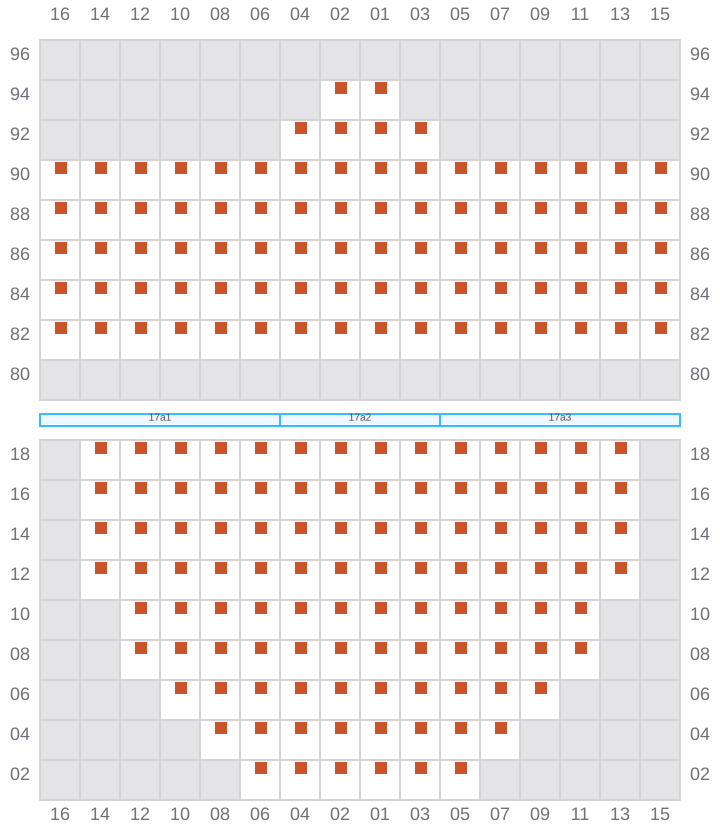

017 (018)

  • →
Bay 017 view and slots of MSC KALAMATA VII

019

  • ←
Bay 019 view and slots of MSC KALAMATA VII

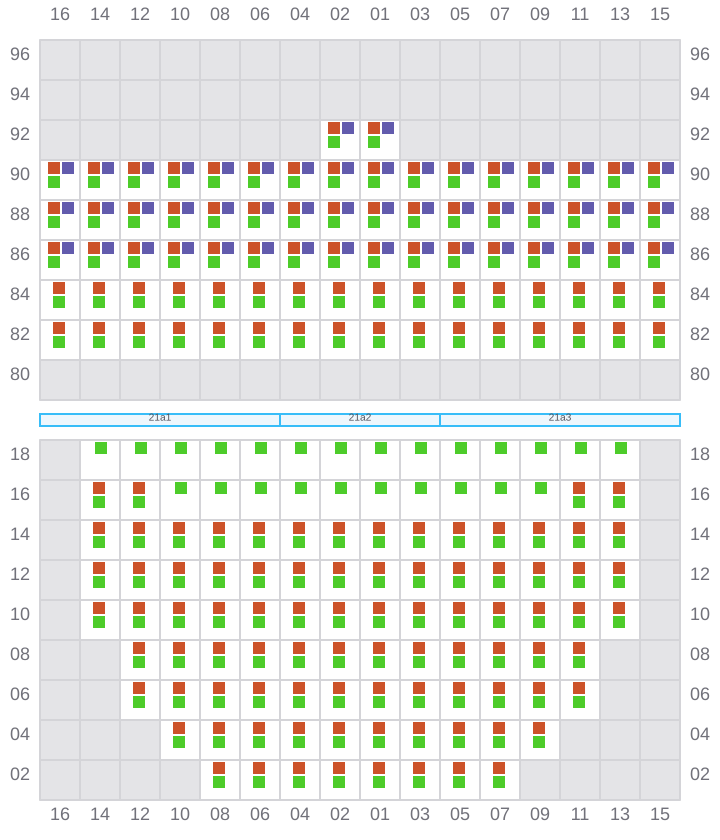

021 (022)

  • →
Bay 021 view and slots of MSC KALAMATA VII

023

  • ←

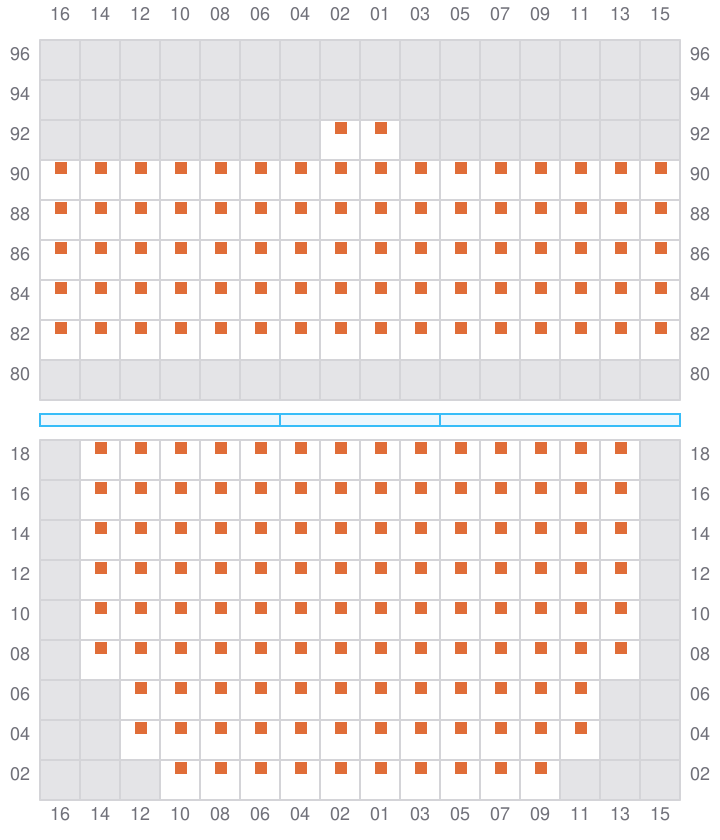

Bay 023 view and slots of MSC KALAMATA VII

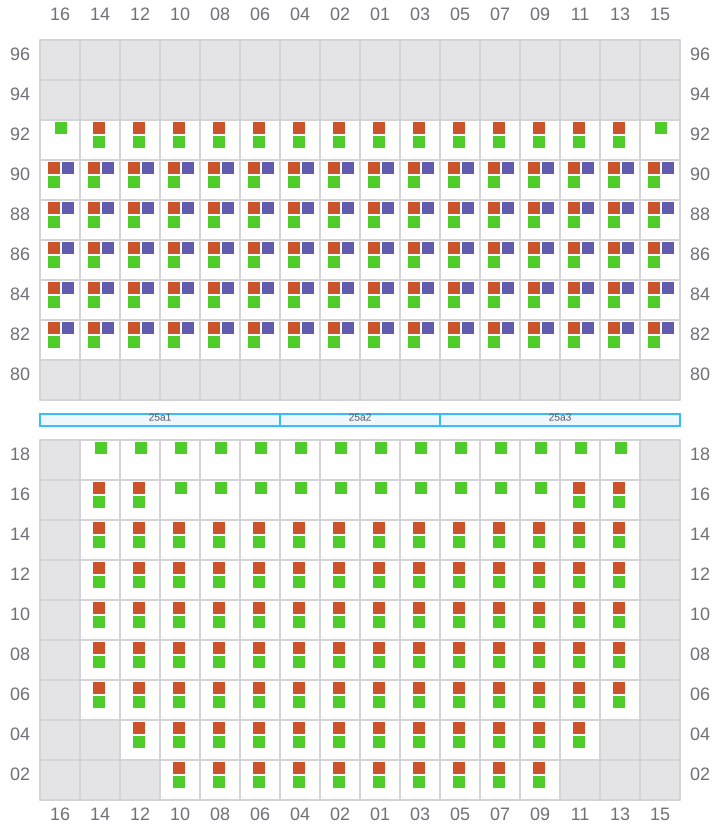

025 (026)

  • →
Bay 025 view and slots of MSC KALAMATA VII

027

  • ←
  • → / ?

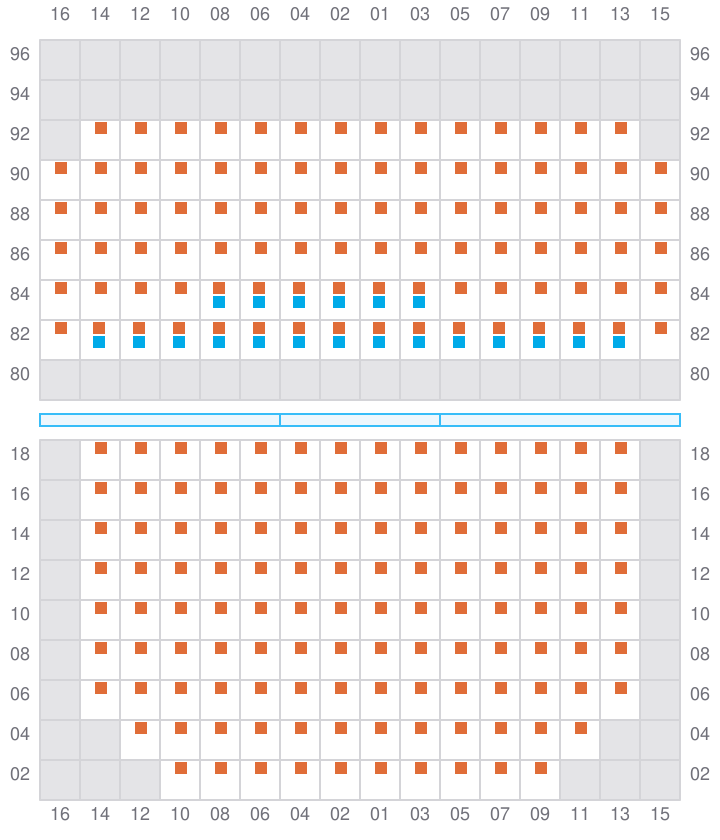

Bay 027 view and slots of MSC KALAMATA VII

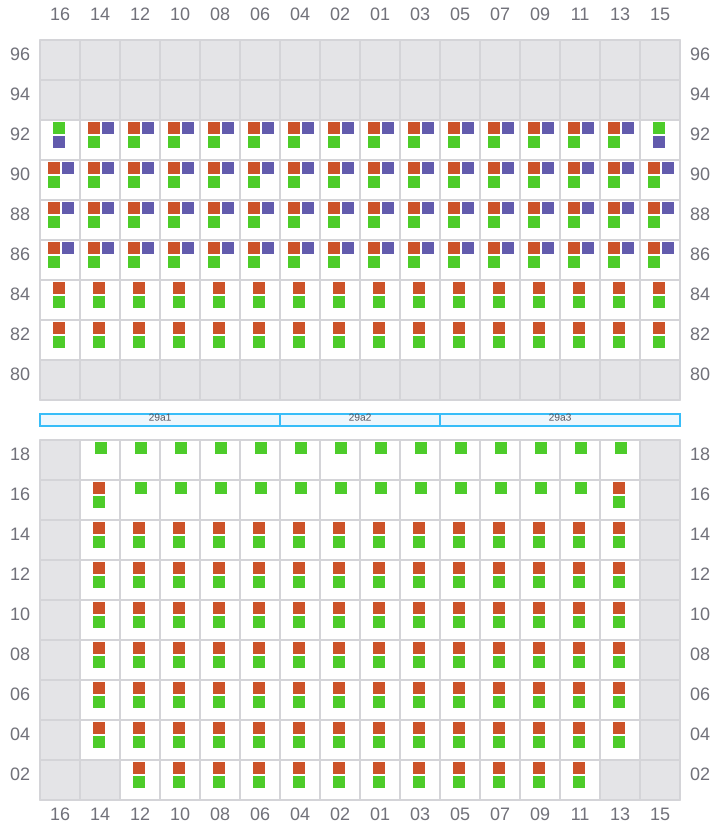

029 (030)

  • →
Bay 029 view and slots of MSC KALAMATA VII

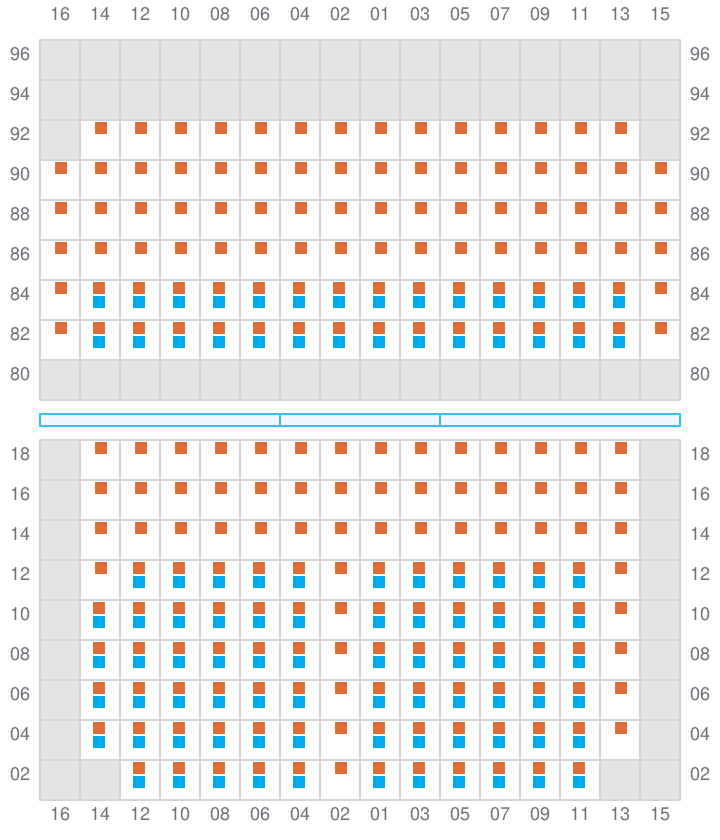

031

  • ←
  • →
Bay 031 view and slots of MSC KALAMATA VII

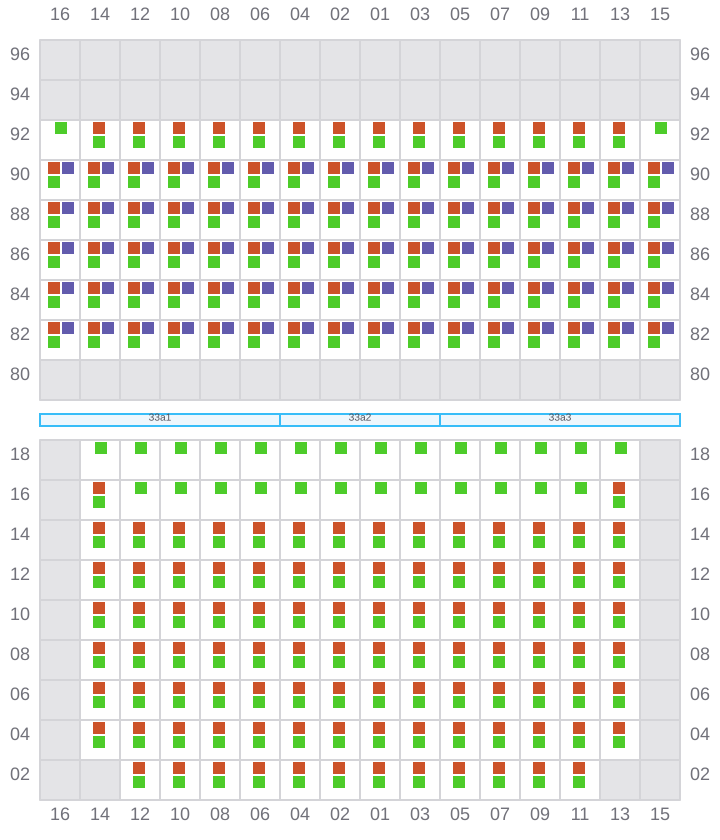

033 (034)

  • →
Bay 033 view and slots of MSC KALAMATA VII

035

  • ←
  • → / ?

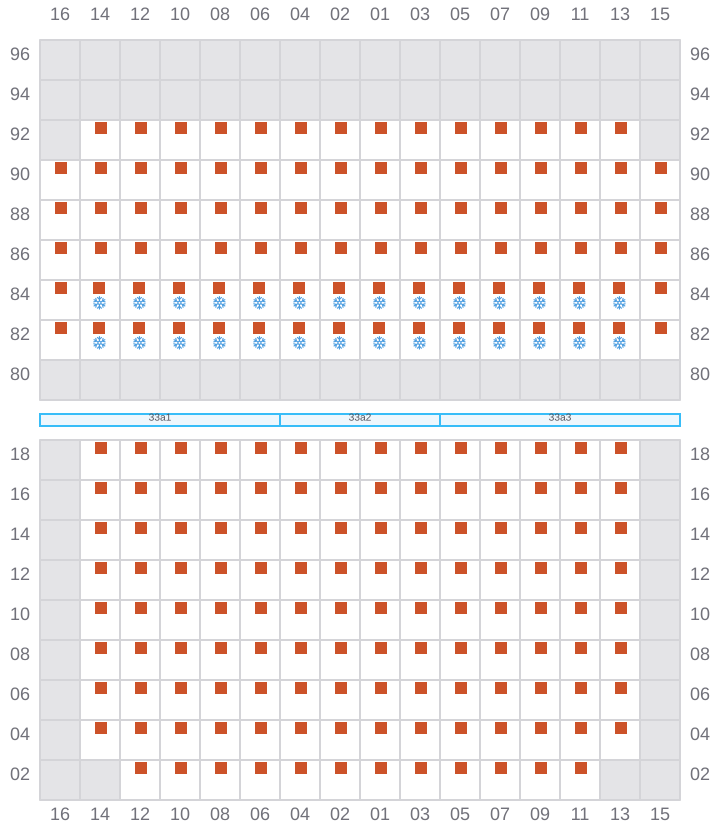

Bay 035 view and slots of MSC KALAMATA VII

037 (038)

  • →

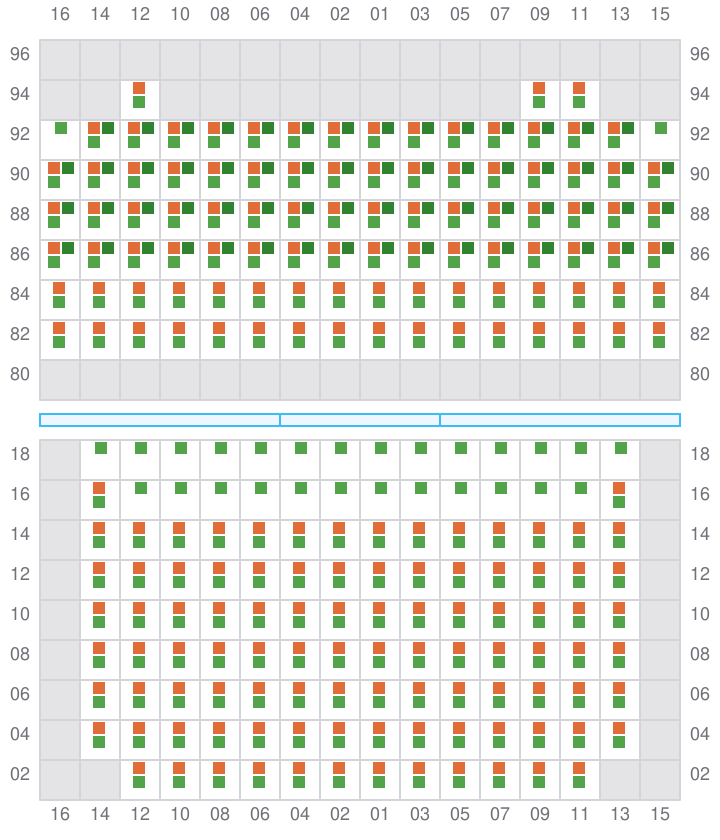

Bay 037 view and slots of MSC KALAMATA VII

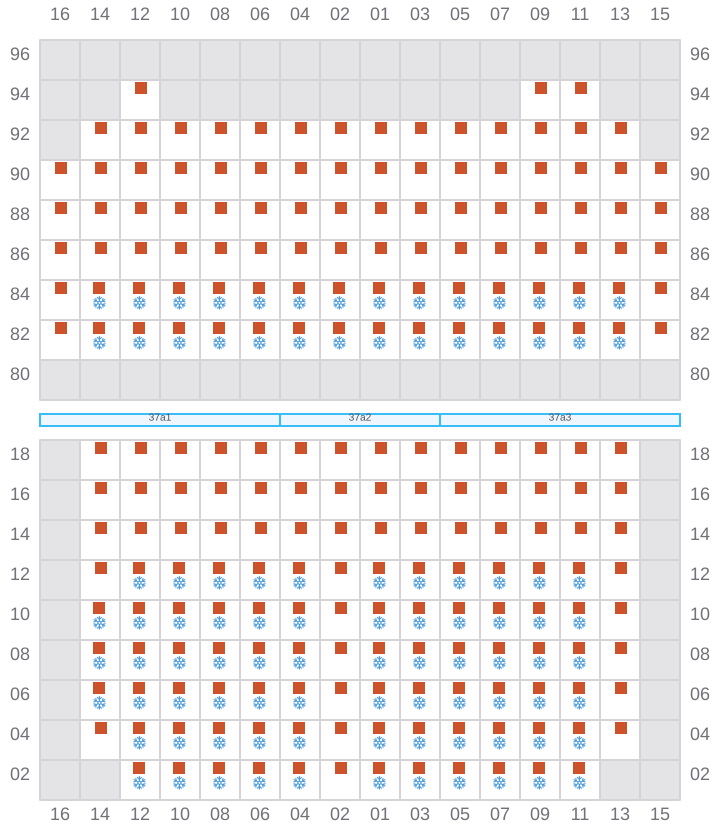

039

  • ←
  • →
Bay 039 view and slots of MSC KALAMATA VII

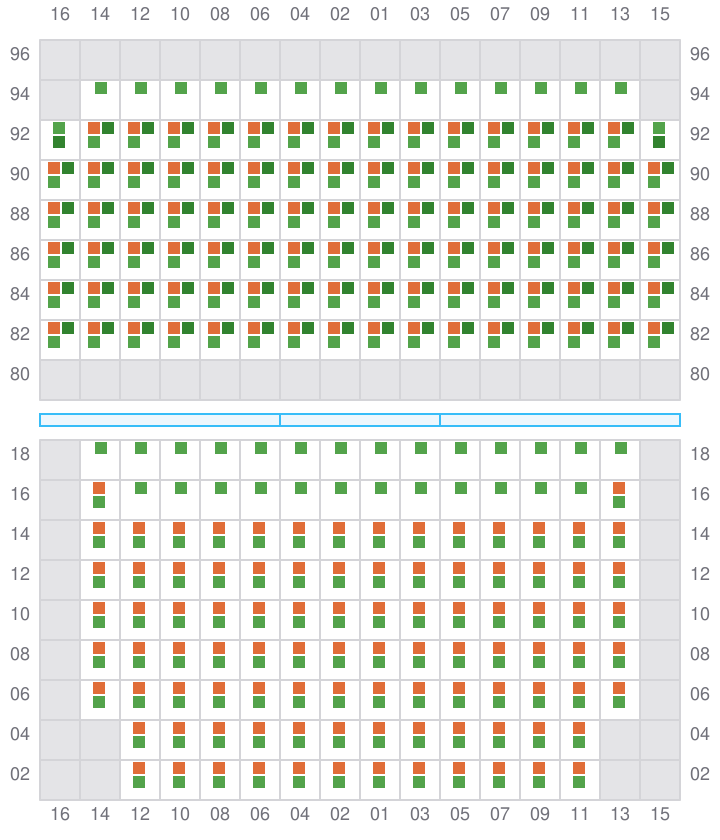

041 (042)

  • →
Bay 041 view and slots of MSC KALAMATA VII

043

  • ←
  • → / ?

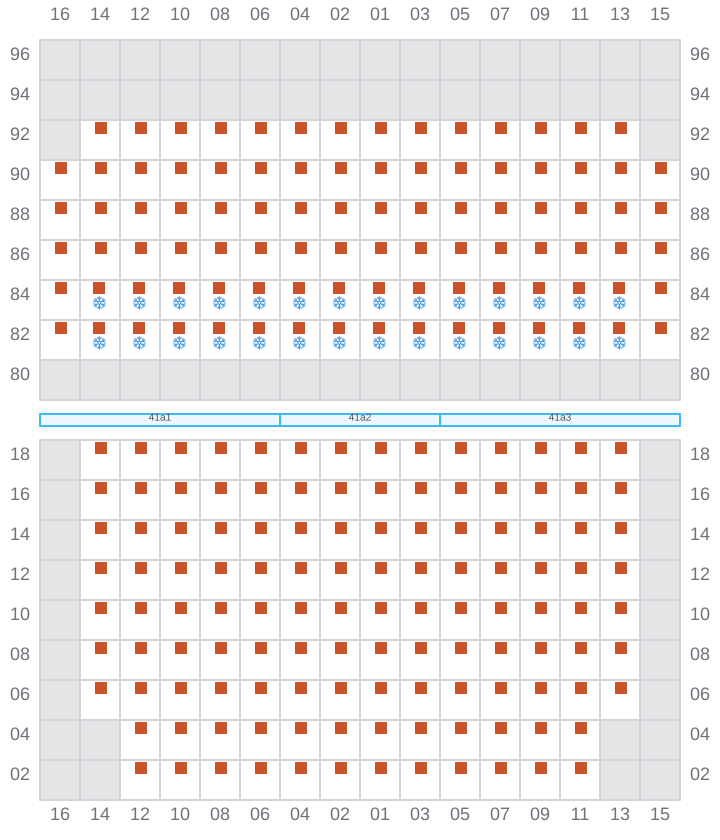

Bay 043 view and slots of MSC KALAMATA VII

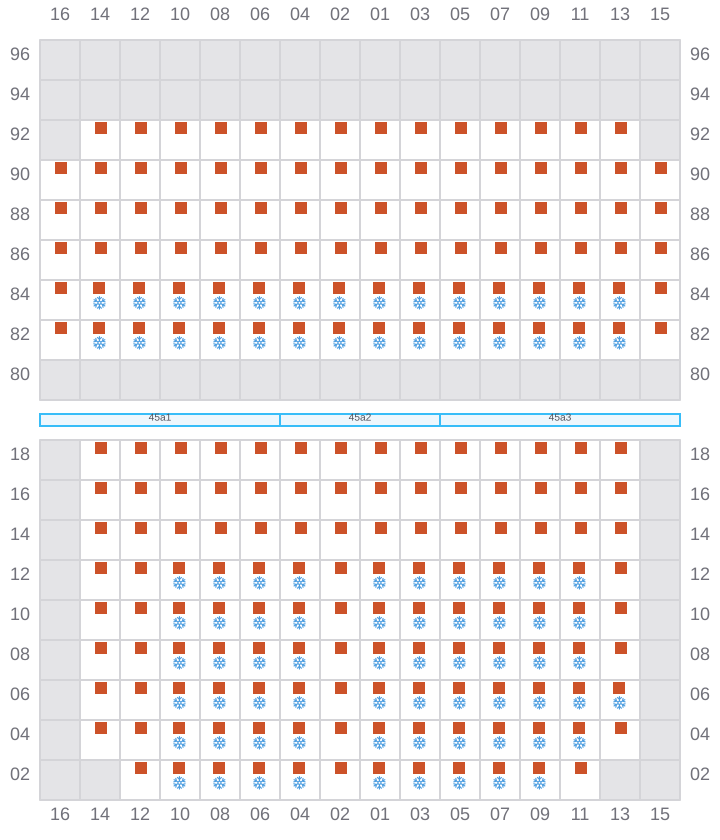

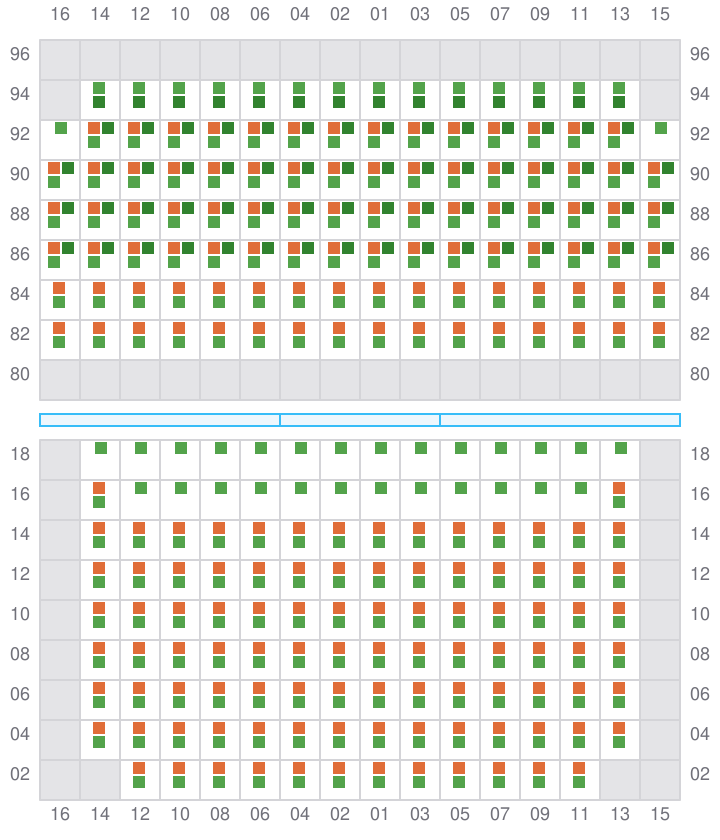

045 (046)

  • →
Bay 045 view and slots of MSC KALAMATA VII

047

  • ←
  • →
Bay 047 view and slots of MSC KALAMATA VII

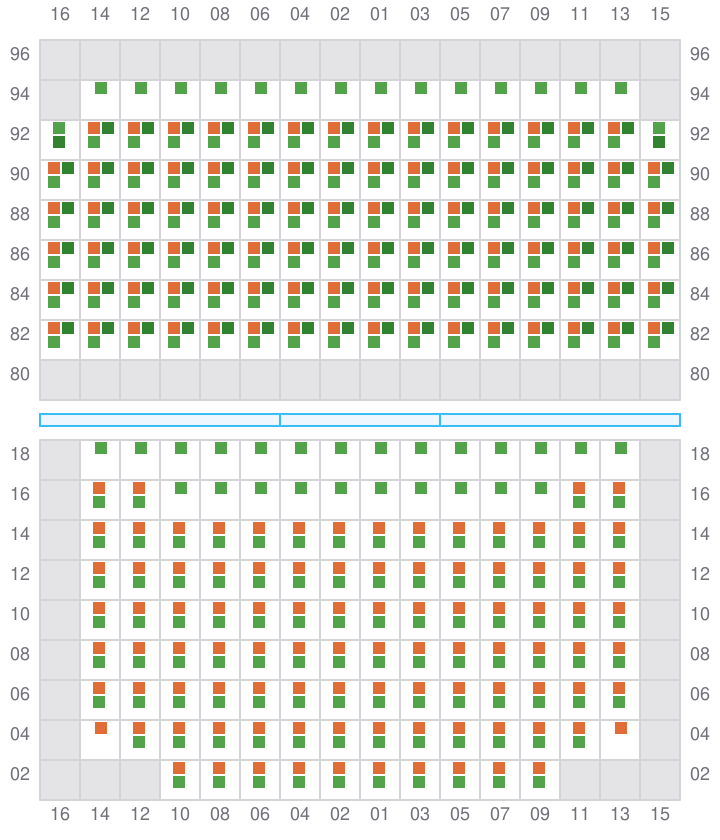

049 (050)

  • →
Bay 049 view and slots of MSC KALAMATA VII

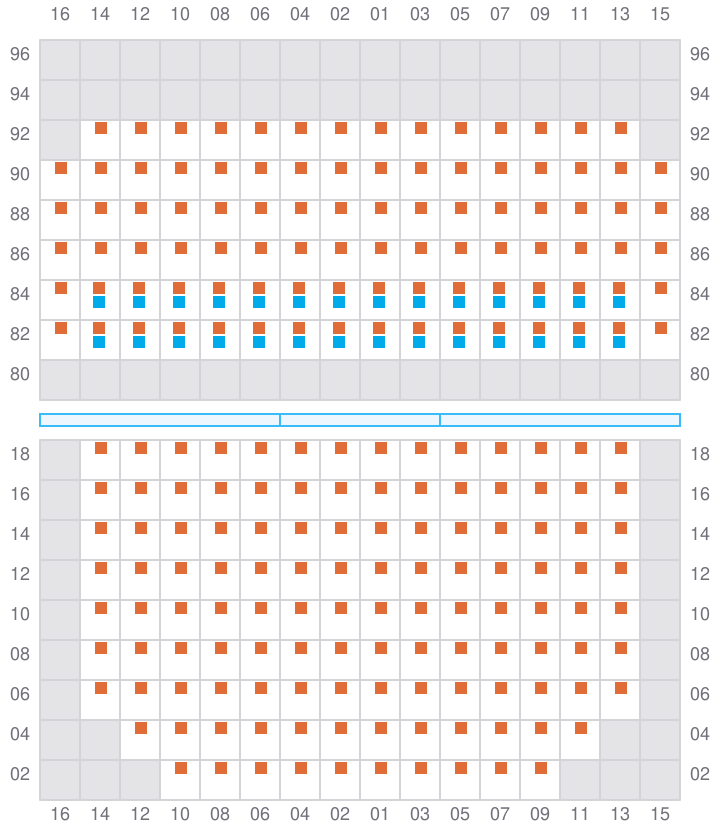

051

  • ←
  • → / ?
Bay 051 view and slots of MSC KALAMATA VII

053 (054)

  • →

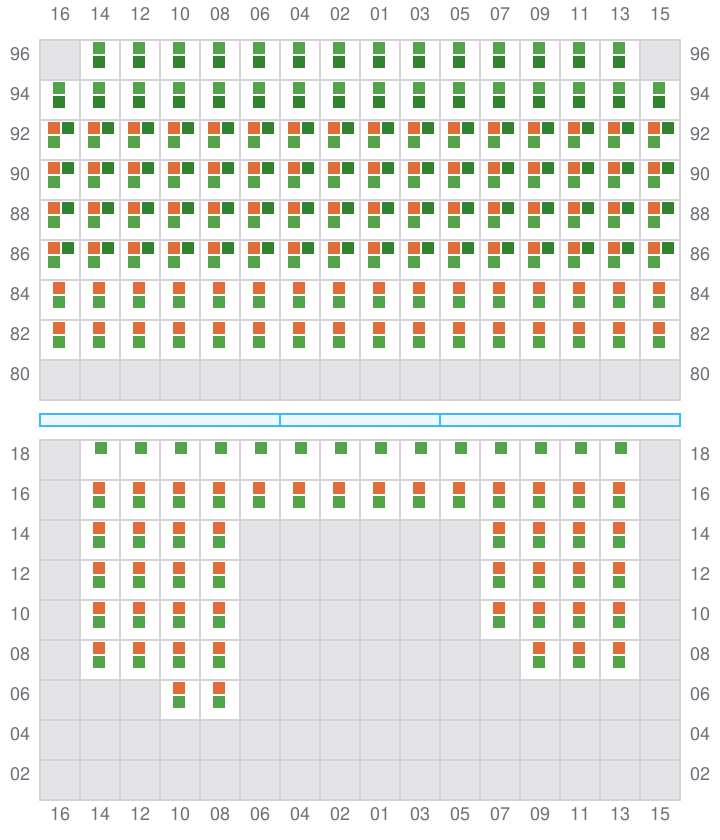

Bay 053 view and slots of MSC KALAMATA VII

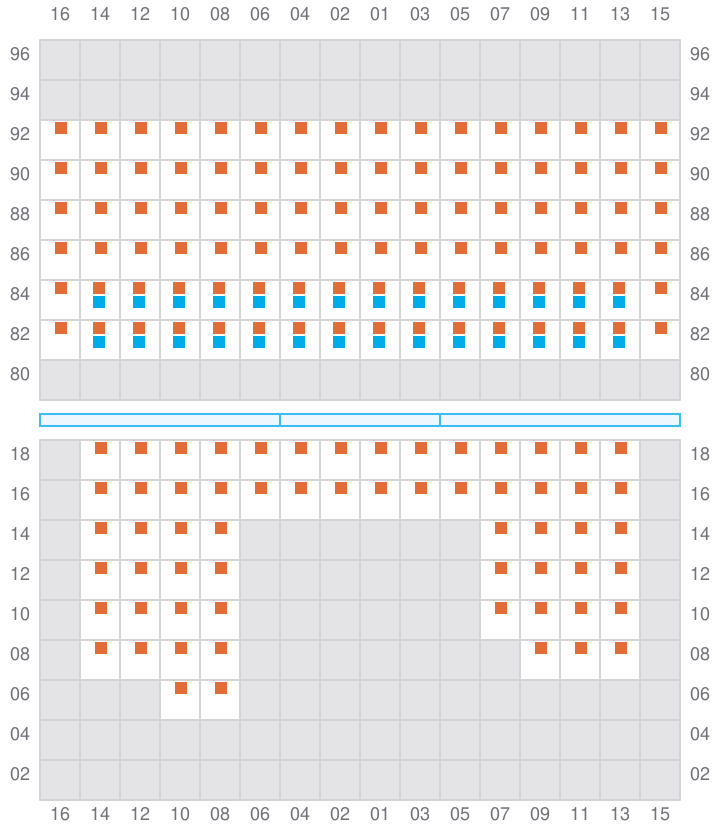

055

  • ←
  • → / ?
Bay 055 view and slots of MSC KALAMATA VII

057 (058)

  • →

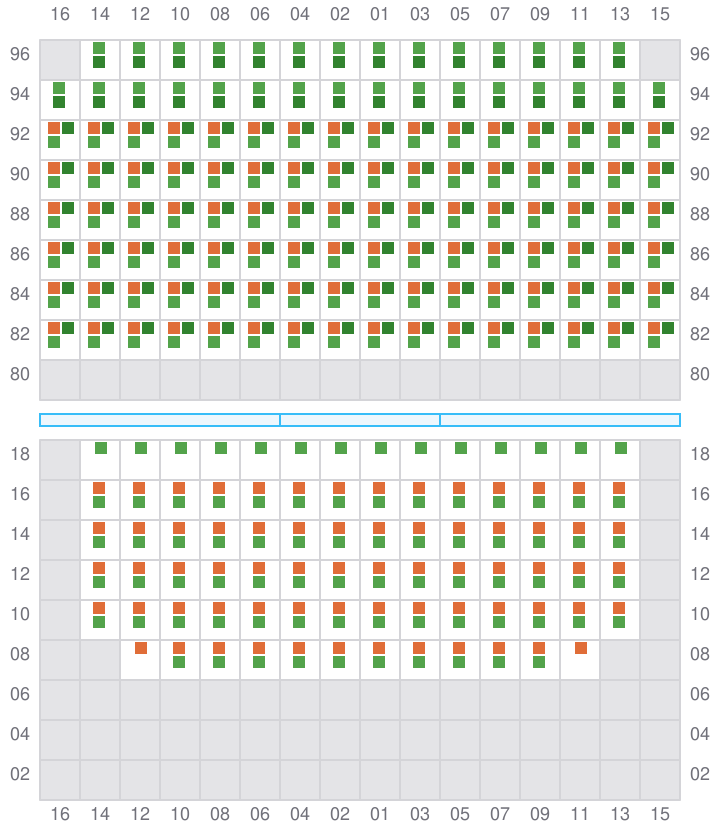

Bay 057 view and slots of MSC KALAMATA VII

059

  • ←
  • → / ?

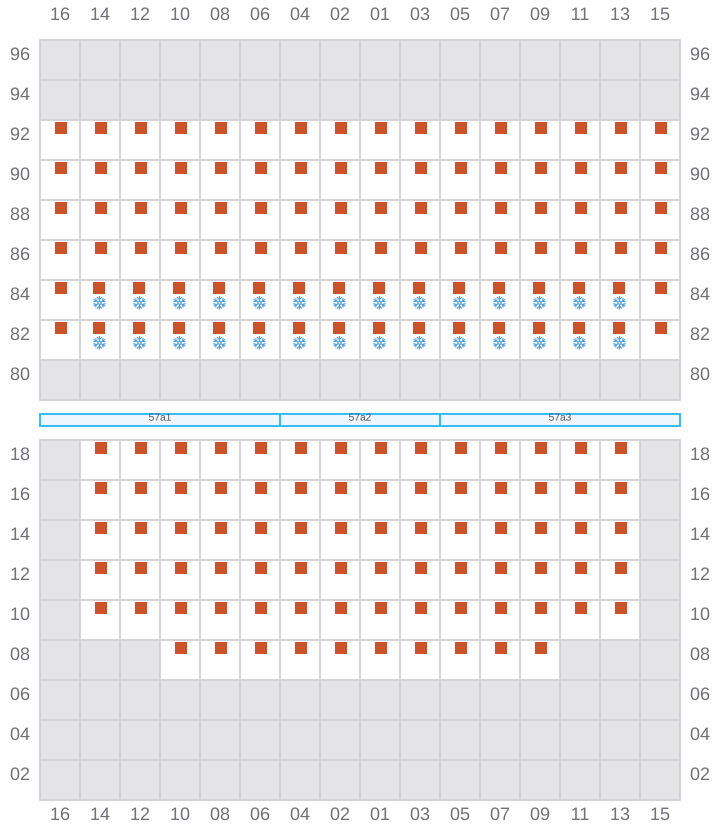

Bay 059 view and slots of MSC KALAMATA VII

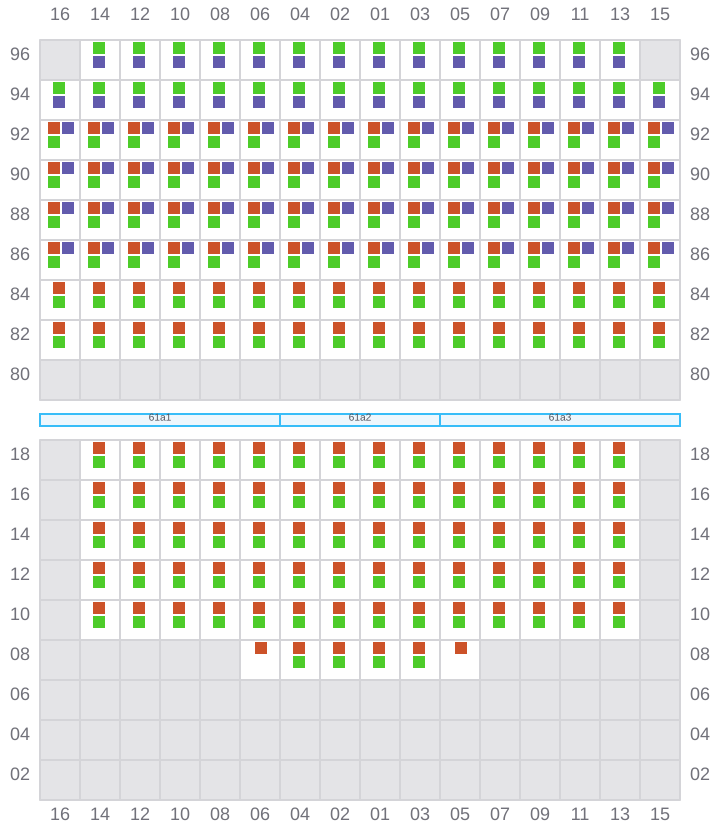

061 (062)

  • →
Bay 061 view and slots of MSC KALAMATA VII

063

  • ←
  • → / ?

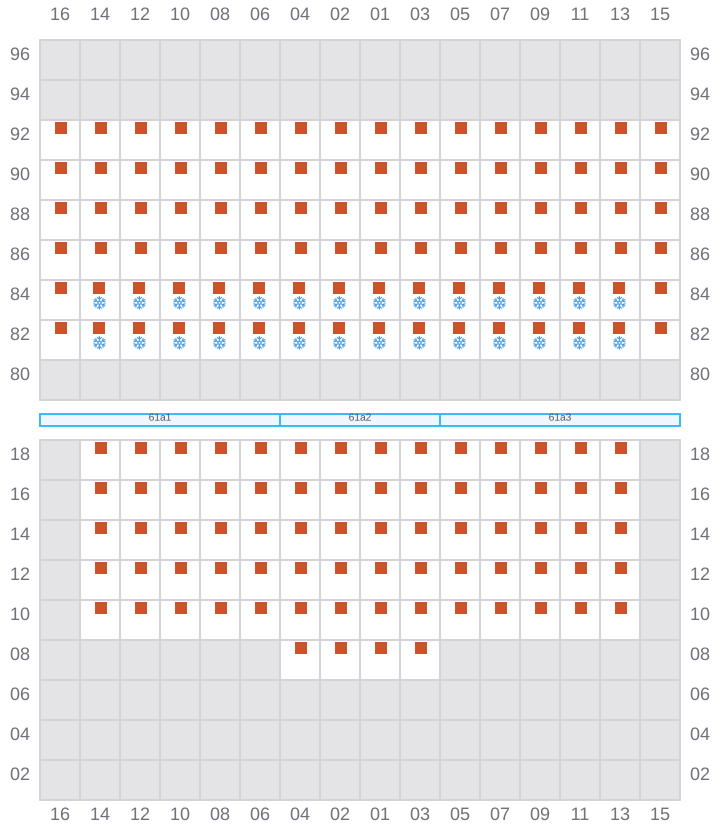

Bay 063 view and slots of MSC KALAMATA VII

065 (066)

  • →

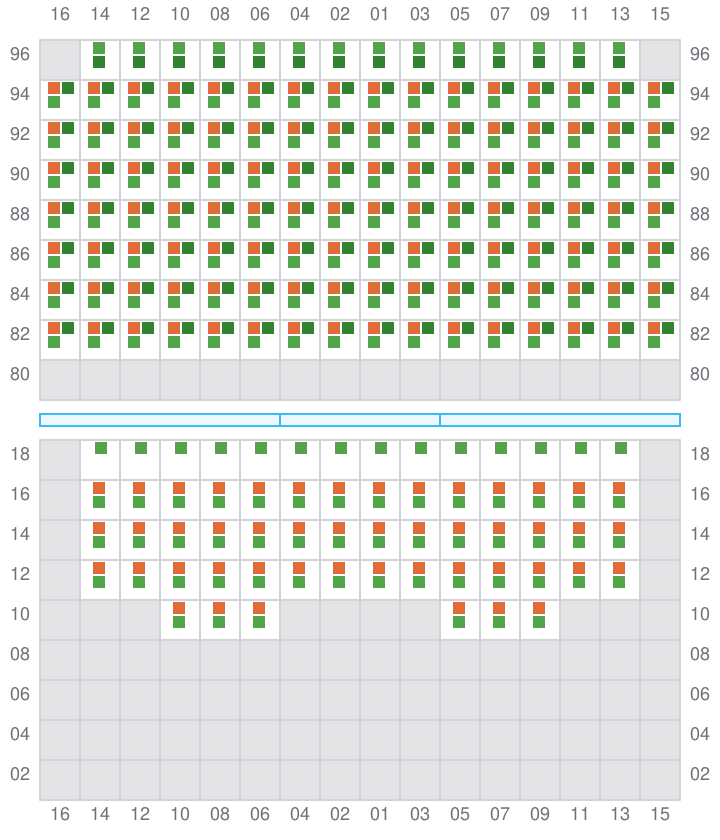

Bay 065 view and slots of MSC KALAMATA VII

067

  • ←
  • → / ?

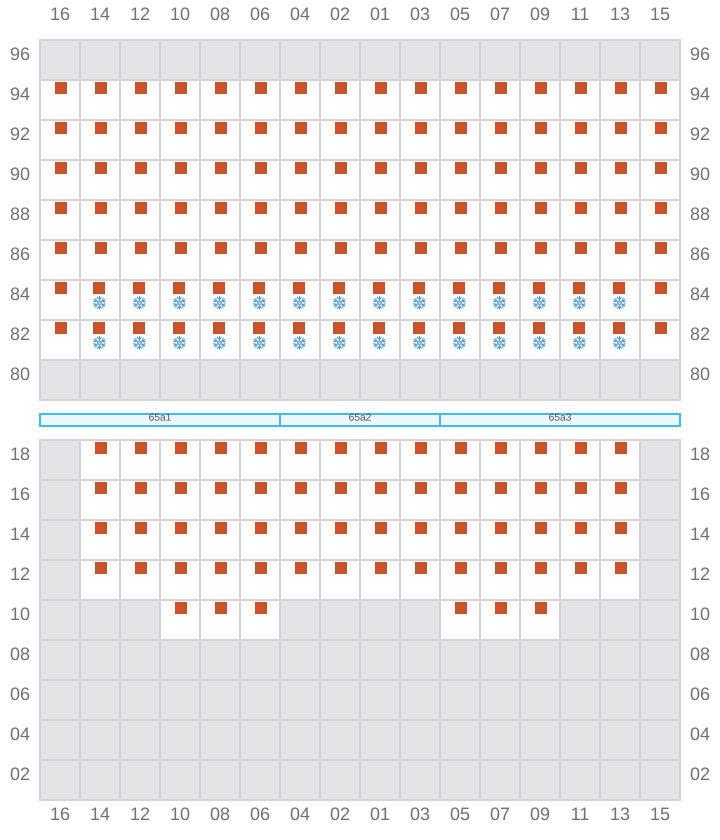

Bay 067 view and slots of MSC KALAMATA VII

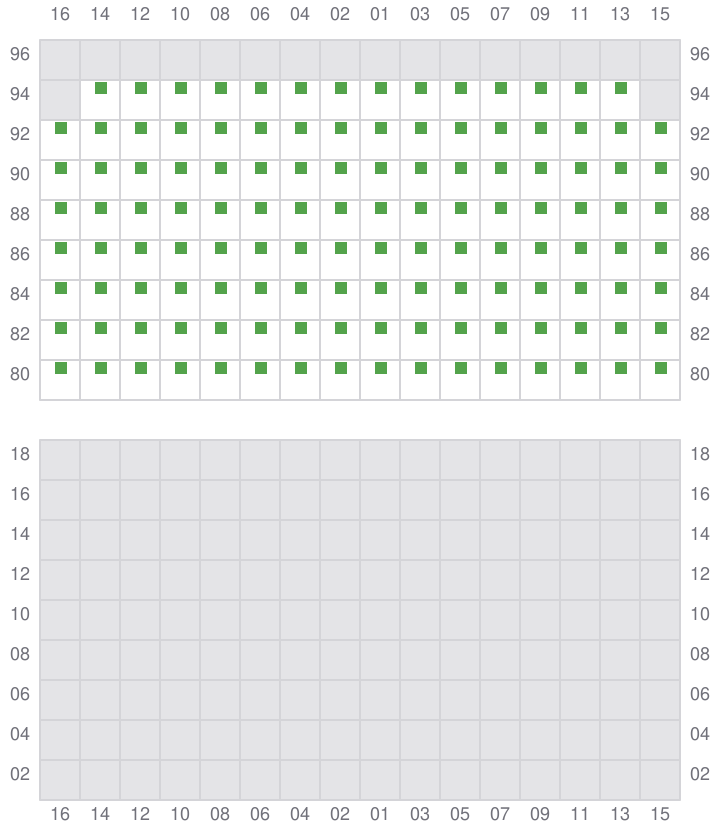

069 (070)

  • → / ?
Bay 069 view and slots of MSC KALAMATA VII
