MSC KATYAYNI
9110389 | 3FGK8 | MSC by ************************** Last update: Fri Jun 23 2023
General Info
Ship Name:MSC KATYAYNI
IMO Code:9110389
Call Sign:3FGK8
Line Operator:MSC
Class Name for Sister Ships:MKI
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):263.00
LOA (Length Overall):274.60
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,739
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-sideView.png?v=1687543640213)

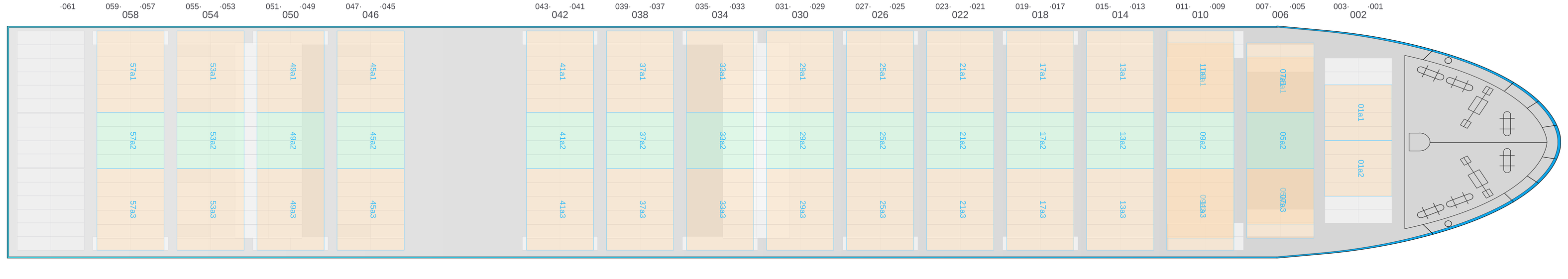

Hatch-Covers View
![Deck view of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-deckView.png?v=1687543640213)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

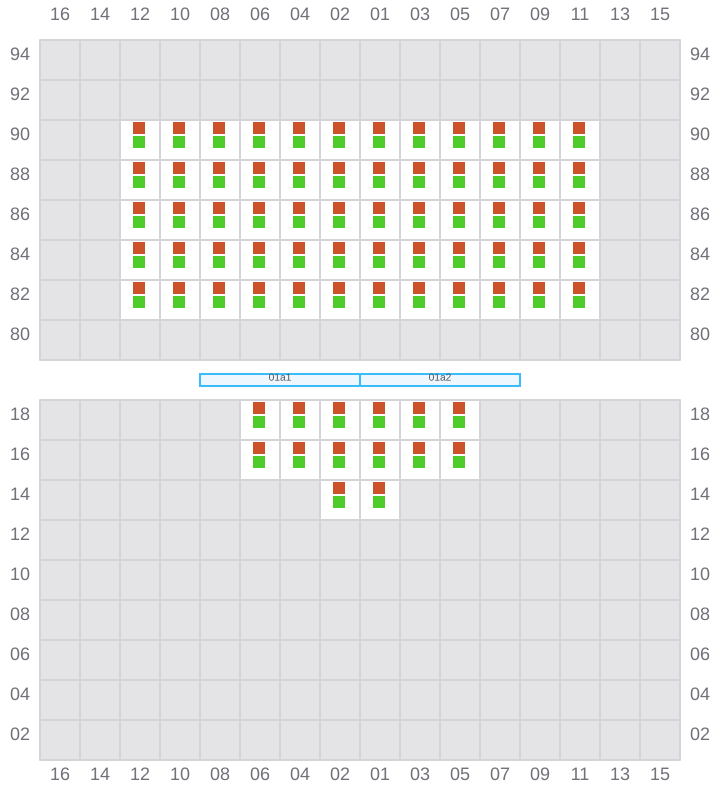

001 (002)
- →
![Bay 001 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b001.png?v=1687543640213)

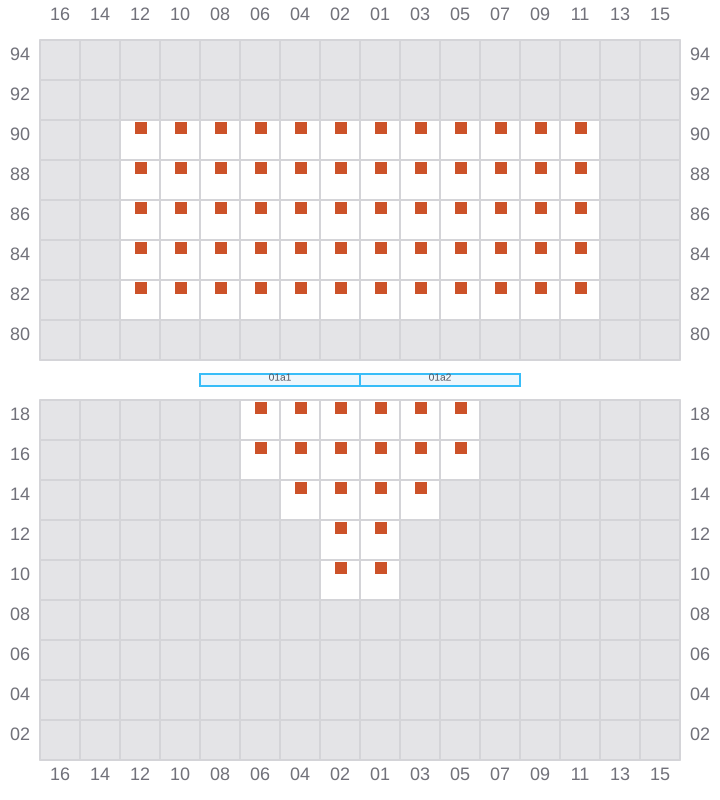

003
- ←
- → / ?
![Bay 003 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b003.png?v=1687543640213)

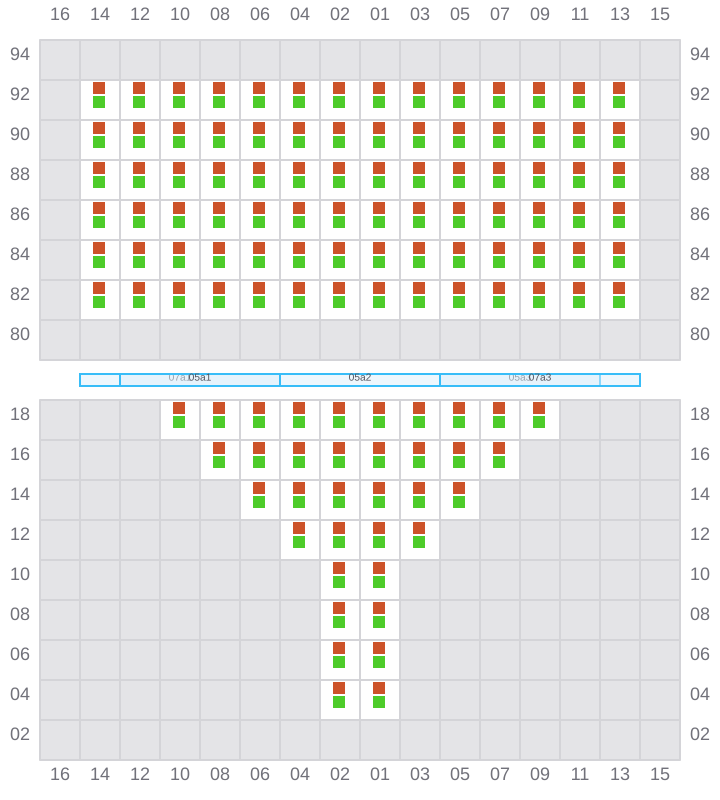

005 (006)
- →
![Bay 005 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b005.png?v=1687543640213)

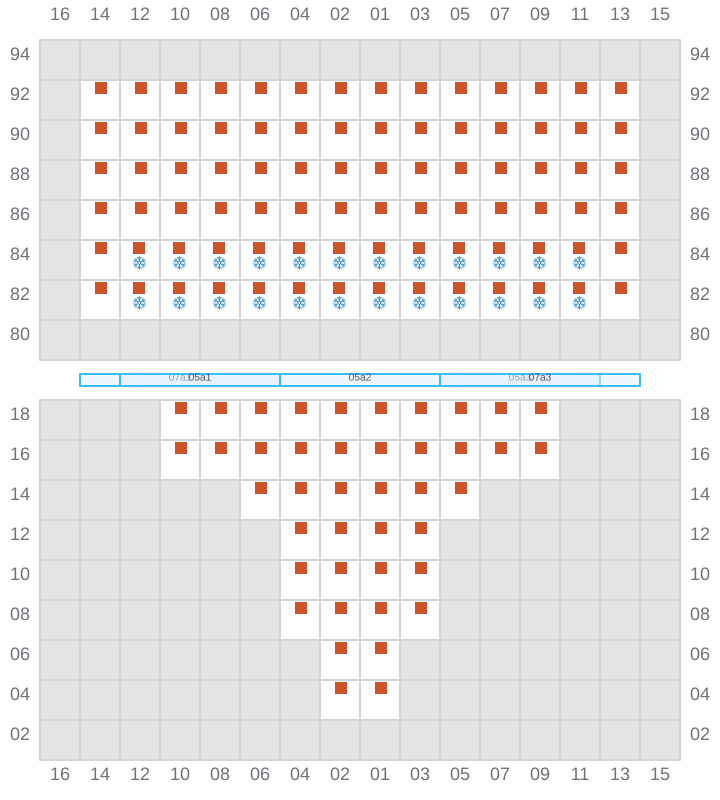

007
- ←
- → / ?
![Bay 007 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b007.png?v=1687543640213)

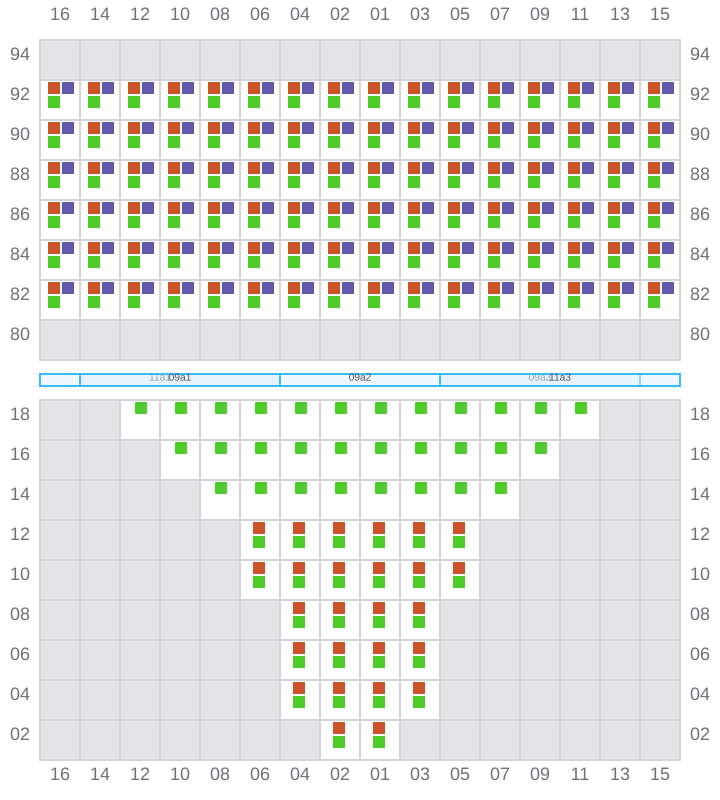

009 (010)
- →
![Bay 009 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b009.png?v=1687543640213)

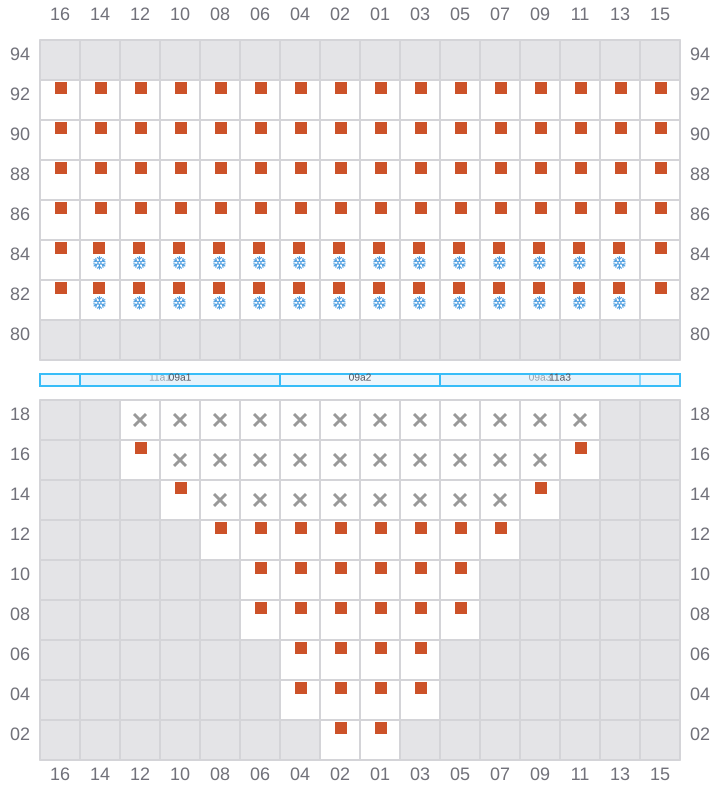

011
- ←
- → / ?
![Bay 011 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b011.png?v=1687543640213)

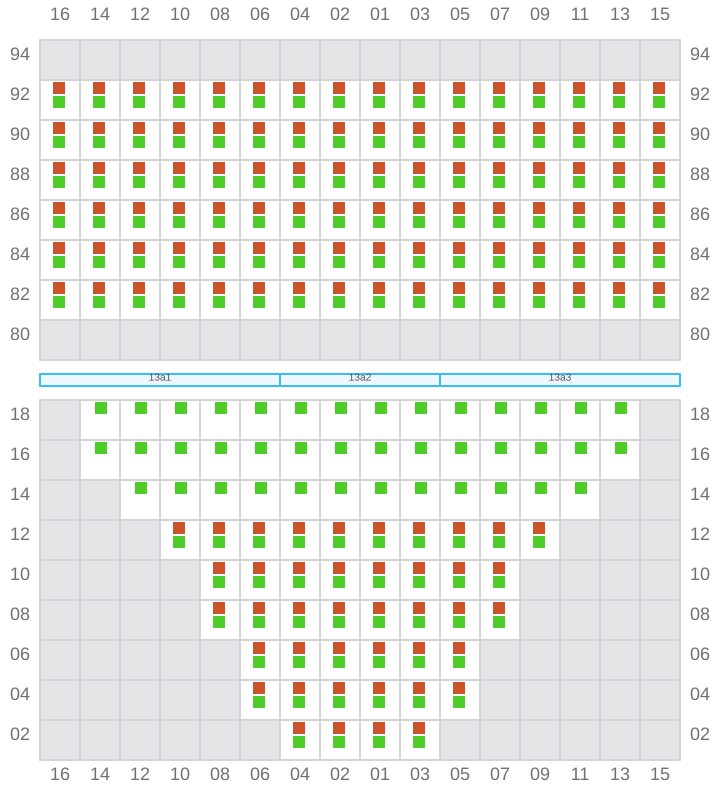

013 (014)
- →
![Bay 013 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b013.png?v=1687543640213)

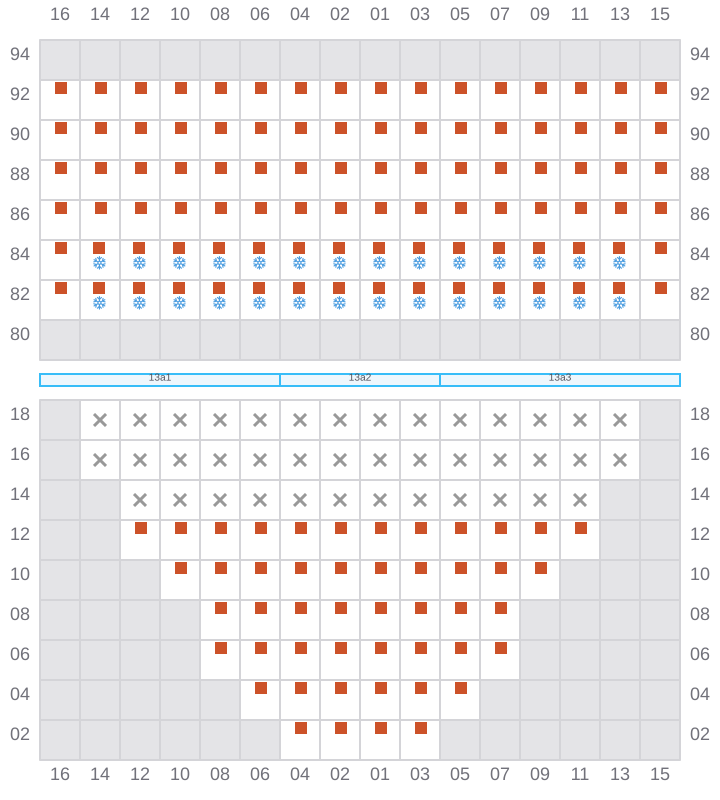

015
- ←
- → / ?
![Bay 015 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b015.png?v=1687543640213)

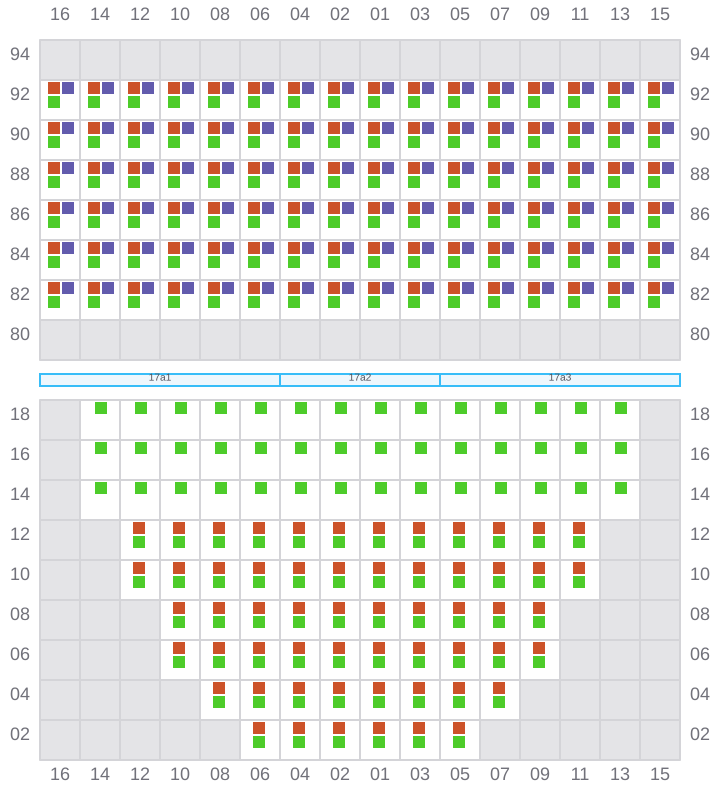

017 (018)
- →
![Bay 017 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b017.png?v=1687543640213)

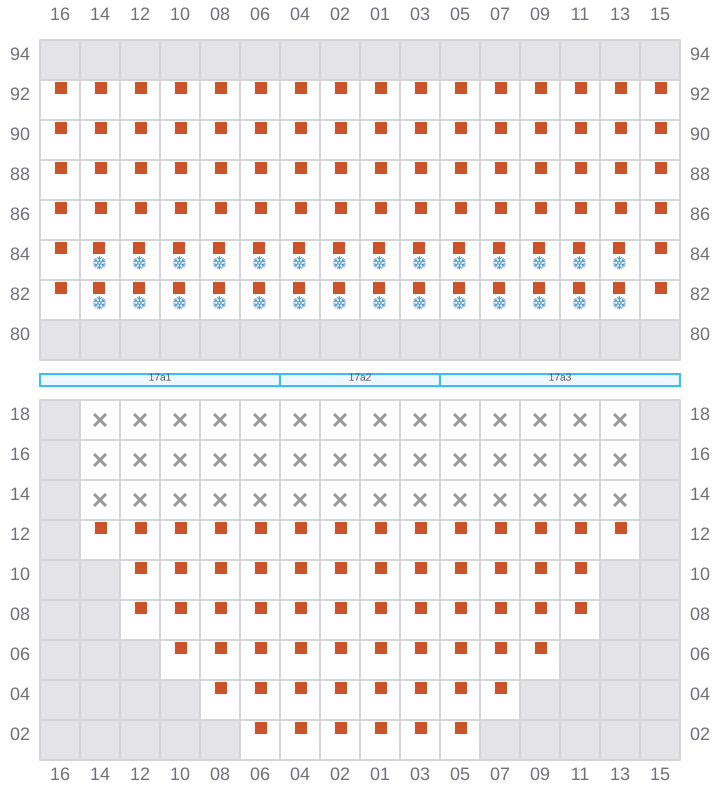

019
- ←
- → / ?
![Bay 019 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b019.png?v=1687543640213)

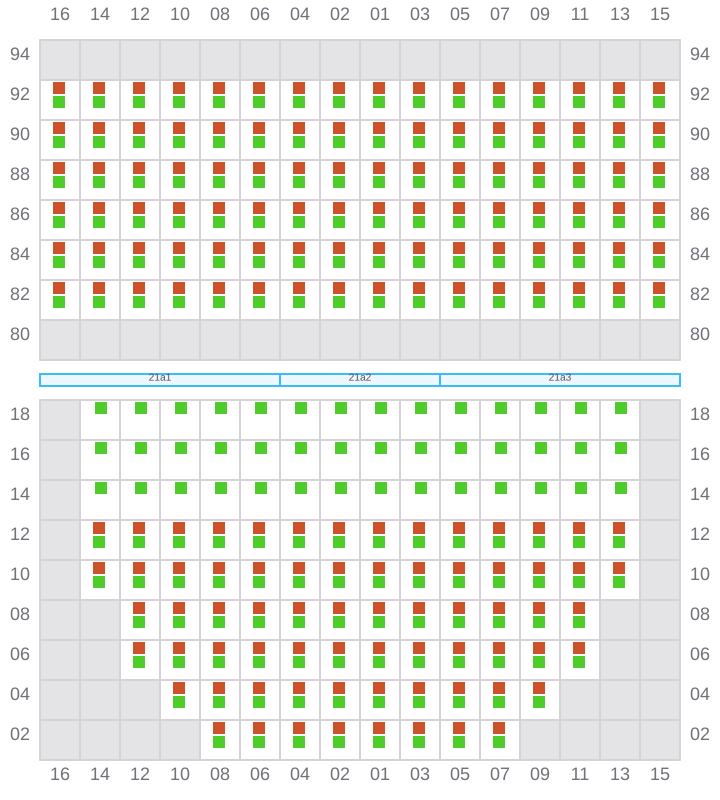

021 (022)
- →
![Bay 021 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b021.png?v=1687543640213)

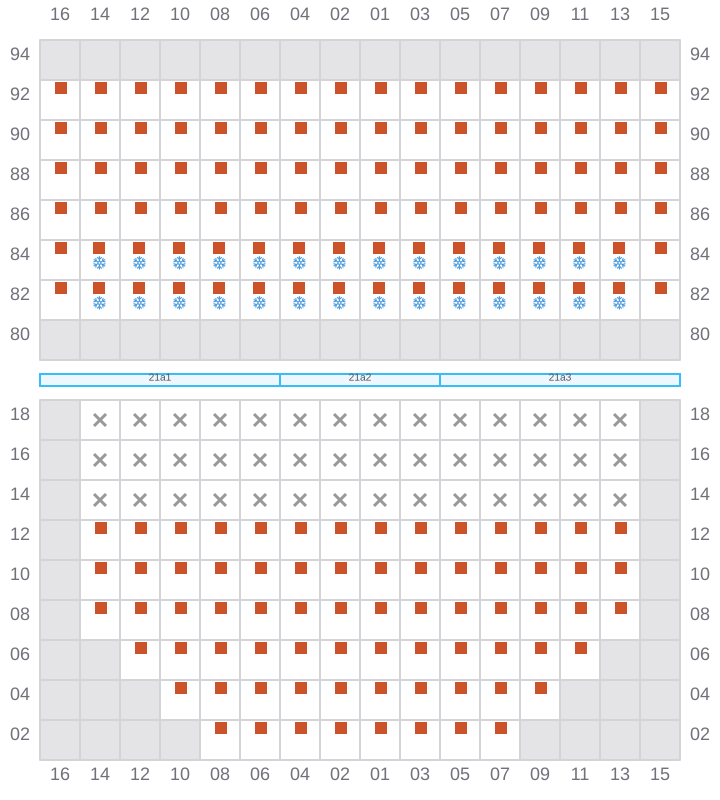

023
- ←
- → / ?
![Bay 023 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b023.png?v=1687543640213)

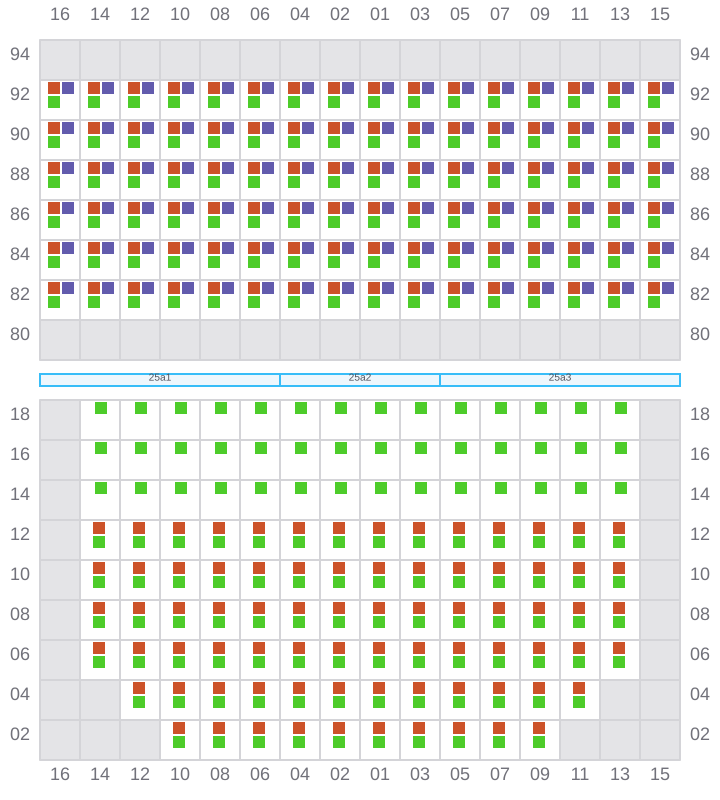

025 (026)
- →
![Bay 025 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b025.png?v=1687543640213)

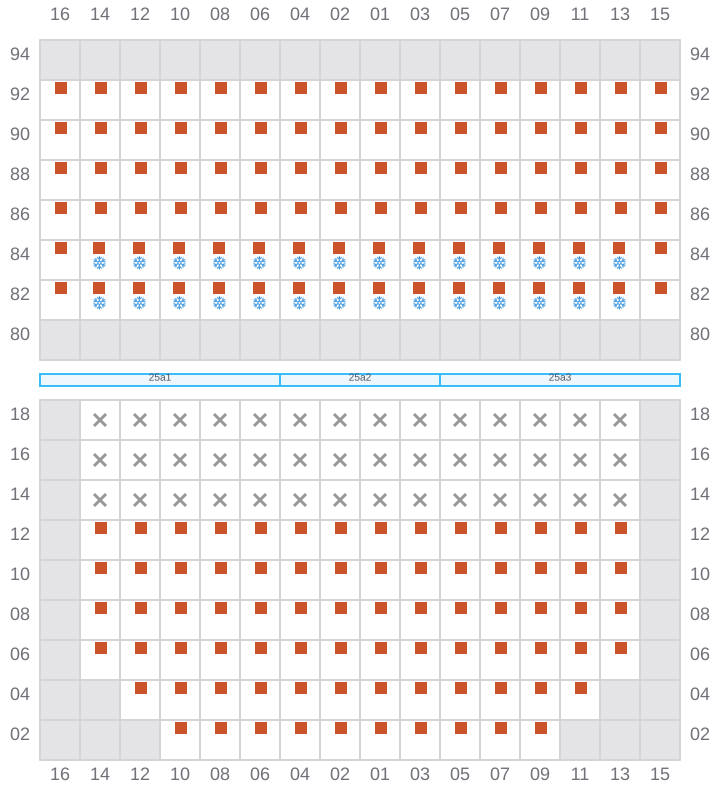

027
- ←
- → / ?
![Bay 027 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b027.png?v=1687543640213)

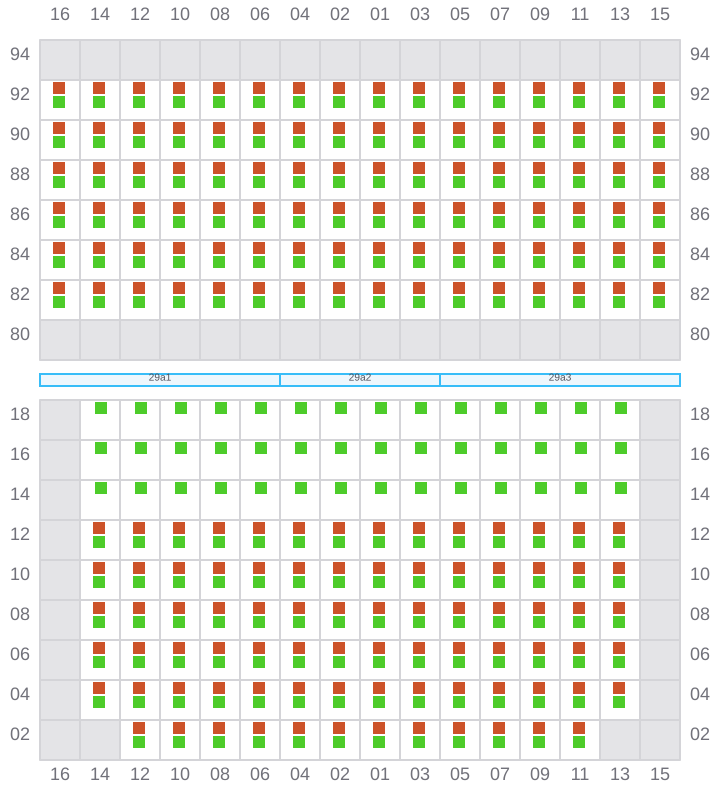

029 (030)
- →
![Bay 029 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b029.png?v=1687543640213)

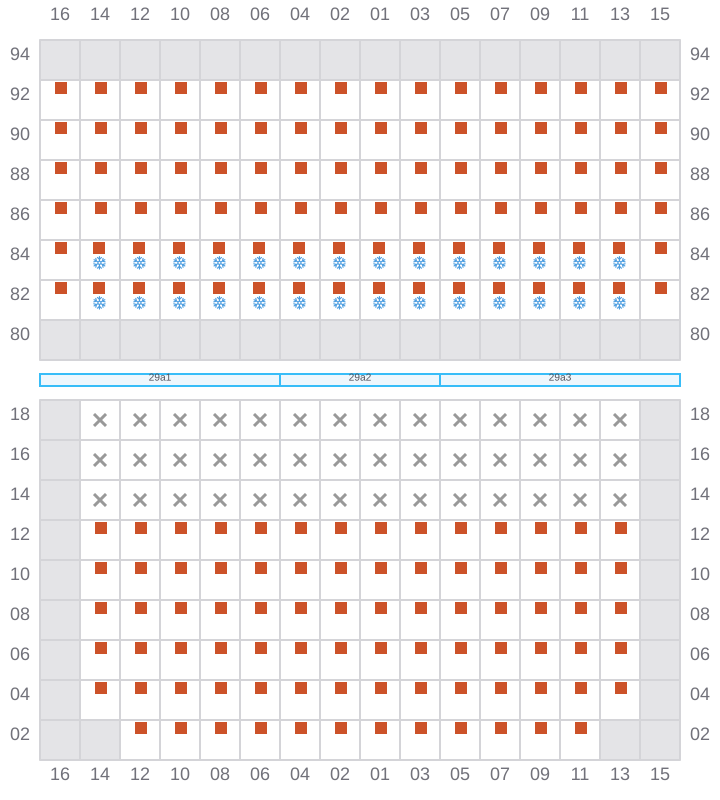

031
- ←
- → / ?
![Bay 031 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b031.png?v=1687543640213)

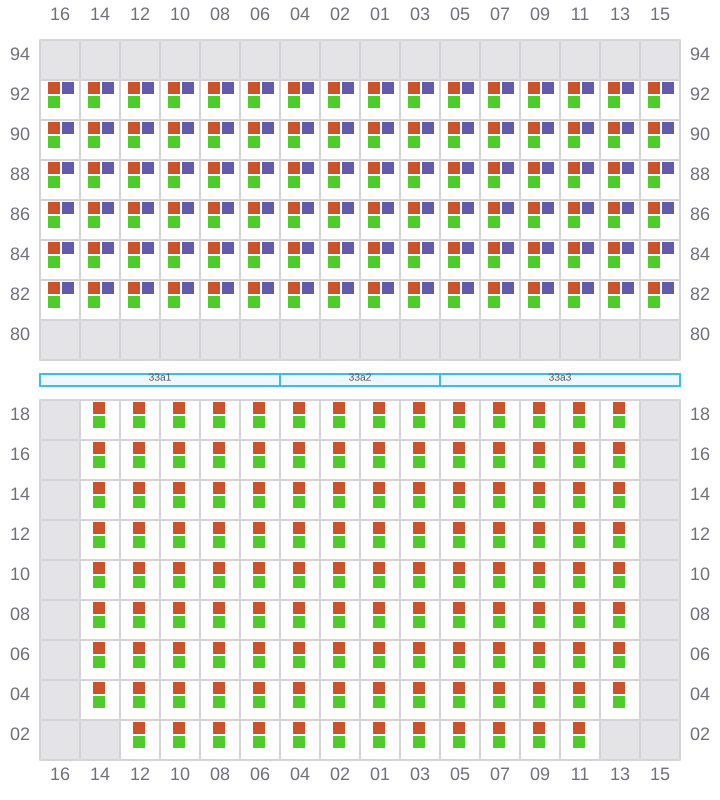

033 (034)
- →
![Bay 033 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b033.png?v=1687543640213)

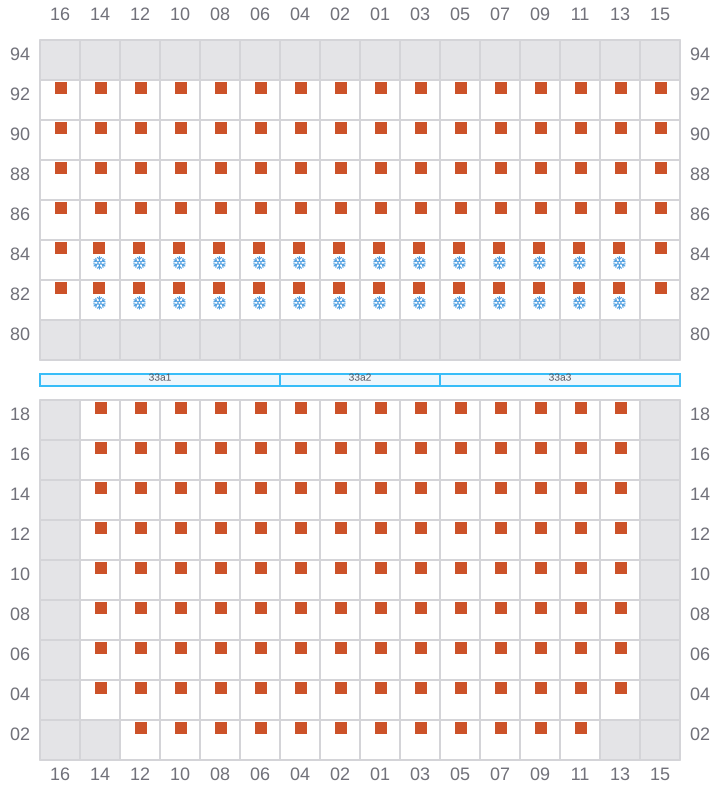

035
- ←
- → / ?
![Bay 035 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b035.png?v=1687543640213)
037 (038)
- →
![Bay 037 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b037.png?v=1687543640213)
039
- ←
- → / ?
![Bay 039 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b039.png?v=1687543640213)

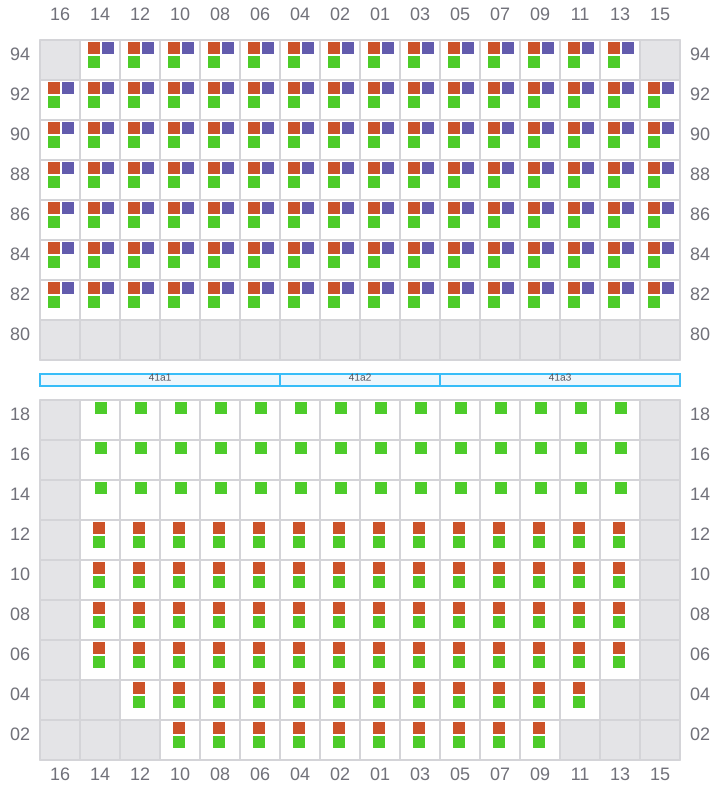

041 (042)
- →
![Bay 041 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b041.png?v=1687543640213)

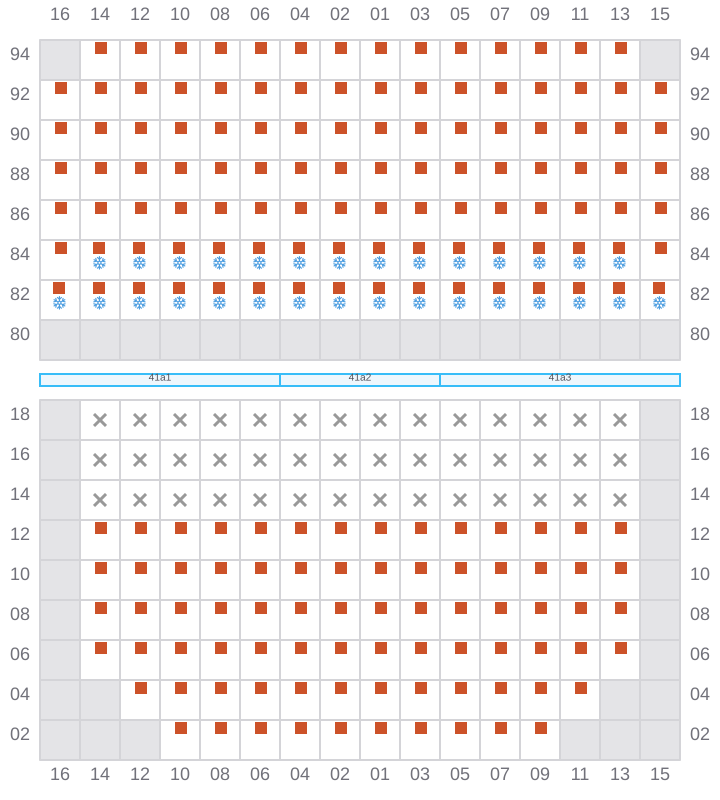

043
- ←
- → / ?
![Bay 043 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b043.png?v=1687543640213)

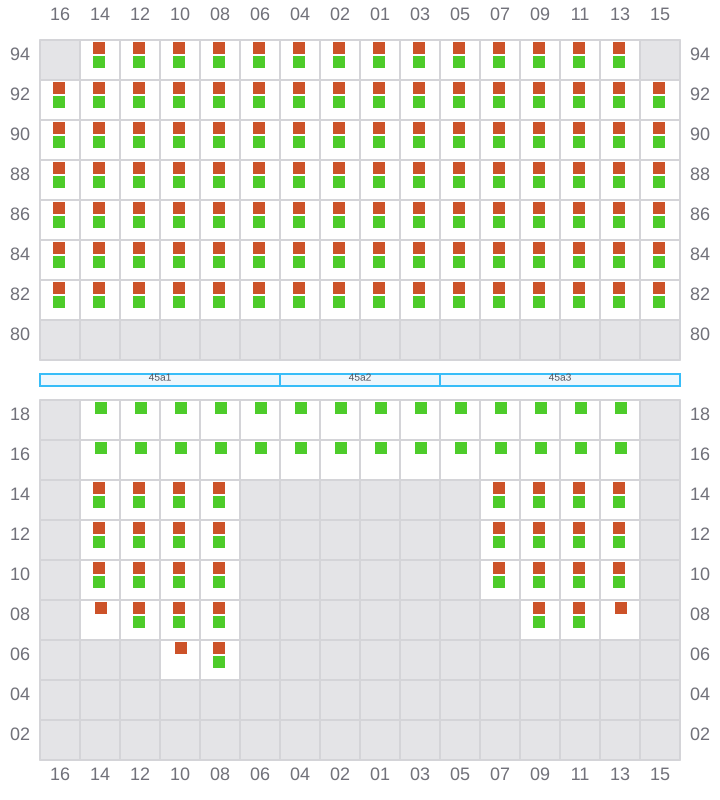

045 (046)
- →
![Bay 045 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b045.png?v=1687543640213)

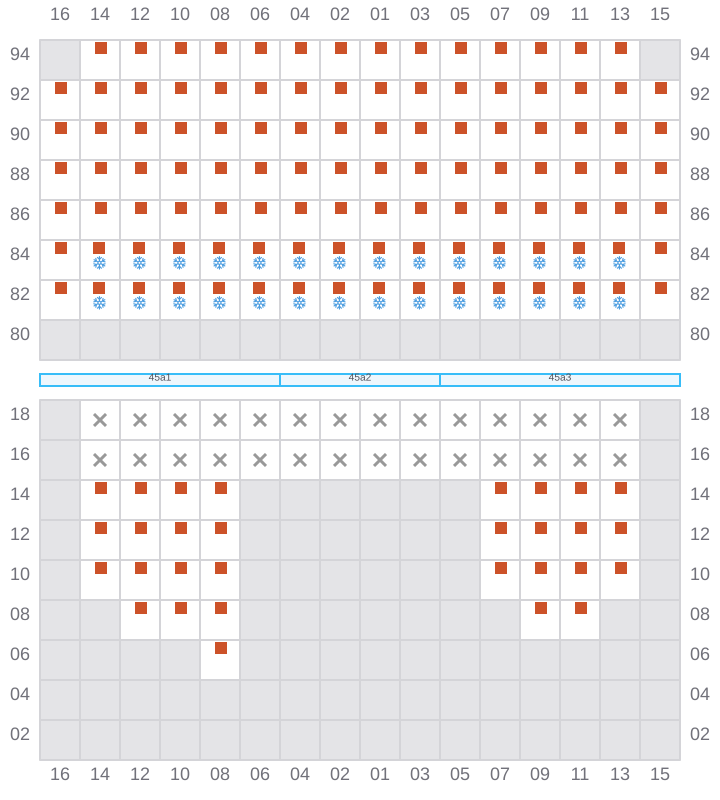

047
- ←
- → / ?
![Bay 047 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b047.png?v=1687543640213)

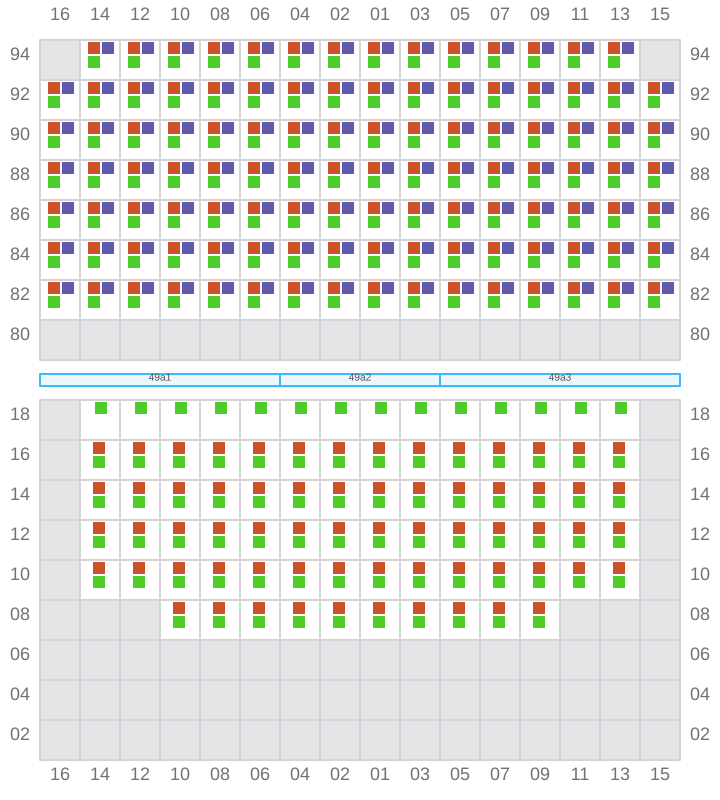

049 (050)
- →
![Bay 049 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b049.png?v=1687543640213)

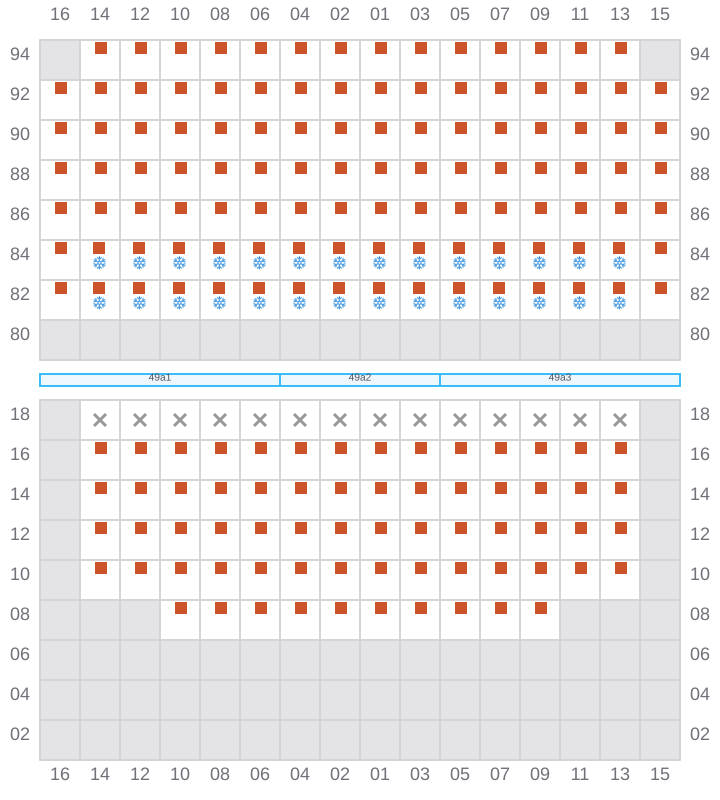

051
- ←
- → / ?
![Bay 051 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b051.png?v=1687543640213)

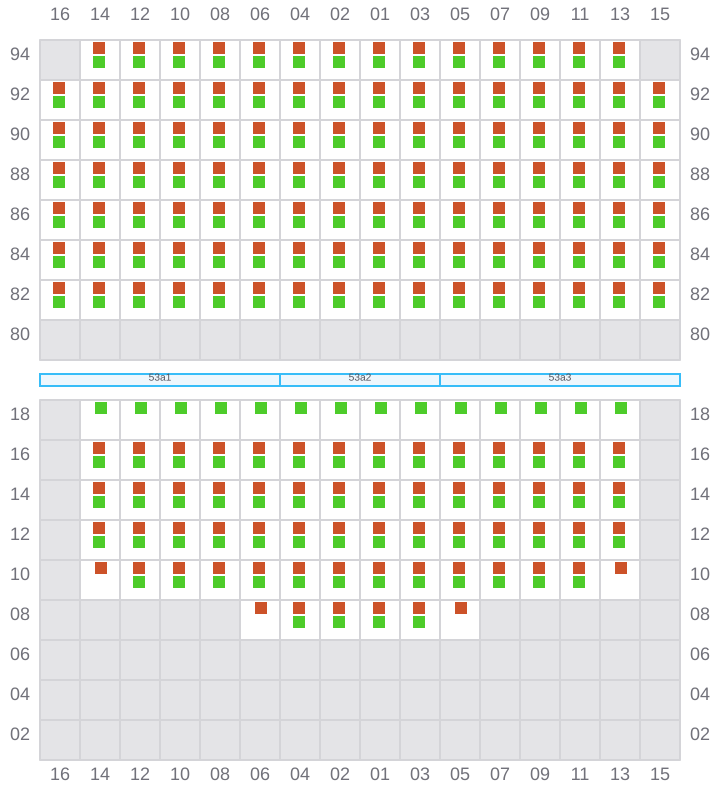

053 (054)
- →
![Bay 053 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b053.png?v=1687543640213)

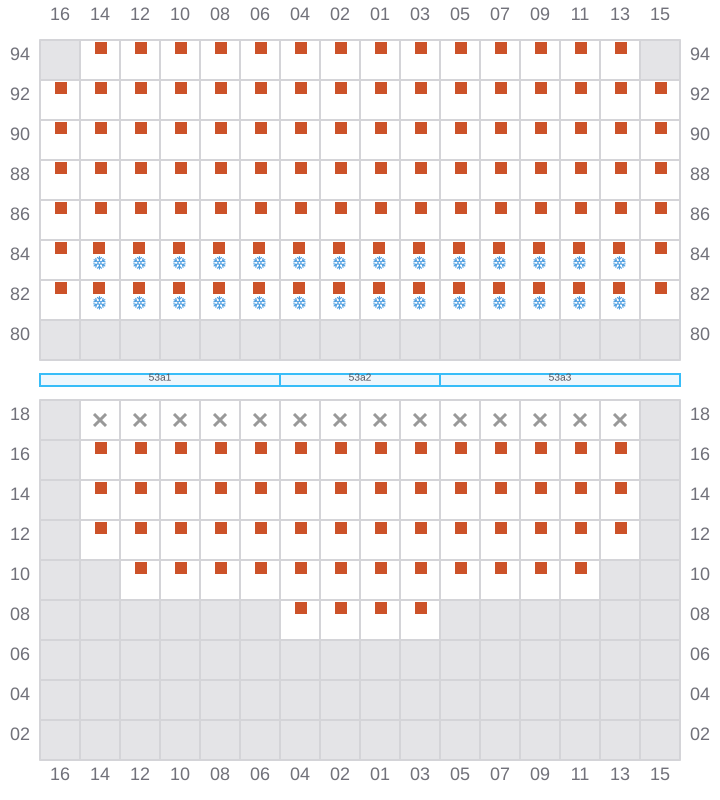

055
- ←
- → / ?
![Bay 055 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b055.png?v=1687543640213)

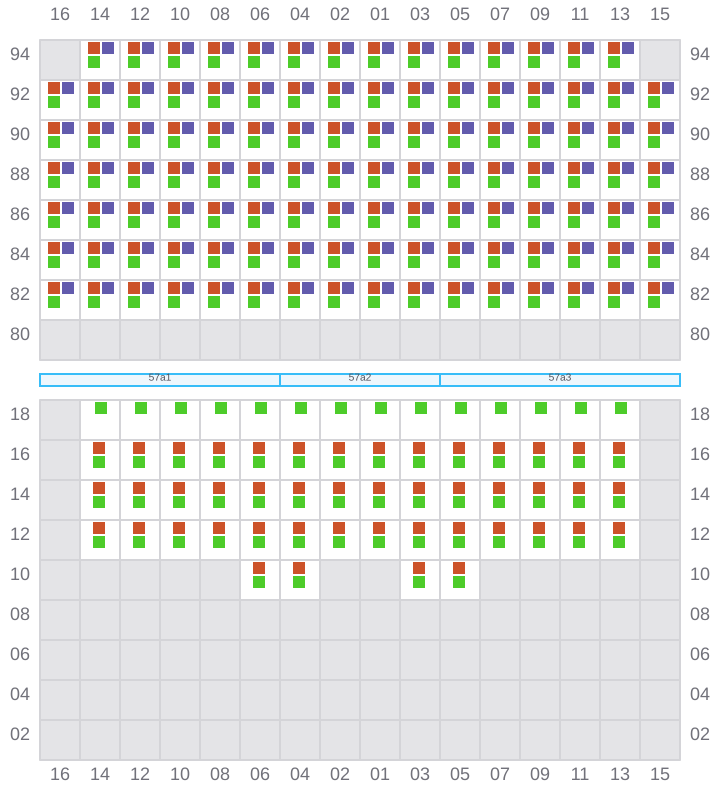

057 (058)
- →
![Bay 057 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b057.png?v=1687543640213)

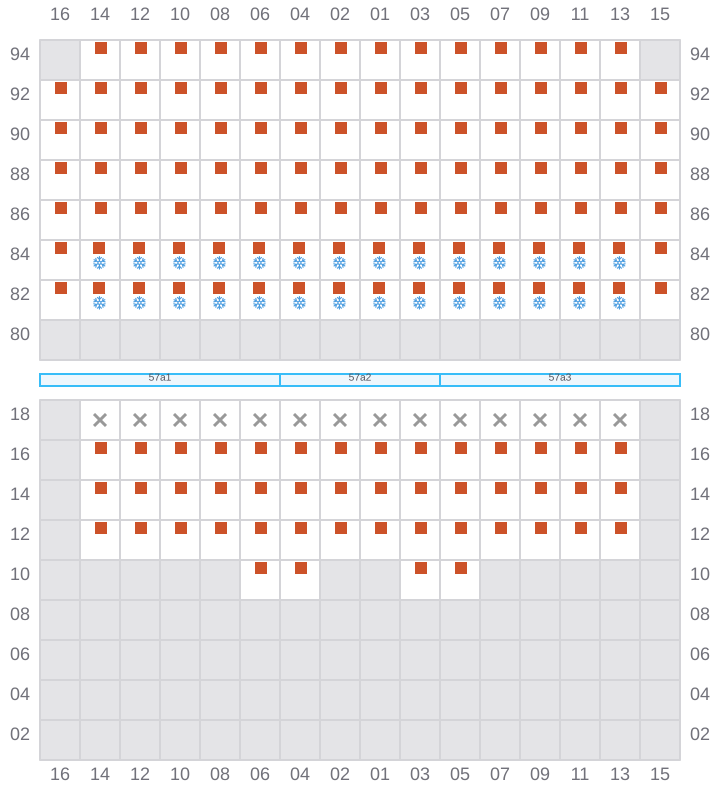

059
- ←
- → / ?
![Bay 059 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b059.png?v=1687543640213)

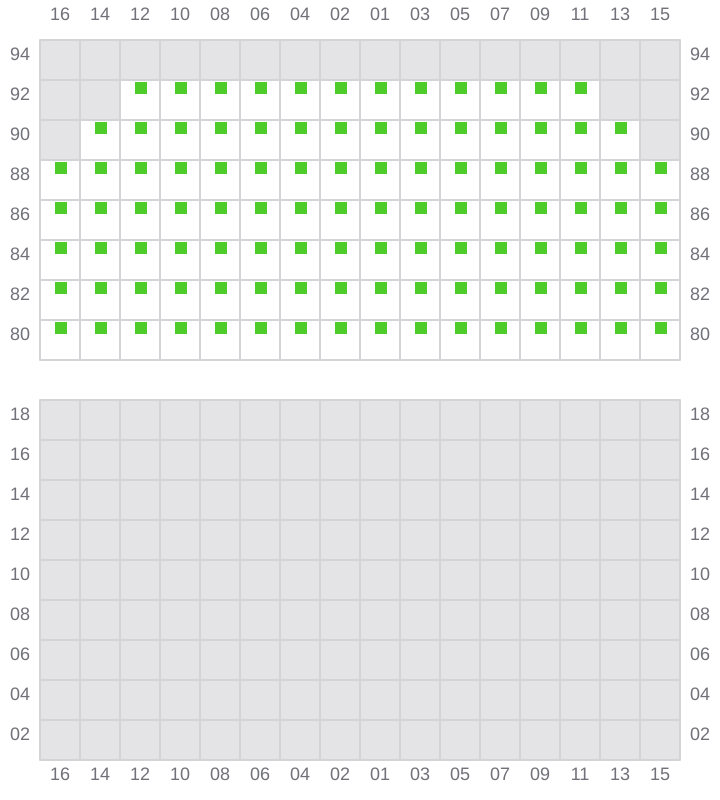

061 (062)
- → / ?
![Bay 061 view and slots of MSC KATYAYNI](/vessel-images/584ca424-7a50-49d4-a2e6-67380fa132a5-b061.png?v=1687543640213)
