MSC KAYLA
9242637 | D5PX6 | HLC by *********************** Last update: Wed Jan 15 2025
General Info
Ship Name:MSC KAYLA
IMO Code:9242637
Call Sign:D5PX6
Line Operator:HLC
Class Name for Sister Ships:FBVL
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,851
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

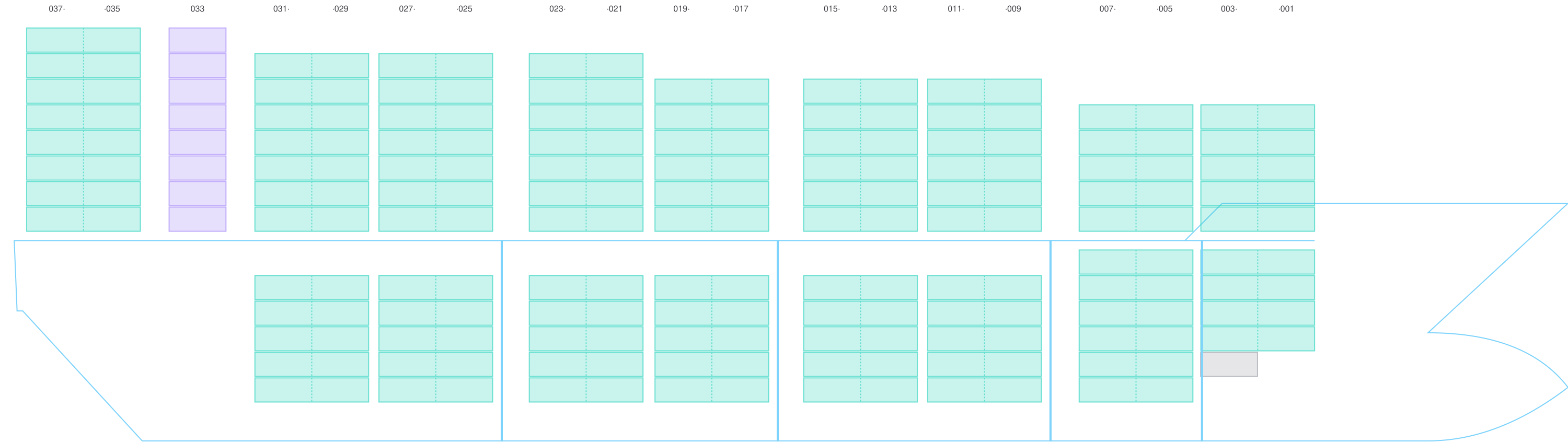

Side View
Hatch-Covers View

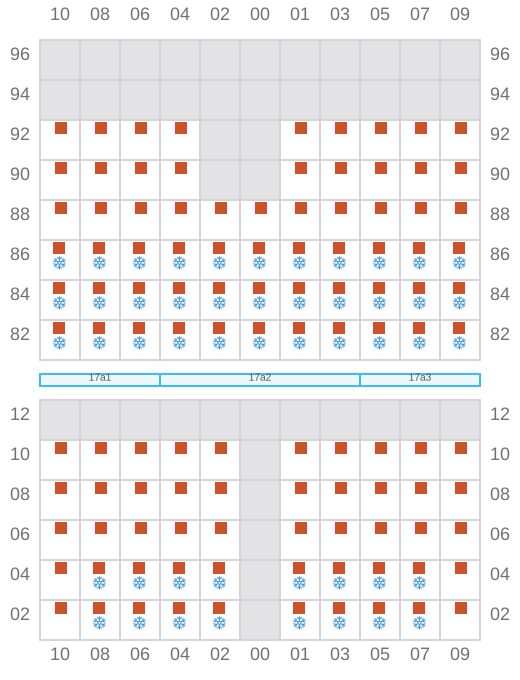

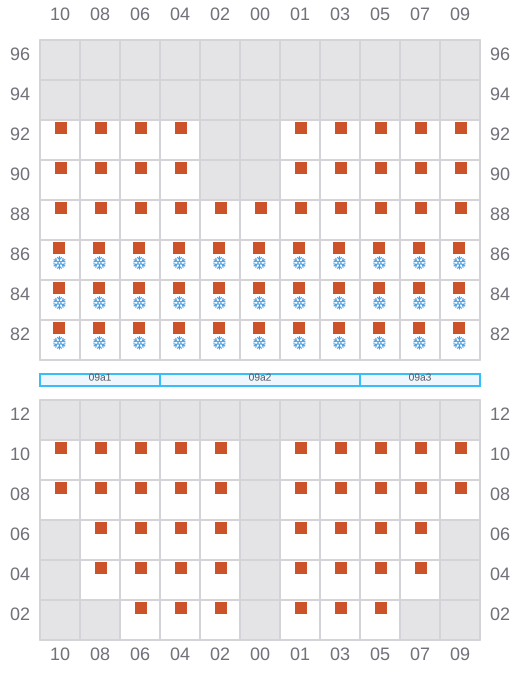

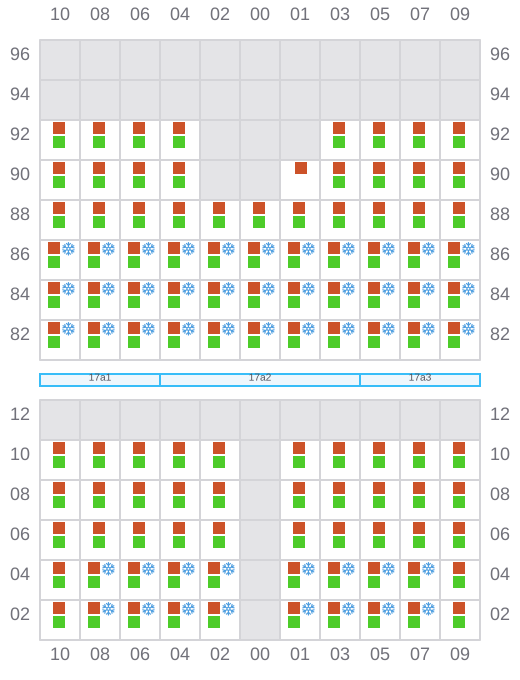

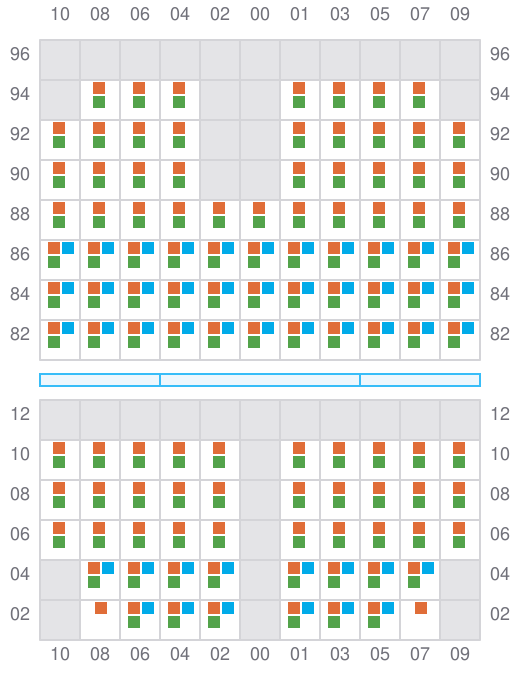

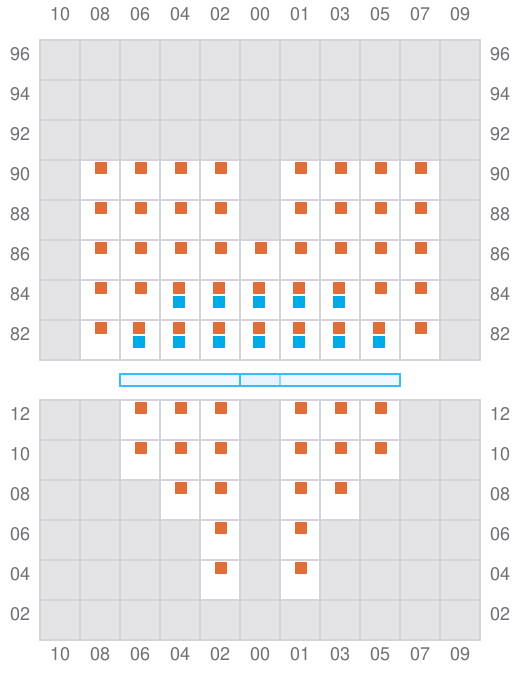

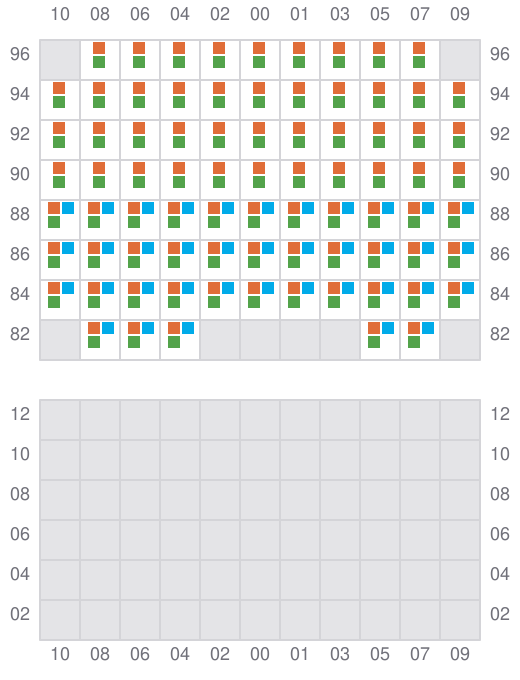

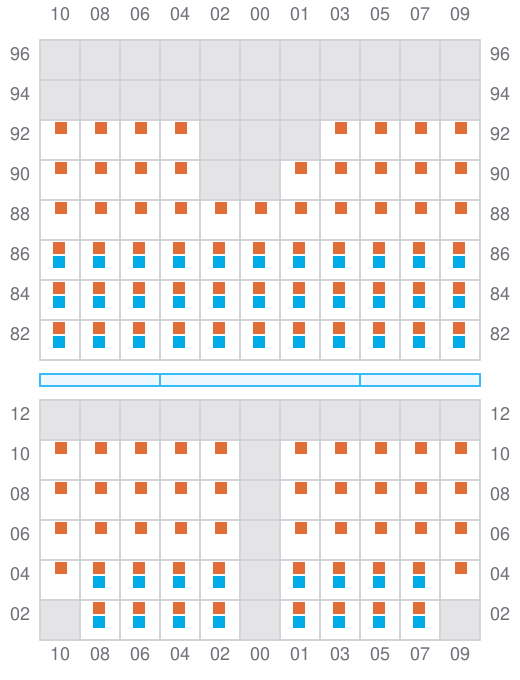

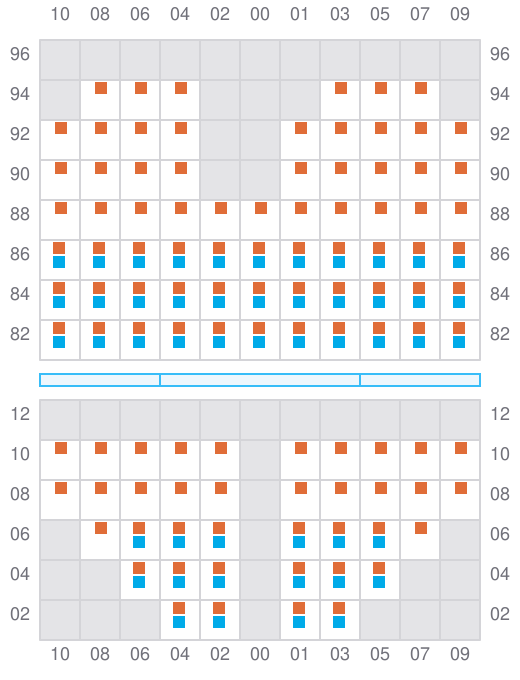

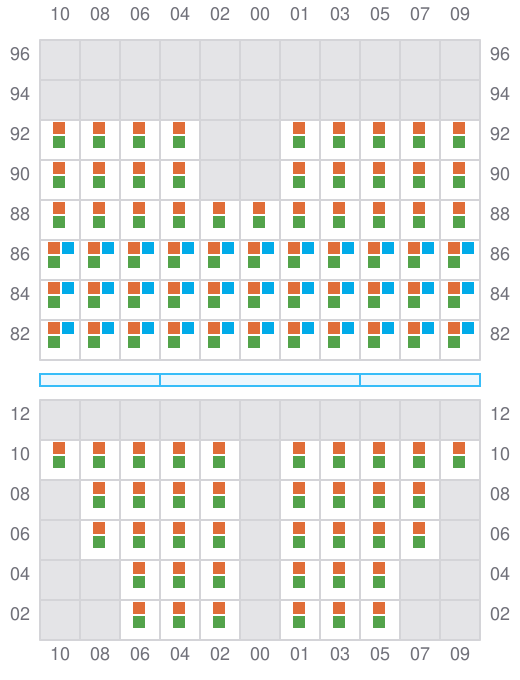

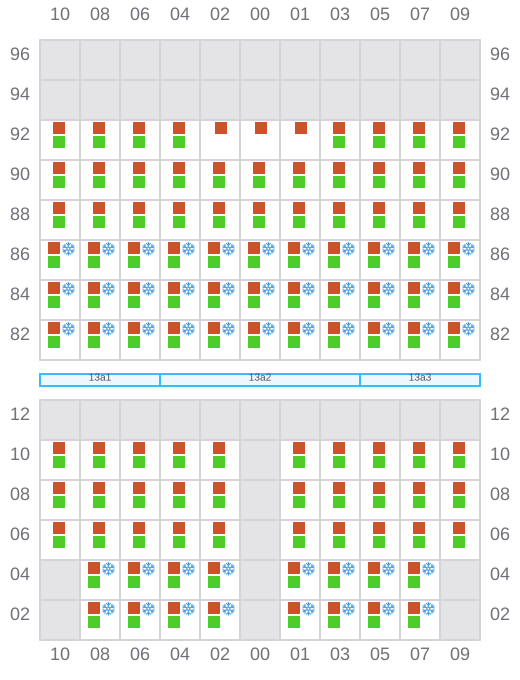

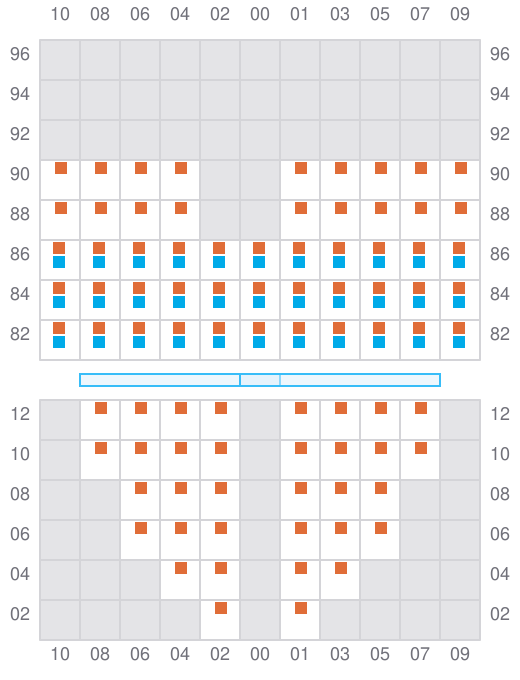

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

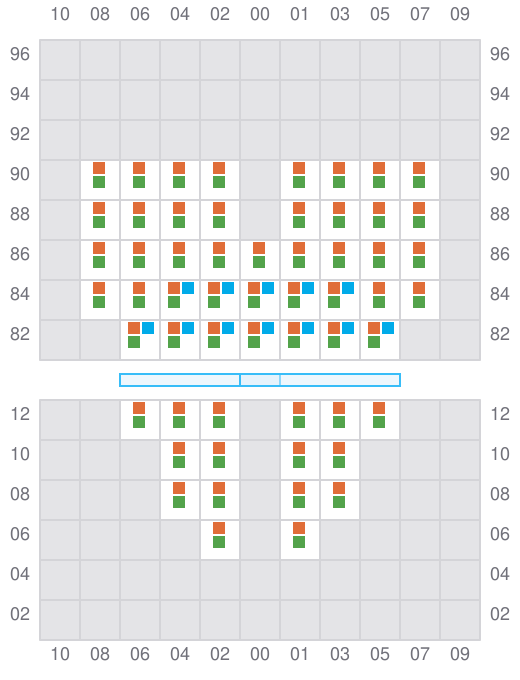

001 (002)
- →
- → / ?
- →
003
- ←
- → / ?
- →
005 (006)
- →
- → / ?
- →
007
- ←
- → / ?
- →

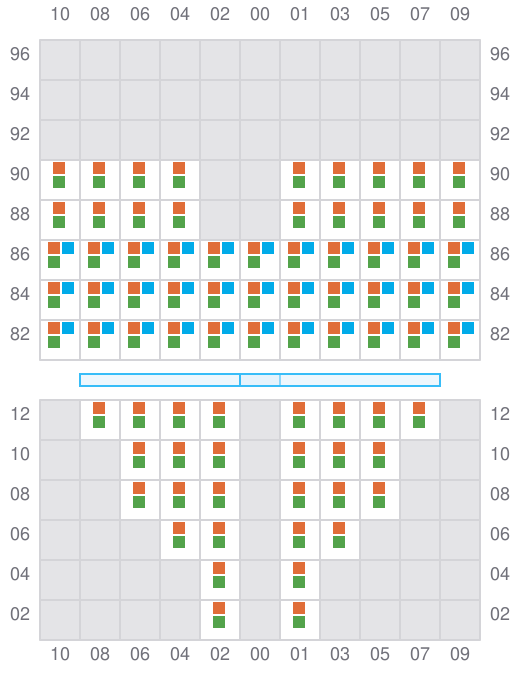

009 (010)
- →
- → / ?
- →
011
- ←
- → / ?
- →
013 (014)
- →
- →
015
- ←
- →
- →
017 (018)
- →
- → / ?
- →
019
- ←
- →
- →

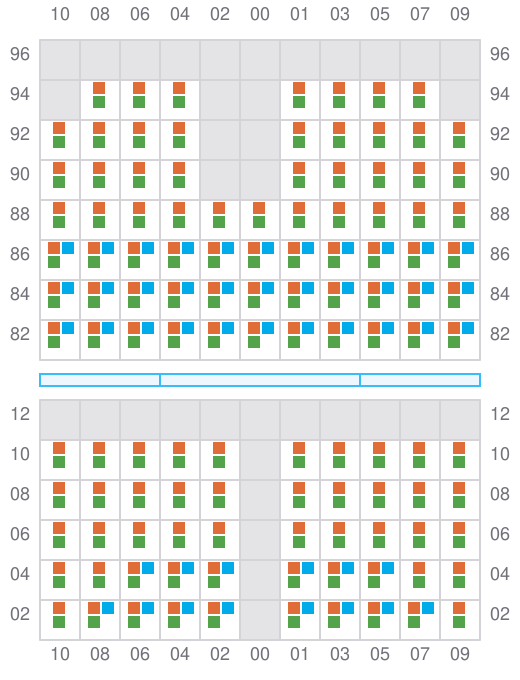

021 (022)
- →
- →
- →

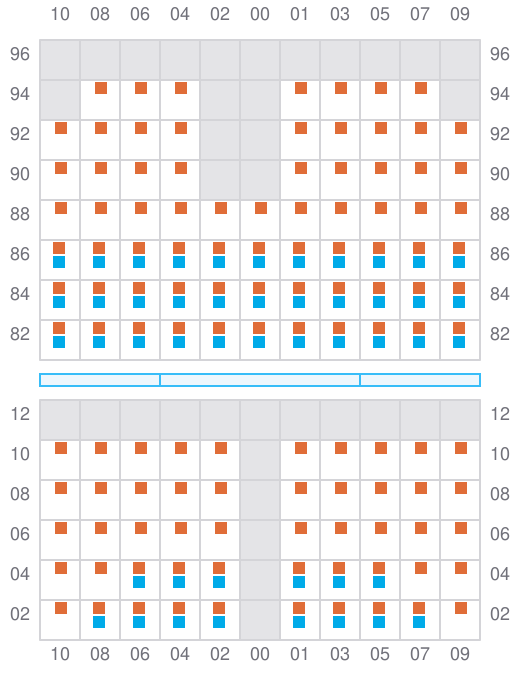

023
- ←
- → / ?
- →
025 (026)
- →
- →
- →
027
- ←
- ? / →
- →

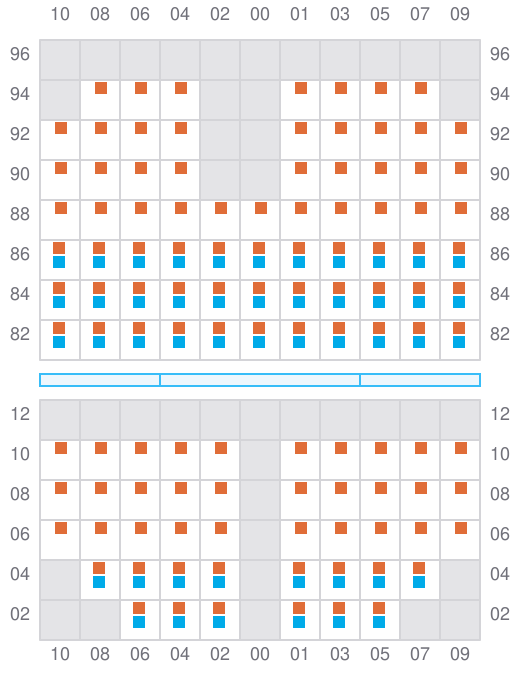

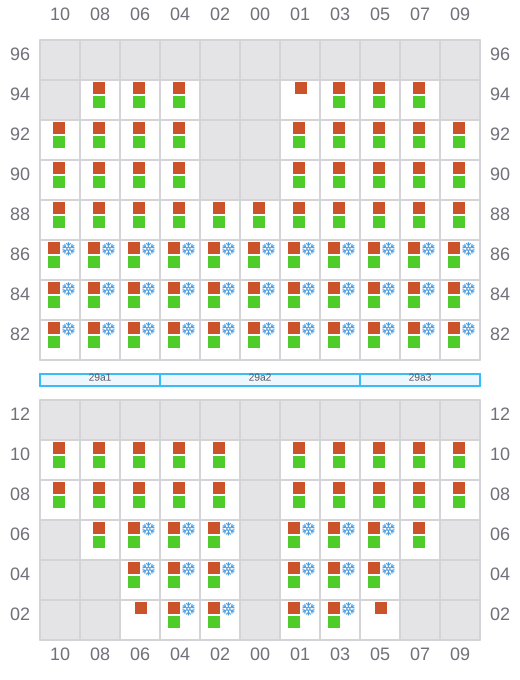

029 (030)
- →
- →
- →
031
- ←
- →
- →

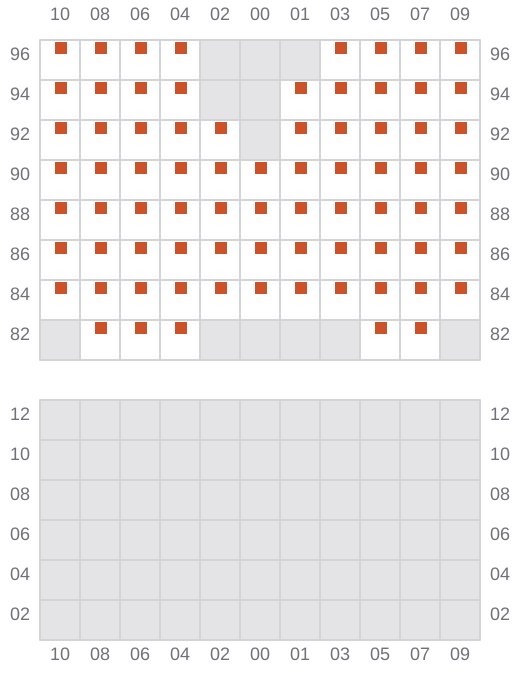

033
- → / ?
035 (036)
- → / ?
- → / ?
- → / ?

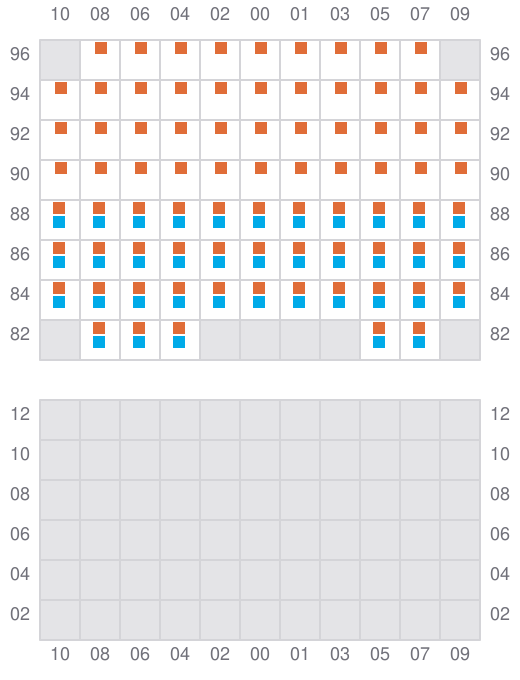

037
- ← / ?
- → / ?
- → / ?
