MSC KIM
9351581 | 3EPZ | MSC by ************************** Last update: Sun Jun 18 2023
General Info
Ship Name:MSC KIM
IMO Code:9351581
Call Sign:3EPZ
Line Operator:MSC
Class Name for Sister Ships:KIM
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,206
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

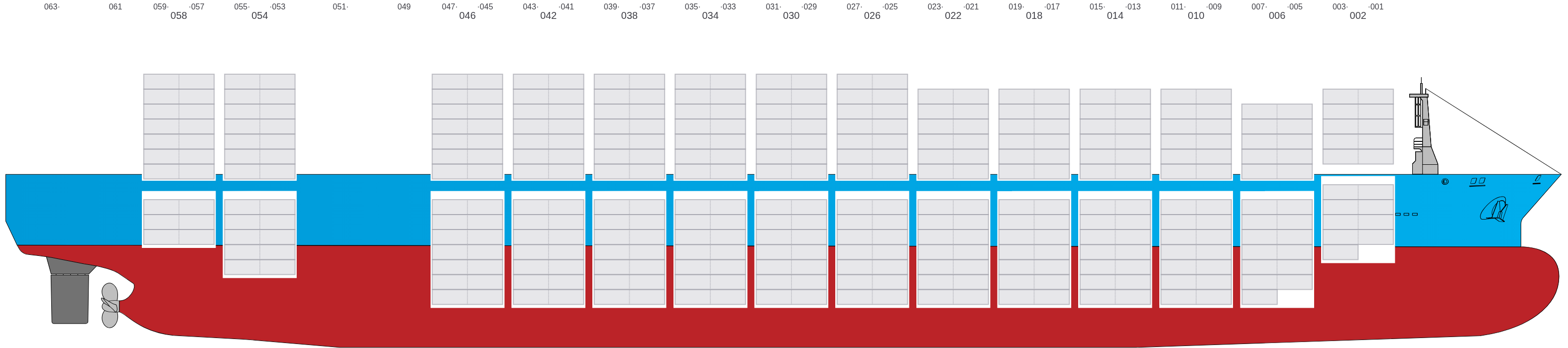

Side View
Hatch-Covers View

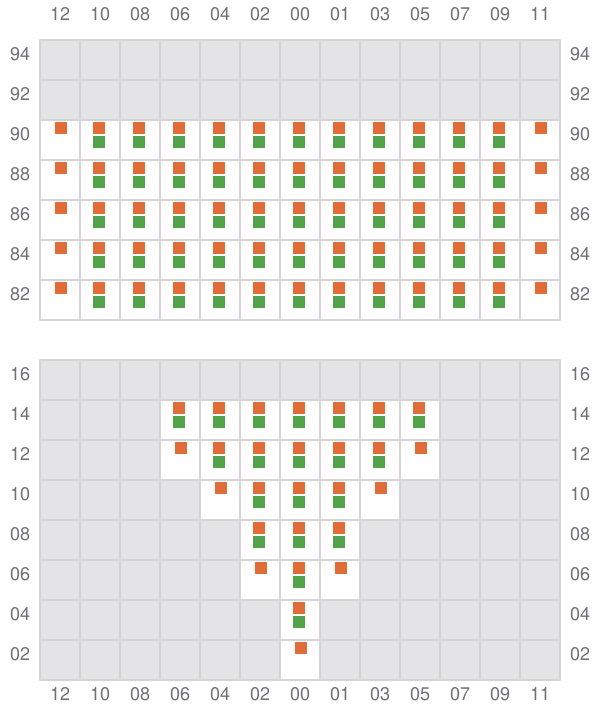

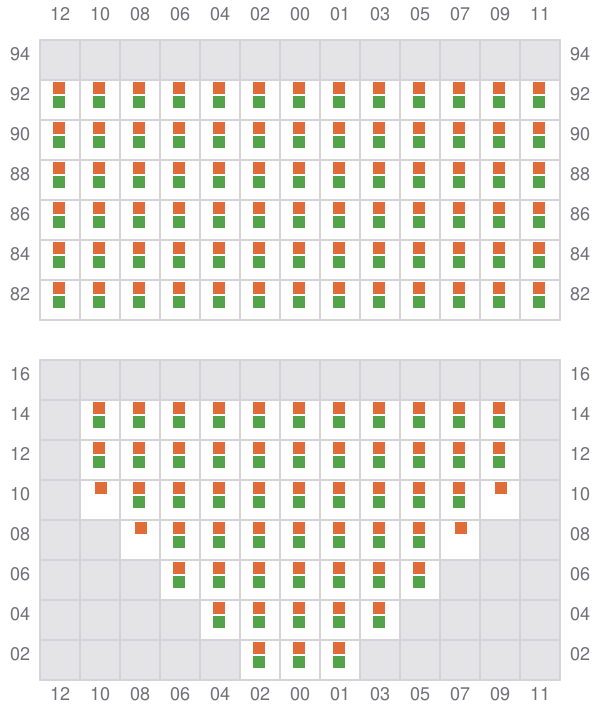

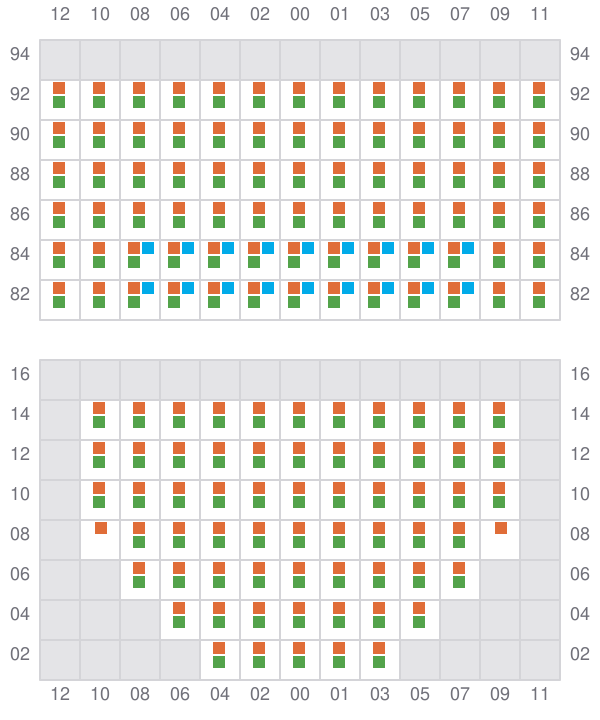

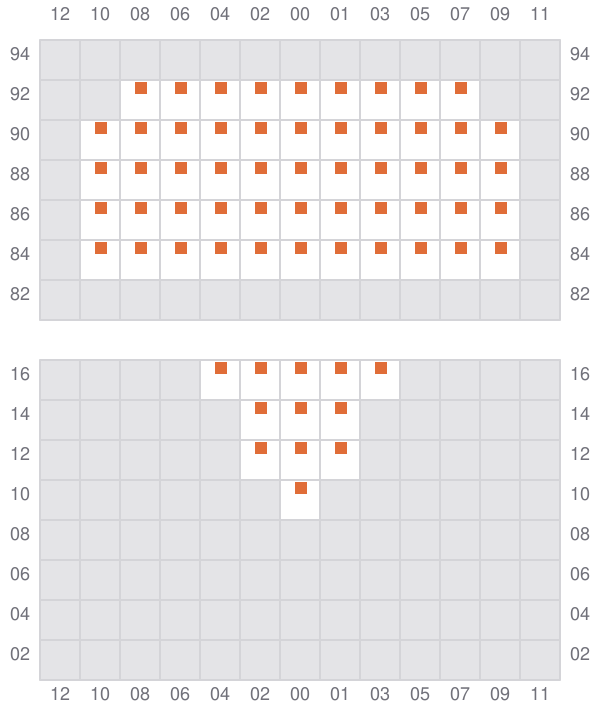

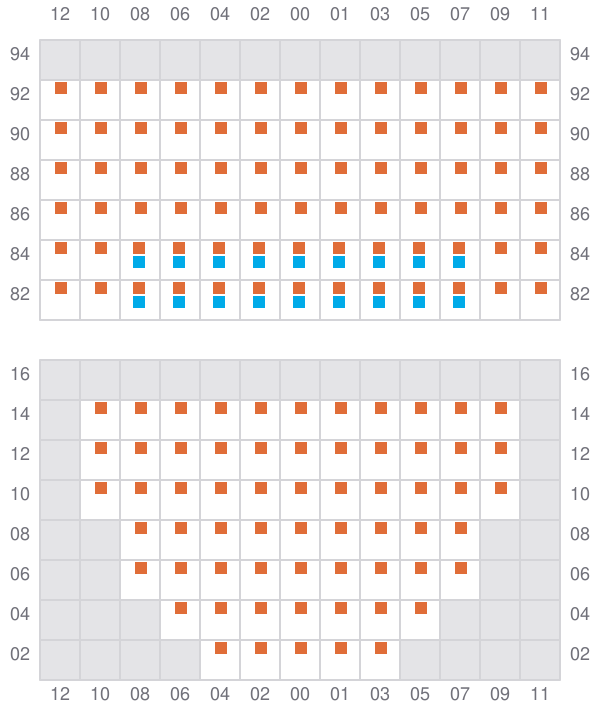

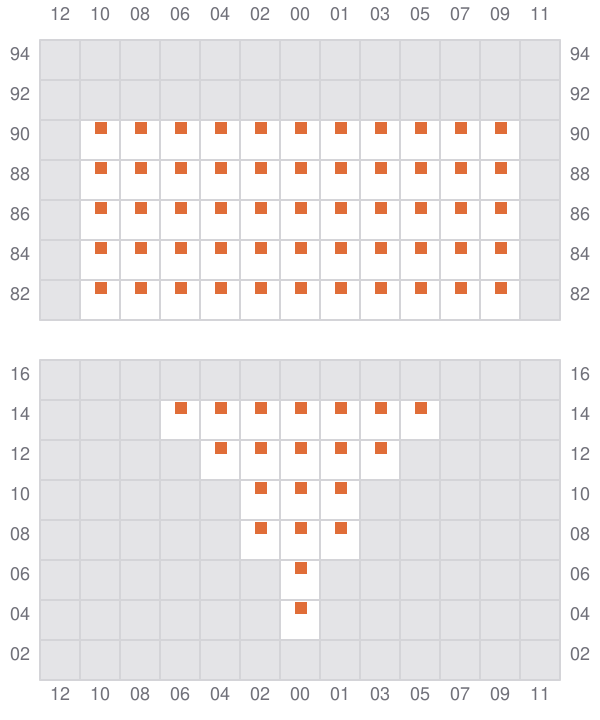

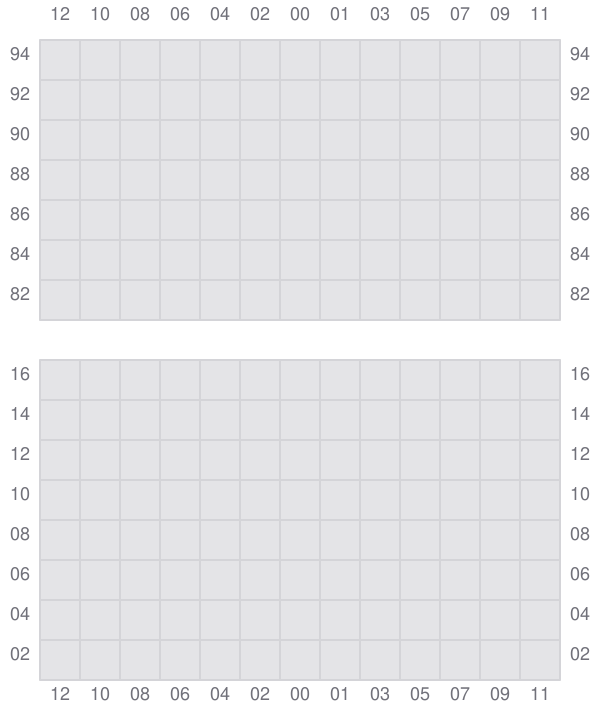

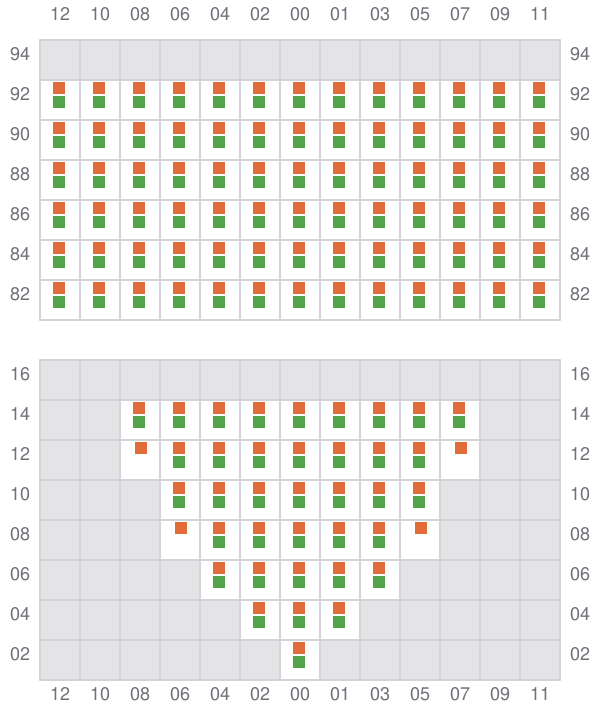

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

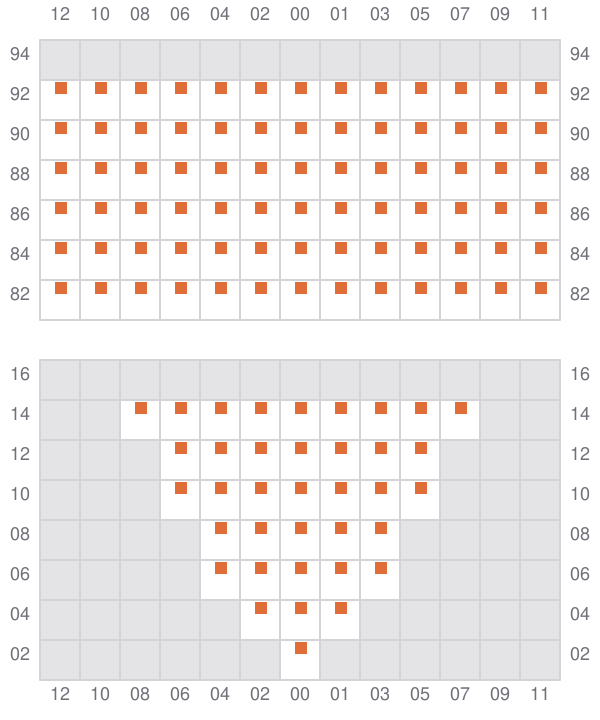

001
- →

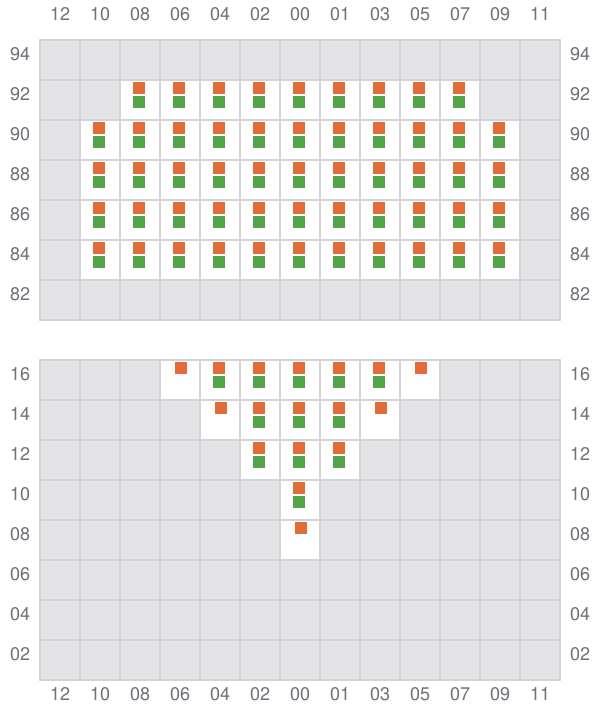

003 (002)
- ←
005
- →
007 (006)
- ←
009
- →
011 (010)
- ←

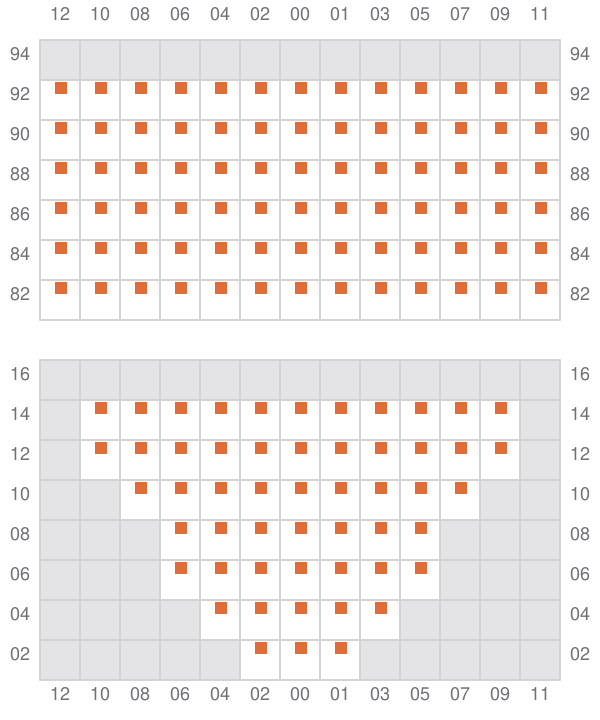

013
- →
015 (014)
- ←
017
- →
019 (018)
- ←

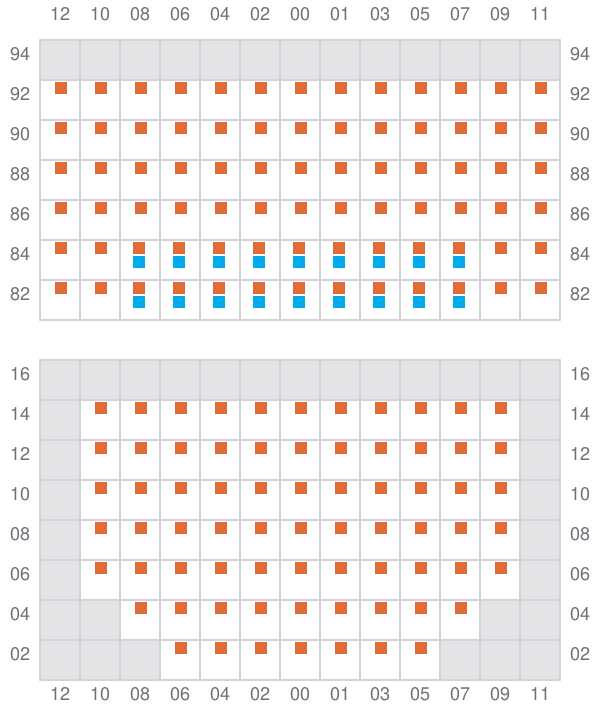

021
- →

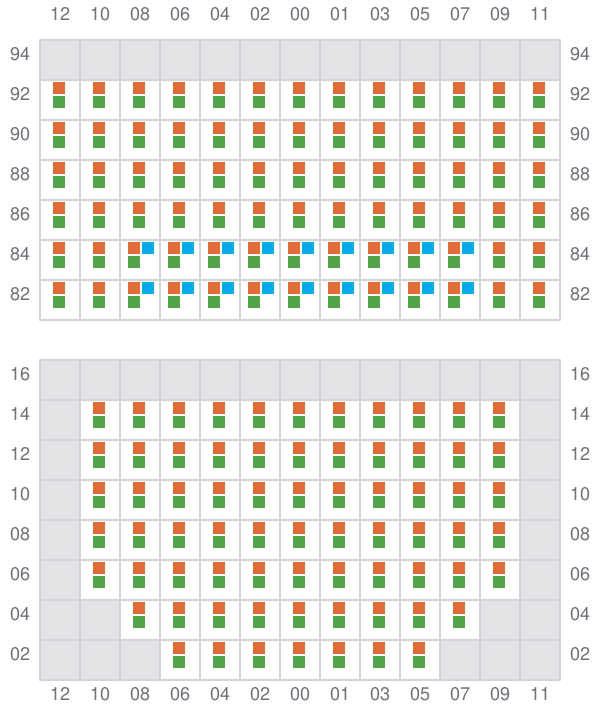

023 (022)
- ←

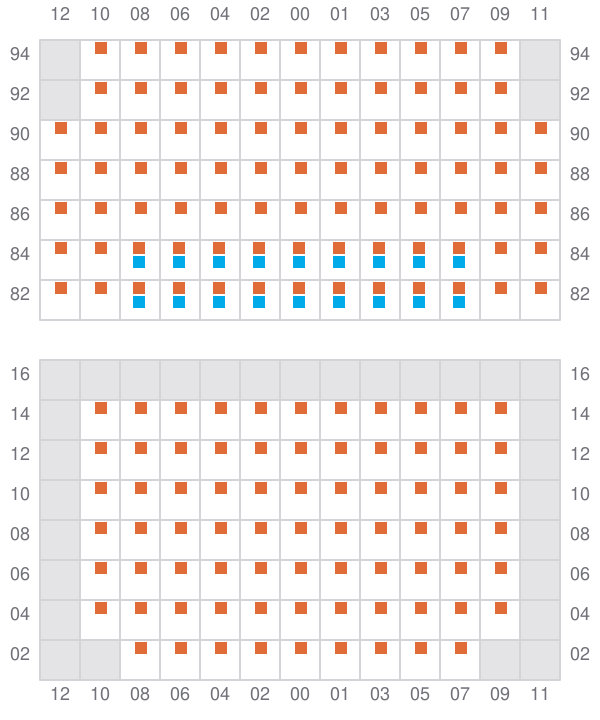

025
- →
027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →

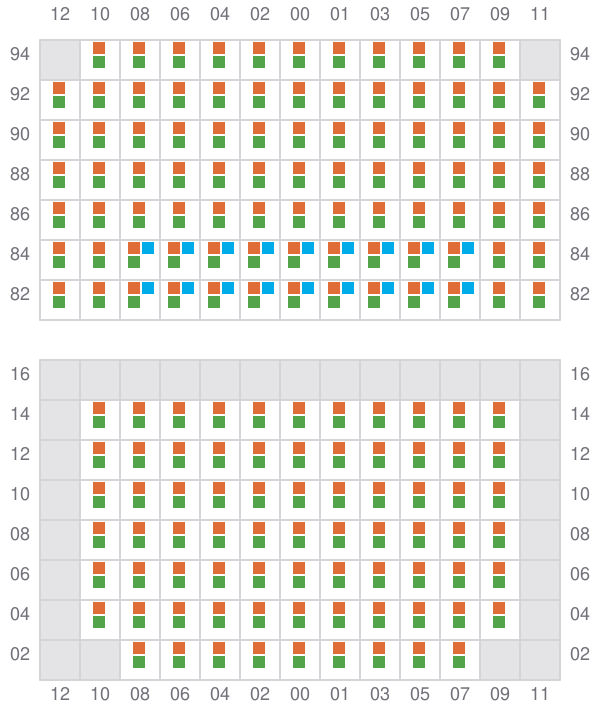

039 (038)
- ←

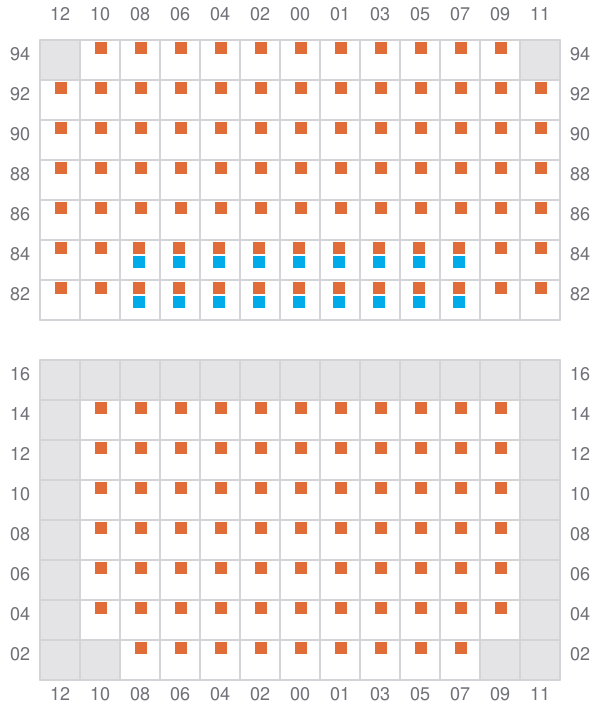

041
- →
043 (042)
- ←

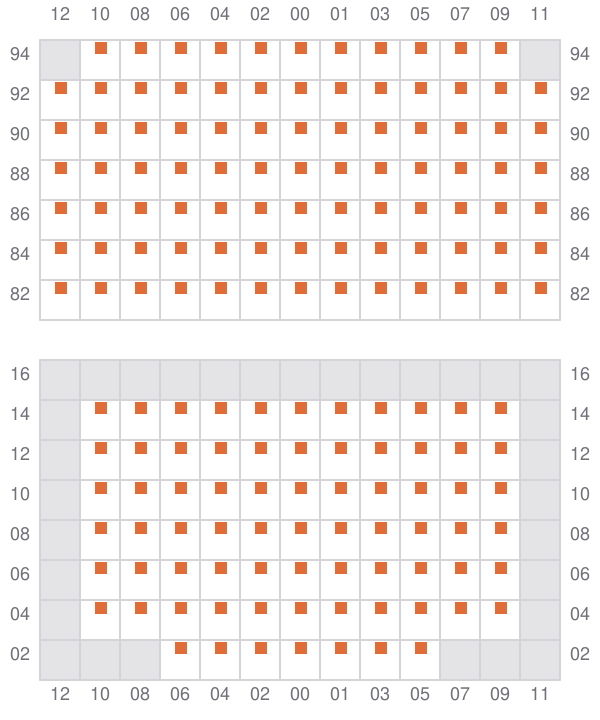

045
- →

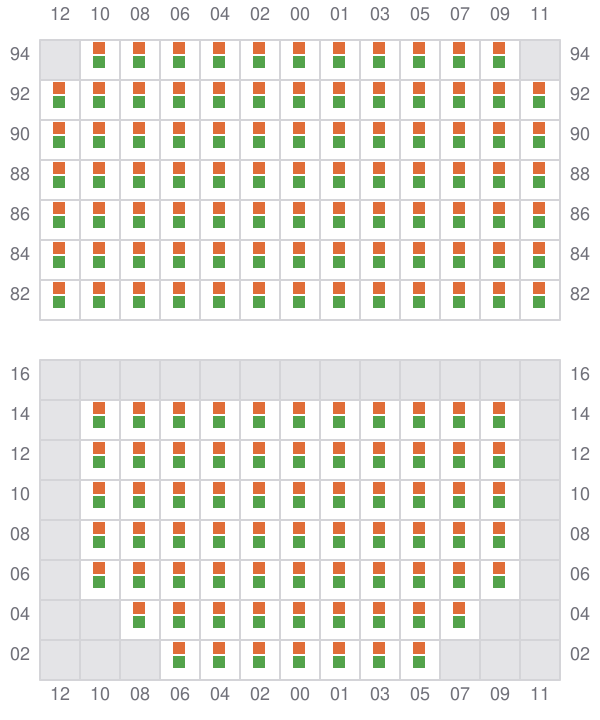

047 (046)
- ←
049
051 (050)
- ← / ?

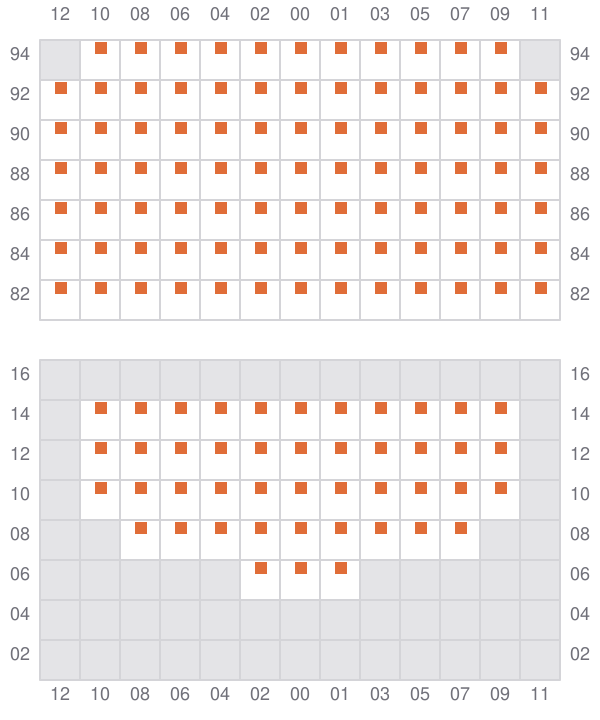

053
- →

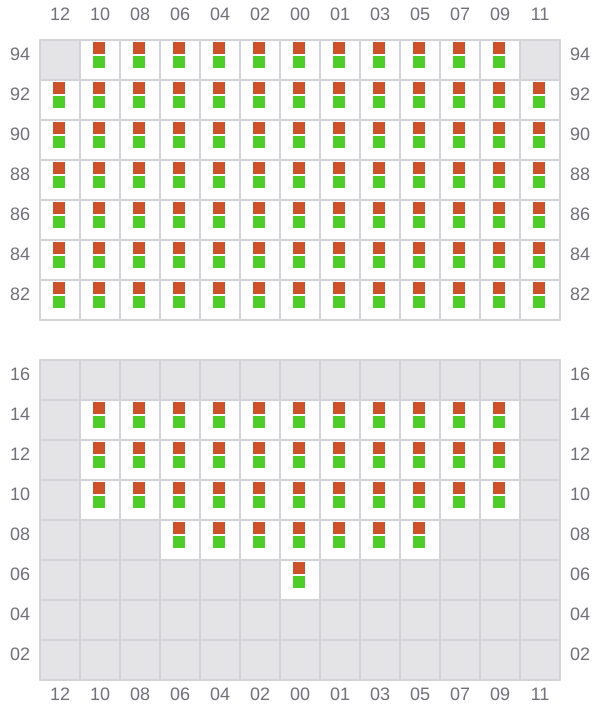

055 (054)
- ←

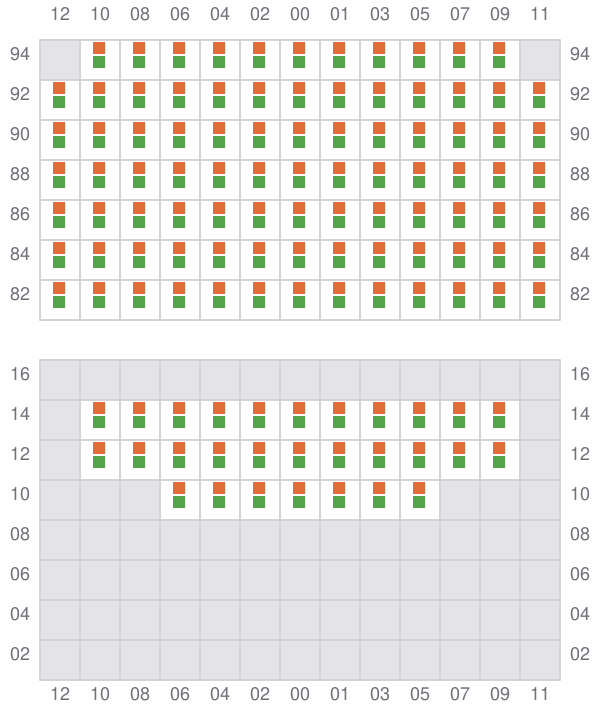

057
- →
059 (058)
- ←
061
063 (062)
- ← / ?
