MSC KRITTIKA
9051507 | H3RV | 9051507 by ********* Last update: Tue Jun 25 2024
General Info
Ship Name:MSC KRITTIKA
IMO Code:9051507
Call Sign:H3RV
Line Operator:9051507
Class Name for Sister Ships:MSC
Year Built:1994
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:043
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,380
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

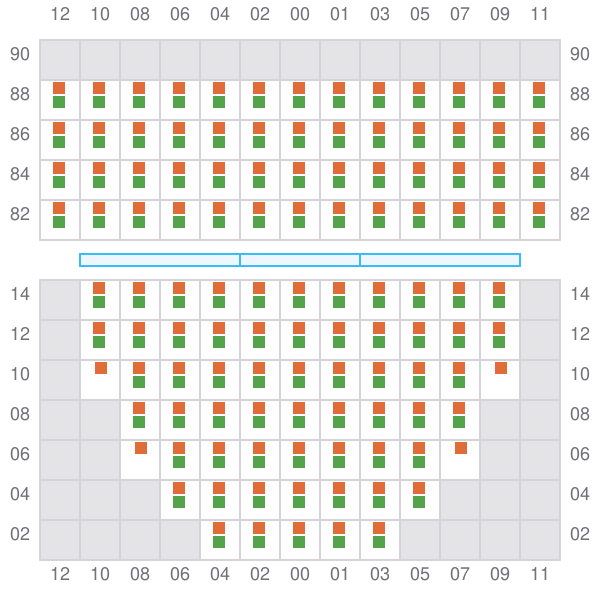

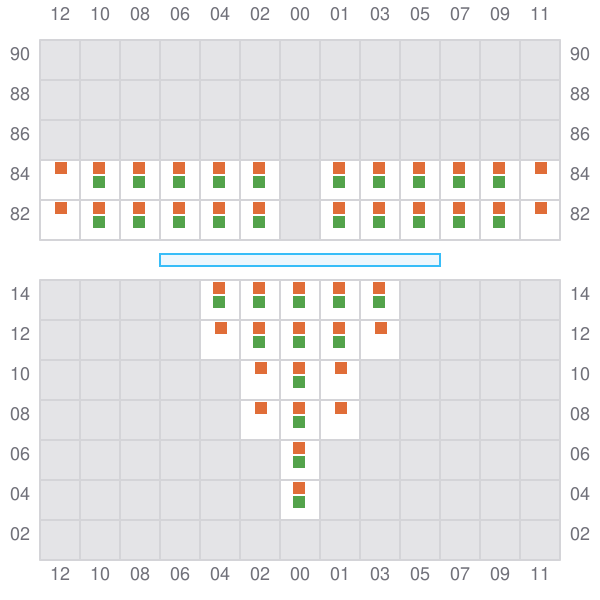

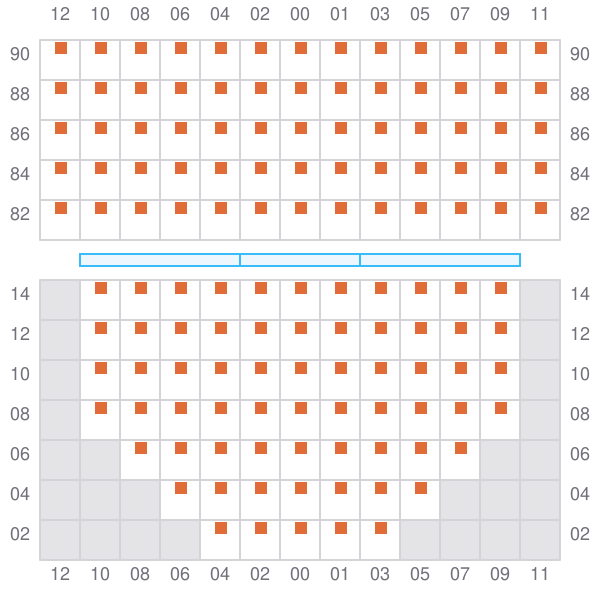

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

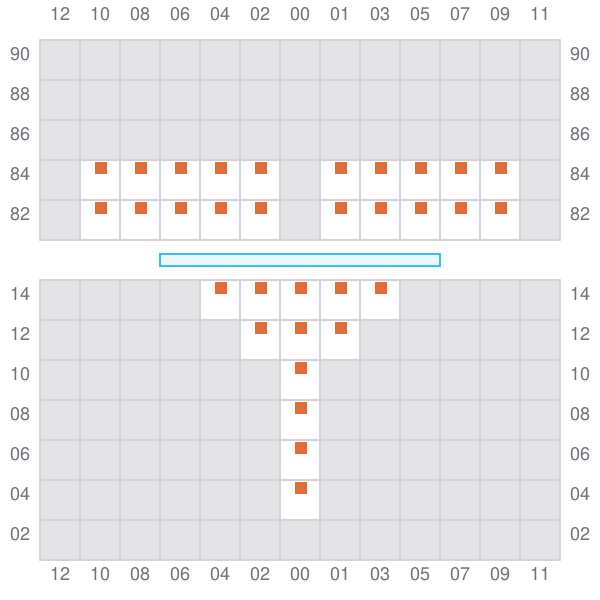

001
- →
003 (002)
- ←

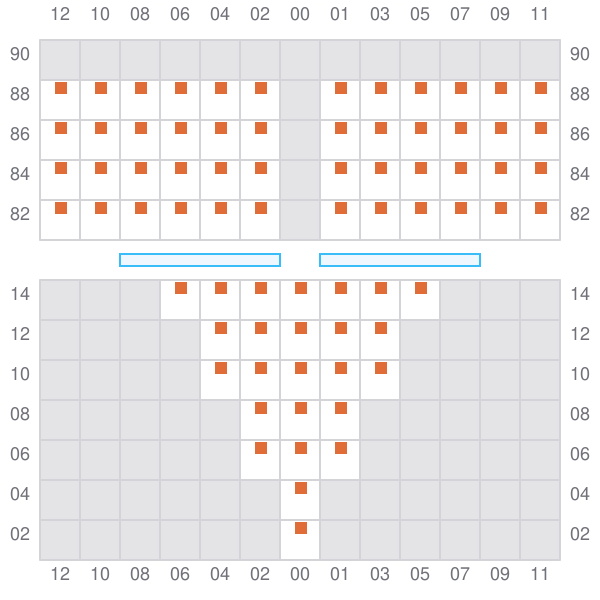

005
- →

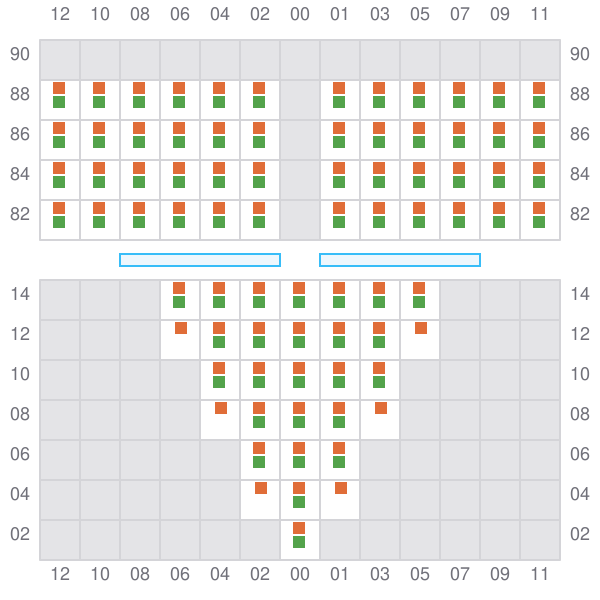

007 (006)
- ←

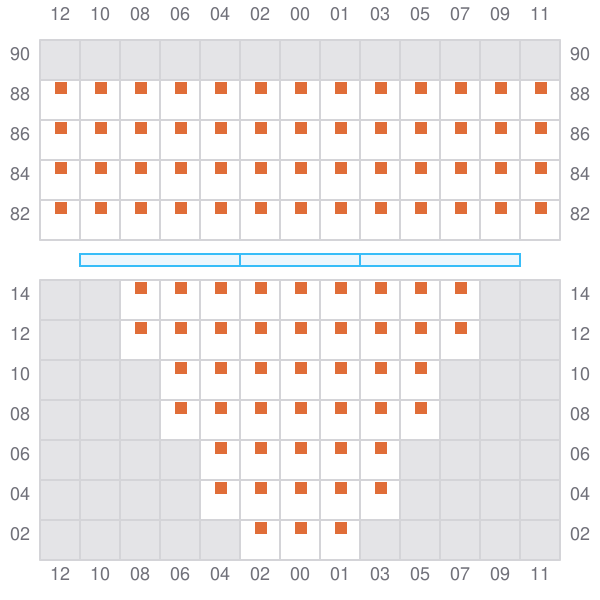

009
- →

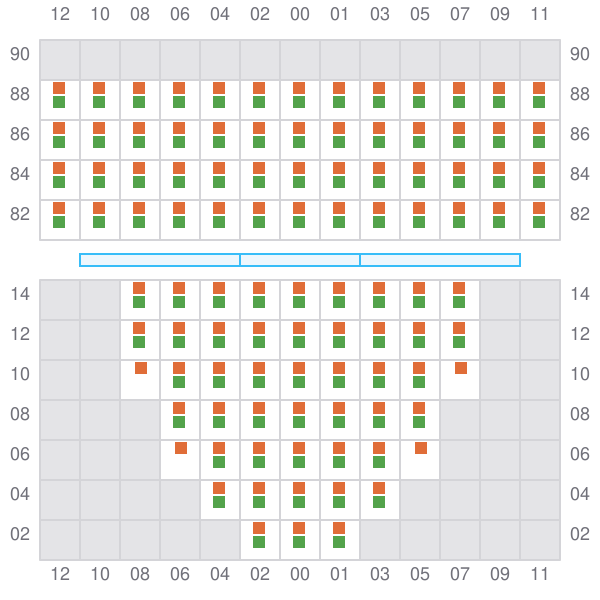

011 (010)
- ←

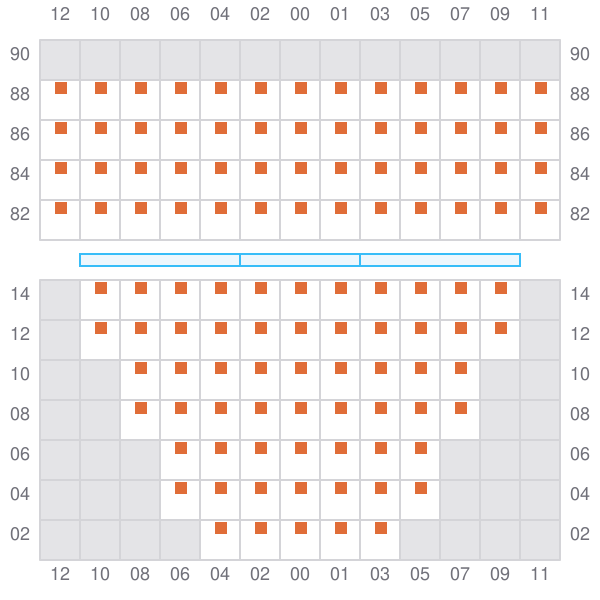

013
- →
015 (014)
- ←

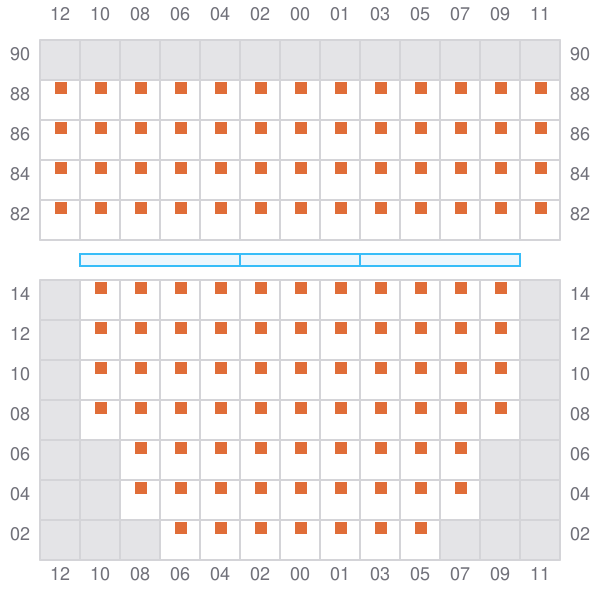

017
- →

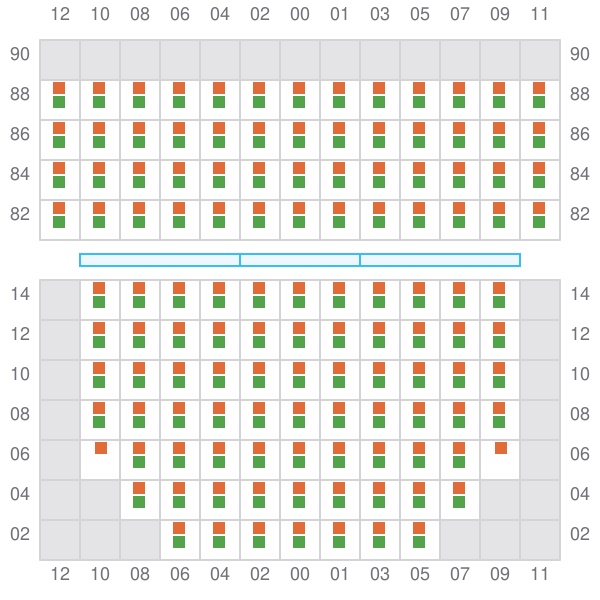

019 (018)
- ←

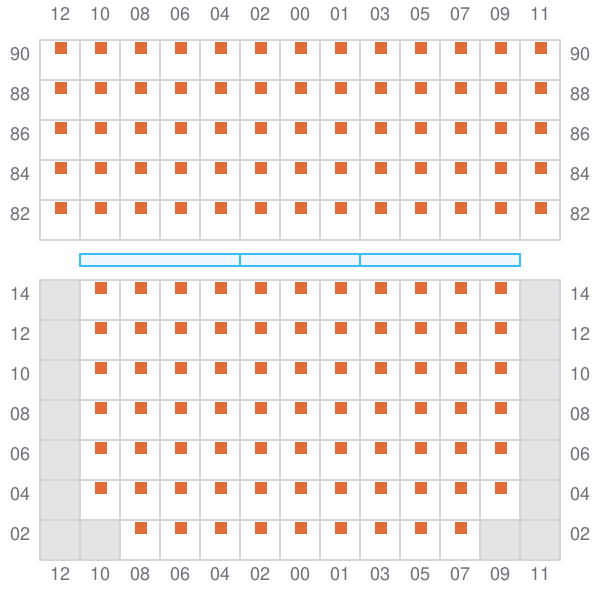

021
- →
023 (022)
- ←
025
- →
027 (026)
- ←
029
- →

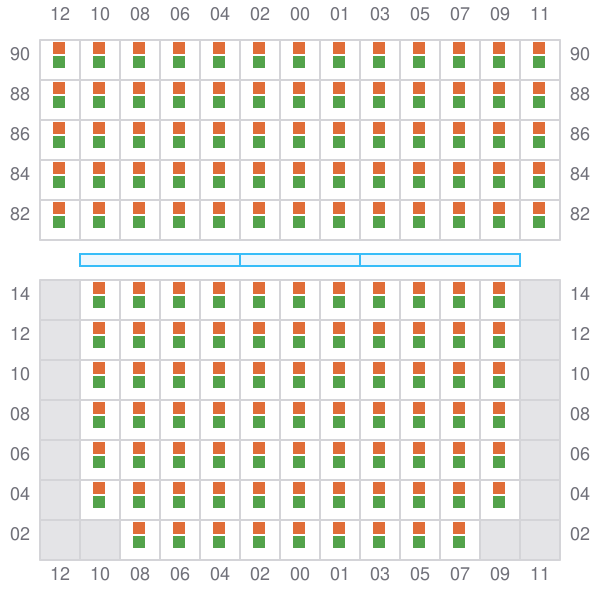

031 (030)
- ←
033
- →

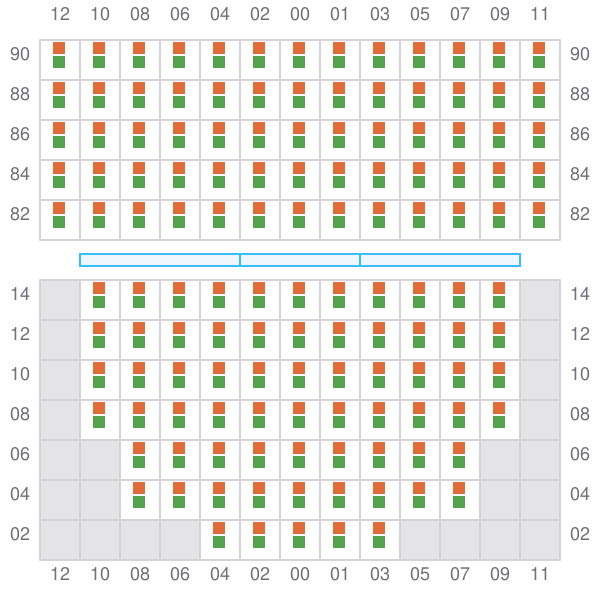

035 (034)
- ←
037
- →

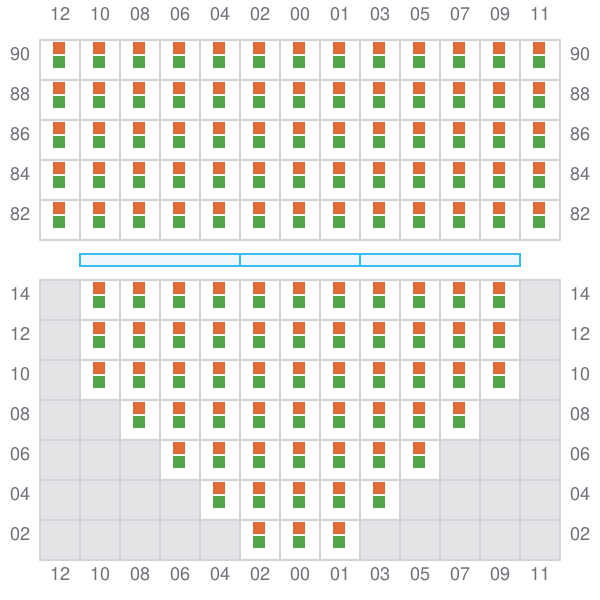

039 (038)
- ←

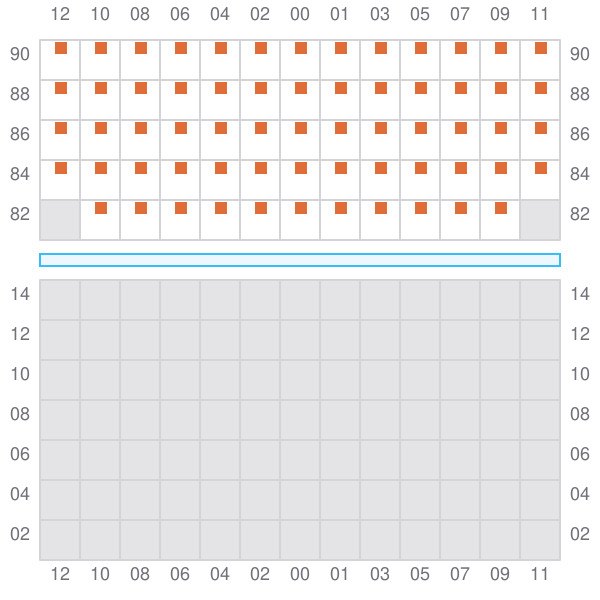

041
- → / ?

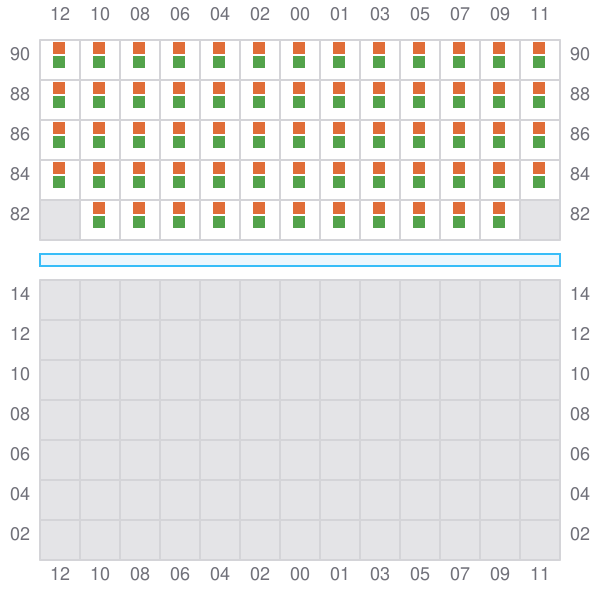

043 (042)
- ← / ?
