MSC LANA II
9193719 | D50S9 | SAF by ************* Last update: Thu Jun 29 2023

General Info

Ship Name:MSC LANA II
IMO Code:9193719
Call Sign:D50S9
Line Operator:SAF
Class Name for Sister Ships:MEM
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:1,861

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

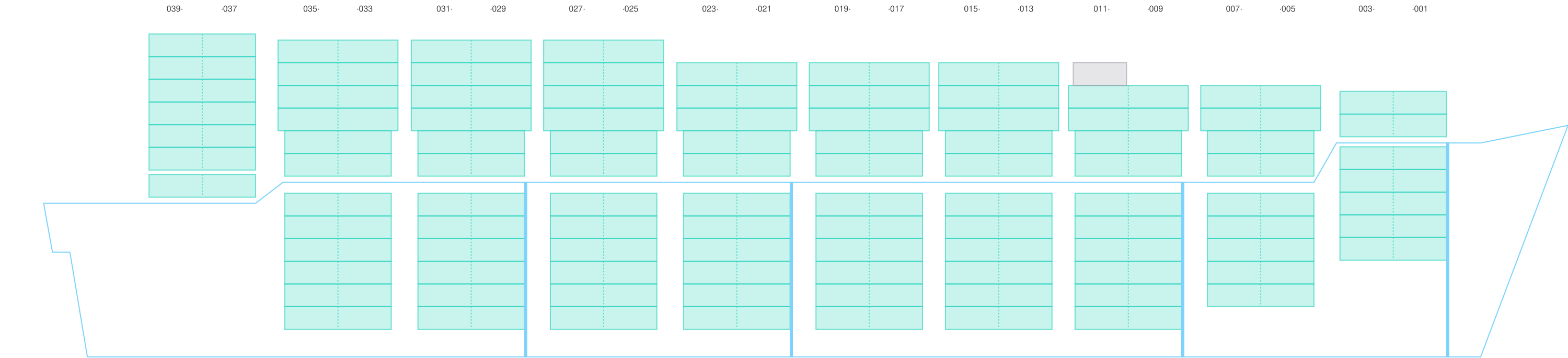

Side view of MSC LANA II

Hatch-Covers View

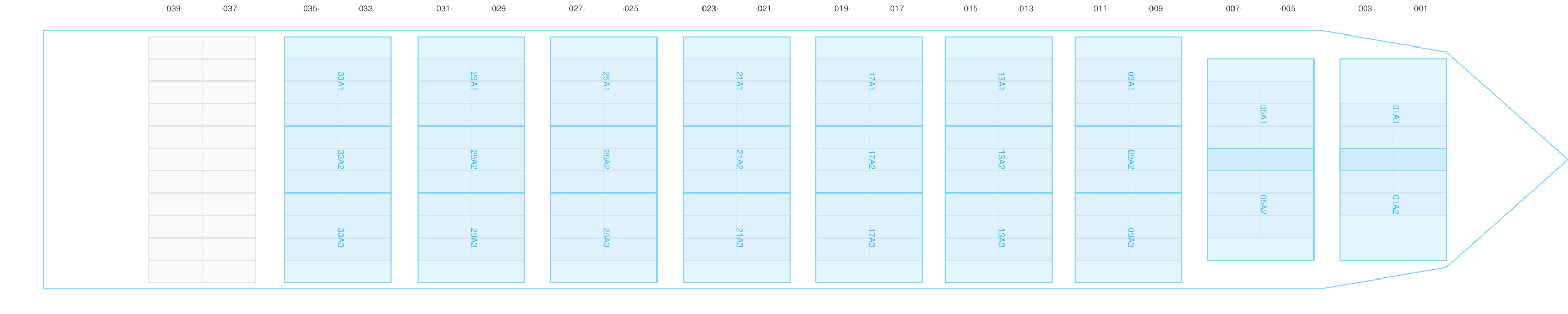

Deck view of MSC LANA II

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

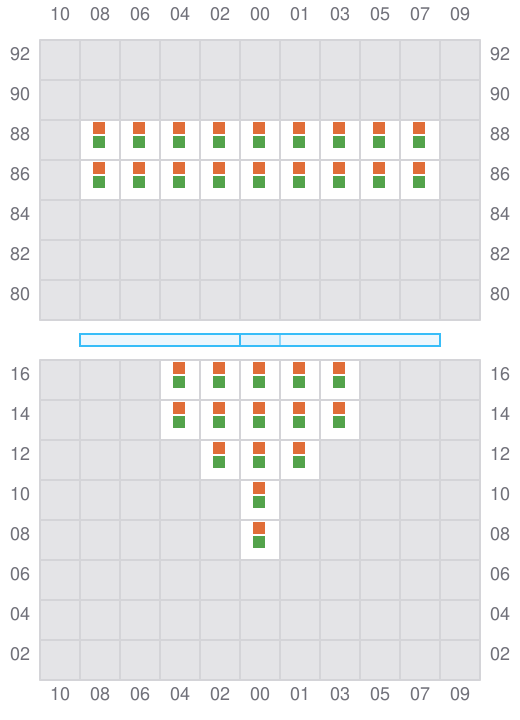

Bay 001 view and slots of MSC LANA II

003

  • ←

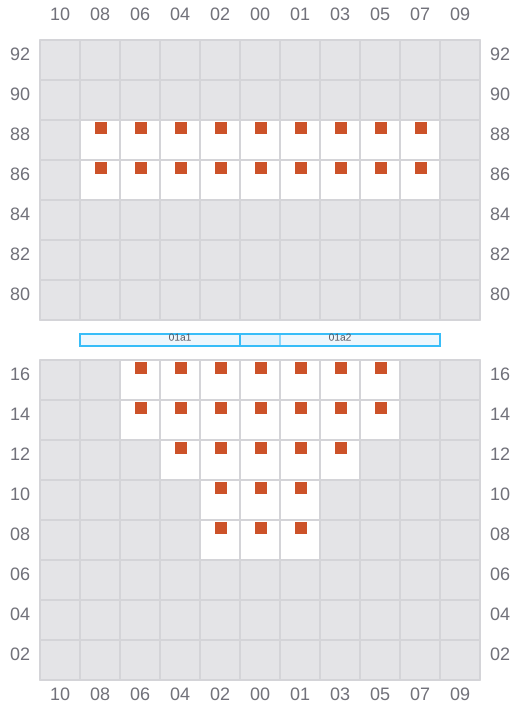

Bay 003 view and slots of MSC LANA II

005 (006)

  • →

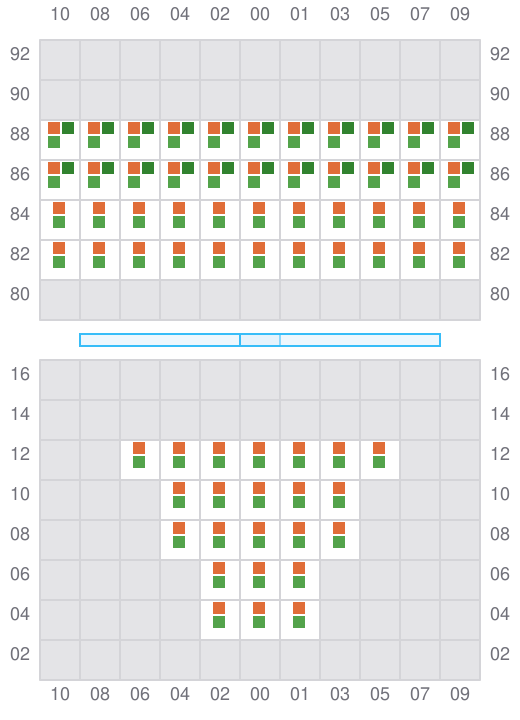

Bay 005 view and slots of MSC LANA II

007

  • ←

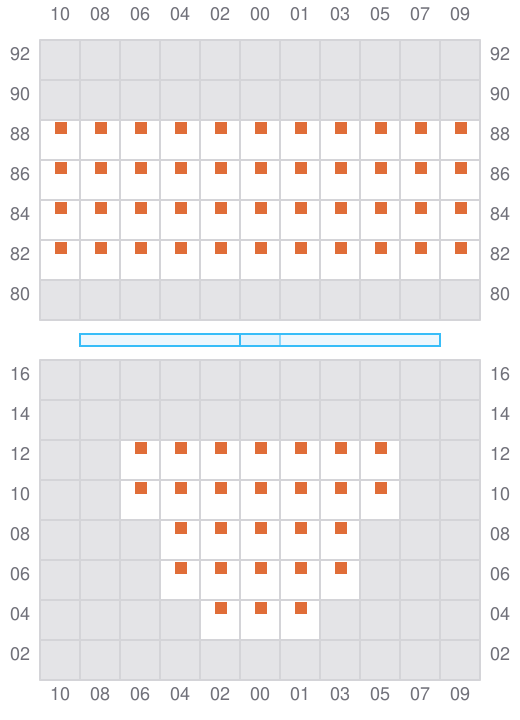

Bay 007 view and slots of MSC LANA II

009 (010)

  • →

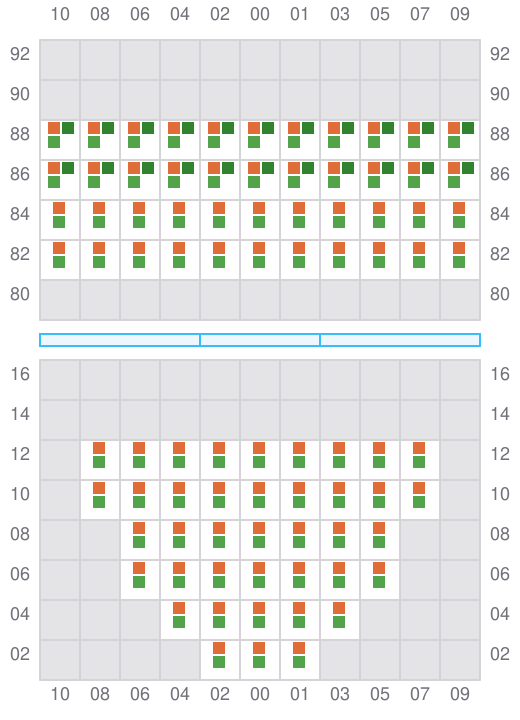

Bay 009 view and slots of MSC LANA II

011

  • ←
  • →

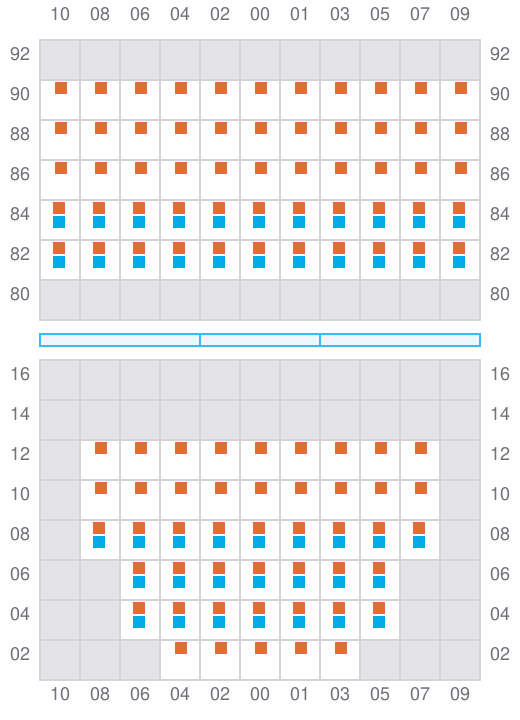

Bay 011 view and slots of MSC LANA II

013 (014)

  • →
Bay 013 view and slots of MSC LANA II

015

  • ←
  • →

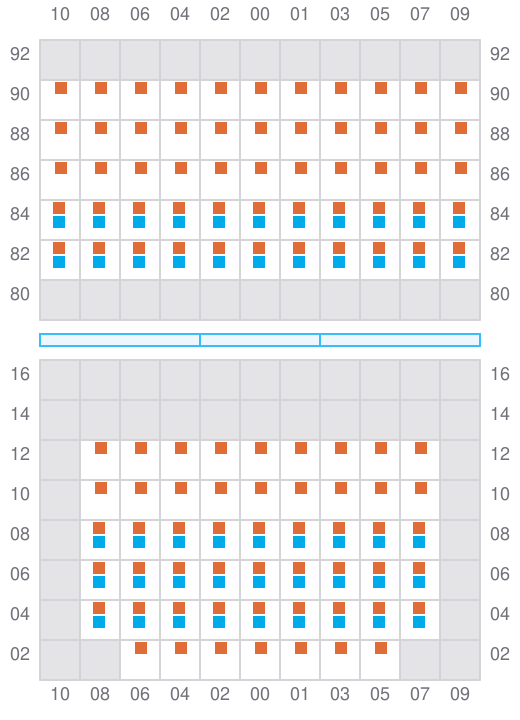

Bay 015 view and slots of MSC LANA II

017 (018)

  • →
Bay 017 view and slots of MSC LANA II

019

  • ←
  • → / ?

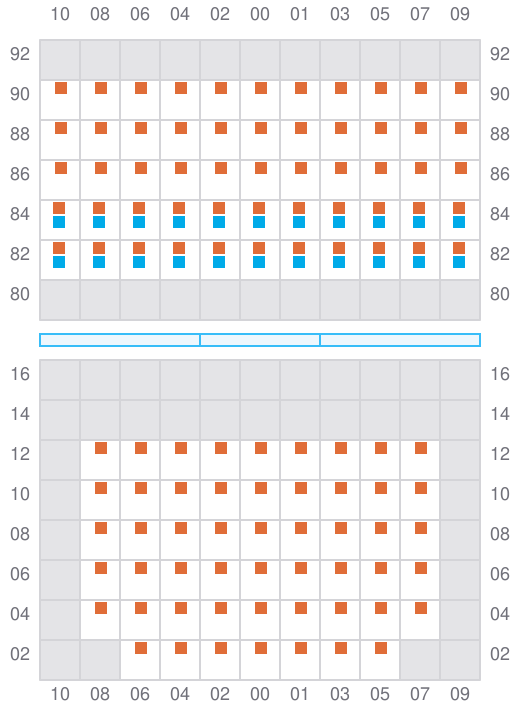

Bay 019 view and slots of MSC LANA II

021 (022)

  • →

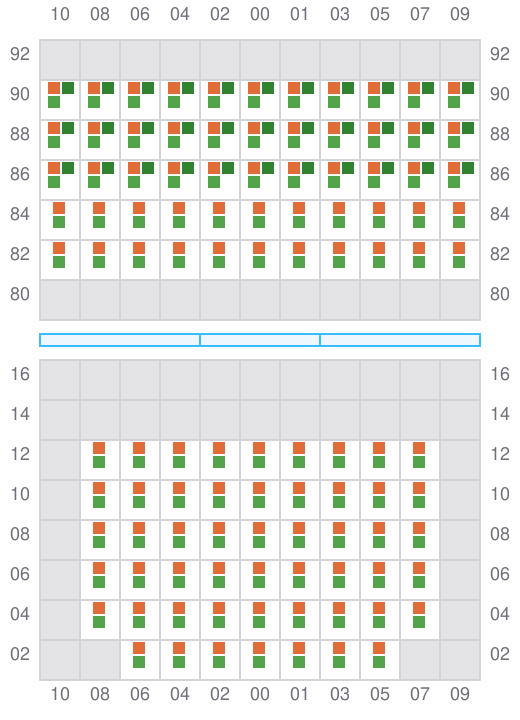

Bay 021 view and slots of MSC LANA II

023

  • ←
  • →

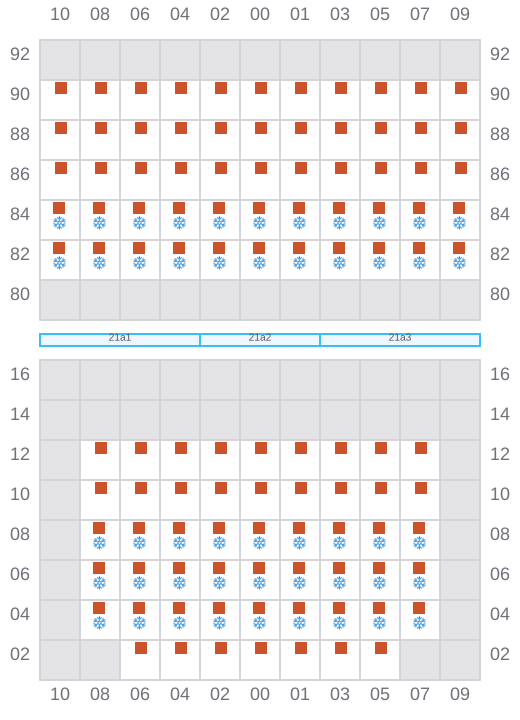

Bay 023 view and slots of MSC LANA II

025 (026)

  • →

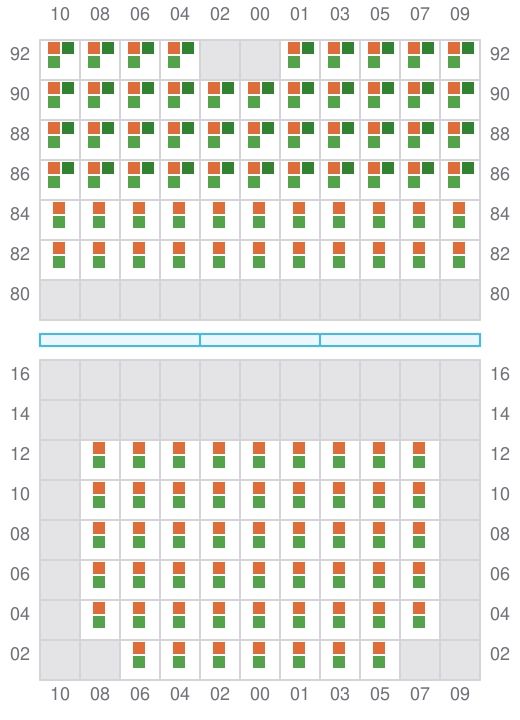

Bay 025 view and slots of MSC LANA II

027

  • ←
  • → / ?

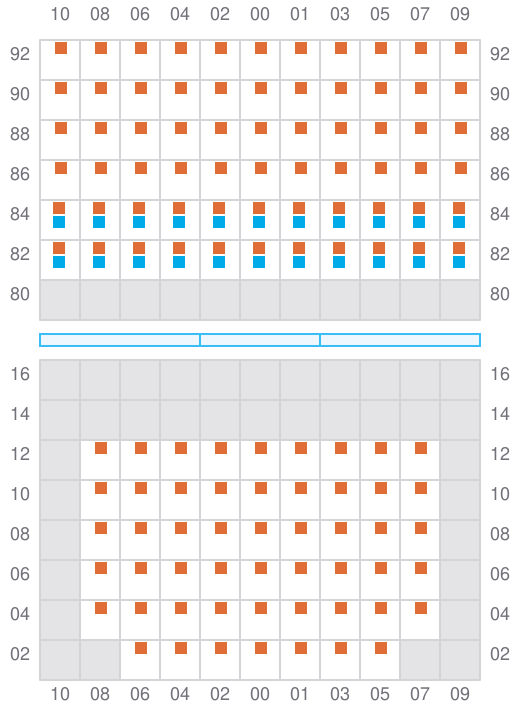

Bay 027 view and slots of MSC LANA II

029 (030)

  • →
  • ← / ?

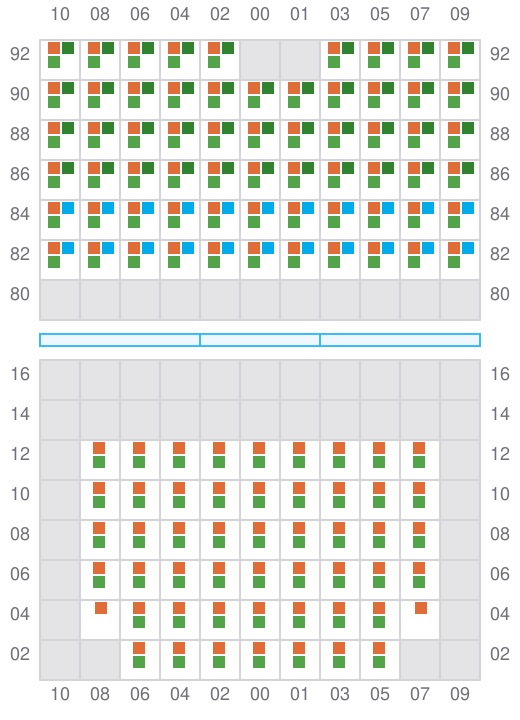

Bay 029 view and slots of MSC LANA II

031

  • ←
  • ? / →

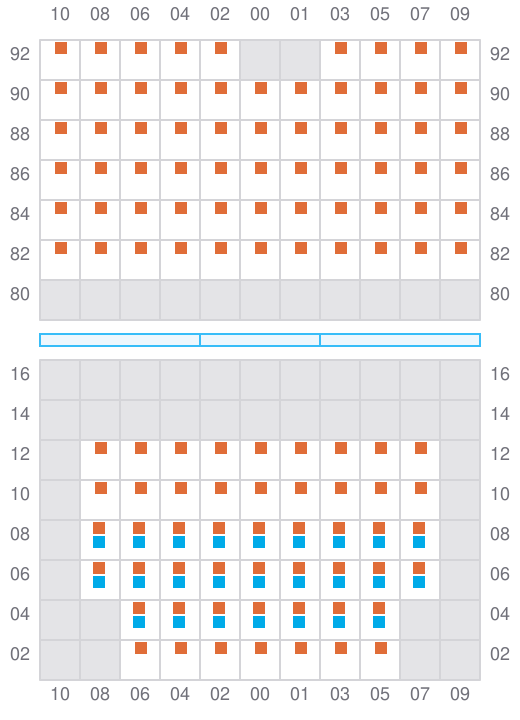

Bay 031 view and slots of MSC LANA II

033 (034)

  • →

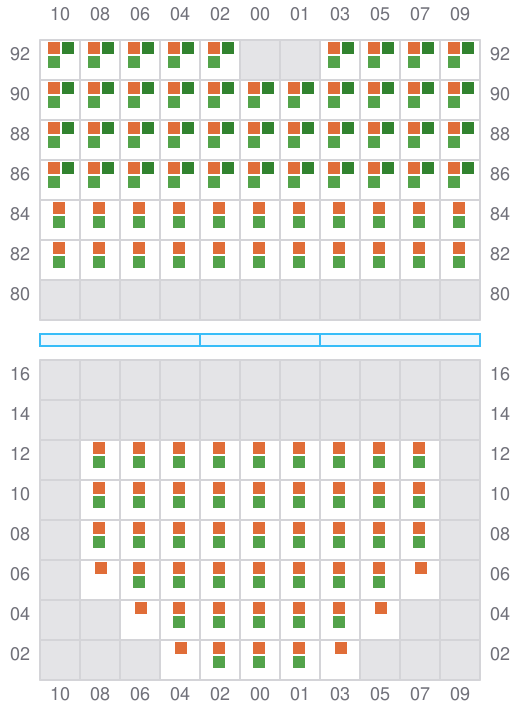

Bay 033 view and slots of MSC LANA II

035

  • ←
  • →
Bay 035 view and slots of MSC LANA II

037 (038)

  • → / ?
  • ← / ?

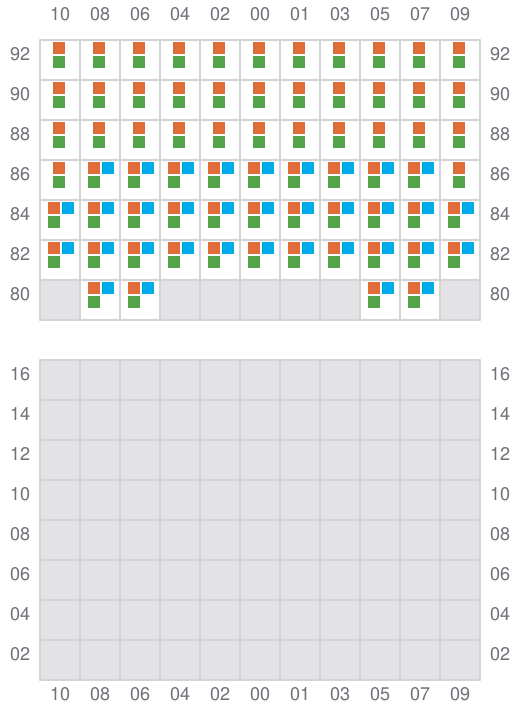

Bay 037 view and slots of MSC LANA II

039

  • ← / ?
  • → / ?

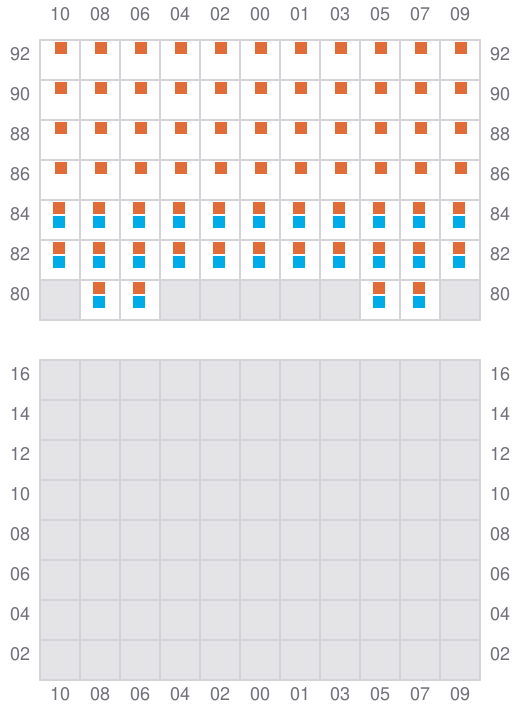

Bay 039 view and slots of MSC LANA II
