MSC LAUSANNE
9320398 | 9HA3289 | 9320398 by ********* Last update: Mon Jun 24 2024

General Info

Ship Name:MSC LAUSANNE

IMO Code:9320398

Call Sign:9HA3289

Line Operator:9320398

Class Name for Sister Ships:MAE

Year Built:2005

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):270.00

LOA (Length Overall):283.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:065

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:96

Min Above ISO Tier:14

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:5,664

Centers of Gravity

LCG Values:Known

LCG Data:0%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

Side view of MSC LAUSANNE

Hatch-Covers View

Deck view of MSC LAUSANNE

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

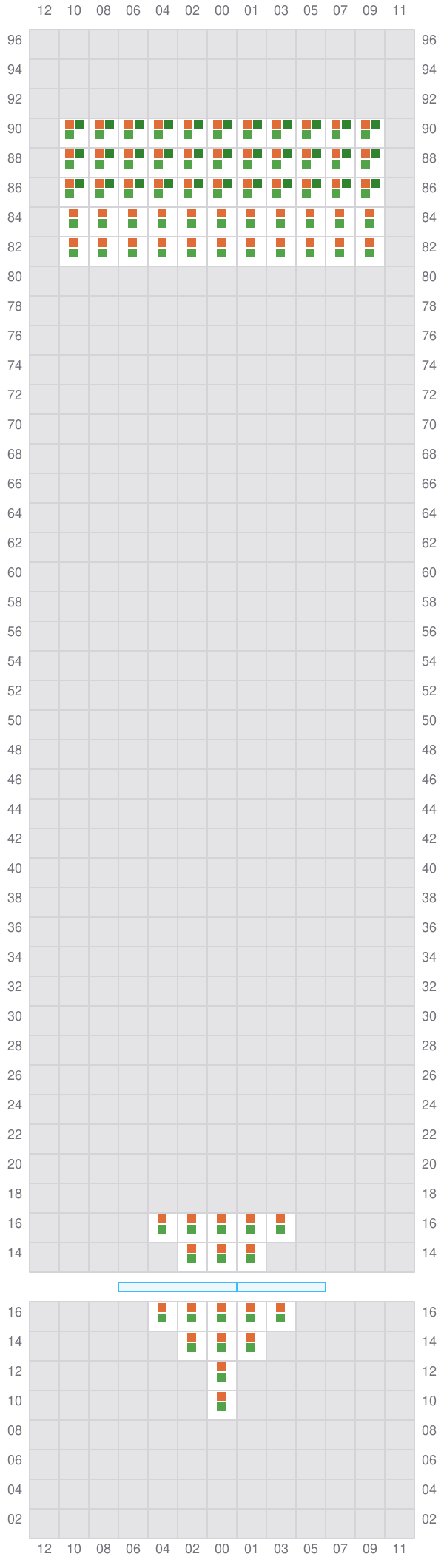

Bay 001 view and slots of MSC LAUSANNE

003

←

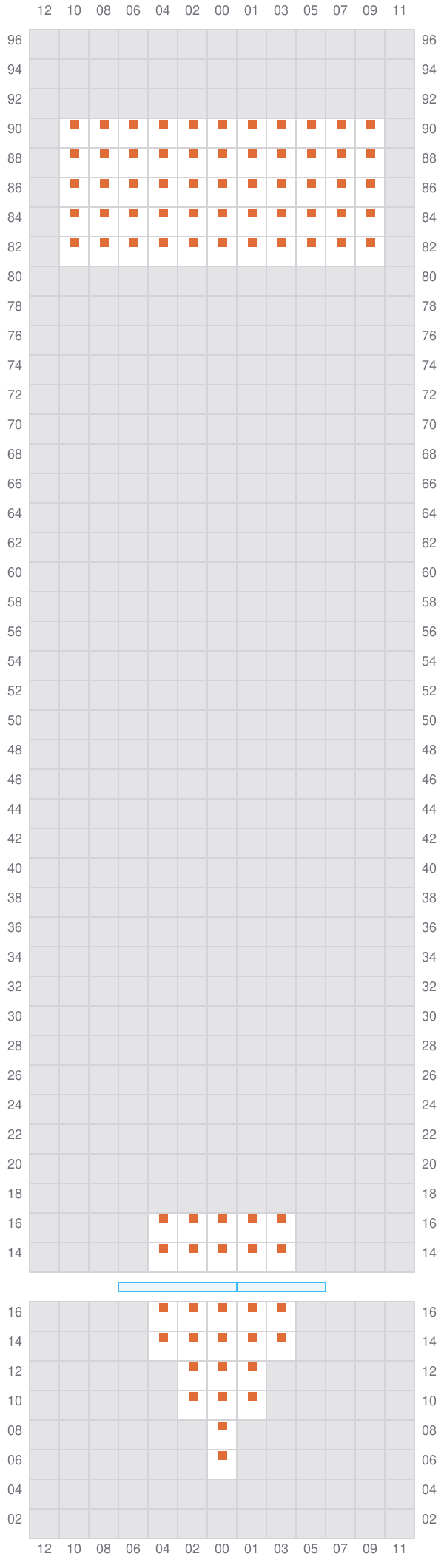

Bay 003 view and slots of MSC LAUSANNE

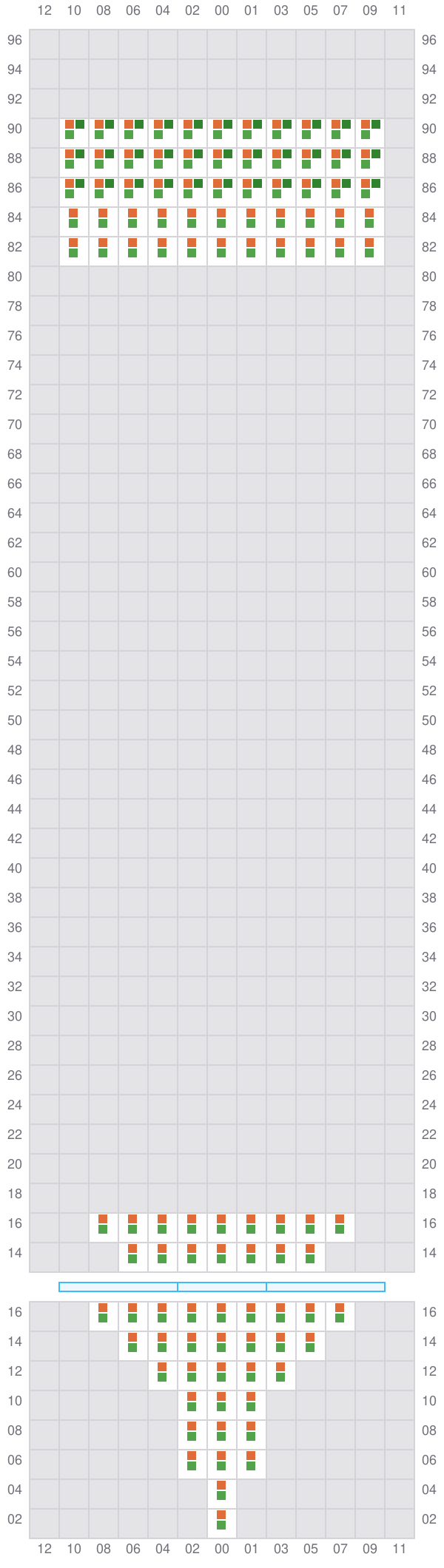

005 (006)

→

Bay 005 view and slots of MSC LAUSANNE

007

←

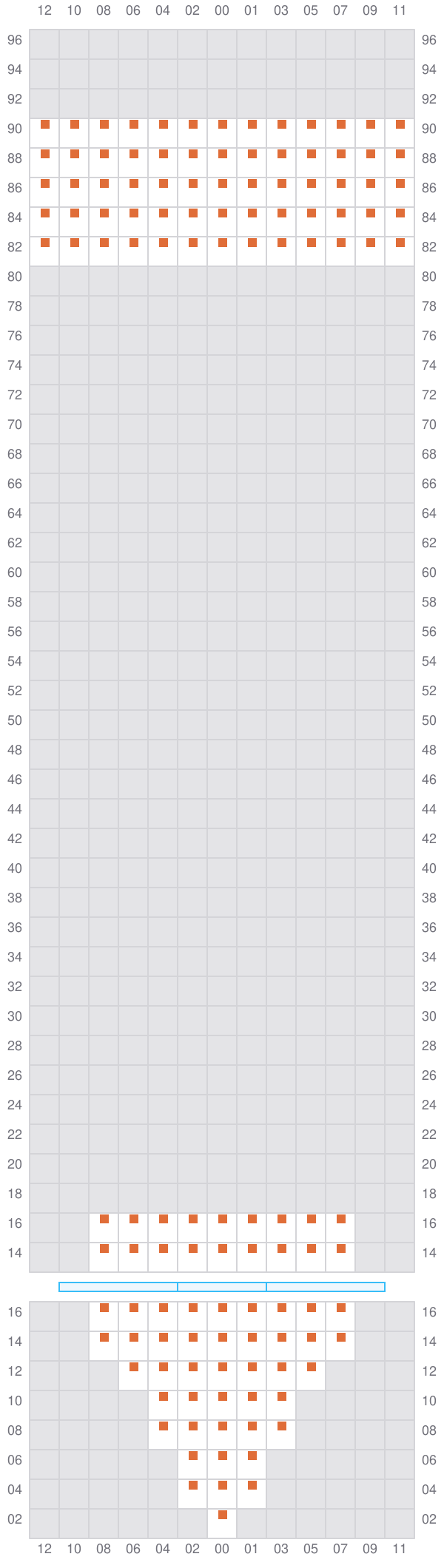

Bay 007 view and slots of MSC LAUSANNE

009 (010)

→

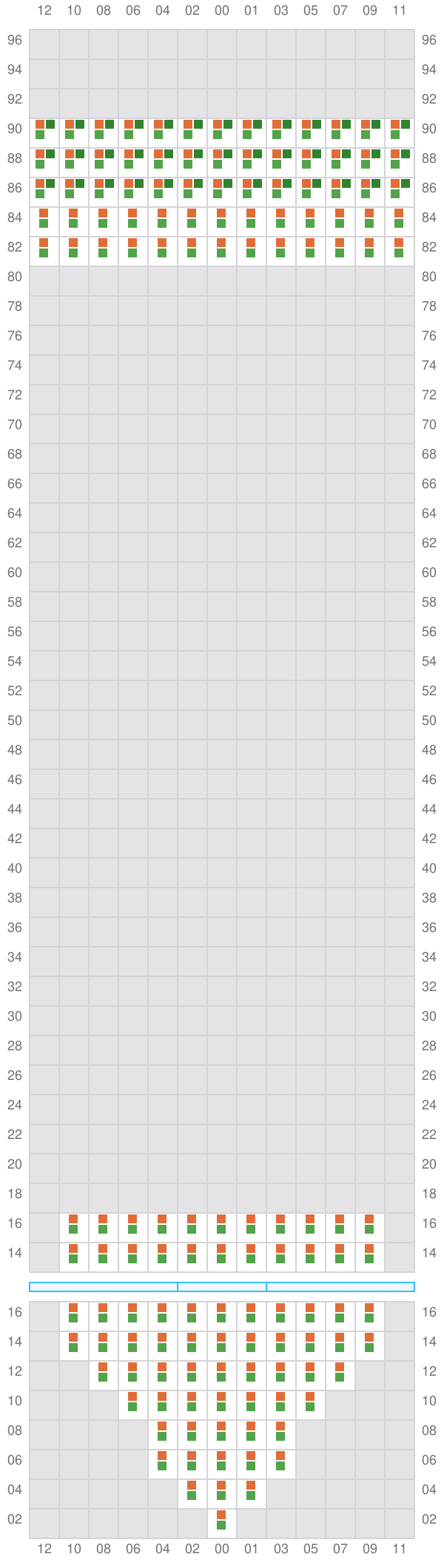

Bay 009 view and slots of MSC LAUSANNE

011

←
^→ / _?

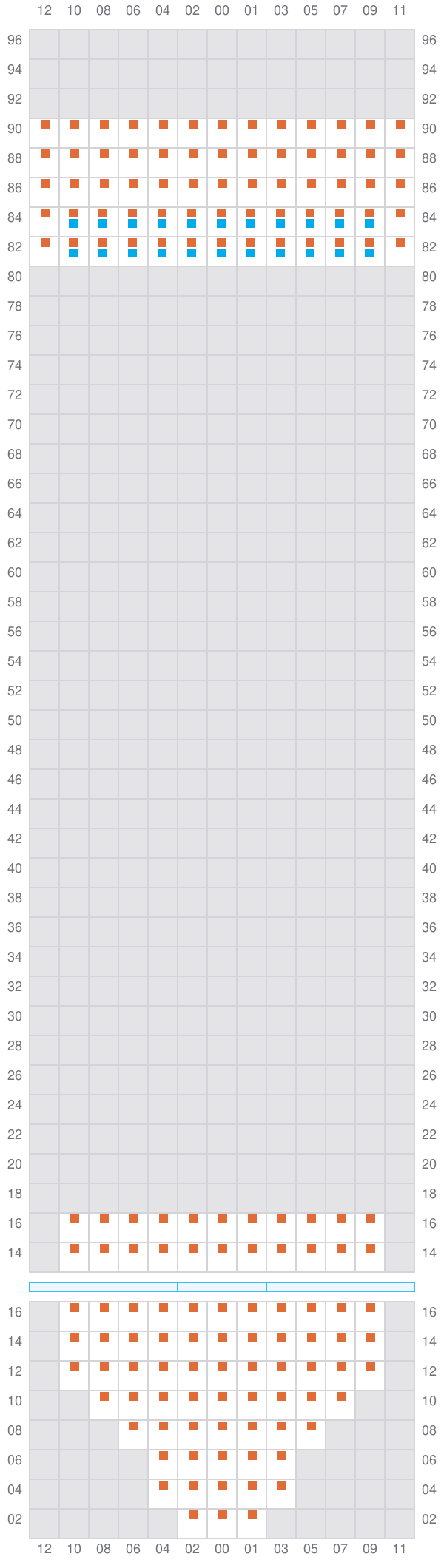

Bay 011 view and slots of MSC LAUSANNE

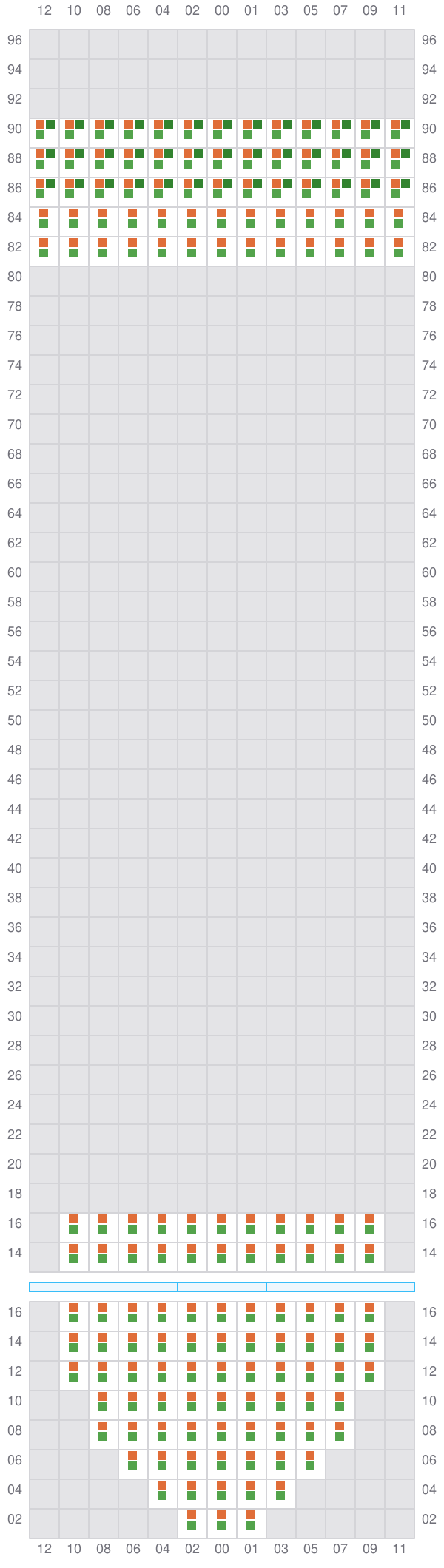

013 (014)

→

Bay 013 view and slots of MSC LAUSANNE

015

←
^→ / _?

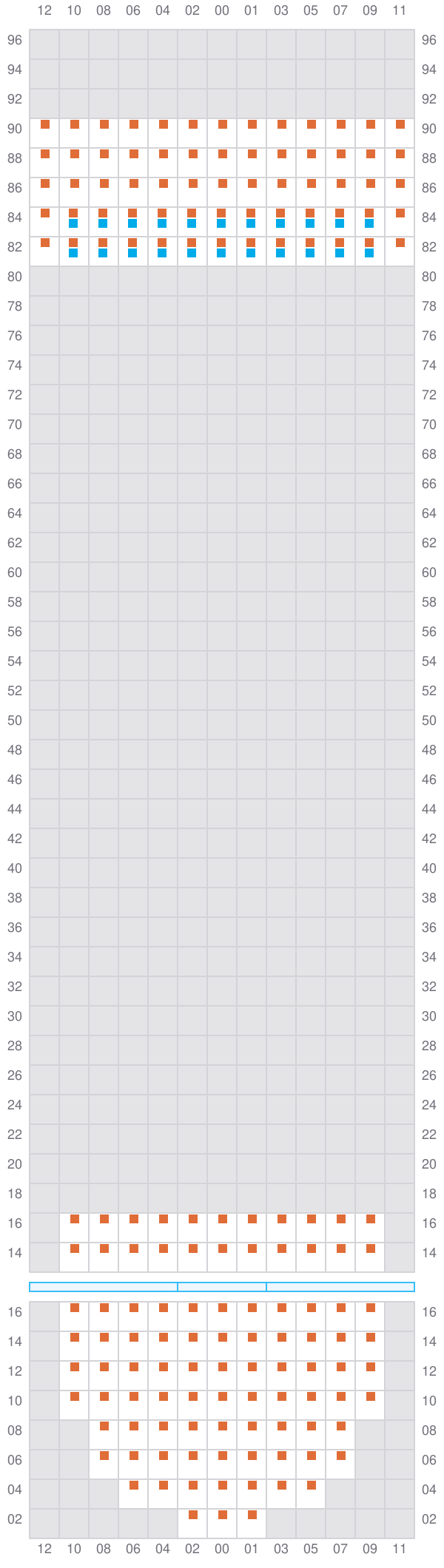

Bay 015 view and slots of MSC LAUSANNE

017 (018)

→

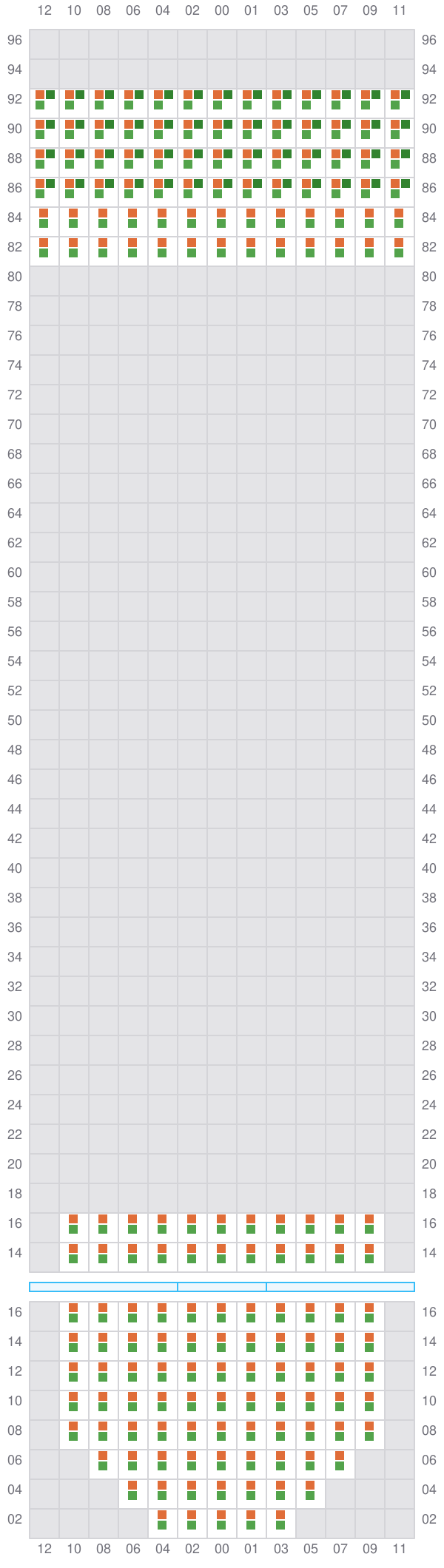

Bay 017 view and slots of MSC LAUSANNE

019

←
^→ / _?

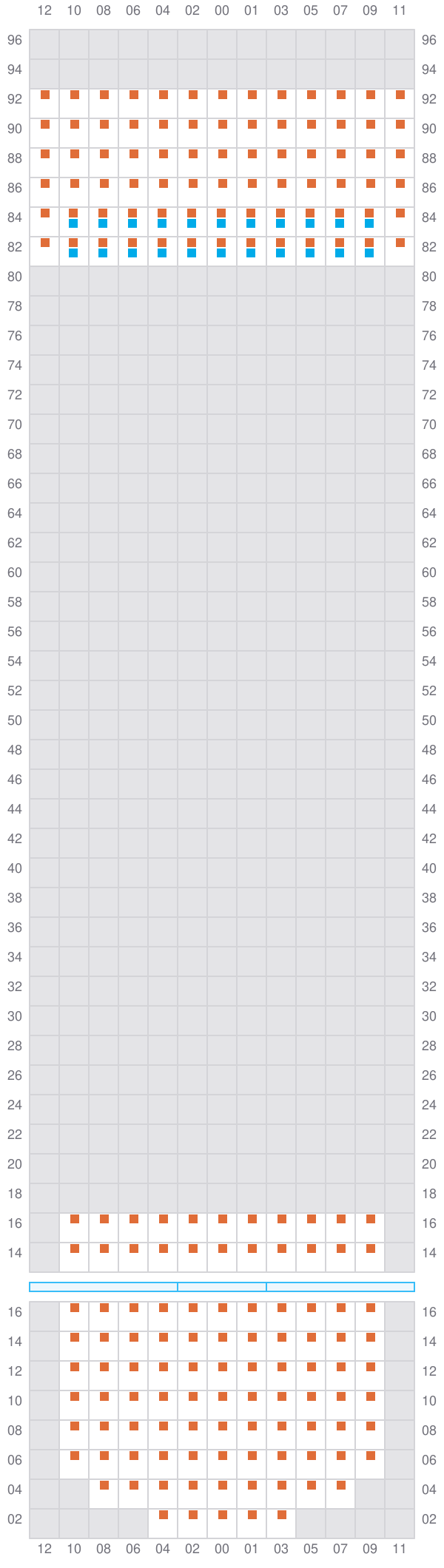

Bay 019 view and slots of MSC LAUSANNE

021 (022)

→

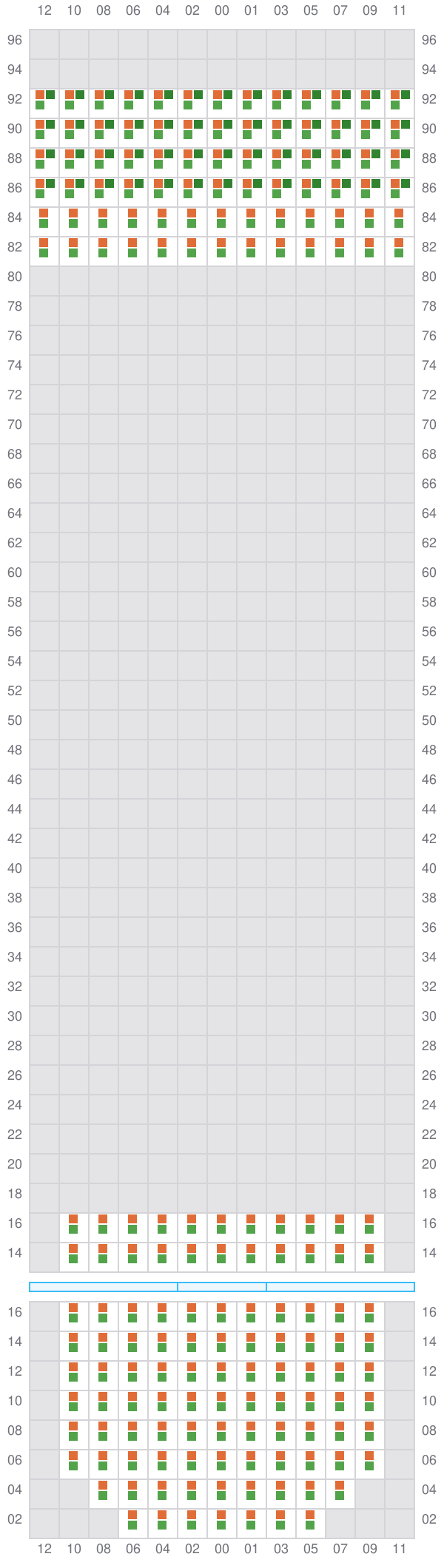

Bay 021 view and slots of MSC LAUSANNE

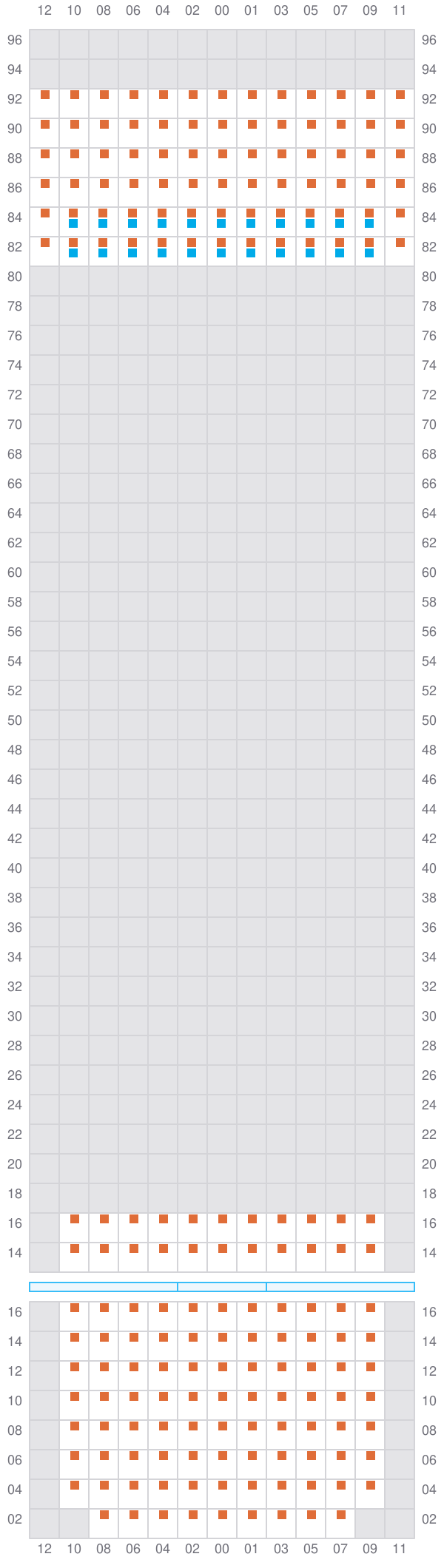

023

←
^→ / _?

Bay 023 view and slots of MSC LAUSANNE

025 (026)

→

Bay 025 view and slots of MSC LAUSANNE

027

←
^→ / _?

Bay 027 view and slots of MSC LAUSANNE

029 (030)

→

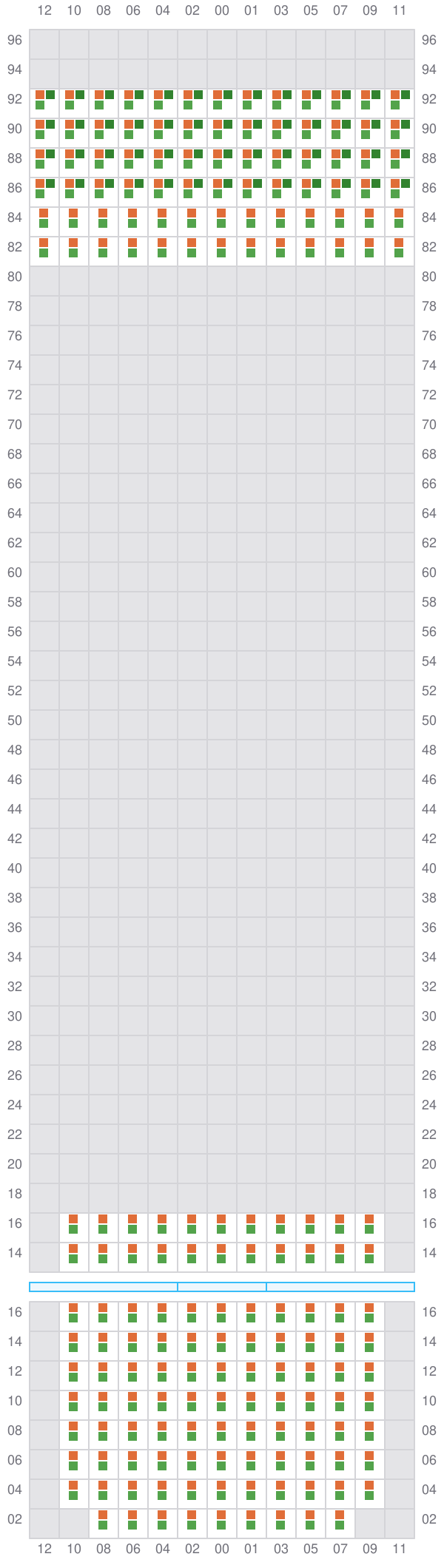

Bay 029 view and slots of MSC LAUSANNE

031

←
^→ / _?

Bay 031 view and slots of MSC LAUSANNE

033 (034)

→
^← / _?

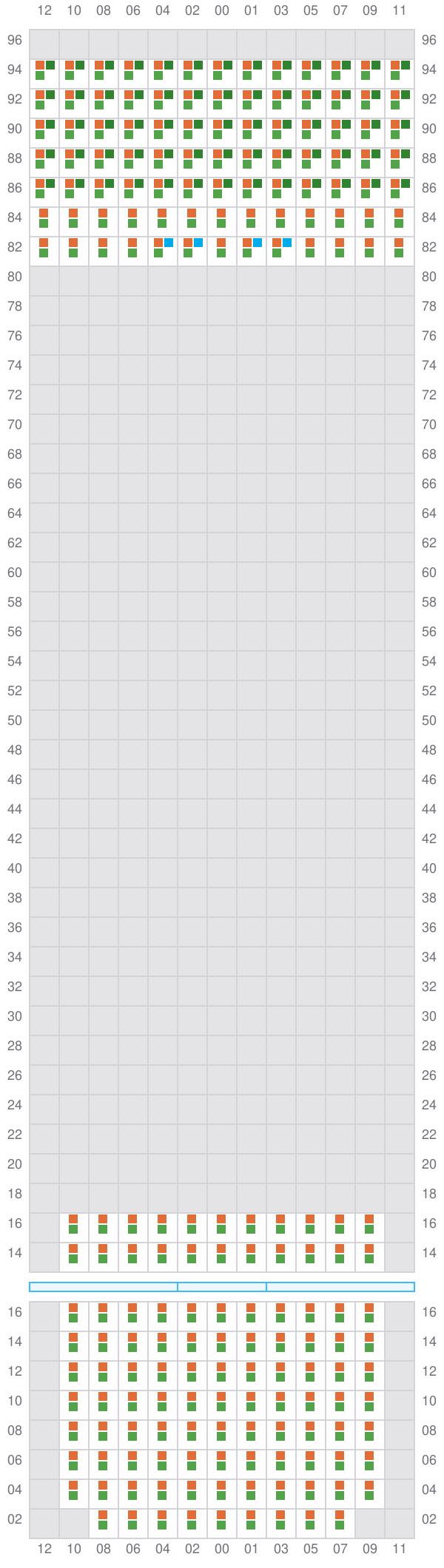

Bay 033 view and slots of MSC LAUSANNE

035

←
^→ / _?

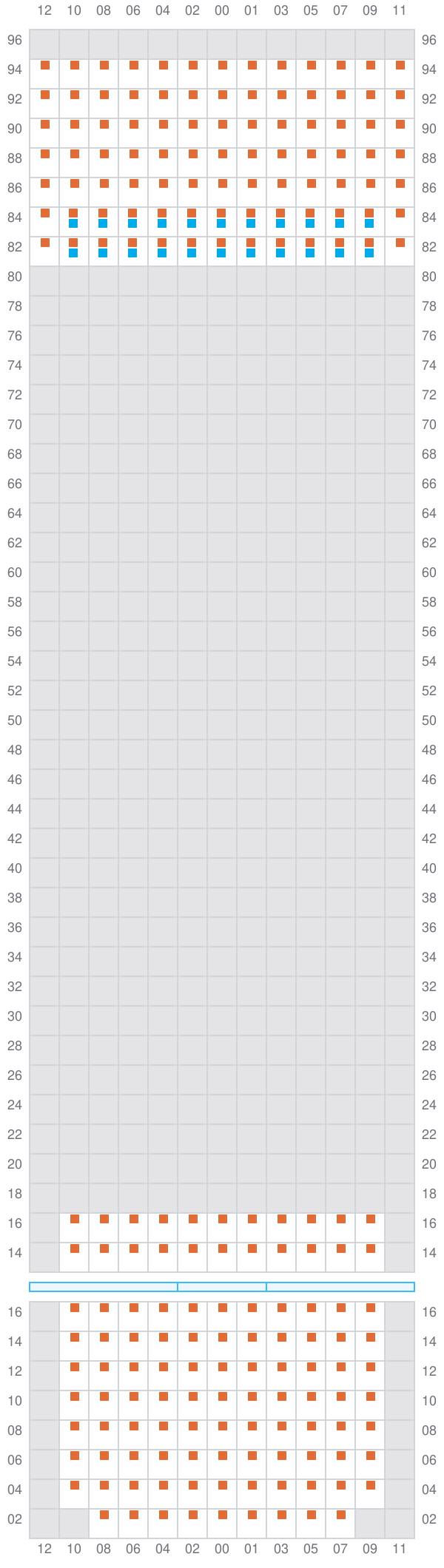

Bay 035 view and slots of MSC LAUSANNE

037 (038)

→
^← / _?

Bay 037 view and slots of MSC LAUSANNE

039

←
→

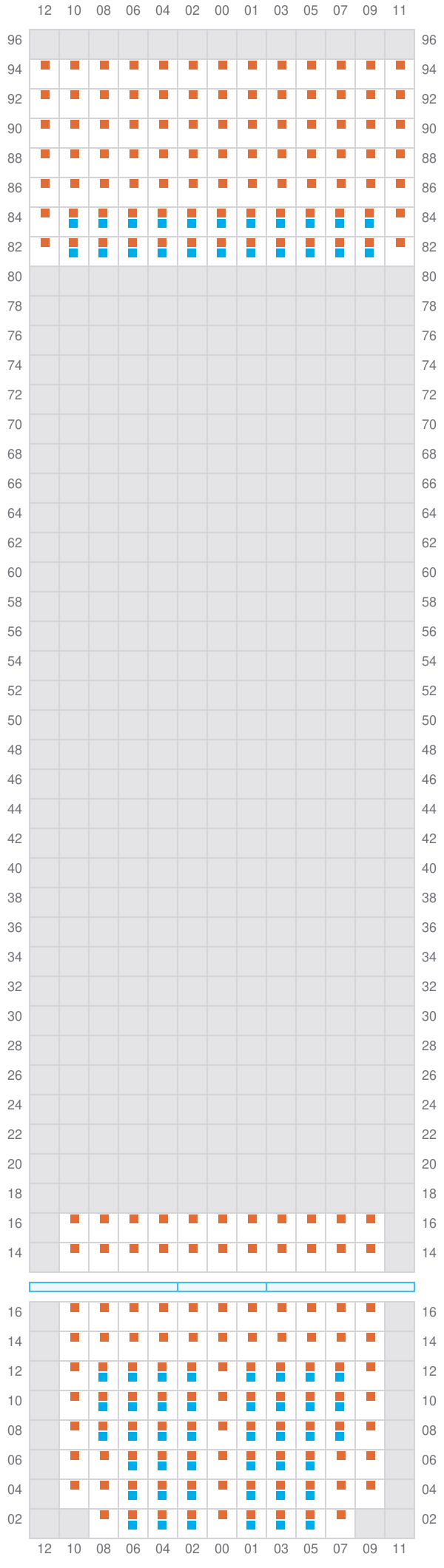

Bay 039 view and slots of MSC LAUSANNE

041 (042)

→
^← / _?

Bay 041 view and slots of MSC LAUSANNE

043

←
→

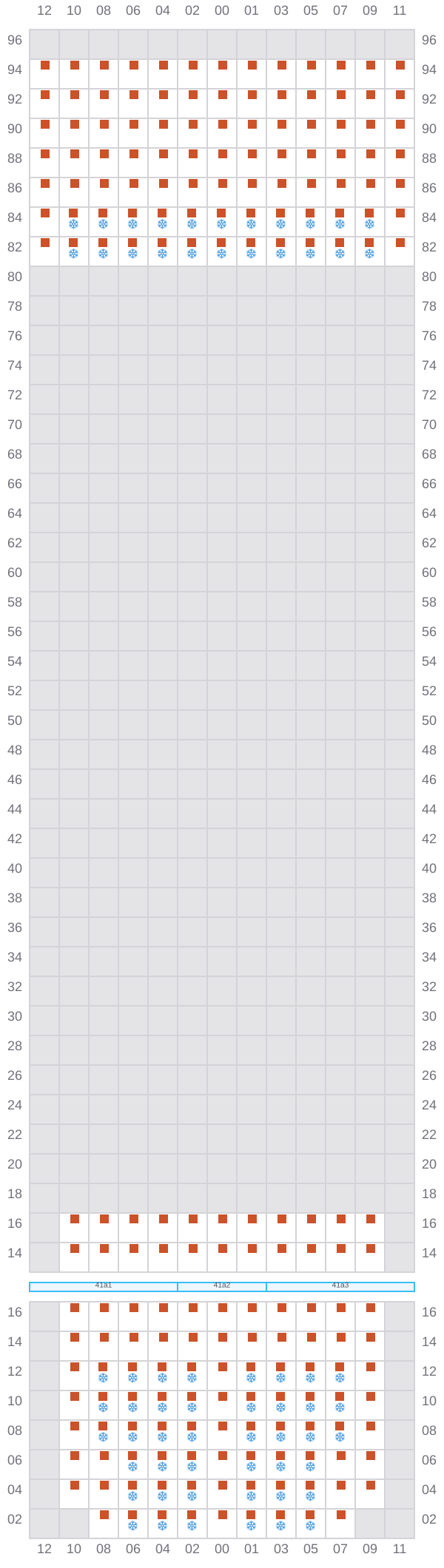

Bay 043 view and slots of MSC LAUSANNE

045 (046)

→
^← / _?

Bay 045 view and slots of MSC LAUSANNE

047

←
→

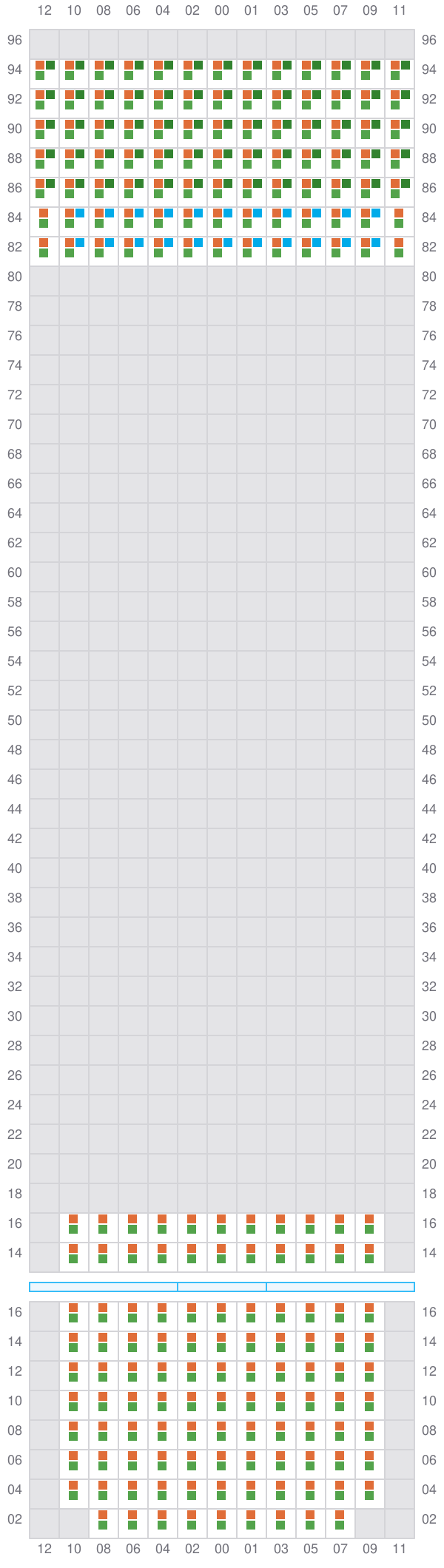

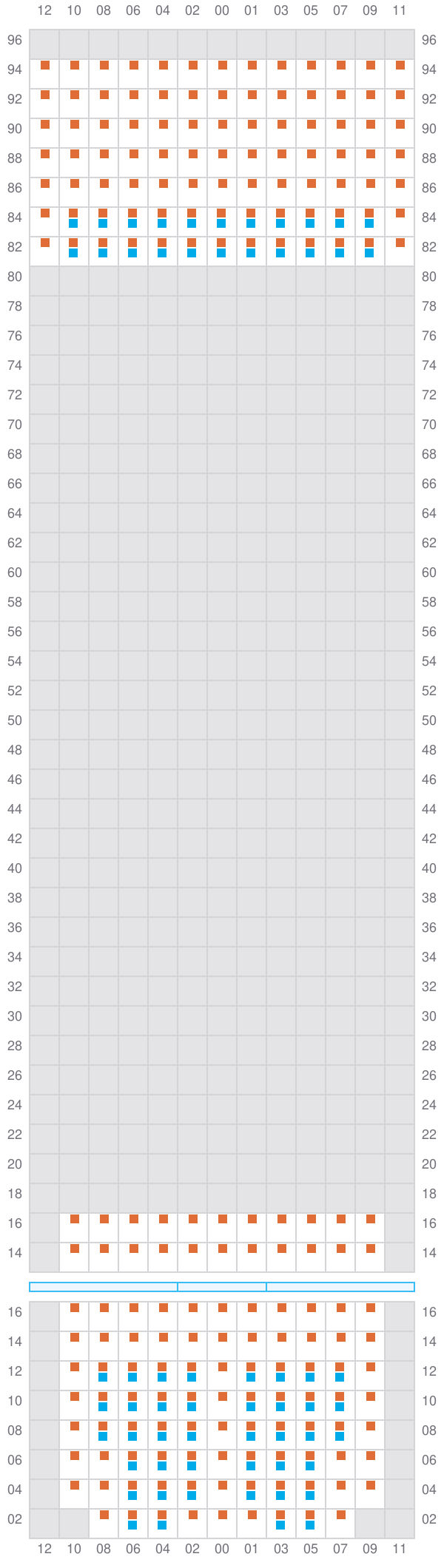

Bay 047 view and slots of MSC LAUSANNE

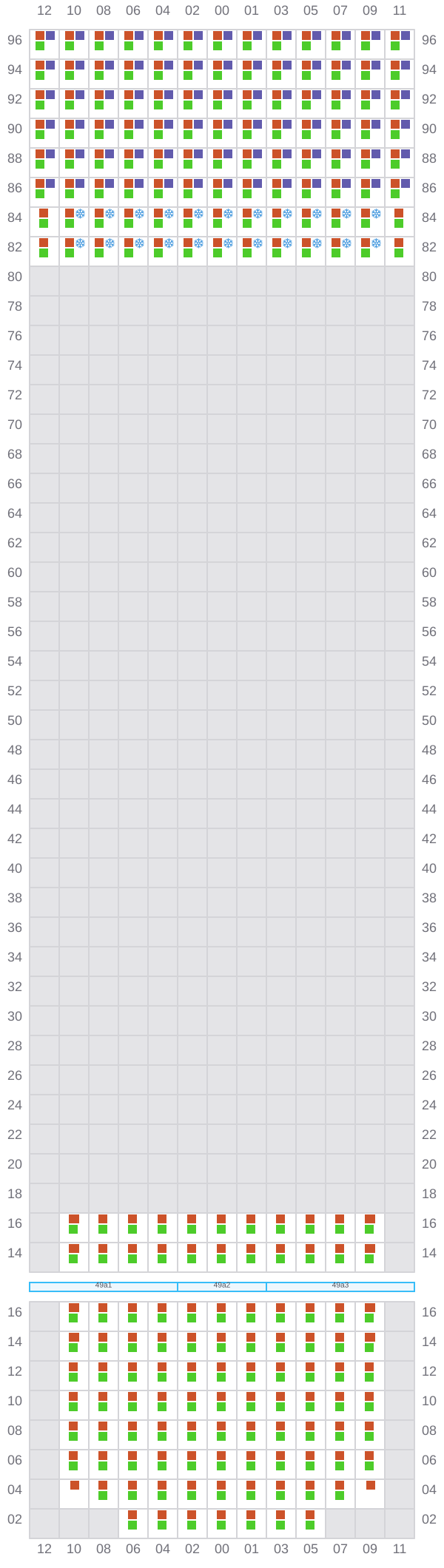

049 (050)

→
^← / _?

Bay 049 view and slots of MSC LAUSANNE

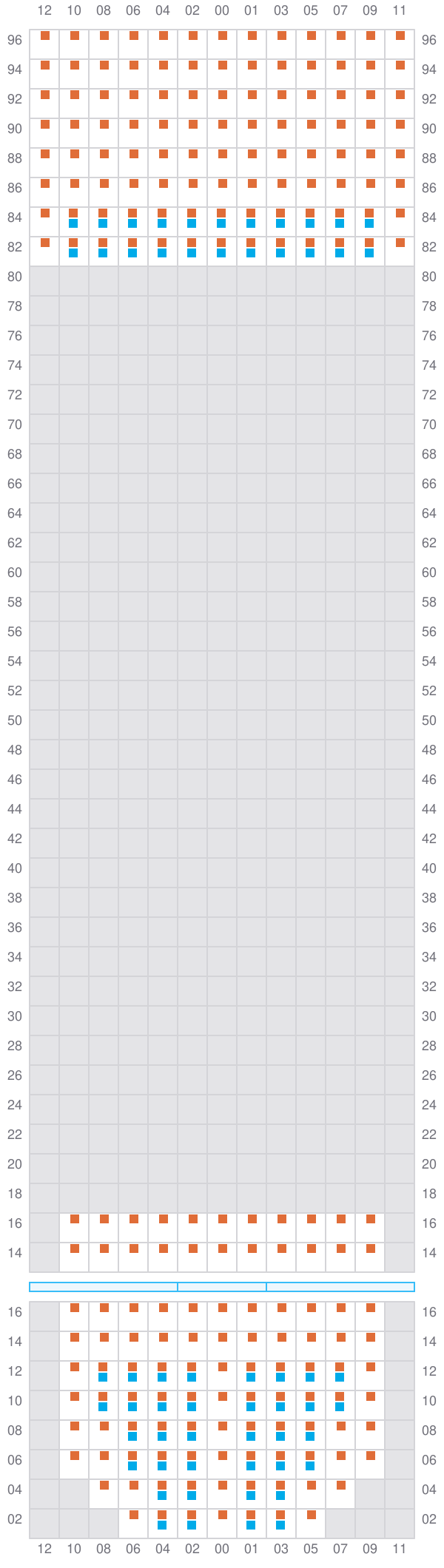

051

←
→

Bay 051 view and slots of MSC LAUSANNE

053 (054)

→
^← / _?

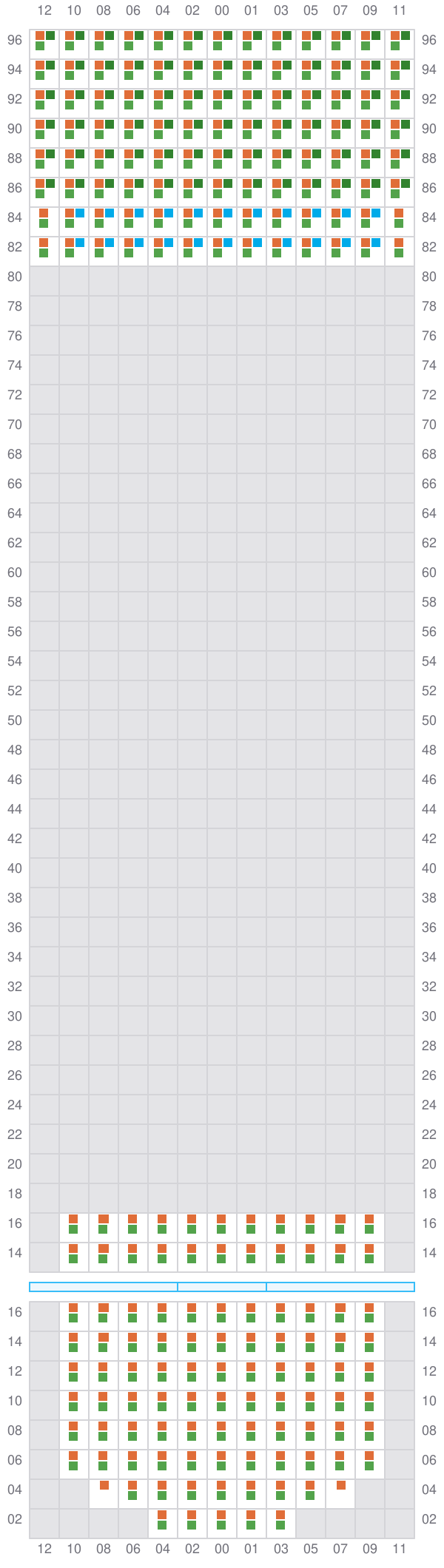

Bay 053 view and slots of MSC LAUSANNE

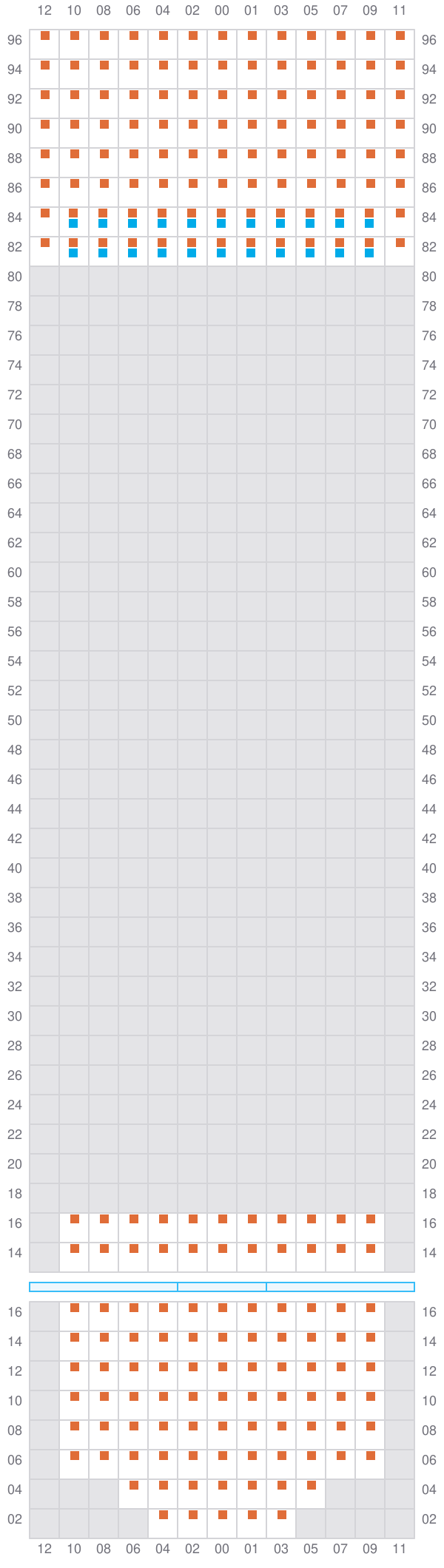

055

←
^→ / _?

Bay 055 view and slots of MSC LAUSANNE

057 (058)

^→ / _?

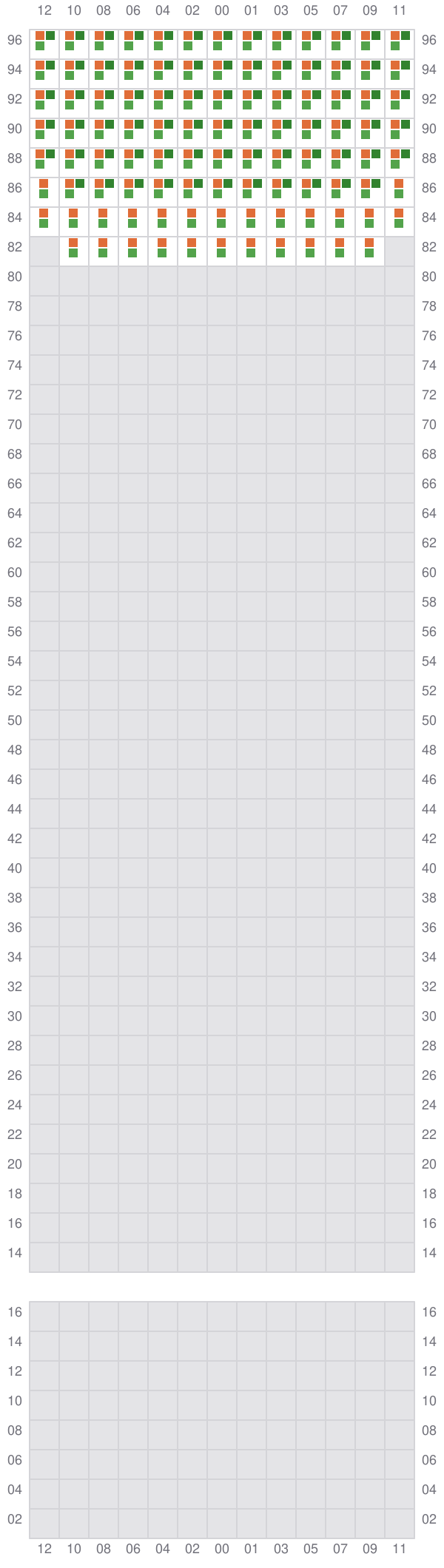

Bay 057 view and slots of MSC LAUSANNE

059

^← / _?
^→ / _?

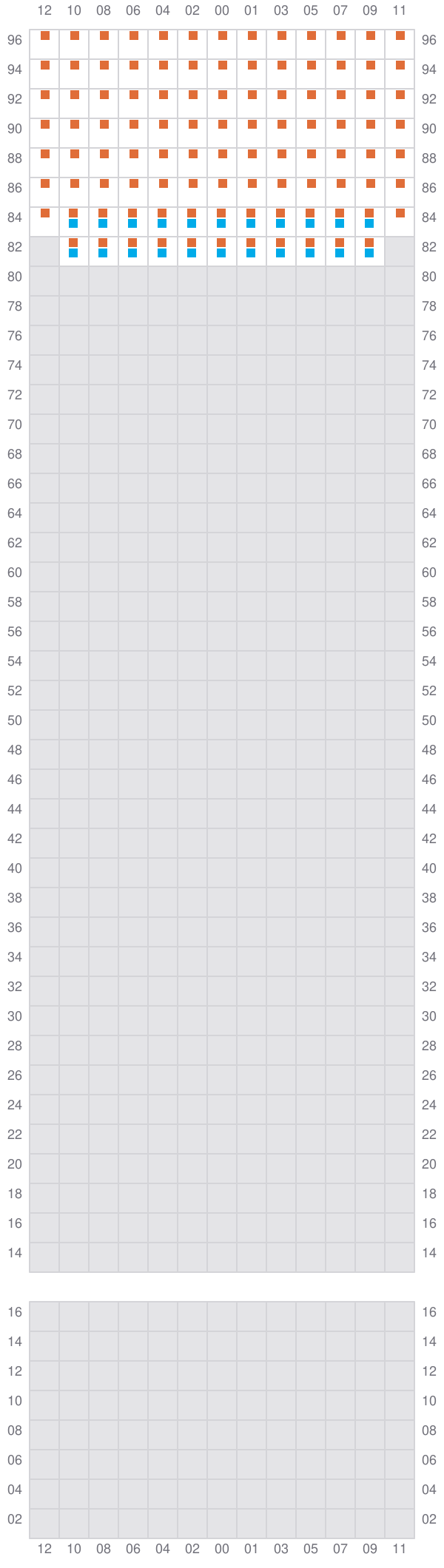

Bay 059 view and slots of MSC LAUSANNE

061 (062)

^→ / _?

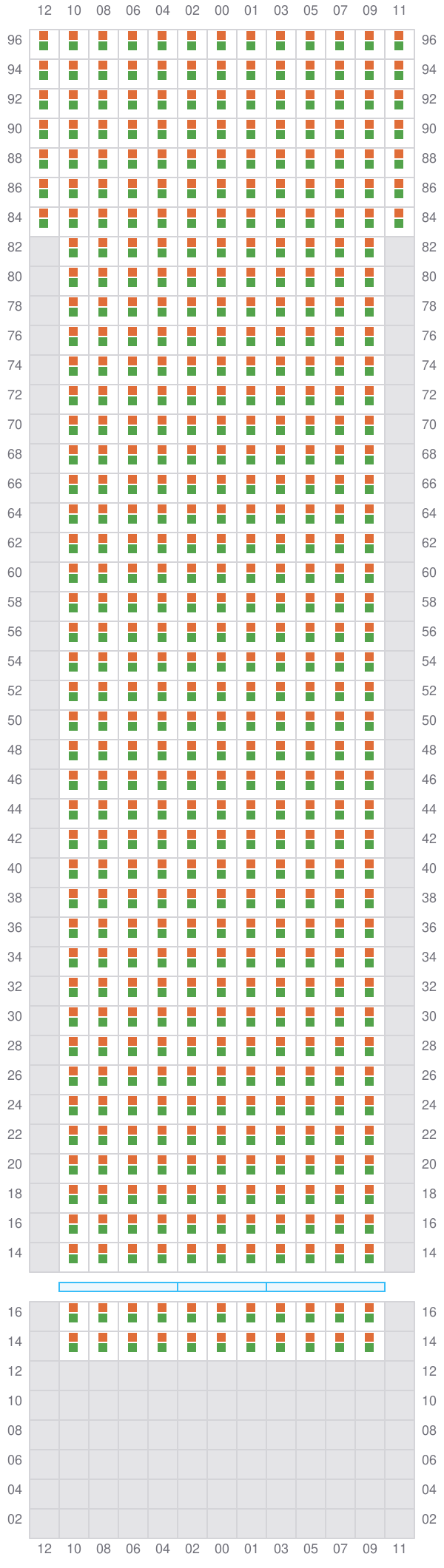

Bay 061 view and slots of MSC LAUSANNE

063

^← / _?

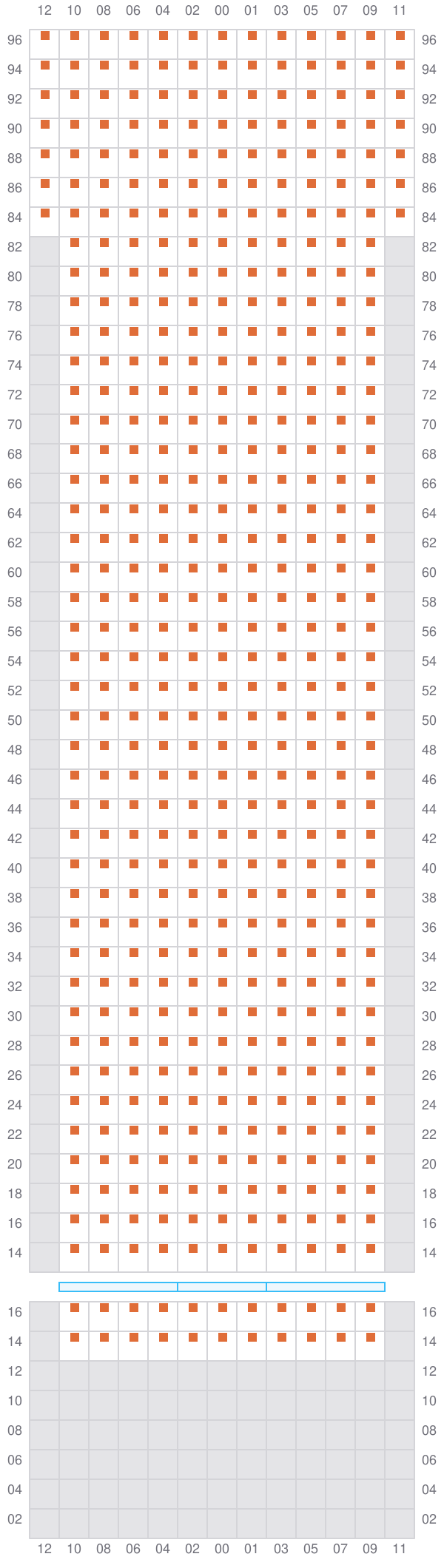

Bay 063 view and slots of MSC LAUSANNE

065 (066)

^→ / _?

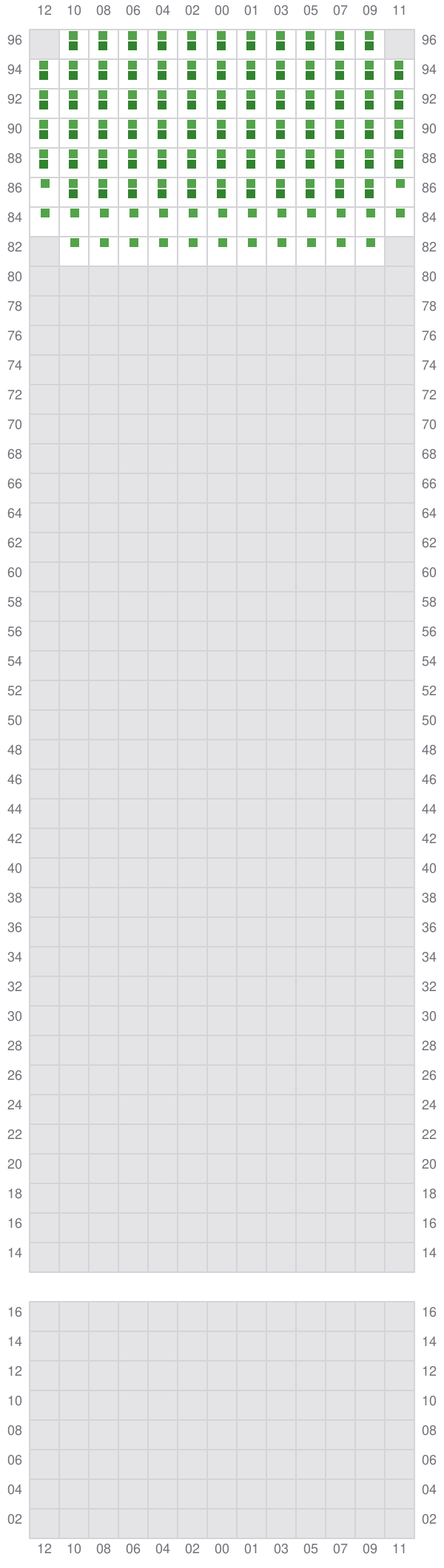

Bay 065 view and slots of MSC LAUSANNE
